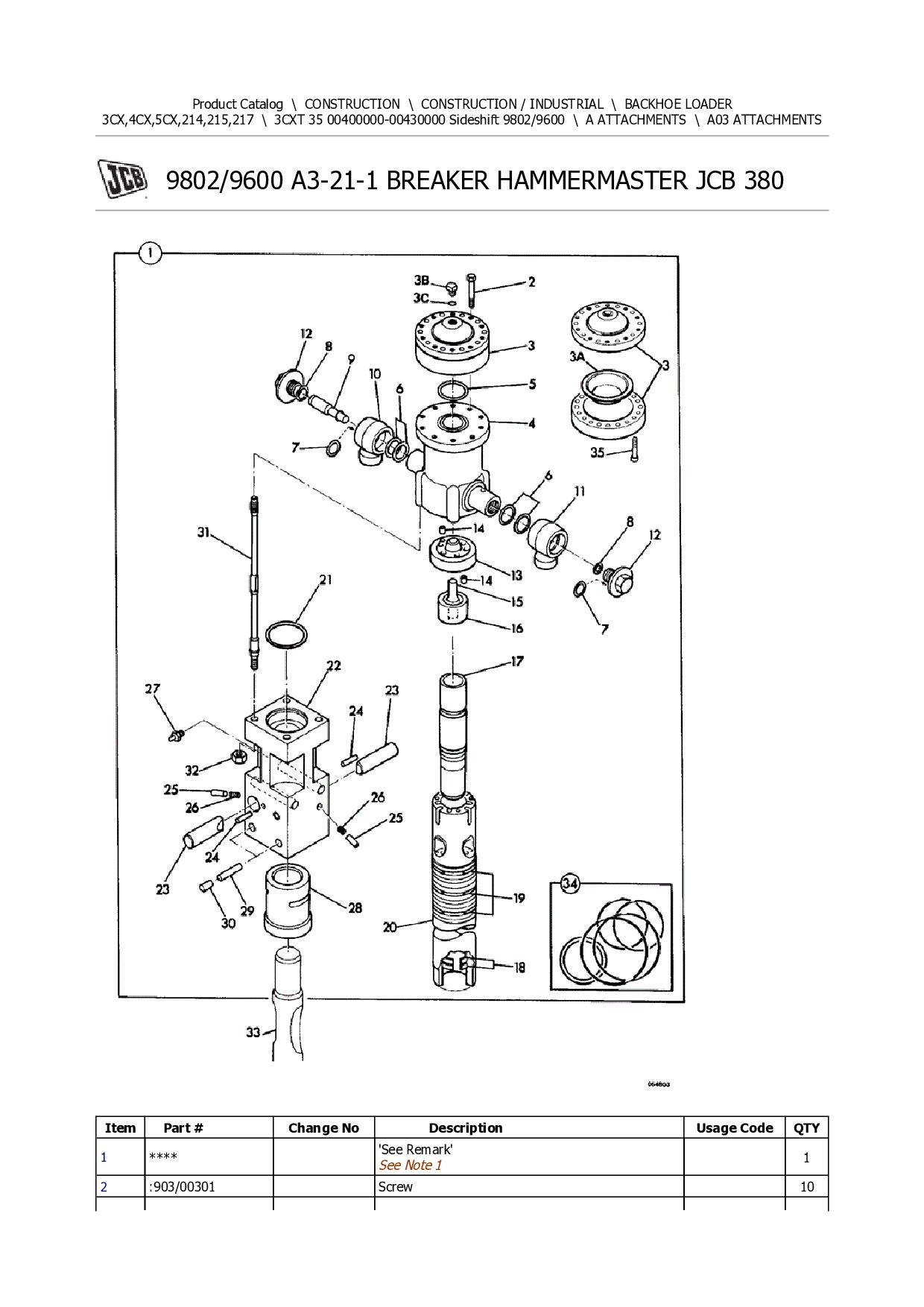

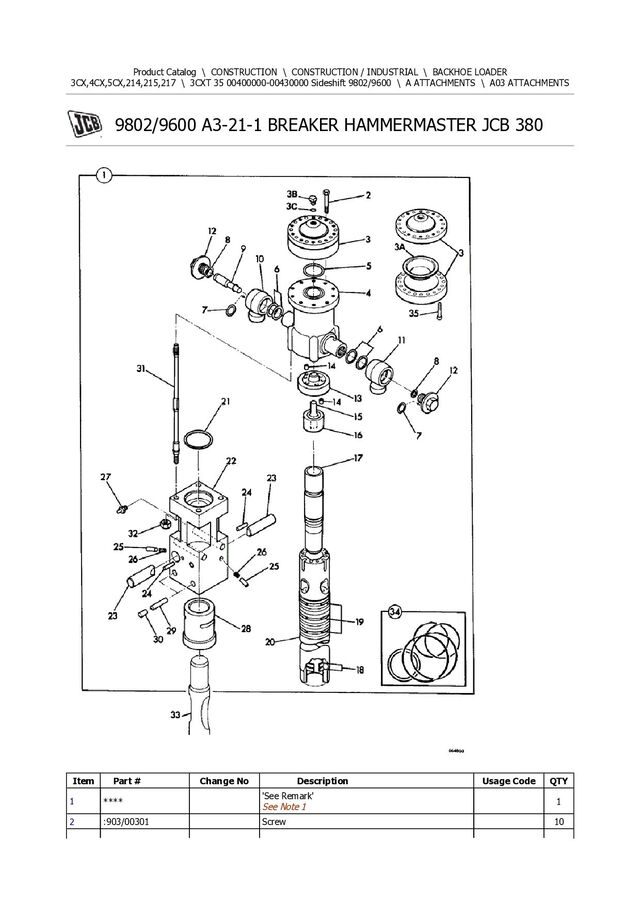

1. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-21-1 BREAKER HAMMERMASTER JCB 380 Item Part # Change No Description Usage Code QTY 1 **** 'See Remark' See Note 1 1 2 :903/00301 Screw 10

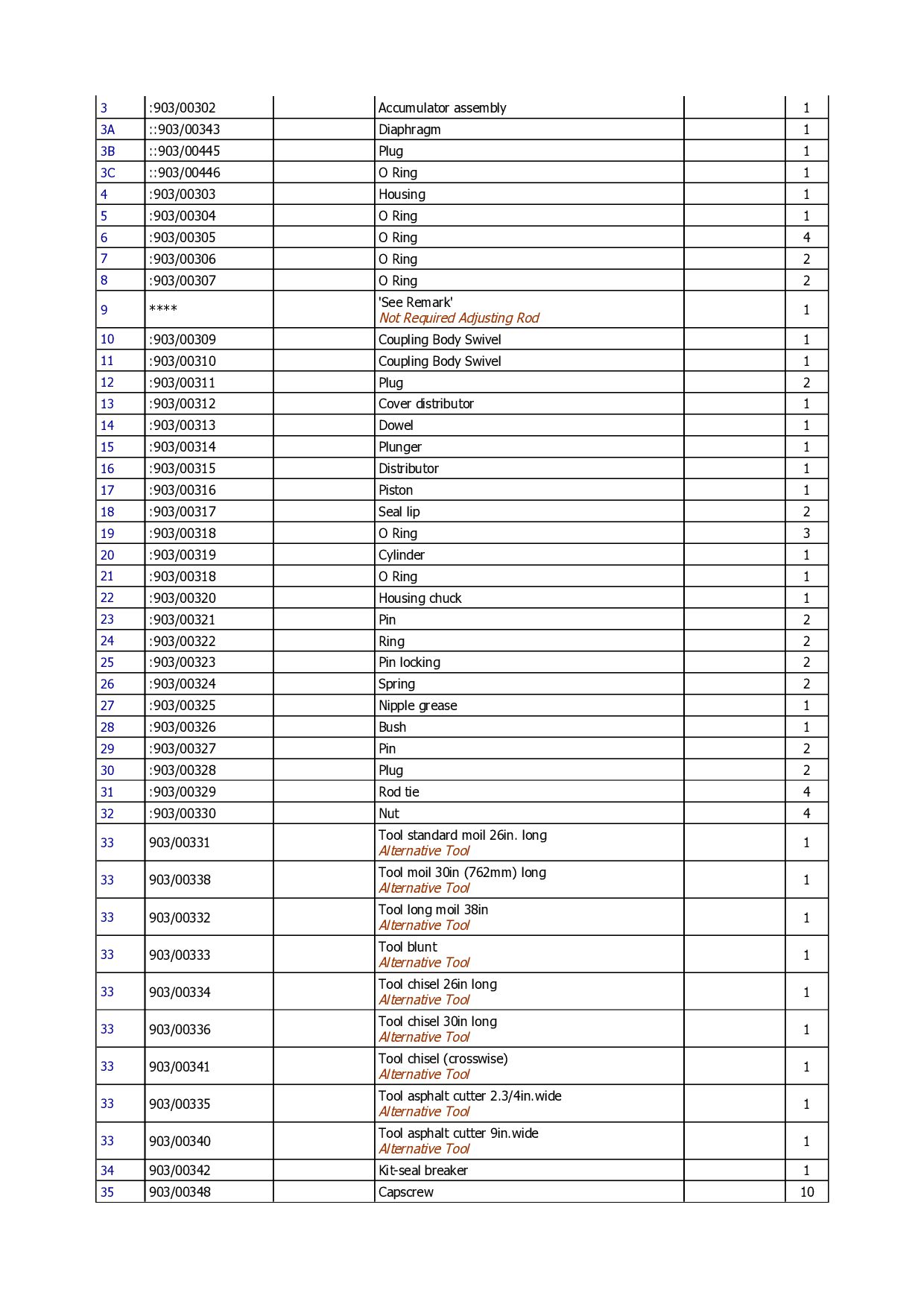

2. 3 :903/00302 Accumulator assembly 1 3A ::903/00343 Diaphragm 1 3B ::903/00445 Plug 1 3C ::903/00446 O Ring 1 4 :903/00303 Housing 1 5 :903/00304 O Ring 1 6 :903/00305 O Ring 4 7 :903/00306 O Ring 2 8 :903/00307 O Ring 2 9 **** 'See Remark' Not Required Adjusting Rod 1 10 :903/00309 Coupling Body Swivel 1 11 :903/00310 Coupling Body Swivel 1 12 :903/00311 Plug 2 13 :903/00312 Cover distributor 1 14 :903/00313 Dowel 1 15 :903/00314 Plunger 1 16 :903/00315 Distributor 1 17 :903/00316 Piston 1 18 :903/00317 Seal lip 2 19 :903/00318 O Ring 3 20 :903/00319 Cylinder 1 21 :903/00318 O Ring 1 22 :903/00320 Housing chuck 1 23 :903/00321 Pin 2 24 :903/00322 Ring 2 25 :903/00323 Pin locking 2 26 :903/00324 Spring 2 27 :903/00325 Nipple grease 1 28 :903/00326 Bush 1 29 :903/00327 Pin 2 30 :903/00328 Plug 2 31 :903/00329 Rod tie 4 32 :903/00330 Nut 4 33 903/00331 Tool standard moil 26in. long Alternative Tool 1 33 903/00338 Tool moil 30in (762mm) long Alternative Tool 1 33 903/00332 Tool long moil 38in Alternative Tool 1 33 903/00333 Tool blunt Alternative Tool 1 33 903/00334 Tool chisel 26in long Alternative Tool 1 33 903/00336 Tool chisel 30in long Alternative Tool 1 33 903/00341 Tool chisel (crosswise) Alternative Tool 1 33 903/00335 Tool asphalt cutter 2.3/4in.wide Alternative Tool 1 33 903/00340 Tool asphalt cutter 9in.wide Alternative Tool 1 34 903/00342 Kit-seal breaker 1 35 903/00348 Capscrew 10

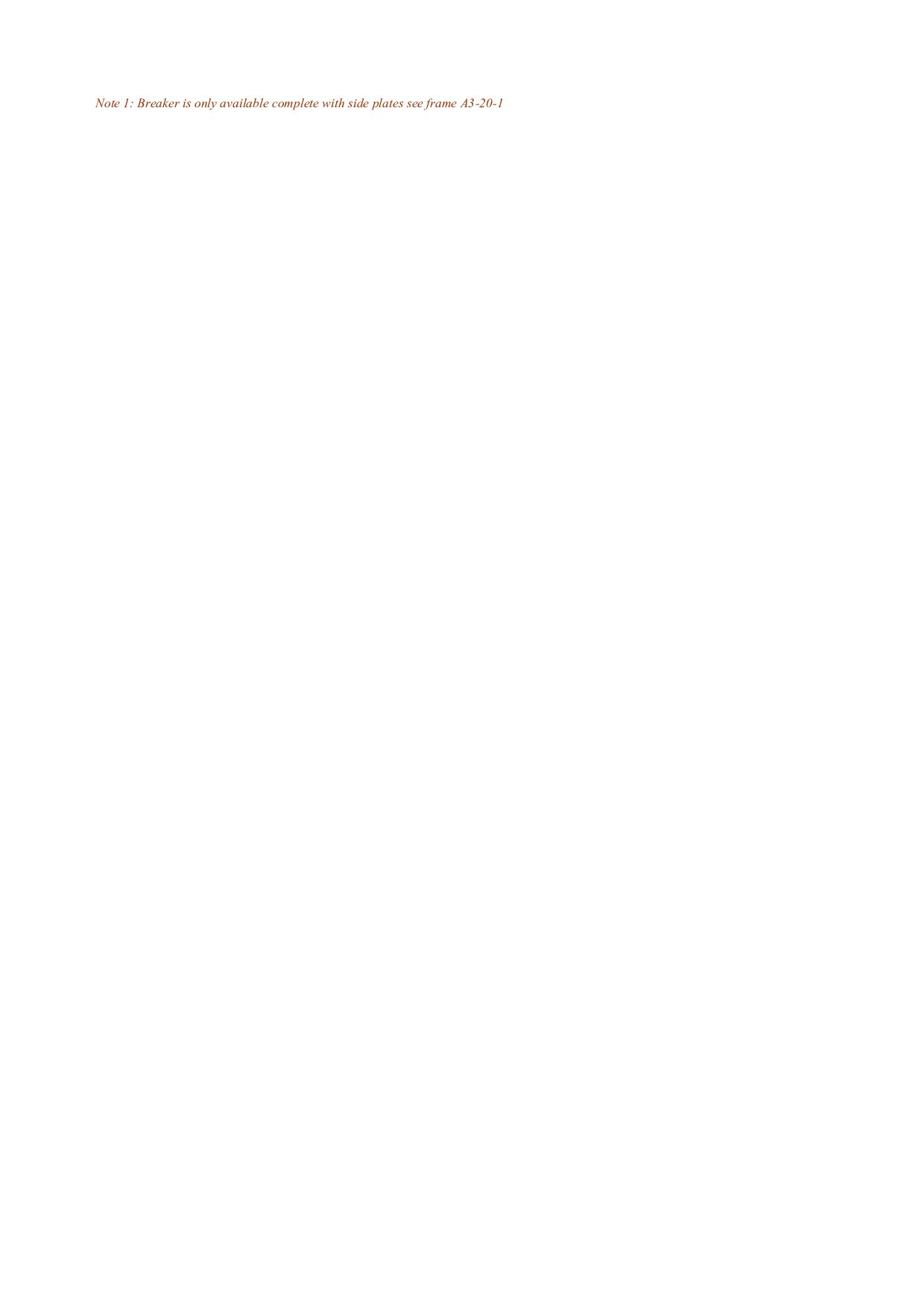

3. Note 1: Breaker is only available complete with side plates see frame A3-20-1

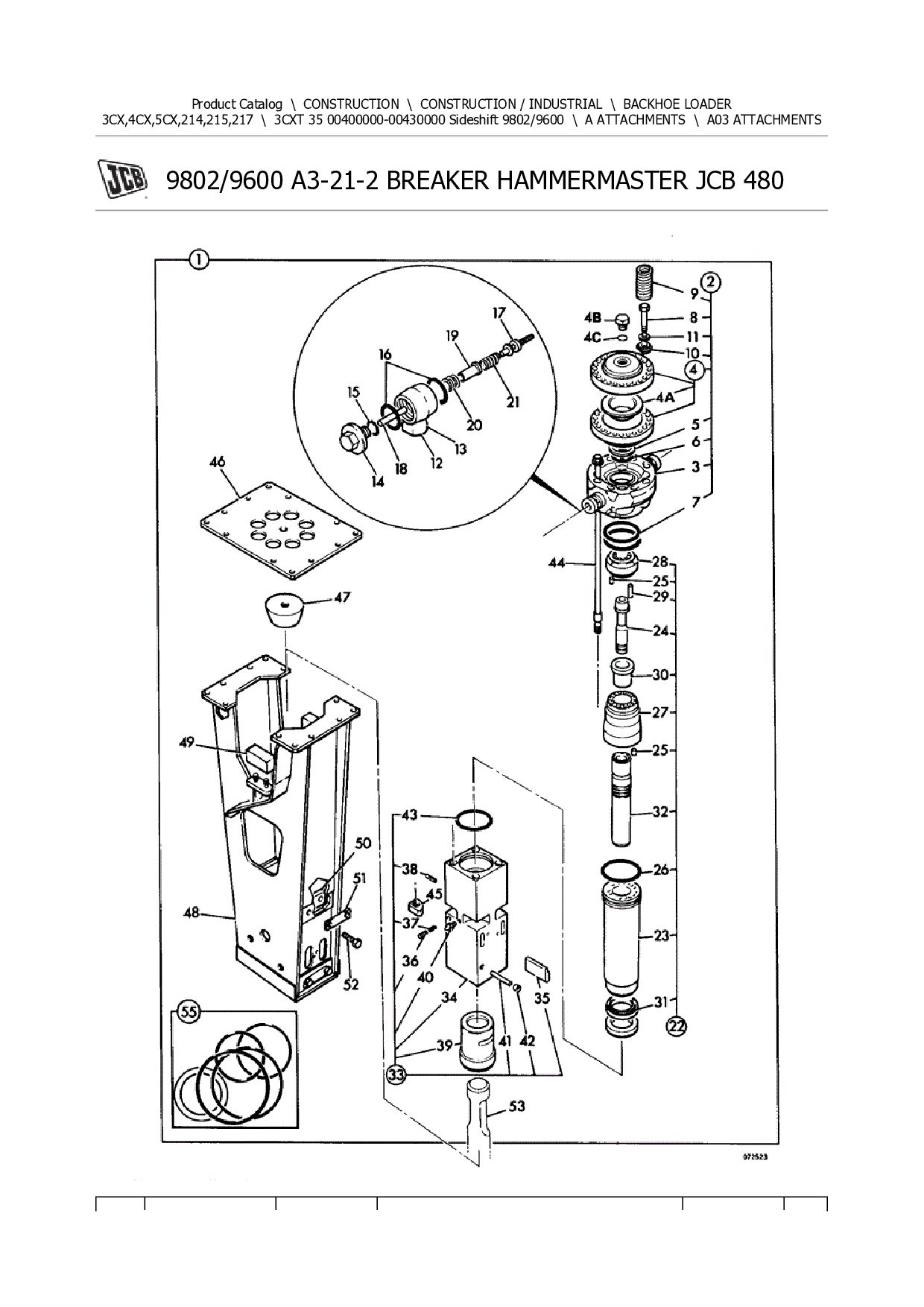

4. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-21-2 BREAKER HAMMERMASTER JCB 480

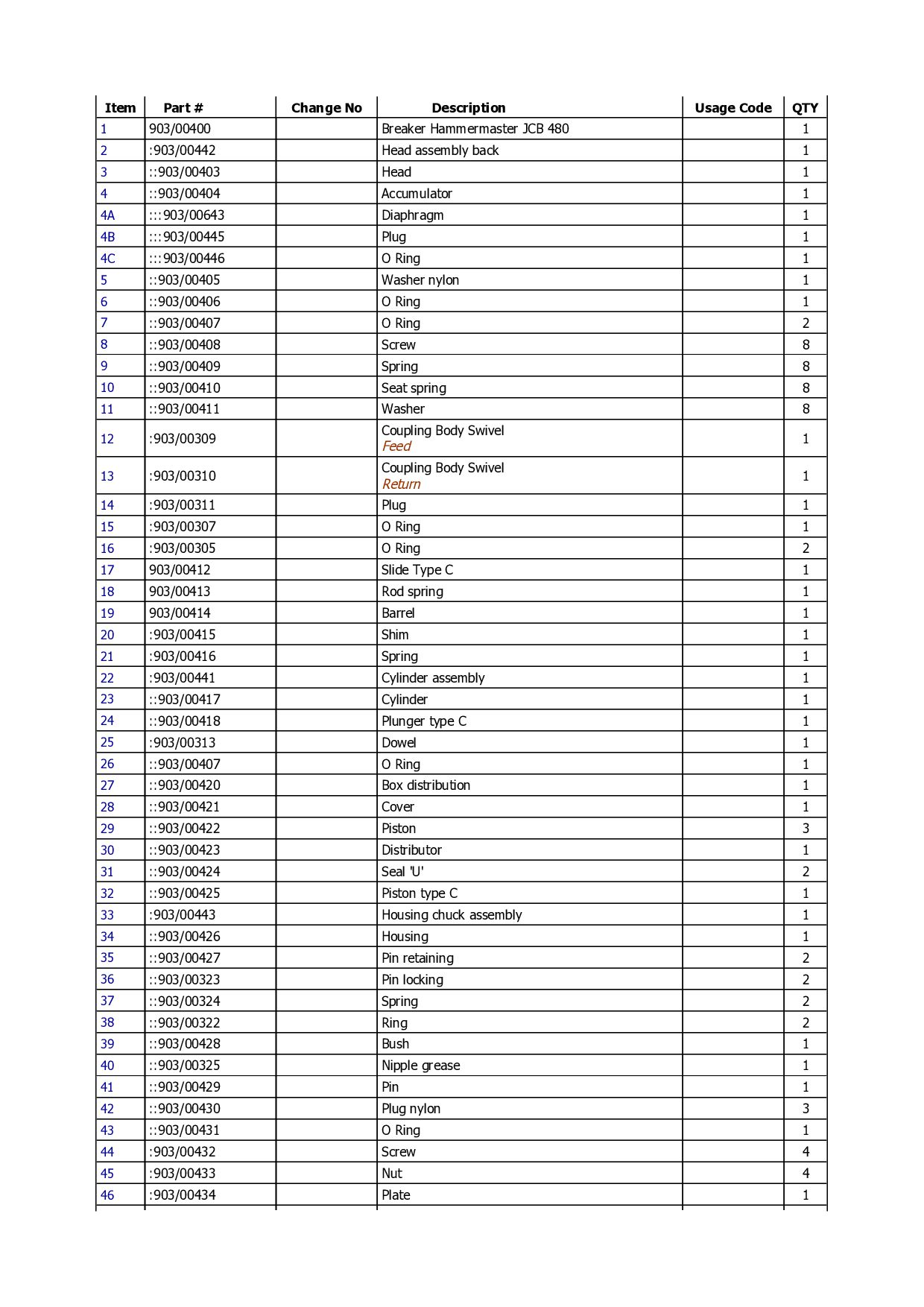

5. Item Part # Change No Description Usage Code QTY 1 903/00400 Breaker Hammermaster JCB 480 1 2 :903/00442 Head assembly back 1 3 ::903/00403 Head 1 4 ::903/00404 Accumulator 1 4A :::903/00643 Diaphragm 1 4B :::903/00445 Plug 1 4C :::903/00446 O Ring 1 5 ::903/00405 Washer nylon 1 6 ::903/00406 O Ring 1 7 ::903/00407 O Ring 2 8 ::903/00408 Screw 8 9 ::903/00409 Spring 8 10 ::903/00410 Seat spring 8 11 ::903/00411 Washer 8 12 :903/00309 Coupling Body Swivel Feed 1 13 :903/00310 Coupling Body Swivel Return 1 14 :903/00311 Plug 1 15 :903/00307 O Ring 1 16 :903/00305 O Ring 2 17 903/00412 Slide Type C 1 18 903/00413 Rod spring 1 19 903/00414 Barrel 1 20 :903/00415 Shim 1 21 :903/00416 Spring 1 22 :903/00441 Cylinder assembly 1 23 ::903/00417 Cylinder 1 24 ::903/00418 Plunger type C 1 25 :903/00313 Dowel 1 26 ::903/00407 O Ring 1 27 ::903/00420 Box distribution 1 28 ::903/00421 Cover 1 29 ::903/00422 Piston 3 30 ::903/00423 Distributor 1 31 ::903/00424 Seal 'U' 2 32 ::903/00425 Piston type C 1 33 :903/00443 Housing chuck assembly 1 34 ::903/00426 Housing 1 35 ::903/00427 Pin retaining 2 36 ::903/00323 Pin locking 2 37 ::903/00324 Spring 2 38 ::903/00322 Ring 2 39 ::903/00428 Bush 1 40 ::903/00325 Nipple grease 1 41 ::903/00429 Pin 1 42 ::903/00430 Plug nylon 3 43 ::903/00431 O Ring 1 44 :903/00432 Screw 4 45 :903/00433 Nut 4 46 :903/00434 Plate 1
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/

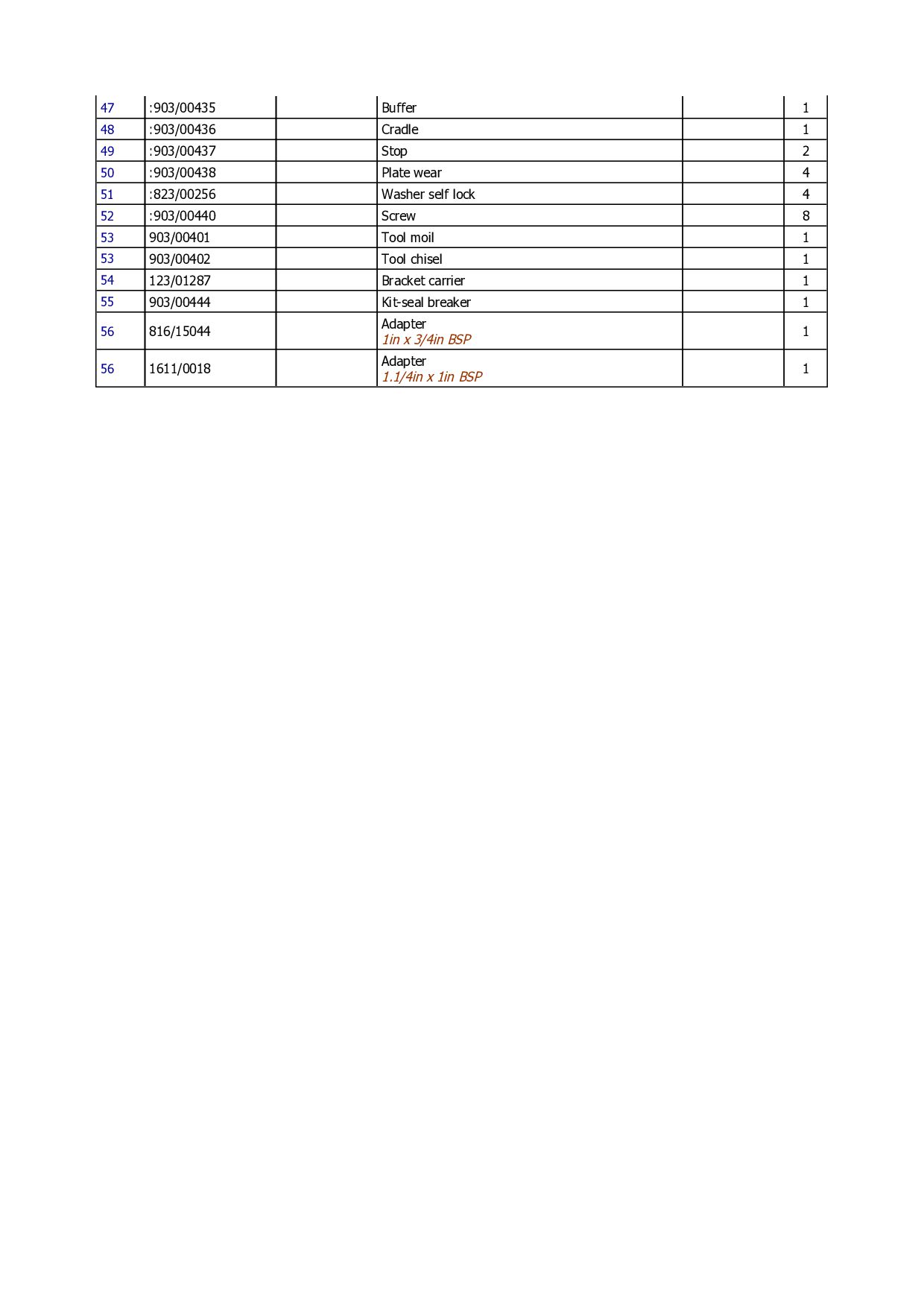

7. 47 :903/00435 Buffer 1 48 :903/00436 Cradle 1 49 :903/00437 Stop 2 50 :903/00438 Plate wear 4 51 :823/00256 Washer self lock 4 52 :903/00440 Screw 8 53 903/00401 Tool moil 1 53 903/00402 Tool chisel 1 54 123/01287 Bracket carrier 1 55 903/00444 Kit-seal breaker 1 56 816/15044 Adapter 1in x 3/4in BSP 1 56 1611/0018 Adapter 1.1/4in x 1in BSP 1

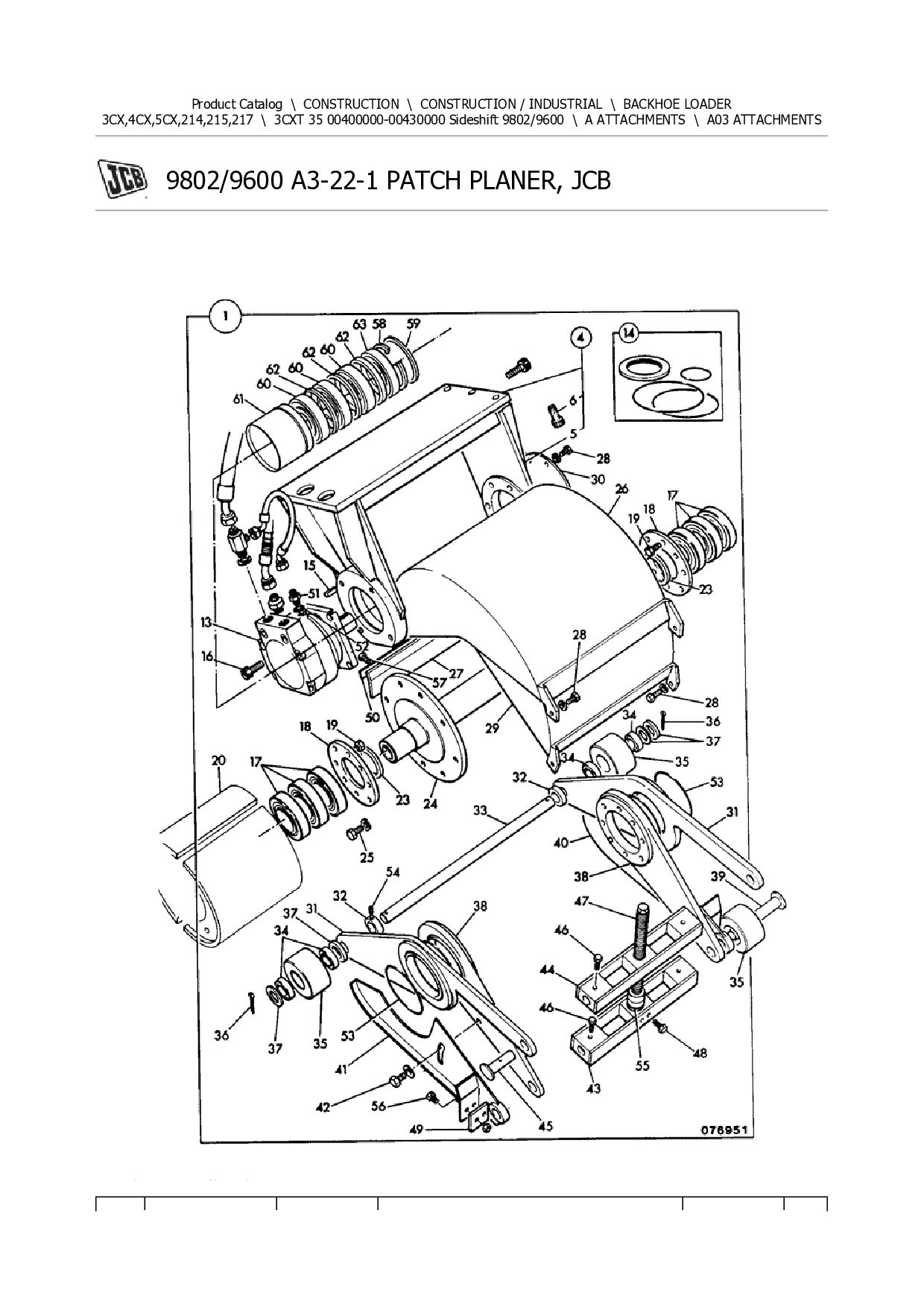

8. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-22-1 PATCH PLANER, JCB

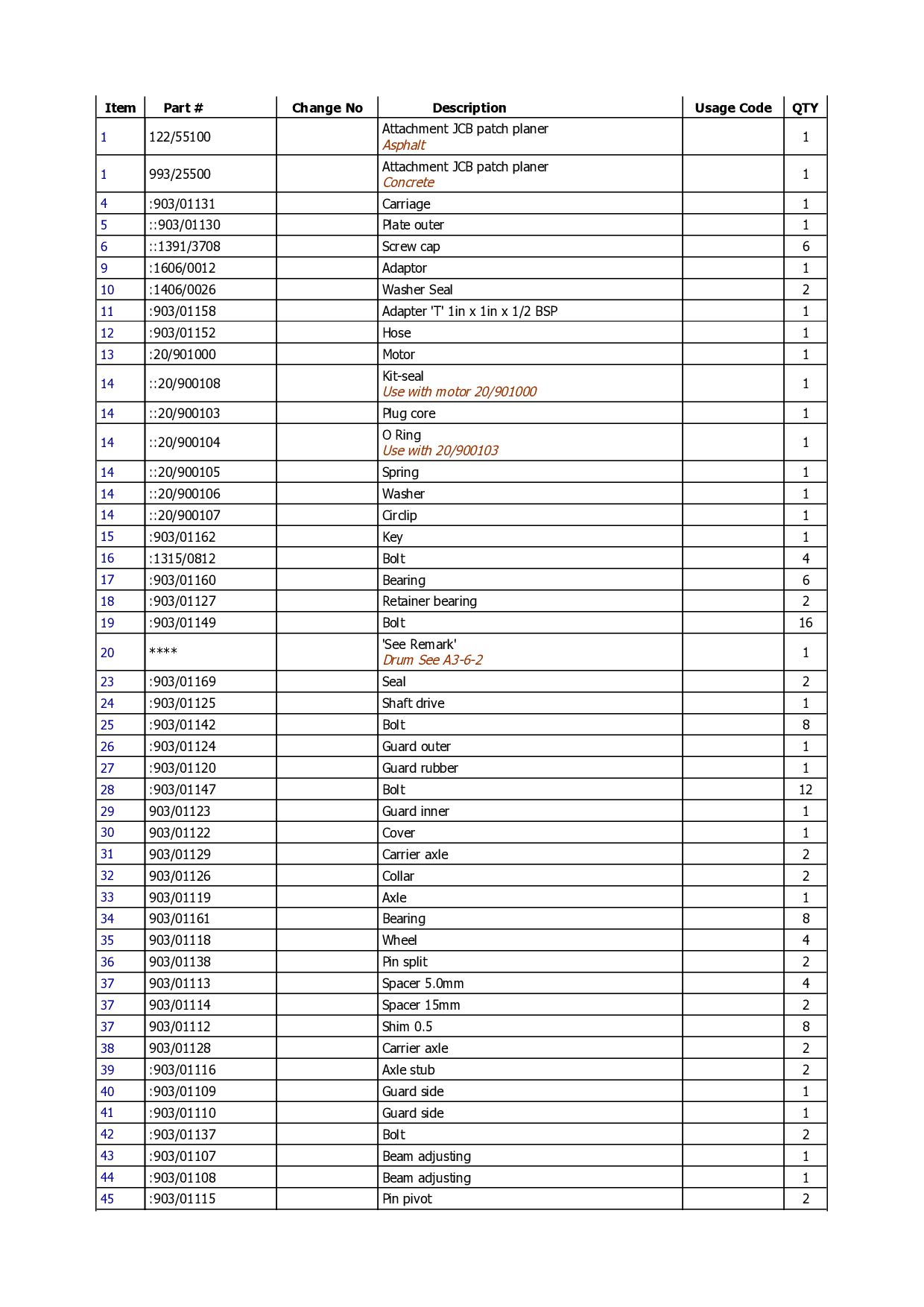

9. Item Part # Change No Description Usage Code QTY 1 122/55100 Attachment JCB patch planer Asphalt 1 1 993/25500 Attachment JCB patch planer Concrete 1 4 :903/01131 Carriage 1 5 ::903/01130 Plate outer 1 6 ::1391/3708 Screw cap 6 9 :1606/0012 Adaptor 1 10 :1406/0026 Washer Seal 2 11 :903/01158 Adapter 'T' 1in x 1in x 1/2 BSP 1 12 :903/01152 Hose 1 13 :20/901000 Motor 1 14 ::20/900108 Kit-seal Use with motor 20/901000 1 14 ::20/900103 Plug core 1 14 ::20/900104 O Ring Use with 20/900103 1 14 ::20/900105 Spring 1 14 ::20/900106 Washer 1 14 ::20/900107 Circlip 1 15 :903/01162 Key 1 16 :1315/0812 Bolt 4 17 :903/01160 Bearing 6 18 :903/01127 Retainer bearing 2 19 :903/01149 Bolt 16 20 **** 'See Remark' Drum See A3-6-2 1 23 :903/01169 Seal 2 24 :903/01125 Shaft drive 1 25 :903/01142 Bolt 8 26 :903/01124 Guard outer 1 27 :903/01120 Guard rubber 1 28 :903/01147 Bolt 12 29 903/01123 Guard inner 1 30 903/01122 Cover 1 31 903/01129 Carrier axle 2 32 903/01126 Collar 2 33 903/01119 Axle 1 34 903/01161 Bearing 8 35 903/01118 Wheel 4 36 903/01138 Pin split 2 37 903/01113 Spacer 5.0mm 4 37 903/01114 Spacer 15mm 2 37 903/01112 Shim 0.5 8 38 903/01128 Carrier axle 2 39 :903/01116 Axle stub 2 40 :903/01109 Guard side 1 41 :903/01110 Guard side 1 42 :903/01137 Bolt 2 43 :903/01107 Beam adjusting 1 44 :903/01108 Beam adjusting 1 45 :903/01115 Pin pivot 2

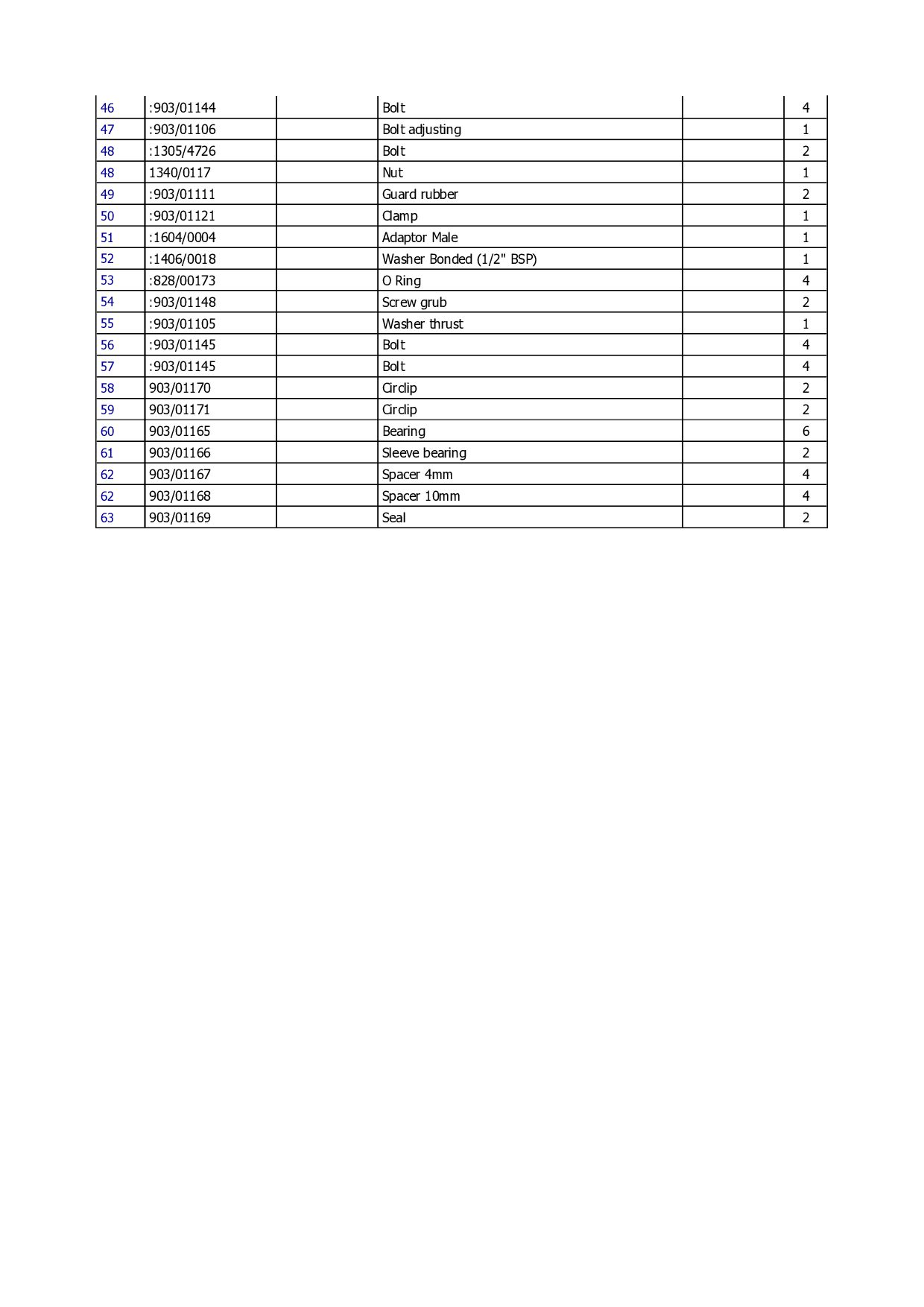

10. 46 :903/01144 Bolt 4 47 :903/01106 Bolt adjusting 1 48 :1305/4726 Bolt 2 48 1340/0117 Nut 1 49 :903/01111 Guard rubber 2 50 :903/01121 Clamp 1 51 :1604/0004 Adaptor Male 1 52 :1406/0018 Washer Bonded (1/2" BSP) 1 53 :828/00173 O Ring 4 54 :903/01148 Screw grub 2 55 :903/01105 Washer thrust 1 56 :903/01145 Bolt 4 57 :903/01145 Bolt 4 58 903/01170 Circlip 2 59 903/01171 Circlip 2 60 903/01165 Bearing 6 61 903/01166 Sleeve bearing 2 62 903/01167 Spacer 4mm 4 62 903/01168 Spacer 10mm 4 63 903/01169 Seal 2

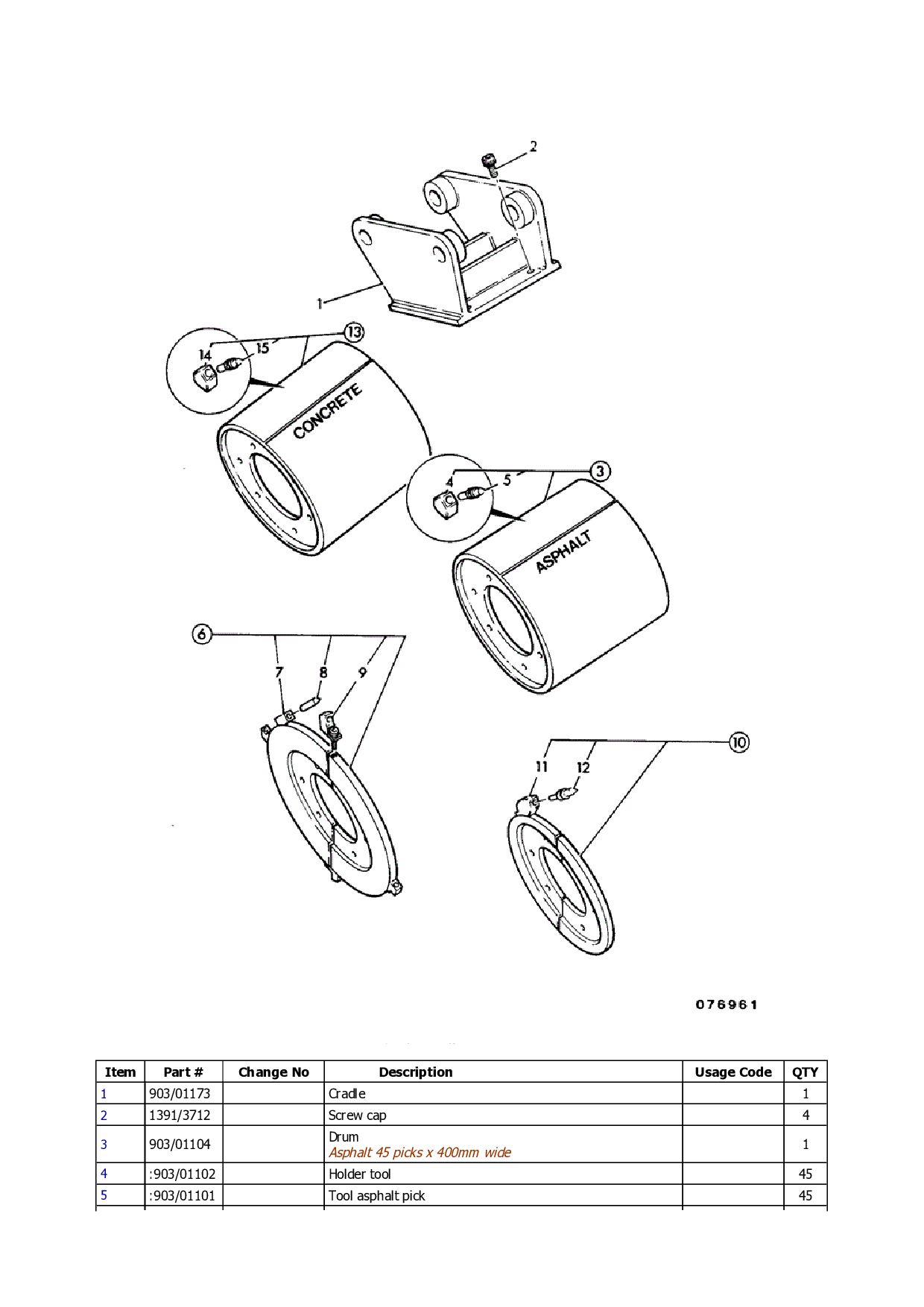

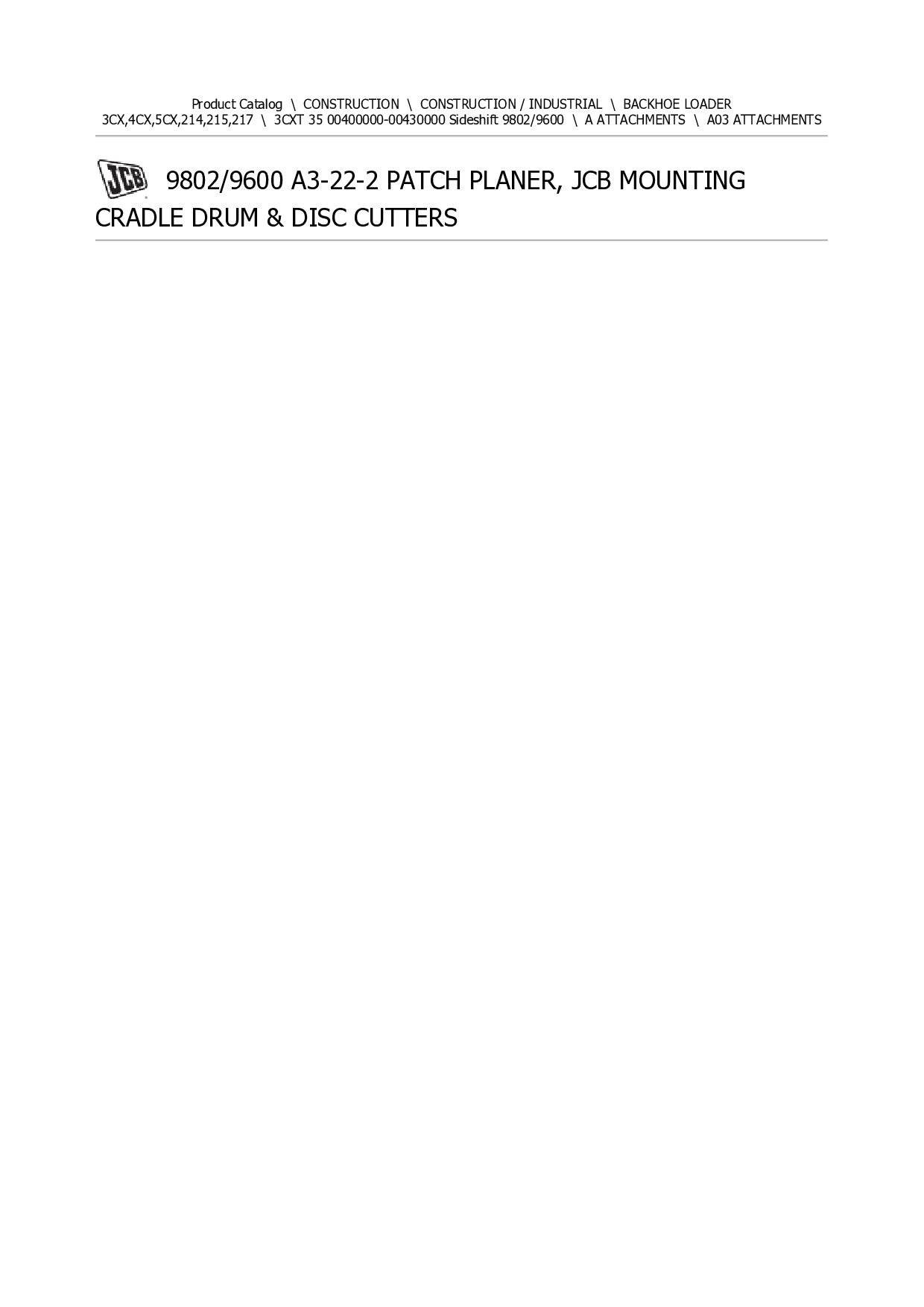

11. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-22-2 PATCH PLANER, JCB MOUNTING CRADLE DRUM & DISC CUTTERS
12. Item Part # Change No Description Usage Code QTY 1 903/01173 Cradle 1 2 1391/3712 Screw cap 4 3 903/01104 Drum Asphalt 45 picks x 400mm wide 1 4 :903/01102 Holder tool 45 5 :903/01101 Tool asphalt pick 45

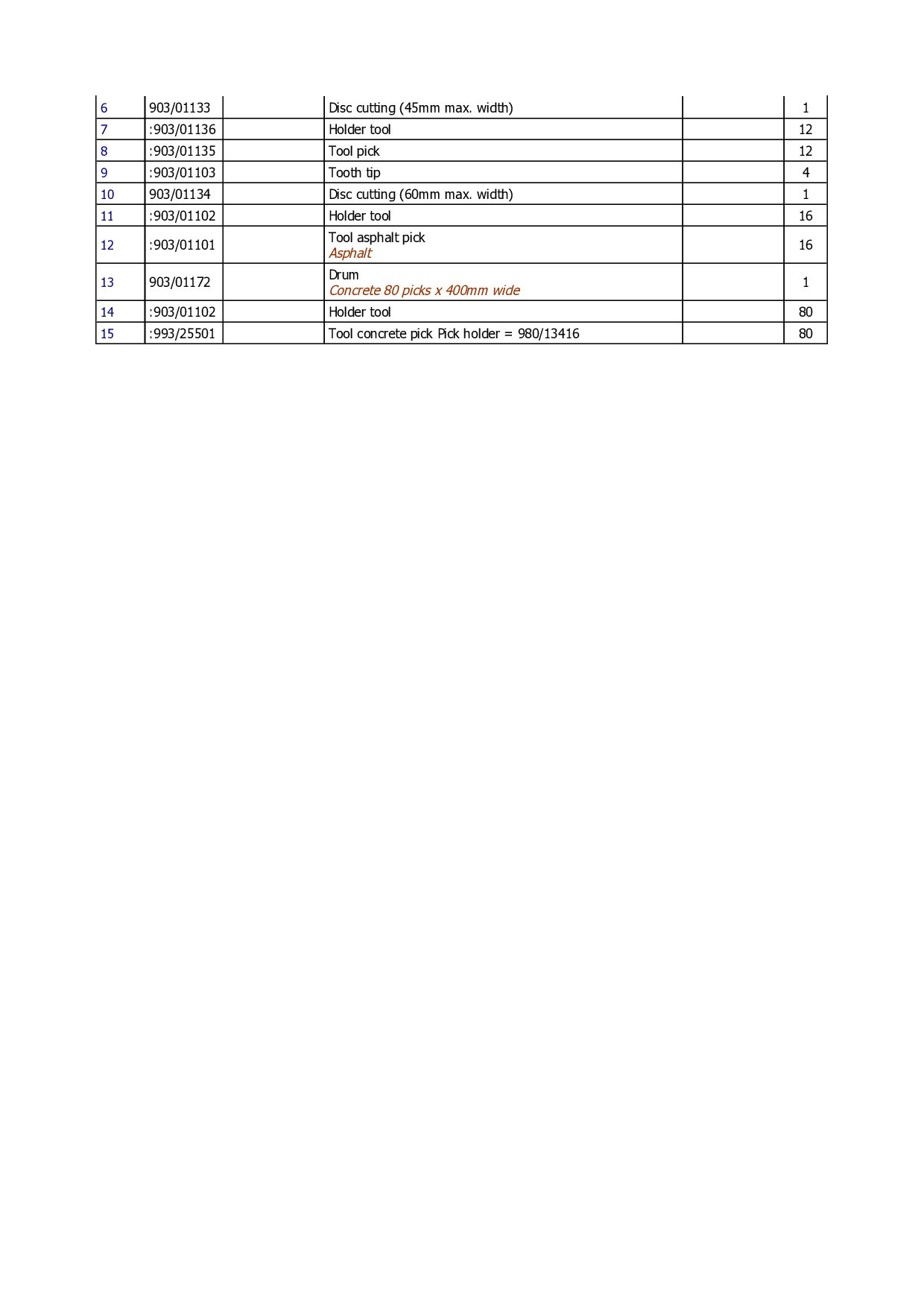

13. 6 903/01133 Disc cutting (45mm max. width) 1 7 :903/01136 Holder tool 12 8 :903/01135 Tool pick 12 9 :903/01103 Tooth tip 4 10 903/01134 Disc cutting (60mm max. width) 1 11 :903/01102 Holder tool 16 12 :903/01101 Tool asphalt pick Asphalt 16 13 903/01172 Drum Concrete 80 picks x 400mm wide 1 14 :903/01102 Holder tool 80 15 :993/25501 Tool concrete pick Pick holder = 980/13416 80

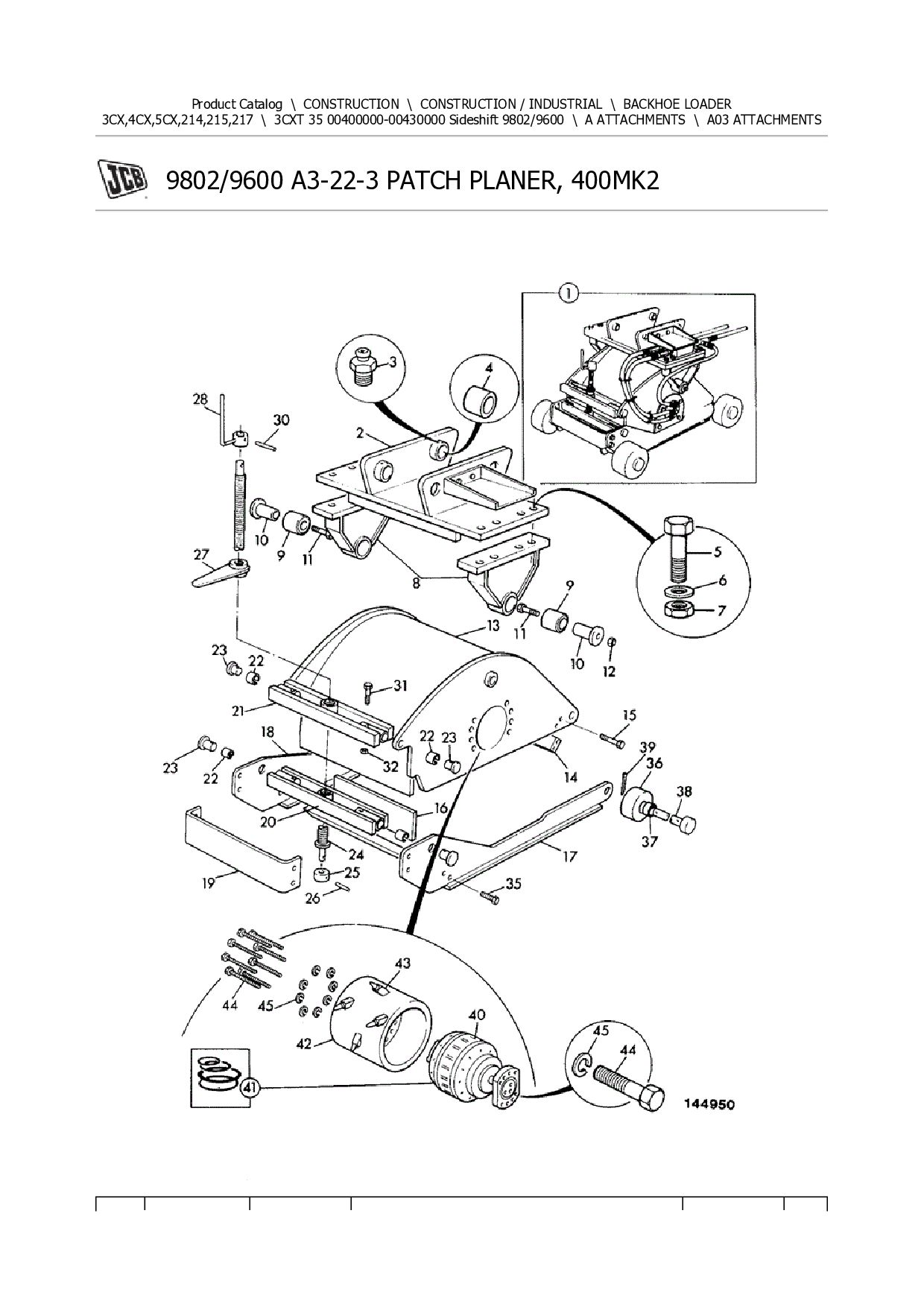

14. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-22-3 PATCH PLANER, 400MK2

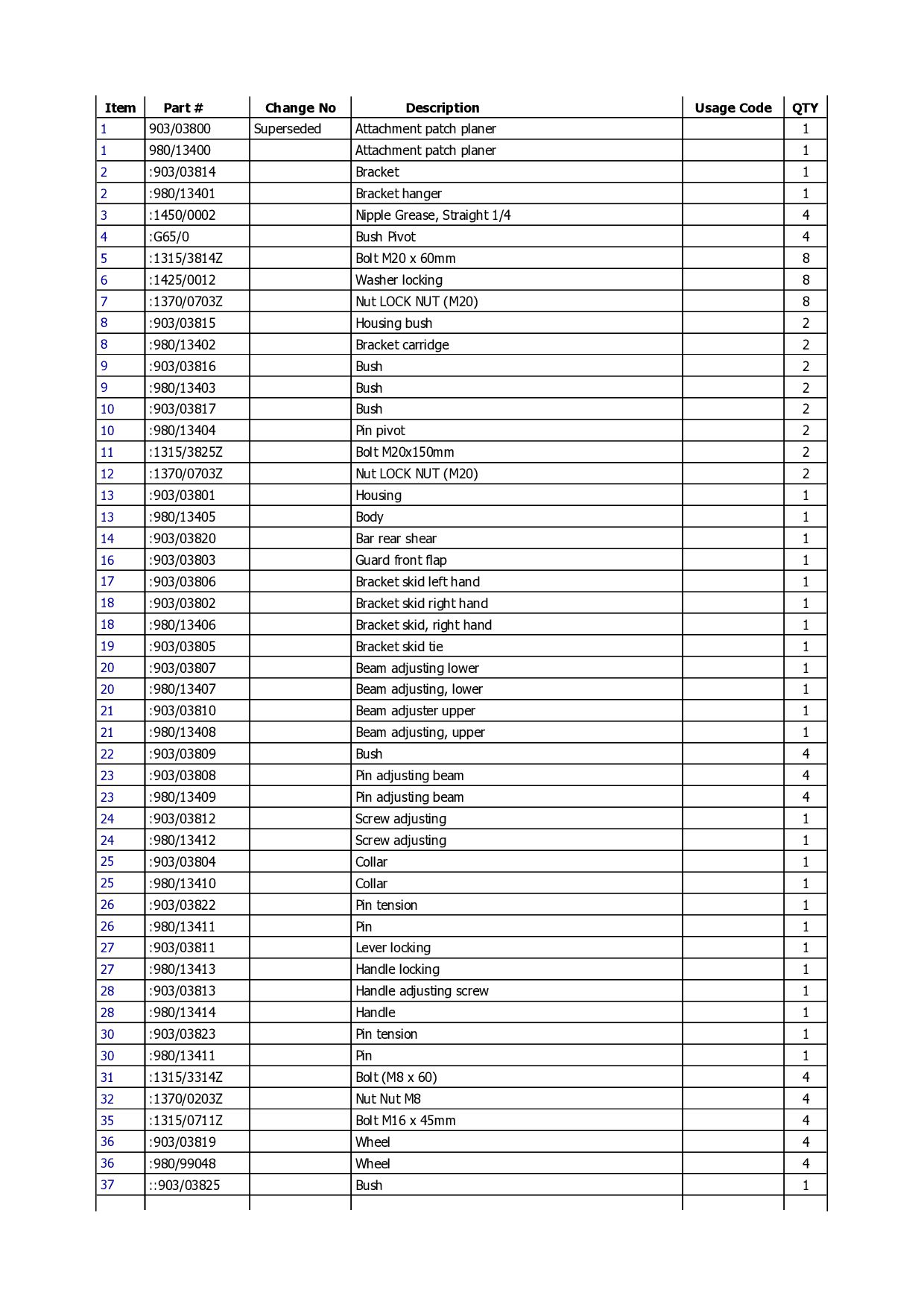

15. Item Part # Change No Description Usage Code QTY 1 903/03800 Superseded Attachment patch planer 1 1 980/13400 Attachment patch planer 1 2 :903/03814 Bracket 1 2 :980/13401 Bracket hanger 1 3 :1450/0002 Nipple Grease, Straight 1/4 4 4 :G65/0 Bush Pivot 4 5 :1315/3814Z Bolt M20 x 60mm 8 6 :1425/0012 Washer locking 8 7 :1370/0703Z Nut LOCK NUT (M20) 8 8 :903/03815 Housing bush 2 8 :980/13402 Bracket carridge 2 9 :903/03816 Bush 2 9 :980/13403 Bush 2 10 :903/03817 Bush 2 10 :980/13404 Pin pivot 2 11 :1315/3825Z Bolt M20x150mm 2 12 :1370/0703Z Nut LOCK NUT (M20) 2 13 :903/03801 Housing 1 13 :980/13405 Body 1 14 :903/03820 Bar rear shear 1 16 :903/03803 Guard front flap 1 17 :903/03806 Bracket skid left hand 1 18 :903/03802 Bracket skid right hand 1 18 :980/13406 Bracket skid, right hand 1 19 :903/03805 Bracket skid tie 1 20 :903/03807 Beam adjusting lower 1 20 :980/13407 Beam adjusting, lower 1 21 :903/03810 Beam adjuster upper 1 21 :980/13408 Beam adjusting, upper 1 22 :903/03809 Bush 4 23 :903/03808 Pin adjusting beam 4 23 :980/13409 Pin adjusting beam 4 24 :903/03812 Screw adjusting 1 24 :980/13412 Screw adjusting 1 25 :903/03804 Collar 1 25 :980/13410 Collar 1 26 :903/03822 Pin tension 1 26 :980/13411 Pin 1 27 :903/03811 Lever locking 1 27 :980/13413 Handle locking 1 28 :903/03813 Handle adjusting screw 1 28 :980/13414 Handle 1 30 :903/03823 Pin tension 1 30 :980/13411 Pin 1 31 :1315/3314Z Bolt (M8 x 60) 4 32 :1370/0203Z Nut Nut M8 4 35 :1315/0711Z Bolt M16 x 45mm 4 36 :903/03819 Wheel 4 36 :980/99048 Wheel 4 37 ::903/03825 Bush 1

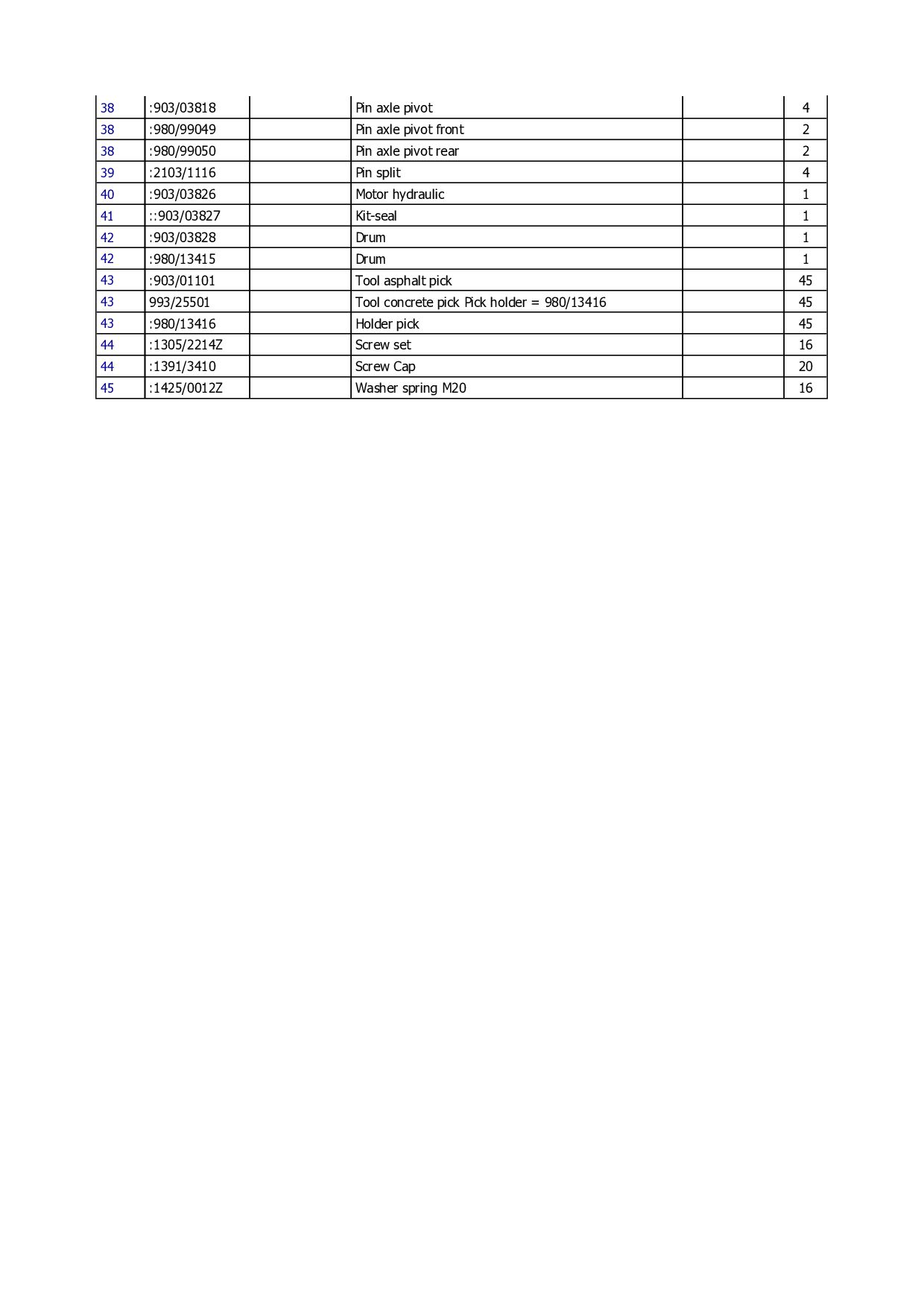

16. 38 :903/03818 Pin axle pivot 4 38 :980/99049 Pin axle pivot front 2 38 :980/99050 Pin axle pivot rear 2 39 :2103/1116 Pin split 4 40 :903/03826 Motor hydraulic 1 41 ::903/03827 Kit-seal 1 42 :903/03828 Drum 1 42 :980/13415 Drum 1 43 :903/01101 Tool asphalt pick 45 43 993/25501 Tool concrete pick Pick holder = 980/13416 45 43 :980/13416 Holder pick 45 44 :1305/2214Z Screw set 16 44 :1391/3410 Screw Cap 20 45 :1425/0012Z Washer spring M20 16

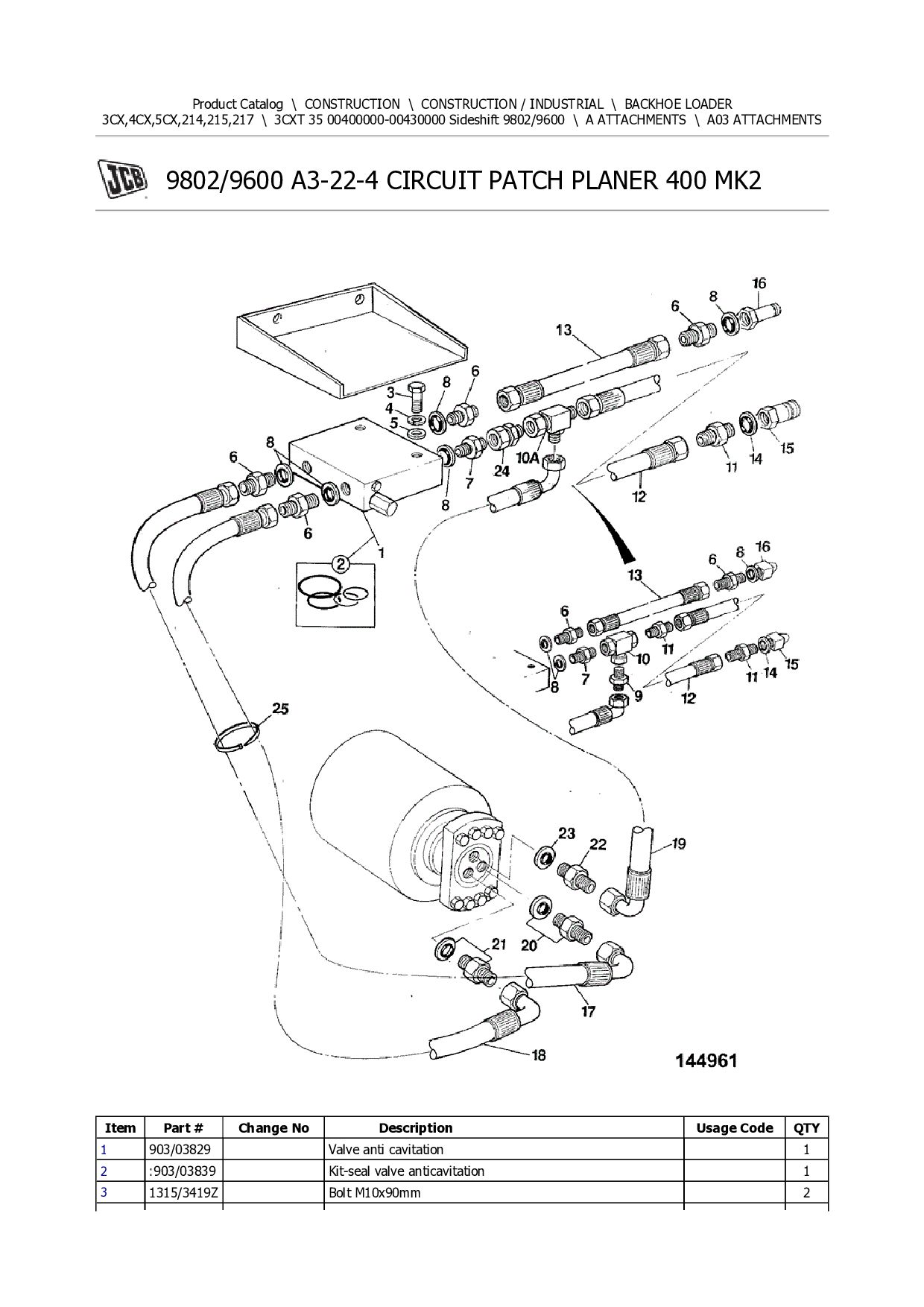

17. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-22-4 CIRCUIT PATCH PLANER 400 MK2 Item Part # Change No Description Usage Code QTY 1 903/03829 Valve anti cavitation 1 2 :903/03839 Kit-seal valve anticavitation 1 3 1315/3419Z Bolt M10x90mm 2

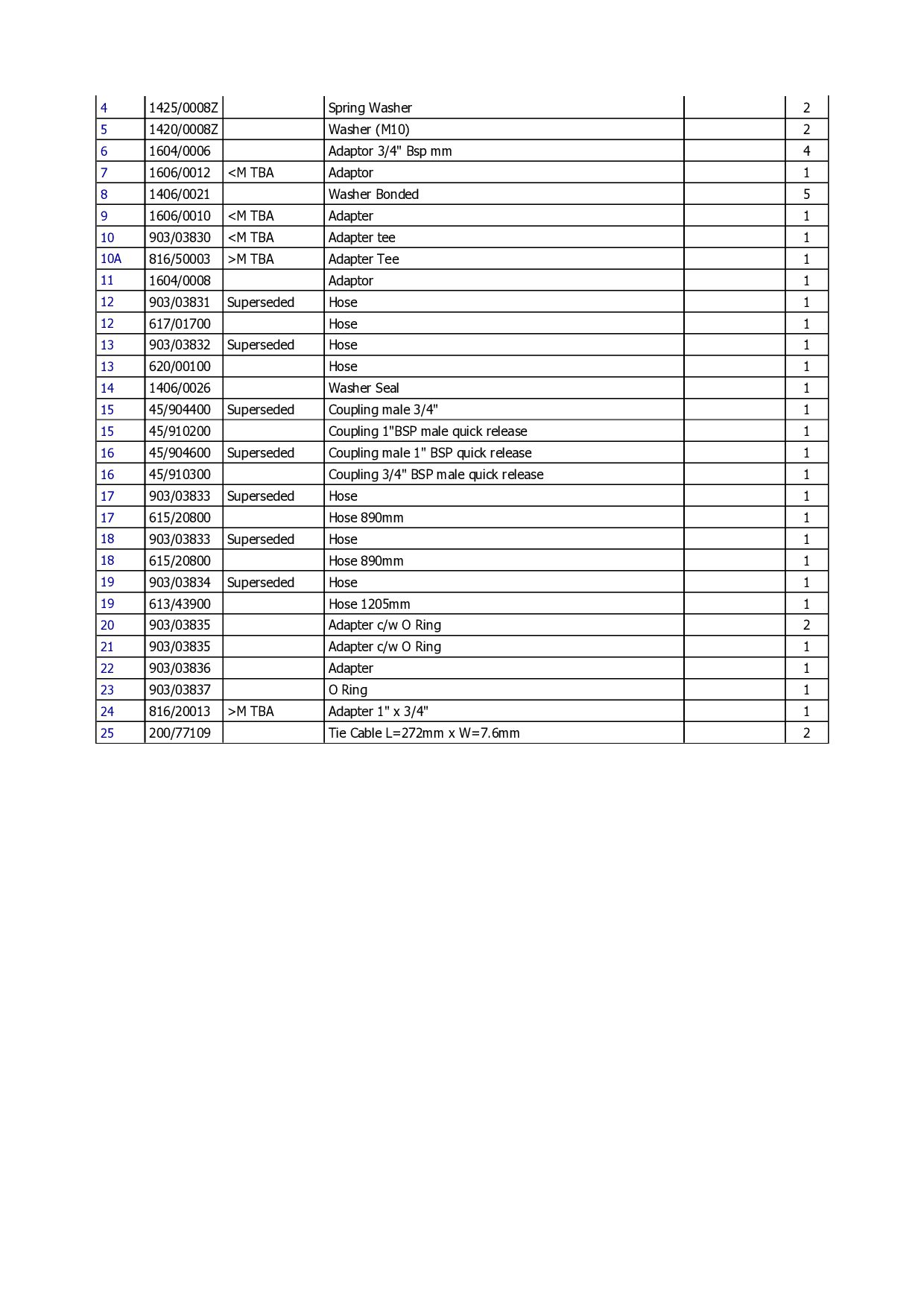

18. 4 1425/0008Z Spring Washer 2 5 1420/0008Z Washer (M10) 2 6 1604/0006 Adaptor 3/4" Bsp mm 4 7 1606/0012 <M TBA Adaptor 1 8 1406/0021 Washer Bonded 5 9 1606/0010 <M TBA Adapter 1 10 903/03830 <M TBA Adapter tee 1 10A 816/50003 >M TBA Adapter Tee 1 11 1604/0008 Adaptor 1 12 903/03831 Superseded Hose 1 12 617/01700 Hose 1 13 903/03832 Superseded Hose 1 13 620/00100 Hose 1 14 1406/0026 Washer Seal 1 15 45/904400 Superseded Coupling male 3/4" 1 15 45/910200 Coupling 1"BSP male quick release 1 16 45/904600 Superseded Coupling male 1" BSP quick release 1 16 45/910300 Coupling 3/4" BSP male quick release 1 17 903/03833 Superseded Hose 1 17 615/20800 Hose 890mm 1 18 903/03833 Superseded Hose 1 18 615/20800 Hose 890mm 1 19 903/03834 Superseded Hose 1 19 613/43900 Hose 1205mm 1 20 903/03835 Adapter c/w O Ring 2 21 903/03835 Adapter c/w O Ring 1 22 903/03836 Adapter 1 23 903/03837 O Ring 1 24 816/20013 >M TBA Adapter 1" x 3/4" 1 25 200/77109 Tie Cable L=272mm x W=7.6mm 2

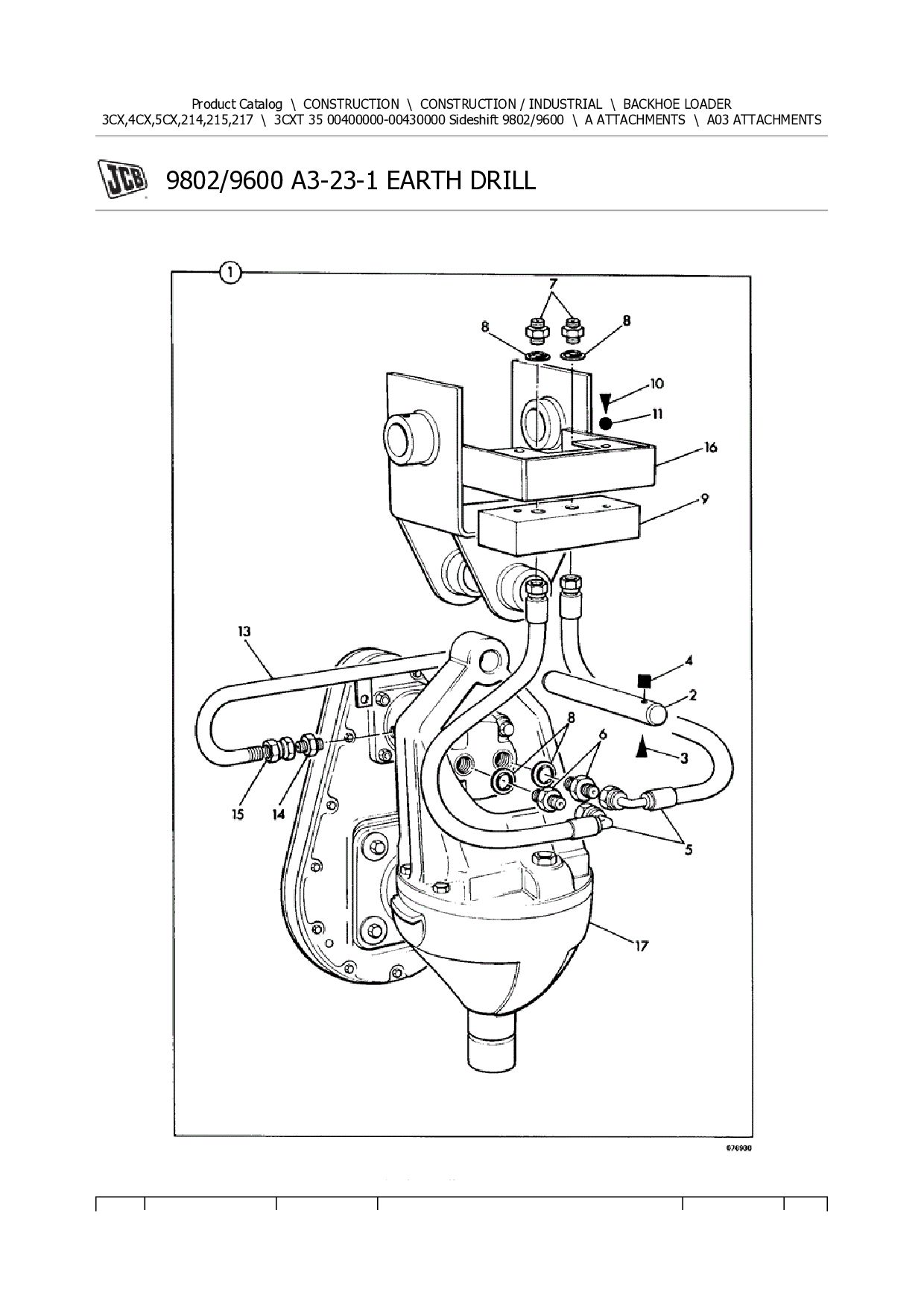

19. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-23-1 EARTH DRILL

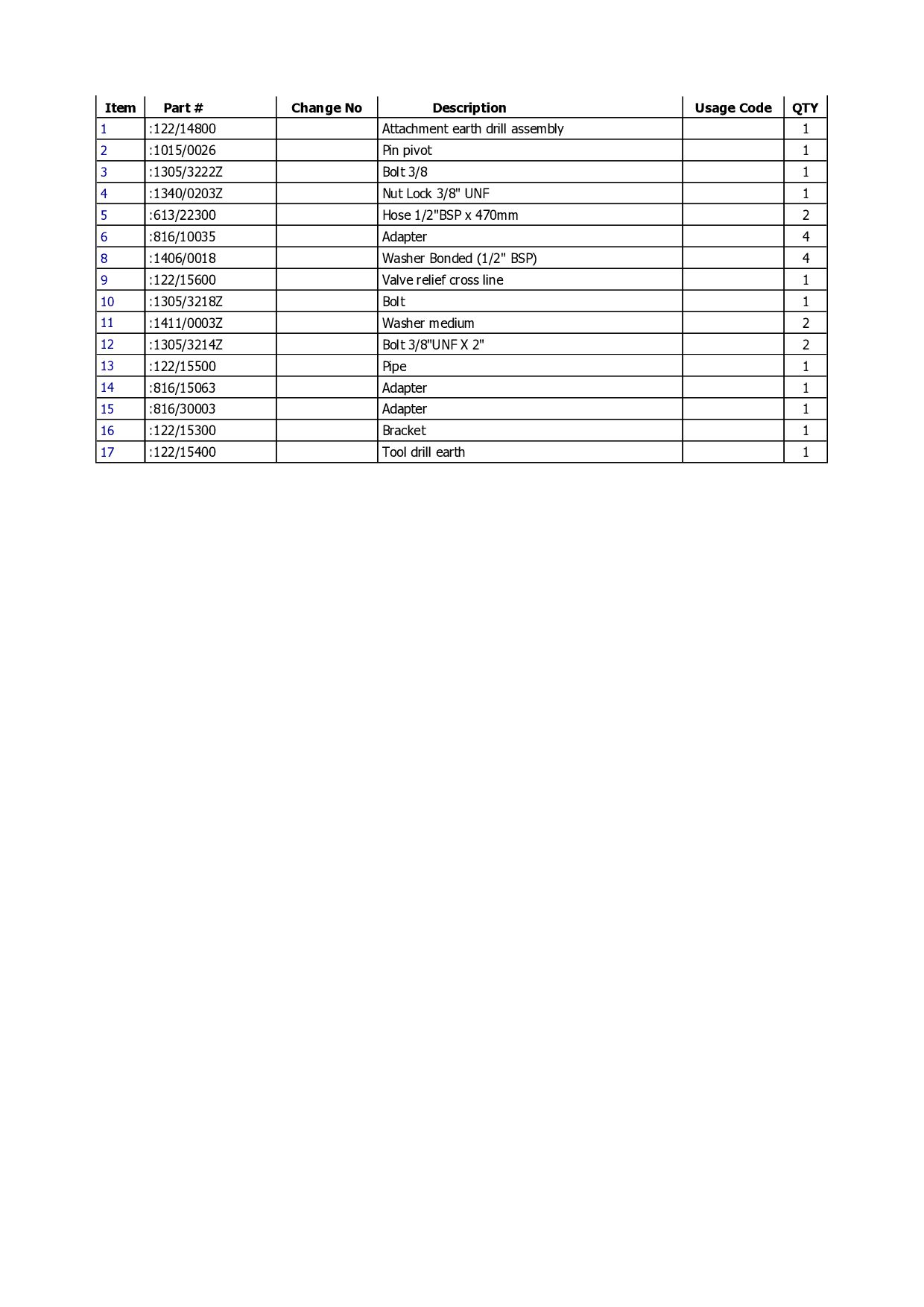

20. Item Part # Change No Description Usage Code QTY 1 :122/14800 Attachment earth drill assembly 1 2 :1015/0026 Pin pivot 1 3 :1305/3222Z Bolt 3/8 1 4 :1340/0203Z Nut Lock 3/8" UNF 1 5 :613/22300 Hose 1/2"BSP x 470mm 2 6 :816/10035 Adapter 4 8 :1406/0018 Washer Bonded (1/2" BSP) 4 9 :122/15600 Valve relief cross line 1 10 :1305/3218Z Bolt 1 11 :1411/0003Z Washer medium 2 12 :1305/3214Z Bolt 3/8"UNF X 2" 2 13 :122/15500 Pipe 1 14 :816/15063 Adapter 1 15 :816/30003 Adapter 1 16 :122/15300 Bracket 1 17 :122/15400 Tool drill earth 1

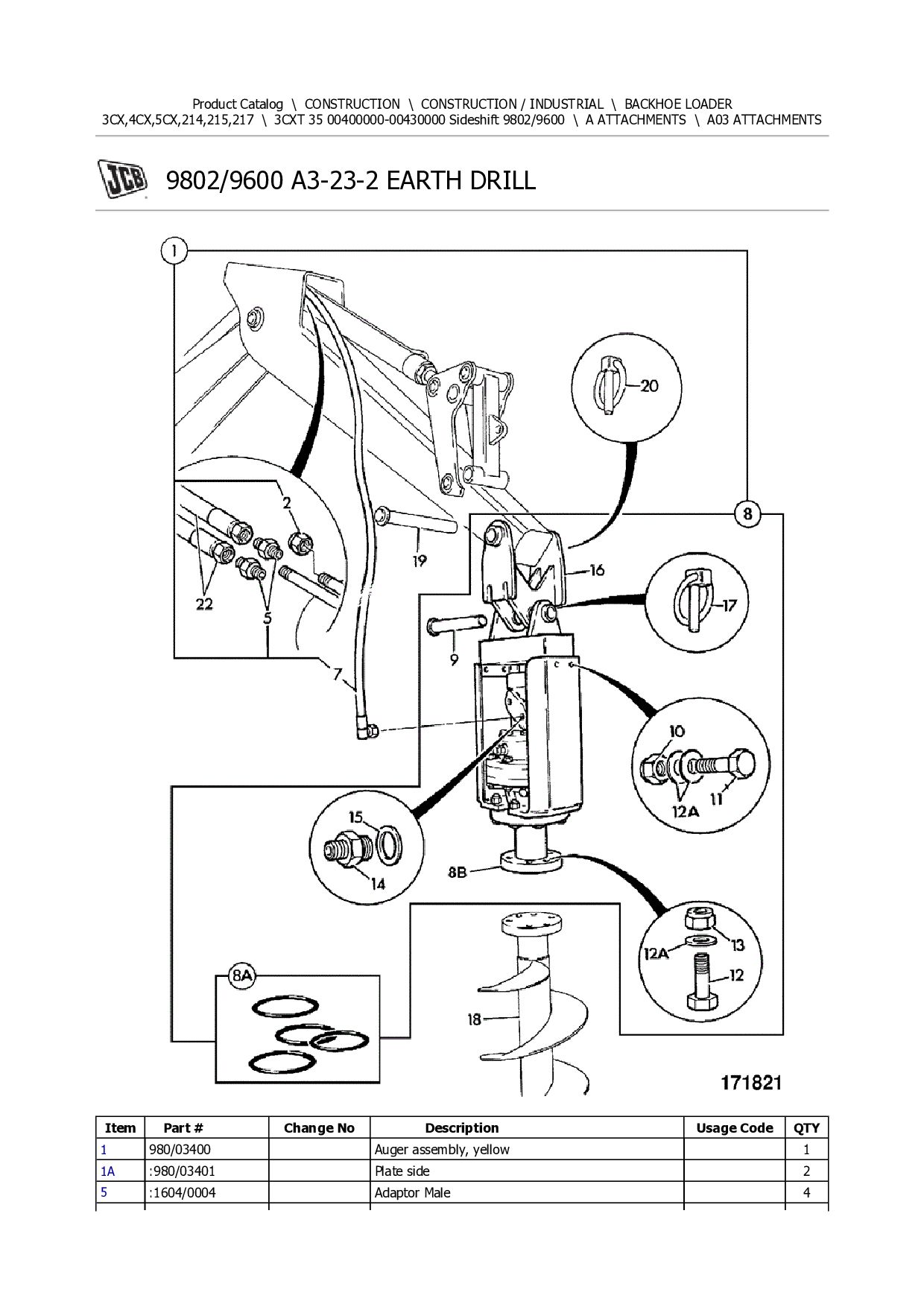

21. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-23-2 EARTH DRILL Item Part # Change No Description Usage Code QTY 1 980/03400 Auger assembly, yellow 1 1A :980/03401 Plate side 2 5 :1604/0004 Adaptor Male 4

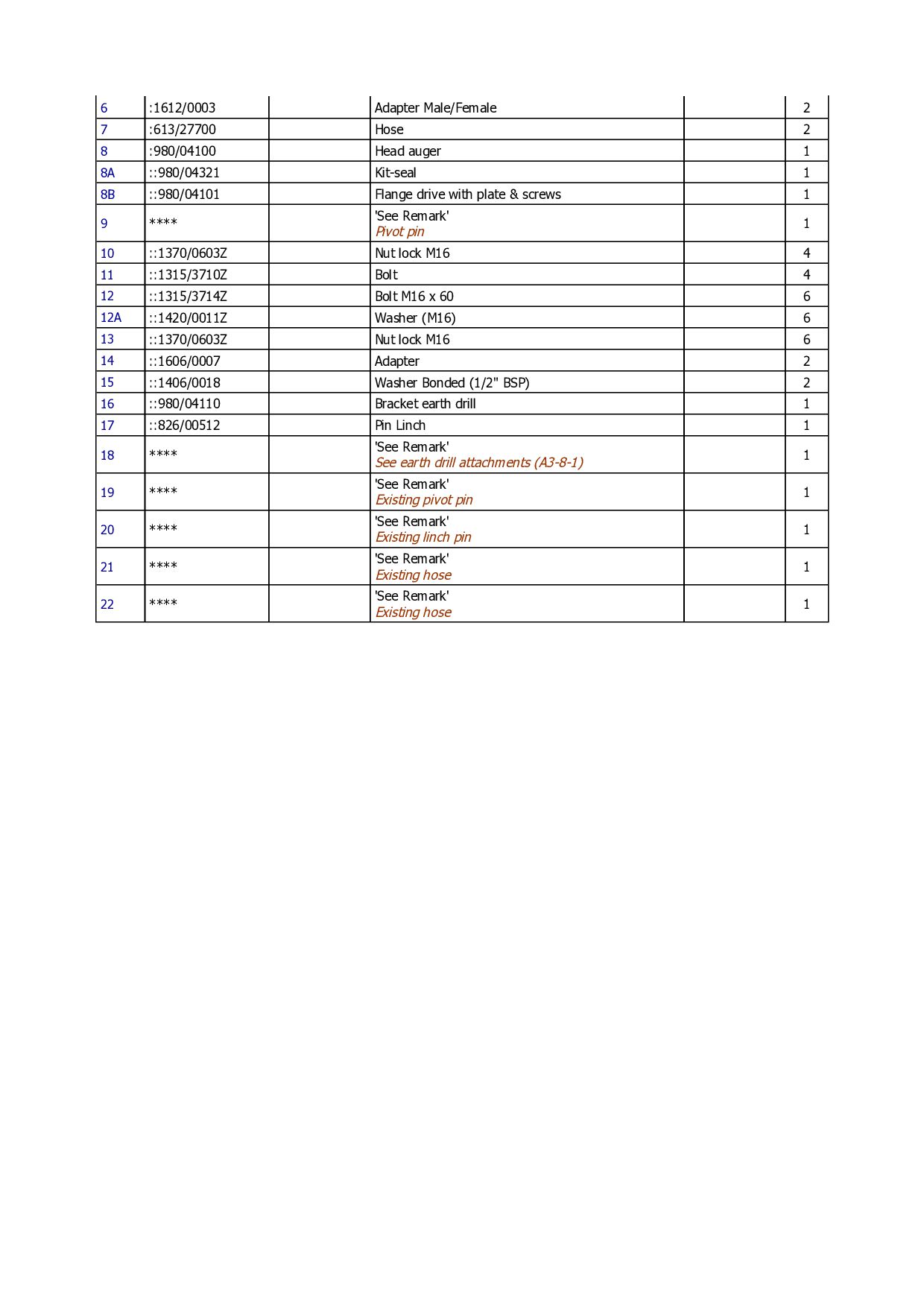

22. 6 :1612/0003 Adapter Male/Female 2 7 :613/27700 Hose 2 8 :980/04100 Head auger 1 8A ::980/04321 Kit-seal 1 8B ::980/04101 Flange drive with plate & screws 1 9 **** 'See Remark' Pivot pin 1 10 ::1370/0603Z Nut lock M16 4 11 ::1315/3710Z Bolt 4 12 ::1315/3714Z Bolt M16 x 60 6 12A ::1420/0011Z Washer (M16) 6 13 ::1370/0603Z Nut lock M16 6 14 ::1606/0007 Adapter 2 15 ::1406/0018 Washer Bonded (1/2" BSP) 2 16 ::980/04110 Bracket earth drill 1 17 ::826/00512 Pin Linch 1 18 **** 'See Remark' See earth drill attachments (A3-8-1) 1 19 **** 'See Remark' Existing pivot pin 1 20 **** 'See Remark' Existing linch pin 1 21 **** 'See Remark' Existing hose 1 22 **** 'See Remark' Existing hose 1
23. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
24. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.

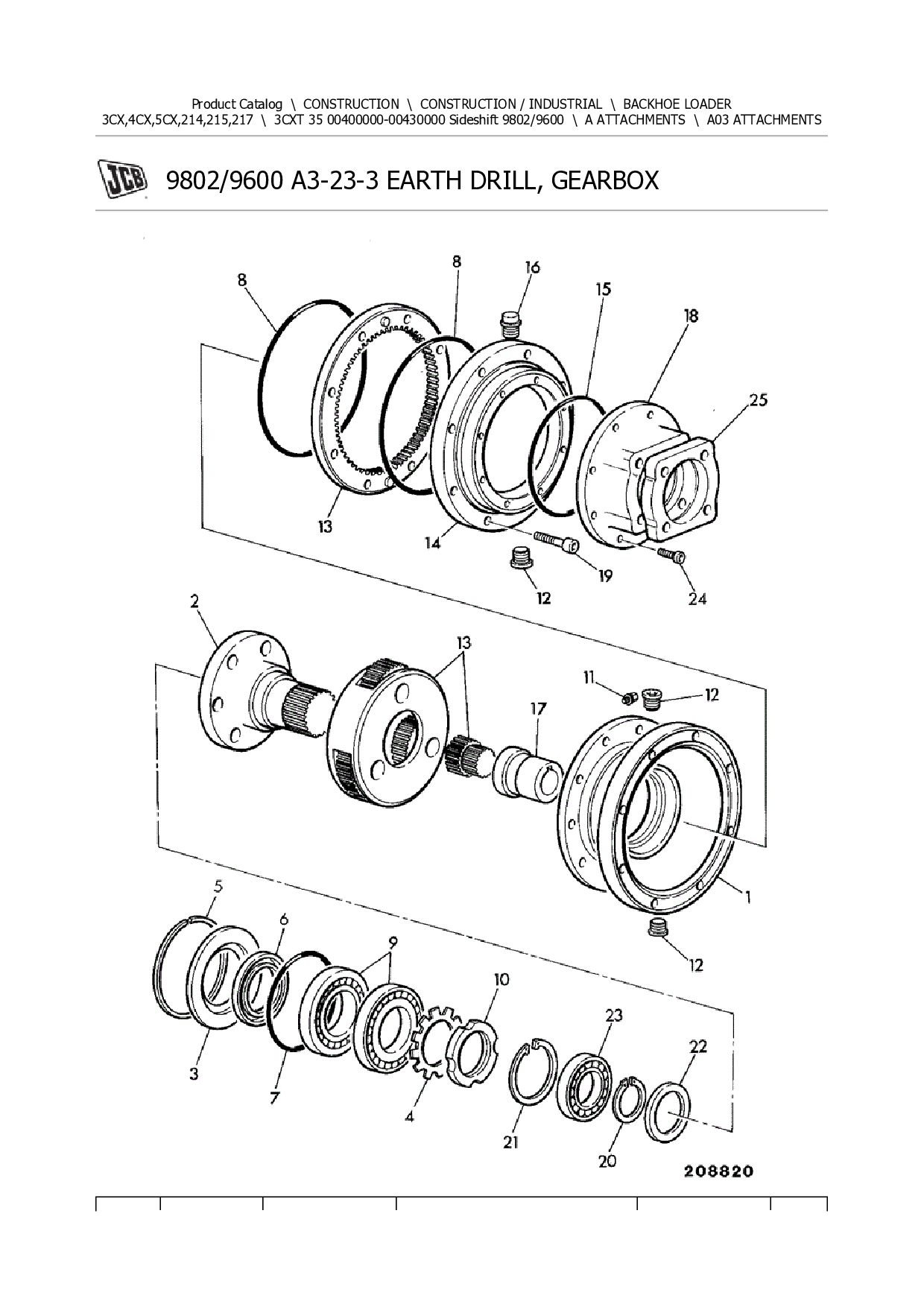

25. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-23-3 EARTH DRILL, GEARBOX

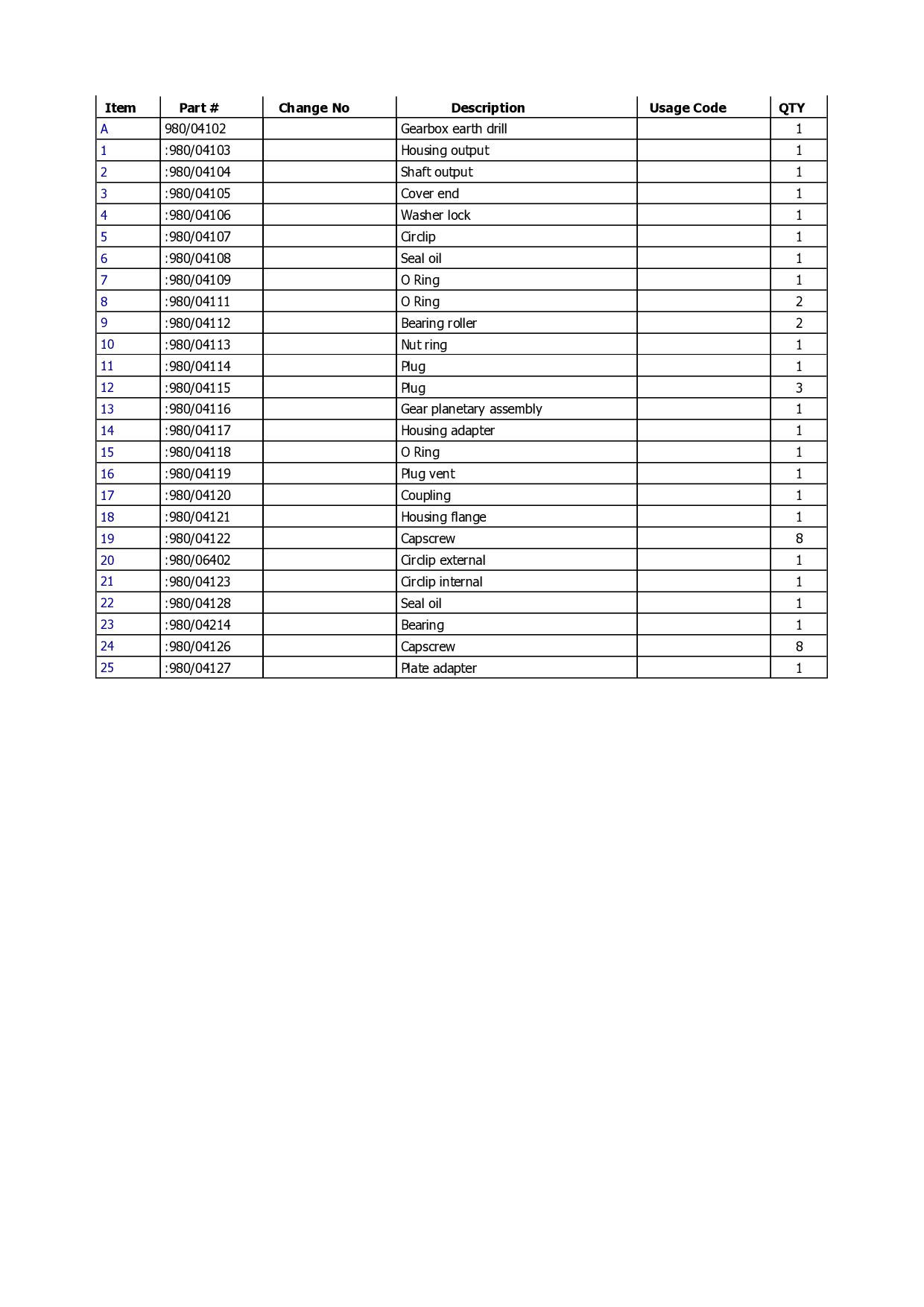

26. Item Part # Change No Description Usage Code QTY A 980/04102 Gearbox earth drill 1 1 :980/04103 Housing output 1 2 :980/04104 Shaft output 1 3 :980/04105 Cover end 1 4 :980/04106 Washer lock 1 5 :980/04107 Circlip 1 6 :980/04108 Seal oil 1 7 :980/04109 O Ring 1 8 :980/04111 O Ring 2 9 :980/04112 Bearing roller 2 10 :980/04113 Nut ring 1 11 :980/04114 Plug 1 12 :980/04115 Plug 3 13 :980/04116 Gear planetary assembly 1 14 :980/04117 Housing adapter 1 15 :980/04118 O Ring 1 16 :980/04119 Plug vent 1 17 :980/04120 Coupling 1 18 :980/04121 Housing flange 1 19 :980/04122 Capscrew 8 20 :980/06402 Circlip external 1 21 :980/04123 Circlip internal 1 22 :980/04128 Seal oil 1 23 :980/04214 Bearing 1 24 :980/04126 Capscrew 8 25 :980/04127 Plate adapter 1

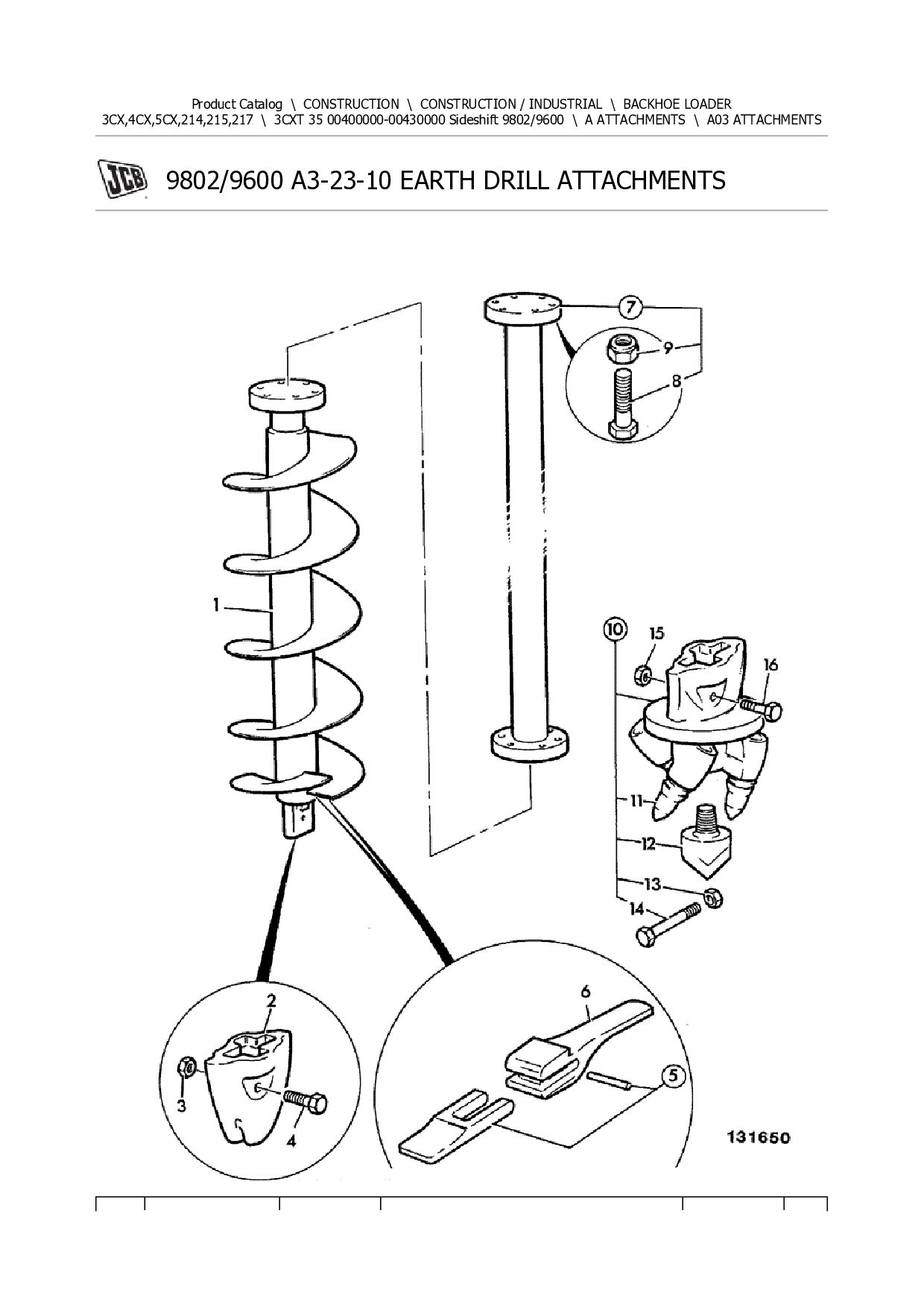

27. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/9600 A3-23-10 EARTH DRILL ATTACHMENTS
