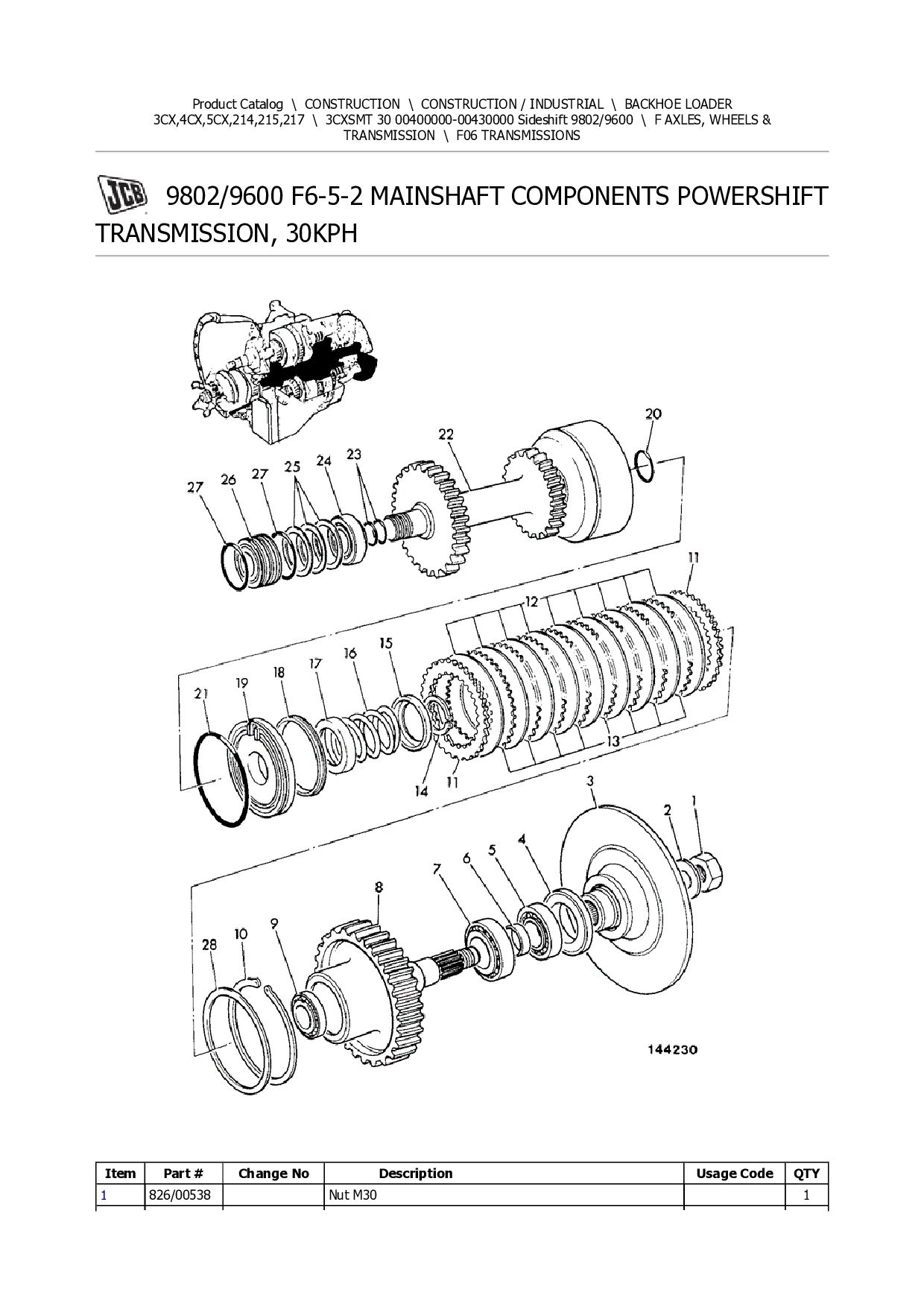

1. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXSMT 30 00400000-00430000 Sideshift 9802/9600 \ F AXLES, WHEELS & TRANSMISSION \ F06 TRANSMISSIONS 9802/9600 F6-5-2 MAINSHAFT COMPONENTS POWERSHIFT TRANSMISSION, 30KPH Item Part # Change No Description Usage Code QTY 1 826/00538 Nut M30 1

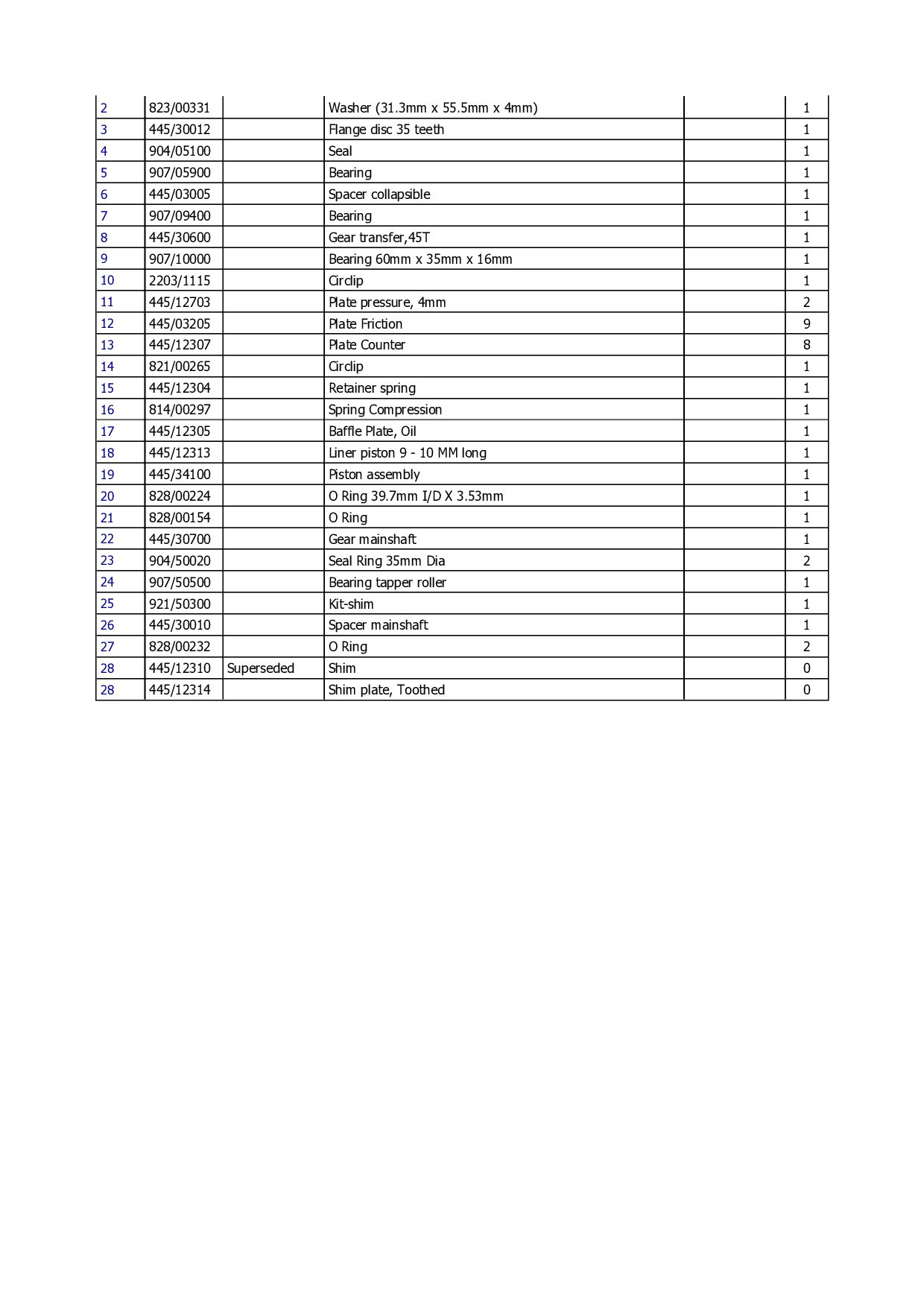

2. 2 823/00331 Washer (31.3mm x 55.5mm x 4mm) 1 3 445/30012 Flange disc 35 teeth 1 4 904/05100 Seal 1 5 907/05900 Bearing 1 6 445/03005 Spacer collapsible 1 7 907/09400 Bearing 1 8 445/30600 Gear transfer,45T 1 9 907/10000 Bearing 60mm x 35mm x 16mm 1 10 2203/1115 Circlip 1 11 445/12703 Plate pressure, 4mm 2 12 445/03205 Plate Friction 9 13 445/12307 Plate Counter 8 14 821/00265 Circlip 1 15 445/12304 Retainer spring 1 16 814/00297 Spring Compression 1 17 445/12305 Baffle Plate, Oil 1 18 445/12313 Liner piston 9 - 10 MM long 1 19 445/34100 Piston assembly 1 20 828/00224 O Ring 39.7mm I/D X 3.53mm 1 21 828/00154 O Ring 1 22 445/30700 Gear mainshaft 1 23 904/50020 Seal Ring 35mm Dia 2 24 907/50500 Bearing tapper roller 1 25 921/50300 Kit-shim 1 26 445/30010 Spacer mainshaft 1 27 828/00232 O Ring 2 28 445/12310 Superseded Shim 0 28 445/12314 Shim plate, Toothed 0

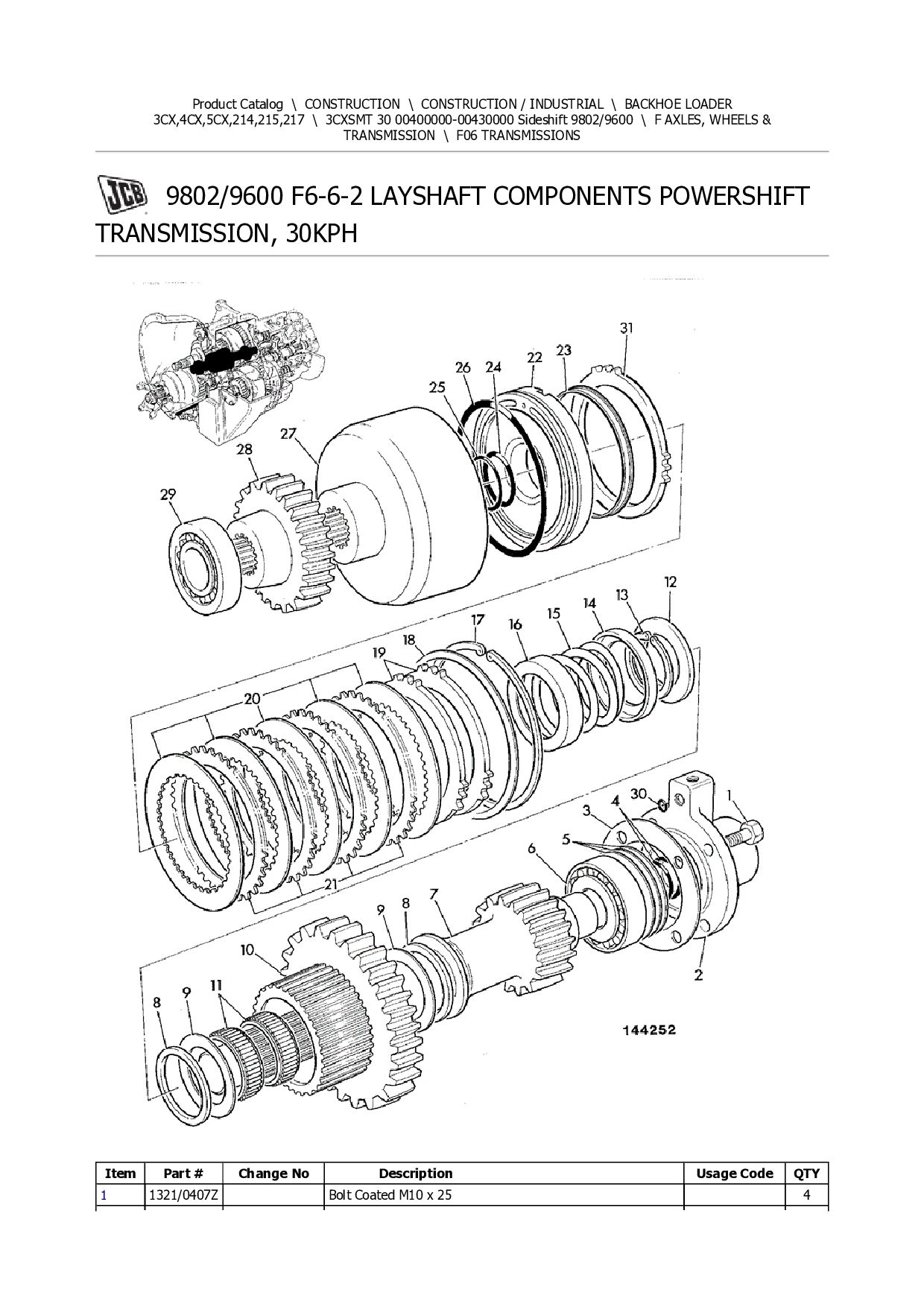

3. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXSMT 30 00400000-00430000 Sideshift 9802/9600 \ F AXLES, WHEELS & TRANSMISSION \ F06 TRANSMISSIONS 9802/9600 F6-6-2 LAYSHAFT COMPONENTS POWERSHIFT TRANSMISSION, 30KPH Item Part # Change No Description Usage Code QTY 1 1321/0407Z Bolt Coated M10 x 25 4

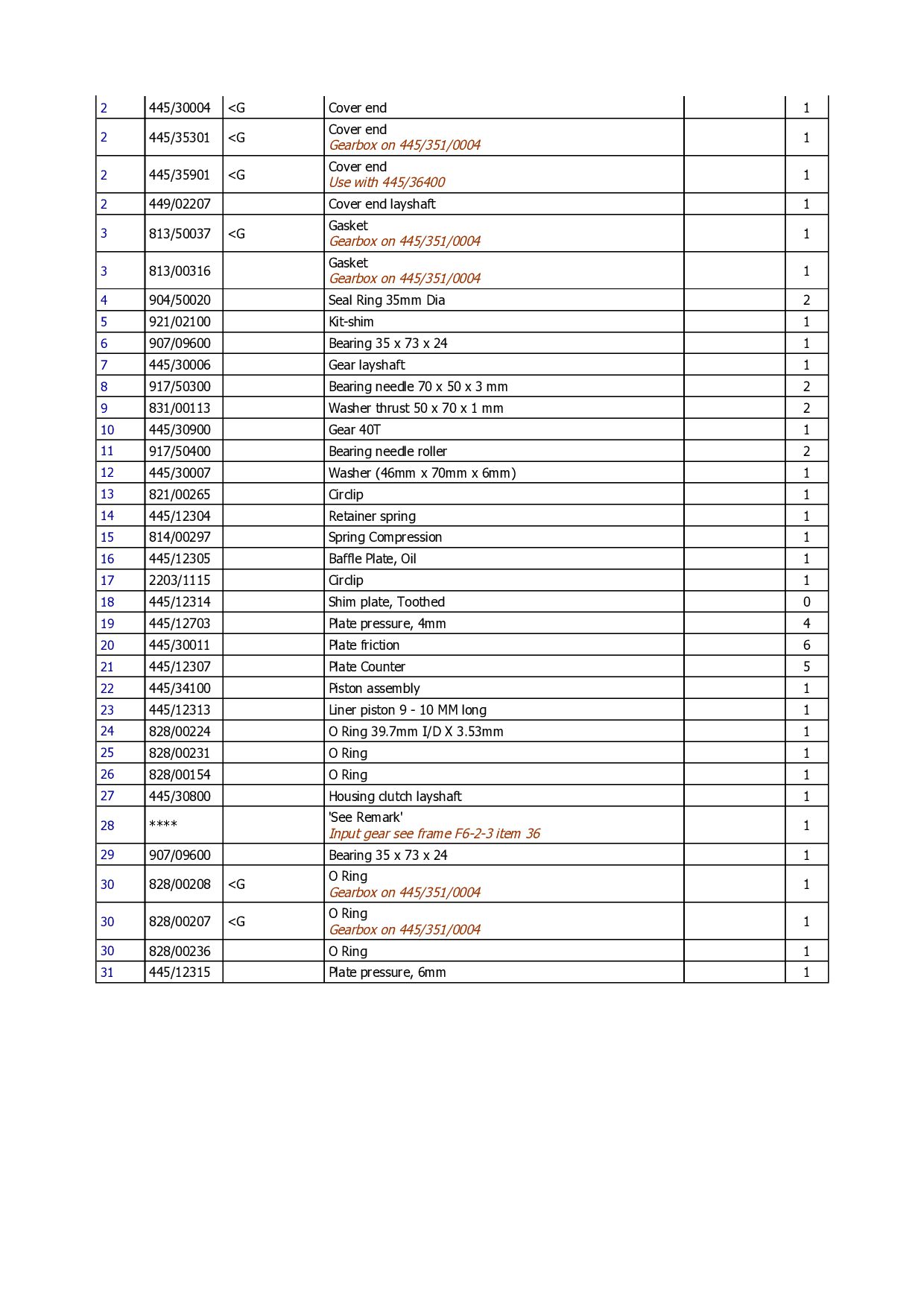

4. 2 445/30004 <G Cover end 1 2 445/35301 <G Cover end Gearbox on 445/351/0004 1 2 445/35901 <G Cover end Use with 445/36400 1 2 449/02207 Cover end layshaft 1 3 813/50037 <G Gasket Gearbox on 445/351/0004 1 3 813/00316 Gasket Gearbox on 445/351/0004 1 4 904/50020 Seal Ring 35mm Dia 2 5 921/02100 Kit-shim 1 6 907/09600 Bearing 35 x 73 x 24 1 7 445/30006 Gear layshaft 1 8 917/50300 Bearing needle 70 x 50 x 3 mm 2 9 831/00113 Washer thrust 50 x 70 x 1 mm 2 10 445/30900 Gear 40T 1 11 917/50400 Bearing needle roller 2 12 445/30007 Washer (46mm x 70mm x 6mm) 1 13 821/00265 Circlip 1 14 445/12304 Retainer spring 1 15 814/00297 Spring Compression 1 16 445/12305 Baffle Plate, Oil 1 17 2203/1115 Circlip 1 18 445/12314 Shim plate, Toothed 0 19 445/12703 Plate pressure, 4mm 4 20 445/30011 Plate friction 6 21 445/12307 Plate Counter 5 22 445/34100 Piston assembly 1 23 445/12313 Liner piston 9 - 10 MM long 1 24 828/00224 O Ring 39.7mm I/D X 3.53mm 1 25 828/00231 O Ring 1 26 828/00154 O Ring 1 27 445/30800 Housing clutch layshaft 1 28 **** 'See Remark' Input gear see frame F6-2-3 item 36 1 29 907/09600 Bearing 35 x 73 x 24 1 30 828/00208 <G O Ring Gearbox on 445/351/0004 1 30 828/00207 <G O Ring Gearbox on 445/351/0004 1 30 828/00236 O Ring 1 31 445/12315 Plate pressure, 6mm 1

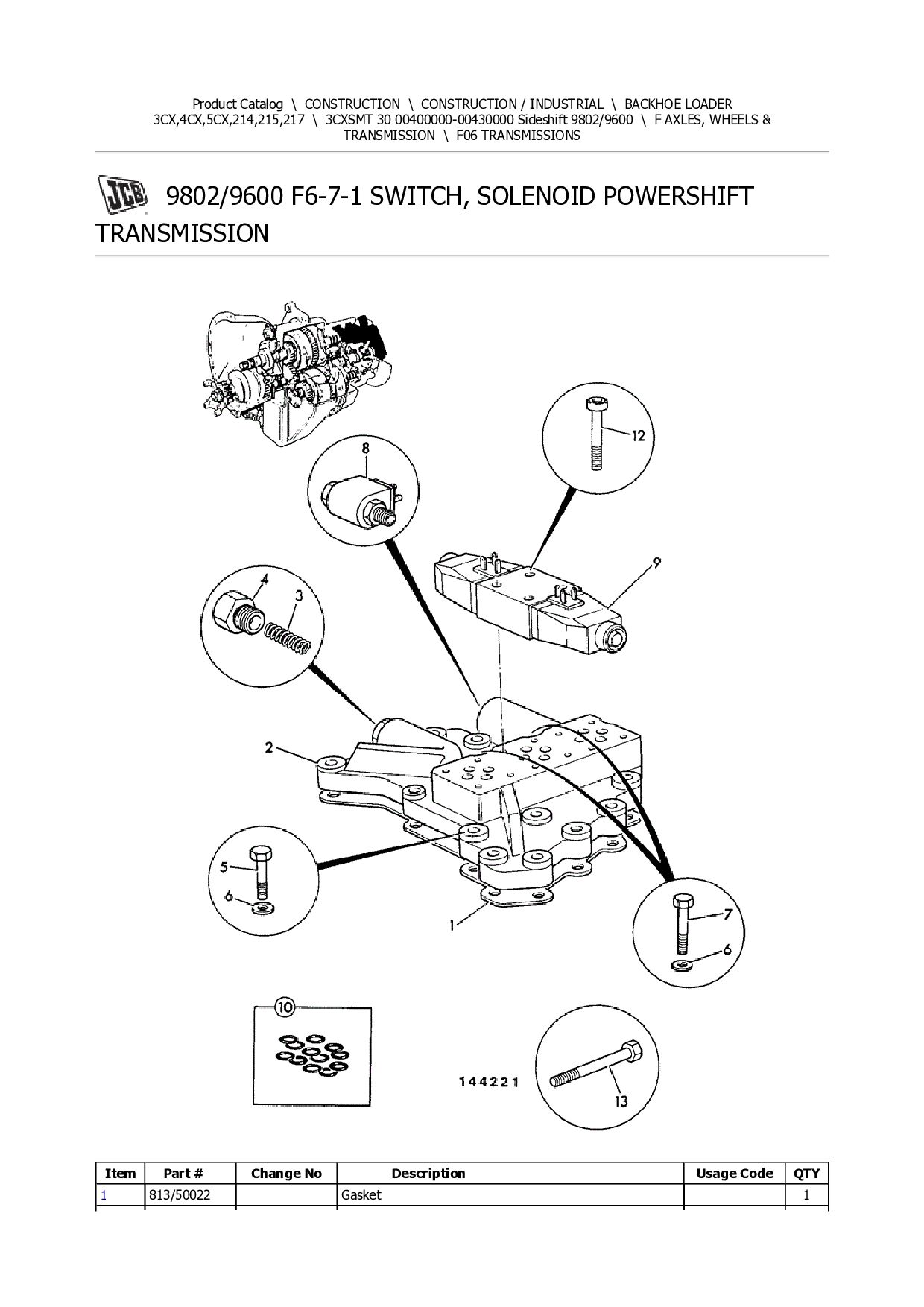

5. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXSMT 30 00400000-00430000 Sideshift 9802/9600 \ F AXLES, WHEELS & TRANSMISSION \ F06 TRANSMISSIONS 9802/9600 F6-7-1 SWITCH, SOLENOID POWERSHIFT TRANSMISSION Item Part # Change No Description Usage Code QTY 1 813/50022 Gasket 1
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/

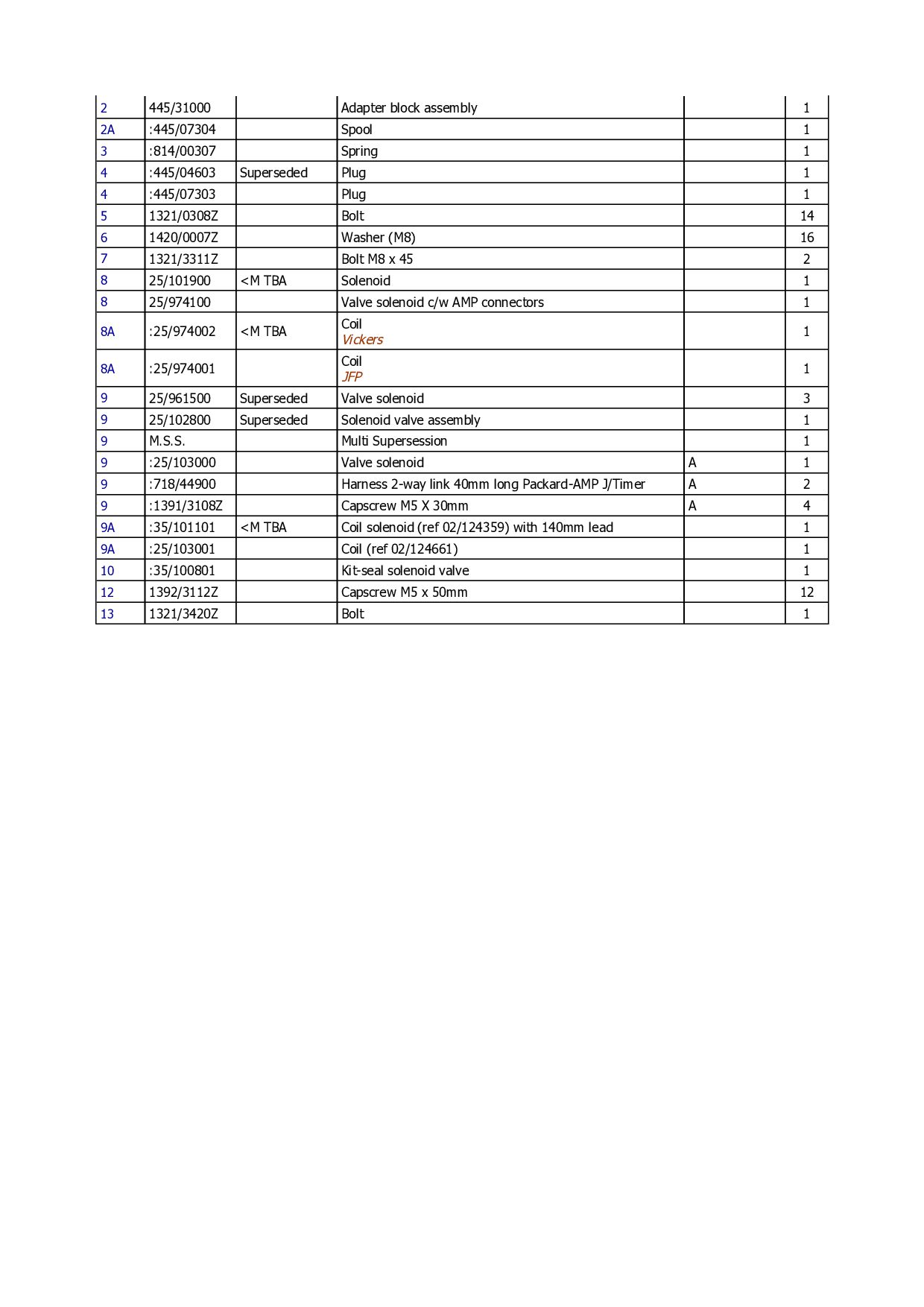

7. 2 445/31000 Adapter block assembly 1 2A :445/07304 Spool 1 3 :814/00307 Spring 1 4 :445/04603 Superseded Plug 1 4 :445/07303 Plug 1 5 1321/0308Z Bolt 14 6 1420/0007Z Washer (M8) 16 7 1321/3311Z Bolt M8 x 45 2 8 25/101900 <M TBA Solenoid 1 8 25/974100 Valve solenoid c/w AMP connectors 1 8A :25/974002 <M TBA Coil Vickers 1 8A :25/974001 Coil JFP 1 9 25/961500 Superseded Valve solenoid 3 9 25/102800 Superseded Solenoid valve assembly 1 9 M.S.S. Multi Supersession 1 9 :25/103000 Valve solenoid A 1 9 :718/44900 Harness 2-way link 40mm long Packard-AMP J/Timer A 2 9 :1391/3108Z Capscrew M5 X 30mm A 4 9A :35/101101 <M TBA Coil solenoid (ref 02/124359) with 140mm lead 1 9A :25/103001 Coil (ref 02/124661) 1 10 :35/100801 Kit-seal solenoid valve 1 12 1392/3112Z Capscrew M5 x 50mm 12 13 1321/3420Z Bolt 1

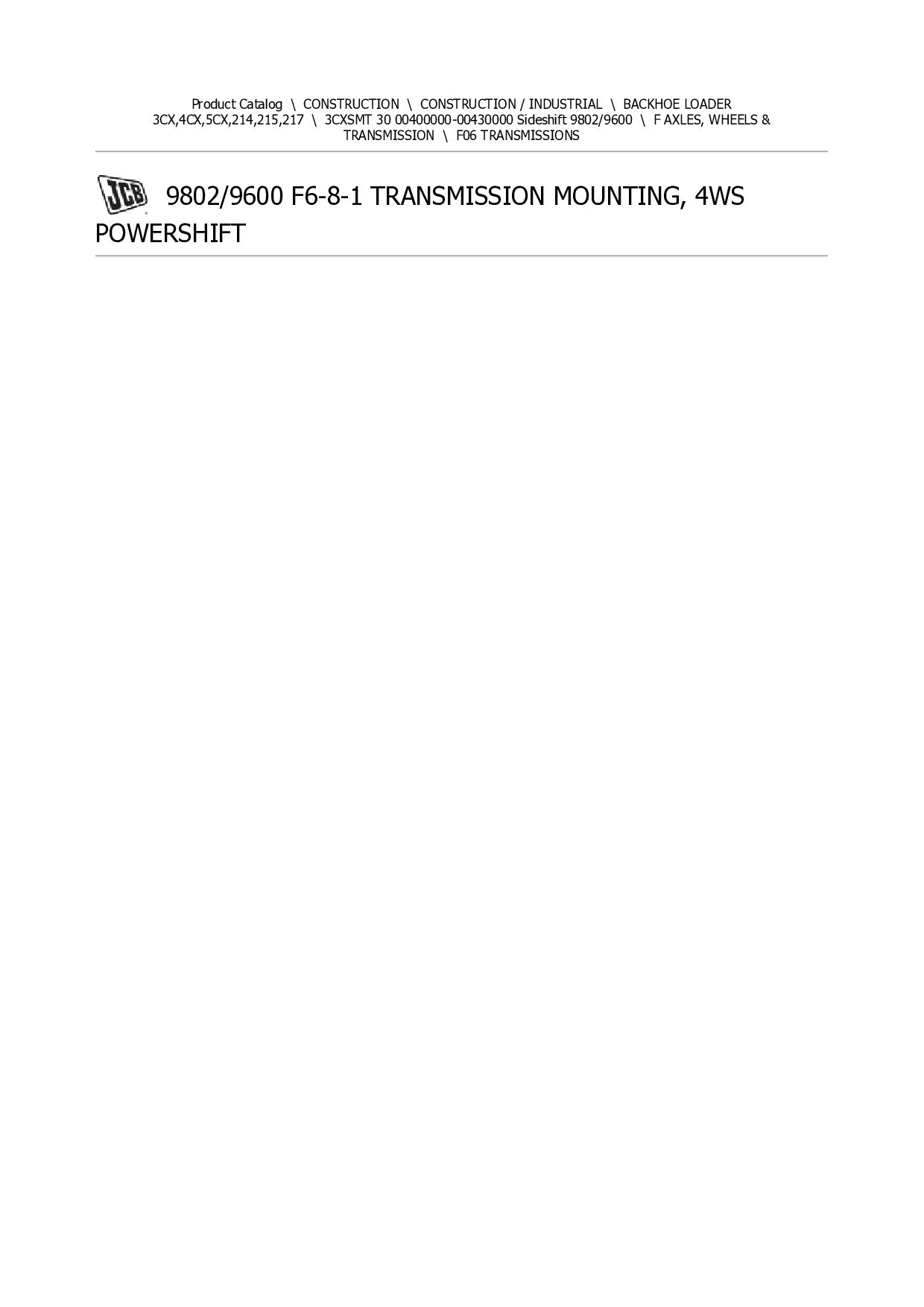

8. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXSMT 30 00400000-00430000 Sideshift 9802/9600 \ F AXLES, WHEELS & TRANSMISSION \ F06 TRANSMISSIONS 9802/9600 F6-8-1 TRANSMISSION MOUNTING, 4WS POWERSHIFT

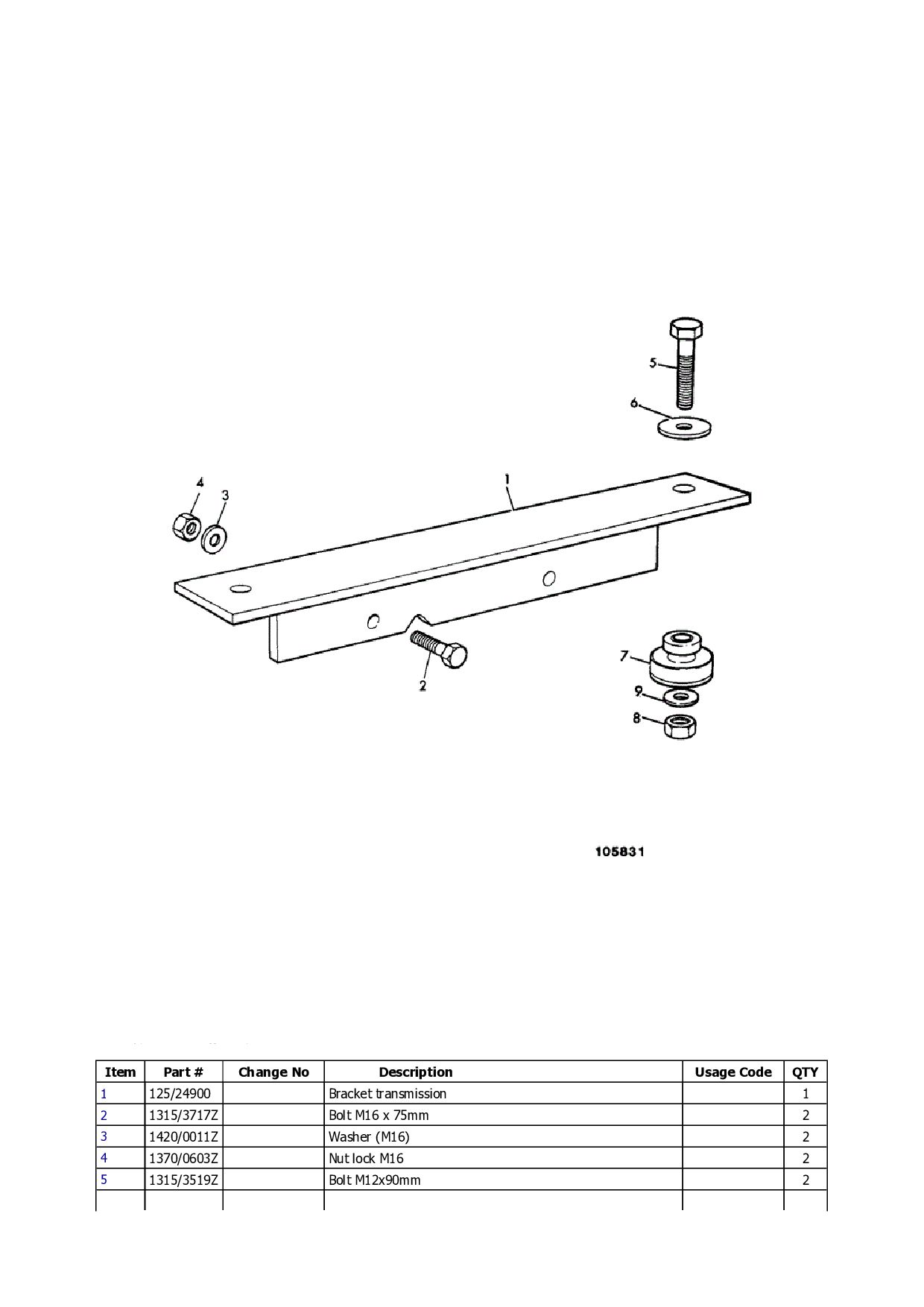

9. Item Part # Change No Description Usage Code QTY 1 125/24900 Bracket transmission 1 2 1315/3717Z Bolt M16 x 75mm 2 3 1420/0011Z Washer (M16) 2 4 1370/0603Z Nut lock M16 2 5 1315/3519Z Bolt M12x90mm 2

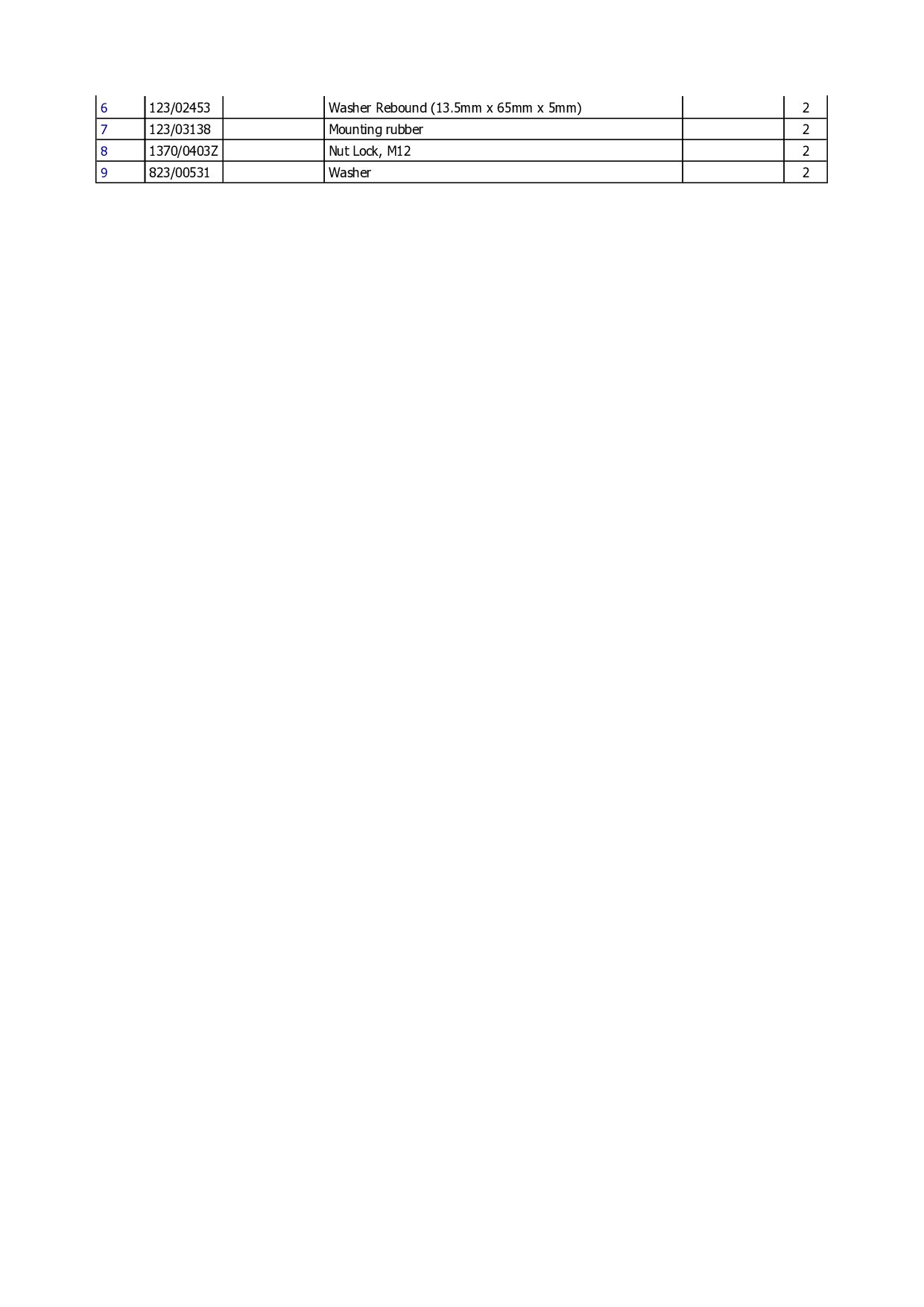

10. 6 123/02453 Washer Rebound (13.5mm x 65mm x 5mm) 2 7 123/03138 Mounting rubber 2 8 1370/0403Z Nut Lock, M12 2 9 823/00531 Washer 2
11. Item Part # Change No Description Usage Code QTY 1 04/500100 Converter 2 purple & 1 white spot. 2.2:1 ratio P/Ex 1 2 04/500300 Kit-drive plate 1 3 :04/500303 Bolt 6 4 :04/500304 Bolt 6 5 :04/500305 Washer plain 2

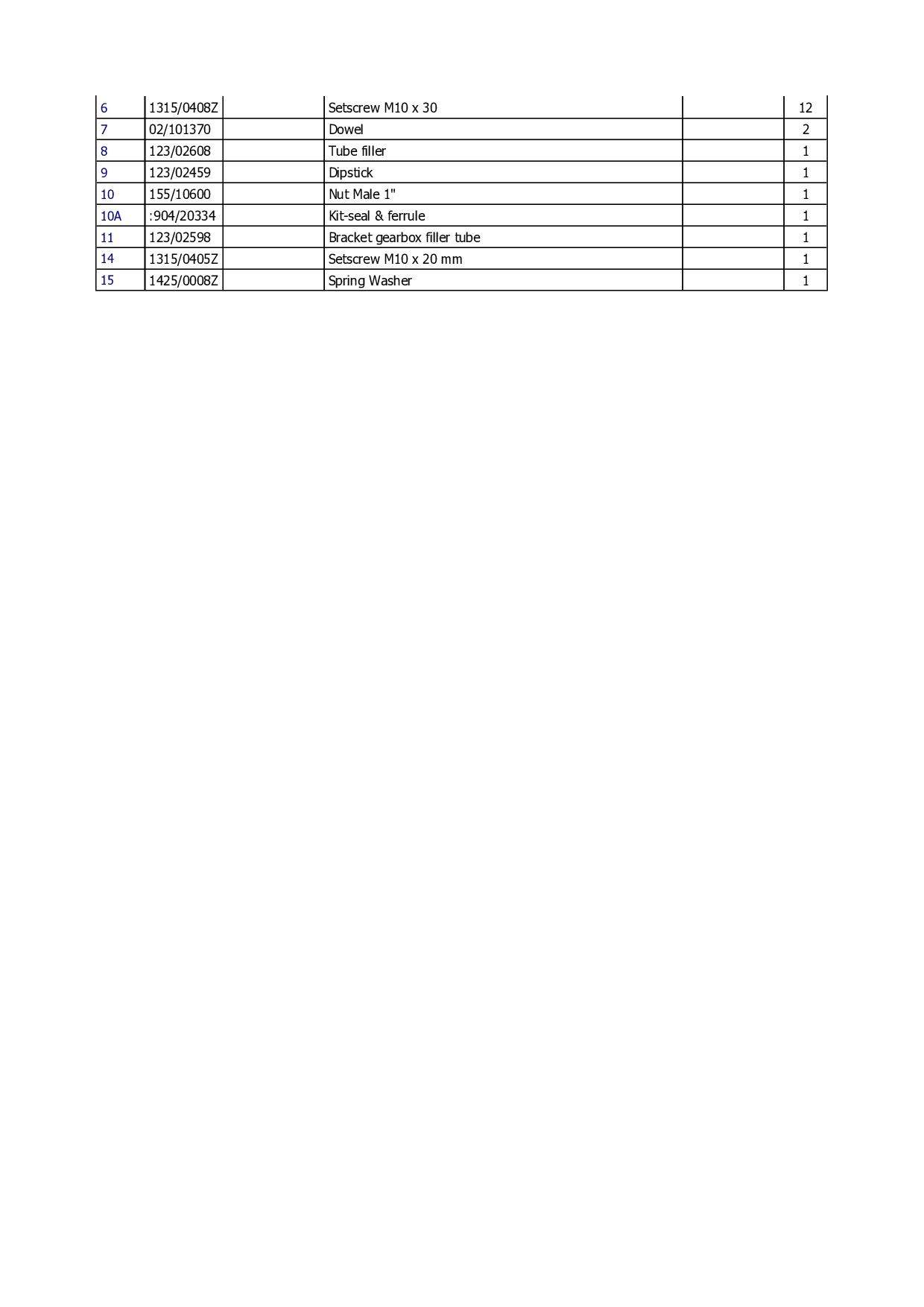

12. 6 1315/0408Z Setscrew M10 x 30 12 7 02/101370 Dowel 2 8 123/02608 Tube filler 1 9 123/02459 Dipstick 1 10 155/10600 Nut Male 1" 1 10A :904/20334 Kit-seal & ferrule 1 11 123/02598 Bracket gearbox filler tube 1 14 1315/0405Z Setscrew M10 x 20 mm 1 15 1425/0008Z Spring Washer 1

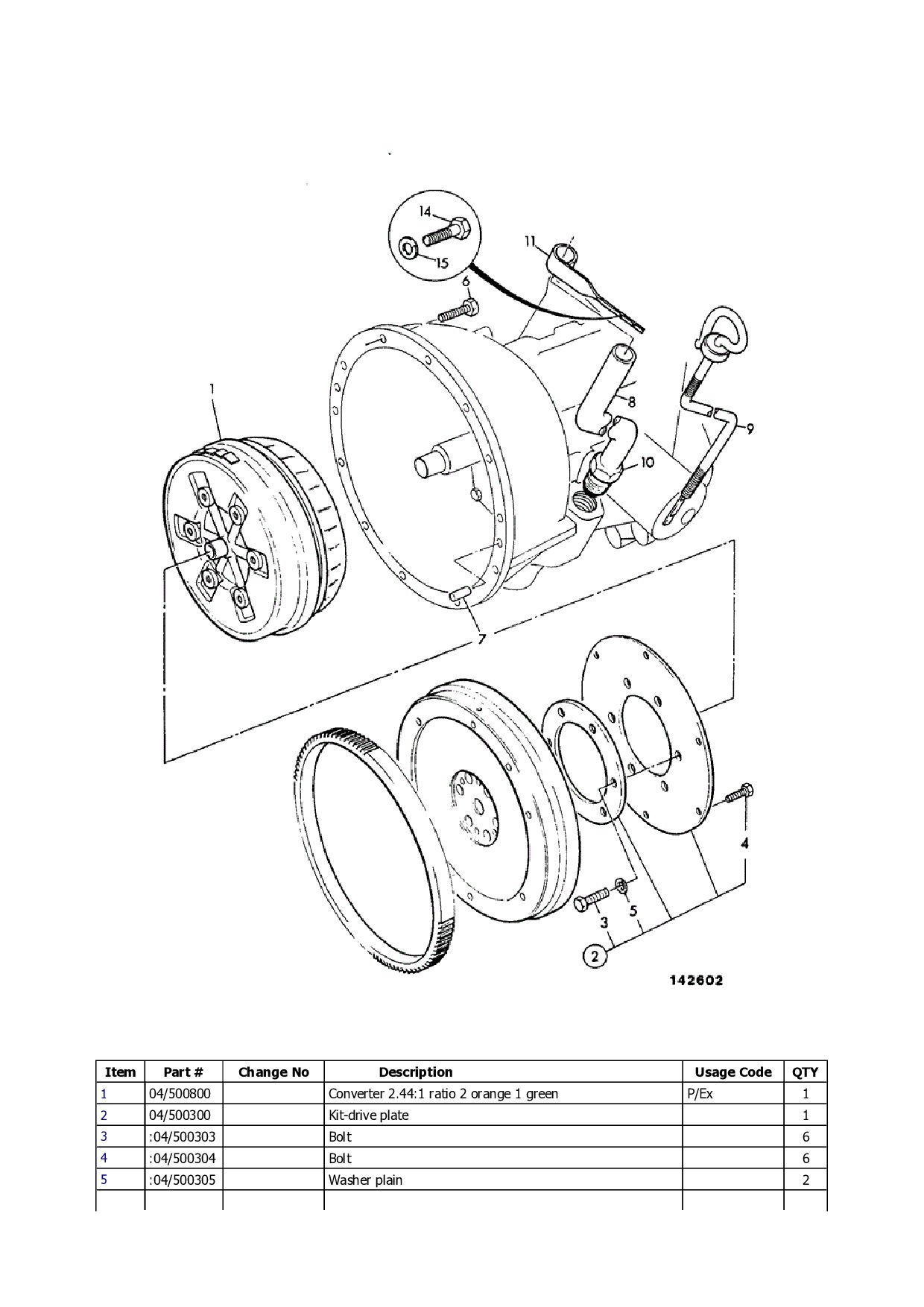

13. Item Part # Change No Description Usage Code QTY 1 04/500800 Converter 2.44:1 ratio 2 orange 1 green P/Ex 1 2 04/500300 Kit-drive plate 1 3 :04/500303 Bolt 6 4 :04/500304 Bolt 6 5 :04/500305 Washer plain 2
14. 6 1315/0408Z Setscrew M10 x 30 12 7 02/101370 Dowel 2 8 123/02608 Tube filler 1 9 123/02459 Dipstick 1 10 155/10600 Nut Male 1" 1 10A :904/20334 Kit-seal & ferrule 1 11 123/02598 Bracket gearbox filler tube 1 14 1315/0405Z Setscrew M10 x 20 mm 1 15 1425/0008Z Spring Washer 1
15. Item Part # Change No Description Usage Code QTY 1 03/300001 Converter 2.67:1 ratio 3 brown spots P/Ex 1 2 04/500300 Kit-drive plate 1 3 :04/500303 Bolt 6 4 :04/500304 Bolt 6 5 :04/500305 Washer plain 2
16. 6 1315/0408Z Setscrew M10 x 30 12 7 02/101370 Dowel 2 8 123/02608 Tube filler 1 9 123/02459 Dipstick 1 10 155/10600 Nut Male 1" 1 10A :904/20334 Kit-seal & ferrule 1 11 123/02598 Bracket gearbox filler tube 1 14 1315/0405Z Setscrew M10 x 20 mm 1 15 1425/0008Z Spring Washer 1

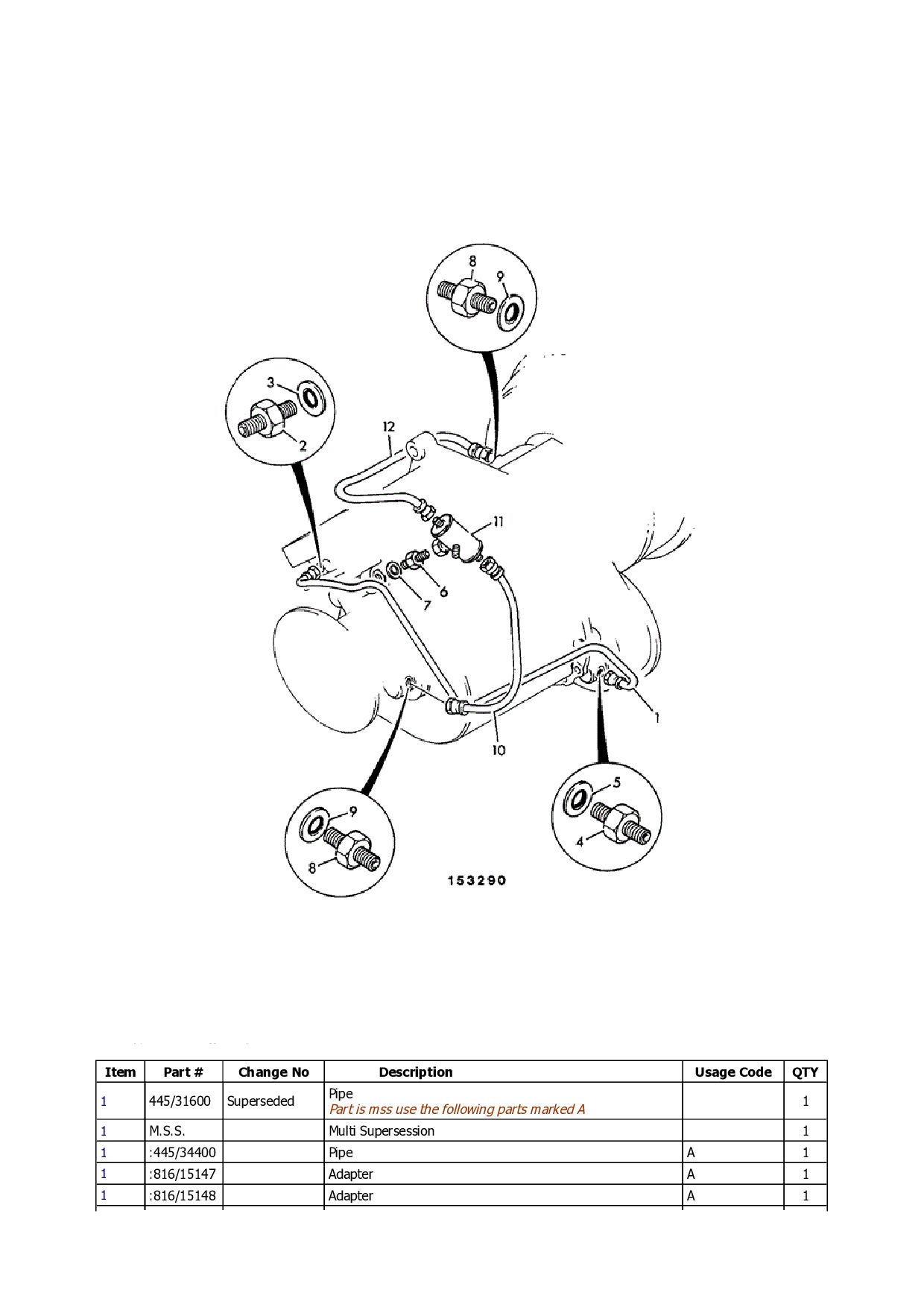

17. Item Part # Change No Description Usage Code QTY 1 445/31600 Superseded Pipe Part is mss use the following parts marked A 1 1 M.S.S. Multi Supersession 1 1 :445/34400 Pipe A 1 1 :816/15147 Adapter A 1 1 :816/15148 Adapter A 1
18. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
19. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.

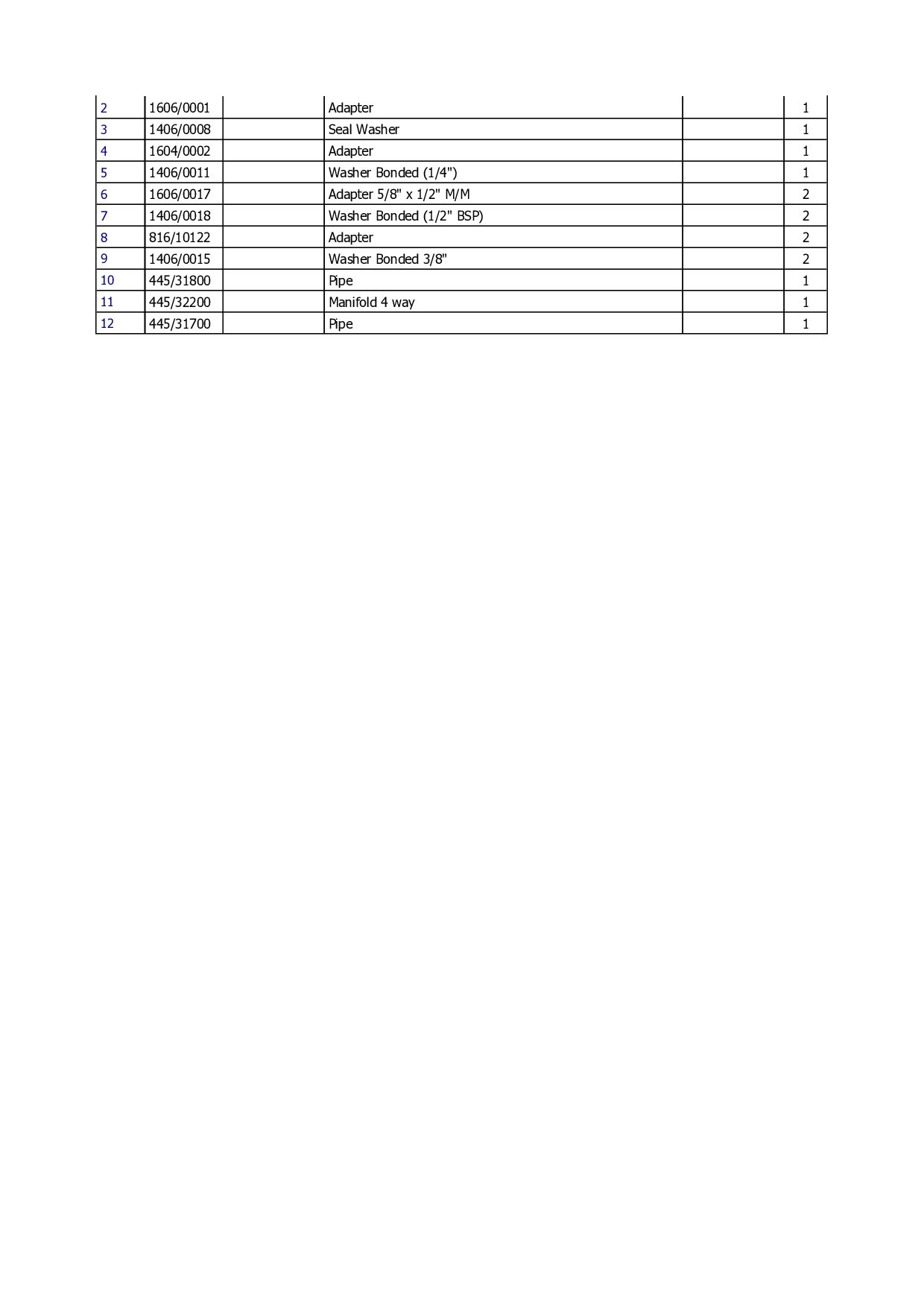

20. 2 1606/0001 Adapter 1 3 1406/0008 Seal Washer 1 4 1604/0002 Adapter 1 5 1406/0011 Washer Bonded (1/4") 1 6 1606/0017 Adapter 5/8" x 1/2" M/M 2 7 1406/0018 Washer Bonded (1/2" BSP) 2 8 816/10122 Adapter 2 9 1406/0015 Washer Bonded 3/8" 2 10 445/31800 Pipe 1 11 445/32200 Manifold 4 way 1 12 445/31700 Pipe 1

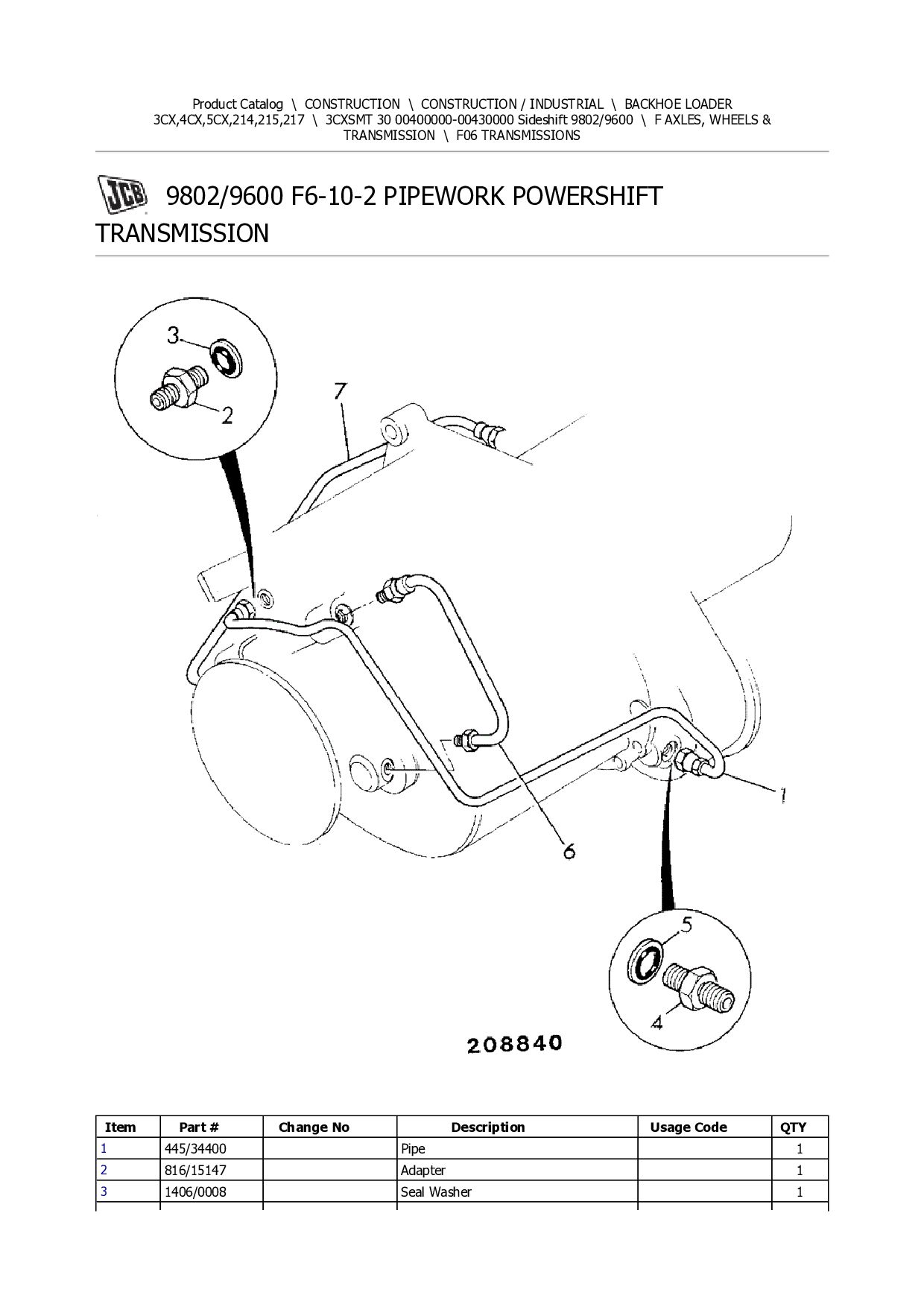

21. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CXSMT 30 00400000-00430000 Sideshift 9802/9600 \ F AXLES, WHEELS & TRANSMISSION \ F06 TRANSMISSIONS 9802/9600 F6-10-2 PIPEWORK POWERSHIFT TRANSMISSION Item Part # Change No Description Usage Code QTY 1 445/34400 Pipe 1 2 816/15147 Adapter 1 3 1406/0008 Seal Washer 1
