103 - Android Graphics Performance

Google IO 2013

Transcript

3. & Graphics Performance
4. & Chet Haase Romain Guy
5. Architecture
6. Reordering & merging

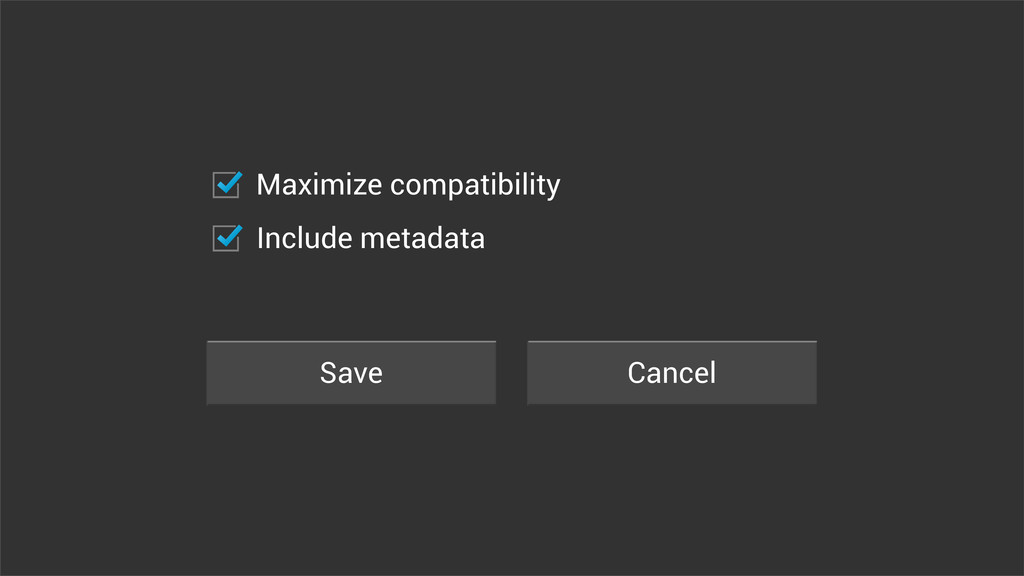

7. Save Cancel Maximize compatibility Include metadata

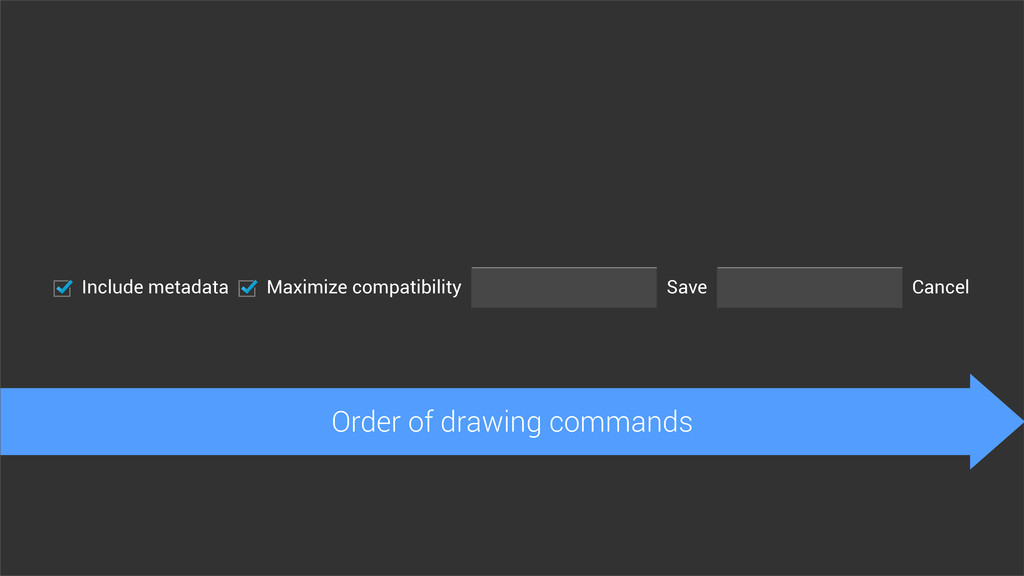

9. Include metadata Maximize compatibility Cancel Save Order of drawing commands

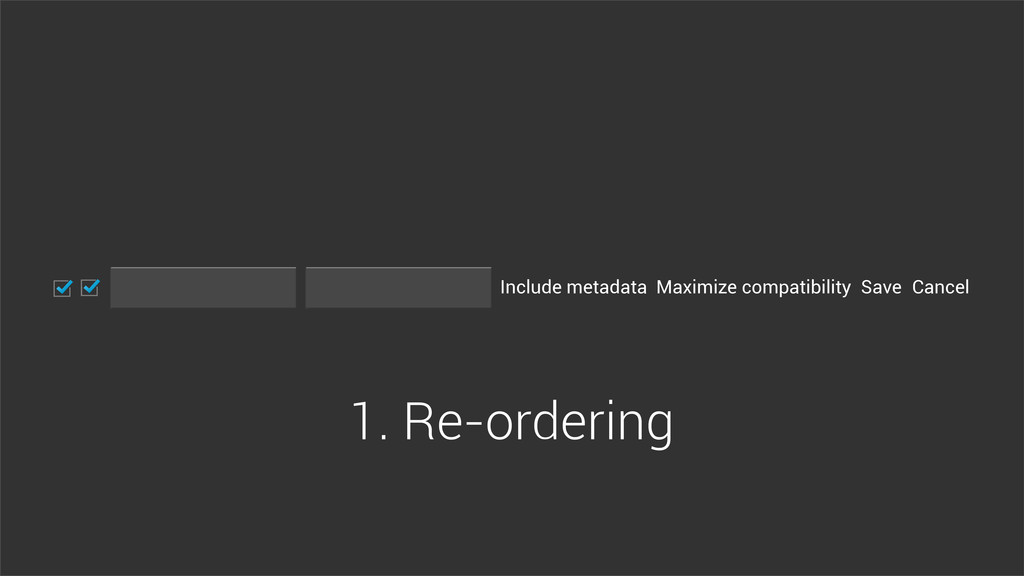

10. Include metadata Maximize compatibility Cancel Save 1. Re-ordering

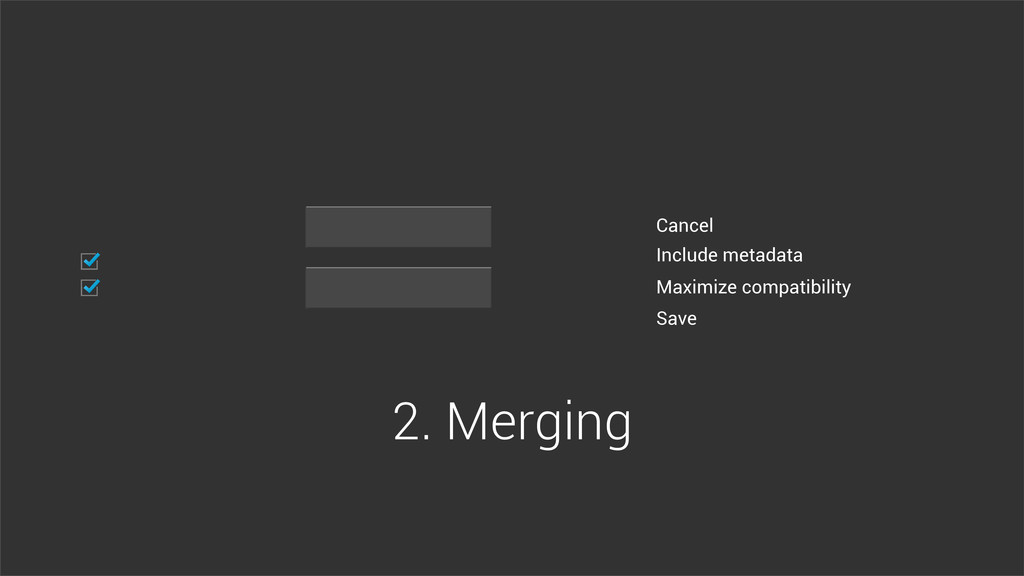

11. Include metadata Maximize compatibility Cancel Save 2. Merging

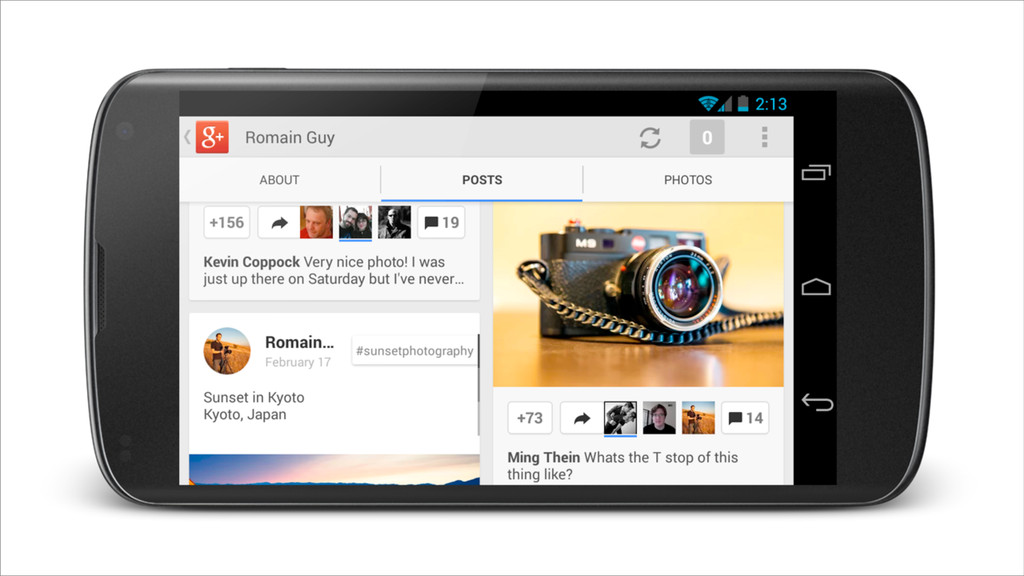

13. Multi-threading
15. Drawing

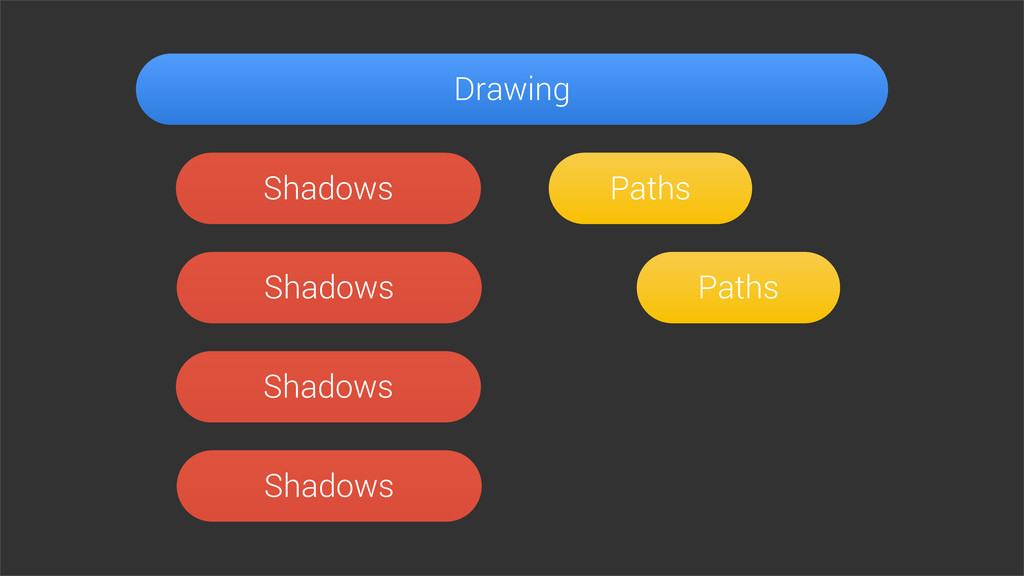

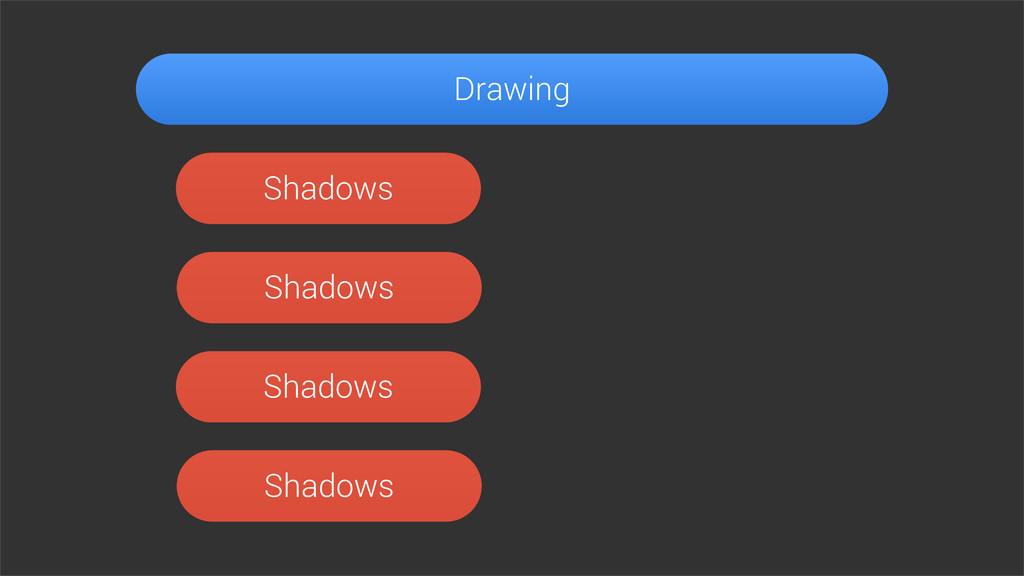

16. Drawing Shadows Shadows Shadows Shadows
17. Drawing Paths Paths Shadows Shadows Shadows Shadows

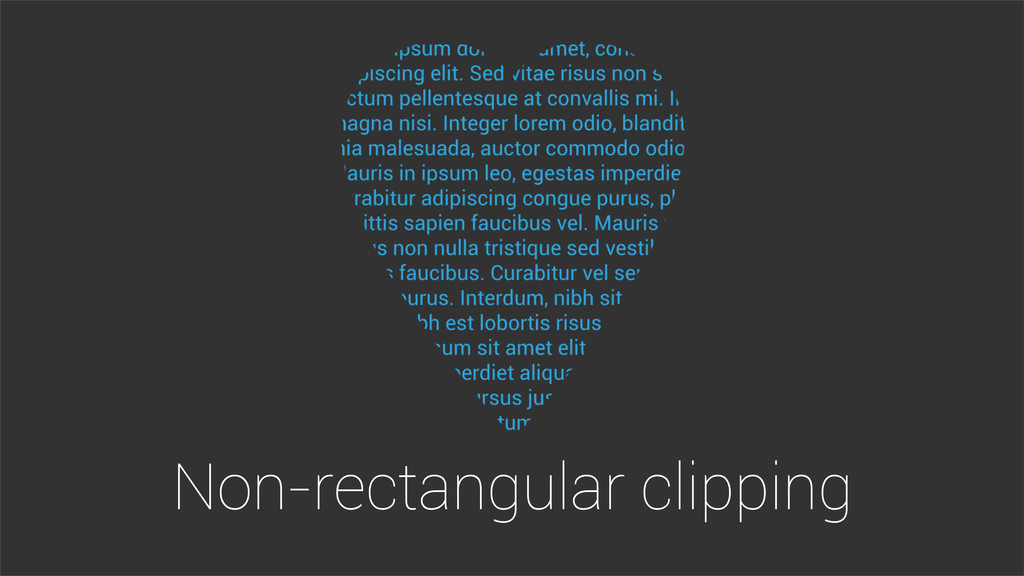

18. Non-rectangular clipping

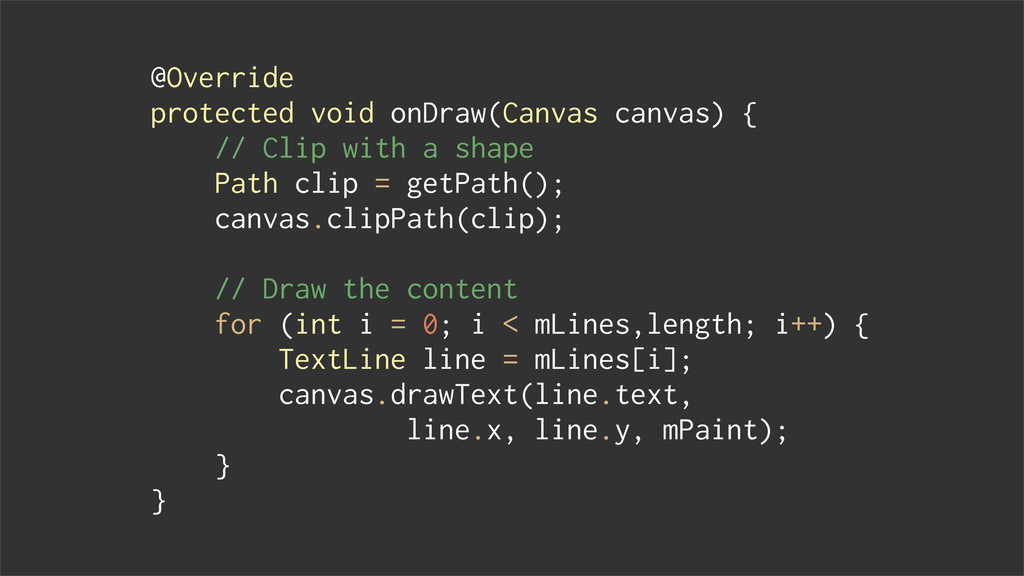

19. @Override protected void onDraw(Canvas canvas) { // Clip with a shape Path clip = getPath(); canvas.clipPath(clip); // Draw the content for (int i = 0; i < mLines,length; i++) { TextLine line = mLines[i]; canvas.drawText(line.text, line.x, line.y, mPaint); } }

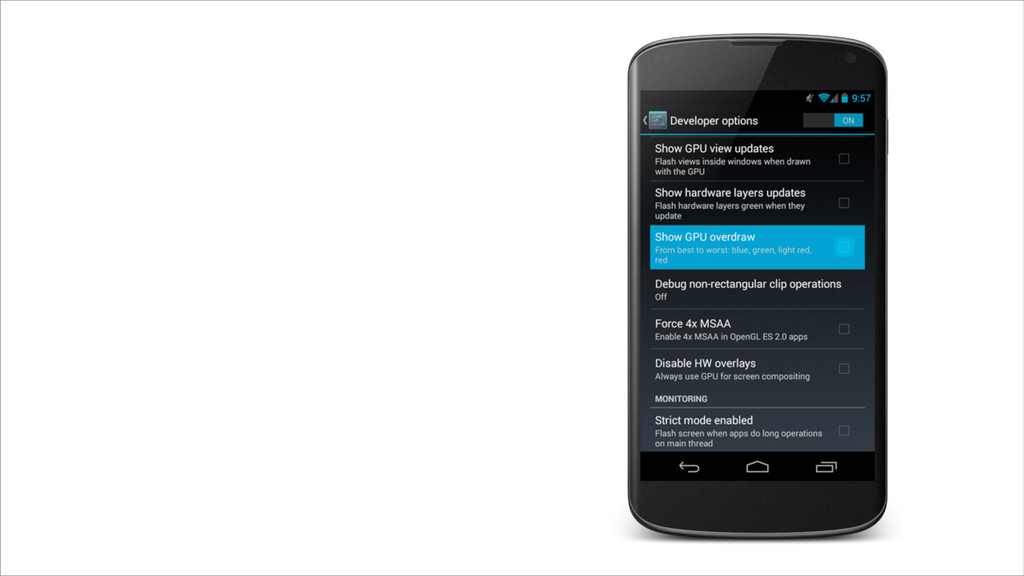

20. Developer Tools 2

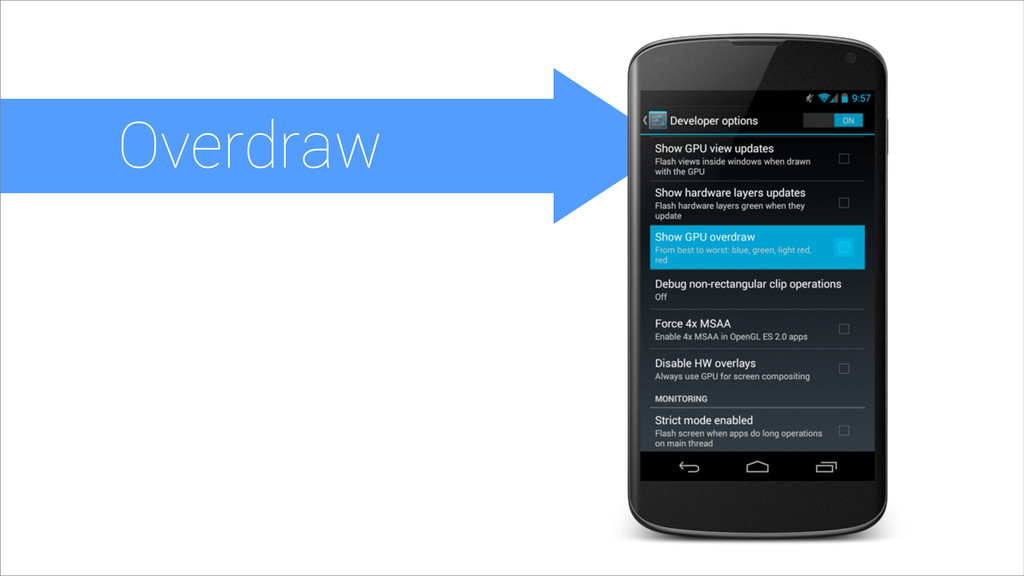

21. Overdraw
22. Overdraw
23. Overdraw

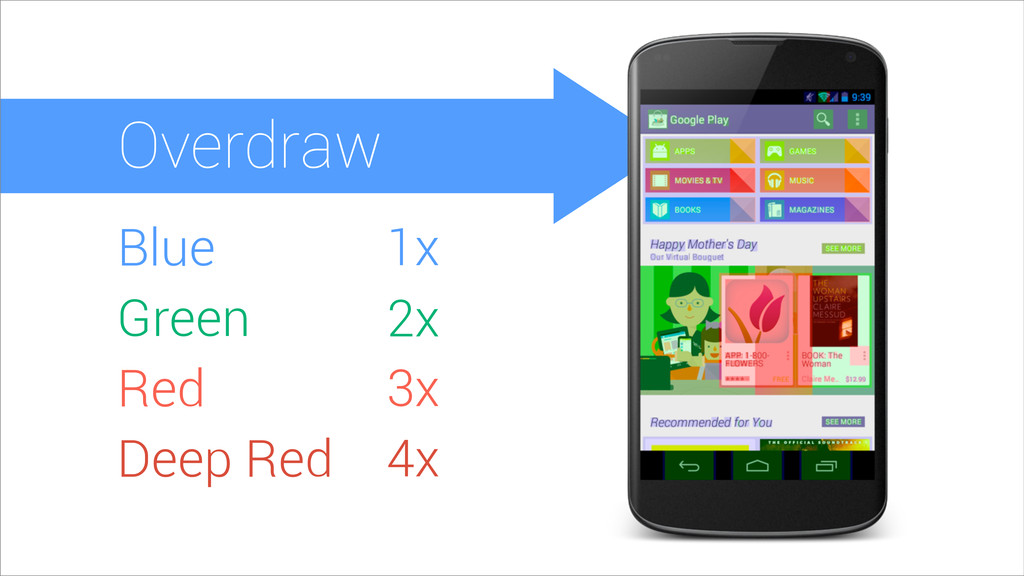

24. Overdraw Blue Green Red Deep Red 1x 2x 3x 4x

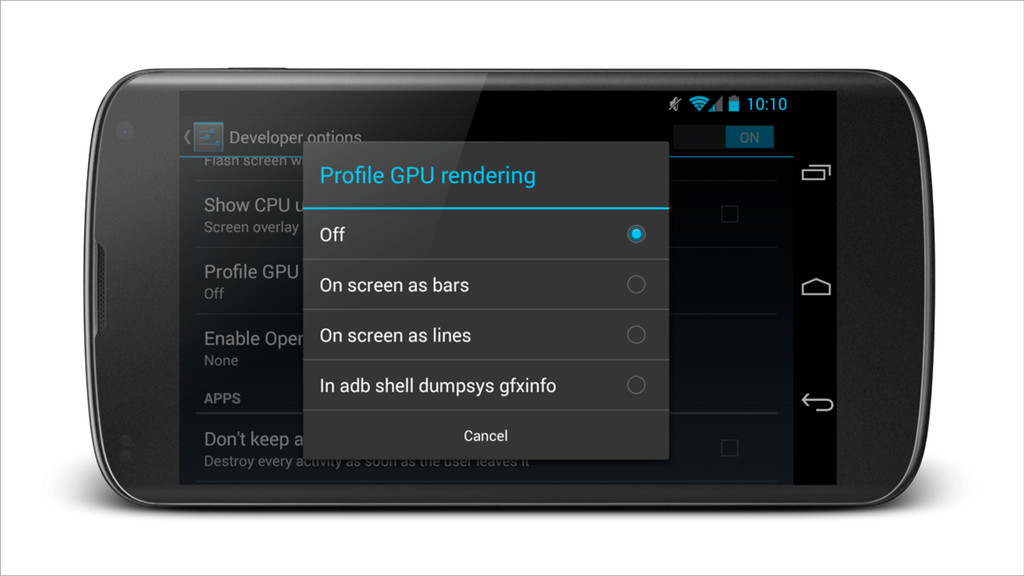

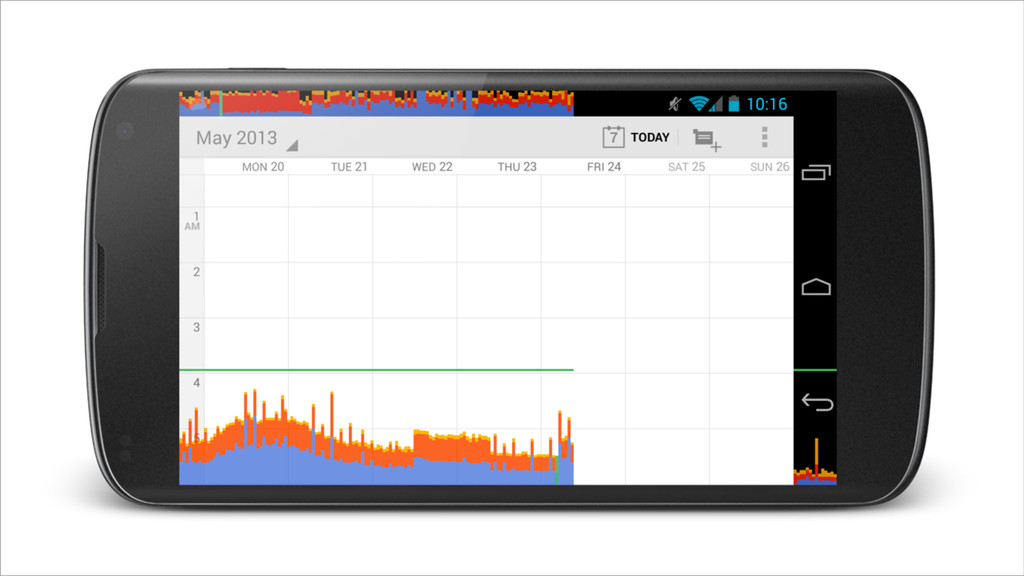

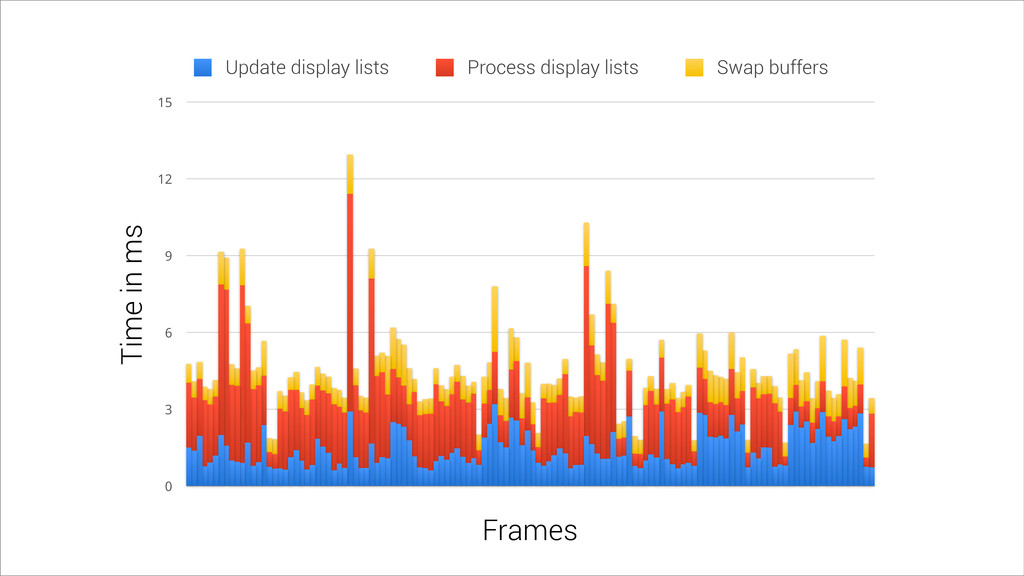

25. 0 3 6 9 12 15 Time in ms Frames Update display lists Process display lists Swap buffers

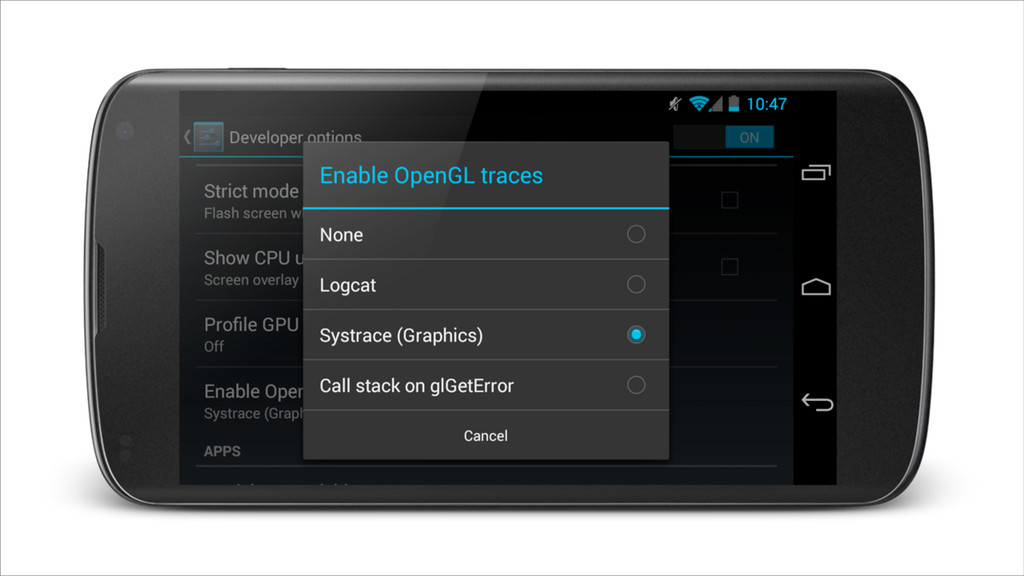

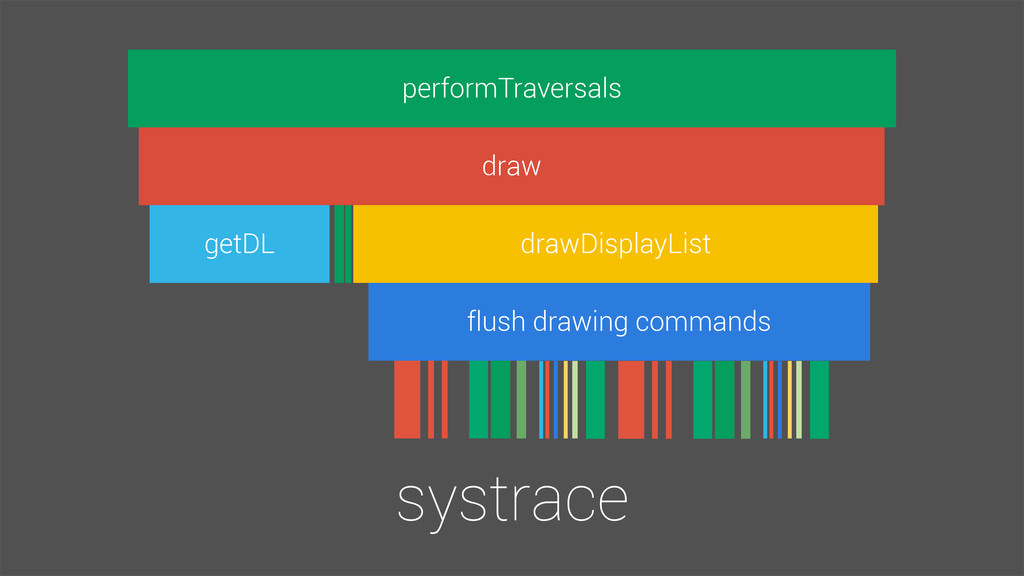

28. performTraversals draw getDL drawDisplayList systrace flush drawing commands

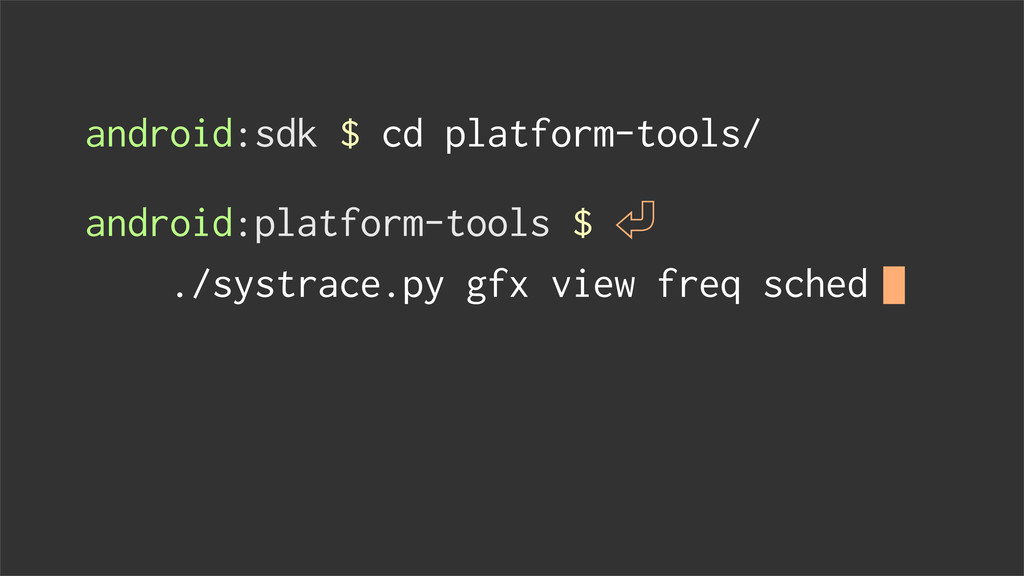

29. android:sdk $ cd platform-tools/ android:platform-tools $ 㾑 ./systrace.py gfx view freq sched

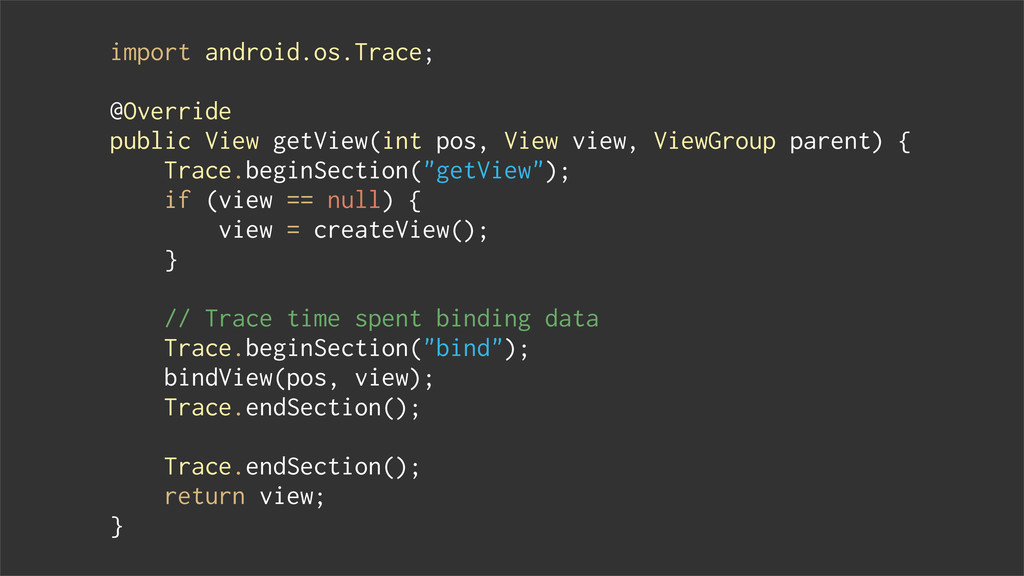

31. import android.os.Trace; @Override public View getView(int pos, View view, ViewGroup parent) { Trace.beginSection("getView"); if (view == null) { view = createView(); } // Trace time spent binding data Trace.beginSection("bind"); bindView(pos, view); Trace.endSection(); Trace.endSection(); return view; }

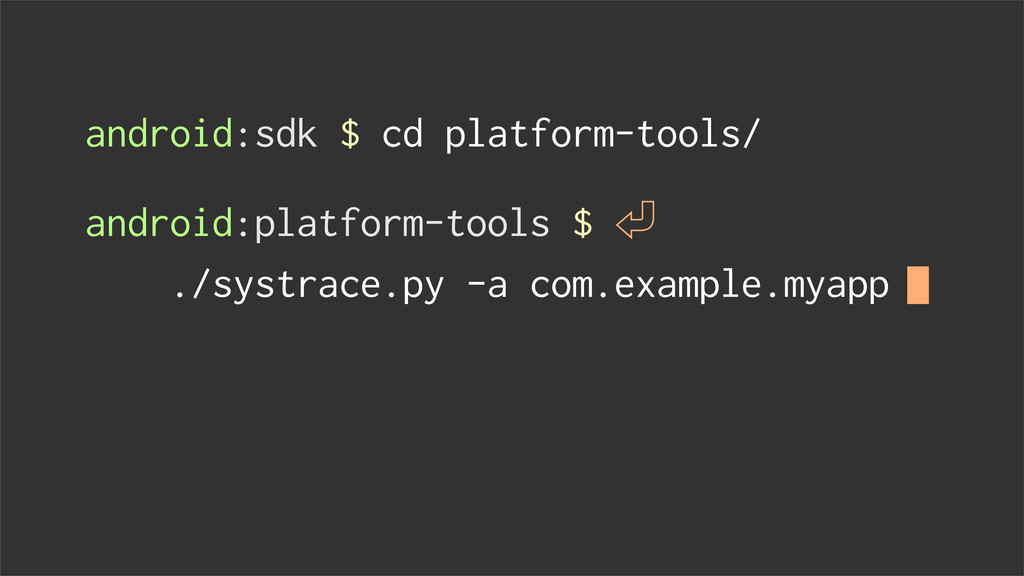

32. android:sdk $ cd platform-tools/ android:platform-tools $ 㾑 ./systrace.py -a com.example.myapp
33. Tips & Tricks 3
34. Overdraw demo

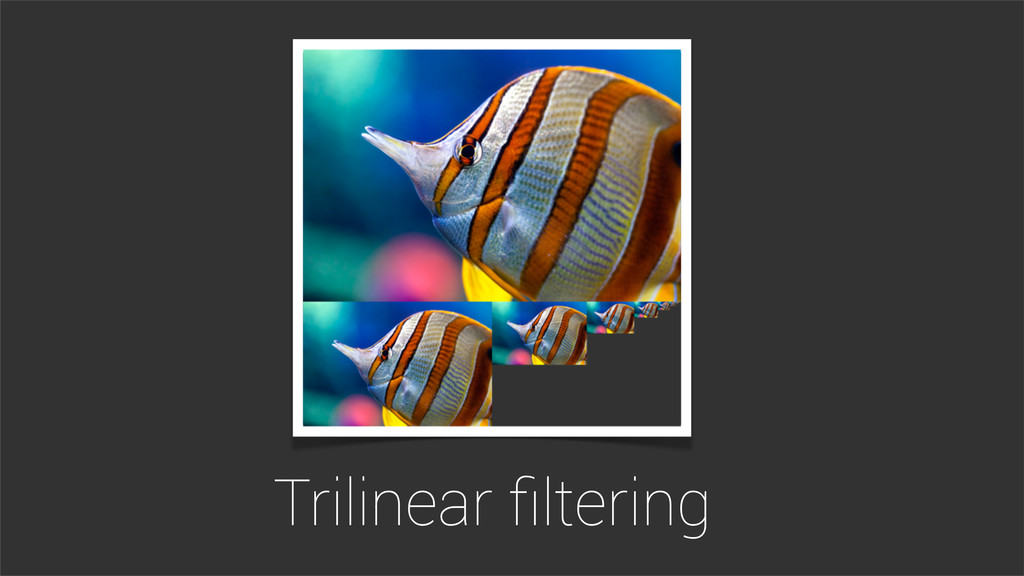

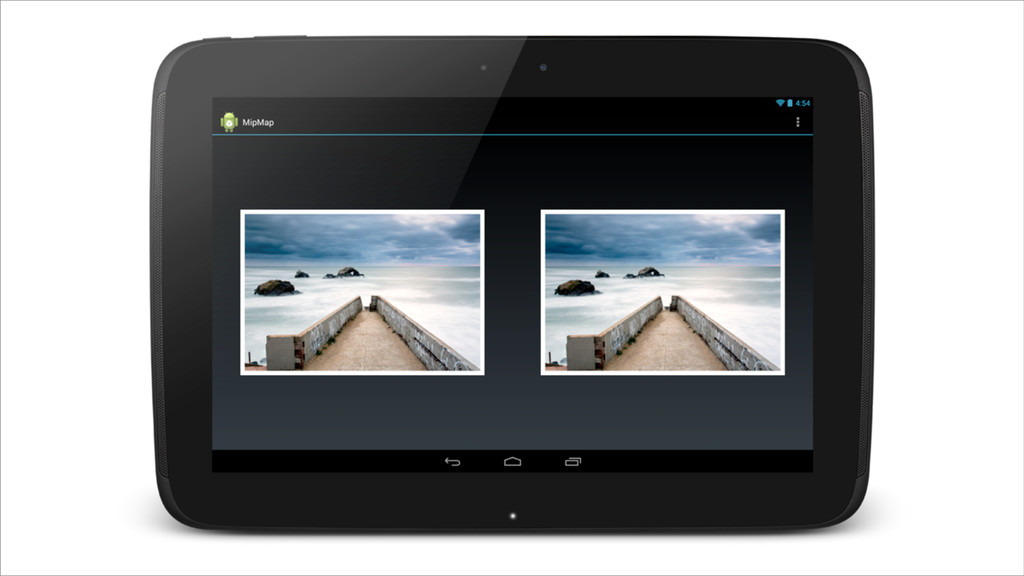

35. Trilinear filtering

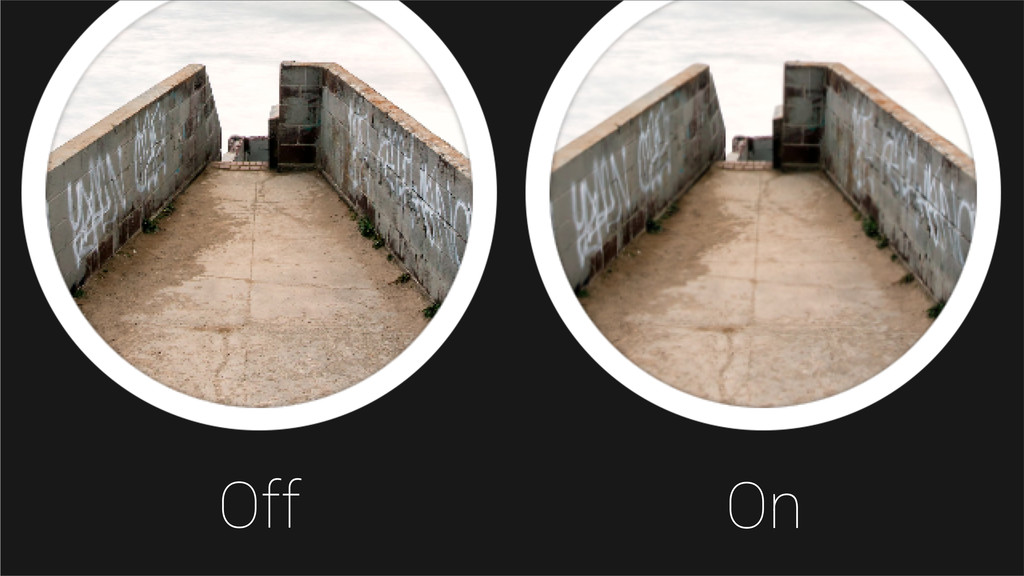

37. Off On

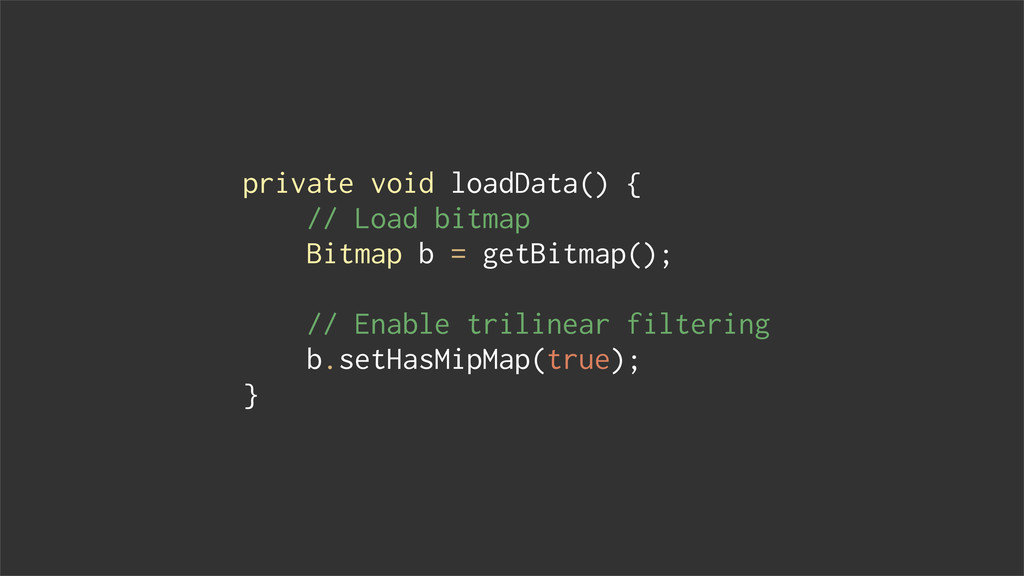

38. private void loadData() { // Load bitmap Bitmap b = getBitmap(); // Enable trilinear filtering b.setHasMipMap(true); }

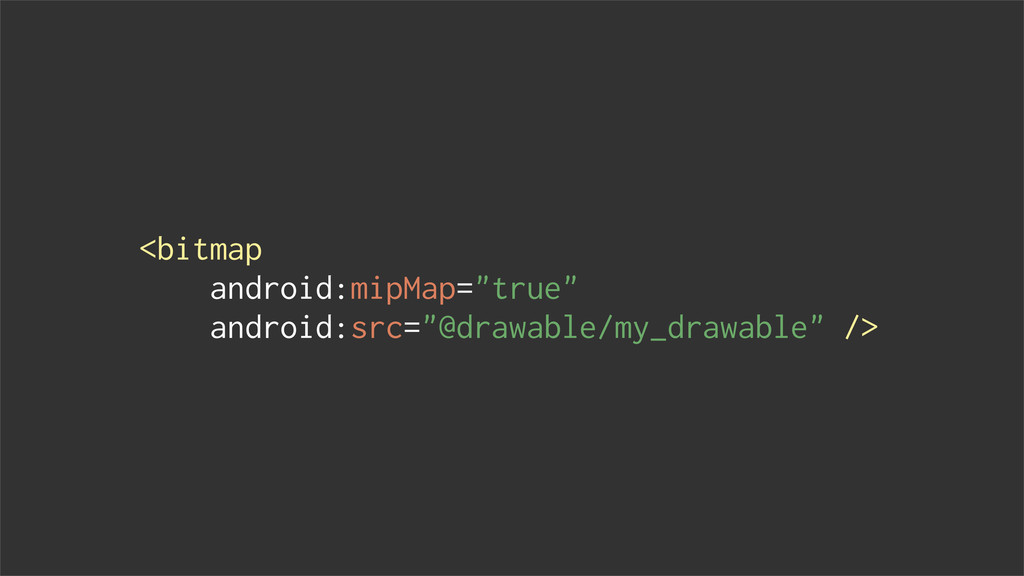

39. <bitmap android:mipMap="true" android:src="@drawable/my_drawable" />
40. Canvas layers

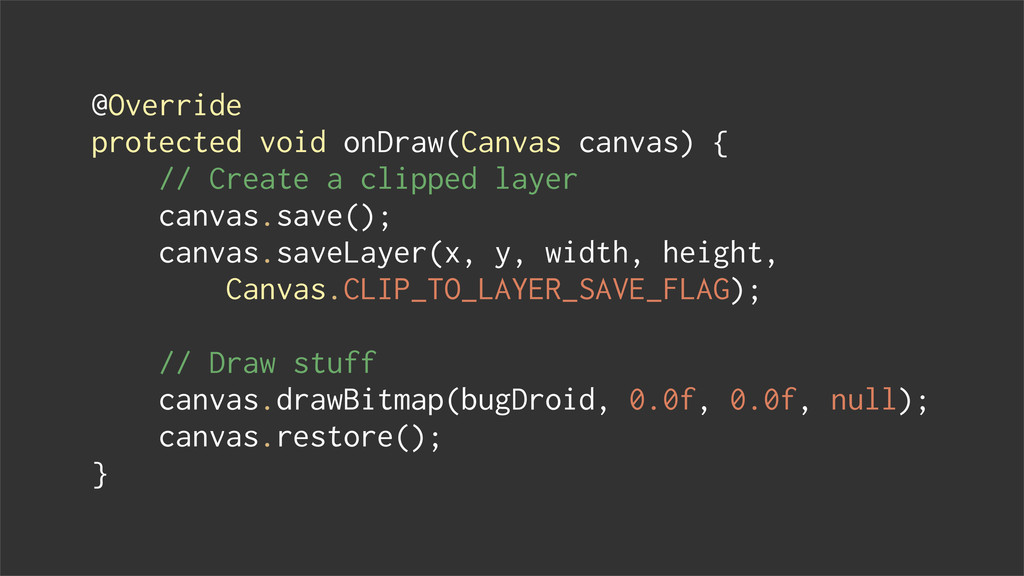

41. @Override protected void onDraw(Canvas canvas) { // Create a clipped layer canvas.save(); canvas.saveLayer(x, y, width, height, Canvas.CLIP_TO_LAYER_SAVE_FLAG); // Draw stuff canvas.drawBitmap(bugDroid, 0.0f, 0.0f, null); canvas.restore(); }

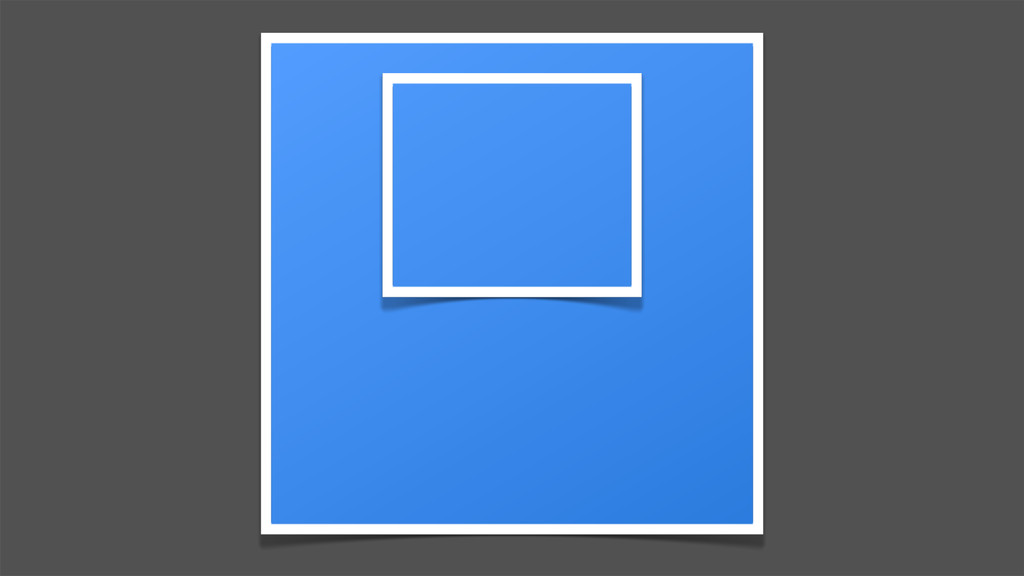

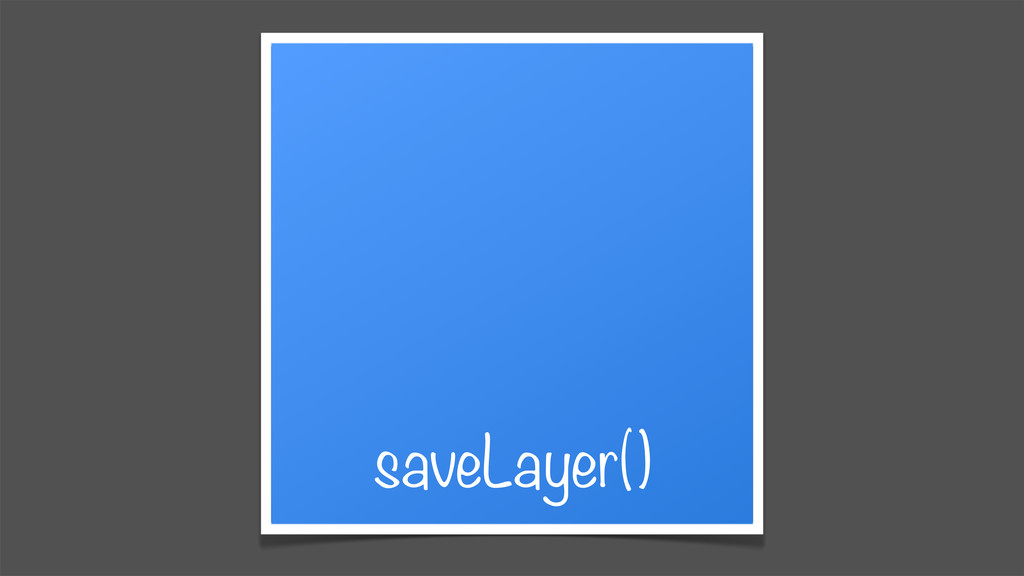

42. saveLayer()

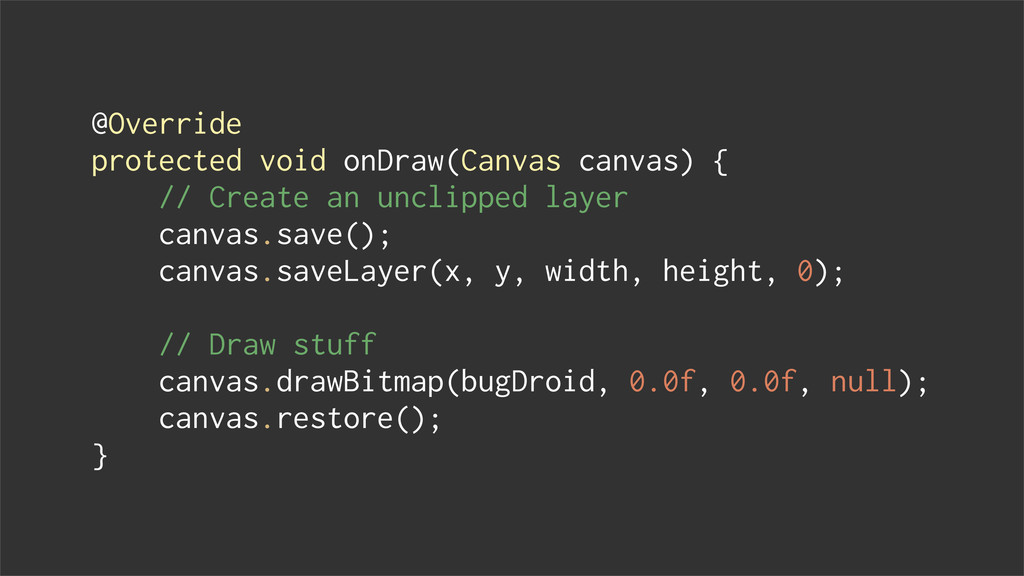

45. @Override protected void onDraw(Canvas canvas) { // Create an unclipped layer canvas.save(); canvas.saveLayer(x, y, width, height, 0); // Draw stuff canvas.drawBitmap(bugDroid, 0.0f, 0.0f, null); canvas.restore(); }
46. saveLayer()
49. Using alpha with care

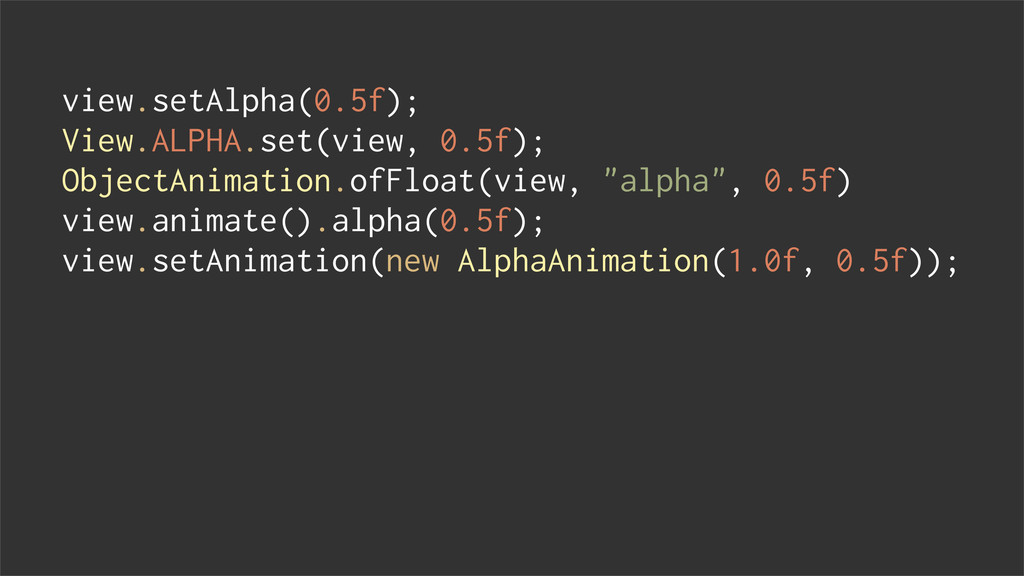

51. view.setAlpha(0.5f); View.ALPHA.set(view, 0.5f); ObjectAnimation.ofFloat(view, "alpha", 0.5f) view.animate().alpha(0.5f); view.setAnimation(new AlphaAnimation(1.0f, 0.5f));

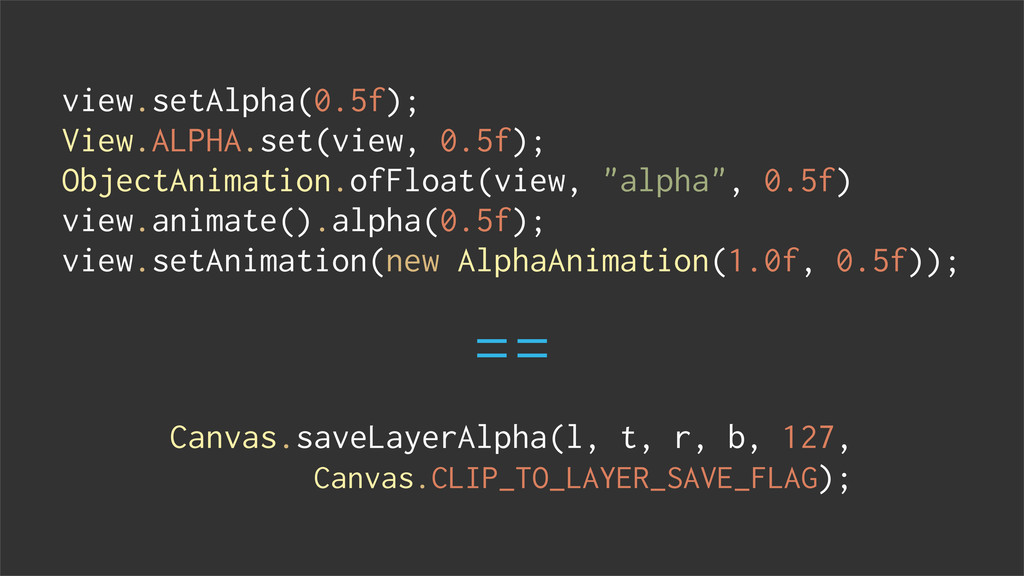

52. view.setAlpha(0.5f); View.ALPHA.set(view, 0.5f); ObjectAnimation.ofFloat(view, "alpha", 0.5f) view.animate().alpha(0.5f); view.setAnimation(new AlphaAnimation(1.0f, 0.5f)); Canvas.saveLayerAlpha(l, t, r, b, 127, Canvas.CLIP_TO_LAYER_SAVE_FLAG); ==
57. lternatives

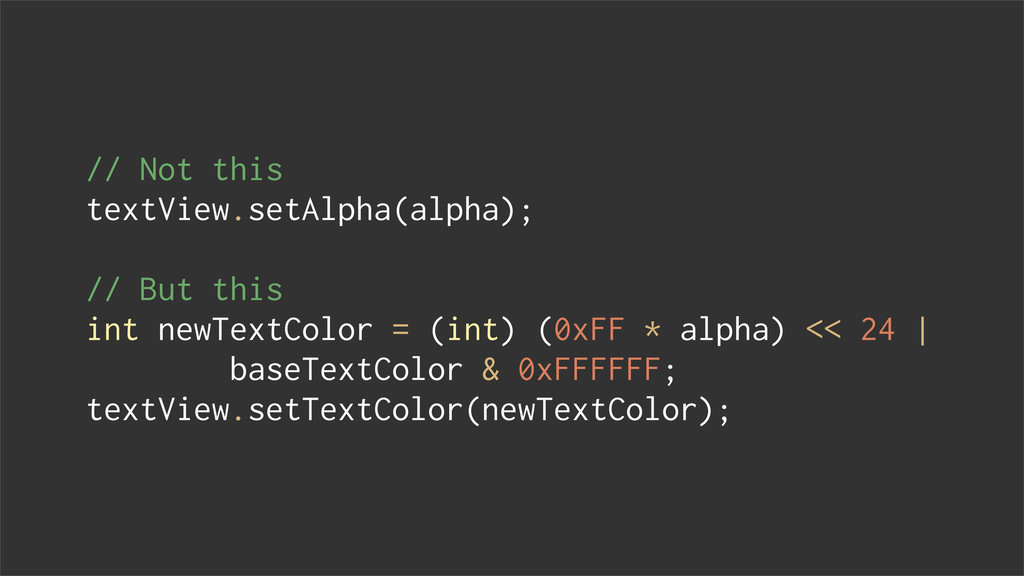

58. // Not this textView.setAlpha(alpha); // But this int newTextColor = (int) (0xFF * alpha) << 24 | baseTextColor & 0xFFFFFF; textView.setTextColor(newTextColor);

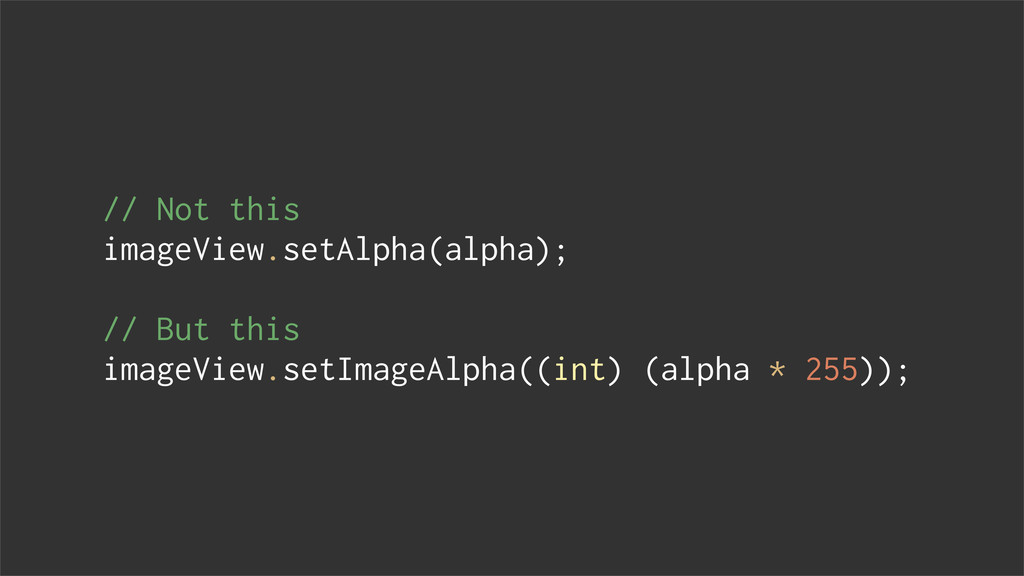

59. // Not this imageView.setAlpha(alpha); // But this imageView.setImageAlpha((int) (alpha * 255));

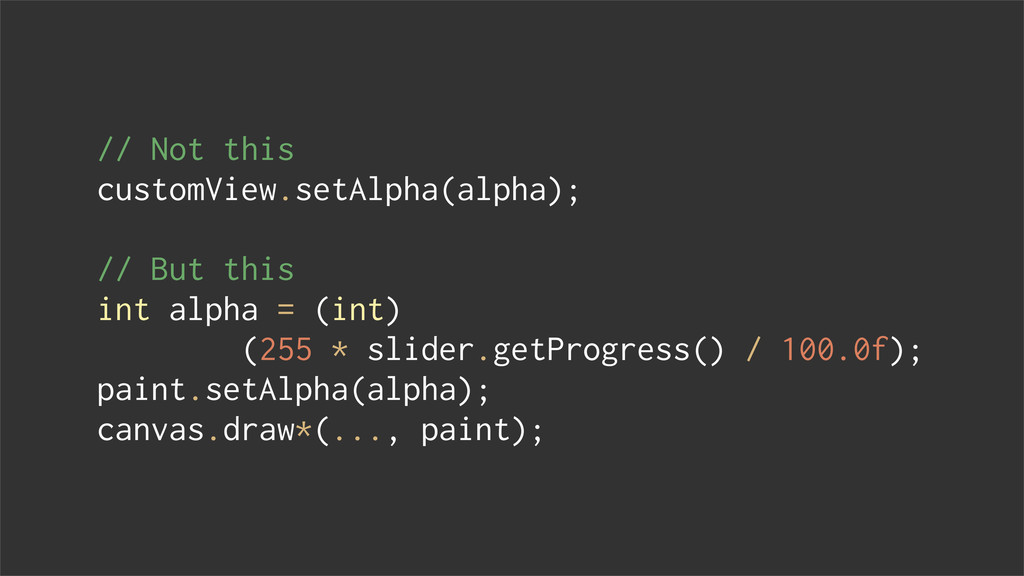

60. // Not this customView.setAlpha(alpha); // But this int alpha = (int) (255 * slider.getProgress() / 100.0f); paint.setAlpha(alpha); canvas.draw*(..., paint);

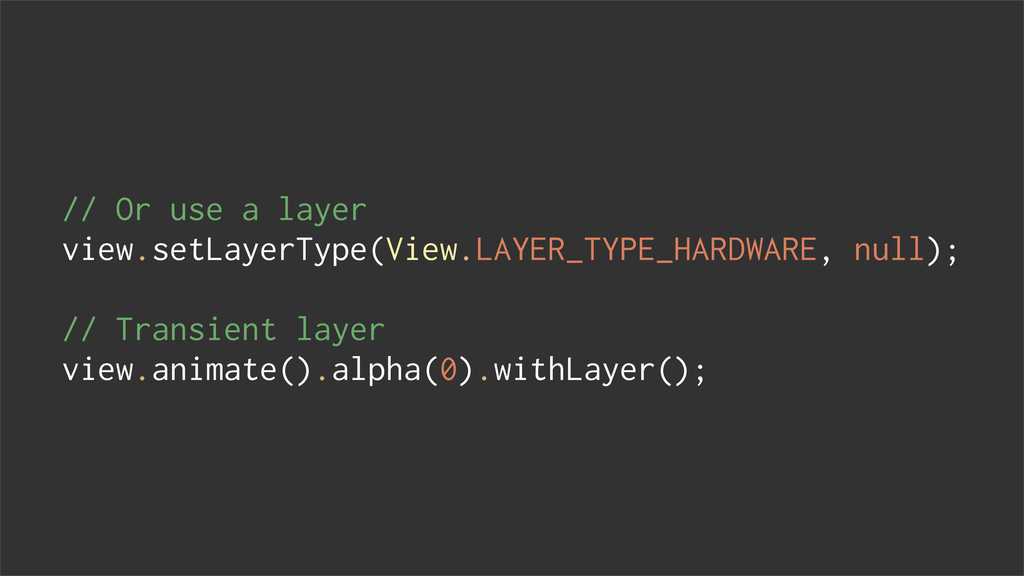

61. // Or use a layer view.setLayerType(View.LAYER_TYPE_HARDWARE, null); // Transient layer view.animate().alpha(0).withLayer();

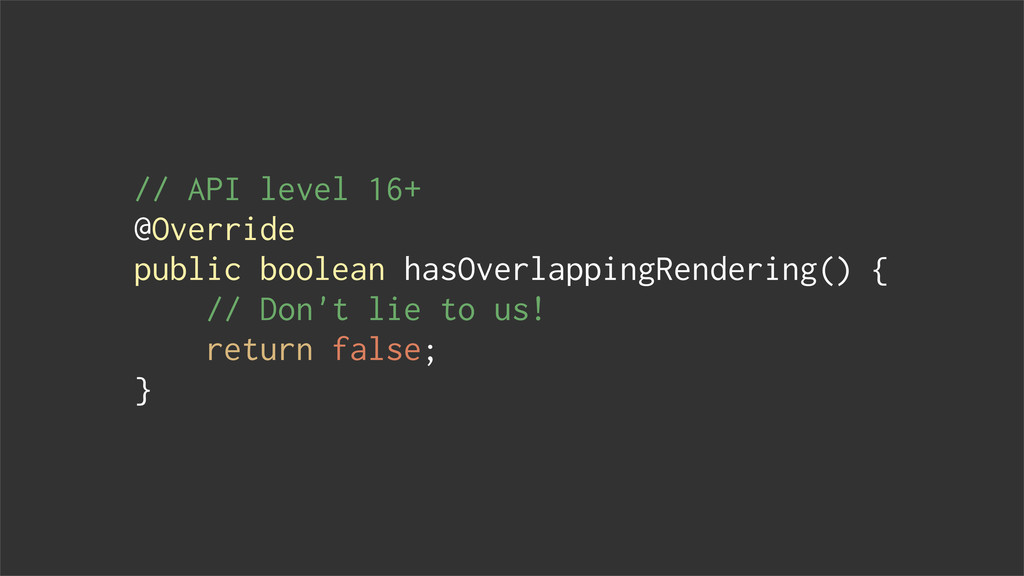

62. // API level 16+ @Override public boolean hasOverlappingRendering() { // Don't lie to us! return false; }

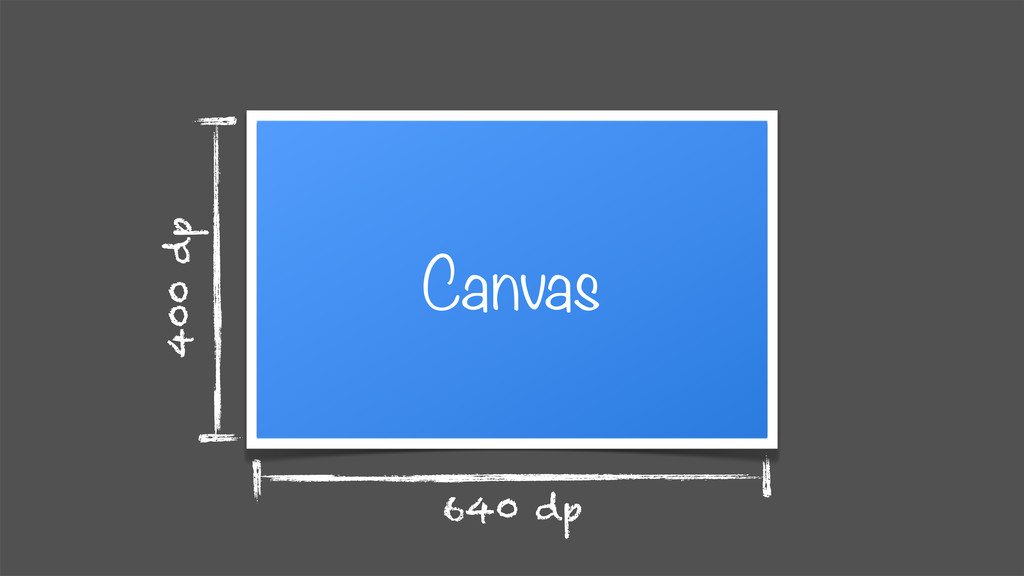

63. 640 dp 400 dp Canvas

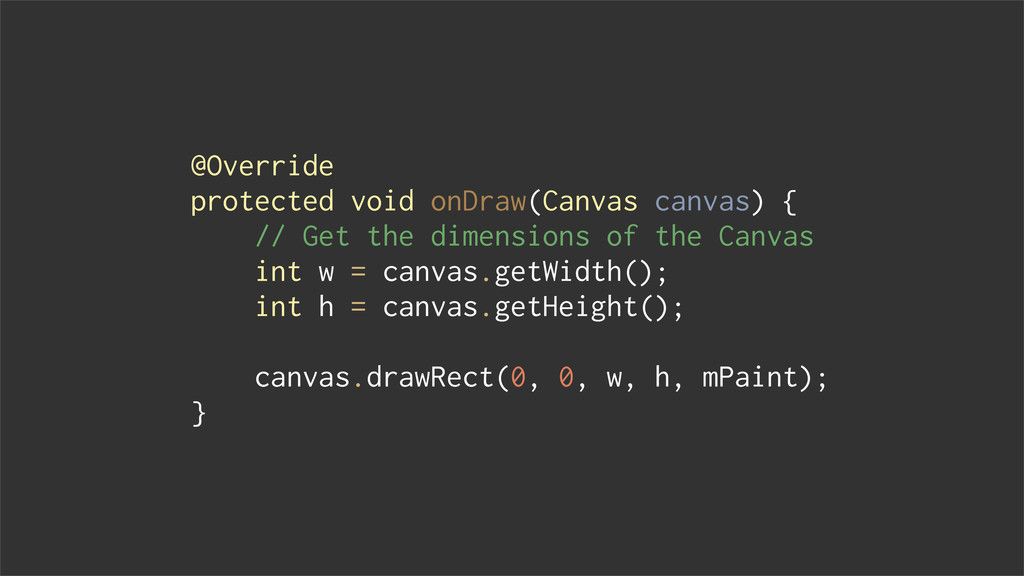

64. @Override protected void onDraw(Canvas canvas) { // Get the dimensions of the Canvas int w = canvas.getWidth(); int h = canvas.getHeight(); canvas.drawRect(0, 0, w, h, mPaint); }

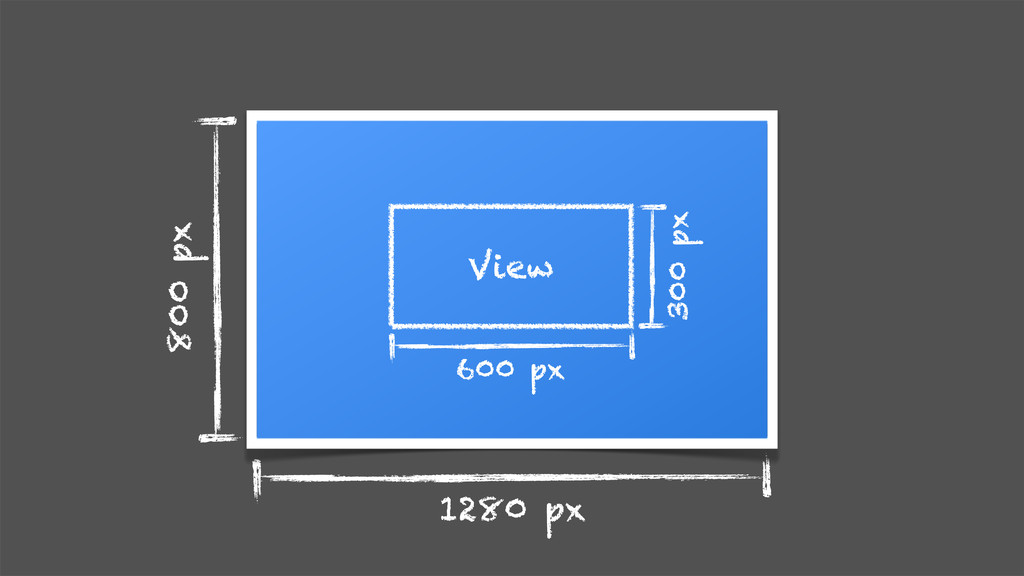

65. 1280 px 800 px View 300 px 600 px

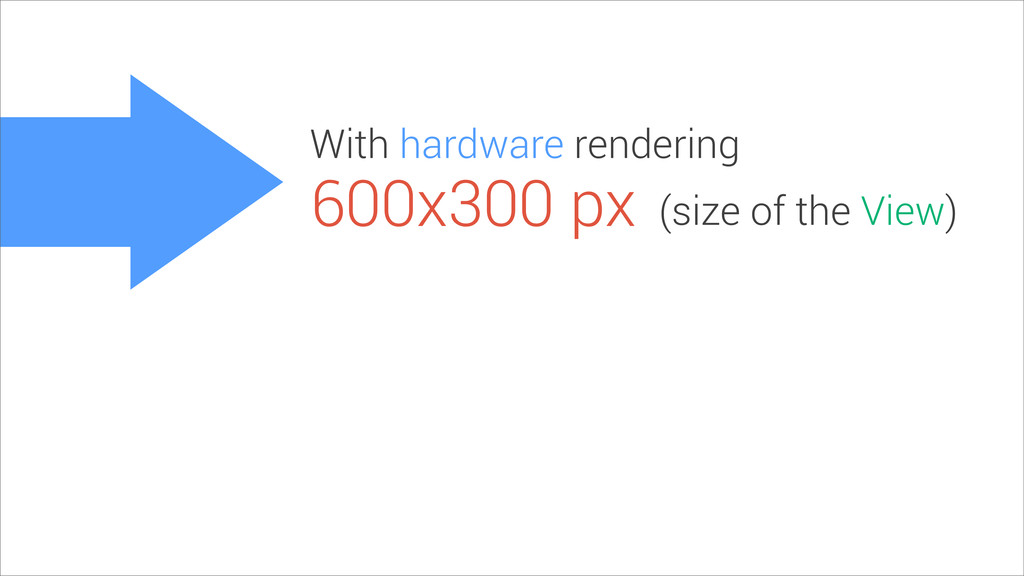

67. With hardware rendering 600x300 px (size of the View)

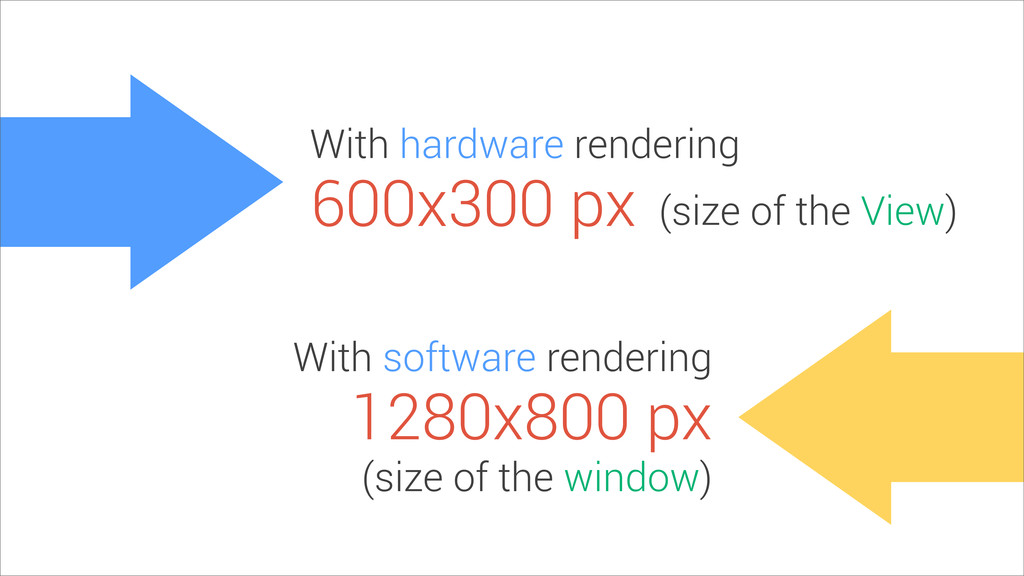

68. With hardware rendering With software rendering 600x300 px 1280x800 px (size of the View) (size of the window)

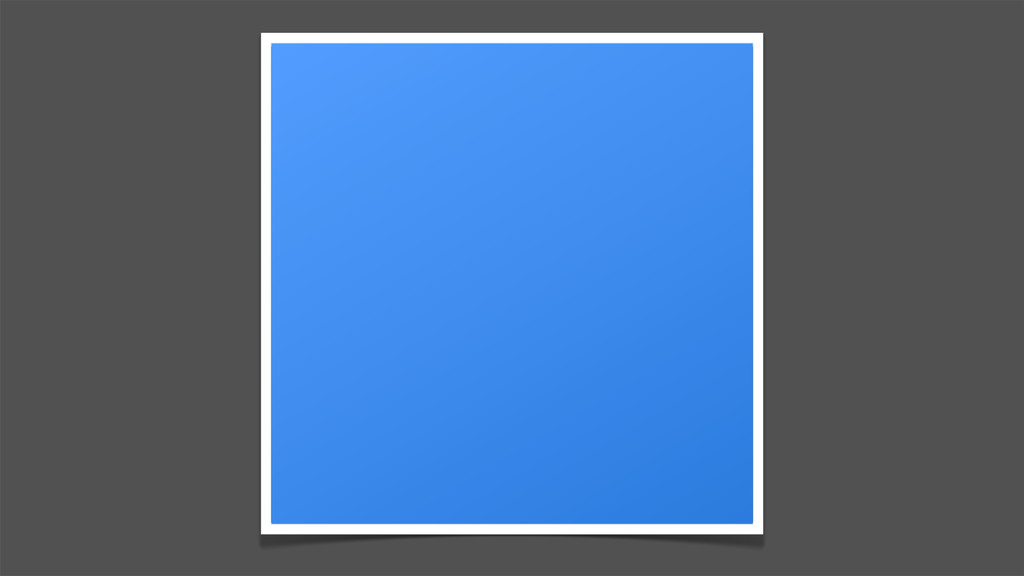

69. ✂ Clipping

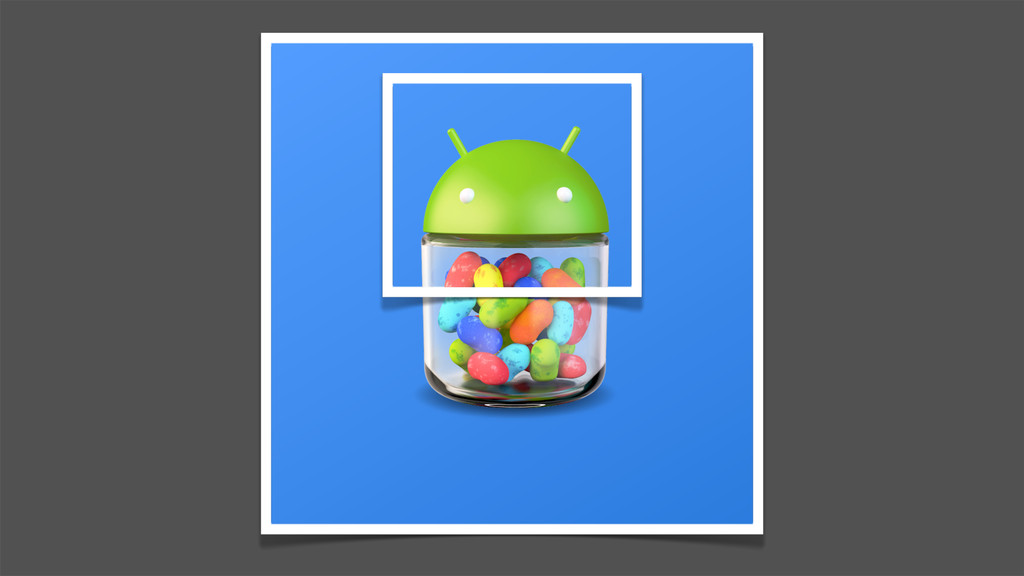

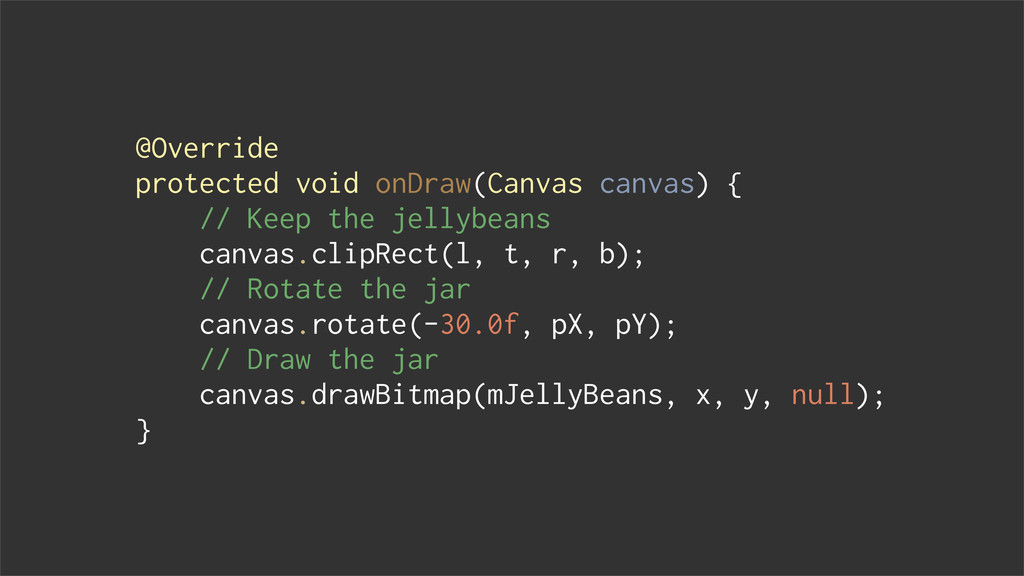

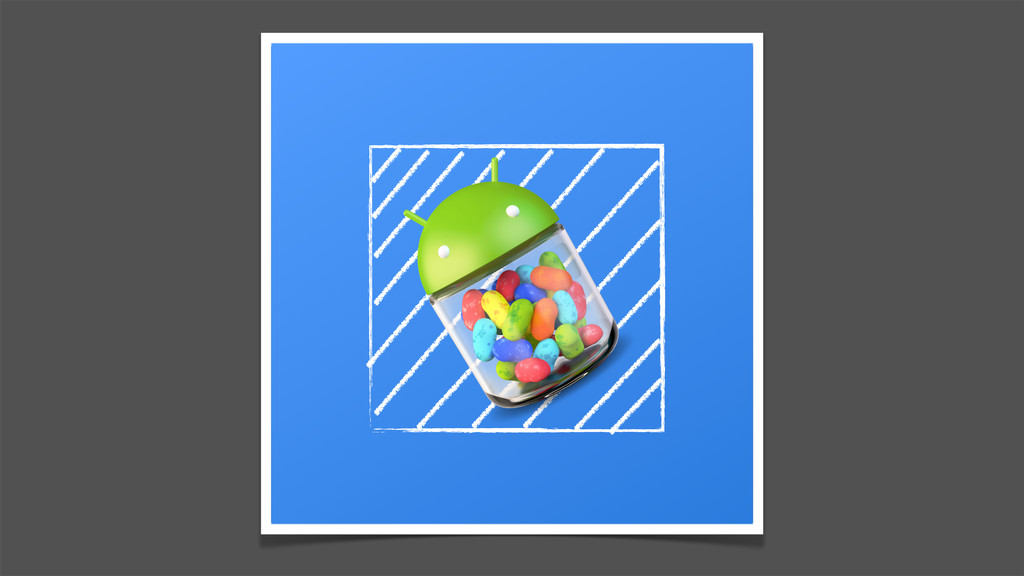

70. @Override protected void onDraw(Canvas canvas) { // Keep the jellybeans canvas.clipRect(l, t, r, b); // Rotate the jar canvas.rotate(-30.0f, pX, pY); // Draw the jar canvas.drawBitmap(mJellyBeans, x, y, null); }

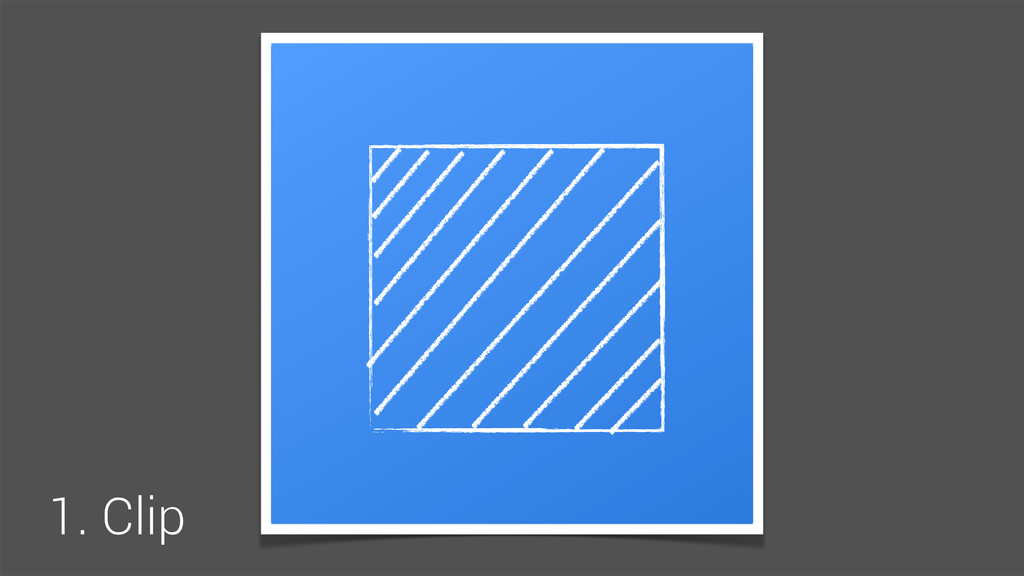

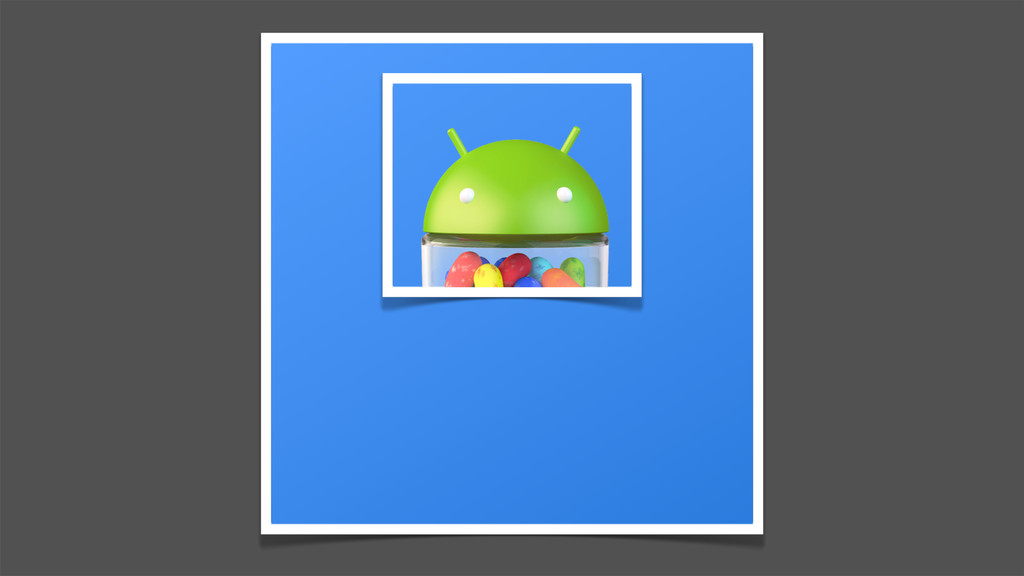

72. 1. Clip

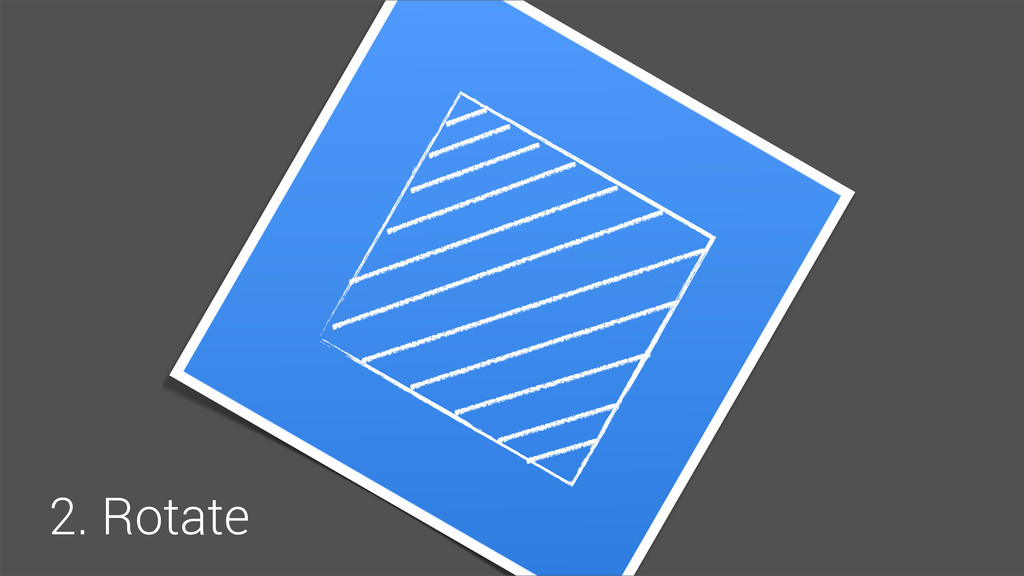

73. 2. Rotate

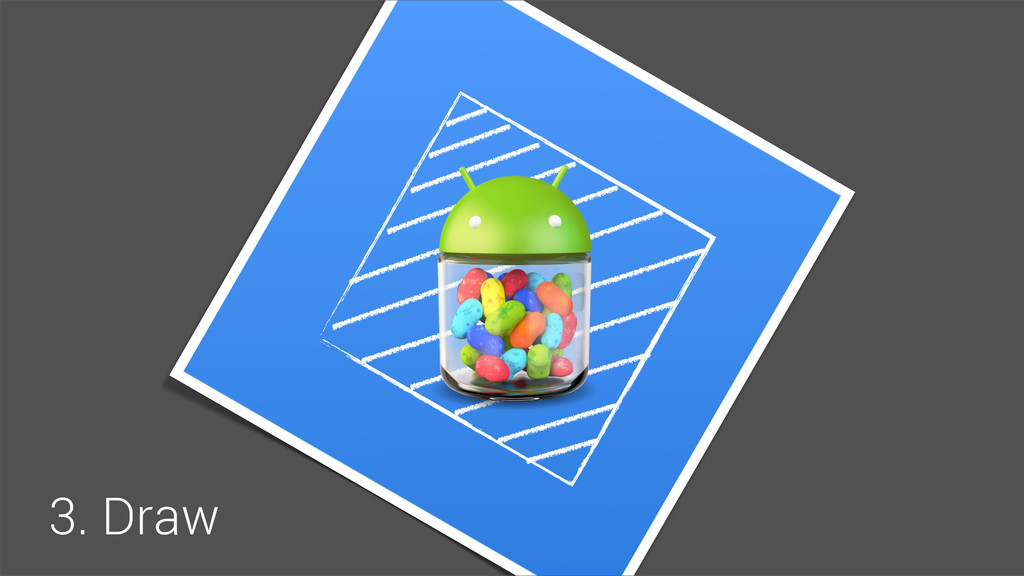

74. 3. Draw

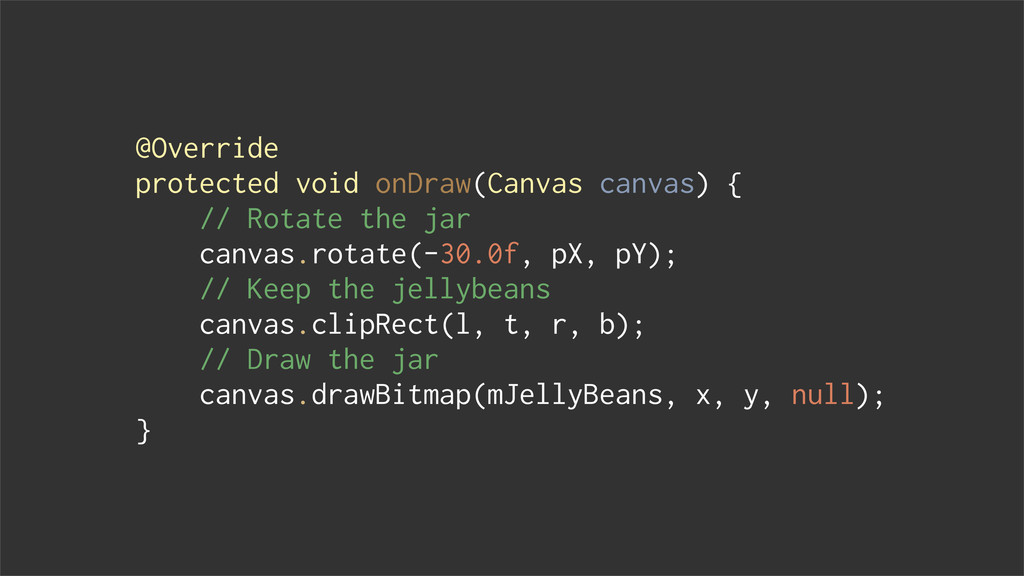

76. @Override protected void onDraw(Canvas canvas) { // Rotate the jar canvas.rotate(-30.0f, pX, pY); // Keep the jellybeans canvas.clipRect(l, t, r, b); // Draw the jar canvas.drawBitmap(mJellyBeans, x, y, null); }

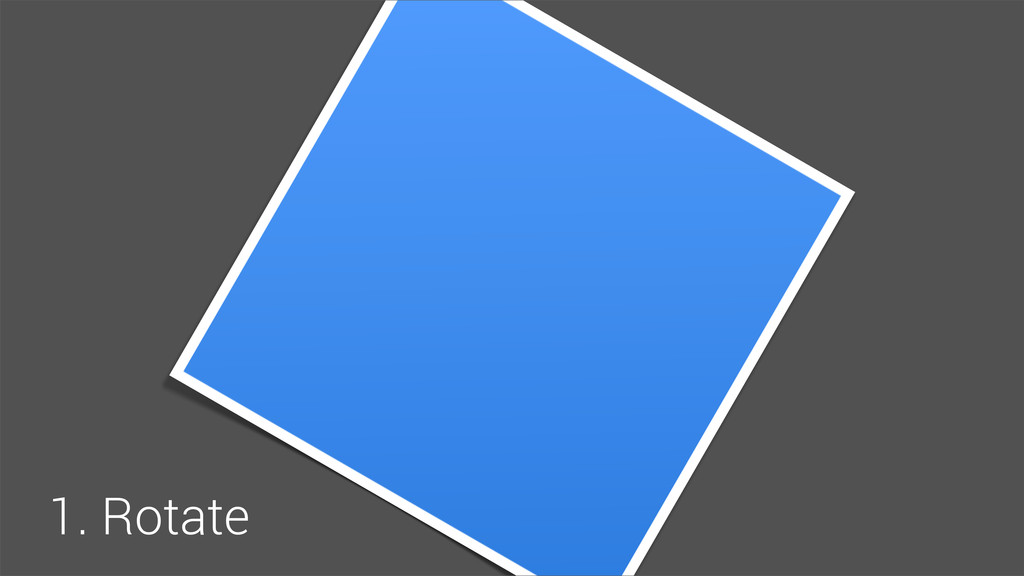

78. 1. Rotate

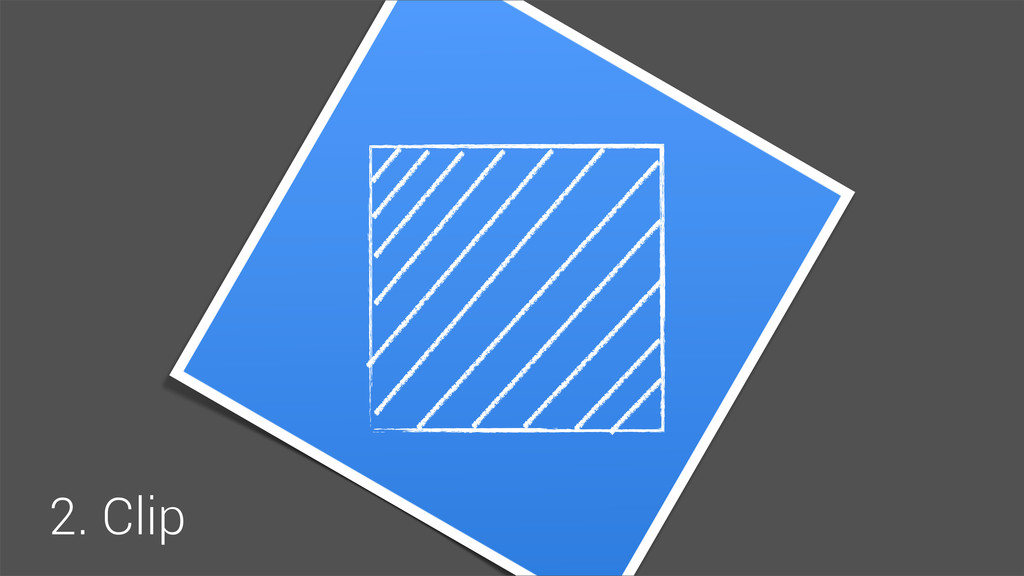

79. 2. Clip

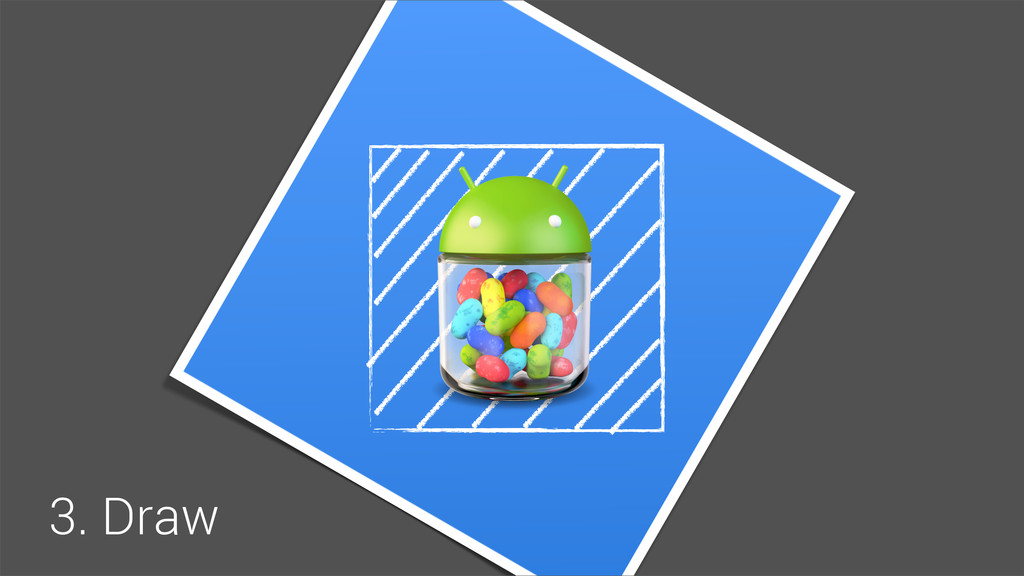

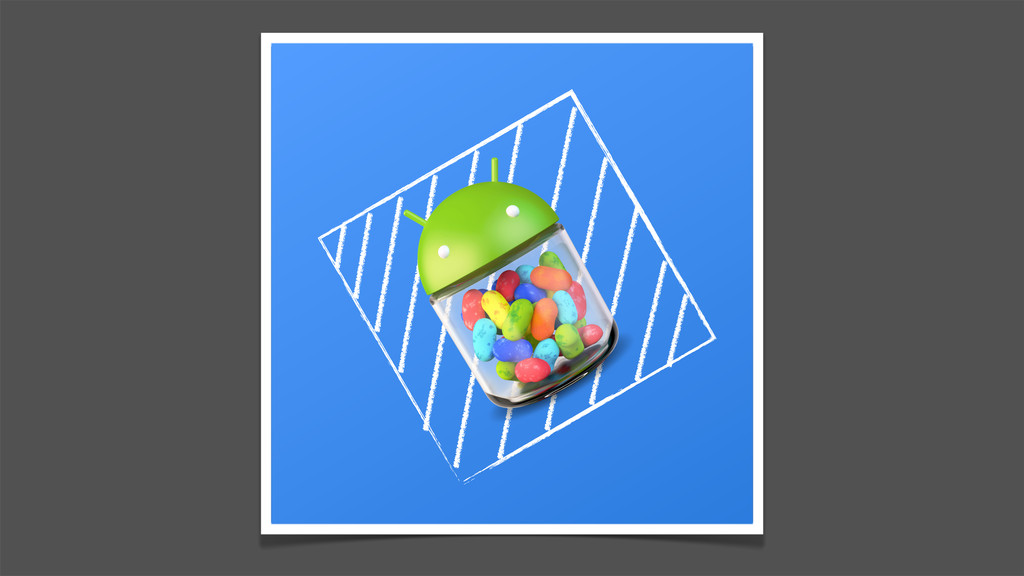

80. 3. Draw

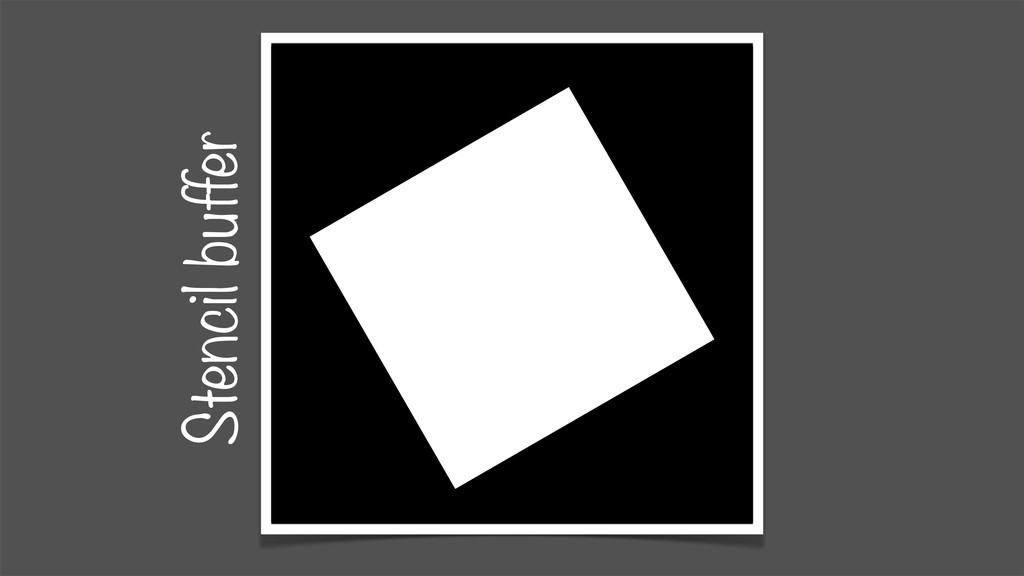

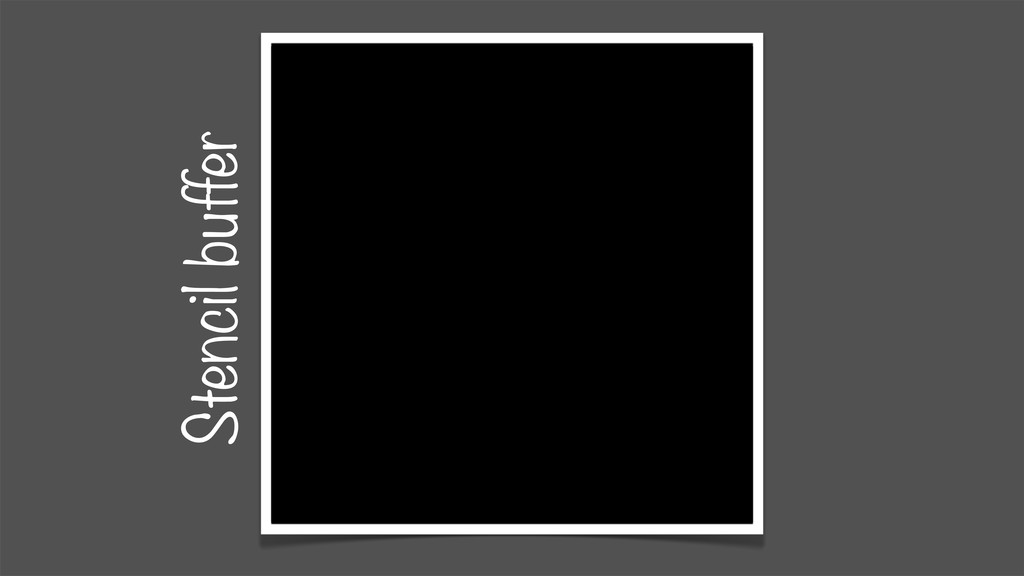

82. Stencil buffer
83. Stencil buffer

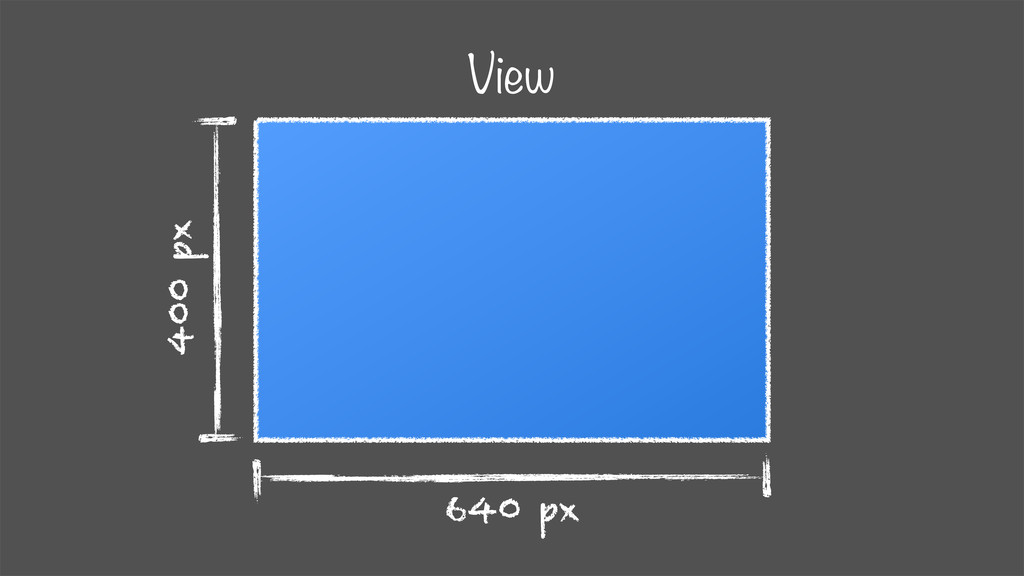

84. 640 px 400 px View

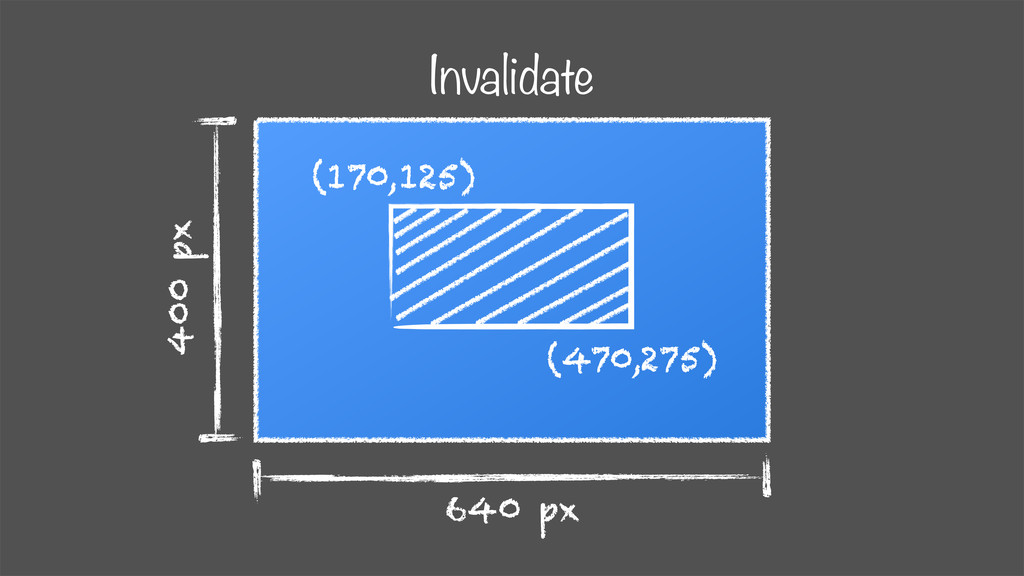

85. Invalidate 640 px 400 px (170,125) (470,275)

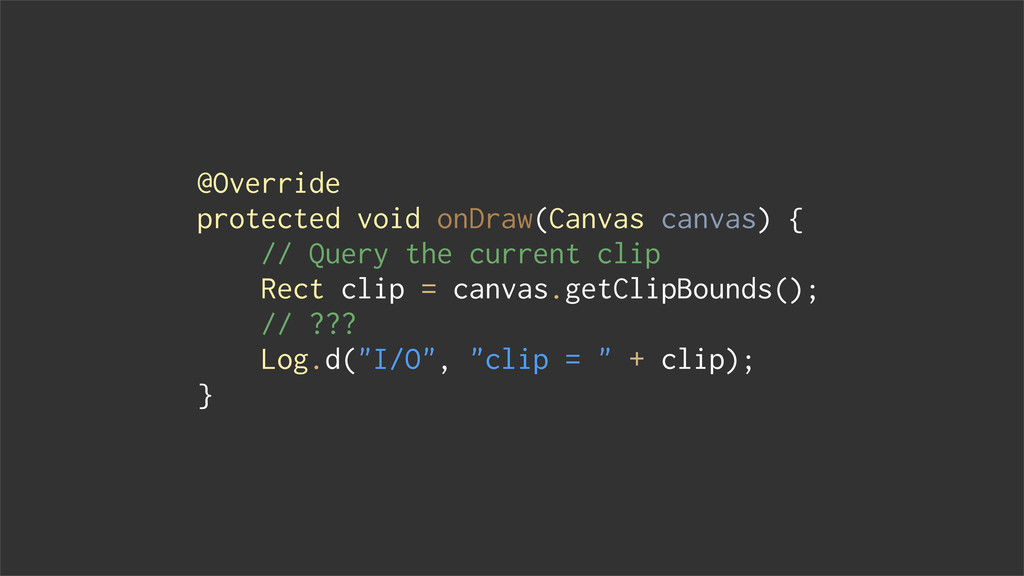

86. @Override protected void onDraw(Canvas canvas) { // Query the current clip Rect clip = canvas.getClipBounds(); // ??? Log.d("I/O", "clip = " + clip); }

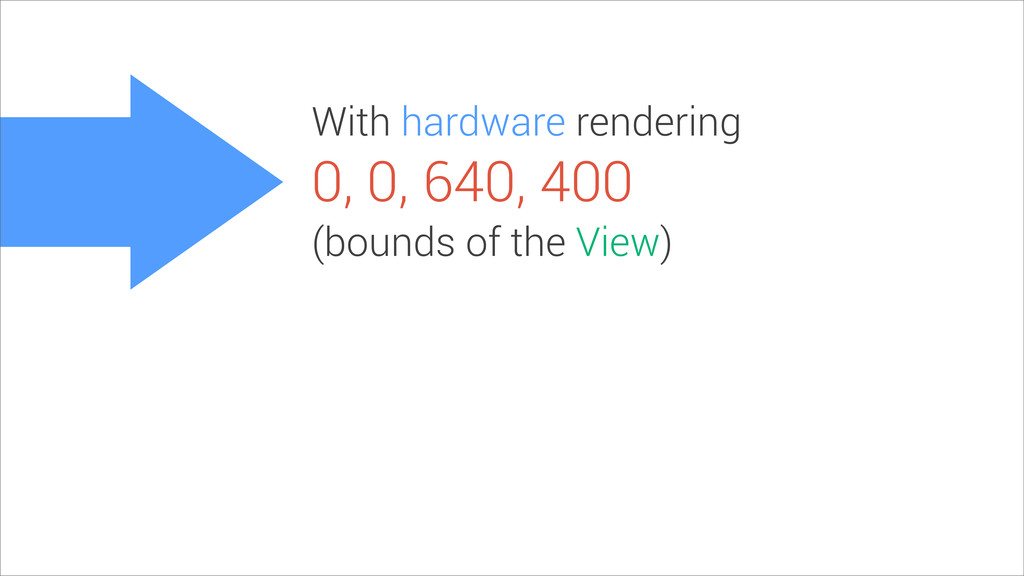

88. With hardware rendering 0, 0, 640, 400 (bounds of the View)

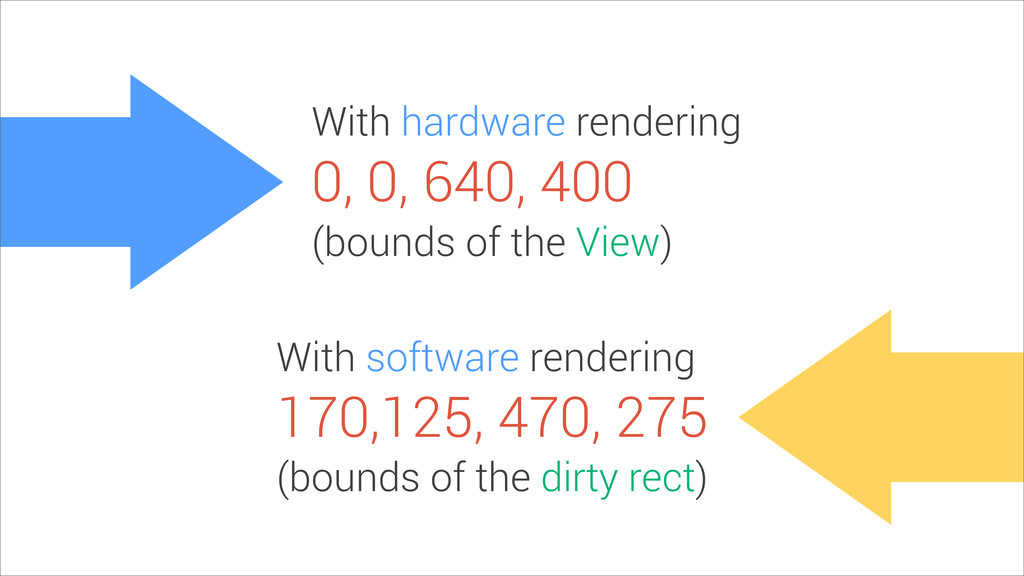

89. With hardware rendering With software rendering 0, 0, 640, 400 170,125, 470, 275 (bounds of the View) (bounds of the dirty rect)
90. Reordering barriers

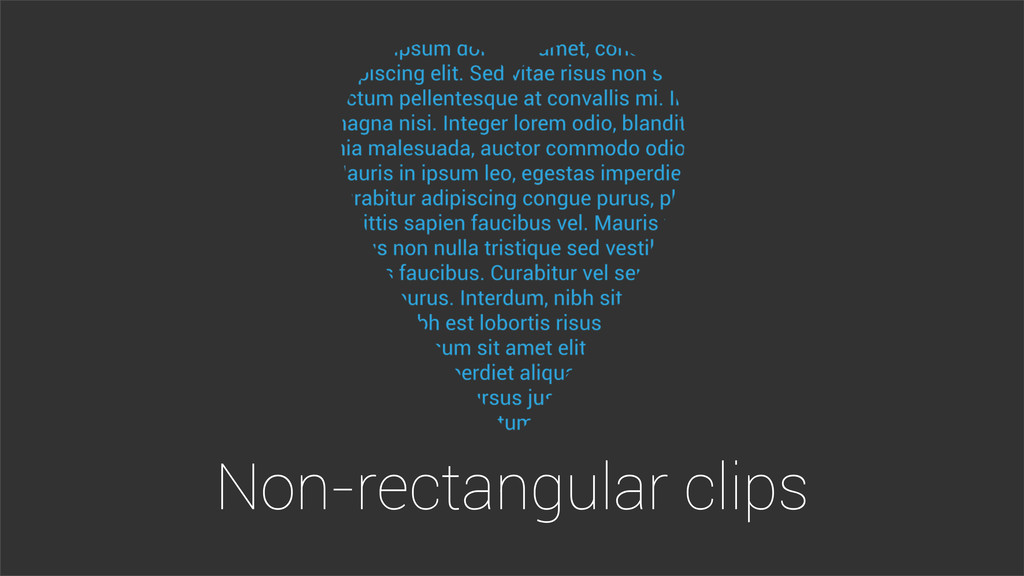

91. Non-rectangular clips
92. saveLayer()
