1. Product Guide Exploring More creative and experienced design to develop cutting-edge Motherboards and Mini PC. 2019
3. 3 4 With the combination of “Living” and “Life (Viva)”, LIVA is expressing the passion and the pursuit of aesthetics in every way of life.

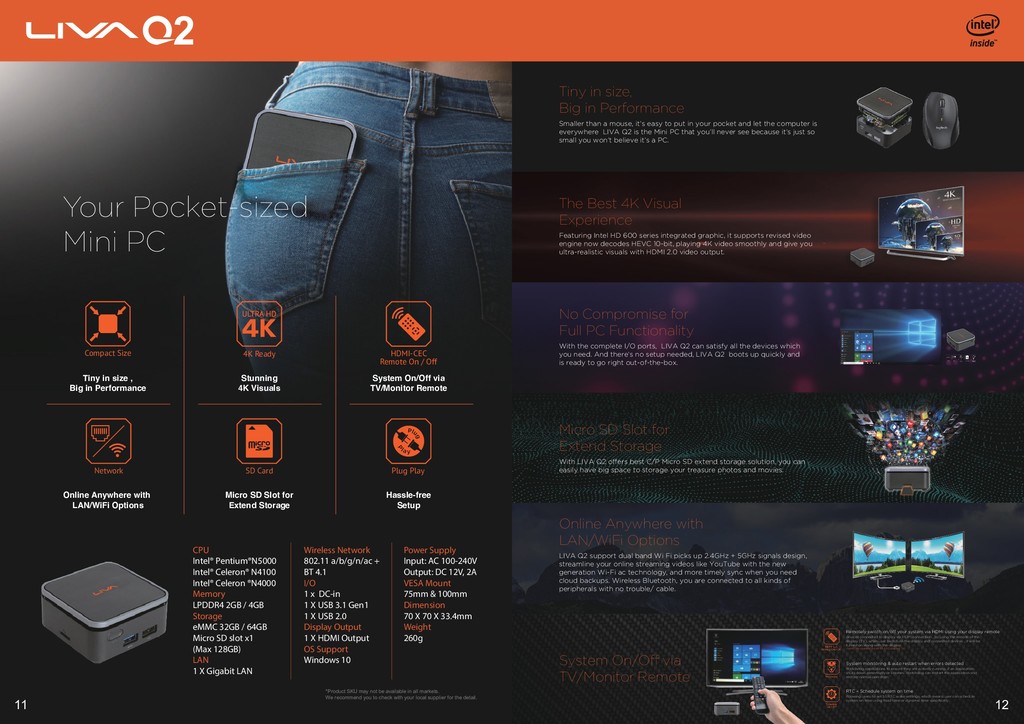

7. With the complete I/O ports, LIVA Q2 can satisfy all the devices which you need. And there‘s no setup needed, LIVA Q2 boots up quickly and is ready to go right out-of-the-box. Your Pocket-sized Mini PC *Product SKU may not be available in all markets. We recommend you to check with your local supplier for the detail. CPU Intel® Pentium®N5000 Intel® Celeron® N4100 Intel® Celeron ®N4000 Memory LPDDR4 2GB / 4GB Storage eMMC 32GB / 64GB Micro SD slot x1 (Max 128GB) LAN 1 X Gigabit LAN Wireless Network 802.11 a/b/g/n/ac + BT 4.1 I/O 1 x DC-in 1 X USB 3.1 Gen1 1 X USB 2.0 Display Output 1 X HDMI Output OS Support Windows 10 Power Supply Input: AC 100-240V Output: DC 12V, 2A VESA Mount 75mm & 100mm Dimension 70 X 70 X 33.4mm Weight 260g 4K Ready Compact Size Tiny in size , Big in Performance Stunning 4K Visuals System On/Off via TV/Monitor Remote Online Anywhere with LAN/WiFi Options Micro SD Slot for Extend Storage Hassle-free Setup HDMI-CEC Remote On / Off SD Card Plug Play Network Tiny in size, Big in Performance Smaller than a mouse, it‘s easy to put in your pocket and let the computer is everywhere LIVA Q2 is the Mini PC that you’ll never see because it’s just so small you won’t believe it’s a PC. The Best 4K Visual Experience Featuring Intel HD 600 series integrated graphic, it supports revised video engine now decodes HEVC 10-bit, playing 4K video smoothly and give you ultra-realistic visuals with HDMI 2.0 video output. Micro SD Slot for Extend Storage With LIVA Q2 o ers best C/P Micro SD extend storage solution, you can easily have big space to storage your treasure photos and movies. No Compromise for Full PC Functionality System On/O via TV/Monitor Remote Online Anywhere with LAN/WiFi Options LIVA Q2 support dual band Wi Fi picks up 2.4GHz + 5GHz signals design, streamline your online streaming videos like YouTube with the new generation Wi-Fi ac technology, and more timely sync when you need cloud backups. Wireless Bluetooth, you are connected to all kinds of peripherals with no trouble/ cable. Remotely switch on/o your system via HDMI using your display remote devices connected to display via HDMI connection , by using the remote of the display (TV), when user switch on the display and connected devices , it will be turned on along with the display. (Note: Only support by HDMI-CEC display(TV) System monitoring & auto restart when errors detected Watchdog applications to ensure they are actively running, if an application shuts down abnormally or crashes, Watchdog can restart the application and restore normal operation. RTC – Schedule system on time Allowing users to set S5 RTC wake settings, which means user can schedule system on time using fixed time or dynamic time specifically. 11 12

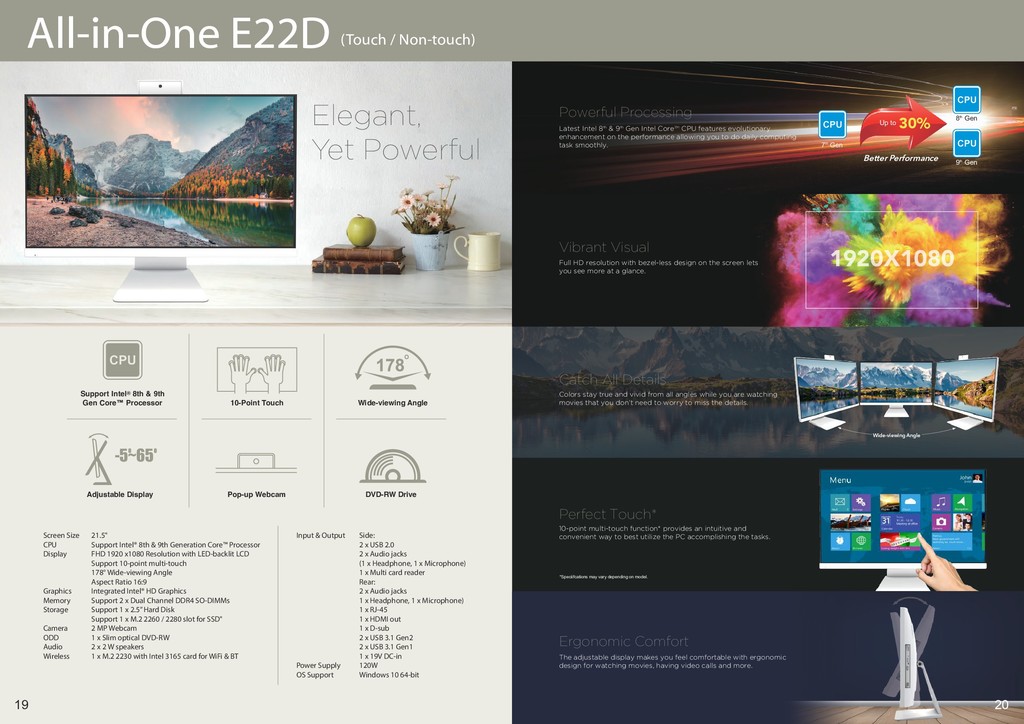

11. *Speciifcations may vary depending on model. Powerful Processing Latest Intel 8th & 9th Gen Intel CoreTM CPU features evolutionary enhancement on the performance allowing you to do daily computing task smoothly. Colors stay true and vivid from all angles while you are watching movies that you don’t need to worry to miss the details. Vibrant Visual Full HD resolution with bezel-less design on the screen lets you see more at a glance. Perfect Touch* 10-point multi-touch function* provides an intuitive and convenient way to best utilize the PC accomplishing the tasks. Catch All Details Ergonomic Comfort The adjustable display makes you feel comfortable with ergonomic design for watching movies, having video calls and more. 30% 1920X1080 Better Performance Up to Wide-viewing Angle 19 20 Screen Size CPU Display Graphics Memory Storage Camera ODD Audio Wireless 21.5" Support Intel® 8th & 9th Generation Core™ Processor FHD 1920 x1080 Resolution with LED-backlit LCD Support 10-point multi-touch 178° Wide-viewing Angle Aspect Ratio 16:9 Integrated Intel® HD Graphics Support 2 x Dual Channel DDR4 SO-DIMMs Support 1 x 2.5” Hard Disk Support 1 x M.2 2260 / 2280 slot for SSD" 2 MP Webcam 1 x Slim optical DVD-RW 2 x 2 W speakers 1 x M.2 2230 with Intel 3165 card for WiFi & BT Input & Output Power Supply OS Support Side: 2 x USB 2.0 2 x Audio jacks (1 x Headphone, 1 x Microphone) 1 x Multi card reader Rear: 2 x Audio jacks 1 x Headphone, 1 x Microphone) 1 x RJ-45 1 x HDMI out 1 x D-sub 2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 1 x 19V DC-in 120W Windows 10 64-bit All-in-One E22D (Touch / Non-touch) 7th Gen 8th Gen 9th Gen Support Intel® 8th & 9th Gen Core™ Processor 10-Point Touch Wide-viewing Angle Pop-up Webcam -5~65 Adjustable Display DVD-RW Drive Elegant, Yet Powerful
17. Screen Size Motherboard CPU Display Graphics Memory Storage Camera ODD Audio Input & Output Wireless Power Supply OS Support 23.8" H310CH5-TI2 Support Intel® 9th and 8th Generation Processors 1920 x 1080 Full HD with LED-backlit LCD 170° Wide-viewing Angle Aspect Ratio 16:9 Integrated Intel® HD Graphics Support 2 x Dual Channel DDR4 SO-DIMMs Support 1 x 2.5” Hard Disk Support 1 x M.2 2260 / 2280 slot for SSD N/A N/A 2 x 2 W speakers Side: 2 x USB 2.0 Rear: 2 x Audio jacks (1 x Headphone, 1 x microphone) 1 x RJ-45 1 x HDMI out 1 x D-sub 2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 1 x 19V DC-in Support 1 x M.2 2230 slot for WiFi & BT 120W Windows 10 64-bit E24 21.5" H310CH5-TI2 Support Intel® 9th and 8th Generation Processors FHD 1920 x 1080 Resolution with LED-backlit LCD Support 10-point multi-touch 178° Wide-viewing Angle Aspect Ratio 16:9 Integrated Intel® HD Graphics Support 2 x Dual Channel DDR4 SO-DIMMs Support 1 x 2.5” Hard Disk Support 1 x M.2 2260 / 2280 slot for SSD 2 MP Webcam 1 x Slim optical DVD-RW 2 x 2 W speakers Side: 2 x USB 2.0 2 x Audio jacks (1 x Headphone, 1 x microphone) 1 x Multi card reader Rear: 2 x Audio jacks (1 x Headphone, 1 x microphone) 1 x RJ-45 1 x HDMI out 1 x D-sub 2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 1 x 19V DC-in Support 1 x M.2 2230 slot for WiFi & BT 120W Windows 10 64-bit E22DT 21.5" H310CH5-TI2 Support Intel® 9th and 8th Generation Processors FHD 1920 x 1080 Resolution with LED-backlit LCD 178° Wide-viewing Angle Aspect Ratio 16:9 Integrated Intel® HD Graphics Support 2 x Dual Channel DDR4 SO-DIMMs Support 1 x 2.5” Hard Disk Support 1 x M.2 2260 / 2280 slot for SSD 2 MP Webcam 1 x Slim optical DVD-RW 2 x 2 W speakers Side: 2 x USB 2.0 2 x Audio jacks (1 x Headphone, 1 x microphone) 1 x Multi card reader Rear: 2 x Audio jacks (1 x Headphone, 1 x microphone) 1 x RJ-45 1 x HDMI out 1 x D-sub 2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 1 x 19V DC-in Support 1 x M.2 2230 with Intel 3165 card for WiFi & BT 120W Windows 10 64-bit E22D All-in-One Semi-rugged Pad Dimension Touch/Display Panel CPU Memory Storage Operating System Communications Sensor I/O Ports Camera Control Buttons Battery Ingress Protection Speaker & MIC Docking (Optional) Temperature Humidity Shock Resistance / Vibration Drop Test Certifications 311mm x 206mm x 15mm 12” LCD, eDP, 1920 x 1200 pixels with 10-Point Multi-touch (Capacitive) Intel® Atom™ x5-Z8550 Processor (Cherry Trail Type 4) LPDDR3 1600MHz, Default 4G, (2-8GB) Single eMMC 4.5, 32GB / 64GB Windows 10 64bit Wi-Fi 802.11 a/b/g/n/ac Bluetooth v4.0 GPS & GLONASS NXP NPC100 , ISO14443 Type A, Type B, PC/SC (windows driver support ) LTE by optional module E-compass, G-sensor, Gyro, Ambient Light sensor 1 x Docking Port (with AC-IN, HDMI, USB) 1 x Micro SD card slot 1 x Mic/Head phone jack combo 1 x micro USB port (OTG)=>USB3.0 micro Type B Front Camera : 2.0M OV2722 Rear Camera : 8.0M OV8858 Power, Volume Up, Volume Down 12600mAh / 46.62Wh SUNWODA IP54 2x Speakers, 1W x 8 Ohm 1x DMIC 1x DC-IN, 1x HMDI,1x USB2.0, 1x USB3.0, 1x Giga Ethernet RJ45 LAN 100-220V, 12V/3A (the same adapter to Tablet) Front I/O Port : Smart Card Reader Operating: 0°C ~ 40°C, Storage: -20°C ~ 60°C Operating: 10% ~ 95% @ 40° C non-condensing, Storage: 10% ~ 95% @ 50G, 3ms/3.38G, 10-500Hz, 1 Hour Duration per axis 0.8m / 2.7ft. Drop to steel Surface, 1 drop per 6 sides FCC Part 15 Class B, CE, CB60950, RoHS, IEC60601-1, BSMI, WEEE (Documents ready only) TC12A-W 200mm x 125mm x 23.5mm 7” LCD, MIPI, 800 x 1280 pixels with 10-Point Multi-touch (Capacitive) Intel® Atom™ x5-Z8550 Processor (Cherry Trail Type 4) LPDDR3 1600MHz, Default 4G, (2-8GB) Single eMMC 4.5, 32GB / 64GB Windows 10 64bit Wi-Fi 802.11 a/b/g/n/ac Bluetooth v4.0 GPS & GLONASS NXP NPC100 , ISO14443 Type A, Type B, PC/SC (windows driver support ) LTE by optional module E-compass, G-sensor, Gyro, Ambient Light sensor 1 x Docking Port (with AC-IN, HDMI, USB) 1 x Micro SD card slot 1 x Mic/Head phone jack combo 1 x micro USB port (OTG)=>USB3.0 micro Type B Front Camera : 2.0M OV2722 Rear Camera : 8.0M OV8858 Power, Volume Up, Volume Down Li-polymer 4100mAh / 15.17Wh IP54 1x Speakers, 1W x 8 Ohm 1x DMIC 1x DC-IN, 1x HMDI,1x USB2.0, 1x USB3.0, 1x Giga Ethernet RJ45 LAN 100-220V, 12V/3A (the same adapter to Tablet) Front I/O Port : Smart Card Reader Operating: 0° C ~ +40° C, Storage: -20° C ~ +60° C Operating: 10% ~ 95% @ 40° C non-condensing, Storage: 10% ~ 95% @ 50G, 3ms/3.38G, 10-500Hz, 1 Hour Duration per axis 0.9m / 2.7ft. Drop to steel Surface, 1 drop per 6 sides FCC Part 15 Class B, CE, CB60950, RoHS, IEC60601-1, BSMI, WEEE (Documents ready only) TC7A-W 31 32
