Give REST a rest, use GraphQL for your next Ruby API - Deccan RubyConf 2017

GraphQL is a query language for APIs. While typical REST APIs require loading from multiple URLs, GraphQL APIs get all the data your app needs in a single request which makes Apps using GraphQL can be quick and stable.

Transcript

1. Give REST a rest, use GraphQL for your next Ruby API @eshaiju
2. About me I am from Malappuram, Kerala
4. Technology stack - Rails + GraphQL+ ReactJS +Apollo

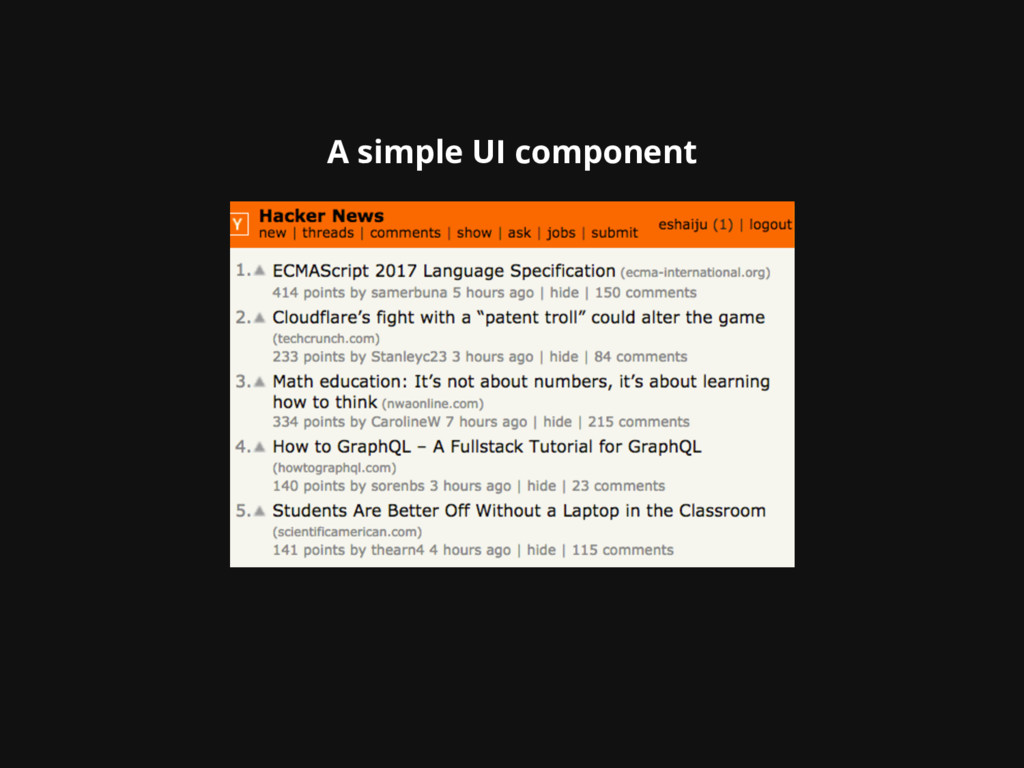

6. A simple UI component
7. A simple UI component

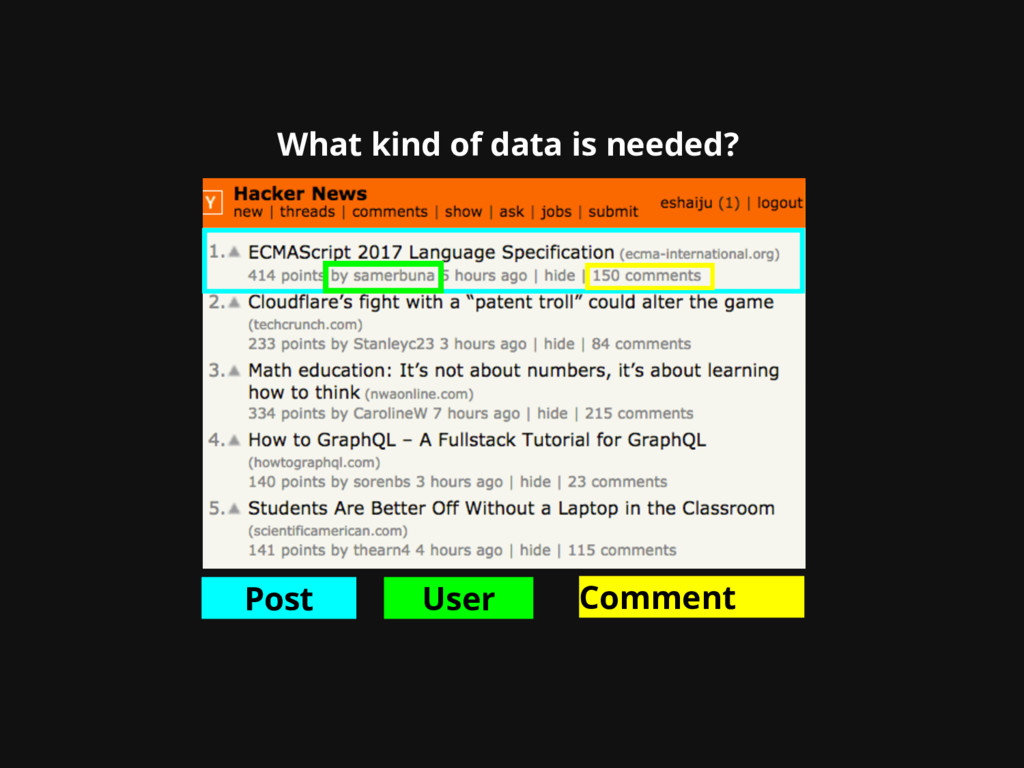

8. Comment Post User What kind of data is needed? ​
9. Reusable endpoints (REST) ​

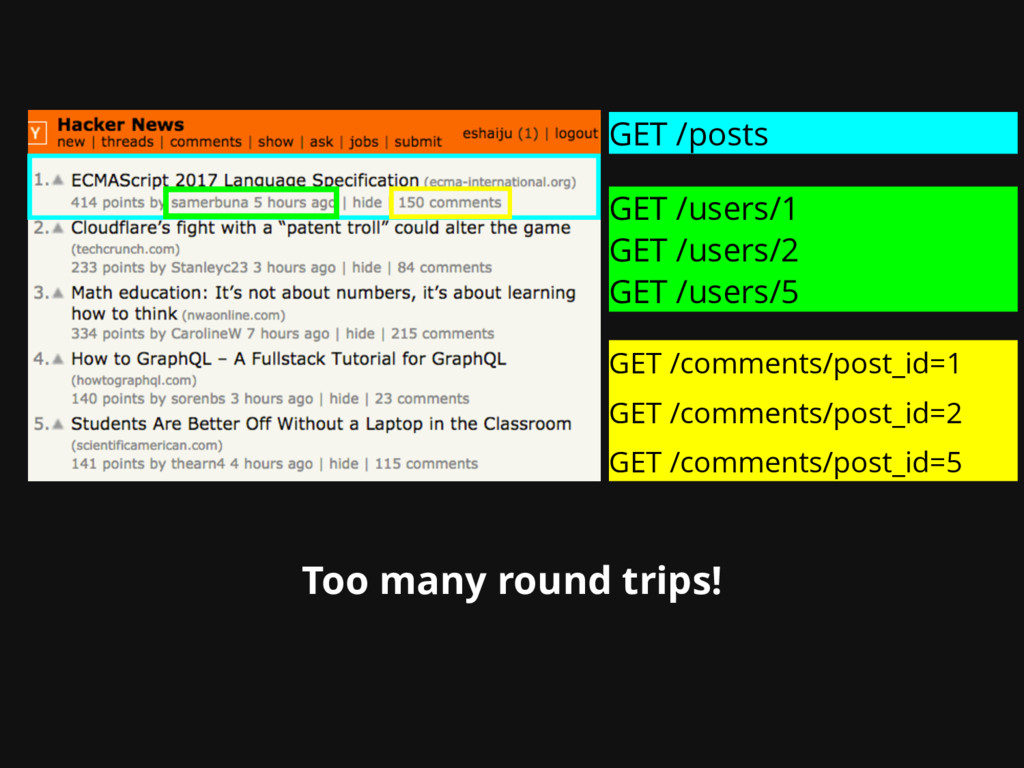

10. GET /comments/post_id=1 GET /comments/post_id=2 GET /comments/post_id=5 GET /posts GET /users/1 GET /users/2 GET /users/5 Too many round trips!
11. Still waiting..............

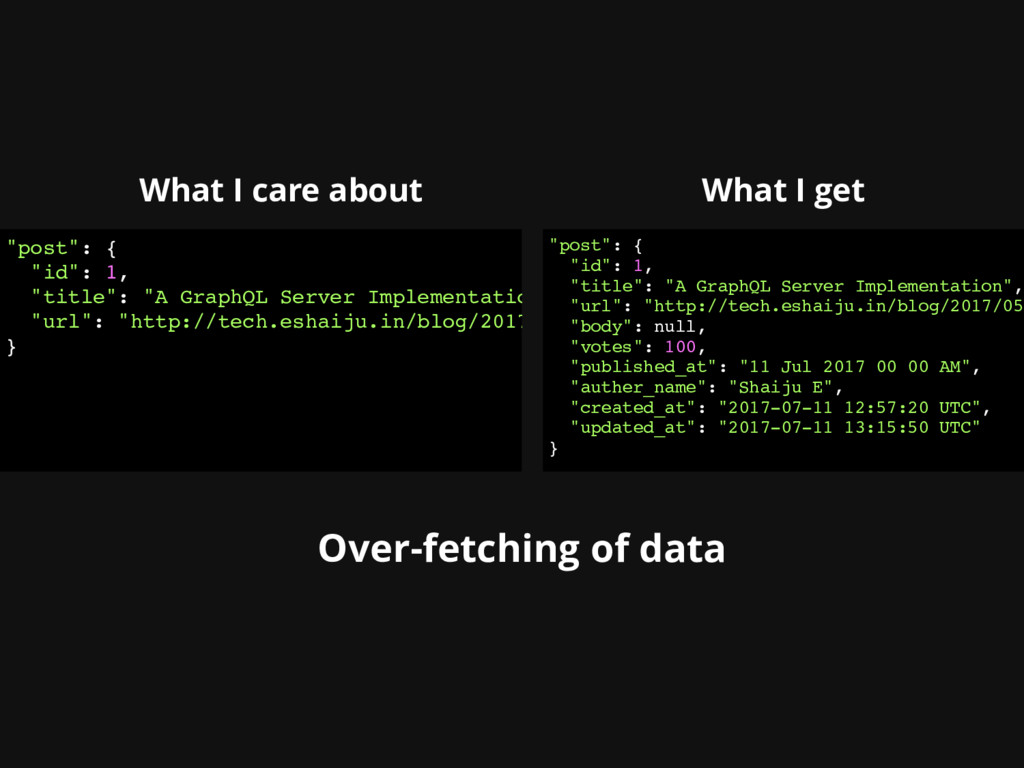

12. "post": { "id": 1, "title": "A GraphQL Server Implementation", "url": "http://tech.eshaiju.in/blog/2017/05/ "body": null, "votes": 100, "published_at": "11 Jul 2017 00 00 AM", "auther_name": "Shaiju E", "created_at": "2017-07-11 12:57:20 UTC", "updated_at": "2017-07-11 13:15:50 UTC" } "post": { "id": 1, "title": "A GraphQL Server Implementation", "url": "http://tech.eshaiju.in/blog/2017/05/06/a-graphql-server-implementation-r } What I get What I care about Over-fetching of data
13. Custom Endpoints ​
14. /posts_with_everything_i_need

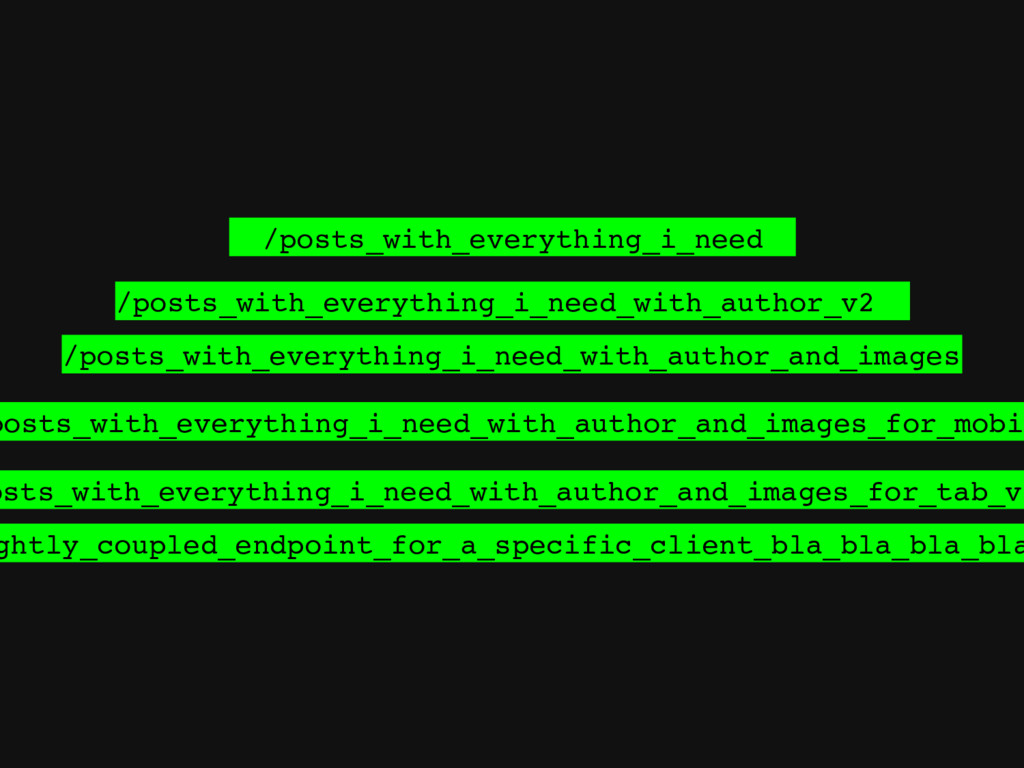

15. /posts_with_everything_i_need /posts_with_everything_i_need_with_author_v2 /posts_with_everything_i_need_with_author_and_images posts_with_everything_i_need_with_author_and_images_for_mobil ghtly_coupled_endpoint_for_a_specific_client_bla_bla_bla_bla osts_with_everything_i_need_with_author_and_images_for_tab_v2

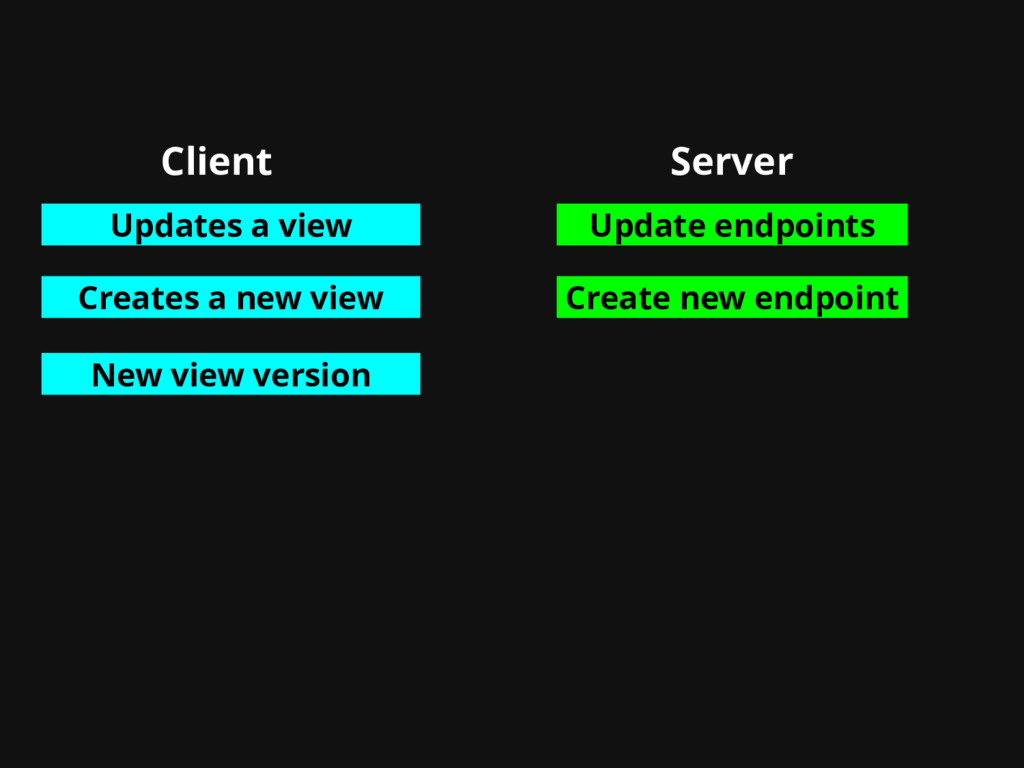

17. Client Server Updates a view Update endpoints Creates a new view New view version Create new endpoint
18. GraphQL
19. What GraphQL is NOT
20. What GraphQL is NOT It's not about graph databases and graph search It's not about data storage it's not language specific it's not a library
21. What GraphQL IS

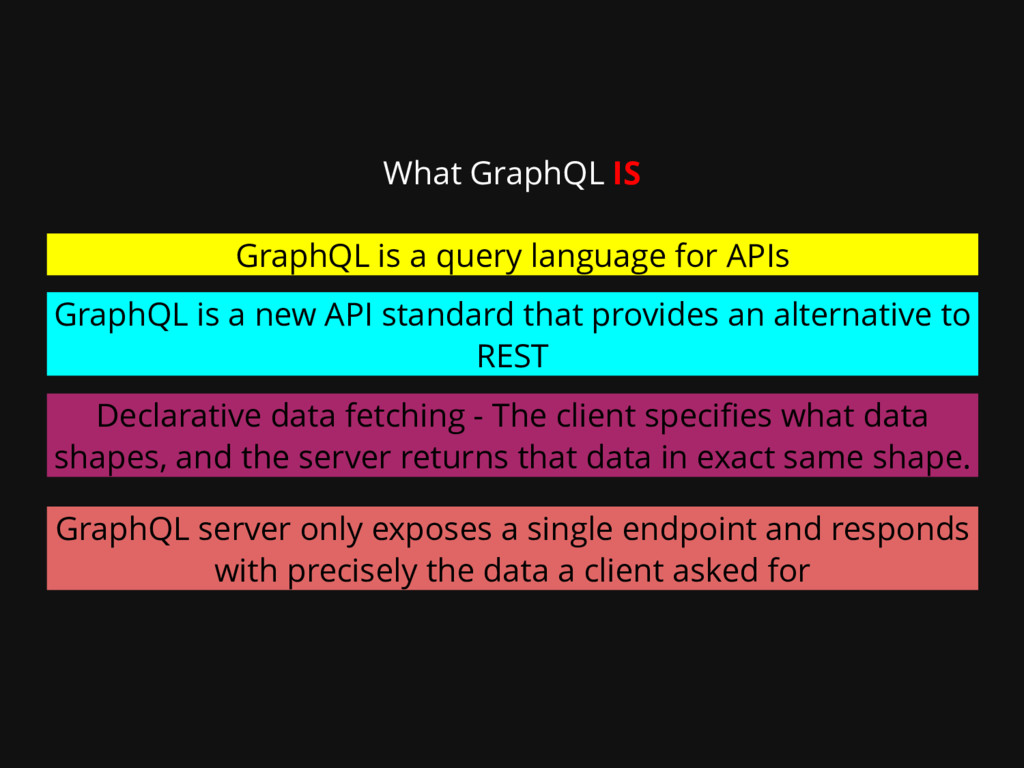

22. What GraphQL IS GraphQL is a query language for APIs is a new API standard that provides an alternative to REST GraphQL Declarative data fetching - The client specifies what data shapes, and the server returns that data in exact same shape. GraphQL server only exposes a single endpoint and responds with precisely the data a client asked for

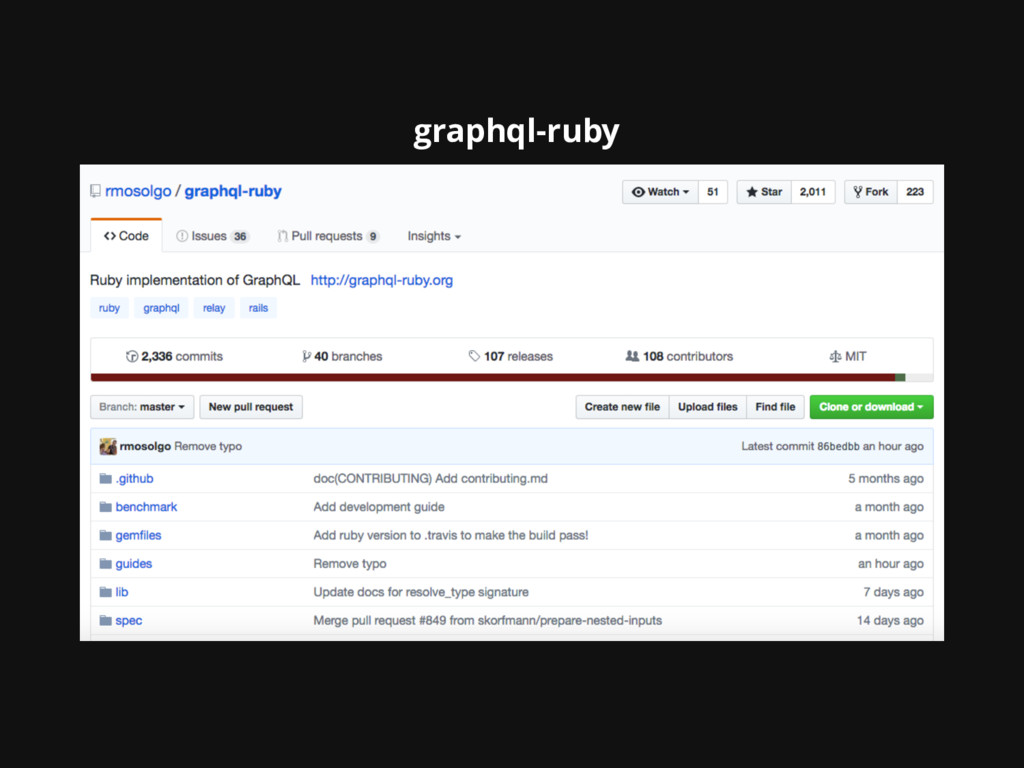

23. graphql-ruby

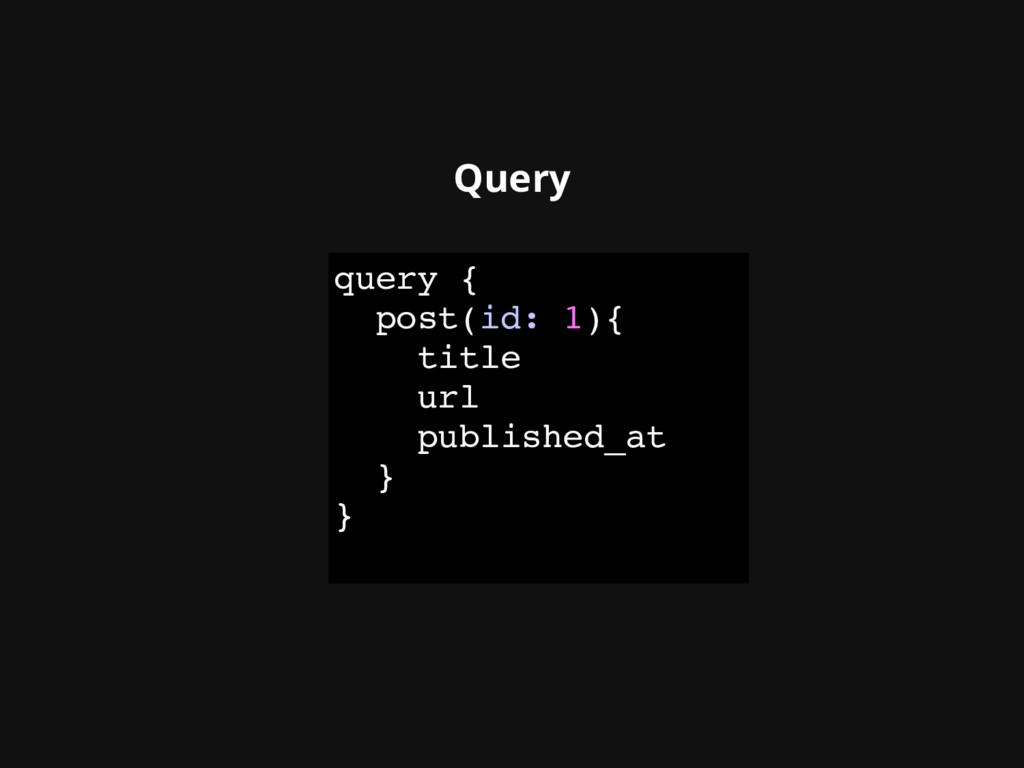

24. query { post(id: 1){ title url published_at } } Query

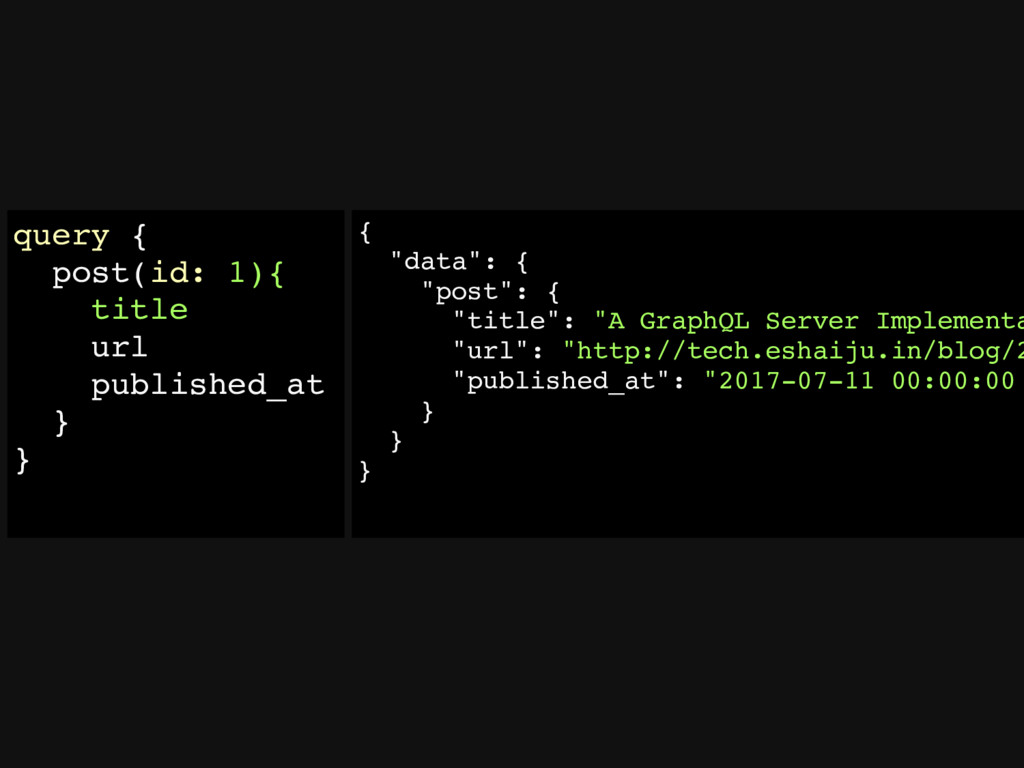

25. query { post(id: 1){ title url published_at } } { "data": { "post": { "title": "A GraphQL Server Implementa "url": "http://tech.eshaiju.in/blog/2 "published_at": "2017-07-11 00:00:00 } } }

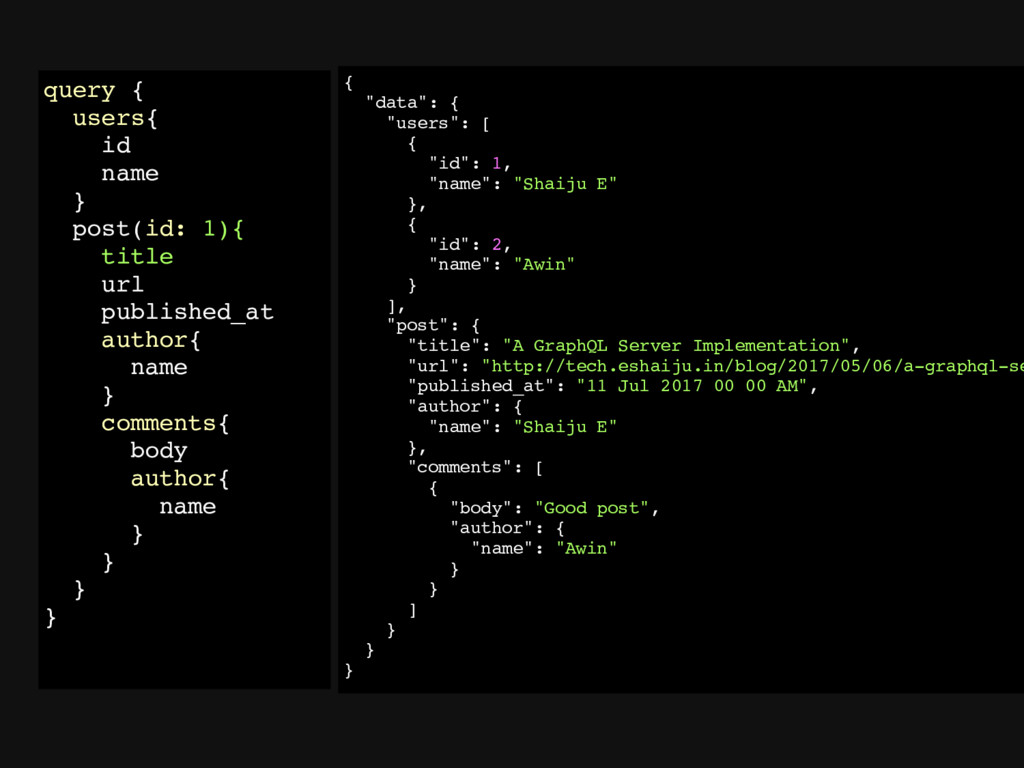

26. query { users{ id name } post(id: 1){ title url published_at author{ name } comments{ body author{ name } } } } { "data": { "users": [ { "id": 1, "name": "Shaiju E" }, { "id": 2, "name": "Awin" } ], "post": { "title": "A GraphQL Server Implementation", "url": "http://tech.eshaiju.in/blog/2017/05/06/a-graphql-se "published_at": "11 Jul 2017 00 00 AM", "author": { "name": "Shaiju E" }, "comments": [ { "body": "Good post", "author": { "name": "Awin" } } ] } } }

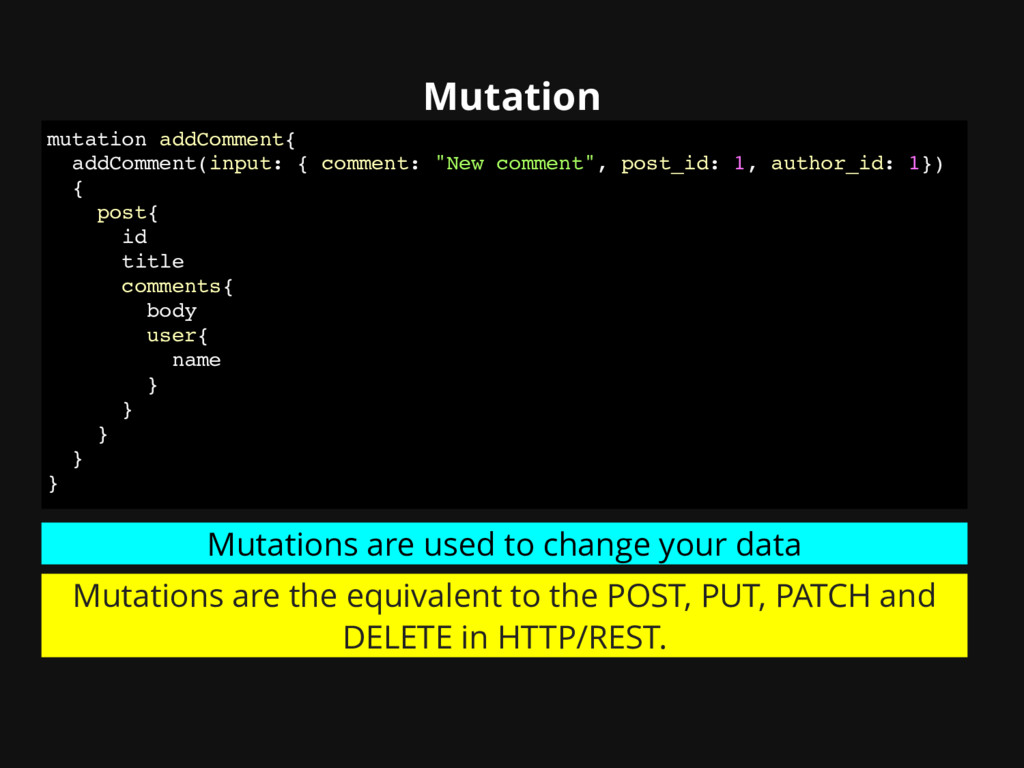

27. Mutations are the equivalent to the POST, PUT, PATCH and DELETE in HTTP/REST. mutation addComment{ addComment(input: { comment: "New comment", post_id: 1, author_id: 1}) { post{ id title comments{ body user{ name } } } } } Mutations are used to change your data Mutation
29. Type System

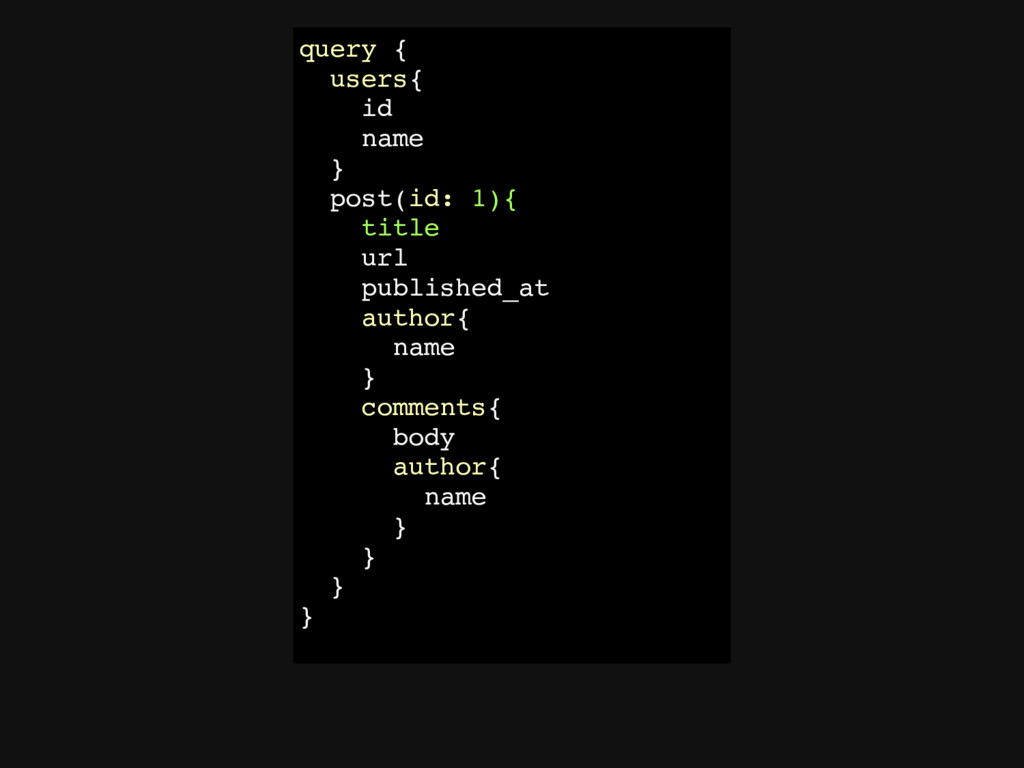

30. query { users{ id name } post(id: 1){ title url published_at author{ name } comments{ body author{ name } } } }

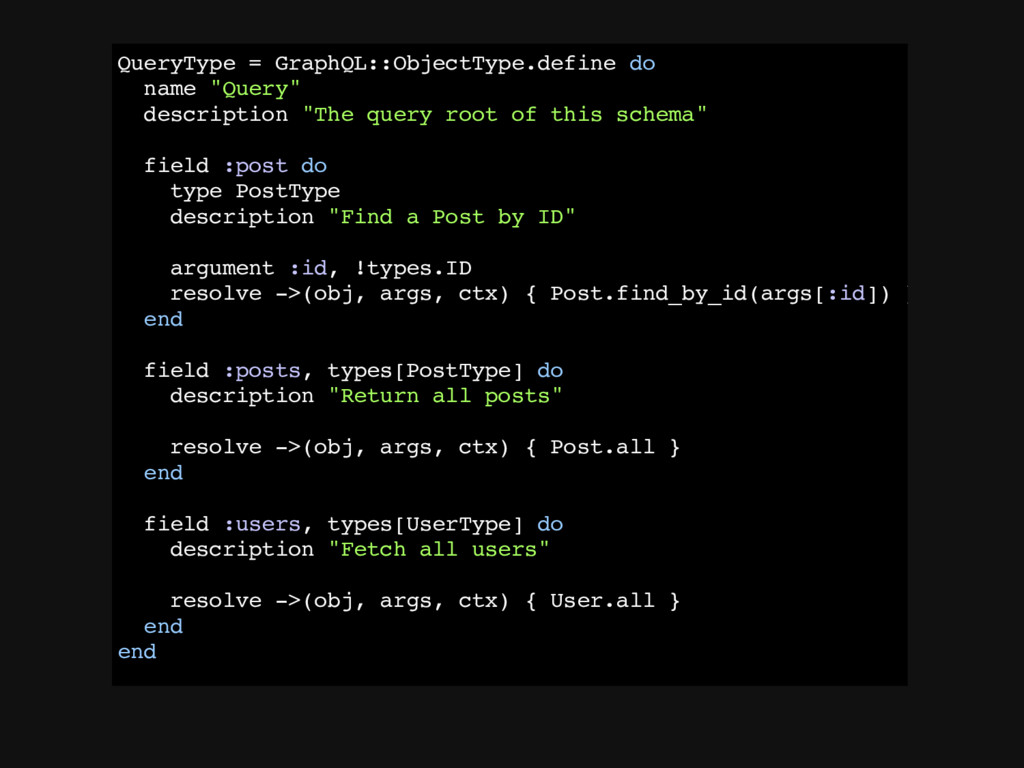

31. QueryType = GraphQL::ObjectType.define do name "Query" description "The query root of this schema" field :post do type PostType description "Find a Post by ID" argument :id, !types.ID resolve ->(obj, args, ctx) { Post.find_by_id(args[:id]) } end field :posts, types[PostType] do description "Return all posts" resolve ->(obj, args, ctx) { Post.all } end field :users, types[UserType] do description "Fetch all users" resolve ->(obj, args, ctx) { User.all } end end

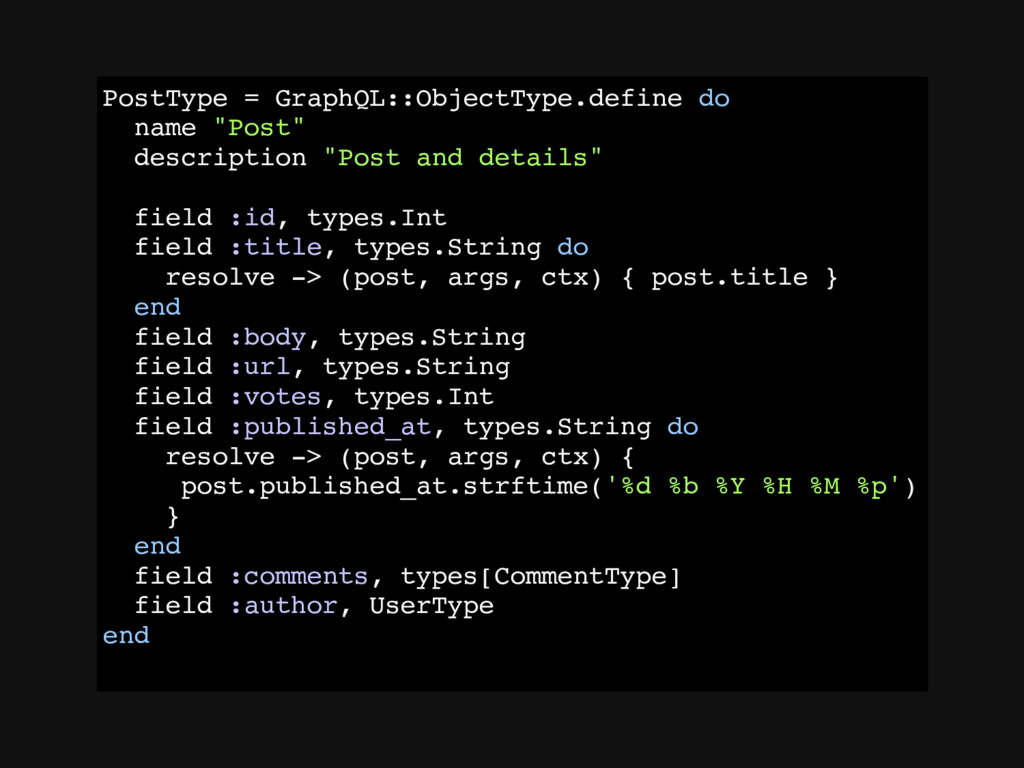

32. PostType = GraphQL::ObjectType.define do name "Post" description "Post and details" field :id, types.Int field :title, types.String do resolve -> (post, args, ctx) { post.title } end field :body, types.String field :url, types.String field :votes, types.Int field :published_at, types.String do resolve -> (post, args, ctx) { post.published_at.strftime('%d %b %Y %H %M %p') } end field :comments, types[CommentType] field :author, UserType end

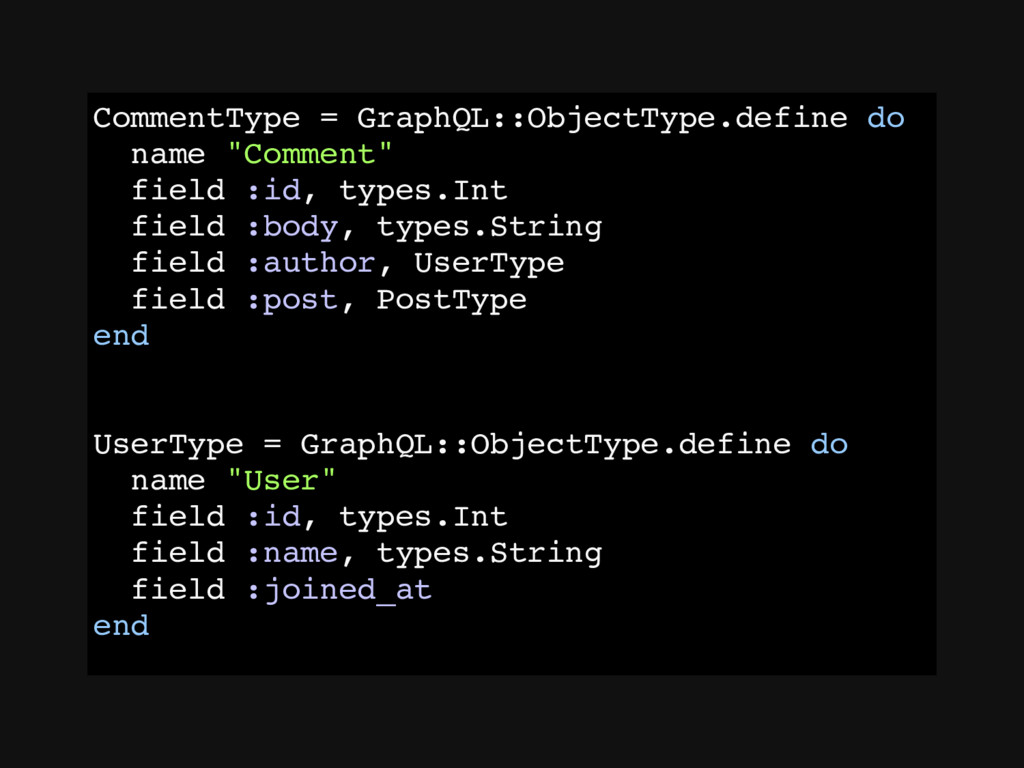

33. CommentType = GraphQL::ObjectType.define do name "Comment" field :id, types.Int field :body, types.String field :author, UserType field :post, PostType end UserType = GraphQL::ObjectType.define do name "User" field :id, types.Int field :name, types.String field :joined_at end

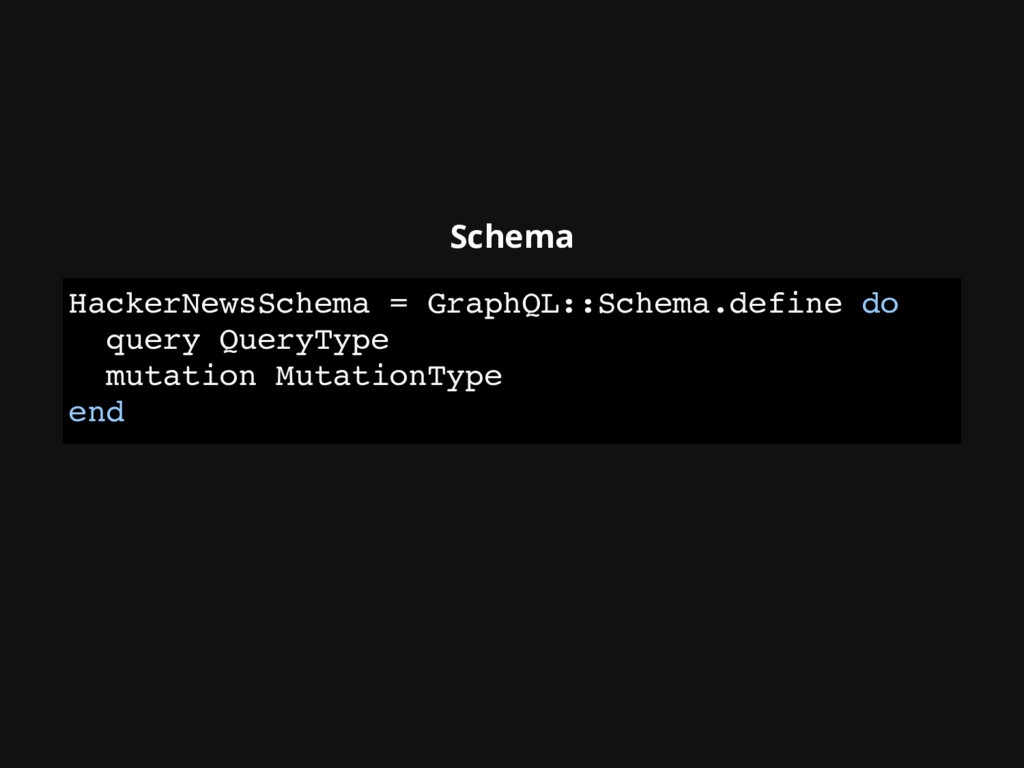

34. HackerNewsSchema = GraphQL::Schema.define do query QueryType mutation MutationType end Schema

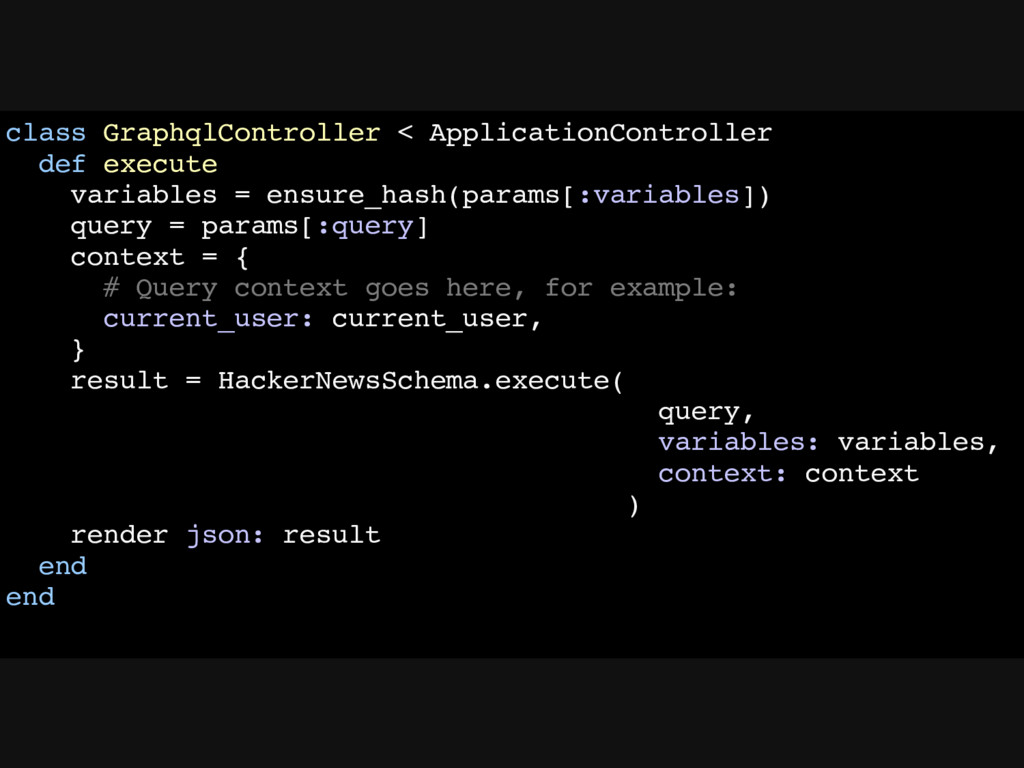

35. class GraphqlController < ApplicationController def execute variables = ensure_hash(params[:variables]) query = params[:query] context = { # Query context goes here, for example: current_user: current_user, } result = HackerNewsSchema.execute( query, variables: variables, context: context ) render json: result end end

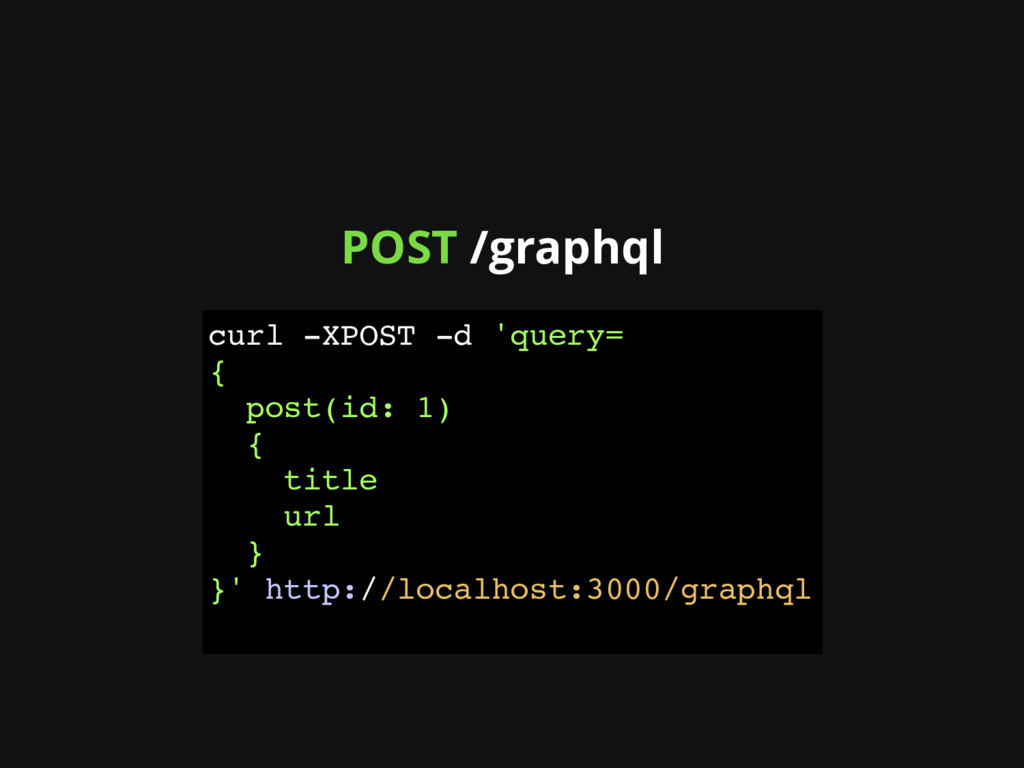

36. POST /graphql curl -XPOST -d 'query= { post(id: 1) { title url } }' http://localhost:3000/graphql
37. API Documentation
40. Drawbacks and solutions
41. N+1 Queries

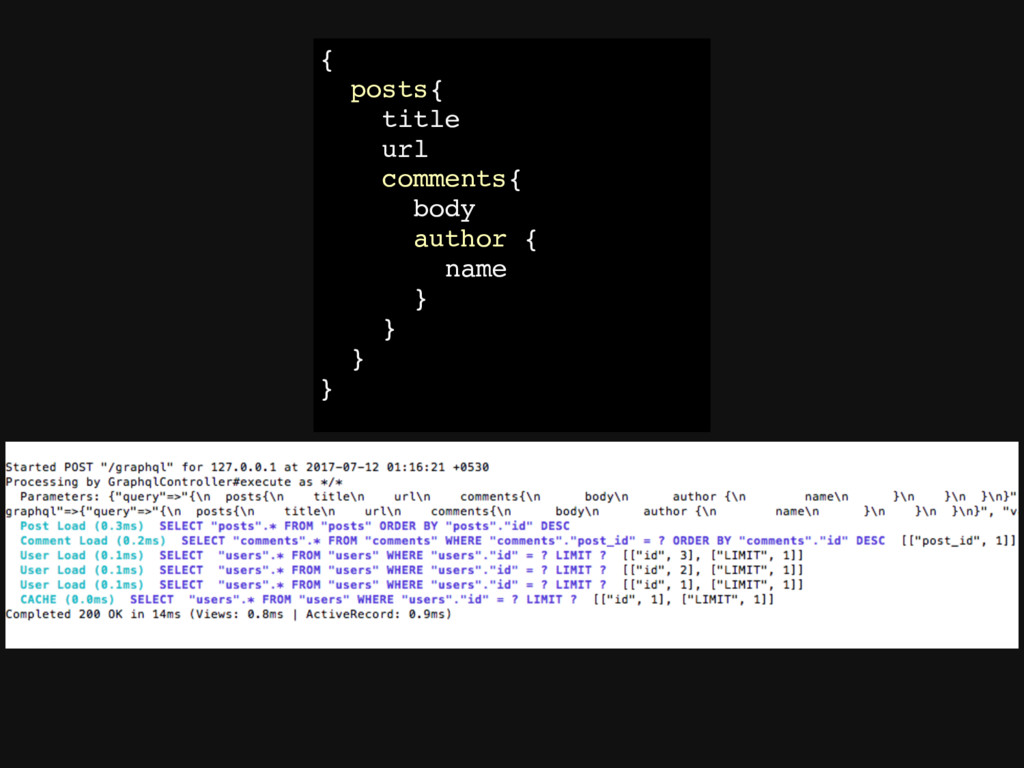

42. { posts{ title url comments{ body author { name } } } }

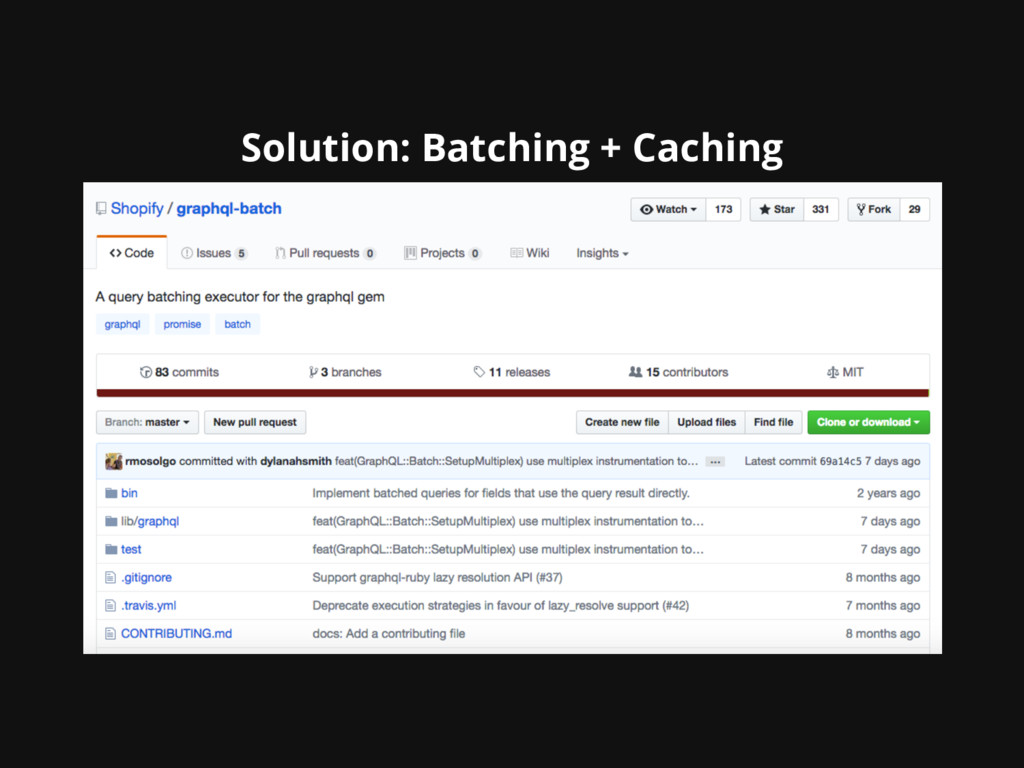

43. Solution: Batching + Caching

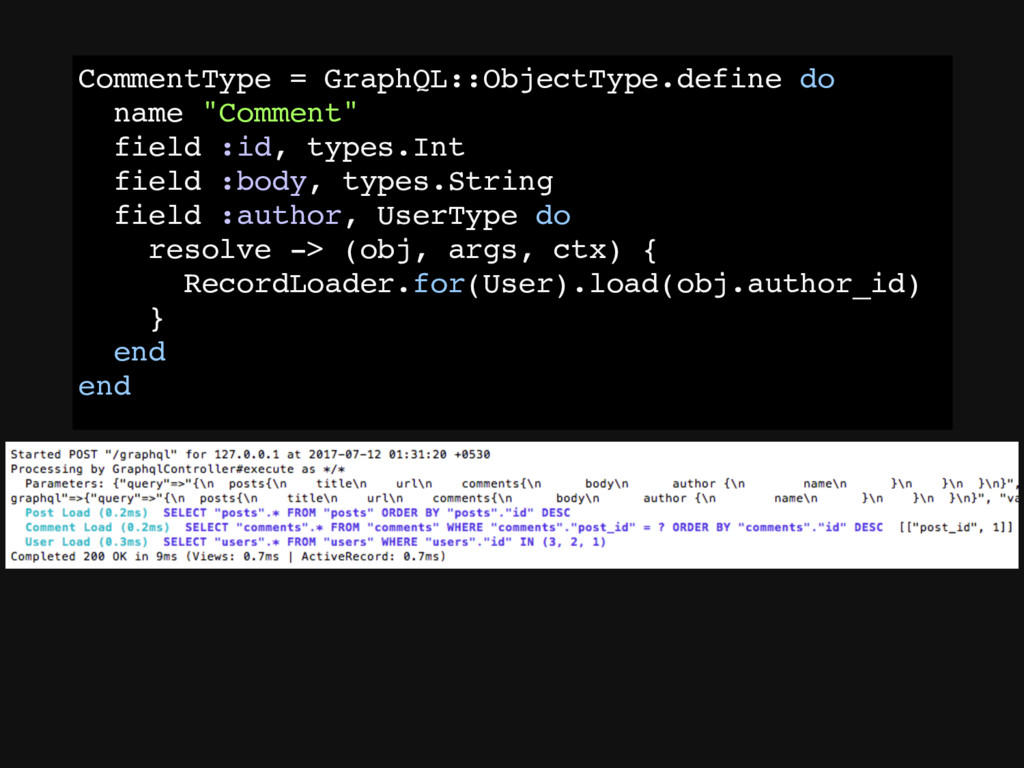

44. CommentType = GraphQL::ObjectType.define do name "Comment" field :id, types.Int field :body, types.String field :author, UserType do resolve -> (obj, args, ctx) { RecordLoader.for(User).load(obj.author_id) } end end
45. HTTP Caching Solution: Client Side Cache
46. Security

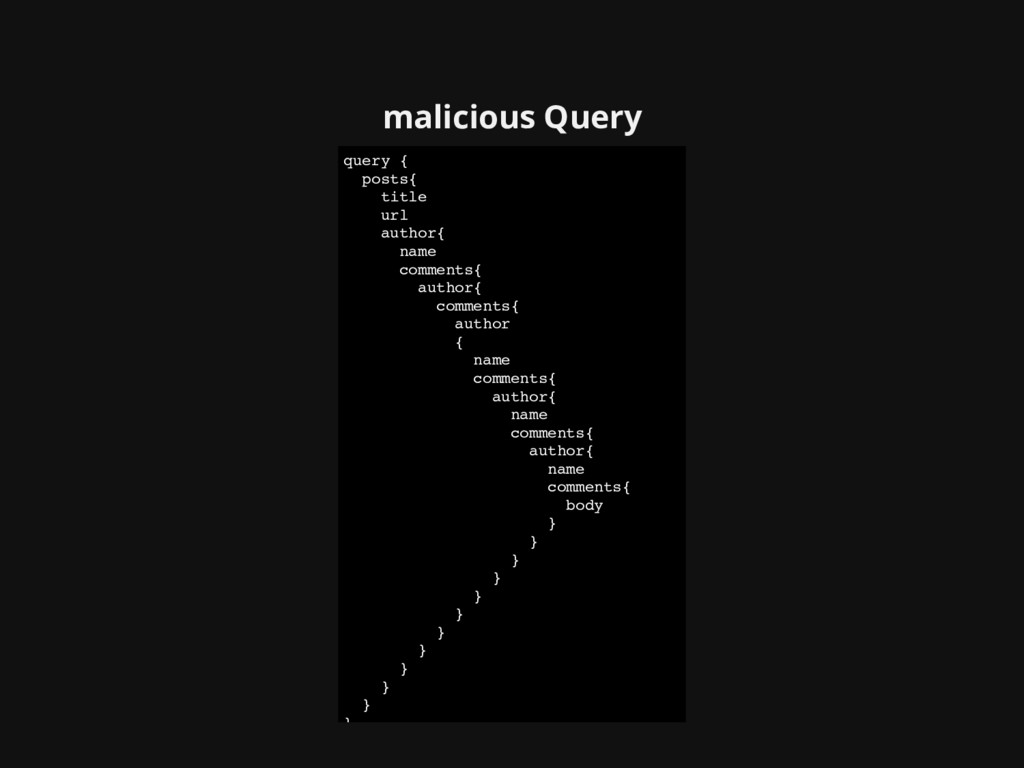

47. malicious Query query { posts{ title url author{ name comments{ author{ comments{ author { name comments{ author{ name comments{ author{ name comments{ body } } } } } } } } } } } }

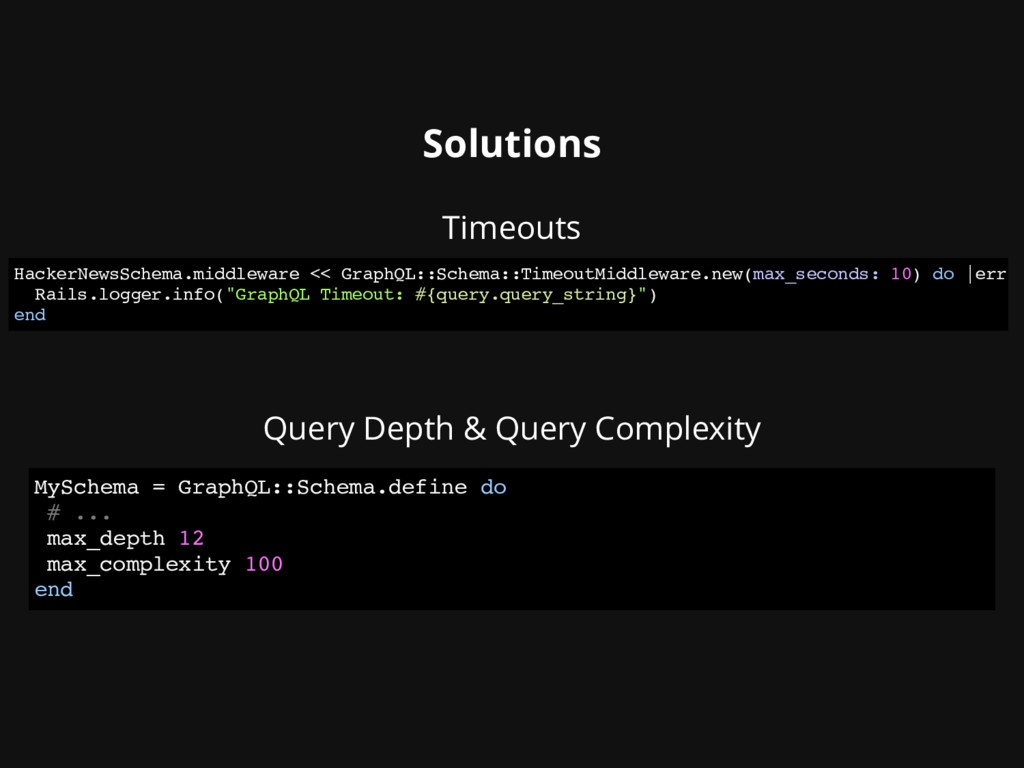

48. Timeouts Solutions HackerNewsSchema.middleware << GraphQL::Schema::TimeoutMiddleware.new(max_seconds: 10) do |err, Rails.logger.info("GraphQL Timeout: #{query.query_string}") end Query Depth & Query Complexity MySchema = GraphQL::Schema.define do # ... max_depth 12 max_complexity 100 end

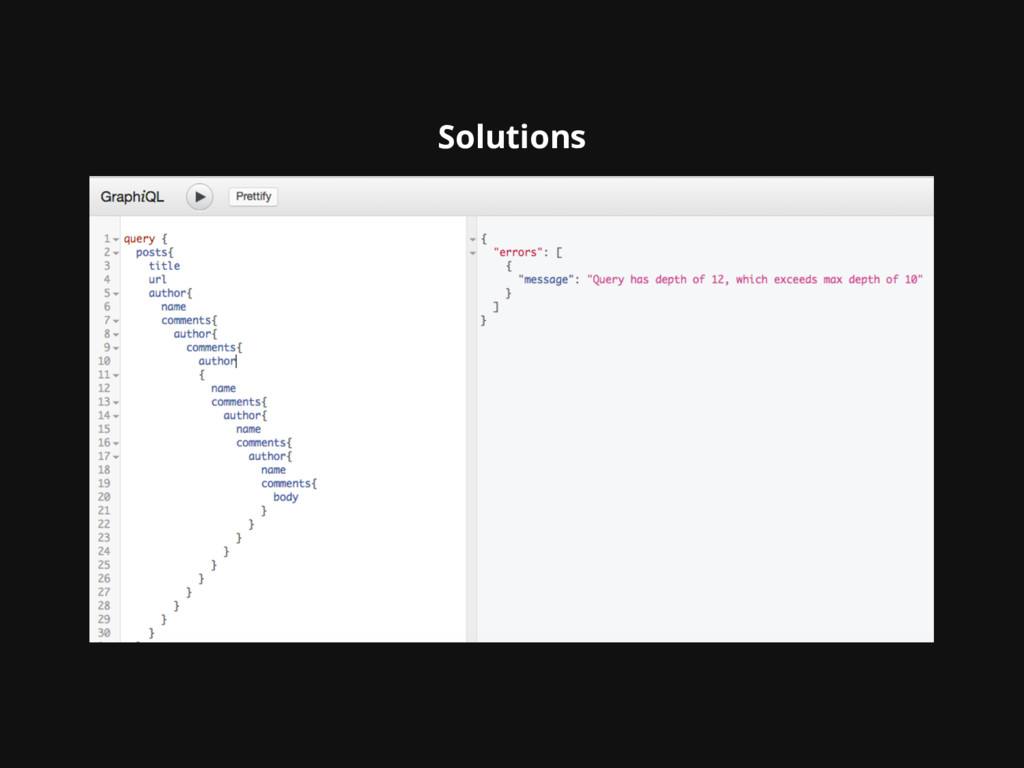

49. Solutions

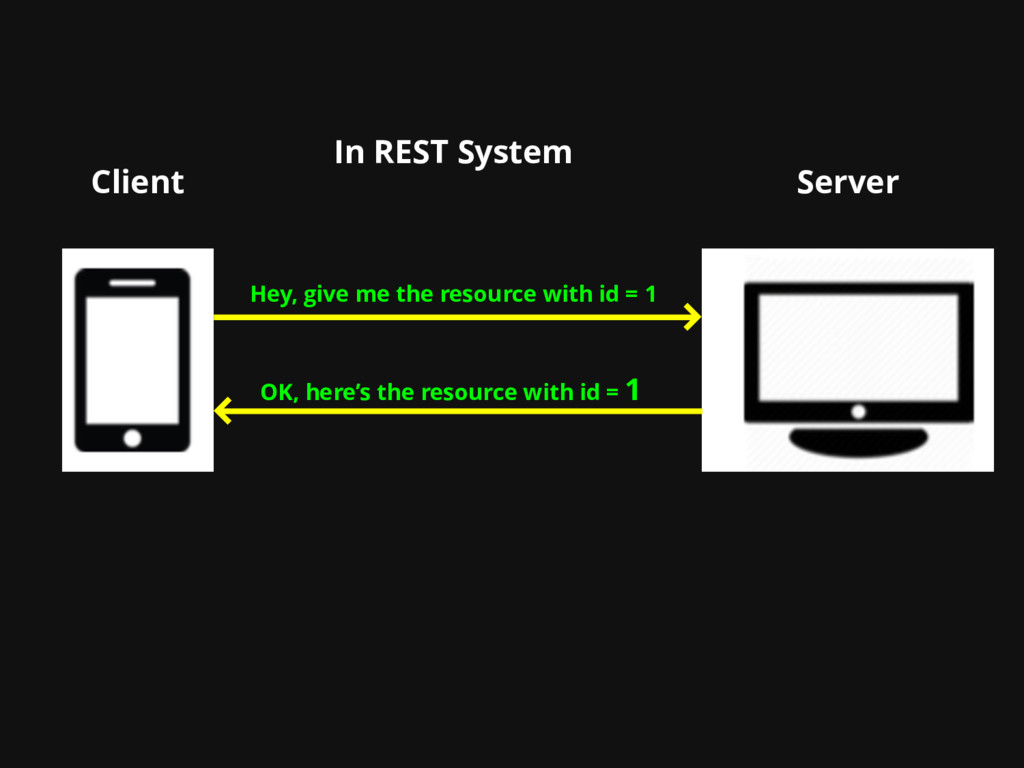

50. Client Server Hey, give me the resource with id = 1 OK, here’s the resource with id = 1 In REST System

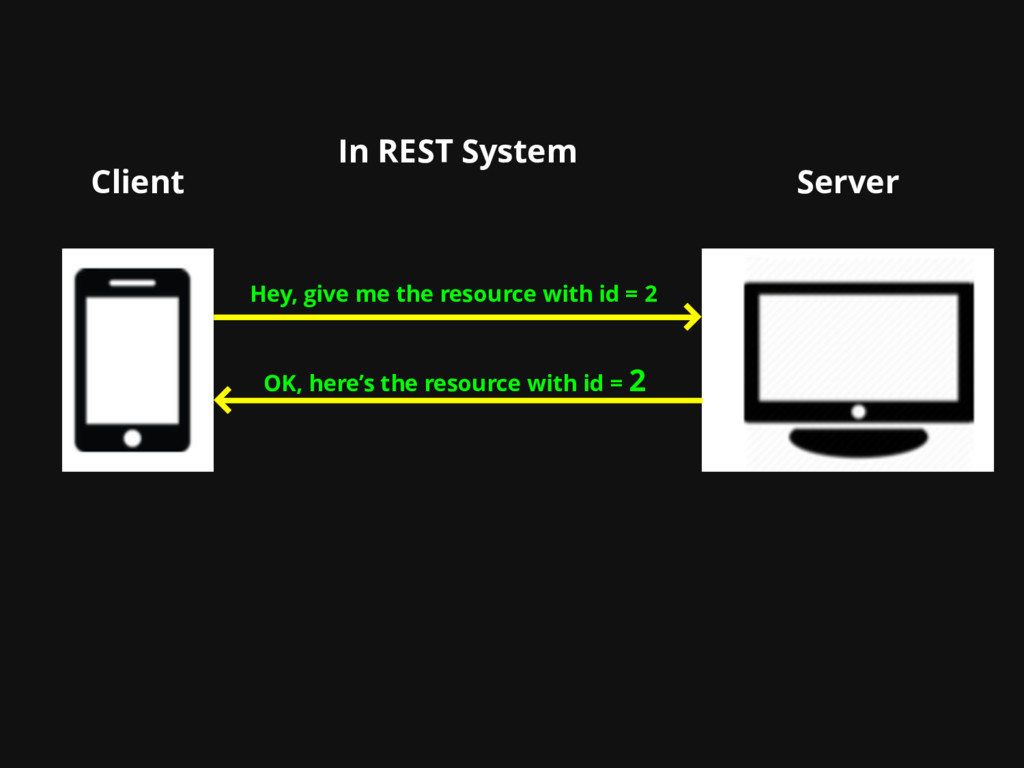

51. Client Server Hey, give me the resource with id = 2 OK, here’s the resource with id = 2 In REST System

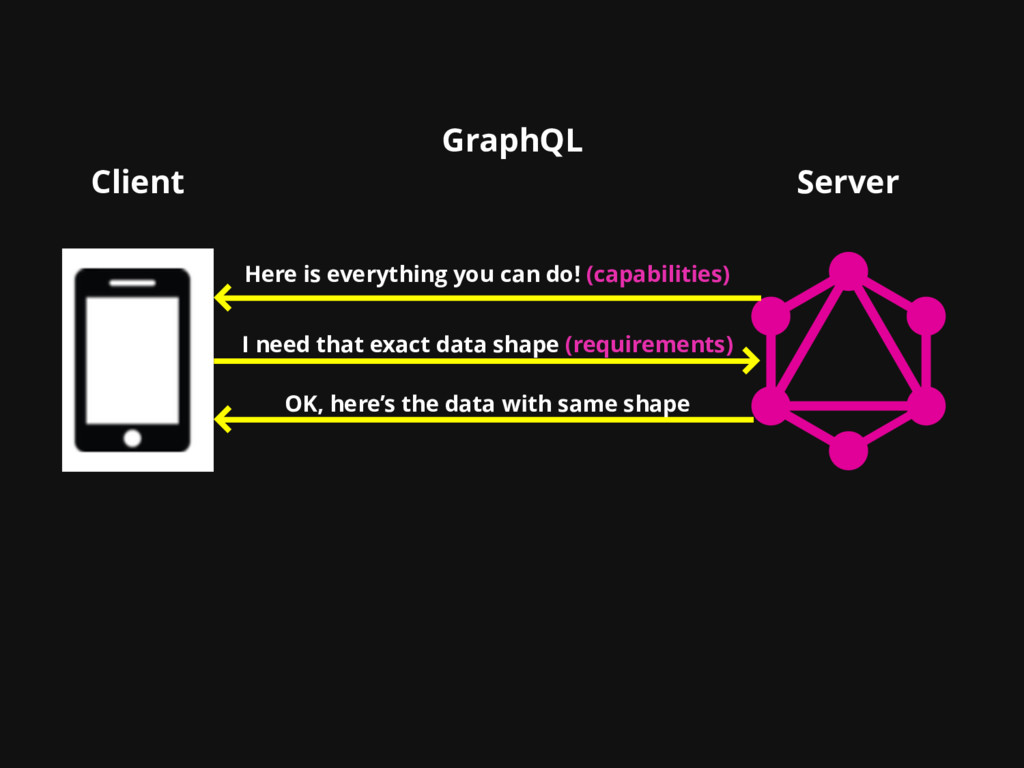

52. Client Server Here is everything you can do! (capabilities) I need that exact data shape (requirements) GraphQL OK, here’s the data with same shape
53. Who’s using GraphQL?
54. Who’s using GraphQL?

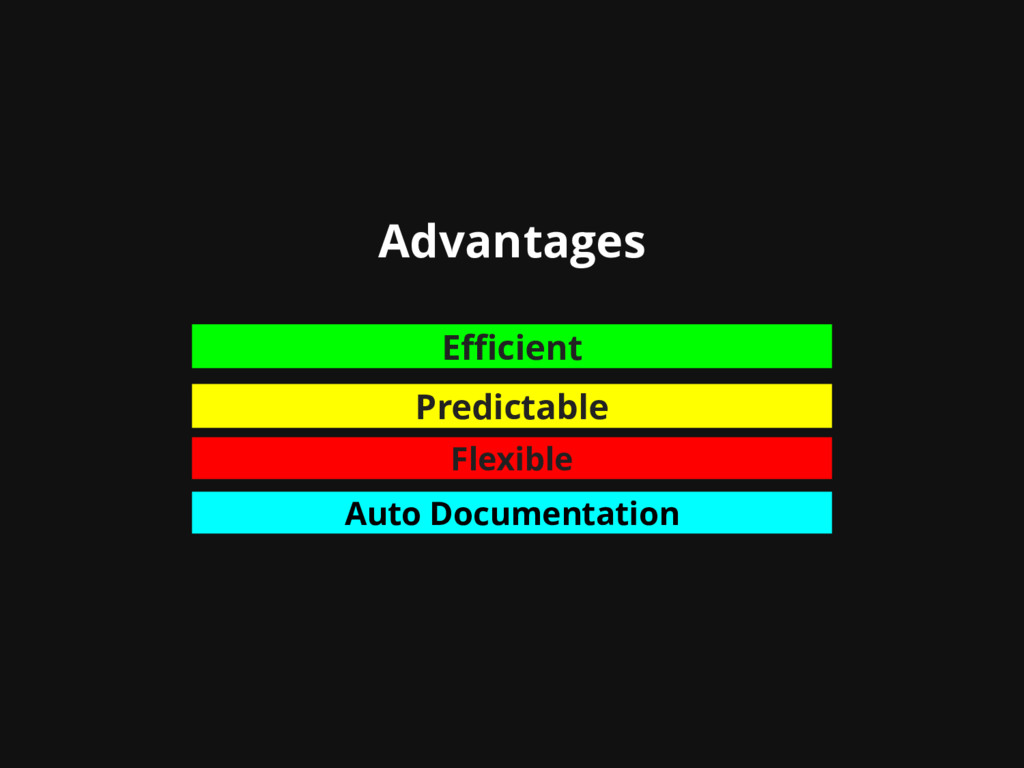

55. Advantages Efficient Predictable Flexible Auto Documentation
56. Thank you!
