PowaIQ, an Energy Information System

Powerful, Cloud-Based Energy Management for Commercial & Industrial Buildings.

PowaIQ is a cloud-based energy management platform that integrates and aggregates portfolio-wide building and metering systems data for simple, collaborative analysis.

Transcript

1. PowaIQ, an Energy Management System (EMS) ROI, using it & reducing energy costs with it.

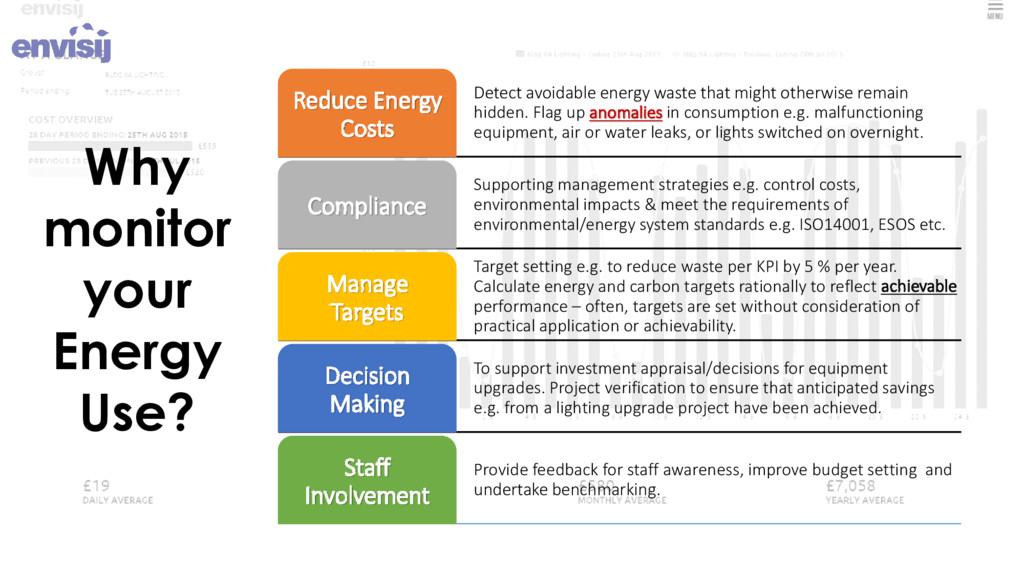

2. Why monitor your Energy Use? Detect avoidable energy waste that might otherwise remain hidden. Flag up anomalies in consumption e.g. malfunctioning equipment, air or water leaks, or lights switched on overnight. Reduce Energy Costs Supporting management strategies e.g. control costs, environmental impacts & meet the requirements of environmental/energy system standards e.g. ISO14001, ESOS etc. Compliance Target setting e.g. to reduce waste per KPI by 5 % per year. Calculate energy and carbon targets rationally to reflect achievable performance – often, targets are set without consideration of practical application or achievability. Manage Targets To support investment appraisal/decisions for equipment upgrades. Project verification to ensure that anticipated savings e.g. from a lighting upgrade project have been achieved. Decision Making Provide feedback for staff awareness, improve budget setting and undertake benchmarking. Staff Involvement

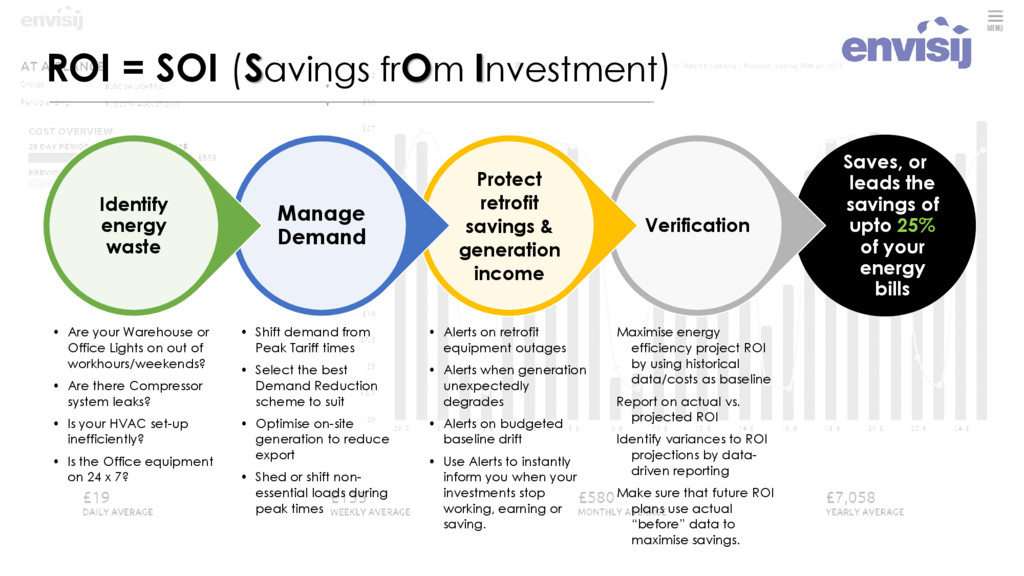

3. Saves, or leads the savings of upto 25% of your energy bills Verification Maximise energy efficiency project ROI by using historical data/costs as baseline Report on actual vs. projected ROI Identify variances to ROI projections by data- driven reporting Make sure that future ROI plans use actual “before” data to maximise savings. Protect retrofit savings & generation income • Alerts on retrofit equipment outages • Alerts when generation unexpectedly degrades • Alerts on budgeted baseline drift • Use Alerts to instantly inform you when your investments stop working, earning or saving. Manage Demand • Shift demand from Peak Tariff times • Select the best Demand Reduction scheme to suit • Optimise on-site generation to reduce export • Shed or shift non- essential loads during peak times Identify energy waste • Are your Warehouse or Office Lights on out of workhours/weekends? • Are there Compressor system leaks? • Is your HVAC set-up inefficiently? • Is the Office equipment on 24 x 7? ROI = SOI (Savings frOm Investment)
4. Play 1. Real Time Monitoring & Verification 5 to 25% savings Play 2. Real Time Peak Demand Management 3 to 6% savings Play 3. Automated Demand Response (ADR) 2 to 4% savings, Utility On-Demand PowaIQ, saving via Energy Triple-Play
5. Play 1. Real Time Monitoring & Verification 5 to 25% savings Play 2. Real Time Peak Demand Management 3 to 6% savings Play 3. Automated Demand Response (ADR) 2 to 4% savings, Utility On-Demand PowaIQ, saving via Energy Triple-Play

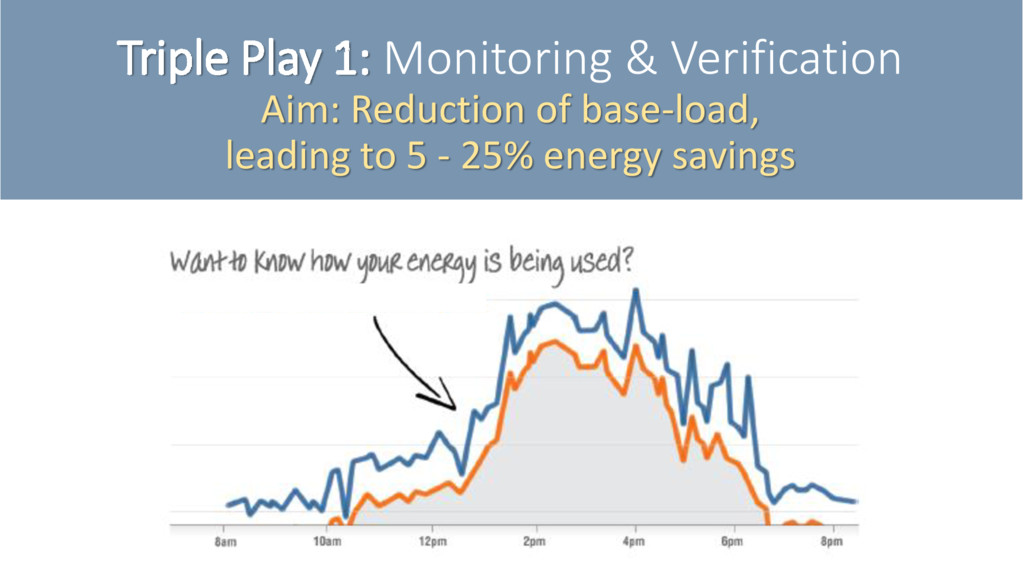

6. Triple Play 1: Monitoring & Verification Aim: Reduction of base-load, leading to 5 - 25% energy savings

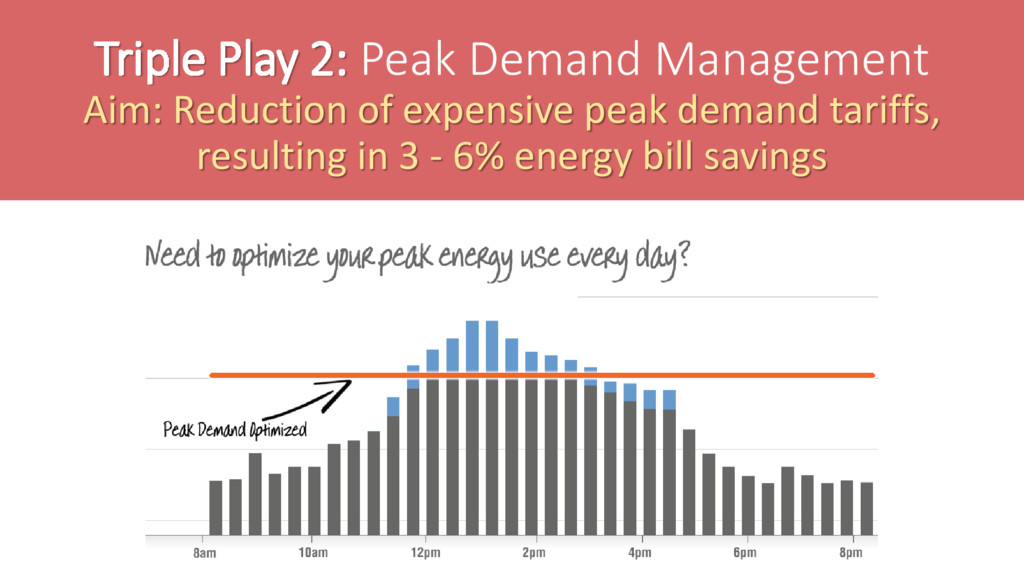

7. Triple Play 2: Peak Demand Management Aim: Reduction of expensive peak demand tariffs, resulting in 3 - 6% energy bill savings

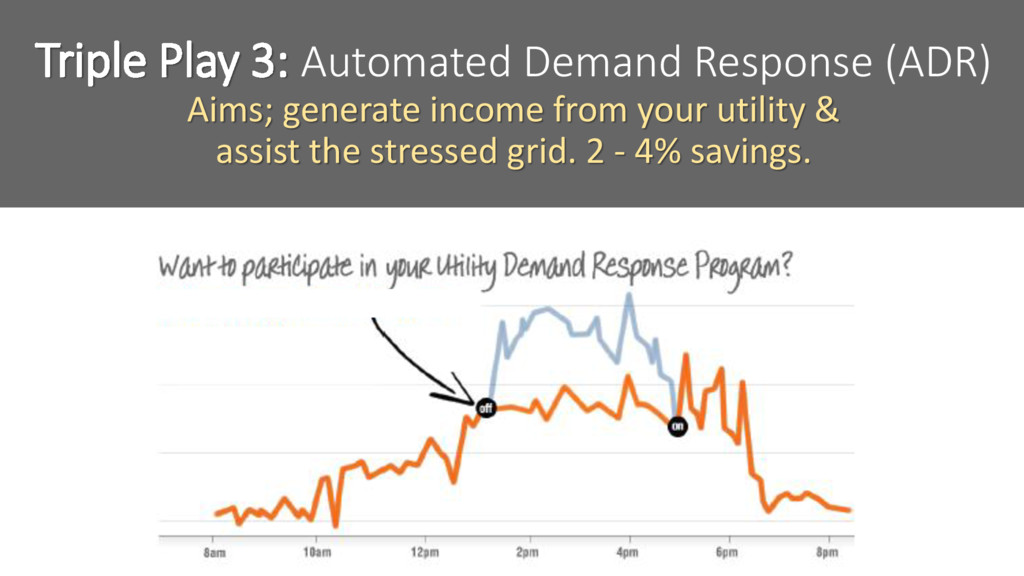

8. Triple Play 3: Automated Demand Response (ADR) Aims; generate income from your utility & assist the stressed grid. 2 - 4% savings.

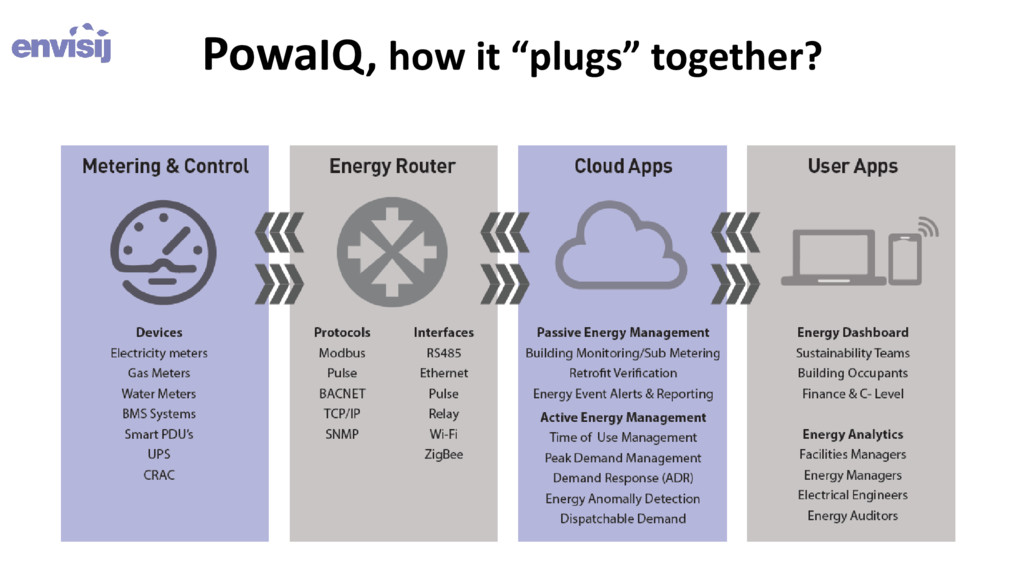

9. PowaIQ, how it “plugs” together?

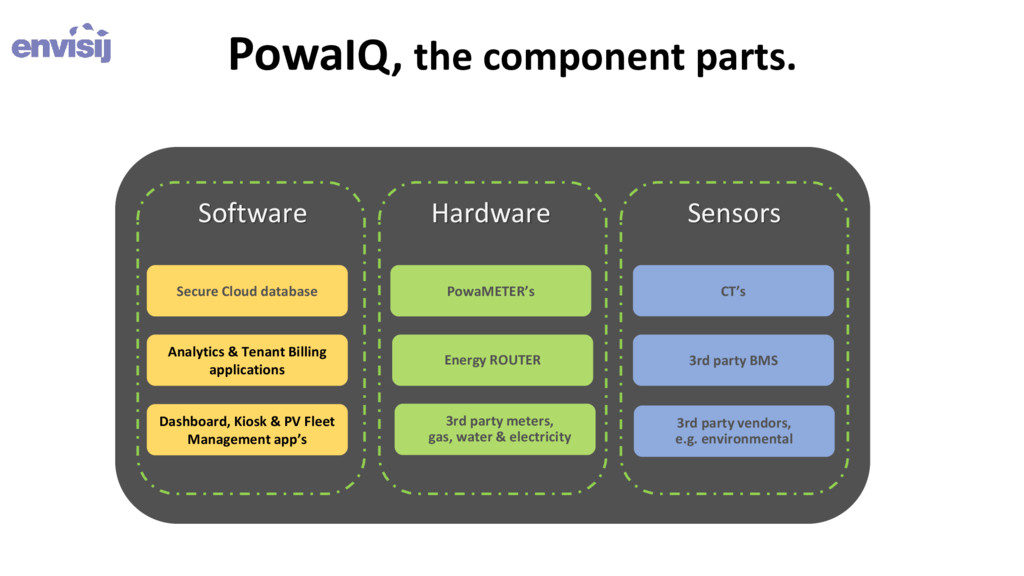

10. Analytics & Tenant Billing applications Secure Cloud database PowaMETER’s CT’s 3rd party BMS Energy ROUTER Software Hardware Sensors 3rd party vendors, e.g. environmental Dashboard, Kiosk & PV Fleet Management app’s PowaIQ, the component parts. 3rd party meters, gas, water & electricity

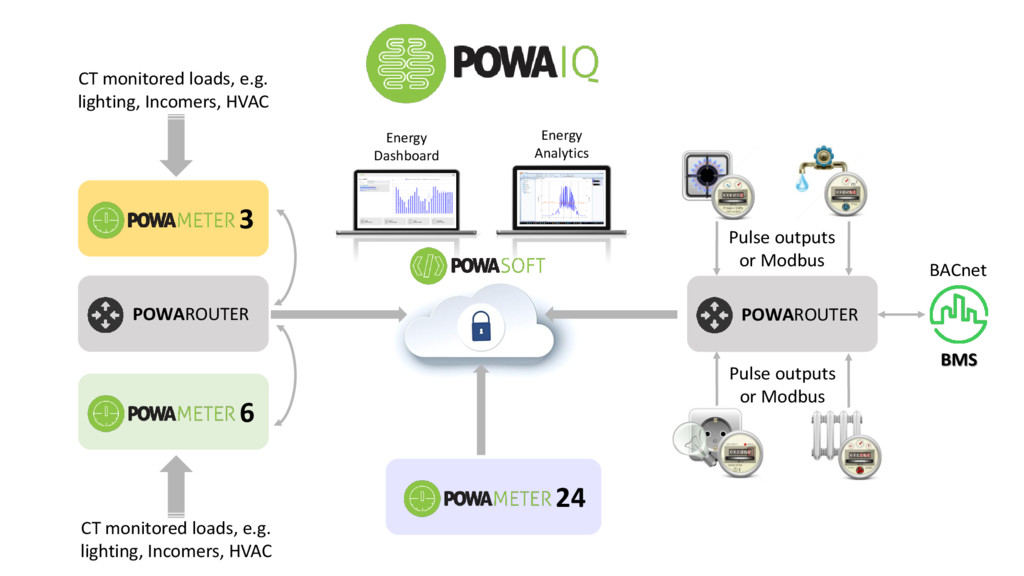

11. POWAROUTER Energy Dashboard Energy Analytics Pulse outputs or Modbus Pulse outputs or Modbus BMS CT monitored loads, e.g. lighting, Incomers, HVAC CT monitored loads, e.g. lighting, Incomers, HVAC 3 6 24 POWAROUTER BACnet

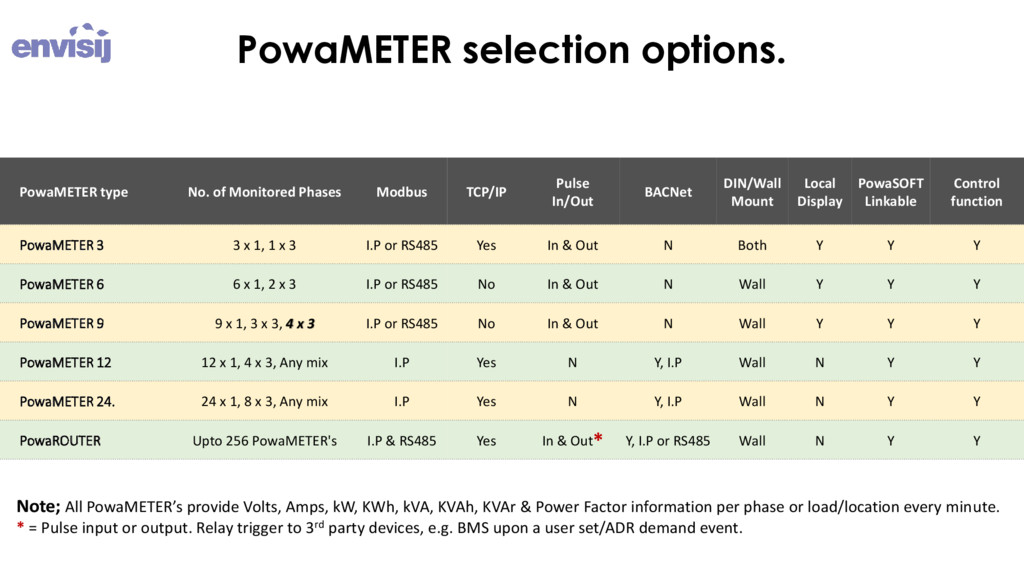

12. PowaMETER type No. of Monitored Phases Modbus TCP/IP Pulse In/Out BACNet DIN/Wall Mount Local Display PowaSOFT Linkable Control function PowaMETER 3 3 x 1, 1 x 3 I.P or RS485 Yes In & Out N Both Y Y Y PowaMETER 6 6 x 1, 2 x 3 I.P or RS485 No In & Out N Wall Y Y Y PowaMETER 9 9 x 1, 3 x 3, 4 x 3 I.P or RS485 No In & Out N Wall Y Y Y PowaMETER 12 12 x 1, 4 x 3, Any mix I.P Yes N Y, I.P Wall N Y Y PowaMETER 24. 24 x 1, 8 x 3, Any mix I.P Yes N Y, I.P Wall N Y Y PowaROUTER Upto 256 PowaMETER's I.P & RS485 Yes In & Out* Y, I.P or RS485 Wall N Y Y PowaMETER selection options. Note; All PowaMETER’s provide Volts, Amps, kW, KWh, kVA, KVAh, KVAr & Power Factor information per phase or load/location every minute. * = Pulse input or output. Relay trigger to 3rd party devices, e.g. BMS upon a user set/ADR demand event.
13. envisij Ltd. 6 Birkdale Mews, 15A Liverpool Rd Southport, Merseyside, PR8 4AS, UK E: info@envisij.com W: www.envisij.com T: +44 (0) 1704 741177 M: +44(0) 7833 220535 Envisij delivers insightful, understandable & useful energy information to building occupants, executives, sustainability & facilities teams.
