CHESS 3 paper review

Slides for the journal club review presentation:
"CHESS 3: an improved, comprehensive catalog of human genes and transcripts based on large-scale expression data, phylogenetic analysis, and protein structure"
Varabyou, A., Sommer, M.J., Erdogdu, B. et al.
https://doi.org/10.1186/s13059-023-03088-4

Transcript

1. CHESS 3: an improved, comprehensive catalog of human genes and transcripts based on large-scale expression data, phylogenetic analysis, and protein structure Ales Varabyou et al. [biorxiv, December 22, 2022] https://doi.org/10.1101/2022.12.21.521274

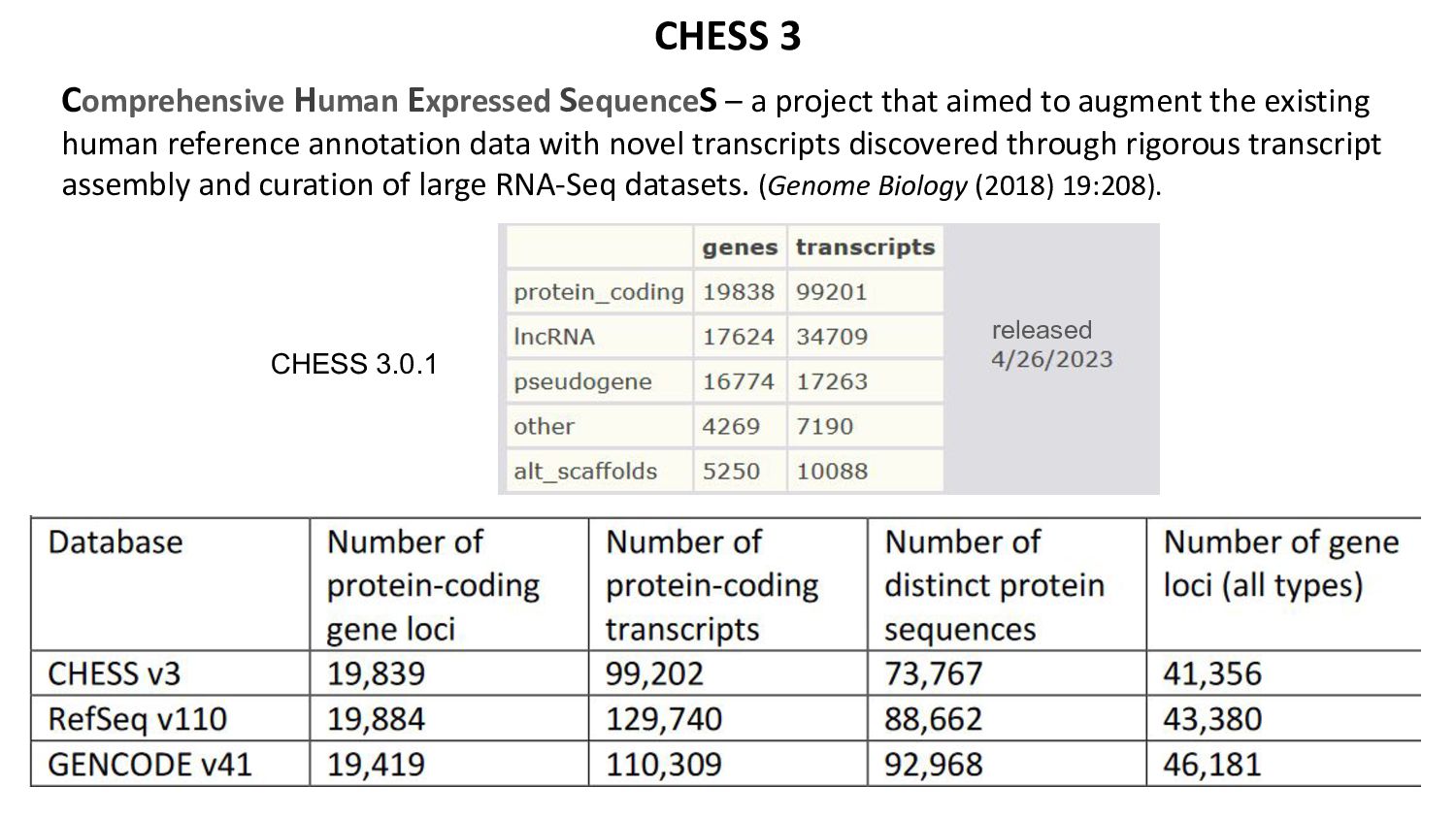

2. CHESS 3 Comprehensive Human Expressed SequenceS – a project that aimed to augment the existing human reference annotation data with novel transcripts discovered through rigorous transcript assembly and curation of large RNA-Seq datasets. (Genome Biology (2018) 19:208). released CHESS 3.0.1

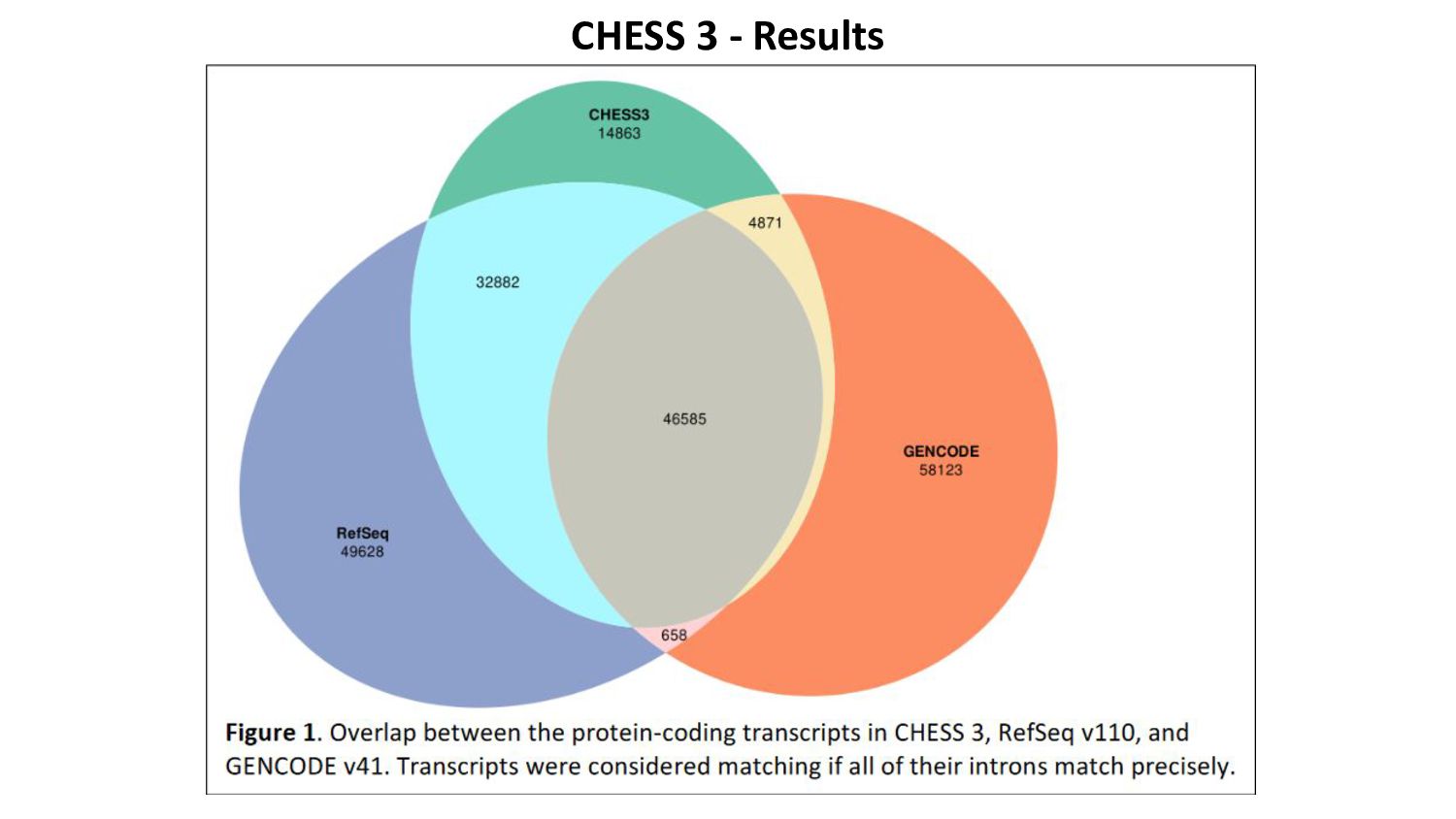

3. CHESS 3 - Results

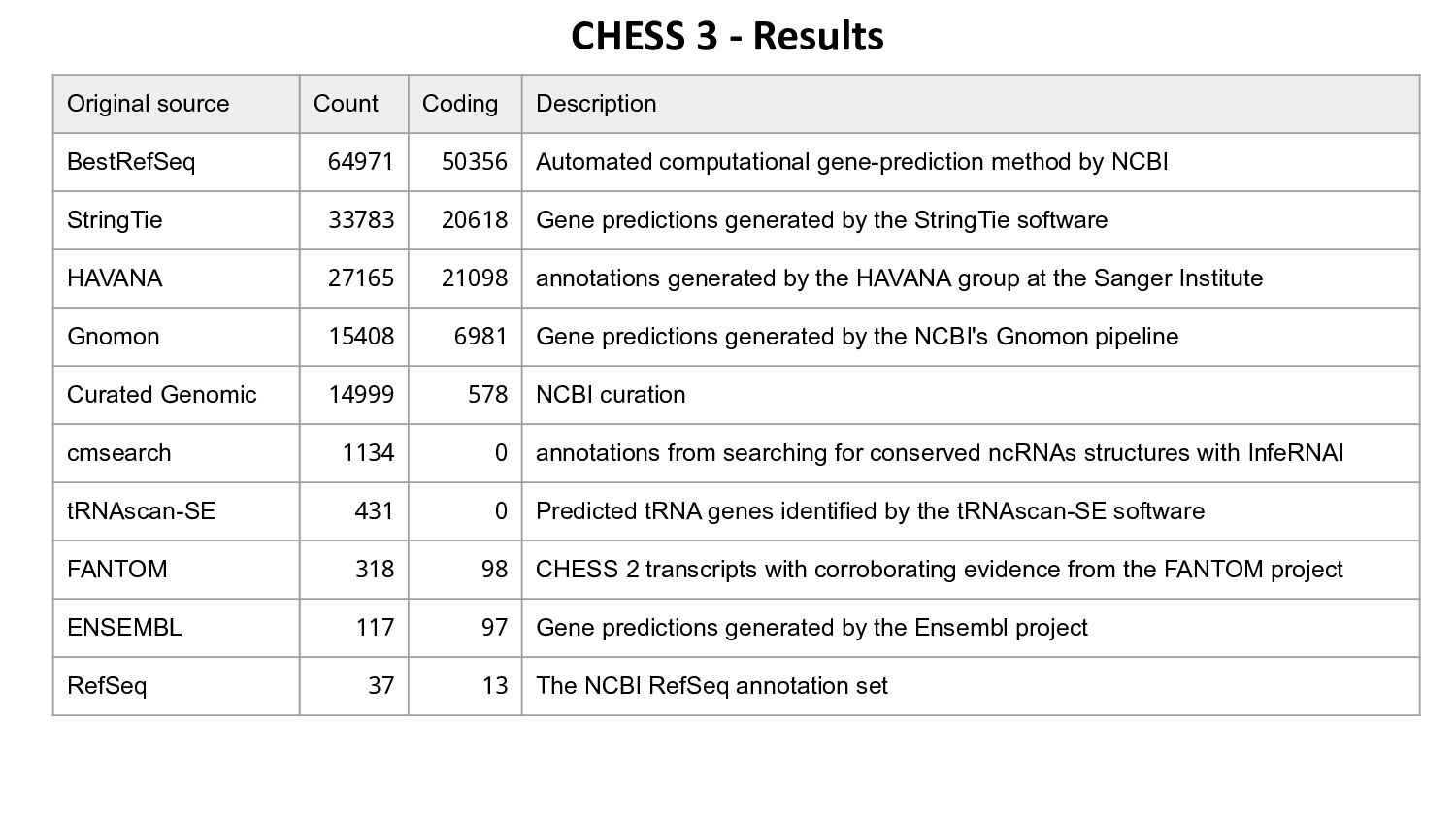

4. CHESS 3 - Results Original source Count Coding Description BestRefSeq 64971 50356 Automated computational gene-prediction method by NCBI StringTie 33783 20618 Gene predictions generated by the StringTie software HAVANA 27165 21098 annotations generated by the HAVANA group at the Sanger Institute Gnomon 15408 6981 Gene predictions generated by the NCBI's Gnomon pipeline Curated Genomic 14999 578 NCBI curation cmsearch 1134 0 annotations from searching for conserved ncRNAs structures with InfeRNAl tRNAscan-SE 431 0 Predicted tRNA genes identified by the tRNAscan-SE software FANTOM 318 98 CHESS 2 transcripts with corroborating evidence from the FANTOM project ENSEMBL 117 97 Gene predictions generated by the Ensembl project RefSeq 37 13 The NCBI RefSeq annotation set

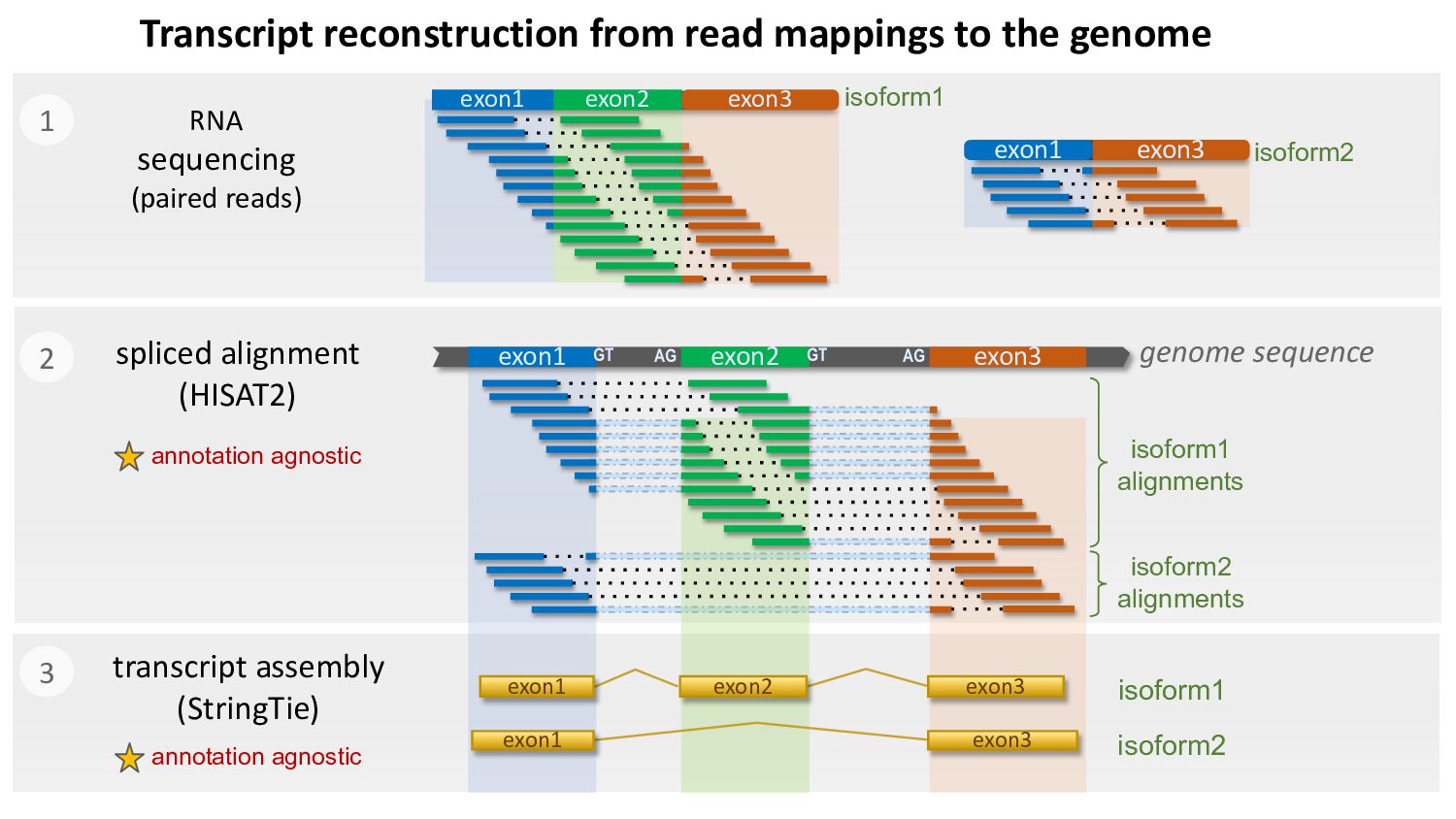

5. spliced alignment (HISAT2) RNA sequencing (paired reads) exon2 exon1 exon3 exon1 exon3 exon2 genome sequence GT AG GT AG exon3 exon1 isoform1 isoform1 alignments isoform2 alignments isoform2 transcript assembly (StringTie) exon2 exon3 exon1 exon3 exon1 isoform1 isoform2 1 2 3 Transcript reconstruction from read mappings to the genome annotation agnostic annotation agnostic

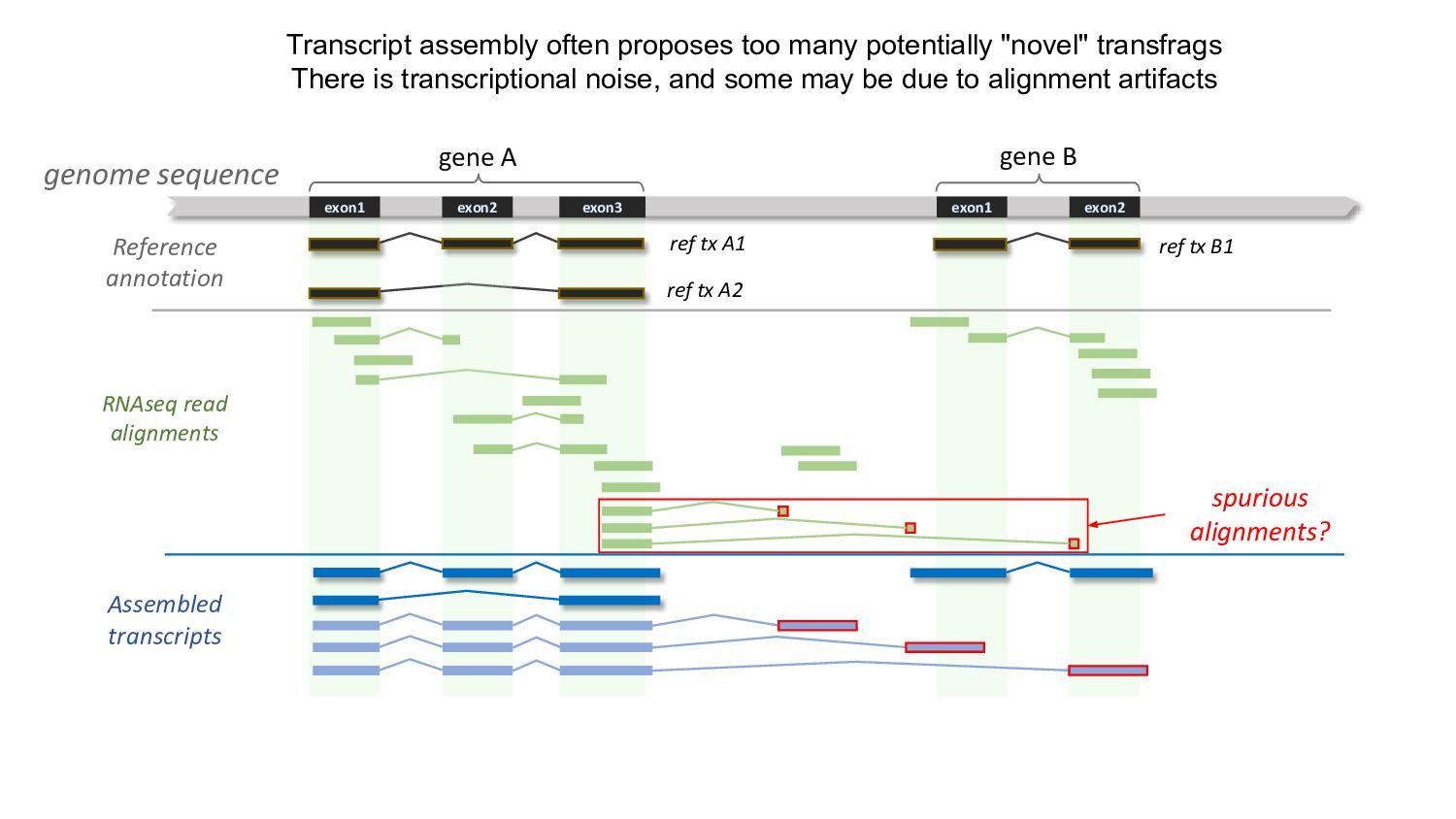

6. Transcript assembly often proposes too many potentially "novel" transfrags There is transcriptional noise, and some may be due to alignment artifacts exon1 exon2 exon3 ref tx A1 ref tx A2 Assembled transcripts exon1 exon2 RNAseq read alignments gene A gene B Reference annotation ref tx B1 spurious alignments? genome sequence

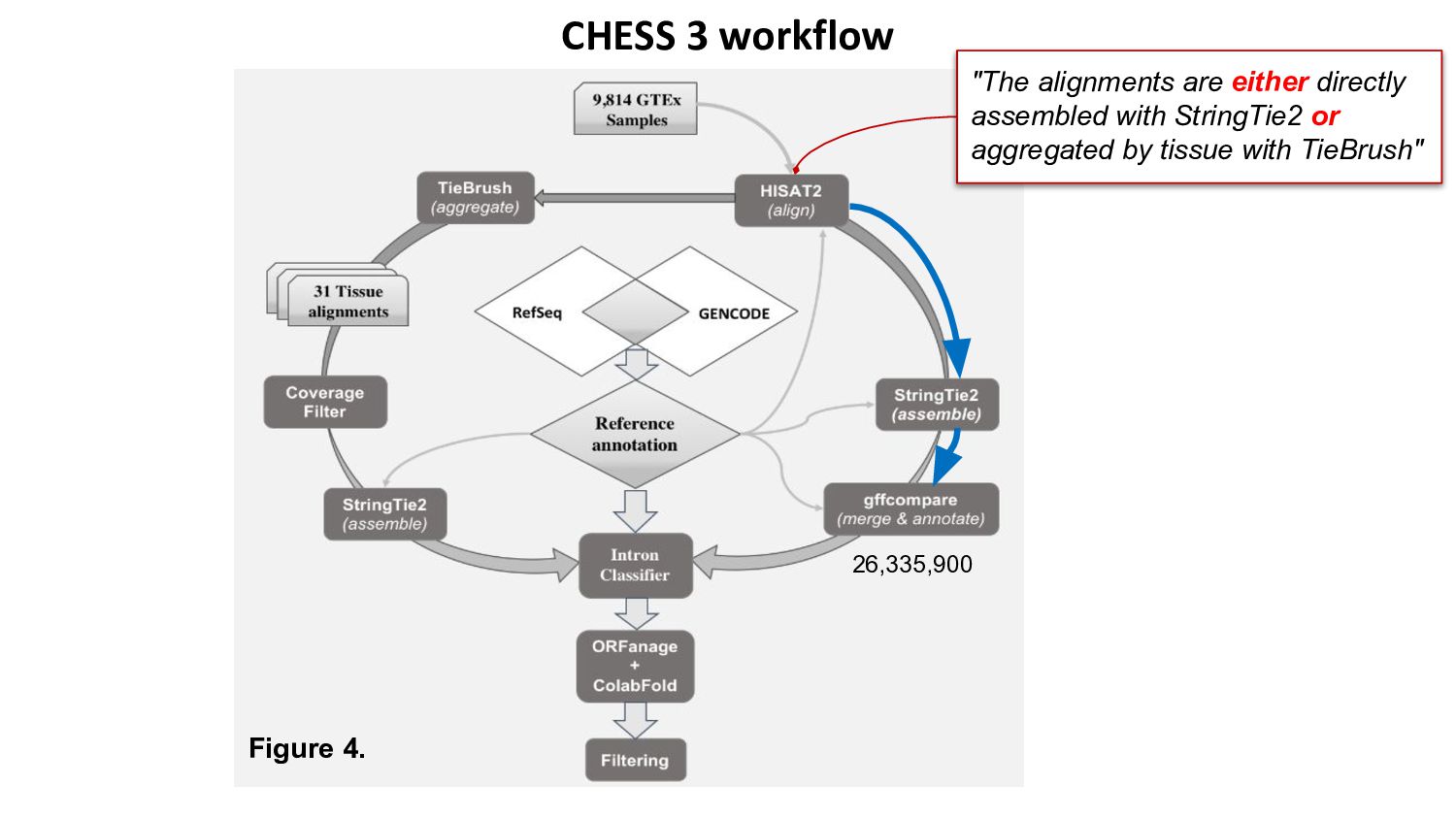

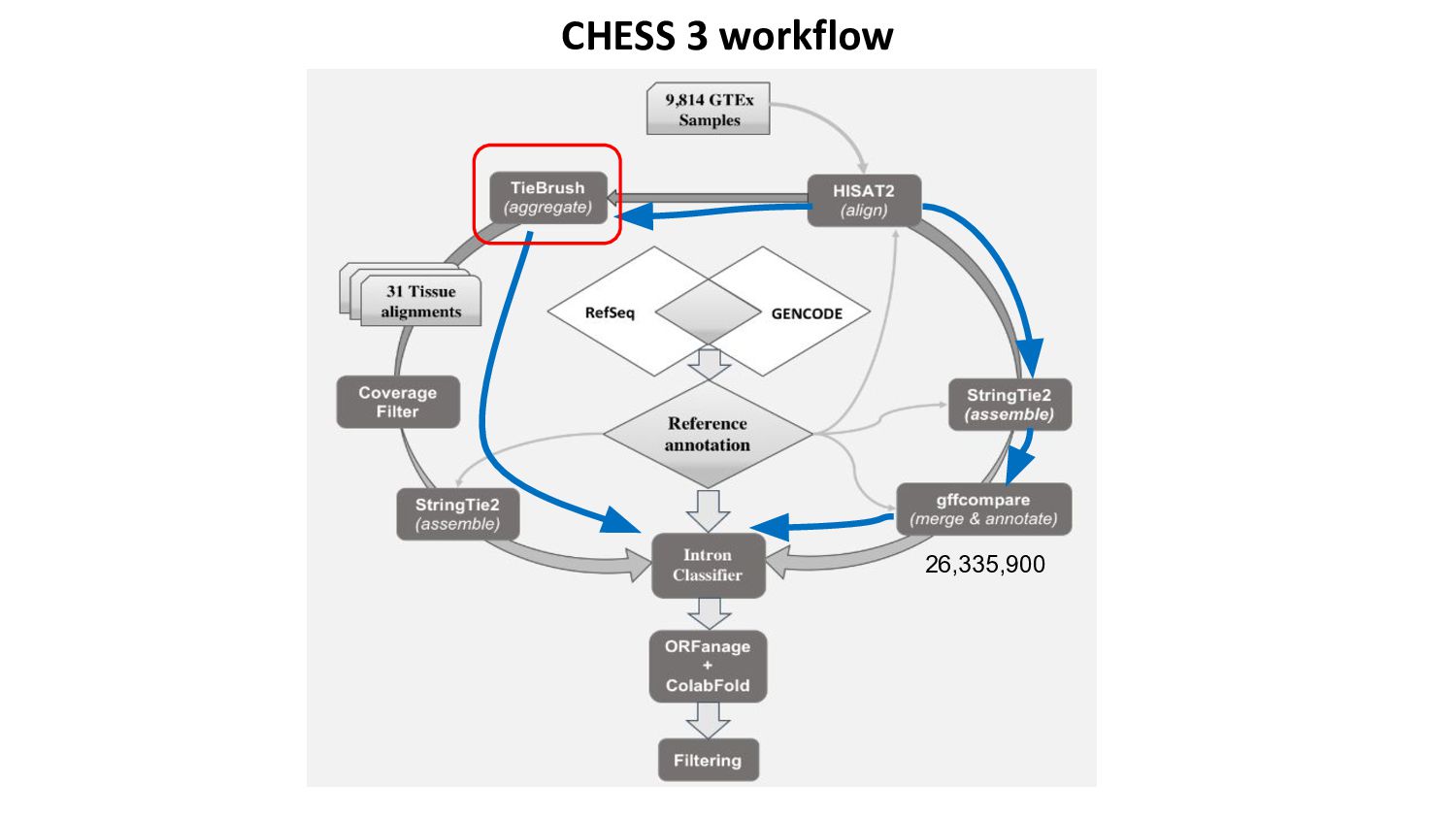

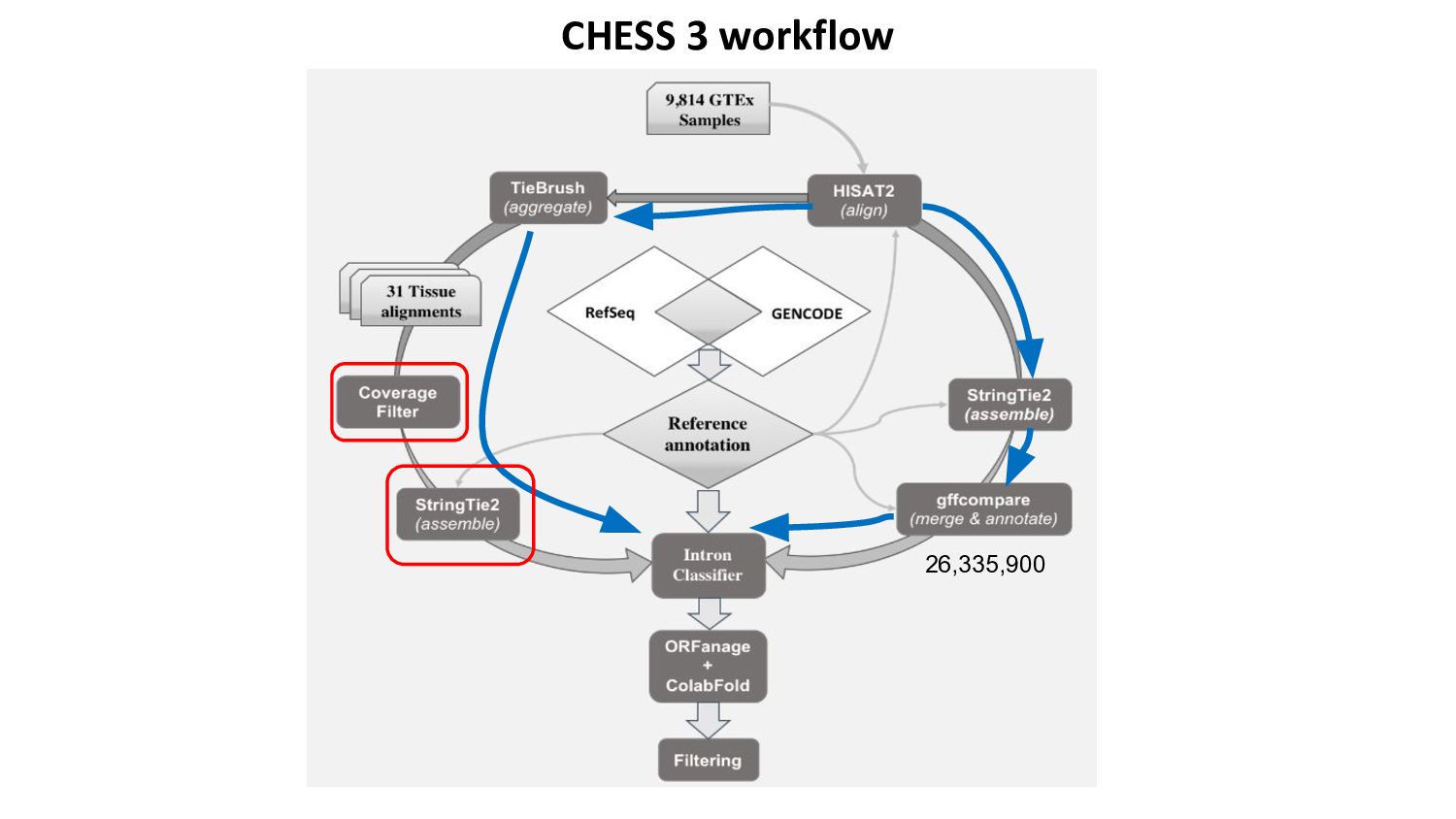

7. CHESS 3 workflow 26,335,900 "The alignments are either directly assembled with StringTie2 or aggregated by tissue with TieBrush" Figure 4.
8. CHESS 3 workflow 26,335,900
9. CHESS 3 workflow 26,335,900

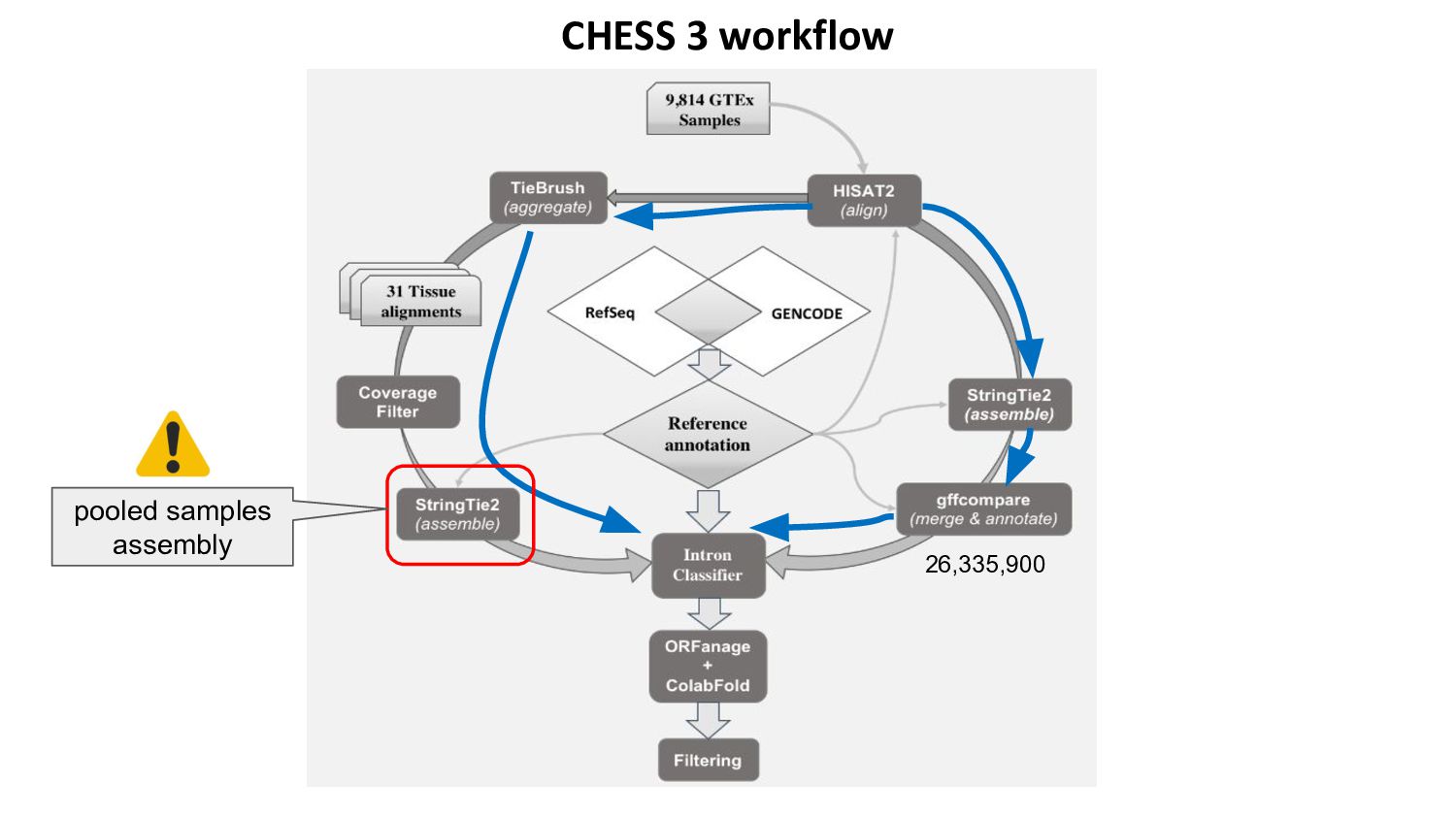

10. CHESS 3 workflow 26,335,900 pooled samples assembly

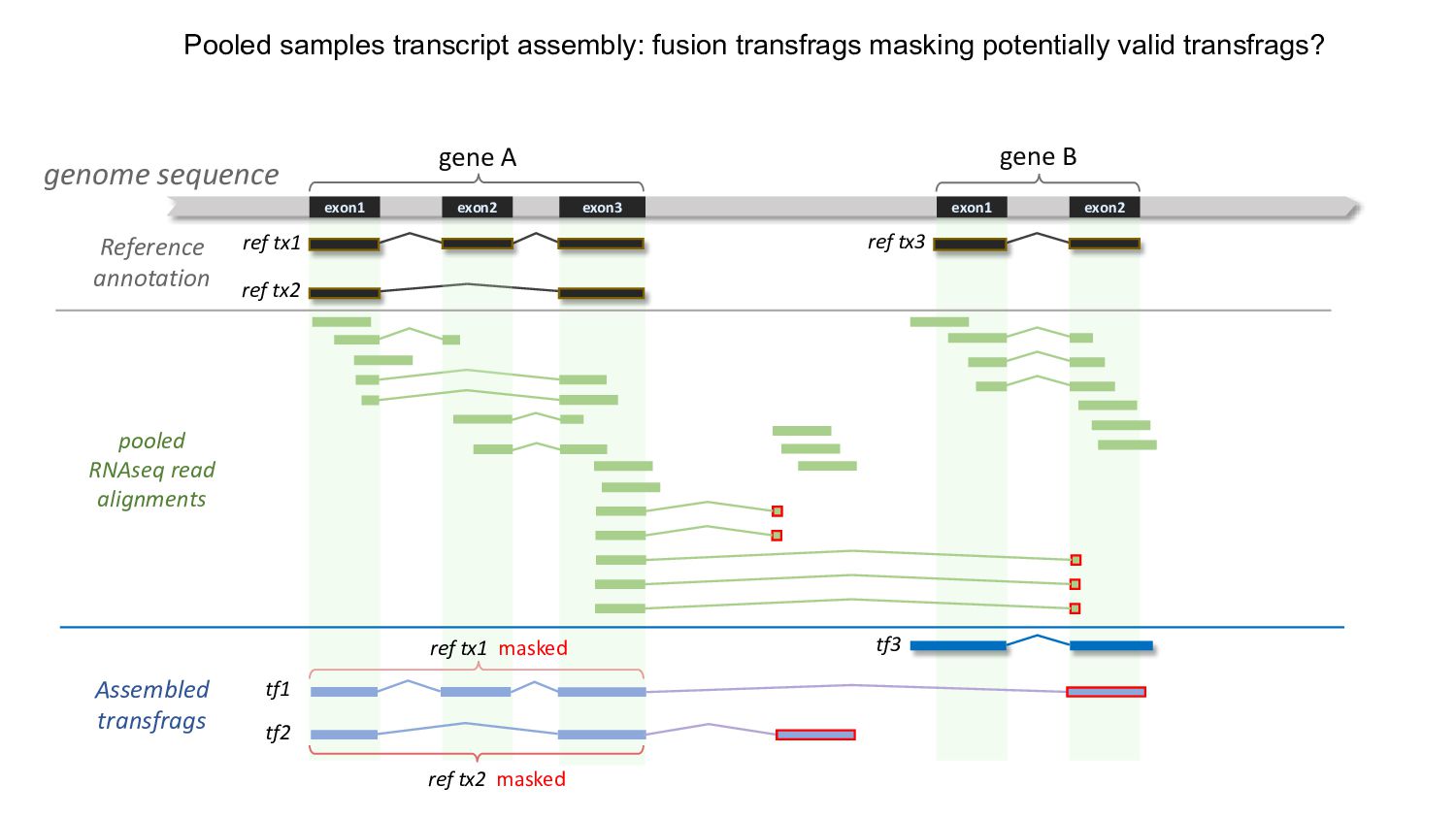

11. Pooled samples transcript assembly: fusion transfrags masking potentially valid transfrags? exon1 exon2 exon3 ref tx1 masked ref tx2 Assembled transfrags exon1 exon2 pooled RNAseq read alignments gene A gene B Reference annotation ref tx3 genome sequence tf2 tf1 tf3 ref tx2 masked ref tx1

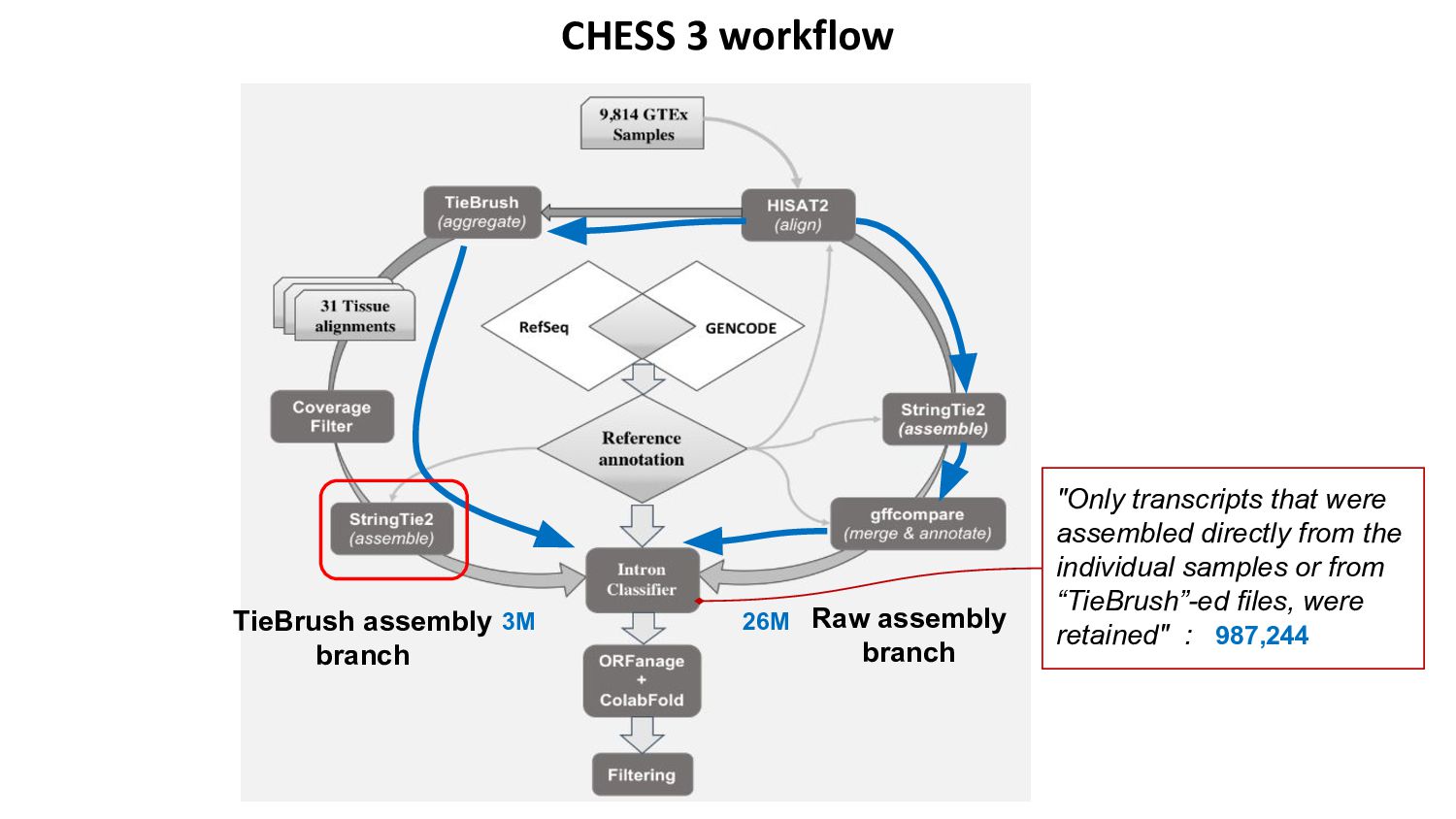

12. CHESS 3 workflow "Only transcripts that were assembled directly from the individual samples or from “TieBrush”-ed files, were retained" : 987,244 26M 3M TieBrush assembly branch Raw assembly branch

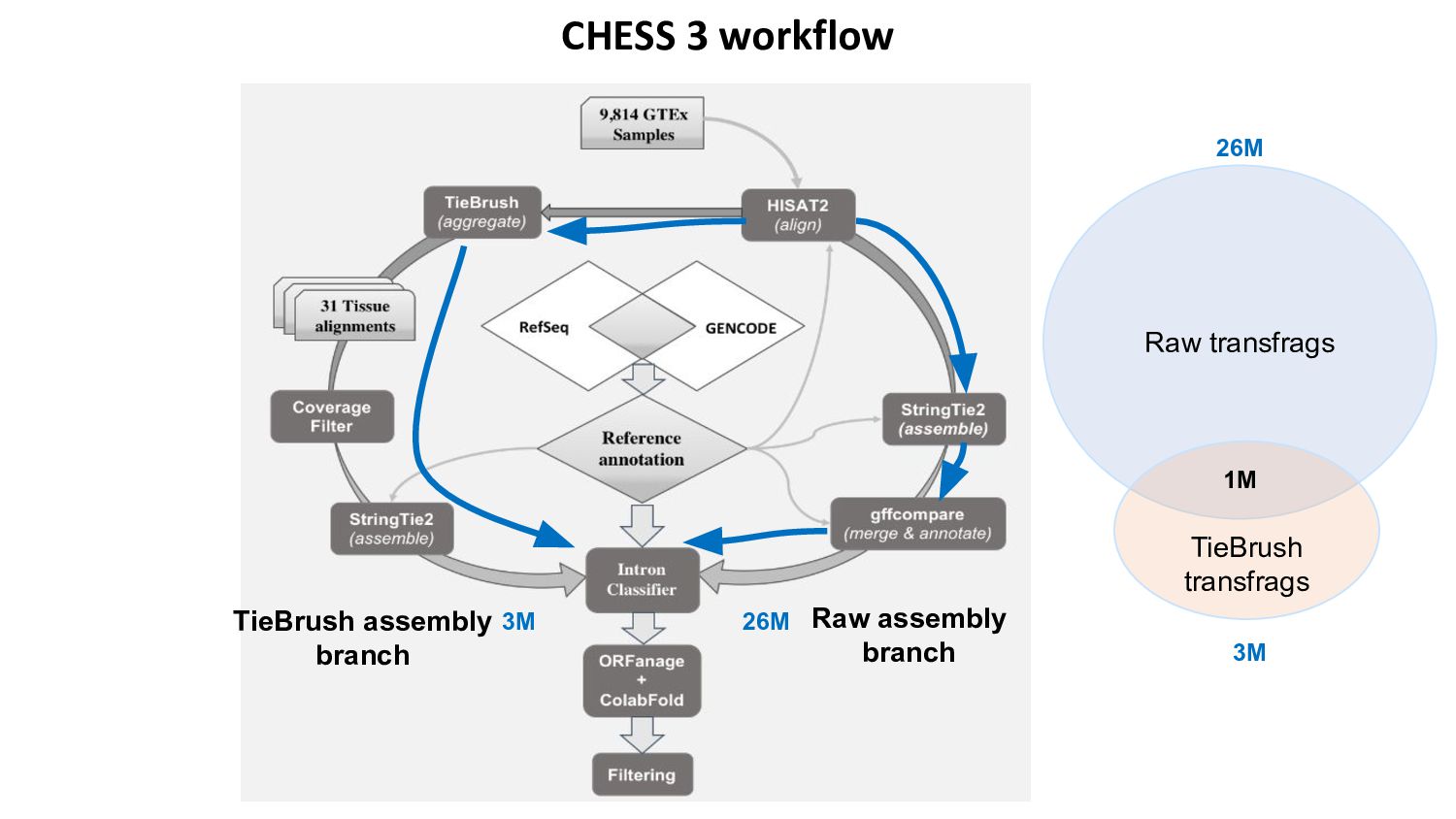

13. CHESS 3 workflow 26M 3M TieBrush assembly branch Raw assembly branch Raw transfrags TieBrush transfrags 3M 26M 1M
14. Part 2 CHESS 3: an improved, comprehensive catalog of human genes and transcripts based on large-scale expression data, phylogenetic analysis, and protein structure Ales Varabyou et al. [biorxiv, December 22, 2022] https://doi.org/10.1101/2022.12.21.521274

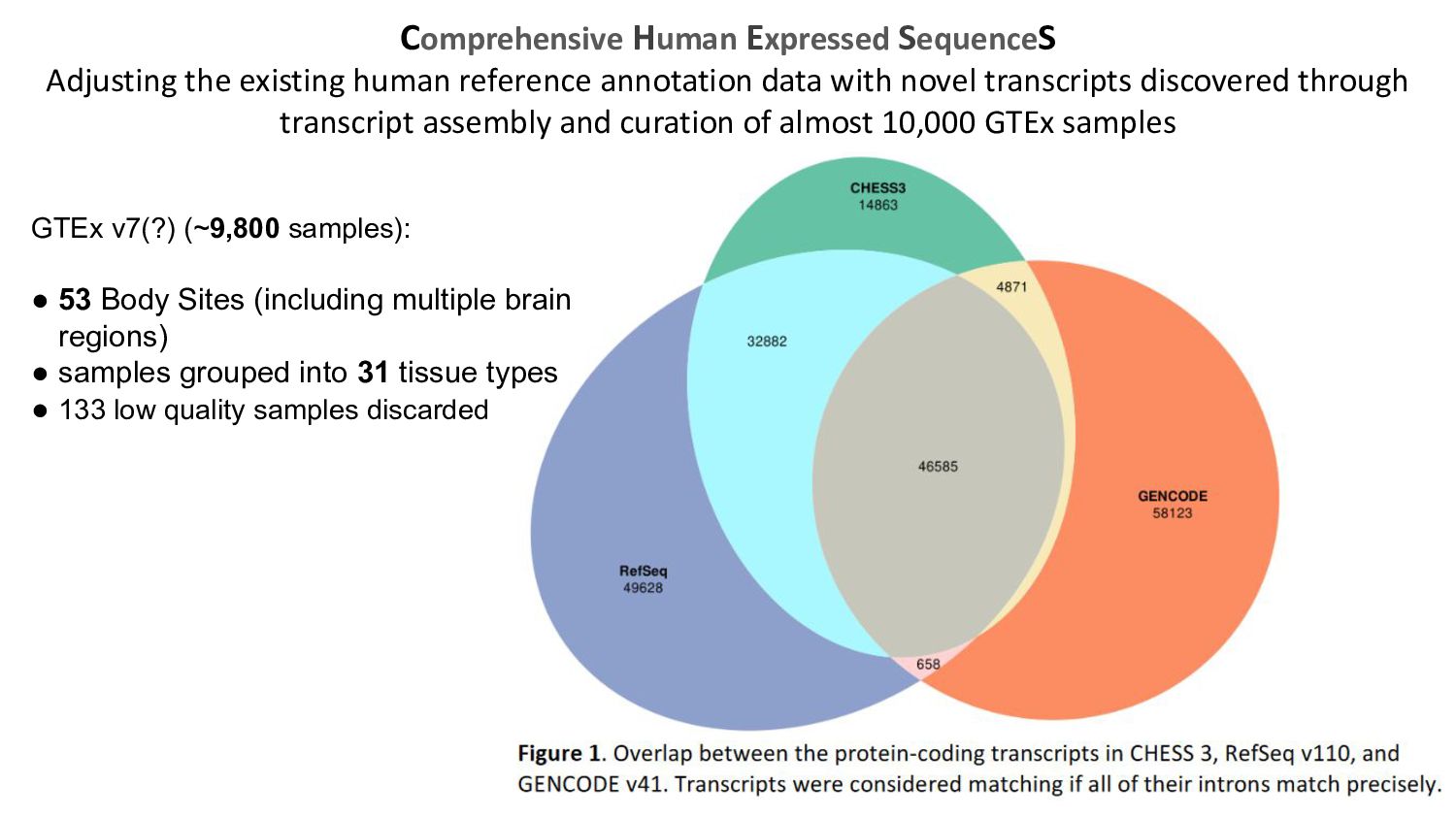

15. Comprehensive Human Expressed SequenceS Adjusting the existing human reference annotation data with novel transcripts discovered through transcript assembly and curation of almost 10,000 GTEx samples GTEx v7(?) (~9,800 samples): • 53 Body Sites (including multiple brain regions) • samples grouped into 31 tissue types • 133 low quality samples discarded

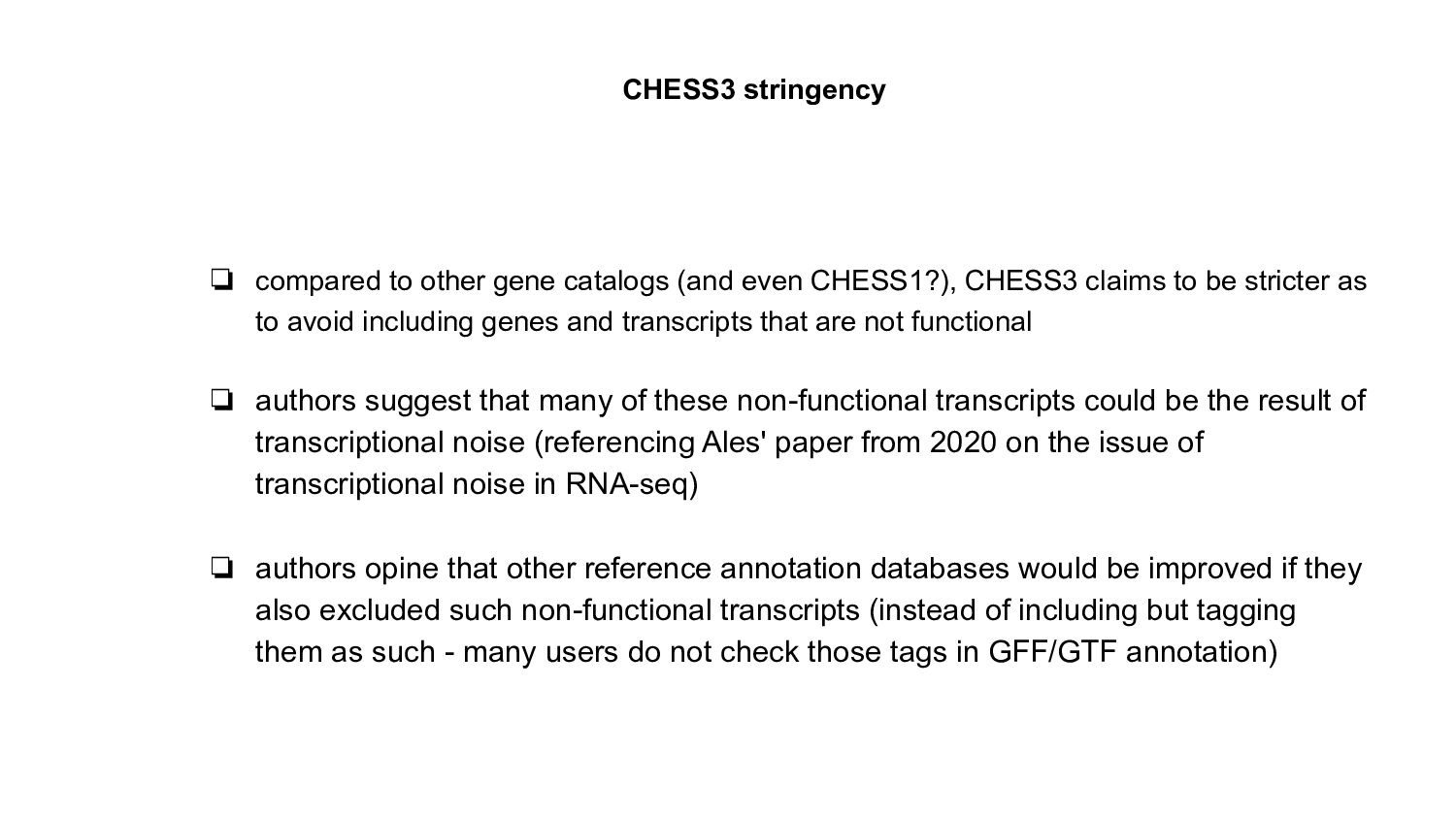

16. ❏ compared to other gene catalogs (and even CHESS1?), CHESS3 claims to be stricter as to avoid including genes and transcripts that are not functional ❏ authors suggest that many of these non-functional transcripts could be the result of transcriptional noise (referencing Ales' paper from 2020 on the issue of transcriptional noise in RNA-seq) ❏ authors opine that other reference annotation databases would be improved if they also excluded such non-functional transcripts (instead of including but tagging them as such - many users do not check those tags in GFF/GTF annotation) CHESS3 stringency

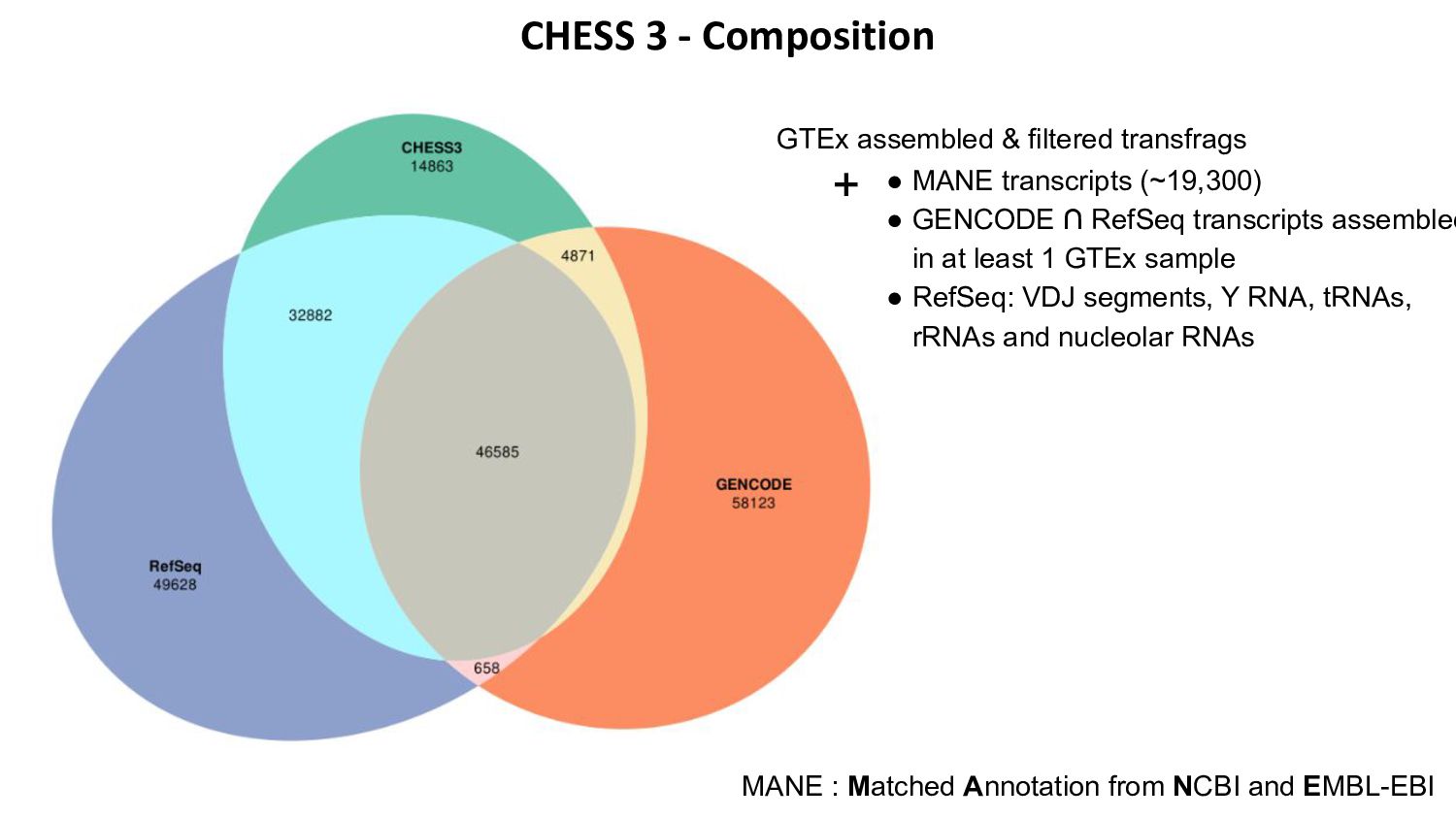

17. CHESS 3 - Composition MANE : Matched Annotation from NCBI and EMBL-EBI GTEx assembled & filtered transfrags + • MANE transcripts (~19,300) • GENCODE ∩ RefSeq transcripts assembled in at least 1 GTEx sample • RefSeq: VDJ segments, Y RNA, tRNAs, rRNAs and nucleolar RNAs
18. CHESS 3 - Results Original source Count Coding Description BestRefSeq 64971 50356 Automated computational gene-prediction method by NCBI StringTie 33783 20618 Gene predictions generated by the StringTie software HAVANA 27165 21098 annotations generated by the HAVANA group at the Sanger Institute Gnomon 15408 6981 Gene predictions generated by the NCBI's Gnomon pipeline (RefSeq) Curated Genomic 14999 578 NCBI curation cmsearch 1134 0 annotations from searching for conserved ncRNAs structures with InfeRNAl tRNAscan-SE 431 0 Predicted tRNA genes identified by the tRNAscan-SE software FANTOM 318 98 CHESS 2 transcripts with corroborating evidence from the FANTOM project ENSEMBL 117 97 Gene predictions generated by the Ensembl project RefSeq 37 13 The NCBI RefSeq annotation set

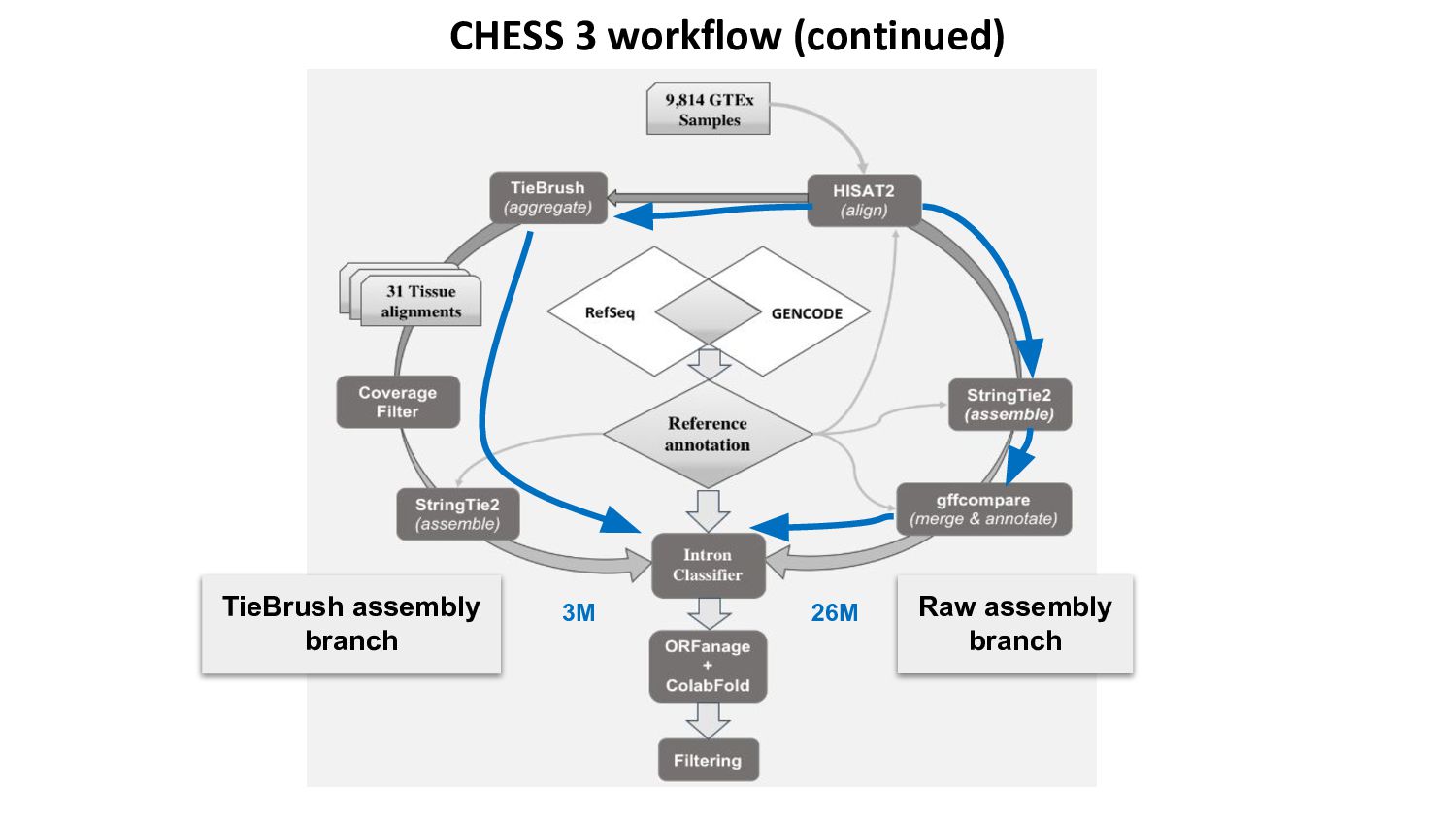

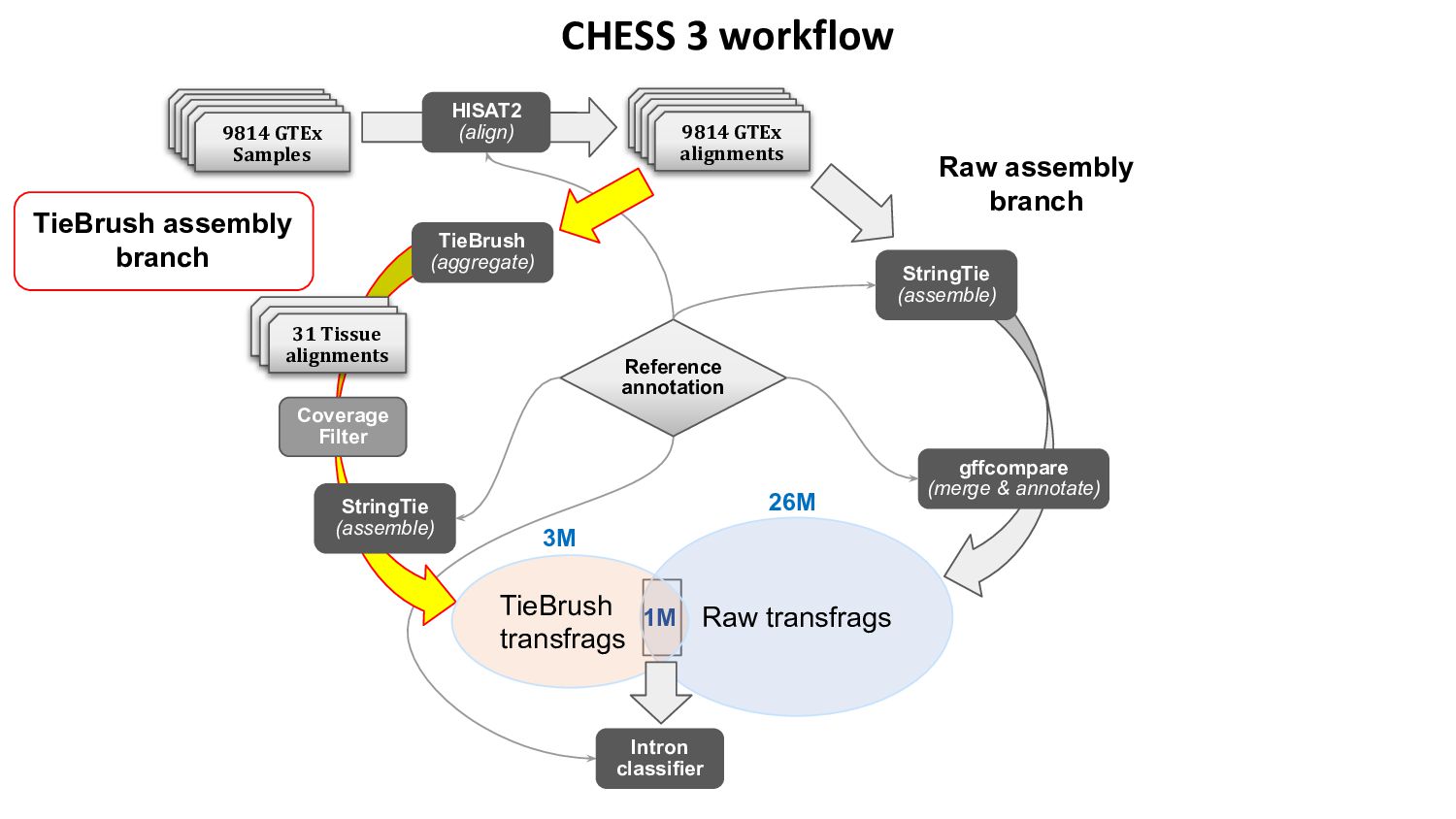

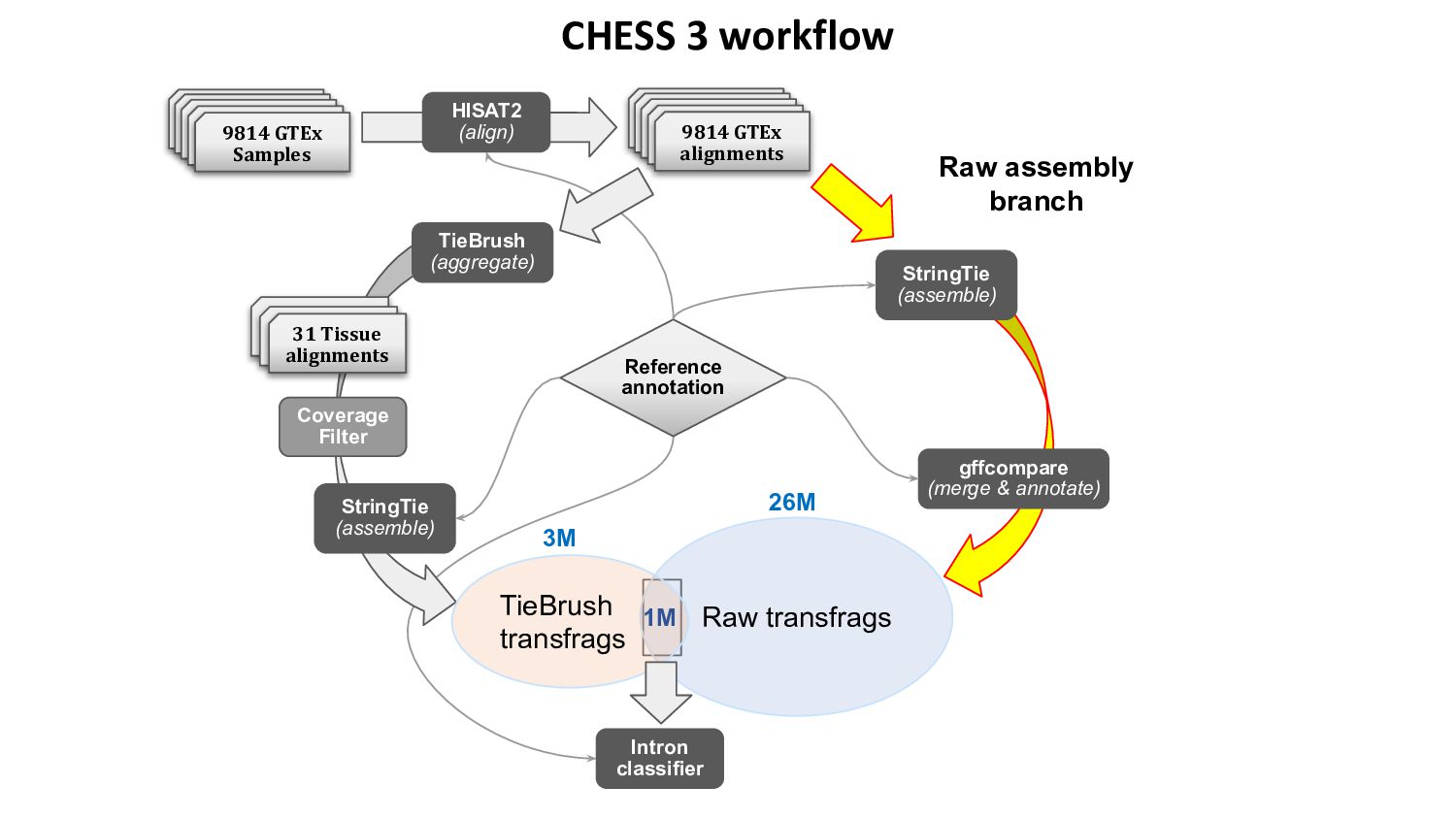

19. CHESS 3 workflow (continued) TieBrush assembly branch 3M 26M Raw assembly branch
20. CHESS 3 workflow Raw assembly branch Raw transfrags TieBrush transfrags 3M 26M 1M 31 Tissue alignments TieBrush (aggregate) HISAT2 (align) Coverage Filter StringTie (assemble) 9814 GTEx alignments Intron classifier Reference annotation gffcompare (merge & annotate) StringTie (assemble) 9814 GTEx Samples
21. CHESS 3 workflow TieBrush assembly branch Raw assembly branch Raw transfrags TieBrush transfrags 3M 26M 1M 31 Tissue alignments TieBrush (aggregate) HISAT2 (align) Coverage Filter StringTie (assemble) 9814 GTEx alignments Intron classifier Reference annotation gffcompare (merge & annotate) StringTie (assemble) 9814 GTEx Samples
22. Part 3 CHESS 3: an improved, comprehensive catalog of human genes and transcripts based on large-scale expression data, phylogenetic analysis, and protein structure Ales Varabyou et al. [biorxiv, December 22, 2022] https://doi.org/10.1101/2022.12.21.521274

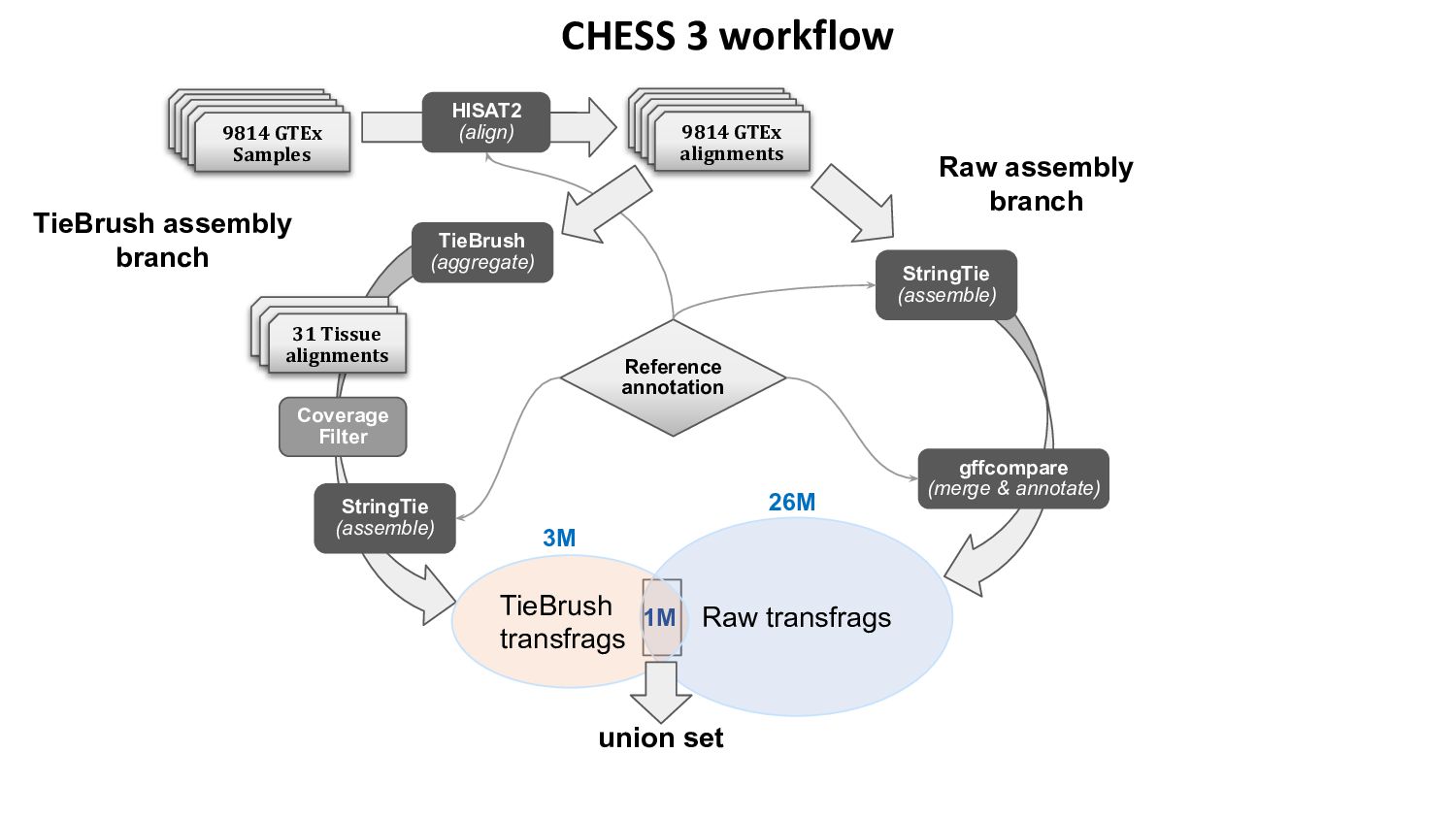

23. CHESS 3 workflow TieBrush assembly branch Raw assembly branch Raw transfrags TieBrush transfrags 3M 26M 1M 31 Tissue alignments TieBrush (aggregate) HISAT2 (align) Coverage Filter StringTie (assemble) 9814 GTEx alignments Reference annotation gffcompare (merge & annotate) StringTie (assemble) 9814 GTEx Samples union set

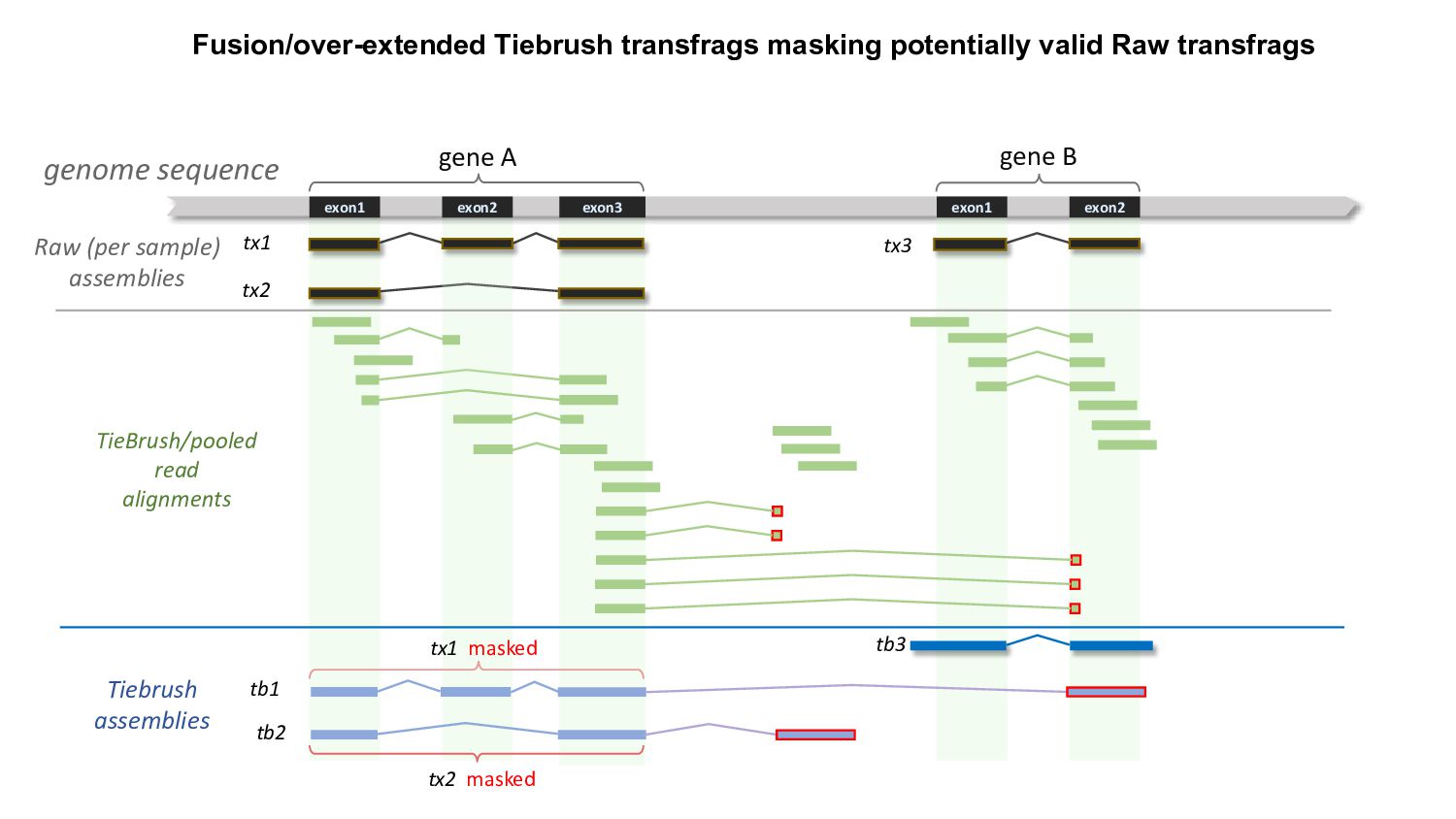

24. Fusion/over-extended Tiebrush transfrags masking potentially valid Raw transfrags exon1 exon2 exon3 tx1 masked tx2 Tiebrush assemblies exon1 exon2 TieBrush/pooled read alignments gene A gene B Raw (per sample) assemblies tx3 genome sequence tb2 tb1 tb3 tx2 masked tx1

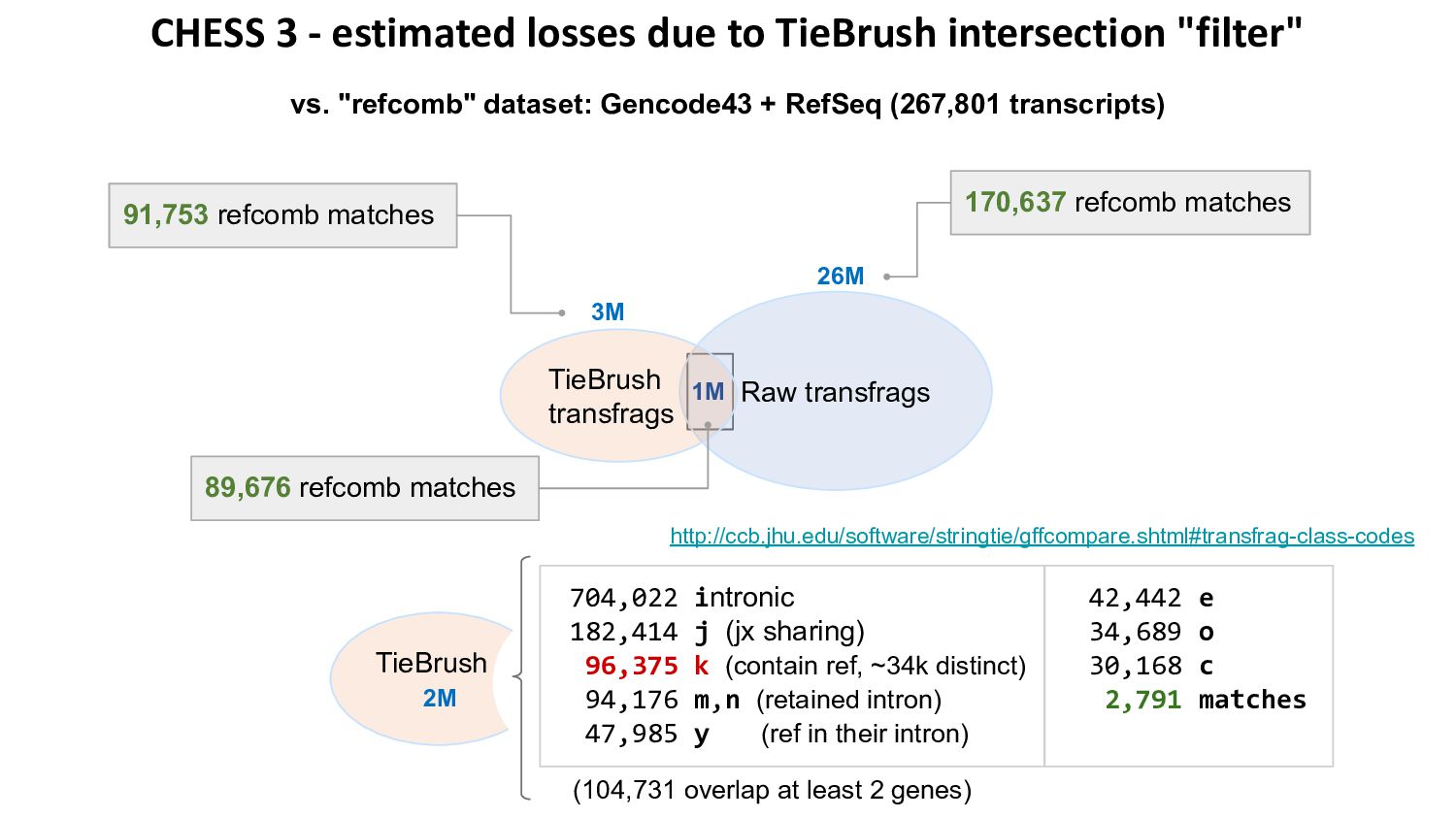

25. Raw transfrags TieBrush transfrags 3M 26M 1M CHESS 3 - estimated losses due to TieBrush intersection "filter" vs. "refcomb" dataset: Gencode43 + RefSeq (267,801 transcripts) TieBrush 2M 170,637 refcomb matches 91,753 refcomb matches 89,676 refcomb matches 704,022 intronic 182,414 j (jx sharing) 96,375 k (contain ref, ~34k distinct) 94,176 m,n (retained intron) 47,985 y (ref in their intron) 42,442 e 34,689 o 30,168 c 2,791 matches (104,731 overlap at least 2 genes) http://ccb.jhu.edu/software/stringtie/gffcompare.shtml#transfrag-class-codes

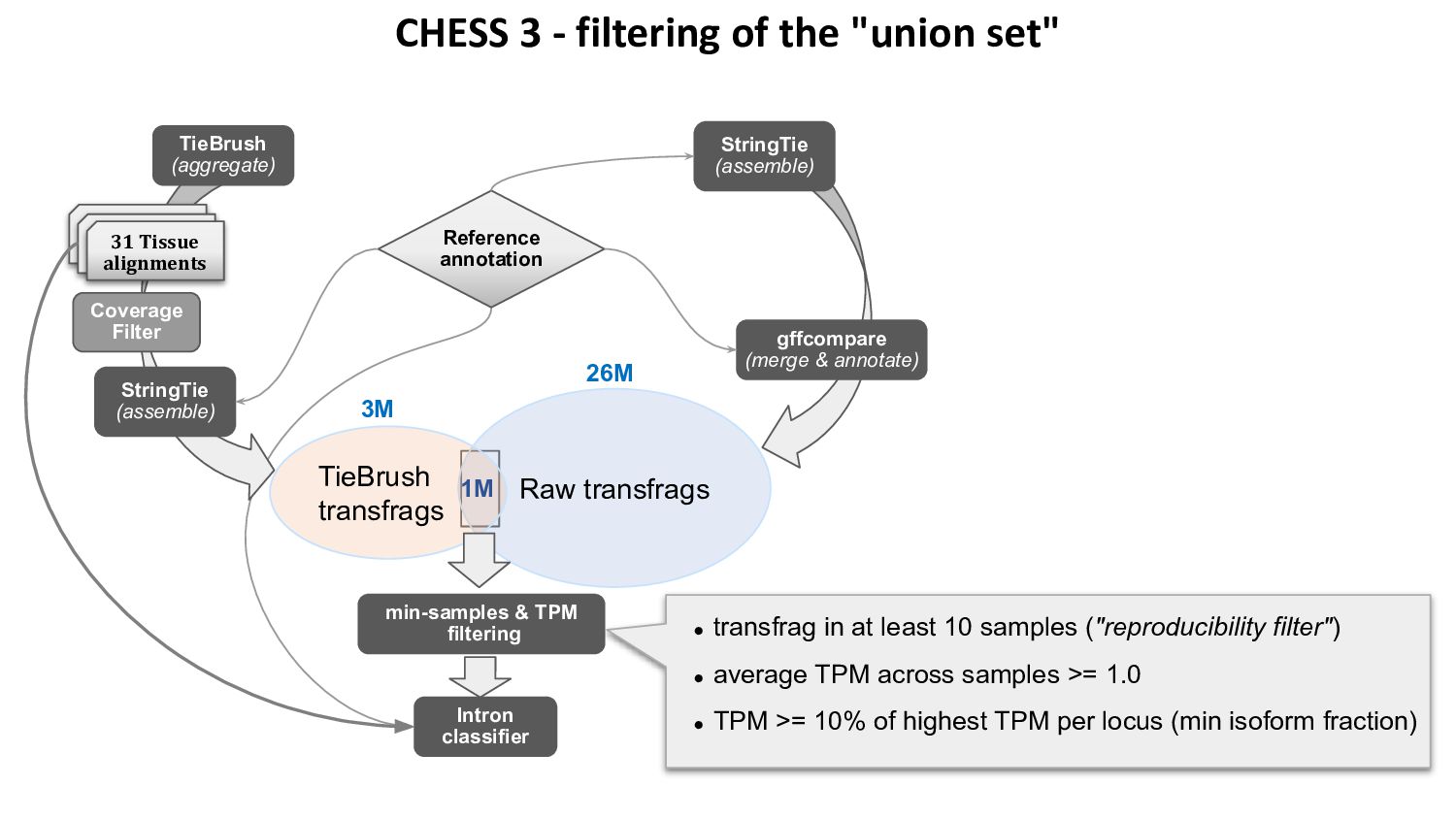

26. Raw transfrags TieBrush transfrags 3M 26M 1M 31 Tissue alignments TieBrush (aggregate) Coverage Filter StringTie (assemble) Intron classifier Reference annotation gffcompare (merge & annotate) StringTie (assemble) min-samples & TPM filtering CHESS 3 - filtering of the "union set" • transfrag in at least 10 samples ("reproducibility filter") • average TPM across samples >= 1.0 • TPM >= 10% of highest TPM per locus (min isoform fraction)

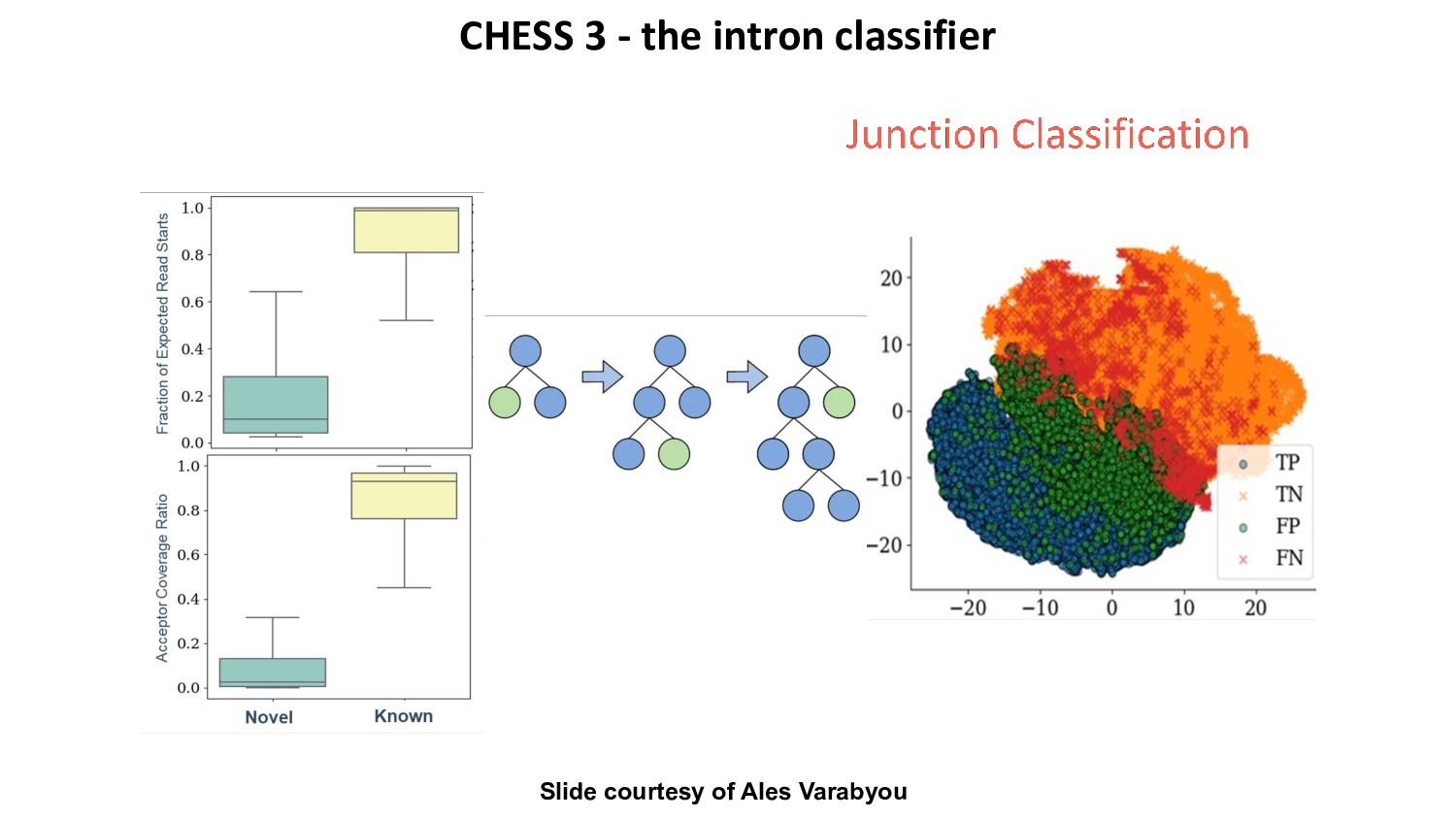

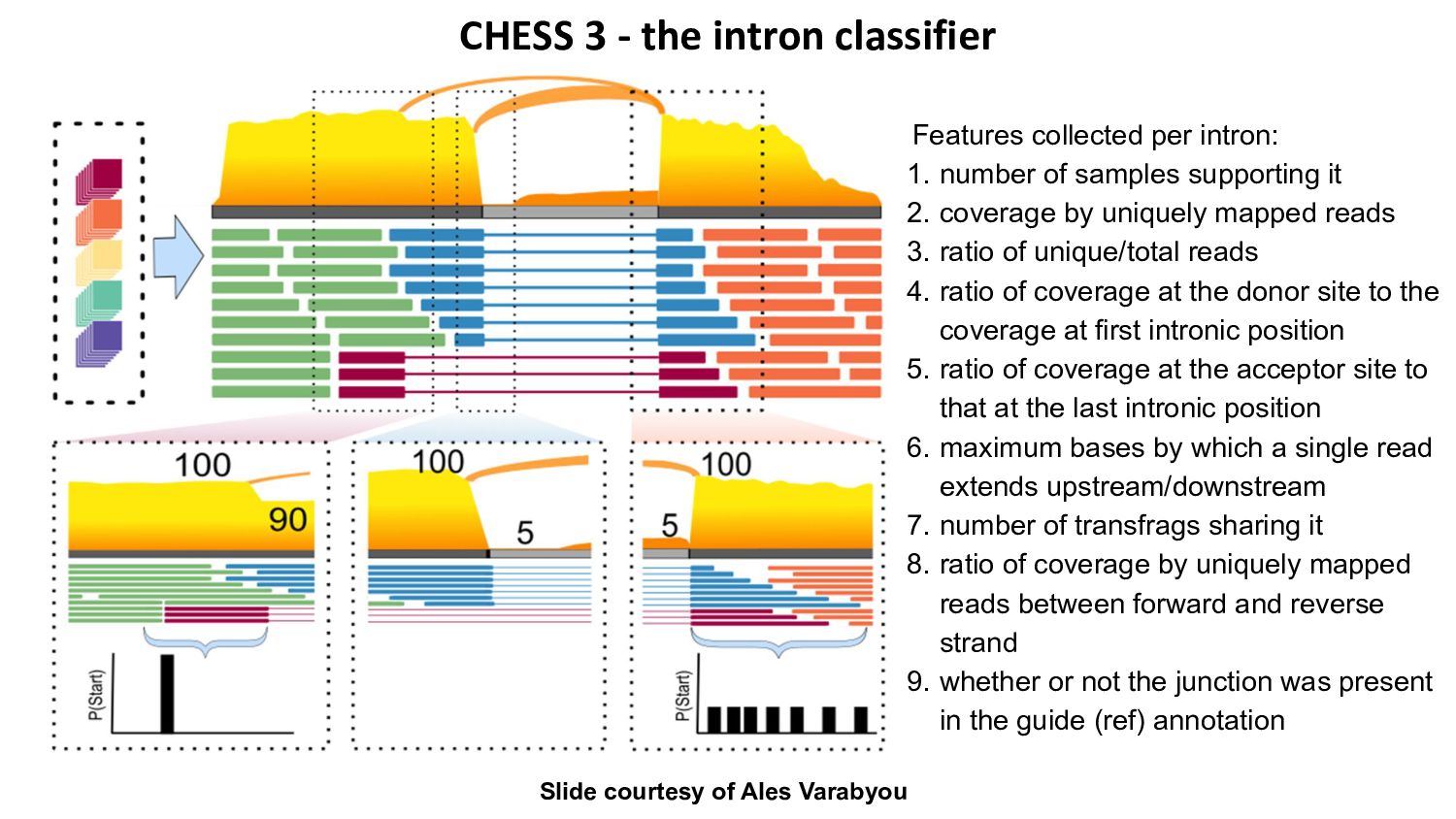

27. CHESS 3 - the intron classifier Slide courtesy of Ales Varabyou Features collected per intron: 1. number of samples supporting it 2. coverage by uniquely mapped reads 3. ratio of unique/total reads 4. ratio of coverage at the donor site to the coverage at first intronic position 5. ratio of coverage at the acceptor site to that at the last intronic position 6. maximum bases by which a single read extends upstream/downstream 7. number of transfrags sharing it 8. ratio of coverage by uniquely mapped reads between forward and reverse strand 9. whether or not the junction was present in the guide (ref) annotation
28. CHESS 3 - the intron classifier Slide courtesy of Ales Varabyou

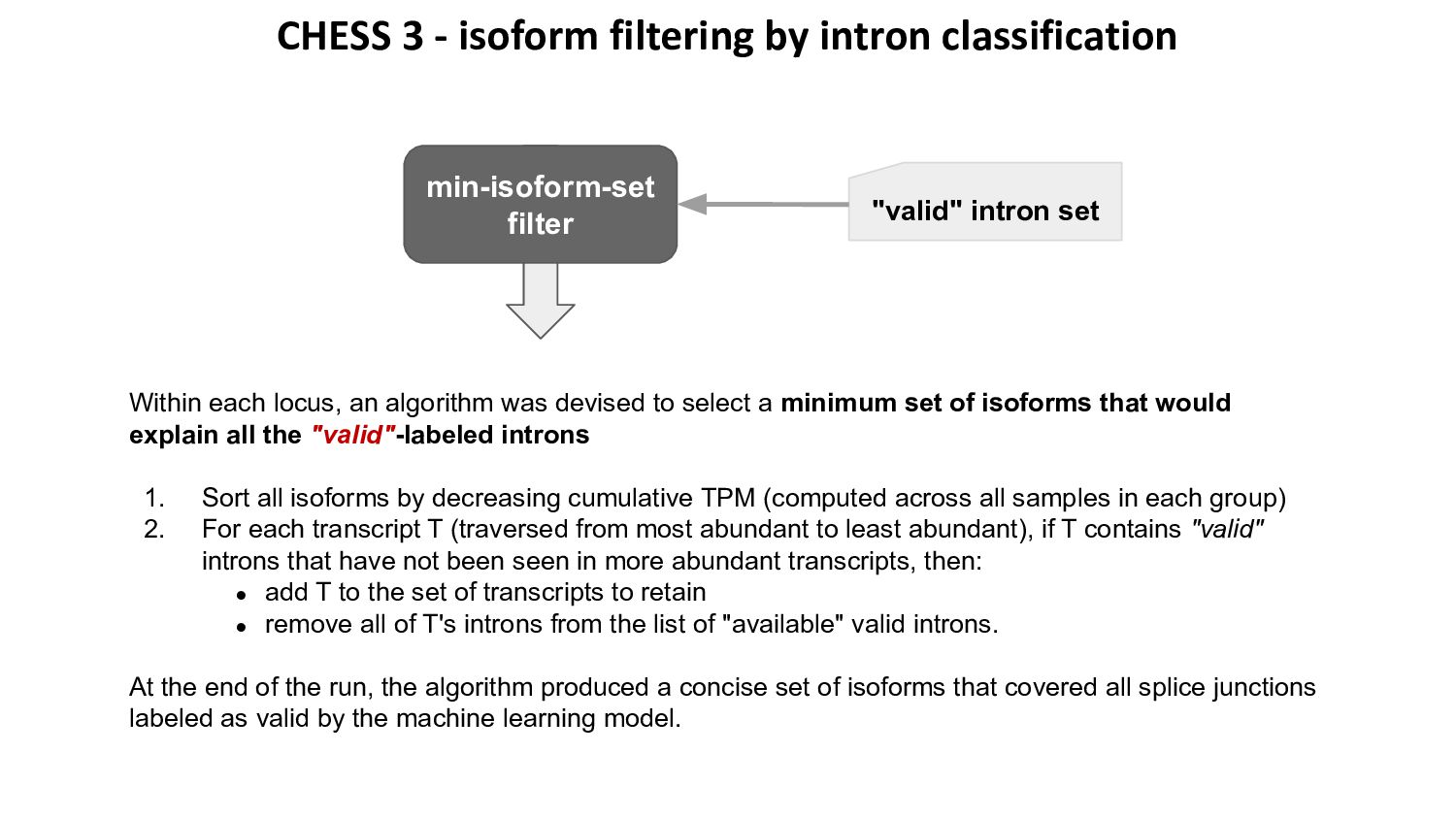

29. CHESS 3 - isoform filtering by intron classification Within each locus, an algorithm was devised to select a minimum set of isoforms that would explain all the "valid"-labeled introns 1. Sort all isoforms by decreasing cumulative TPM (computed across all samples in each group) 2. For each transcript T (traversed from most abundant to least abundant), if T contains "valid" introns that have not been seen in more abundant transcripts, then: • add T to the set of transcripts to retain • remove all of T's introns from the list of "available" valid introns. At the end of the run, the algorithm produced a concise set of isoforms that covered all splice junctions labeled as valid by the machine learning model. min-isoform-set filter "valid" intron set

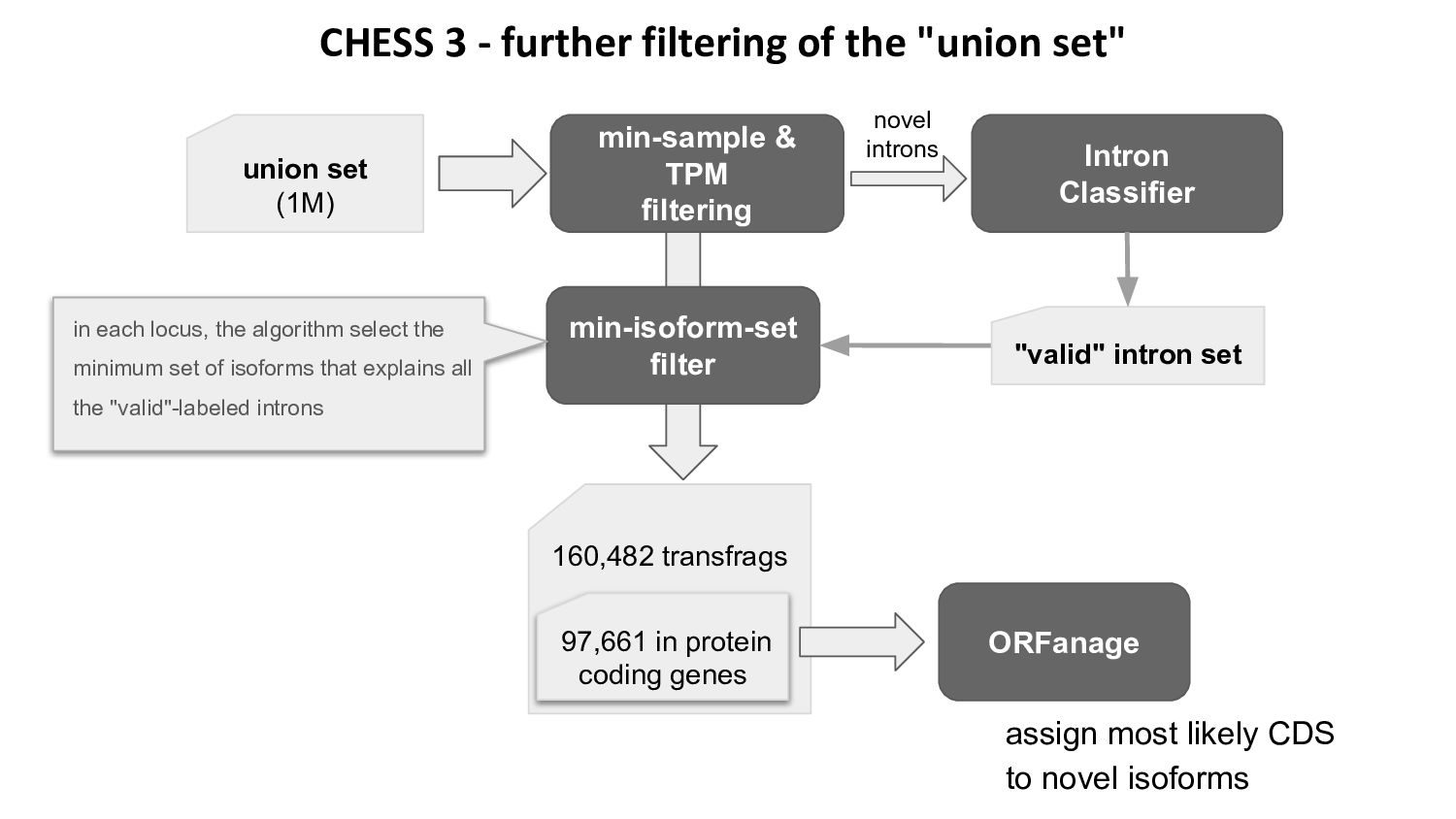

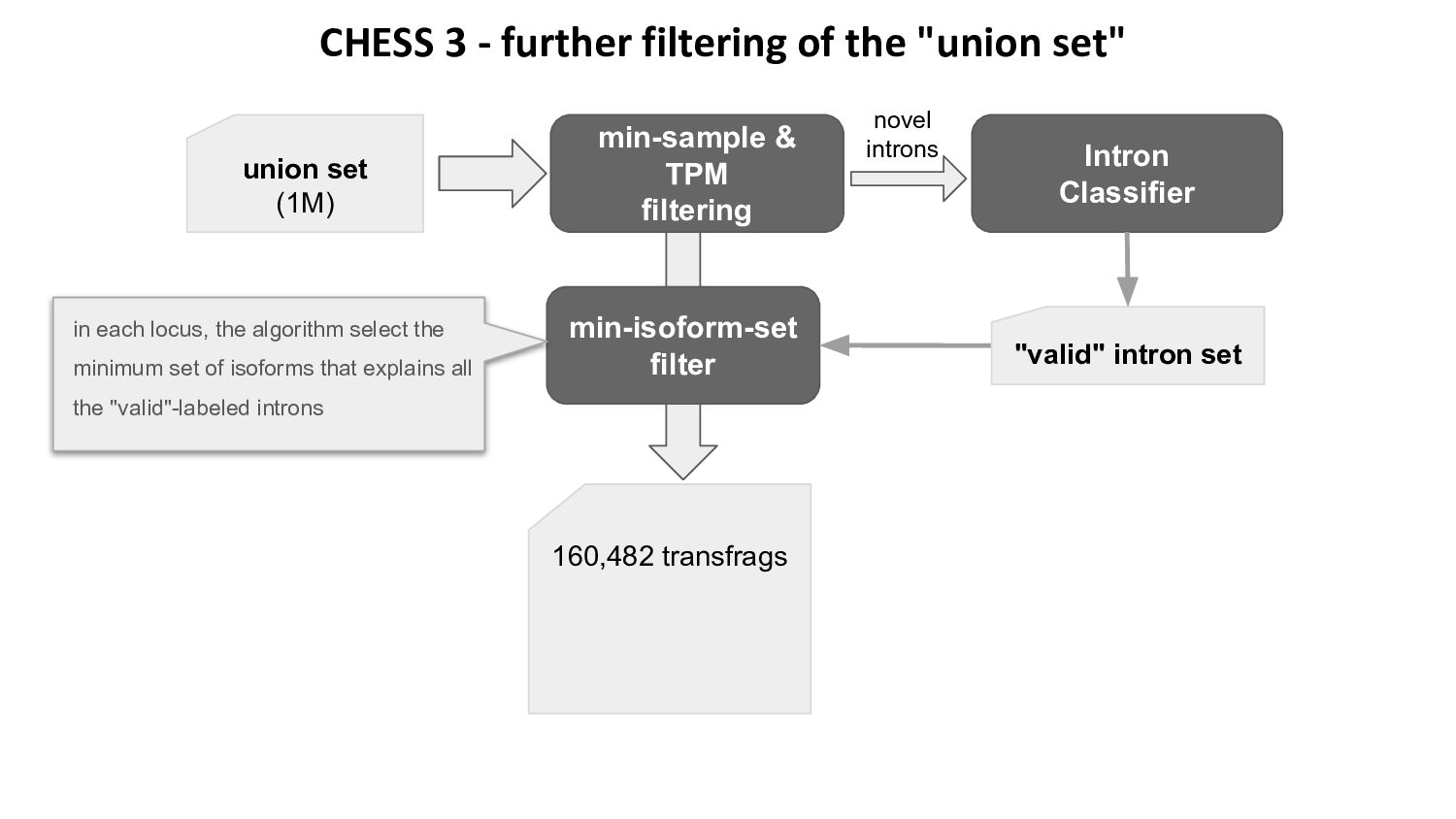

30. Intron Classifier union set (1M) min-sample & TPM filtering min-isoform-set filter 160,482 transfrags CHESS 3 - further filtering of the "union set" "valid" intron set in each locus, the algorithm select the minimum set of isoforms that explains all the "valid"-labeled introns novel introns
31. Intron Classifier union set (1M) min-sample & TPM filtering min-isoform-set filter 160,482 transfrags ORFanage CHESS 3 - further filtering of the "union set" assign most likely CDS to novel isoforms 97,661 in protein coding genes "valid" intron set in each locus, the algorithm select the minimum set of isoforms that explains all the "valid"-labeled introns novel introns

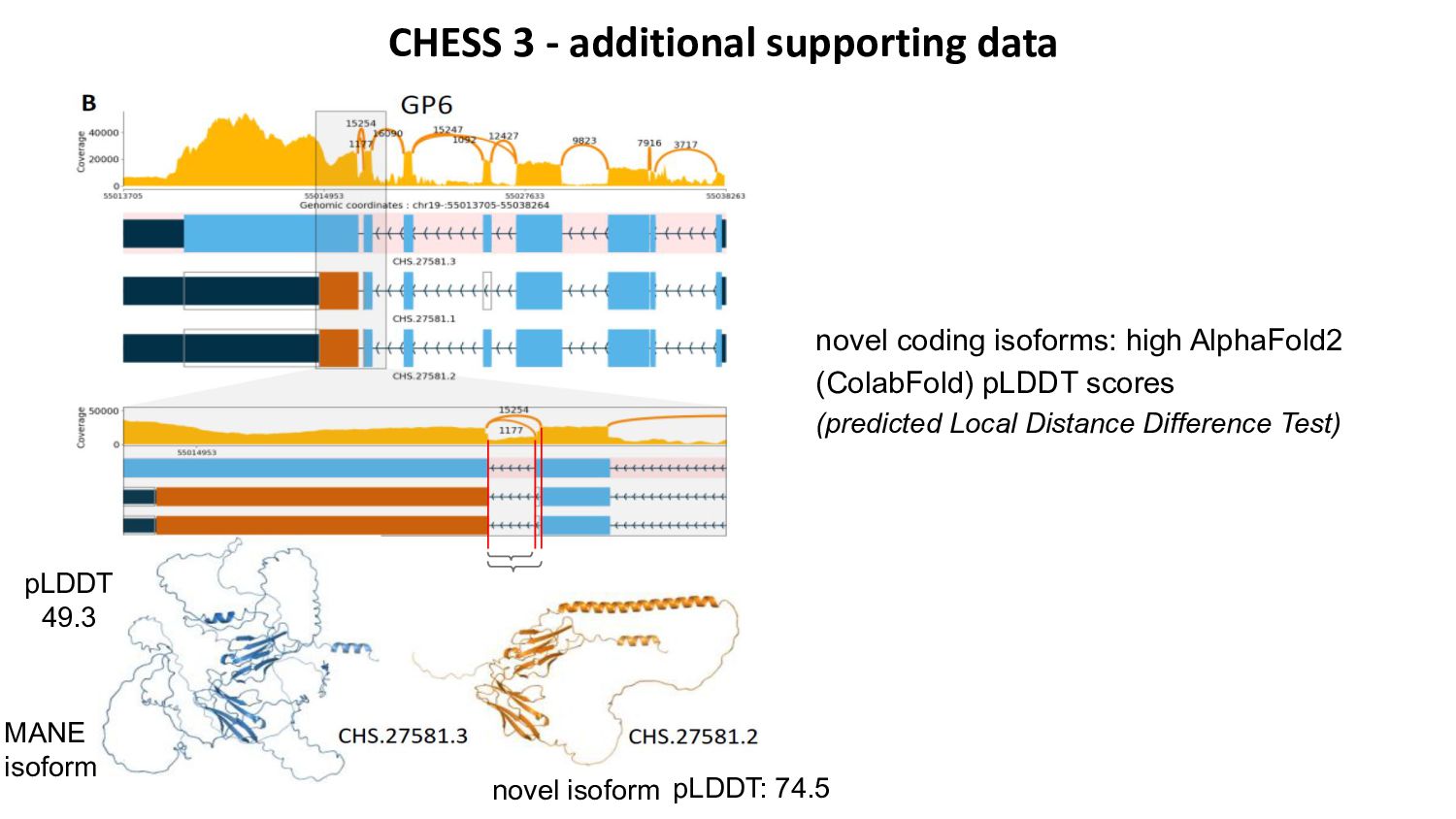

32. CHESS 3 - additional supporting data novel coding isoforms: high AlphaFold2 (ColabFold) pLDDT scores (predicted Local Distance Difference Test) novel isoform MANE isoform pLDDT 49.3 pLDDT: 74.5
33. CHESS 3 - supporting evolutionary evidence? Intron conservation across species (30-species alignments)

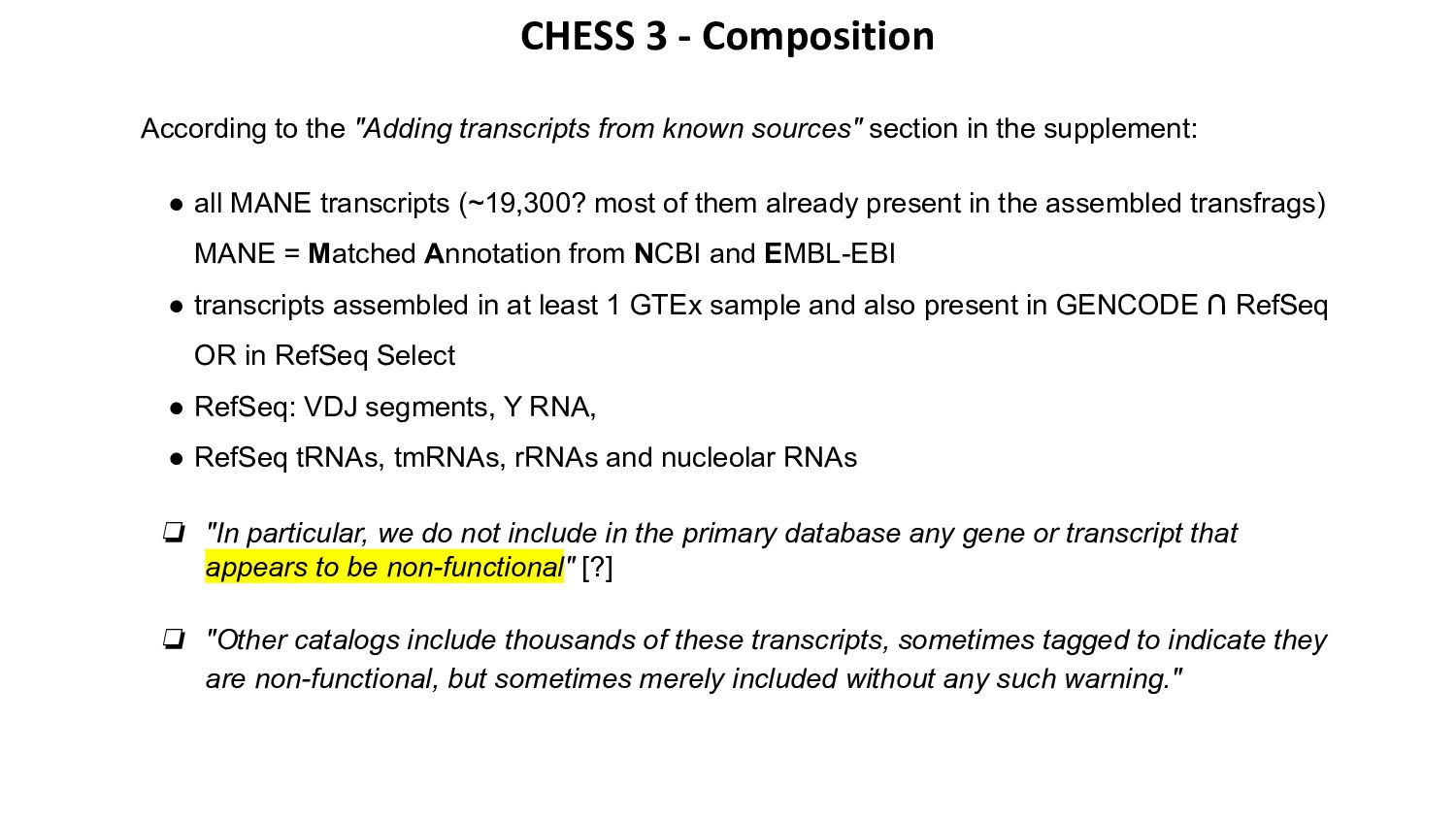

34. CHESS 3 - Composition According to the "Adding transcripts from known sources" section in the supplement: • all MANE transcripts (~19,300? most of them already present in the assembled transfrags) MANE = Matched Annotation from NCBI and EMBL-EBI • transcripts assembled in at least 1 GTEx sample and also present in GENCODE ∩ RefSeq OR in RefSeq Select • RefSeq: VDJ segments, Y RNA, • RefSeq tRNAs, tmRNAs, rRNAs and nucleolar RNAs ❏ "In particular, we do not include in the primary database any gene or transcript that appears to be non-functional" [?] ❏ "Other catalogs include thousands of these transcripts, sometimes tagged to indicate they are non-functional, but sometimes merely included without any such warning."

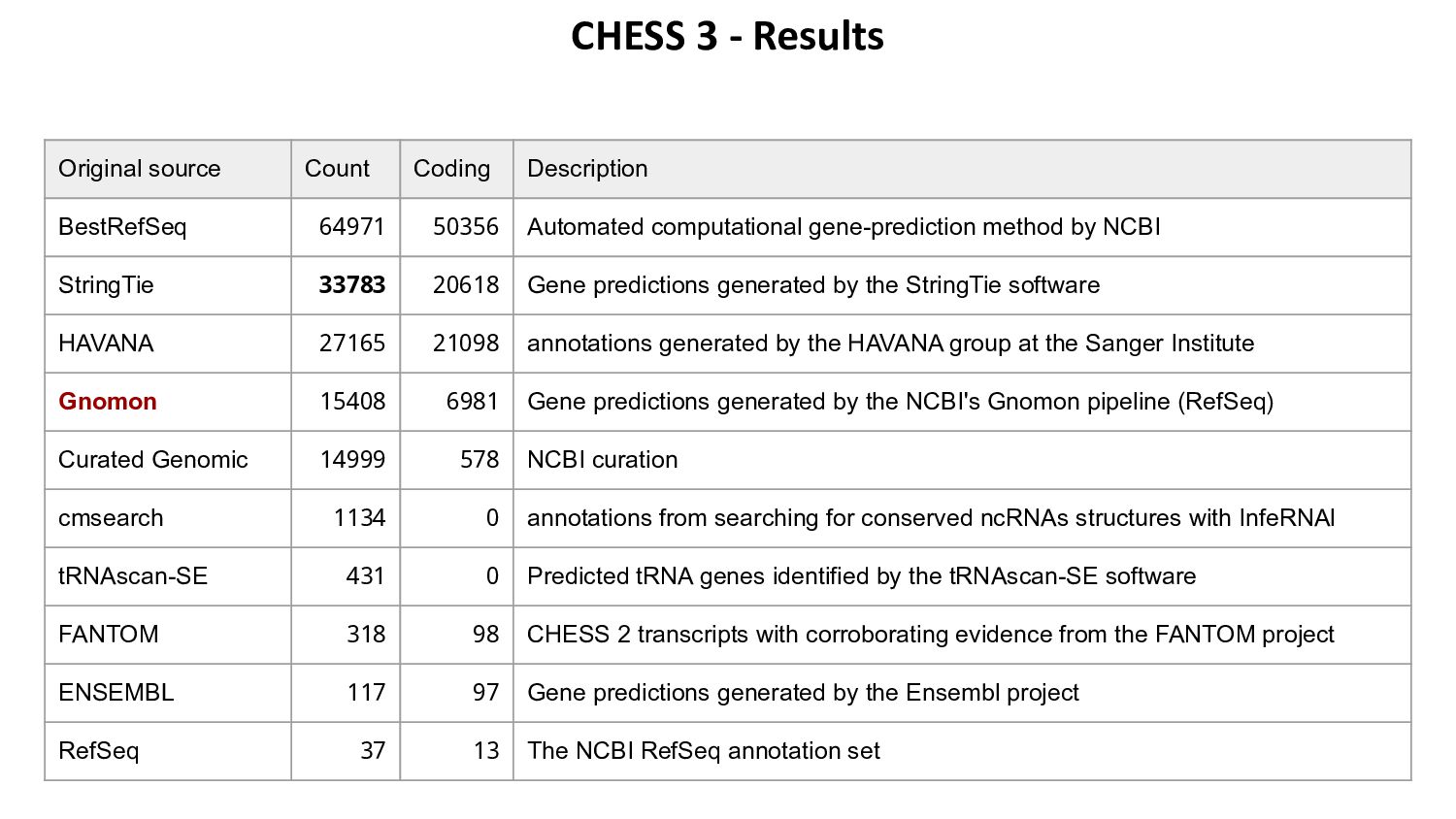

35. CHESS 3 - Results Original source Count Coding Description BestRefSeq 64971 50356 Automated computational gene-prediction method by NCBI StringTie 33783 20618 Gene predictions generated by the StringTie software HAVANA 27165 21098 annotations generated by the HAVANA group at the Sanger Institute Gnomon 15408 6981 Gene predictions generated by the NCBI's Gnomon pipeline (RefSeq) Curated Genomic 14999 578 NCBI curation cmsearch 1134 0 annotations from searching for conserved ncRNAs structures with InfeRNAl tRNAscan-SE 431 0 Predicted tRNA genes identified by the tRNAscan-SE software FANTOM 318 98 CHESS 2 transcripts with corroborating evidence from the FANTOM project ENSEMBL 117 97 Gene predictions generated by the Ensembl project RefSeq 37 13 The NCBI RefSeq annotation set

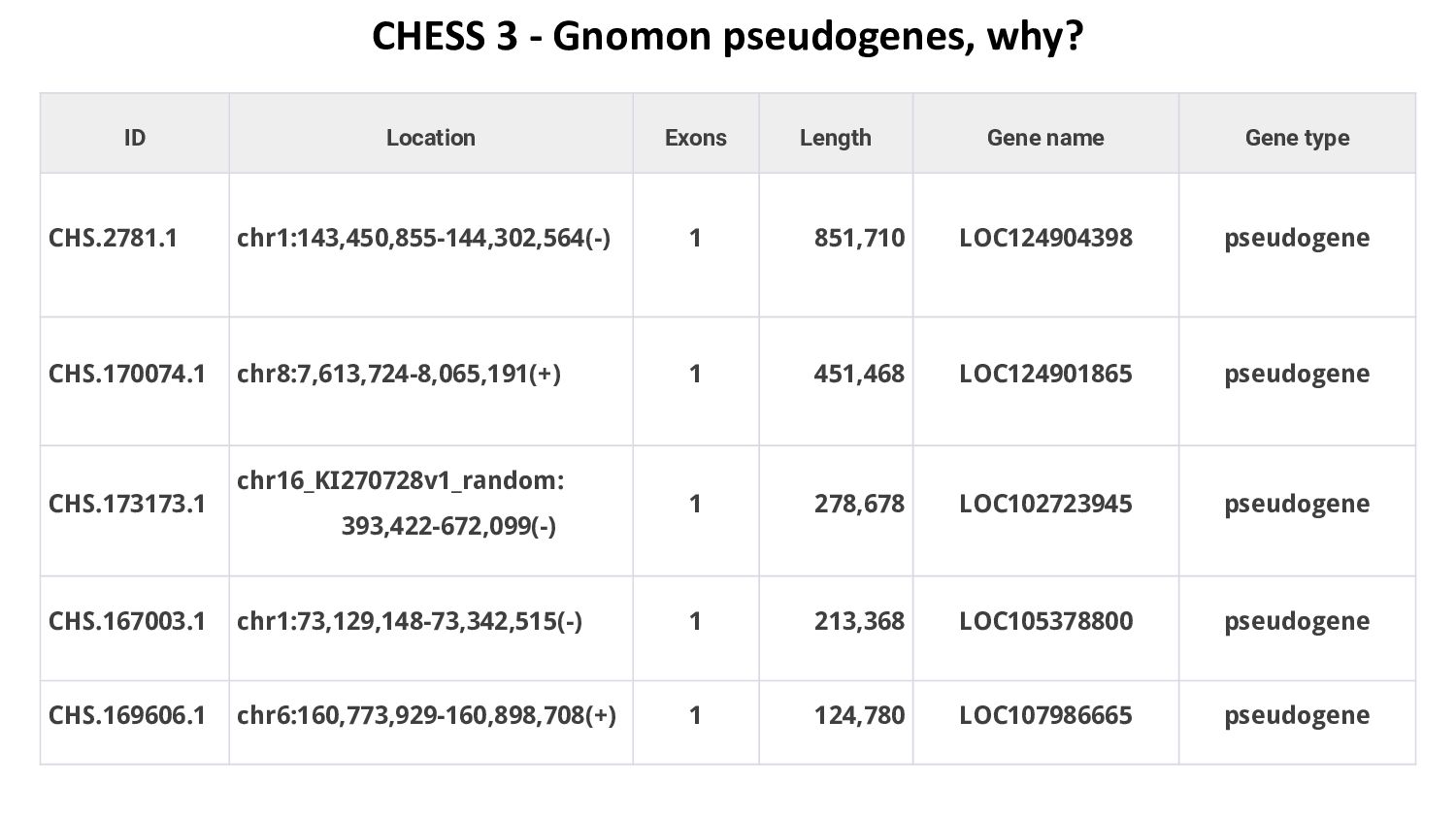

36. CHESS 3 - Gnomon pseudogenes, why? ID Location Exons Length Gene name Gene type CHS.2781.1 chr1:143,450,855-144,302,564(-) 1 851,710 LOC124904398 pseudogene CHS.170074.1 chr8:7,613,724-8,065,191(+) 1 451,468 LOC124901865 pseudogene CHS.173173.1 chr16_KI270728v1_random: 393,422-672,099(-) 1 278,678 LOC102723945 pseudogene CHS.167003.1 chr1:73,129,148-73,342,515(-) 1 213,368 LOC105378800 pseudogene CHS.169606.1 chr6:160,773,929-160,898,708(+) 1 124,780 LOC107986665 pseudogene

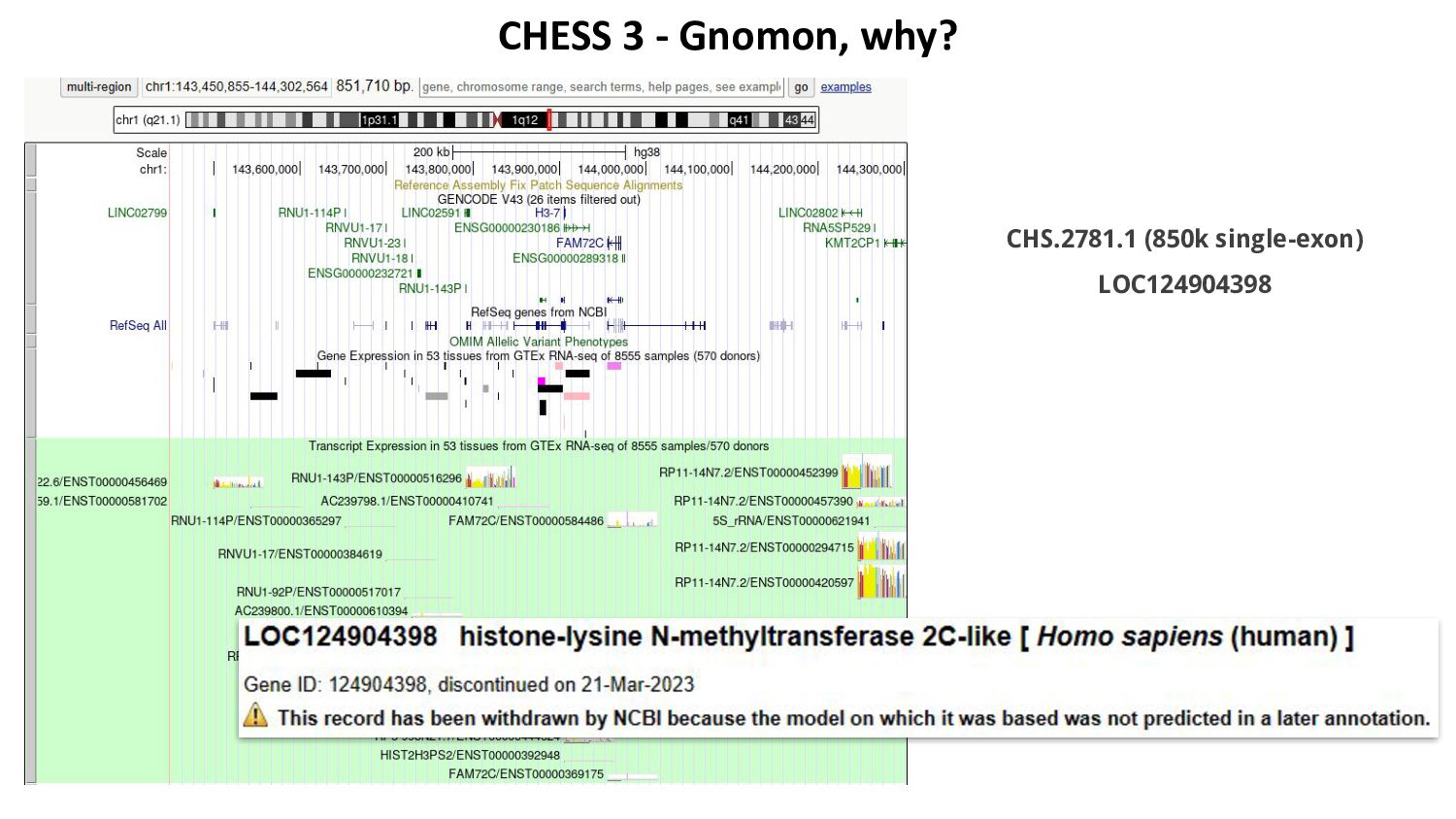

37. CHESS 3 - Gnomon, why? CHS.2781.1 (850k single-exon) LOC124904398

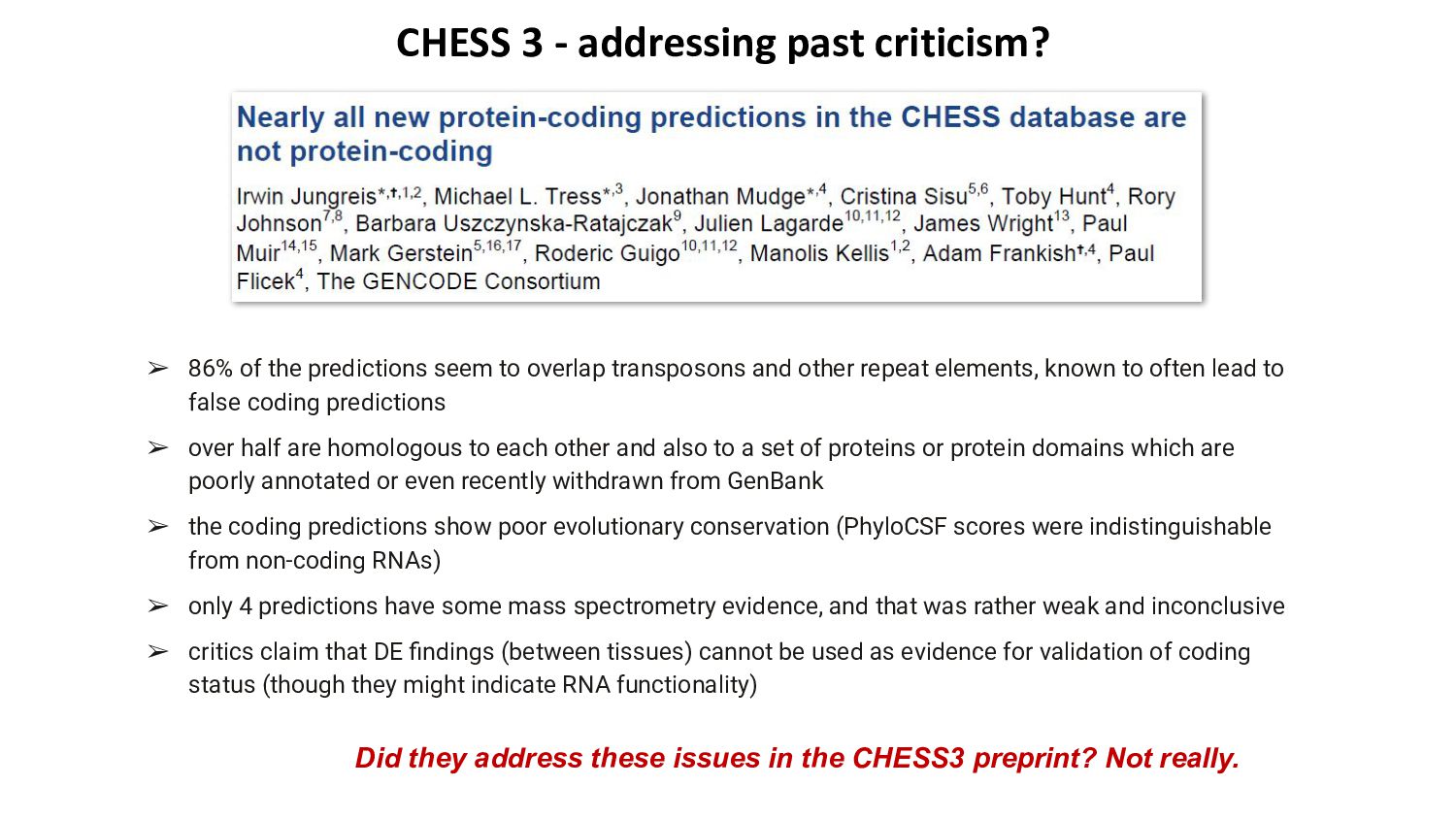

38. CHESS 3 - addressing past criticism? ➢ 86% of the predictions seem to overlap transposons and other repeat elements, known to often lead to false coding predictions ➢ over half are homologous to each other and also to a set of proteins or protein domains which are poorly annotated or even recently withdrawn from GenBank ➢ the coding predictions show poor evolutionary conservation (PhyloCSF scores were indistinguishable from non-coding RNAs) ➢ only 4 predictions have some mass spectrometry evidence, and that was rather weak and inconclusive ➢ critics claim that DE findings (between tissues) cannot be used as evidence for validation of coding status (though they might indicate RNA functionality) Did they address these issues in the CHESS3 preprint? Not really.

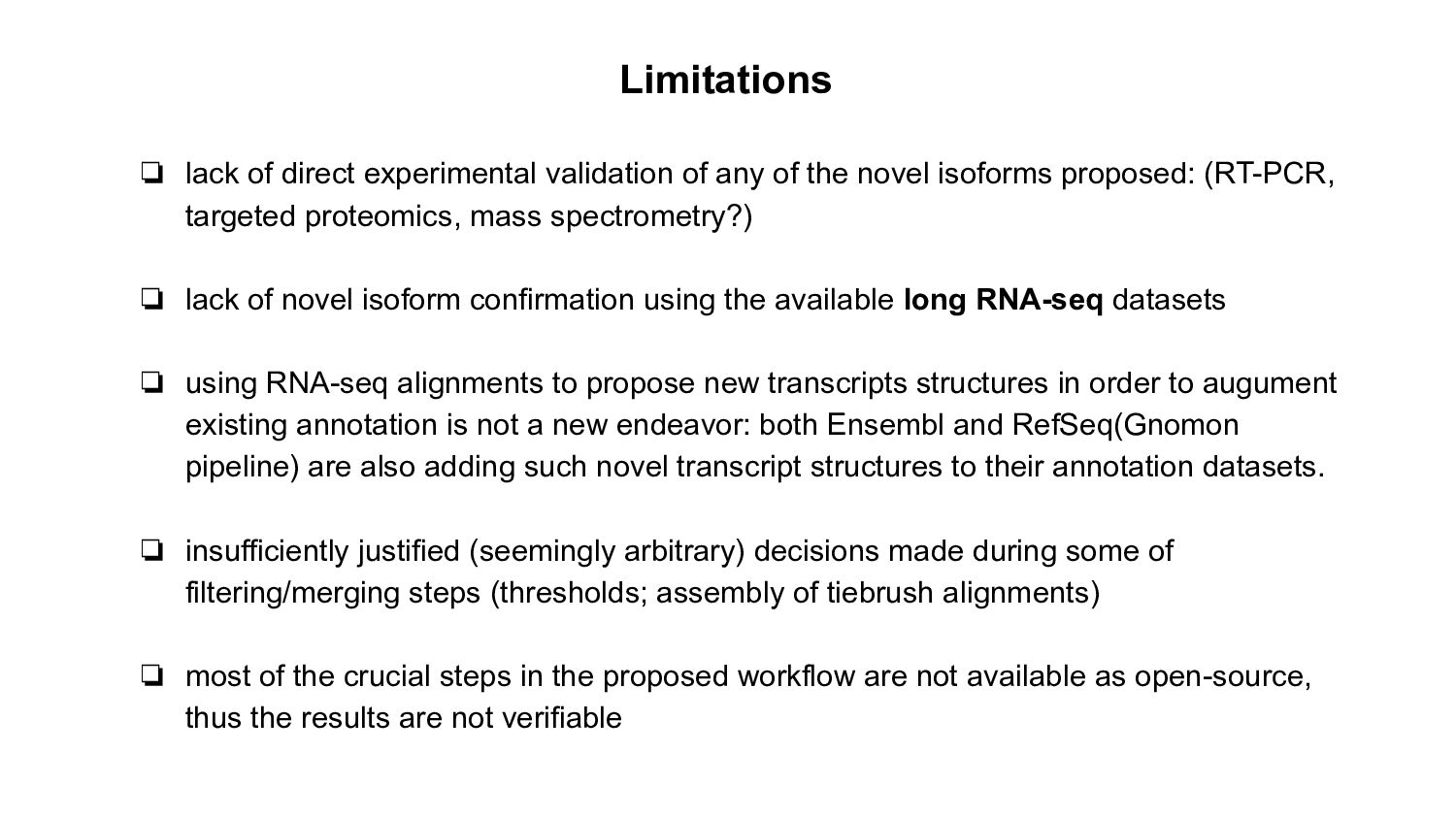

39. Limitations ❏ lack of direct experimental validation of any of the novel isoforms proposed: (RT-PCR, targeted proteomics, mass spectrometry?) ❏ lack of novel isoform confirmation using the available long RNA-seq datasets ❏ using RNA-seq alignments to propose new transcripts structures in order to augument existing annotation is not a new endeavor: both Ensembl and RefSeq(Gnomon pipeline) are also adding such novel transcript structures to their annotation datasets. ❏ insufficiently justified (seemingly arbitrary) decisions made during some of filtering/merging steps (thresholds; assembly of tiebrush alignments) ❏ most of the crucial steps in the proposed workflow are not available as open-source, thus the results are not verifiable
