Automating Citrix - Chicago CUGC Dec 2020

Presentation given at Chicago CUGC Dec 2020, along with demos, explaining the why, what and how of automating various aspects of Citrix Virtual Apps and Desktops

Transcript

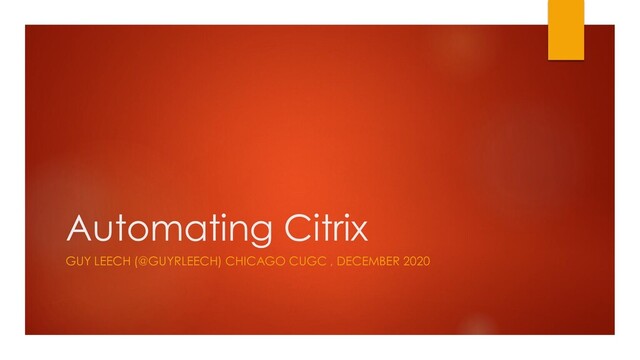

1. Automating Citrix GUY LEECH (@GUYRLEECH) CHICAGO CUGC , DECEMBER 2020
2. Why?  Usually easier/quicker than using consoles/installers from (multiple) vendors (once automated)  Save time & increase reliability of bulk/repeated operations  Repeatability  Eliminate human error (once you've tested scripts thoroughly)  Scheduled tasks  Easy to import/export to csv/xml/json and send emails & other methods of notification  Large number of scripts and learning resources out there  But check untrusted scripts before running them as admin on production systems! @guyrleech
3. What?  CVAD builds – install and configure  Creating new end-points  Reboot schedules  Updates  Backups  Problem identification/mitigation  Daily Checks  NetScaler builds & configuration  … whatever is tedious, time consuming, error prone, boring, not fun, etc  But only if it's worthwhile/time efficient @guyrleech
4. How?  PowerShell  Ansible  Puppet  MDT  DSC  Terraform  Packer  Xenappblog Automation Framework  … @guyrleech
5. CVAD PowerShell Pre-requisites  PowerShell cmdlets  Installed with Studio (but don't use a Delivery Controller)  PowerShell MSI files from CVAD ISO  Remote PowerShell SDK (for Cloud ONLY)  PVS (7.8 onwards) uses console dlls for modules  Not available on PowerShell Gallery, etc @guyrleech
6. CVAD Configuration via PowerShell  Set-BrokerMachine  -InMaintenanceMode  Set-BrokerDesktopGroup (aka Delivery Group)  -InMaintenanceMode  -Enabled  Set-BrokerCatalog  New-BrokerMachine  Add-BrokerMachinesToDesktopGroup  New-PVSDevice (use with VMware PowerCLI New-VM)  Add-PvsDiskLocatorToDevice  New-ProvVM (MCS) @guyrleech
7. CVAD PowerShell Considerations  -AdminAddress (on every call, consider splatting)  Set-PVSConnection (once)  -MaxRecord count  Cloud – create credential profile via downloaded secrets csv file  But then most things are the same as on-premises, with some restrictions  PowerShell view in Studio – helps you figure out the "how"  (Legacy) Snapins versus Modules (latter from 1912 LTSR onwards)  Account used to run @guyrleech
8. Scheduled Tasks  Least privileged service account (with "log on as a batch job" privilege)  Test via (legacy) cmd.exe running as account set to run task  Write a log file (Start-Transcript/Stop-Transcript)  Use a single management machine ("jump box")  Create separate task folders  Notifications on success/failure  Gotchas  Single quotes  Nested quotes (if all else fails, base64 encode the command line)  Array flattening (resurrect with –split)  $true/$false treated as string literals (use [switch] or [bool]::Parse() )  Easy to copy with PowerShell @guyrleech
9. Guy's Golden Rules  Test, test, test (automate with Pester?)  Boundary conditions  Bad input  Scale  What if ("no sane person should ever do this but …")  Document – are comments in the code really enough?  No Clear Text Passwords  Annotate  Error Handling & Reporting  Change & Version Control  Backup  Systems before changing  Scripts, config files, command lines, scheduled tasks  Audit trail (Write-EventLog) @guyrleech
10. Useful Resources  github.com/guyrleech  carlwebster.com  workspace-guru.com  github.com/citrix  www.scriptrunner.com/en/software/script-collections/  developer.cloud.com  jgspiers.com @guyrleech
