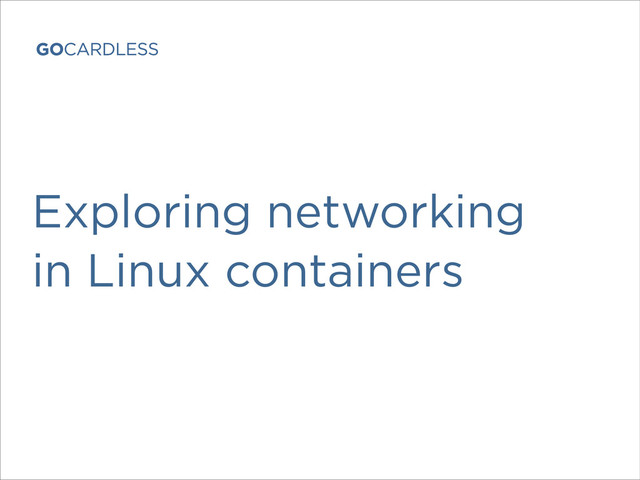

Exploring networking in Linux containers

Avatar for Milos Gajdos Milos Gajdos
January 29, 2014

Exploring networking in Linux containers

Playing around with Network Namespaces and Docker networking.

Gists used during Live Demo:
https://gist.github.com/milosgajdos83/8693601
https://gist.github.com/milosgajdos83/8693612

More detail on:
http://containerops.org/2013/11/19/lxc-networking/

Avatar for Milos Gajdos

Milos Gajdos

January 29, 2014
Tweet

More Decks by Milos Gajdos

Other Decks in Technology

Transcript

  1. About me • Ex-Racker, currently WebOps at GoCardless • I’m

    also responsible for http://containerops.org • Aspiring Gopher • Hit me up on Twitter @milosgajdos https://twitter.com/milosgajdos • Get in touch on LinkedIN http://www.linkedin.com/in/milosgajdos
  2. Linux Namespaces • Purpose: create an illusion that processes in

    particular namespace are the only processes on the system • Goal: lightweight process virtualization (no HV) • Implemented via 3 system calls: clone(), unshare(), setns() • Namespaces do not have names. There is no parameter of a namespace name passed to any of the above system calls!
  3. Linux Namespaces II • There are currently 6 namespaces implemented

    in Linux kernel: - mnt (mount point, filesystems) - pid (process ID) - net (network stack) - ipc (System V IPC and POSIX message queues) - uts (host and domain names) - user (user and group ID)
  4. Network Namespace • logically another copy of the network stack,

    with its own routes, firewall rules, and network devices • Implementation: - a network device belongs exactly to one network namespace - a socket belongs exactly to one network namespace • This for example means that you can run more than 1 process listening on localhost:80 or assign same private
  5. Network Namespace II • Create and Delete network namespace: EXAMPLE

    :! ! vagrant@precise64:~$ sudo -s root@precise64:~# ip netns add milosns root@precise64:~# ip netns list milosns root@precise64:~# ls -l /var/run/netns/ total 0 -r-------- 1 root root 0 Jan 28 23:07 milosns root@precise64:~# ip netns del milosns root@precise64:~# ip netns list root@precise64:~# ! root@precise64:~# ip netns monitor
  6. Network Namespaces III • Each newly created network namespace includes

    only the loopback device - there are no sockets in a newly created namespace EXAMPLE:! ! root@precise64:~# ip netns exec milosns ip link list 6: lo: <LOOPBACK> mtu 16436 qdisc noop state DOWN link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 root@precise64:~# root@precise64:~# ip netns exec milosns netstat -nl Active Internet connections (only servers) Proto Recv-Q Send-Q Local Address Foreign Address State Active UNIX domain sockets (only servers) Proto RefCnt Flags Type State I-Node Path root@precise64:~#
  7. Network Namespaces IV • You can assign interfaces to network

    namespaces and move it between them EXAMPLE:! ! root@precise64:~# ip link set eth2 netns milosns root@precise64:~# ip link list eth2 Device "eth2" does not exist. root@precise64:~# root@precise64:~# ip netns exec milosns ip link list 4: eth2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000 link/ether 08:00:27:9c:f8:58 brd ff:ff:ff:ff:ff:ff 13: lo: <LOOPBACK> mtu 16436 qdisc noop state DOWN link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 ! Move eth2 interface from milosns network namespace back to DEFAULT network namespace - i.e. to the host machine! ! root@precise64:~# ip netns exec milosns ip link set eth2 netns 1 root@precise64:~# ip link list eth2 4: eth2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000 link/ether 08:00:27:9c:f8:58 brd ff:ff:ff:ff:ff:ff root@precise64:~#
  8. Network Namespaces V • You can communicate between 2 network

    namespaces via veth (Virtual Ethernet) interface → veth is like a pipe – what enters at one end, exits on the other EXAMPLE: ! ! Create 2 separate namespaces! ip netns add myns1 ip netns add myns2 ! Start bash in the first namespace! ip netns exec myns1 bash ! Create veth pair and send one side of the pipe to another namespace! ip link add vethNS1 type veth peer name vethNS2 ip link set dev vethNS2 netns myns2 ! Assign ip addresses in each namespace:! ip addr add <ADDR> broadcast <BRD> dev vethNS1 ip addr add <ADDR> broadcast <BRD> dev vethNS2 ! Start sending data!
  9. Network Namespaces VI • unshare linux utility – currently supports

    5 namespaces on Ubuntu 12.04 LTS • unshare –-net bash - Starts bash in a new network namespace! - No folder is created /var/run/netns! - When you exit this bash, the network namespace will be freed – that's not the case when you start a bash by running ip netns exec bash
  10. LXC Networking • SHAMELESS PLUG - http://containerops.org/2013/11/19/lxc- networking/ - Step

    by step tutorial on various Linux Containers networking configurations
  11. Docker networking • At the moment there are 3 (+1)

    ways to configure networking in Docker containers: - Port – explicitly expose Docker port to the host machine - Link - interconnects containers via iptables rules on the host machine and exports “linked” container’s connection details via means of environment variables - Pipework – bash script written by one of the Docker employees which allows for various networking configurations (https://github.com/jpetazzo/ pipework) - LXC configuration parameters: -lxc-conf="lxc.network.type = veth” -lxc-conf="lxc.network.ipv4 = 1.2.3.4/24” …
  12. Pipework Let’s create 2 Docker containers, assign some 192.168.1.0/24 IP

    addresses to them and get them communicate to each other Example: Create Docker containers: docker run -d -name mynetcat ubuntu:precise /bin/nc -l 44444 docker run -d -name mynetcat2 ubuntu:precise /bin/nc -l 44444 ! Bridge the containers to the host brtest bridge root@precise64:~# ./pipework brtest e8d3ec118fa9 192.168.1.2/24 root@precise64:~# ./pipework brtest 874b2c0cc90b 192.168.1.3/24 !
  13. Links • Network namespaces demo: - https://gist.github.com/milosgajdos83/8693601 • Docker networking

    with Pipework demo: - https://gist.github.com/milosgajdos83/8693612
