MHDeS: Deduplicate Method Handle Graph for Efficient Dynamic JVM Language Implementations

Transcript

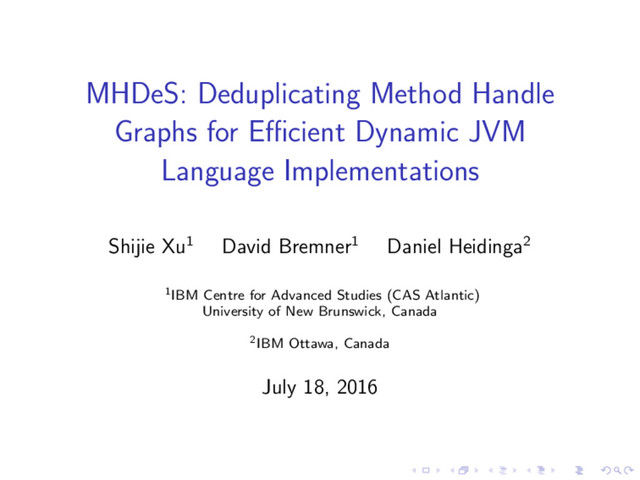

1. MHDeS: Deduplicating Method Handle Graphs for Efficient Dynamic JVM Language Implementations Shijie Xu1 David Bremner1 Daniel Heidinga2 1IBM Centre for Advanced Studies (CAS Atlantic) University of New Brunswick, Canada 2IBM Ottawa, Canada July 18, 2016
2. Method Handle A Method Handle (MH) is a typed, directly executable reference to an underlying method, field, constructor, or similar low level operation, with optional transformations of arguments and return values1. MethodHandle g = lookup () . f i n d V i r t u a l ( S t r i n g .class, ” isEmpty ” , methodType ( boolean.class) ) ; MethodHandle gwt = MethodHandles . guardWithTest (g , t , f ) ; MethodType: argument types and return type. Executable reference. Method Type Transformation. e.g., GuardWithTest, CatchException, FilterReturn. 1 https://docs.oracle.com/javase/7/docs/api/java/lang/invoke/MethodHandle.html
3. Method Handle Graph A referenced method can have references to other MHs. an MHG = MHs + Structure
4. A Sample Code for MHG Creation C a l l S i t e bootstrapMethod ( . . . ) { C a l l S i t e cs = . . MethodHandle g = lookup () . f i n d V i r t u a l ( S t r i n g .class, ” isEmpty ” , methodType ( boolean.class) ) ; MethodHandle t = lookup () . f i n d S t a t i c (Some , ” addGoogle ” , methodType ( S t r i n g . class, S t r i n g .class) ) ; //Append google to the t a i l . MethodHandle f = lookup () . f i n d S t a t i c ( Other , ”addYahoo” , methodType ( S t r i n g . class, S t r i n g .class) ) ; //Append yahoo to the t a i l . MethodHandle gwt = MethodHandles . guardWithTest (g , t , f ) ; MethodHandle d0 = MethodHandles . f i l t e r R e t u r n ( gwt , f ) ; cs . setTarget ( d0 ) ; return cs ; }
5. Method Handles and invokedynamic JSR 292: Supporting dynamically typed language in JVM. MHG Bootstrap method. Implemented by developers. Transfer method invocation.
6. Motivation Equivalent MHGs: Memory and CPU resources. Bad for Just-In-Time compilation (Inline Graph). The JIT compilation is based on Invocation Counter. The JITted MHG is inlined to the CallSite directly.
7. Motivation Threshold = 30; MHG a MHG b MHG c MHG a’ MHG b’ MHG c’ native code native code native code 10 10 10 30 30 30 MHG b MHG c 10 MHG a X 10 native code 10 jit X No deduplication With Deduplication jit No Jit No Jit No Jit Case 1 Case 2 10 + +10=30
8. Our work Equivalence Model. Method Handle Deduplication System (MHDeS).
9. Equivalence Model Method Handle key (MH key): A single method handle. Method Handle Graph Key: A number of MH keys + graph structure.
10. Equivalence Model Two Graphs Gm and Gn , F(m, n) → {0, 1}. F(m, n) = 1 if Gm = Gn or MHG keym = MHG keyn . F(m, n) = (m = n) ∨ (f (m, n) ∧ (f (m) = f (n))) (1) where f (m) = MH keym , and f (m, n) =              |Sm| i=1 F(Sm (i), Sn (i)), if Sm = ∅ ∧ Sn = ∅ ∧ |Sm | = |Sn | 1, Sm = Sn = ∅ 0, otherwise (2)
11. MHDeS: MHG Deduplication System MHDeS is a runtime equivalent MHG deduplication system. Runtime. Avoid creating equivalent method handles. Use an index key to represent a method handle about to be created.
12. MH Index Key Index key: {transformation, MH Key, orderd children, optional data} It represents a method handle about to be created. It has all parameters (i.e., method type, children, and other necessary data if present).
13. MH pool The pool is: Transformation Index → MHObject Chain MH Pool
14. Detector Use existing MHObjects in the pool to construct an index key.
15. Detector Use existing MHObjects in the pool to construct an index key. Compare the index key to the existing MHs in the pool recursively.
16. Detector Use existing MHObjects in the pool to construct an index key. Compare the index key to the existing MHs in the pool recursively. Create the method handle for the index key and add it to the pool if comparison false.
17. Procedure Pick up the MHObject chain and iterate it by index key’s transformation. For each MHObject, compare its children to those of the index key. Fast comparison path: see if both a child MH of an index key and a child of the MH in the pool are the same instance.
18. Procedure The comparison rules: Points two instances in the pool → Non equivalent. One refers to pool’s instance, and the other is not → Not sure.
19. Experiment Setup JRuby (1.7.6) a Java Implementation of Ruby language. IBM J9 JVM for Java 8. Micro-Indy Benchmark in Computer Language Benchmarks Game(CLBG).
20. Measurement Elapsed Time to complete a test. Memory Usage (The occupied memory after last GC) Accumulated GC Pause Time Improved = Measureorig − MeasureMHDeS Measureorig (3)
21. Elapsed Time mergesort_hongli so_object gc_mb socket_transfer_1mb app_factorial string_concat printff so_lists so_lists_small word_anagrams fasta count_multithreaded app_mandelbrot primes nbody app_fib socket_transfer_1mb_noblock nsieve_bits gc_string simple_server gc_array cal spectral_norm app_pentomino so_sieve eval so_matrix mbari_bogus1 fractal simple_connect partial_sums pi so_array count_shared_thread fiber_ring list binary_trees app_tarai monte_carlo_pi observ write_large −10 0 10 20 30 40 50 60 70 80 Improved Performance(%) 0 0 -4 -2 1 0 1 -2 -4 14 1 36 3 -6-6 0 0 2 8 0 0 3 0 -1 0 0 77 -5 1 -3 4 2 0 5 0 24 3 29 0 3 1 Figure : CPU Time Reduction Percentage (Median: 0.9%, Mean: 4.67%, std:14.48)
22. Memory usage gencon Policy Heap: a nursery and a tenured area. Create objects on the nursery. Move objects to the tenured area.
23. Memory usage mergesort_hongli so_object gc_mb socket_transfer_1mb app_factorial string_concat printff so_lists so_lists_small word_anagrams fasta count_multithreaded app_mandelbrot primes nbody app_fib socket_transfer_1mb_noblock nsieve_bits gc_string simple_server gc_array cal spectral_norm app_pentomino so_sieve eval so_matrix mbari_bogus1 fractal simple_connect partial_sums pi so_array count_shared_thread fiber_ring list binary_trees app_tarai monte_carlo_pi observ write_large −50 −40 −30 −20 −10 0 10 20 30 40 Reduced Memory with MHDes (%) 13 11 10 10 14 32 5 7 3 13 1 -4 6 17 2 14 -1 5 910 14 13 -2 0 11 14 4 -41 9 13 7 12 12 5 -2 0 11 17 2 -3 11 Figure : Memory usage, (Median: 9.84%, Mean: 7.19%)
24. GC Pause Time -120 -100 -80 -60 -40 -20 0 20 40 app_pentomino monte_carlo_pi so_array gc_string count_multithreaded app_tarai count_shared_thread so_object observ nsieve_bits eval write_large string_concat mergesort_hongli nbody fiber_ring gc_array printff partial_sums fasta word_anagrams list gc_mb simple_connect binary_trees cal app_factorial app_fib so_lists_small so_matrix so_sieve pi so_lists app_mandelbrot socket_transfer_1mb_noblock primes spectral_norm fractal simple_server socket_transfer_1mb mbari_bogus1 Reduced GC Paused Time (%) Figure : GC Pause Time (Mean: 1.65%) Not Much Improvement
