Dependency Injection with Dagger 2

Now, even Daggier.

Transcript

1. Dependency Injection with Dagger 2 now, even Daggier. ILYA TSYMBAL Orange Penguin, Inc. @ilyatsymbal +ilyatsymbal
2. This presentation

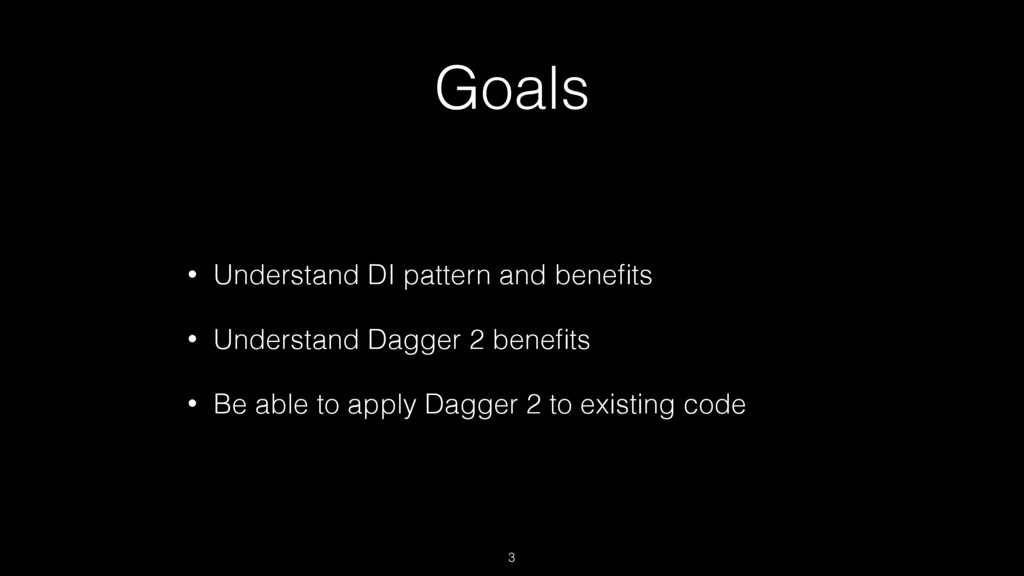

3. Goals • Understand DI pattern and benefits • Understand Dagger 2 benefits • Be able to apply Dagger 2 to existing code 3

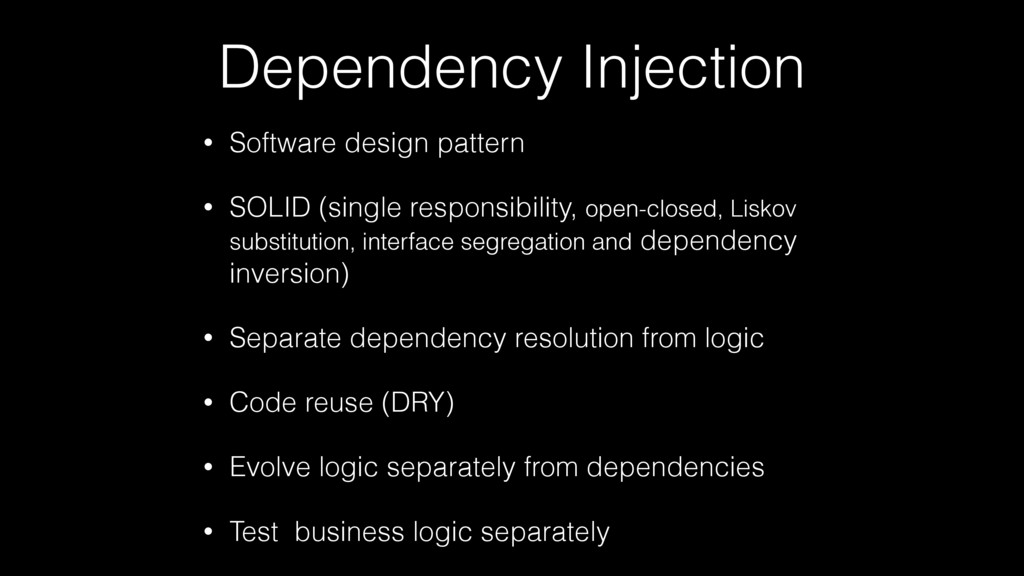

4. Dependency Injection • Software design pattern • SOLID (single responsibility, open-closed, Liskov substitution, interface segregation and dependency inversion) • Separate dependency resolution from logic • Code reuse (DRY) • Evolve logic separately from dependencies • Test business logic separately

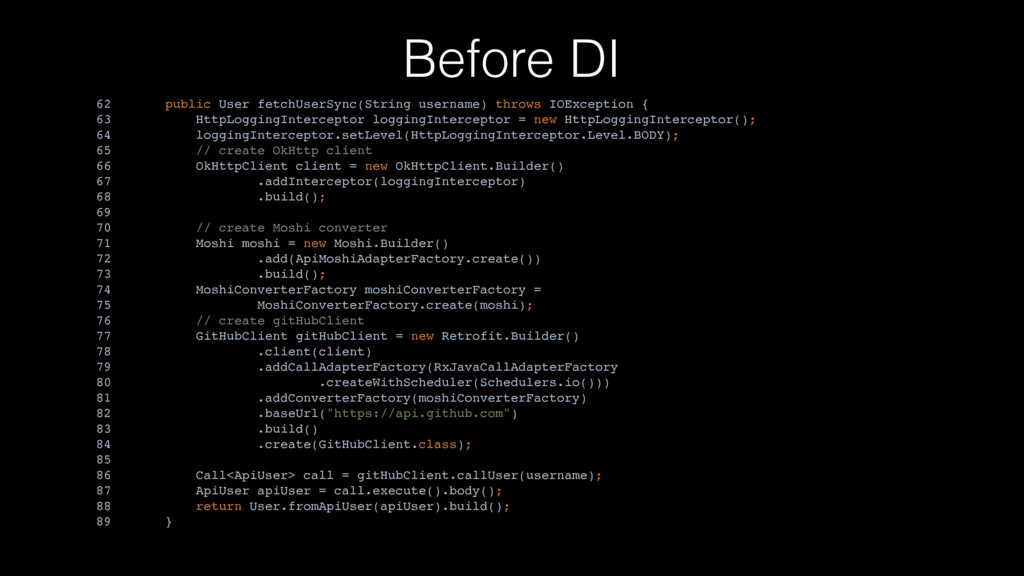

5. Before DI 62 public User fetchUserSync(String username) throws IOException { 63 HttpLoggingInterceptor loggingInterceptor = new HttpLoggingInterceptor(); 64 loggingInterceptor.setLevel(HttpLoggingInterceptor.Level.BODY); 65 // create OkHttp client 66 OkHttpClient client = new OkHttpClient.Builder() 67 .addInterceptor(loggingInterceptor) 68 .build(); 69 70 // create Moshi converter 71 Moshi moshi = new Moshi.Builder() 72 .add(ApiMoshiAdapterFactory.create()) 73 .build(); 74 MoshiConverterFactory moshiConverterFactory = 75 MoshiConverterFactory.create(moshi); 76 // create gitHubClient 77 GitHubClient gitHubClient = new Retrofit.Builder() 78 .client(client) 79 .addCallAdapterFactory(RxJavaCallAdapterFactory 80 .createWithScheduler(Schedulers.io())) 81 .addConverterFactory(moshiConverterFactory) 82 .baseUrl("https://api.github.com") 83 .build() 84 .create(GitHubClient.class); 85 86 Call<ApiUser> call = gitHubClient.callUser(username); 87 ApiUser apiUser = call.execute().body(); 88 return User.fromApiUser(apiUser).build(); 89 }

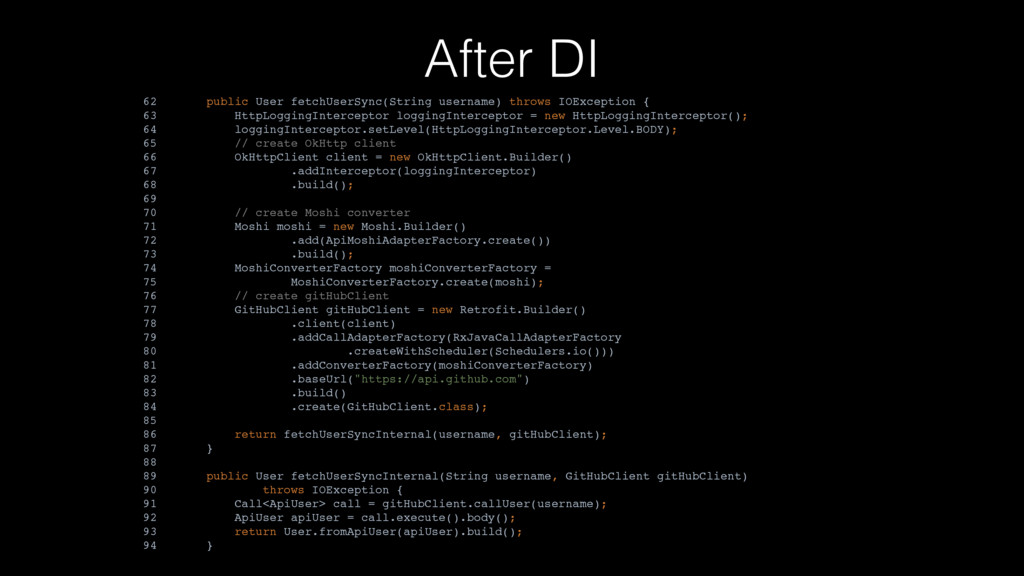

6. After DI 62 public User fetchUserSync(String username) throws IOException { 63 HttpLoggingInterceptor loggingInterceptor = new HttpLoggingInterceptor(); 64 loggingInterceptor.setLevel(HttpLoggingInterceptor.Level.BODY); 65 // create OkHttp client 66 OkHttpClient client = new OkHttpClient.Builder() 67 .addInterceptor(loggingInterceptor) 68 .build(); 69 70 // create Moshi converter 71 Moshi moshi = new Moshi.Builder() 72 .add(ApiMoshiAdapterFactory.create()) 73 .build(); 74 MoshiConverterFactory moshiConverterFactory = 75 MoshiConverterFactory.create(moshi); 76 // create gitHubClient 77 GitHubClient gitHubClient = new Retrofit.Builder() 78 .client(client) 79 .addCallAdapterFactory(RxJavaCallAdapterFactory 80 .createWithScheduler(Schedulers.io())) 81 .addConverterFactory(moshiConverterFactory) 82 .baseUrl("https://api.github.com") 83 .build() 84 .create(GitHubClient.class); 85 86 return fetchUserSyncInternal(username, gitHubClient); 87 } 88 89 public User fetchUserSyncInternal(String username, GitHubClient gitHubClient) 90 throws IOException { 91 Call<ApiUser> call = gitHubClient.callUser(username); 92 ApiUser apiUser = call.execute().body(); 93 return User.fromApiUser(apiUser).build(); 94 }

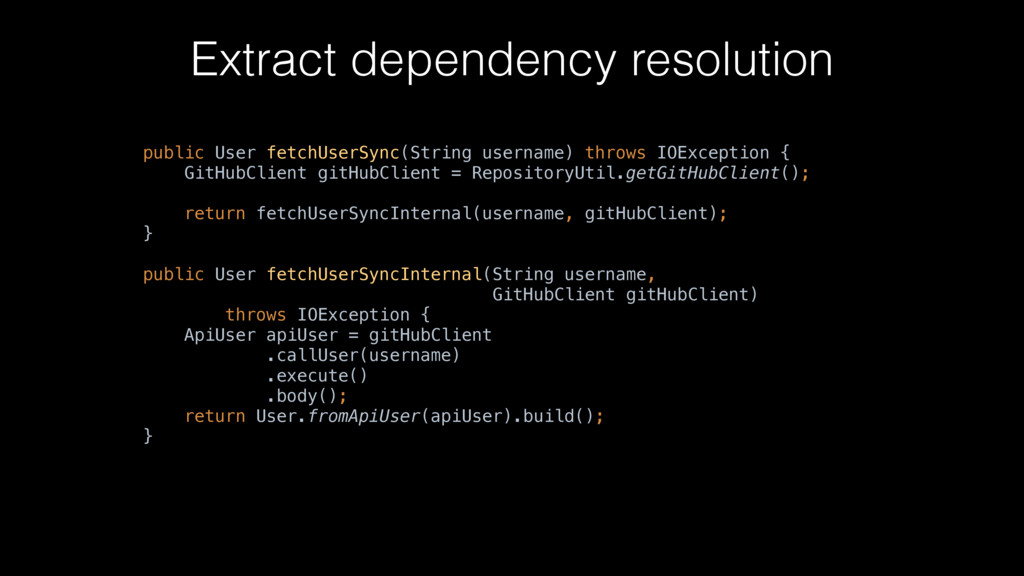

7. Extract dependency resolution public User fetchUserSync(String username) throws IOException {
 GitHubClient gitHubClient = RepositoryUtil.getGitHubClient();

 return fetchUserSyncInternal(username, gitHubClient);
 }

 public User fetchUserSyncInternal(String username,
 GitHubClient gitHubClient)
 throws IOException {
 ApiUser apiUser = gitHubClient
 .callUser(username)
 .execute()
 .body();
 return User.fromApiUser(apiUser).build();
 }

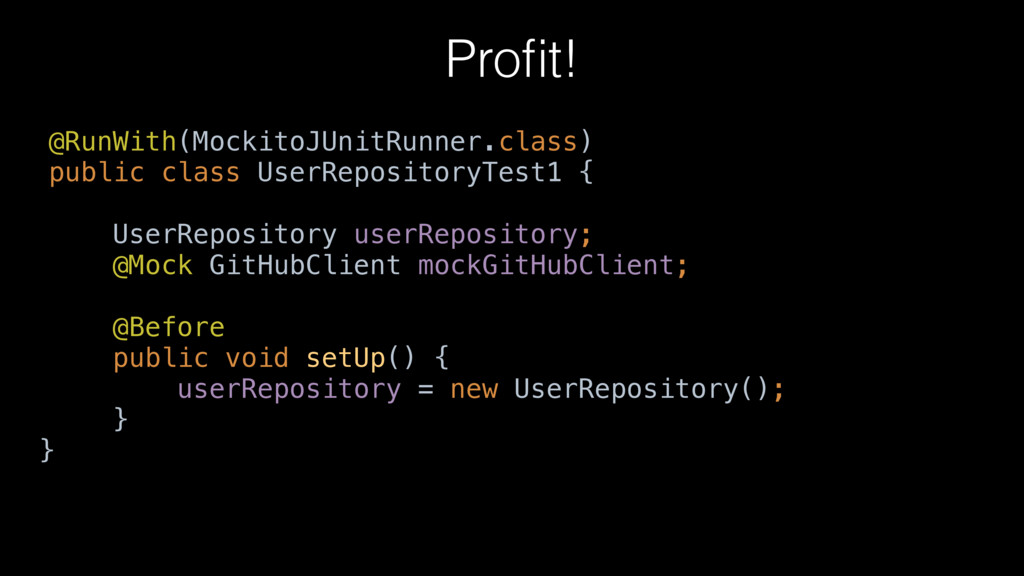

8. Profit! @RunWith(MockitoJUnitRunner.class)
 public class UserRepositoryTest1 {

 UserRepository userRepository;
 @Mock GitHubClient mockGitHubClient;

 @Before
 public void setUp() {
 userRepository = new UserRepository();
 } }

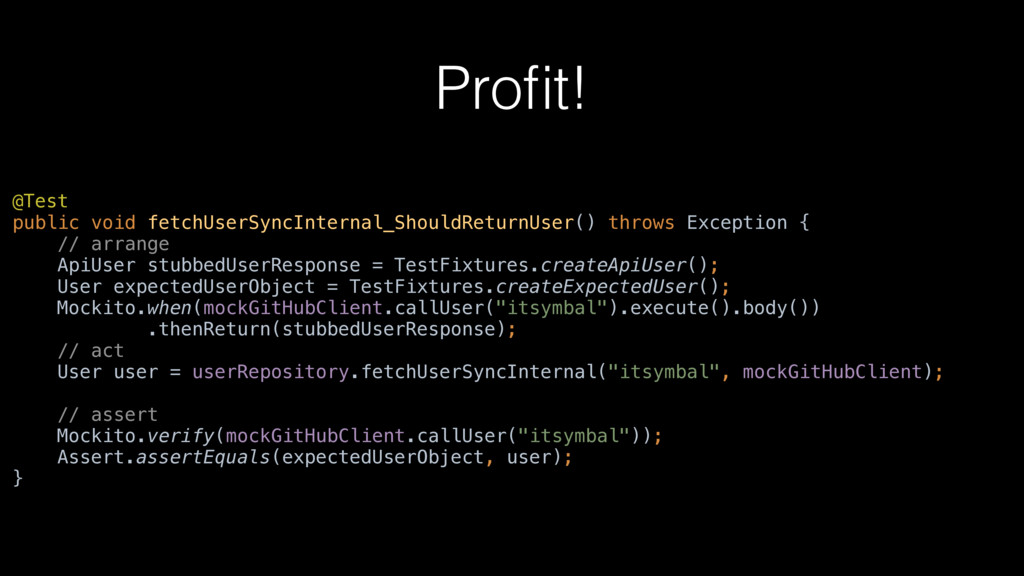

9. Profit! @Test
 public void fetchUserSyncInternal_ShouldReturnUser() throws Exception {
 // arrange
 ApiUser stubbedUserResponse = TestFixtures.createApiUser();
 User expectedUserObject = TestFixtures.createExpectedUser();
 Mockito.when(mockGitHubClient.callUser("itsymbal").execute().body())
 .thenReturn(stubbedUserResponse);
 // act
 User user = userRepository.fetchUserSyncInternal("itsymbal", mockGitHubClient);

 // assert
 Mockito.verify(mockGitHubClient.callUser("itsymbal"));
 Assert.assertEquals(expectedUserObject, user);
 }

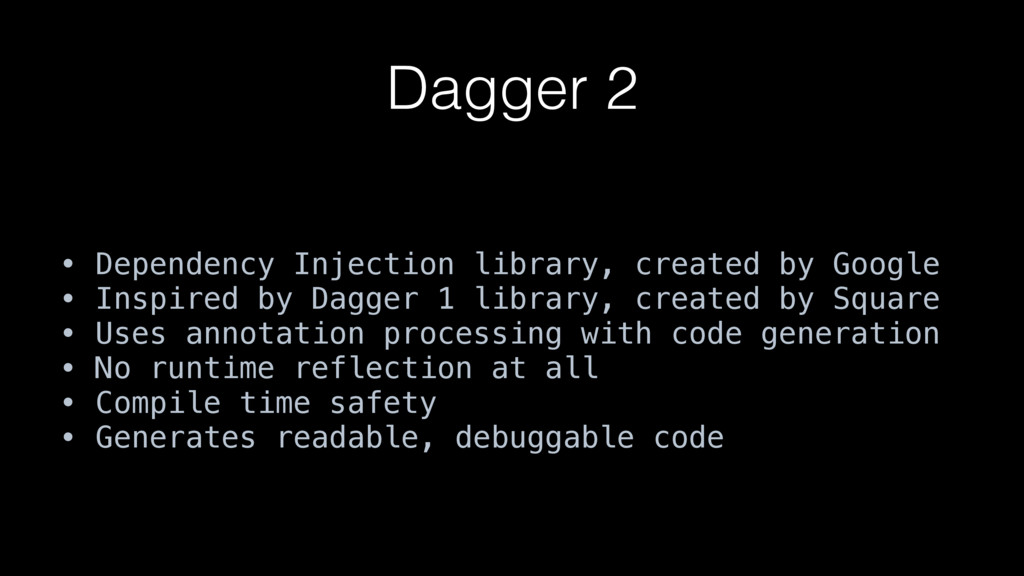

10. Dagger 2 • Dependency Injection library, created by Google • Inspired by Dagger 1 library, created by Square • Uses annotation processing with code generation • No runtime reflection at all • Compile time safety • Generates readable, debuggable code

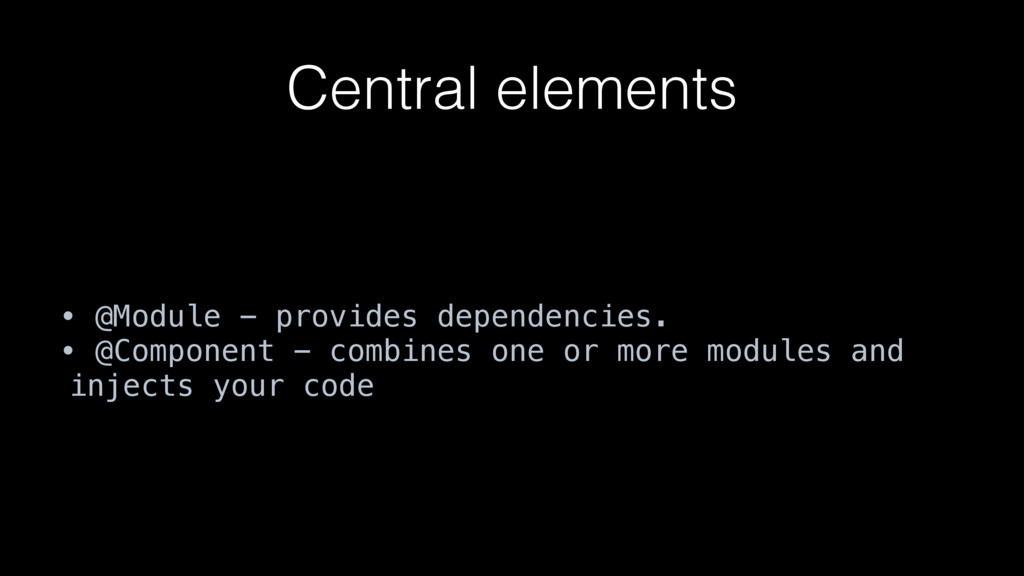

11. Central elements • @Module - provides dependencies. • @Component - combines one or more modules and injects your code

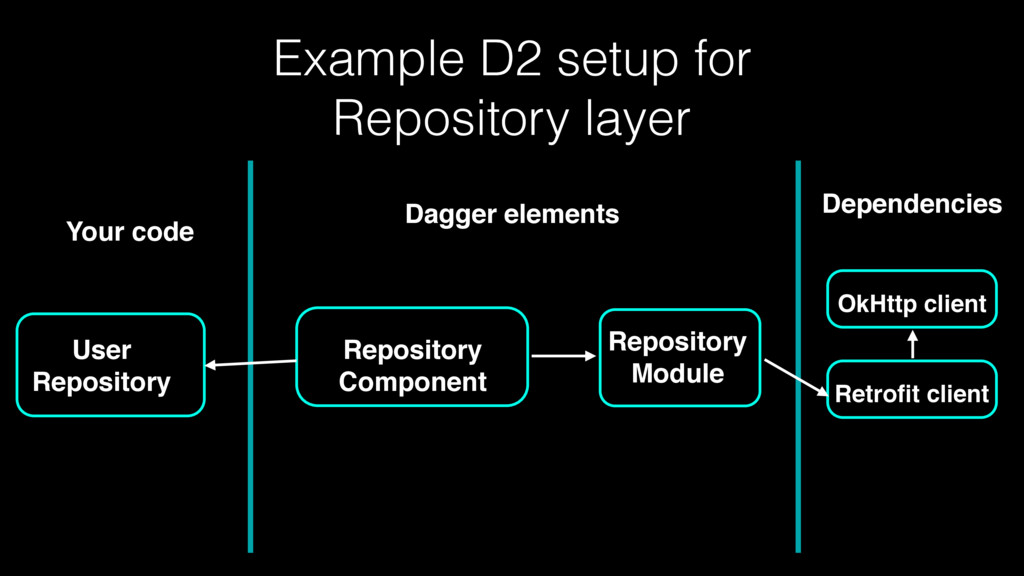

12. OkHttp client Retrofit client Repository Module Repository Component Example D2 setup for Repository layer User Repository Dagger elements Your code Dependencies

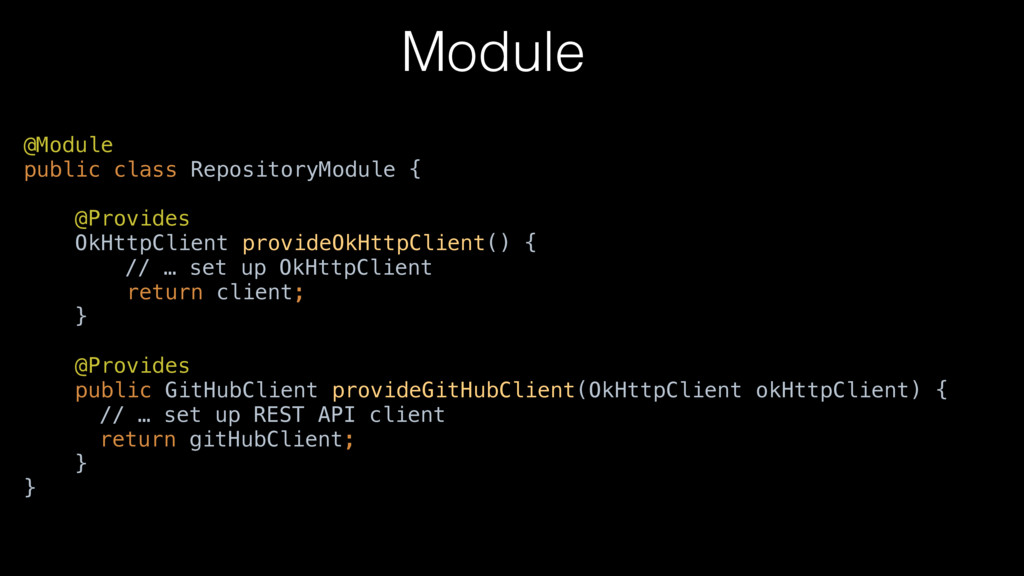

13. Module @Module
 public class RepositoryModule {

 @Provides
 OkHttpClient provideOkHttpClient() { // … set up OkHttpClient return client;
 }

 @Provides
 public GitHubClient provideGitHubClient(OkHttpClient okHttpClient) { // … set up REST API client return gitHubClient;
 }
 }
14. Dagger2 Benefit #1 Manages transitive dependencies

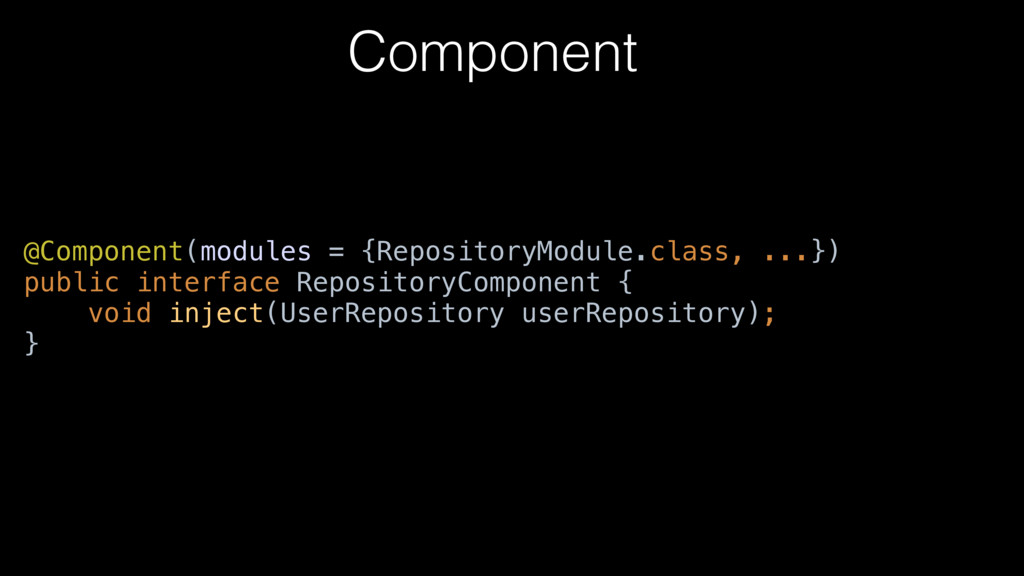

15. Component @Component(modules = {RepositoryModule.class, ...})
 public interface RepositoryComponent {
 void inject(UserRepository userRepository);
 }

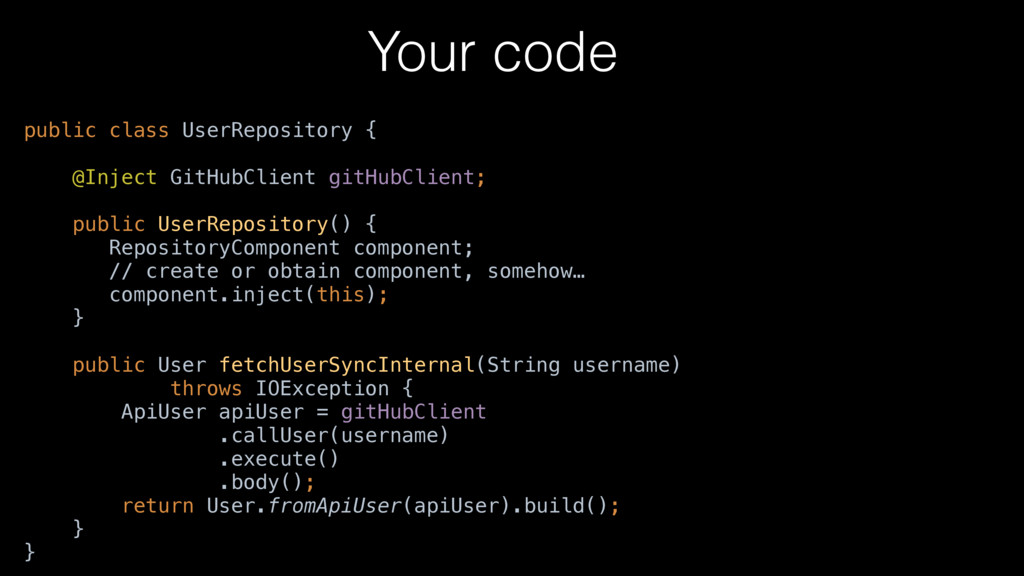

16. Your code
 public class UserRepository {

 @Inject GitHubClient gitHubClient;

 public UserRepository() { RepositoryComponent component; // create or obtain component, somehow… component.inject(this);
 } public User fetchUserSyncInternal(String username)
 throws IOException {
 ApiUser apiUser = gitHubClient
 .callUser(username)
 .execute()
 .body();
 return User.fromApiUser(apiUser).build();
 }
 }

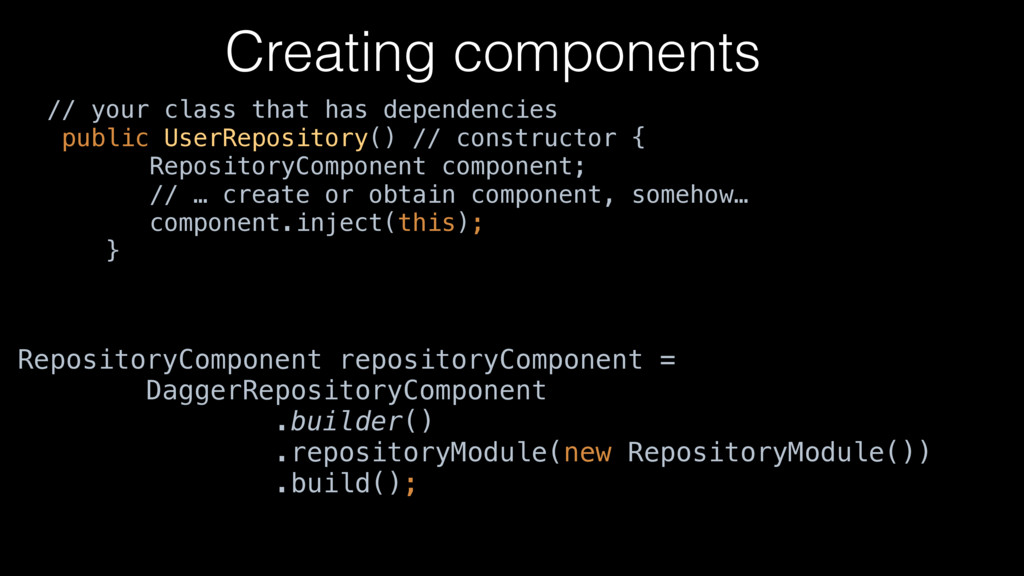

17. Creating components // your class that has dependencies public UserRepository() // constructor { RepositoryComponent component; // … create or obtain component, somehow… component.inject(this);
 } RepositoryComponent repositoryComponent =
 DaggerRepositoryComponent
 .builder()
 .repositoryModule(new RepositoryModule())
 .build();

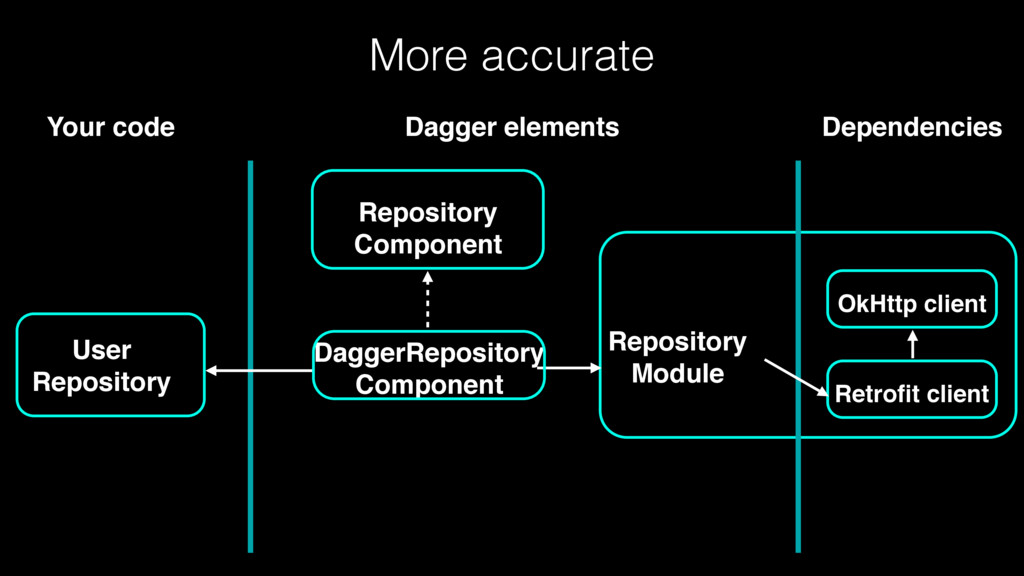

18. OkHttp client Retrofit client Repository Module Repository Component More accurate User Repository Dagger elements Your code Dependencies DaggerRepository Component

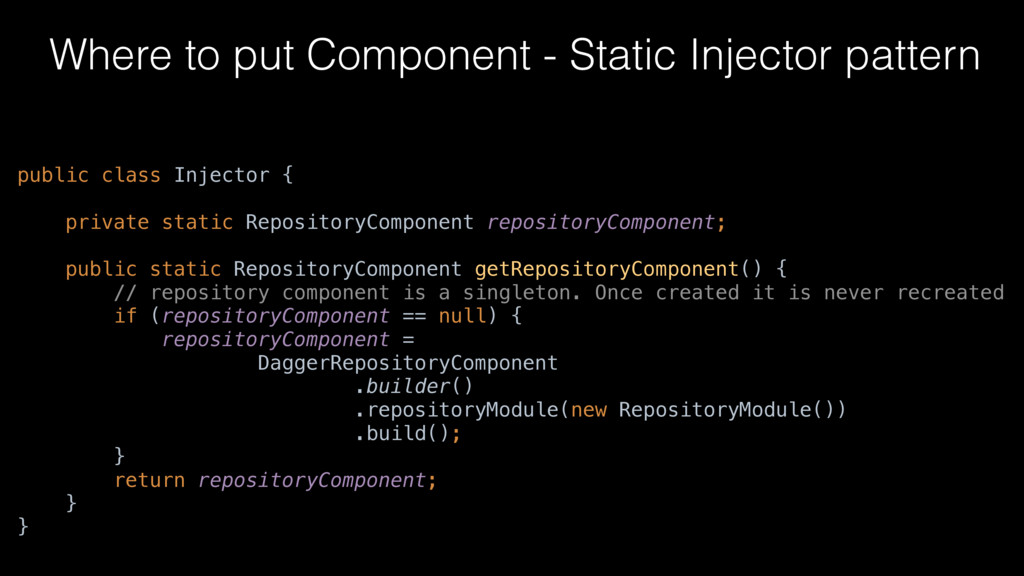

19. Where to put Component - Static Injector pattern public class Injector {

 private static RepositoryComponent repositoryComponent;

 public static RepositoryComponent getRepositoryComponent() {
 // repository component is a singleton. Once created it is never recreated
 if (repositoryComponent == null) {
 repositoryComponent =
 DaggerRepositoryComponent
 .builder()
 .repositoryModule(new RepositoryModule())
 .build();
 }
 return repositoryComponent;
 }
 }

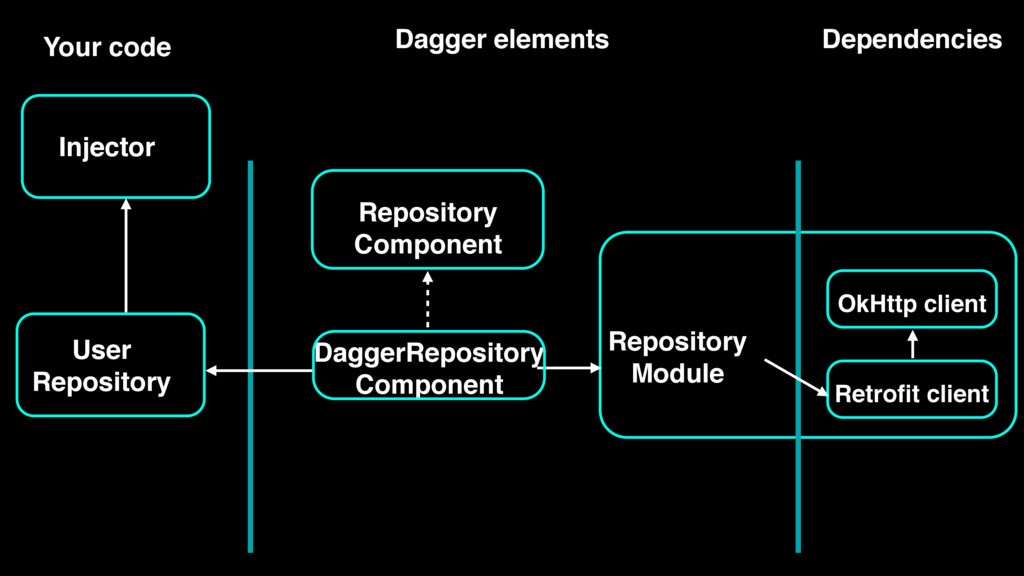

20. OkHttp client Retrofit client Repository Module Repository Component User Repository Dagger elements Your code Dependencies DaggerRepository Component Injector

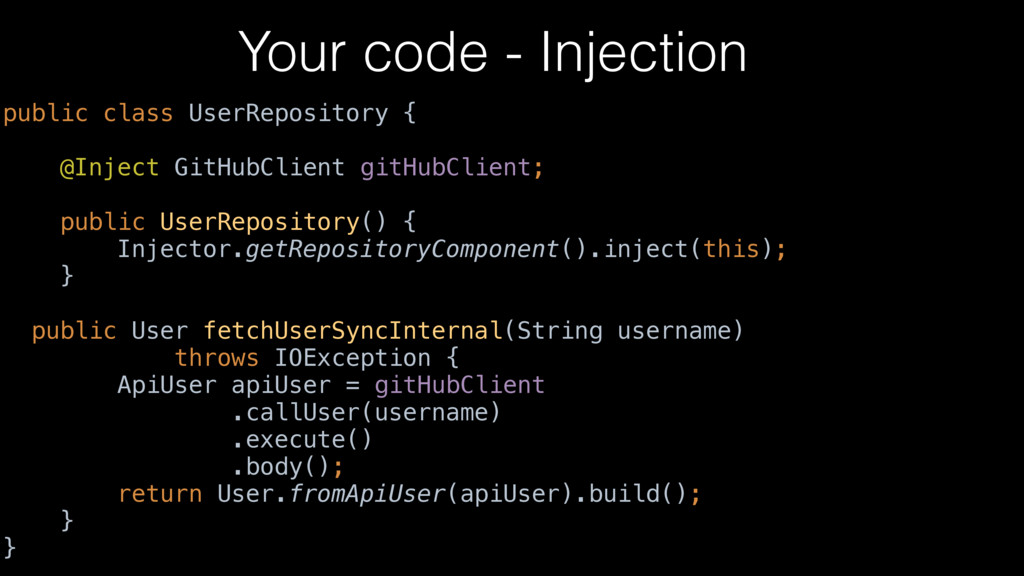

21. Your code - Injection public class UserRepository {

 @Inject GitHubClient gitHubClient;

 public UserRepository() {
 Injector.getRepositoryComponent().inject(this);
 } public User fetchUserSyncInternal(String username)
 throws IOException {
 ApiUser apiUser = gitHubClient
 .callUser(username)
 .execute()
 .body();
 return User.fromApiUser(apiUser).build();
 }
 }

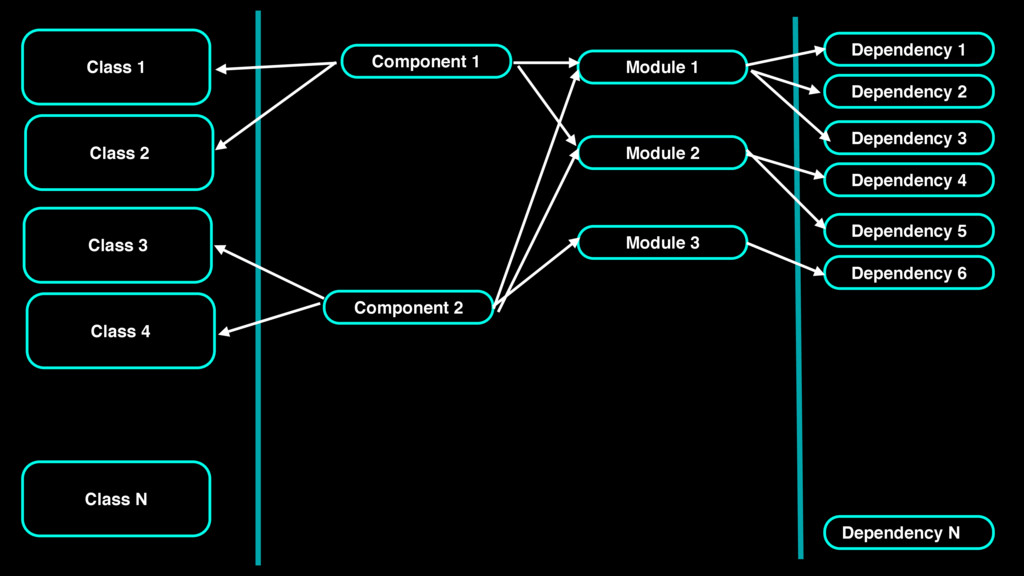

22. Dependency 1 Class 1 Class 2 Dependency 2 Dependency N Class N Module 1 Module 2 Dependency 3 Dependency 4 Dependency 5 Dependency 6 Component 1 Component 2 Module 3 Class 3 Class 4
23. Dagger2 Benefit #3 Compose-ability of dependencies
24. Component and module organization

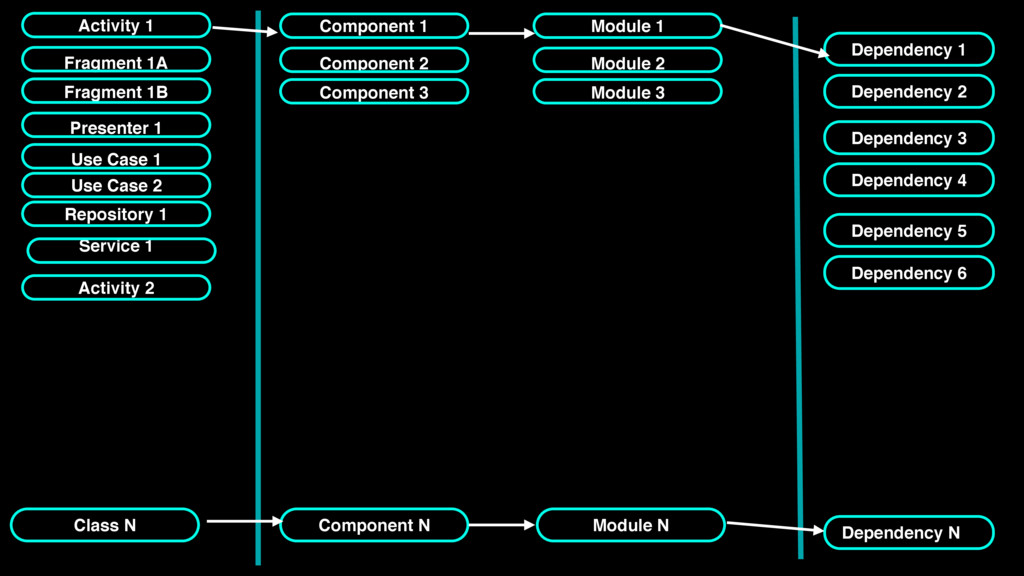

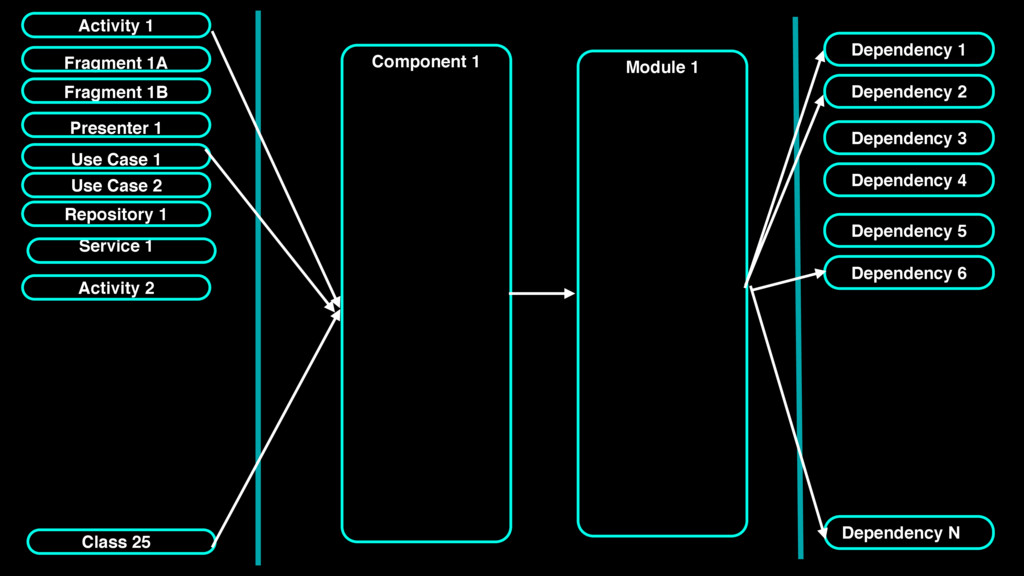

25. Dependency 1 Activity 1 Dependency 2 Dependency N Dependency 3 Dependency 4 Dependency 5 Dependency 6 Fragment 1A Fragment 1B Presenter 1 Use Case 1 Use Case 2 Repository 1 Service 1 Class 25 Activity 2 Module 1 Component 1
26. Dependency 1 Activity 1 Dependency 2 Dependency N Dependency 3 Dependency 4 Dependency 5 Dependency 6 Fragment 1A Fragment 1B Presenter 1 Use Case 1 Use Case 2 Repository 1 Service 1 Activity 2 Component 1 Component 2 Component 3 Module 1 Module 2 Module 3 Component N Module N Class N

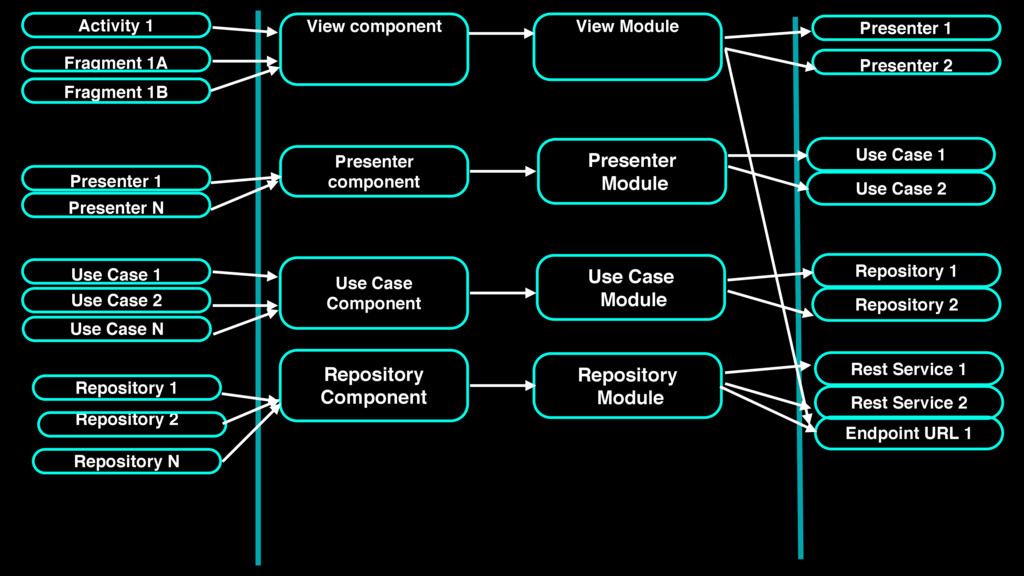

27. Activity 1 Fragment 1A Fragment 1B Presenter 1 Use Case 1 Use Case 2 Repository 1 Repository 2 Repository N View component Presenter component Use Case Component View Module Presenter Module Repository Component Presenter 1 Presenter 2 Use Case 1 Use Case 2 Use Case Module Repository 1 Repository 2 Repository Module Rest Service 1 Rest Service 2 Endpoint URL 1 Presenter N Use Case N
28. Subcomponents Component inheritance
29. Post-Login Component App Component User module App Module • Reuse of common dependencies • Allow subcomponents to have a lifecycle different from parent User

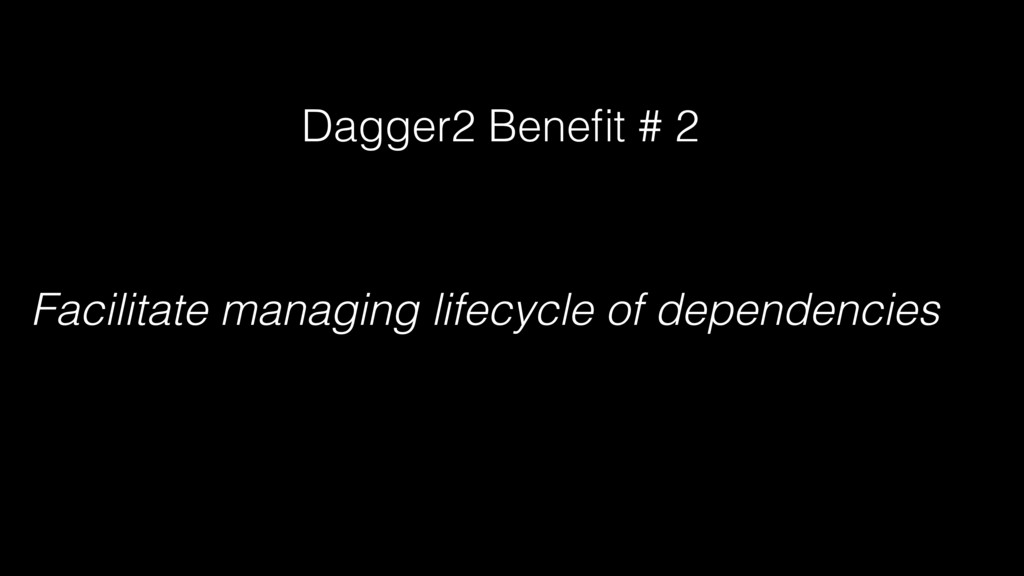

30. Dagger2 Benefit # 2 Facilitate managing lifecycle of dependencies
31. Defining subcomponent @Subcomponent(modules = {ActivityModule.class})
 public interface ActivityComponent {
 void inject(UserDetailsActivity activity);
 }

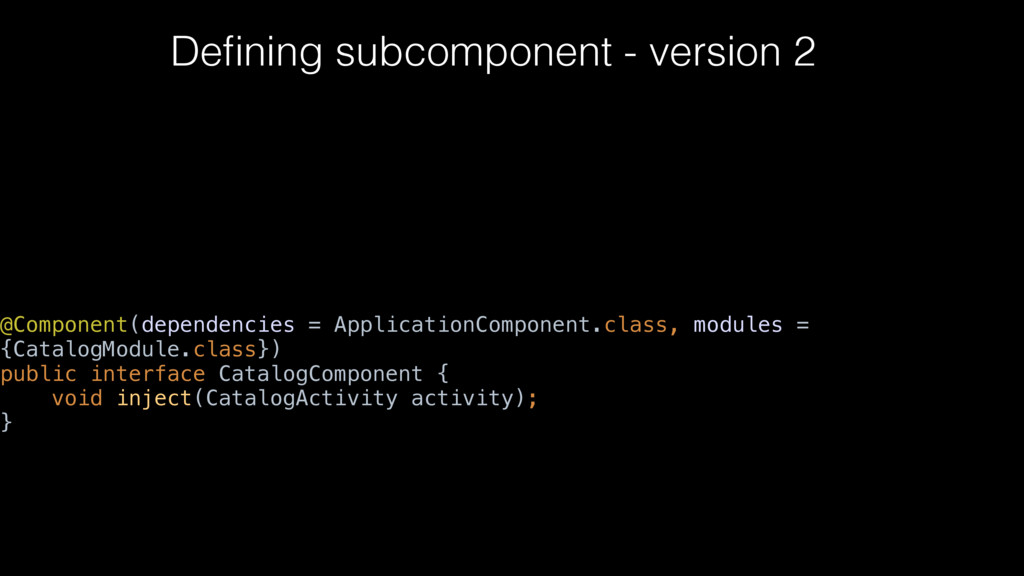

32. Defining subcomponent - version 2 @Component(dependencies = ApplicationComponent.class, modules = {CatalogModule.class})
 public interface CatalogComponent {
 void inject(CatalogActivity activity);
 }

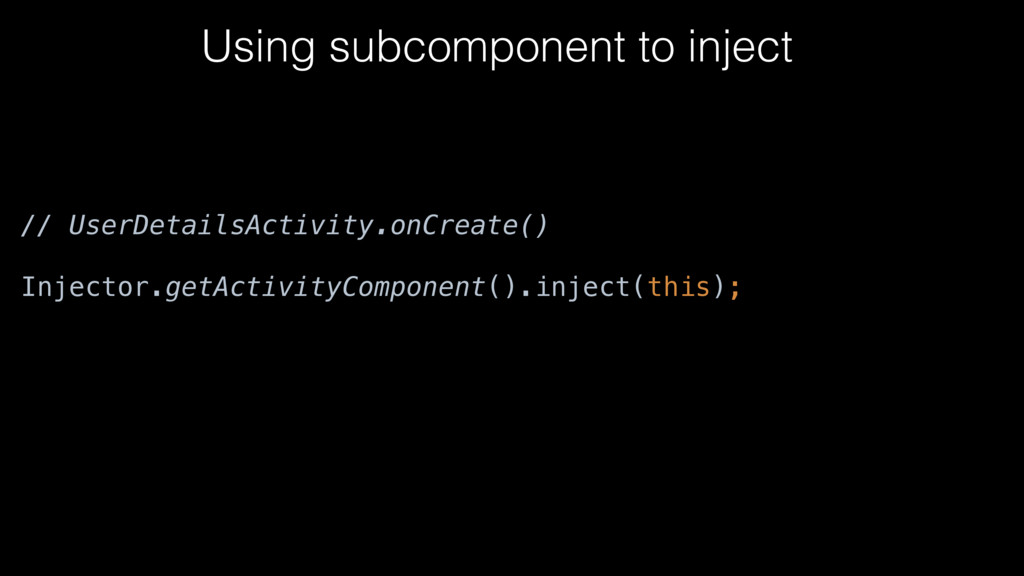

33. Using subcomponent to inject // UserDetailsActivity.onCreate() Injector.getActivityComponent().inject(this);

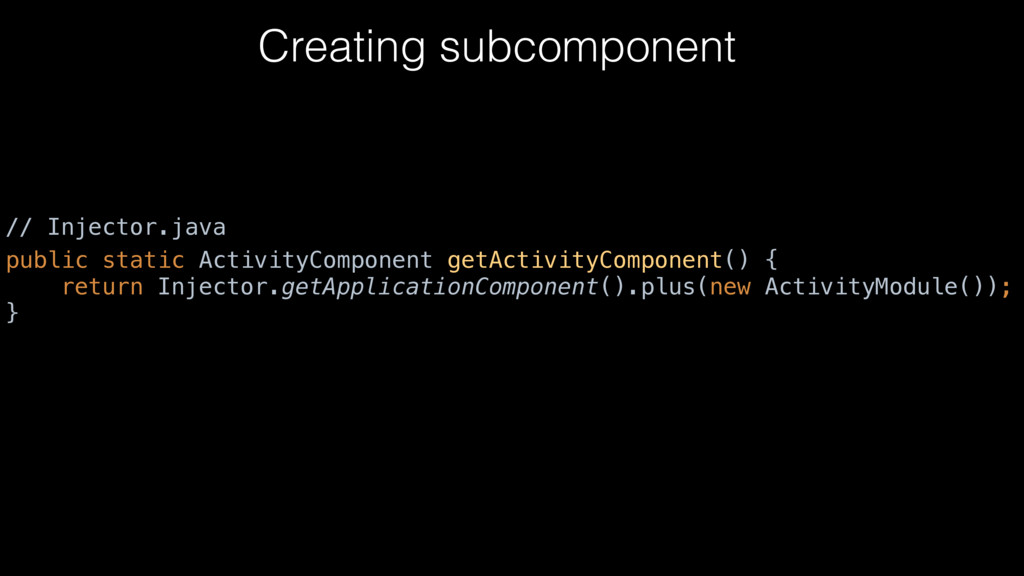

34. Creating subcomponent // Injector.java public static ActivityComponent getActivityComponent() {
 return Injector.getApplicationComponent().plus(new ActivityModule());
 }

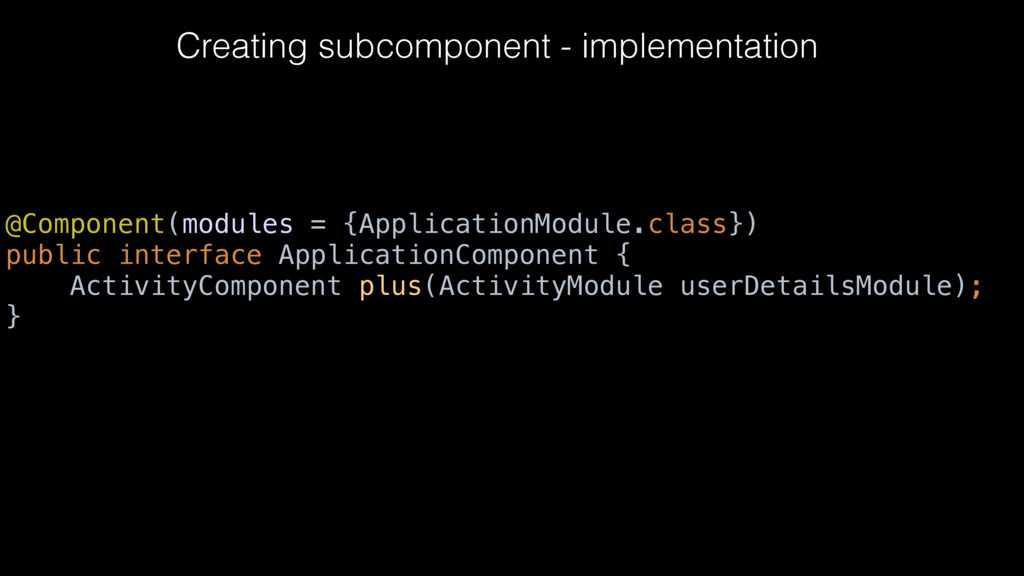

35. Creating subcomponent - implementation @Component(modules = {ApplicationModule.class})
 public interface ApplicationComponent {
 ActivityComponent plus(ActivityModule userDetailsModule);
 }
36. Testing setup

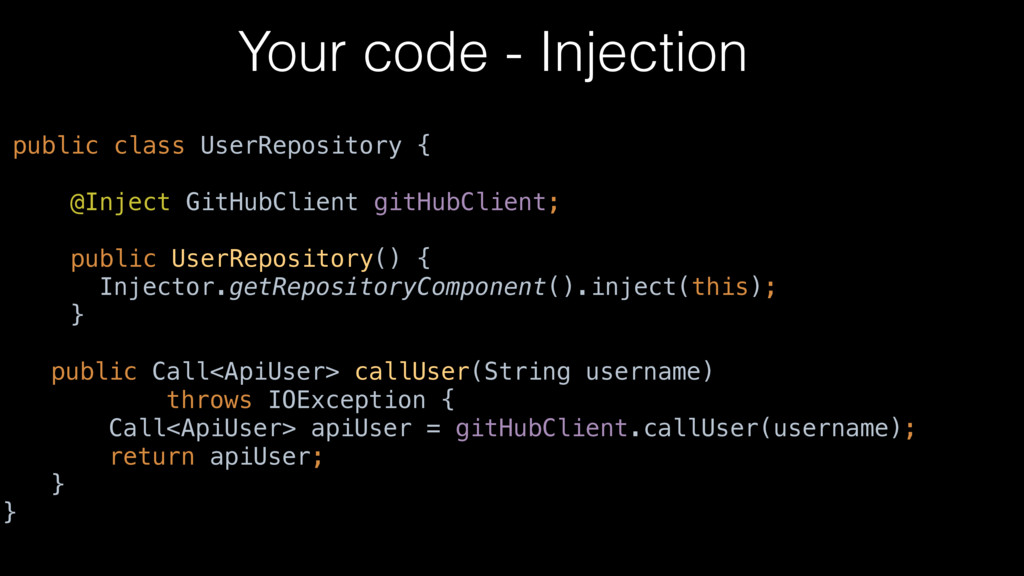

37. Your code - Injection public class UserRepository {

 @Inject GitHubClient gitHubClient;

 public UserRepository() {
 Injector.getRepositoryComponent().inject(this);
 } public Call<ApiUser> callUser(String username)
 throws IOException {
 Call<ApiUser> apiUser = gitHubClient.callUser(username);
 return apiUser;
 } }
38. Test code @RunWith(MockitoJUnitRunner.class)
 public class UserRepositoryTest2 {
 UserRepository userRepository;
 @Mock GitHubClient mockGitHubClient;
 @Before
 public void setUp() throws Exception {
 // get Injector to use mockGitHubClient, somehow...
 userRepository = new UserRepository();
 }
 @Test
 public void callUser_ShouldReturnCall()throws Exception{ // act
 userRepository.callUser("itsymbal");
 // assert
 Mockito.verify(mockGitHubClient).callUser("itsymbal");
 } }

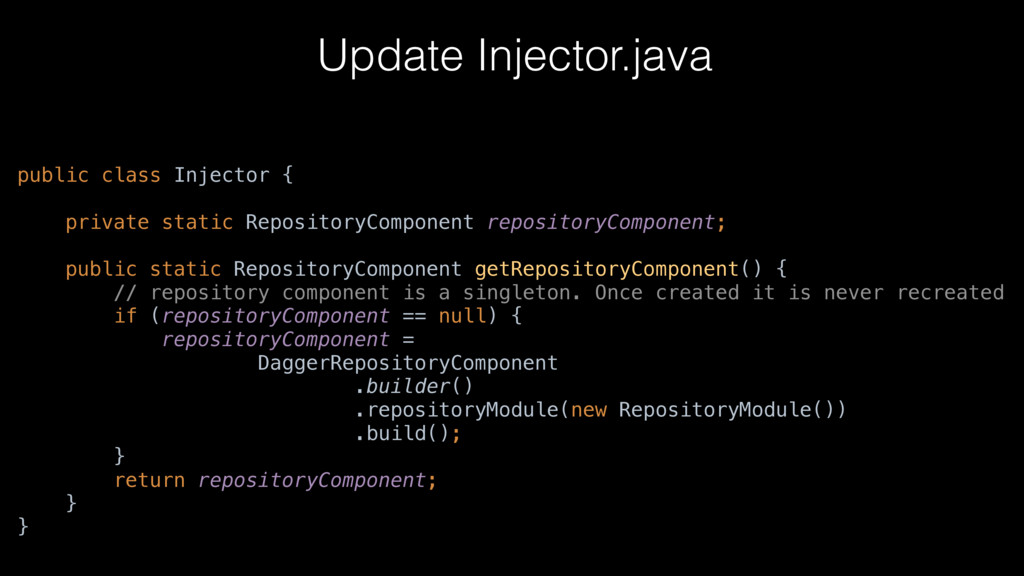

39. Update Injector.java public class Injector {

 private static RepositoryComponent repositoryComponent;

 public static RepositoryComponent getRepositoryComponent() {
 // repository component is a singleton. Once created it is never recreated
 if (repositoryComponent == null) {
 repositoryComponent =
 DaggerRepositoryComponent
 .builder()
 .repositoryModule(new RepositoryModule())
 .build();
 }
 return repositoryComponent;
 }
 }

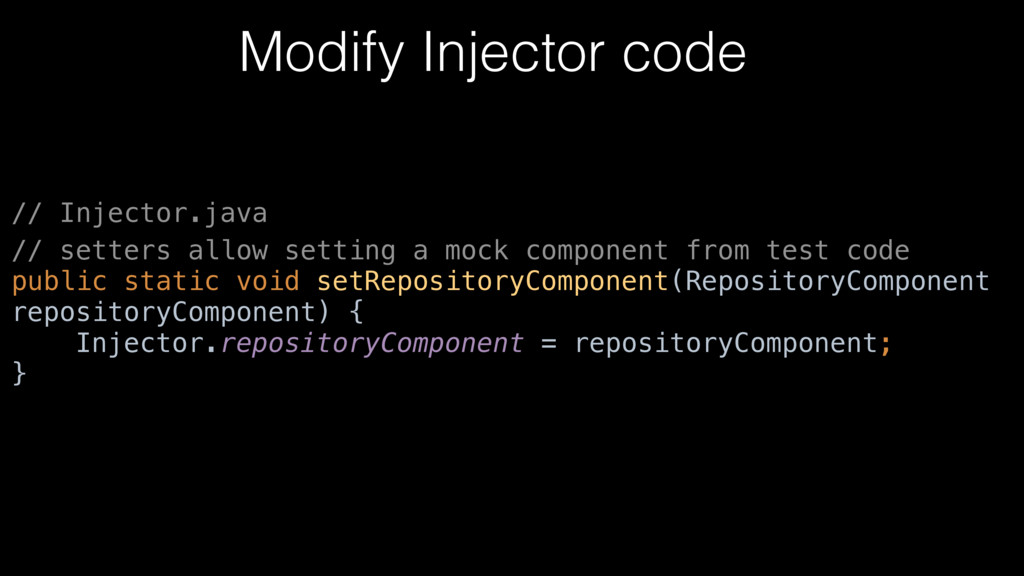

40. Modify Injector code // Injector.java // setters allow setting a mock component from test code
 public static void setRepositoryComponent(RepositoryComponent repositoryComponent) {
 Injector.repositoryComponent = repositoryComponent;
 }

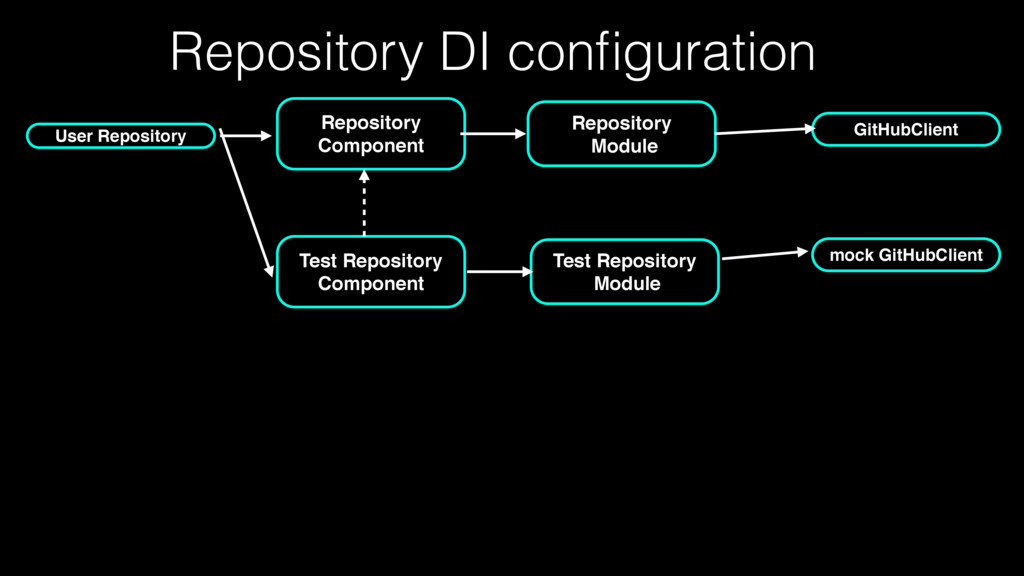

41. Repository DI configuration User Repository Repository Component Repository Module GitHubClient Test Repository Component Test Repository Module mock GitHubClient

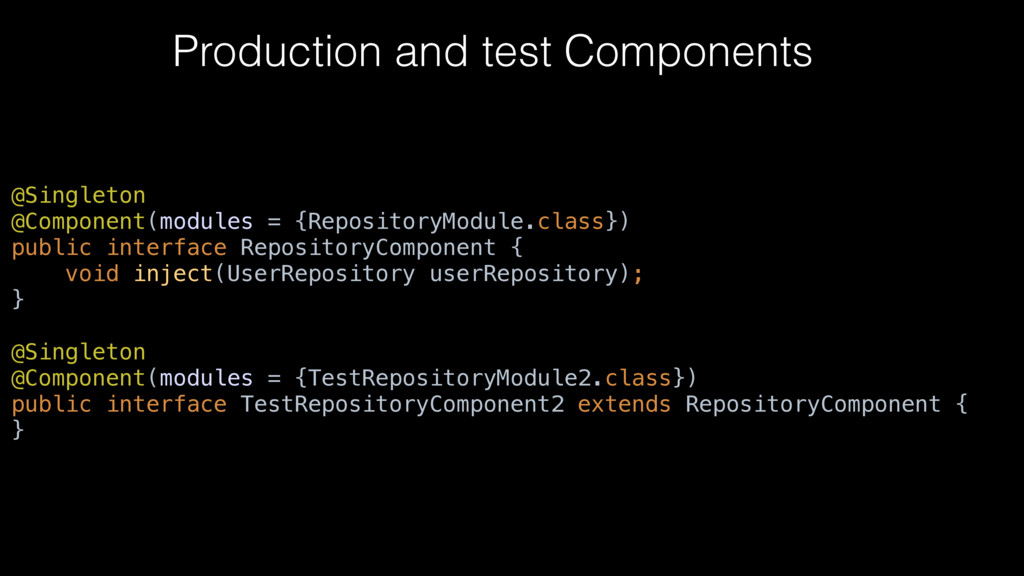

42. Production and test Components @Singleton
 @Component(modules = {RepositoryModule.class})
 public interface RepositoryComponent {
 void inject(UserRepository userRepository);
 } @Singleton
 @Component(modules = {TestRepositoryModule2.class})
 public interface TestRepositoryComponent2 extends RepositoryComponent {
 }
43. Production module @Module
 public class RepositoryModule {
 @Provides
 @Singleton
 OkHttpClient provideOkHttpClient() {
 HttpLoggingInterceptor loggingInterceptor = new HttpLoggingInterceptor();
 loggingInterceptor.setLevel(HttpLoggingInterceptor.Level.BODY);
 OkHttpClient client = new OkHttpClient.Builder()
 .addInterceptor(loggingInterceptor)
 .build();
 return client;
 }

 @Provides
 @Singleton
 public GitHubClient provideGitHubClient(OkHttpClient okHttpClient) {

 Moshi moshi = new Moshi.Builder()
 .add(ApiMoshiAdapterFactory.create())
 .build();

 return new Retrofit.Builder()
 .client(okHttpClient)
 .addCallAdapterFactory(RxJavaCallAdapterFactory.createWithScheduler(Schedulers.io()))
 .addConverterFactory(MoshiConverterFactory.create(moshi))
 .baseUrl(getGitHubUrl())
 .build()
 .create(GitHubClient.class);
 }

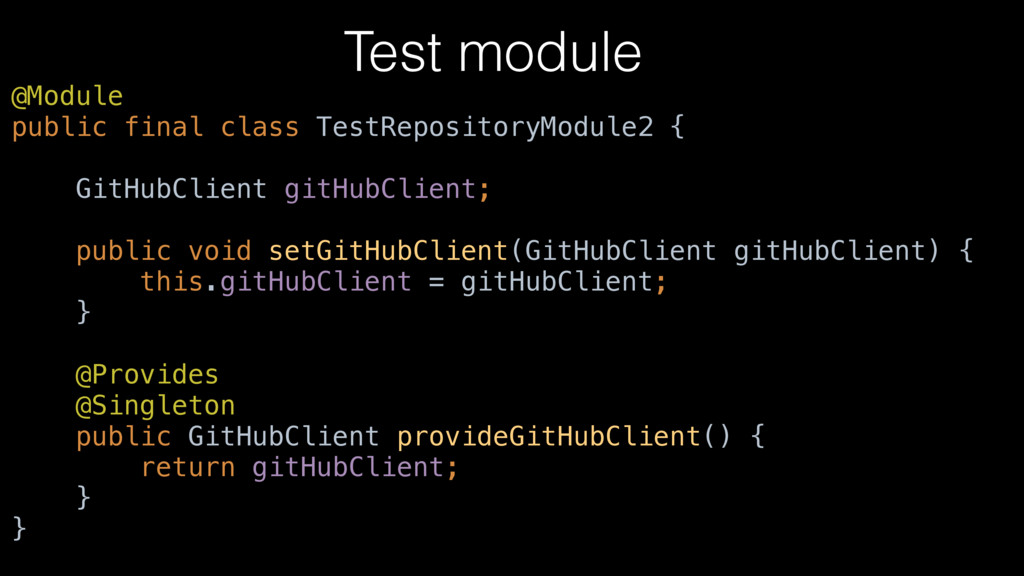

44. Test module @Module
 public final class TestRepositoryModule2 {

 GitHubClient gitHubClient;

 public void setGitHubClient(GitHubClient gitHubClient) {
 this.gitHubClient = gitHubClient;
 }

 @Provides
 @Singleton
 public GitHubClient provideGitHubClient() {
 return gitHubClient;
 }
 }

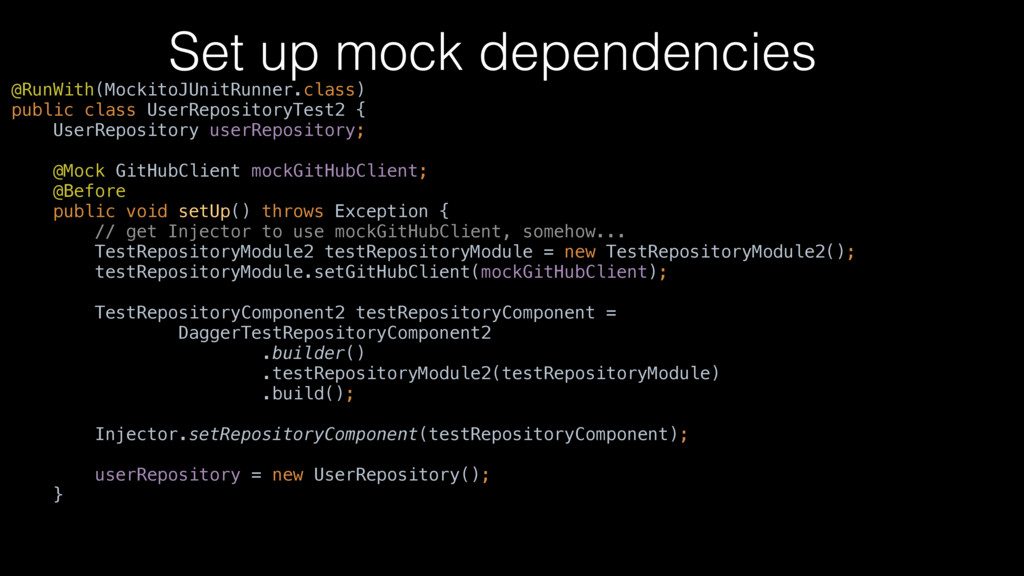

45. Set up mock dependencies @RunWith(MockitoJUnitRunner.class)
 public class UserRepositoryTest2 {
 UserRepository userRepository;

 @Mock GitHubClient mockGitHubClient;
 @Before
 public void setUp() throws Exception {
 // get Injector to use mockGitHubClient, somehow...
 TestRepositoryModule2 testRepositoryModule = new TestRepositoryModule2();
 testRepositoryModule.setGitHubClient(mockGitHubClient);

 TestRepositoryComponent2 testRepositoryComponent =
 DaggerTestRepositoryComponent2
 .builder()
 .testRepositoryModule2(testRepositoryModule)
 .build();

 Injector.setRepositoryComponent(testRepositoryComponent);

 userRepository = new UserRepository();
 }

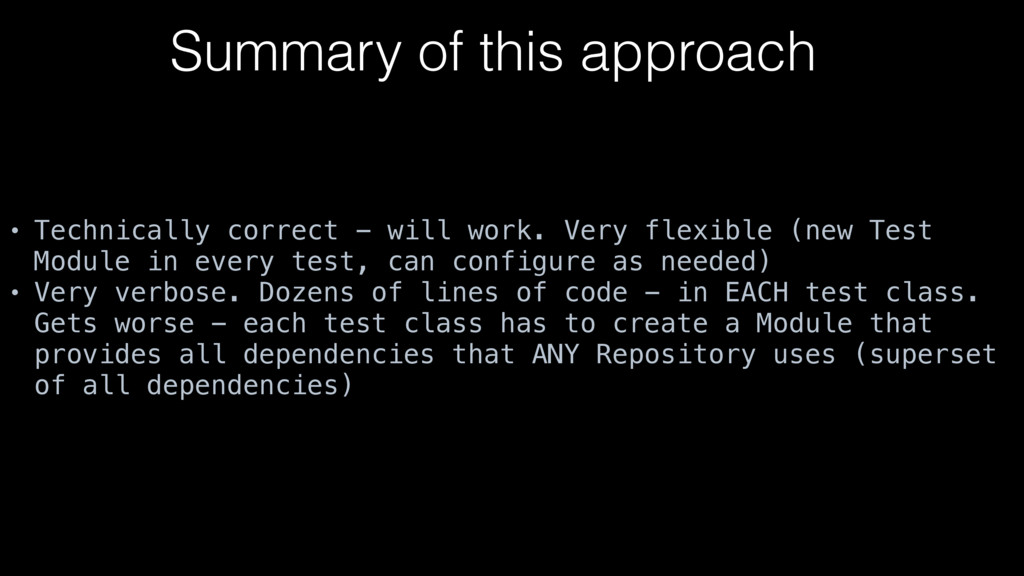

46. Summary of this approach • Technically correct - will work. Very flexible (new Test Module in every test, can configure as needed) • Very verbose. Dozens of lines of code - in EACH test class. Gets worse - each test class has to create a Module that provides all dependencies that ANY Repository uses (superset of all dependencies)

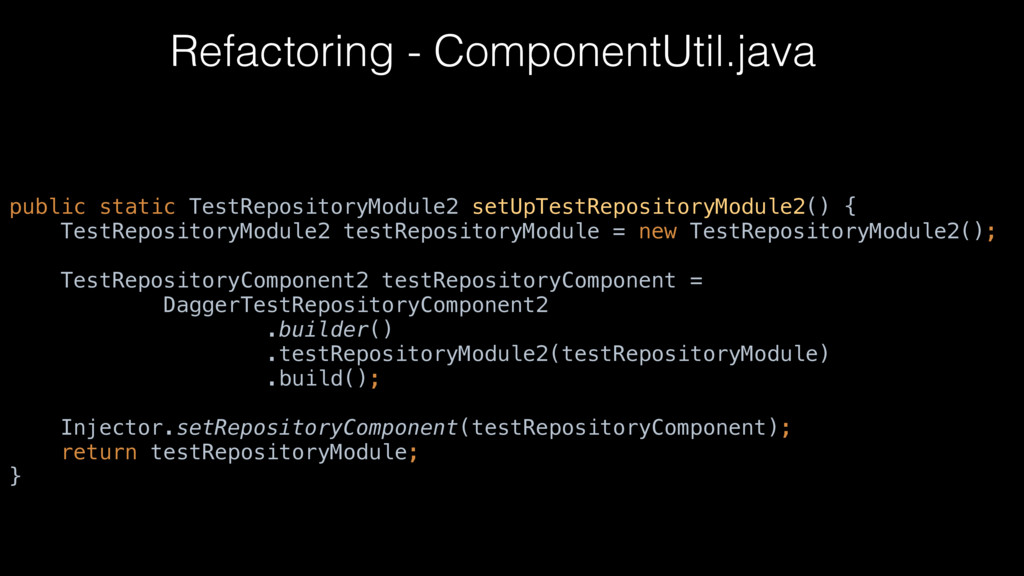

47. Refactoring - ComponentUtil.java public static TestRepositoryModule2 setUpTestRepositoryModule2() {
 TestRepositoryModule2 testRepositoryModule = new TestRepositoryModule2();

 TestRepositoryComponent2 testRepositoryComponent =
 DaggerTestRepositoryComponent2
 .builder()
 .testRepositoryModule2(testRepositoryModule)
 .build();

 Injector.setRepositoryComponent(testRepositoryComponent);
 return testRepositoryModule;
 }

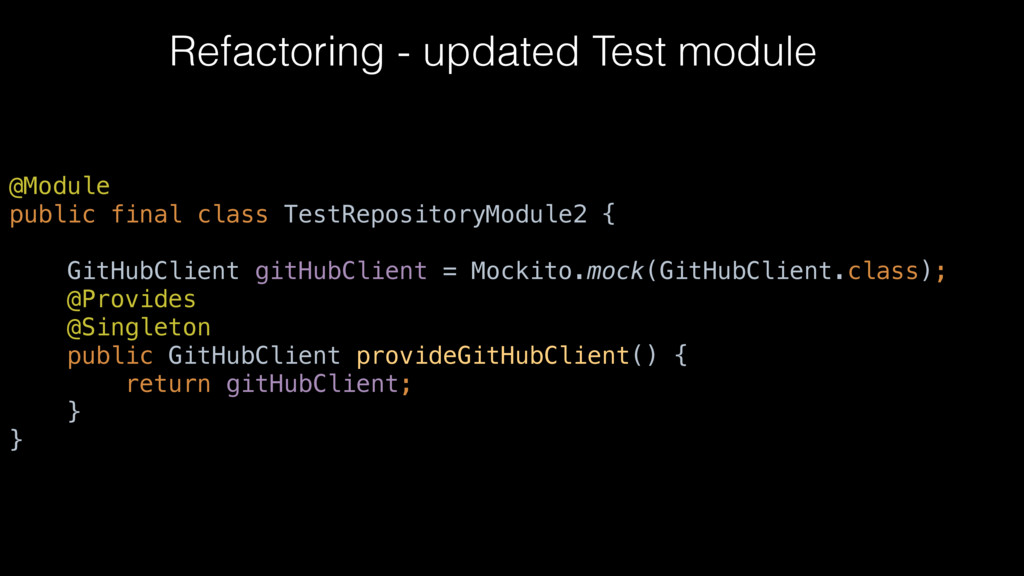

48. Refactoring - updated Test module @Module
 public final class TestRepositoryModule2 {

 GitHubClient gitHubClient = Mockito.mock(GitHubClient.class);
 @Provides
 @Singleton
 public GitHubClient provideGitHubClient() {
 return gitHubClient;
 }
 }

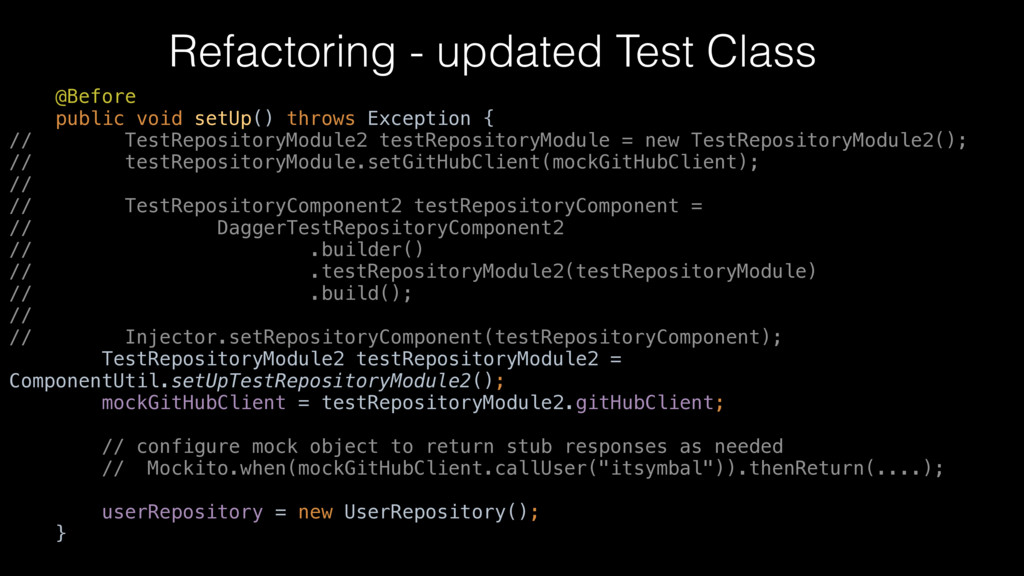

49. Refactoring - updated Test Class @Before
 public void setUp() throws Exception {
 // TestRepositoryModule2 testRepositoryModule = new TestRepositoryModule2();
 // testRepositoryModule.setGitHubClient(mockGitHubClient);
 //
 // TestRepositoryComponent2 testRepositoryComponent =
 // DaggerTestRepositoryComponent2
 // .builder()
 // .testRepositoryModule2(testRepositoryModule)
 // .build();
 //
 // Injector.setRepositoryComponent(testRepositoryComponent);
 TestRepositoryModule2 testRepositoryModule2 = ComponentUtil.setUpTestRepositoryModule2();
 mockGitHubClient = testRepositoryModule2.gitHubClient;

 // configure mock object to return stub responses as needed
 // Mockito.when(mockGitHubClient.callUser("itsymbal")).thenReturn(....);

 userRepository = new UserRepository();
 }
50. Dagger 2 Benefit 4 Easy test setup with minimal boilerplate
51. Scope and lifecycle management

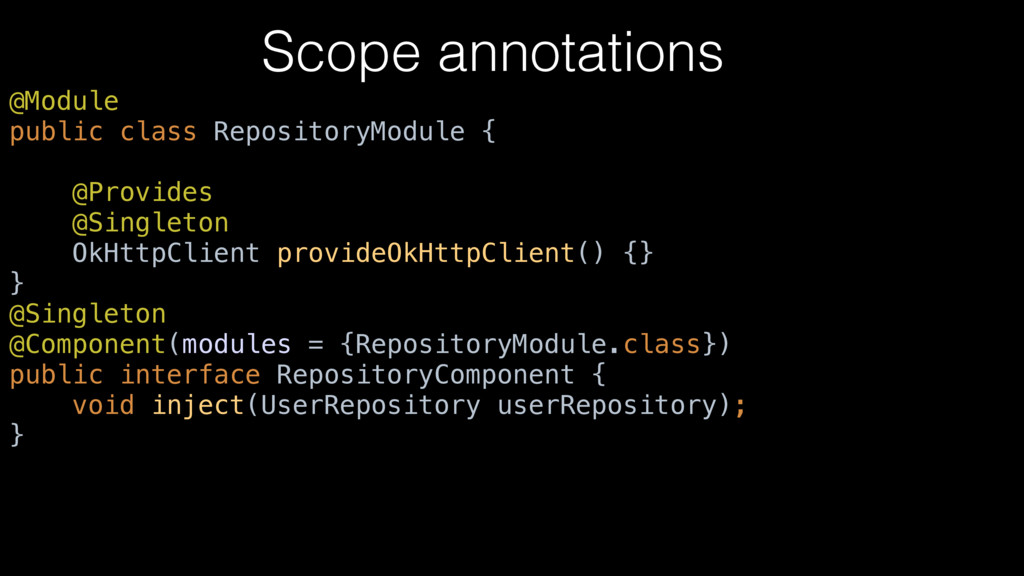

52. Scope annotations @Module
 public class RepositoryModule {

 @Provides
 @Singleton
 OkHttpClient provideOkHttpClient() {} } @Singleton
 @Component(modules = {RepositoryModule.class})
 public interface RepositoryComponent {
 void inject(UserRepository userRepository);
 }

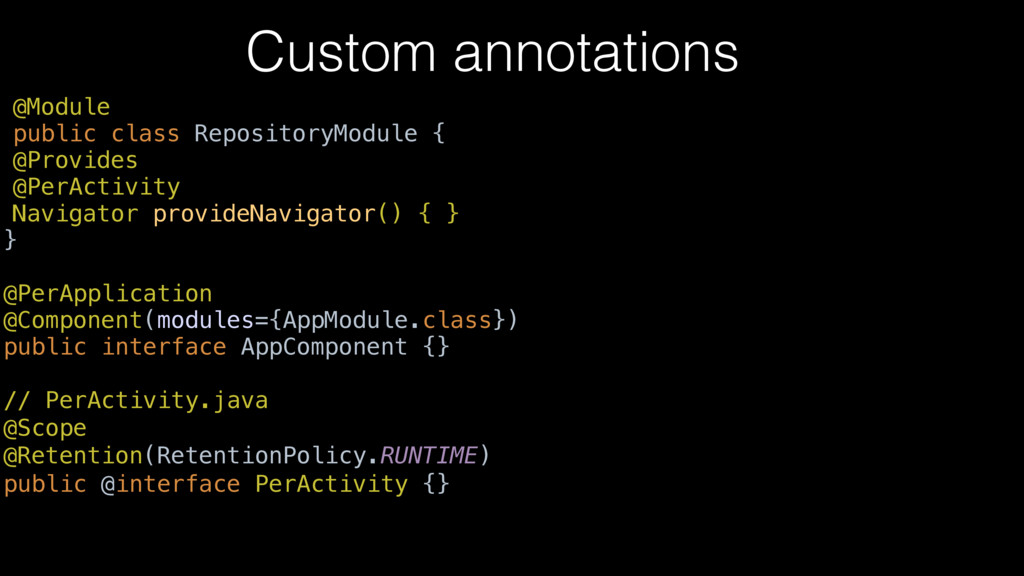

53. Custom annotations @Module
 public class RepositoryModule {
 @Provides
 @PerActivity
 Navigator provideNavigator() { } } @PerApplication
 @Component(modules={AppModule.class})
 public interface AppComponent {} // PerActivity.java @Scope
 @Retention(RetentionPolicy.RUNTIME)
 public @interface PerActivity {}

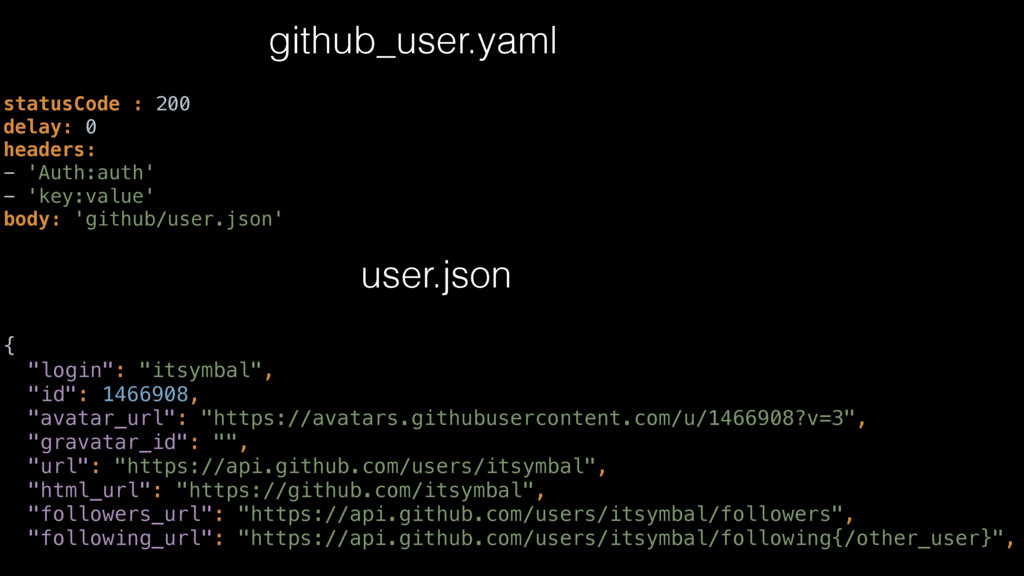

54. Bonus - MockWebServer

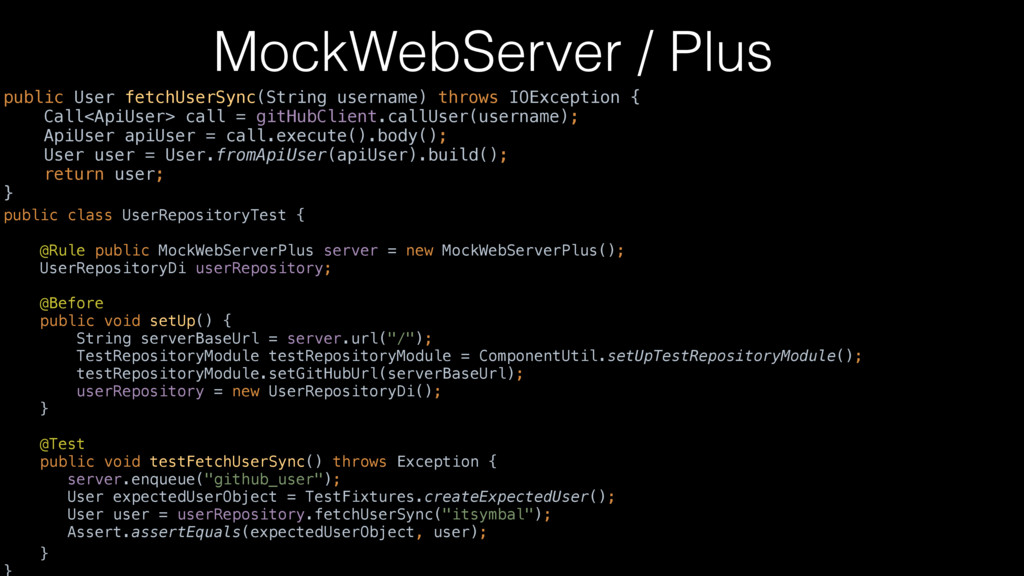

55. MockWebServer / Plus public class UserRepositoryTest {

 @Rule public MockWebServerPlus server = new MockWebServerPlus();
 UserRepositoryDi userRepository;

 @Before
 public void setUp() {
 String serverBaseUrl = server.url("/");
 TestRepositoryModule testRepositoryModule = ComponentUtil.setUpTestRepositoryModule();
 testRepositoryModule.setGitHubUrl(serverBaseUrl);
 userRepository = new UserRepositoryDi();
 }

 @Test
 public void testFetchUserSync() throws Exception {

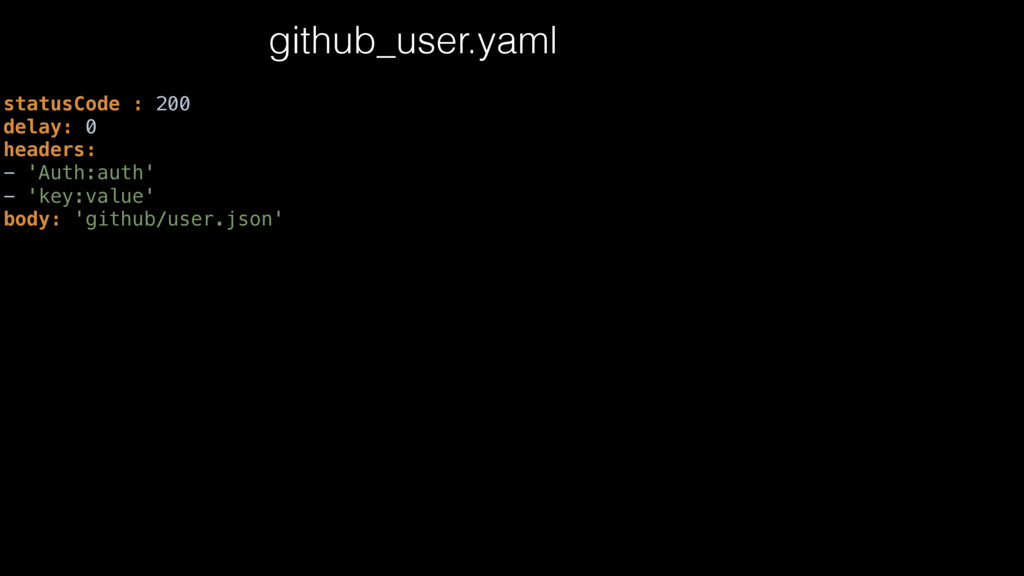

 server.enqueue("github_user");
 User expectedUserObject = TestFixtures.createExpectedUser();
 User user = userRepository.fetchUserSync("itsymbal");
 Assert.assertEquals(expectedUserObject, user); }
 public User fetchUserSync(String username) throws IOException {
 Call<ApiUser> call = gitHubClient.callUser(username);
 ApiUser apiUser = call.execute().body();
 User user = User.fromApiUser(apiUser).build();
 return user;
 }
56. github_user.yaml statusCode : 200
 delay: 0
 headers:
 - 'Auth:auth'
 - 'key:value'
 body: 'github/user.json' user.json {
 "login": "itsymbal",
 "id": 1466908,
 "avatar_url": "https://avatars.githubusercontent.com/u/1466908?v=3",
 "gravatar_id": "",
 "url": "https://api.github.com/users/itsymbal",
 "html_url": "https://github.com/itsymbal",
 "followers_url": "https://api.github.com/users/itsymbal/followers",
 "following_url": "https://api.github.com/users/itsymbal/following{/other_user}",
57. github_user.yaml statusCode : 200
 delay: 0
 headers:
 - 'Auth:auth'
 - 'key:value'
 body: 'github/user.json'

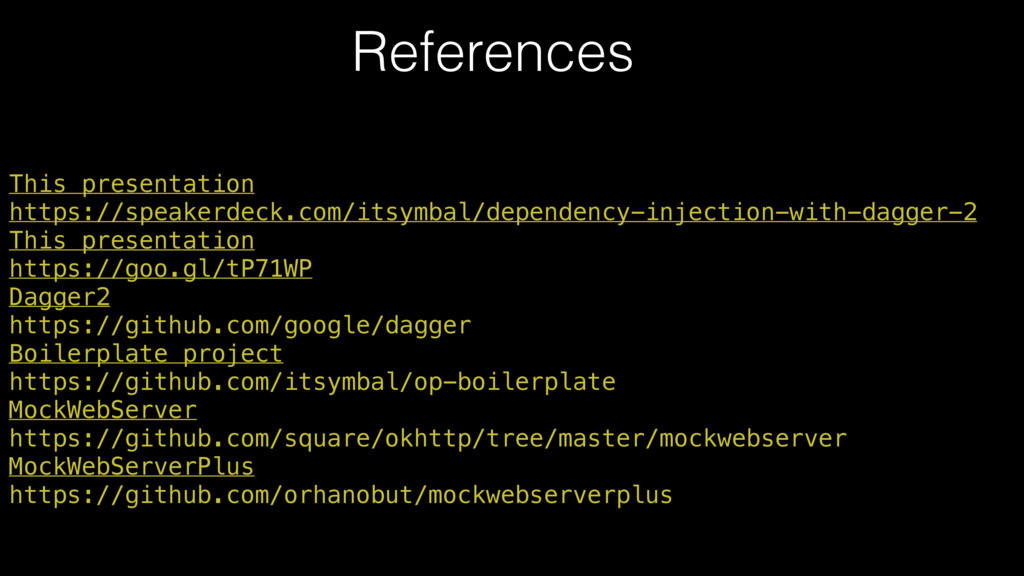

58. References This presentation https://speakerdeck.com/itsymbal/dependency-injection-with-dagger-2 This presentation https://goo.gl/tP71WP Dagger2 https://github.com/google/dagger Boilerplate project https://github.com/itsymbal/op-boilerplate MockWebServer https://github.com/square/okhttp/tree/master/mockwebserver MockWebServerPlus https://github.com/orhanobut/mockwebserverplus
59. This presentation
