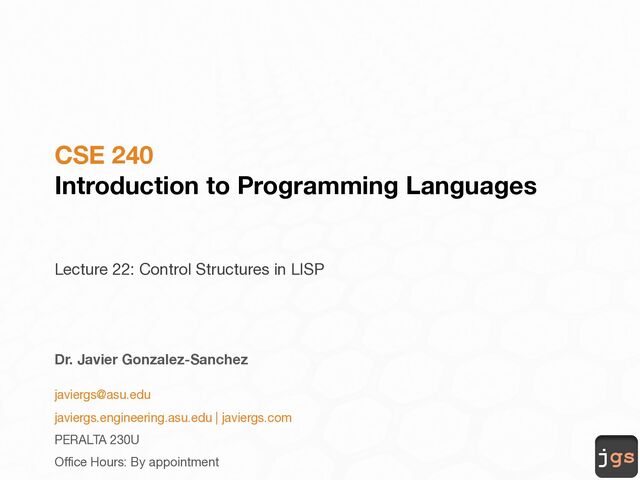

  1. jgs
    CSE 240
    Introduction to Programming Languages
    Lecture 22: Control Structures in LISP
    Dr. Javier Gonzalez-Sanchez
    [email protected]
    javiergs.engineering.asu.edu | javiergs.com
    PERALTA 230U
    Office Hours: By appointment

    View Slide

  2. jgs
    Previously …

    View Slide

  3. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 3
    jgs
    Control Structures
    § (if (<= 3 2) (* 3 9) (+ 4 2 3))
    ; if (3<=2) {return 3*9;} else {return 4+2+3;}
    9
    § (if (> 2 3) 9)
    ; if (2>3) {return 9;} else {return nil}
    NIL
    § (if (= 2 2) (if (> 3 2) 4 6) 9)
    4
    § (+ 4 (if (= 2 2) (* 9 2) 7) )
    22

    View Slide

  4. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 4
    jgs
    Control Structures
    § if only allows one test-expression, one then-expression, and one optional-
    else-expression.
    § To do more things in the then-expression we need to make a block. Blocks
    are made with the special form progn, which takes the form:
    (progn expr1 expr2 expr3 ...)
    • (if (> 3 2)
    (progn (print "hello")
    (print "yo")
    (print "whassup?")
    (+ 2 2))
    (+ 1 2 3))
    "hello"
    "yo"
    "whatsup?"
    4

    View Slide

  5. jgs
    Loops

    View Slide

  6. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 6
    jgs
    Loop (dotimes)
    dotimes is an iterator with this format
    (dotimes (var high-val optional-return-val)
    expr1
    expr2
    …)
    • (dotimes (x 4) (print "hello"))
    "hello"
    "hello"
    "hello"
    "hello"
    NIL
    • (dotimes (x 4 100) (print "hello"))
    "hello"
    "hello"
    "hello"
    "hello"
    100

    View Slide

  7. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 7
    jgs
    Loop (dotimes)
    dotimes is an iterator with this format
    (dotimes (var high-val optional-return-val)
    expr1
    expr2
    …) • (setf bag 2)
    2
    • (dotimes (x 3) (setf bag (* bag bag)))
    NIL
    • (print bag)
    256

    View Slide

  8. jgs
    Variables

    View Slide

  9. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 9
    jgs
    Global Variables
    § Variables are set with the macro setf.
    • (setf x (* 3 2))
    6
    • x
    6
    • (setf y (+ x 3))
    9

    View Slide

  10. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 10
    jgs
    Local Variables
    § let declares local variables with each declaration. Then it evaluates the
    expressions in order (as a block).
    § let returns the value of the last expression.
    • (setf x 4)
    (let ((x 3)) ; x declared local
    (print x)
    (setf x 9) ; change the value of x
    (print x)
    (+ x x) ;this is the returned value
    )
    3
    9
    18
    • x ;outside the let, we're back to global again
    4

    View Slide

  11. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 11
    jgs
    Nested Variable Scope
    § (let ((x 3) (y (+ 4 9))) (* x y))
    39
    § (let ((x 3))
    (print x)
    (let (x)
    (print x)
    (let ((x "hello"))
    (print x))
    (print x))
    (print x)
    (print ”end"))
    3
    NIL
    "hello"
    NIL
    3
    "end"
    "end"

    View Slide

  12. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 12
    jgs
    Questions

    View Slide

  13. jgs
    CSE 240 Introduction to Programming Languages
    Javier Gonzalez-Sanchez, Ph.D.
    [email protected]
    Fall 2021
    Copyright. These slides can only be used as study material for the class CSE240 at Arizona State University.
    They cannot be distributed or used for another purpose.
