CSE564 Lecture 09

Software Design
Design Patterns: Observer
(202102)

Transcript

1. jgs

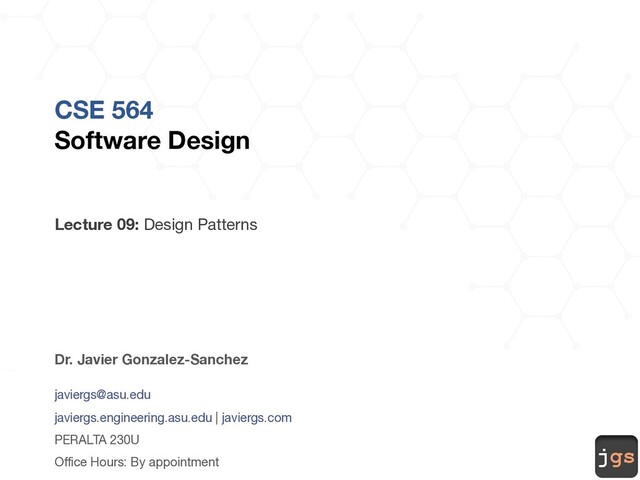

   CSE 564
   Software Design
   Lecture 09: Design Patterns
   Dr. Javier Gonzalez-Sanchez
   javiergs@asu.edu
   javiergs.engineering.asu.edu | javiergs.com
   PERALTA 230U
   Office Hours: By appointment


   View Slide

2. jgs
   564 00001000
   Homework
   Read:
   § Design Patterns: Abstraction and Reuse of Object-Oriented Design
   Gamma, Helm, Johnson, Vlissides
   § European Conference on Object-Oriented Programming
   October 1993
   § This will become:


   View Slide

3. jgs
   Previously
   Object-Oriented Design and Programming


   View Slide

4. jgs
   564 00001000
   Design Principles
   There are five key design principles to consider in Object-Oriented:
   § Single Responsibility Principle (SRP)
   § Open-Closed Principle (OCP)
   § Liskov Substitution Principle (LSP)
   § Interface Segregation Principle (ISP)
   § Dependency Inversion Principle (DIP)


   View Slide

5. jgs
   564 00001000
   DIP Example
   What about ISP?


   View Slide

6. jgs
   Patterns
   Software Design


   View Slide

7. jgs
   564 00001000
   Not Everything that Can be … Should be …


   View Slide

8. jgs
   564 00001000
   Definition
   § Design patterns are solutions to software design problems you find again
   and again in real-world application development.
   § Patterns are about reusable designs and interactions between objects.
   § The 23 Gang of Four (GoF) patterns are generally considered the
   foundation for all other patterns (Gamma, Helm, Johnson, and Vlissides).


   View Slide

9. jgs
   564 00001000
   Timeline
   1989 Beck
   OO Thinking
   Architecture
   1993 Gamma et al.
   GoF Patterns
   1994


   View Slide

10. jgs
    564 00001000
    GoF Patterns


    View Slide

11. jgs
    564 00001000
    GoF Patterns


    View Slide

12. jgs
    Observer
    Software Design


    View Slide

13. jgs
    564 00001000
    Observer


    View Slide

14. jgs
    564 00001000
    Observer


    View Slide

15. jgs
    564 00001000
    Observer


    View Slide

16. jgs
    564 00001000
    Subject
    import java.util.LinkedList;
    public abstract class Subject {
    private LinkedList observers = new LinkedList();
    public void addObserver(Observer observer) {
    observers.add(observer);
    }
    public void removeObserver(Observer observer) {
    observers.remove(observer);
    }
    public void notifying() {
    for (Observer ob : observers) {
    ob.update(this);
    }
    }
    }


    View Slide

17. jgs
    564 00001000
    Observer
    public abstract class Observer {
    public abstract void update(Subject s);
    }


    View Slide

18. jgs
    564 00001000
    ConcreteSubject
    class ConcreteSubject extends Subject {
    private String data;
    public String getData() {
    return data;
    }
    public void setData(String s) {
    data = s;
    notifying();
    }
    }


    View Slide

19. jgs
    564 00001000
    ConcreteObserver
    class ConcreteObserver extends Observer {
    @Override
    public void update(Subject s) {
    String info = ((ConcreteSubject)s).getData();
    System.out.println("Subject is doing this: "+info);
    }
    }


    View Slide

20. jgs
    564 00001000
    Main
    public class Main {
    public static void main(String[]a) {
    // Configure pattern
    ConcreteSubject s = new ConcreteSubject();
    ConcreteObserver eyeOne = new ConcreteObserver();
    ConcreteObserver eyeTwo = new ConcreteObserver();
    s.addObserver(eyeOne);
    s.addObserver(eyeTwo);
    // Change subject
    s.setData("ABC");
    s.setData("XYZ");
    }
    }


    View Slide

21. jgs
    564 00001000
    Main
    public class Main {
    public static void main(String[]a) {
    // Configure pattern
    ConcreteSubject s = new ConcreteSubject();
    ConcreteObserver eyeOne = new ConcreteObserver();
    ConcreteObserver eyeTwo = new ConcreteObserver();
    s.addObserver(eyeOne);
    s.addObserver(eyeTwo);
    // Change subject
    s.setData("ABC");
    s.setData("XYZ");
    }
    }


    View Slide

22. jgs
    564 00001000
    Observer


    View Slide

23. jgs
    564 00001000
    Questions about Observer


    View Slide
