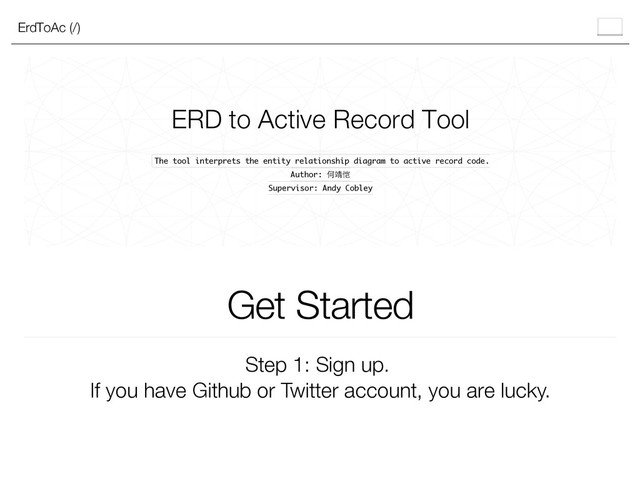

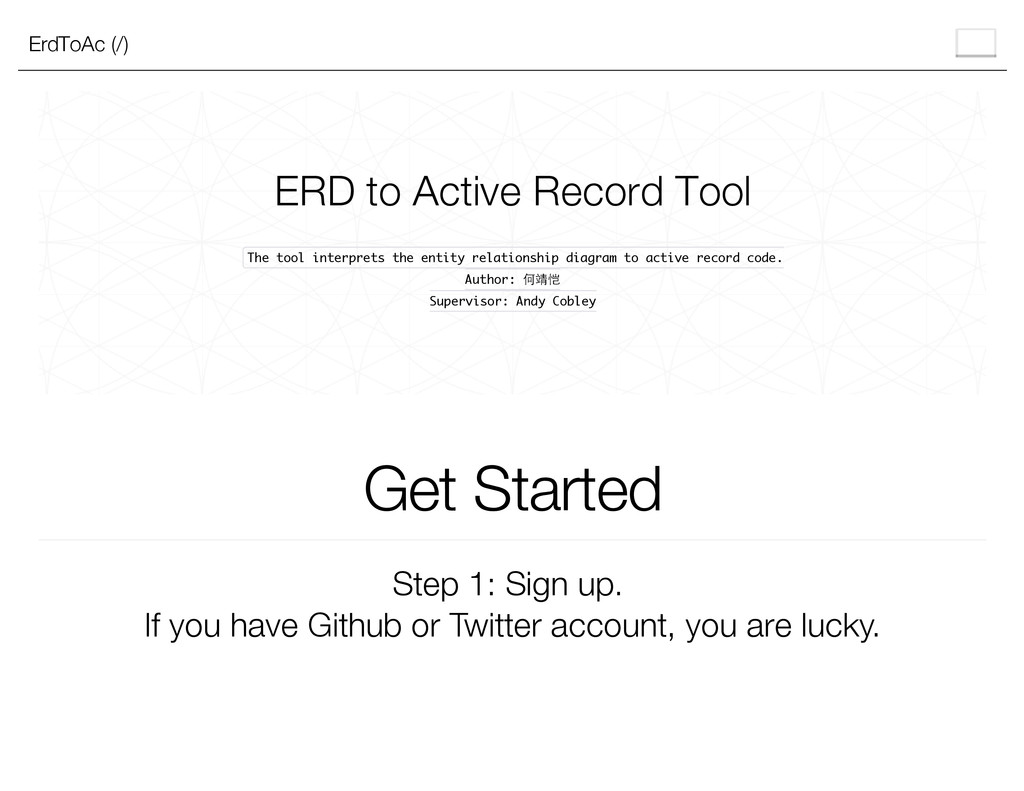

1. ErdToAc (/) Get Started Step 1: Sign up. If you have Github or Twitter account, you are lucky. ERD to Active Record Tool T h e t o o l i n t e r p r e t s t h e e n t i t y r e l a t i o n s h i p d i a g r a m t o a c t i v e r e c o r d c o d e . A u t h o r : 何靖恺 S u p e r v i s o r : A n d y C o b l e y

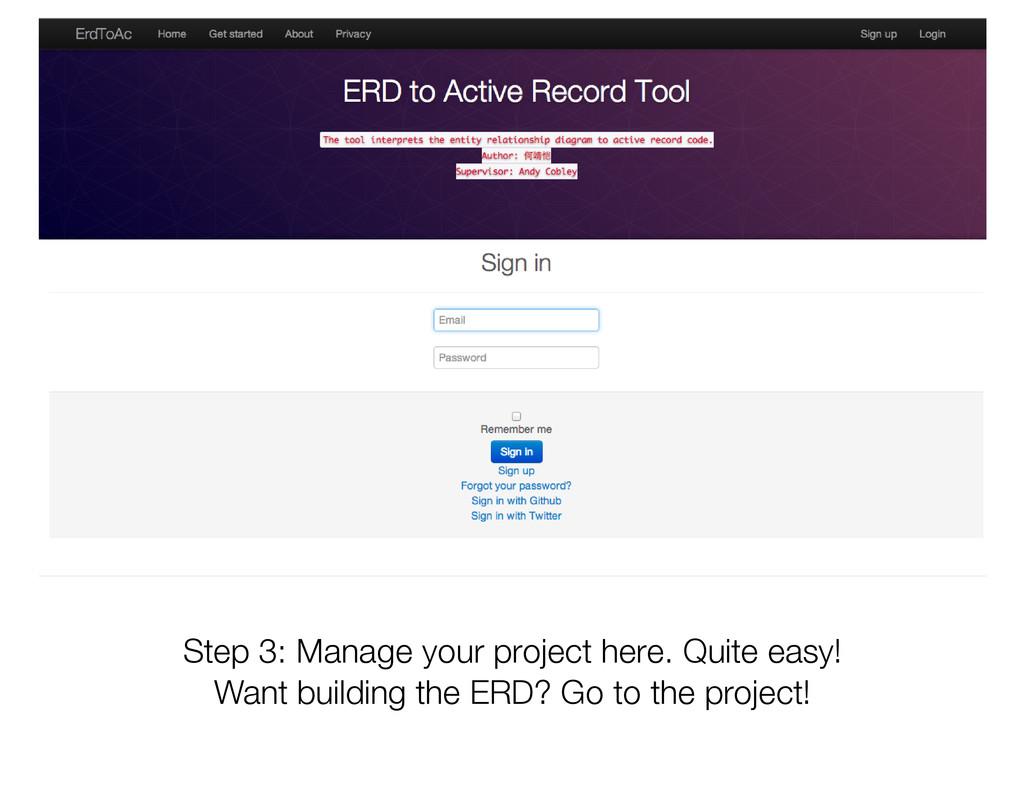

2. Step 2: Sign in. Use normal account or third party authentication.

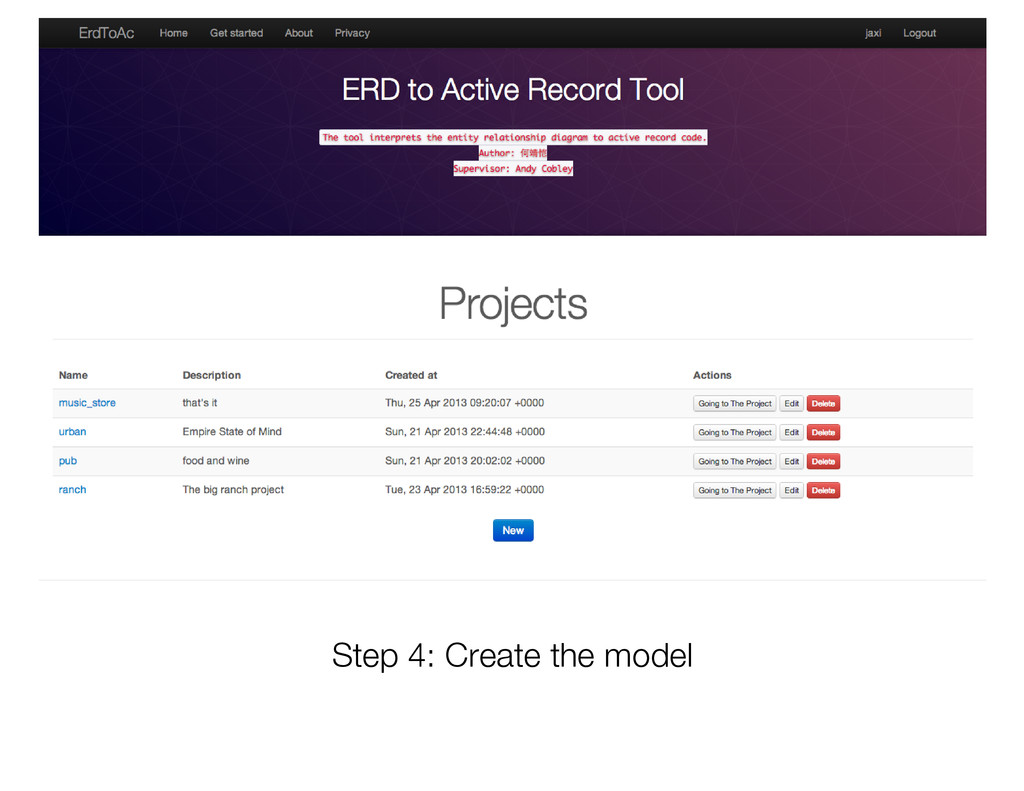

3. Step 3: Manage your project here. Quite easy! Want building the ERD? Go to the project!

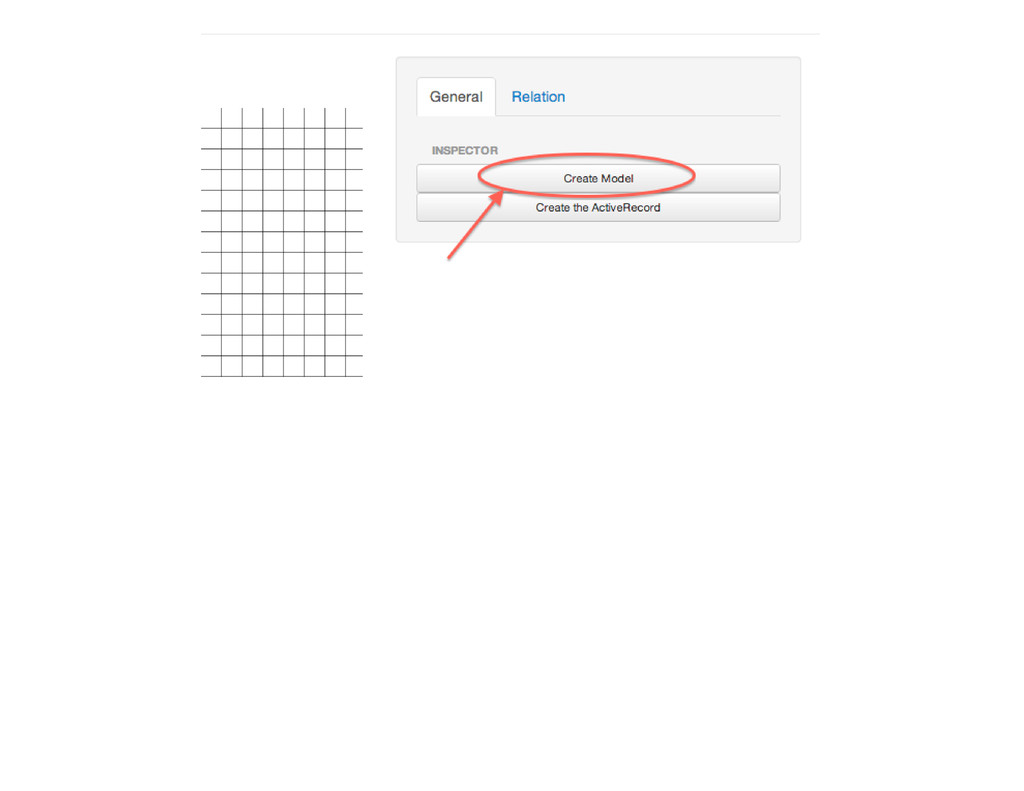

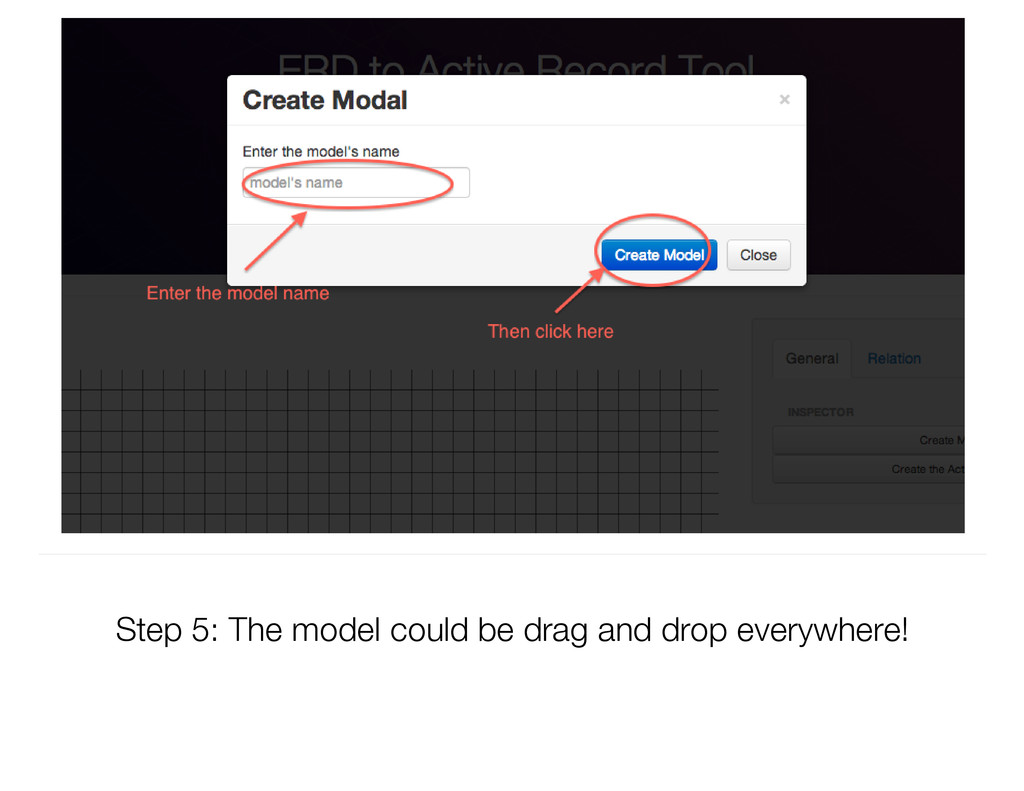

4. Step 4: Create the model
6. Step 5: The model could be drag and drop everywhere!

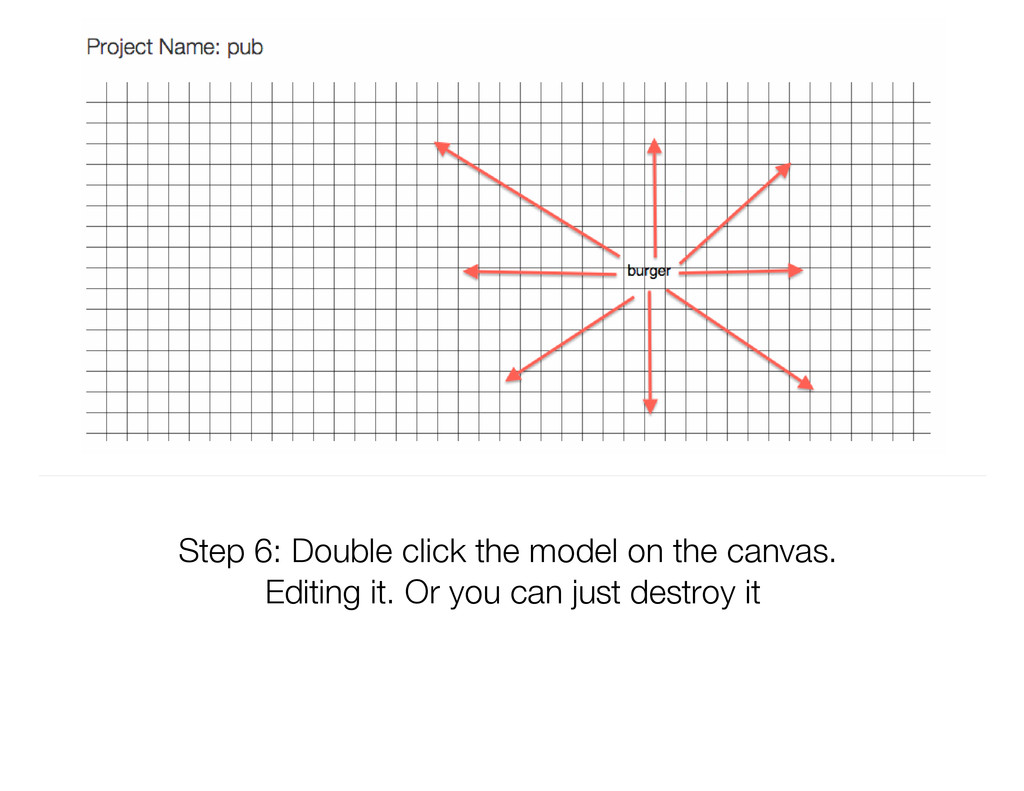

7. Step 6: Double click the model on the canvas. Editing it. Or you can just destroy it

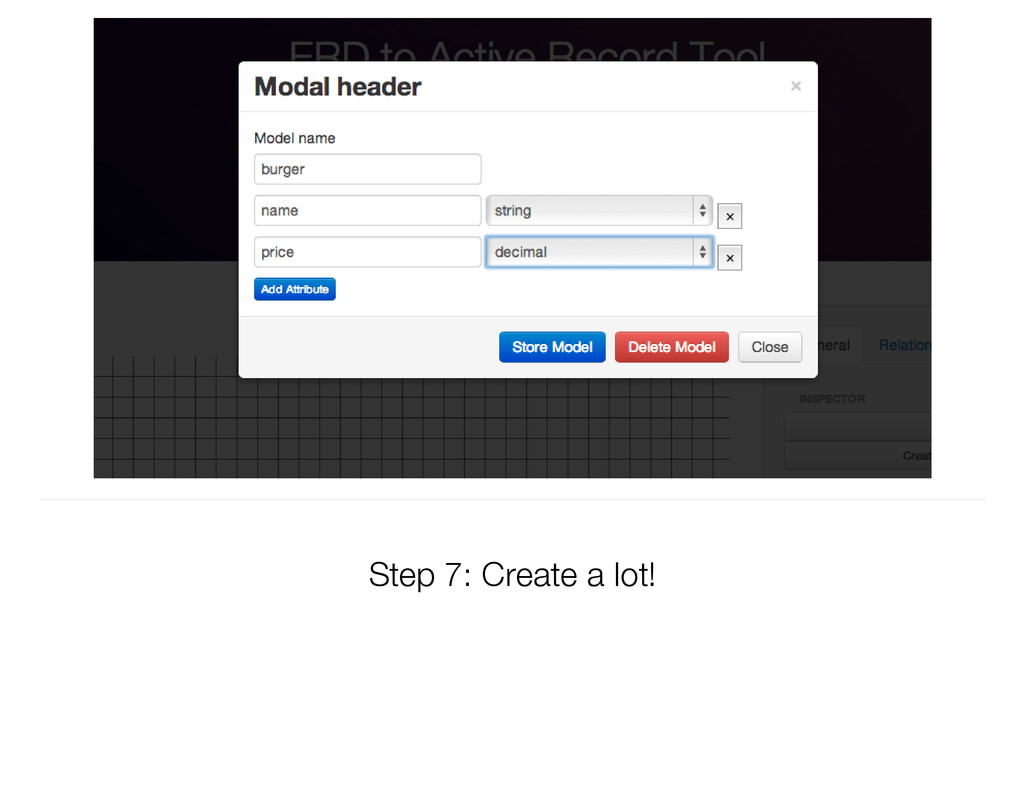

8. Step 7: Create a lot!

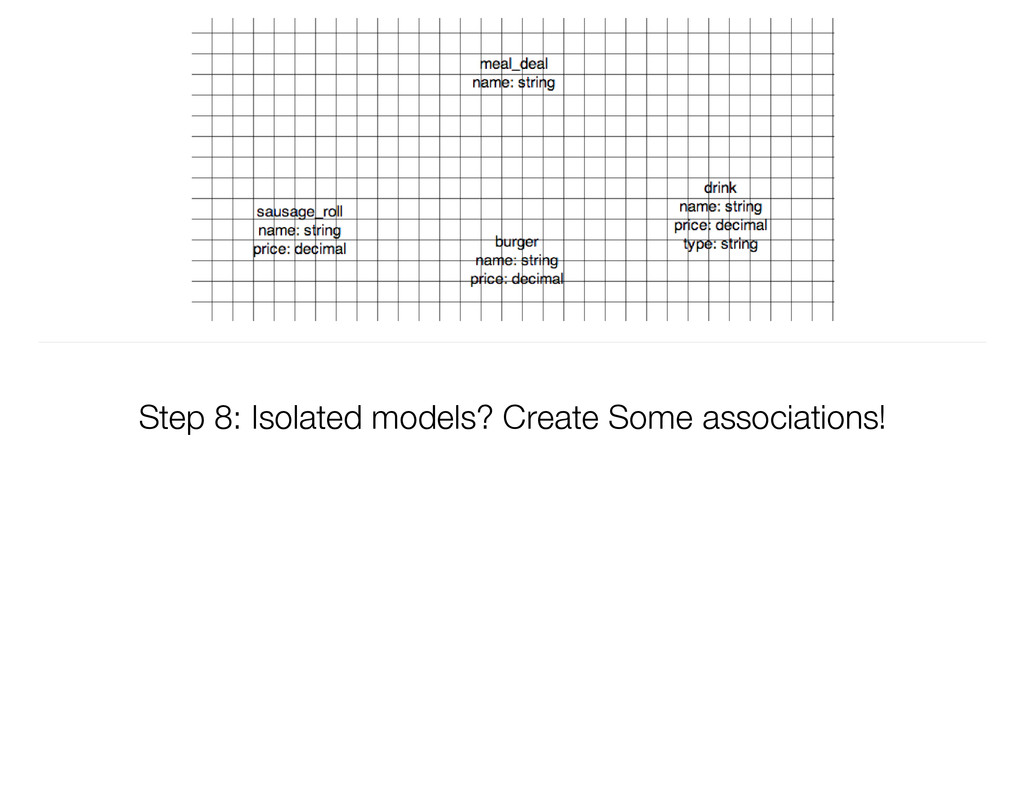

9. Step 8: Isolated models? Create Some associations!

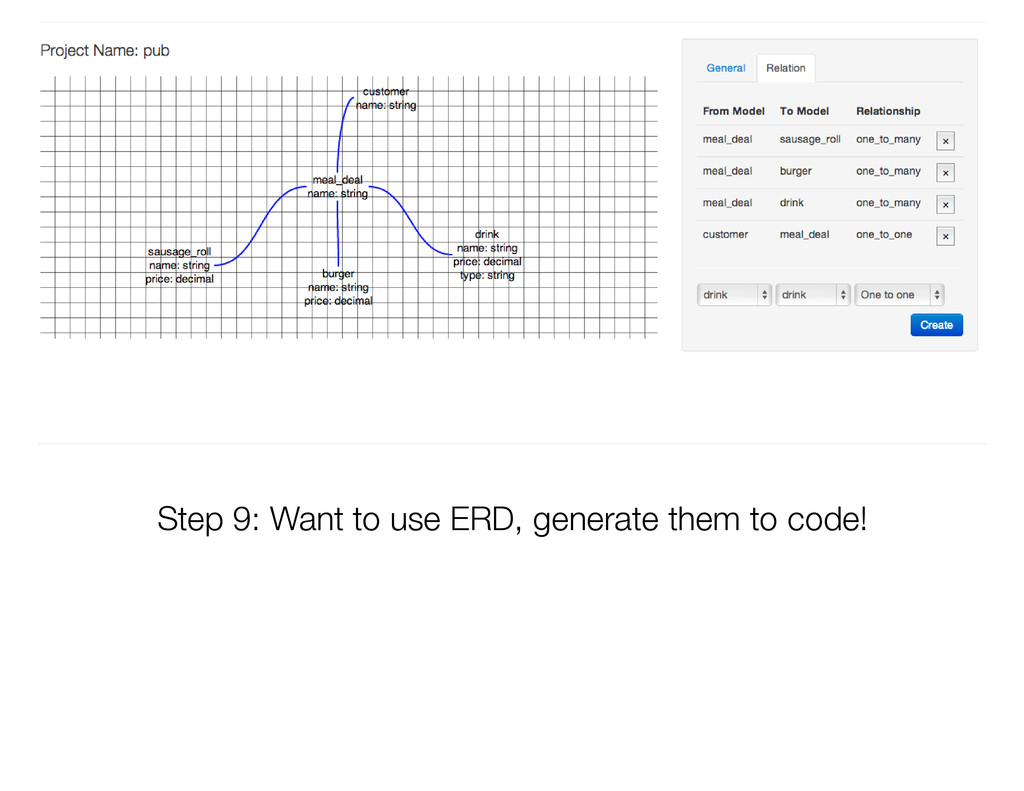

10. Step 9: Want to use ERD, generate them to code!

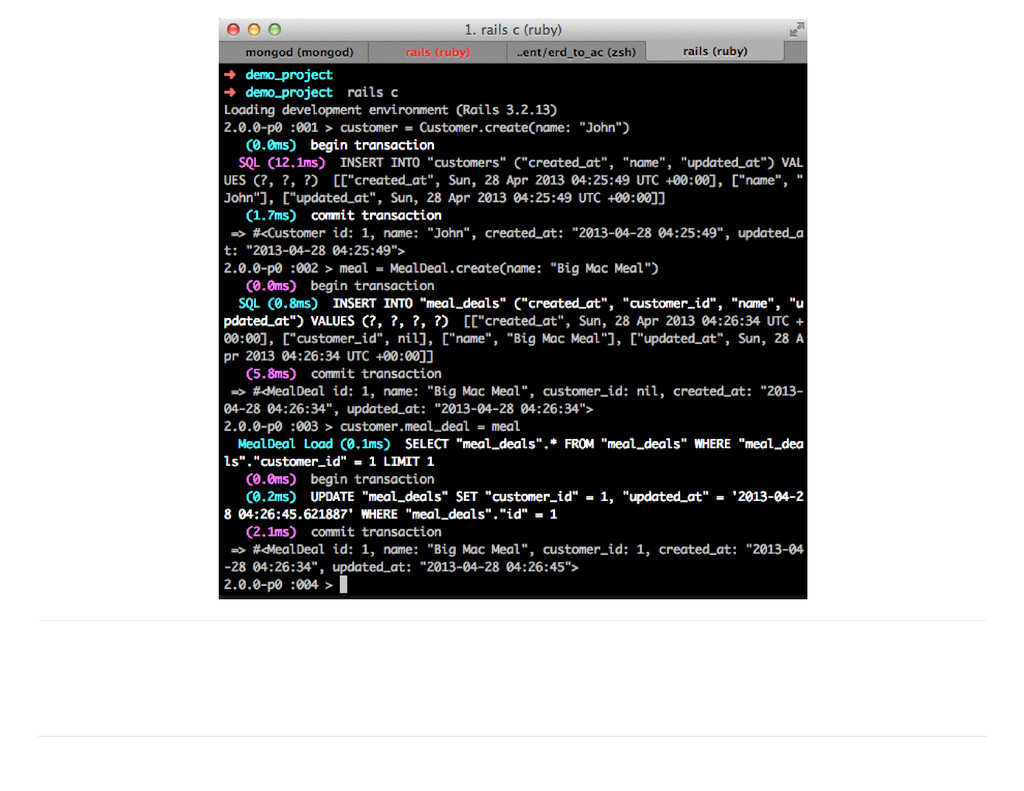

11. Step 10: Wondering how to use those code? Open your termianl, go to the directory of the downloaded .zip file. Follow instrucsions below: - > u n z i p f i l e n a m e . z i p & & b a s h s c r i p t . s h - > c d d e m o _ p r o j e c t & & r a k e d b : m i g r a t e Step 11: Just enjoy the show!
13. © Jingkai He (http://jaxihjk.me) 2013
