Android Testing: GCTL

Android Testing: GCTL

High Level talk about testing effectively in Android, how best to architect your code for it, and how to make use of Google Cloud Test Labs.


John Shelley

January 12, 2016


  1. Android Testing Testing and Google Cloud Test Lab

  2. John Shelley Android Developer @ Hudl Video Playback Squad twitter:

  3. twitter: @HudlEngineering

  4. Testing Architecture Google Cloud Test Lab

  5. Why do we need Tests? • Catch more mistakes in

    your code • Confidently make more changes and refactors • Leverage regression testing when adding new features • Make our users happy • Why not?
  6. What types of tests are there?

  7. ‘/test’ vs ‘/androidTest’

  8. /test vs /androidTest • Location of local tests • JUnit4

    • Runs on the JVM • Try not to use the Android Framework • Fast! • Location of Instrumentation tests • Espresso • Runs on a device, emulator, or cloud • Uses the Android Framework! • Consider a “mock” flavor so you don’t hit your API every time. DIP • Watch out for Idling Resources • Slowish… (Turn off hardware animations to speed things up)
  9. None
  10. None
  11. Architecture

  12. MVP • The model provides and stores the internal data.

    • The view handles the display of data (ie. the model). User actions are forwarded to the presenter. • The presenter sits between the model and view; it coordinates the UI with the data, ensuring they are in sync.
  13. MVP

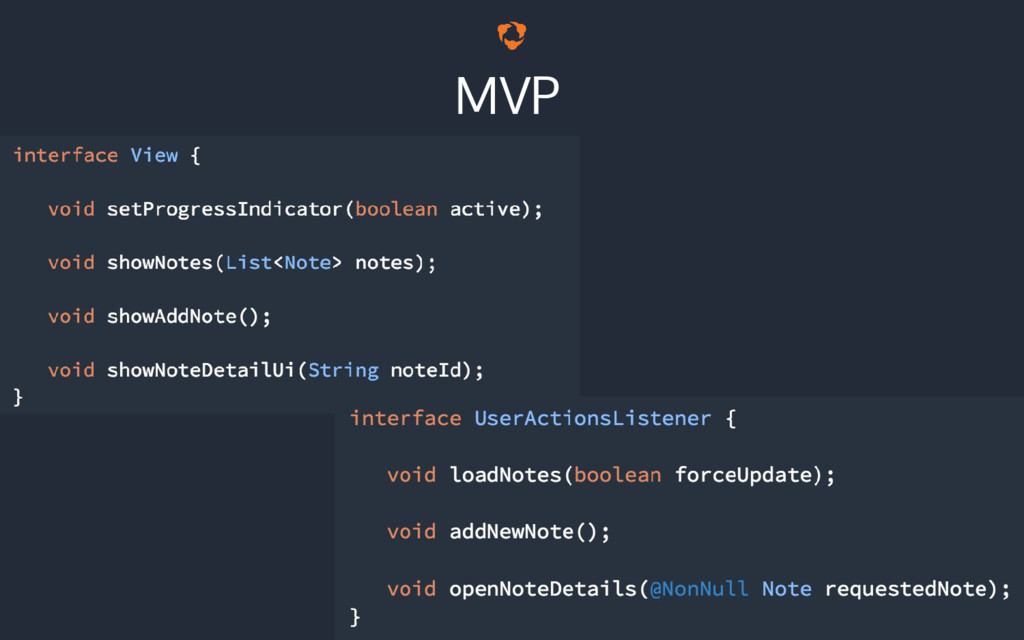

  14. MVP

  15. MVP

  16. Cloud Test Lab

  17. Overview • Cloud-based infrastructure for testing Android apps • Wide

    variety of devices and device configurations • Logs, videos, and screenshots • Exercise your app automatically, looking for crashes • Web, Android Studio, Command Line (“gcloud” CLI)
  18. Setup • Android Studio 1.4+ • Join the Google Group:

    https://groups.google.com/forum/#!forum/omaha-android- dev-meetup-01-16 • Get the sample code: git clone https://github.com/googlesamples/android-testing.git
  19. Setup -2 • Navigate to the BasicSample project main directory

    • In the BasicSample project main directory, run the following commands to build the app binaries and tests • The binaries are now available at: “$ ls app/build/outputs/apk/ • The app binary is called: app-debug-unaligned.apk • The test binary is called: app-debug-androidTest-unaligned.apk
  20. Run your test - web • Navigate to the Cloud

    Test Lab URL to run your first test: https://console. developers.google.com/testlab/mobile/run?project=omaha-android-dev-meetup • Run an Instrumentation Test • On the following page, upload your app and the test APKs obtained from the previous step, configure your test matrix, and then start the test
  21. Setup - Studio • Follow the instructions here, to create

    a new studio.vmoptions file (or edit an existing one): http://tools.android.com/tech-docs/configuration • Add the following to the file: -Denable.google.cloud.testing.plugin=true
  22. Import & Run • Select the BasicSample directory from the

    sample code folder. • Install any missing packages and resolve suggested conflicts • Click the Gradle sync button. Resolve all issues.
  23. Import & Run

  24. Import & Run

  25. Import & Run • Under “Cloud device matrix”, you can

    provide a different “Matrix configuration” by clicking on the “more” icon and creating a different configuration. • Click “Apply” and close the window. • Now you can run the test by clicking the Run configuration icon in Android Studio.
  26. What if I don’t have any tests?

  27. Robo Tests • Better version of Android Monkey Runner. •

    Depth First Search traversal of screens. • Navigate to: https://console.developers.google.com/testlab/mobile/run/robo? project=omaha-android-dev-meetup • Upload your App’s APK only, configure the test matrix and start the test
  28. Congratulations! Resources: • https://codelabs.developers.google.com/codelabs/android-testing/index.html • https://codelabs.developers.google.com/codelabs/cloud-test-lab/index.html
