1. Clean Architecture Andrei Lisun

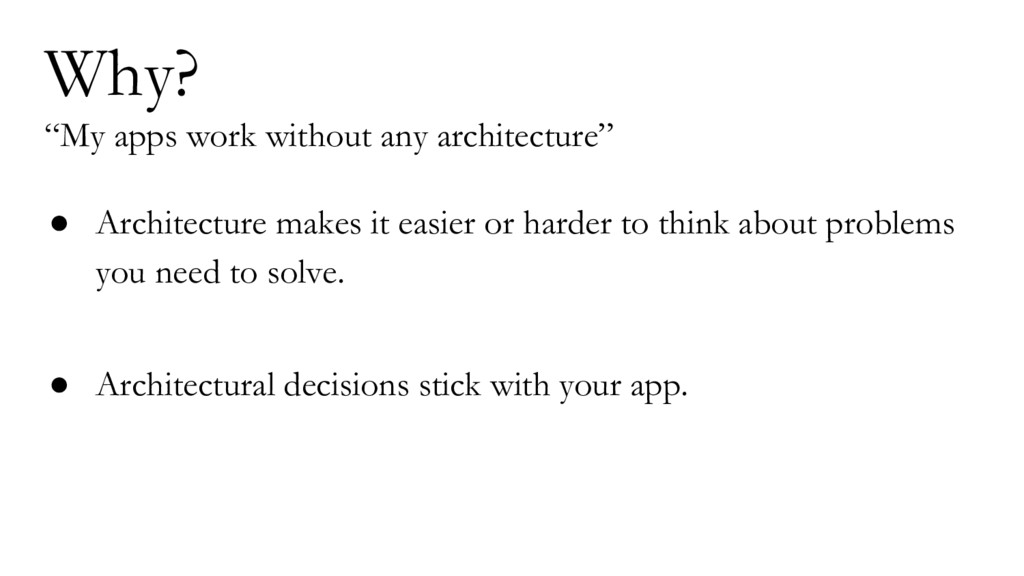

2. Why? “My apps work without any architecture” • Architecture makes it easier or harder to think about problems you need to solve. • Architectural decisions stick with your app.
3. Trends change quickly, but some basic principles are timeless

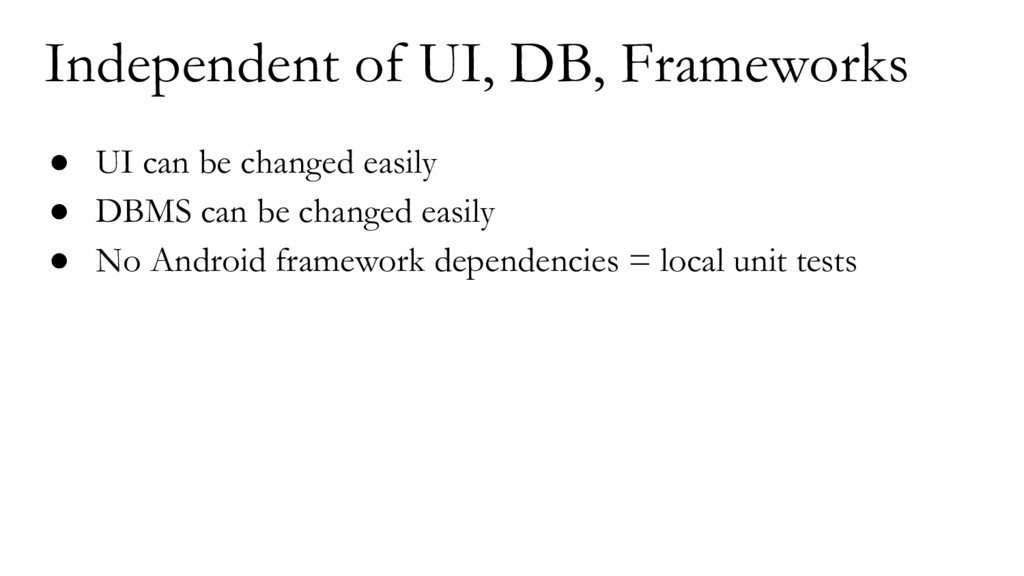

4. • UI can be changed easily • DBMS can be changed easily • No Android framework dependencies = local unit tests Independent of UI, DB, Frameworks

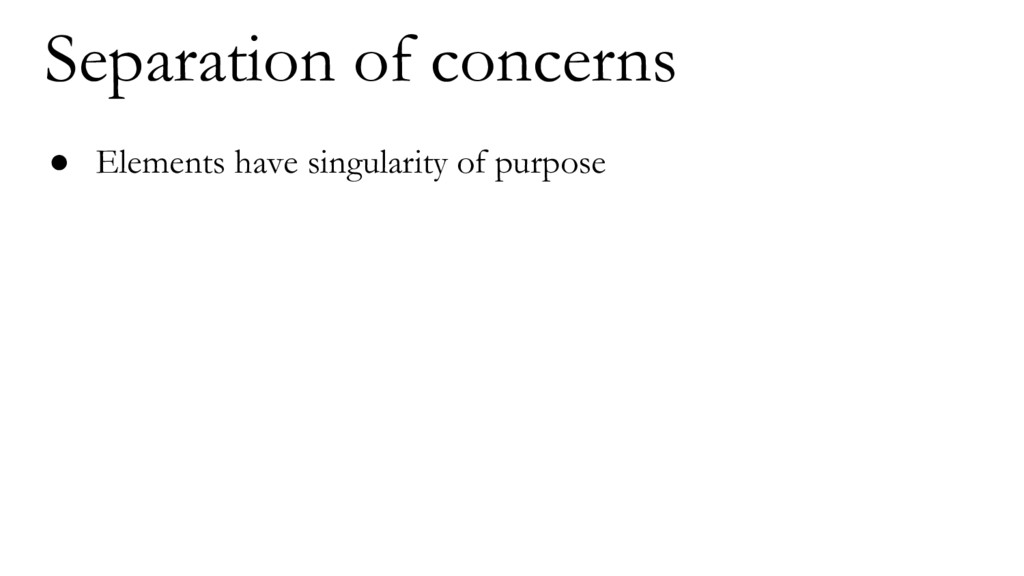

5. • Elements have singularity of purpose Separation of concerns

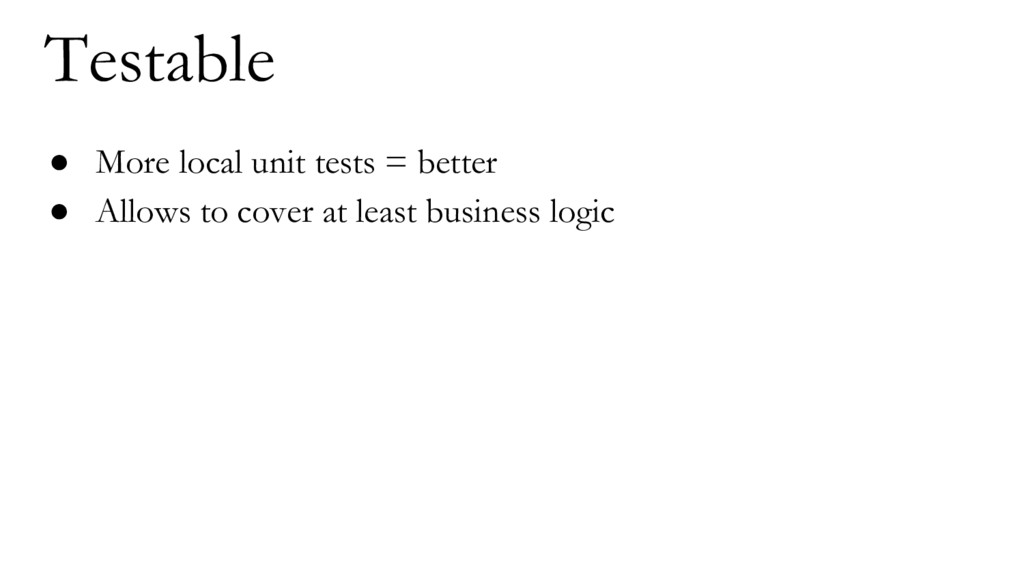

6. • More local unit tests = better • Allows to cover at least business logic Testable
7. • Encourages to write code without repetition DRY
8. Independence SoC Testable DRY
9. Model-View-Presenter

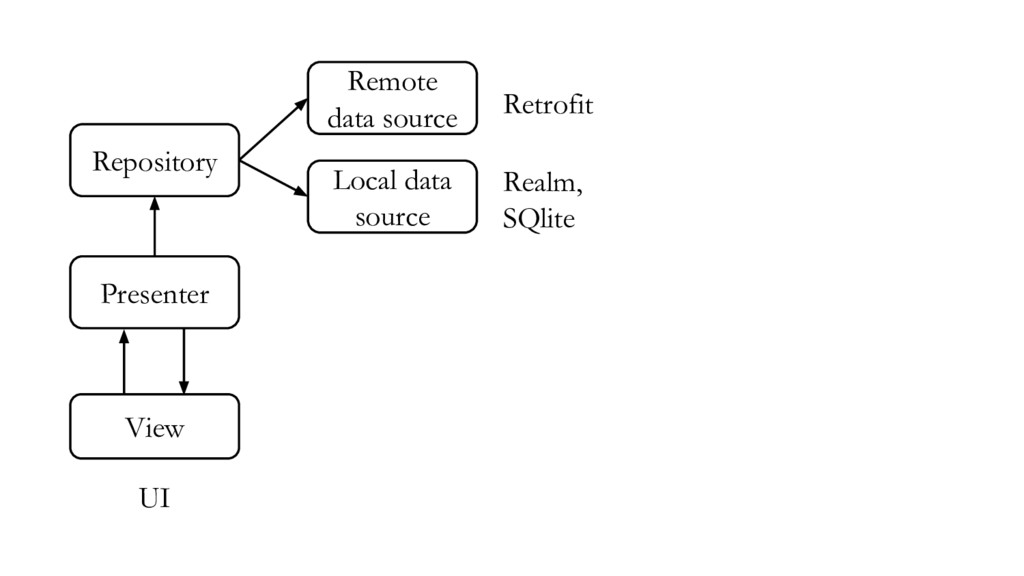

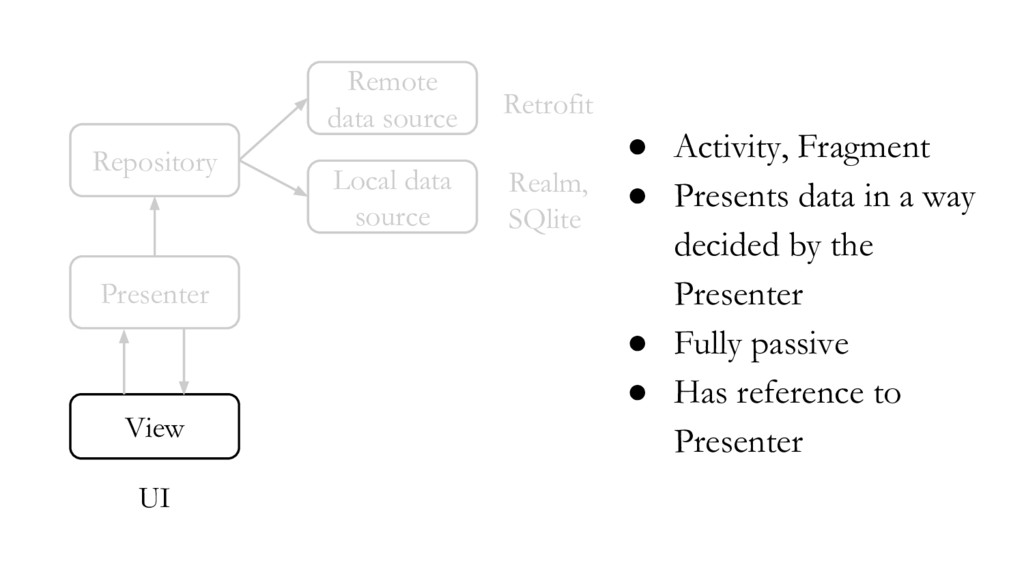

10. View Presenter Repository Remote data source Local data source Realm, SQlite Retrofit UI • Activity, Fragment • Presents data in a way decided by the Presenter • Fully passive • Has reference to Presenter

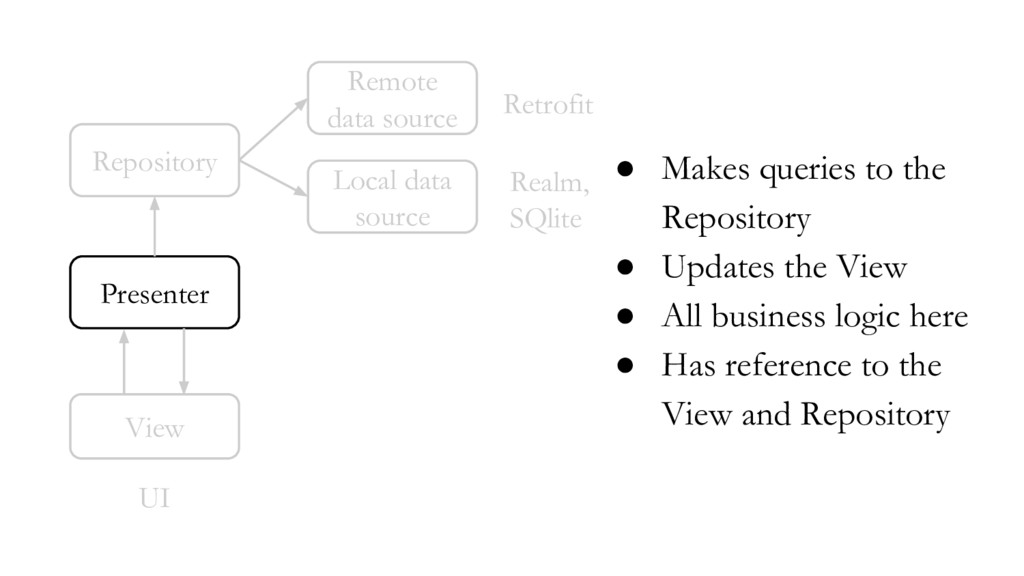

11. View Presenter Repository Remote data source Local data source Realm, SQlite Retrofit UI • Makes queries to the Repository • Updates the View • All business logic here • Has reference to the View and Repository

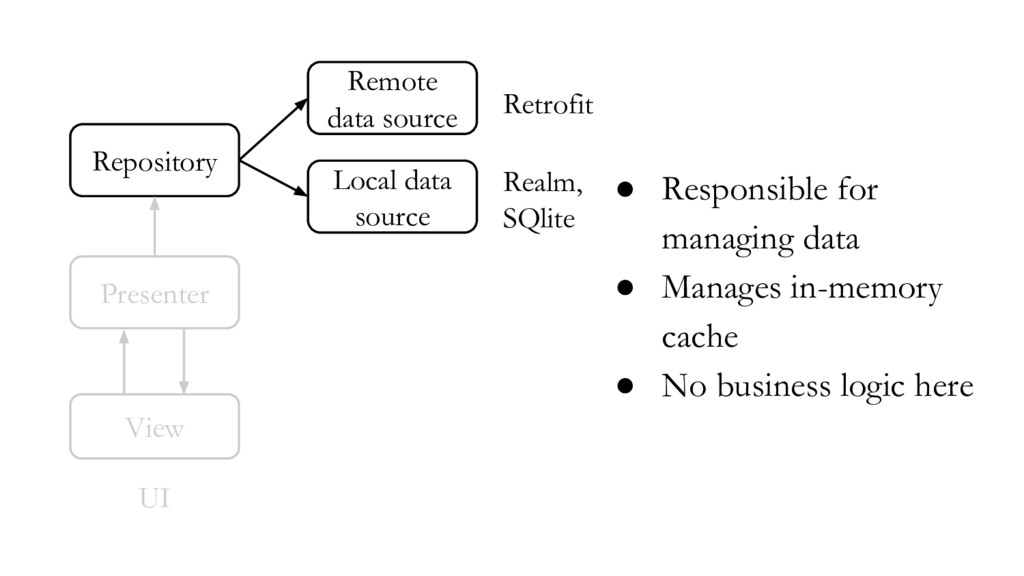

12. • Responsible for managing data • Manages in-memory cache • No business logic here View Presenter Repository Remote data source Local data source Realm, SQlite Retrofit UI
13. View Presenter Repository Remote data source Local data source Realm, SQlite Retrofit UI

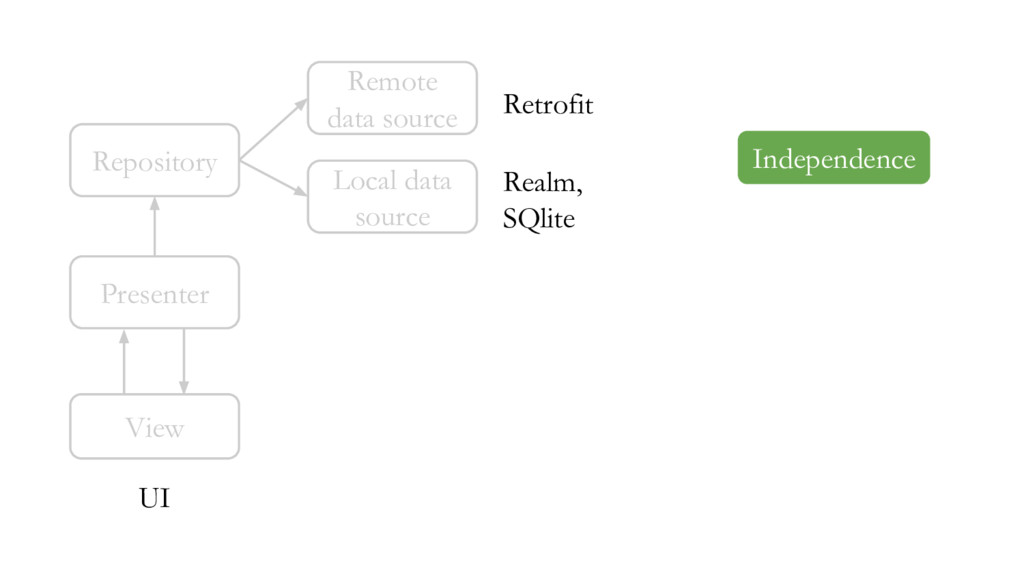

14. Independence View Presenter Repository Remote data source Local data source Realm, SQlite Retrofit UI

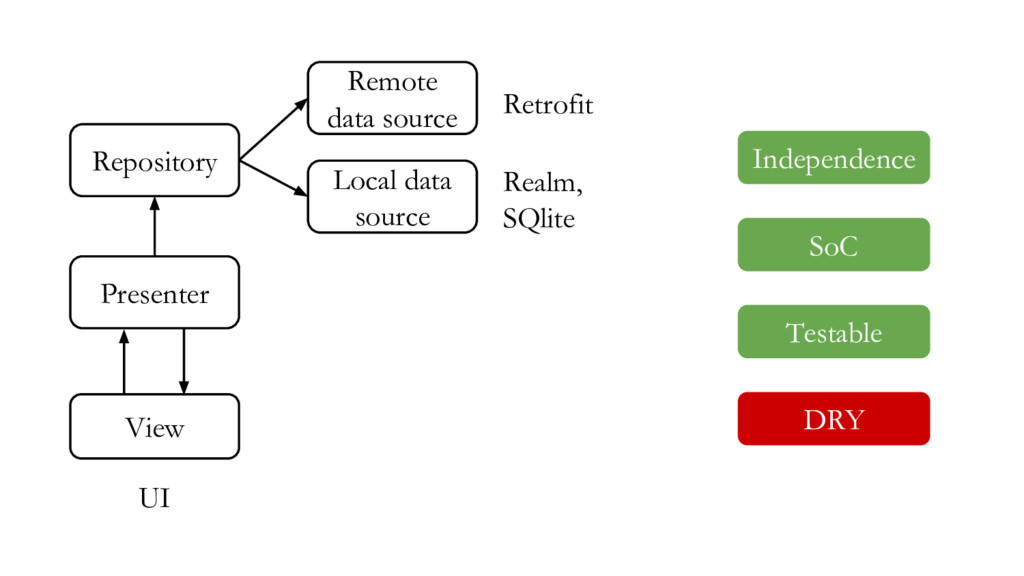

15. Independence SoC Testable DRY View Presenter Repository Remote data source Local data source Realm, SQlite Retrofit UI

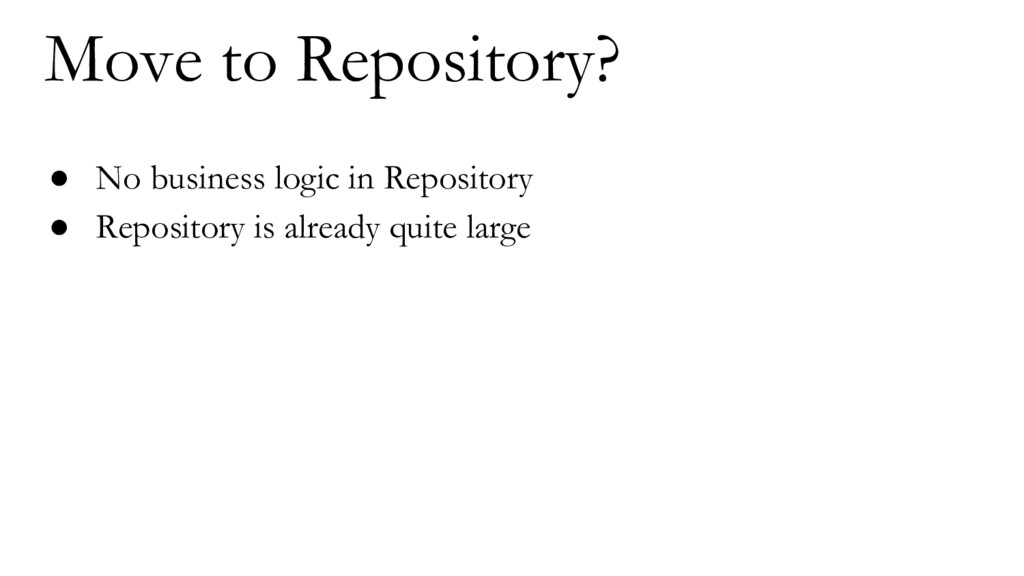

35. Move to Repository? • No business logic in Repository • Repository is already quite large

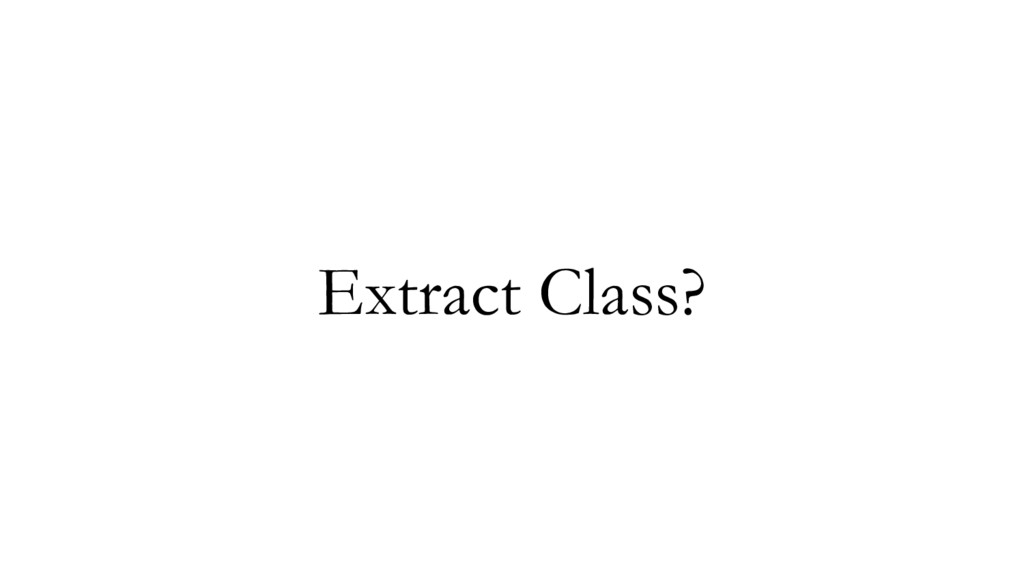

36. Extract Class?

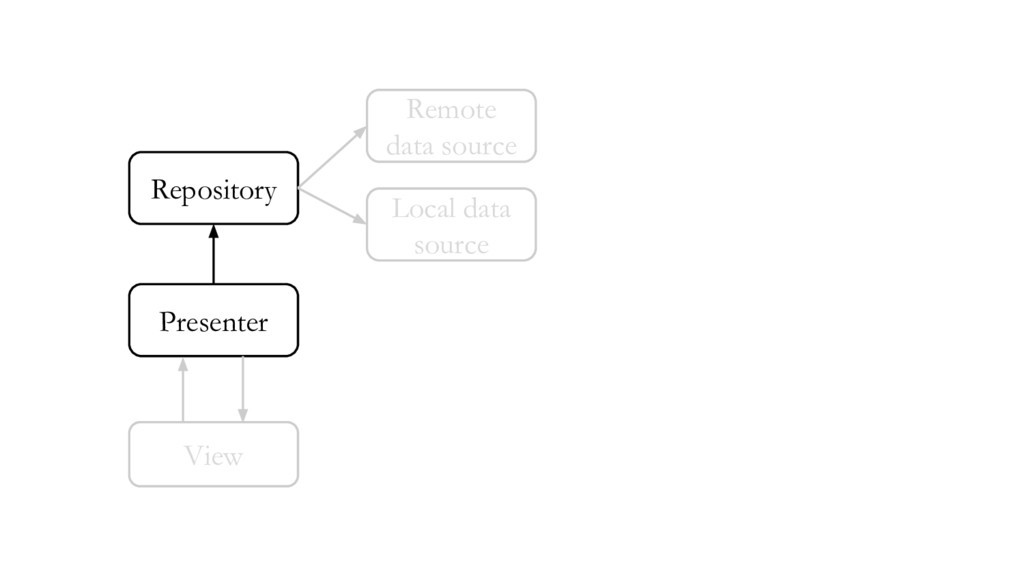

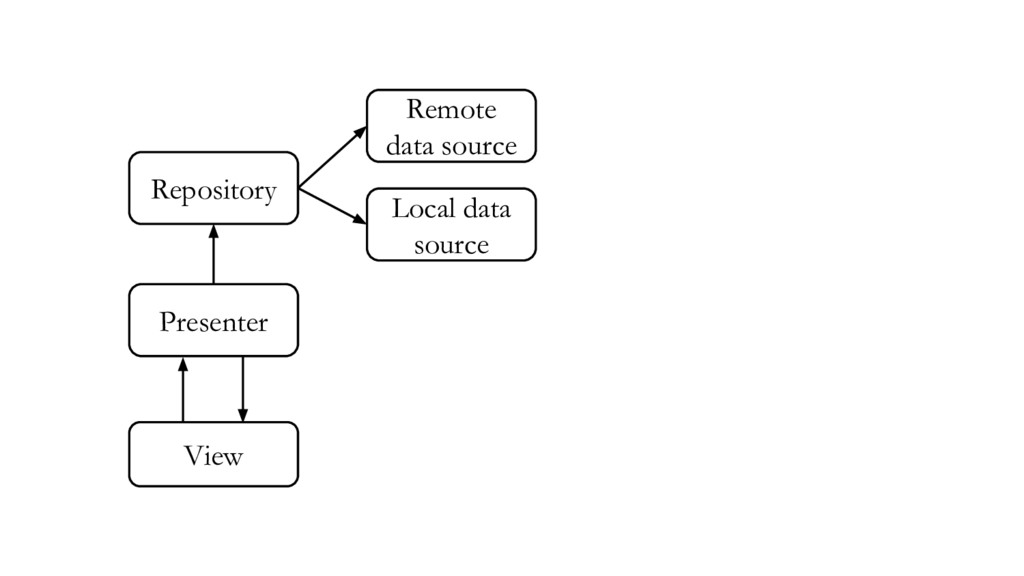

37. View Presenter Repository Remote data source Local data source
38. View Presenter Repository Remote data source Local data source

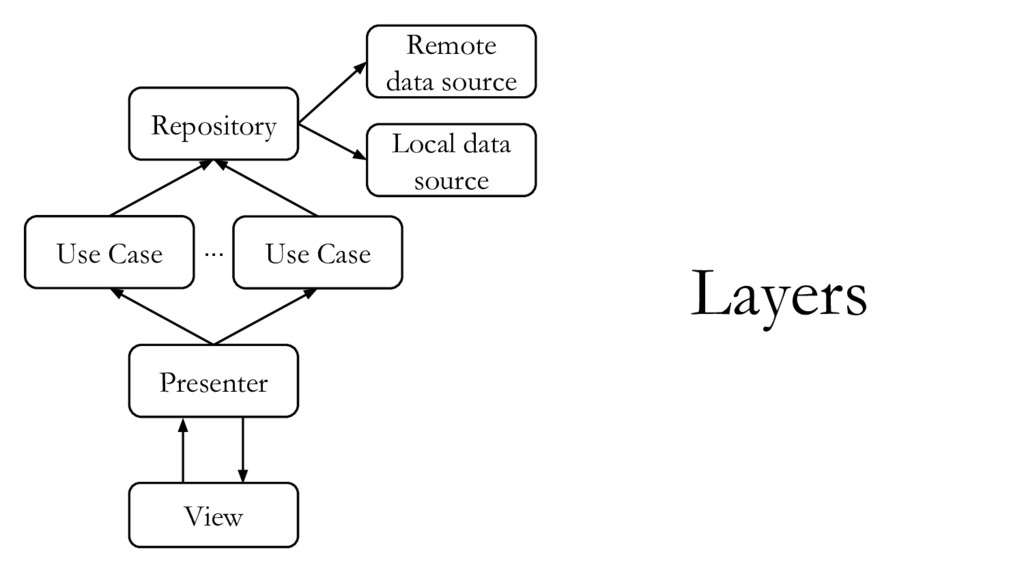

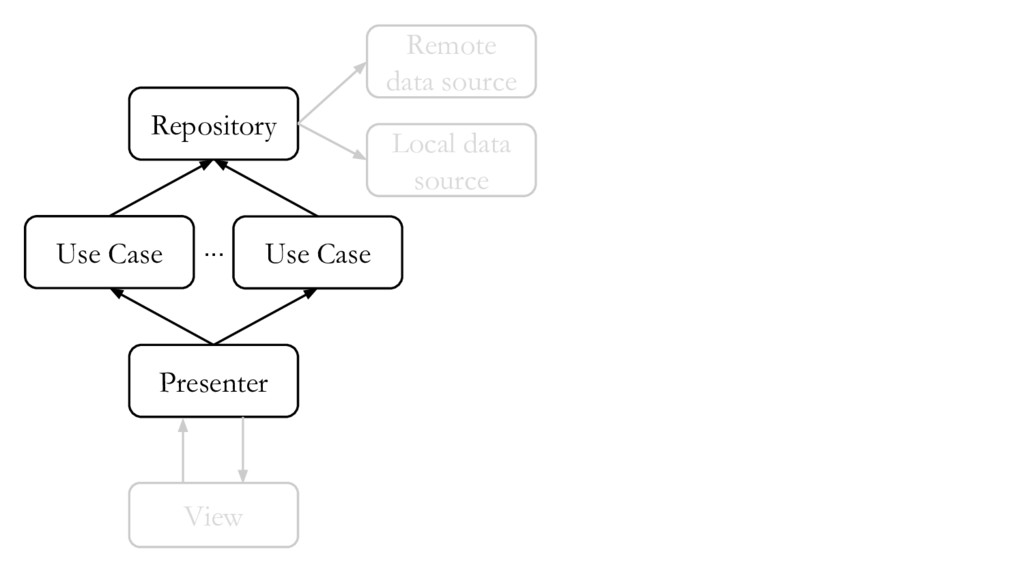

39. Use Case Use Case View Presenter Repository Remote data source Local data source ...

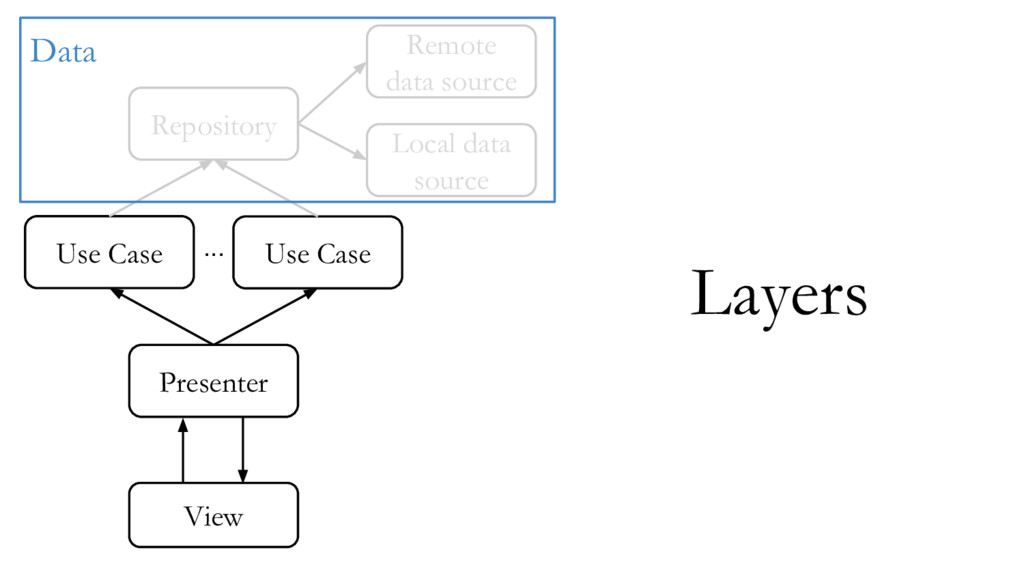

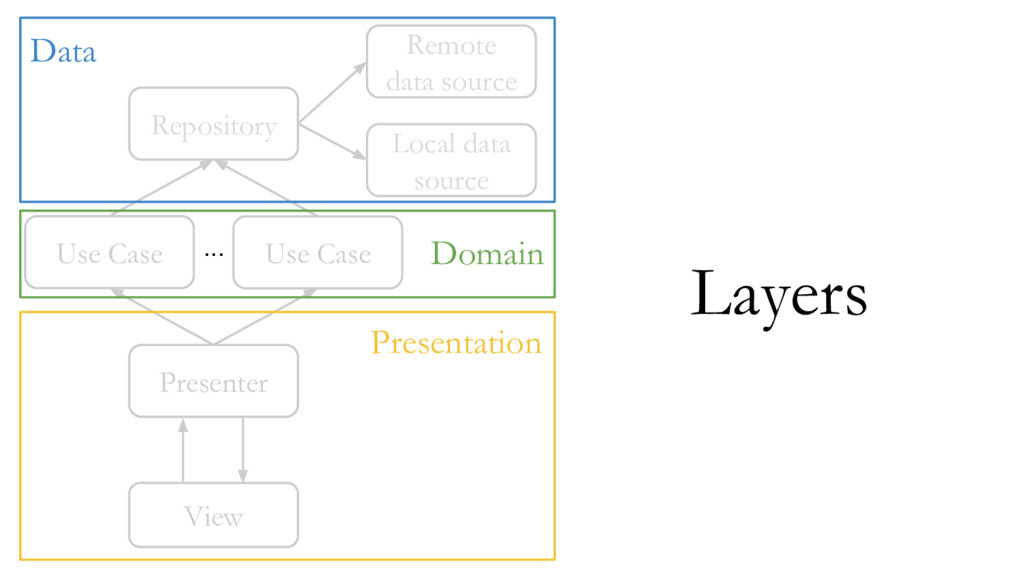

40. Use Case Use Case View Presenter Repository Remote data source Local data source ... Layers

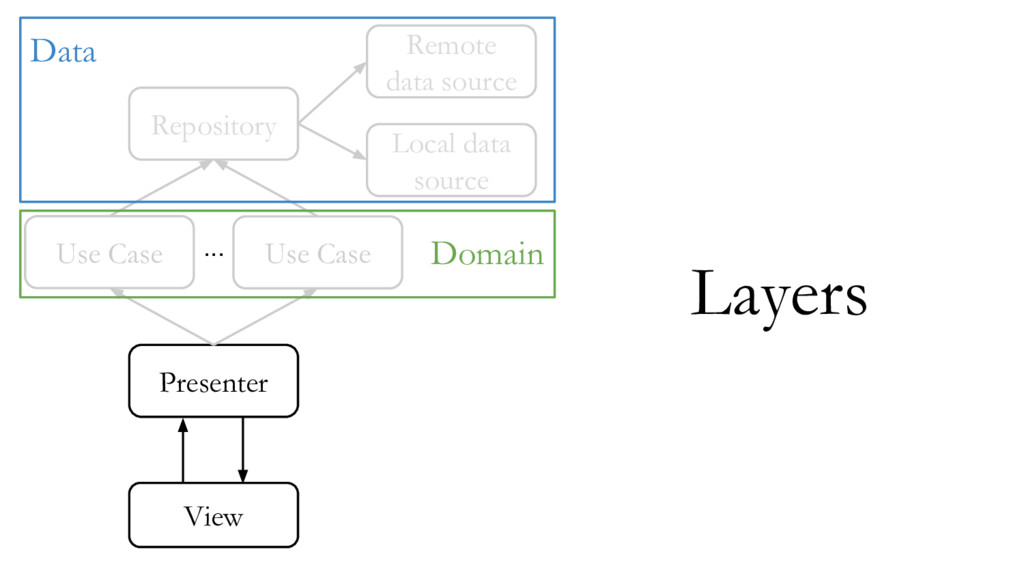

41. Use Case Use Case View Presenter Repository Remote data source Local data source ... Data Layers
42. Use Case Use Case View Presenter Repository Remote data source Local data source ... Layers Domain Data
43. Use Case Use Case View Presenter Repository Remote data source Local data source ... Layers Domain Presentation Data

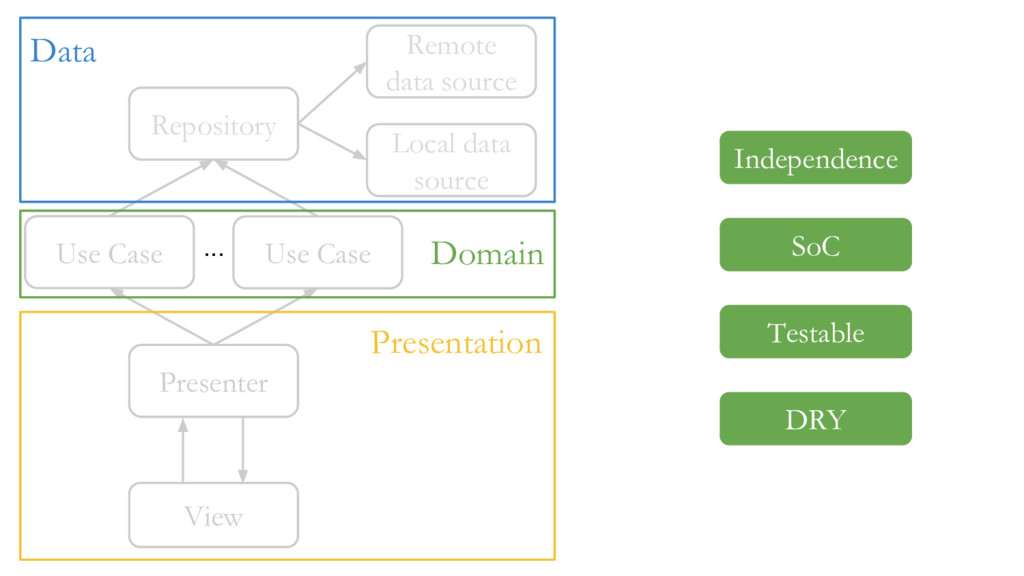

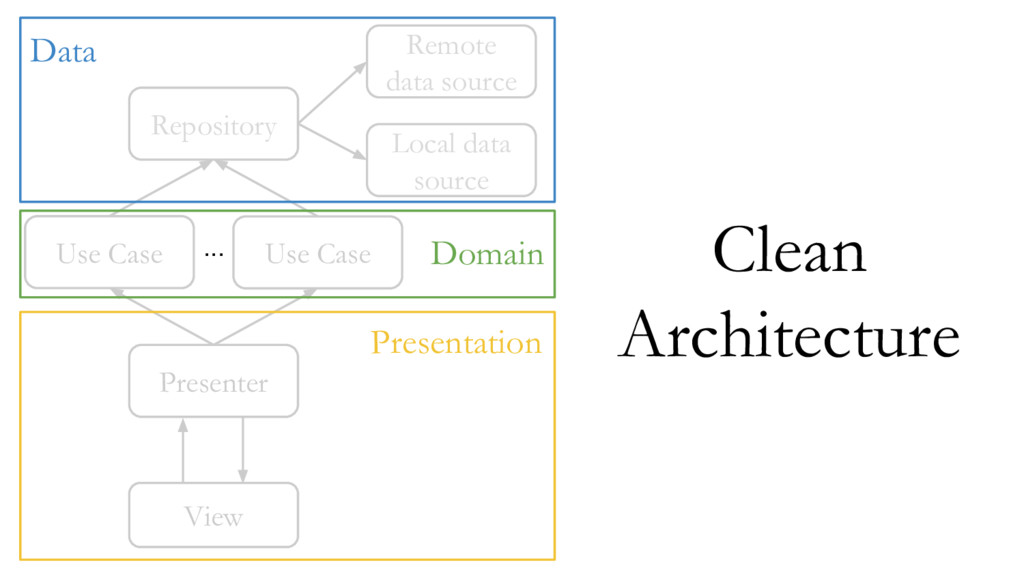

44. Use Case Use Case View Presenter Repository Remote data source Local data source ... Clean Architecture Domain Presentation Data
45. Use Case Use Case View Presenter Repository Remote data source Local data source ... Domain Presentation Independence SoC Testable DRY Data
69. • Testing is easier • Easy to add new features • Code is more maintainable • Bugs are easier to isolate Pros

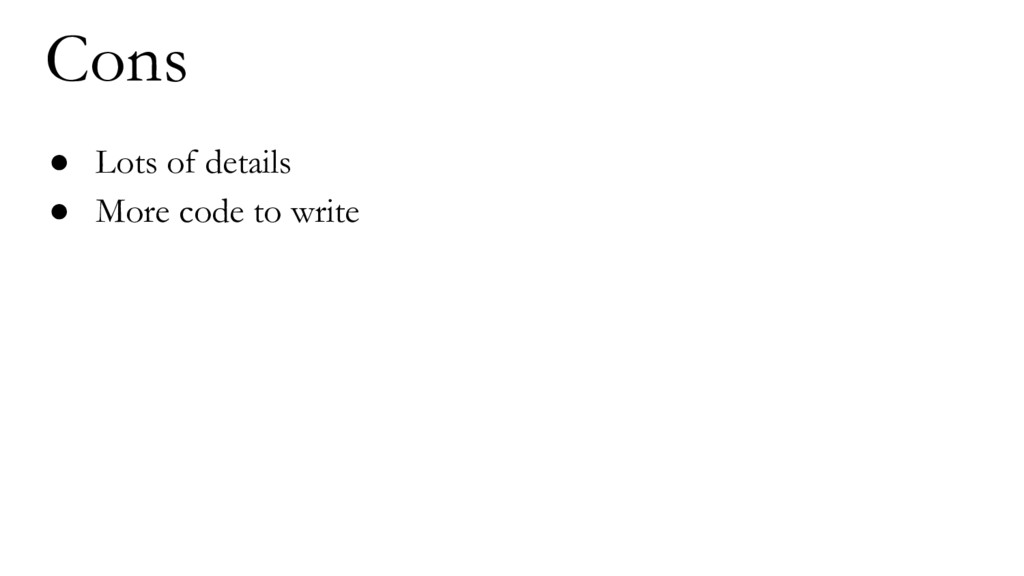

70. • Lots of details • More code to write Cons

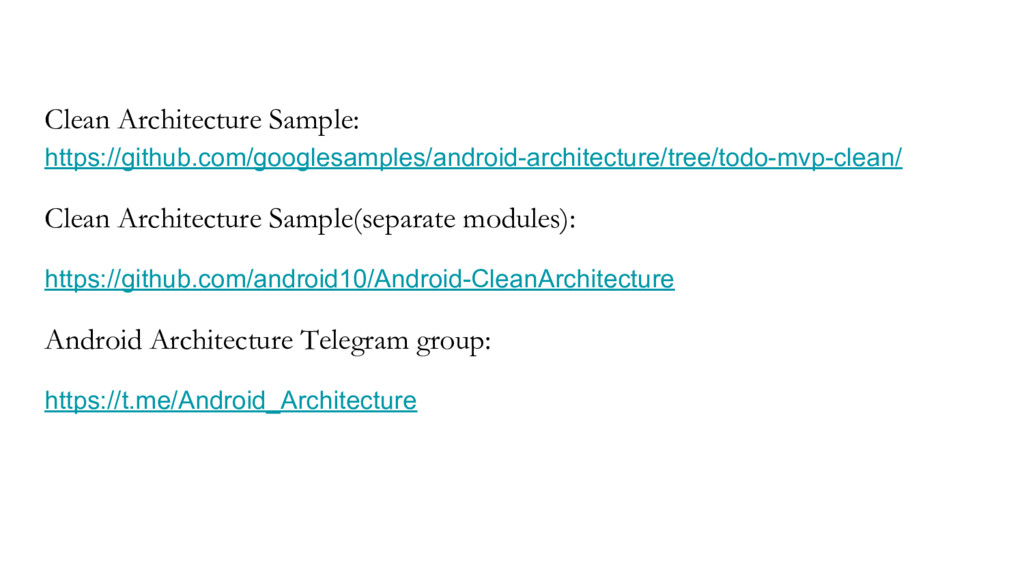

71. Clean Architecture Sample: https://github.com/googlesamples/android-architecture/tree/todo-mvp-clean/ Clean Architecture Sample(separate modules): https://github.com/android10/Android-CleanArchitecture Android Architecture Telegram group: https://t.me/Android_Architecture
