Tekton & ArgoCD - KCD Taiwan

Transcript

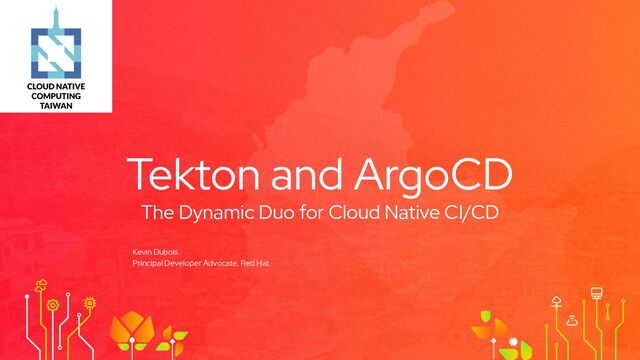

1. @kevindubois Tekton and ArgoCD The Dynamic Duo for Cloud Native CI/CD Kevin Dubois Principal Developer Advocate, Red Hat
2. @kevindubois Kevin Dubois • Principal Developer Advocate at Red Hat • 18+ years of experience building and delivering software applications • Speak English, Dutch, French, Italian • Passionate about improving Dev Experience with Open Source @kevindubois@mastodon.social youtube.com/@thekevindubois linkedin.com/in/kevindubois github.com/kdubois @kevindubois.com
3. @kevindubois
4. @kevindubois
5. @kevindubois Developer Flow Outer loop Inner loop Pull/Merge Request Production Build / Package Code Push Debug Code Review Build Deploy Security Tests Compliance Inner loop Outer loop Developer Test
6. @kevindubois Today, let’s focus on the “Outer Loop” The outer loop consists of the larger team processes that your code flows through on its way to the cluster: code reviews, integration tests, security and compliance. It needs be transparent and fast for developers from all teams. Outer Loop Development
7. @kevindubois Love Thy Mono Every 4 months Every week/day/hour
8. @kevindubois CI - CD - CD Build Test Security Checks Release Deploy Stage Deploy Prod Continuous Integration Continuous Delivery Continuous Deployment Manual Auto
9. @kevindubois Continuous Delivery… of a racing game :)
10. @kevindubois The application Push to give energy windmill Kafka Topic 2.Sends the interaction Dashboard: Green Energy Nickname Team Push/Tap to generate energy Cars that needs energy Two teams competing (top 5 players) First wins
11. @kevindubois Architecture 3: Generate power (REST) Game Dashboard 1: Assign player Name & Team (REST) 6: Update dashboard (SSE) 2: Increment player cluster counter 4: Send power event 5: Receive power events
12. @kevindubois YOU PLAY! Scan the QR Code with your phone to play
13. @kevindubois What if we added a new feature?
14. @kevindubois Dev Ops Friday | 4:45 PM Wall of confusion
15. @kevindubois
16. @kevindubois Developer Flow Outer loop Inner loop Pull/Merge Request Production Build / Package Code Push Debug Code Review Build Deploy Security Tests Compliance Inner loop Outer loop Developer Test
17. @kevindubois Cloud-Native CI/CD Containers Built for container apps and runs on Kubernetes Designed with microservices and distributed teams in mind DevOps Serverless Runs serverless with no CI/CD engine to manage and maintain
18. @kevindubois Why Cloud-Native CI/CD? Traditional CI/CD Cloud-Native CI/CD Designed for Virtual Machines Designed for Containers and Kubernetes Require IT Ops for CI engine maintenance Pipeline as a service with no Ops overhead Plugins shared across CI engine Pipelines fully isolated from each other Plugin dependencies with undefined update cycles Everything lifecycled as container images No interoperability with Kubernetes resources Native Kubernetes resources Admin manages persistence Platform manages persistence Config baked into CI engine container Configured via Kubernetes ConfigMaps Declarative !
19. @kevindubois Tekton is a Graduated Continuous Delivery Foundation project and follows the OpenSSF best practices. Contributions from Google, Red Hat, Cloudbees, IBM, Elastic, Puppet, and many more An open-source project for providing a set of shared and standard components for building Kubernetes-style CI/CD systems https://tekton.dev
20. @kevindubois Step • Runs commands within container(builder image) • Mounts volumes, uses env vars • Eg. ‘mvn test’ or ‘git clone’ Task • A list of steps that are executed in sequential order • Takes inputs, outputs parameters Task Run • Runs a individual Task Pipeline • List of tasks defined to run in a certain order • Takes inputs, outputs parameters Pipeline Run • Runs a Pipeline Typed Decoupled Cloud Native Declarative Tekton Concepts
21. @kevindubois apiVersion: tekton.dev/v1beta1 kind: Pipeline metadata: name: wind-turbine-pipeline spec: params: - name: MANIFESTS_GIT_REPO type: string tasks: - name: git-clone params: - name: url value: $(params.GIT_REPO) workspaces: - name: output workspace: source workspaces: - name: source
22. @kevindubois 22 Tekton Hub Search, discover and install Tekton Tasks hub.tekton.dev
23. @kevindubois Tekton CLI(tkn) •List and Describe • Pipeline • Resource • Task • Task Run • Pipeline Run •View logs • Task Run • Pipeline Run •https://github.com/tektoncd/cli
24. @kevindubois Gitops
25. @kevindubois What is GitOps? Treat everything as code Git is the single source of truth Operations through Git workflows
26. @kevindubois CI/CD Engines Jenkins Spinnaker Tekton Concourse CI …... CI/CD versus GitOps 26 Desired State Cluster State Observe State Take Action GitOps Engines ACM, ArgoCD, FluxCD Razee, Faros Desired State Cluster State
27. @kevindubois Let’s deploy our new feature in a Modern, Automated, Gitops way!
28. @kevindubois Live Coding
29. @kevindubois Source Git Repository Image Registry CI GitOps Application Delivery Model
30. @kevindubois Source Git Repository Image Registry CI Config Git Repository Kubernetes CD Pull Request / Commit Push Pull GitOps Application Delivery Model
31. @kevindubois GitOps Application Delivery Model Push Pull Pull Request Source Git Repository Image Registry Config Git Repository Kubernetes Deploy Monitor Detect drift CD Take action
32. @kevindubois ArgoCD Sync Monitor Detect drift Take action Argo CD is a declarative, GitOps continuous delivery tool for Kubernetes. Cluster and application configuration versioned in Git Automatically syncs configuration from Git to clusters Drift detection, visualization and correction
33. @kevindubois 33 V2 Scan the QR Code with your phone to play
34. @kevindubois Start exploring in the OpenShift Sandbox. Learn containers, Kubernetes, and OpenShift in your browser. developers.redhat.com/developer-sandbox Try Red Hat's products and technologies without setup or configuration.
35. @kevindubois https://red.ht/gitops-cookbook
36. @kevindubois 36 Learn OpenShift and all Cloud Native for free in our web based learning portal Resources Try OpenShift GitOps on our learning portal Red Hat Developers Deep Dive Join our workshops to explore Argo CD, Tekton, Kubernetes, Helm and more! Sign up at developers.redhat.com Find out more about Red Hat’s products and what it offers developers GitOps ebooks Find out more on GitOps with ebooks https://developers.redhat.com/e-books Get more about GitOps on Red Hat Developer Portal!
37. @kevindubois https://red.ht/modernize-enterprise-java
38. @kevindubois https://speakerdeck.com/kdubois/tekton-and-argocd-kcd-taiwan
39. @kevindubois Thank you! @kevindubois@mastodon.social youtube.com/@thekevindubois linkedin.com/in/kevindubois github.com/kdubois @kevindubois.com
40. @kevindubois Join Red Hat Developer. Build here. Go anywhere. facebook.com/RedHatDeveloper youtube.com/RedHatDevelopers twitter.com/rhdevelopers linkedin.com/showcase/red-hat-developer
