Java Forum Nord Kristian Kottke From one Stream Stream Processing
with Apache Flink
©iteratec Whoami Kristian Kottke › Senior Software Engineer -> iteratec
Interests › Software Architecture › Big Data Technologies
[email protected]
github.com/kkottke xing.to/kkottke speakerdeck.com/kkottke 2
©iteratec 4
©iteratec Batch Processing 5
©iteratec Stream Processor

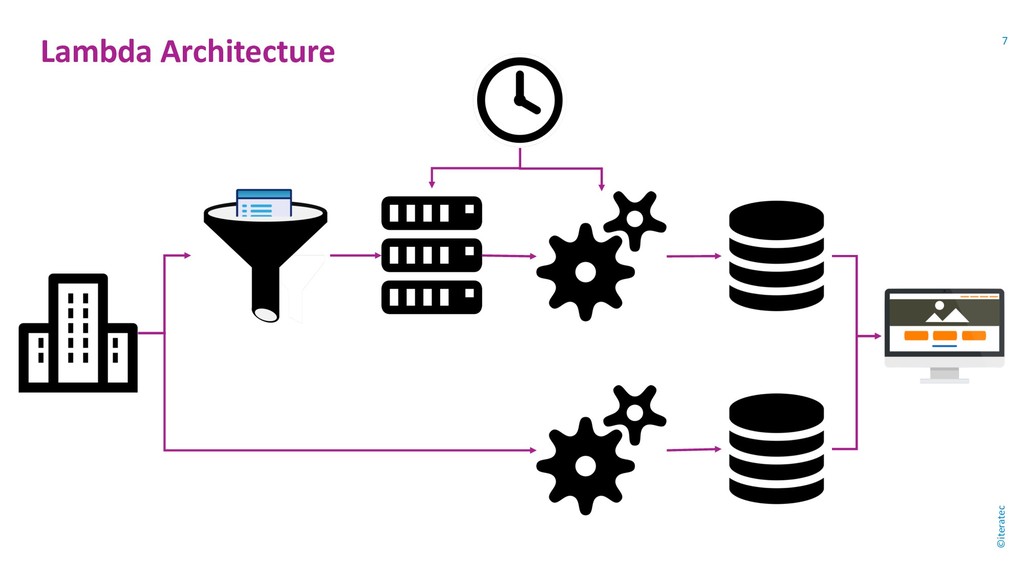

©iteratec Lambda Architecture 7
©iteratec Lambda Architecture 8

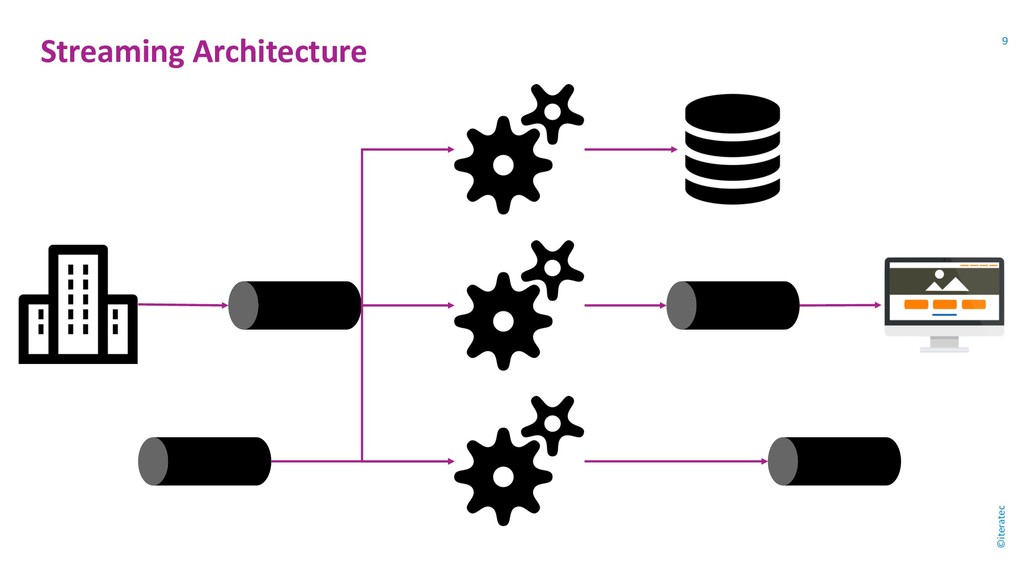

©iteratec Streaming Architecture 9
©iteratec Streaming Architecture 10
©iteratec Stream Processing

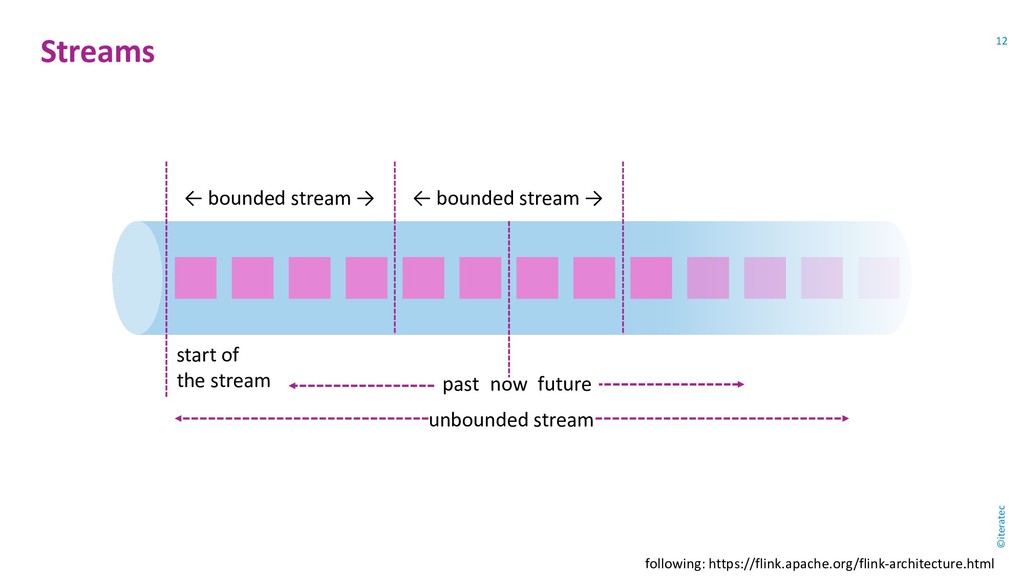

©iteratec Streams following: https://flink.apache.org/flink-architecture.html ← bounded stream → ← bounded
stream → now start of the stream past future unbounded stream 12
©iteratec State following: https://ci.apache.org/projects/flink/flink-docs-release-1.6/ Local State Remote State Periodic Checkpoint
13
©iteratec Time
©iteratec Time Event Time Processing Time Ingestion Time 15
©iteratec Windows
©iteratec Window Tumbling Key 1 12:00 12:10 12:20 12:30 12:40
12:50 Key 2 Key 3 17

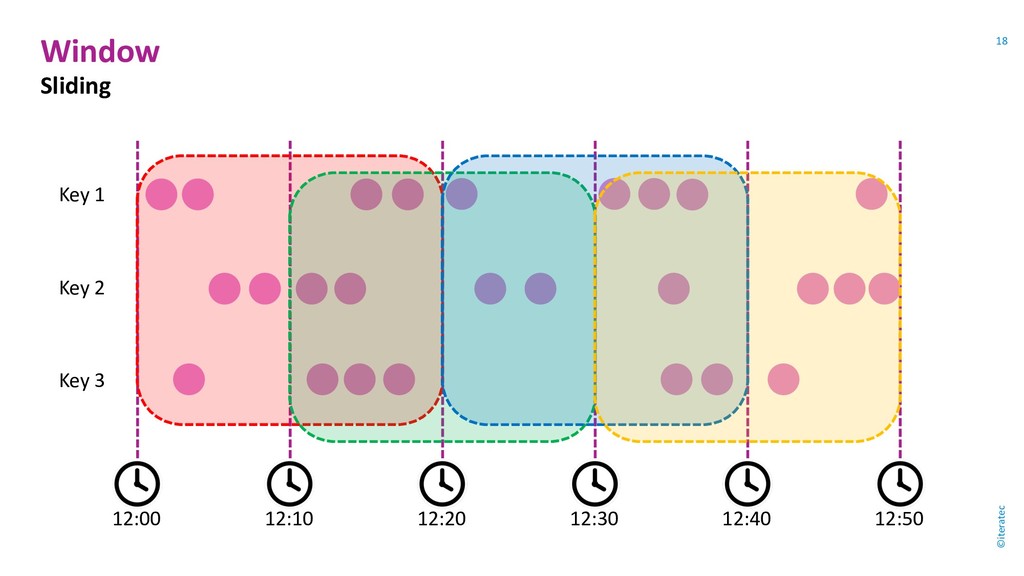

©iteratec Window Sliding Key 1 12:00 12:10 12:20 12:30 12:40
12:50 Key 2 Key 3 18

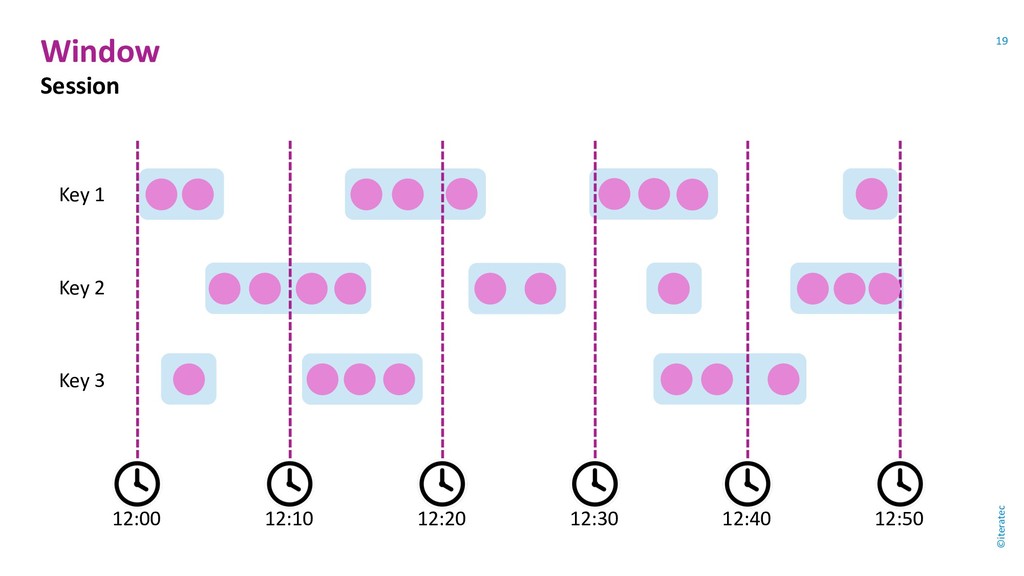

©iteratec Window Session Key 1 12:00 12:10 12:20 12:30 12:40
12:50 Key 2 Key 3 19

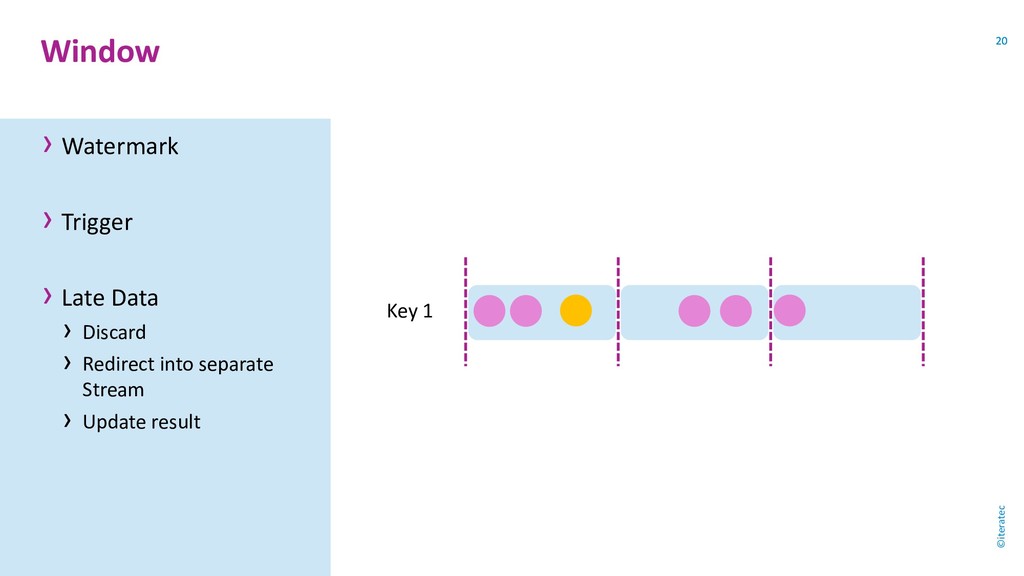

©iteratec 20 20 Window › Watermark › Trigger › Late
Data › Discard › Redirect into separate Stream › Update result Key 1
©iteratec 22 22 Guarantees › At most once › At
least once › Exactly once › Processor State › End-2-End Exactly once › Resettable / Replayable Source & Sink › Idempotency Source Sink State
©iteratec 24
©iteratec Apache Flink Databases Stream following: https://ci.apache.org/projects/flink/flink-docs-release-1.6/ Storage Application Streams

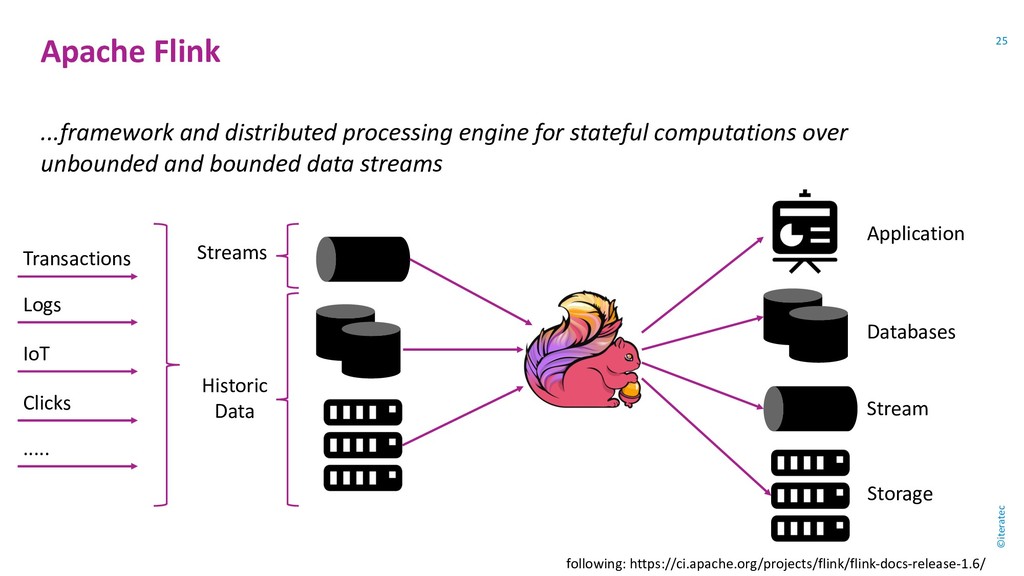

Historic Data Transactions Logs IoT Clicks ..... ...framework and distributed processing engine for stateful computations over unbounded and bounded data streams 25
©iteratec Apache Flink Files, HDFS, S3, JDBC, Kafka, ... Local

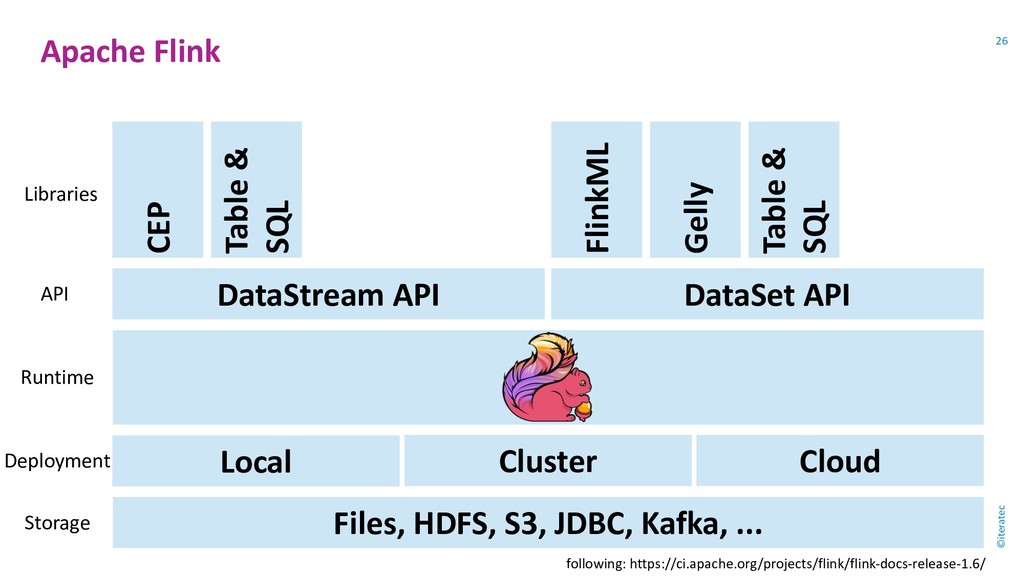

Cluster Cloud DataStream API FlinkML Gelly Table & SQL CEP Table & SQL Storage Deployment Runtime API Libraries following: https://ci.apache.org/projects/flink/flink-docs-release-1.6/ DataSet API 26
©iteratec Apache Flink DataStream<String> messages = env.addSource( new FlinkKafkaConsumer<>(...)); DataStream<Tick>
ticks = messages.map( Tick::parse); DataStream<Tick> maxValues = ticks .keyBy(„id“) .timeWindow(Time.seconds(10)) .maxBy(„value“); stats.addSink(new BucketingSink(„/path/to/dir“)); OP OP OP OP Transformation Transformation Source Sink 28
©iteratec Code
©iteratec DataStream<String> inputStream = env.addSource(new FlinkKafkaConsumer<>(...)); DataStream<Tick> ticks = inputStream
.map(Tick::parse) .assignTimestampsAndWatermarks(new PeriodicAssigner(Time.seconds(5))); DataStream<Tick> maxValues = ticks .keyBy("id") .timeWindow(Time.seconds(10)) .maxBy("value"); Window Functions 33
©iteratec DataStream<Tick> performanceValues = ticks .keyBy("id") .timeWindow(Time.seconds(10)) .trigger(new ThresholdTrigger(10d)) .process(new
PerformanceFunction()); public void process( Tuple key, Context ctx, Iterable<Tick> ticks, Collector<Tick> out) { /* calculate min / max value */ out.collect(tick); } Window Functions 34

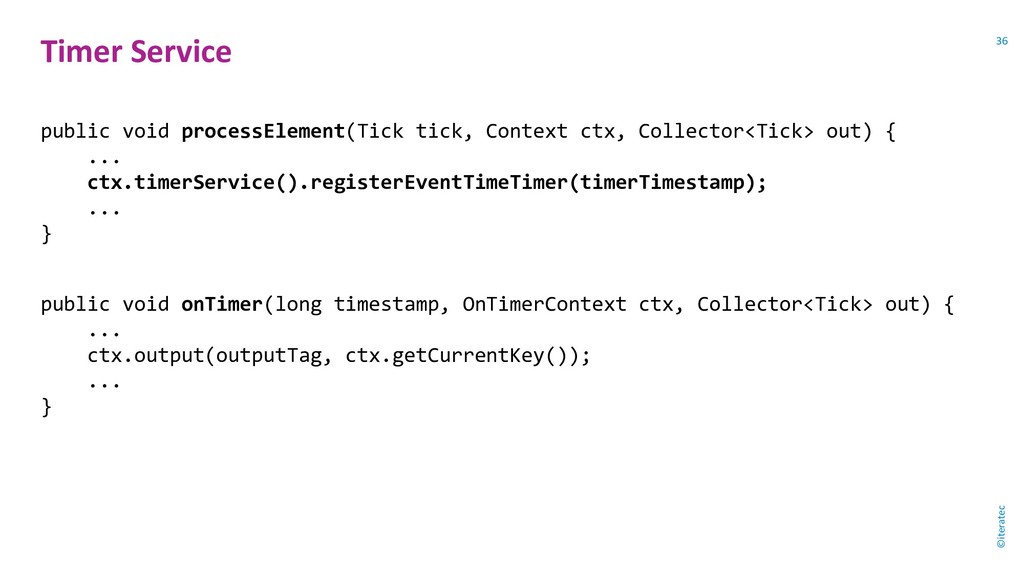

©iteratec public void processElement(Tick tick, Context ctx, Collector<Tick> out) {
... ctx.timerService().registerEventTimeTimer(timerTimestamp); ... } public void onTimer(long timestamp, OnTimerContext ctx, Collector<Tick> out) { ... ctx.output(outputTag, ctx.getCurrentKey()); ... } Timer Service 36

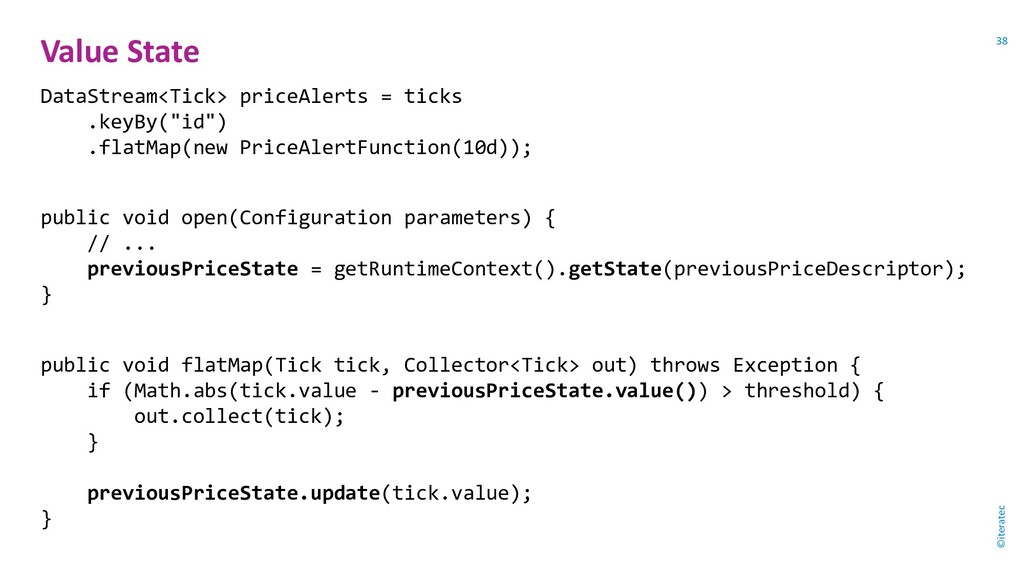

©iteratec DataStream<Tick> priceAlerts = ticks .keyBy("id") .flatMap(new PriceAlertFunction(10d)); public void
open(Configuration parameters) { // ... previousPriceState = getRuntimeContext().getState(previousPriceDescriptor); } public void flatMap(Tick tick, Collector<Tick> out) throws Exception { if (Math.abs(tick.value - previousPriceState.value()) > threshold) { out.collect(tick); } previousPriceState.update(tick.value); } Value State 38
©iteratec DataStream<Threshold> thresholds = env.addSource(...); BroadcastStream<Threshold> thresholdBroadcast = thresholds.broadcast(thresholdsDescriptor); DataStream<Tick>
priceAlerts = ticks .keyBy("id") .connect(thresholdBroadcast) .process(new UpdatablePriceDiffFunction()); Broadcast State 39
©iteratec
©iteratec Queryable State 43 TaskManager TaskManager TaskManager
©iteratec Complex Event Processing Stream Pattern Pattern Stream 44

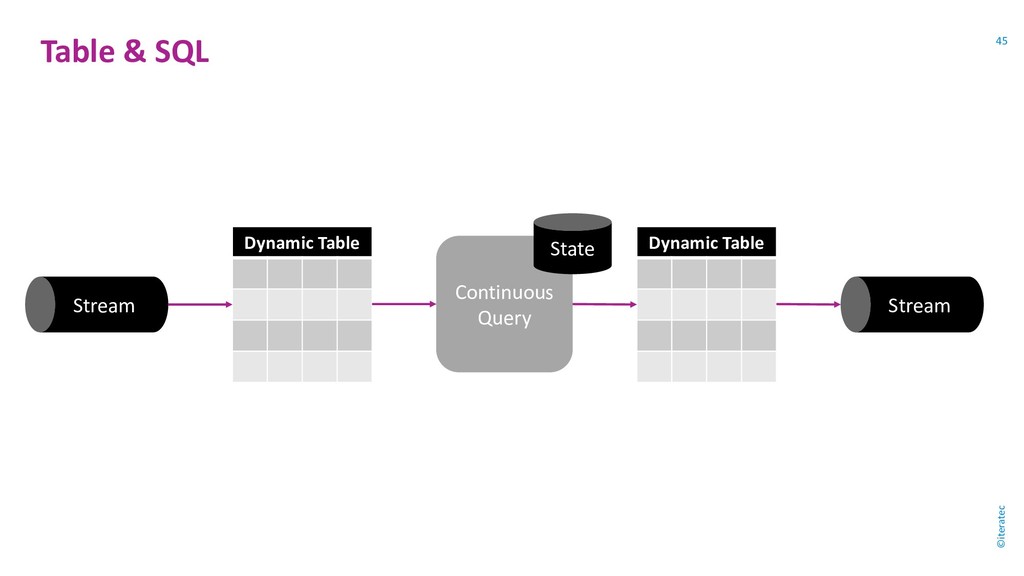

©iteratec Table & SQL Dynamic Table Dynamic Table Stream Stream
Continuous Query State 45
©iteratec Alternatives source: https://commons.wikimedia.org 46

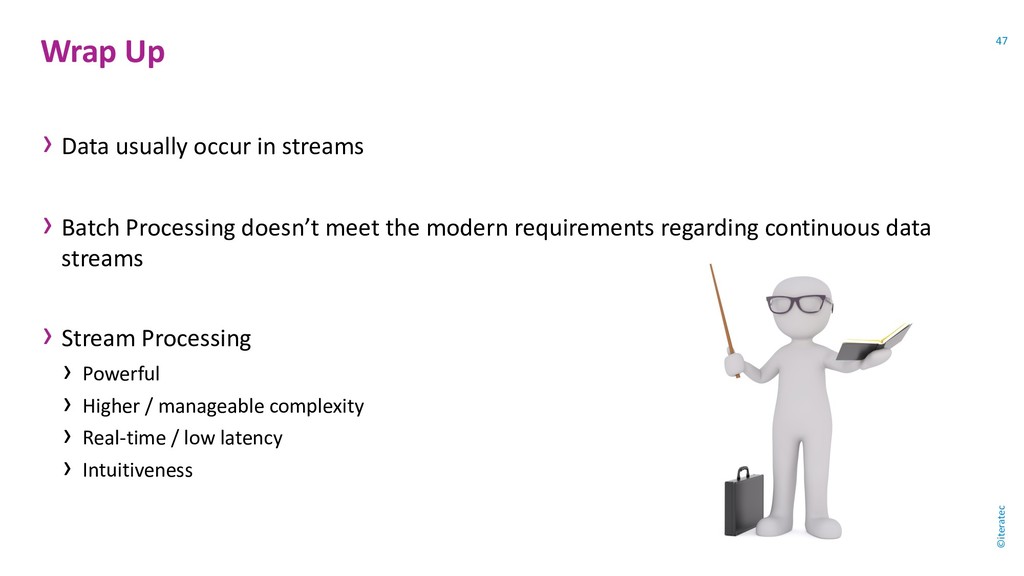

©iteratec Wrap Up › Data usually occur in streams ›
Batch Processing doesn’t meet the modern requirements regarding continuous data streams › Stream Processing › Powerful › Higher / manageable complexity › Real-time / low latency › Intuitiveness 47
