[DroidconSF]Developing Apps optimized for Wear OS with Jetpack Compose

This is the slide, "Developing Apps optimized for Wear OS with Jetpack Compose"
#wearos #android #droidconSF #dcsf23 #Droidcon

Transcript

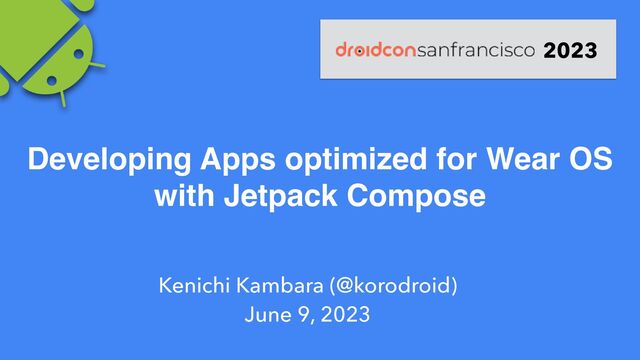

1. Developing Apps optimized for Wear OS
   with Jetpack Compose
   Kenichi Kambara (@korodroid)


   June 9, 2023
   2023


   View Slide

2. 2
   About me
   Kenichi Kambara (@korodroid)
   •Mobile App Development


   •Speeches (e.g. 14 Int’l Confs.)


   •Writings (e.g. 8 Dev Books)


   •Principal Evangelist at NTT TechnoCross


   •[Private] iplatform.org


   View Slide

3. Agenda
   •Wear OS Overview


   •Wear OS Topics from I/O 2023


   •Compose for Wear OS


   •How to optimize Apps for Wear OS?
   Source: Google I/O 2023 Keynote / Developer Keynote / Wear OS Session


   Android Developers Blog


   View Slide

4. Wear OS Overview

   Noti
   fi
   cation Complication
   Based on Android & optimized for the wrist
   Tile

   App


   View Slide

5. Wear OS Topics from I/O 2023

   Watch Face Format Watch Face Studio Tile (Animation)


   View Slide

6. Wear OS ΞϓϦ։ൃೖ໳ with Jetpack Compose
   Compose for Wear OS


   View Slide

7. Wear OS Features

   App Noti
   fi
   cation Complication
   Based on Android & optimized for the wrist
   Tile



   View Slide

8. Implementation Example (Button)

   @Composable
   fun ButtonExample() {
   Button(
   modifier =
   Modifier.size(ButtonDefaults.LargeButtonSize),
   onClick = { /* do anything */ },
   enabled = true
   ){
   Icon(Icons.Default.Mic, contentDescription
   = "mic")
   }
   }


   View Slide

9. Very similar to mobile.


   What’s the difference?
   9


   View Slide

10. 1st difference: UI & UX
    Input components
    Dialogs Page Indicator
    Progress Indicator

    Navigation


    View Slide

11.
    2nd difference: Screen Sizes & Shapes


    View Slide

12.
    Wear OS


    (androidx.wear.*)
    Mobile


    (androidx.*)
    androidx.wear.compose:compose-material
    androidx.compose.foundation:foundation
    androidx.wear.compose:compose-foundation
    androidx.compose.material:material
    androidx.navigation:navigation-compose
    androidx.compose.foundation:foundation
    ref: https://developer.android.com/training/wearables/compose
    Material
    androidx.wear.compose:compose-navigation
    Navigation
    Foundation
    3rd difference: Development


    View Slide

13. e.g. Button

    Wear OS


    (androidx.wear.*)
    Mobile


    (androidx.*)
    androidx.wear.compose:compose-material androidx.compose.material:material


    View Slide

14. 14
    Asked 1 Question to Studio Bot



    View Slide

15. 15
    Wear OS Development Environment

    Can start easily with Android Studio


    View Slide

16. 16
    Wear OS Development Environment



    View Slide

17. 17
    Create a Wear OS app project

    Simple Template


    View Slide

18. Live Demo💪



    View Slide

19. 19
    How to optimize Apps for Wear OS?


    View Slide

20. Today's example: Contact App

    @Composable
    fun ContactListScreenV0() {
    LazyColumn(
    horizontalAlignment = Alignment.CenterHorizontally
    ) {
    item {
    ListHeader {
    Text(text = "Contacts")
    }
    }
    items(model.data.size) {
    Chip(
    modifier = Modifier
    .fillMaxSize(),
    icon = {
    Icon(
    Icons.Rounded.Face,
    contentDescription = "faceIcon",
    )
    },
    label = { Text(model.data[it]) },
    colors = ChipDefaults.primaryChipColors(),
    onClick = { },
    )
    }
    }
    }
    not BAD, but not GOOD


    View Slide

21. How to make better UI for Wear OS?
    21


    View Slide

22. Step1. Replacing to ScalingLazyColumn

    @Composable
    fun ContactListScreenV1() {
    ScalingLazyColumn(
    horizontalAlignment = Alignment.CenterHorizontally
    ) {
    item {
    ListHeader {
    Text(text = "Contacts")
    }
    }
    items(model.data.size) {
    Chip(
    modifier = Modifier
    .fillMaxSize(),
    icon = {
    Icon(
    Icons.Rounded.Face,
    contentDescription = "faceIcon",
    )
    },
    label = { Text(model.data[it]) },
    colors = ChipDefaults.primaryChipColors(),
    onClick = { },
    )
    }
    }
    }
    /MainActivity.kt


    View Slide

23. How should we provide better UI/UX?

    TimeText Vignette PositionIndicator


    View Slide

24. Step2. Using Scaffold

    @Composable
    fun ContactListScreenV2() {
    val listState = rememberScalingLazyListState()
    Scaffold(
    timeText = {
    if (!listState.isScrollInProgress) {
    TimeText()
    }
    },
    vignette = {
    Vignette(
    vignettePosition = VignettePosition.TopAndBottom
    )
    },
    positionIndicator = {
    PositionIndicator(
    scalingLazyListState = listState,
    )
    }
    ) {
    ScalingLazyColumn(state = listState) {
    // …
    }


    View Slide

25. How to support more screens?
    25

    +


    View Slide

26. Step3. Adding a new Screen

    @Composable
    fun ContactDetailScreen(id: Int) {
    Chip(
    modifier = Modifier
    .fillMaxSize(),
    icon = {
    Icon(
    Icons.Rounded.Face,
    contentDescription = "faceIcon",
    )
    },
    label = {
    Column(
    ) {
    Text(text = model.data[id].name,

    fontWeight = FontWeight.Bold)
    Text(text = model.data[id].phone)
    Text(text = model.data[id].nation)
    }
    },
    colors = ChipDefaults.primaryChipColors(),
    onClick = { /* do anything */ },
    )
    }


    View Slide

27. How to support navigation?
    27



    View Slide

28. Implementing with Wear Navigation

    Wear OS


    (androidx.wear.*)
    Mobile


    (androidx.*)
    androidx.navigation:navigation-compose
    ref: https://developer.android.com/training/wearables/compose/navigation
    androidx.wear.compose:compose-navigation
    Navigation
    /build.gradle
    dependencies {
    def wear_compose_version = “1.1.2"
    implementation "androidx.wear.compose:compose-navigation:$wear_compose_version"
    }


    View Slide

29.
    @Composable
    fun ScreenNavigation_GoodImpl(
    navController: NavHostController =
    rememberSwipeDismissableNavController()
    ) {
    SwipeDismissableNavHost(
    navController = navController,
    startDestination = "contact_list"
    ) {
    composable("contact_list") {
    ContactListScreenV3(navController = navController)
    }
    composable("contact_detail/{id}") {
    val id = it.arguments?.getString("id")!!
    ContactDetailScreen(id = id.toInt())
    }
    }
    }
    Step4. Implementing Wear Navigation


    View Slide

30. Step4. Implementing Wear Navigation

    @Composable
    fun ContactListScreenV3(navController: NavHostController) {
    Scaffold(
    // just same
    ) {
    ScalingLazyColumn(state = listState) {
    item {
    // just same
    }
    items(model.data.size) {
    Chip(
    modifier = Modifier.fillMaxSize(),
    icon = {
    // just same },
    label = { Text(model.data[it].name) },
    colors = ChipDefaults.primaryChipColors(),
    onClick =
    { navController.navigate("contact_detail/$it") },
    )
    }
    }
    }
    }


    View Slide

31. Looks good, but to make it better…
    31



    View Slide

32. Adding a Tile feature

    Noti
    fi
    cation Complication
    Provide easier access to this app
    Tile

    App +


    View Slide

33. Step5. Implementing a Tile feature

    class MainTileService : CoroutinesTileService() {
    // Abbreviates some procedures, such as reading data from the repository

    override suspend fun resourcesRequest(
    requestParams: RequestBuilders.ResourcesRequest
    ): ResourceBuilders.Resources {
    return ResourceBuilders.Resources.Builder().setVersion(RESOURCES_VERSION).build()
    }
    override suspend fun tileRequest(
    requestParams: RequestBuilders.TileRequest
    ): TileBuilders.Tile {
    val singleTileTimeline = TimelineBuilders.Timeline.Builder().addTimelineEntry(
    TimelineBuilders.TimelineEntry.Builder().setLayout(
    LayoutElementBuilders.Layout.Builder().setRoot(tileLayout(this)).build()
    ).build()
    ).build()
    return TileBuilders.Tile.Builder().setResourcesVersion(RESOURCES_VERSION)
    .setTimeline(singleTileTimeline).build()
    }
    }
    a Kotlin coroutine-friendly wrapper


    from the Horologist Tiles library
    /MainTileService.kt


    View Slide

34. Step5. Adding a Tile de
    fi
    nition

    android:allowBackup="true"
    android:icon="@mipmap/ic_launcher"
    android:label="@string/app_name"
    android:supportsRtl="true"
    android:theme="@android:style/Theme.DeviceDefault">


    …

    android:name=".tile.MainTileService"
    android:exported="true"
    android:label="@string/tile_label"
    android:permission="com.google.android.wearable.permission.BIND_TILE_PROVIDER">



    android:name="androidx.wear.tiles.PREVIEW"
    android:resource="@drawable/tile_preview" />


    /AndroidManifest.xml


    View Slide

35. That’s all! Can show the last contact easily.
    35



    View Slide

36.
    Tips💡 Useful features for Wear OS


    View Slide

37.
    Tips💡 Next Step (How to optimize more)
    ref: Principles of Wear OS development


    https://developer.android.com/training/wearables/principles


    View Slide

38. Reference

    Code (My Codelab)


    bit.ly/3UWME7M


    Slide


    @korodroid




    View Slide

39. Go future with Wear OS & Jetpack Compose🚀




    http://www.linkedin.com/in/korodroid
    Thank you so much
    http://fb.com/kanbara.kenichi
    @korodroid


    View Slide
