Datascience from the browser with WebAssembly (and other web standards)

A strong trend in data science is the shift of calculations to users (especially for cost and confidentiality constraints). Thanks to the new standards, the web platform is an important vector of this decentralization. This is the case of WebAssembly which is a kind of assembler executable in the browser.

Of course, the data scientist and its important computing needs can benefit from this technology.

We present experiments carried out by Magellium during a study conducted for the CNES. In particular, there are aircraft detection by machine inference learning and cloud detection by deep learning inference.

These slides were presented for TDS #25 https://www.meetup.com/fr-FR/Tlse-Data-Science/events/245536866/

Vidéos:
- Demo of a WebAssembly tool for remote sensing images viewing and processing : https://youtu.be/s5hpaZIEHV8
- Demo of JPEG 2000 in browser viewing using WebAssembly : https://youtu.be/5U0kMGI5X00

Blog post: http://deeplearning.magellium.fr/conference/2017/12/11/Datascience_from_the_browser_with_WebAssembly.html

Transcript

1. PUTTING KNOWLEDGE ON THE MAP Datascience from the browser Nicolas Decoster Sébastien Bosch with WebAssembly (and other web standards) @nnodot @seeb0h
2. Who are we? Nicolas Decoster - @nnodot engineer imagery, remote sensing, coding, R&D...
3. Who are we? Nicolas Decoster - @nnodot engineer imagery, remote sensing, coding, R&D...
4. Who are we? Sébastien Bosch - @seeb0h engineer geomatics/maps, spatial and aerial imagery, robotics, ML, coding, R&D, mgmt...
5. Embedding Data Science in the browser with WebAssembly (and few others modern web standards)
6. Train and use models client-side

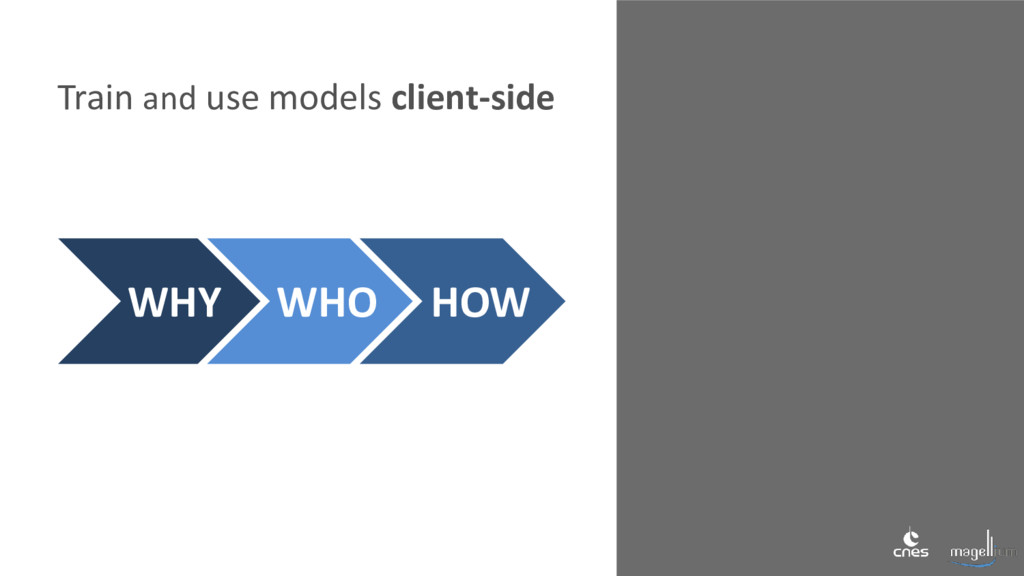

7. Train and use models client-side WHY WHO HOW
8. BOBBY YIP / REUTERS Confidentiality WHY
9. Powers of 10 0.1 second : Reacting instantly 1.0 seconds : User’s flow of thought 10 seconds : Keeping the user’s attention @anirudhkou [Miller 1968; Card et al. 1991; Jakob Nielsen 1993] Confidentiality Latency WHY
10. Confidentiality Latency Cost Voice search 2 trillion Google searches/years (2e12) [searchengineland.com] 20-50% searches without a screen by 2020 [Mediapos] [comscore] Let’s say  1s CPU time/search  $0.033 / h [n1-standard-1 Google Cloud] $11 000 000 / year WHY
11. Mobile WHY WHO
12. Browser WHY WHO
13. Mobile Browser More mobiles than (desktop) browsers WHY WHO
14. Mobile Browser Mainly social network, messaging and gaming on mobile WHY WHO

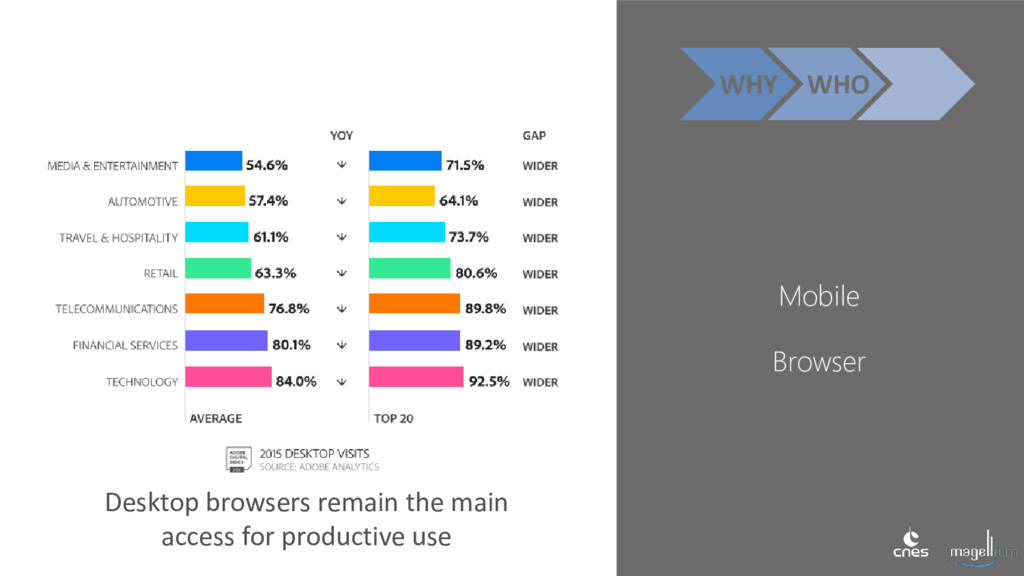

15. Mobile Browser Desktop browsers remain the main access for productive use WHY WHO
16. Mobile WHY WHO HOW

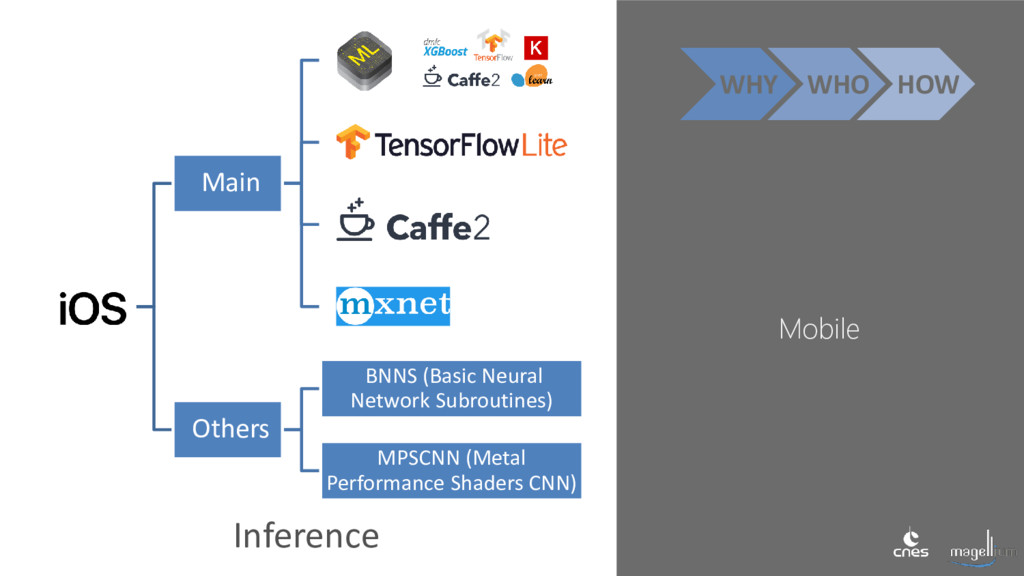

17. Mobile WHY WHO HOW Main Others BNNS (Basic Neural Network Subroutines) MPSCNN (Metal Performance Shaders CNN)
18. Mobile WHY WHO HOW Main Others BNNS (Basic Neural Network Subroutines) MPSCNN (Metal Performance Shaders CNN) Inference
19. Mobile WHY WHO HOW Main Others Train

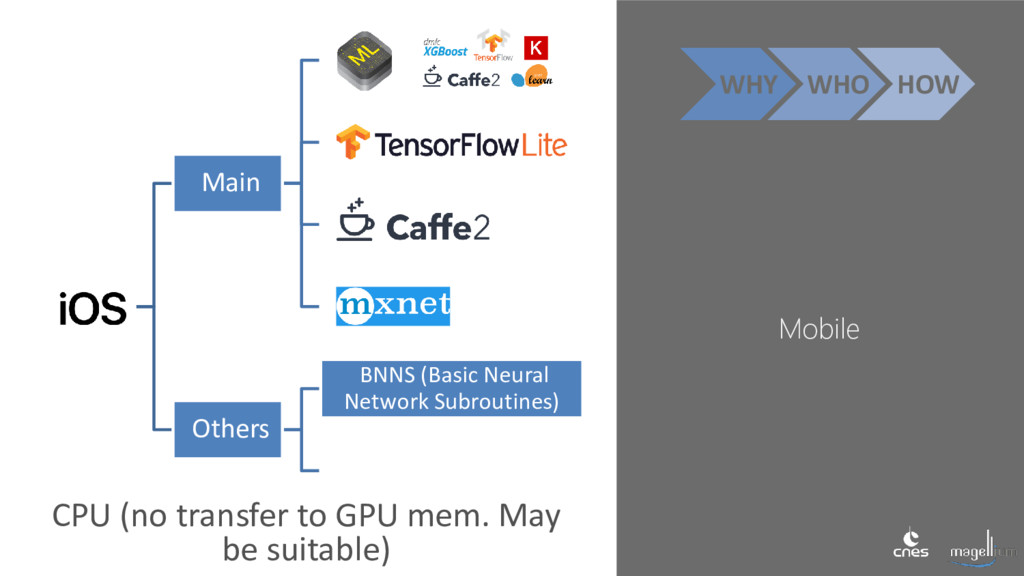

20. Mobile WHY WHO HOW Main Others BNNS (Basic Neural Network Subroutines) CPU (no transfer to GPU mem. May be suitable)
21. Mobile WHY WHO HOW Main Others MPSCNN (Metal Performance Shaders CNN) GPU : Use CoreML
22. Mobile WHY WHO HOW Main Qualcomm Snapdragon Neural Processing Engine (NPE) Others CNNDroid DeepLearningKit NPE : Caffe/TF/ONNX on 50% device. GPU/CPU/DSP optimizations
23. Browser WHY WHO HOW Run CNNs WebDNN (WebGL/WA/WebGPU) Keras-JS (CPU/WebGL ) Tensorfire (WebGL), MXNetJS, CaffeJS Run/Train CNNs DeepLearn.js (WebGL), ConvNetJS Run/Train LSTMs Brain.js, Synaptic.js Train and Run NNs Mind.js, DN2A dmlc tree-lite.io

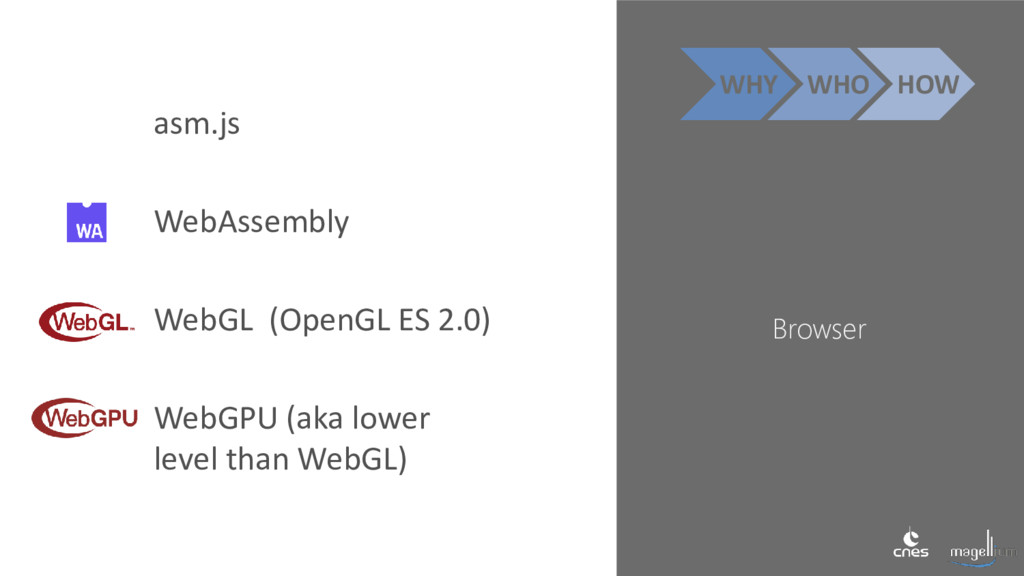

24. Browser asm.js WebAssembly WebGL (OpenGL ES 2.0) WebGPU (aka lower level than WebGL) WHY WHO HOW
25. PUTTING KNOWLEDGE ON THE MAP WebAssembly for EO Data Valorization Nicolas Decoster, Julien Gaucher (Magellium) – Julien Nosavan (CNES) running (legacy) time-consuming processings in the browser
26. PUTTING KNOWLEDGE ON THE MAP WebAssembly for EO Data Valorization Nicolas Decoster, Julien Gaucher (Magellium) – Julien Nosavan (CNES) running (legacy) time-consuming processings in the browser Conférence Big Data from Space 2017 Toulouse
27. WebAssembly?
28. WebAssembly? WebAssembly or wasm is
29. WebAssembly? WebAssembly or wasm is a kind of bytcode
30. WebAssembly? WebAssembly or wasm is a kind of bytcode for the browser
31. WebAssembly? WebAssembly or wasm is a kind of bytcode for the browser fast and secure
32. WebAssembly? WebAssembly or wasm is a kind of bytcode for the browser fast and secure a compilation target for (legacy) code
33. What for?
34. for games

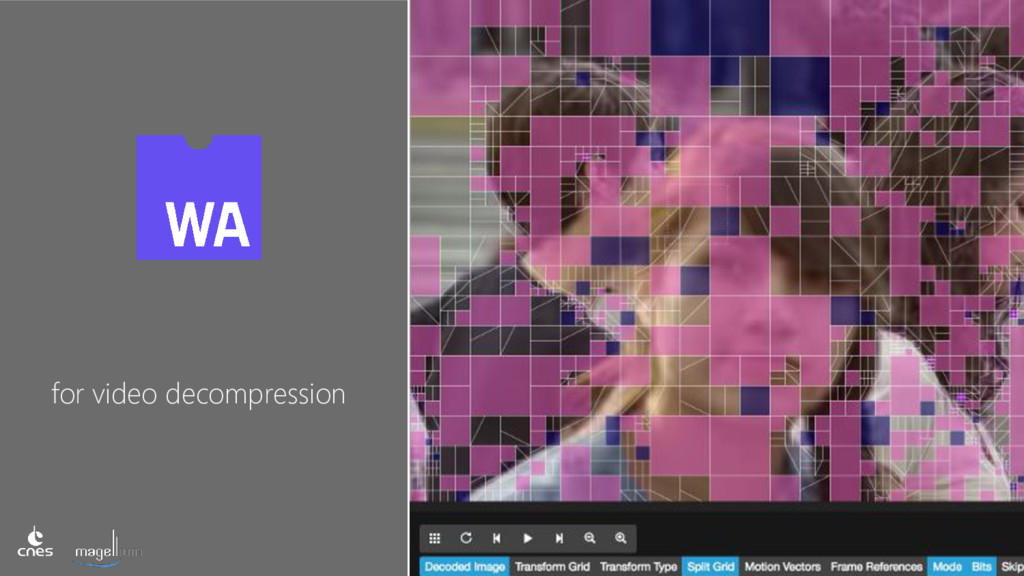

35. for video decompression
36. for the incoming Google Earth
37. for earth and space data web platforms
38. for earth and space data web platforms WebAssembly is a new technology that opens new doors for online services that manage data
39. for earth and space data web platforms Earth and space observation have data with great variety of natures, usages and processings it can greatly benefit from WebAssembly
40. WebAssembly origins
41. origins 1990 beginning of the web static 1995 dynamic content with JavaScript but slow and limited
42. origins Then starts the battle for the fast, full featured language for the web Flash, Java, ActiveX, NaCL, SilverLight, Dart... all failed: security problems low adoption not standard vendor lockin etc.
43. origins ?
44. origins flash has some kind of success
45. origins flash has some kind of success but failed massive adoption
46. origins 2012 toy project by Alon Zakai a tool to compile C code into JavaScript
47. origins
48. origins Mozilla helped make it fast based on a JavaScript subset
49. origins Mozilla helped make it fast based on a JavaScript subset asm.js
50. origins asm.js is the technology everybody was waiting for Mozilla asks other actors to start working together on this basis
51. origins WebAssembly was born asm.js is the technology everybody was waiting for Mozilla asks other actors to start working together on this basis
52. origins WebAssembly was born 2015 asm.js is the technology everybody was waiting for Mozilla asks other actors to start working together on this basis
53. WebAssembly is a new Web standard
54. WebAssembly is a new Web standard useable now
55. WebAssembly is a new Web standard useable now backed by Microsoft, Google, Mozilla, Apple!
56. WebAssembly is a new Web standard useable now backed by Microsoft, Google, Mozilla, Apple! credits: @linclark code-cartoons.com
57. Tools?

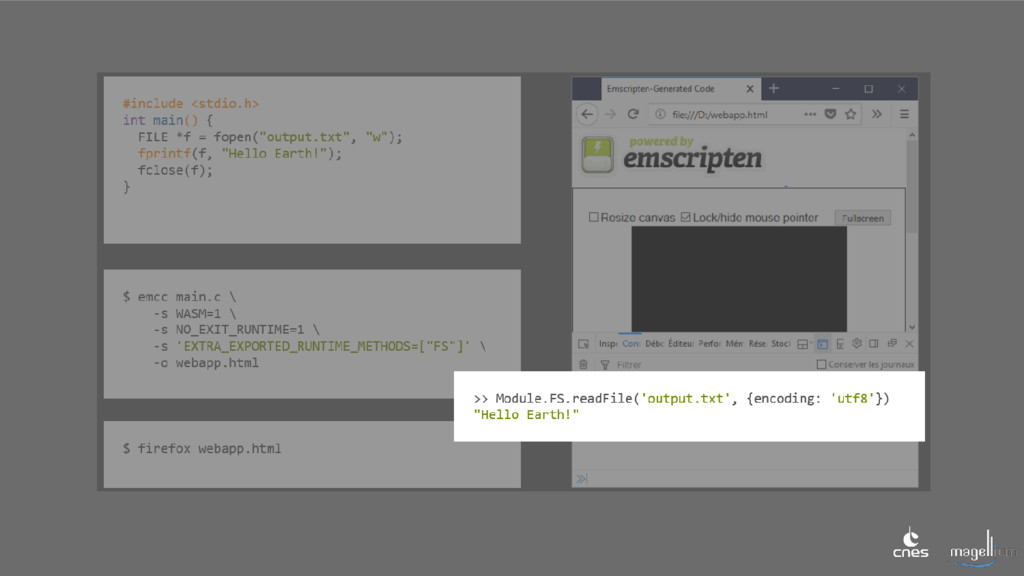

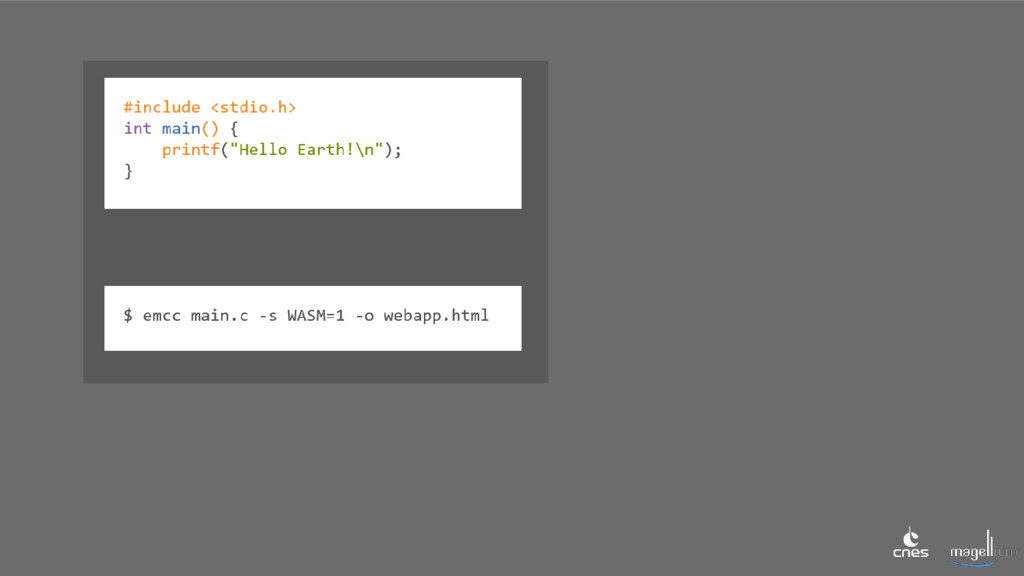

58. Tools? compile C/C++ code to WebAssembly mainly
64. manages lots of things for you
65. manages lots of things for you compilation from C/C++ JavaScript glue code standard library (pseudo file system, stdio…) canvas and WebGL bindings WebAssembly generation
66. manages lots of things for you compilation from C/C++ JavaScript glue code standard library (pseudo file system, stdio…) canvas and WebGL bindings WebAssembly generation etc.
73. our experiments
74. our experiments an image viewer a proof of concept image viewer with (legacy) processings 100% in the browser
75. demo!
76. OpenLayers based viewer simple cloud detection in wasm legacy plane detection with ICF algorithm from CCV library in wasm 100% in the browser our experiments an image viewer
77. ICF algorithm speed is OK for its use in the browser a pure JavaScript version of ICF would have been very slow native binary of ICF is x2 faster our experiments an image viewer
78. in the previous example, we displayed a “small” image (20 Mb) in a format known by the browser (PNG) our experiments an image viewer
79. in the previous example, we displayed a “small” image (20 Mb) in a format known by the browser (PNG) what if we want to manipulate a very big image (say, 3 Gb) in an exotic format (say, JPEG 2000) ? our experiments an image viewer
80. JPEG 2000 experiments compile OpenJPEG in wasm create OpenLayers layer that calls it
81. JPEG 2000 experiments compile OpenJPEG in wasm create OpenLayers layer that calls it it works on small JP2 files it is slow but might be usable on some computers but might be faster with OpenJPEG new version
82. JPEG 2000 experiments compile Kakadu in wasm create OpenLayers layer that calls it
83. JPEG 2000 experiments compile Kakadu in wasm create OpenLayers layer that calls it it works on small JP2 files it is fast!
84. JPEG 2000 experiments compile Kakadu in wasm create OpenLayers layer that calls it
85. JPEG 2000 experiments compile Kakadu in wasm create OpenLayers layer that calls it it works on very big JP2 files (3 Gb) it is relatively slow…
86. JPEG 2000 experiments compile Kakadu in wasm create OpenLayers layer that calls it it works on very big JP2 files (3 Gb) it is relatively slow… But, with some tricks at the emscripten level, and with help from some other web standards it becomes useable
87. demo!
88. JPEG 2000 experiments compile Kakadu in wasm create OpenLayers layer that calls it executed in a web worker can’t store all the content in memory: use the File API of the browser with allows chunk access from web workers
89. at Magellium we conduct some deep learning activities for some EO image use cases boats, buildings, cars, clouds, land cover, planes…
90. at Magellium we conduct some deep learning activities for some EO image use cases boats, buildings, cars, clouds, land cover, planes… why not trying to execute the inference part of one of our existing neural network in the browser with WebAssembly?
91. here are our experiments for in-browser deep learning inference using WebDNN library with the WebAssembly backend
92. in-browser deep learning inference use an existing Unet learned with Keras use all 13 bands of Sentinel 2 Sentinel 2 - tile 223 x 223 thick cloud mask
93. in-browser deep learning inference 17 seconds for one tile on an old laptop Sentinel 2 - tile 223 x 223 thick cloud mask
94. in-browser deep learning inference our experiments are slow, but… can be faster with: tile parallelization wit web workers a neural network with a smaller size a fast modern computer a WebGPU backend for WebDNN (significantly faster)
95. in-browser deep learning inference for our experiments we had to modify our Unet network
96. in-browser deep learning inference for our experiments we had to modify our Unet network WebDNN misses some kinds of layers

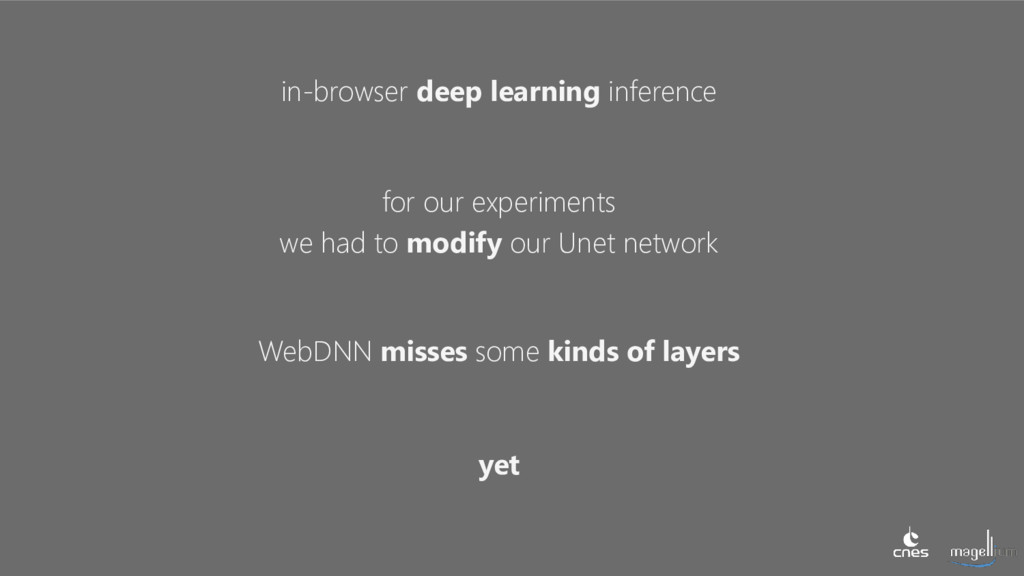

97. in-browser deep learning inference for our experiments we had to modify our Unet network WebDNN misses some kinds of layers yet

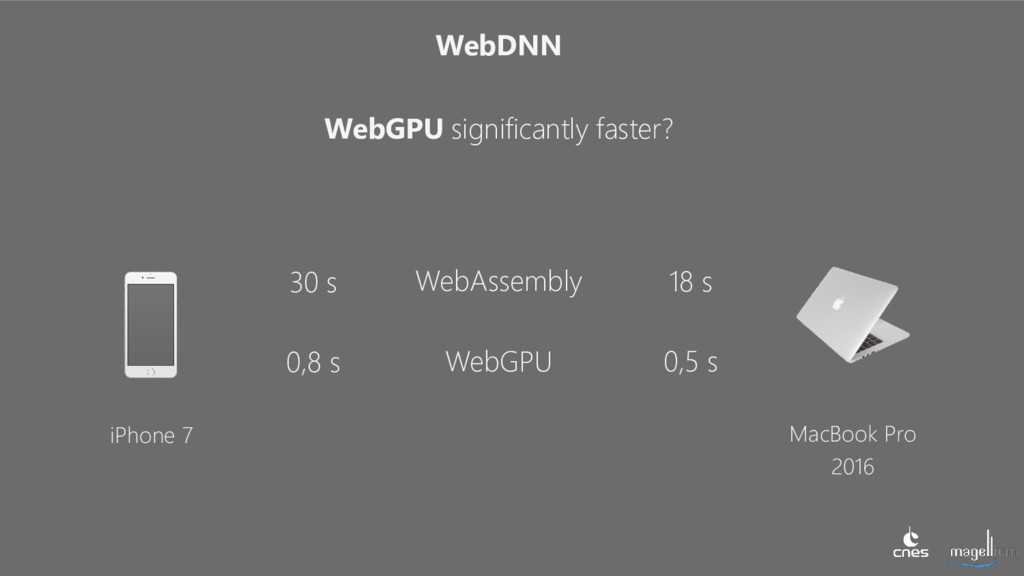

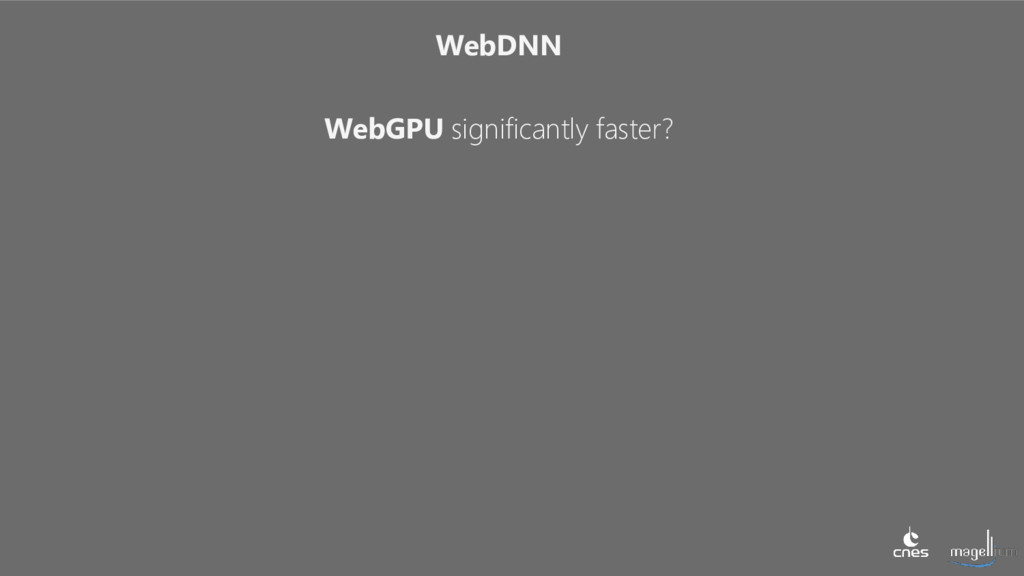

98. WebGPU significantly faster? WebDNN
99. WebGPU significantly faster? WebDNN iPhone 7
100. WebGPU significantly faster? WebDNN iPhone 7 WebAssembly 30 s
101. WebGPU significantly faster? WebDNN iPhone 7 WebAssembly WebGPU 30 s 0,8 s
102. WebGPU significantly faster? WebDNN iPhone 7 MacBook Pro 2016 WebAssembly WebGPU 30 s 0,8 s
103. WebGPU significantly faster? WebDNN iPhone 7 MacBook Pro 2016 WebAssembly WebGPU 30 s 0,8 s 18 s
104. WebGPU significantly faster? WebDNN iPhone 7 MacBook Pro 2016 WebAssembly WebGPU 30 s 0,8 s 18 s 0,5 s
105. WebGPU significantly faster? WebDNN yes
106. but current WebGPU is not WebGPU…
107. current WebGPU is “WebMetal” (i.e. Apple only) but current WebGPU is not WebGPU…
108. current WebGPU is “WebMetal” (i.e. Apple only) actual WebGPU is a (near?) future web standard but current WebGPU is not WebGPU…
109. current WebGPU is “WebMetal” (i.e. Apple only) actual WebGPU is a (near?) future web standard but one can bet the performances will be the same but current WebGPU is not WebGPU…
110. want to know more about WebGPU?
111. want to know more about WebGPU? next GDG meetup January, 4th @HarryCow Corentin Wallez

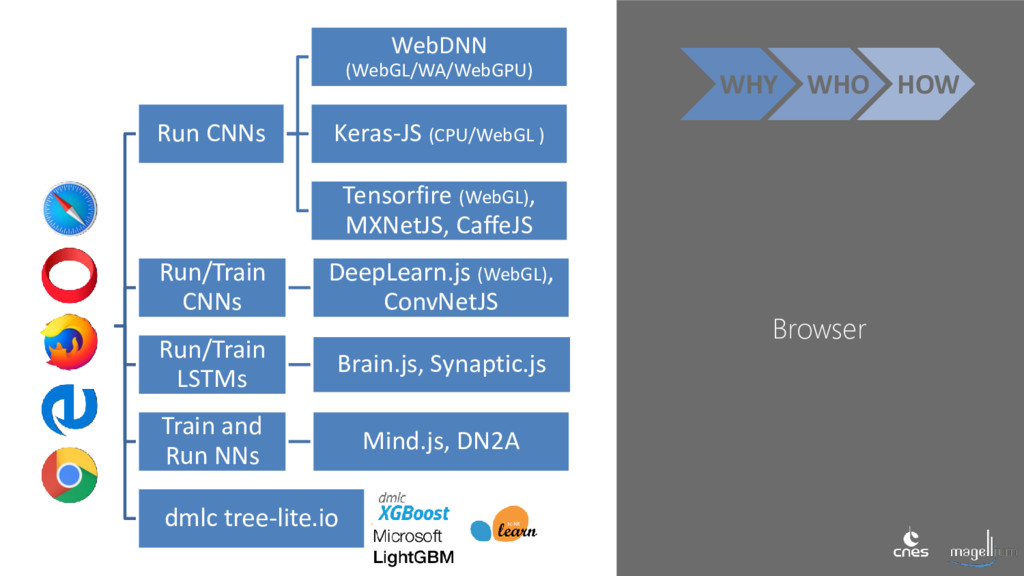

112. Browser WHY WHO HOW Run CNNs WebDNN (WebGL/WA/WebGPU) Keras-JS (CPU/WebGL ) Tensorfire (WebGL), MXNetJS, CaffeJS Run/Train CNNs DeepLearn.js (WebGL), ConvNetJS Run/Train LSTMs Brain.js, Synaptic.js Train and Run NNs Mind.js, DN2A dmlc tree-lite.io
113. Study on behalf of CNES
114. our experiments WebAssembly is web technology the browser is the main target but it is not tied to the browser “it is also desirable for it to be able to execute well in other environments, […] on servers in datacenters, […].” (webassembly.org)

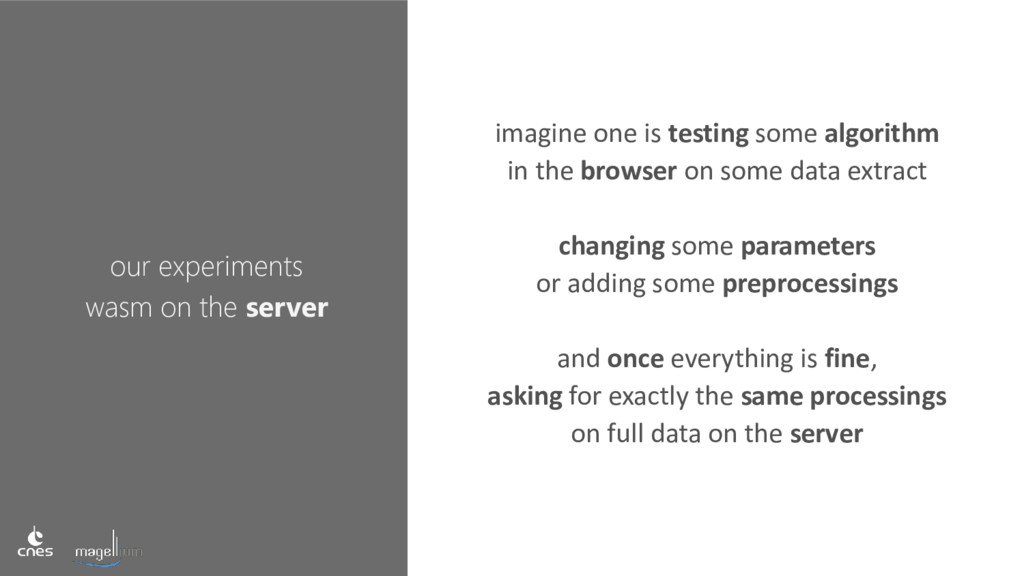

115. our experiments wasm on the server imagine one is testing some algorithm in the browser on some data extract changing some parameters or adding some preprocessings and once everything is fine, asking for exactly the same processings on full data on the server
116. our experiments wasm on the server we have experiment this with our plane detection algorithm
117. our experiments wasm on the server we have experiment this with our plane detection algorithm to ease development we choose a serverless architecture
118. our experiments wasm on the server Google Cloud Functions Google Cloud Pub Sub
119. our experiments wasm on the server it is a work in progress so far: the wasm plane detection is deployed as a Google Cloud Function a HTTP trigger and a PubSub trigger results on a PubSub batch of lots of requests is working
120. our experiments wasm on the server it is a work in progress to do: integrate requests and results into our browser viewer do the tiling of the image and send the requests display the results as they come
121. HeapViz http://heapviz.com/ a visualization tool for Chrome memory profile

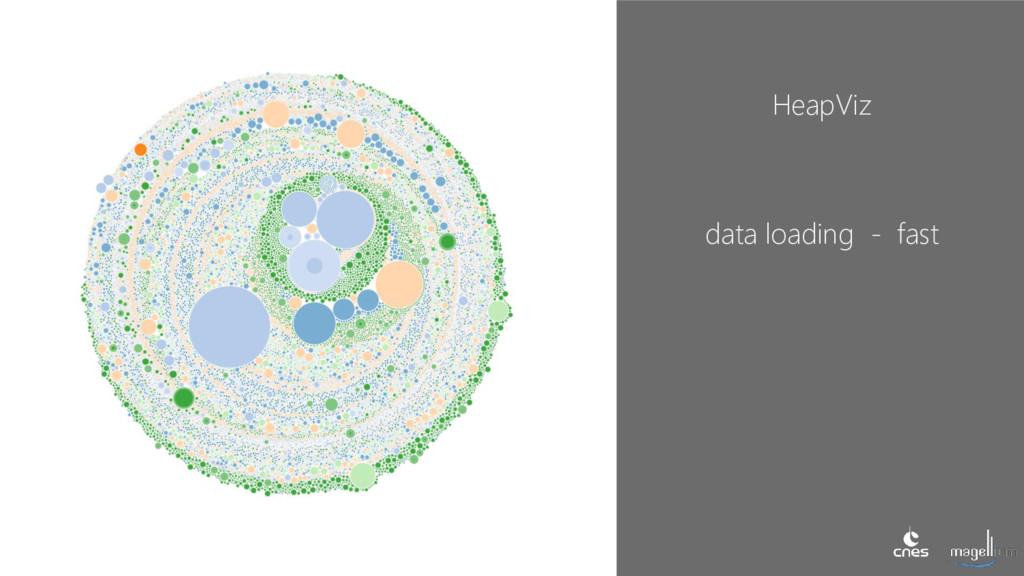

122. data loading - fast HeapViz
123. data loading - fast data parsing - fast HeapViz

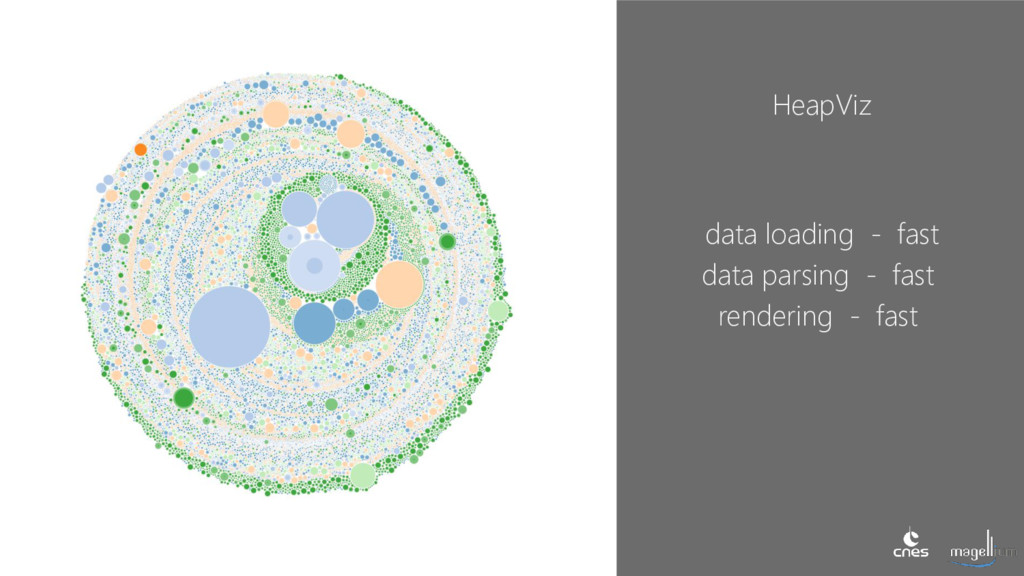

124. data loading - fast data parsing - fast rendering - fast HeapViz
125. data loading - fast data parsing - fast rendering - fast layout - slow (circle packing) HeapViz
126. two implementations of the layout algorithm D3.js C++ compiled to wasm HeapViz
127. WebAssembly is a standard, useable now, with strong commitment from major web actors
128. WebAssembly is a standard, useable now, with strong commitment from major web actors our experiments show that it is possible to successfully bring relative complex legacy tools in the browser
129. WebAssembly is a standard, useable now, with strong commitment from major web actors our experiments show that it is possible to successfully bring relative complex legacy tools in the browser our experiments show that this can be reasonably fast
130. WebAssembly is a standard, useable now, with strong commitment from major web actors (wasm engines are very young, performances will improve) our experiments show that it is possible to successfully bring relative complex legacy tools in the browser our experiments show that this can be reasonably fast
131. our experiments show that WebAssembly is able to bring value to users
132. WebAssembly brings power on the user side of Earth and space data web platforms
133. CNES will experiment WebAssembly with SPOT WORLD HERITAGE project to bring some new features to users like visualization of full resolution images
134. PUTTING KNOWLEDGE ON THE MAP Thank you! contact: nicolas.decoster@magellium.fr julien.nosavan@cnes.fr WebAssembly for EO Data Valorization

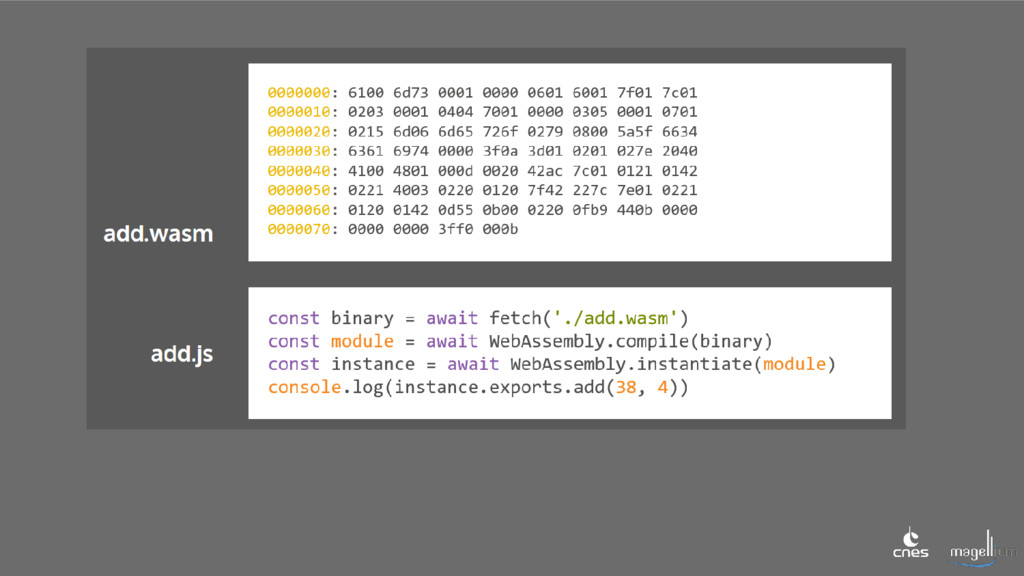

135. binary format

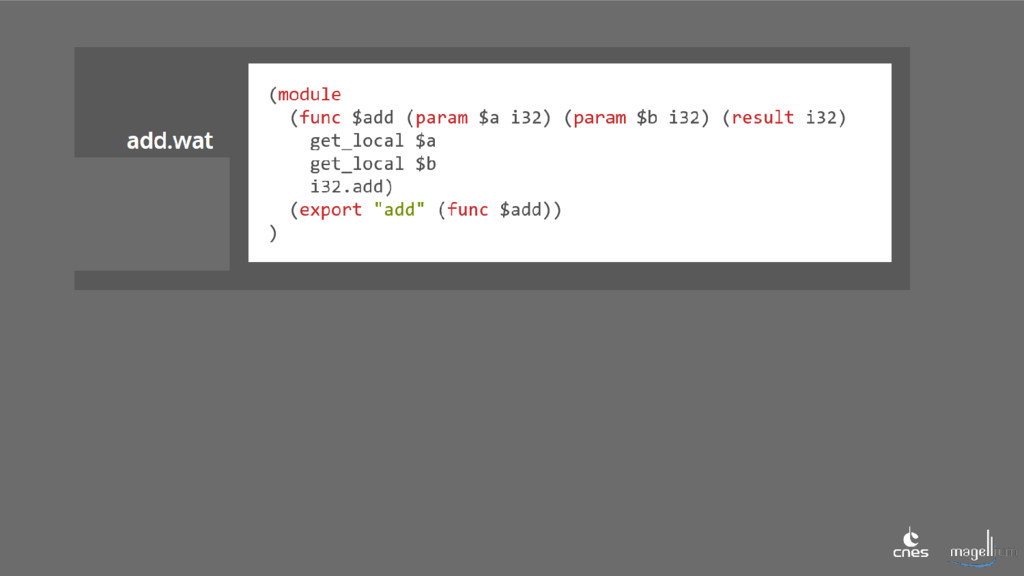

136. binary format text format (s-expression)
137. binary format (annotated)

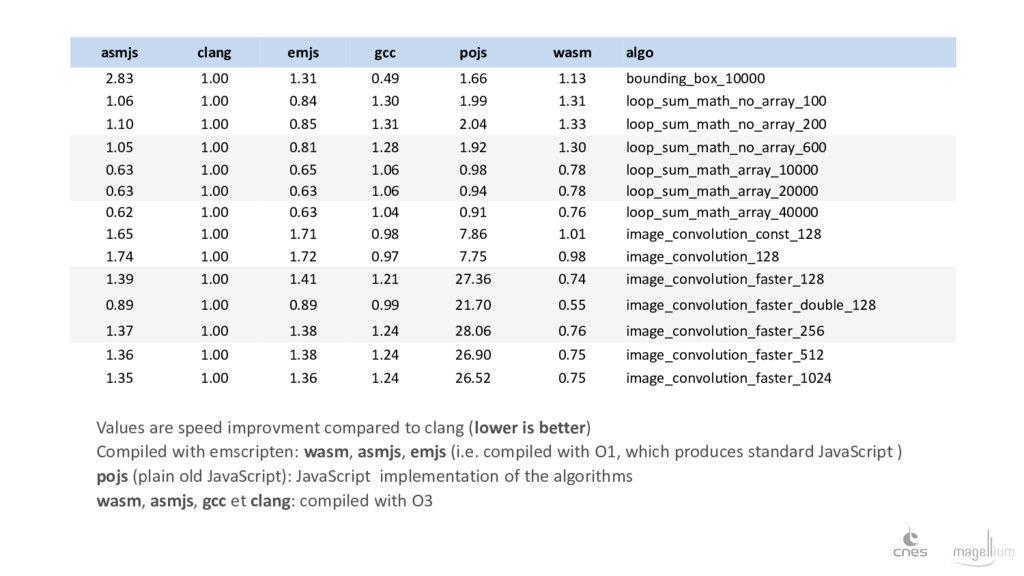

141. Values are speed improvment compared to clang (lower is better) Compiled with emscripten: wasm, asmjs, emjs (i.e. compiled with O1, which produces standard JavaScript ) pojs (plain old JavaScript): JavaScript implementation of the algorithms wasm, asmjs, gcc et clang: compiled with O3 asmjs clang emjs gcc pojs wasm algo 2.83 1.00 1.31 0.49 1.66 1.13 bounding_box_10000 1.06 1.00 0.84 1.30 1.99 1.31 loop_sum_math_no_array_100 1.10 1.00 0.85 1.31 2.04 1.33 loop_sum_math_no_array_200 1.05 1.00 0.81 1.28 1.92 1.30 loop_sum_math_no_array_600 0.63 1.00 0.65 1.06 0.98 0.78 loop_sum_math_array_10000 0.63 1.00 0.63 1.06 0.94 0.78 loop_sum_math_array_20000 0.62 1.00 0.63 1.04 0.91 0.76 loop_sum_math_array_40000 1.65 1.00 1.71 0.98 7.86 1.01 image_convolution_const_128 1.74 1.00 1.72 0.97 7.75 0.98 image_convolution_128 1.39 1.00 1.41 1.21 27.36 0.74 image_convolution_faster_128 0.89 1.00 0.89 0.99 21.70 0.55 image_convolution_faster_double_128 1.37 1.00 1.38 1.24 28.06 0.76 image_convolution_faster_256 1.36 1.00 1.38 1.24 26.90 0.75 image_convolution_faster_512 1.35 1.00 1.36 1.24 26.52 0.75 image_convolution_faster_1024
