Improving Start-up Performance with Lazy Loading in Angular 2 Manfred
Steyer SOFTWAREarchitekt.at ManfredSteyer
About me … • Manfred Steyer • SOFTWAREarchitekt.at • Trainer
& Consultant • Focus: Angular • Google Developer Expert (GDE) Page 2 Manfred Steyer

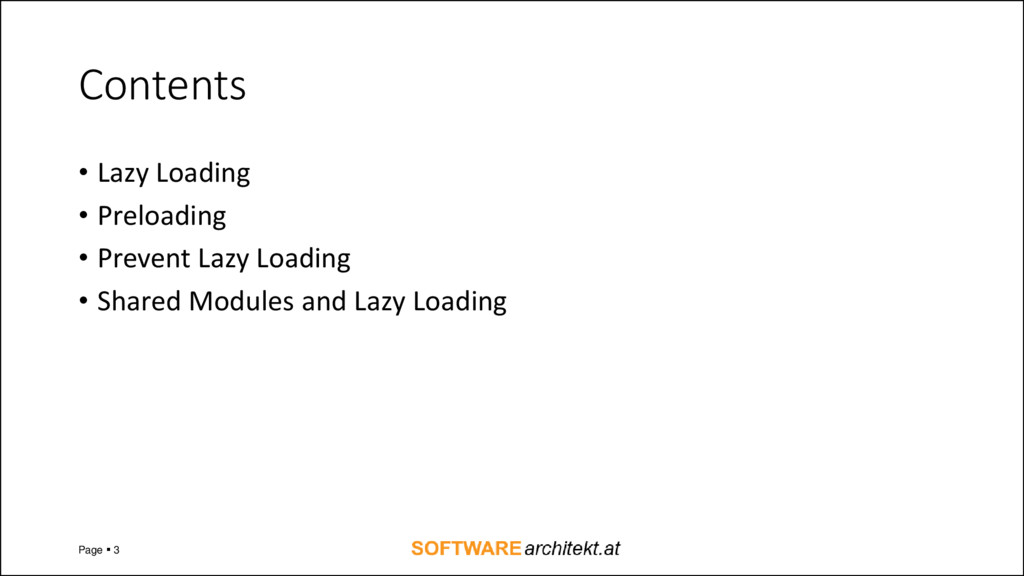

Contents • Lazy Loading • Preloading • Prevent Lazy Loading
• Shared Modules and Lazy Loading Page 3
Lazy Loading Page 4

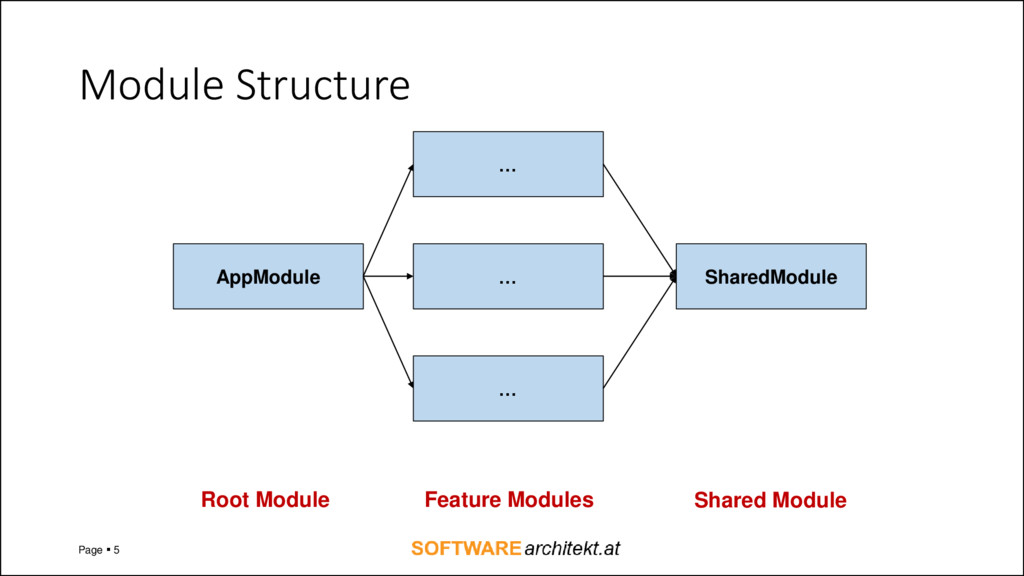

Module Structure Page 5 AppModule … … … SharedModule
Root Module Feature Modules Shared Module

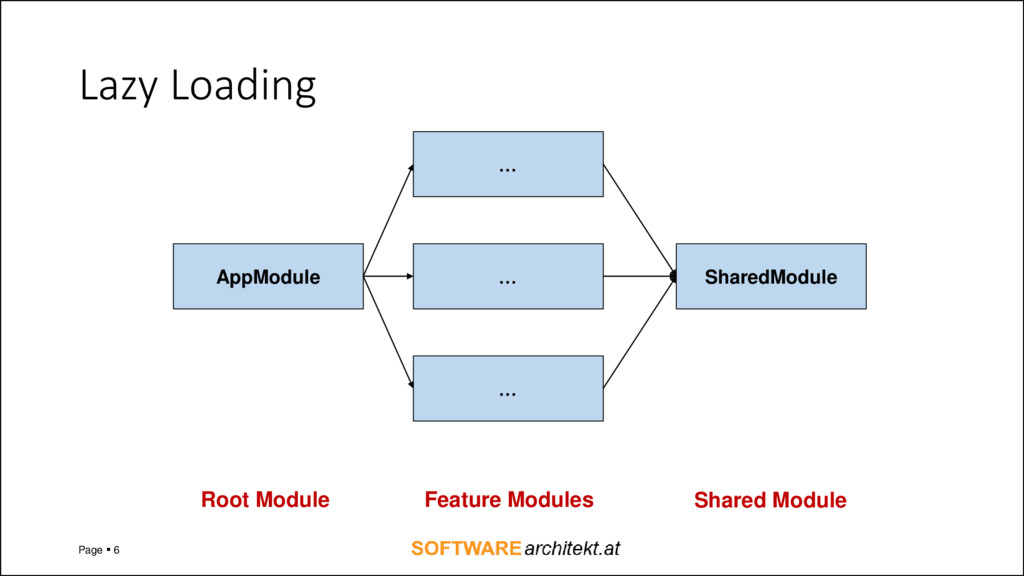

Lazy Loading Page 6 AppModule … … … SharedModule
Root Module Feature Modules Shared Module

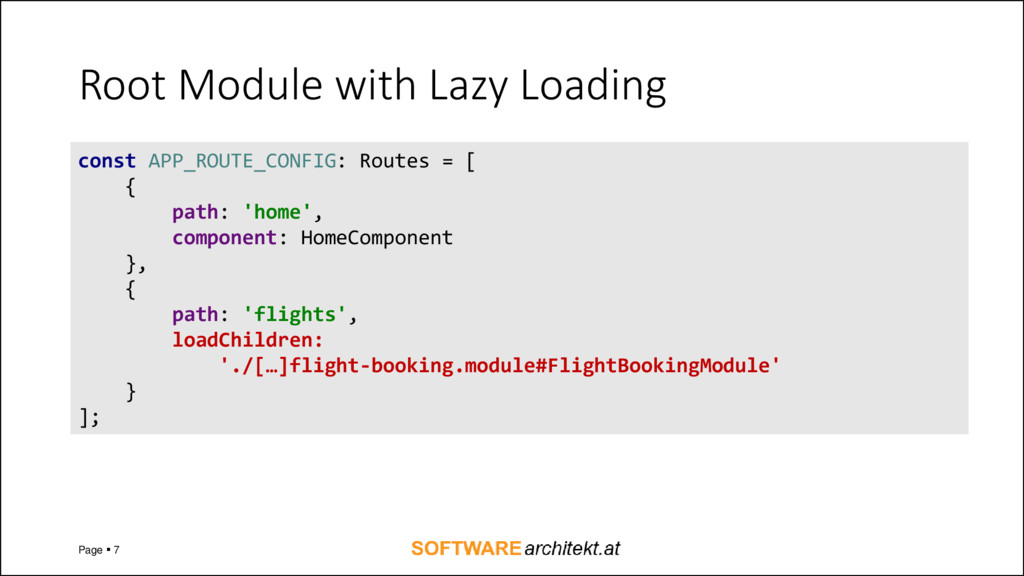

Root Module with Lazy Loading Page 7 const APP_ROUTE_CONFIG:
Routes = [ { path: 'home', component: HomeComponent }, { path: 'flights', loadChildren: './[…]flight-booking.module#FlightBookingModule' } ];

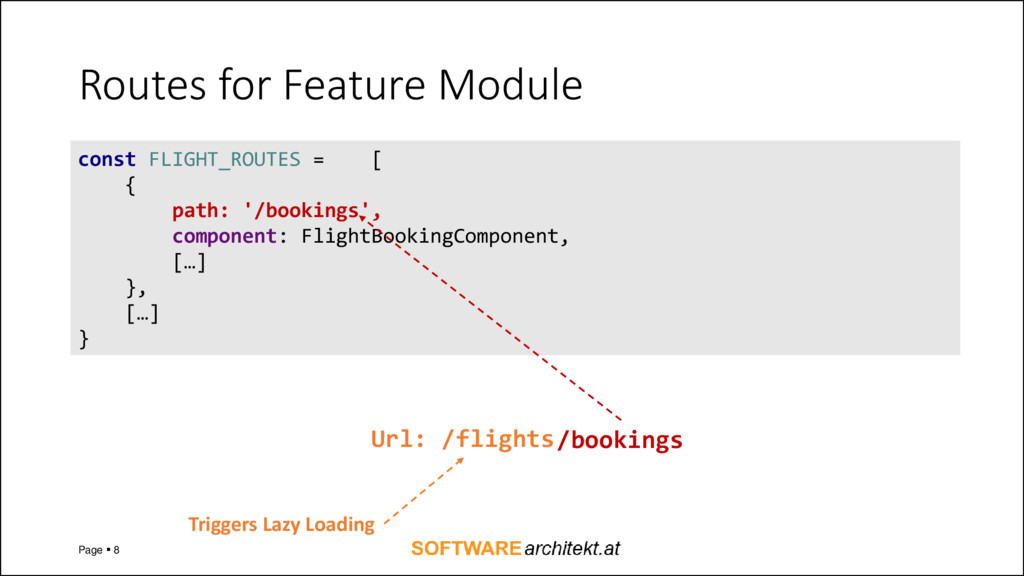

Routes for Feature Module Page 8 const FLIGHT_ROUTES =
[ { path: '/bookings', component: FlightBookingComponent, […] }, […] } Url: /flights/bookings Triggers Lazy Loading

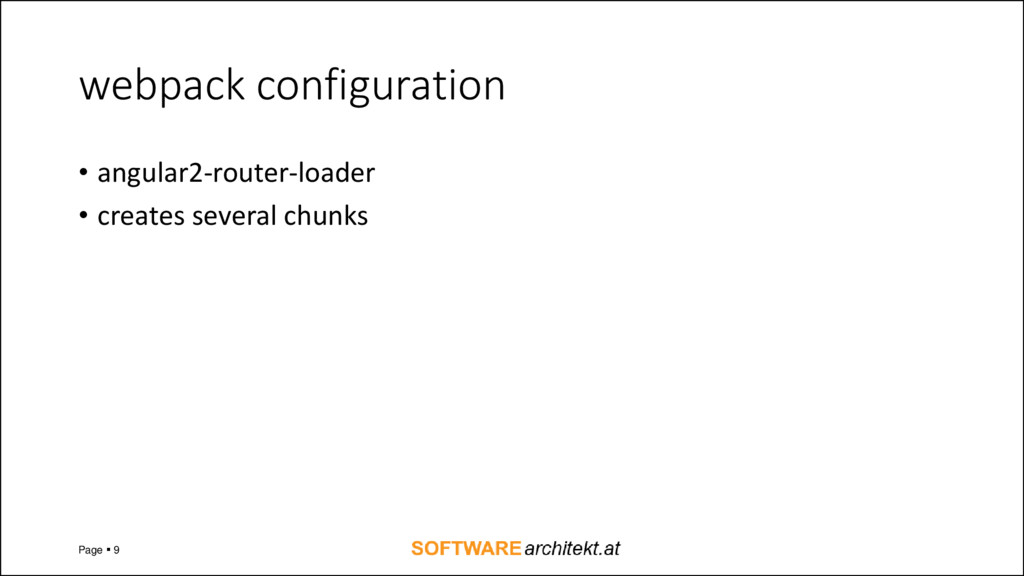

webpack configuration • angular2-router-loader • creates several chunks Page
9
DEMO Page 10
Preloading Page 11

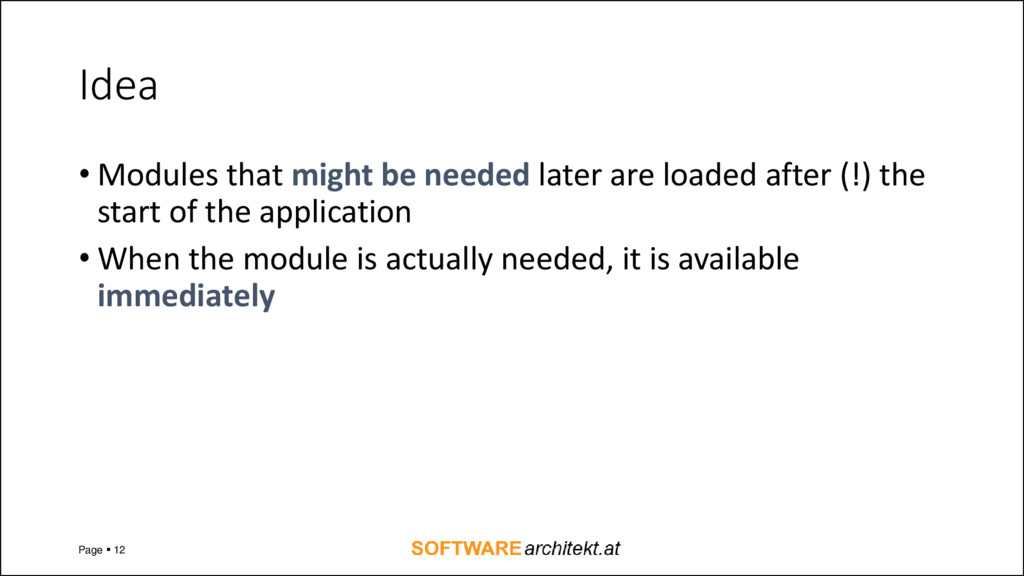

Idea • Modules that might be needed later are loaded
after (!) the start of the application • When the module is actually needed, it is available immediately Page 12

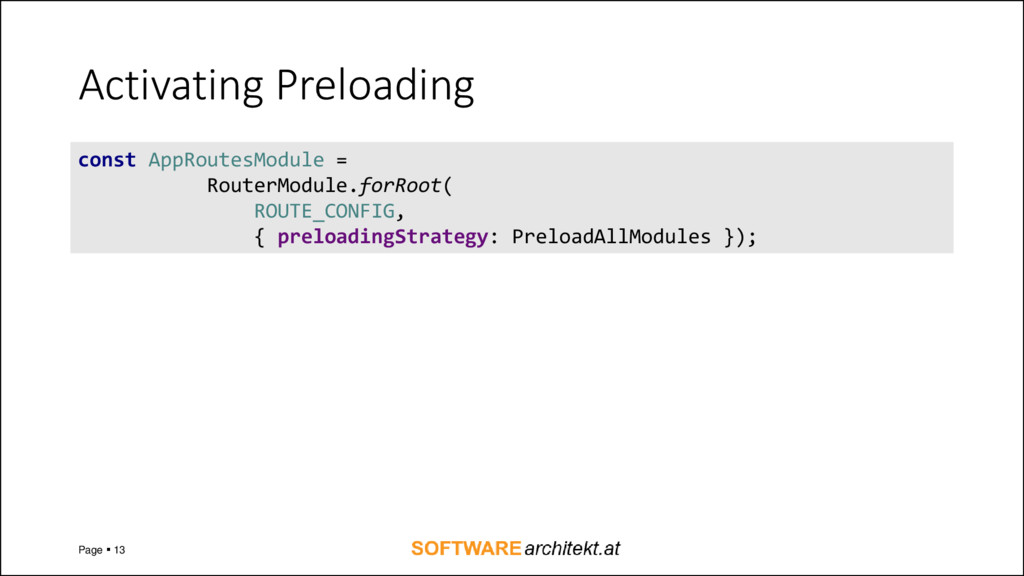

Activating Preloading Page 13 const AppRoutesModule = RouterModule.forRoot( ROUTE_CONFIG,
{ preloadingStrategy: PreloadAllModules });
DEMO Page 14
Prevent Lazy-Loading

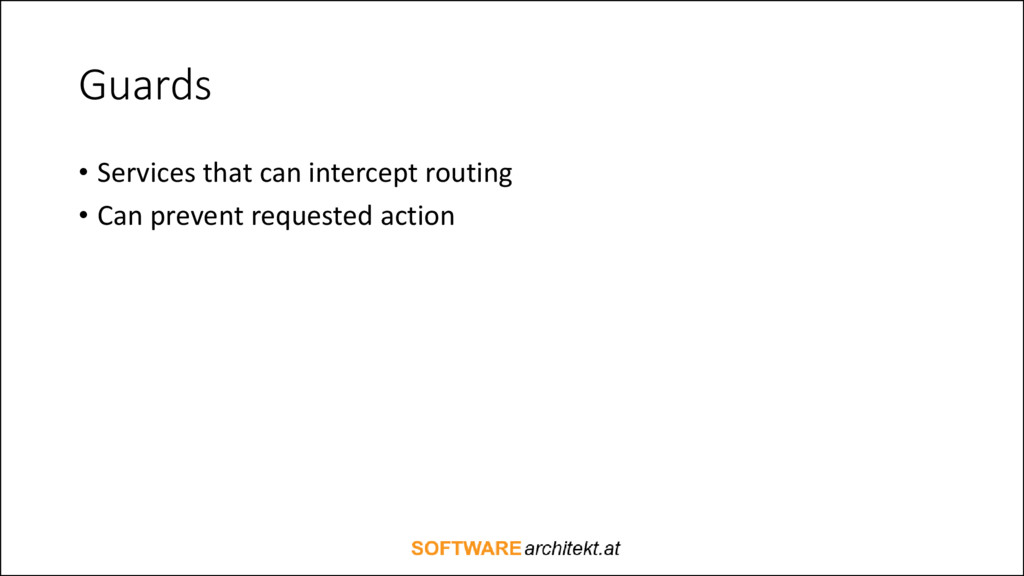

Guards • Services that can intercept routing • Can prevent
requested action

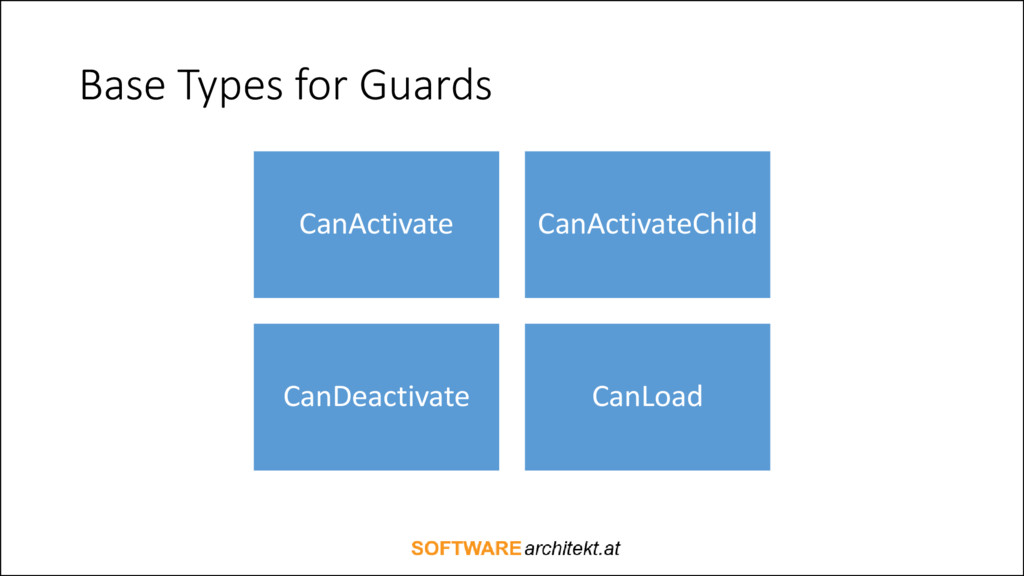

Base Types for Guards CanActivate CanActivateChild CanDeactivate CanLoad

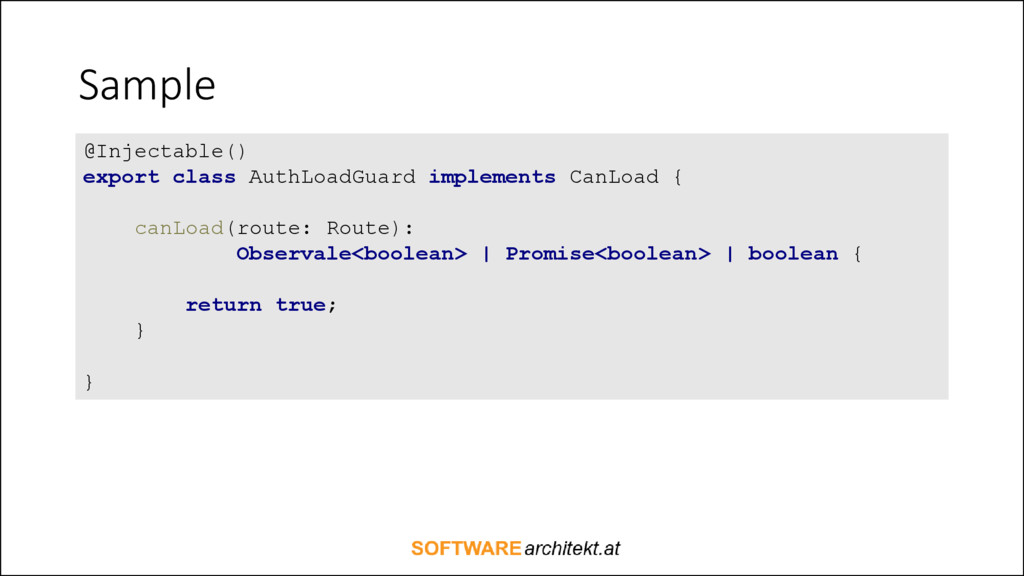

Sample @Injectable() export class AuthLoadGuard implements CanLoad { canLoad(route: Route):
Observale<boolean> | Promise<boolean> | boolean { return true; } }

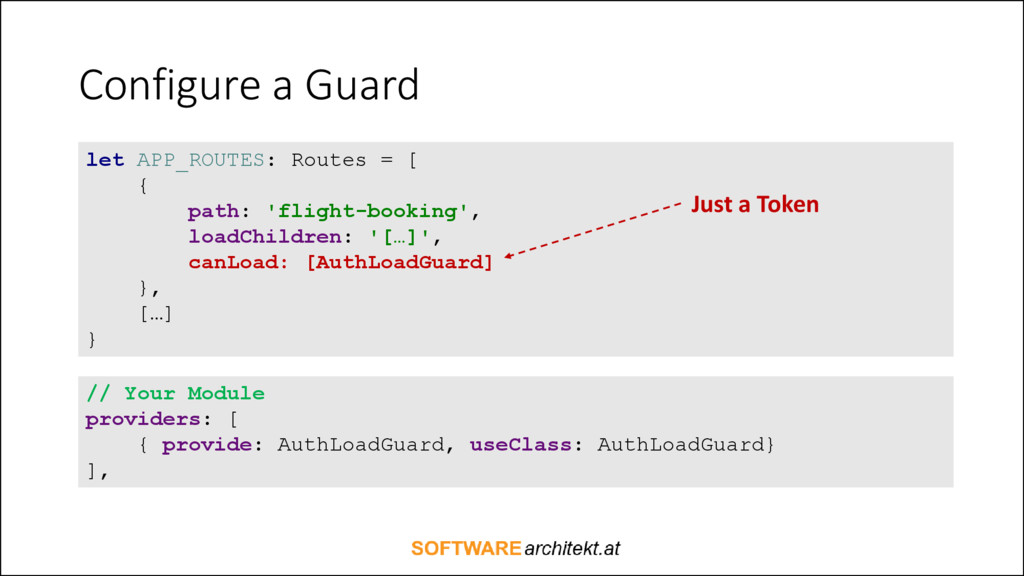

Configure a Guard let APP_ROUTES: Routes = [ { path:
'flight-booking', loadChildren: '[…]', canLoad: [AuthLoadGuard] }, […] } Just a Token // Your Module providers: [ { provide: AuthLoadGuard, useClass: AuthLoadGuard} ],

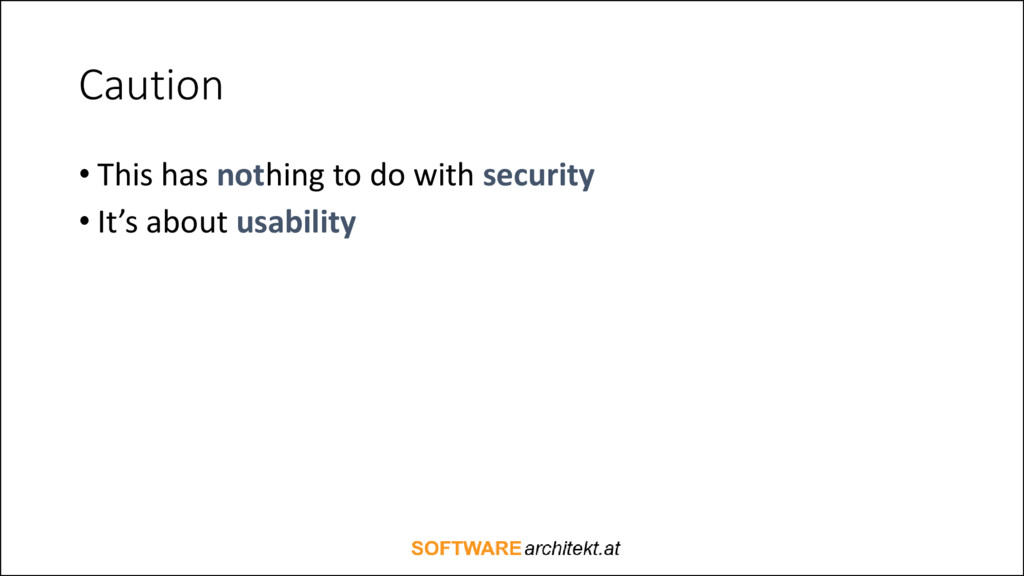

Caution • This has nothing to do with security •
It’s about usability
DEMO
Lazy Loading and Shared Modules Page 22
DEMO Page 23

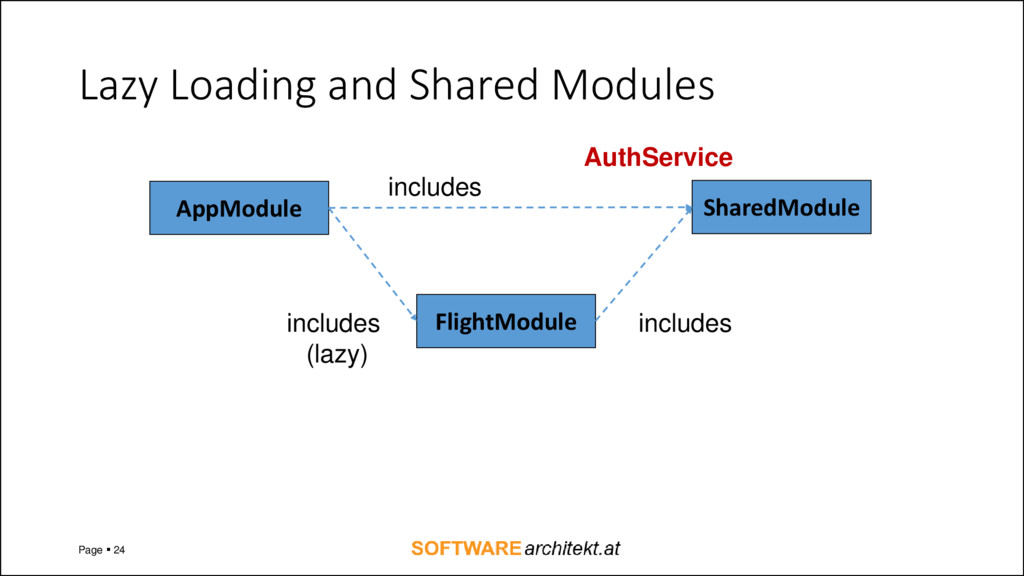

Lazy Loading and Shared Modules Page 24 AppModule FlightModule
SharedModule includes includes (lazy) includes AuthService
Lazy Loading and Shared Modules Page 25 AppModule FlightModule
SharedModule includes includes (lazy) includes AuthService AuthService

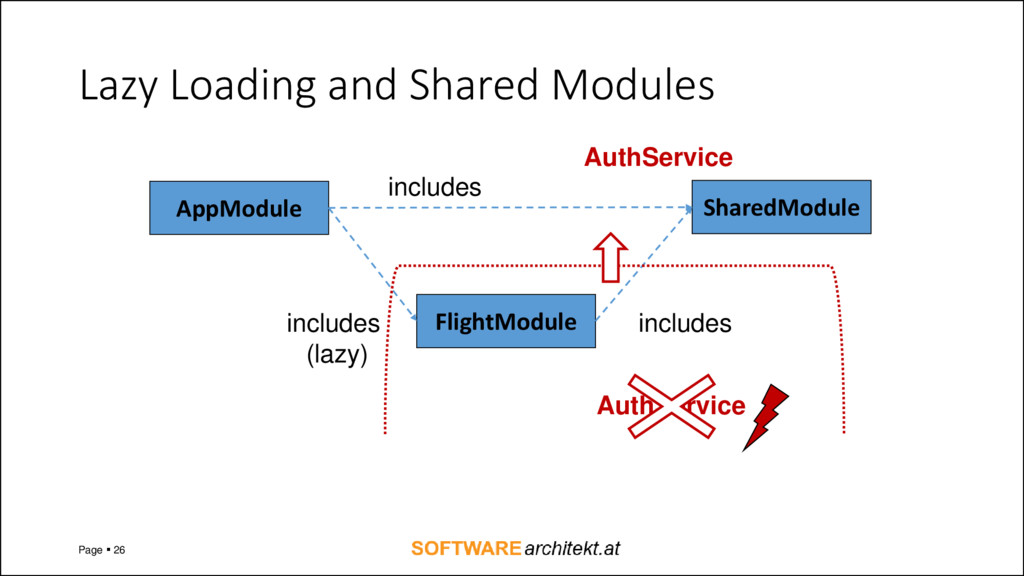

Lazy Loading and Shared Modules Page 26 AppModule FlightModule
SharedModule includes includes (lazy) includes AuthService AuthService

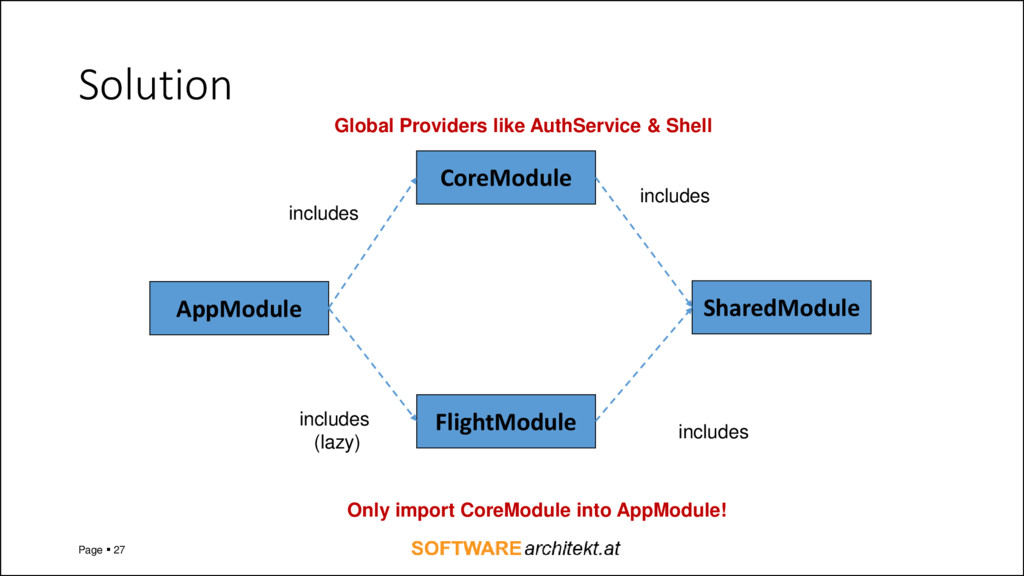

Solution Page 27 AppModule FlightModule SharedModule includes (lazy) includes
CoreModule includes includes Only import CoreModule into AppModule! Global Providers like AuthService & Shell
DEMO

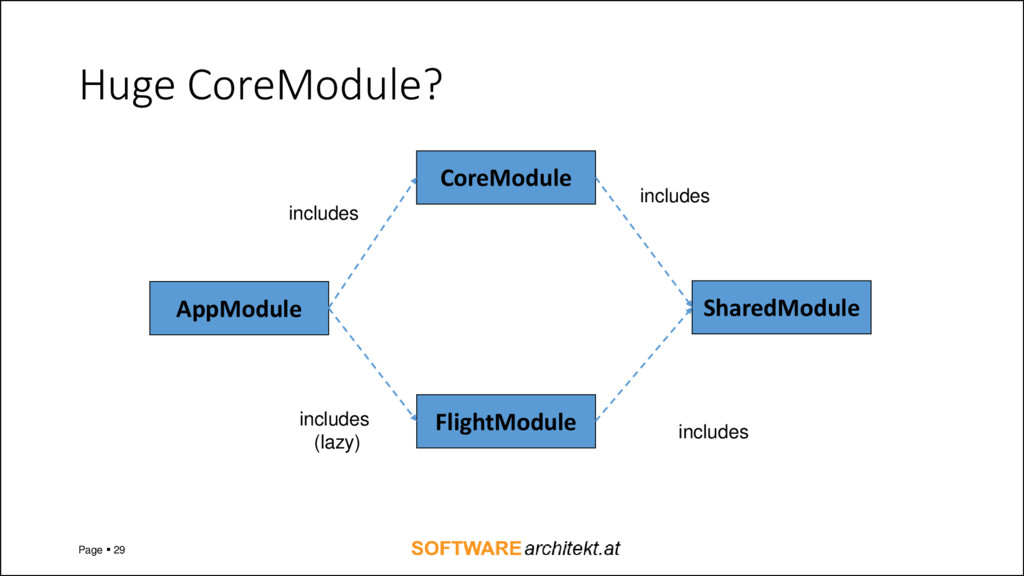

Huge CoreModule? Page 29 AppModule FlightModule SharedModule includes (lazy)
includes CoreModule includes includes

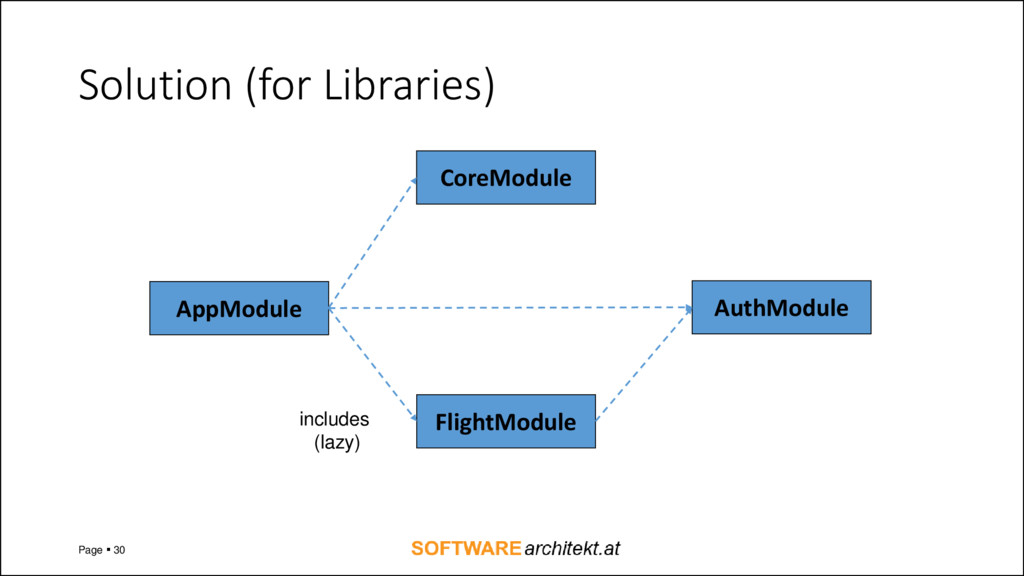

Solution (for Libraries) Page 30 AppModule FlightModule AuthModule includes
(lazy) CoreModule

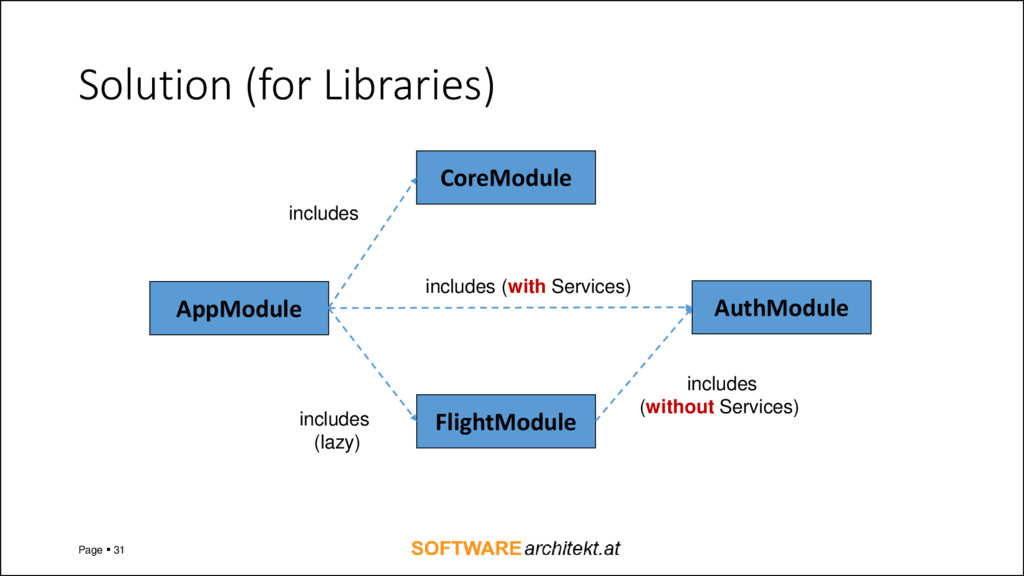

Solution (for Libraries) Page 31 AppModule FlightModule AuthModule includes
(lazy) includes (with Services) CoreModule includes includes (without Services)

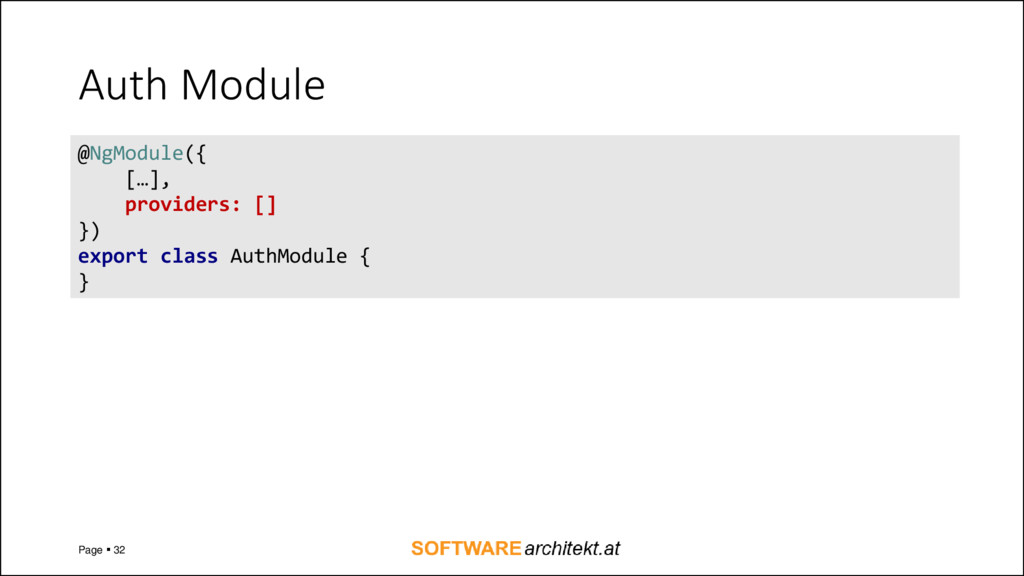

Auth Module Page 32 @NgModule({ […], providers: [] })
export class AuthModule { }

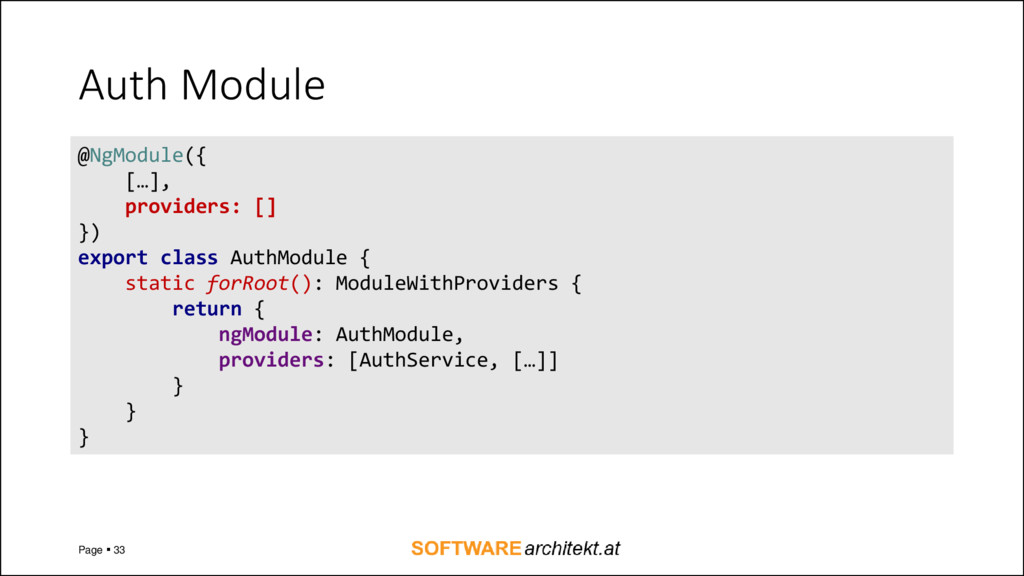

Auth Module Page 33 @NgModule({ […], providers: [] })
export class AuthModule { static forRoot(): ModuleWithProviders { return { ngModule: AuthModule, providers: [AuthService, […]] } } }
DEMO Page 34

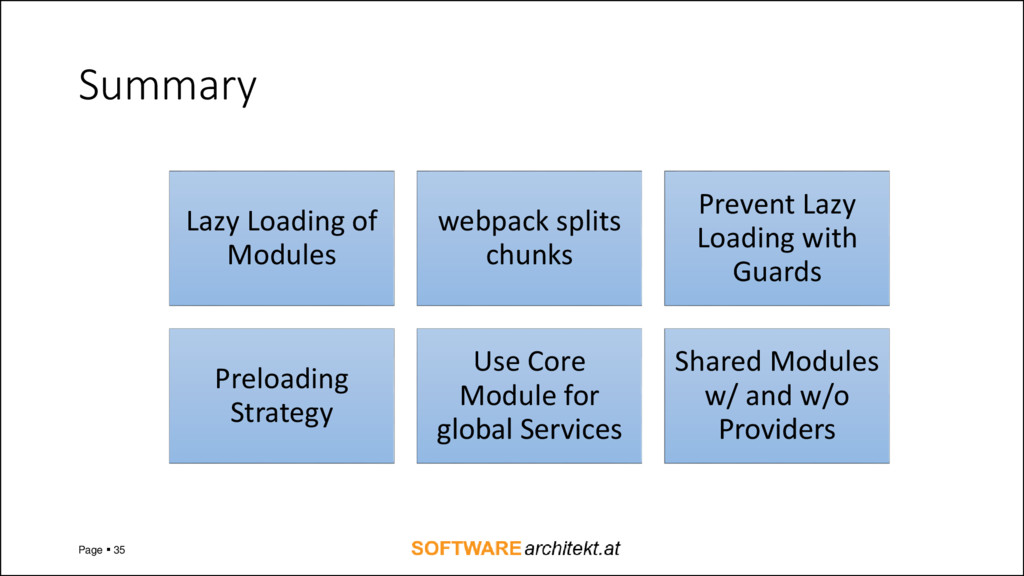

Summary Page 35 Lazy Loading of Modules webpack splits
chunks Prevent Lazy Loading with Guards Preloading Strategy Use Core Module for global Services Shared Modules w/ and w/o Providers
Contact [mail]
[email protected]
[blog] SOFTWAREarchitekt.at [twitter] ManfredSteyer
