Nomad the automated hard way (along with Consul, Vault and Terraform)

Talk about our experience on the setup of a Container Service with the HashiCorp stack and some grains of Saltstack. We'll show how we secured the systems.
All is automated to deliver TLS certificates to all services and backend during each steps of bootstrapping the service, with ACL, roles and PKIs plus the auto-unseal service of Vault. An new environment can be boostraped from zero with a few human interactions due to the ACL security.

YoanBlanc - @greut
Marc-AurèleBrothier - @marcaurele
Jean-PhilippeMenil - @jpmenil

Transcript

1. NOMAD NOMAD THE THE AUTOMATED HARDWAY AUTOMATED HARDWAY Yoan Blanc - @greut Marc-Aurèle Brothier - @marcaurele Jean-Philippe Menil - @jpmenil June 2020
2. WE WILL TALK ABOUT WE WILL TALK ABOUT context & goal around our container journey how we chose Nomad how we built up our PoC how the different environments are running feedback on the journey
3. CONTEXT CONTEXT

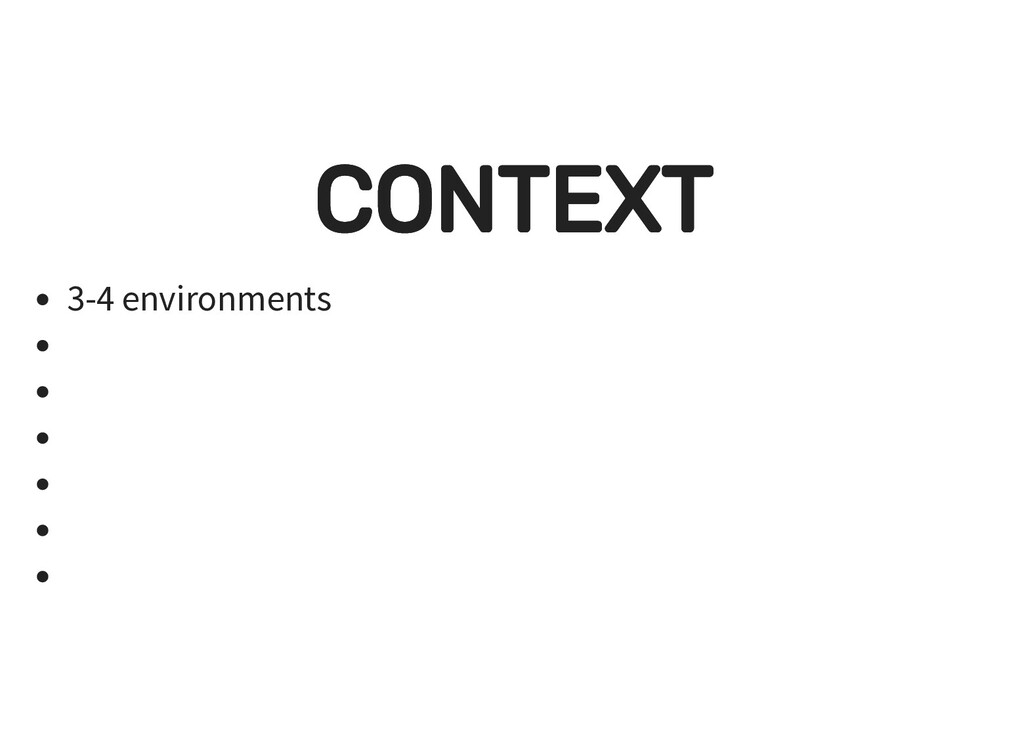

4. CONTEXT CONTEXT 3-4 environments

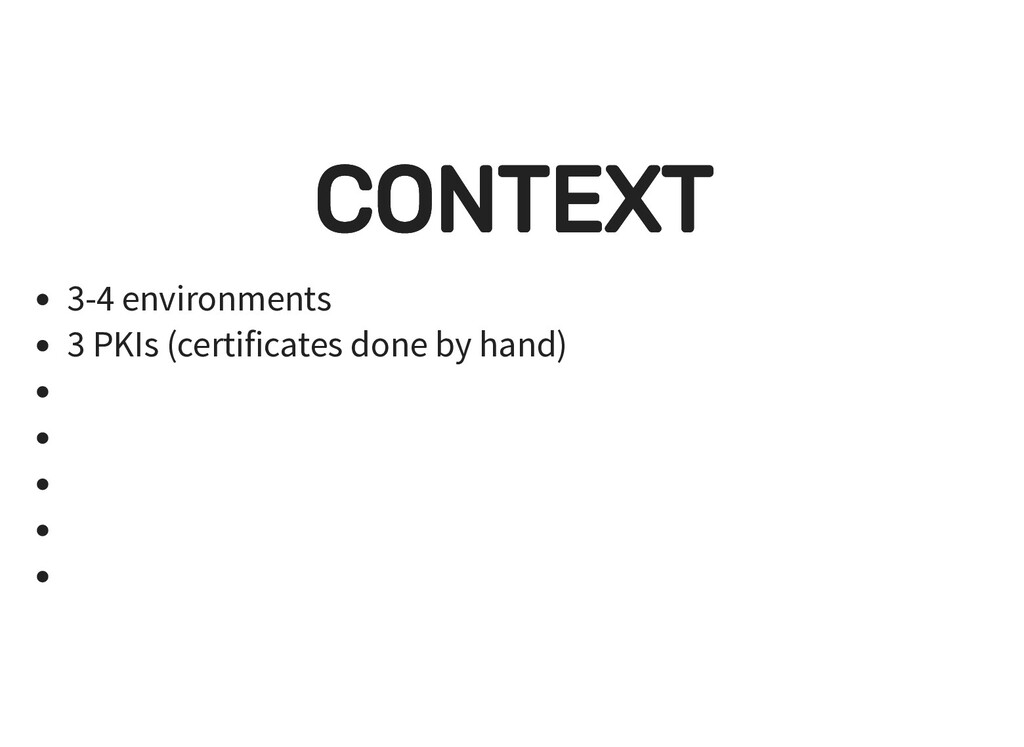

5. CONTEXT CONTEXT 3-4 environments 3 PKIs (certificates done by hand)
6. CONTEXT CONTEXT 3-4 environments 3 PKIs (certificates done by hand) Developers on Windows 10 (since last fall)
7. CONTEXT CONTEXT 3-4 environments 3 PKIs (certificates done by hand) Developers on Windows 10 (since last fall) Releases to production done ~7 times a year (two major ones)

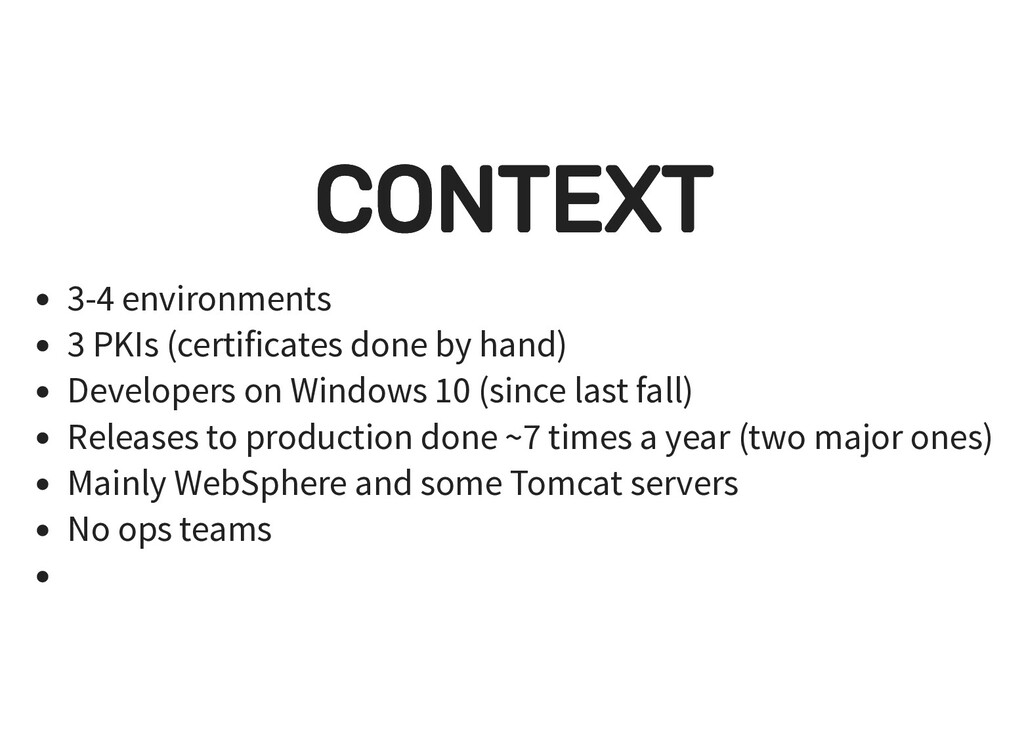

8. CONTEXT CONTEXT 3-4 environments 3 PKIs (certificates done by hand) Developers on Windows 10 (since last fall) Releases to production done ~7 times a year (two major ones) Mainly WebSphere and some Tomcat servers
9. CONTEXT CONTEXT 3-4 environments 3 PKIs (certificates done by hand) Developers on Windows 10 (since last fall) Releases to production done ~7 times a year (two major ones) Mainly WebSphere and some Tomcat servers No ops teams
10. CONTEXT CONTEXT 3-4 environments 3 PKIs (certificates done by hand) Developers on Windows 10 (since last fall) Releases to production done ~7 times a year (two major ones) Mainly WebSphere and some Tomcat servers No ops teams No APIs for ordering VMs
11. CONTEXT CONTEXT 3-4 environments 3 PKIs (certificates done by hand) Developers on Windows 10 (since last fall) Releases to production done ~7 times a year (two major ones) Mainly WebSphere and some Tomcat servers No ops teams No APIs for ordering VMs

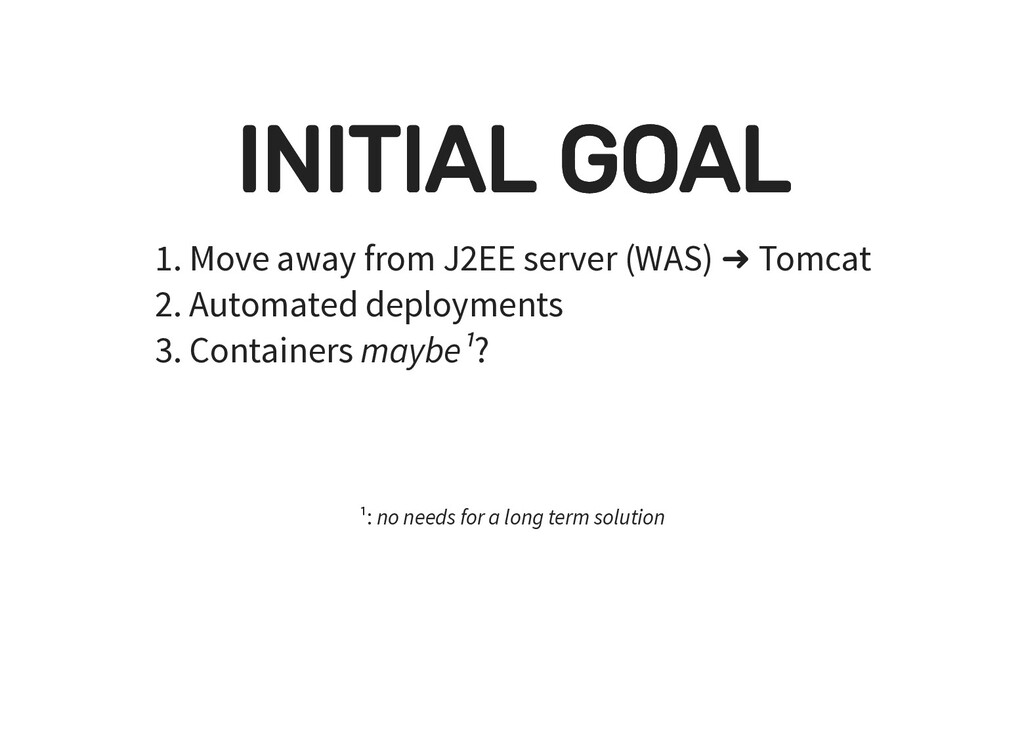

12. INITIAL GOAL INITIAL GOAL 1. Move away from J2EE server (WAS) ➜ Tomcat 2. Automated deployments 3. Containers maybe¹? ¹: no needs for a long term solution
13. READ BETWEEN THE READ BETWEEN THE LINES LINES People are unhappy with the process from creating a release to having it in production.
14. NEED FOR A CHANGE NEED FOR A CHANGE Jira Confluence Jenkins Tomcat Git
15. INCEPTION OF DEVOPS INCEPTION OF DEVOPS GitLab with its CI/CD Remove WebSphere App Server ➜ Tomcat

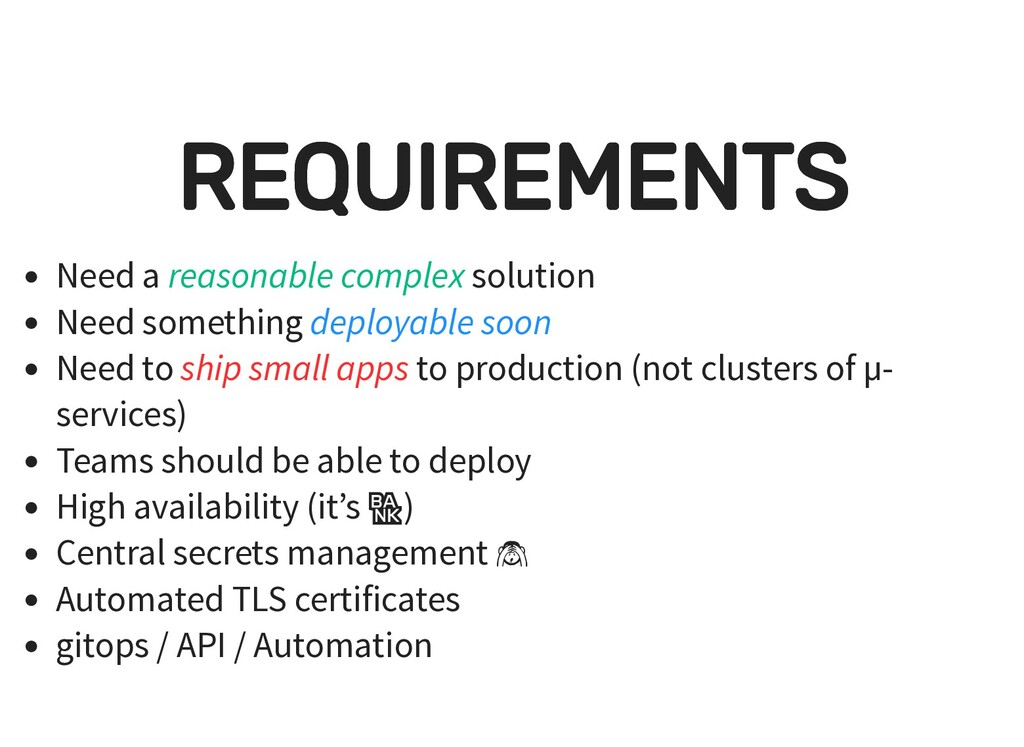

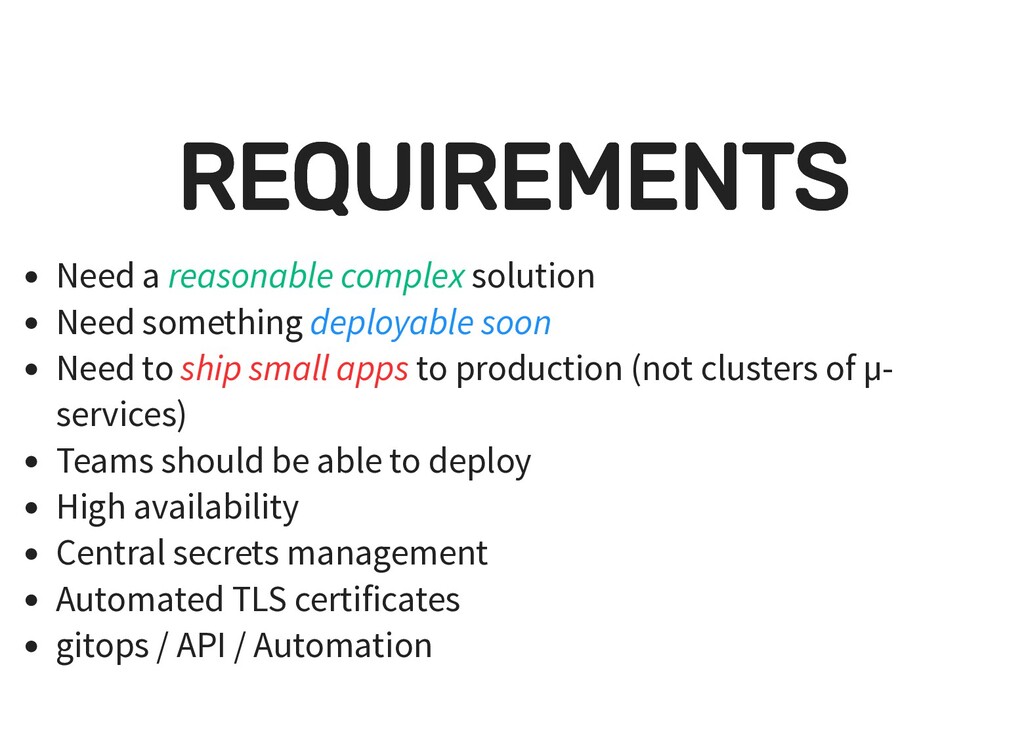

17. REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production (not clusters of µ- services) Teams should be able to deploy High availability Central secrets management Automated TLS certificates gitops / API / Automation
18. REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production (not clusters of µ- services) Teams should be able to deploy High availability Central secrets management Automated TLS certificates gitops / API / Automation
19. REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production (not clusters of µ- services) Teams should be able to deploy High availability Central secrets management Automated TLS certificates gitops / API / Automation
20. REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production (not clusters of µ- services) Teams should be able to deploy High availability Central secrets management Automated TLS certificates gitops / API / Automation
21. REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production (not clusters of µ- services) Teams should be able to deploy High availability (it’s ) Central secrets management Automated TLS certificates gitops / API / Automation
22. REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production (not clusters of µ- services) Teams should be able to deploy High availability (it’s ) Central secrets management Automated TLS certificates gitops / API / Automation
23. REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production (not clusters of µ- services) Teams should be able to deploy High availability (it’s ) Central secrets management Automated TLS certificates gitops / API / Automation
24. REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production (not clusters of µ- services) Teams should be able to deploy High availability (it’s ) Central secrets management Automated TLS certificates gitops / API / Automation (no )
25. NEW STRATEGY NEW STRATEGY Automation Config management Containers 12-factor KISS
26. NEW STRATEGY NEW STRATEGY Automation Config management Containers 12-factor KISS Can only improve the current situation!
27. OUR PLAN OUR PLAN 1. Use Git for everything 2. Build everything with containers 3. Migrate applications to Tomcat 4. Offer a solution with the lowest entrypoint 5. … 6. Profit!
28. WHY NOMAD? WHY NOMAD? circa July 2019 1. Docker Swarm 2. Mesos + Marathon 3. Nomad 4. Kubernetes 5. OpenShi
29. WHY NOMAD? WHY NOMAD? circa July 2019 1. Docker Swarm 2. Mesos + Marathon 3. Nomad 4. Kubernetes 5. OpenShi
30. NOMAD / CONSUL NOMAD / CONSUL It’s very easy to setup a proof-of-concept¹ You can play with the components separately Not a Docker-only solution ¹: open source
31. TRADEOFFS W.R.T TRADEOFFS W.R.T KUBERNETES KUBERNETES No CNI - you’ll have to deal with IP and port Small community - not everything is an operator away Clusters are simpler - easier to manage SELinux not superbly supported¹ Less is More or the Paradox of Choice ¹: Pull Request is pending #7624

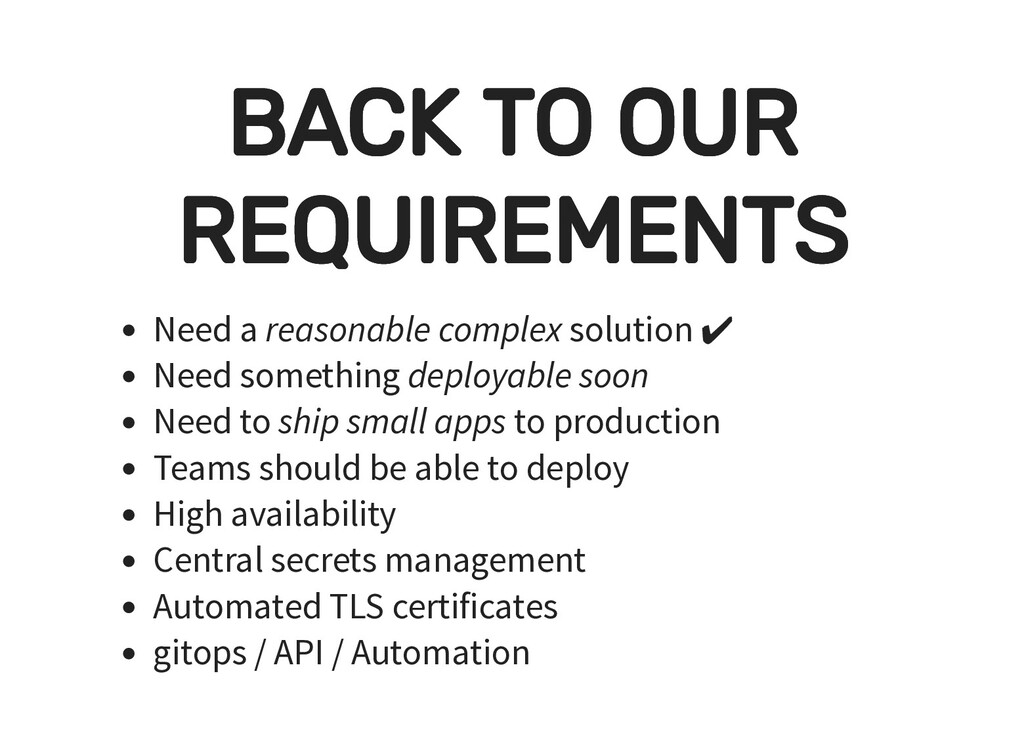

32. BACK TO OUR BACK TO OUR REQUIREMENTS REQUIREMENTS Need a reasonable complex solution Need something deployable soon Need to ship small apps to production Teams should be able to deploy High availability Central secrets management Automated TLS certificates gitops / API / Automation
33. BACK TO OUR BACK TO OUR REQUIREMENTS REQUIREMENTS Need a reasonable complex solution ✔ Need something deployable soon Need to ship small apps to production Teams should be able to deploy High availability Central secrets management Automated TLS certificates gitops / API / Automation
34. BACK TO OUR BACK TO OUR REQUIREMENTS REQUIREMENTS Need a reasonable complex solution ✔ Need something deployable soon ✔ Need to ship small apps to production Teams should be able to deploy High availability Central secrets management Automated TLS certificates gitops / API / Automation
35. BACK TO OUR BACK TO OUR REQUIREMENTS REQUIREMENTS Need a reasonable complex solution ✔ Need something deployable soon ✔ Need to ship small apps to production Teams should be able to deploy High availability ✔ Central secrets management Automated TLS certificates gitops / API / Automation

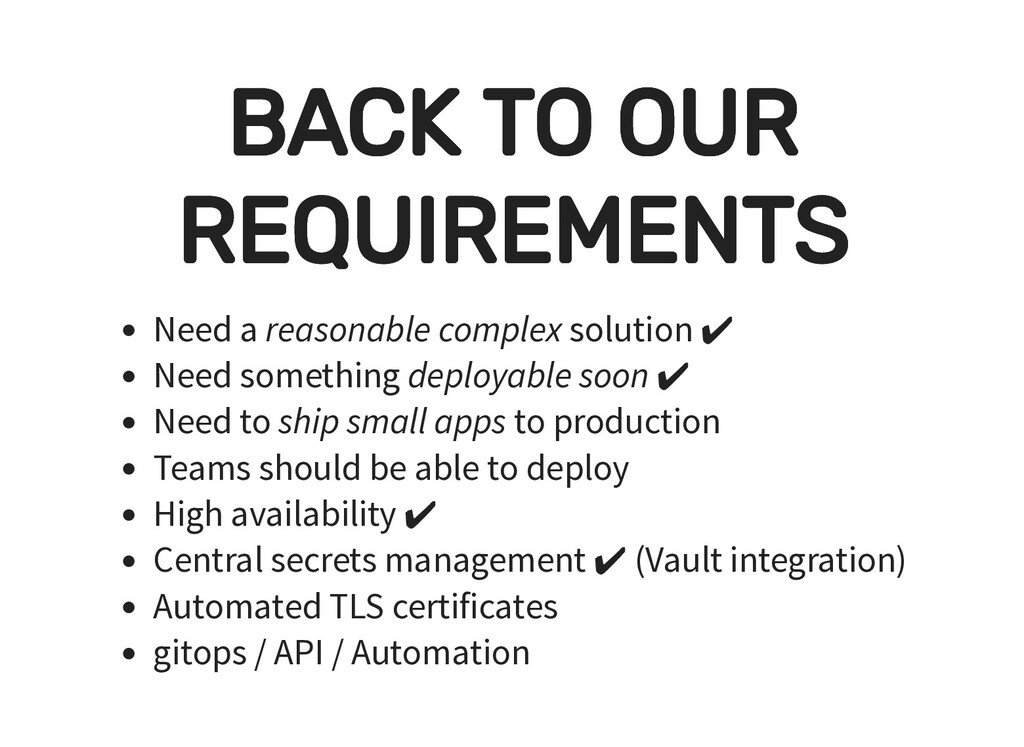

36. BACK TO OUR BACK TO OUR REQUIREMENTS REQUIREMENTS Need a reasonable complex solution ✔ Need something deployable soon ✔ Need to ship small apps to production Teams should be able to deploy High availability ✔ Central secrets management ✔ (Vault integration) Automated TLS certificates gitops / API / Automation

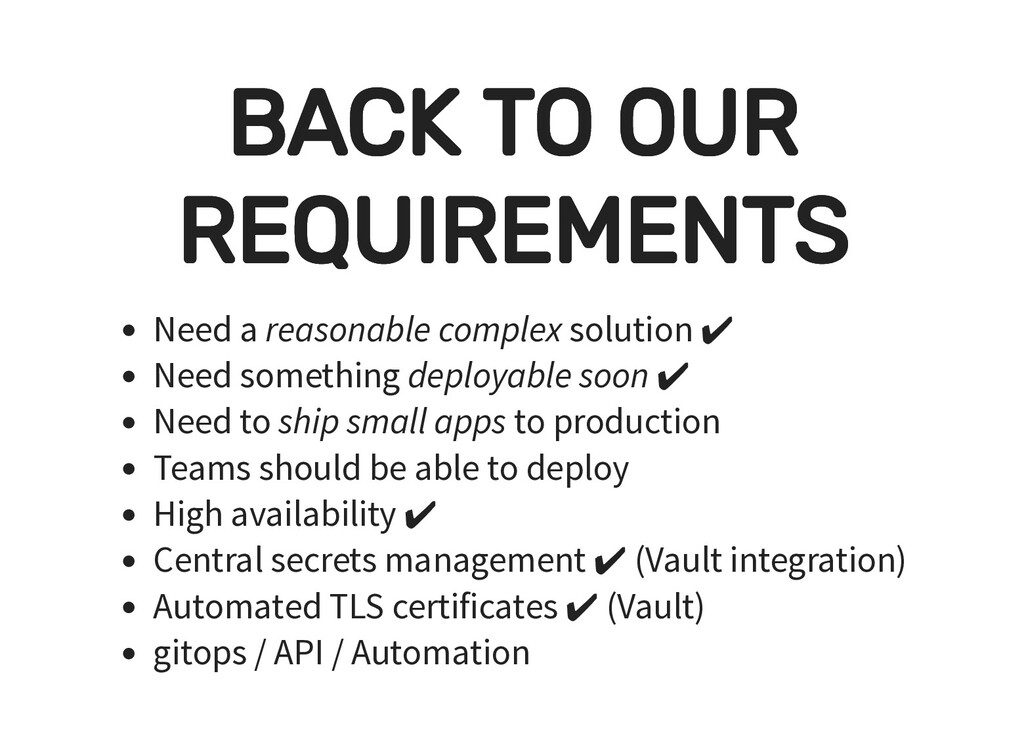

37. BACK TO OUR BACK TO OUR REQUIREMENTS REQUIREMENTS Need a reasonable complex solution ✔ Need something deployable soon ✔ Need to ship small apps to production Teams should be able to deploy High availability ✔ Central secrets management ✔ (Vault integration) Automated TLS certificates ✔ (Vault) gitops / API / Automation
38. BACK TO OUR BACK TO OUR REQUIREMENTS REQUIREMENTS Need a reasonable complex solution ✔ Need something deployable soon ✔ Need to ship small apps to production Teams should be able to deploy High availability ✔ Central secrets management ✔ (Vault integration) Automated TLS certificates ✔ (Vault) gitops / API / Automation ✔
39. THE POC THE POC Nomad + Consul + Træfik
40. NOMAD / CONSUL / TRÆFIK NOMAD / CONSUL / TRÆFIK No HTTPs No Secrets Load-Balancing Rolling Update Real applications talking to the actual backends Demoing on a single computer
41. + VAULT + VAULT Certificates / PKI Secrets Policies
42. + AUTO-UNSEAL + AUTO-UNSEAL Root PKI Transit keys
43. PER ENVIRONMENT X nodes X nodes SECOPS X nodes Transit secrets engine CA SecOps Env ABC Master key CA Env ABC Load Balancer L7 APP Root CA ABC Vault Architecture

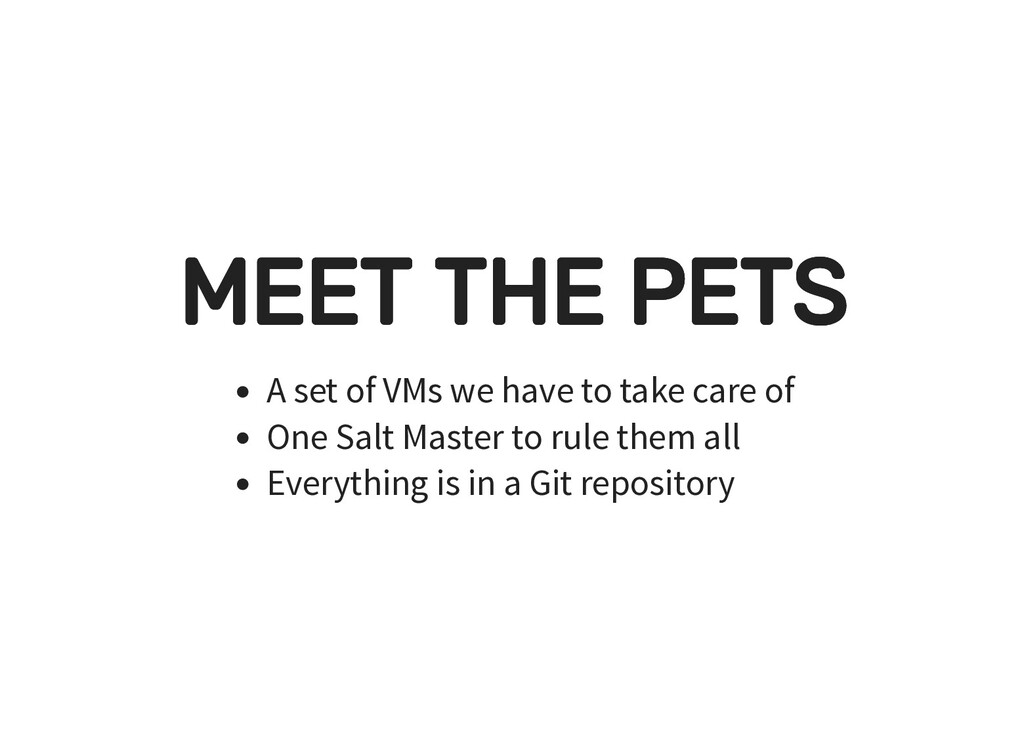

45. MEET THE PETS MEET THE PETS A set of VMs we have to take care of One Salt Master to rule them all Everything is in a Git repository
47. Salt master Container registry SA SA CaaS environment XXX for domain XXX.SUB.DOMAIN.COM CaaS Masters zone VM - Master nodes VM - Master nodes VM - Master nodes VM - Container nodes VM - Container nodes APP VM - Container nodes VM - Container nodes LB LB Load Balancer L7 Load Balancer L7 APP APP TCP/UDP/8301 TCP/UDP/8301 TCP/UDP/8301 TCP/UDP/8301 TCP/4647 TCP/UDP/4648 TCP/8300 TCP/8201 TCP/4647 TCP/UDP/4648 TCP/UDP/8301 TCP/8300 TCP/UDP/8301 TCP/8300 TCP/UDP/8301 TCP/8200 TCP/UDP/8301 TCP/8300 TCP/4647 TCP/4647 TCP/4647 TCP/4647 TCP/8200 TCP/8201 TCP/4506 TCP/4505 TCP/4506 TCP/4505 TCP/443 TCP/443 TCP/8300: server RPC TCP/UDP/8301: Lan Serf (gossip) TCP/8501: HTTP API over TLS TCP/8200: HTTP API TCP/8201: Vault replication traffic, request forwarding TCP/4646: HTTP API TCP/4647: RPC for internal communication TCP/UDP/4648: Serf LAN server gossip TCP/UDP/53 TCP/UDP/53 TCP/UDP/53 TCP/UDP/53 TCP/443 TCP/UDP/8600 TCP/UDP/8600 TCP/UDP/8600 Opérations TCP/8501 TCP/8200 TCP/4646 TCP/443 TCP/443 Main DNS Zone Vault SecOps s TCP/8200 TCP/8200 TCP/8200 TCP/UDP/53 TCP/UDP/53 Users APP

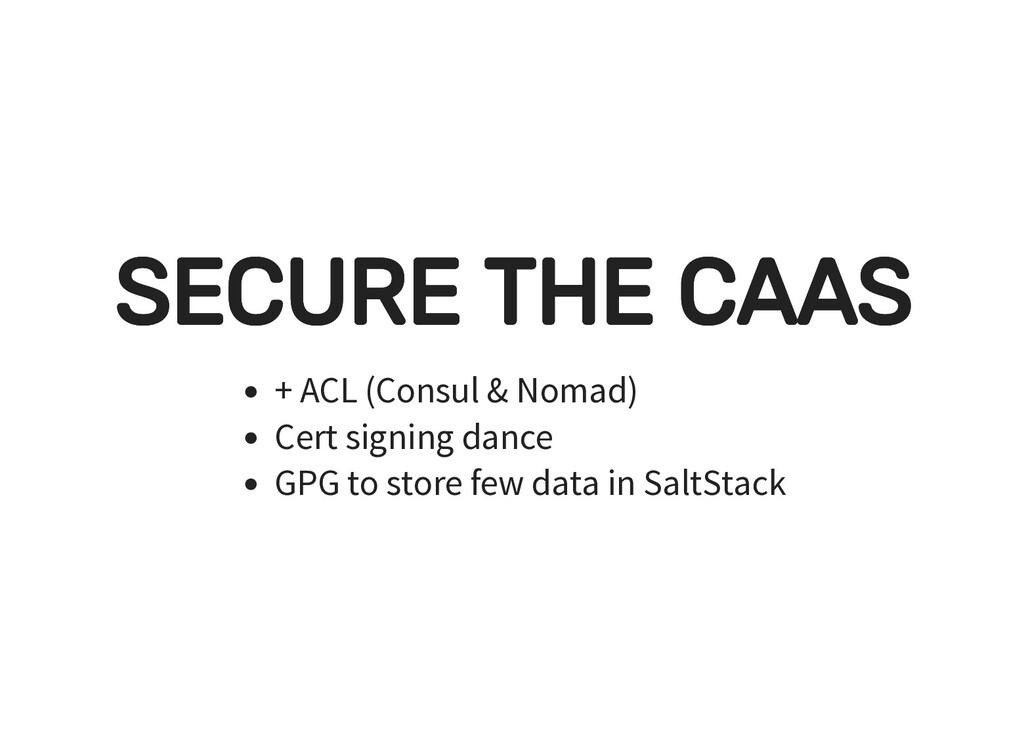

48. SECURE THE CAAS SECURE THE CAAS + ACL (Consul & Nomad) Cert signing dance GPG to store few data in SaltStack
49. SALT SALT no grains, roles in pillars saltenv use of reactors orchestration salt top.sls: {{ saltenv }}: '*': - certs - salt.minion {{ grains.id }}: {% for state in pillar.get('roles', {}) %} - {{ state | replace("-", ".") }} {% endfor %}
50. SALT SALT react on event: reactor: - 'salt/minion/*/start': - salt://reactor/startup_orch.sls - 'salt/fileserver/gitfs/update': - salt://reactor/update_fileserver.sls startup_orchestration: runner.state.orchestrate: - args: - mods: orch.startup - pillar: minion: {{ data['id'] }}

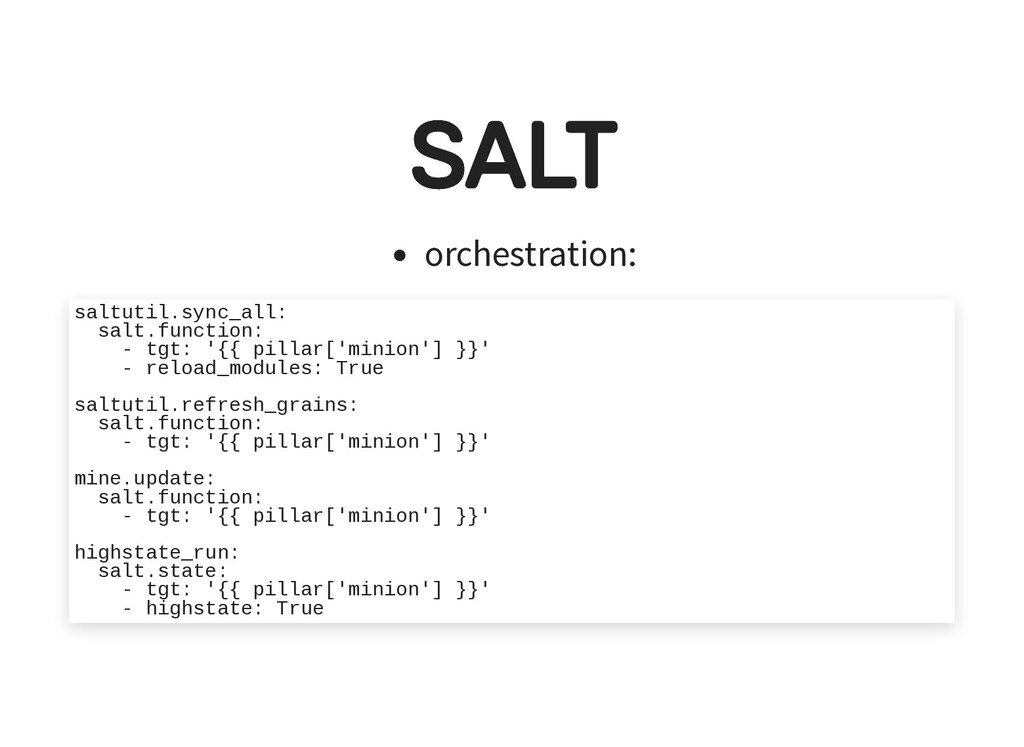

51. SALT SALT orchestration: saltutil.sync_all: salt.function: - tgt: '{{ pillar['minion'] }}' - reload_modules: True saltutil.refresh_grains: salt.function: - tgt: '{{ pillar['minion'] }}' mine.update: salt.function: - tgt: '{{ pillar['minion'] }}' highstate_run: salt.state: - tgt: '{{ pillar['minion'] }}' - highstate: True
52. DNS DNS CoreDNS on master nodes SaltStack pushing configuration Consul-template¹ pushing configuration forward for <dc>.consul ¹: no official plugins to read Consul Catalog

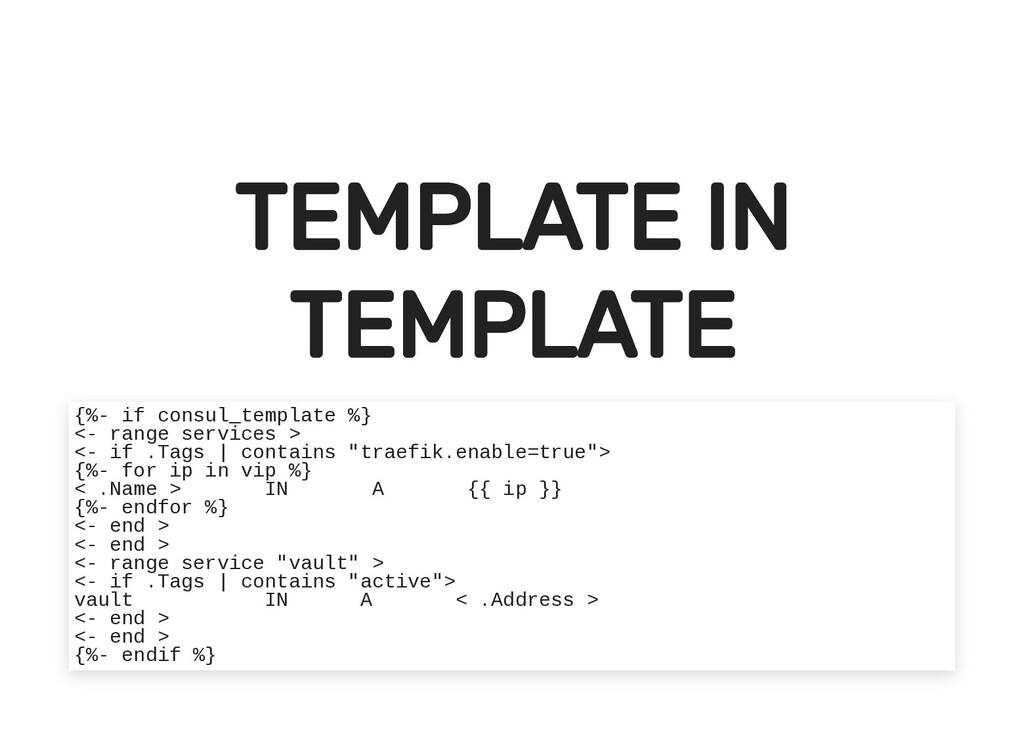

53. TEMPLATE IN TEMPLATE IN TEMPLATE TEMPLATE {%- if consul_template %} <- range services > <- if .Tags | contains "traefik.enable=true"> {%- for ip in vip %} < .Name > IN A {{ ip }} {%- endfor %} <- end > <- end > <- range service "vault" > <- if .Tags | contains "active"> vault IN A < .Address > <- end > <- end > {%- endif %}
54. LOG AGGREGATION LOG AGGREGATION A lot of investigations (fluentd, gelf, …) Journalbeat on the host Elastic Search¹ running in Nomad Kibana with the LDAP integration Roles mapping pushed with terraform ¹: OpenDistro

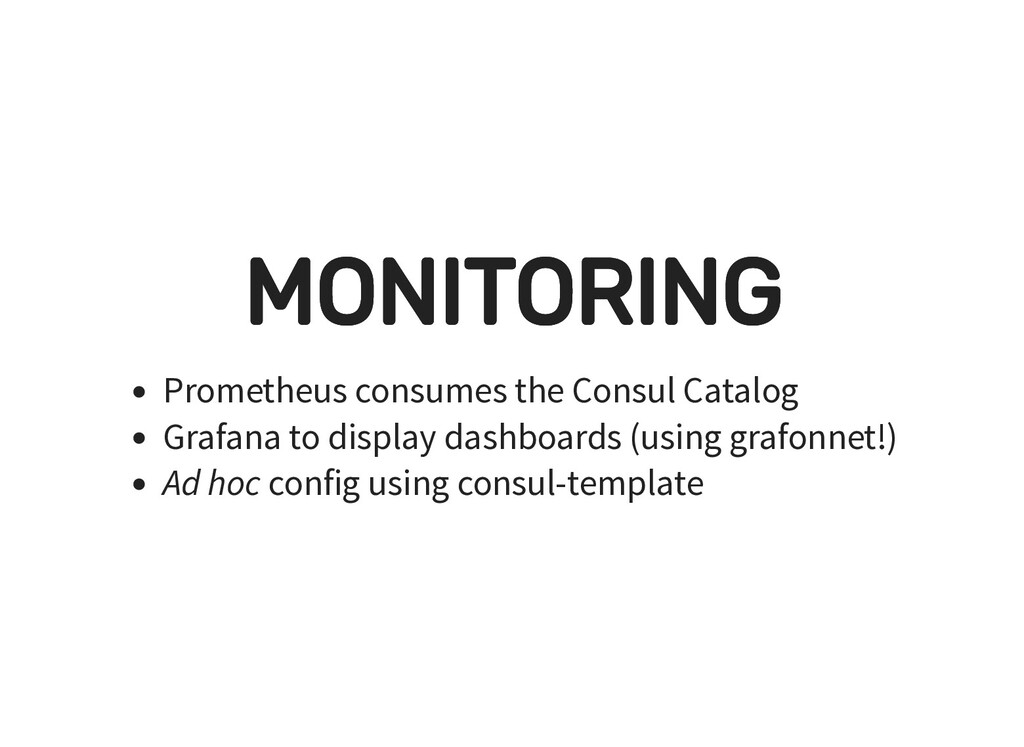

55. MONITORING MONITORING Prometheus consumes the Consul Catalog Grafana to display dashboards (using grafonnet!) Ad hoc config using consul-template

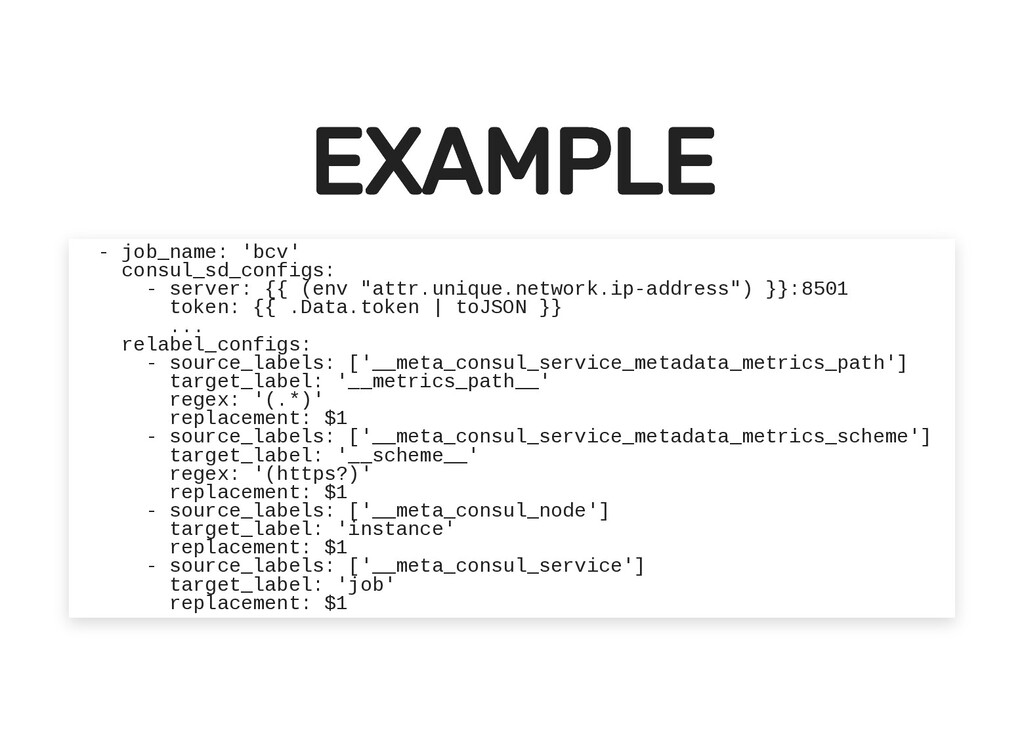

56. EXAMPLE EXAMPLE - job_name: 'bcv' consul_sd_configs: - server: {{ (env "attr.unique.network.ip-address") }}:8501 token: {{ .Data.token | toJSON }} ... relabel_configs: - source_labels: ['__meta_consul_service_metadata_metrics_path'] target_label: '__metrics_path__' regex: '(.*)' replacement: $1 - source_labels: ['__meta_consul_service_metadata_metrics_scheme'] target_label: '__scheme__' regex: '(https?)' replacement: $1 - source_labels: ['__meta_consul_node'] target_label: 'instance' replacement: $1 - source_labels: ['__meta_consul_service'] target_label: 'job' replacement: $1
57. THE GLUE THE GLUE job "xyz" { ... } metrics.path traefik... service ... Prometheus XYZ.CORP.LOCAL https://xyz.corp.local/ Træfik
58. Tag/Meta for automagic

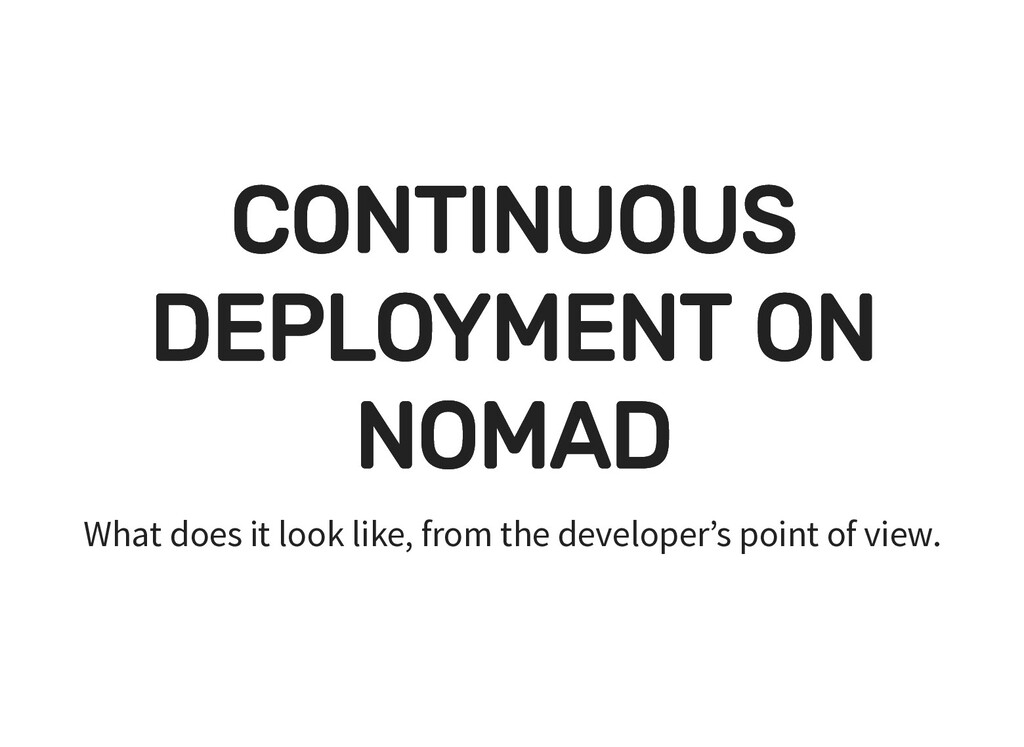

59. CONTINUOUS CONTINUOUS DEPLOYMENT ON DEPLOYMENT ON NOMAD NOMAD What does it look like, from the developer’s point of view.

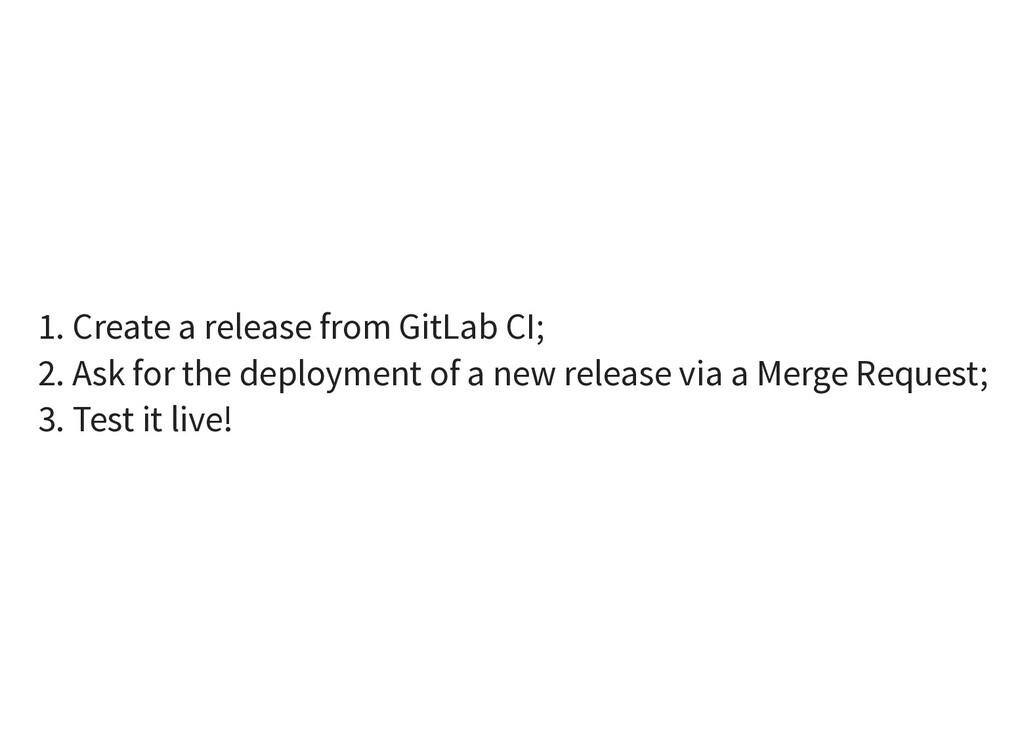

60. 1. Create a release from GitLab CI; 2. Ask for the deployment of a new release via a Merge Request; 3. Test it live!
62. { - "version": "1.2.4" + "version": "1.3.0" }

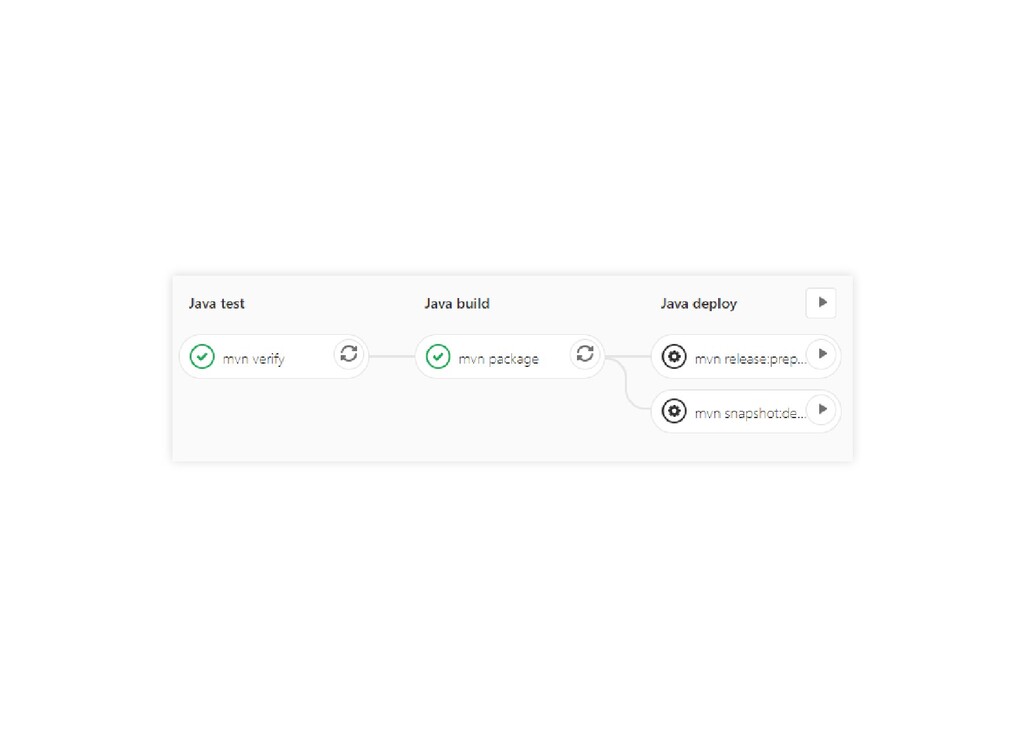

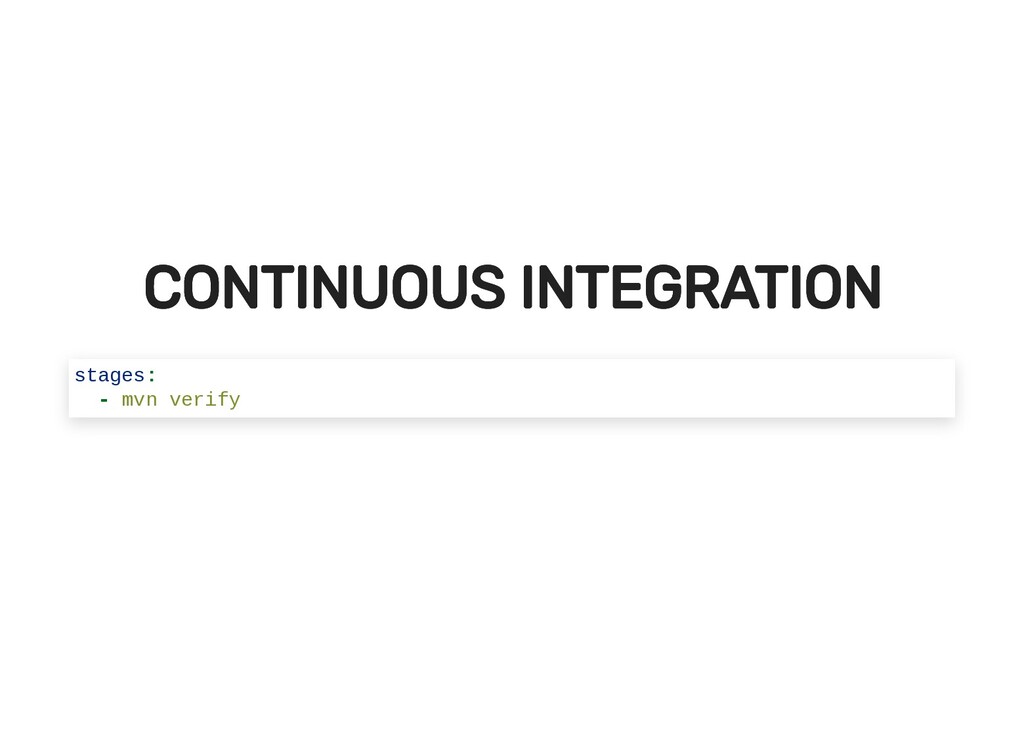

65. CONTINUOUS INTEGRATION CONTINUOUS INTEGRATION stages: - mvn verify

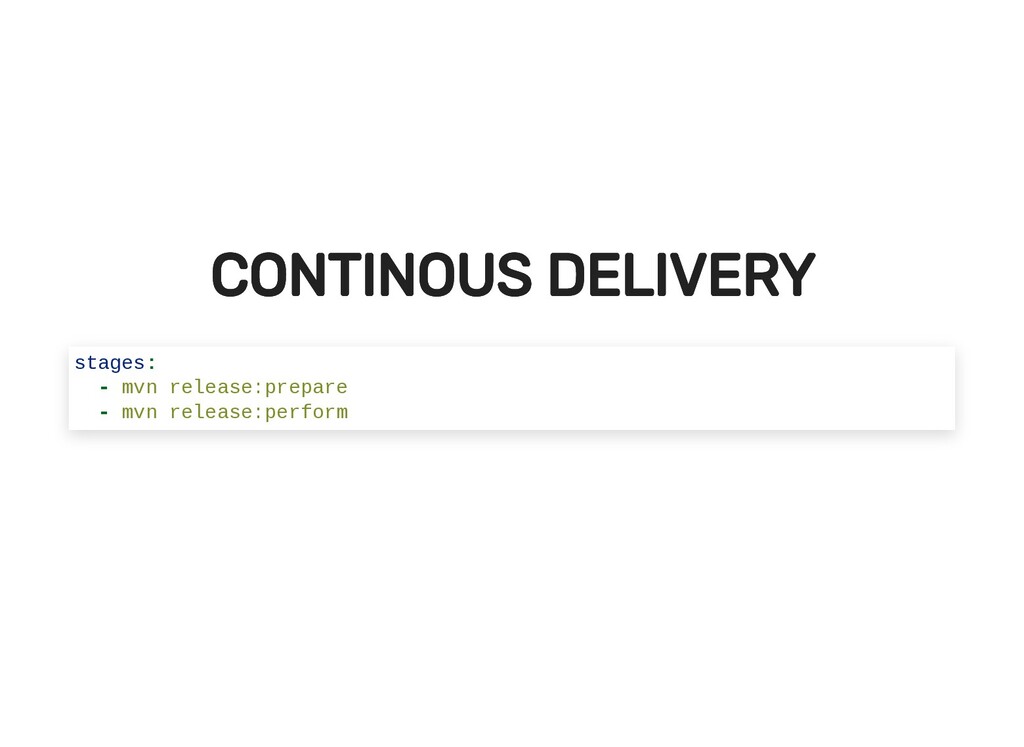

66. CONTINOUS DELIVERY CONTINOUS DELIVERY stages: - mvn release:prepare - mvn release:perform
67. MULTIPLE DELIVERIES? MULTIPLE DELIVERIES? .war / .jar container image
68. PIPELINE TRIGGER PIPELINE TRIGGER curl -X POST \ -F "token=$TOKEN" \ -F "ref=master" \ -F "variables[artifactId]=myapp" \ -F "variables[version]=$CI_COMMIT_TAG" \ $CI_API_V4_URL/projects/1234/trigger/pipeline
69. CONTINUOUS DEPLOYMENT CONTINUOUS DEPLOYMENT Just use Nomad, and python-gitlab, and …

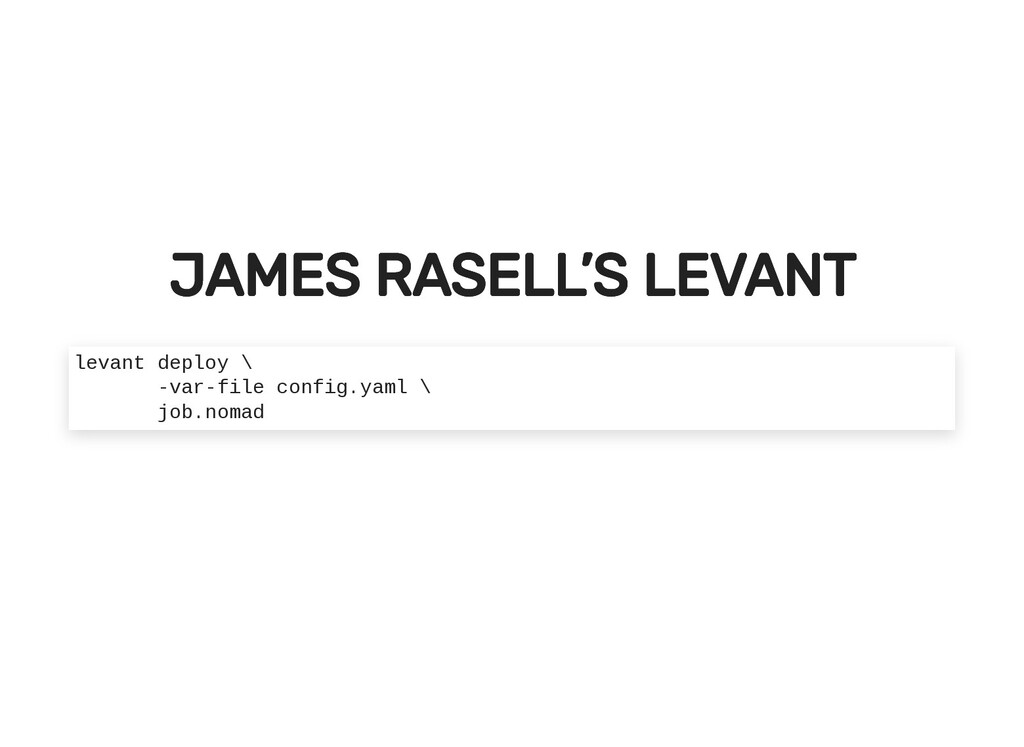

70. JAMES RASELL’S LEVANT JAMES RASELL’S LEVANT levant deploy \ -var-file config.yaml \ job.nomad
71. version: 1.2.3 logging: INFO task { driver = "docker" config { image = "hello/world:[[ .version ]]" } env { LOG = [[ .logging | toJSON ]] } }
72. MEET BENDER MEET BENDER

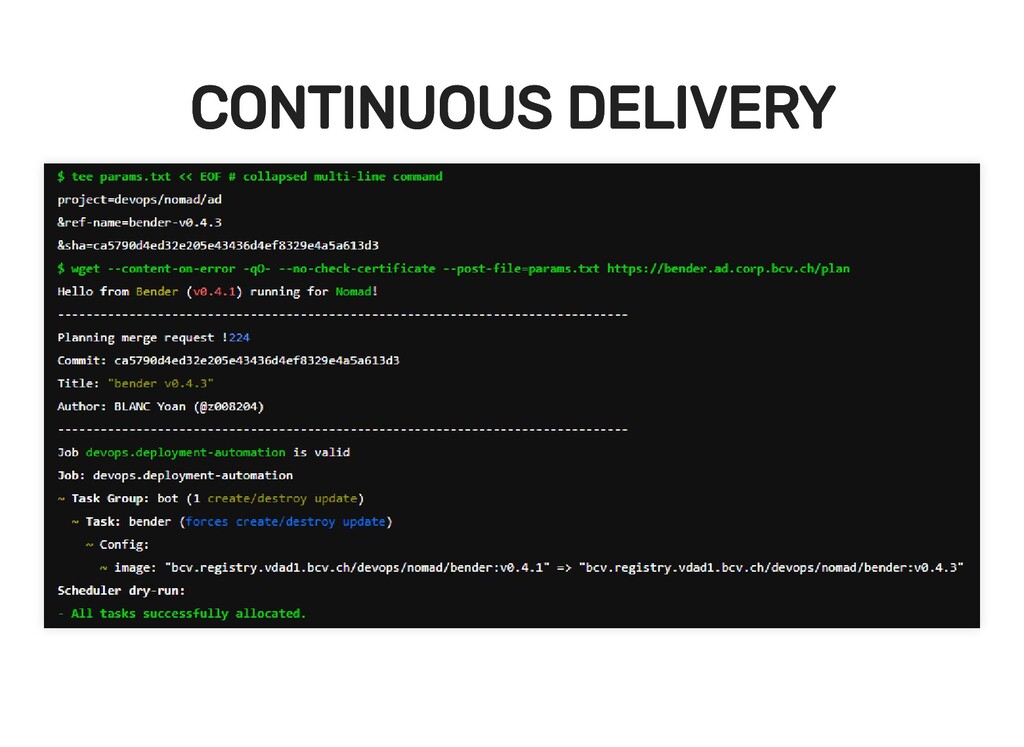

73. CONTINUOUS DELIVERY CONTINUOUS DELIVERY
75. WHAT COULD GO WHAT COULD GO WRONG? WRONG?

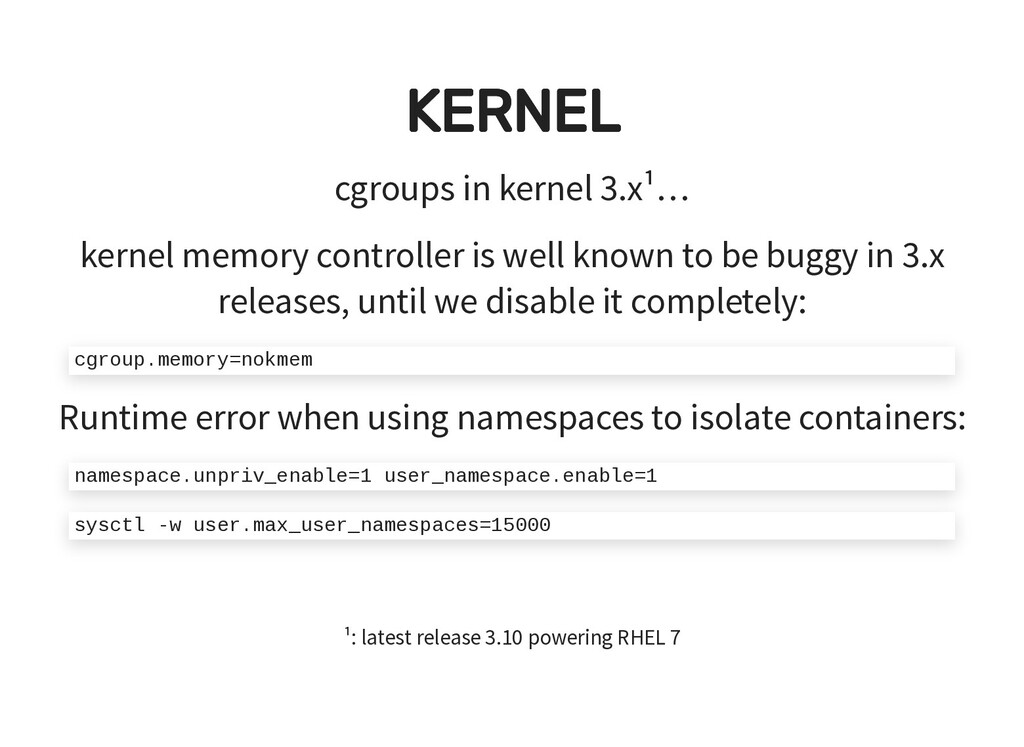

76. KERNEL KERNEL cgroups in kernel 3.x¹… kernel memory controller is well known to be buggy in 3.x releases, until we disable it completely: Runtime error when using namespaces to isolate containers: ¹: latest release 3.10 powering RHEL 7 cgroup.memory=nokmem namespace.unpriv_enable=1 user_namespace.enable=1 sysctl -w user.max_user_namespaces=15000
77. ZOMBIES PROCESS ZOMBIES PROCESS We blindly copy-paste systemd unit for consul¹ to consul- template. From man systemd.kill: ¹: https://learn.hashicorp.com/consul/datacenter-deploy/deployment-guide#configure-systemd KillMode=process If set to control-group, all remaining processes in the control group of this unit will be killed on unit stop. If set to process, only the main process itself is killed.

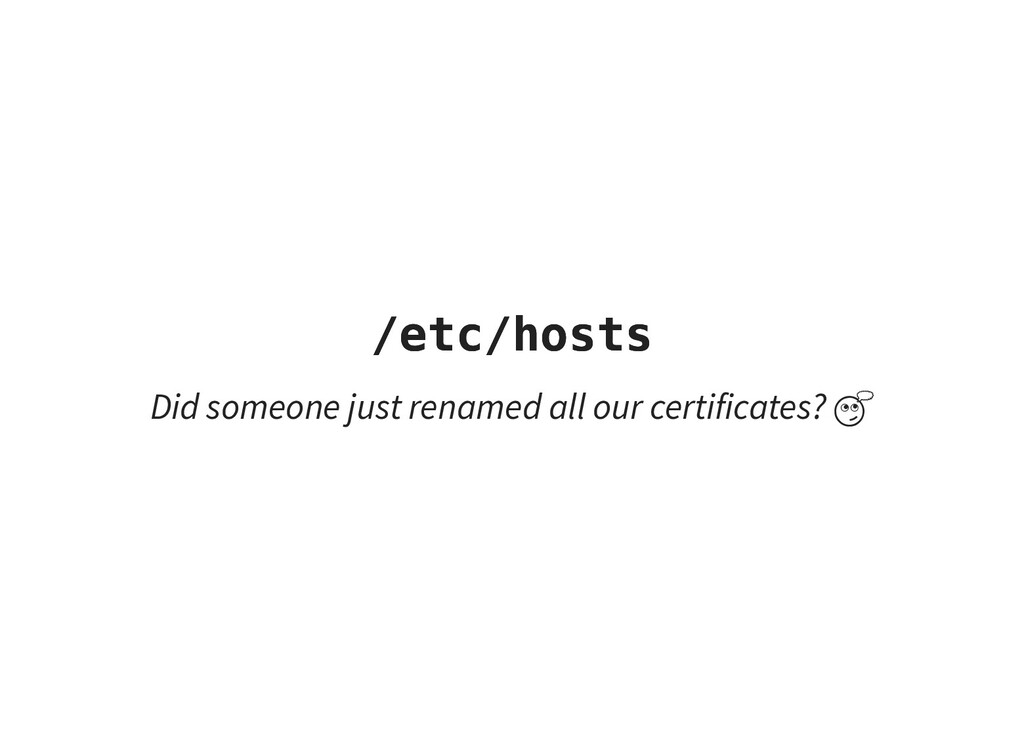

78. /etc/hosts /etc/hosts Did someone just renamed all our certificates?
79. VAULT DDOS VAULT DDOS A policy and consul-template away

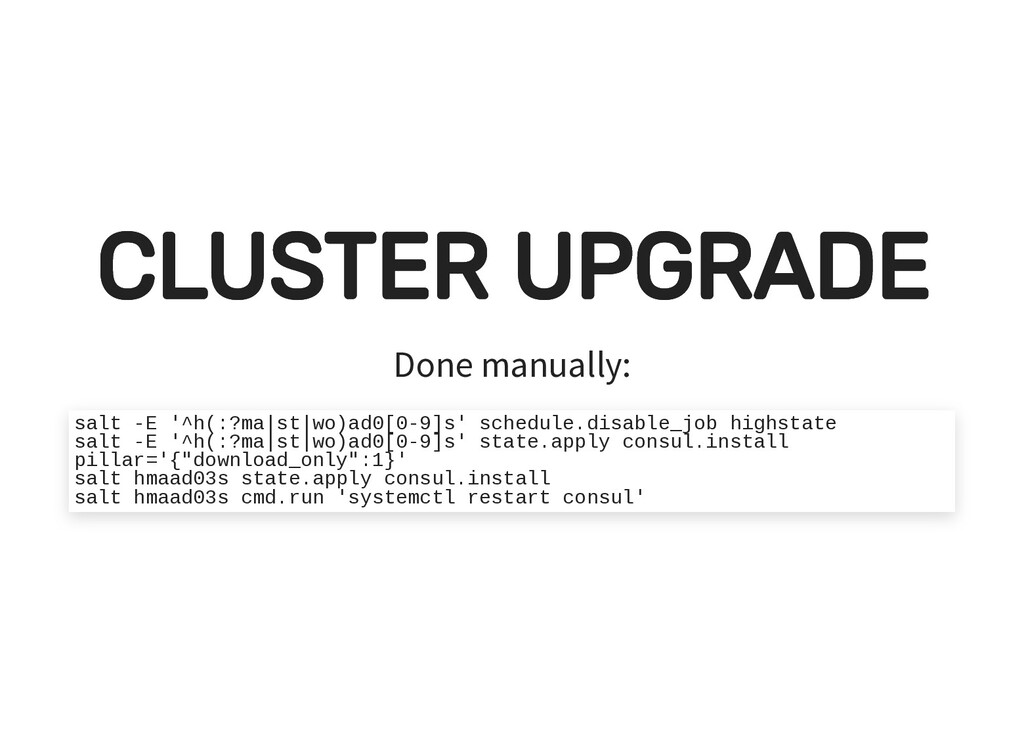

80. CLUSTER UPGRADE CLUSTER UPGRADE Done manually: salt -E '^h(:?ma|st|wo)ad0[0-9]s' schedule.disable_job highstate salt -E '^h(:?ma|st|wo)ad0[0-9]s' state.apply consul.install pillar='{"download_only":1}' salt hmaad03s state.apply consul.install salt hmaad03s cmd.run 'systemctl restart consul'
81. WHERE ARE WE NOW? WHERE ARE WE NOW? DEV environment is up PREPROD environment is up Containers are coming in Complete benchmarking will be done in PREPROD env soon PROD coming ??? Dunno
82. WHAT WE’VE LEARNED WHAT WE’VE LEARNED Vault: more challenging (& more confident) Nomad: does the job as expected Change of paradigm: not to underestimate! ACL everywhere: it’s no playground anymore

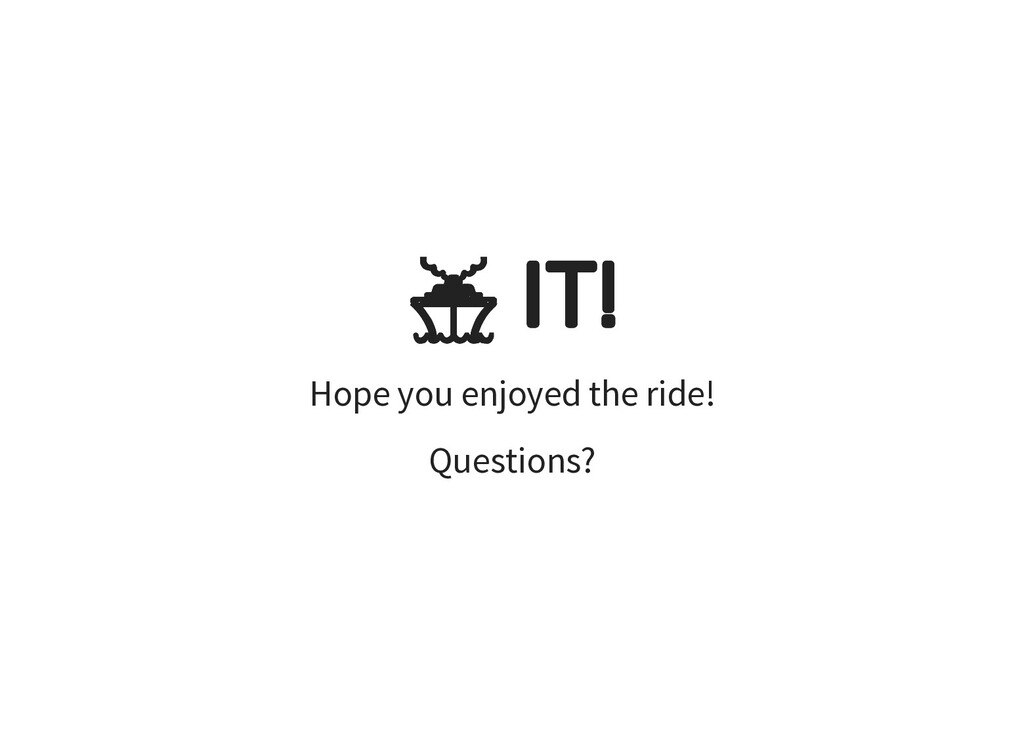

83. IT! IT! Hope you enjoyed the ride! Questions?
