CareKit & ResearchKit - An introduction

iOSCon 2016 - London

Transcript

1. CareKit & ResearchKit #iOSCon
2. Matteo Crippa mobile dev since iOS 2.2 boostco.de founder @ghego20
3. HealthKit
4. june 2014 WWDC
5. iOS8
6. health app
7. dashboard
8. medical ID
9. health data storage
10. api
11. ResearchKit
12. april 2015 researchkit.org
13. /ResearchKit
15. 3 modules
16. consent obtain consent from participants eg. onboarding survey signature pdf generator
17. survey standard UI template single or multiple answers complex form optional task
18. active task semi-controlled test device sensors third party hardware
21. ResearchStack
22. limited participation subjective information infrequent data one-way communications wider reach driven data continuous stream of data feedback for participants vs
25. +80k subscribers in 7 months
26. +10k subscribers in 24 hours
27. make use of big data (eg. air-pollution)
28. No D1D, > 50%
29. iPhone sensors
30. & Apple Watch ones
31. Colorblind App
32. Colorblindess test with image based patterns
34. a car nothing a dog
35. extends the range of this test for young children & illiterate
36. Step 1 of 6 Get Started Please look at this image for 10 seconds

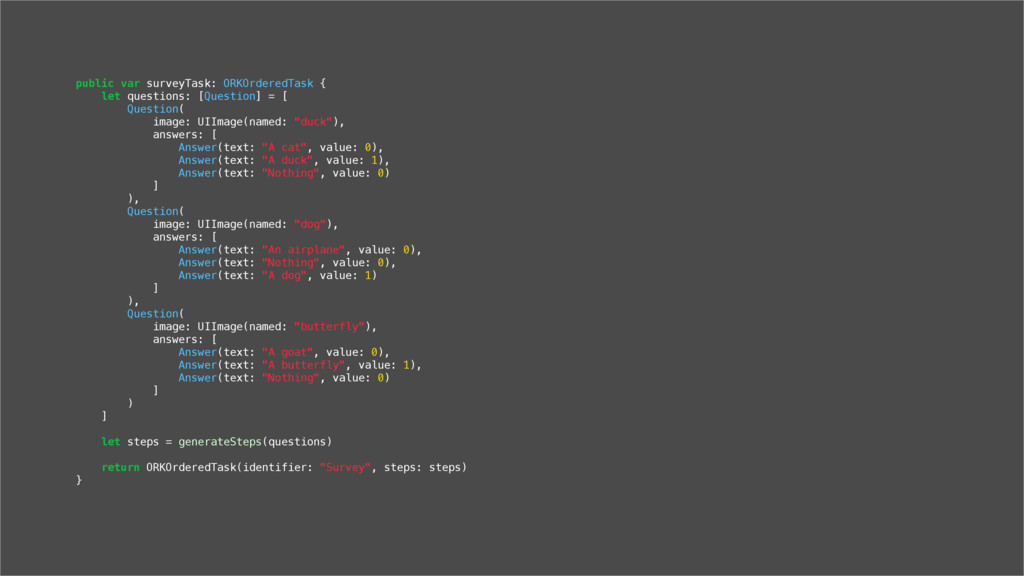

37. public var surveyTask: ORKOrderedTask { let questions: [Question] = [ Question( image: UIImage(named: "duck"), answers: [ Answer(text: "A cat", value: 0), Answer(text: "A duck", value: 1), Answer(text: "Nothing", value: 0) ] ), Question( image: UIImage(named: "dog"), answers: [ Answer(text: "An airplane", value: 0), Answer(text: "Nothing", value: 0), Answer(text: "A dog", value: 1) ] ), Question( image: UIImage(named: "butterfly"), answers: [ Answer(text: "A goat", value: 0), Answer(text: "A butterfly", value: 1), Answer(text: "Nothing", value: 0) ] ) ] let steps = generateSteps(questions) return ORKOrderedTask(identifier: "Survey", steps: steps) }
38. What do you recognize? Step 2 of 6 A cat A duck Nothing Next Cancel

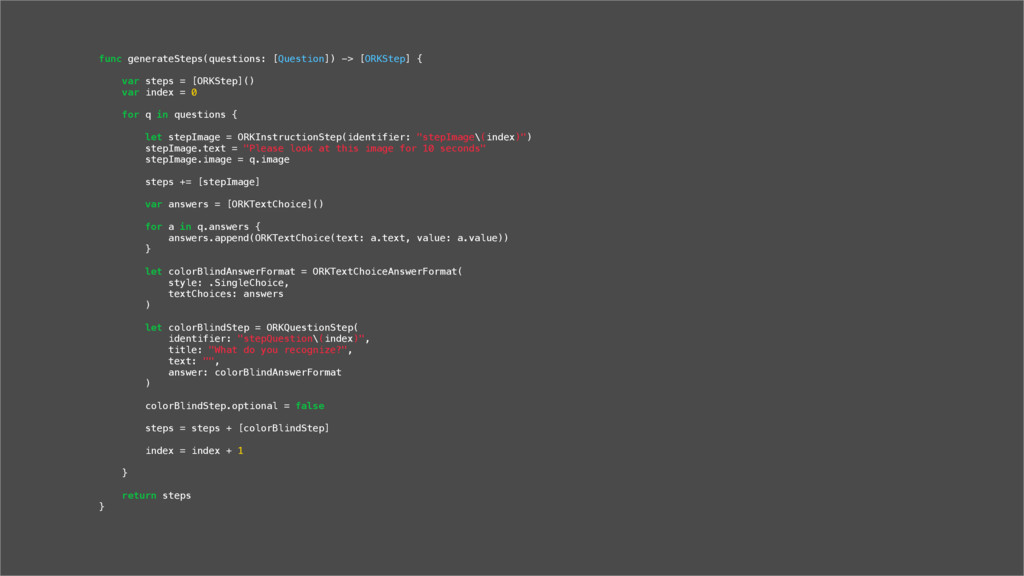

39. func generateSteps(questions: [Question]) -> [ORKStep] { var steps = [ORKStep]() var index = 0 for q in questions { let stepImage = ORKInstructionStep(identifier: "stepImage\(index)") stepImage.text = "Please look at this image for 10 seconds" stepImage.image = q.image steps += [stepImage] var answers = [ORKTextChoice]() for a in q.answers { answers.append(ORKTextChoice(text: a.text, value: a.value)) } let colorBlindAnswerFormat = ORKTextChoiceAnswerFormat( style: .SingleChoice, textChoices: answers ) let colorBlindStep = ORKQuestionStep( identifier: "stepQuestion\(index)", title: "What do you recognize?", text: "", answer: colorBlindAnswerFormat ) colorBlindStep.optional = false steps = steps + [colorBlindStep] index = index + 1 } return steps }
40. Colorblind Please, take the survey!

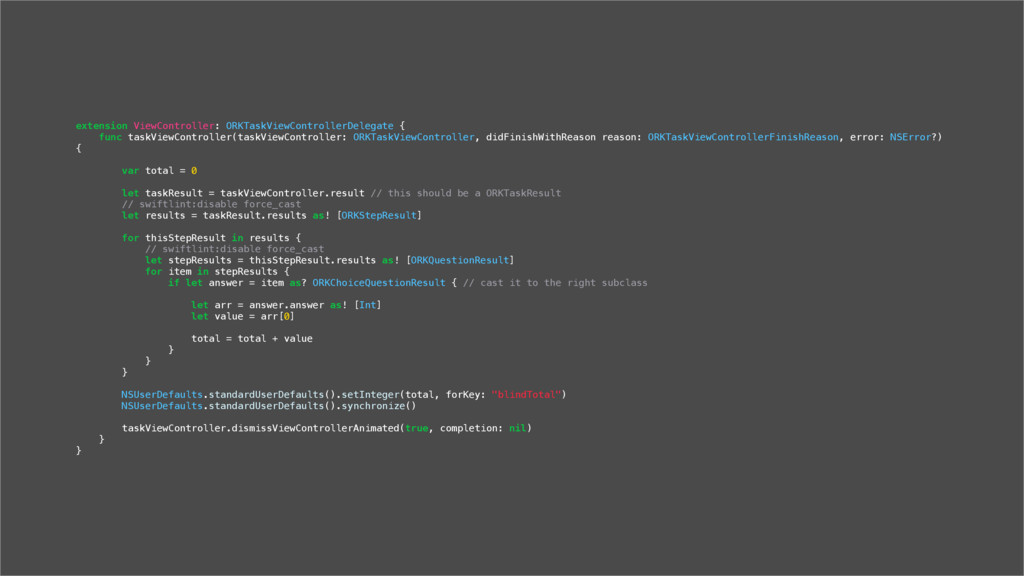

41. extension ViewController: ORKTaskViewControllerDelegate { func taskViewController(taskViewController: ORKTaskViewController, didFinishWithReason reason: ORKTaskViewControllerFinishReason, error: NSError?) { var total = 0 let taskResult = taskViewController.result // this should be a ORKTaskResult // swiftlint:disable force_cast let results = taskResult.results as! [ORKStepResult] for thisStepResult in results { // swiftlint:disable force_cast let stepResults = thisStepResult.results as! [ORKQuestionResult] for item in stepResults { if let answer = item as? ORKChoiceQuestionResult { // cast it to the right subclass let arr = answer.answer as! [Int] let value = arr[0] total = total + value } } } NSUserDefaults.standardUserDefaults().setInteger(total, forKey: "blindTotal") NSUserDefaults.standardUserDefaults().synchronize() taskViewController.dismissViewControllerAnimated(true, completion: nil) } }
42. CareKit
43. april 2016 carekit.org
44. /CareKit
46. 4 modules
47. care card Tracks tasks of a treatment. e.g. taking medication or performing physical exercises

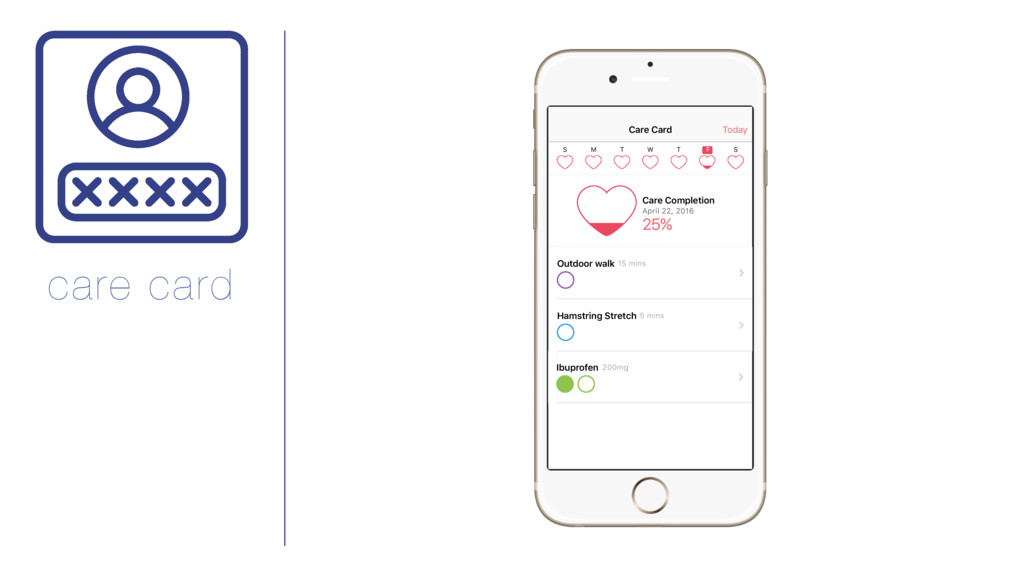

48. care card Ibuprofen 200mg Hamstring Stretch 5 mins Outdoor walk 15 mins Care Completion April 22, 2016 25% S S M T T F W Care Card Today
49. symptom Measures symptoms and feelings. It makes use modules inherited from ResearchKit.
50. symptom Weight Early morning Blood Glucose After dinner Mood Pain Lower Back out of 10 5 Activity Completion April 22, 2016 25% S S M T T F W Symptom Tracker Today

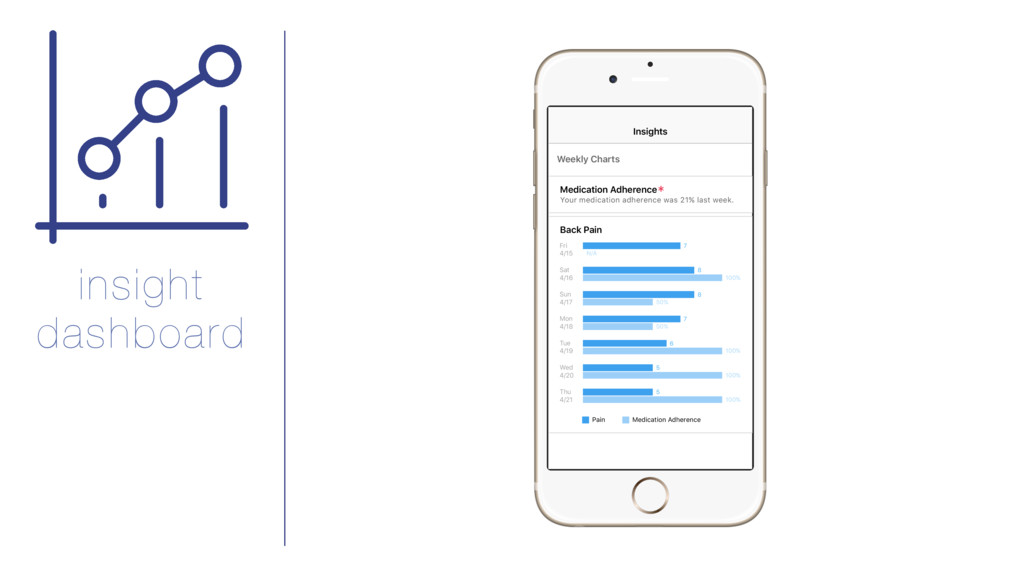

51. insight dashboard Displays charts showing relationship between treatment and progress.
52. insight dashboard Fri Sat Sun Mon Tue Wed Thu 4/15 4/16 4/17 4/18 4/19 4/20 4/21 N/A 7 7 6 5 5 8 100% 100% 50% 50% 100% 100% 8 Back Pain Pain Medication Adherence Medication Adherence Your medication adherence was 21% last week. Weekly Charts Insights
53. connect Manages contacts of the care team and friends/family members. Allows easily to share reports and insights.
54. connect SHARING mariaruiz@example.com email 888-555-5512 text 888-555-5512 phone CONTACT INFO Dr. Maria Ruiz Physician MR Connect
55. care plan store Stores all the data displayed by Care Card and Progress Card. It provides reactive information to UI. It is encrypted by default.
56. document exporter Allows you to export data in HTML or PDF format, creating custom template based documents with graphs.
57. Dog

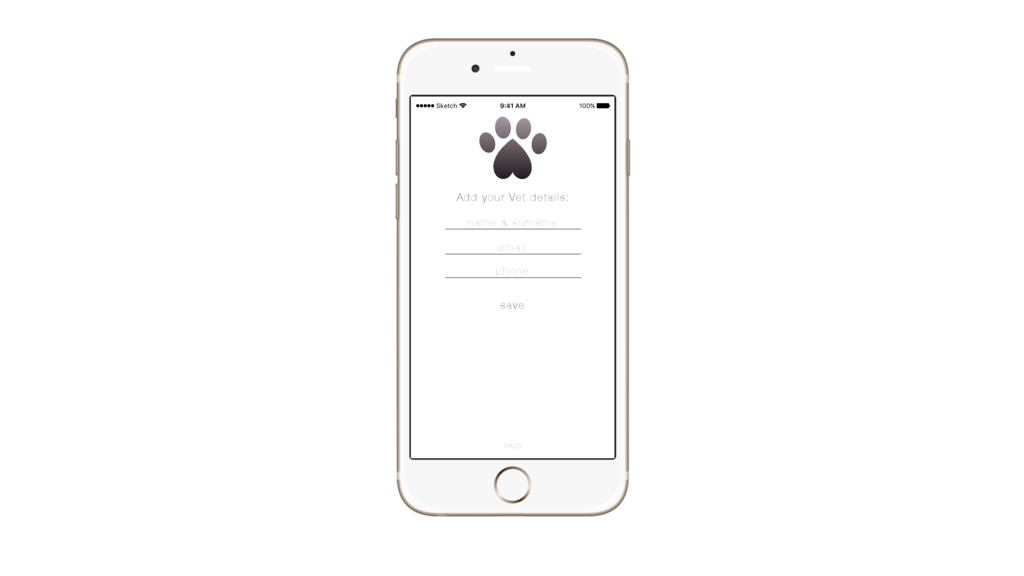

58. 100% 9:41 AM Sketch Add your Vet details: save name & surname email phone skip
59. let vet = OCKContact( contactType: .CareTeam, name: "John Doe", relation: "Vet", tintColor: Colors.Blue.color, phoneNumber: CNPhoneNumber(stringValue: "00 39 123 456"), messageNumber: CNPhoneNumber(stringValue: "00 39 234 567”), emailAddress: "m@il.xy", monogram: "JD", image: nil )
60. walk food mood poop weight contact
61. struct DogWalk: Activity { // set activity type according enum let type: ActivityType = .DogWalk func carePlanActivity() -> OCKCarePlanActivity { // define early starting date let startDate = NSDateComponents(year: 2016, month: 1, day: 1) // set weekly scheduling let schedule = OCKCareSchedule.weeklyScheduleWithStartDate( startDate, occurrencesOnEachDay: [3, 2, 2, 2, 2, 2, 3] ) // set details for this activity let title = "Outdoor walk" let summary = "at least 10 minutes" let instructions = "Take a break and have a nice walk with your dog." // generate activity return OCKCarePlanActivity.interventionWithIdentifier( type.rawValue, groupIdentifier: nil, title: title, text: summary, tintColor: Colors.Purple.color, instructions: instructions, imageURL: nil, schedule: schedule, userInfo: nil ) } }

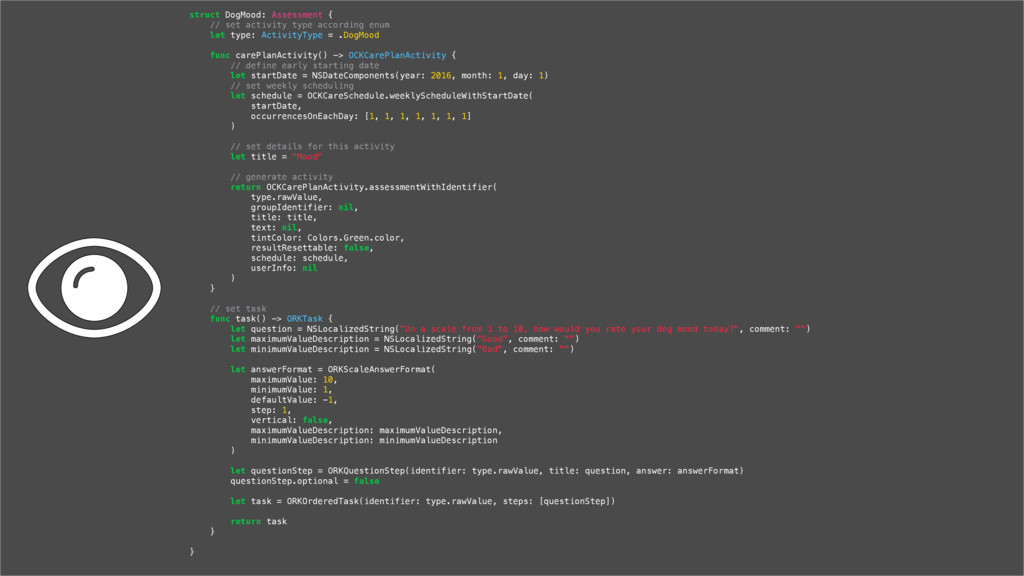

62. struct DogMood: Assessment { // set activity type according enum let type: ActivityType = .DogMood func carePlanActivity() -> OCKCarePlanActivity { // define early starting date let startDate = NSDateComponents(year: 2016, month: 1, day: 1) // set weekly scheduling let schedule = OCKCareSchedule.weeklyScheduleWithStartDate( startDate, occurrencesOnEachDay: [1, 1, 1, 1, 1, 1, 1] ) // set details for this activity let title = "Mood" // generate activity return OCKCarePlanActivity.assessmentWithIdentifier( type.rawValue, groupIdentifier: nil, title: title, text: nil, tintColor: Colors.Green.color, resultResettable: false, schedule: schedule, userInfo: nil ) } // set task func task() -> ORKTask { let question = NSLocalizedString("On a scale from 1 to 10, how would you rate your dog mood today?", comment: "") let maximumValueDescription = NSLocalizedString("Good", comment: "") let minimumValueDescription = NSLocalizedString("Bad", comment: "") let answerFormat = ORKScaleAnswerFormat( maximumValue: 10, minimumValue: 1, defaultValue: -1, step: 1, vertical: false, maximumValueDescription: maximumValueDescription, minimumValueDescription: minimumValueDescription ) let questionStep = ORKQuestionStep(identifier: type.rawValue, title: question, answer: answerFormat) questionStep.optional = false let task = ORKOrderedTask(identifier: type.rawValue, steps: [questionStep]) return task } }
63. private var connectVC: OCKConnectViewController! = { var contacts = [OCKContact]() let vc = OCKConnectViewController(contacts: contacts) vc.title = "Contacts" vc.tabBarItem = UITabBarItem( title: vc.title, image: UIImage(named: "alarm"), selectedImage: UIImage(named: "alarm select") ) vc.view.tintColor = Colors.AppColor.color vc.navigationController?.navigationBar.tintColor = Colors.AppColor.color return vc }()
65. thank you!
66. & stay in touch! matteo@boostco.de @ghego20
67. boostco.de
