Angular 1.x Performance Pitfalls

Connect.Tech 2016
Performance and memory can quickly get away from you in JavaScript, and some features in Angular 1 can exacerbate the problem. We will discuss some basic causes for performance drains and memory leaks in JavaScript and some specific misuses of Angular that run into them.

Transcript

1. Angular 1.x Performance Pitfalls K. Devin McIntyre Connect.Tech 2016

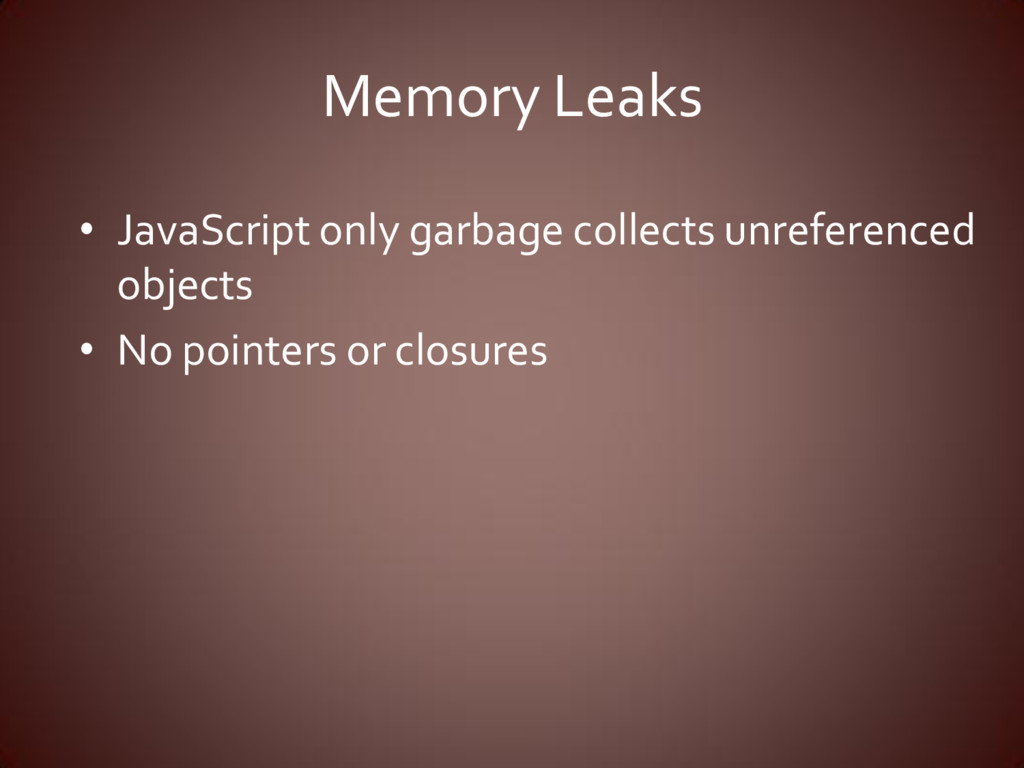

2. Memory Leaks • JavaScript only garbage collects unreferenced objects • No pointers or closures

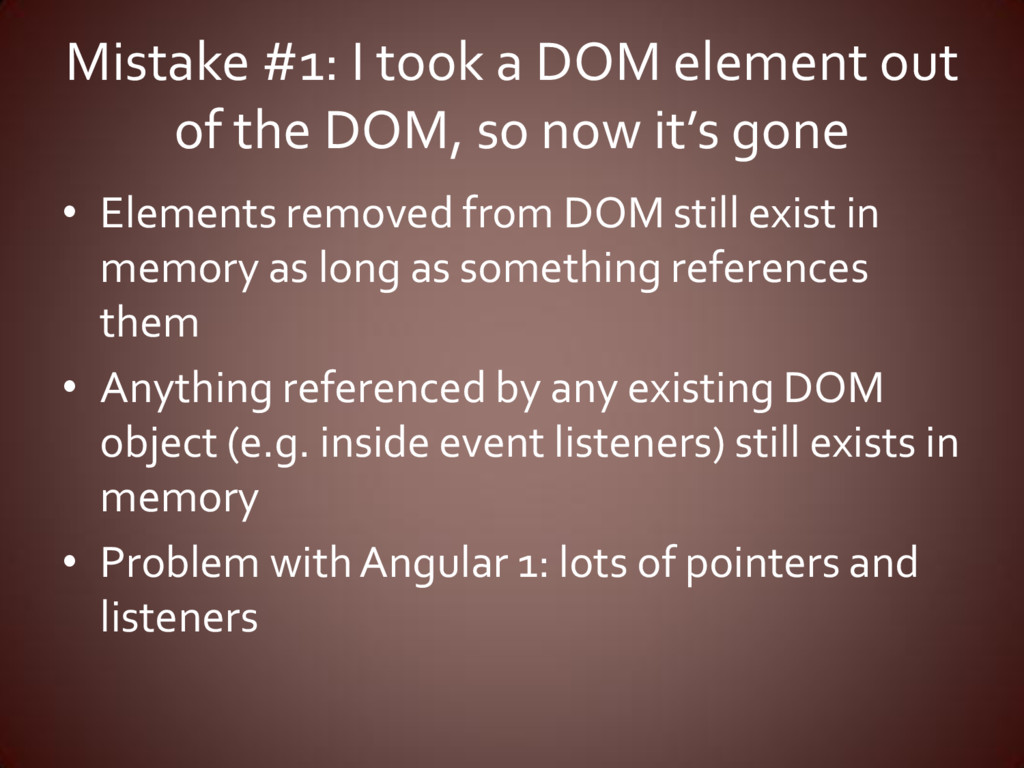

3. Mistake #1: I took a DOM element out of the DOM, so now it’s gone • Elements removed from DOM still exist in memory as long as something references them • Anything referenced by any existing DOM object (e.g. inside event listeners) still exists in memory • Problem with Angular 1: lots of pointers and listeners
4. Correcting DOM references 1. Avoid closures – Example 1: Use bind on listener functions 2. Always remove listeners 3. Always remove pointers

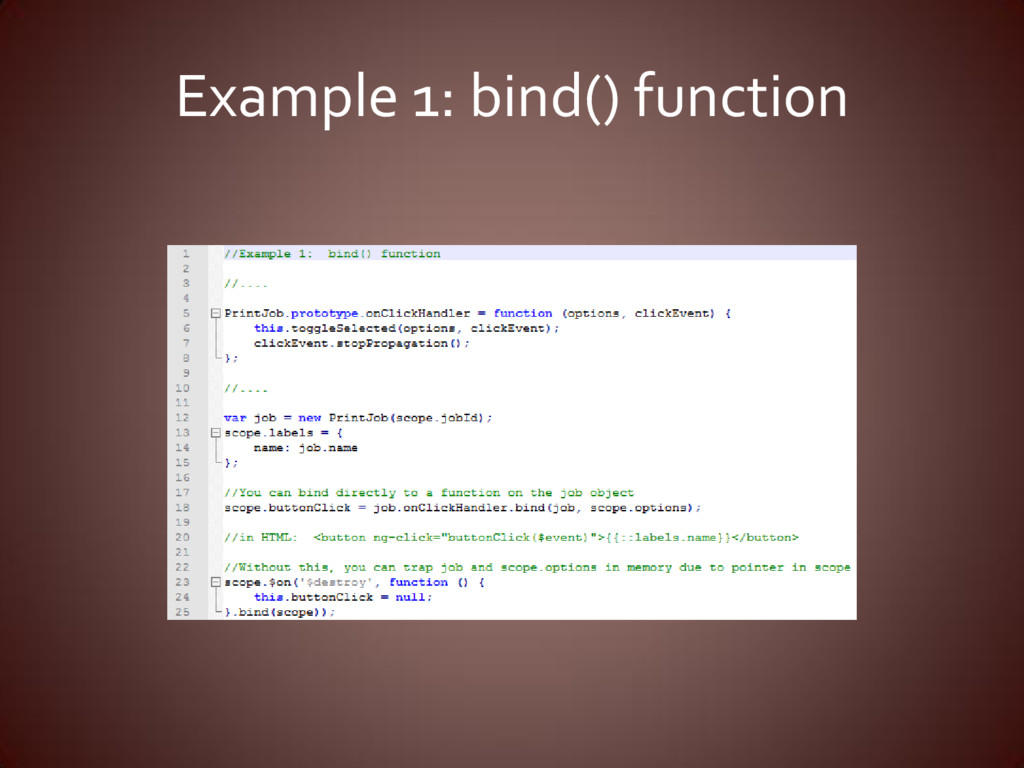

5. Example 1: bind() function

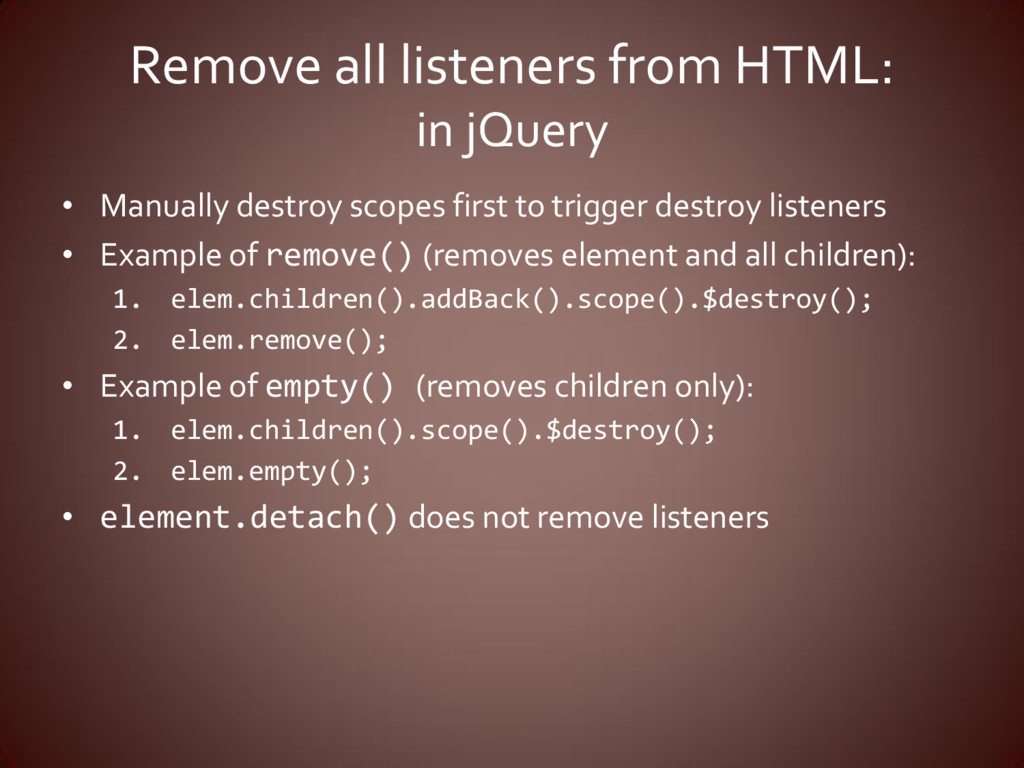

6. Remove all listeners from HTML: in jQuery • Manually destroy scopes first to trigger destroy listeners • Example of remove() (removes element and all children): 1. elem.children().addBack().scope().$destroy(); 2. elem.remove(); • Example of empty() (removes children only): 1. elem.children().scope().$destroy(); 2. elem.empty(); • element.detach() does not remove listeners

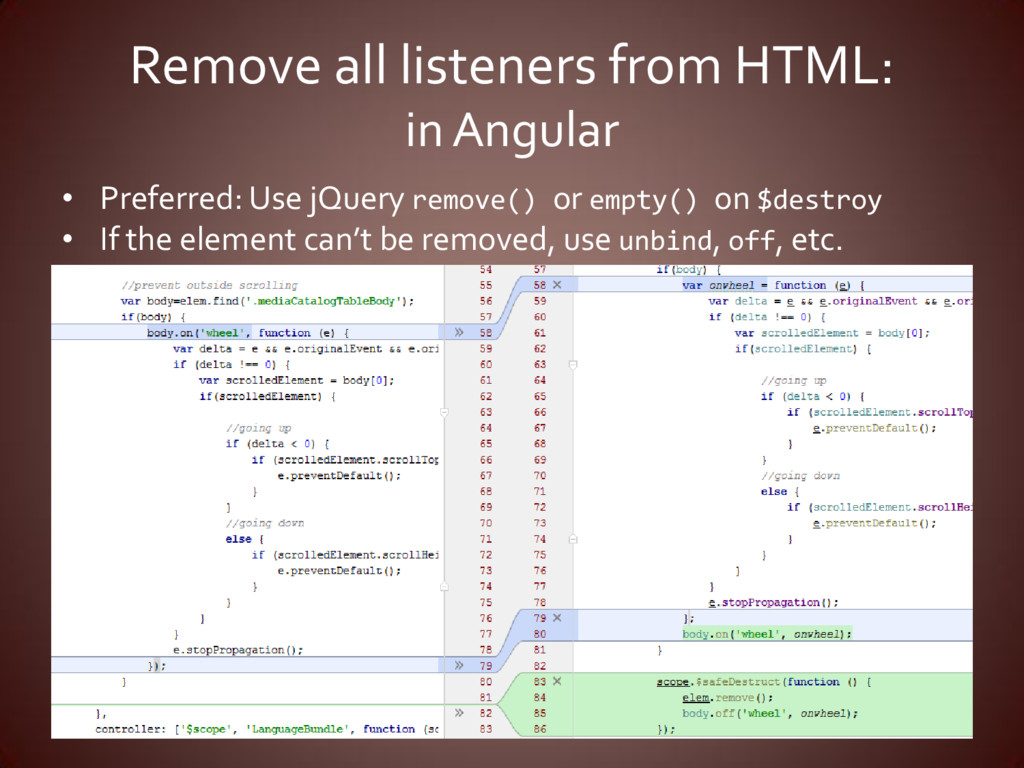

7. Remove all listeners from HTML: in Angular • Preferred: Use jQuery remove() or empty() on $destroy • If the element can’t be removed, use unbind, off, etc.

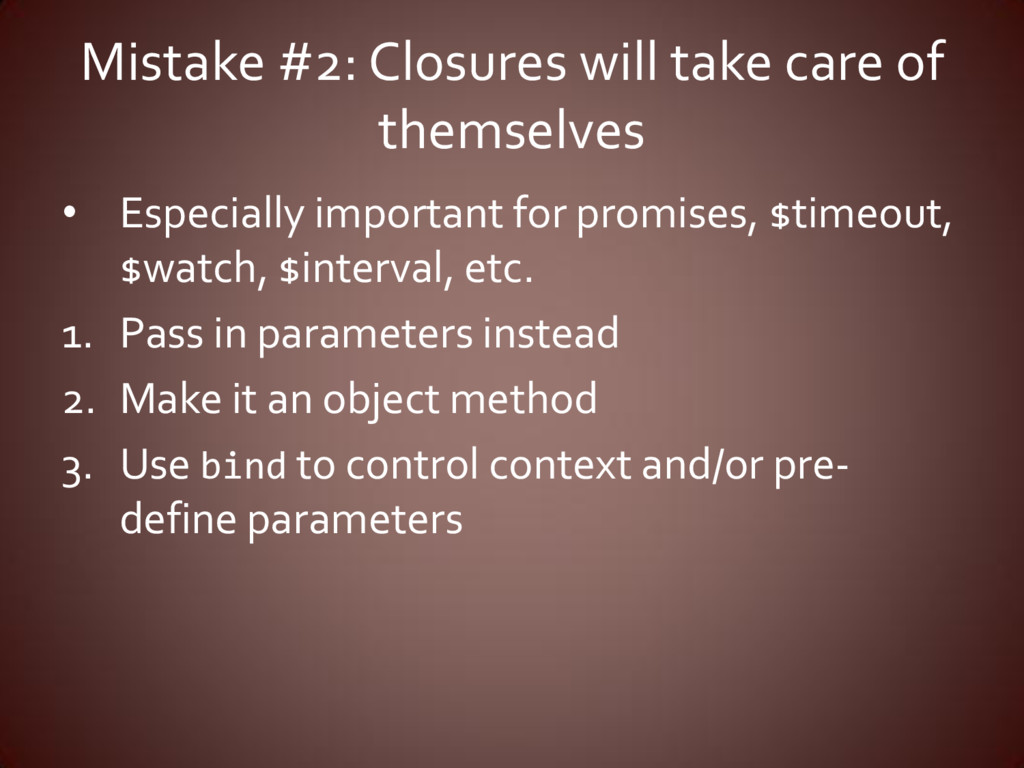

8. Mistake #2: Closures will take care of themselves • Especially important for promises, $timeout, $watch, $interval, etc. 1. Pass in parameters instead 2. Make it an object method 3. Use bind to control context and/or pre- define parameters

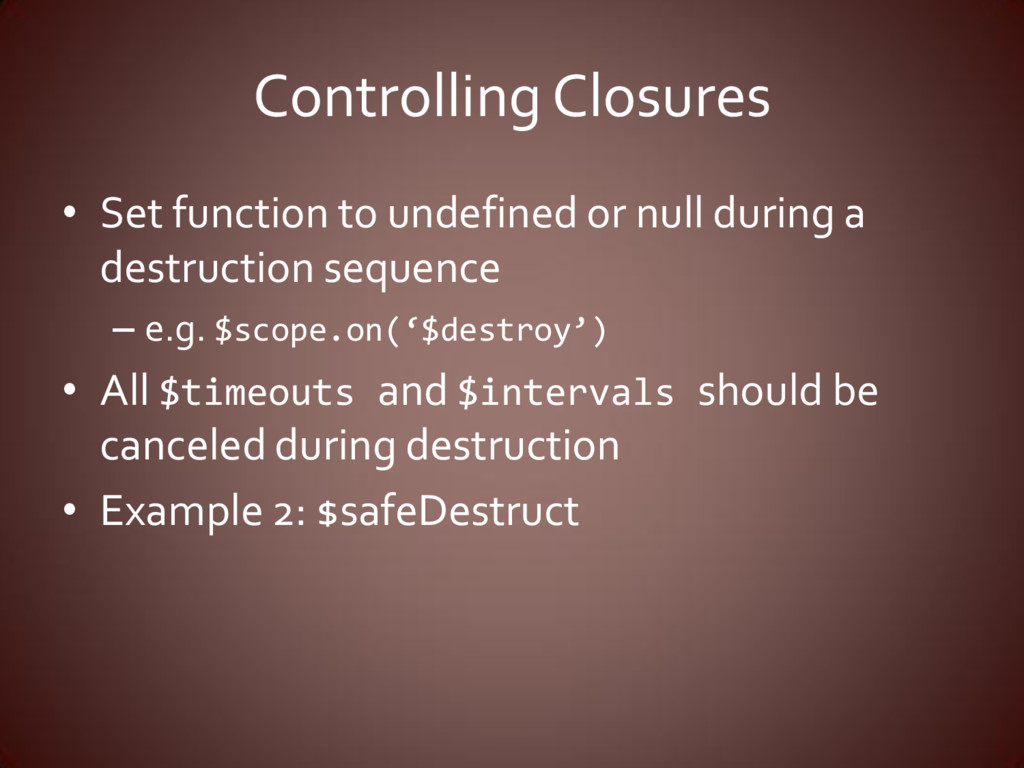

9. Controlling Closures • Set function to undefined or null during a destruction sequence – e.g. $scope.on(‘$destroy’) • All $timeouts and $intervals should be canceled during destruction • Example 2: $safeDestruct

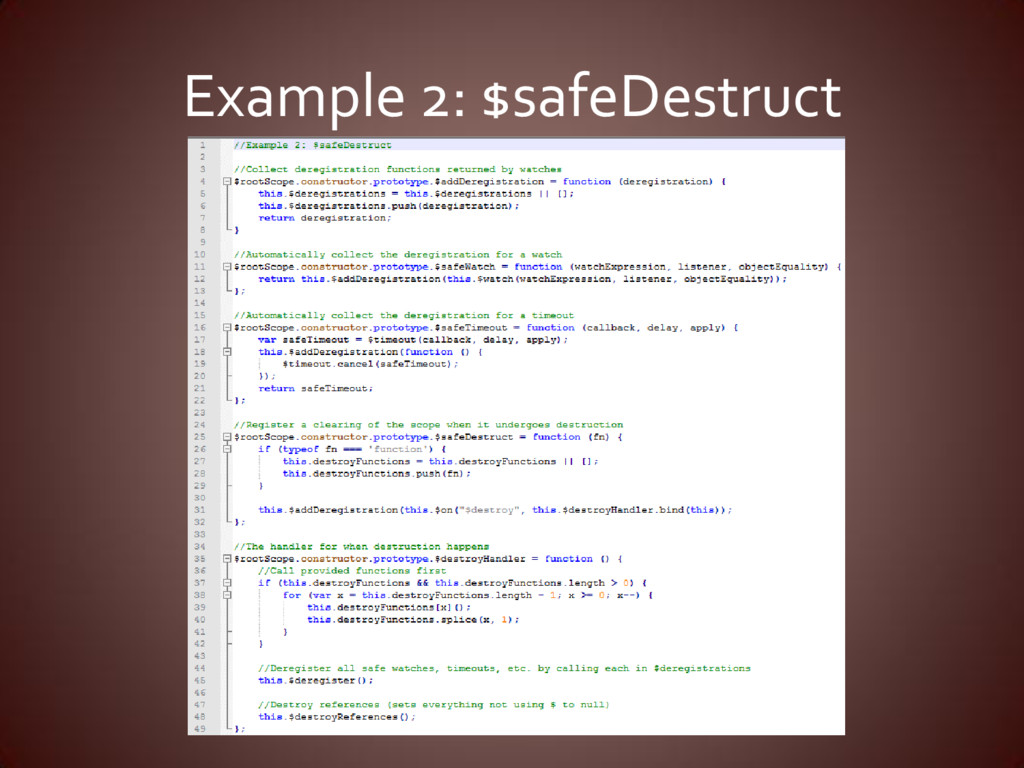

10. Example 2: $safeDestruct

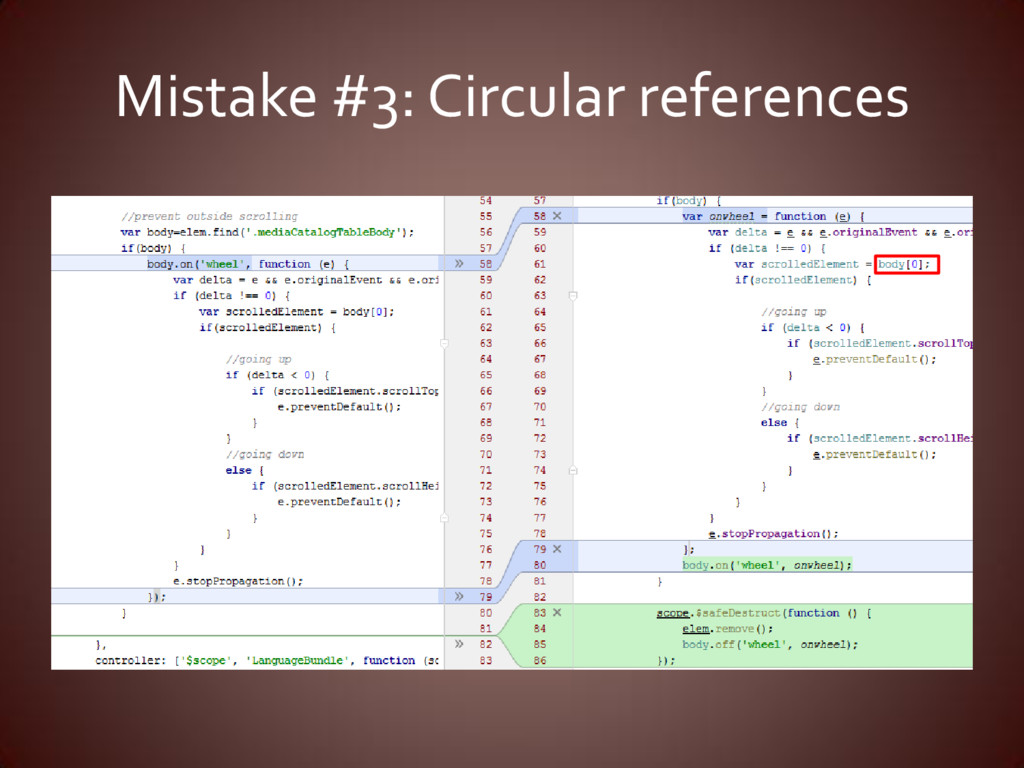

11. Mistake #3: Circular references

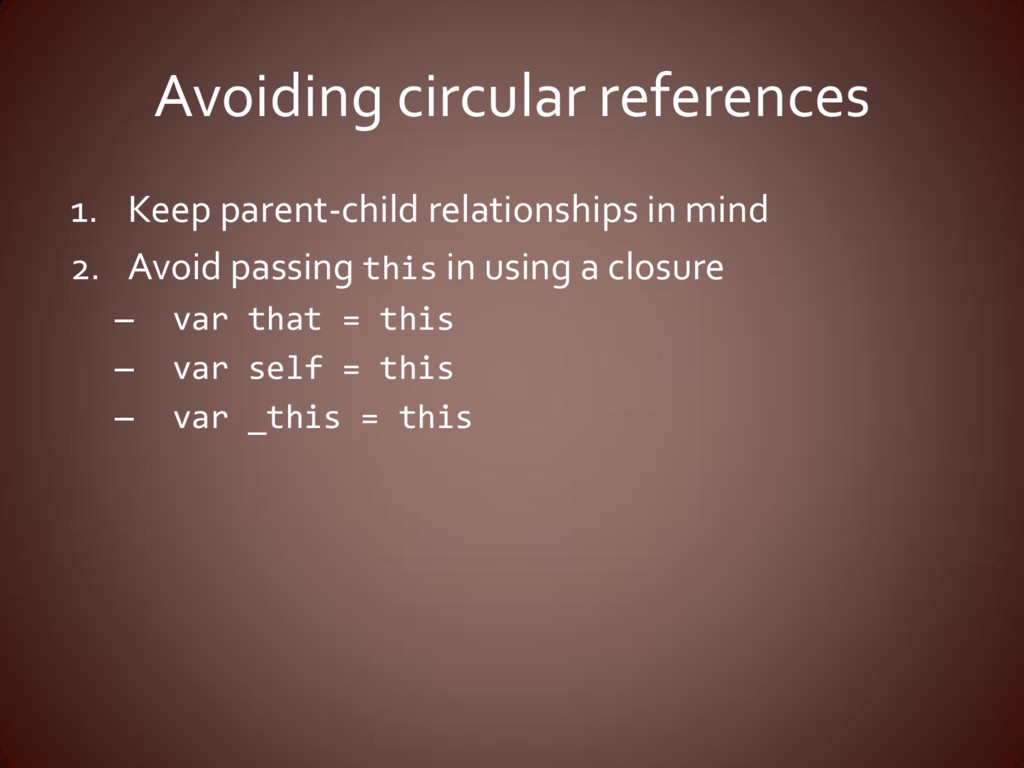

12. Avoiding circular references 1. Keep parent-child relationships in mind 2. Avoid passing this in using a closure – var that = this – var self = this – var _this = this

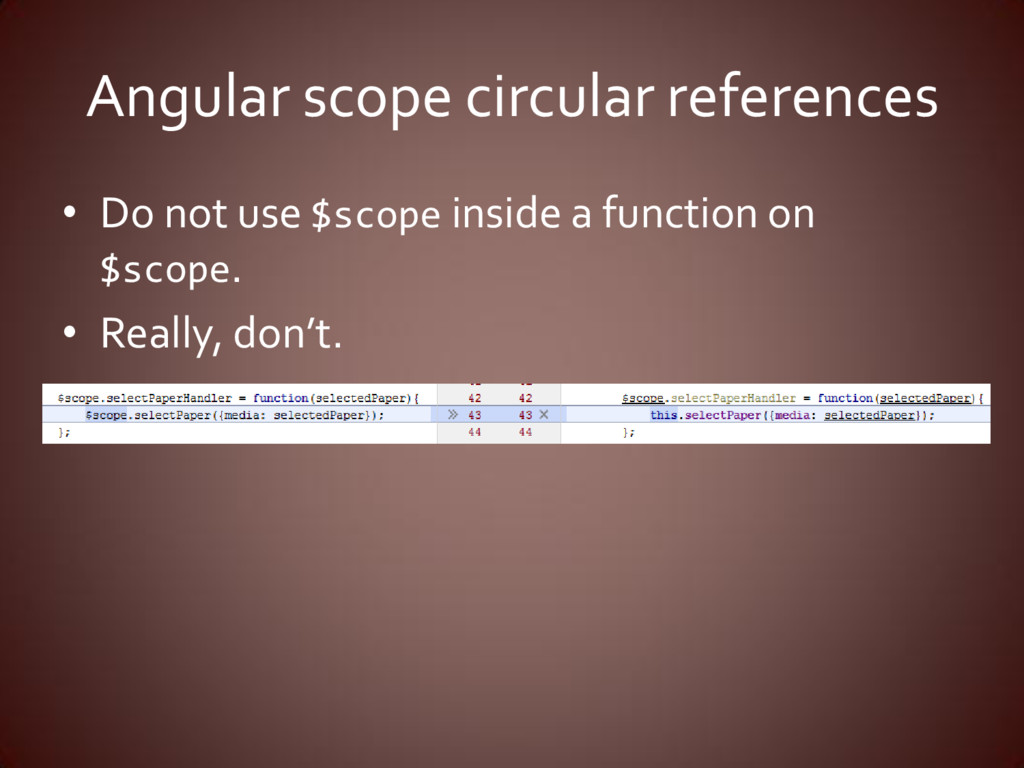

13. Angular scope circular references • Do not use $scope inside a function on $scope. • Really, don’t.

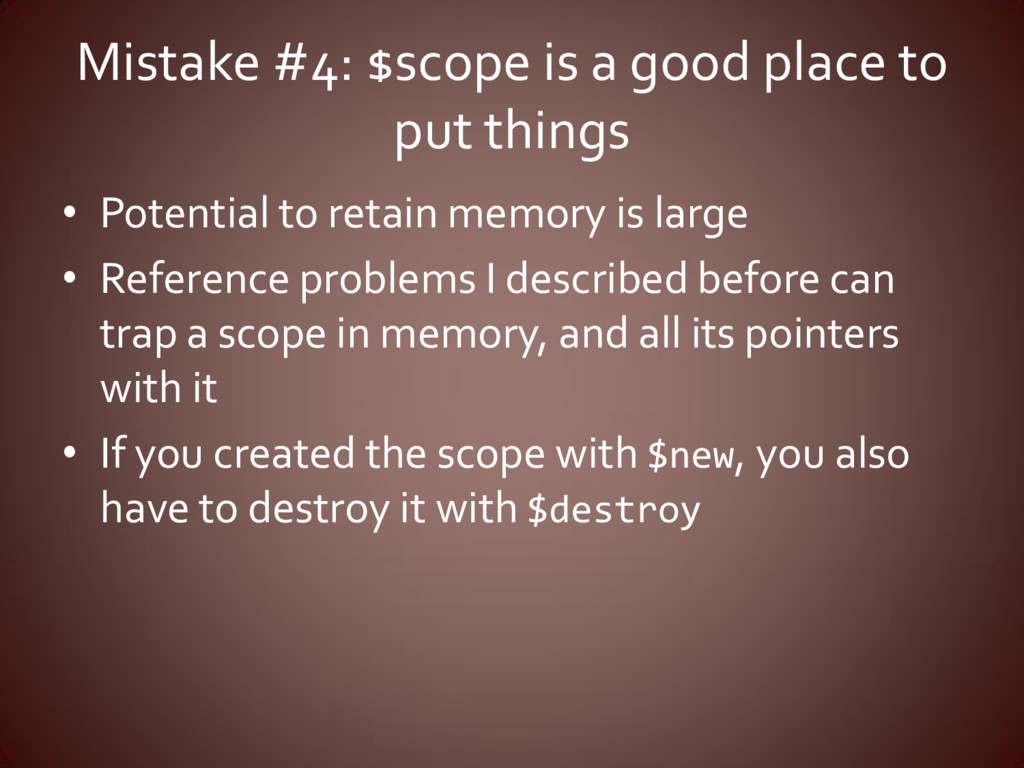

14. Mistake #4: $scope is a good place to put things • Potential to retain memory is large • Reference problems I described before can trap a scope in memory, and all its pointers with it • If you created the scope with $new, you also have to destroy it with $destroy

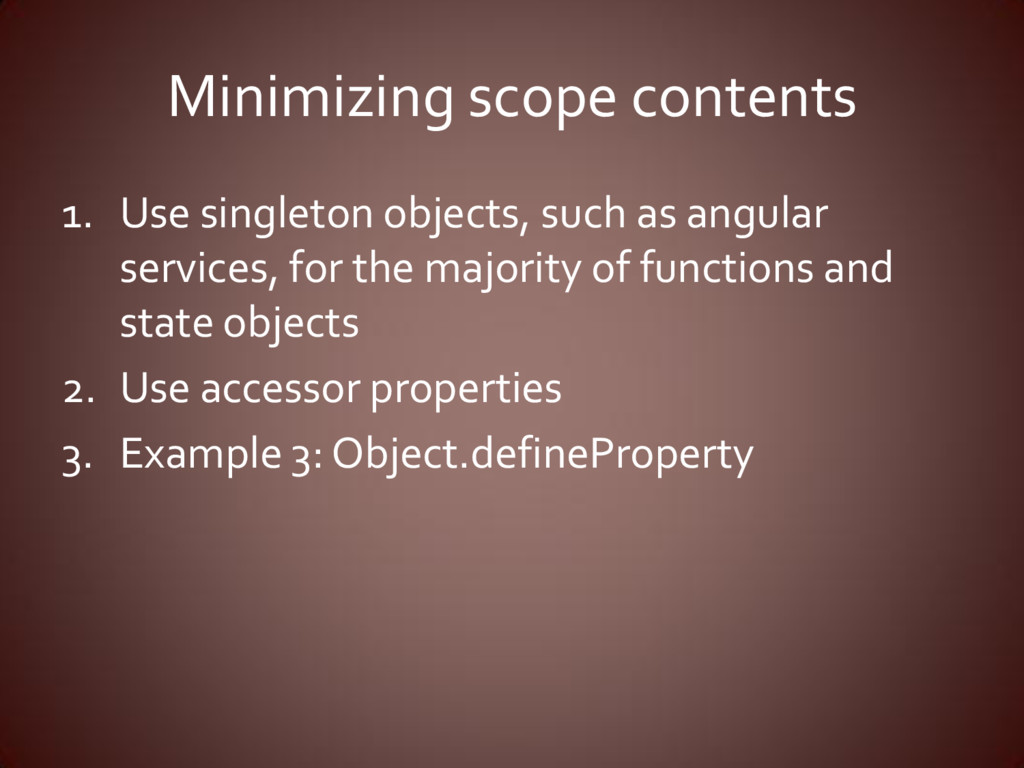

15. Minimizing scope contents 1. Use singleton objects, such as angular services, for the majority of functions and state objects 2. Use accessor properties 3. Example 3: Object.defineProperty

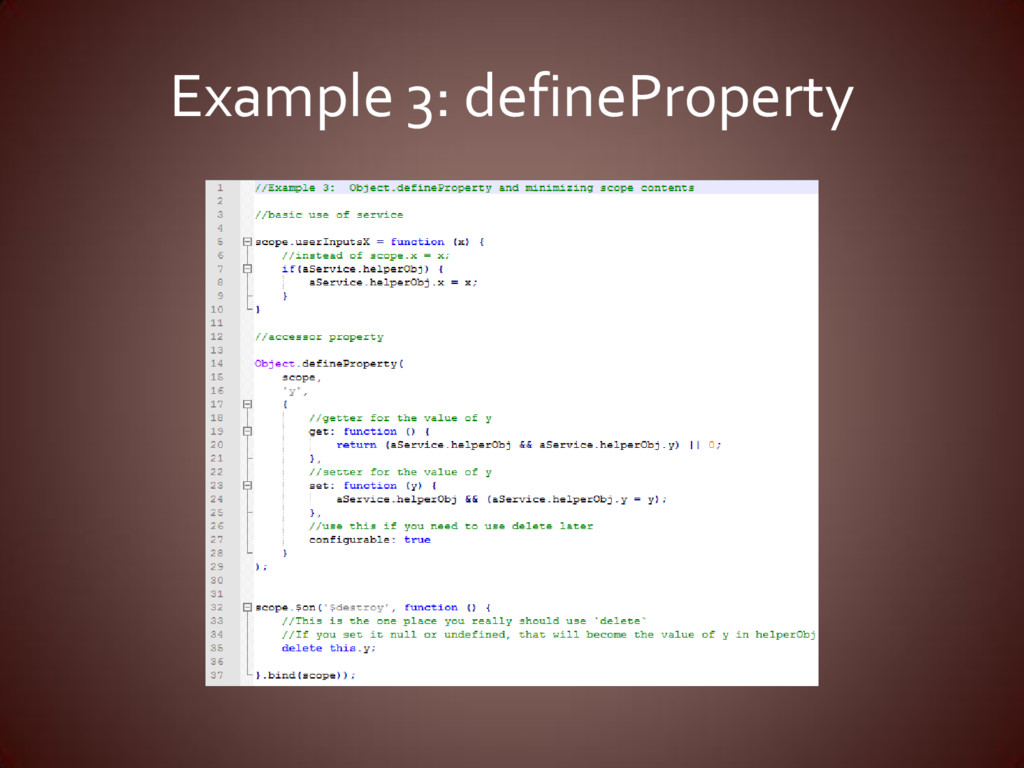

16. Example 3: defineProperty

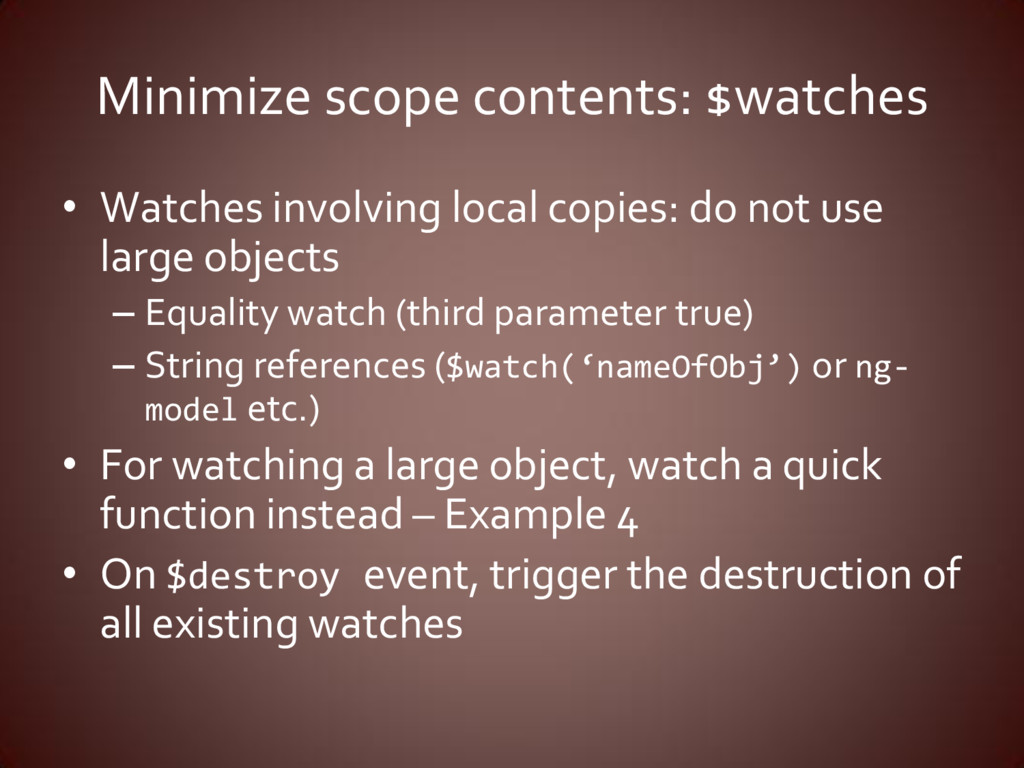

17. Minimize scope contents: $watches • Watches involving local copies: do not use large objects – Equality watch (third parameter true) – String references ($watch(‘nameOfObj’) or ng- model etc.) • For watching a large object, watch a quick function instead – Example 4 • On $destroy event, trigger the destruction of all existing watches

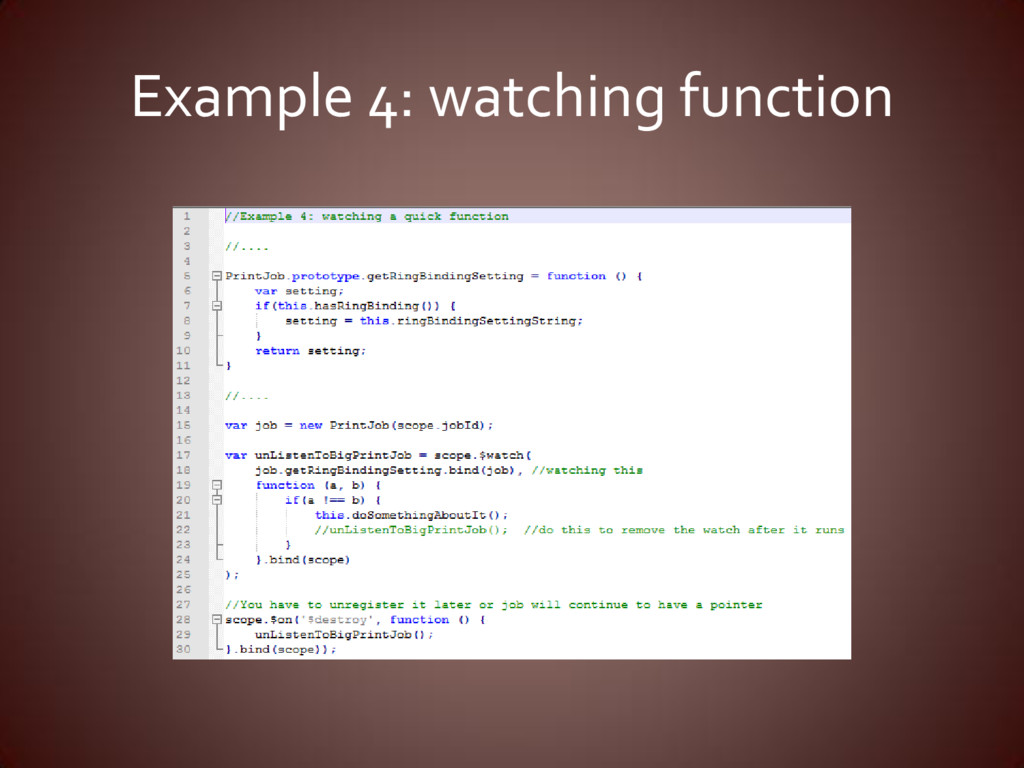

18. Example 4: watching function

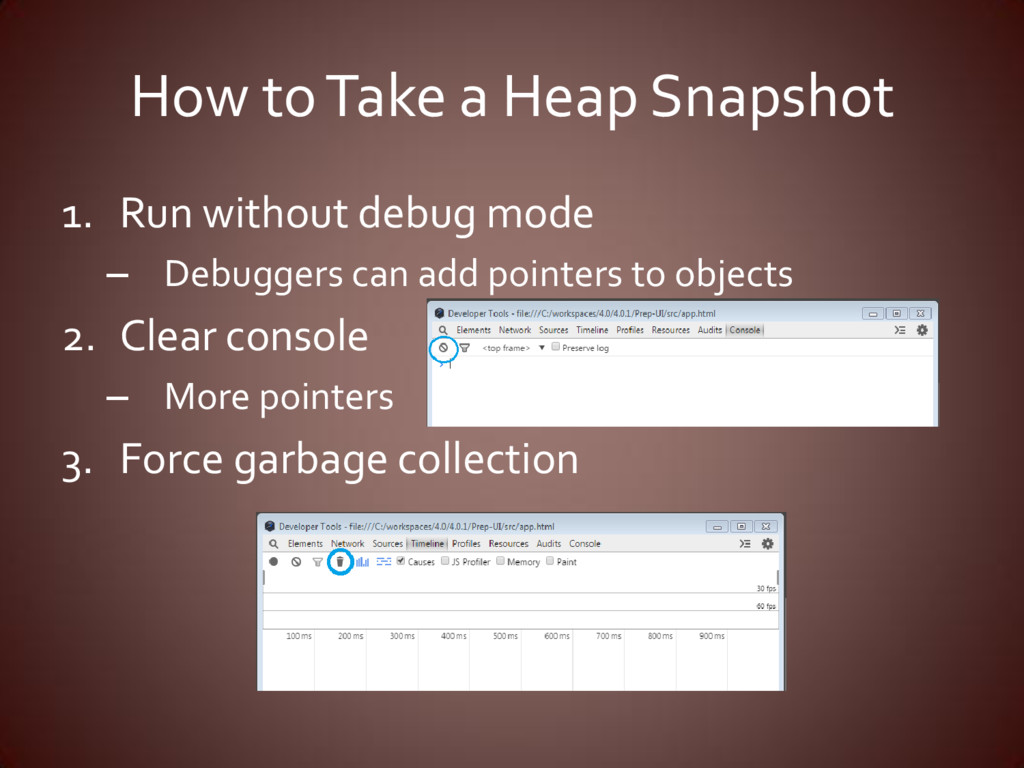

19. How to Take a Heap Snapshot 1. Run without debug mode – Debuggers can add pointers to objects 2. Clear console – More pointers 3. Force garbage collection

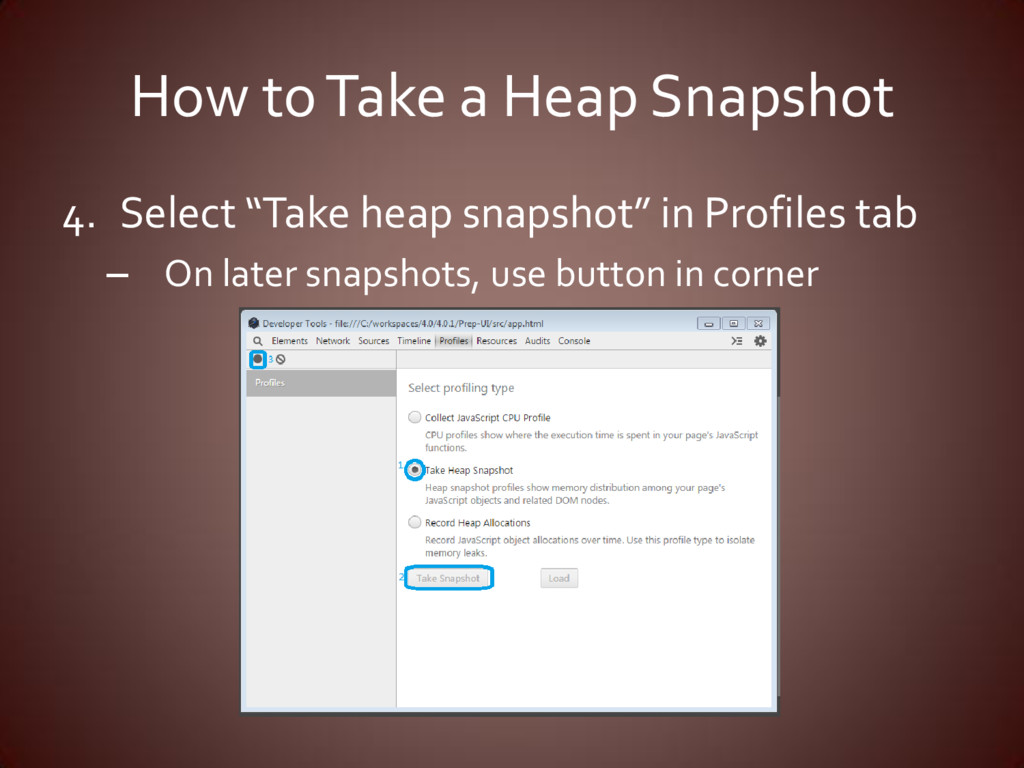

20. How to Take a Heap Snapshot 4. Select “Take heap snapshot” in Profiles tab – On later snapshots, use button in corner

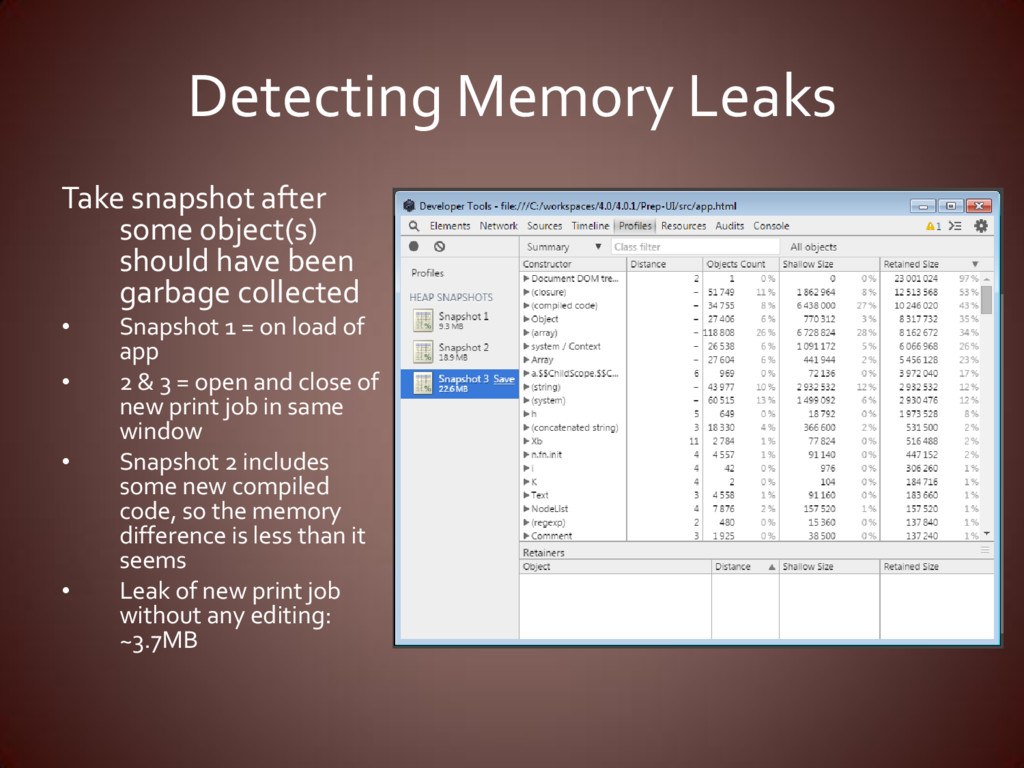

21. Detecting Memory Leaks Take snapshot after some object(s) should have been garbage collected • Snapshot 1 = on load of app • 2 & 3 = open and close of new print job in same window • Snapshot 2 includes some new compiled code, so the memory difference is less than it seems • Leak of new print job without any editing: ~3.7MB

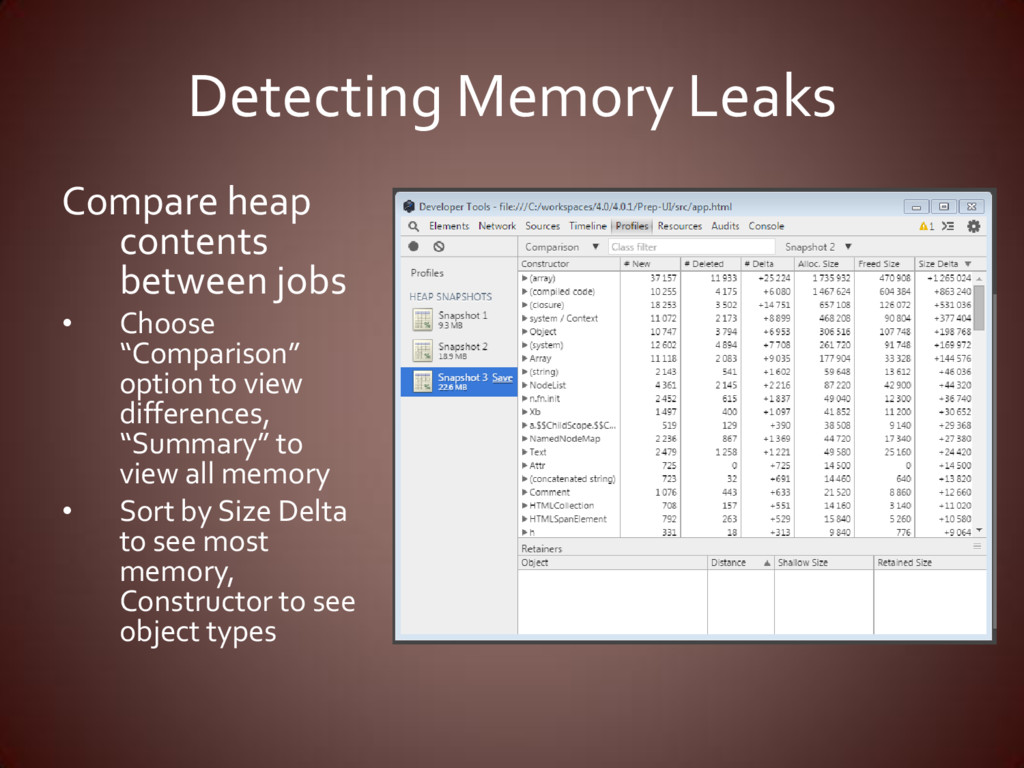

22. Detecting Memory Leaks Compare heap contents between jobs • Choose “Comparison” option to view differences, “Summary” to view all memory • Sort by Size Delta to see most memory, Constructor to see object types

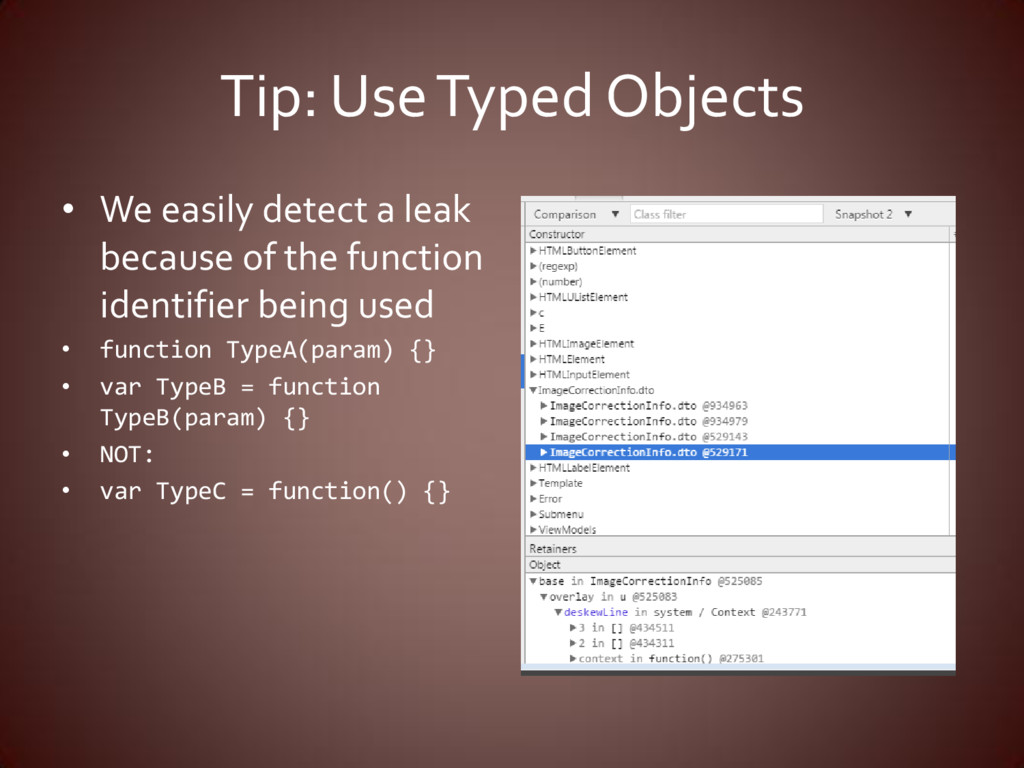

23. Tip: Use Typed Objects • We easily detect a leak because of the function identifier being used • function TypeA(param) {} • var TypeB = function TypeB(param) {} • NOT: • var TypeC = function() {}

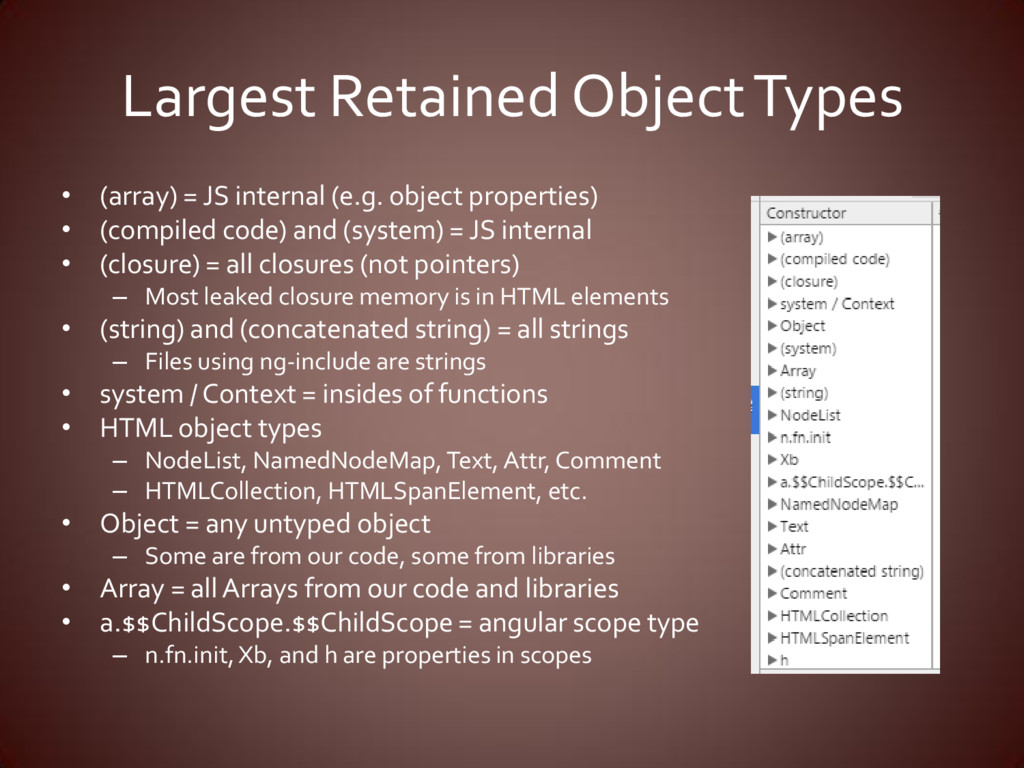

24. Largest Retained Object Types • (array) = JS internal (e.g. object properties) • (compiled code) and (system) = JS internal • (closure) = all closures (not pointers) – Most leaked closure memory is in HTML elements • (string) and (concatenated string) = all strings – Files using ng-include are strings • system / Context = insides of functions • HTML object types – NodeList, NamedNodeMap, Text, Attr, Comment – HTMLCollection, HTMLSpanElement, etc. • Object = any untyped object – Some are from our code, some from libraries • Array = all Arrays from our code and libraries • a.$$ChildScope.$$ChildScope = angular scope type – n.fn.init,Xb, and h are properties in scopes

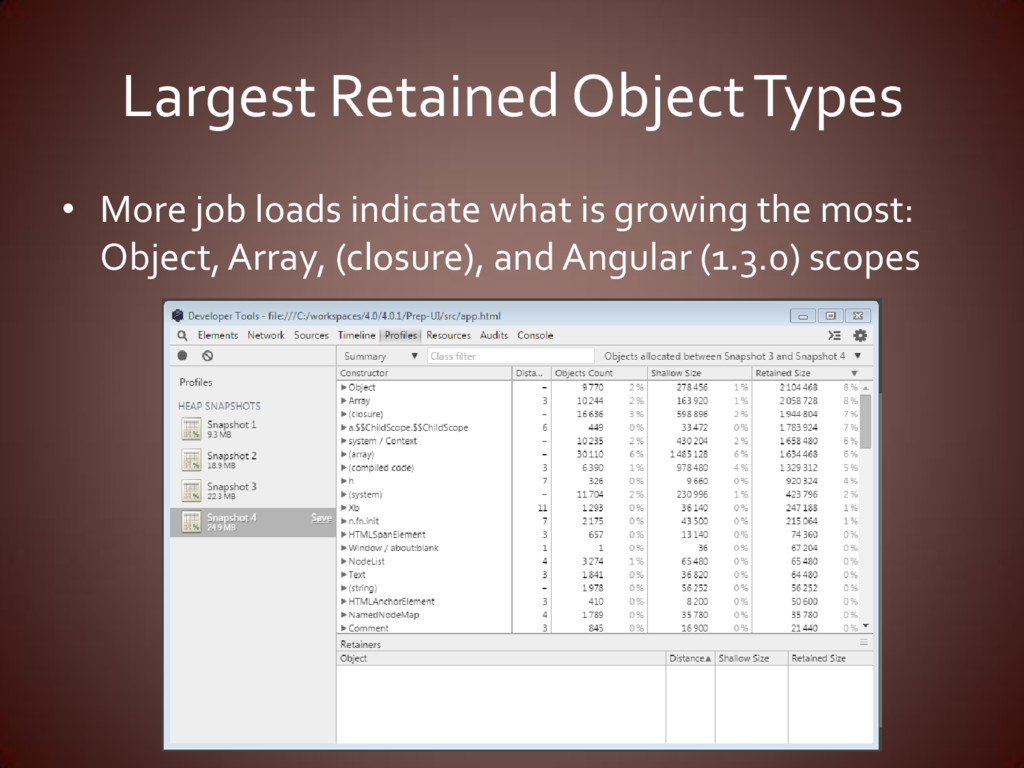

25. Largest Retained Object Types • More job loads indicate what is growing the most: Object, Array, (closure), and Angular (1.3.0) scopes

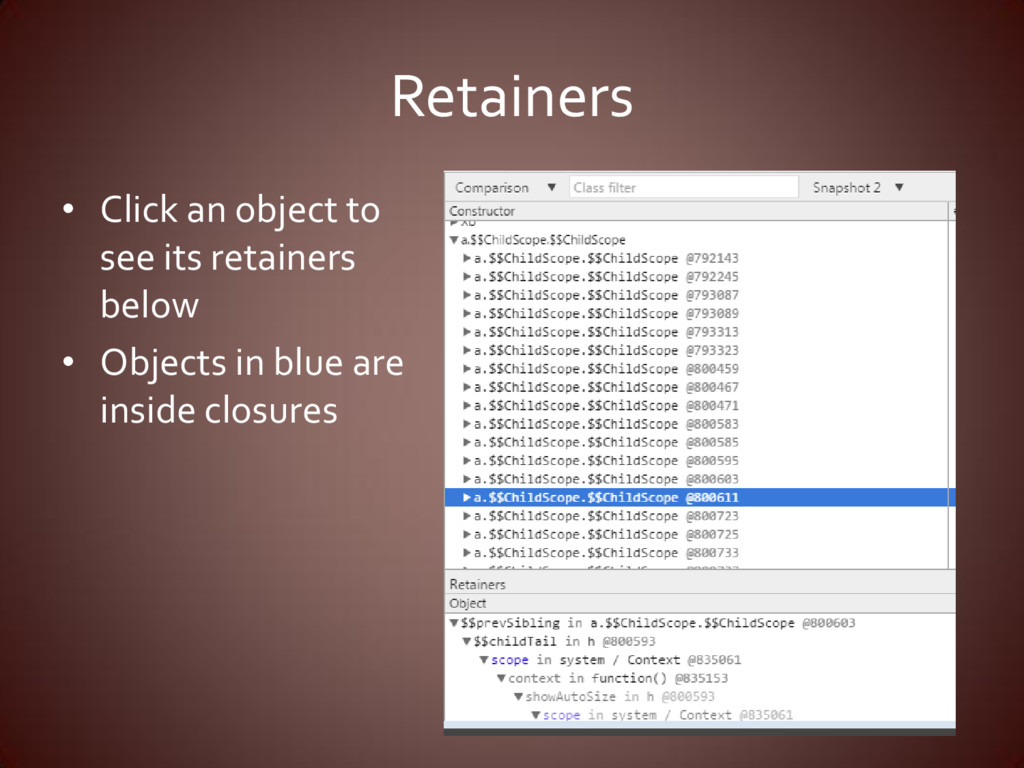

26. Retainers • Click an object to see its retainers below • Objects in blue are inside closures

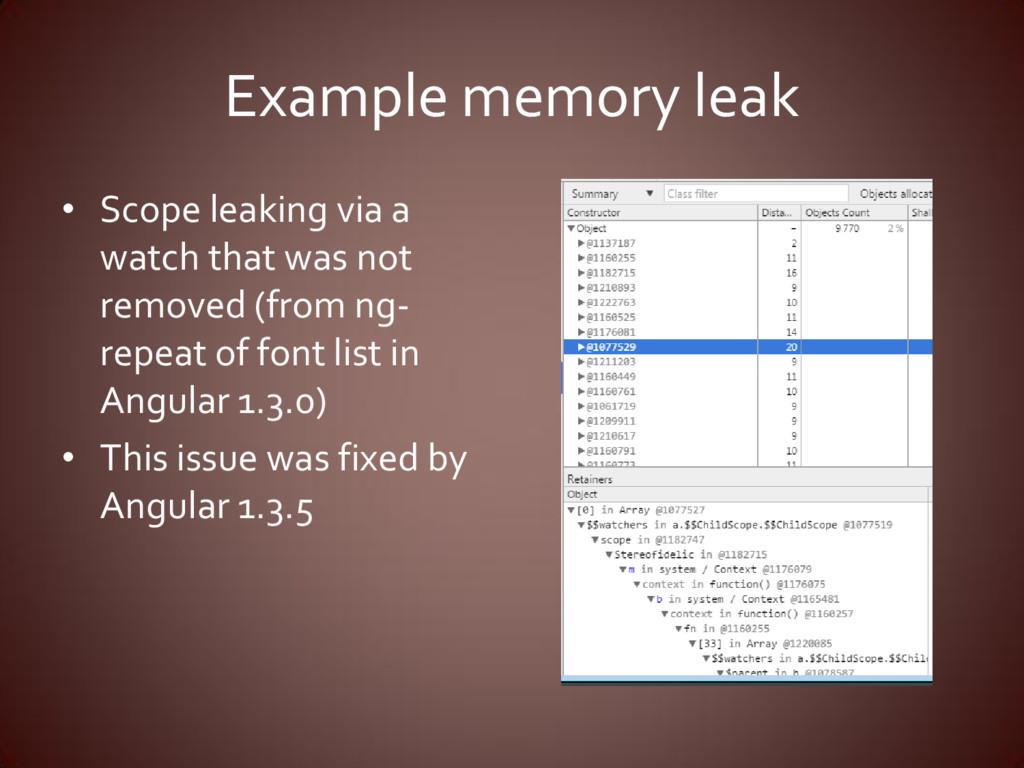

27. Example memory leak • Scope leaking via a watch that was not removed (from ng- repeat of font list in Angular 1.3.0) • This issue was fixed by Angular 1.3.5

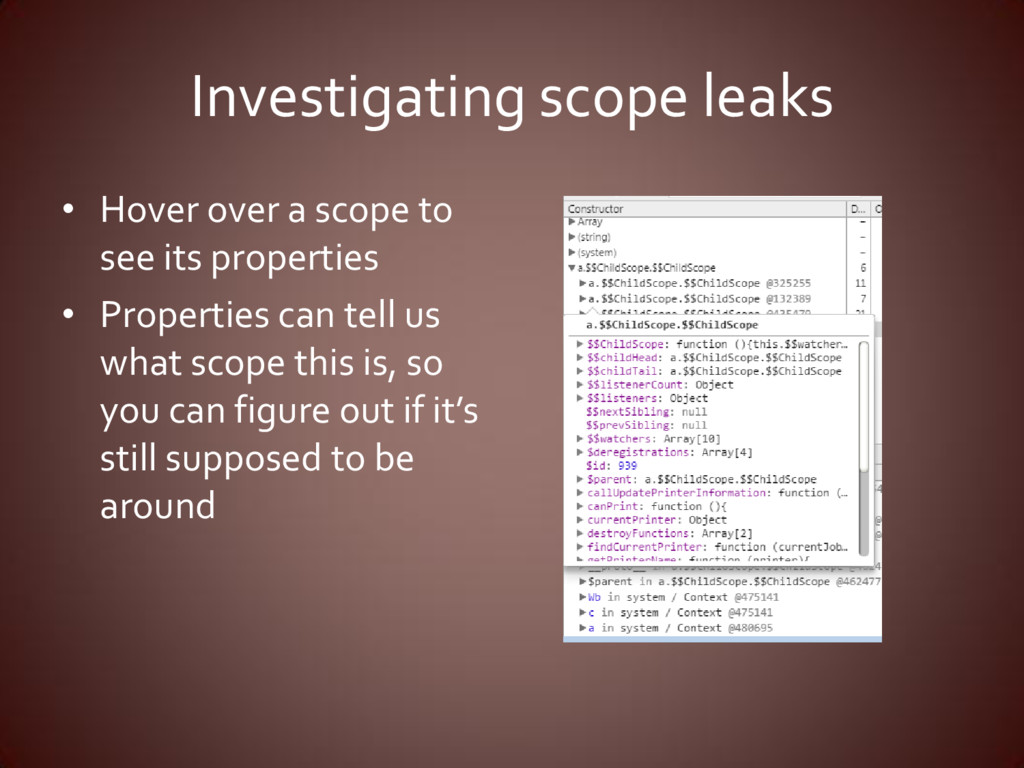

28. Investigating scope leaks • Hover over a scope to see its properties • Properties can tell us what scope this is, so you can figure out if it’s still supposed to be around

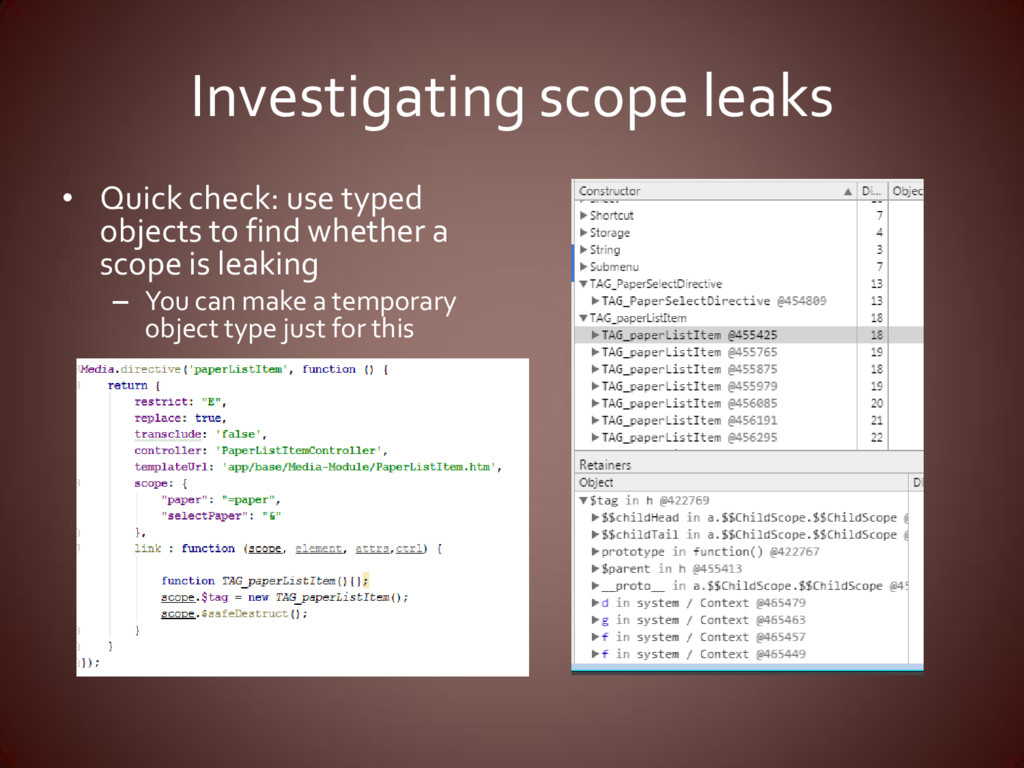

29. Investigating scope leaks • Quick check: use typed objects to find whether a scope is leaking – You can make a temporary object type just for this

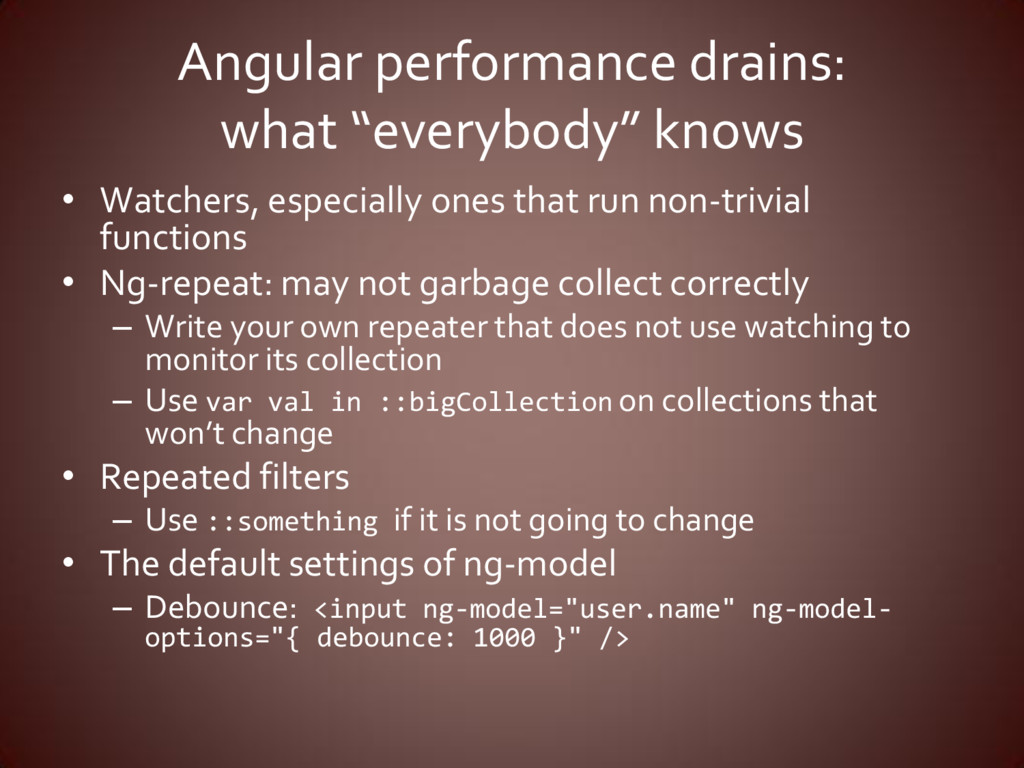

30. Angular performance drains: what “everybody” knows • Watchers, especially ones that run non-trivial functions • Ng-repeat: may not garbage collect correctly – Write your own repeater that does not use watching to monitor its collection – Use var val in ::bigCollection on collections that won’t change • Repeated filters – Use ::something if it is not going to change • The default settings of ng-model – Debounce: <input ng-model="user.name" ng-model- options="{ debounce: 1000 }" />

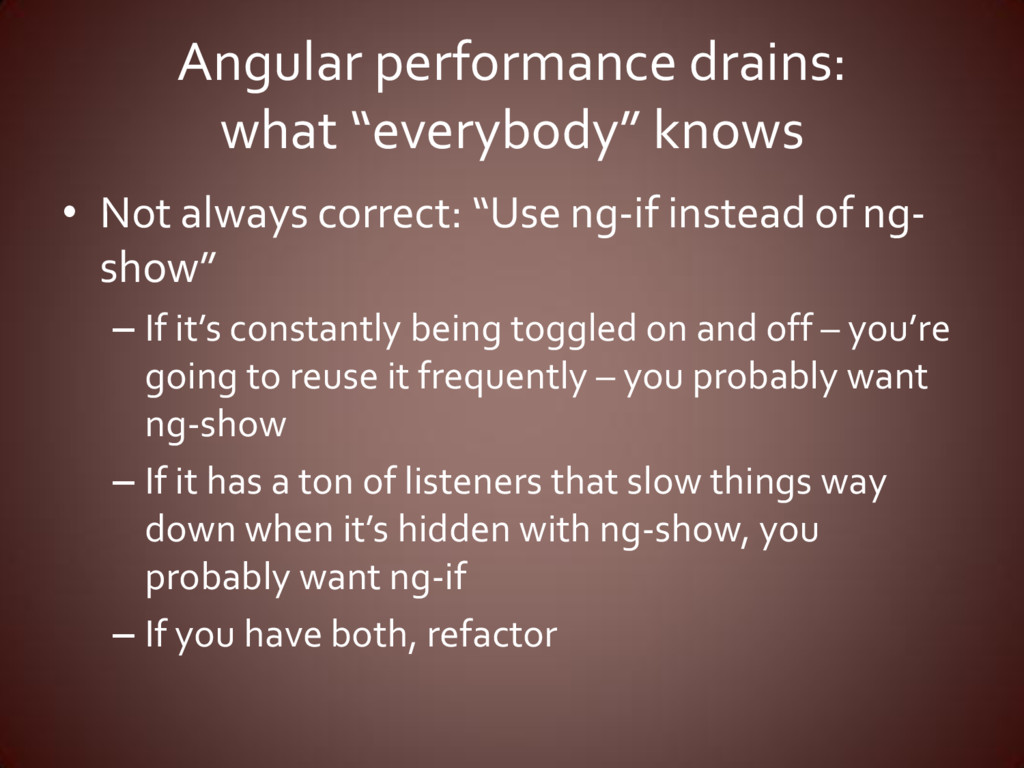

31. Angular performance drains: what “everybody” knows • Not always correct: “Use ng-if instead of ng- show” – If it’s constantly being toggled on and off – you’re going to reuse it frequently – you probably want ng-show – If it has a ton of listeners that slow things way down when it’s hidden with ng-show, you probably want ng-if – If you have both, refactor

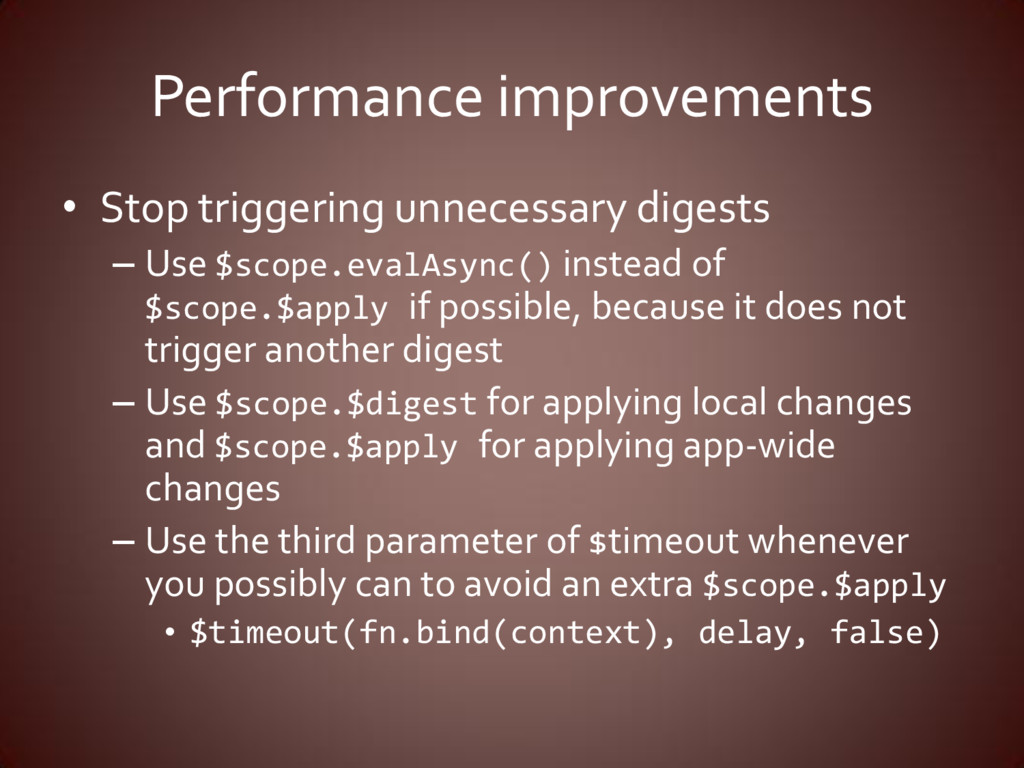

32. Performance improvements • Stop triggering unnecessary digests – Use $scope.evalAsync() instead of $scope.$apply if possible, because it does not trigger another digest – Use $scope.$digest for applying local changes and $scope.$apply for applying app-wide changes – Use the third parameter of $timeout whenever you possibly can to avoid an extra $scope.$apply • $timeout(fn.bind(context), delay, false)

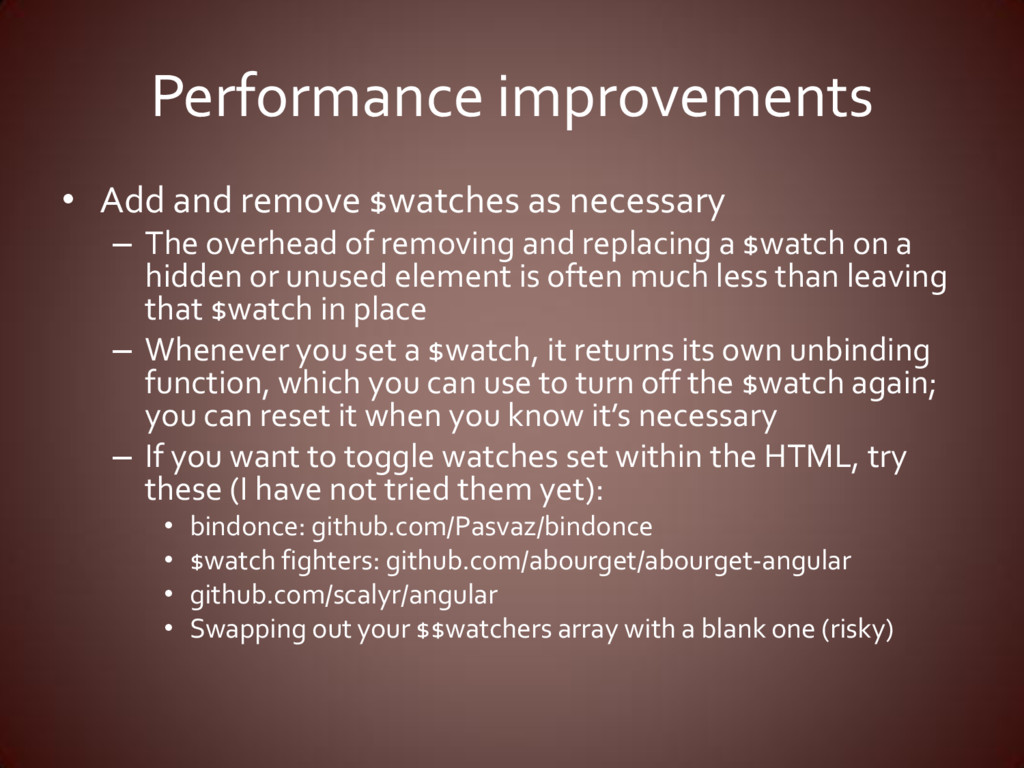

33. Performance improvements • Add and remove $watches as necessary – The overhead of removing and replacing a $watch on a hidden or unused element is often much less than leaving that $watch in place – Whenever you set a $watch, it returns its own unbinding function, which you can use to turn off the $watch again; you can reset it when you know it’s necessary – If you want to toggle watches set within the HTML, try these (I have not tried them yet): • bindonce: github.com/Pasvaz/bindonce • $watch fighters: github.com/abourget/abourget-angular • github.com/scalyr/angular • Swapping out your $$watchers array with a blank one (risky)

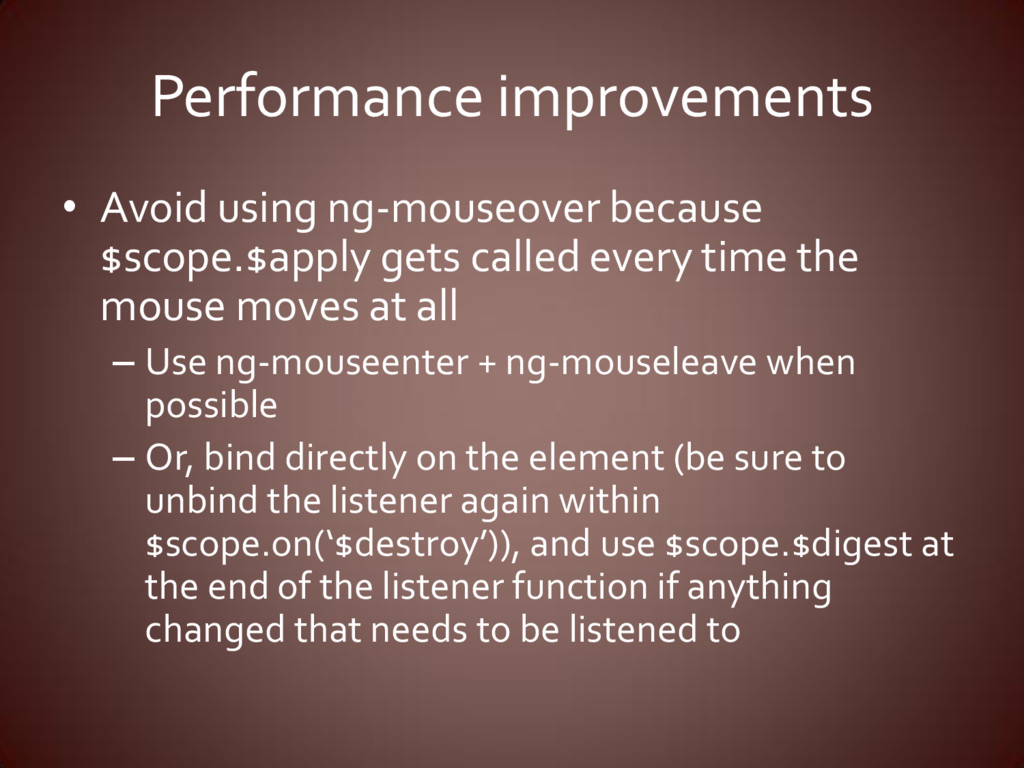

34. Performance improvements • Avoid using ng-mouseover because $scope.$apply gets called every time the mouse moves at all – Use ng-mouseenter + ng-mouseleave when possible – Or, bind directly on the element (be sure to unbind the listener again within $scope.on(‘$destroy’)), and use $scope.$digest at the end of the listener function if anything changed that needs to be listened to

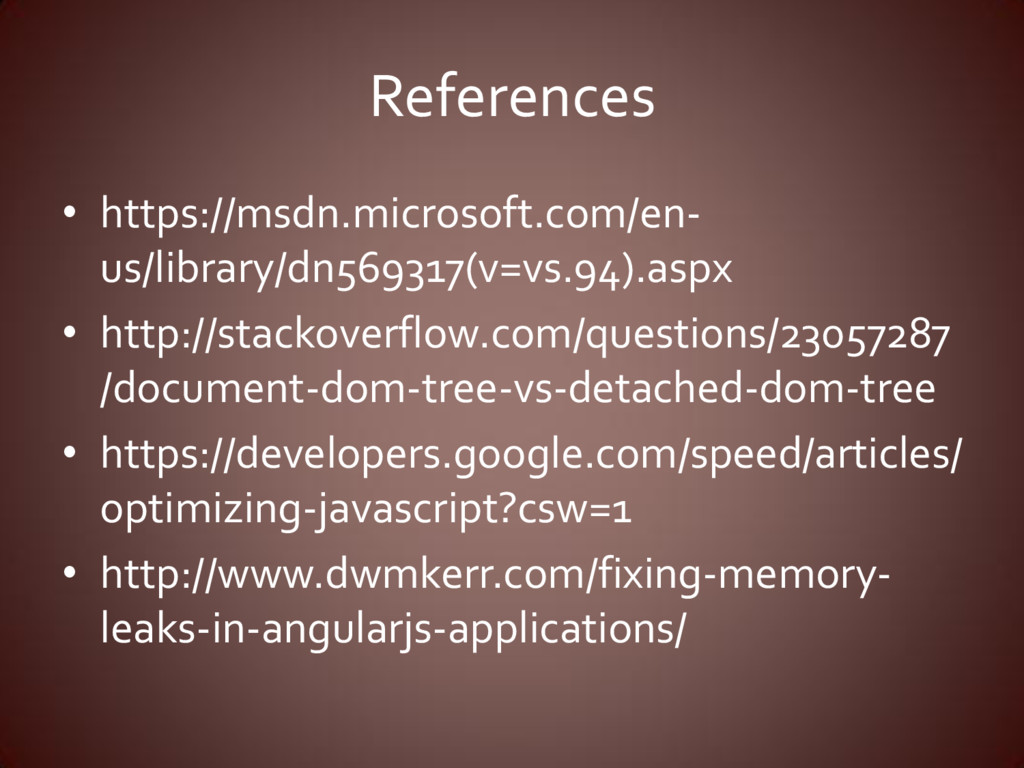

35. References • https://msdn.microsoft.com/en- us/library/dn569317(v=vs.94).aspx • http://stackoverflow.com/questions/23057287 /document-dom-tree-vs-detached-dom-tree • https://developers.google.com/speed/articles/ optimizing-javascript?csw=1 • http://www.dwmkerr.com/fixing-memory- leaks-in-angularjs-applications/
