Serverless deployment of ML inference models

When you’re trying to find use cases for serverless applications, you might not immediately — if at all — think of machine learning inference. Why? Because trained ml-models are basically a big bunch of state (ouch!) and most frameworks come with a large pile of dependencies (double ouch!).

We’ll investigate working examples of deep learning technology for image and text classification using Tensorflow, Pytorch and Spacy on AWS, Google Cloud and Azure. We will use these examples to discuss working with dependencies, handling of global state and deployment/packaging options in serverless environments. Furthermore, we will try to answer the question if these limitations help us to improve architectural goals like separation of concerns in code related to machine learning. Finally, I will summarize if serverless is a good fit for these use cases.

Don't be afraid: machine learning models are only used as subject of discussion in this talk. There is no in-depth knowledge of these technologies required for this session. Everything you need to know to be able to follow the discussion will be covered by the talk itself.

Transcript

1. Serverless deployment of ML inference models 02.04.2019 MICROXCHG 2019, BERLIN
2. „No coffee, no results!“ Michael Krämer Software Architekt & ML Enthusiast 15+ years of software development Works at INNOQ Schweiz in Zürich
3. Machine Learning?
4. Rumors about Machine Learning • Needs GPU! • Much data • A lot of state • Dependencies • Immature, volatile & low-level dependencies • Needs more GPUs!
5. Rumors about Cloud Functions • So lightweight • Stateless • For small function scopes only • With minimal instantiation effort • Very limited runtime environment
6. Challenge accepted!
7. What you need to know about ML Model Coefficients Training
8. And what does inference mean? + 1 single data input Prediction of output } + = Usage of a trained model
9. Let‘s give it a try Image from https://www.flickr.com/photos/amphalon/6322092360
10. How we checked: 3 typical use cases with 3 well known frameworks Sentiment analysis SpaCy 10M values (word vectors) Image classification Tensorflow 4M values (retrained MobileNet) Structured data Scikit-learn 1K values (Random Forest)

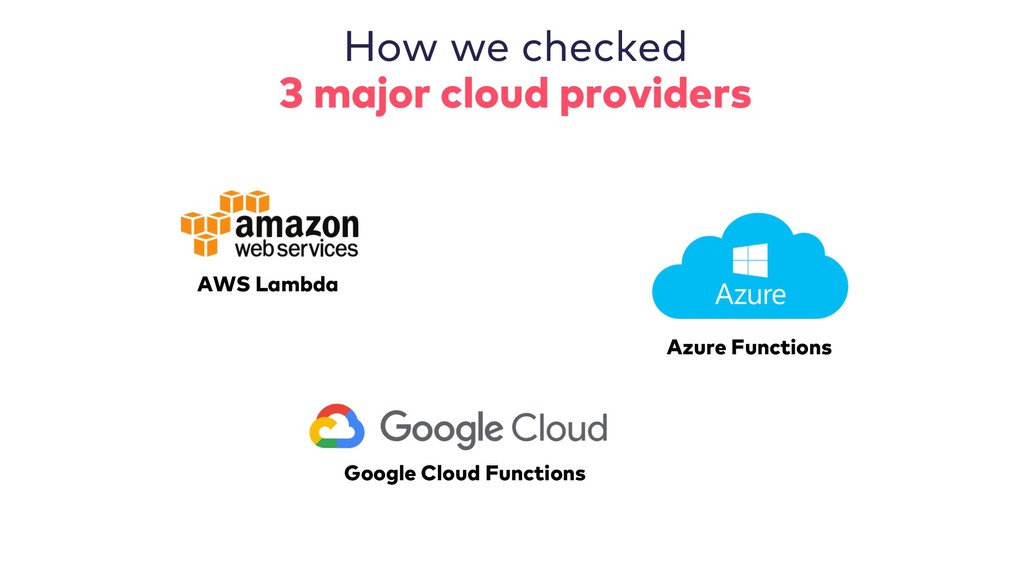

11. How we checked 3 major cloud providers AWS Lambda Google Cloud Functions Azure Functions
12. How we checked trying to make it run https://github.com/innoq/ml_serverless
13. What you get: language support AWS Lambda Google Cloud Functions Azure Functions Python 3.6, Java 8 C#, F# (.NET Core 2) JavaScript (Node 8 & 10) Python 3.7, Go JavaScript (Node 6 & 8) Python (2.7, 3.6, 3.7) JavaScript (Node 6 & 8) Java 8, Go, PowerShell C# (.NET Core 1.0, 2.0, 2.1) Custom Runtime
14. Limitation 1: no GPU AWS Lambda Google Cloud Functions Azure Functions GPU Memory X X X 128 to 3008 MB 128 to 2048 MB 128 to 1536 MB What can be done: nothing
15. Limitation 2 deployable artifact size AWS Lambda Google Cloud Functions Azure Functions 256 MB uncompressed 500 MB uncompressed No limit
16. Limitation 2 deployable artifact size What can be done: • package only what you need in minimal size • Use requirements.txt to keep dependencies out of your artifact https://github.com/Accenture/serverless- ephemeral/blob/master/docs/build-tensorflow-package.md https://github.com/antonpaquin/Tensorflow-Lambda-Layer
17. Limitation 3: cold start Init model – 20s Evaluate image – 4s (retrained MobileNet, 4M values, AWS Lambda with 1GB memory) model Category Daisy Rose Dandelion Tulip Sunflower „start on demand, fulfil the task, get terminated“
18. Limitation 3: cold start https://mikhail.io/2018/08/serverless-cold-start-war/ What can be done: • use hacks to keep your functions warm • Which won’t work in any case • declare expensive resources as global variables so that they will be cached with a function • Be aware of autoscaling • Might not be suited for customer facing services
19. Performance AWS, Python Google, Python Structured data Scikit-learn, 1K values Image classification, Tensorflow, 4M values Sentiment analysis, SpaCy, 10M values Cold Warm 0.15s 22s Image classification, Tensorflow, 4M values Google, JavaScript 1GB 4.3s 17s 1GB 1GB Google, Python 256MB 0.28s 0.38s Structured data Scikit-learn, 1K values Microsoft, Python 256MB 0.25s 0.7s 4s 15s
20. • API which cloud uses to call your function • API of cloud services your function calls are available in the cloud only Deployment takes 3-5 minutes Limitation 4 hard to test offline
21. Limitation 4 hard to test offline What can be done: try offline emulators For AWS: https://www.npmjs.com/package/serverless-offline or https://github.com/localstack/localstack For Google: https://cloud.google.com/functions/docs/emulator For Azure: https://docs.microsoft.com/de-de/azure/azure- functions/functions-develop-local
22. Spontaneous use Limitation 5 may get expensive https://www.trek10.com/blog/lambda-cost/ Heavy load, multiple req/s
23. Limitation 6: cloud APIs are proprietary and not standardised Plan some extra effort if you decide to move Serverless Framework does not really help
24. Detour Serverless Framework • https://github.com/serverless/serverless • I (naively) expected a unified function API • Write once, run everywhere • This does not exist (yet) :-[ • Deployment descriptors for functions • serverless.yml • Share common properties for all providers • We used it primarily for AWS

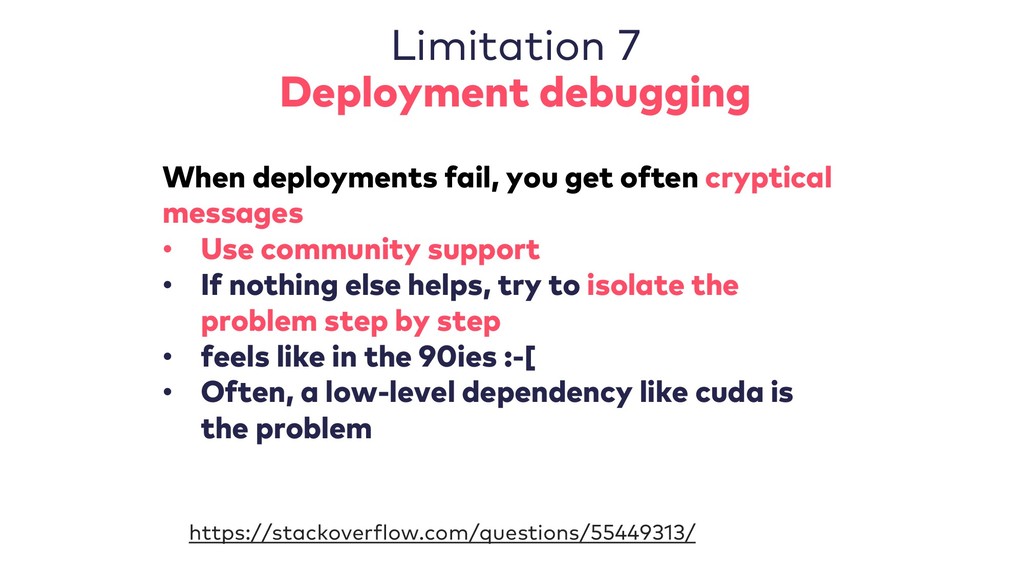

25. Limitation 7 Deployment debugging https://stackoverflow.com/questions/55449313/ When deployments fail, you get often cryptical messages • Use community support • If nothing else helps, try to isolate the problem step by step • feels like in the 90ies :-[ • Often, a low-level dependency like cuda is the problem
26. Takeaways and best practices
27. It works Fits best for fast leightweight models Fits best for unheavy load scenarios Takeaways Benefits if you use other cloud services as well Benefits if your ML model is not suitable for your other environment
28. Declare you model as global variable Best practices Try offline emulators You can convert your model to run from other languages
29. What does the architect say? • ML-related code is often tending to be not well- structured • Initiated often from experiments • Important not to miss the turn point • Serverless can force you to clean up!
30. Image sources • Unsplash.com • Wikipedia.org • http://web.stanford.edu/~hastie/Papers/LARS/LeastAngle_2002.pdf Credentials Michael Perlin, Leonardo Ramirez and other colleagues from INNOQ contributed
31. Thank you! Questions? www.innoq.com innoQ Deutschland GmbH Krischerstr. 100 40789 Monheim am Rhein Germany +49 2173 3366-0 Ohlauer Str. 43 10999 Berlin Germany Ludwigstr. 180E 63067 Offenbach Germany Kreuzstr. 16 80331 München Germany Gewerbestr. 11 CH-6330 Cham Switzerland +41 41 743 01 11 Albulastr. 55 8048 Zürich Switzerland innoQ Schweiz GmbH Michael Krämer michael.kraemer@innoq.com @mkraemerx c/o WeWork Hermannstrasse 13 20095 Hamburg Germany
