Refactoring database storage @ Kiwi.com

Refactoring database storage @ Kiwi.com

Petr Joachim (Kiwi.com) at Kiwi.com Brno-Moscow Python Meetup

Video: http://www.moscowpython.ru/meetup/1/refactoring-database-storage-at-kiwi-dot-com/

Moscow Python Meetup
PRO

March 23, 2017
Tweet

More Decks by Moscow Python Meetup

Other Decks in Programming

Transcript

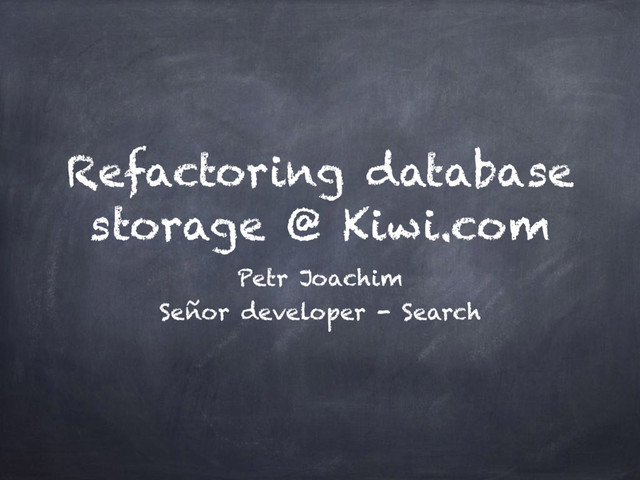

  1. Refactoring database
    storage @ Kiwi.com
    Petr Joachim
    Señor developer - Search

    View Slide

  2. What do we do at
    Kiwi.com?
    We search flights and sell flight
    tickets
    We need to own all the data all the
    time
    We are doing our own combinations

    View Slide

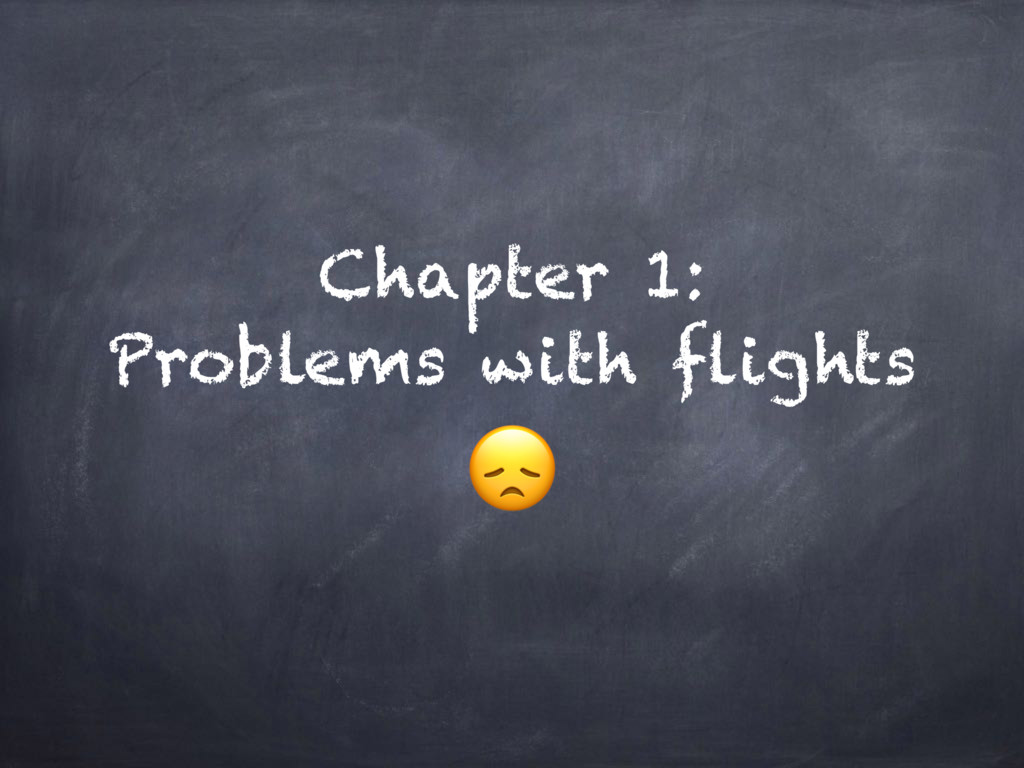

  3. Chapter 1:
    Problems with flights

    View Slide

  4. Problems with
    flights
    The ultimate problem with flight
    data is that they are changing - like
    a lot
    We are processing around 40.000
    flight entries per second

    View Slide

  5. Problems with
    flights
    We update every row in our dataset at
    least once per 48 hours (some of that
    more often)
    In our database there are 1.2 billion of
    flights (we update around 3.5 billion each
    day) - it’s only for 6 months to the future
    This is around 2TB of data stored

    View Slide

  6. Problems with
    flights
    Flights data are quite complicated structure.
    It contains things like:
    one way, return, direct and with stops
    flights (we call them segments)
    weird pricing policies, fare classes,
    special offers, child and infant prices,
    point of sales, different providers, …

    View Slide

  7. Problems with
    flights
    There is no global identifier of a
    flight!
    A flight is identified by all its
    segments
    segment = (flight_number,
    source_airport, destination_airport,
    airline, date_of_departure)

    View Slide

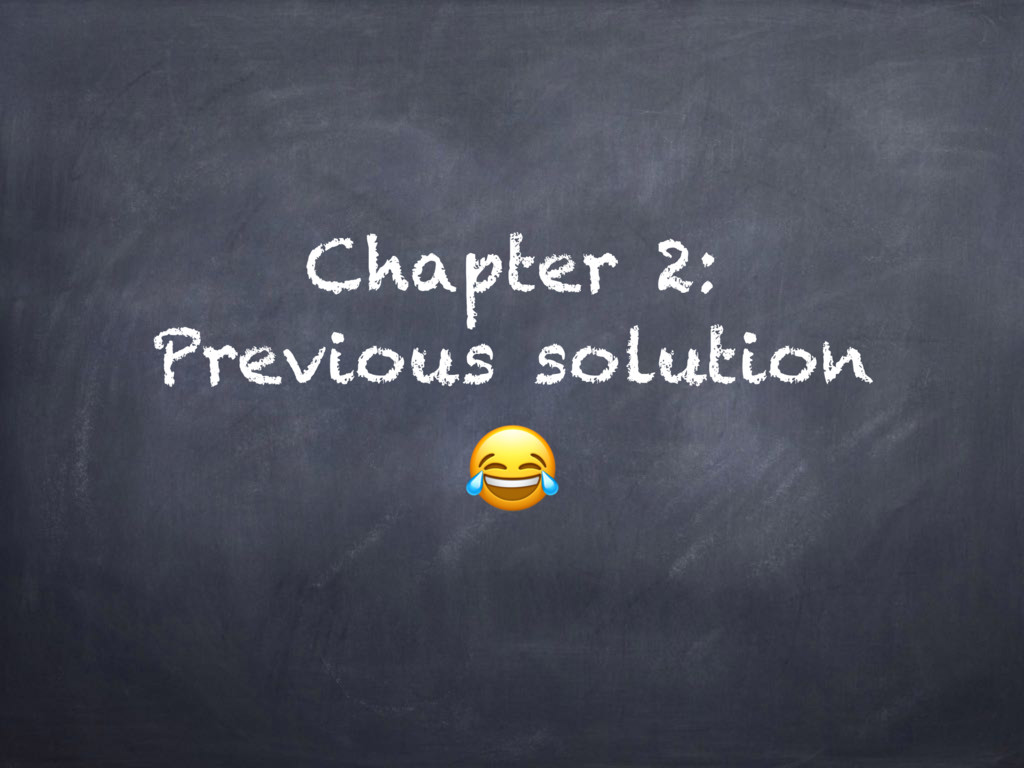

  8. Chapter 2:
    Previous solution

    View Slide

  9. Previous solution
    At first there was a PostgreSQL
    database with all data in it
    And to fill that database there was a
    Python script and a redis queue for
    incoming data from data
    acquisition team

    View Slide

  10. Previous solution
    Then one single PostgreSQL server
    was not enough.
    So an engineer decided to make two
    databases and create sharding on
    application level

    View Slide

  11. Previous solution
    So she created thing called “router”
    which is aware of where flights should
    be.
    She used Redis to store her data there.
    It is routing based on combination of
    data - (source, destination,
    date_of_departure)

    View Slide

  12. Previous solution
    Later on, there started to be a problem
    with PostgreSQL write speed
    So the engineer wrote Redis layer for
    cache PostgreSQL data
    And wrote insanely complex update/
    invalidate mechanism in order to be able
    to make all things in PostgreSQL
    consistent with as few writes possible

    View Slide

  13. Previous solution
    So we ended up with more than 50
    server with
    redis queue for incomming data
    redis to cache data
    postgres to store data
    crazy Python update script which runs
    that thing

    View Slide

  14. Previous solution
    And of course this system itself
    doesn’t handle any redundancy,
    balancing of data, durability,
    adding new hosts

    View Slide

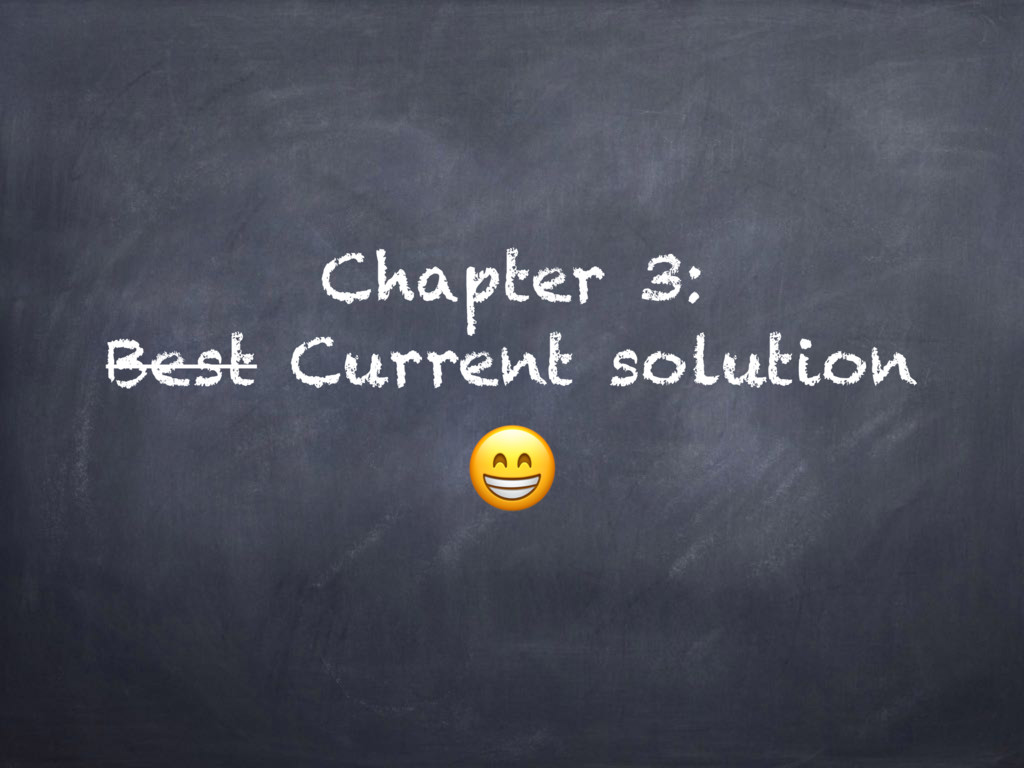

  15. Chapter 3:
    Best Current solution

    View Slide

  16. Objective:
    Make it simpler
    We need to have the architecture
    simpler but more reliable
    We’d like to make it more testable
    And less fragile

    View Slide

  17. Preparations
    We have prepared copy of incoming
    data queue (remember that 50+
    Redis queues) into one central
    queue solution (we have tried
    several ones)

    View Slide

  18. Implementation
    We have prepared simplistic
    consumer script (in Python of
    course)
    In order to be able to test some
    databases under such load

    View Slide

  19. Cassandra

    View Slide

  20. Cassandra
    We are now big enough to use
    storage like that
    It has all we need (hopefully),
    because with redis caching we
    already lost many features of
    relational database

    View Slide

  21. Dark sides of
    Cassandra
    Written in Java
    No classic transactions, there are
    only row-level (lightweight)
    transaction (UPSERT, INSERT IF,
    UPDATE IF, …)
    It has SQL like syntax, tables, rows
    and columns

    View Slide

  22. Dark sides of
    Cassandra
    Primary indexes only - could be composite
    ( (partition1, partition2), cluster1, cluster2, …)
    You need to specify whole partition key in
    WHERE clause and then you can add
    clustering keys one by one (in order), you
    can use ranges on last used clustering key
    There are secondary indexes, but you should not
    use them because of performance

    View Slide

  23. Bright sides of
    Cassandra
    It has nearly linear scalability
    It can process hundreds of
    thousands request per second (on 25
    servers in 2 data centres it handles
    around 300.000 writes and 100.000
    reads per second)

    View Slide

  24. Bright sides of
    Cassandra
    It is fast enough - we don’t need
    Redis cache layer
    It is a cluster - we don’t need any
    “router” to manually shard data in
    application
    It have redundancy and all other
    features

    View Slide

  25. Couple of stories
    We have tried Scylla at first place
    (it is a C++ alternative of Cassandra
    promising 10 times better
    performance) - but we don’t use it,
    it was not mature enough

    View Slide

  26. Couple of stories
    We have hired a consultant company
    from Serbia to help us set up the
    cluster and to review our code and
    data model

    View Slide

  27. Couple of stories
    There was a firewall rule and Cassandra
    was not able to get to local JMX service

    View Slide

  28. Refactoring
    clean up
    We have a tool which compares data
    loaded from older solution and
    from new solution
    We’ll have a python module in place
    for reading those data in all other
    parts of our system (right now under
    development)

    View Slide

  29. That’s it!

    Petr Joachim @ Kiwi.com

    View Slide
