Android Jetpack Compose

Антон Зинаков, Mail.Ru Group at #MOSDROID 19 Potassium [in KasperskyLab HeadQuarter]

На текущий момент основной способ написания UI в Android — XML разметка. Такой подход тянется уже около 10 лет и имеет свои проблемы: совместимость с предыдущими версиями ОС, достаточный объем legacy в самих классах View, относительно сложно переиспользовать написанные элементы.

В докладе я расскажу про опыт использования Jetpack Compose представленного на I/O 2019 – декларативный фреймворк для создания UI с использованием Kotlin. Это большой шаг вперед и огромный задел на будущее Android: Jetpack Compose во многом решает проблемы сегодняшнего UI, упрощает и вносит современный подход в разработку.

Transcript

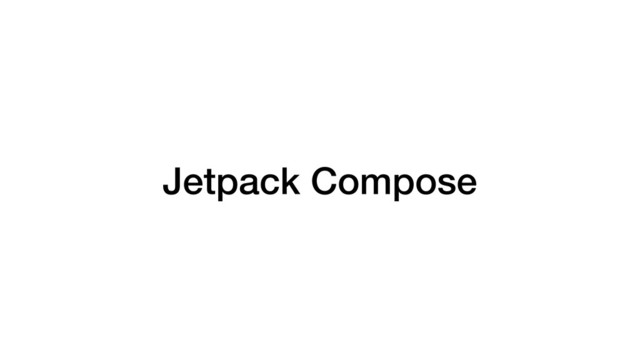

1. Jetpack Compose


   View Slide

2. User Interface today
   • XML & View


   View Slide

3. User Interface today
   • XML & View

   • 2009


   View Slide

4. View Slide

5. View Slide

6. View Slide

7. User Interface today
   • XML & View

   • 2009

   • Compatibility problems


   View Slide

8. View Slide

9. View Slide

10. User Interface today
    • XML & View

    • 2009

    • Compatibility problems

    • Hard to display the same UI on different devices and Android versions


    View Slide

11. User Interface today
    • XML & View

    • 2009

    • Compatibility problems

    • Hard to display the same UI on different devices and Android versions

    • Reusability is not convenient


    View Slide

12. Alternative UI frameworks


    View Slide

13. Alternative UI frameworks


    View Slide

14. Alternative UI frameworks


    View Slide

15. Jetpack Compose


    View Slide

16. Jetpack Compose
    • Declarative


    View Slide

17. Jetpack Compose
    • Declarative

    • Kotlin


    View Slide

18. Jetpack Compose
    • Declarative

    • Kotlin

    • Compatibility with different Android versions


    View Slide

19. Jetpack Compose
    • Declarative

    • Kotlin

    • Compatibility with different Android versions

    • Easy to reuse


    View Slide

20. Jetpack Compose
    • Declarative

    • Kotlin

    • Compatibility with different Android versions

    • Easy to reuse

    • Modern


    View Slide

21. Let’s try it!


    View Slide

22. Install REPO
    mkdir ~/bin
    PATH=~/bin:$PATH
    curl https://storage.googleapis.com/git-repo-downloads/repo > ~/bin/repo
    chmod a+x ~/bin/repo


    View Slide

23. Configure GIT
    git config --global user.name "Your Name"
    git config --global user.email "you@example.com"


    View Slide

24. Create directory for checkout
    mkdir androidx-master-dev
    cd androidx-master-dev


    View Slide

25. Initialize the repository
    repo init -u https://android.googlesource.com/platform/manifest
    -b androidx-master-dev


    View Slide

26. Download the code (about 6GB)
    repo sync -j8 -c


    View Slide

27. Change directory
    path/to/compose/frameworks/support/ui/


    View Slide

28. and run…
    ./studiow


    View Slide

29. How to print text?
    fun main() {
    print("Hello, Mosdroid!")
    }


    View Slide

30. How to draw text on Android UI?
    @Composable
    fun Greeting() {
    Text(text = "Hello, Mosdroid!")
    }


    View Slide

31. class MosdroidActivity : Activity() {
    override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    setContent {
    Greeting()
    }
    }
    @Composable
    fun Greeting() {
    Text(text = "Hello, Mosdroid!")
    }
    }


    View Slide

32. @Composable
    fun Greeting() {
    Text(text = "Hello, Mosdroid!")
    }


    View Slide

33. @Composable
    fun Greeting() {
    Text(
    text = "Hello, Mosdroid!",
    style = TextStyle(fontSize = 48.sp)
    )
    }


    View Slide

34. @Composable
    fun Greeting() {
    Align(Alignment.Center) {
    Text(
    text = "Hello, Mosdroid!",
    style = TextStyle(fontSize = 48.sp)
    )
    }
    }


    View Slide

35. Real example
    • I want to create an application with possibility to add persons and display
    added person in list

    • I want to separate UI elements to two independent widgets


    View Slide

36. Dummy implementation
    @Composable
    fun PersonEditorWidget() {
    Column {
    TextField(EditorModel())
    Button(text = "Add Person")
    }
    }


    View Slide

37. Dummy implementation
    @Composable
    fun PersonEditorWidget() {
    Column {
    TextField(EditorModel())
    Button(text = "Add Person")
    }
    }


    View Slide

38. data class PersonEditorModel(
    val name: String = "",
    val buttonTitle: String = "Add Person",
    val onClick: (String) -> Unit
    )


    View Slide

39. data class PersonEditorModel(
    val name: String = "",
    val buttonTitle: String = "Add Person",
    val onClick: (String) -> Unit
    )
    @Composable
    fun PersonEditorWidget(model: PersonEditorModel) {
    Column {
    val nameState = +state { EditorModel(model.name) }
    TextField(
    value = nameState.value,
    onValueChange = { nameState.value = it },
    editorStyle = EditorStyle(
    textStyle = TextStyle(fontSize = 24.sp)
    )
    )
    Button(
    text = model.buttonTitle,
    onClick = { model.onClick(nameState.value.text) }
    )
    }
    }


    View Slide

40. @Composable
    fun PersonEditorWidget(model: PersonEditorModel) {
    Column {
    val nameState = +state { EditorModel(model.name) }
    TextField(
    value = nameState.value,
    onValueChange = {
    nameState.value = it
    },
    editorStyle = EditorStyle(
    textStyle = TextStyle(fontSize = 24.sp)
    )
    )
    Button(
    text = model.buttonTitle,
    onClick = {
    model.onClick(nameState.value.text)
    }
    )
    }
    }
    Padding(16.dp) {
    }


    View Slide

41. @Composable
    fun PersonEditorWidget(model: PersonEditorModel) {
    Padding(16.dp) {
    Column {
    val nameState = +state { EditorModel(model.name) }
    TextField(
    value = nameState.value,
    onValueChange = {
    nameState.value = it
    },
    editorStyle = EditorStyle(
    textStyle = TextStyle(fontSize = 24.sp)
    )
    )
    Button(
    text = model.buttonTitle,
    onClick = {
    model.onClick(nameState.value.text)
    }
    )
    }
    }
    }
    FlexRow {
    expanded(1.0f) {
    }
    }


    View Slide

42. @Composable
    fun PersonEditorWidget(model: PersonEditorModel) {
    Padding(16.dp) {
    Column {
    val nameState = +state { EditorModel(model.name) }
    TextField(
    value = nameState.value,
    onValueChange = {
    nameState.value = it
    },
    editorStyle = EditorStyle(
    textStyle = TextStyle(fontSize = 24.sp)
    )
    )
    HeightSpacer(12.dp)
    FlexRow {
    expanded(1.0f) {
    Button(
    text = model.buttonTitle,
    onClick = {
    model.onClick(nameState.value.text)
    }
    )
    }
    }
    }


    View Slide

43. @Composable
    fun PersonListWidget(persons: List) {
    Column {
    persons.forEachIndexed { index, person ->
    Align(Alignment.TopLeft) {
    Padding(16.dp) {
    Text(
    text = person.name,
    style = TextStyle(fontSize = 18.sp)
    )
    }
    }
    }
    }
    }


    View Slide

44. @Composable
    fun PersonListWidget(persons: List) {
    val dividerColor = Color(0xFFC6C6C6)
    Column {
    persons.forEachIndexed { index, person ->
    Align(Alignment.TopLeft) {
    Padding(16.dp) {
    Text(
    text = person.name,
    style = TextStyle(fontSize = 18.sp)
    )
    }
    }
    if (index != persons.lastIndex) {
    Divider(
    color = dividerColor,
    height = 0.5.dp
    )
    }
    }
    }
    }


    View Slide

45. @Composable
    fun Dashboard(persons: MutableList) {
    val state = +state { persons }
    Column {
    PersonEditorWidget(
    PersonEditorModel(
    name = "Anton",
    onClick = {
    state.value = state.value.apply {
    add(Person(it))
    }
    }
    ))
    Divider()
    PersonListWidget(state.value)
    }
    }


    View Slide

46. Add theme


    View Slide

47. private val colorGreen = Color(0xFF1B5E20.toInt())
    @Composable
    fun MosdroidTheme(@Children children: @Composable() () -> Unit) {
    val colors = MaterialColors(primary = colorGreen)
    val typography = MaterialTypography(
    h5 = TextStyle(
    fontFamily = FontFamily("Roboto"),
    fontWeight = FontWeight.w700,
    fontSize = 24.sp
    ),
    h6 = TextStyle(
    fontFamily = FontFamily("Roboto"),
    fontWeight = FontWeight.w700,
    fontSize = 18.sp
    ),
    button = TextStyle(
    fontFamily = FontFamily("Roboto"),
    fontWeight = FontWeight.w800,
    fontSize = 14.sp
    )
    )
    MaterialTheme(colors = colors, typography = typography) {
    children()
    }
    }


    View Slide

48. override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    setContent {
    MosdroidTheme {
    Dashboard(personList)
    }
    }
    }


    View Slide

49. @Composable
    fun PersonEditorWidget(model: PersonEditorModel) {
    Padding(16.dp) {
    Column {
    val nameState = +state { EditorModel(model.name) }
    TextField(
    value = nameState.value,
    onValueChange = {
    nameState.value = it
    },
    editorStyle = EditorStyle(
    textStyle = TextStyle(fontSize = 24.sp)
    )
    )
    HeightSpacer(12.dp)
    FlexRow {
    expanded(1.0f) {
    Button(
    text = model.buttonTitle,
    onClick = {
    model.onClick(nameState.value.text)
    }
    )
    }
    }
    }


    View Slide

50. @Composable
    fun PersonEditorWidget(model: PersonEditorModel) {
    Padding(16.dp) {
    Column {
    val nameState = +state { EditorModel(model.name) }
    TextField(
    value = nameState.value,
    onValueChange = {
    nameState.value = it
    },
    editorStyle = EditorStyle(
    textStyle = +themeTextStyle { h5 }
    )
    )
    HeightSpacer(12.dp)
    FlexRow {
    expanded(1.0f) {
    Button(
    text = model.buttonTitle,
    onClick = {
    model.onClick(nameState.value.text)
    }
    )
    }
    }
    }


    View Slide

51. View Slide

52. View Slide

53. Didn’t covered
    • Animations

    • Complex layout

    • Internal principles


    View Slide

54. Links
    • Official resource: https://developer.android.com/jetpack/compose

    • Jetpack Compose Principles: http://intelligiblebabble.com/compose-from-
    first-principles/

    • Example: https://medium.com/q42-engineering/android-jetpack-
    compose-895b7fd04bf4

    • Compose Readme: https://android.googlesource.com/platform/
    frameworks/support/+/refs/heads/androidx-master-dev/ui/README.md


    View Slide

55. Conclusion
    • pre-alpha


    View Slide

56. Conclusion
    • pre-alpha

    • No good instruments


    View Slide

57. Conclusion
    • pre-alpha

    • No good instruments

    • UI tests?


    View Slide

58. Conclusion
    • pre-alpha

    • No good instruments

    • UI tests?

    • Functions - small UI components


    View Slide

59. Conclusion
    • pre-alpha

    • No good instruments

    • UI tests?

    • Functions - small UI components

    • Android version independent


    View Slide

60. Conclusion
    • pre-alpha

    • No good instruments

    • UI tests?

    • Functions - small UI components

    • Android version independent

    • Less boilerplate


    View Slide

61. Questions?
    Zinakov Anton
    Android Developer
    ab.zinakov@gmail.com
    @rygital


    View Slide
