Making Data Pretty (and understandable)

Making Data Pretty (and understandable)

A 15-minute presentation to the Python in Astronomy workshop in Seattle. http://python-in-astronomy.github.io/2016/program.html

4729f39ad34c7e6a68825ea175de8132?s=128

Michele Bannister

March 23, 2016
Tweet

Transcript

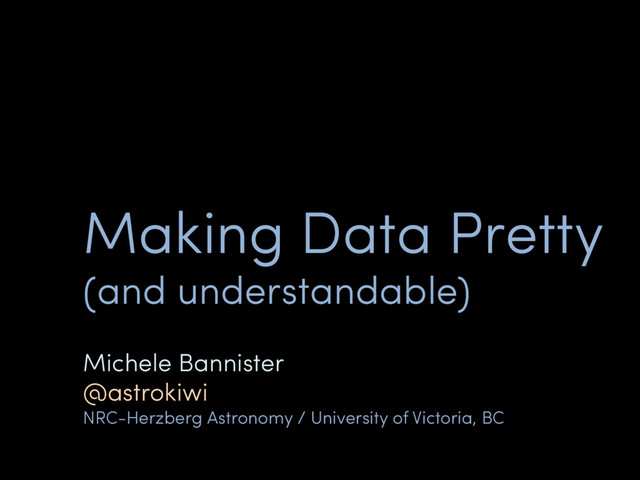

  1. Michele Bannister @astrokiwi NRC-Herzberg Astronomy / University of Victoria, BC

    Making Data Pretty (and understandable)
  2. colour palettes what sort of data do you have? chart

    junk cleaning up plots packages that can make life easier
  3. colour palettes sequential diverging qualitative learn more: Cynthia Brewer’s colorbrewer

    http://colorbrewer2.org/ Try your plots in different perception spaces http://www.vischeck.com/
  4. palettable by Matt Davis jiffyclub.github.io/palettable/ pip install palettable > from

    palettable.colorbrewer.qualitative import Dark2_7
  5. http://www.research.ibm.com/people/l/lloydt/color/color.HTM work with the colour response of human eyes

  6. work with the colour response of human eyes h"ps://mycarta.wordpress.com/2012/10/06/the-­‐rainbow-­‐is-­‐deadlong-­‐live-­‐the-­‐rainbow-­‐part-­‐3/

  7. matplotlib http://matplotlib.org/users/colormaps.html Defaults are there because something has to be

    there -flowingdata.com
  8. matplotlib http://matplotlib.org/users/colormaps.html jet viridis @astrofrog

  9. chart junk “routinely added graphical paraphernalia” - E. Tufte detail

    impeding understanding
  10. None
  11. https://stanford.edu/~mwaskom/ software/seaborn/tutorial/aesthetics.html

  12. heliocentric distance (AU) 0 10 20 30 40 50 inclination

    (degrees) 0 10 20 30 40 50 inclination (degrees) 1:1 2:1 3:2 5:2 7:3 7:4 5:3 11:4 8:5 15:8 13:5 25 30 35 40 45 50 55 60 65 70 75 80 85 semimajor axis (AU) 0.0 0.1 0.2 0.3 0.4 0.5 0.6 eccentricity 1:1 2:1 3:2 5:2 7:3 7:4 5:3 11:4 8:5 15:8 13:5 classical resonant scattering detached o3e45
  13. 0 5 10 15 20 25 30 35 40 inclination

    (degrees) 38 39 40 41 42 43 44 45 46 47 48 49 semimajor axis (AU) 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 eccentricity 2:1 3:2 7:4 centaur classical resonant scattering detached
  14. packages for pleasing plots palettable seaborn (has superseded prettyplotlib) for

    web approaches: d3.js bokeh plotly https://plot.ly/python/#scientific-charts (mpld3 no longer under active development)
  15. The greatest value of a picture plot is when it

    forces us to notice what we never expected to see. J. Tukey, Exploratory Data Analysis, 1977
