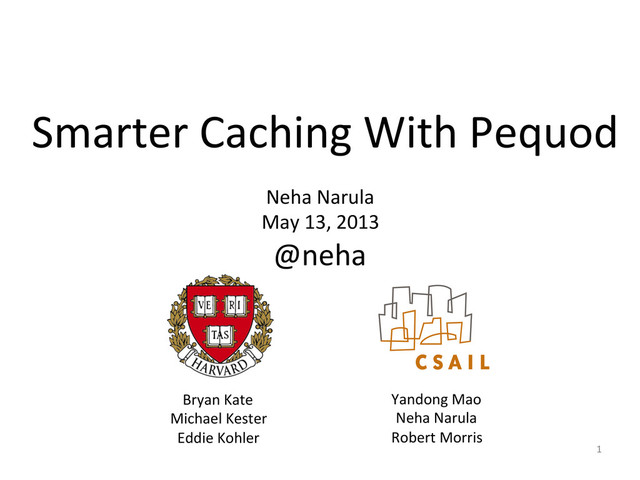

  1. Smarter  Caching  With  Pequod
    Yandong  Mao
    Neha  Narula
    Robert  Morris
    Bryan  Kate
    Michael  Kester
    Eddie  Kohler
    Neha  Narula
    May  13,  2013
    @neha
    1

    View Slide

  2. 2
    academia

    View Slide

  3. ApplicaGon-­‐level
    Caching
    Is  Useful
    3

    View Slide

  4. 4

    View Slide

  5. Cache
    App
    DB
    Cache  reads
    Reads
    Writes
    5

    View Slide

  6. ApplicaGon  ComputaGon
    6
    show_timeline(user):
    get user-timeline
    if present
    return timeline
    else
    get user-following list
    if not present
    query db user-following list
    put user-following list in cache
    for each f in user-following list
    get f-posts
    if not present
    query db f-posts
    put f-posts in cache
    posts = posts + f-posts
    user-timeline = sort posts
    put user-timeline into cache
    return user-timeline
    post(poster, tweet):
    insert tweet into database
    append tweet to poster-posts
    get poster-followers
    if not present
    query db
    put followers in cache
    for each f in followers:
    get f-timeline
    if present
    update timeline
    lock
    put new timeline into cache
    unlock

    View Slide

  7. cache  joins
    7

    View Slide

  8. Cache
    App
    DB
    Cache  reads
    Reads
    Writes
    8

    View Slide

  9. Pequod
    App
    DB
    Cache  reads
    Writes
    Cache  Joins
    9

    View Slide

  10. Pequod
    •  In  memory  key/value  range  store
    scan(k0
    ,k1
    )
    get(k)
    put(k,v)
    install_join(cache_join)
    •  App  developer  specifies  cache  joins
    •  ComputaGon  on  demand  (or  not)
    10

    View Slide

  11. What  Pequod  Can  Do  With  Cache  Joins
    compute  results  automaGcally
    subscribe  to  updates  in  a  range  of  data
    keep  cached  results  fresh
    easily  use  different  caching  strategies
    interleave  different  types  of  data
    11

    View Slide

  12. Compute  Twi]er  Timeline
    neha
    argv0
    neha’s
    Timeline
    Time
    basho
    jusGnbieber
    ladygaga
    Posts
    SubscripGons
    SELECT * FROM posts, subscriptions
    WHERE posts.poster =
    subscriptions.poster
    AND subscriptions.user = “neha”
    AND ts < posts.timestamp
    ORDER BY timestamp DESC
    12

    View Slide

  13. Tell  Pequod
    Gmelines  =  posts  X  subscripGons
    13

    View Slide

  14. All  Timelines  in  Pequod
    olive’s
    Gmeline
    peter’s
    Gmeline
    14
    max’s
    Gmeline
    neha’s
    Gmeline

    View Slide

  15. [ table | column | column … ]
    posts | |
    subscriptions | |
    15
    Pequod  keys  embed  table  names
    and  column  values

    View Slide

  16. Post  Keys
    p  |  jusGnbieber  |  207   Do  you  belieb?
    posts | |
    16

    View Slide

  17. SubscripGon  Key  Range
    subscriptions | |
    17
    s  |  neha  |  basho
    s  |  neha  |  jusGnbieber
    s  |  neha  |  ladygaga

    View Slide

  18. Timeline  Keys
    t  |  neha  |207  |  jusGnbieber   Do  you  belieb?
    timeline | | |
    18

    View Slide

  19. Twi]er  Timeline  Cache  Join
    Pequod.install_join(
    “ t||| =
    copy p||
    using s|| ”)
    19
    5melines  =  posts  X  subscrip5ons

    View Slide

  20. t||| =
    copy p||
    using s||
    Twi]er  Timeline  Cache  Join
    Seconday
    Source
    Sink
    20
    s|neha|argv0
    s|neha|basho
    s|neha|jusGnbieber
    s|neha|ladygaga
    p|argv0|101
    p|basho|104
    p|jusGnbieber|123
    p|ladygaga|198
    t|neha
    Primary
    Source

    View Slide

  21. Compute  results  automa5cally
    21

    View Slide

  22. t|max|201
    t|olive|99
    Ask  For  A  Range,  Any  Range
    scan(“t|neha|100”, “t|neha|+”)
    Where
    neha’s
    Gmeline
    should  be
    22

    View Slide

  23. Use  Lookup  Source
    using s|neha|
    neha’s
    subscripGons
    s|neha|argv0
    s|neha|basho
    s|neha|jusGnbieber
    s|neha|ladygaga
    23

    View Slide

  24. Find  Primary  Source
    using s|neha|argv0
    s|neha|argv0
    s|neha|basho
    s|neha|jusGnbieber
    s|neha|ladygaga
    p|argv0|101
    p|argv0|104
    p|argv0|115
    tweet
    tweet
    tweet
    argv0’s  posts
    24

    View Slide

  25. Copy  Primary  Source
    copy p|argv0|101
    neha’s
    Gmeline
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|101|argv0   tweet
    tweet
    tweet
    25

    View Slide

  26. Use  Lookup  Source
    using s|neha|basho
    s|neha|argv0
    s|neha|basho
    s|neha|jusGnbieber
    s|neha|ladygaga
    p|basho|102   tweet
    basho’s  posts
    26

    View Slide

  27. Copy  Primary  Source
    copy p|basho|102
    neha’s
    Gmeline
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    27

    View Slide

  28. Use  Lookup  Source
    using s|neha|justinbieber
    s|neha|argv0
    s|neha|basho
    s|neha|jusGnbieber
    s|neha|ladygaga
    p|jusGnbieber|207   tweet
    jusGnbieber’s  posts
    28

    View Slide

  29. Copy  Primary  Source
    copy p|justinbieber|207
    neha’s
    Gmeline
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|207|jusGnbieber
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    tweet
    29

    View Slide

  30. Use  Lookup  Source
    using s|neha|ladygaga
    s|neha|argv0
    s|neha|basho
    s|neha|jusGnbieber
    s|neha|ladygaga
    p|ladygaga|209   tweet
    ladygaga’s  posts
    30

    View Slide

  31. Copy  Primary  Source
    copy p|ladygaga|209
    neha’s
    Gmeline
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|207|jusGnbieber
    t|neha|209|ladygaga
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    tweet
    tweet
    31

    View Slide

  32. Pequod  uses  cache  joins  to
    automaGcally  create  cached
    objects.
    32

    View Slide

  33. New
    Tweets
    33

    View Slide

  34. Subscribe  to  range  updates
    34

    View Slide

  35. Cached  Timeline
    neha’s
    Gmeline
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|207|jusGnbieber
    t|neha|209|ladygaga
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    tweet
    tweet
    35

    View Slide

  36. Update,  New  Post
    put(“p|basho|215”,
    “At RICON East WOOO!”)
    p|basho|102   tweet
    basho’s  posts
    p|basho|215   At  RICON  East
    WOOO!
    Update
    t|neha
    36

    View Slide

  37. Copy  New  Post
    t||| =
    copy p||
    using s||
    neha’s
    Gmeline
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|207|jusGnbieber
    t|neha|209|ladygaga
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    tweet
    tweet
    t|neha|215|basho   At  RICON  East  WOOO!
    37
    Update
    t|neha

    View Slide

  38. Update,  New  SubscripGon
    put(“s|neha|xexd”, None)
    neha’s
    subscripGons
    s|neha|argv0
    s|neha|basho
    s|neha|jusGnbieber
    s|neha|ladygaga
    s|neha|xexd
    Invalidate
    t|neha
    38

    View Slide

  39. Invalidate  Sink
    neha’s
    Gmeline   t|neha|104|argv0
    t|neha|115|argv0
    t|neha|207|jusGnbieber
    t|neha|209|ladygaga
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    tweet
    tweet
    t|neha|215|basho   At  RICON  East  WOOO!
    39
    Invalidate
    t|neha

    View Slide

  40. Invalidate  Sink
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|207|jusGnbieber
    t|neha|209|ladygaga
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    tweet
    tweet
    t|neha|215|basho   At  RICON  East  WOOO!
    40
    s|neha|xexd

    View Slide

  41. t|neha|104|argv0
    t|neha|115|argv0
    t|neha|207|jusGnbieber
    t|neha|209|ladygaga
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    tweet
    tweet
    41
    s|neha|xexd
    scan(“t|neha|209”, “t|neha|+”)
    t|neha|213|xexd   tweet
    t|neha|215|basho   At  RICON  East  WOOO!
    scan

    View Slide

  42. t|neha|209|ladygaga   tweet
    t|neha|213|xexd
    42
    t|neha|215|basho   At  RICON  East  WOOO!
    tweet
    s|neha|xexd
    scan(“t|neha|209”, “t|neha|+”)
    tweet
    tweet
    tweet
    tweet
    tweet
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|207|jusGnbieber
    t|neha|102|basho
    t|neha|101|argv0
    scan

    View Slide

  43. Updaters
    •  On  put(),  updater  gets  source  key,  new
    value,  old  value
    •  Updaters  on  primary  sources  immediately
    update  the  relevant  sink  keys
    •  Updates  on  secondary  sources  log  update  on
    sink  and  invalidate  sink  keys,  to  be  fixed  up  on
    next  scan
    43

    View Slide

  44. Clients  can  use  Pequod  to
    subscribe  to  updates  in  a
    range.
    44

    View Slide

  45. 45
    38  MILLION
    WRITES!

    View Slide

  46. Use  different  caching  strategies
    46

    View Slide

  47. Twi]er  Timeline  Cache  Join
    Pequod.install_join(
    “ t||| =
    copy p||
    using s|| ”)
    47
    pull
    For  celebrity  posts  and
    Gmelines  of  users  who
    aren’t  logged  in

    View Slide

  48. Pull  CelebriGes  Each  Time
    neha’s
    Gmeline
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    48
    t|max|201
    t|olive|99

    View Slide

  49. Pull  CelebriGes  Each  Time
    t|neha|104|argv0
    t|neha|115|argv0
    t|neha|102|basho
    t|neha|101|argv0   tweet
    tweet
    tweet
    tweet
    49
    scan(“t|neha|100”, “t|neha|+”)
    p|jusGnbieber|207   tweet
    p|ladygaga|209   tweet

    View Slide

  50. Pequod  makes  it  easy  to
    switch  between  caching
    strategies.
    50

    View Slide

  51. Keep  cached  results  fresh
    51

    View Slide

  52. User
    Karma
    52

    View Slide

  53. User  Karma
    karma| =
    count votes||
    53
    sum
    max
    min

    View Slide

  54. AutomaGcally  Update
    Votes
    54
    Karma
    Cache
    Join
    new  vote

    View Slide

  55. Pequod  supports
    incremental  operaGons  to
    keep  results  so  fresh
    (and  so  clean  clean).
    55

    View Slide

  56. Interleave  different  types  of  data
    56

    View Slide

  57. 57

    View Slide

  58. Many  Requests
    ArGcles
    Comments
    Votes
    App
    EnGre
    Cached
    Page
    58

    View Slide

  59. Inline  Cache  Joins
    page||votes =
    count votes|
    page||article =
    copy articles|
    59
    page||comments| =
    copy comments||

    View Slide

  60. Interleaved  Data
    ArGcles
    Comments
    Votes
    One
    scan!
    60
    EnGre
    Cached
    Page
    Cache
    Join
    Cache
    Join
    Cache
    Join

    View Slide

  61. Pequod  makes  it  easy  to
    interleave  different  types  of
    data.
    61

    View Slide

  62. ImplementaGon
    •  C++  single-­‐threaded,  event  driven  server
    •  Range  store:  trie  of  red-­‐black  trees
    62
    posts   subscripGons

    View Slide

  63. OpGmizaGon:  Sink  Hints
    Hint
    40%
    63
    Gmelines

    View Slide

  64. OpGmizaGon:    Value  Sharing
    t|argv0|215|basho   ptr
    t|ladygaga|215|basho
    t|neha|215|basho
    ptr
    ptr
    p|basho|215   At  RICON  East
    WOOO!
    64
    17%

    View Slide

  65. EvaluaGon
    •  QPS  compared  to  other  systems
    •  Twi]er  caching  strategies
    •  Pequod  compared  to  client-­‐managed  caching
    •  Benefit  of  opGmizaGons
    65

    View Slide

  66. Setup
    •  12  core  machine  (2  3.47Ghz  Intel  Xeon  X5960
    chips  with  2  hyperthreads  per  core)
    •  Linux  3.2.0,  96  GB  memory
    •  Redis  2.4.14,  PostgreSQL  9.1.8
    66

    View Slide

  67. Workloads
    •  Twi]er
    – microbenchmark:  2K  users,  each  Gmeline  request
    returns  ~20  new  tweets.    1M  posts,  1M  reads
    – ~real:  1.8M  users,  72M  relaGonships.  (see  paper)
    •  News  Site
    – 100K  arGcles,  50K  users,  1M  comments,  2M  votes
    – 4M  requests,  1%  comment  rate,  varying  vote
    rates

    67

    View Slide

  68. QPS  Comparison
    68
    0
    20
    40
    60
    80
    100
    120
    News  Site   Twi]er
    Thousands
    PostgreSQL
    Redis
    Pequod
    Queries  per  second
    CPU  UGlizaGon
    at  19X

    View Slide

  69. Twi]er  Hybrid  Push/Pull
    69
    0
    5
    10
    15
    20
    25
    30
    1   5   10   20   40   60   80   90   95   100
    Pull
    Push
    Hybrid
    Total  RunGme  (seconds)
    Percentage  of  AcGve  Users

    View Slide

  70. Client  Managed  vs.  Pequod
    70
    0
    10
    20
    30
    40
    50
    60
    70
    Client-­‐managed   Pequod
    Other
    Post
    Timeline
    RPC
    Overheads
    Total  RunGme  (seconds)

    View Slide

  71. Client  Managed  vs.  Pequod
    71
    0
    10
    20
    30
    40
    50
    60
    70
    Client-­‐managed   Pequod
    Other
    Post
    Timeline
    InserGng
    New  Posts
    Total  RunGme  (seconds)

    View Slide

  72. Benefit  of  Sink  Hints  and  Value  Sharing
    72
    0
    5
    10
    15
    20
    25
    30
    35
    40
    45
    UnopGmized  Pequod   Pequod
    Other
    Post
    Timeline
    Total  RunGme  (seconds)

    View Slide

  73. Related  Work
    •  InvalidaGng  the  cache
    – DUP,  TxCache,  Scaling  Memcached  at  Facebook
    •  Materialized  Views
    – Maintenance,  Dynamic  Materialized  Views  from
    Microsos
    •  Push/pull
    – Twi]er  Gmeline  REST  service
    73

    View Slide

  74. Open  QuesGons
    •  EvicGon
    •  Cross-­‐server  cache  joins
    •  Create  efficient  cache  joins  automagically
    •  Support  more  computaGon
    •  Non-­‐ordered  store
    •  Full-­‐fledged  datastore
    74

    View Slide

  75. Pequod  Cache  Joins

    Features  of  a  database,
    Performance  of  a  cache

    @neha
    [email protected]
    75

    View Slide
