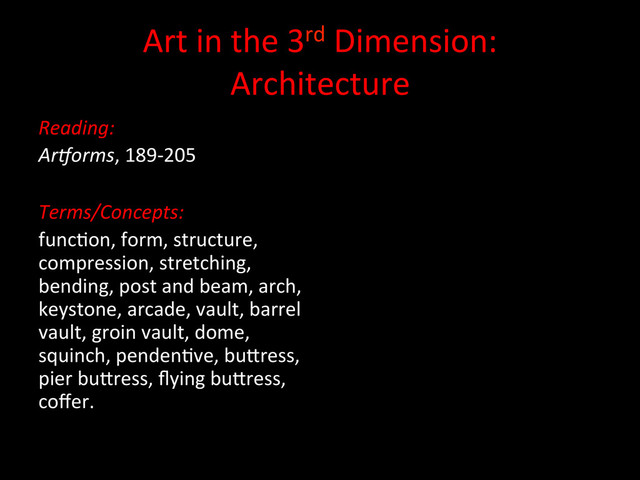

1. Art  in  the  3rd  Dimension:
   Architecture
   Reading:
   Ar,orms,  189-­‐205

   Terms/Concepts:
   func;on,  form,  structure,
   compression,  stretching,
   bending,  post  and  beam,  arch,
   keystone,  arcade,  vault,  barrel
   vault,  groin  vault,  dome,
   squinch,  penden;ve,  buEress,
   pier  buEress,  flying  buEress,
   coffer.


   View Slide

2. Media  Lab
   •  Friday  February  15  11:00-­‐3:00  Auraria  Library  206
   •  Tuesday  February  19  2:00-­‐5:30  Auraria  Library  205

   Materials  available:  oil  pastel,  chalk  pastel,  pen  &  ink,
   pencil,  colored  pencil,  charcoal,  watercolor,  oil  paint,
   and  acrylic  paint.


   View Slide

3. Quiz  #2  is  due  NEXT  TUESDAY  February  19th.

   Media  Experimenta;on  is  due  Thursday
   February  21st.

   Your  Midterm  is  on  Thursday  February  28th.
   Study  guide  will  be  released  this  Thursday
   Reminders


   View Slide

4. Auguste  Rodin,  Burghers  of  Calais,  1889,
   Victoria  Tower  Gardens,  London.


   View Slide

5. Space


   View Slide

6. Space


   View Slide

7. Space


   View Slide

8. Space


   View Slide

9. Space


   View Slide

10. Architecture:  Art  and  Science
    “As  an  art,  architecture  both  creates  interior
    spaces  and  wraps  them  in  an  expressive  shape.”

    “As  a  science,  architecture  is  a  physical  problem:
    How  does  a  structure  hold  up  its  own  weight
    and  loads  placed  on  it”

       -­‐-­‐Patrick  Frank,  Ar,orms,  189.


    View Slide

11. Key  Issue  for  Every  Building
    1.  Func;on:  how  the  building  is  used.
    2.  Form:  how  the  building  looks.
    3.  Structure:  how  the  building  stands  up.


    View Slide

12. Key  Issue  for  Every  Building
    1.  Func;on:  how  the  building  is  used.
    2.  Form:  how  the  building  looks.
    3.  Structure:  how  the  building  stands  up.


    View Slide

13. Forces  a  Structure  Works  with
    1.  Compression  ()
    2.  Tension  (  )
    3.  Bending  ()


    View Slide

14. Forces  a  Structure  Works  with
    1.  Compression  ()
    2.  Tension  (  )
    3.  Bending  ()


    View Slide

15. Forces  a  Structure  Works  with
    1.  Compression  ()
    2.  Tension  (  )
    3.  Bending  ()


    View Slide

16. Structures:  Post  and  Beam
    (Also  known  as  Post  and  Lintel)
    Beam  (or  Lintel)
    Post   Post
    Example:  Stonehenge,  Salisbury,
    England,  c.  2500  BCE
    Post  and  Beam:  Weight  Distribu;on


    View Slide

17. Structures:  Post  and  Beam
    (Also  known  as  Post  and  Lintel)
    Beam  (or  Lintel)
    Post   Post
    Example:  Temple  of  Poseidon,
    Athens,  c.  430  BCE
    Post  and  Beam:  Weight  Distribu;on


    View Slide

18. Structures:  Post  and  Beam
    (Also  known  as  Post  and  Lintel)
    Beam  (or  Lintel)
    Post   Post
    Example:  Frank  Lloyd  Wright,  Ennis
    House,  Los  Angeles,  1924.
    Post  and  Beam:  Weight  Distribu;on


    View Slide

19. Structures:  Arches
    Arches:  Weight  Distribu;on   Example:  Byzan;ne  Cathedral,  Jerada,
    Syria,  5th  century  CE


    View Slide

20. Structures:  Arches
    Arches:  Weight  Distribu;on   Example:  Great  Mosque  at  Cordoba,
    Spain,  10th  century  CE


    View Slide

21. Structures:  Arches
    Arches:  Weight  Distribu;on   Example:  Triumphal  Arch  of  Trajan,
    Benevento,  Italy,  c.  98-­‐117  CE.


    View Slide

22. Structures:  Arches
    Arcade:  Weight  Distribu;on


    View Slide

23. Structures:  Arches
    Arcade  Example:  Pont  du  Gard  (Aqueduct),  France,  c.  1st
    century  CE


    View Slide

24. Structures:  Vaults
    Barrel  Vault   Groin  Vault


    View Slide

25. Structures:  Vaults
    Barrel  Vault   Barrell  Vault  Example:
    Arena  Chapel,  Padua,  Italy,
    1303  CE


    View Slide

26. Structures:  Vaults
    Groin  Vault
    Palazzo  della  Ragione,
    Venice,  Italy,  16th
    century


    View Slide

27. Structures:  Domes
    Dome  on  Squinches   Dome  on  Penden;ves   Dome  on  a  cylinder


    View Slide

28. Structures:  Domes
    Dome  on  Squinches   Example:  Alai  Gate,  New  Delhi,  India,  1311.


    View Slide

29. Structures:  Domes
    Dome  on  Penden;ves   Example:  Hagia  Sophia,  Istanbul,
    Turkey,  563  CE.


    View Slide

30. Structures:  Domes
    Dome  on  a  Cylinder   Example:  Dome  of  the  Rock,  Jerusalem,  693
    CE


    View Slide

31. Structures:  BuEresses
    Pier  BuEress   Flying  BuEress


    View Slide

32. Structures:  BuEresses
    Pier  BuEress   Example:
    Westminster  Abbey,
    London,  c.  1245.


    View Slide

33. Structures:  BuEresses
    Flying  BuEress
    Example:  Cathedral  de  Notre
    Dame,  Paris,    1163-­‐1345  CE.


    View Slide

34. Structures:  Suspension
    Suspension  Structure   Example:  Jeppesen  Terminal  Building,
    Denver  Interna;onal  Airport,  1994


    View Slide

35. Structures:  Shell
    Shell  Structure   Example:  Jørn  Utzon,  Sydney  Opera
    House,  Sydney,  Australia,  1957-­‐1973.


    View Slide

36. Materials  Innova;ons:  Stones
    Inca  Stonework  (no  mortar),
    Cuzco,  c.    13th  century  CE
    Stonewall  with  Mortar


    View Slide

37. Material  Innova;ons:  Concrete
    Concrete   Example:  Pantheon,  Rome,  126
    CE


    View Slide

38. Material  Innova;ons:  Cast  Iron
    Cast  Iron   Example:  Joseph  Paxton,
    Crystal  Palace,  London,
    1850-­‐1851.


    View Slide

39. Material  Innova;ons:  Steel
    Steel  Beams   Example:  Ludwig  Mies  van  der  Rohe,
    New  York,  1956-­‐1958


    View Slide

40. Key  Issue  for  Every  Building
    1.  Func;on:  how  the  building  is  used.
    2.  Form:  how  the  building  looks.
    3.  Structure:  how  the  building  stands  up.


    View Slide

41. Ques;on:    How  does  a  building  interact
         with  its  environment?
    Frank  Lloyd  Wright,  Fallingwater  (The  Edgar  Kaufmann  Residence),  Bear
    Run  Pennsylvania,  1936.


    View Slide

42. Ques;on:    How  does  a  building  interact
         with  its  environment?
    Frank  Lloyd  Wright,  Fallingwater  (The  Edgar  Kaufmann  Residence),  Bear  Run
    Pennsylvania,  1936.


    View Slide

43. Ques;on:    How  does  a  building  interact
         with  its  environment?
    Johnson  Wax  Building,  Racine,  Wisconsin,  1936.


    View Slide

44. Ques;on:    How  does  a  building  interact
         with  its  environment?
    Johnson  Wax  Building,  Racine,  Wisconsin,  1936.


    View Slide

45. Ques;on:  How  does  the  viewer  fit  into  or  interact
       with  the  space?
    Human
    Hagia  Sophia,  Istanbul,  Turkey,  c.  563  CE.


    View Slide

46. Ques;on:  How  does  the  viewer  interact  with  or  form
       the  space?
    Hagia  Sophia,  Istanbul,  Turkey,  c.  563  CE.
    Agia  Dynami,  Athens,  Greece,  c.  15th
    century  CE


    View Slide

47. Ques;on:  How  does  the  viewer  interact  with  or  form
       the  space?
    Hagia  Sophia,  Istanbul,  Turkey,  c.  563  CE.   Agia  Dynami,  Athens,  Greece,  c.  15th
    century  CE


    View Slide

48. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    The  Roman  Basilica


    View Slide

49. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    The  Roman  Basilica,  a  reconstruc;on  of  Trajan’s  Basilica  Ulpia,  c.


    View Slide

50. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    The  Roman  Basilica,  a  reconstruc;on  of  Trajan’s
    Basilica  Ulpia,  c.


    View Slide

51. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    The  Chris;an  Basilica.


    View Slide

52. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    The  Chris;an  Basilica,  Aula  PalaKna,
    built  3rd  century  by  Constan;us
    Chlorus,  converted  to  a  church  in
    the  late  4th  century


    View Slide

53. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    Hagia  Sophia,  Istanbul,  Turkey,  c.  563  CE.


    View Slide

54. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    Frank  Gehry,  Disney  Concert  Hall,  Los  Angeles,  2003.


    View Slide

55. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    Frank  Lloyd  Wright,  Guggenheim  Museum,  New  York,  1959.


    View Slide

56. Ques;on:  How  does  the  form  of  the  building  echo  the
       prac;cal  and  ideological  func;ons  of  the
       building?
    Frank  Lloyd  Wright,  Guggenheim  Museum,  New  York,  1959.


    View Slide

57. Ques;on:  How  does  architecture  correspond  to  art  in
       other  media?
    Le  Corbusier,  Villa  Savoye,  Poissy,  France,  1929.


    View Slide

58. Ques;on:  How  does  architecture  correspond  to  art  in
       other  media?
    Le  Corbusier,  Villa  Savoye,  Poissy,  France,  1929.


    View Slide

59. Ques;on:  How  does  architecture  correspond  to  art  in
       other  media?
    Le  Corbusier,  Villa  Savoye,  Poissy,  France,  1929.


    View Slide

60. Ques;on:  How  does  architecture  correspond  to  art  in
       other  media?
    William  van  Alen,  Chrysler  Building,  New  York  City,  1928-­‐1930.


    View Slide

61. Ques;on:  How  does  architecture  correspond  to  art  in
       other  media?
    Lawren  Harris,  Landscape,  1929.
