2. Nitin Sharma Real-Time Impression Store @ Netflix Sep 2018

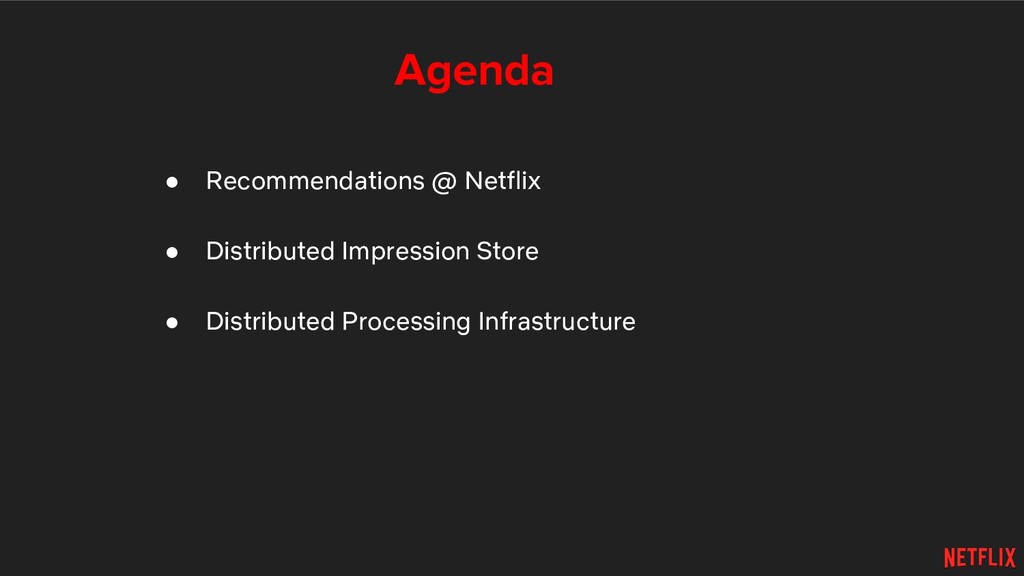

3. • Recommendations @ Netflix • Distributed Impression Store • Distributed Processing Infrastructure Agenda

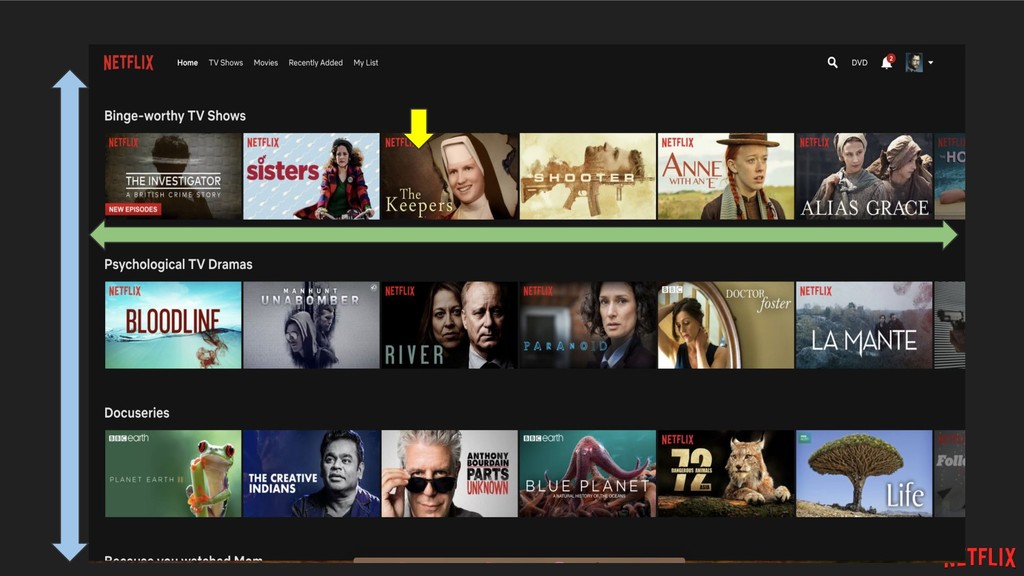

4. Recommendations @ Netflix

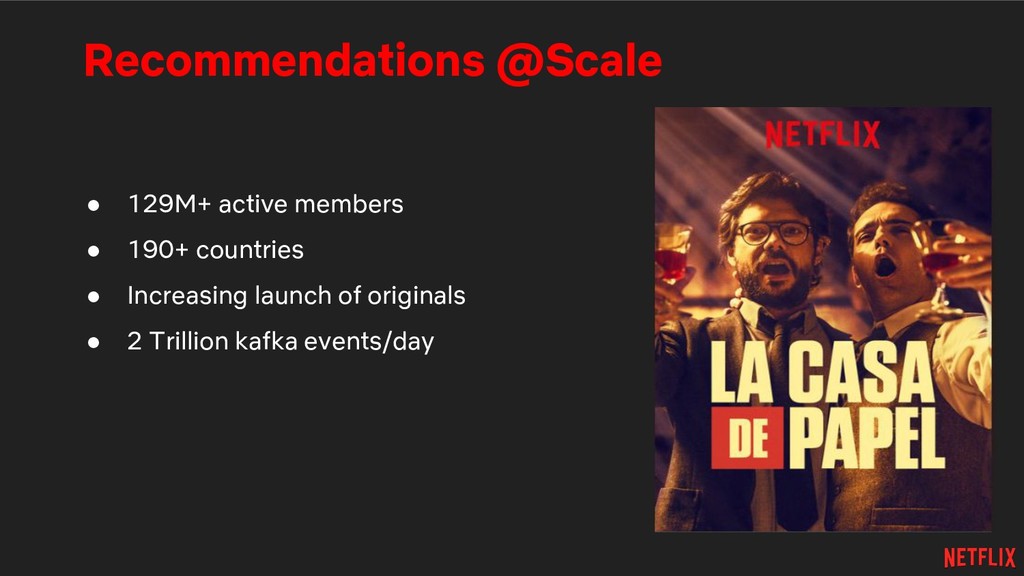

6. • 129M+ active members • 190+ countries • Increasing launch of originals • 2 Trillion kafka events/day Recommendations @Scale

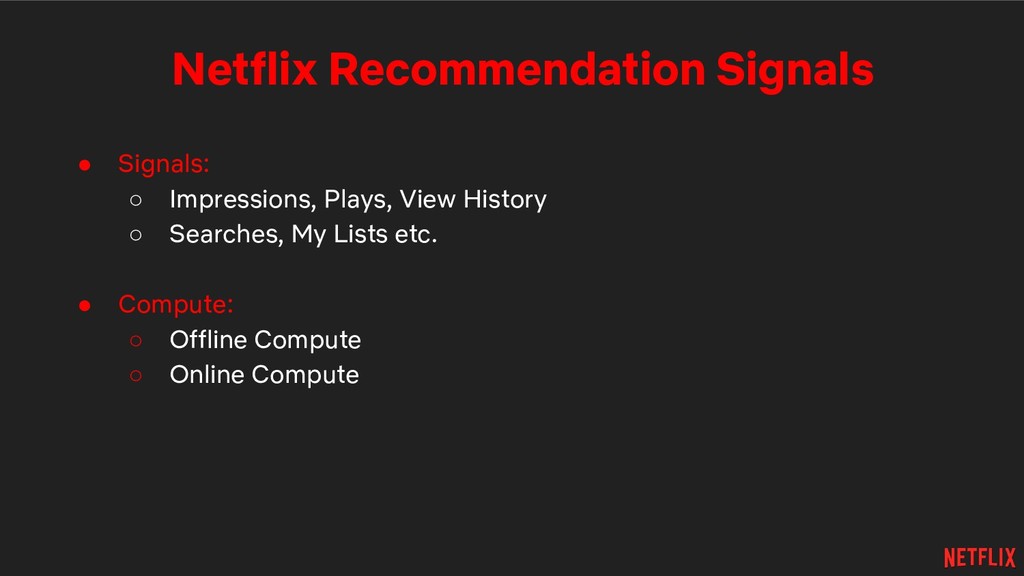

7. • Signals: ◦ Impressions, Plays, View History ◦ Searches, My Lists etc. • Compute: ◦ Offline Compute ◦ Online Compute Netflix Recommendation Signals
9. Impression Store
10. • Raw impressions: ◦ Large dataset (PBs every day) ◦ 10s of trillions of rows ◦ $$$$ • Lack of signal: ◦ Too noisy ◦ Custom aggregation - expensive Storage Philosophy
12. • Impression fatigue , Familiarity effect • Under vs over Impressing • Use in Recommendations - Score Online Goals

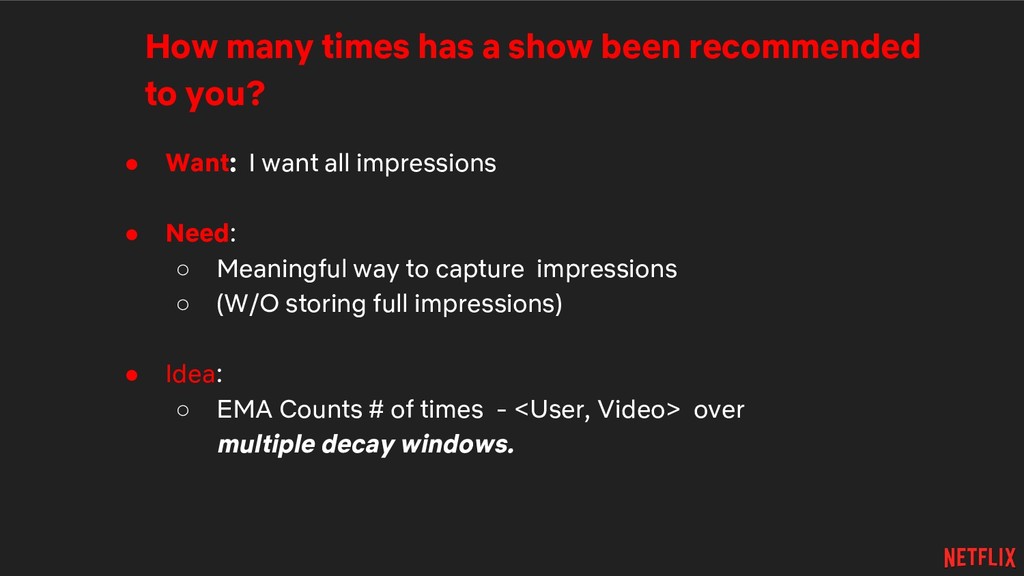

13. • Want: I want all impressions • Need: ◦ Meaningful way to capture impressions ◦ (W/O storing full impressions) • Idea: ◦ EMA Counts # of times - <User, Video> over multiple decay windows. How many times has a show been recommended to you?

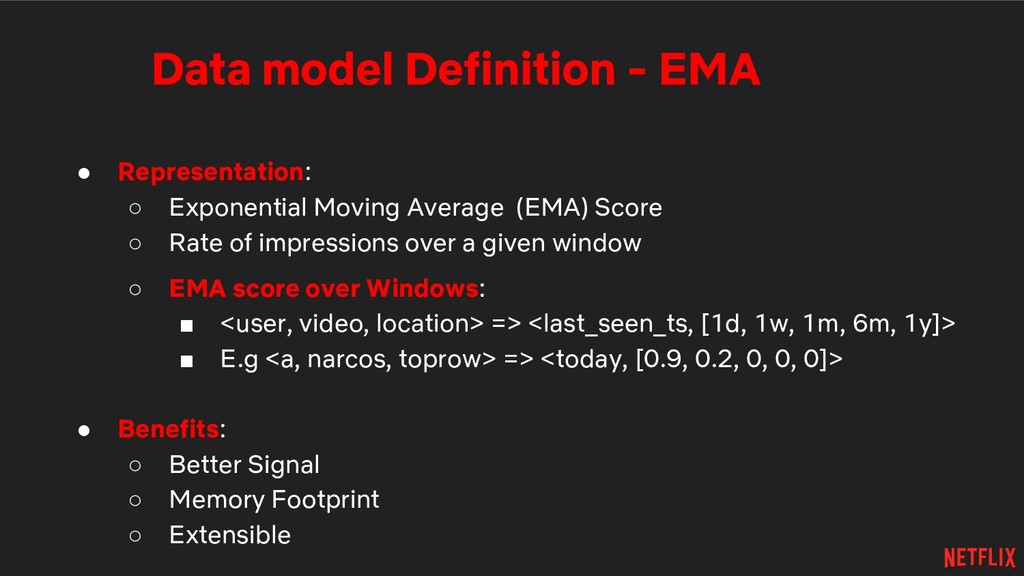

14. • Representation: ◦ Exponential Moving Average (EMA) Score ◦ Rate of impressions over a given window ◦ EMA score over Windows: ▪ <user, video, location> => <last_seen_ts, [1d, 1w, 1m, 6m, 1y]> ▪ E.g <a, narcos, toprow> => <today, [0.9, 0.2, 0, 0, 0]> • Benefits: ◦ Better Signal ◦ Memory Footprint ◦ Extensible Data model Definition - EMA

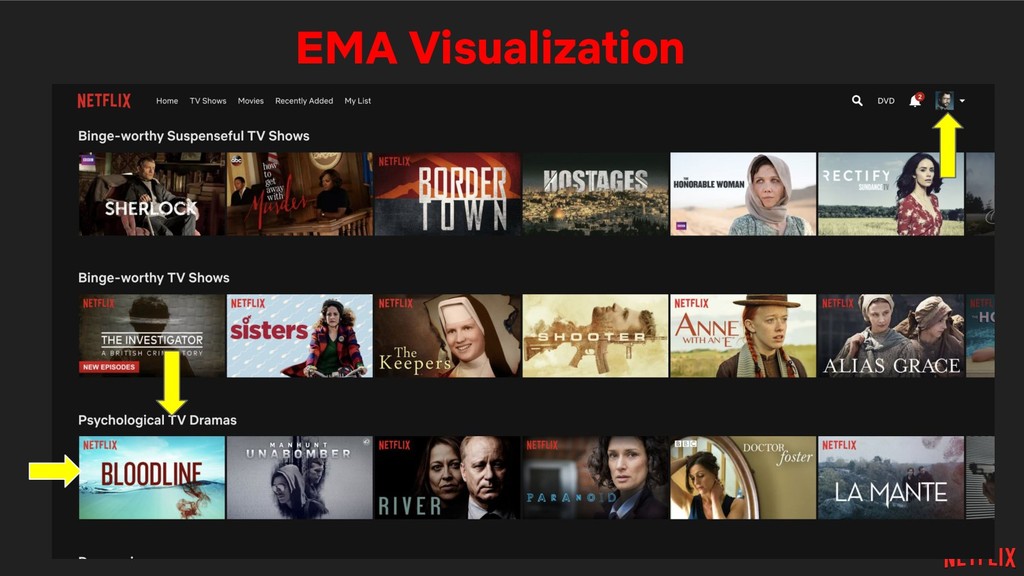

15. EMA Visualization

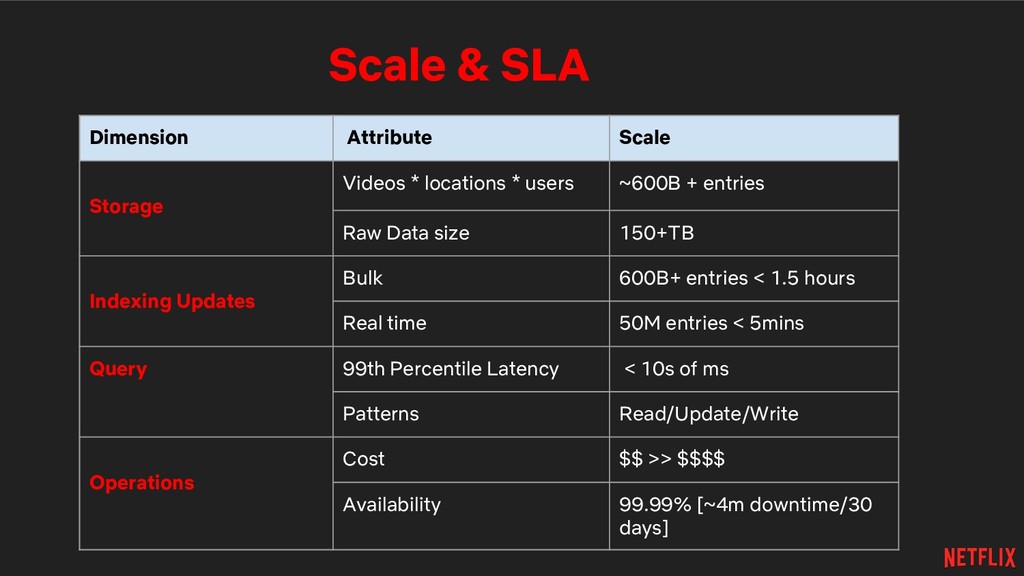

16. Scale & SLA Dimension Attribute Scale Storage Videos * locations * users ~600B + entries Raw Data size 150+TB Indexing Updates Bulk 600B+ entries < 1.5 hours Real time 50M entries < 5mins Query 99th Percentile Latency < 10s of ms Patterns Read/Update/Write Operations Cost $$ >> $$$$ Availability 99.99% [~4m downtime/30 days]
17. Distributed Data Store

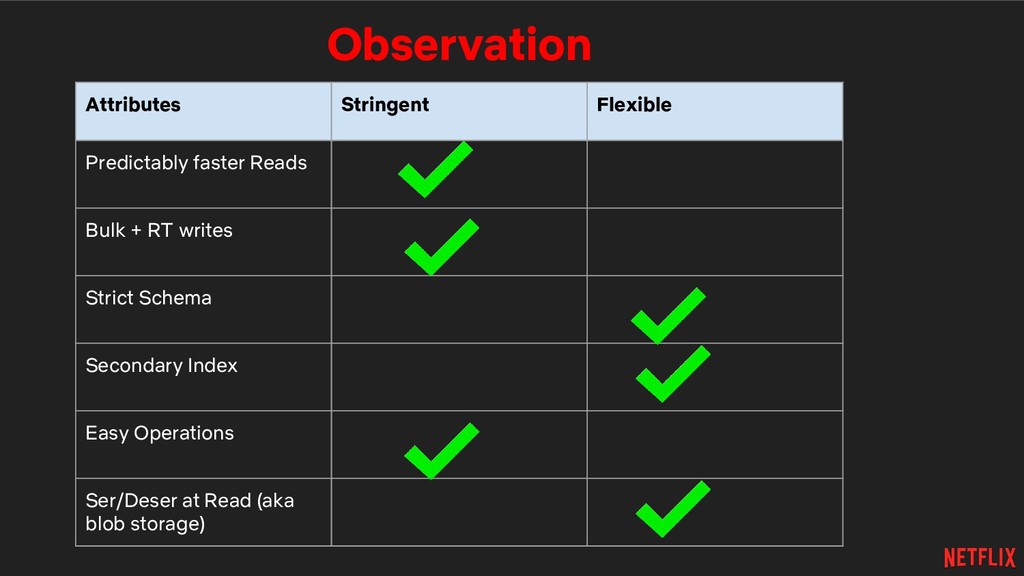

18. Observation Attributes Stringent Flexible Predictably faster Reads Bulk + RT writes Strict Schema Secondary Index Easy Operations Ser/Deser at Read (aka blob storage)
19. Cache with props of a DataStore?

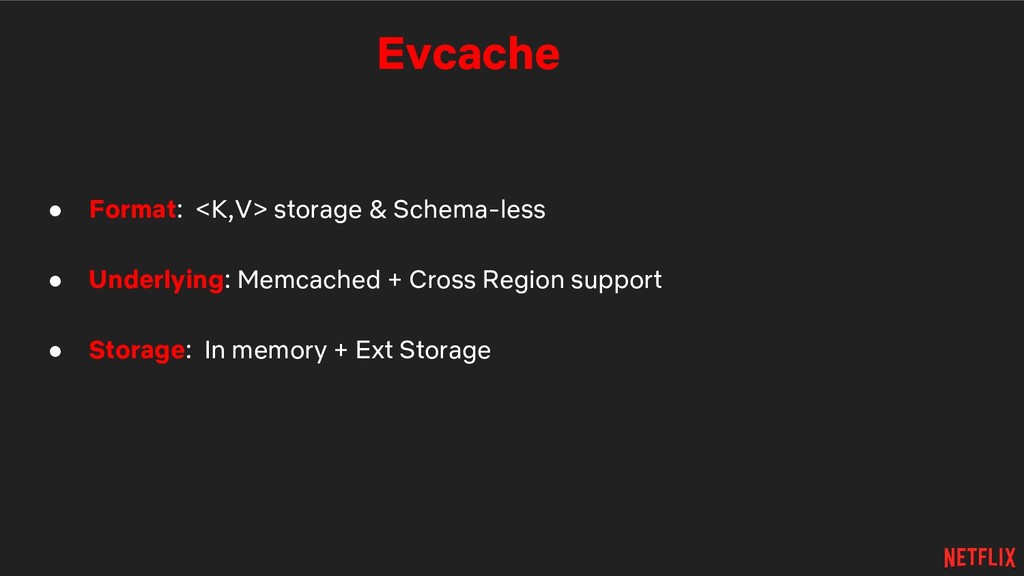

21. • Format: <K,V> storage & Schema-less • Underlying: Memcached + Cross Region support • Storage: In memory + Ext Storage Evcache
22. Architecture

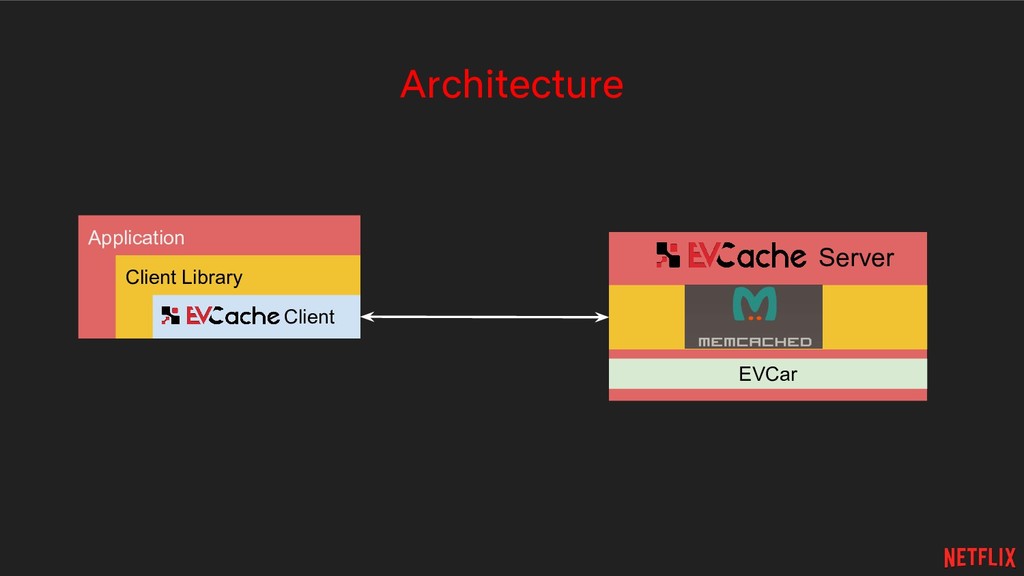

23. Architecture Server EVCar Application Client Library Client

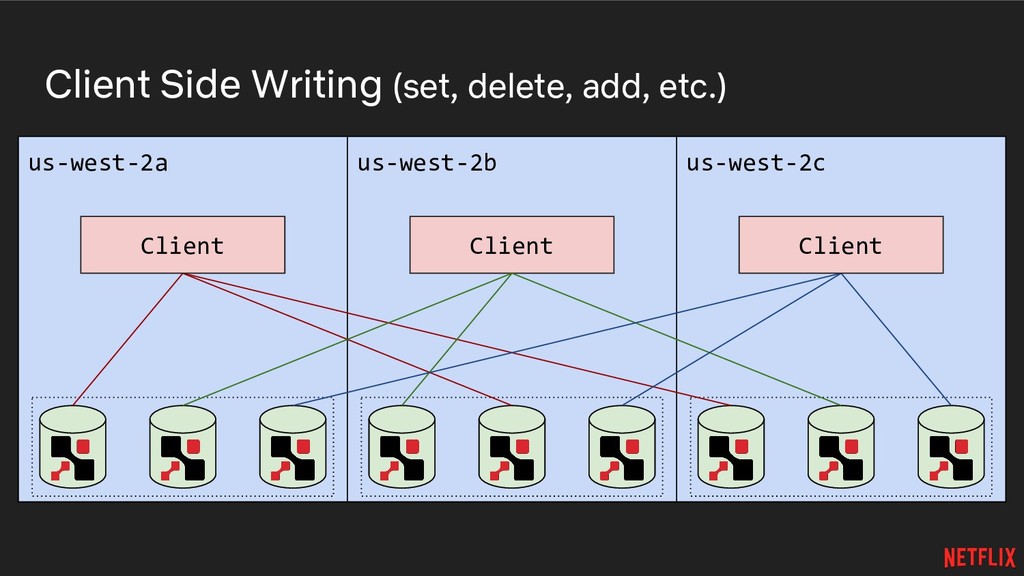

24. Client Side Writing (set, delete, add, etc.) us-west-2a us-west-2c us-west-2b Client Client Client

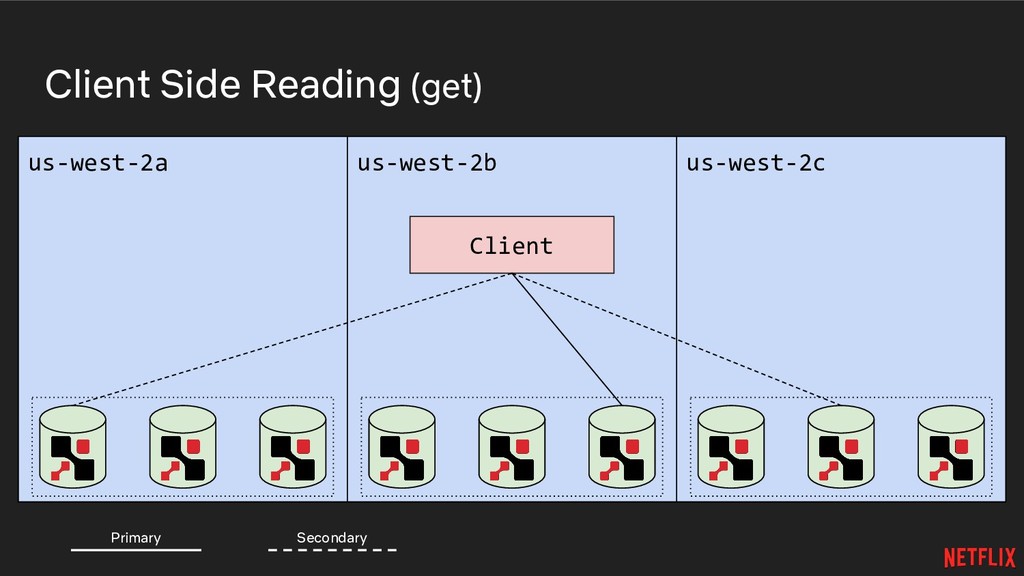

25. Client Side Reading (get) us-west-2a us-west-2c us-west-2b Client Primary Secondary

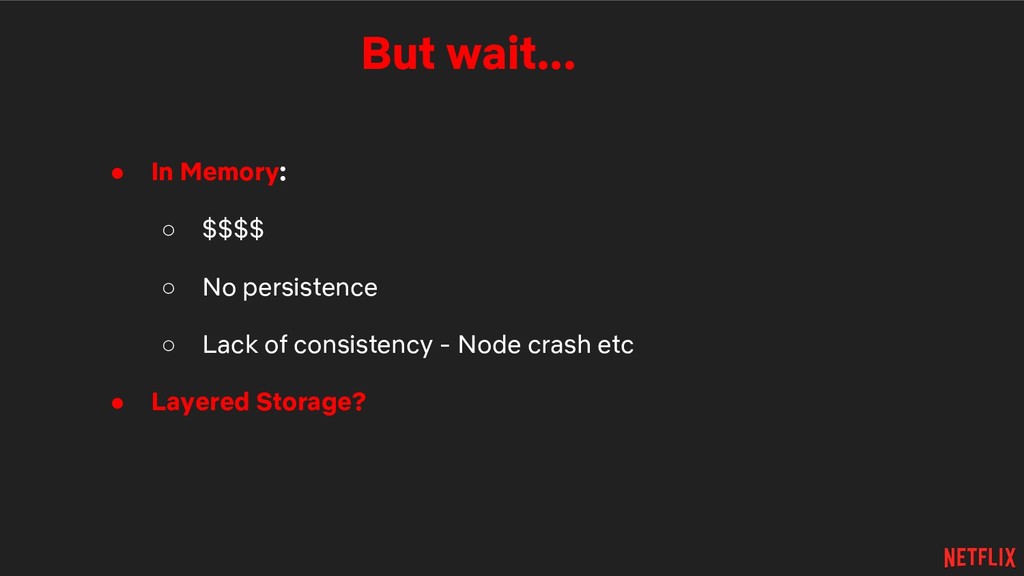

26. • In Memory: ◦ $$$$ ◦ No persistence ◦ Lack of consistency - Node crash etc • Layered Storage? But wait...

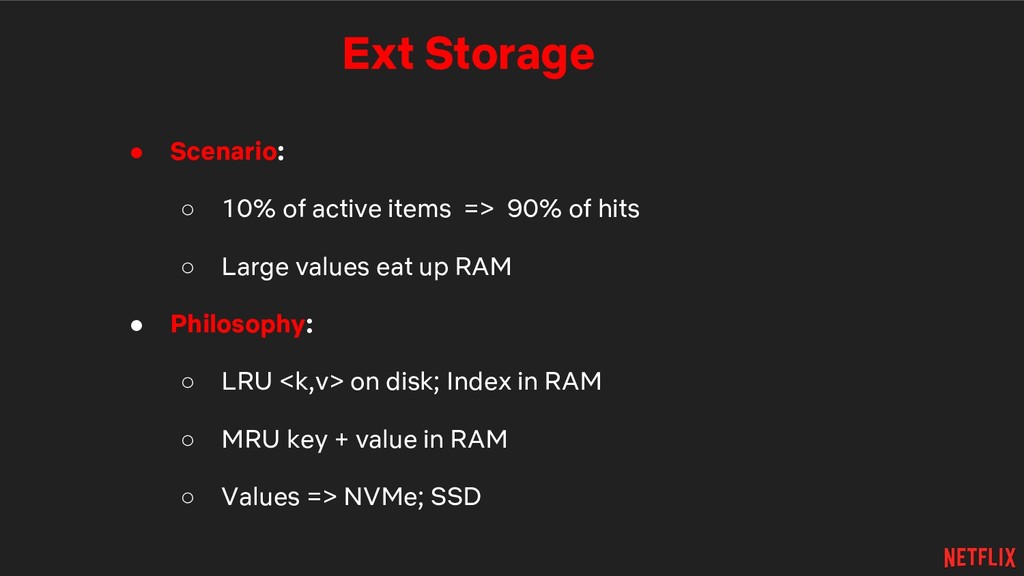

27. • Scenario: ◦ 10% of active items => 90% of hits ◦ Large values eat up RAM • Philosophy: ◦ LRU <k,v> on disk; Index in RAM ◦ MRU key + value in RAM ◦ Values => NVMe; SSD Ext Storage

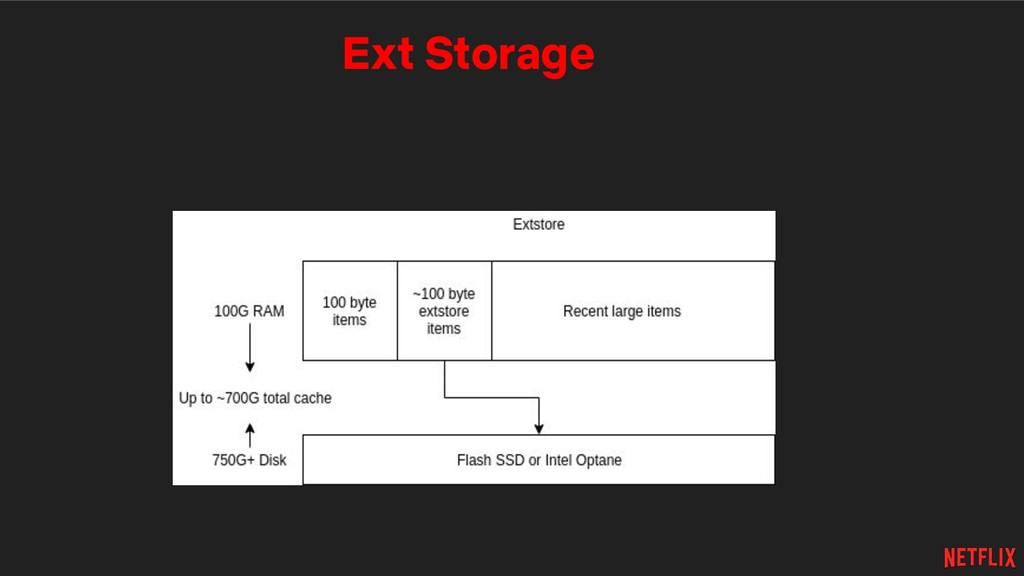

28. Ext Storage
29. Ext Storage • Effects: ◦ Reduce overall RAM ◦ Reduce Server Count ◦ Increase overall Cache size

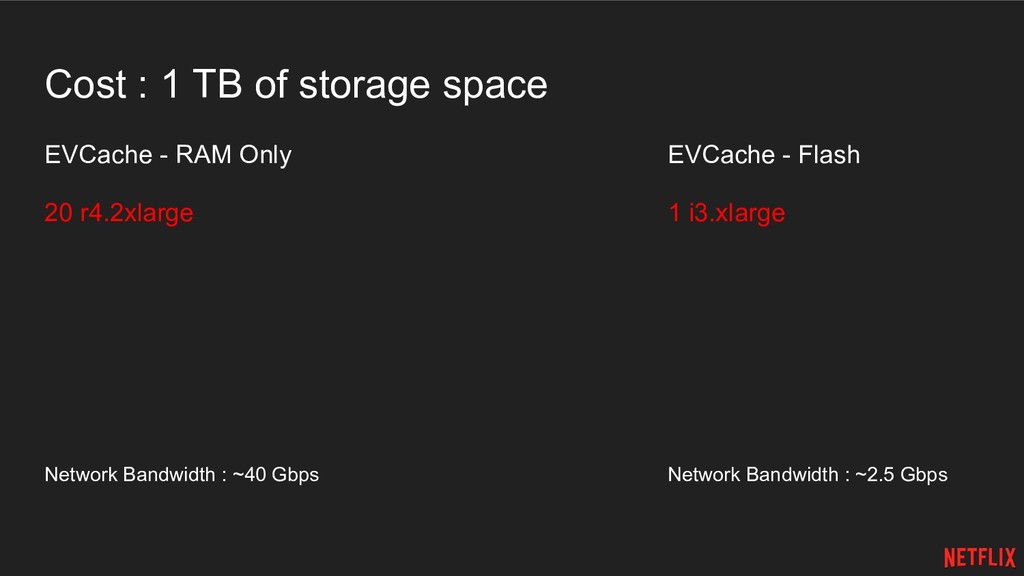

30. Cost : 1 TB of storage space EVCache - RAM Only 20 r4.2xlarge EVCache - Flash 1 i3.xlarge Network Bandwidth : ~40 Gbps Network Bandwidth : ~2.5 Gbps

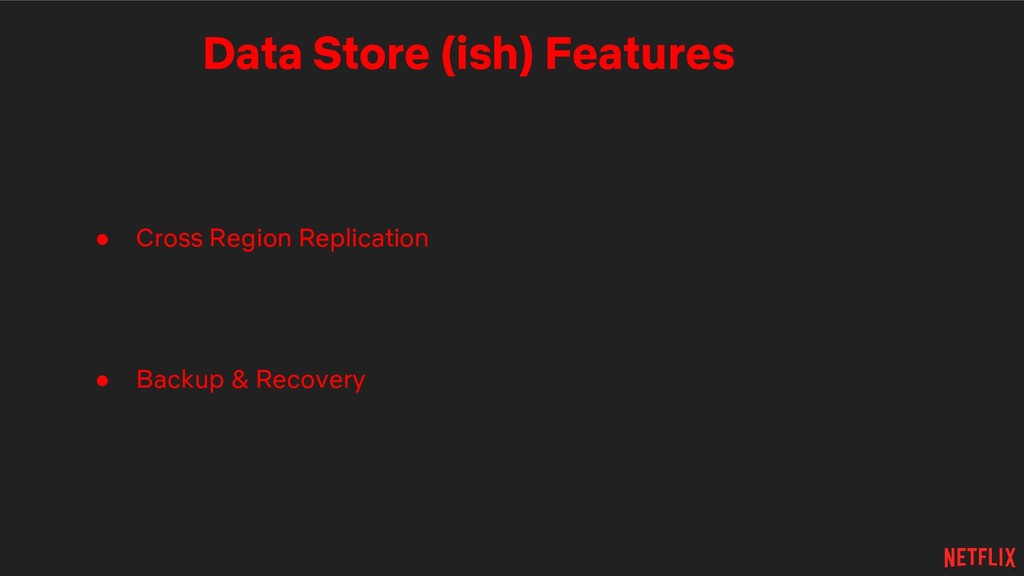

31. • Cross Region Replication • Backup & Recovery Data Store (ish) Features

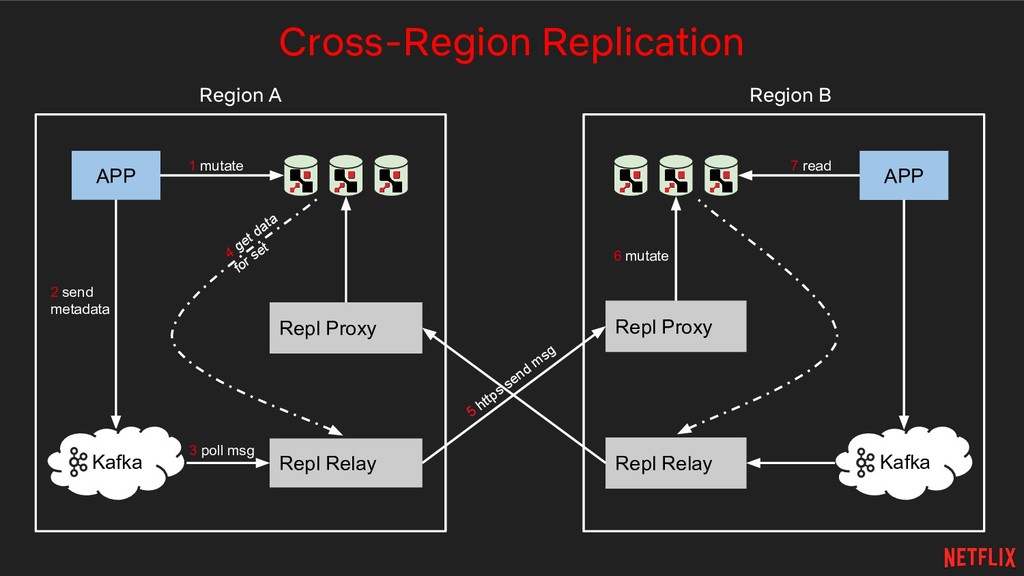

32. Region B Region A APP APP Repl Proxy Repl Relay 1 mutate 2 send metadata 3 poll msg 5 https send m sg 6 mutate 4 get data for set Kafka Repl Relay Kafka Repl Proxy Cross-Region Replication 7 read

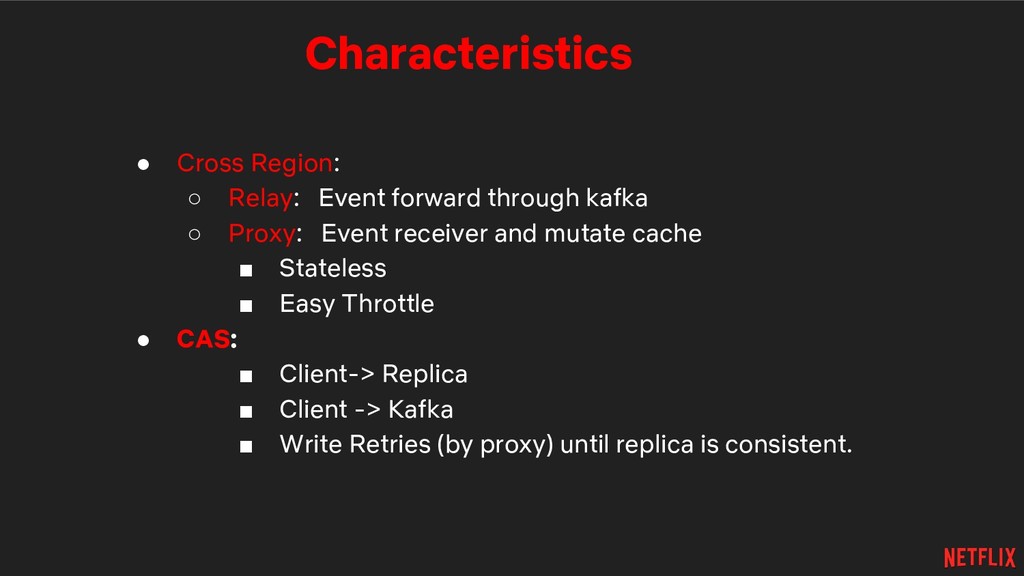

33. • Cross Region: ◦ Relay: Event forward through kafka ◦ Proxy: Event receiver and mutate cache ▪ Stateless ▪ Easy Throttle • CAS: ▪ Client-> Replica ▪ Client -> Kafka ▪ Write Retries (by proxy) until replica is consistent. Characteristics

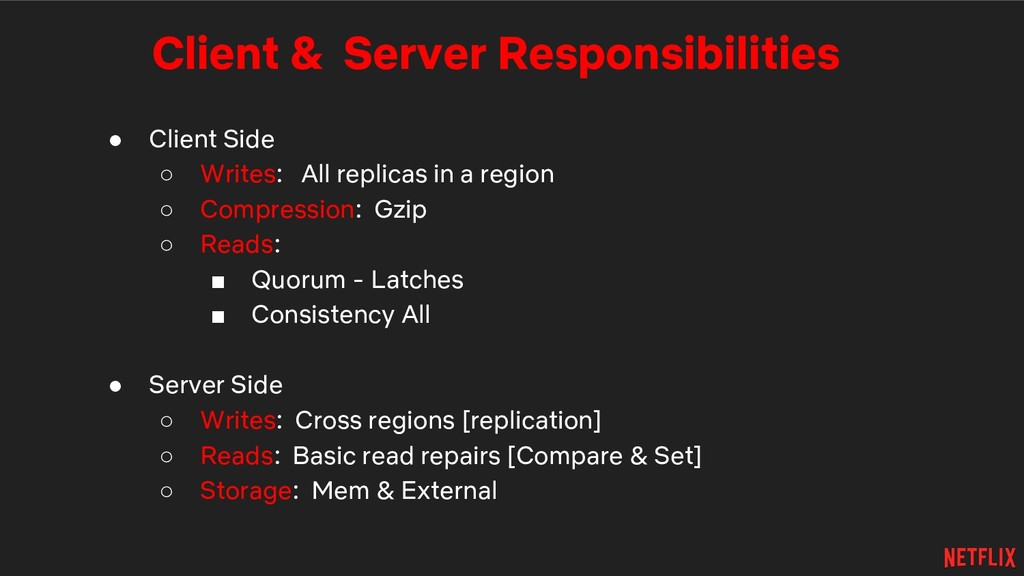

34. • Client Side ◦ Writes: All replicas in a region ◦ Compression: Gzip ◦ Reads: ▪ Quorum - Latches ▪ Consistency All • Server Side ◦ Writes: Cross regions [replication] ◦ Reads: Basic read repairs [Compare & Set] ◦ Storage: Mem & External Client & Server Responsibilities

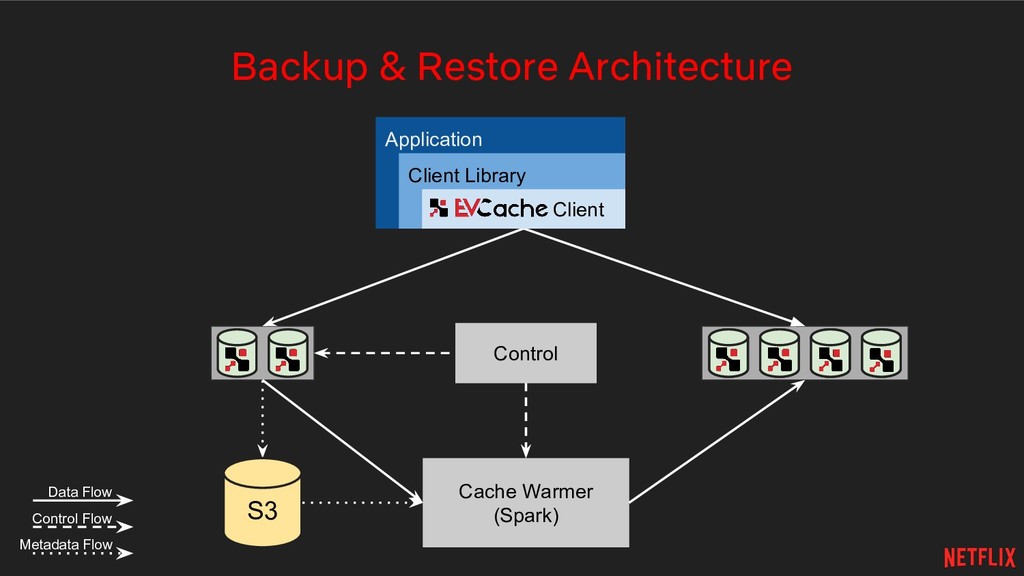

35. Backup & Restore Architecture Cache Warmer (Spark) Application Client Library Client Control S3 Data Flow Metadata Flow Control Flow
36. Data Representation

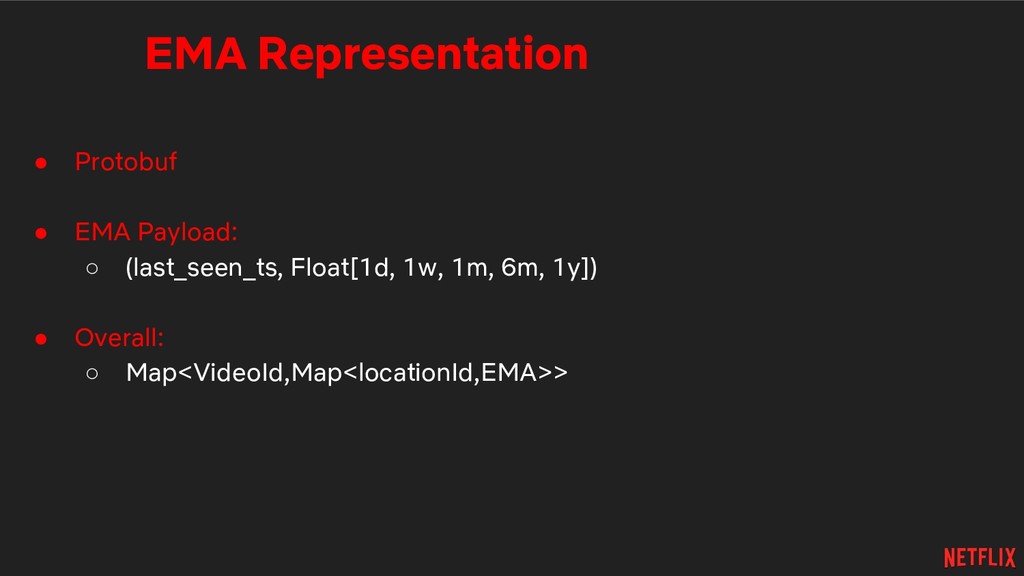

37. • Protobuf • EMA Payload: ◦ (last_seen_ts, Float[1d, 1w, 1m, 6m, 1y]) • Overall: ◦ Map<VideoId,Map<locationId,EMA>> EMA Representation

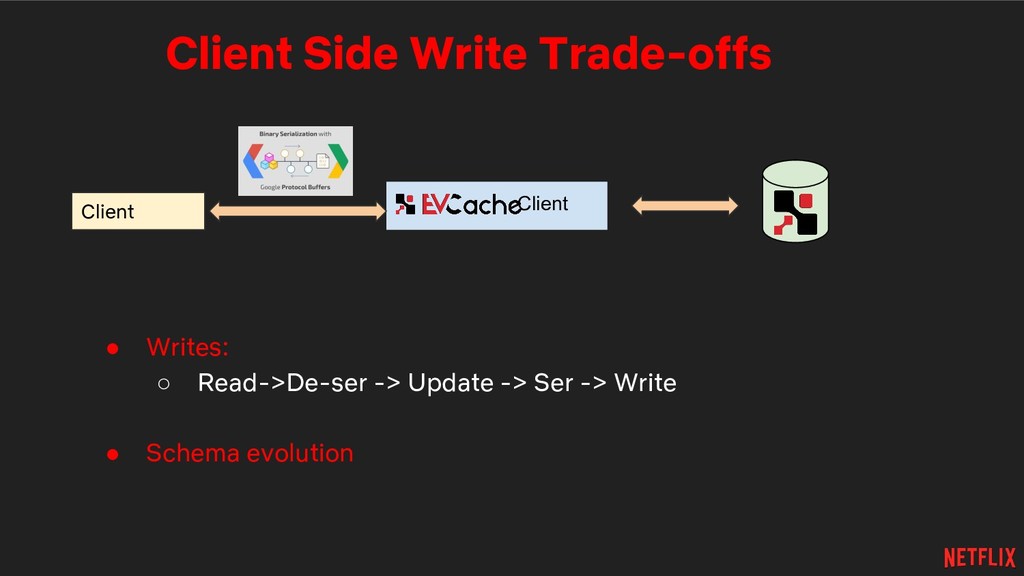

38. Client Side Write Trade-offs Client Client • Writes: ◦ Read->De-ser -> Update -> Ser -> Write • Schema evolution
39. Impressions Infrastructure

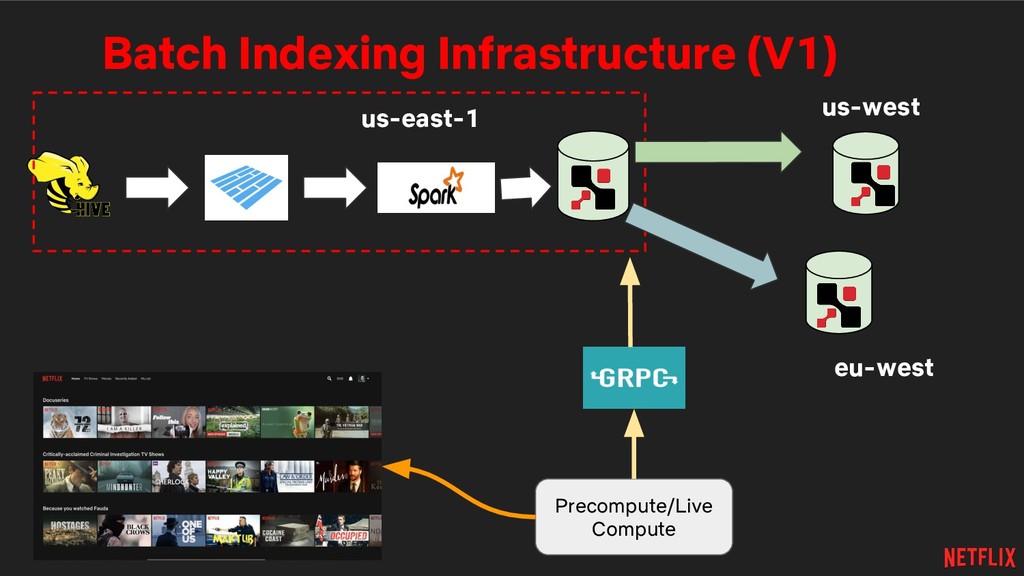

40. Batch Indexing Infrastructure (V1) us-east-1 us-west eu-west Precompute/Live Compute

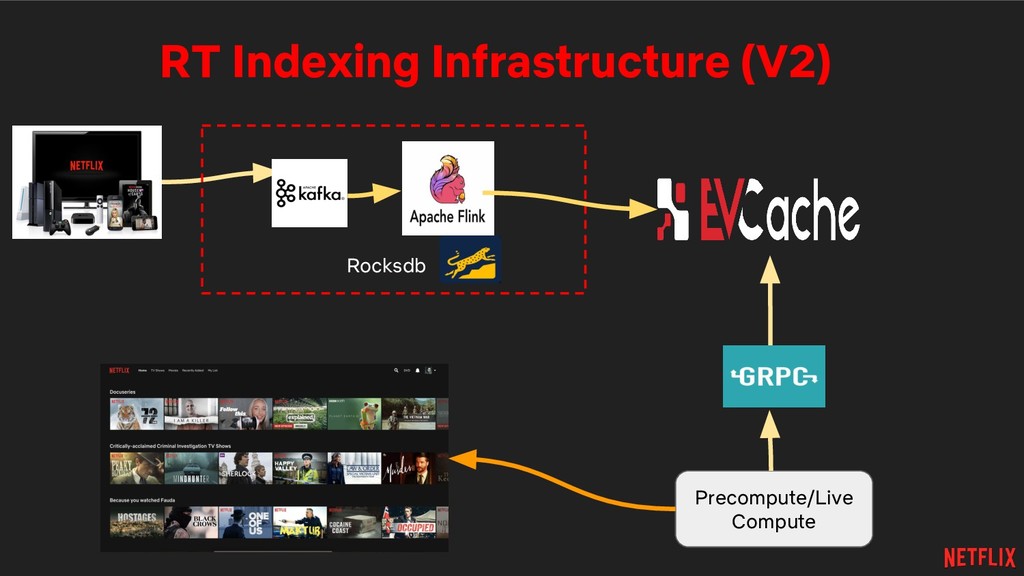

41. RT Indexing Infrastructure (V2) Precompute/Live Compute Rocksdb
42. • Engine: Apache Flink • Processing Semantics: ◦ Exactly once ◦ Late arriving events • RocksDB: ◦ Zero data loss: ▪ Failures/Crashes - Checkpoints/Savepoints ◦ State Management: ▪ Application state RT Indexing Infrastructure

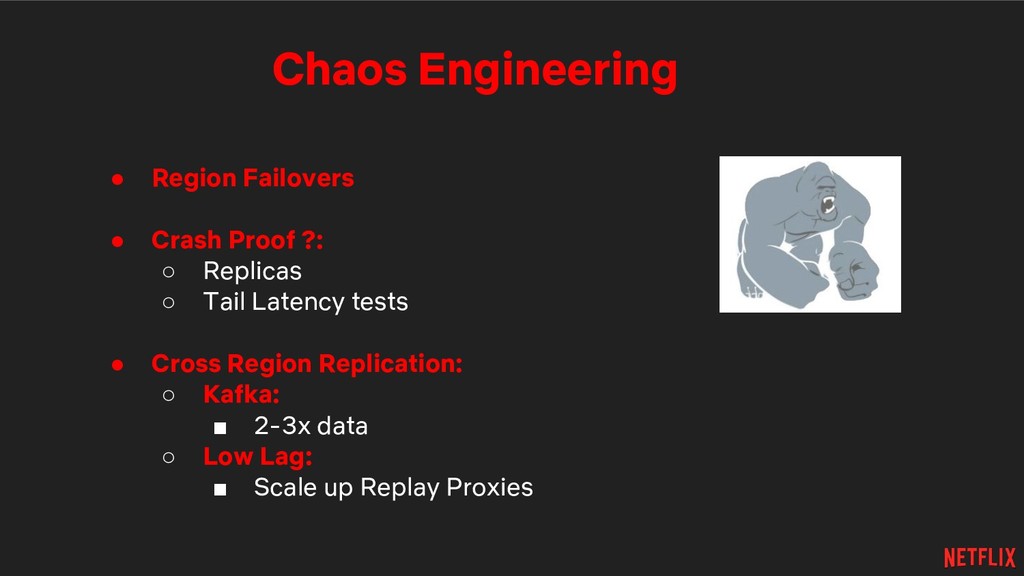

43. Chaos Engineering • Region Failovers • Crash Proof ?: ◦ Replicas ◦ Tail Latency tests • Cross Region Replication: ◦ Kafka: ▪ 2-3x data ◦ Low Lag: ▪ Scale up Replay Proxies

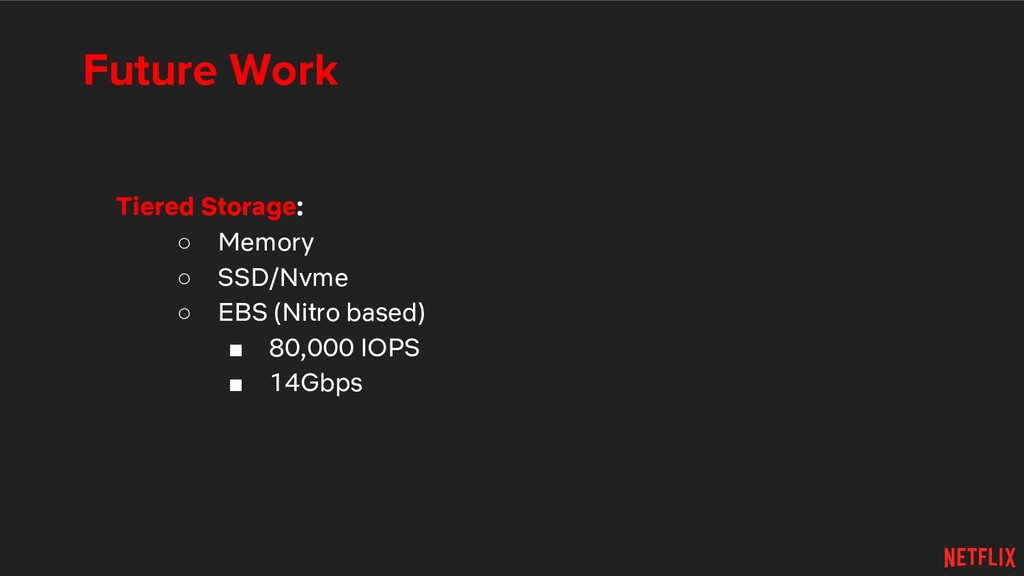

44. Tiered Storage: ◦ Memory ◦ SSD/Nvme ◦ EBS (Nitro based) ▪ 80,000 IOPS ▪ 14Gbps Future Work
45. https://www.linkedin.com/in/knitinsharma/ nitins@netflix.com Speaker Info
