1. OCTOBER 11-14, 2016 • BOSTON, MA
2. Rebalance API for Solrcloud Nitin Sharma - Senior Software Engineer, Netflix Suruchi Shah - Software Engineer, Bloomreach

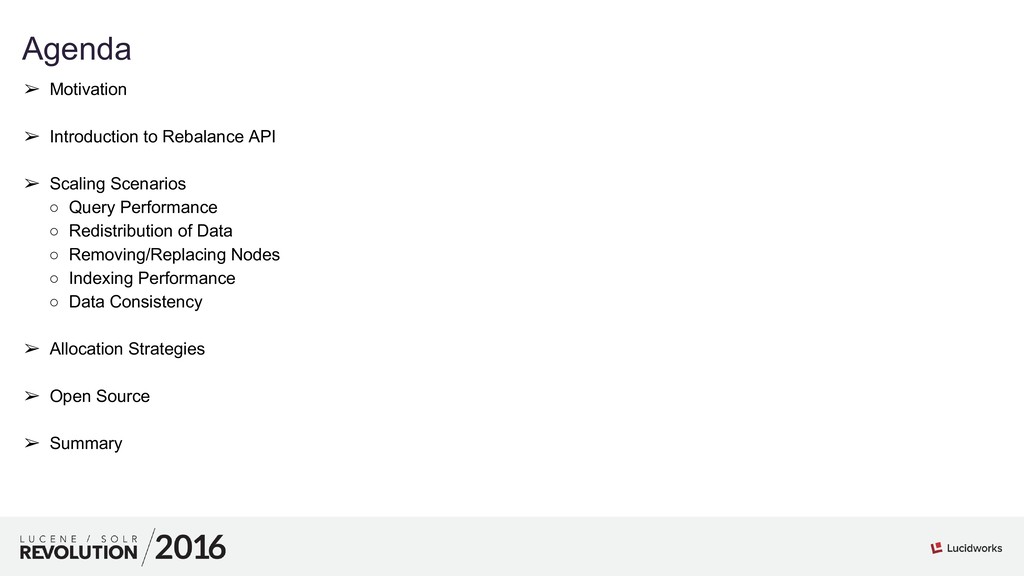

3. Agenda ➢ Motivation ➢ Introduction to Rebalance API ➢ Scaling Scenarios ◦ Query Performance ◦ Redistribution of Data ◦ Removing/Replacing Nodes ◦ Indexing Performance ◦ Data Consistency ➢ Allocation Strategies ➢ Open Source ➢ Summary

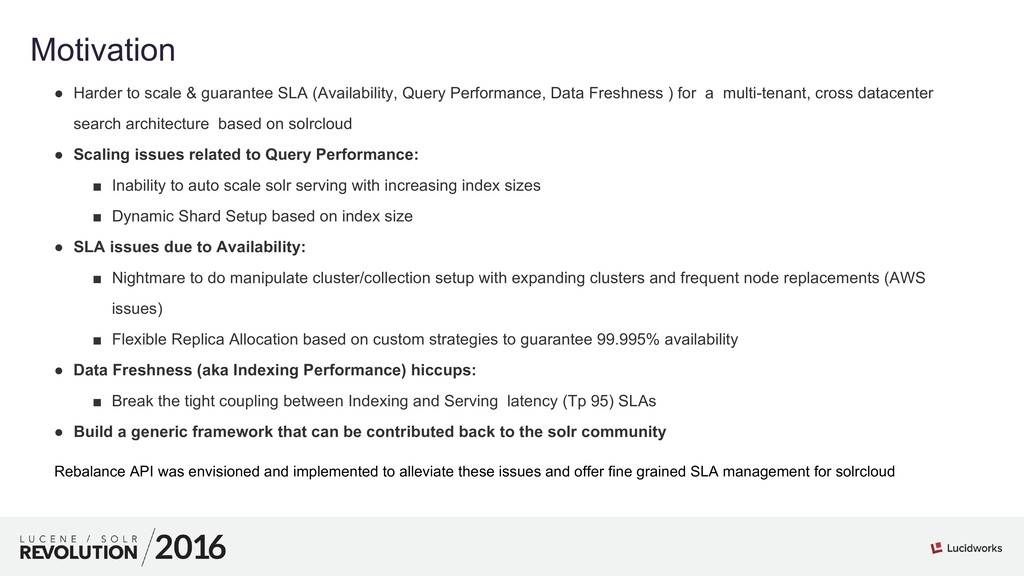

4. 4 01 Motivation • Harder to scale & guarantee SLA (Availability, Query Performance, Data Freshness ) for a multi-tenant, cross datacenter search architecture based on solrcloud • Scaling issues related to Query Performance: ▪ Inability to auto scale solr serving with increasing index sizes ▪ Dynamic Shard Setup based on index size • SLA issues due to Availability: ▪ Nightmare to do manipulate cluster/collection setup with expanding clusters and frequent node replacements (AWS issues) ▪ Flexible Replica Allocation based on custom strategies to guarantee 99.995% availability • Data Freshness (aka Indexing Performance) hiccups: ▪ Break the tight coupling between Indexing and Serving latency (Tp 95) SLAs • Build a generic framework that can be contributed back to the solr community Rebalance API was envisioned and implemented to alleviate these issues and offer fine grained SLA management for solrcloud
5. 5 01 Rebalance API • Smarter Index, Cluster & Data Management for SolrCloud • Forms the basis for Solr Auto Scale • 2 levels of abstraction • Scaling Strategies ◦ Aid with shard, replica and cluster manipulation techniques to guarantee SLA ◦ Zero Downtime operations ◦ Tunable for Availability, Performance or Cost • Allocation Strategies ◦ Decides Core Placement ◦ Tunable for Availability, Performance or Cost

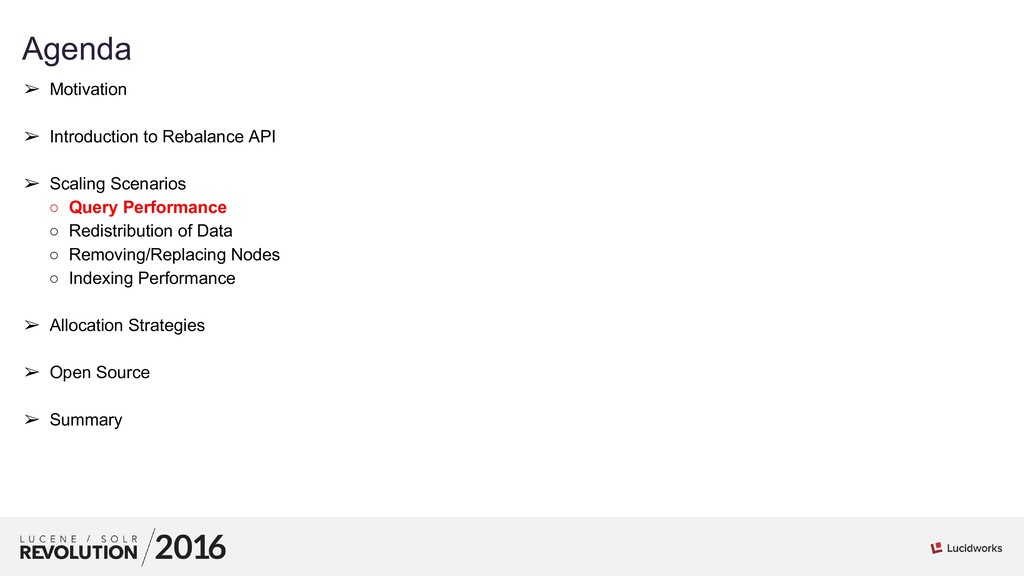

6. Agenda ➢ Motivation ➢ Introduction to Rebalance API ➢ Scaling Scenarios ◦ Query Performance ◦ Redistribution of Data ◦ Removing/Replacing Nodes ◦ Indexing Performance ➢ Allocation Strategies ➢ Open Source ➢ Summary
7. 7 01 Query Performance Issues • Indexing doubles documents - Per shard latency goes up • Tp 95 shoots up • No way to change shards dynamically • Delete, Recreate, Re-index • Availability goes down Default Solr Behavior

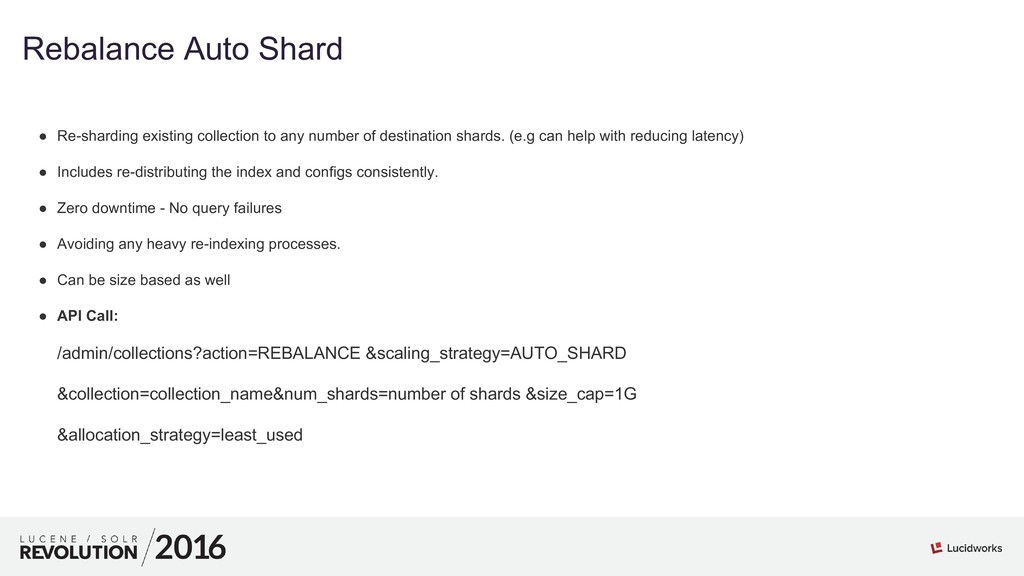

8. Rebalance Auto Shard • Re-sharding existing collection to any number of destination shards. (e.g can help with reducing latency) • Includes re-distributing the index and configs consistently. • Zero downtime - No query failures • Avoiding any heavy re-indexing processes. • Can be size based as well • API Call: /admin/collections?action=REBALANCE &scaling_strategy=AUTO_SHARD &collection=collection_name&num_shards=number of shards &size_cap=1G &allocation_strategy=least_used
9. Auto Shard (1) - Internals - Simple Strategy • Merge documents from all shards - Lucene library based • Split the merged shard into desired number • Auto Zk update for shard ranges • Heavyweight but works • Based on size, could take in 20-30 of minutes to complete
10. Auto Shard (2) - Internals - Smart Split Strategy • Identify minimum number of splits • Split shards in parallel to required desired setup • Relatively high performance ◦ 2 Tb index from 2 to 4 shards - 2.5 mins • Auto Zk Update
11. 1 1 01 Solution : Auto Sharding • Dynamically Increase/Decrease shards • E.g. Increase shards from 2 to 4 to reduce latency • E.g. Tp 95 reduced from > 1 sec to 250 ms.
12. Agenda ➢ Motivation ➢ Introduction to Rebalance API ➢ Scaling Scenarios ◦ Query Performance ◦ Redistribution of Data ◦ Removing/Replacing Nodes ◦ Indexing Performance ➢ Allocation Strategies ➢ Open Source ➢ Summary
13. 1 3 01 Data distribution issues • Adding a new node - Does nothing • No Redistribution of solr cores • Machines running out of disk space - heavier collections need to be moved out • Problem amplifies at large scale - 100s of nodes, 1000s of collections • Manual Management of core placement - Nightmare Default Solr Behavior
14. Re-distribute Strategy - Internals • Internal topology construction from ZK • Desired Core placement computation - External or Trigger based • Migration of cores within the cluster • Knobs to control min/max to reduce cluster load • Zero downtime - No query failures and resiliency to node failures • API Call: /admin/collections?action=REBALANCE&scalin g_strategy=REDISTRIBUTE
15. 1 5 01 Solution: Auto Redistribution of Data • Adding new node - triggers redistribution • Respects the core placement allocation strategy • Zero downtime Redistribute
16. Agenda ➢ Motivation ➢ Introduction to Rebalance API ➢ Scaling Scenarios ◦ Query Performance ◦ Redistribution of Data ◦ Removing/Replacing Nodes ◦ Indexing Performance ➢ Allocation Strategies ➢ Open Source ➢ Summary
17. 1 7 01 Replace Solr Nodes • A node might die, need to be replaced, decommissioned • Default behavior - Do nothing • Can cause downtime - Heavy cores on the nodes • Problem exacerbated with 1000s of nodes/collections Default Solr Behavior
18. 1 8 01 Replace Nodes with Rebalance • Read the Topology of cluster • Migrate replicas from node about to die to new node • Zero downtime • API Call: ◦ /admin/collections?action=REBALANCE&scaling_strategy=REPLACE &collection=collectionName&source_node=source_host &dest_node=dest_host
19. Agenda ➢ Motivation ➢ Introduction to Rebalance API ➢ Scaling Scenarios ◦ Query Performance ◦ Redistribution of Data ◦ Removing/Replacing Nodes ◦ Indexing Performance ➢ Allocation Strategies ➢ Open Source ➢ Summary
20. 2 0 01 Indexing Performance • Higher the shards, faster the indexing (parallelism) • Faster indexing - Data Freshness SLA • Solr - # shards is the same for indexing vs serving • Shard setup - tweaked for serving query performance • E.g. ◦ Indexing 100M docs in 2 shards - 2 hours ◦ Serving 100M docs in 2 shards - Tp 95 < 100 ms

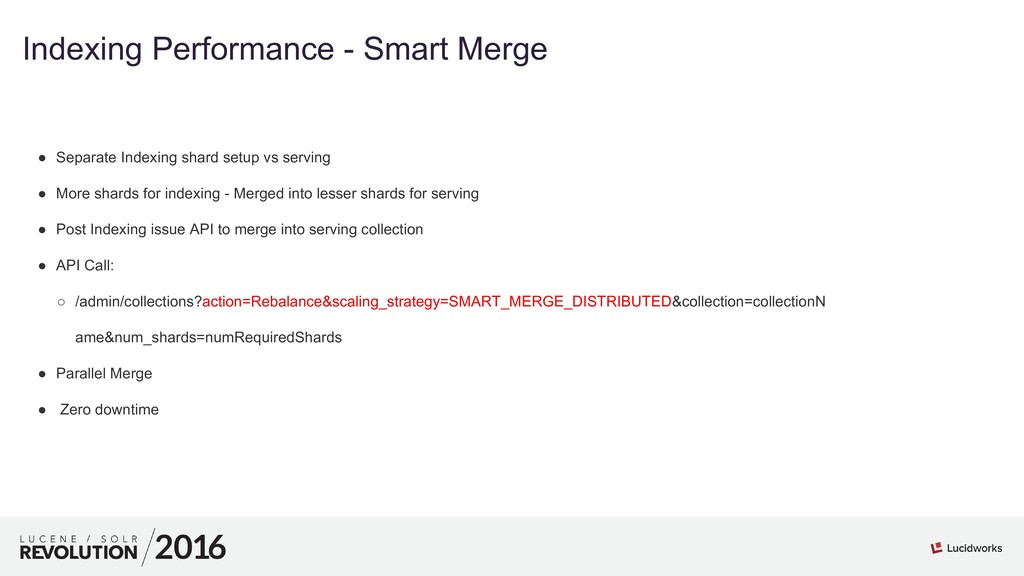

21. 2 1 01 Indexing Performance - Smart Merge • Separate Indexing shard setup vs serving • More shards for indexing - Merged into lesser shards for serving • Post Indexing issue API to merge into serving collection • API Call: ◦ /admin/collections?action=Rebalance&scaling_strategy=SMART_MERGE_DISTRIBUTED&collection=collectionN ame&num_shards=numRequiredShards • Parallel Merge • Zero downtime
22. 2 2 01 Indexing Performance - Smart Merge • Index vs Serving has different collections • Indexed Collection merged into Serving - Using smart merge call • Indexing can be tuned independently for performance • Serving SLA unaffected

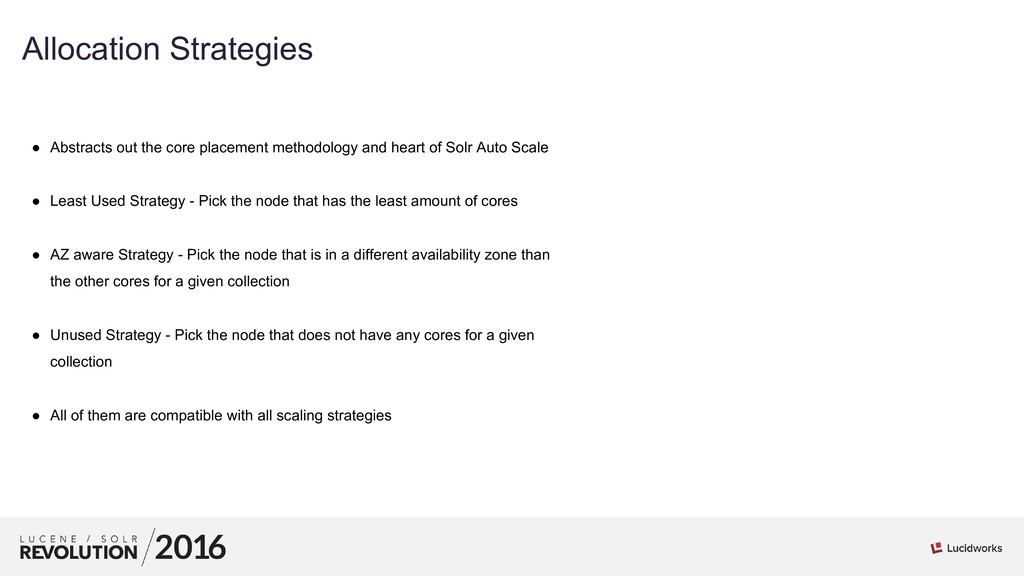

23. 2 3 01 Allocation Strategies • Abstracts out the core placement methodology and heart of Solr Auto Scale • Least Used Strategy - Pick the node that has the least amount of cores • AZ aware Strategy - Pick the node that is in a different availability zone than the other cores for a given collection • Unused Strategy - Pick the node that does not have any cores for a given collection • All of them are compatible with all scaling strategies

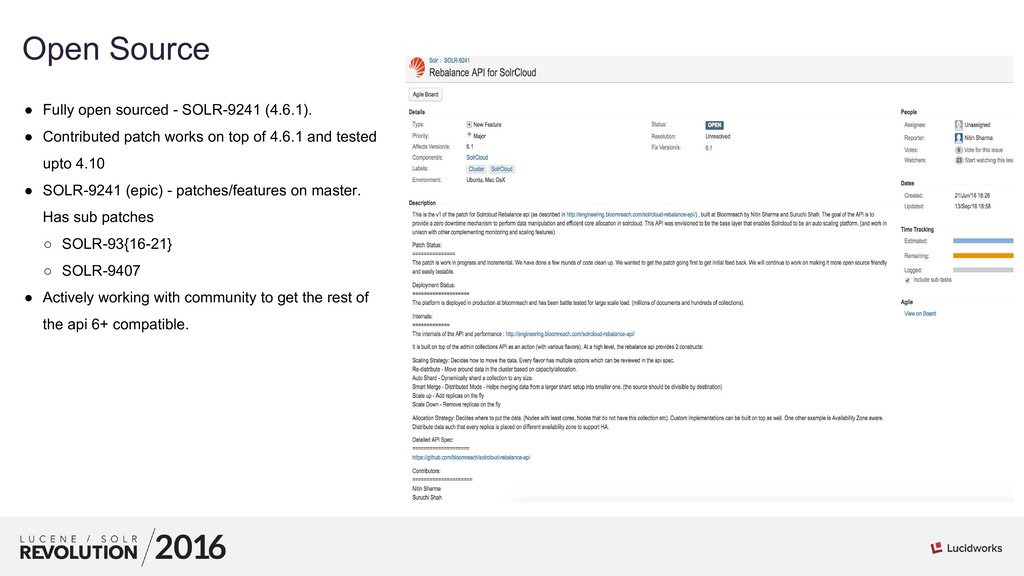

24. 2 4 01 Open Source • Fully open sourced - SOLR-9241 (4.6.1). • Contributed patch works on top of 4.6.1 and tested upto 4.10 • SOLR-9241 (epic) - patches/features on master. Has sub patches ◦ SOLR-93{16-21} ◦ SOLR-9407 • Actively working with community to get the rest of the api 6+ compatible.

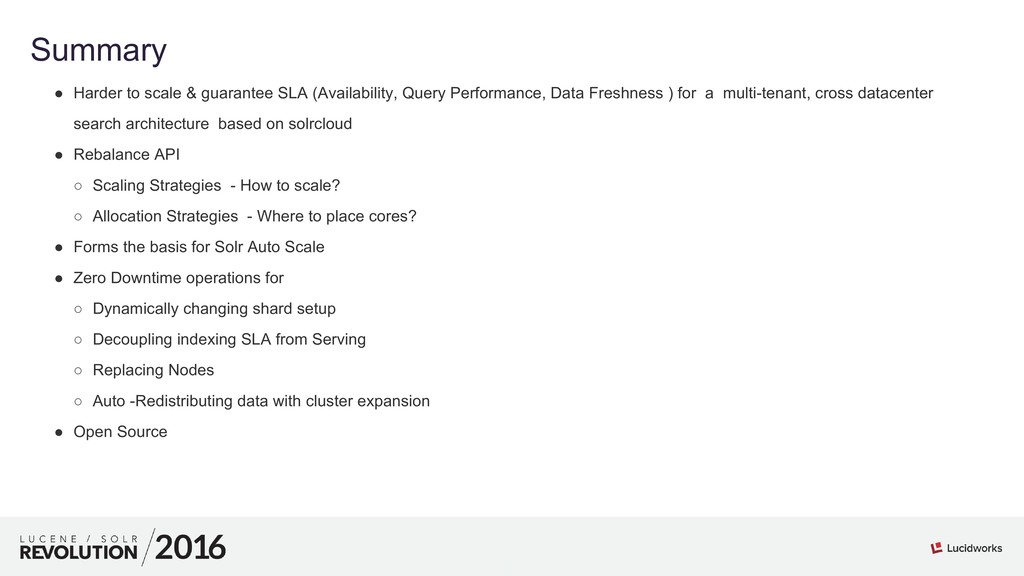

25. 2 5 01 Summary • Harder to scale & guarantee SLA (Availability, Query Performance, Data Freshness ) for a multi-tenant, cross datacenter search architecture based on solrcloud • Rebalance API ◦ Scaling Strategies - How to scale? ◦ Allocation Strategies - Where to place cores? • Forms the basis for Solr Auto Scale • Zero Downtime operations for ◦ Dynamically changing shard setup ◦ Decoupling indexing SLA from Serving ◦ Replacing Nodes ◦ Auto -Redistributing data with cluster expansion • Open Source
26. 2 6 01 Speakers Nitin Sharma https://www.linkedin.com/in/knitinsharma Suruchi Shah https://www.linkedin.com/in/suruchishah
