1. Understanding How Rails Works by Building It Small 〜 mini-rails 〜 1
2. Nobo I work at SonicGarden Inc. I organize Seto.rb. Also organizing 沖縄Ruby会議03 !（Feb 20 2027） @Hitoshi-Noborikawa 2
3. How It Started 3

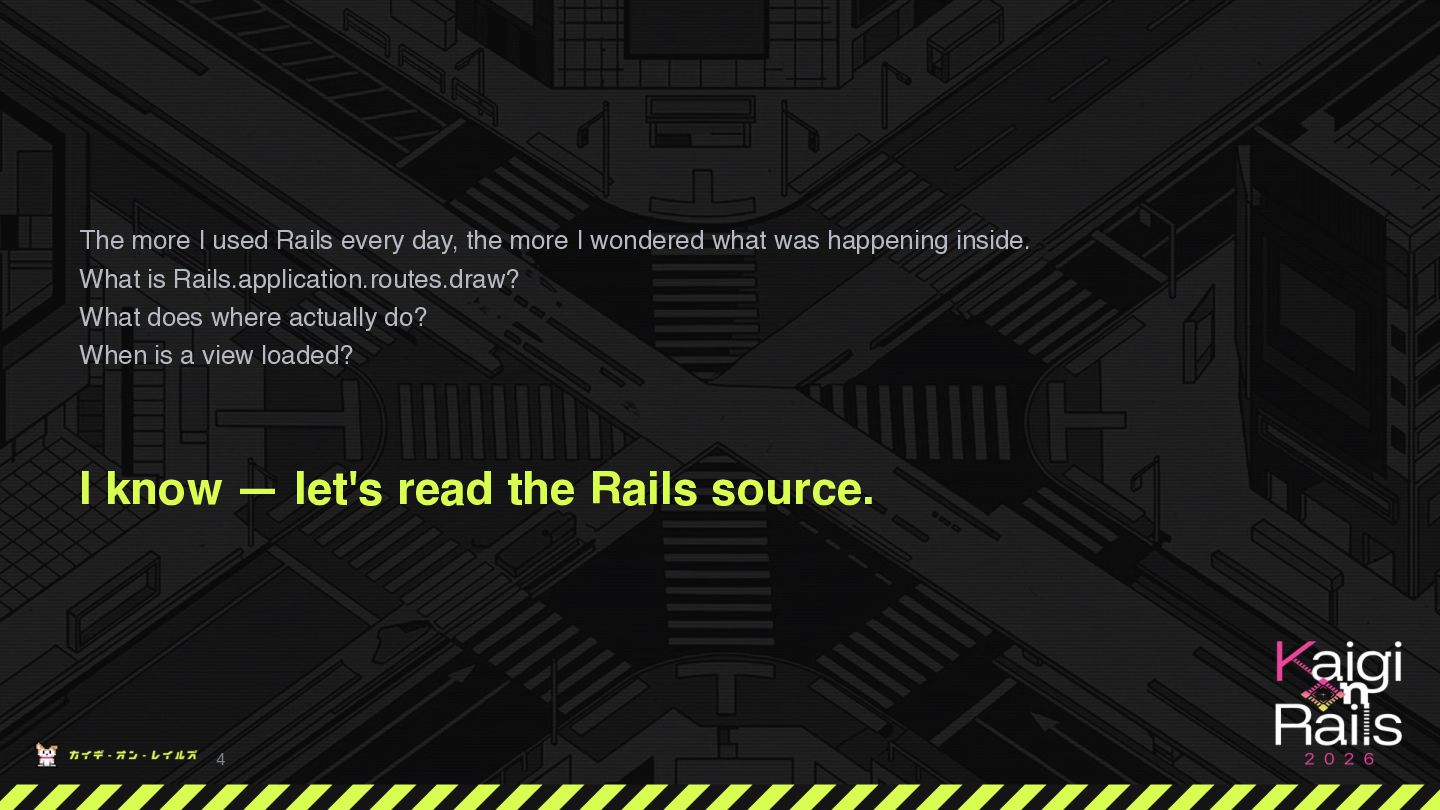

4. The more I used Rails every day, the more I wondered what was happening inside. What is Rails.application.routes.draw? What does where actually do? When is a view loaded? I know — let's read the Rails source. 4

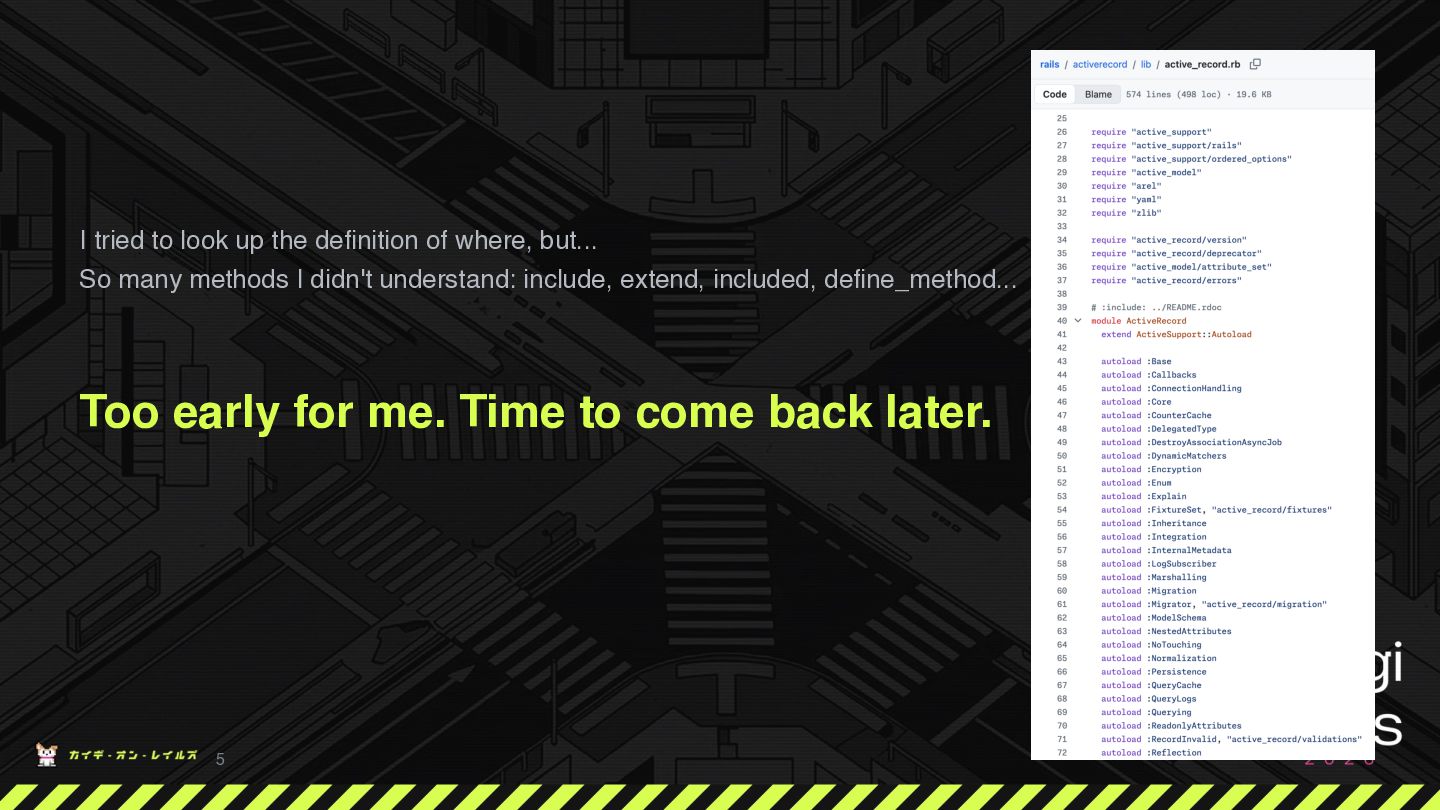

5. I tried to look up the definition of where, but... So many methods I didn't understand: include, extend, included, define_method... Too early for me. Time to come back later. 5
6. Expanding what I could read, bit by bit Metaprogramming Reading the source code of small gems Reading the code of projects I work on, closely Maybe I can do it now? 6

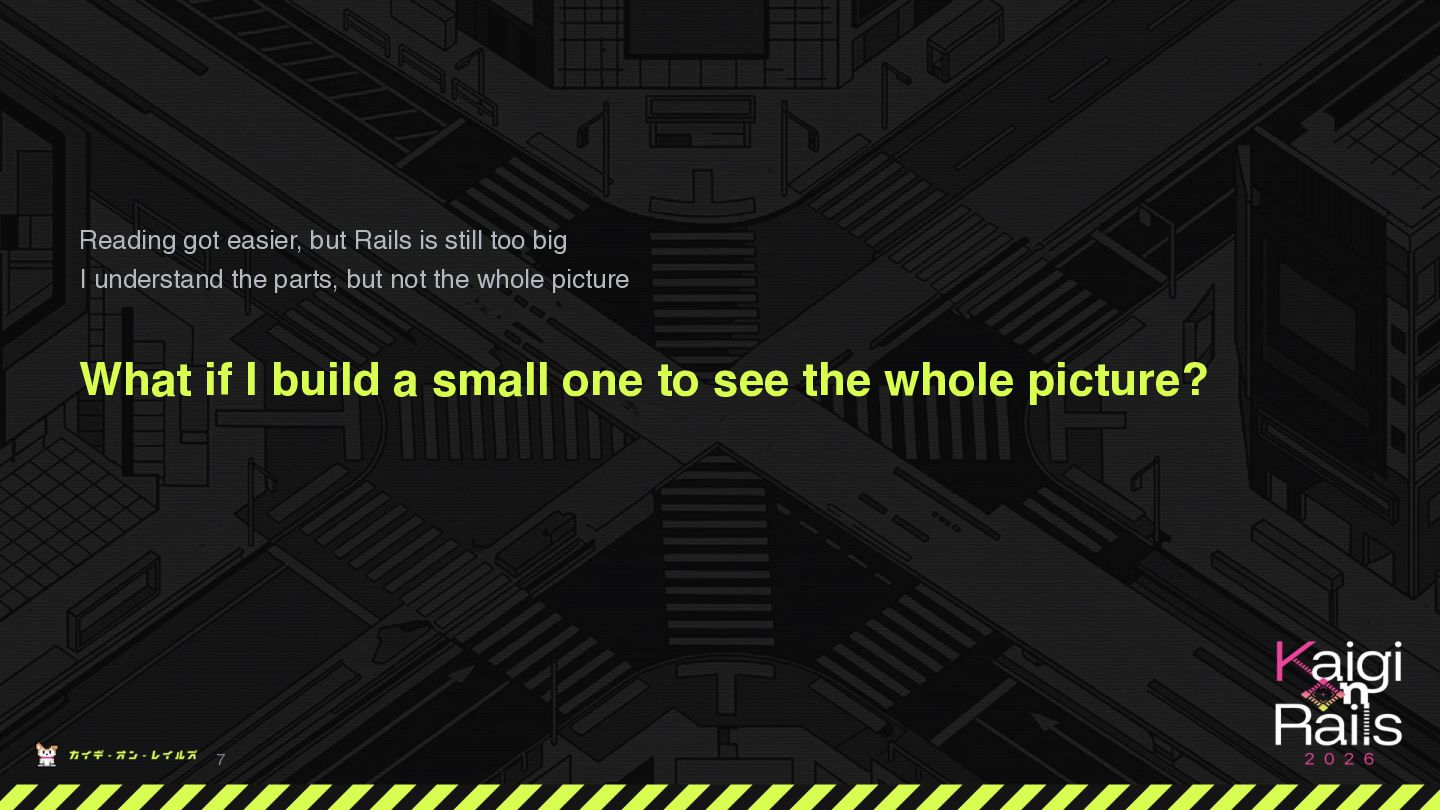

7. Reading got easier, but Rails is still too big I understand the parts, but not the whole picture What if I build a small one to see the whole picture? 7
8. mini-rails 8

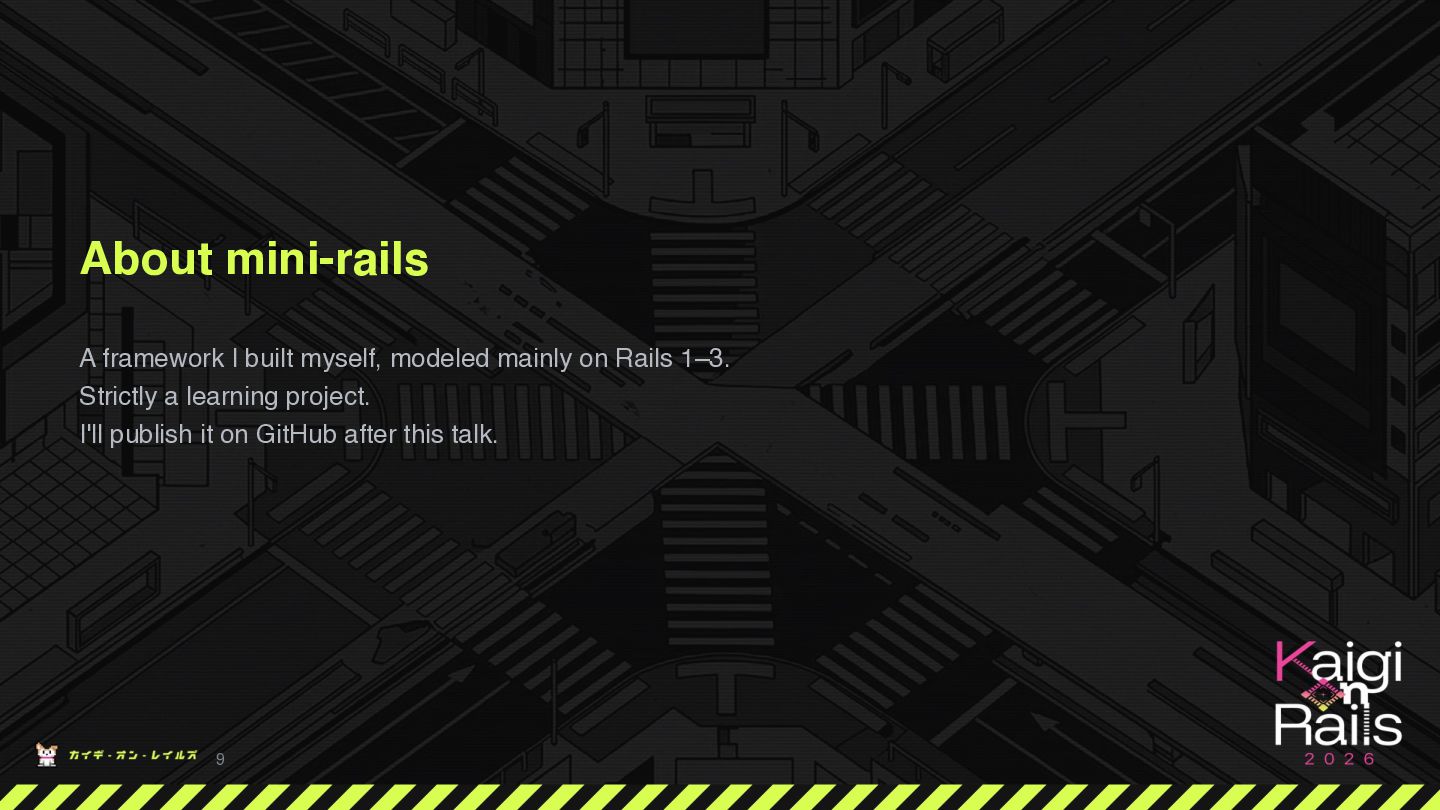

9. About mini-rails A framework I built myself, modeled mainly on Rails 1–3. Strictly a learning project. I'll publish it on GitHub after this talk. 9

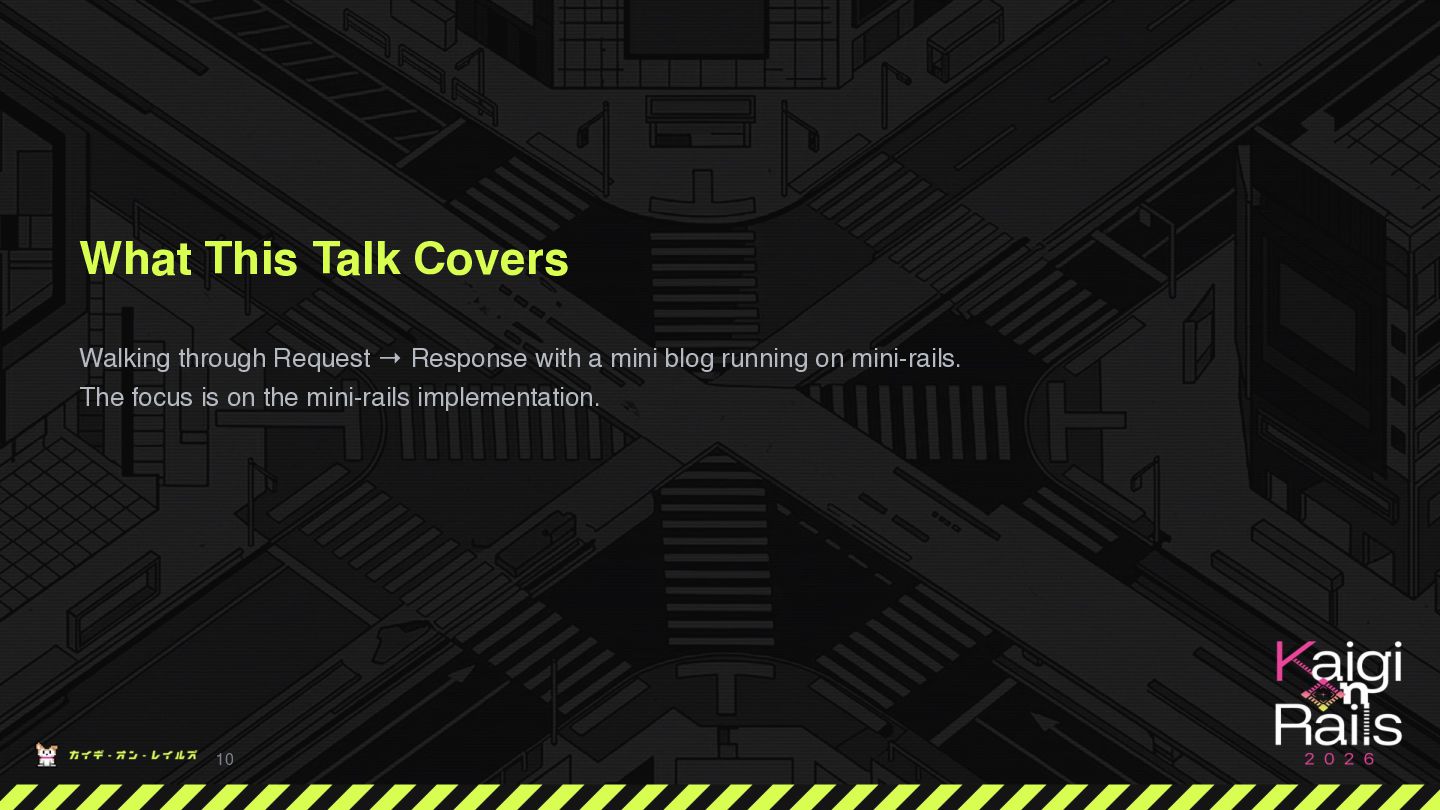

10. What This Talk Covers Walking through Request → Response with a mini blog running on mini-rails. The focus is on the mini-rails implementation. 10

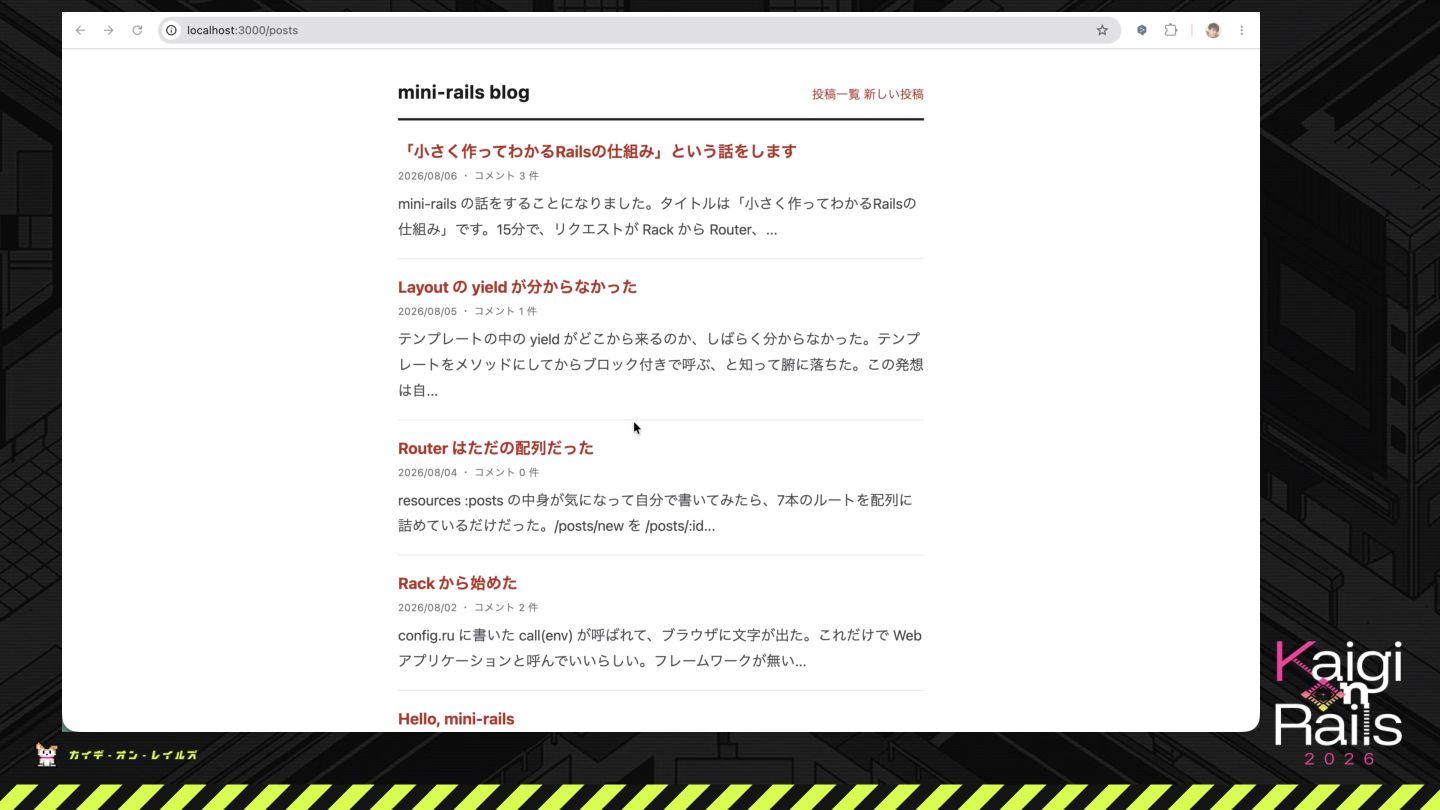

11. Demo 11

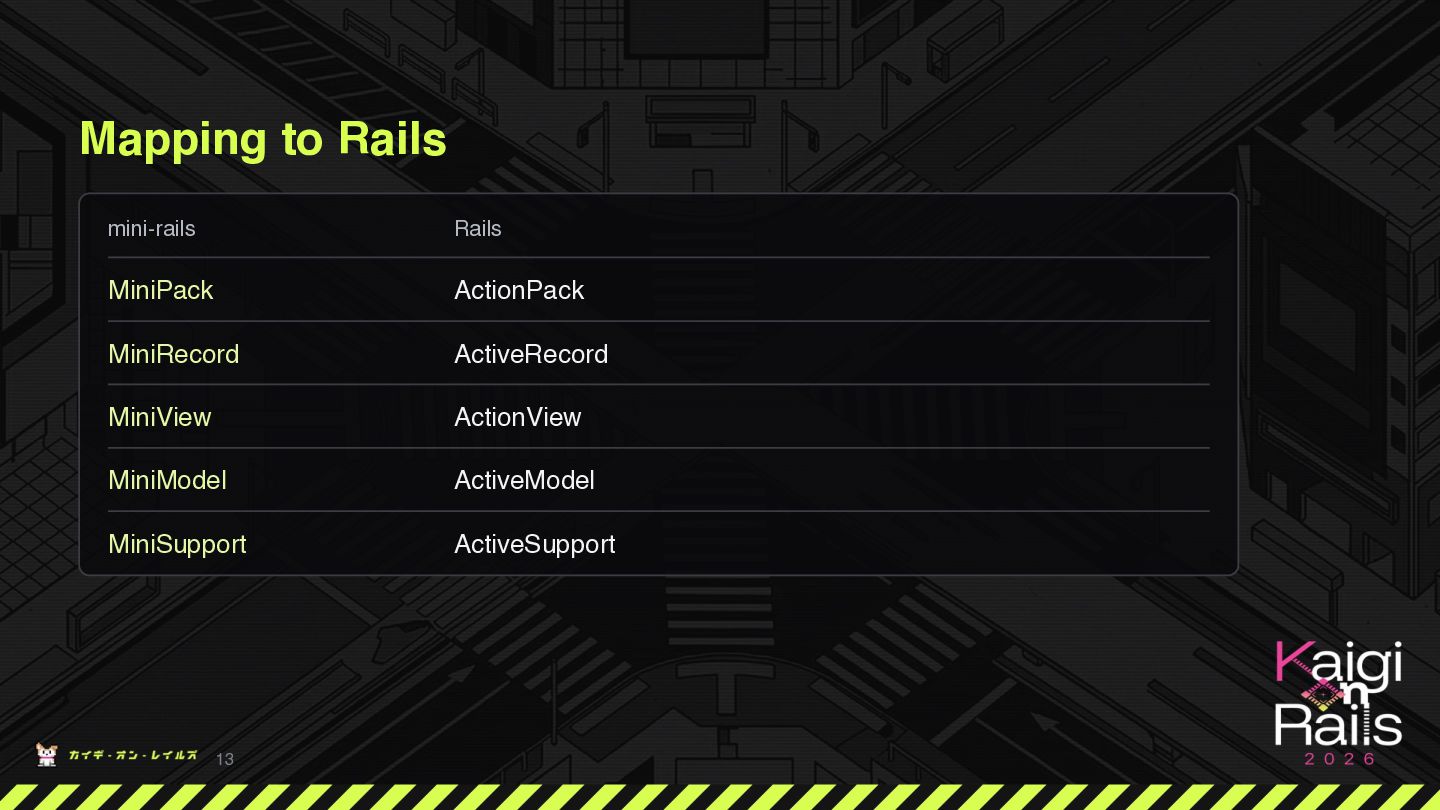

13. Mapping to Rails mini-rails Rails MiniPack ActionPack MiniRecord ActiveRecord MiniView ActionView MiniModel ActiveModel MiniSupport ActiveSupport 13

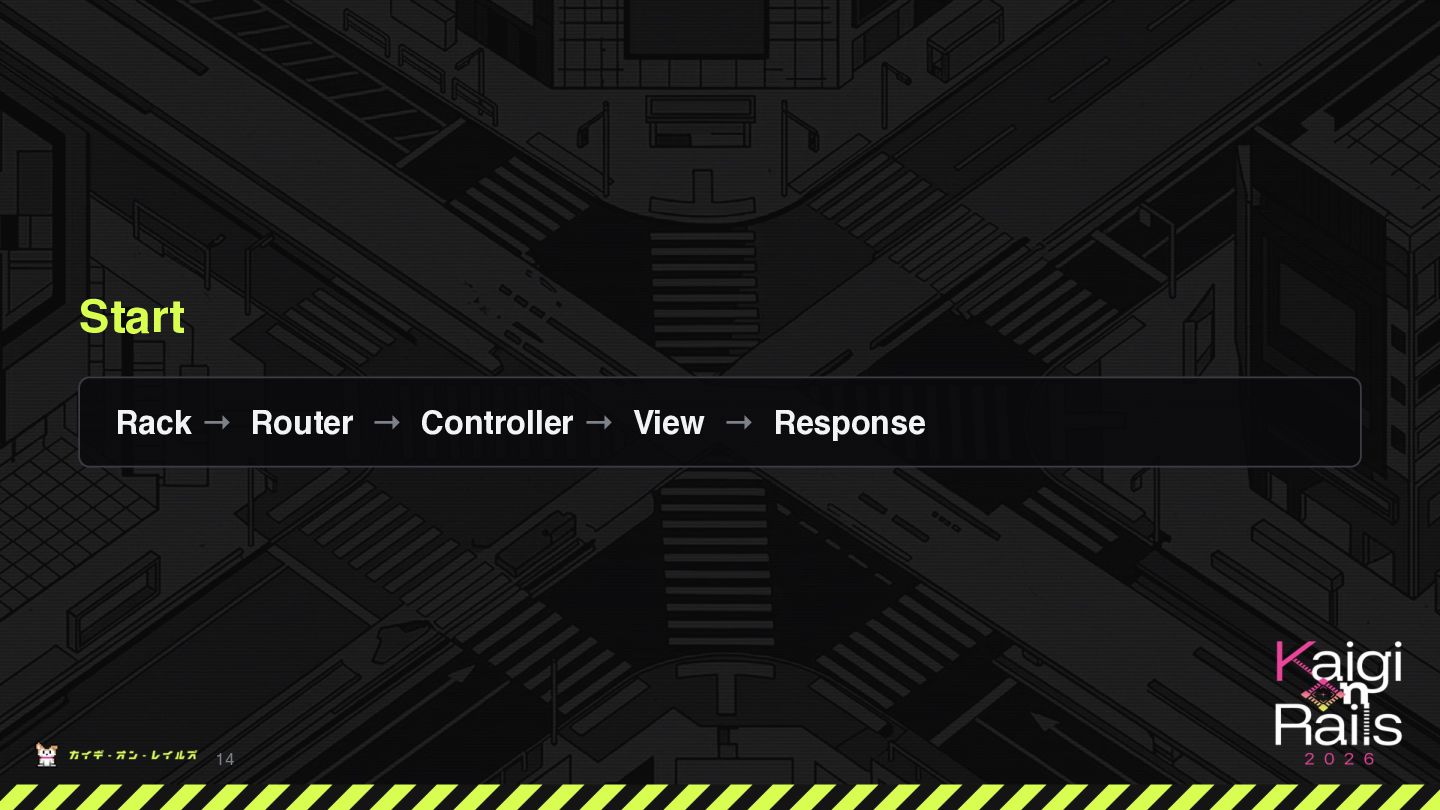

14. Start Rack → Router → Controller → View → Response 14

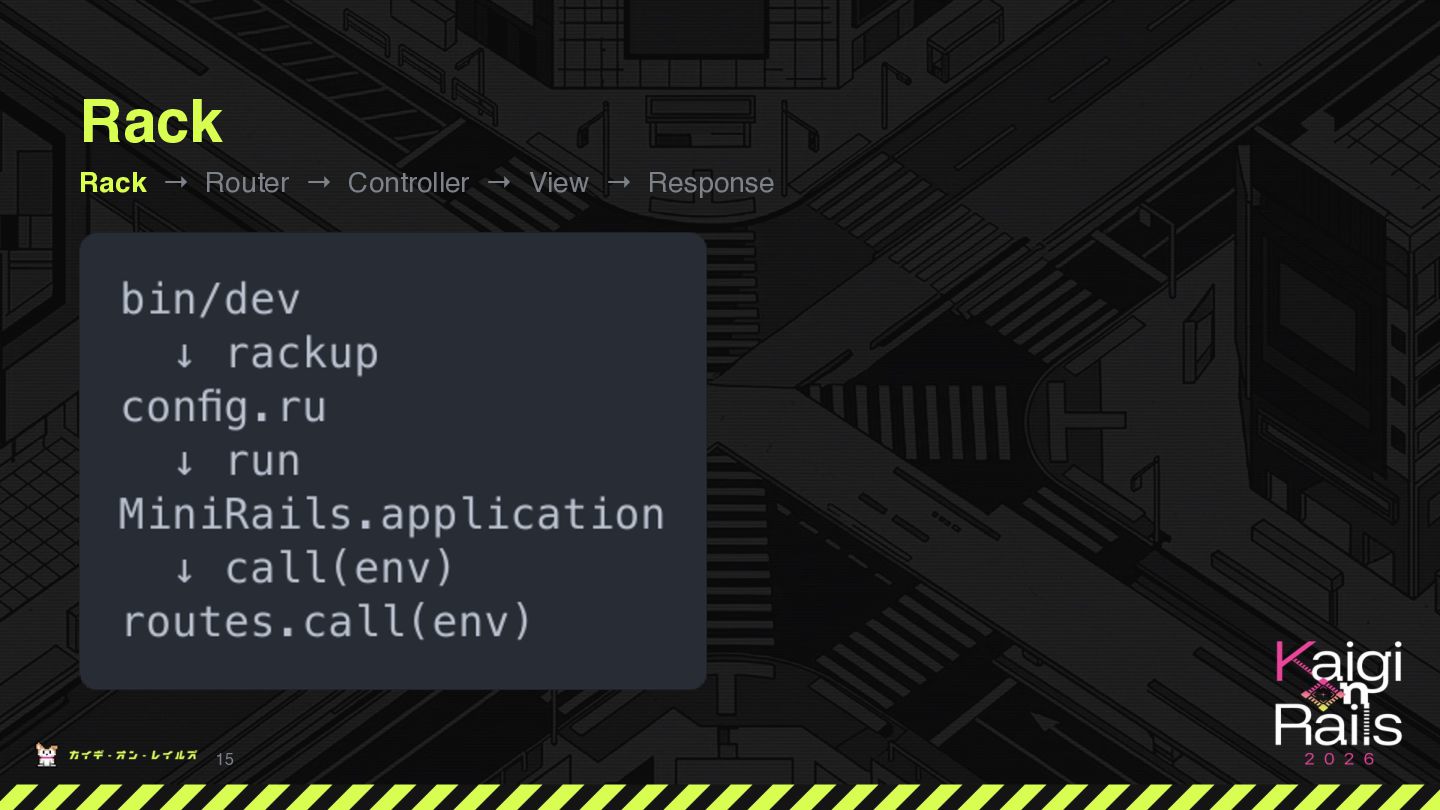

15. Rack Rack → Router → Controller → View → Response 15

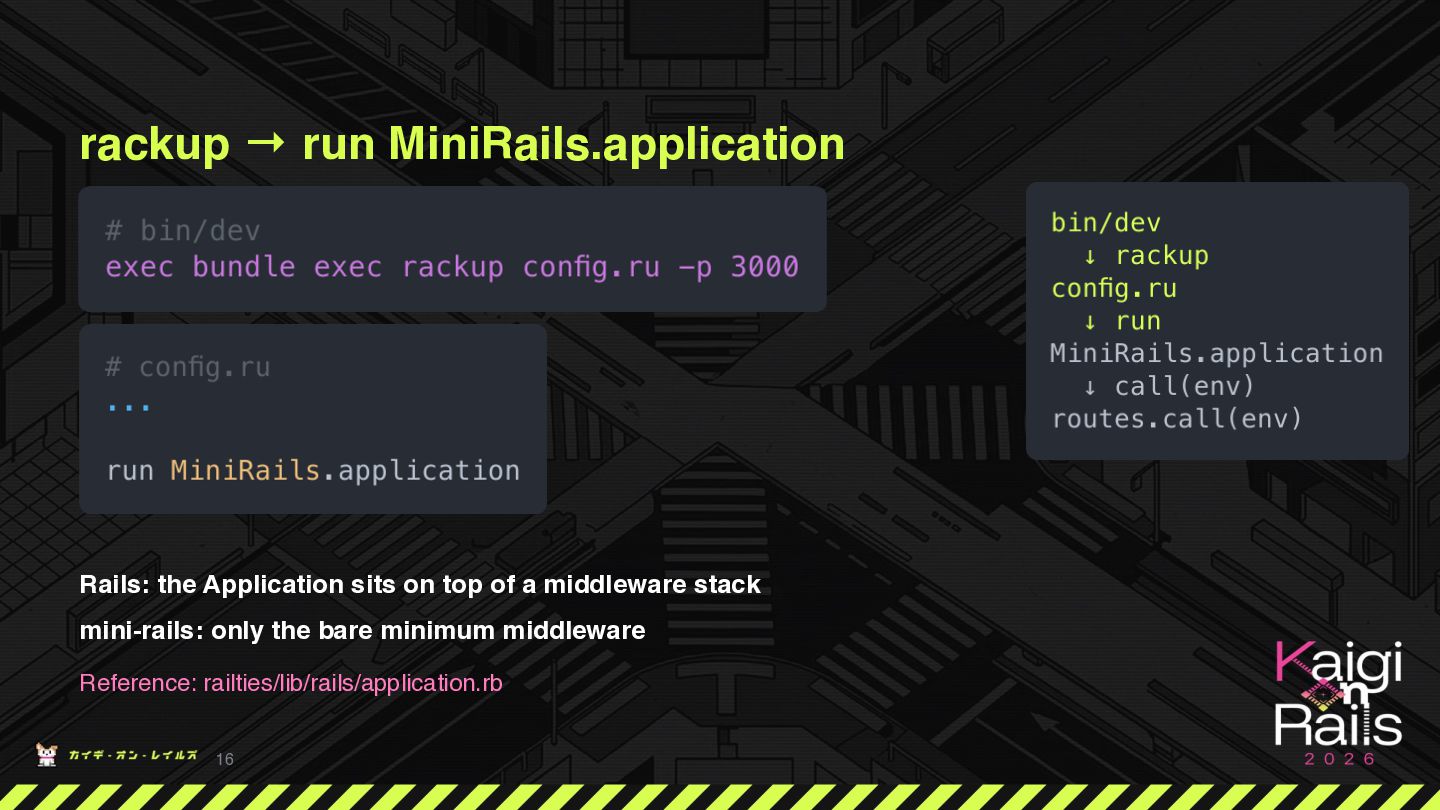

16. rackup → run MiniRails.application Rails: the Application sits on top of a middleware stack mini-rails: only the bare minimum middleware Reference: railties/lib/rails/application.rb 16

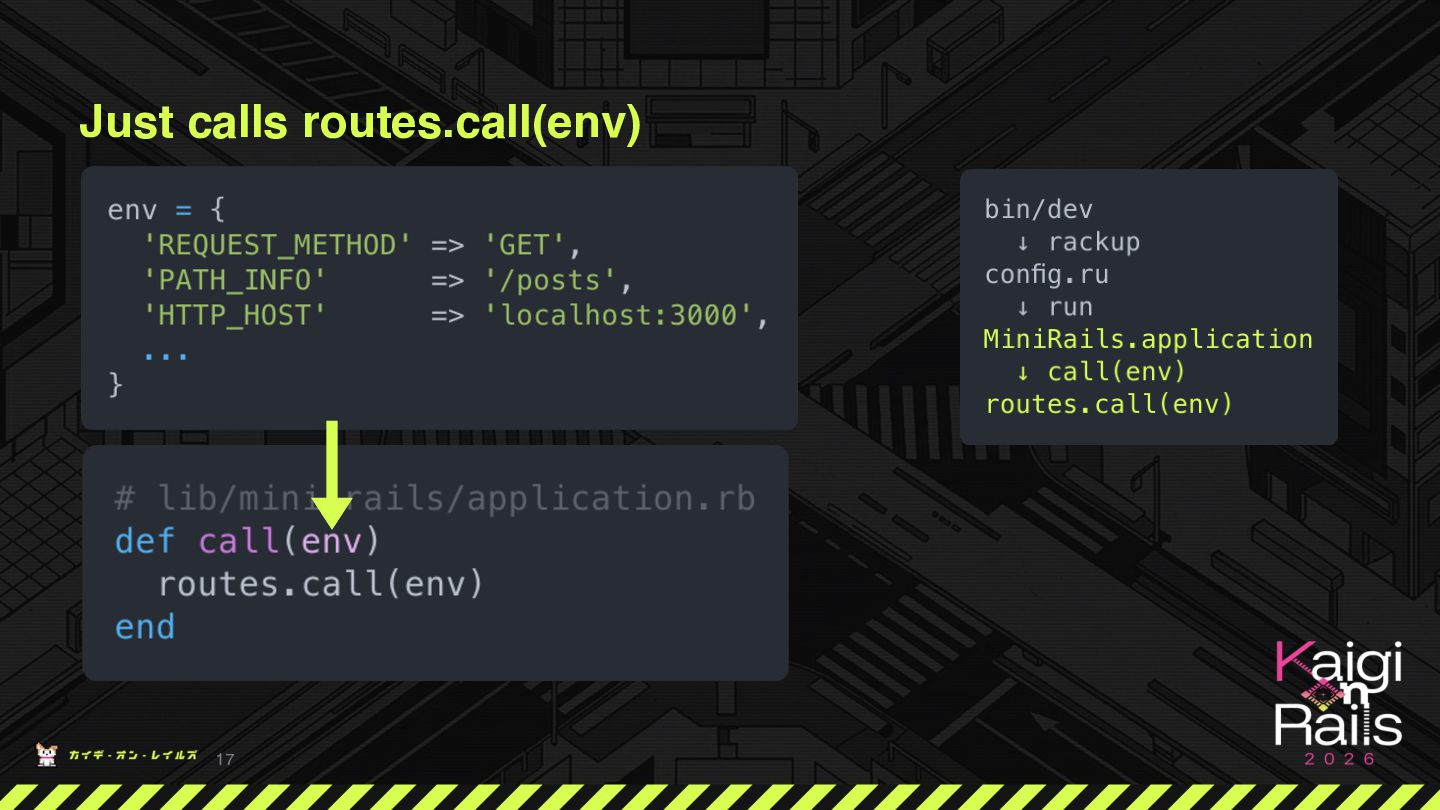

17. Just calls routes.call(env) 17

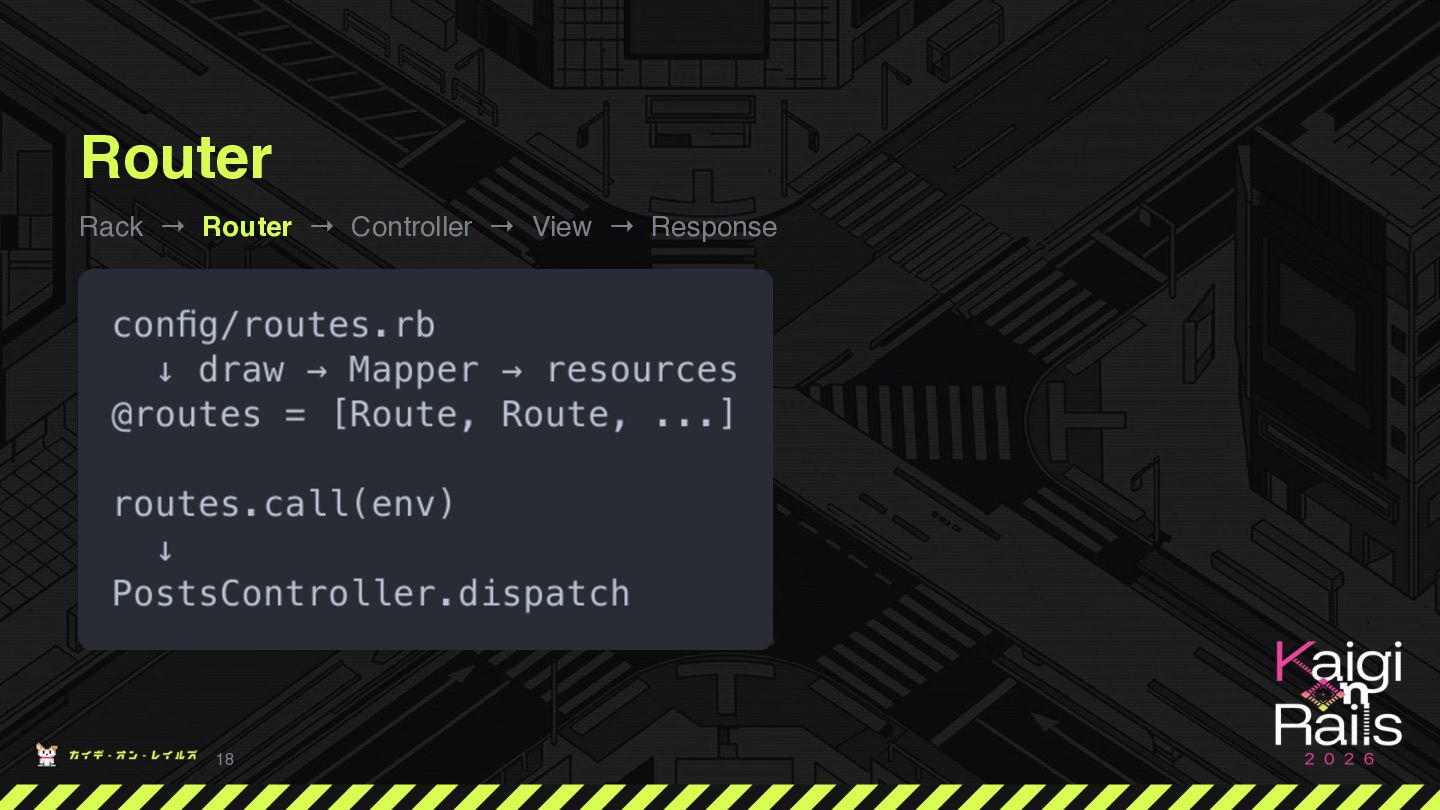

18. Router Rack → Router → Controller → View → Response 18

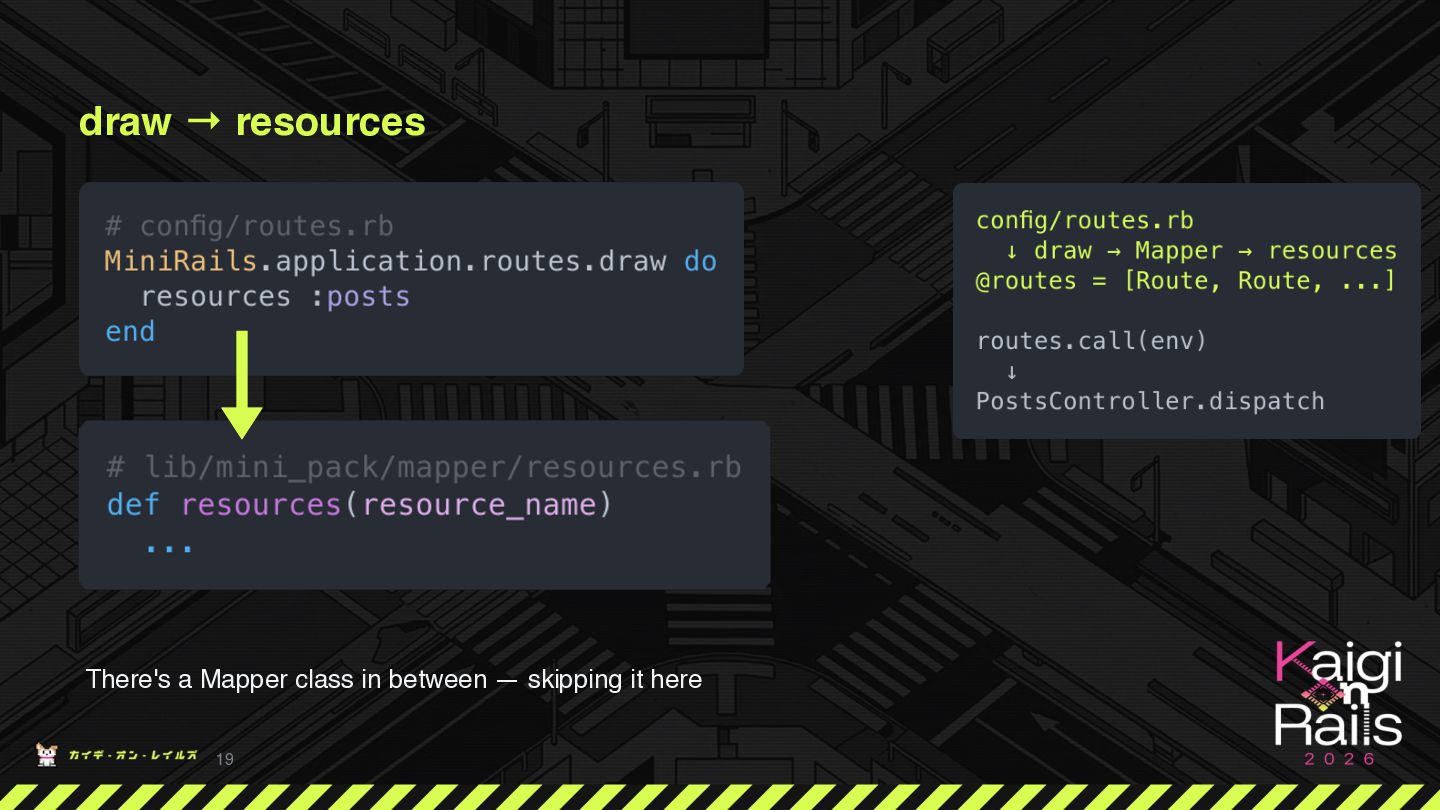

19. draw → resources There's a Mapper class in between — skipping it here 19

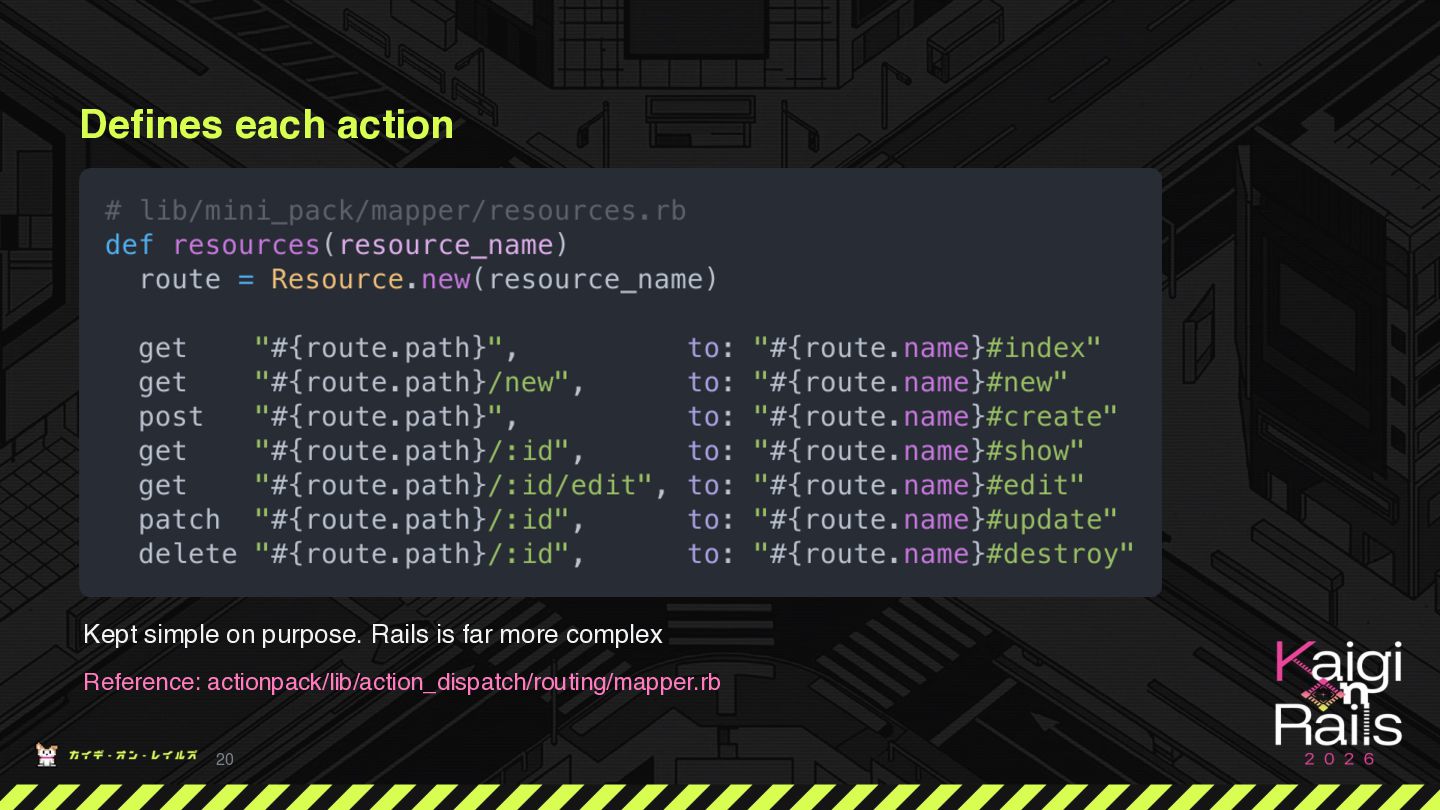

20. Defines each action Kept simple on purpose. Rails is far more complex Reference: actionpack/lib/action_dispatch/routing/mapper.rb 20

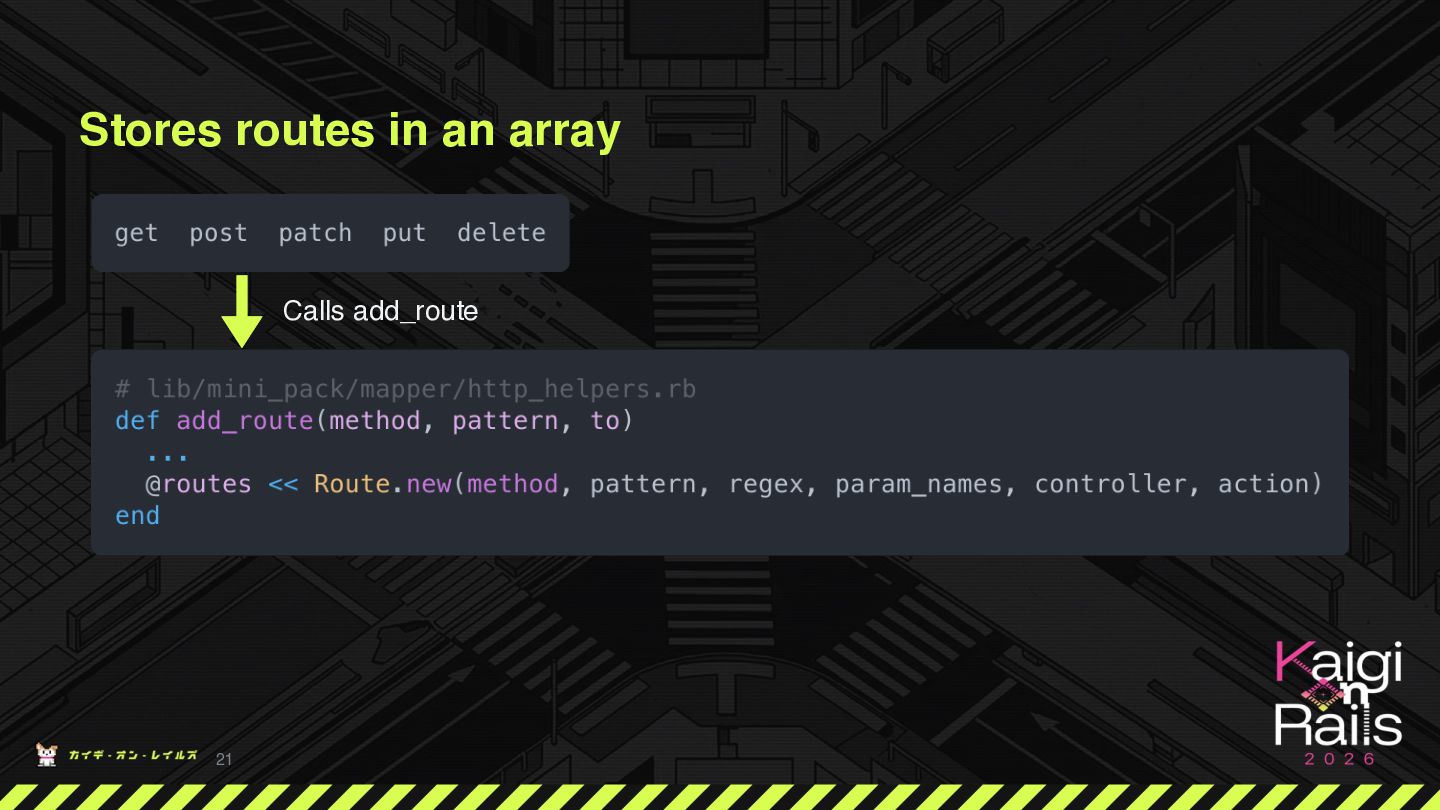

21. Stores routes in an array Calls add_route 21

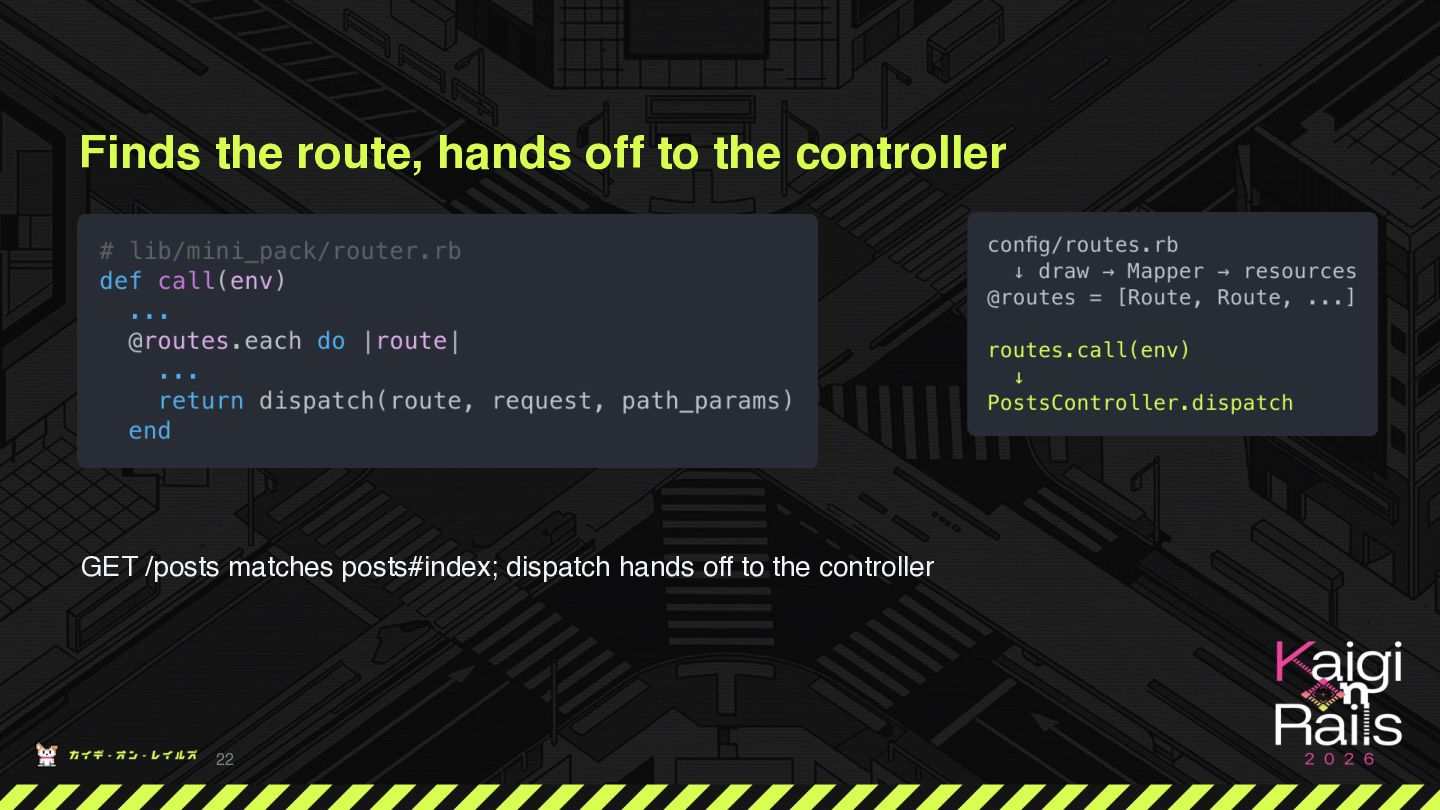

22. Finds the route, hands off to the controller GET /posts matches posts#index; dispatch hands off to the controller 22

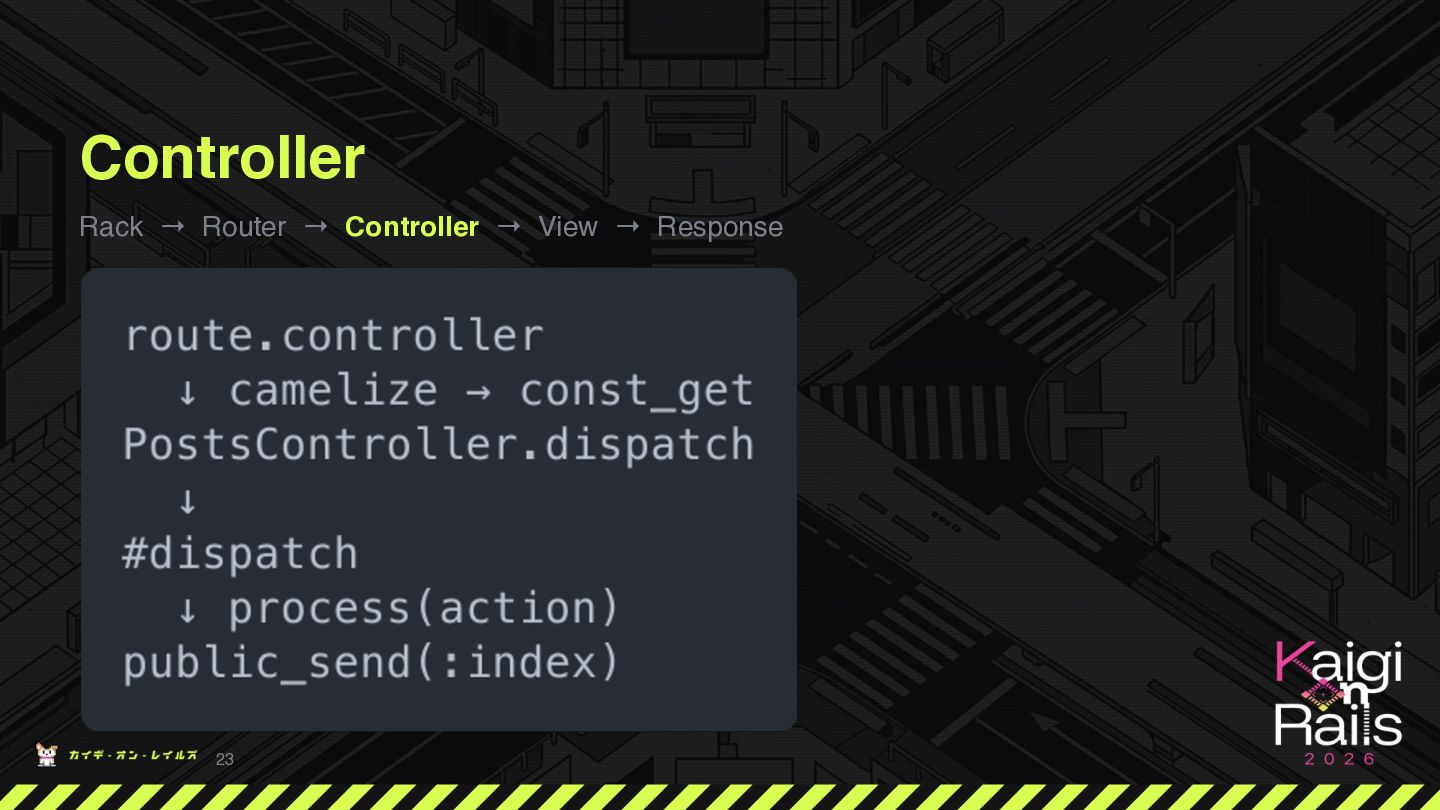

23. Controller Rack → Router → Controller → View → Response 23

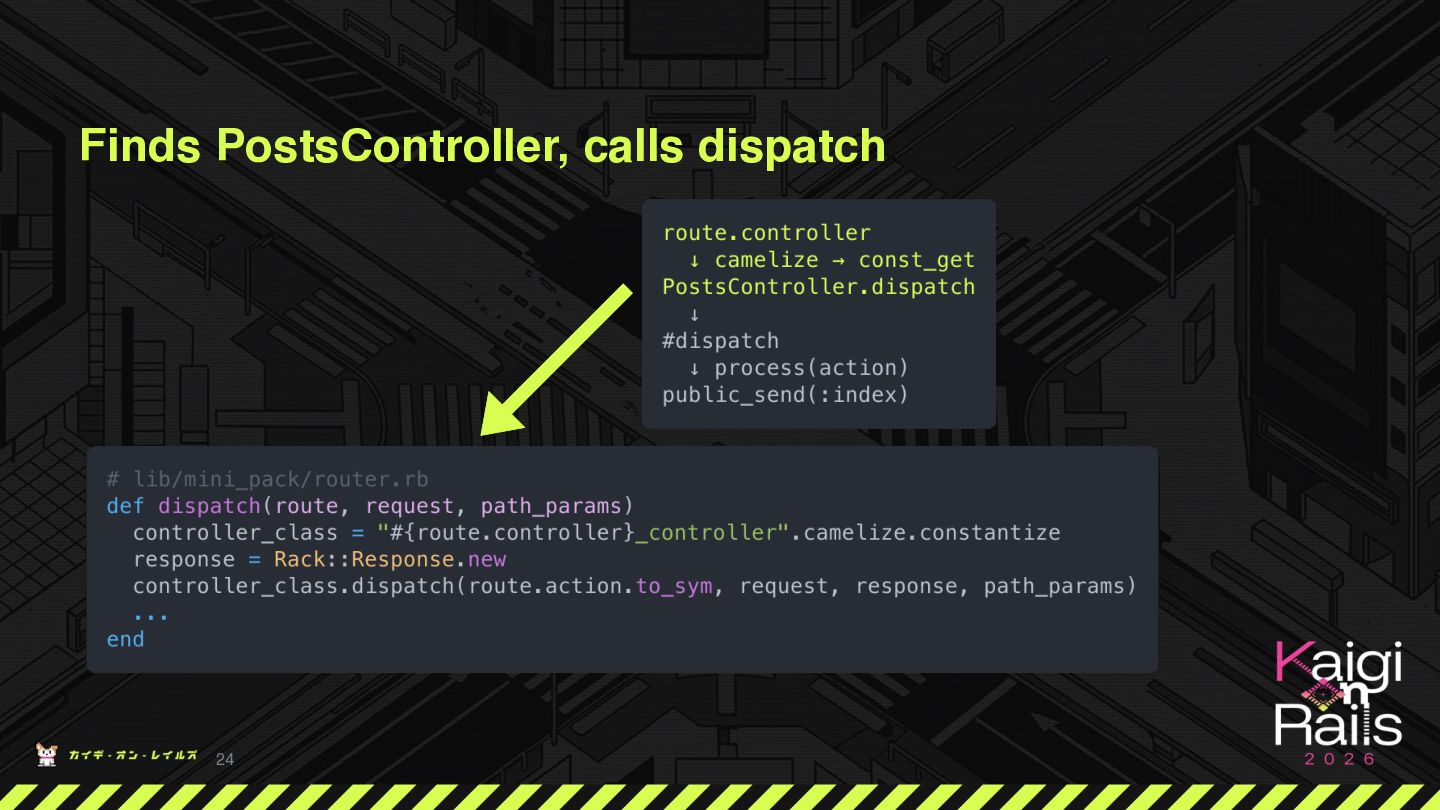

24. Finds PostsController, calls dispatch 24

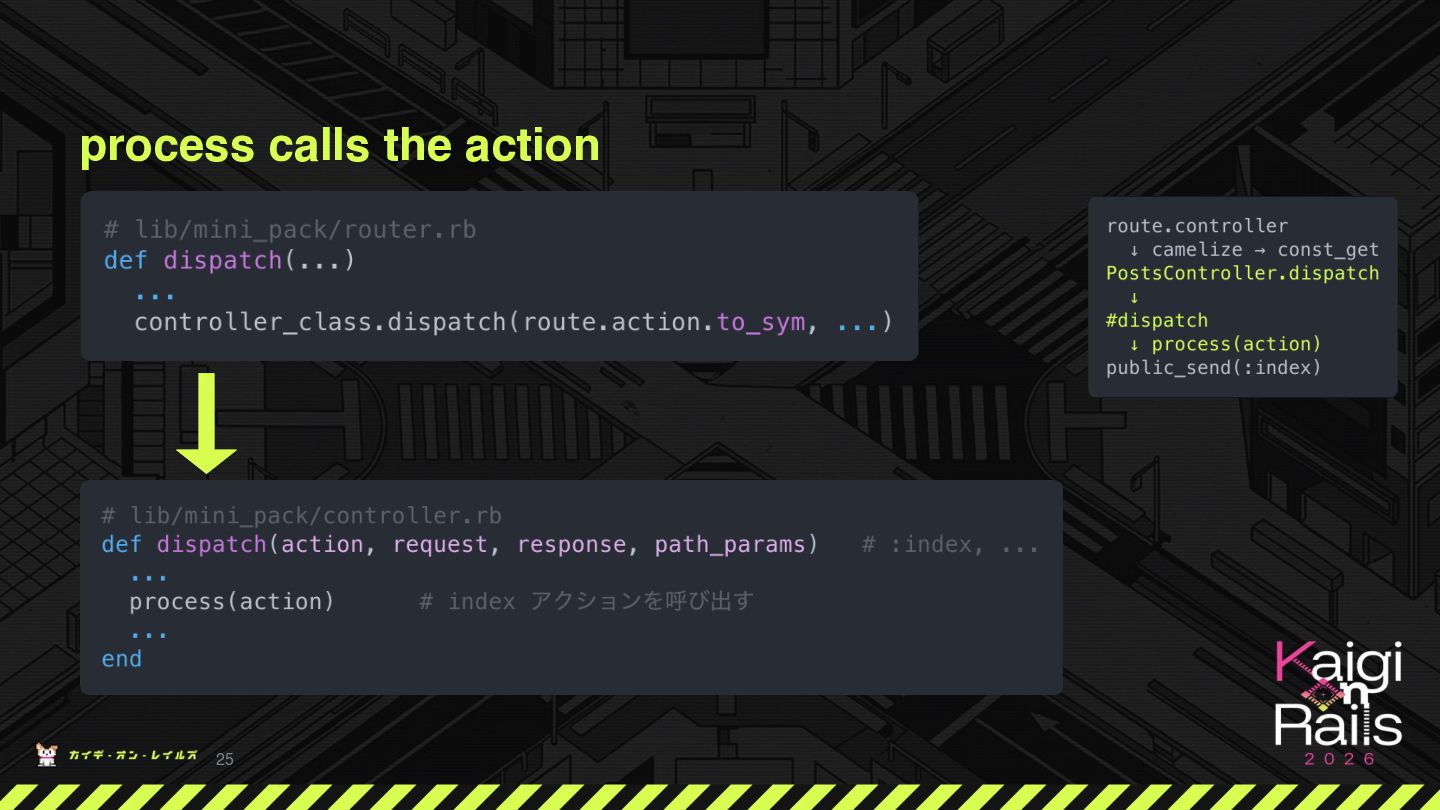

25. process calls the action 25

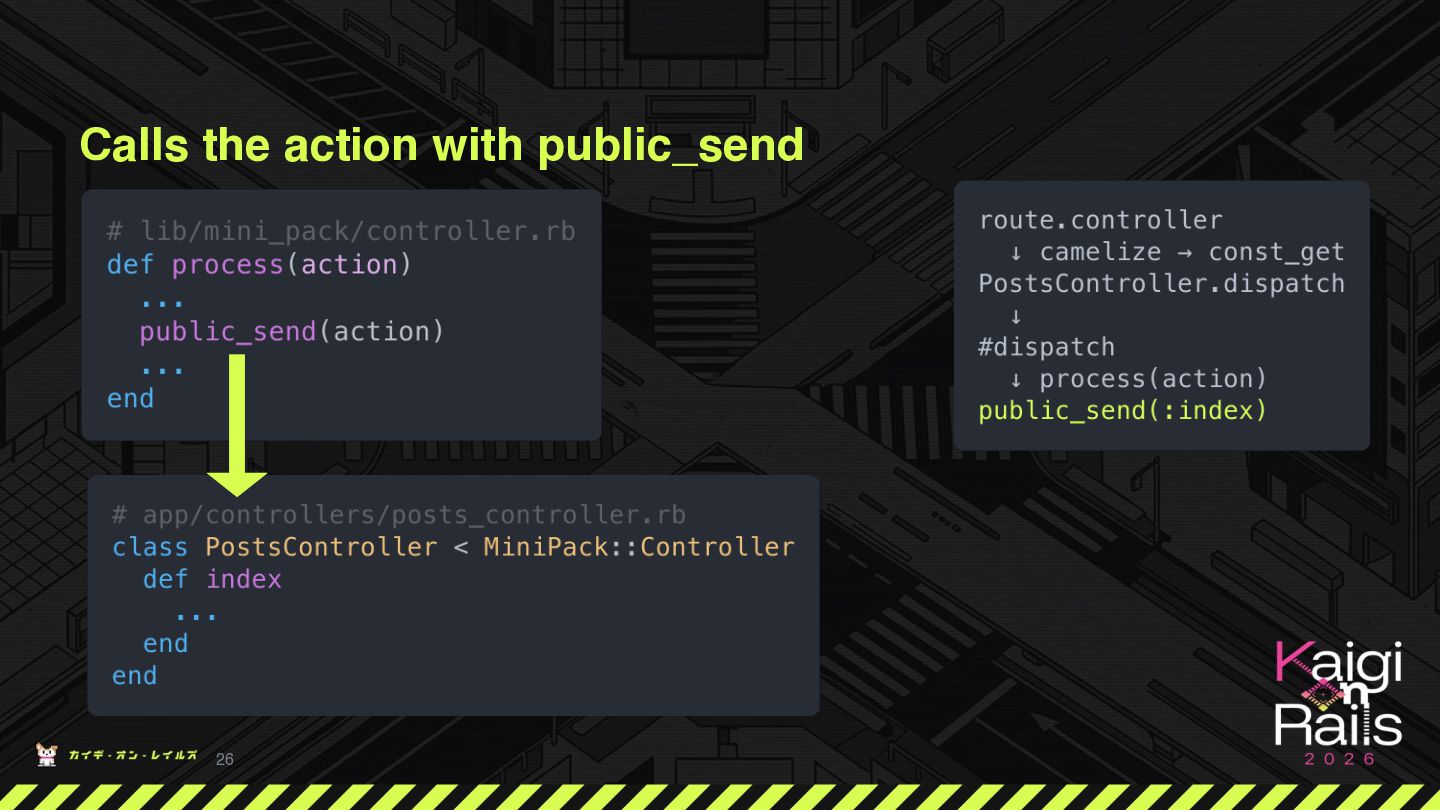

26. Calls the action with public_send 26

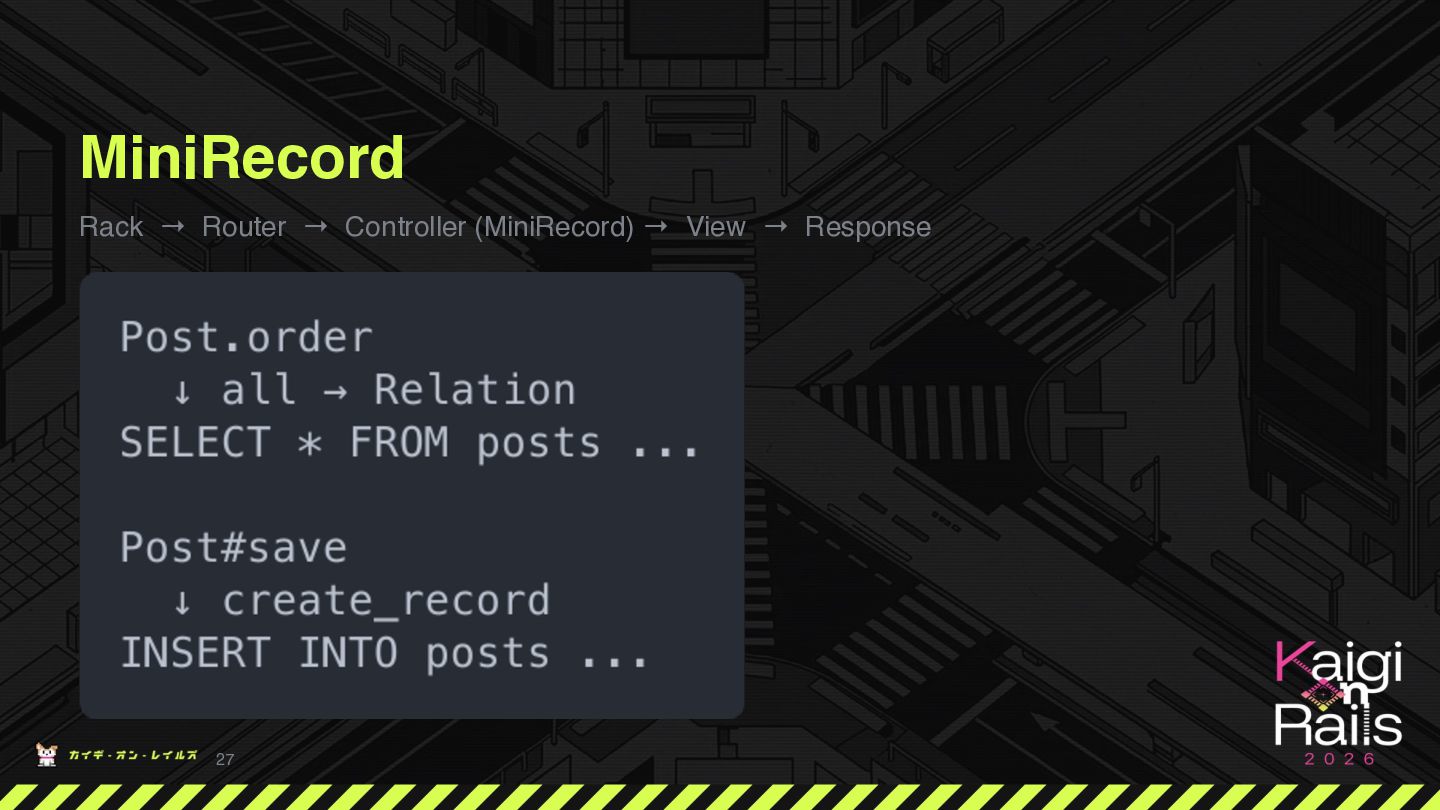

27. MiniRecord Rack → Router → Controller (MiniRecord) → View → Response 27

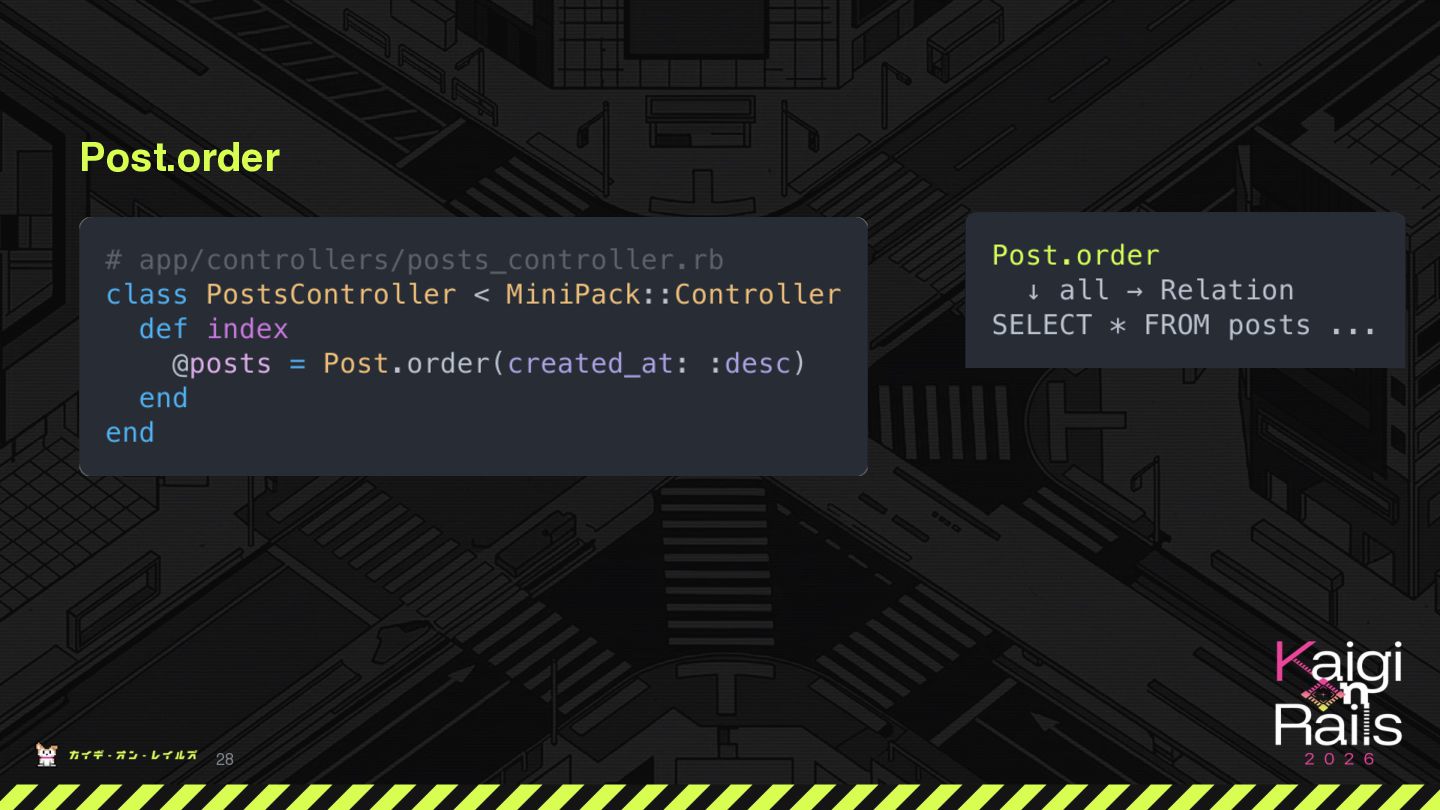

28. Post.order 28

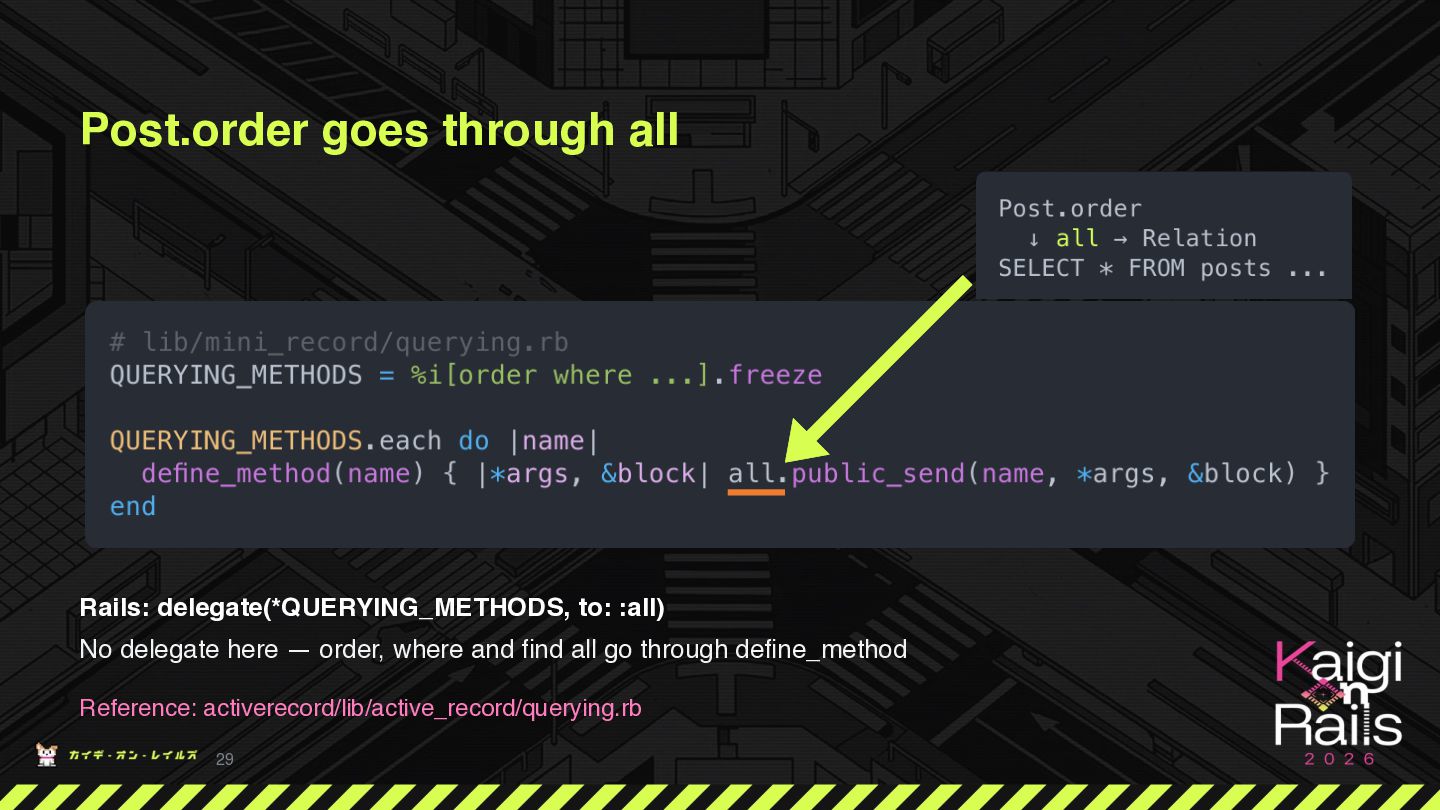

29. Post.order goes through all Rails: delegate(*QUERYING_METHODS, to: :all) No delegate here — order, where and find all go through define_method Reference: activerecord/lib/active_record/querying.rb 29

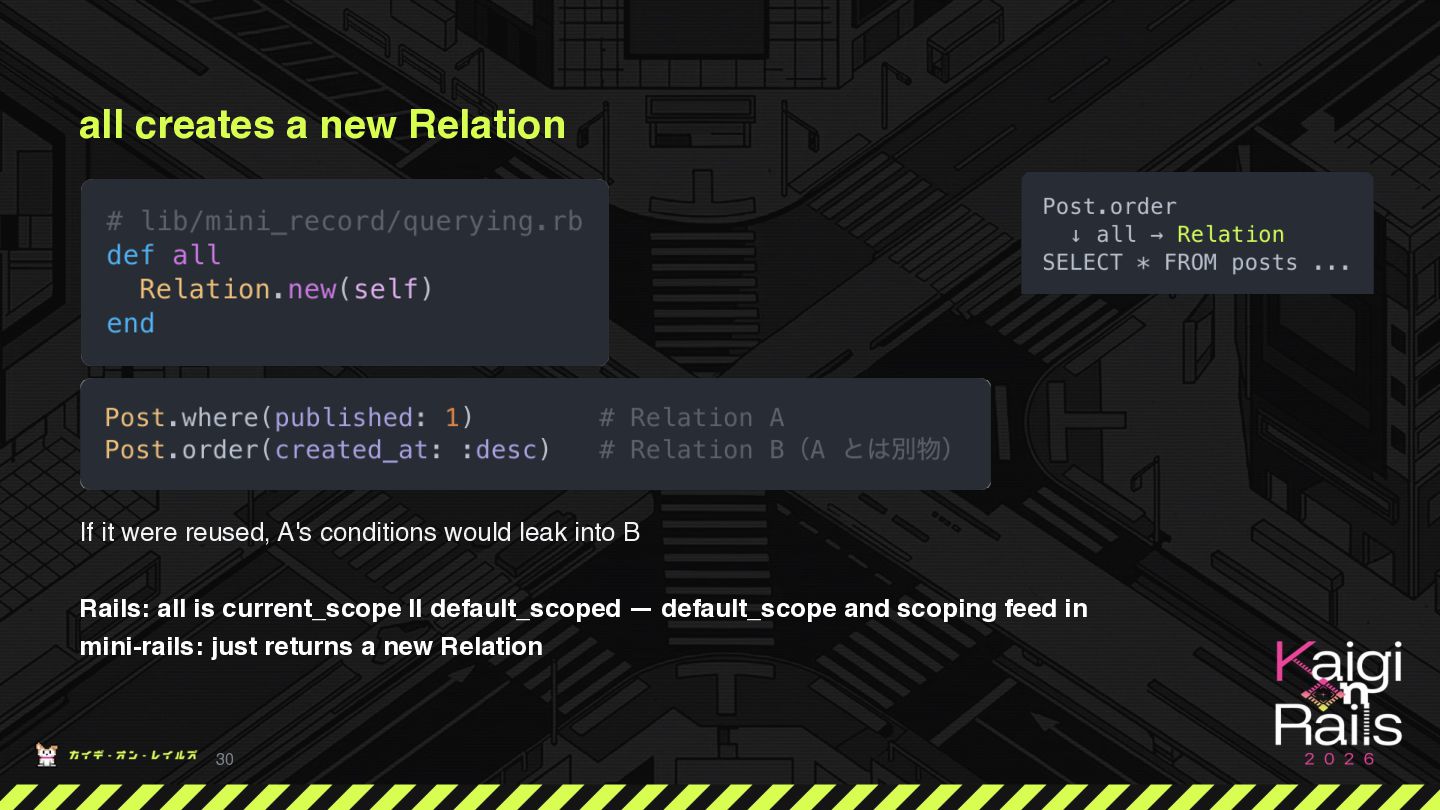

30. all creates a new Relation If it were reused, A's conditions would leak into B Rails: all is current_scope || default_scoped — default_scope and scoping feed in mini-rails: just returns a new Relation 30

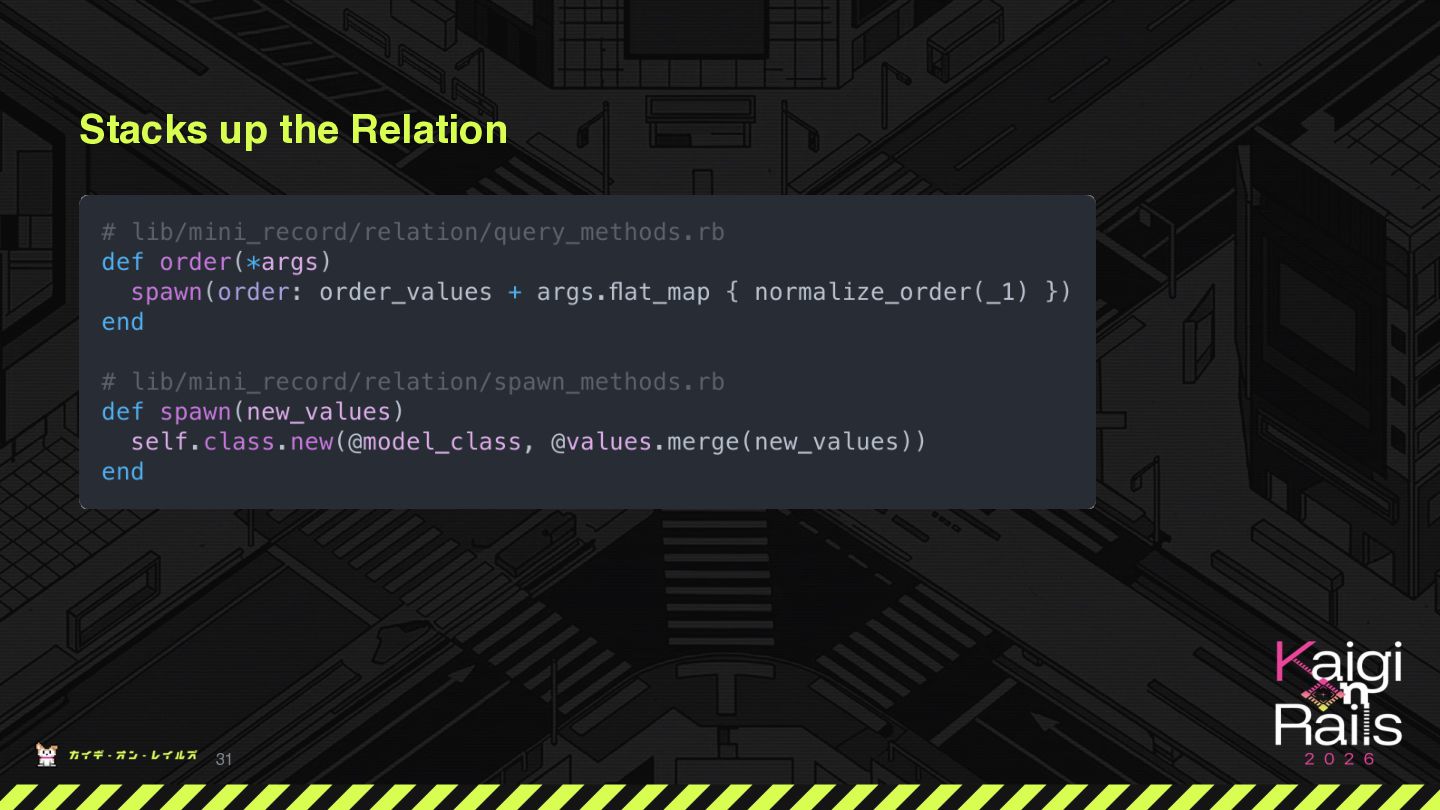

31. Stacks up the Relation 31

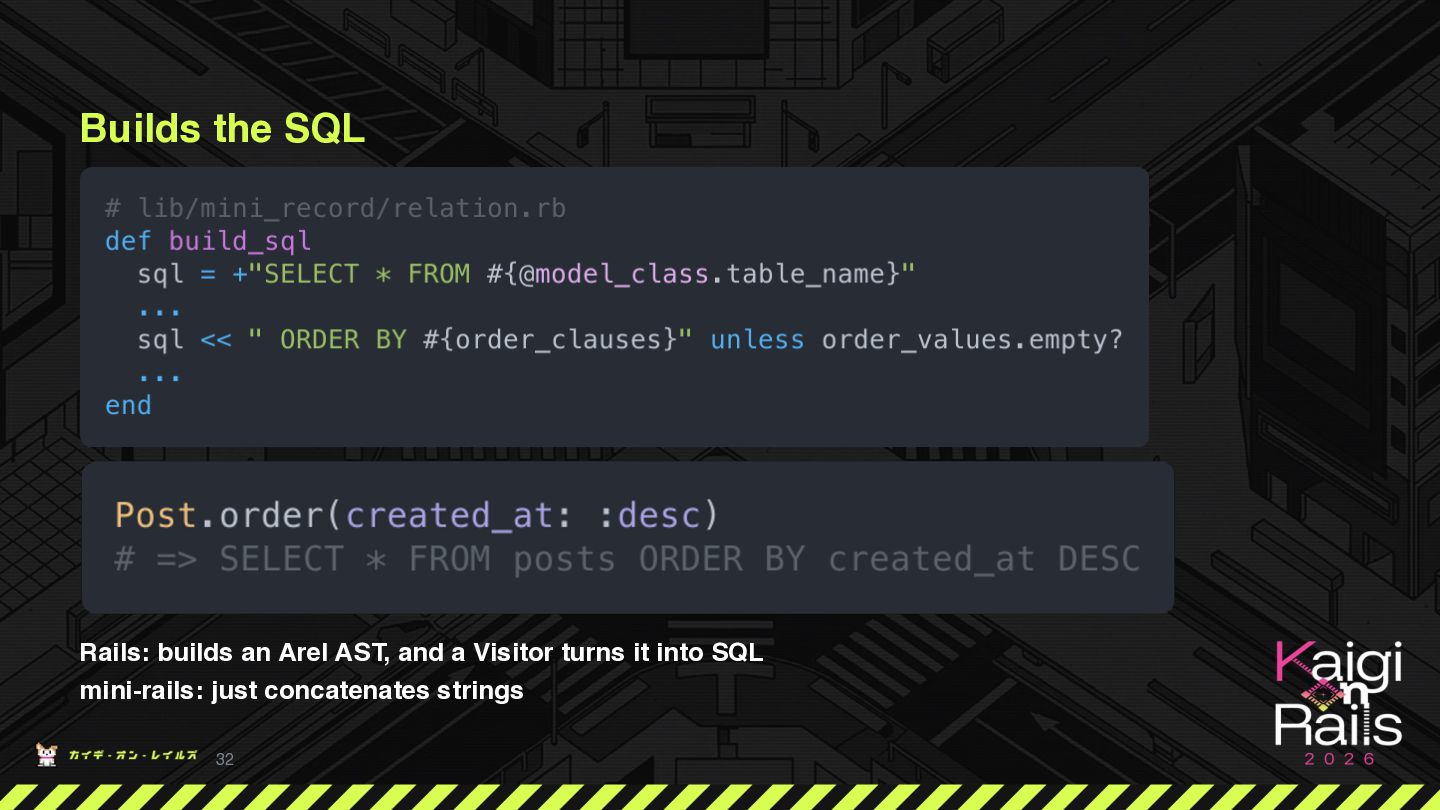

32. Builds the SQL Rails: builds an Arel AST, and a Visitor turns it into SQL mini-rails: just concatenates strings 32

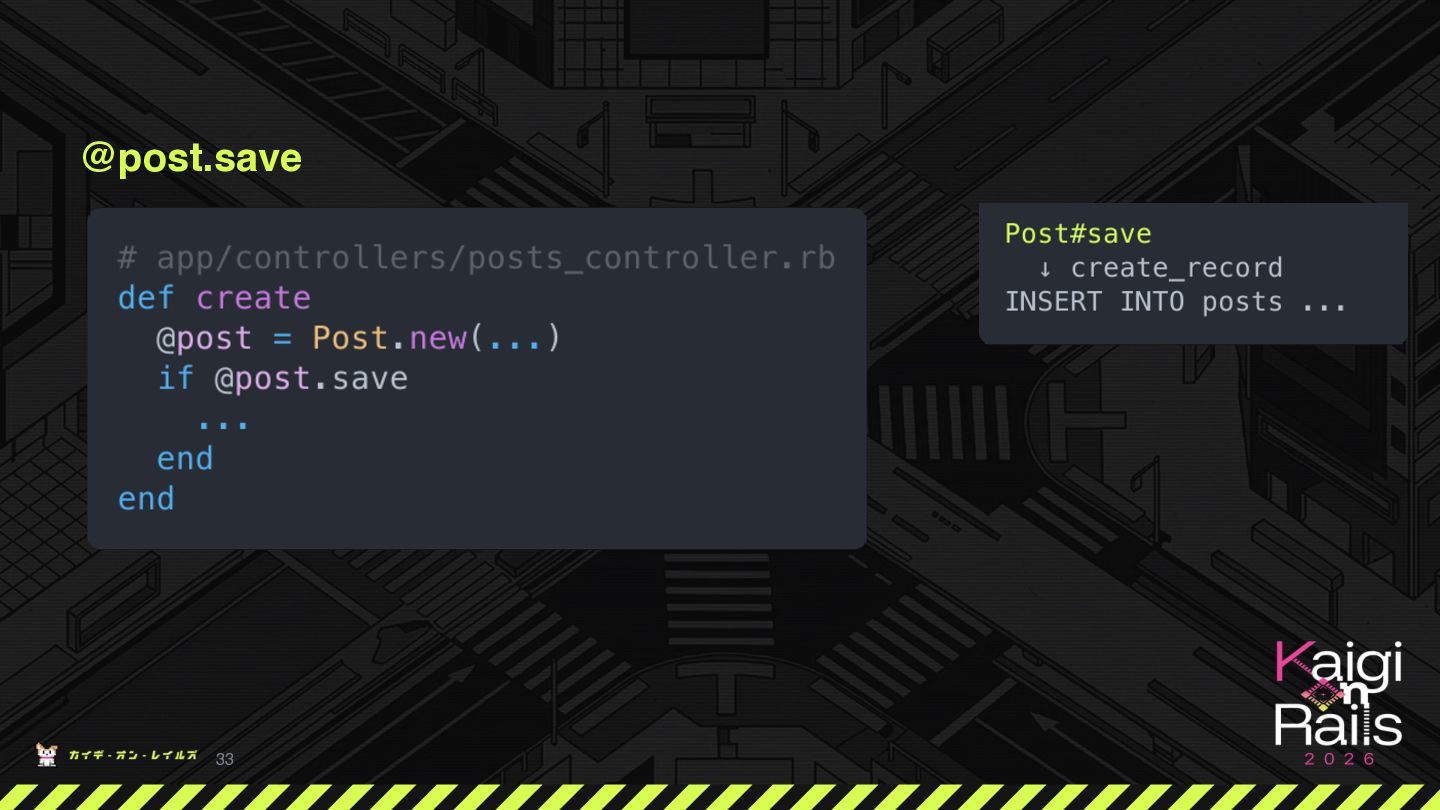

33. @post.save 33

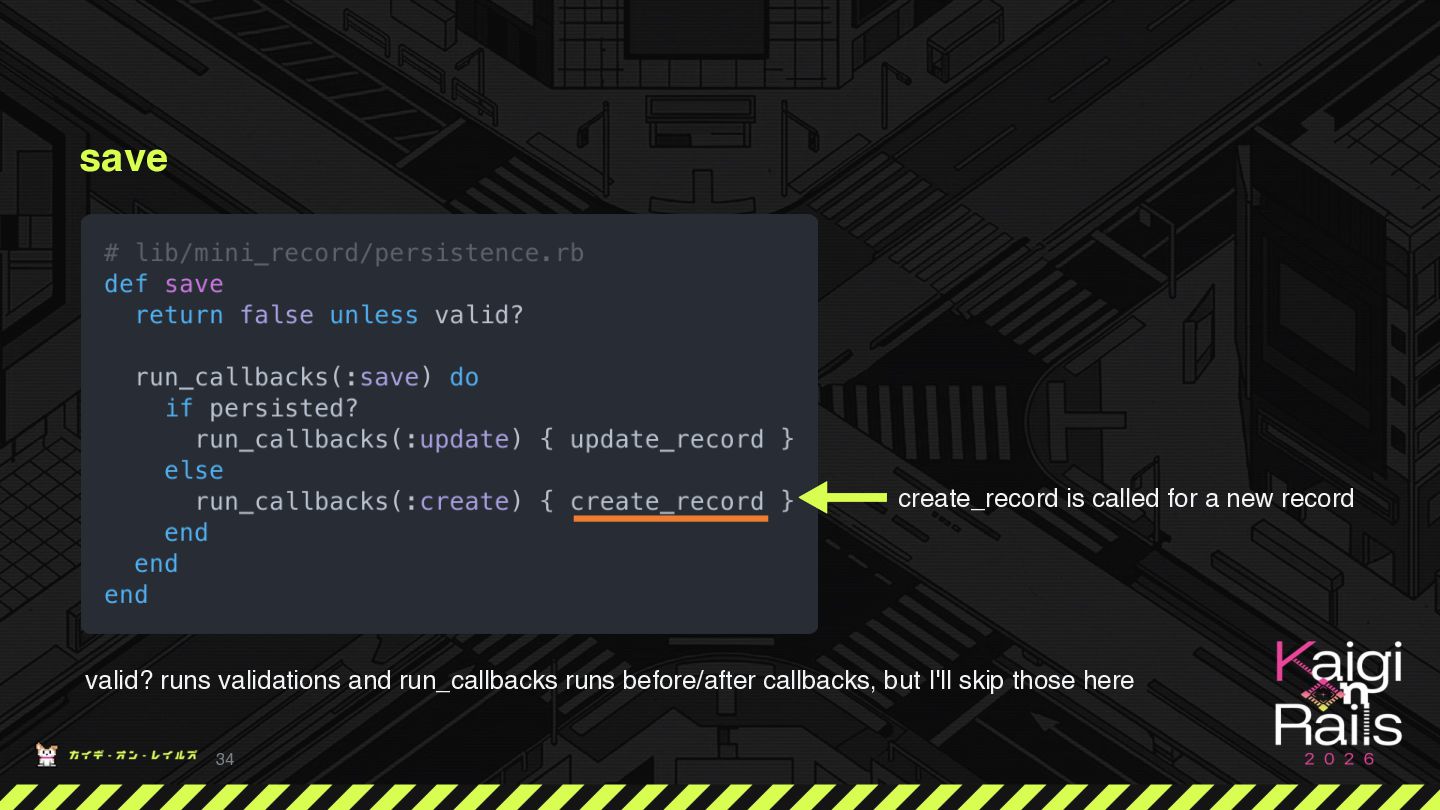

34. save create_record is called for a new record valid? runs validations and run_callbacks runs before/after callbacks, but I'll skip those here 34

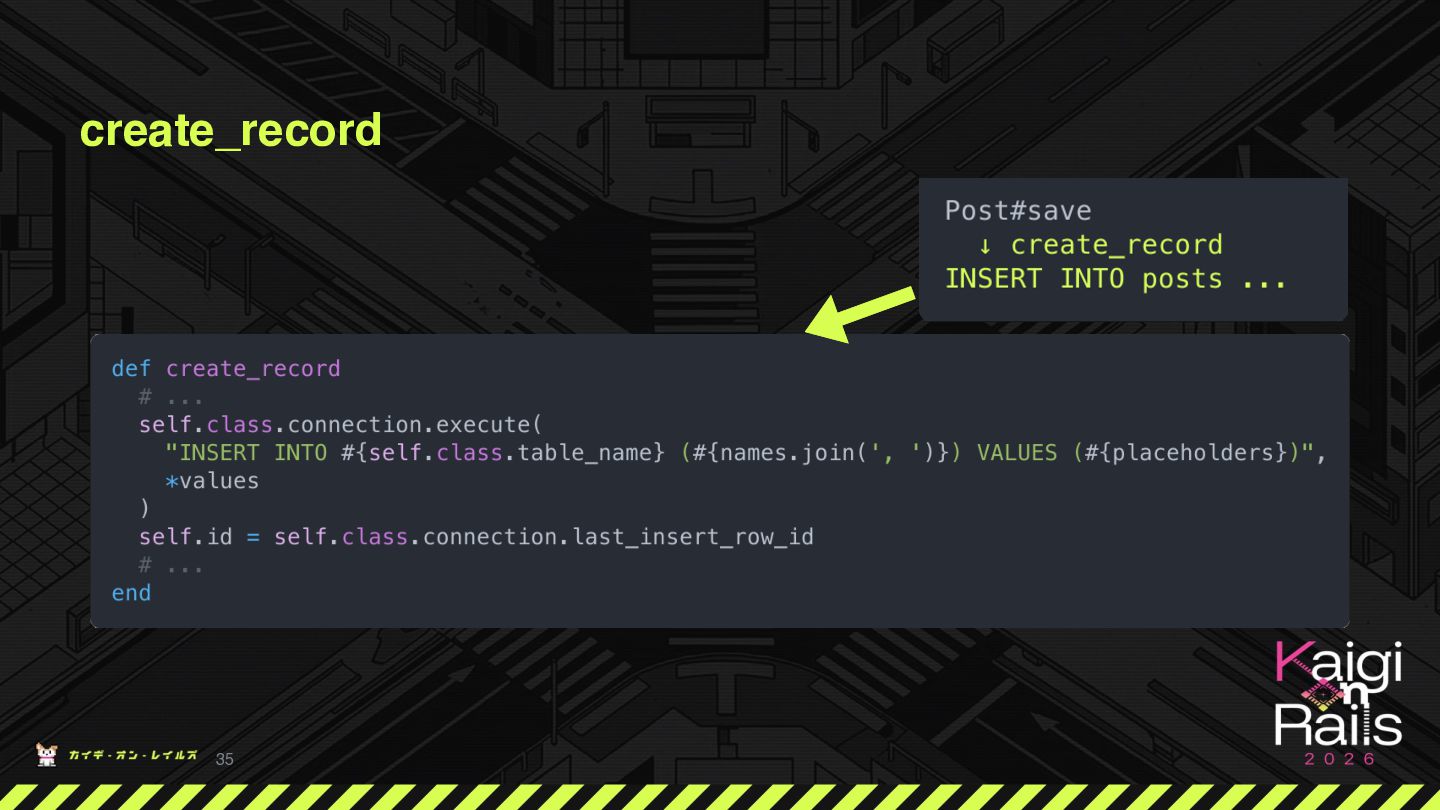

35. create_record 35

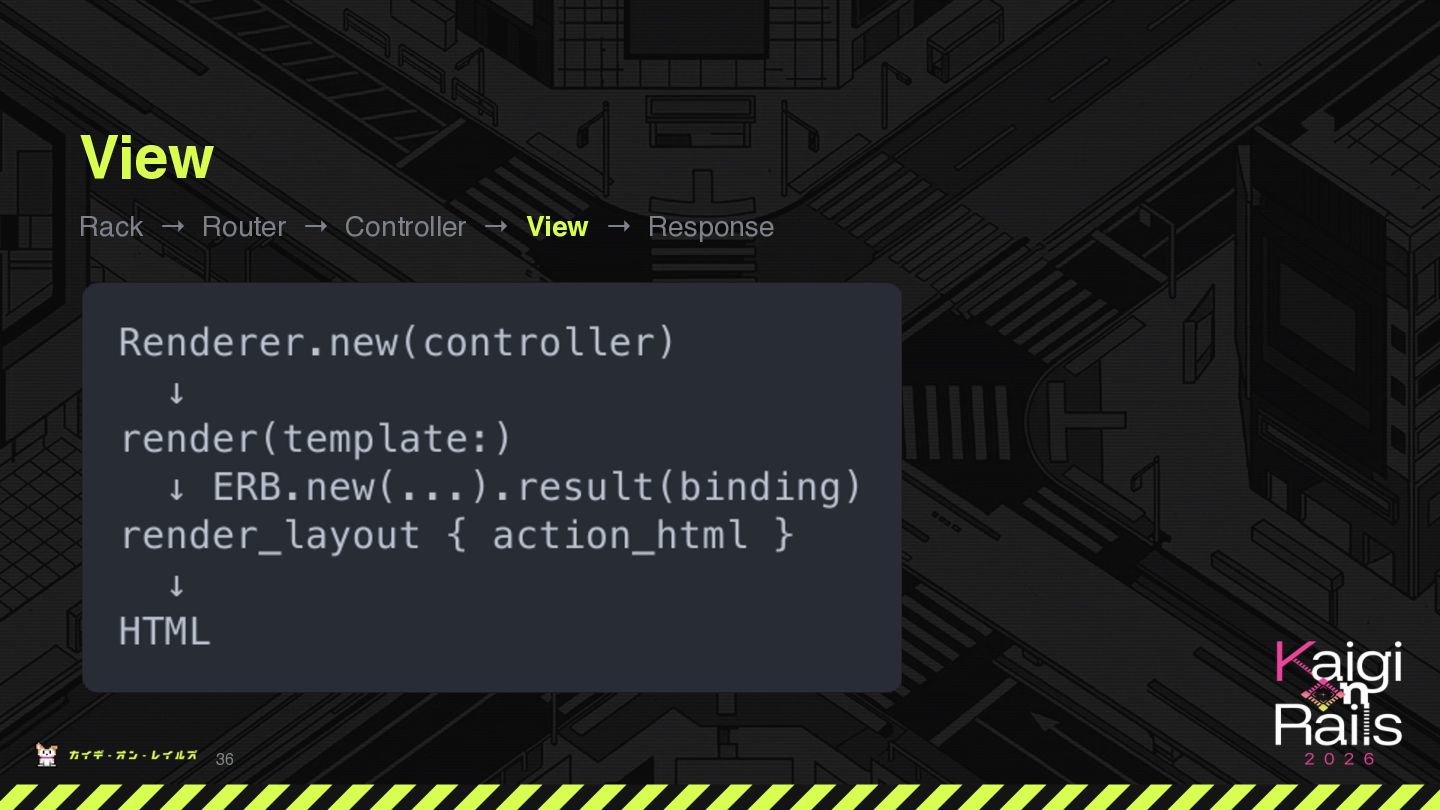

36. View Rack → Router → Controller → View → Response 36

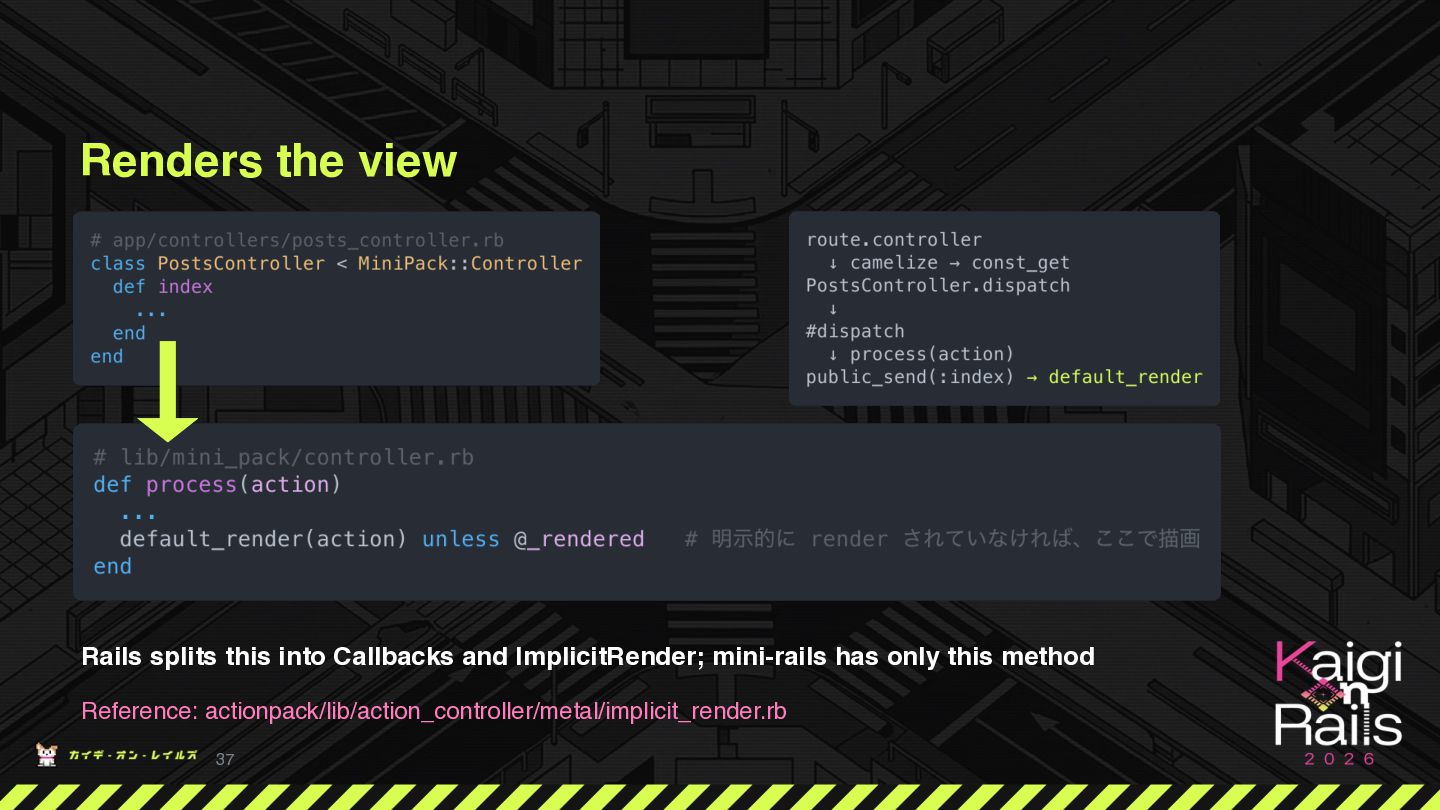

37. Renders the view Rails splits this into Callbacks and ImplicitRender; mini-rails has only this method Reference: actionpack/lib/action_controller/metal/implicit_render.rb 37

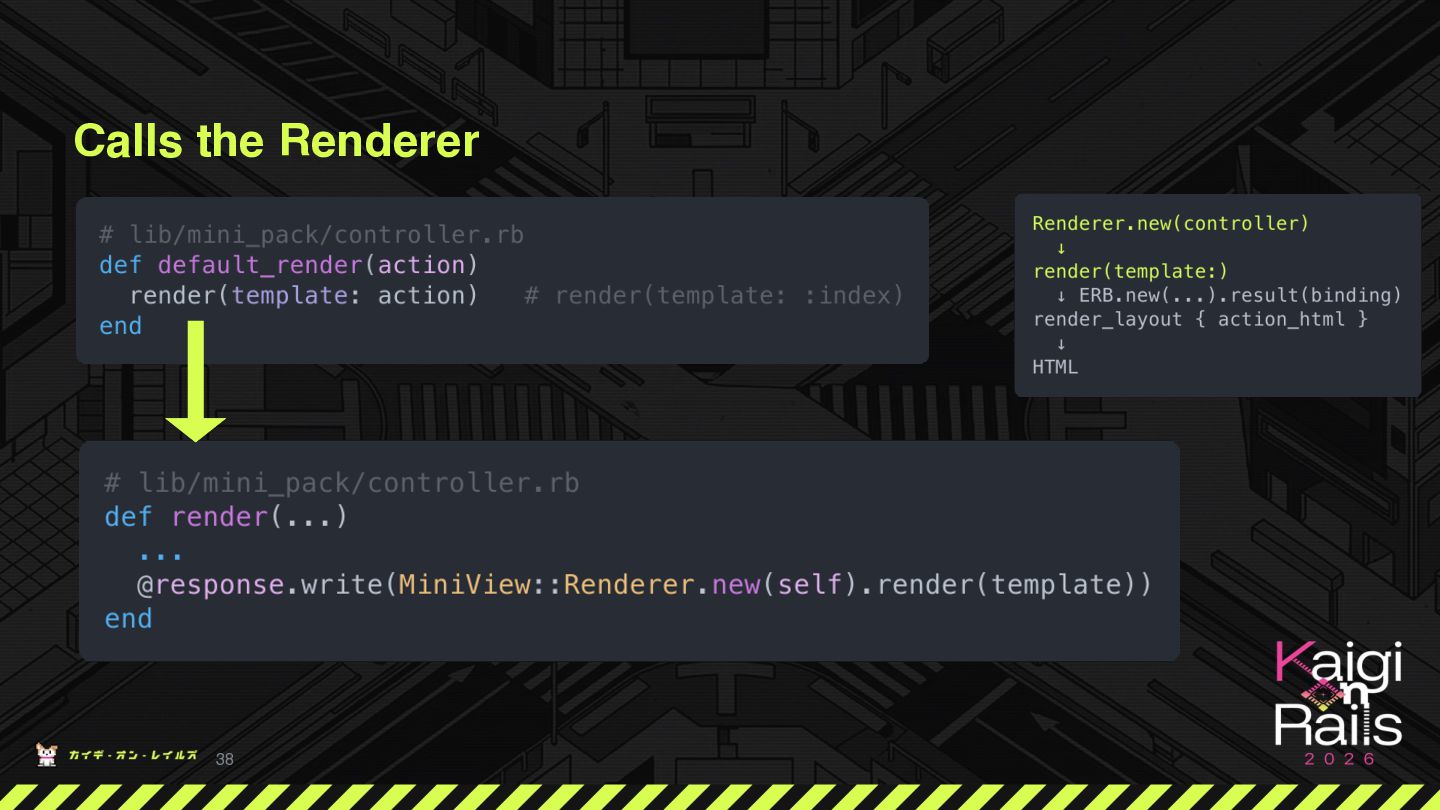

38. Calls the Renderer 38

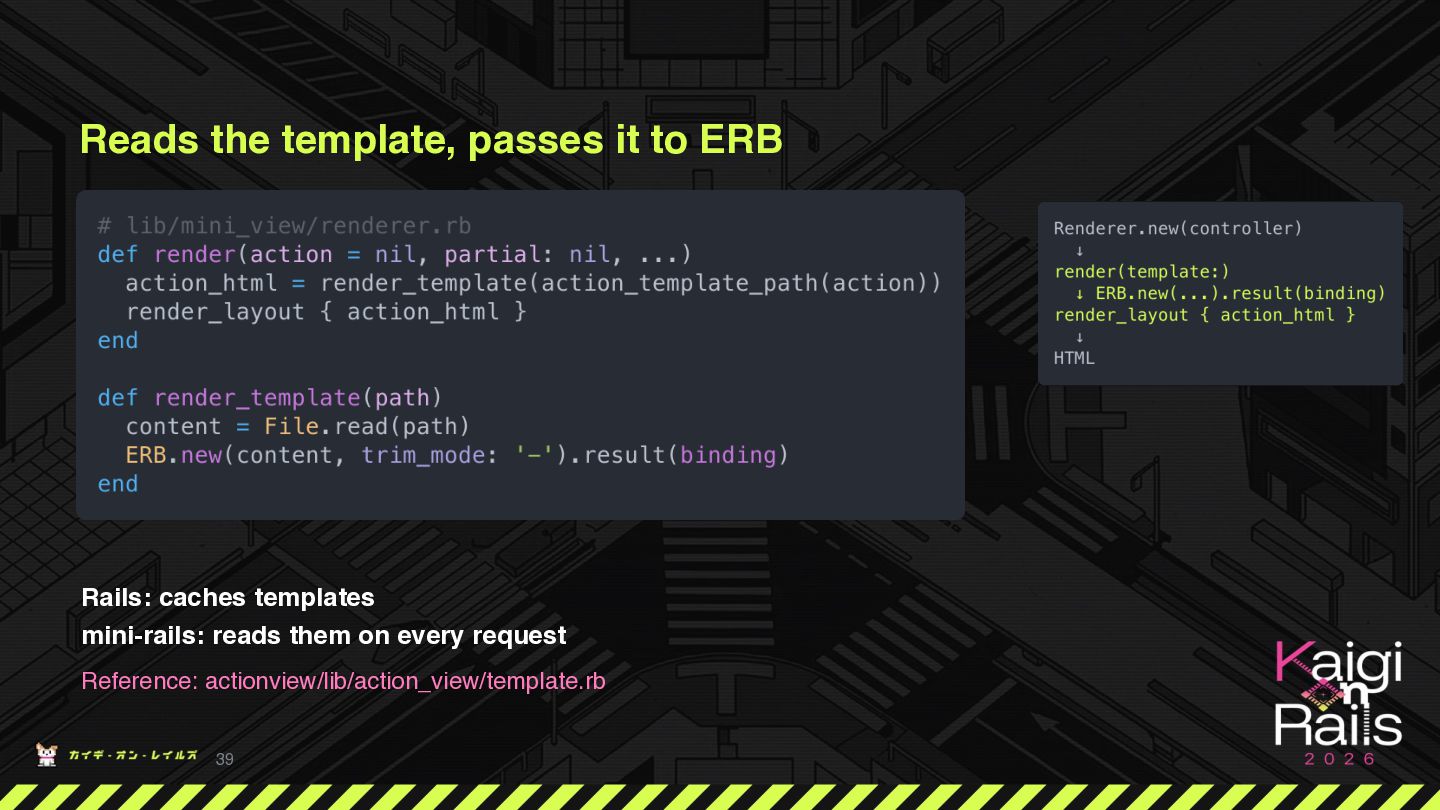

39. Reads the template, passes it to ERB Rails: caches templates mini-rails: reads them on every request Reference: actionview/lib/action_view/template.rb 39

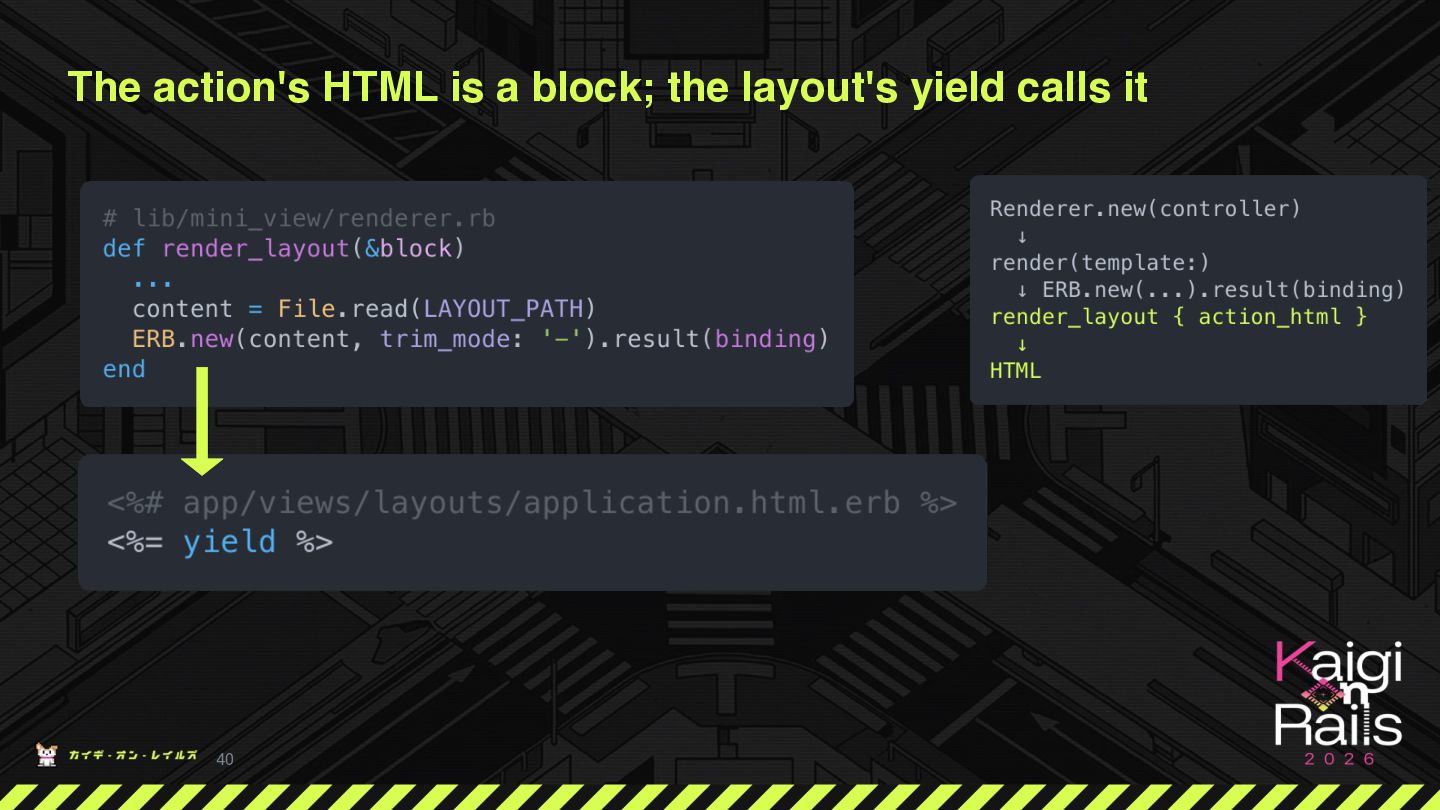

40. The action's HTML is a block; the layout's yield calls it 40

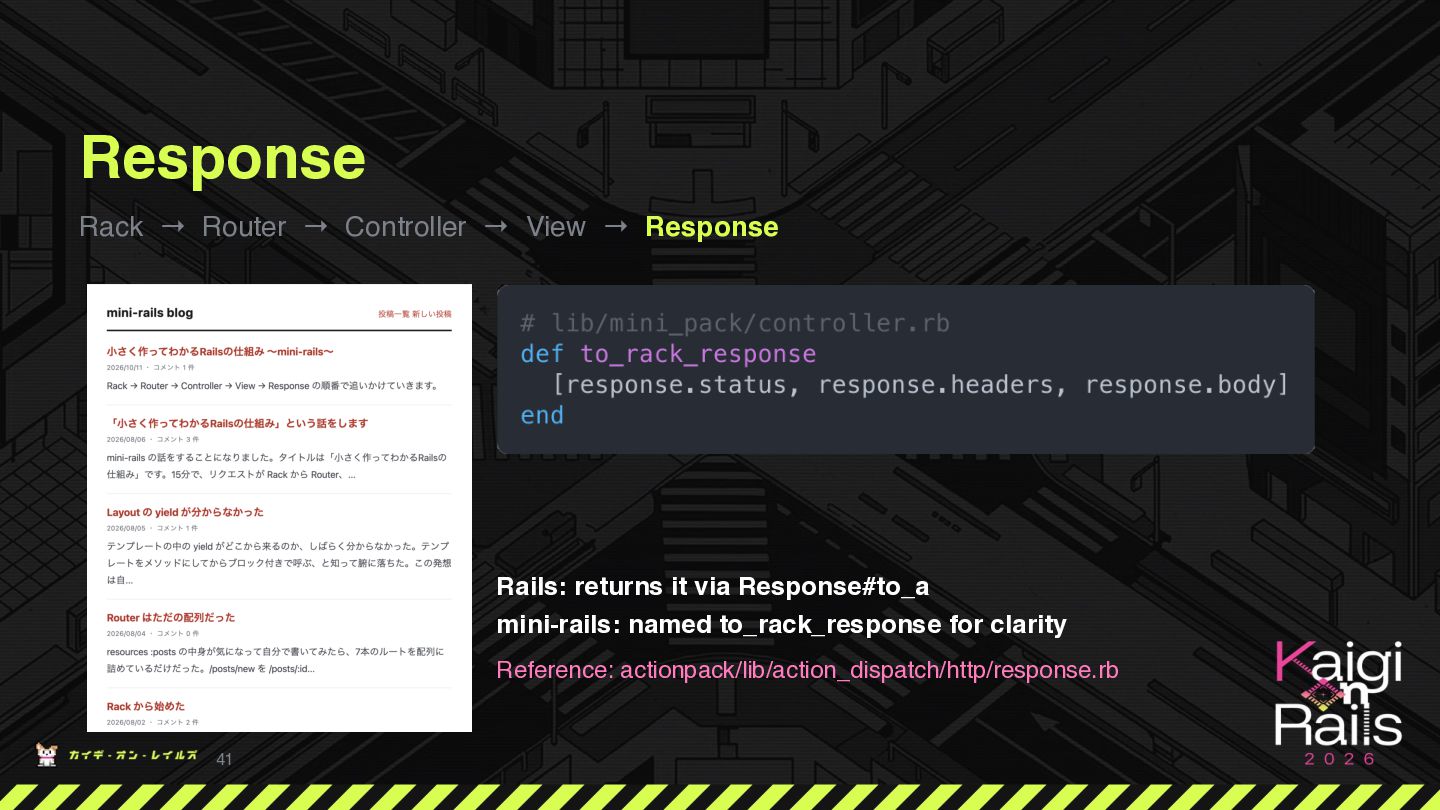

41. Response Rack → Router → Controller → View → Response Rails: returns it via Response#to_a mini-rails: named to_rack_response for clarity Reference: actionpack/lib/action_dispatch/http/response.rb 41

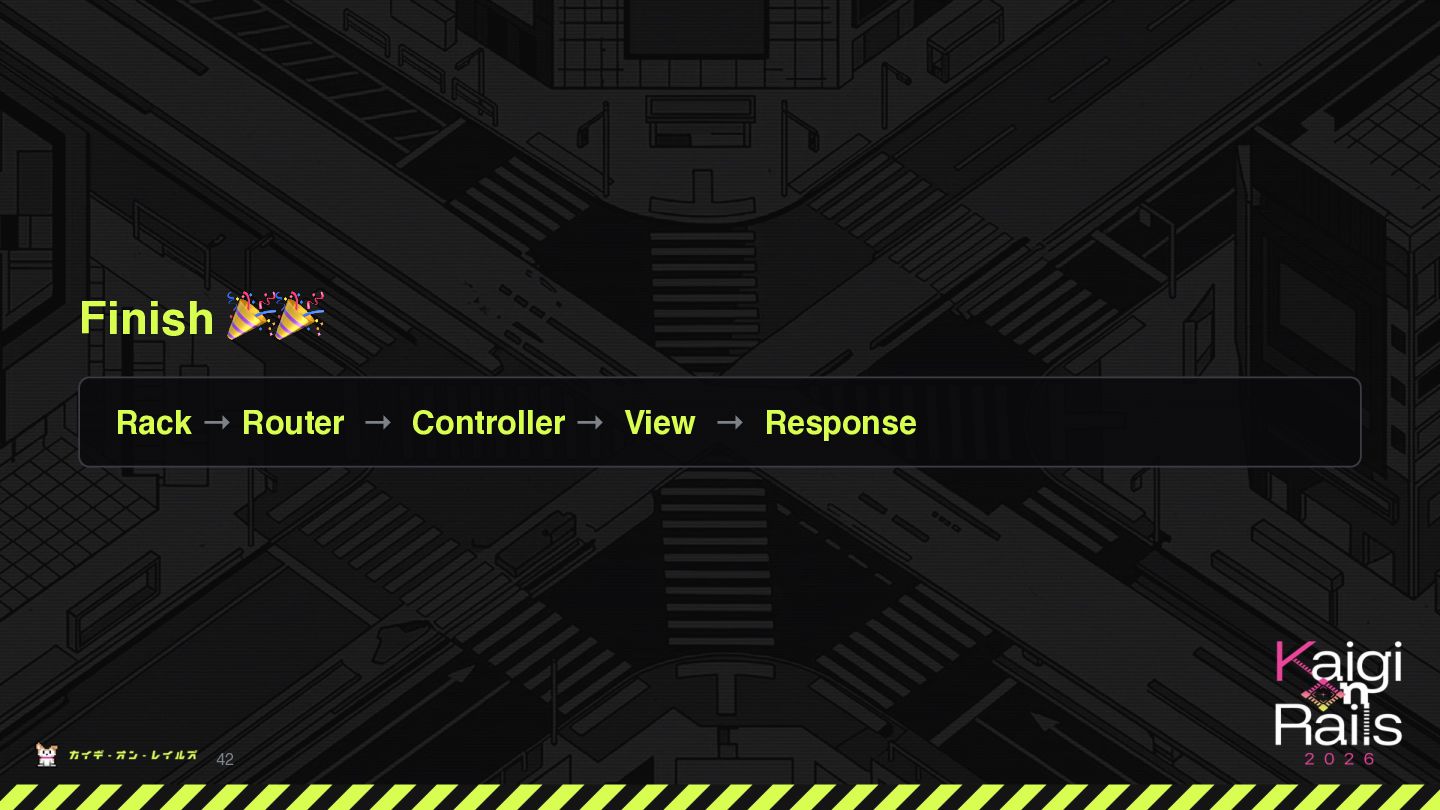

42. Finish 🎉🎉 Rack → Router → Controller → View → Response 42
43. Other Features 43

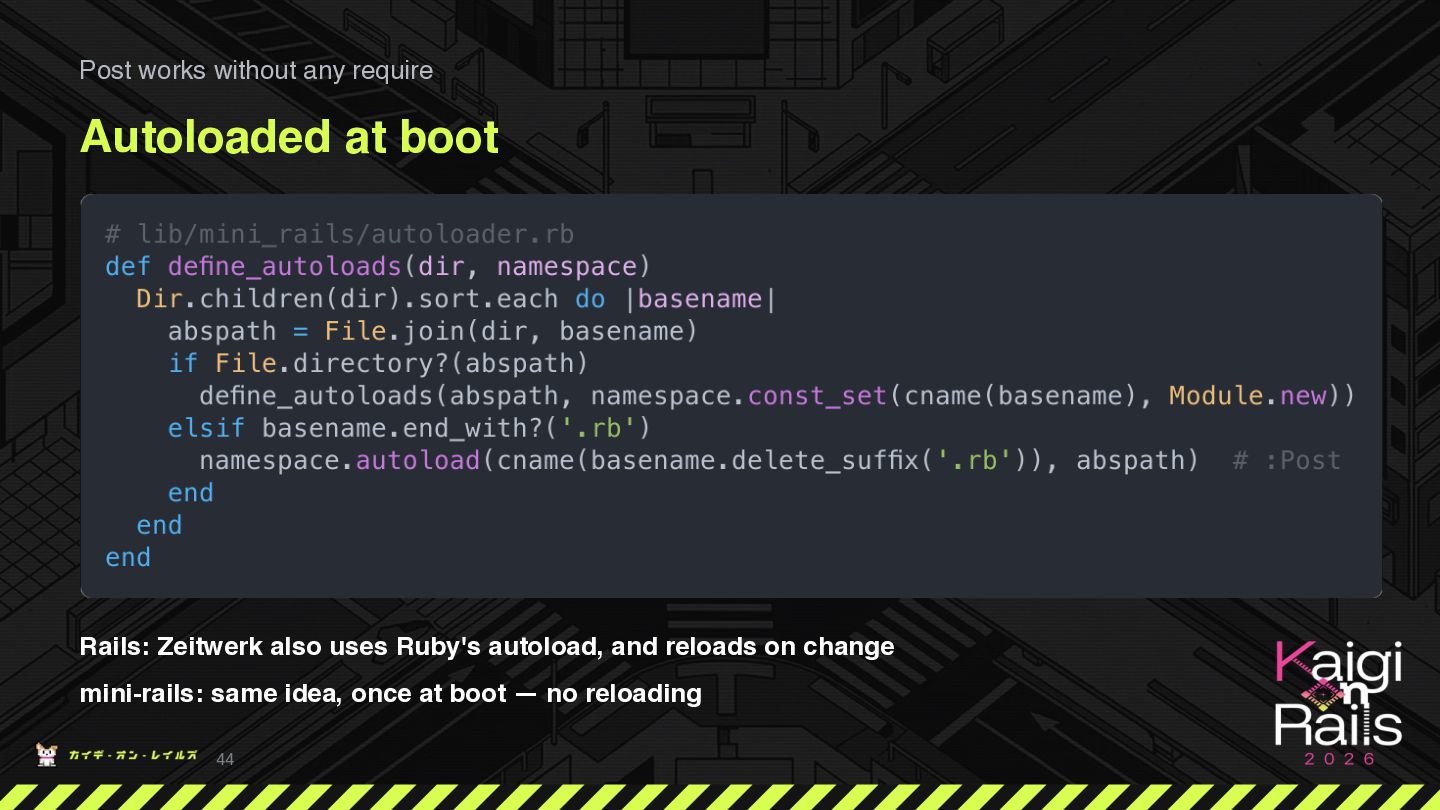

44. Post works without any require Autoloaded at boot Rails: Zeitwerk also uses Ruby's autoload, and reloads on change mini-rails: same idea, once at boot — no reloading 44

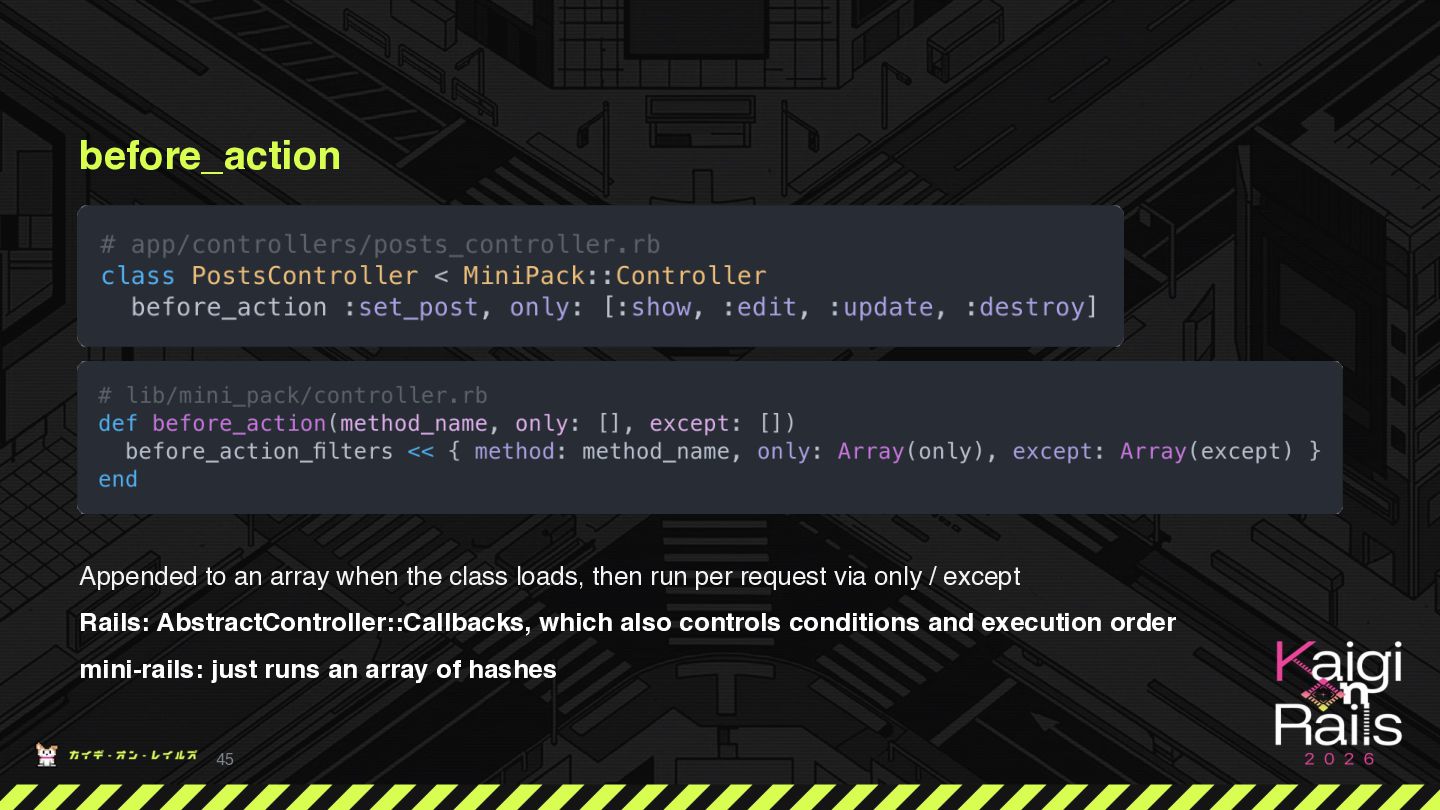

45. before_action Appended to an array when the class loads, then run per request via only / except Rails: AbstractController::Callbacks, which also controls conditions and execution order mini-rails: just runs an array of hashes 45

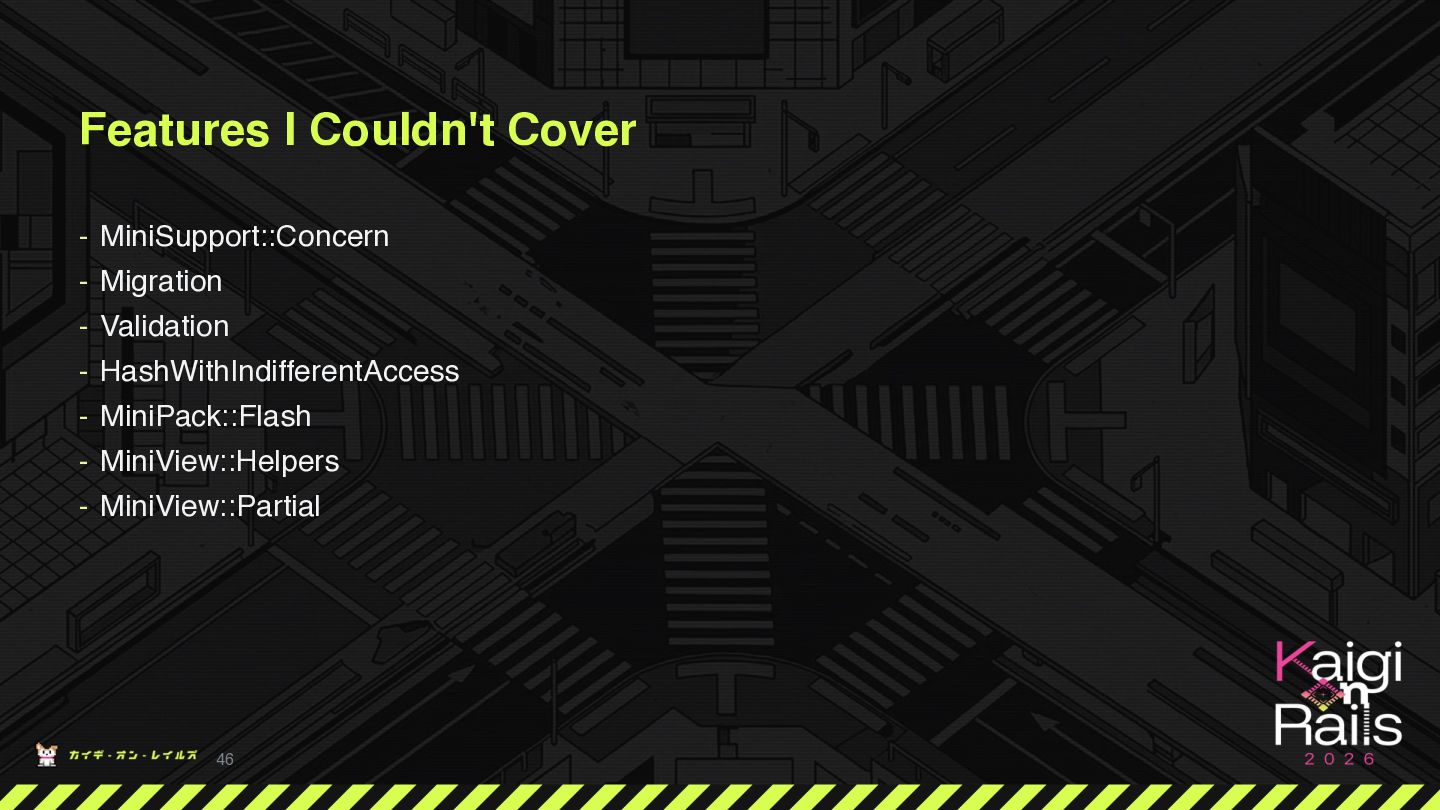

46. Features I Couldn't Cover - MiniSupport::Concern - Migration - Validation - HashWithIndifferentAccess - MiniPack::Flash - MiniView::Helpers - MiniView::Partial 46

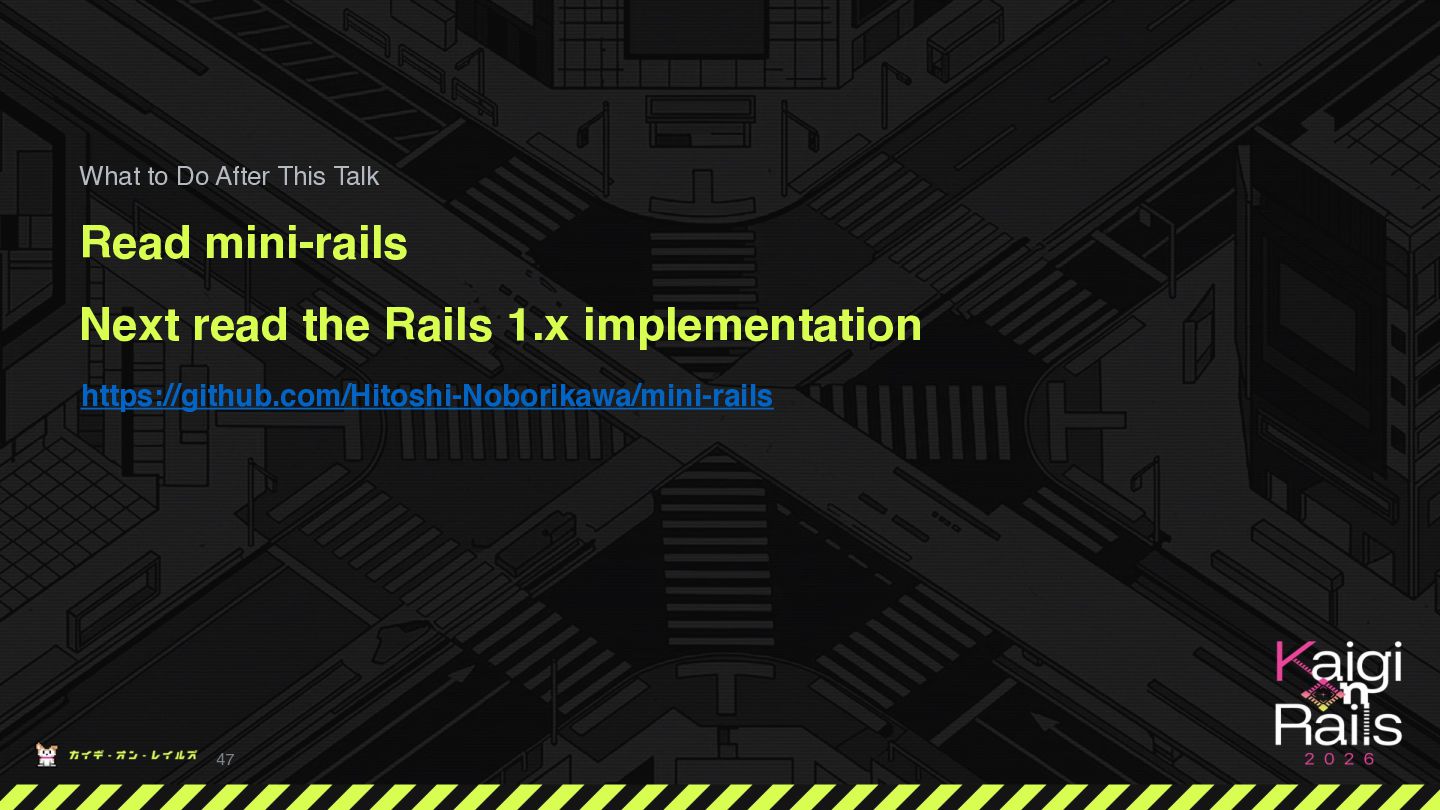

47. What to Do After This Talk Read mini-rails Next read the Rails 1.x implementation https://github.com/Hitoshi-Noborikawa/mini-rails 47
