1. Build a Real-Time RAG System with Gemini & the Multimodal Live API GDG Winnipeg May 2026 Olayinka Peter Oluwafemi Machine Learning GDE
2. $whoami • • • • • ML Engineer @Kaart ML Google Developer Expert Gemini 󰙤 ❤ TensorFlow, anime & peanut butter Coordinates 󰗓 olayinkapeter.com Olayinka Peter Oluwafemi Machine Learning GDE

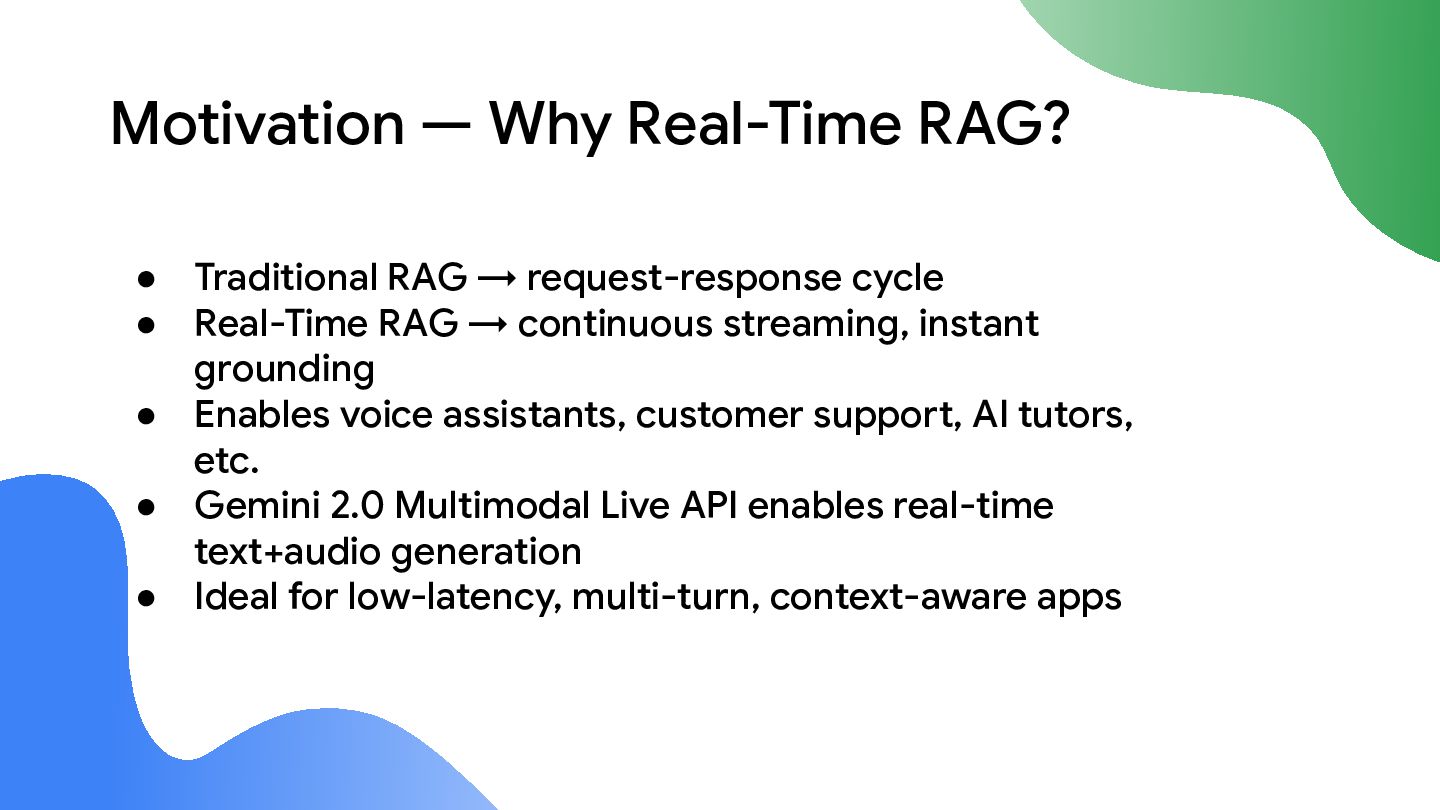

3. Motivation — Why Real-Time RAG? • Traditional RAG → request-response cycle • Real-Time RAG → continuous streaming, instant grounding • Enables voice assistants, customer support, AI tutors, etc. • Gemini 2.0 Multimodal Live API enables real-time text+audio generation • Ideal for low-latency, multi-turn, context-aware apps

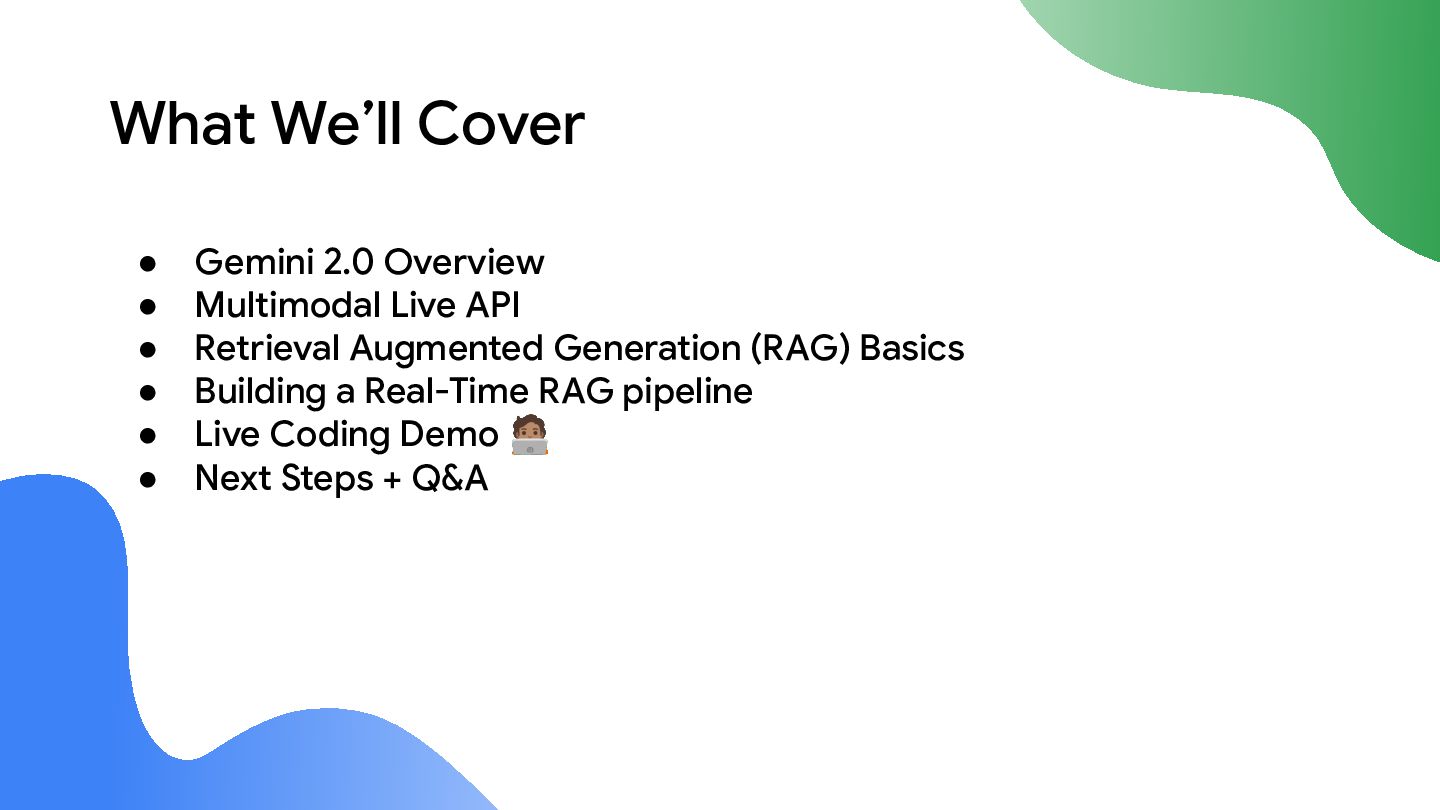

4. What We’ll Cover • • • • • • Gemini 2.0 Overview Multimodal Live API Retrieval Augmented Generation (RAG) Basics Building a Real-Time RAG pipeline Live Coding Demo 󰲐 Next Steps + Q&A

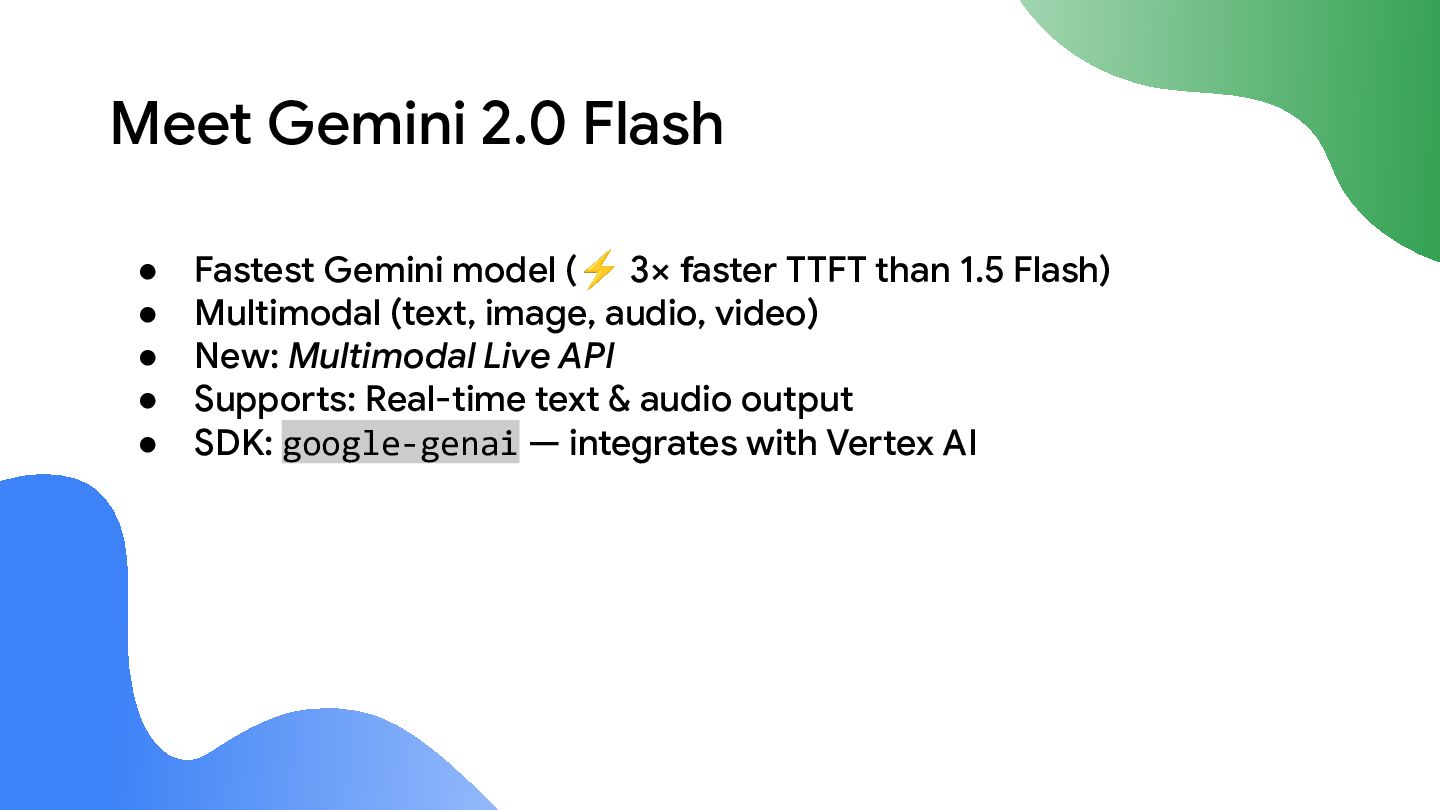

5. Meet Gemini 2.0 Flash • • • • • Fastest Gemini model (⚡ 3× faster TTFT than 1.5 Flash) Multimodal (text, image, audio, video) New: Multimodal Live API Supports: Real-time text & audio output SDK: google-genai — integrates with Vertex AI

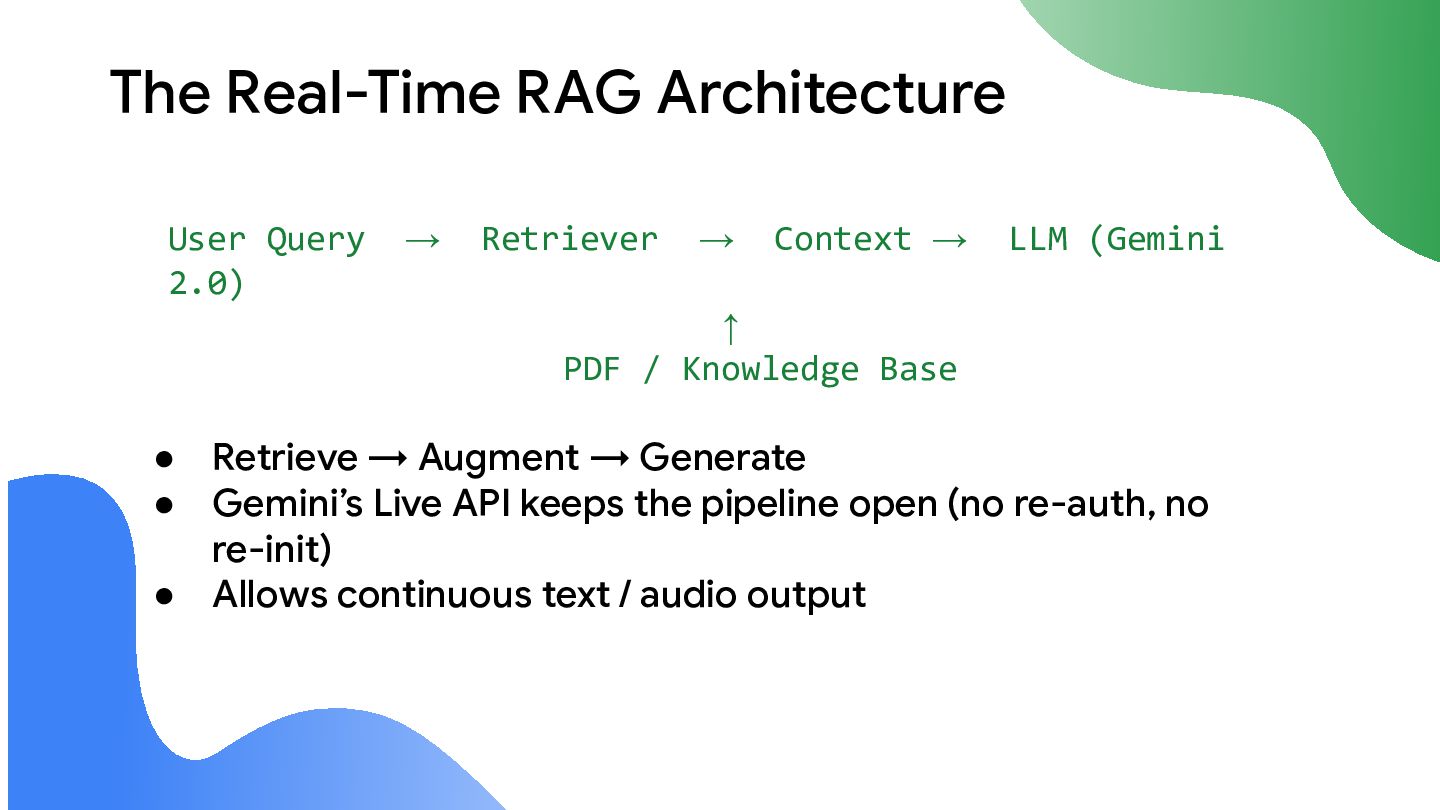

6. The Real-Time RAG Architecture User Query 2.0) → Retriever → Context → LLM (Gemini ↑ PDF / Knowledge Base • Retrieve → Augment → Generate • Gemini’s Live API keeps the pipeline open (no re-auth, no re-init) • Allows continuous text / audio output

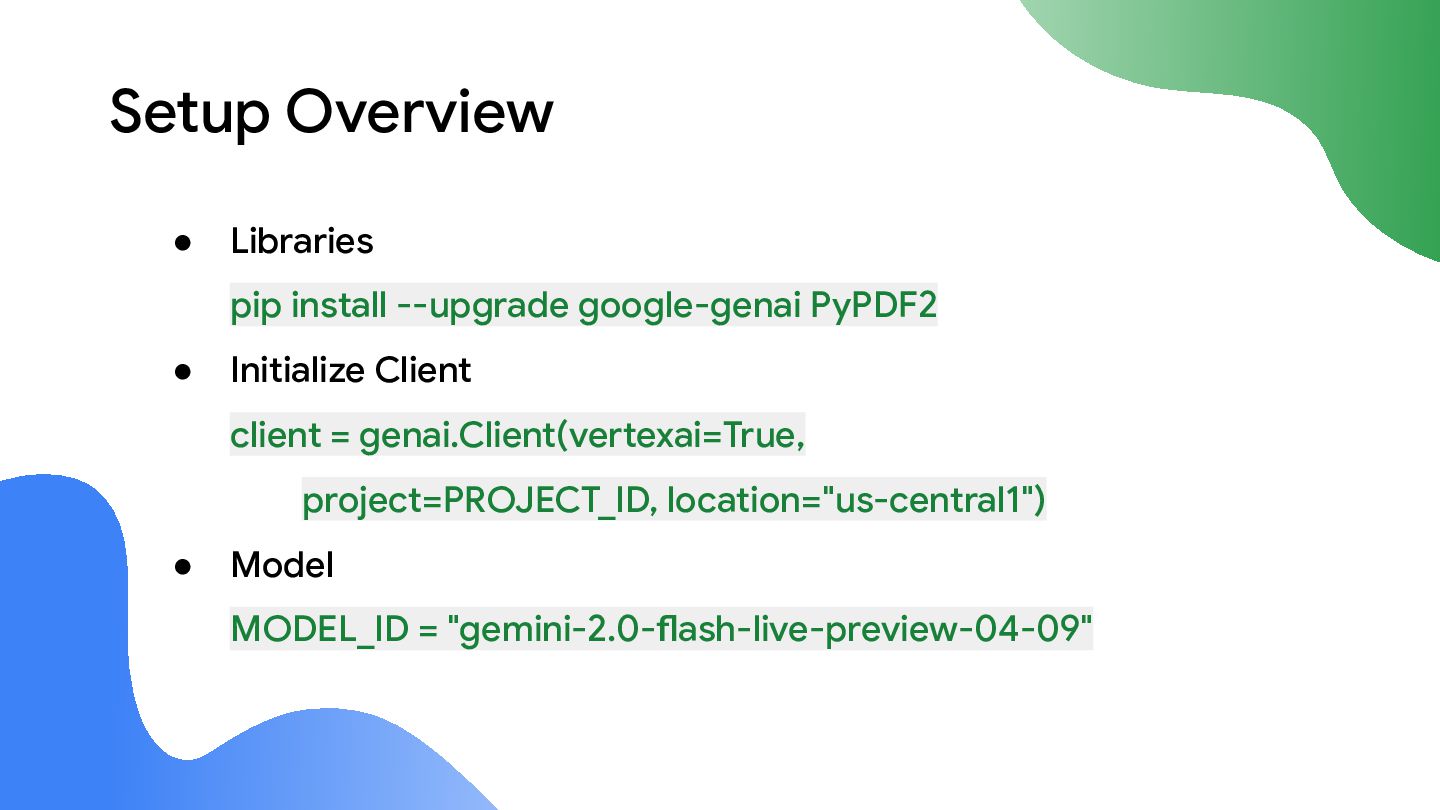

7. Setup Overview • Libraries pip install --upgrade google-genai PyPDF2 • Initialize Client client = genai.Client(vertexai=True, project=PROJECT_ID, location="us-central1") • Model MODEL_ID = "gemini-2.0-flash-live-preview-04-09"

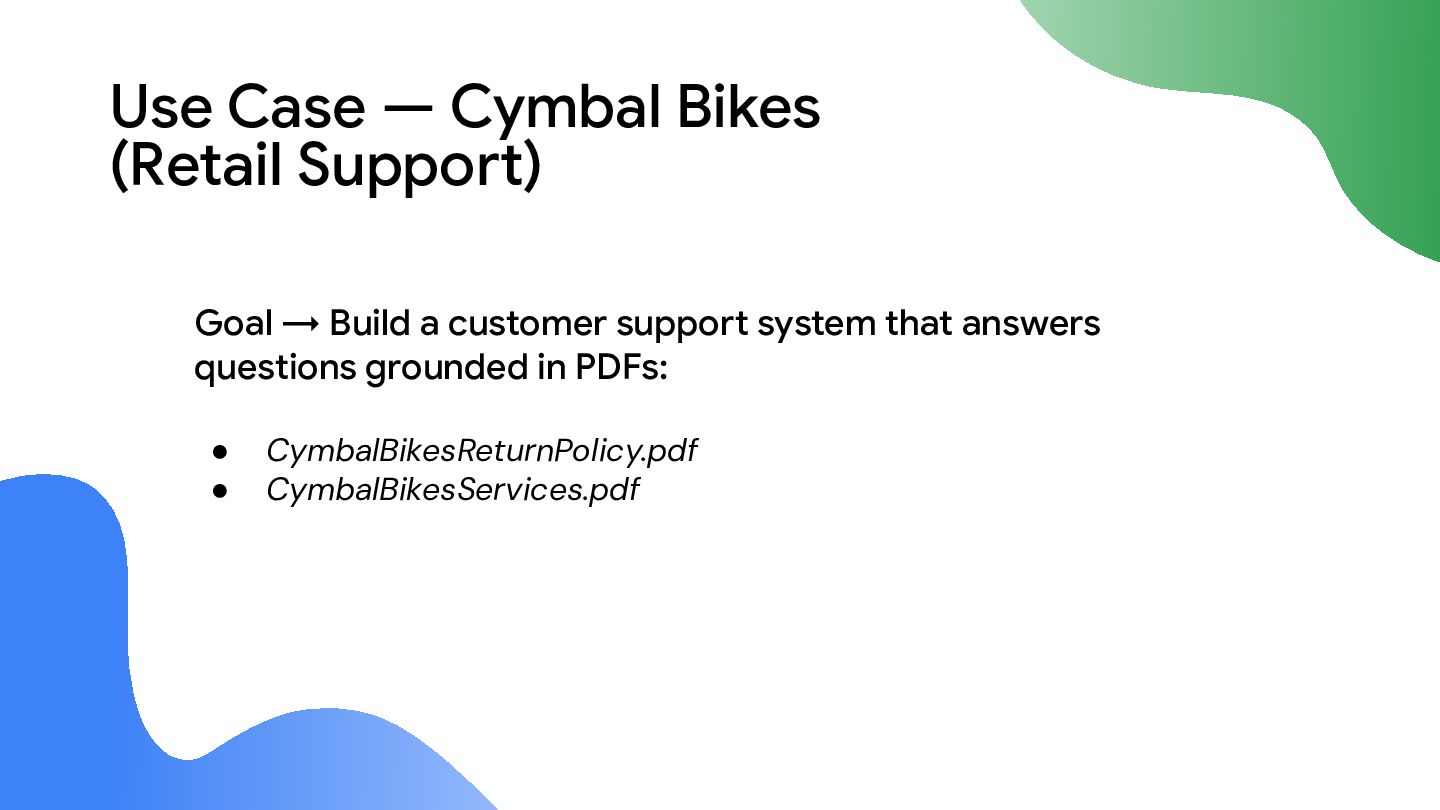

8. Use Case — Cymbal Bikes (Retail Support) Goal → Build a customer support system that answers questions grounded in PDFs: • • CymbalBikesReturnPolicy.pdf CymbalBikesServices.pdf

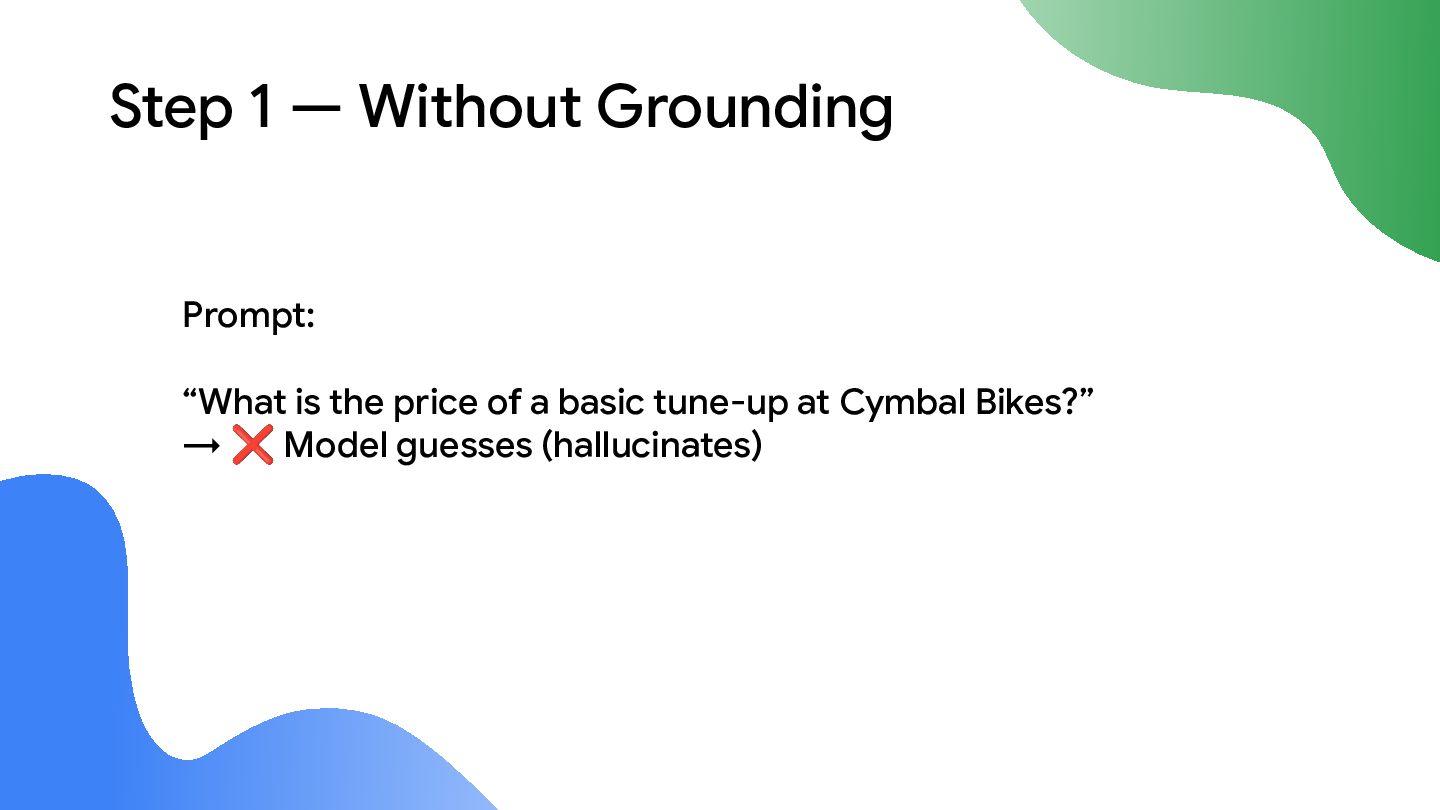

9. Step 1 — Without Grounding Prompt: “What is the price of a basic tune-up at Cymbal Bikes?” → ❌ Model guesses (hallucinates)

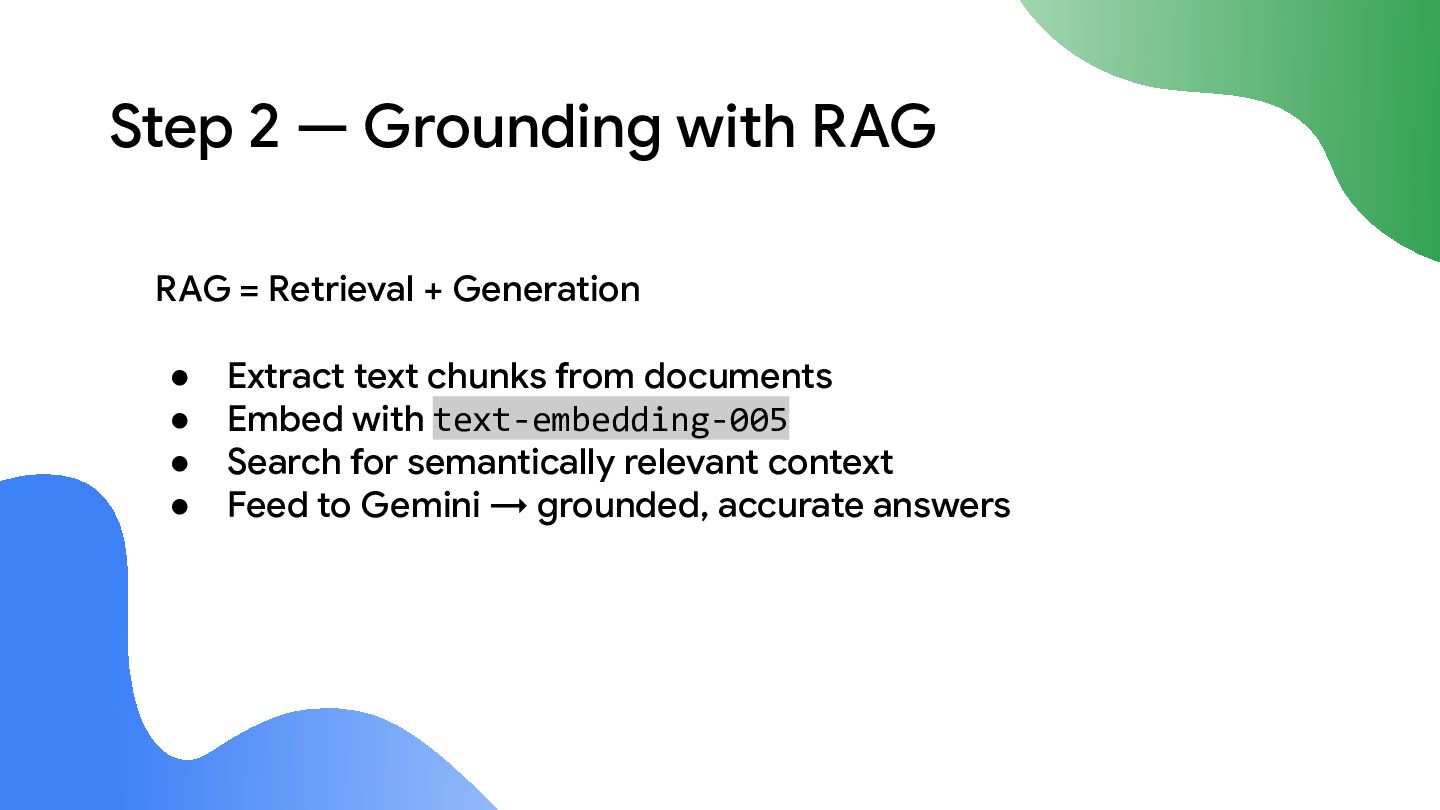

10. Step 2 — Grounding with RAG RAG = Retrieval + Generation • • • • Extract text chunks from documents Embed with text-embedding-005 Search for semantically relevant context Feed to Gemini → grounded, accurate answers

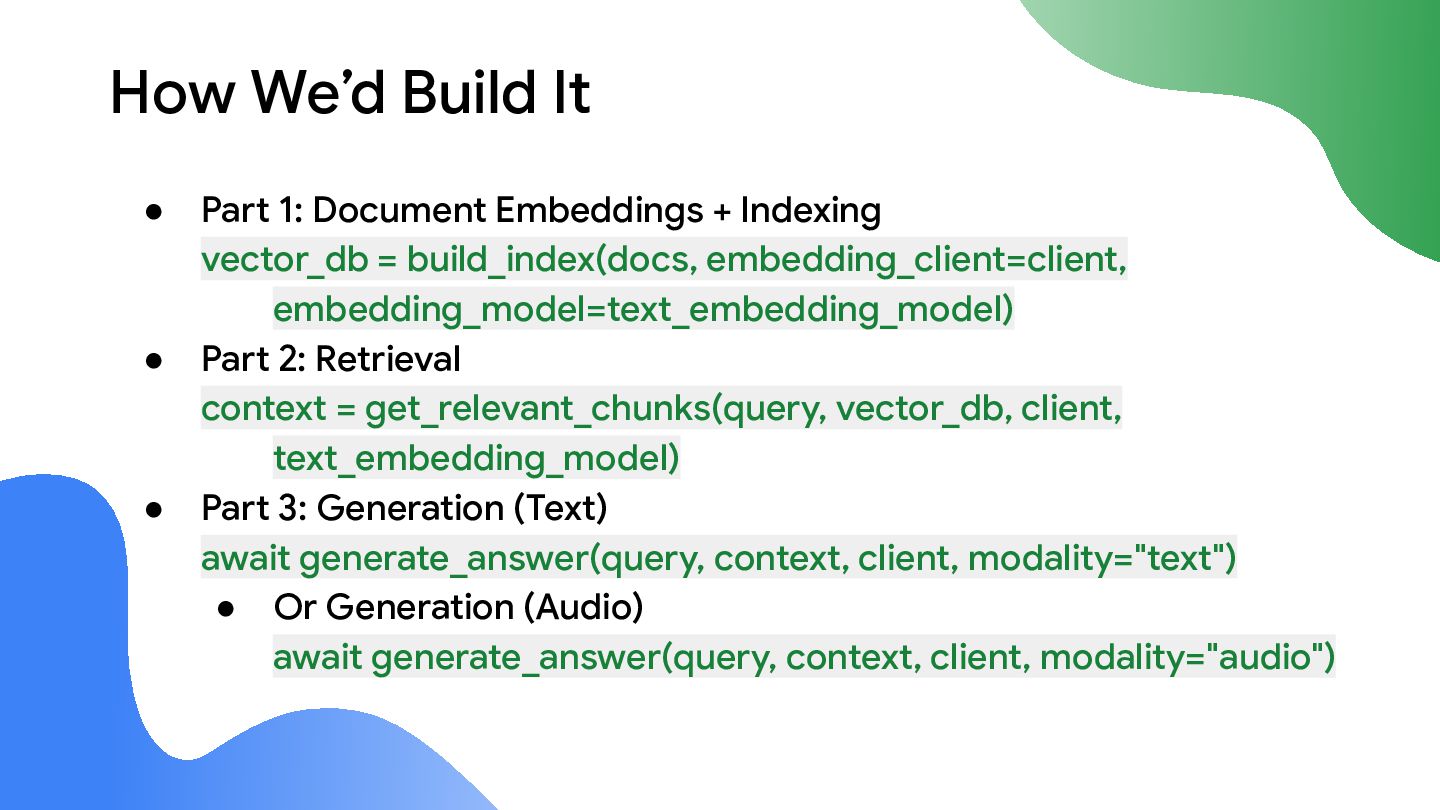

11. How We’d Build It • • • Part 1: Document Embeddings + Indexing vector_db = build_index(docs, embedding_client=client, embedding_model=text_embedding_model) Part 2: Retrieval context = get_relevant_chunks(query, vector_db, client, text_embedding_model) Part 3: Generation (Text) await generate_answer(query, context, client, modality="text") • Or Generation (Audio) await generate_answer(query, context, client, modality="audio")

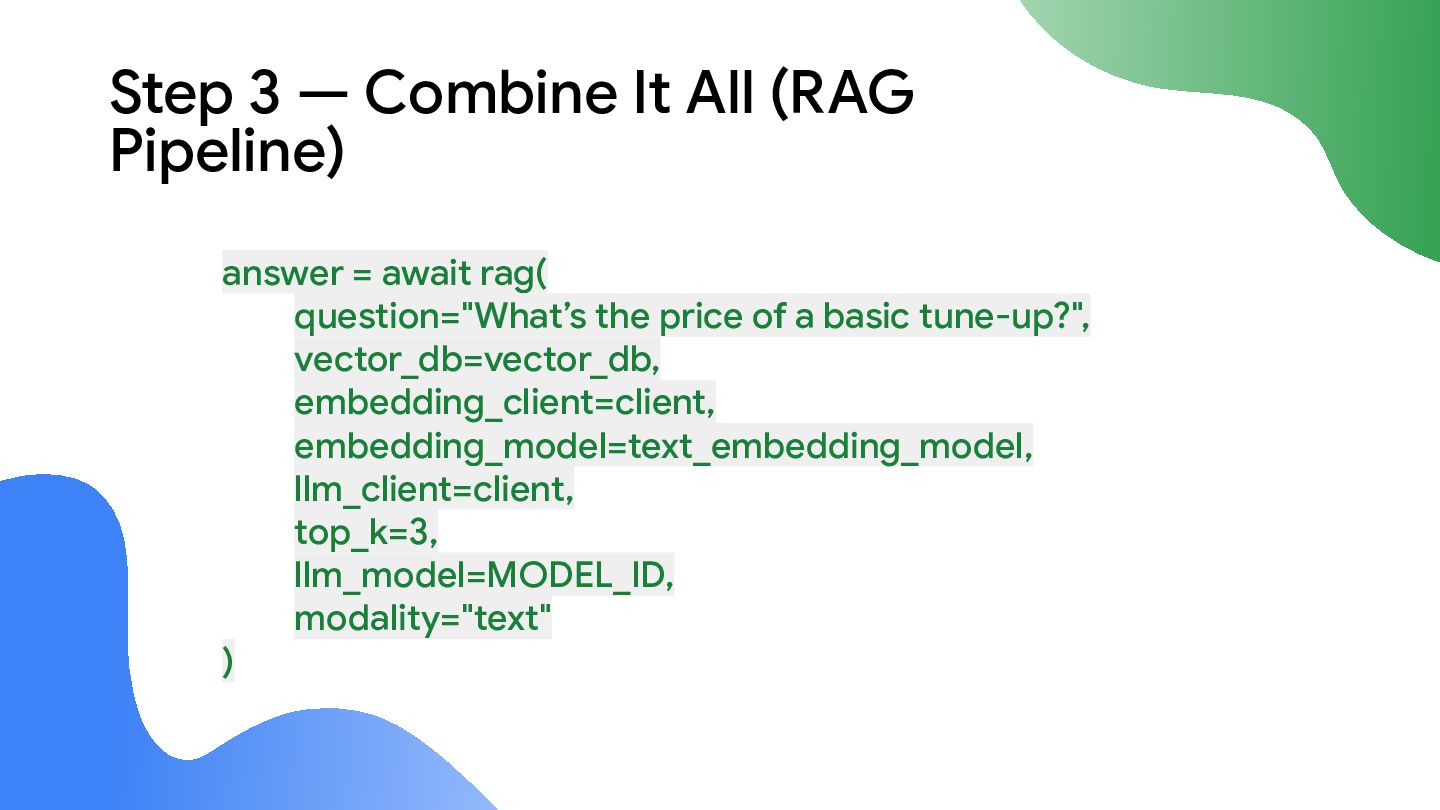

12. Step 3 — Combine It All (RAG Pipeline) answer = await rag( question="What’s the price of a basic tune-up?", vector_db=vector_db, embedding_client=client, embedding_model=text_embedding_model, llm_client=client, top_k=3, llm_model=MODEL_ID, modality="text" )

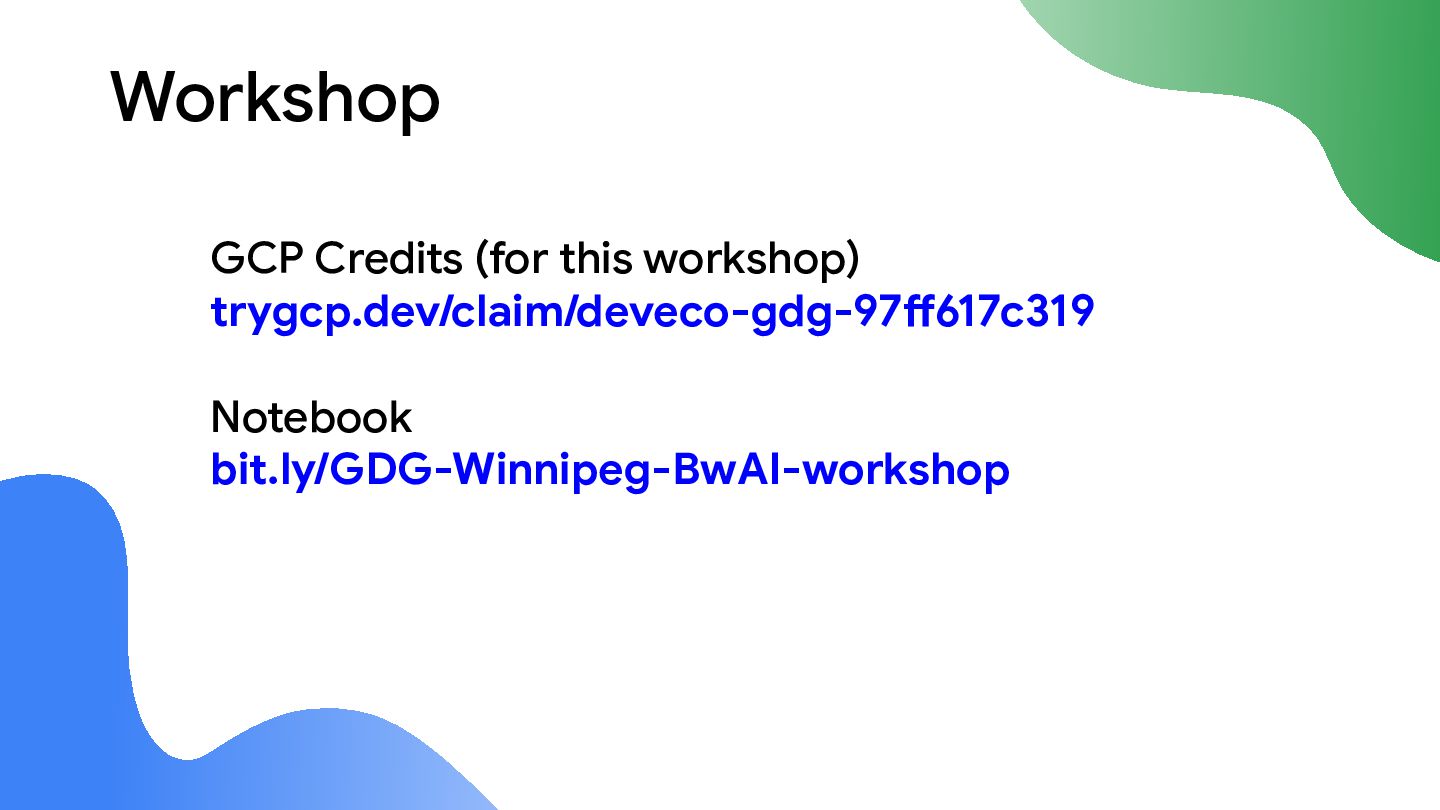

14. Workshop GCP Credits (for this workshop) trygcp.dev/claim/deveco-gdg-97ff617c319 Notebook bit.ly/GDG-Winnipeg-BwAI-workshop

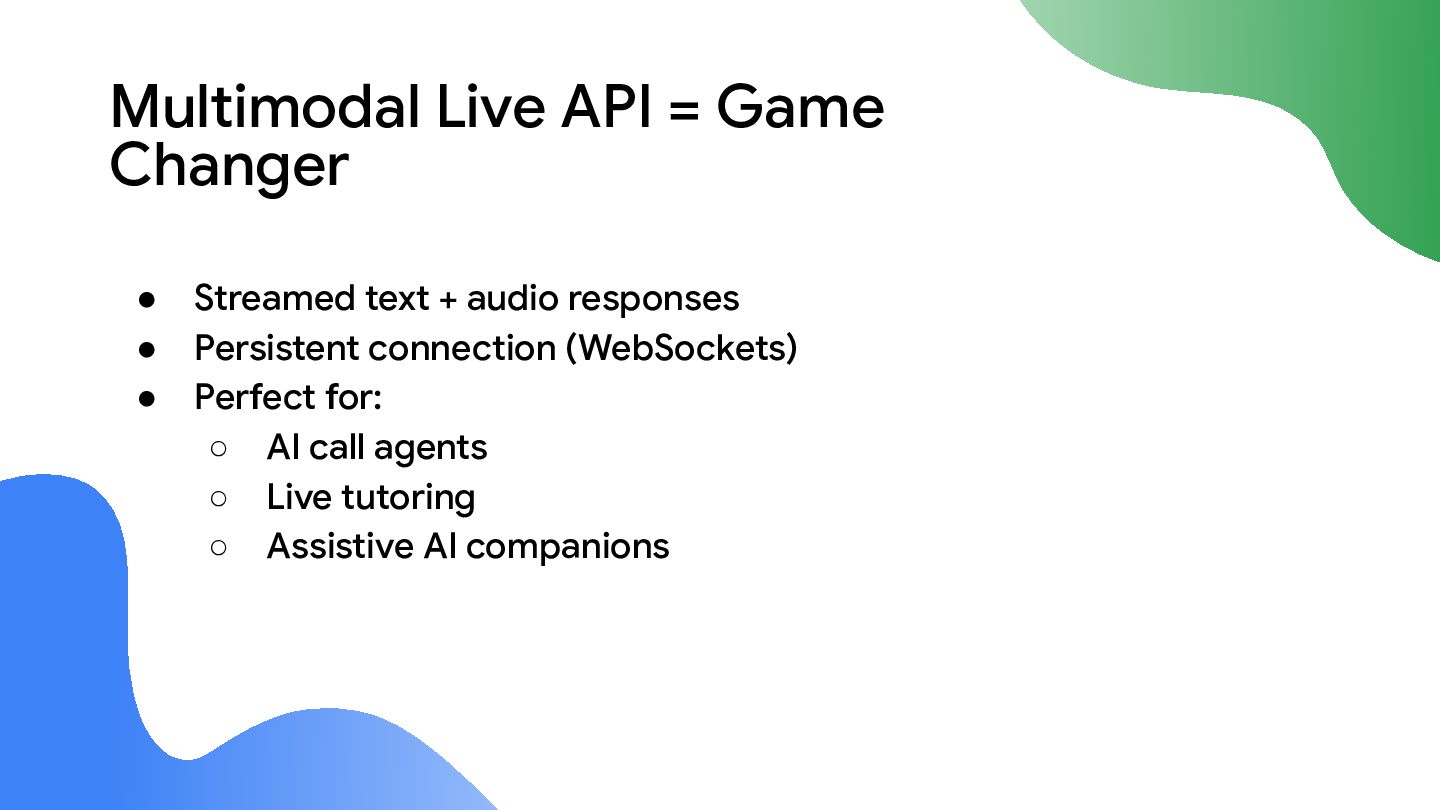

16. Multimodal Live API = Game Changer • • • Streamed text + audio responses Persistent connection (WebSockets) Perfect for: ◦ AI call agents ◦ Live tutoring ◦ Assistive AI companions

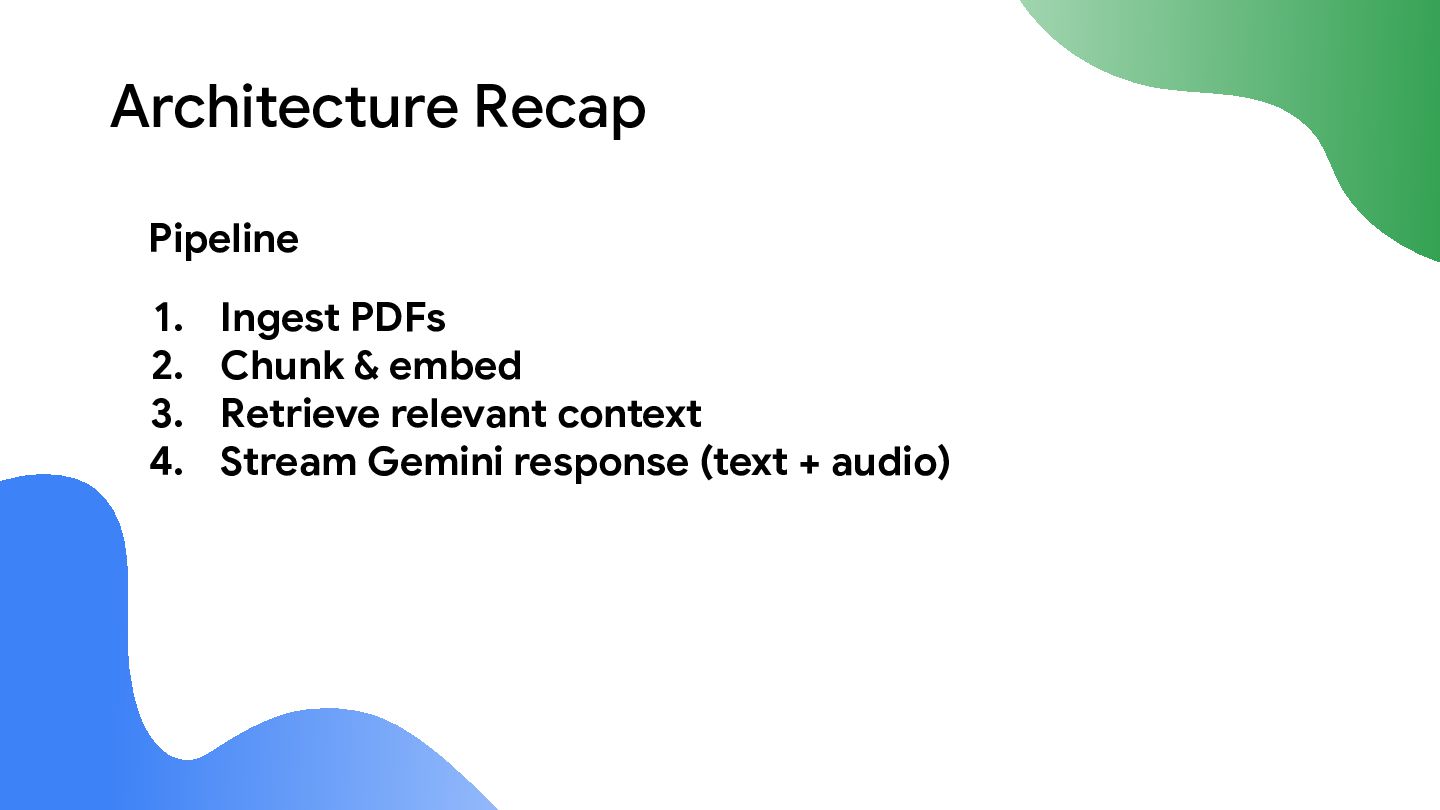

17. Architecture Recap Pipeline 1. 2. 3. 4. Ingest PDFs Chunk & embed Retrieve relevant context Stream Gemini response (text + audio)

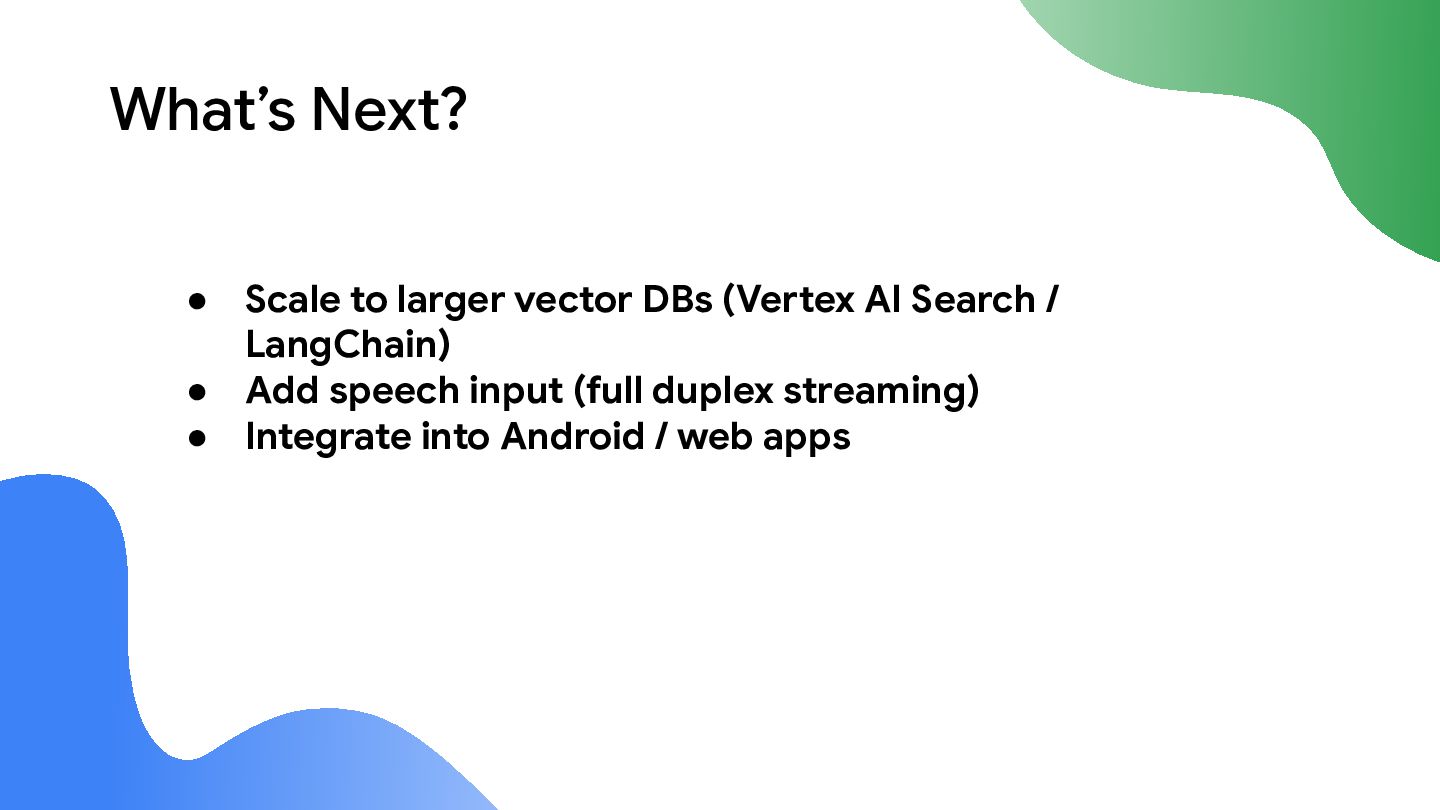

18. What’s Next? • Scale to larger vector DBs (Vertex AI Search / LangChain) • Add speech input (full duplex streaming) • Integrate into Android / web apps

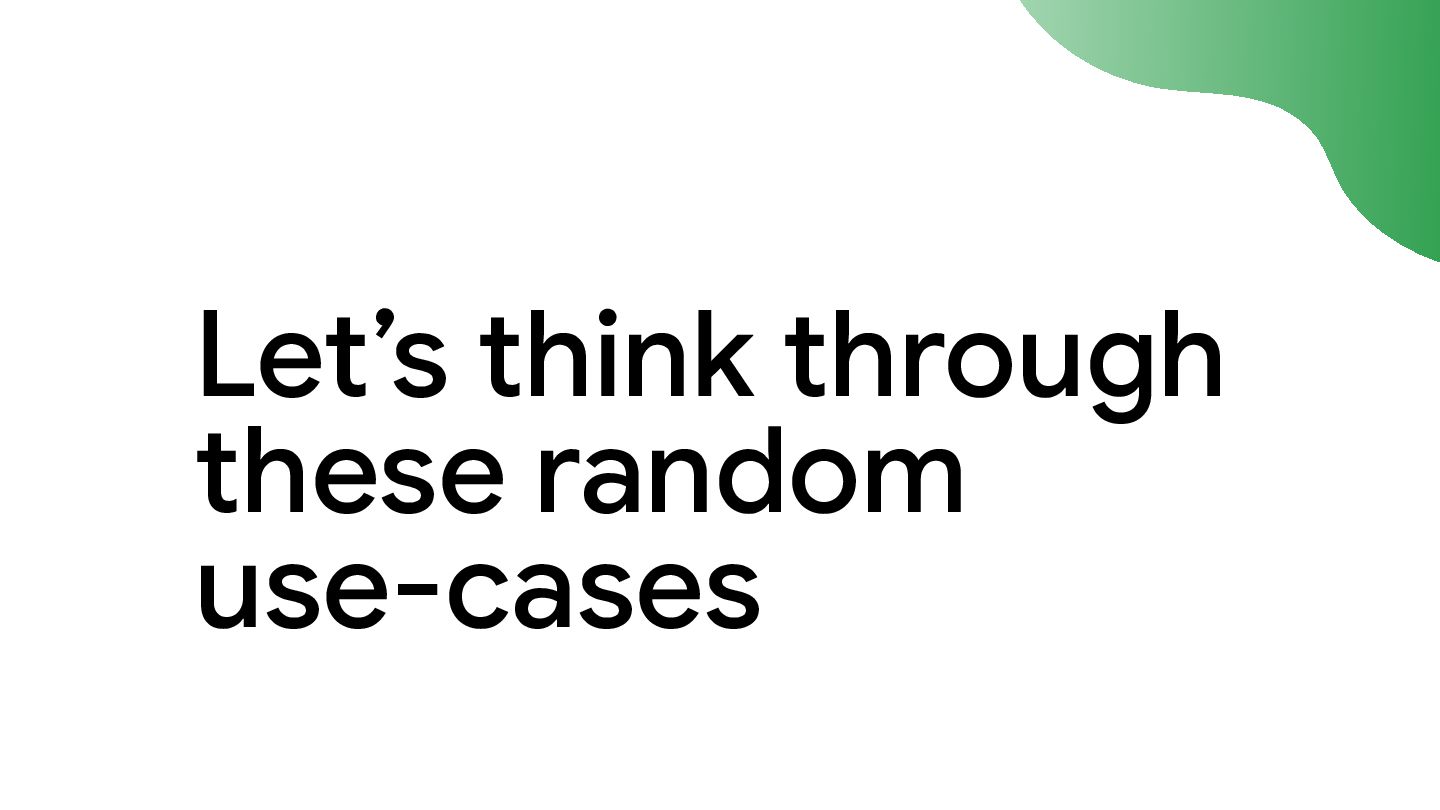

19. Let’s think through these random use-cases

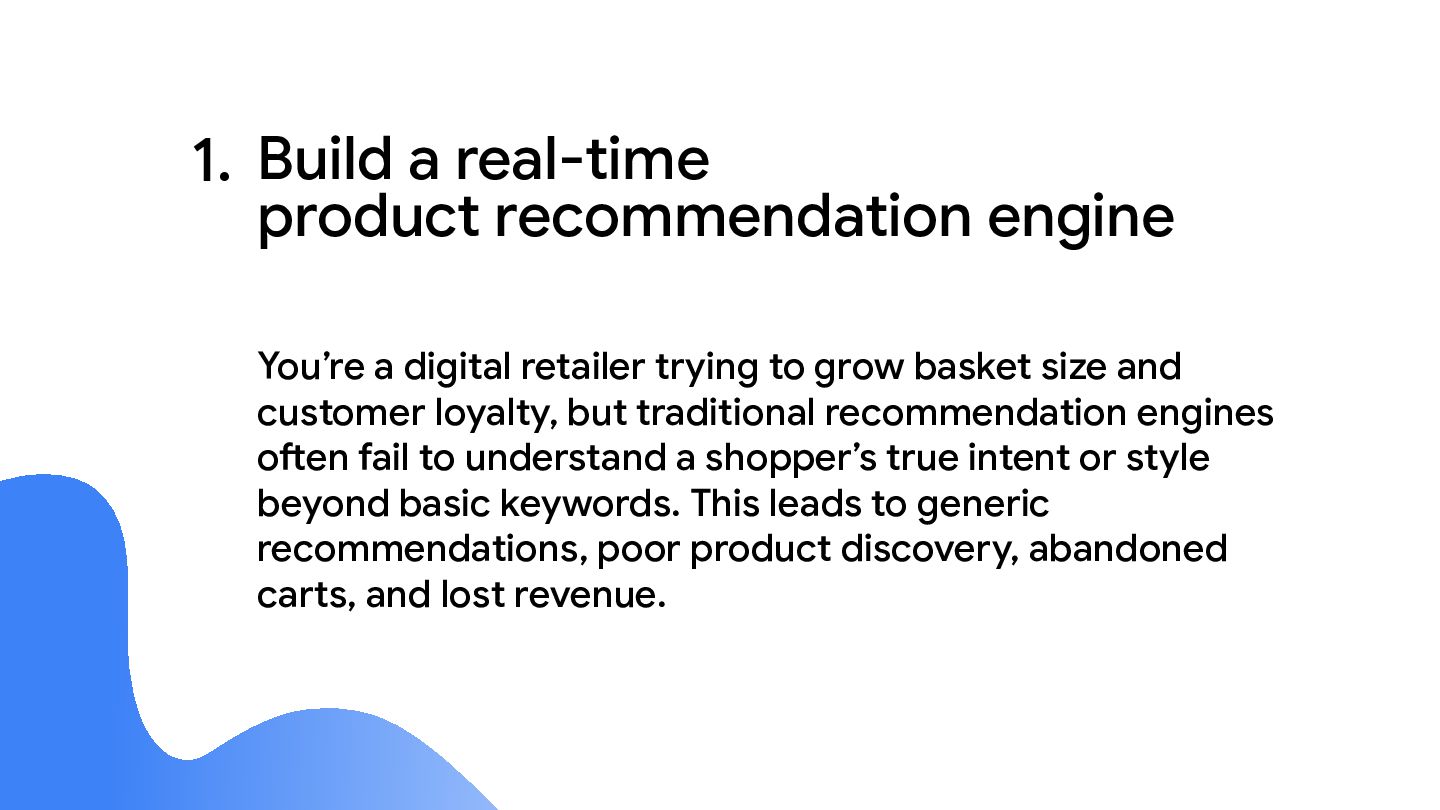

20. 1. Build a real-time product recommendation engine You’re a digital retailer trying to grow basket size and customer loyalty, but traditional recommendation engines often fail to understand a shopper’s true intent or style beyond basic keywords. This leads to generic recommendations, poor product discovery, abandoned carts, and lost revenue.

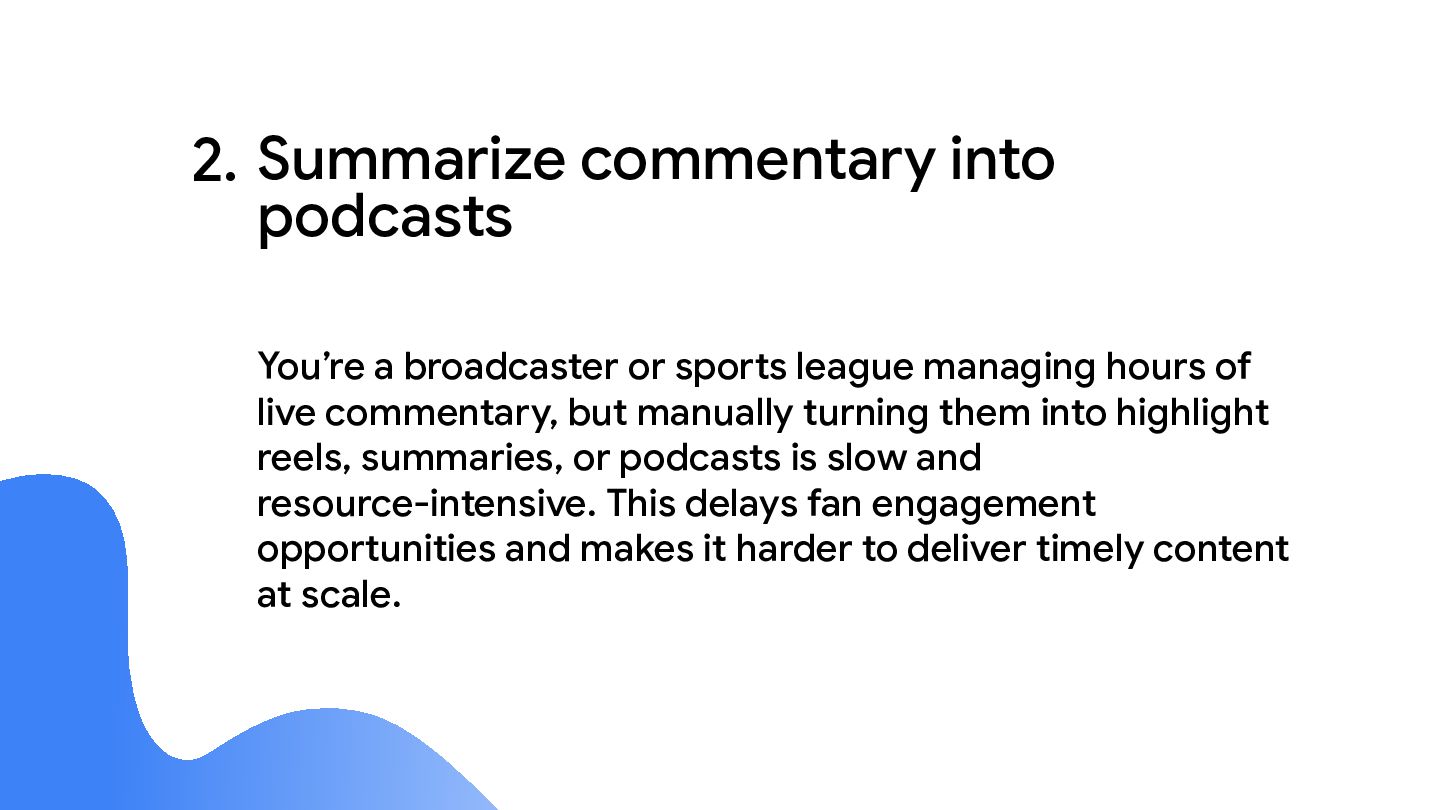

21. 2. Summarize commentary into podcasts You’re a broadcaster or sports league managing hours of live commentary, but manually turning them into highlight reels, summaries, or podcasts is slow and resource-intensive. This delays fan engagement opportunities and makes it harder to deliver timely content at scale.

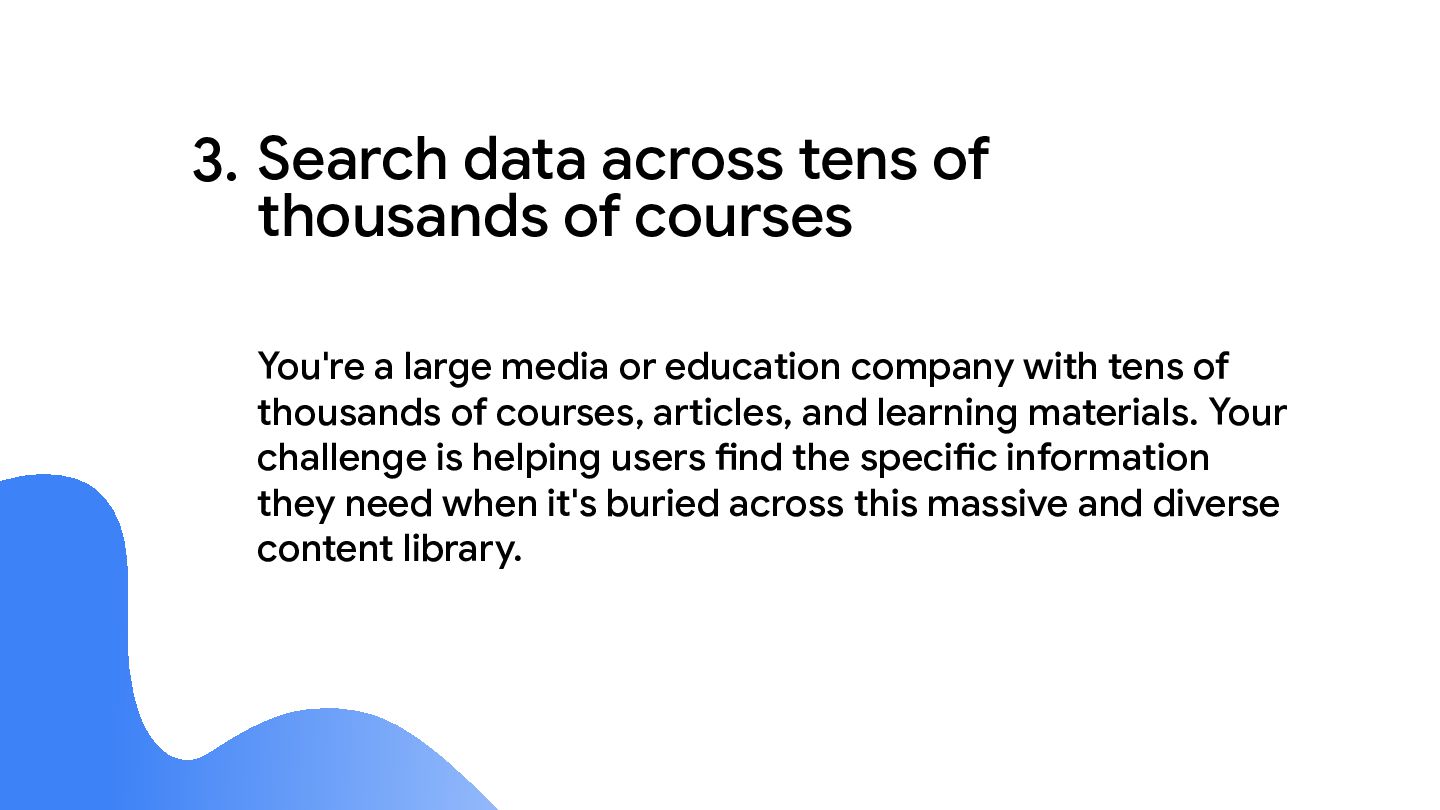

22. 3. Search data across tens of thousands of courses You're a large media or education company with tens of thousands of courses, articles, and learning materials. Your challenge is helping users find the specific information they need when it's buried across this massive and diverse content library.
23. Questions for me?

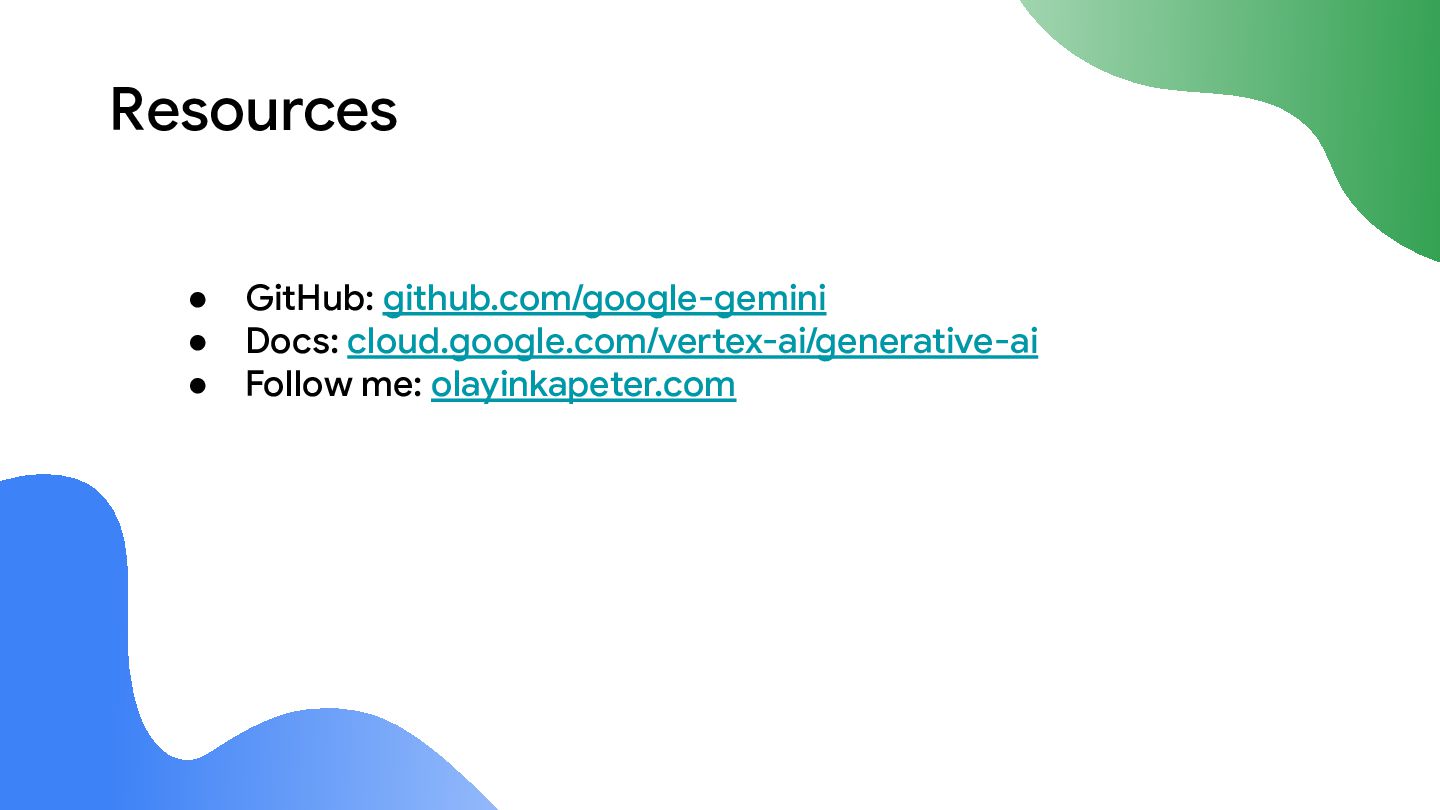

24. Resources • • • GitHub: github.com/google-gemini Docs: cloud.google.com/vertex-ai/generative-ai Follow me: olayinkapeter.com
25. Thank You Olayinka Peter Oluwafemi Machine Learning GDE
