Annif: Feeding your subject indexing robot with bibliographic metadata

Presenting the Annif automated subjecting tool at the LIBER 47th Annual Conference in Lille, France on 6 July 2018.

Google Slides: https://tinyurl.com/annif-liber

Transcript

1. Annif Feeding your subject indexing robot with bibliographic metadata Osma Suominen LIBER 47th Annual Conference, Lille, France, 6th July 2018
4. .
6. YSA YSO Allärs KOKO €£$

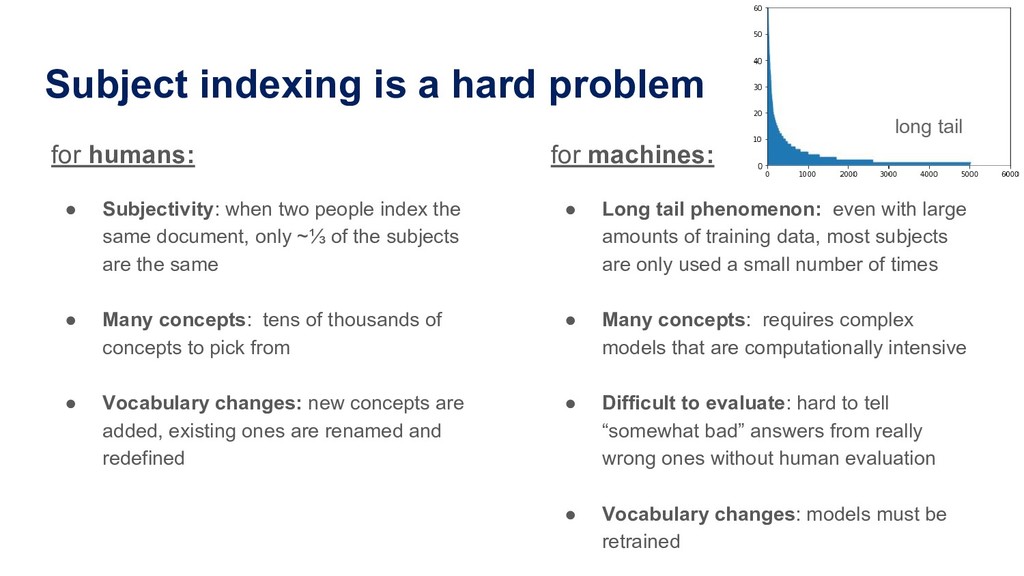

7. Subject indexing is a hard problem for humans: • Subjectivity: when two people index the same document, only ~⅓ of the subjects are the same • Many concepts: tens of thousands of concepts to pick from • Vocabulary changes: new concepts are added, existing ones are renamed and redefined for machines: • Long tail phenomenon: even with large amounts of training data, most subjects are only used a small number of times • Many concepts: requires complex models that are computationally intensive • Difficult to evaluate: hard to tell “somewhat bad” answers from really wrong ones without human evaluation • Vocabulary changes: models must be retrained long tail
8. Approach Automating our own processes Creating generic tools for many contexts vs.
9. Enter Annif Feed your subject indexing robot with bibliographic metadata!

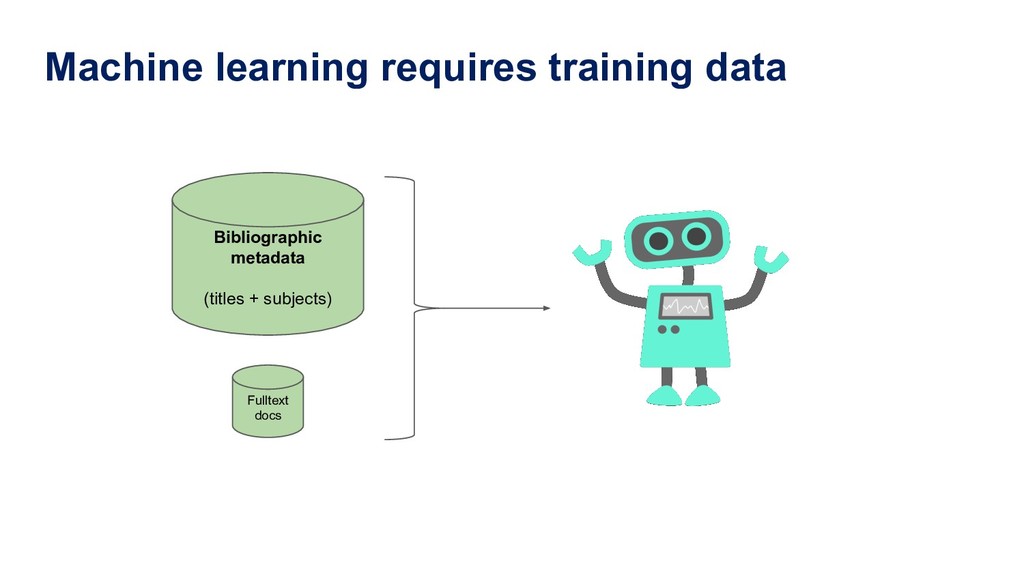

10. Machine learning requires training data Bibliographic metadata (titles + subjects) Fulltext docs

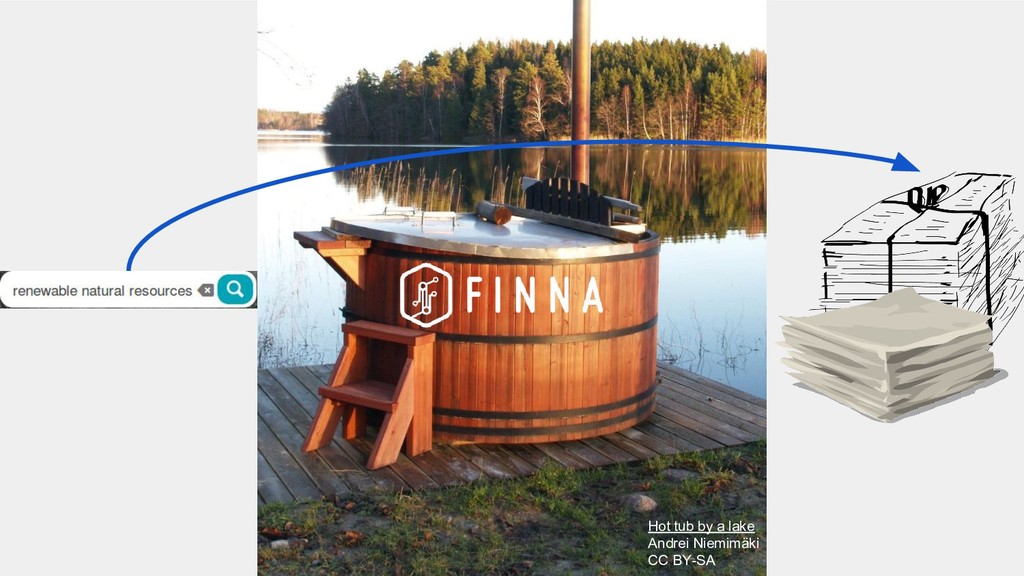

12. Hot tub by a lake Andrei Niemimäki CC BY-SA Metadata about 13M documents, many of them tagged with subjects!
13. Hot tub by a lake Andrei Niemimäki CC BY-SA
14. Hot tub by a lake Andrei Niemimäki CC BY-SA

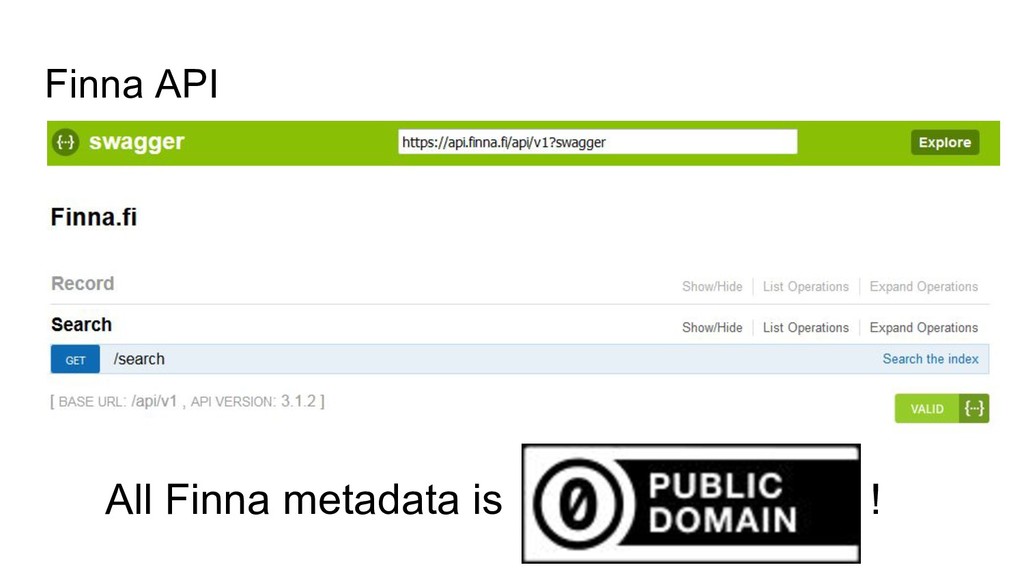

15. Finna API All Finna metadata is !

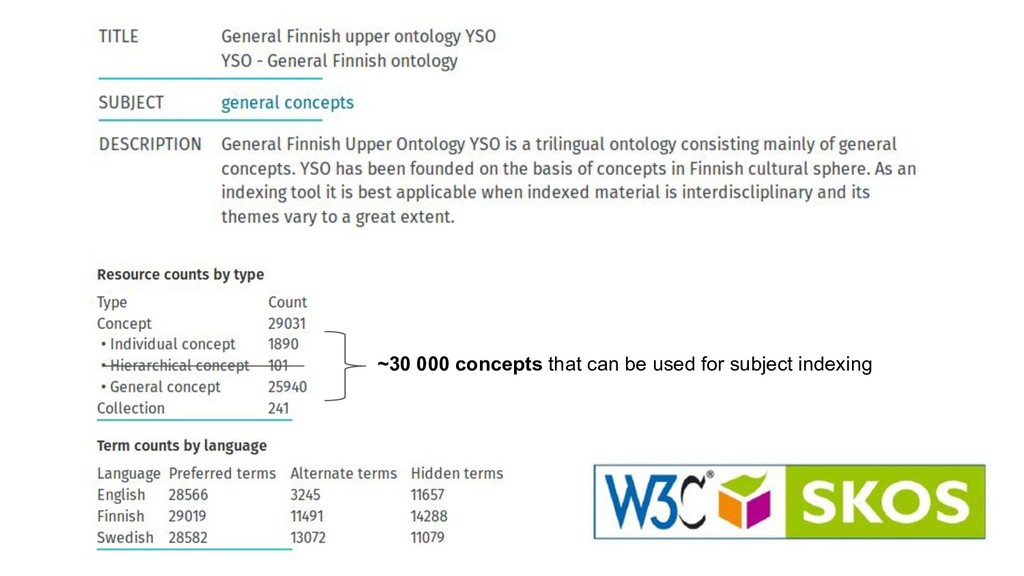

16. ~30 000 concepts that can be used for subject indexing
17. Annif prototype (2017)

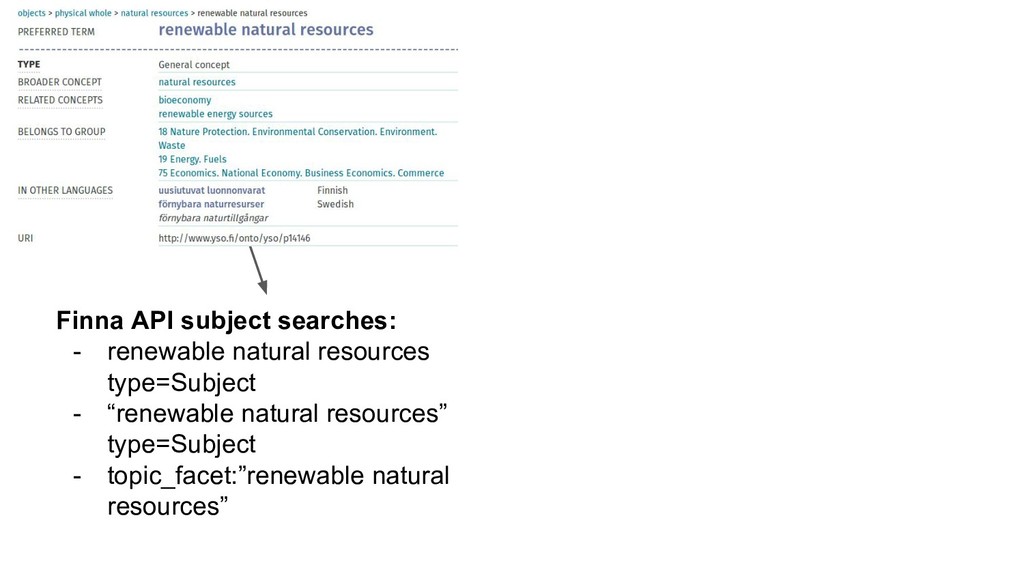

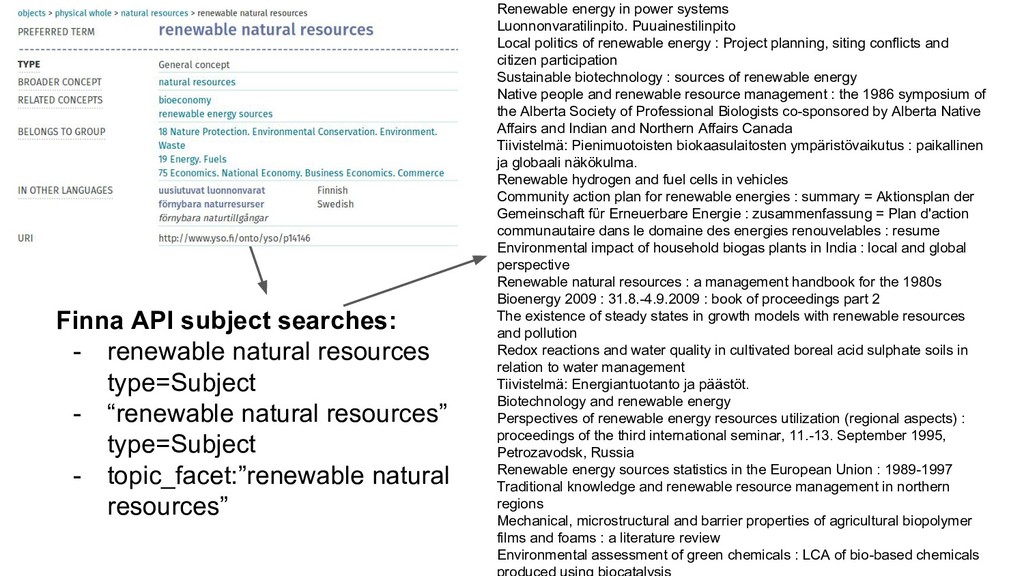

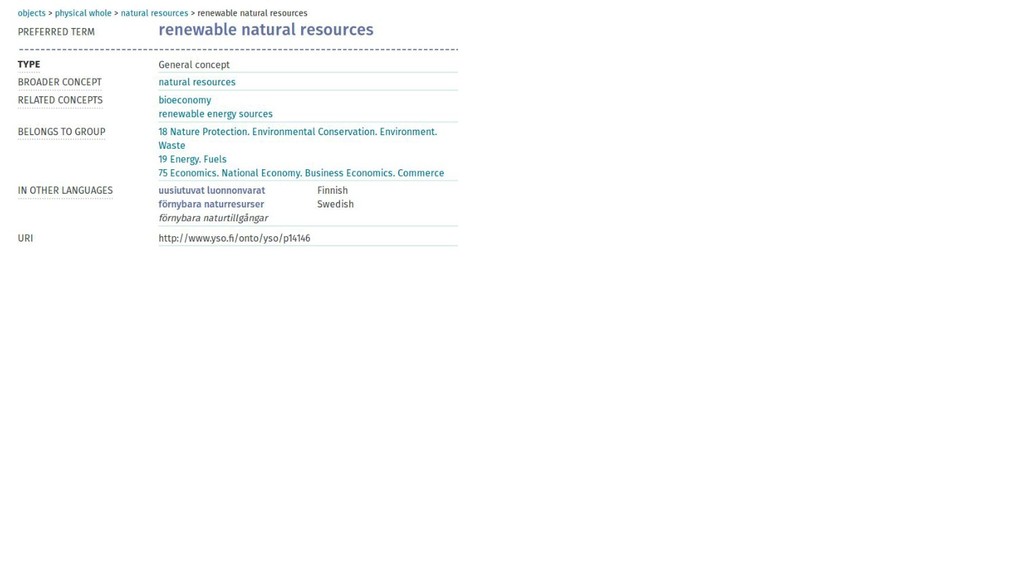

19. Finna API subject searches: - renewable natural resources type=Subject - “renewable natural resources” type=Subject - topic_facet:”renewable natural resources”

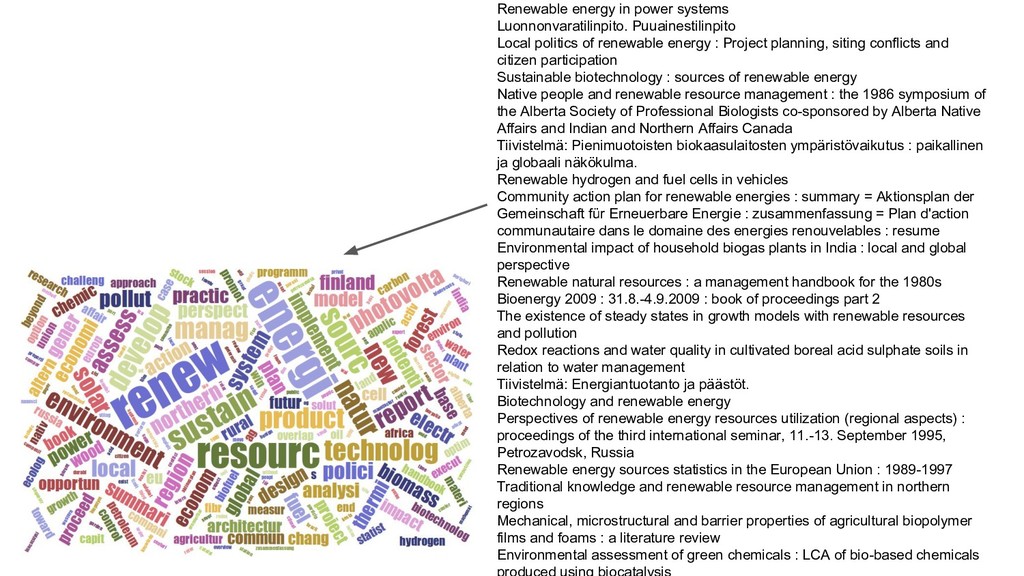

20. Finna API subject searches: - renewable natural resources type=Subject - “renewable natural resources” type=Subject - topic_facet:”renewable natural resources” Renewable energy in power systems Luonnonvaratilinpito. Puuainestilinpito Local politics of renewable energy : Project planning, siting conflicts and citizen participation Sustainable biotechnology : sources of renewable energy Native people and renewable resource management : the 1986 symposium of the Alberta Society of Professional Biologists co-sponsored by Alberta Native Affairs and Indian and Northern Affairs Canada Tiivistelmä: Pienimuotoisten biokaasulaitosten ympäristövaikutus : paikallinen ja globaali näkökulma. Renewable hydrogen and fuel cells in vehicles Community action plan for renewable energies : summary = Aktionsplan der Gemeinschaft für Erneuerbare Energie : zusammenfassung = Plan d'action communautaire dans le domaine des energies renouvelables : resume Environmental impact of household biogas plants in India : local and global perspective Renewable natural resources : a management handbook for the 1980s Bioenergy 2009 : 31.8.-4.9.2009 : book of proceedings part 2 The existence of steady states in growth models with renewable resources and pollution Redox reactions and water quality in cultivated boreal acid sulphate soils in relation to water management Tiivistelmä: Energiantuotanto ja päästöt. Biotechnology and renewable energy Perspectives of renewable energy resources utilization (regional aspects) : proceedings of the third international seminar, 11.-13. September 1995, Petrozavodsk, Russia Renewable energy sources statistics in the European Union : 1989-1997 Traditional knowledge and renewable resource management in northern regions Mechanical, microstructural and barrier properties of agricultural biopolymer films and foams : a literature review Environmental assessment of green chemicals : LCA of bio-based chemicals
21. Renewable energy in power systems Luonnonvaratilinpito. Puuainestilinpito Local politics of renewable energy : Project planning, siting conflicts and citizen participation Sustainable biotechnology : sources of renewable energy Native people and renewable resource management : the 1986 symposium of the Alberta Society of Professional Biologists co-sponsored by Alberta Native Affairs and Indian and Northern Affairs Canada Tiivistelmä: Pienimuotoisten biokaasulaitosten ympäristövaikutus : paikallinen ja globaali näkökulma. Renewable hydrogen and fuel cells in vehicles Community action plan for renewable energies : summary = Aktionsplan der Gemeinschaft für Erneuerbare Energie : zusammenfassung = Plan d'action communautaire dans le domaine des energies renouvelables : resume Environmental impact of household biogas plants in India : local and global perspective Renewable natural resources : a management handbook for the 1980s Bioenergy 2009 : 31.8.-4.9.2009 : book of proceedings part 2 The existence of steady states in growth models with renewable resources and pollution Redox reactions and water quality in cultivated boreal acid sulphate soils in relation to water management Tiivistelmä: Energiantuotanto ja päästöt. Biotechnology and renewable energy Perspectives of renewable energy resources utilization (regional aspects) : proceedings of the third international seminar, 11.-13. September 1995, Petrozavodsk, Russia Renewable energy sources statistics in the European Union : 1989-1997 Traditional knowledge and renewable resource management in northern regions Mechanical, microstructural and barrier properties of agricultural biopolymer films and foams : a literature review Environmental assessment of green chemicals : LCA of bio-based chemicals

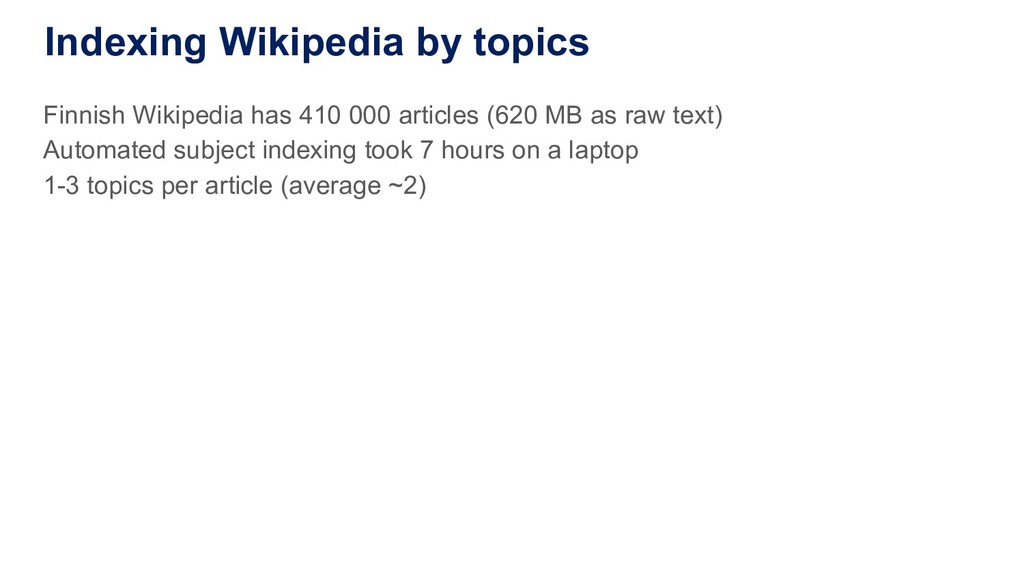

22. Indexing Wikipedia by topics Finnish Wikipedia has 410 000 articles (620 MB as raw text) Automated subject indexing took 7 hours on a laptop 1-3 topics per article (average ~2)

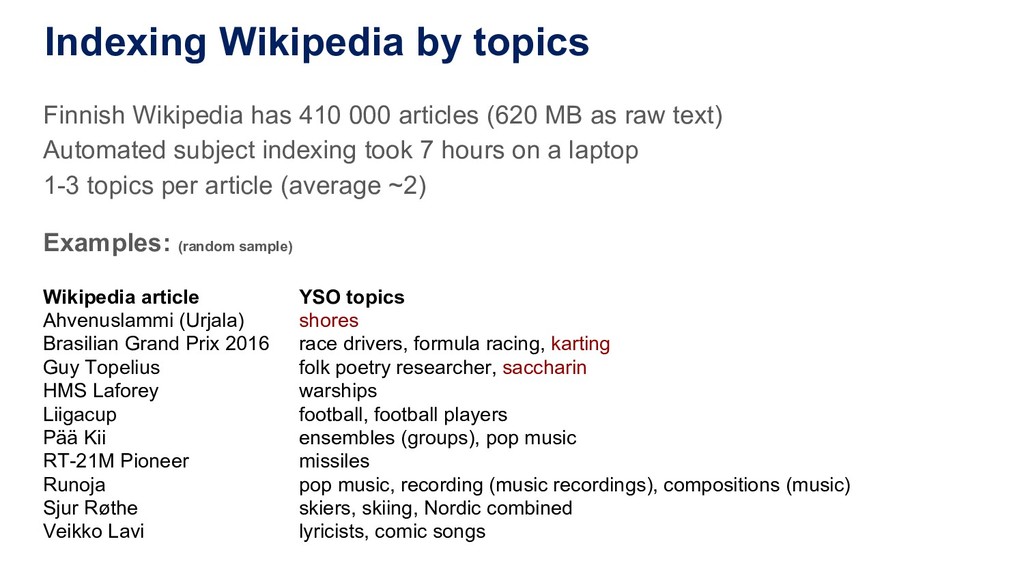

23. Indexing Wikipedia by topics Finnish Wikipedia has 410 000 articles (620 MB as raw text) Automated subject indexing took 7 hours on a laptop 1-3 topics per article (average ~2) Examples: (random sample) Wikipedia article YSO topics Ahvenuslammi (Urjala) shores Brasilian Grand Prix 2016 race drivers, formula racing, karting Guy Topelius folk poetry researcher, saccharin HMS Laforey warships Liigacup football, football players Pää Kii ensembles (groups), pop music RT-21M Pioneer missiles Runoja pop music, recording (music recordings), compositions (music) Sjur Røthe skiers, skiing, Nordic combined Veikko Lavi lyricists, comic songs

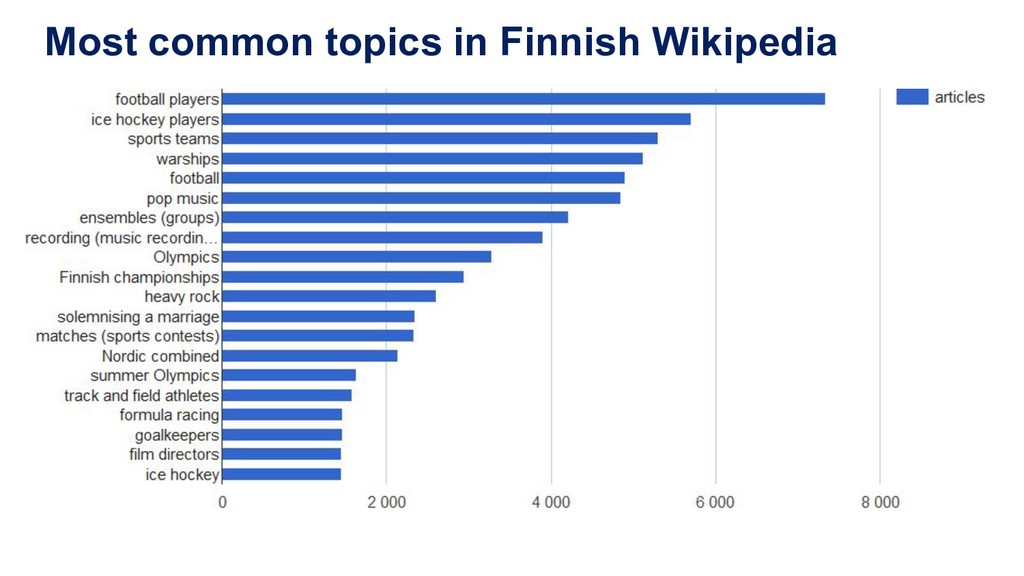

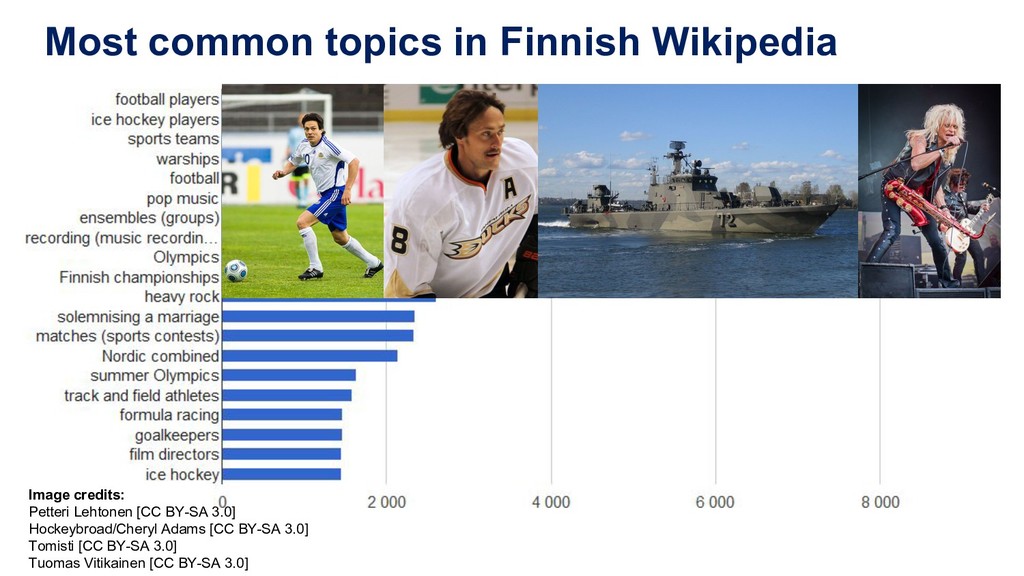

24. Most common topics in Finnish Wikipedia
25. Most common topics in Finnish Wikipedia Image credits: Petteri Lehtonen [CC BY-SA 3.0] Hockeybroad/Cheryl Adams [CC BY-SA 3.0] Tomisti [CC BY-SA 3.0] Tuomas Vitikainen [CC BY-SA 3.0]
26. People vs. Robots Workshop 20 documents 40 librarians 45 minutes ... 225 indexing results - 11 per document - 5.5 per person

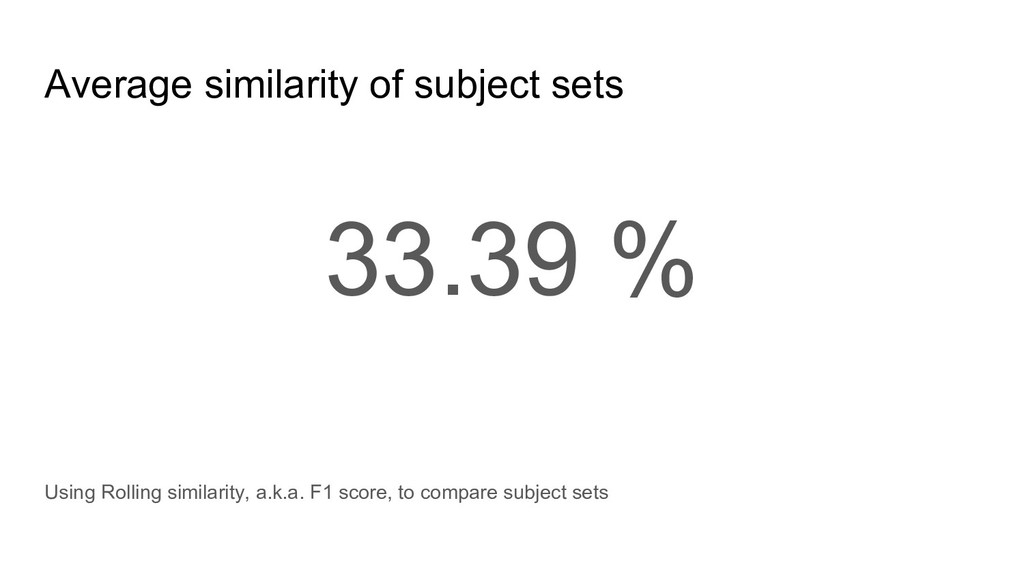

27. Average similarity of subject sets 33.39 % Using Rolling similarity, a.k.a. F1 score, to compare subject sets

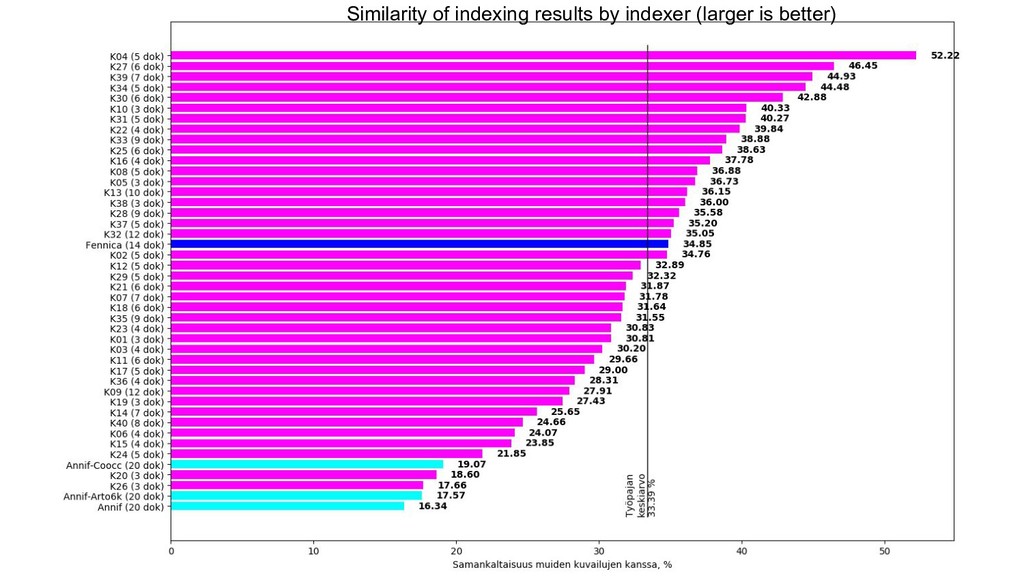

28. Similarity of indexing results by indexer (larger is better)

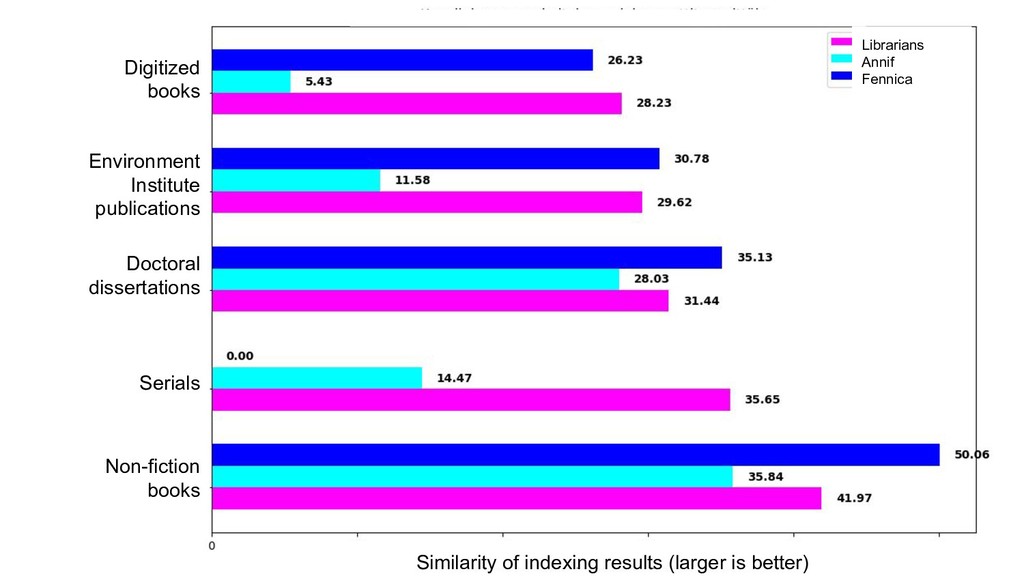

29. Digitized books Environment Institute publications Doctoral dissertations Serials Non-fiction books Similarity of indexing results (larger is better) Librarians Annif Fennica

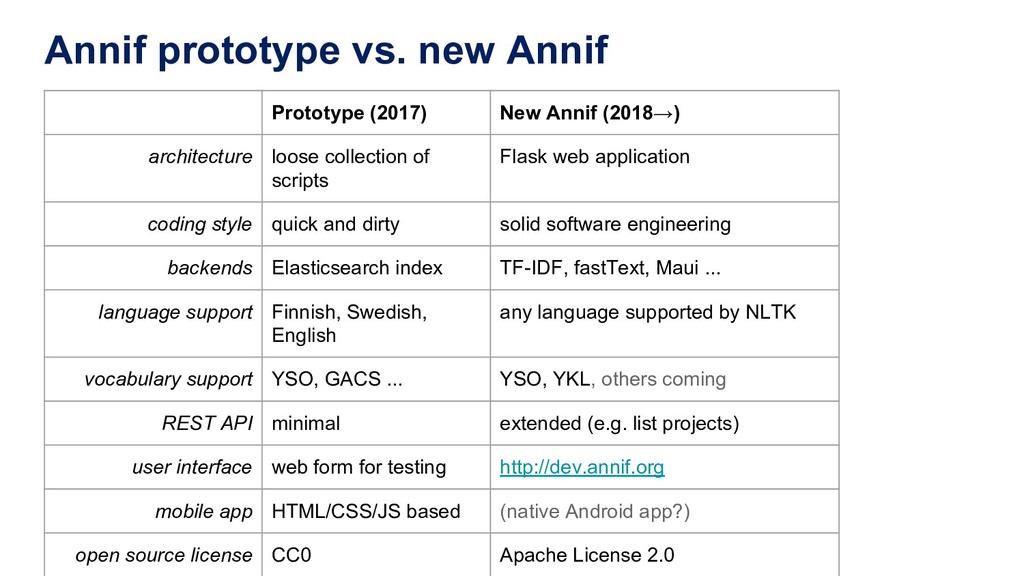

30. Annif prototype vs. new Annif Prototype (2017) New Annif (2018→) architecture loose collection of scripts Flask web application coding style quick and dirty solid software engineering backends Elasticsearch index TF-IDF, fastText, Maui ... language support Finnish, Swedish, English any language supported by NLTK vocabulary support YSO, GACS ... YSO, YKL, others coming REST API minimal extended (e.g. list projects) user interface web form for testing http://dev.annif.org mobile app HTML/CSS/JS based (native Android app?) open source license CC0 Apache License 2.0
31. Mobile app Annif Flask/Connexion web app REST API TF-IDF model fastText model HTTP backend MauiService Microservice around Maui REST API New Annif Architecture Finna.fi metadata Fulltext docs training data training data Any metadata / document management system training data more backends can be added in future, e.g. neural network, fastXML, StarSpace OCR

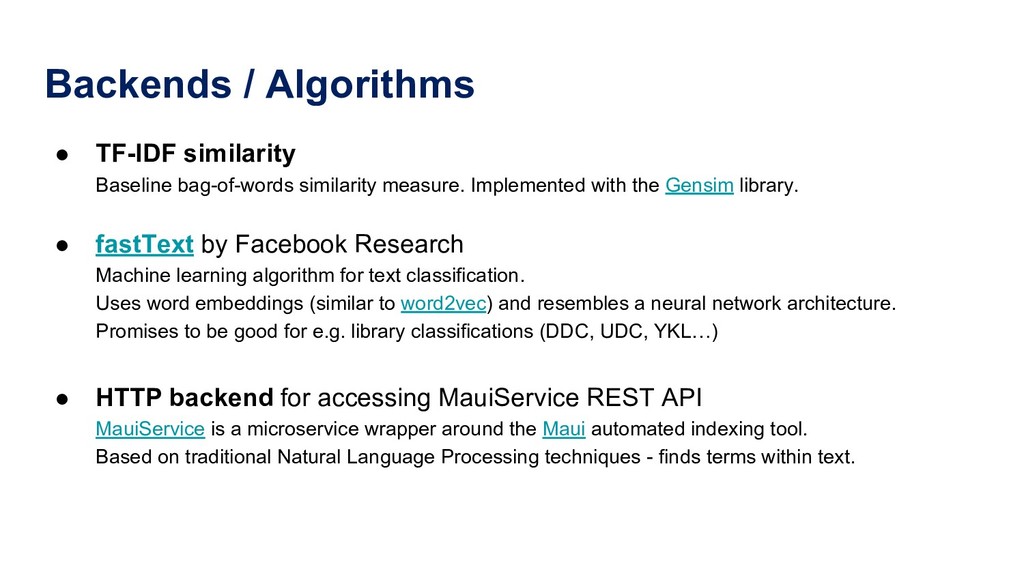

32. Backends / Algorithms • TF-IDF similarity Baseline bag-of-words similarity measure. Implemented with the Gensim library. • fastText by Facebook Research Machine learning algorithm for text classification. Uses word embeddings (similar to word2vec) and resembles a neural network architecture. Promises to be good for e.g. library classifications (DDC, UDC, YKL…) • HTTP backend for accessing MauiService REST API MauiService is a microservice wrapper around the Maui automated indexing tool. Based on traditional Natural Language Processing techniques - finds terms within text.

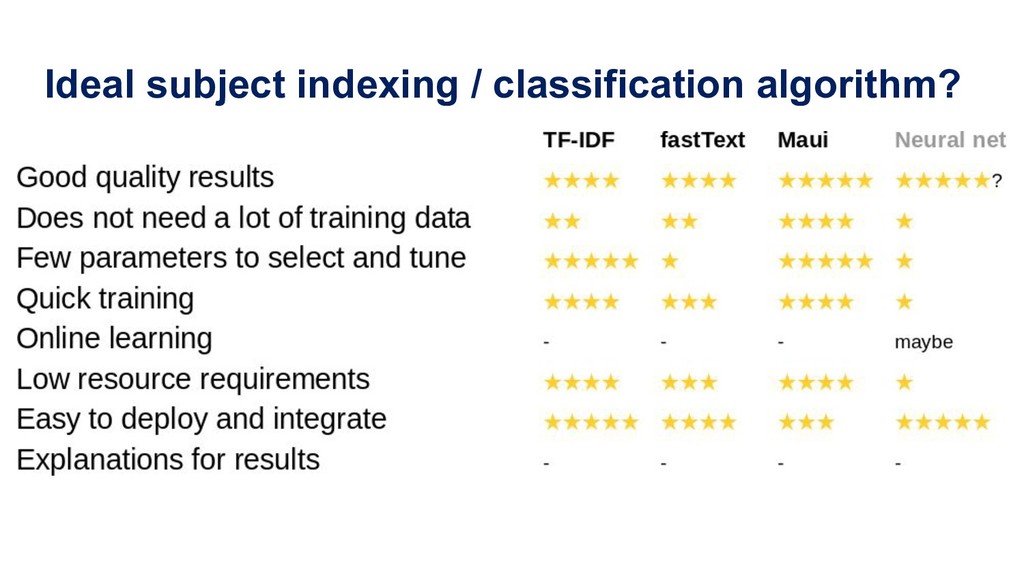

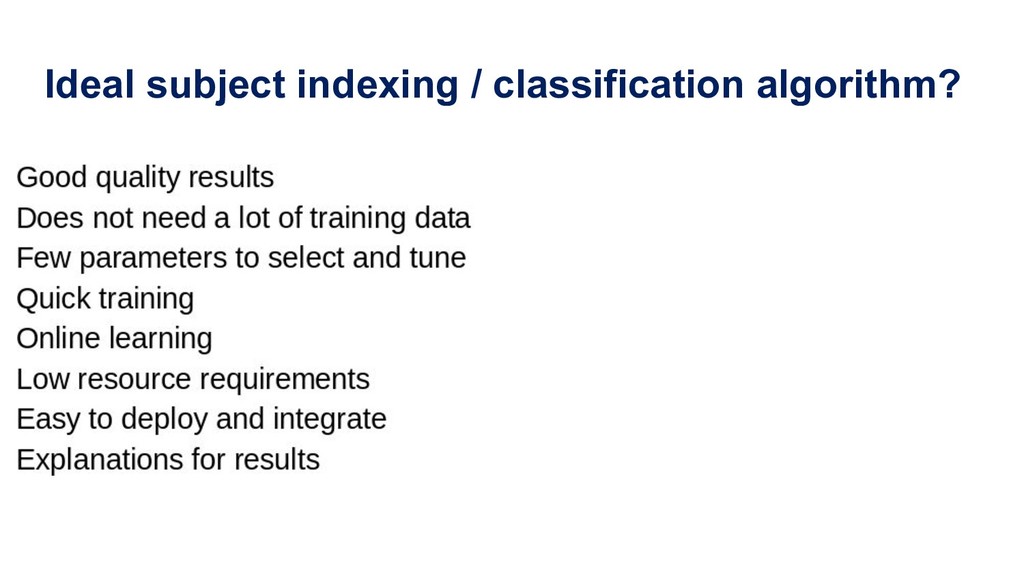

33. Ideal subject indexing / classification algorithm?
34. Ideal subject indexing / classification algorithm?
35. Ideal subject indexing / classification algorithm?
36. Backend configuration Backends may be used alone, or in combinations (ensembles)

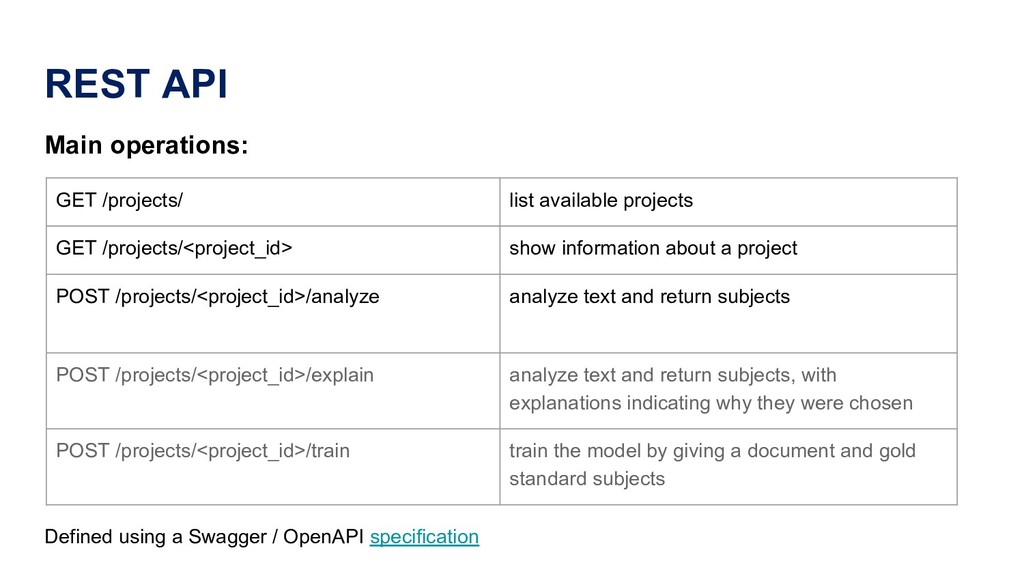

37. REST API Main operations: Defined using a Swagger / OpenAPI specification GET /projects/ list available projects GET /projects/<project_id> show information about a project POST /projects/<project_id>/analyze analyze text and return subjects POST /projects/<project_id>/explain analyze text and return subjects, with explanations indicating why they were chosen POST /projects/<project_id>/train train the model by giving a document and gold standard subjects

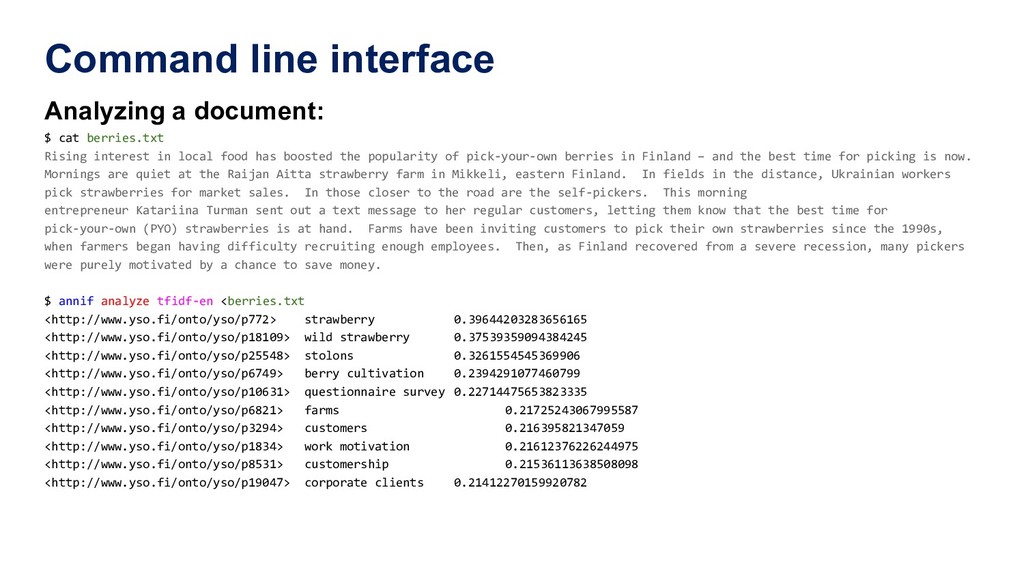

38. Command line interface Analyzing a document: $ cat berries.txt Rising interest in local food has boosted the popularity of pick-your-own berries in Finland – and the best time for picking is now. Mornings are quiet at the Raijan Aitta strawberry farm in Mikkeli, eastern Finland. In fields in the distance, Ukrainian workers pick strawberries for market sales. In those closer to the road are the self-pickers. This morning entrepreneur Katariina Turman sent out a text message to her regular customers, letting them know that the best time for pick-your-own (PYO) strawberries is at hand. Farms have been inviting customers to pick their own strawberries since the 1990s, when farmers began having difficulty recruiting enough employees. Then, as Finland recovered from a severe recession, many pickers were purely motivated by a chance to save money. $ annif analyze tfidf-en <berries.txt <http://www.yso.fi/onto/yso/p772> strawberry 0.39644203283656165 <http://www.yso.fi/onto/yso/p18109> wild strawberry 0.37539359094384245 <http://www.yso.fi/onto/yso/p25548> stolons 0.3261554545369906 <http://www.yso.fi/onto/yso/p6749> berry cultivation 0.2394291077460799 <http://www.yso.fi/onto/yso/p10631> questionnaire survey 0.22714475653823335 <http://www.yso.fi/onto/yso/p6821> farms 0.21725243067995587 <http://www.yso.fi/onto/yso/p3294> customers 0.216395821347059 <http://www.yso.fi/onto/yso/p1834> work motivation 0.21612376226244975 <http://www.yso.fi/onto/yso/p8531> customership 0.21536113638508098 <http://www.yso.fi/onto/yso/p19047> corporate clients 0.21412270159920782

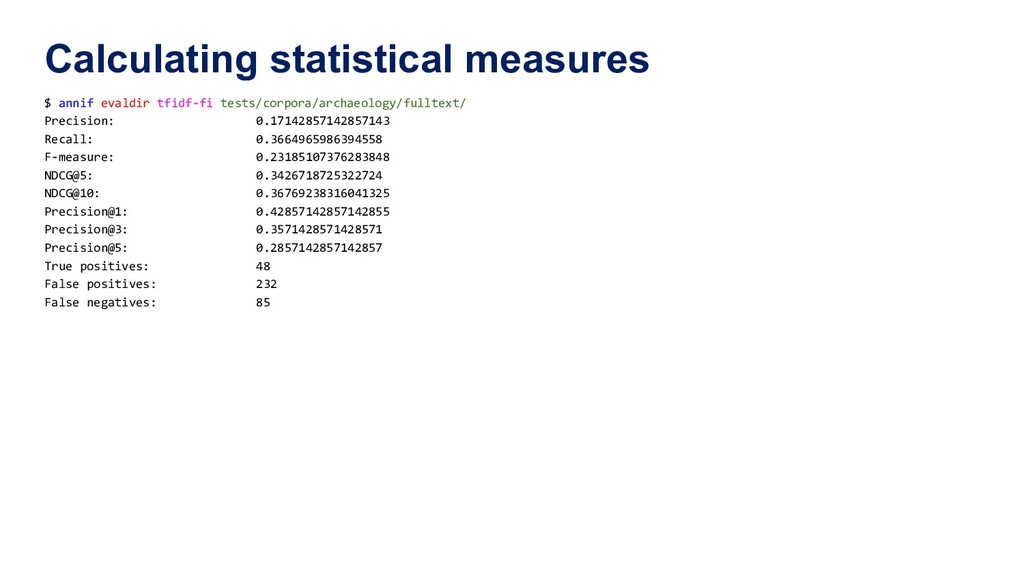

39. Calculating statistical measures $ annif evaldir tfidf-fi tests/corpora/archaeology/fulltext/ Precision: 0.17142857142857143 Recall: 0.3664965986394558 F-measure: 0.23185107376283848 NDCG@5: 0.3426718725322724 NDCG@10: 0.36769238316041325 Precision@1: 0.42857142857142855 Precision@3: 0.3571428571428571 Precision@5: 0.2857142857142857 True positives: 48 False positives: 232 False negatives: 85
40. Mobile app Prototype web app ocr.space cloud OCR A native app (Android / iOS …) could do OCR on the device. This would enable an AR (augmented reality) mode, where the app would “reveal” concepts when pointing the camera at text documents, book covers etc. Watch the video for the prototype:

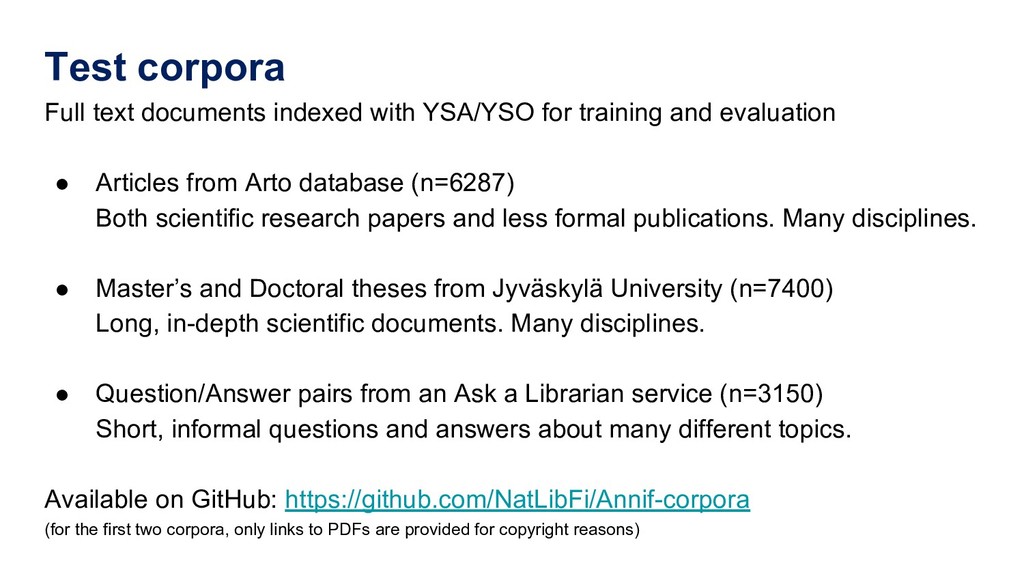

41. Test corpora Full text documents indexed with YSA/YSO for training and evaluation • Articles from Arto database (n=6287) Both scientific research papers and less formal publications. Many disciplines. • Master’s and Doctoral theses from Jyväskylä University (n=7400) Long, in-depth scientific documents. Many disciplines. • Question/Answer pairs from an Ask a Librarian service (n=3150) Short, informal questions and answers about many different topics. Available on GitHub: https://github.com/NatLibFi/Annif-corpora (for the first two corpora, only links to PDFs are provided for copyright reasons)

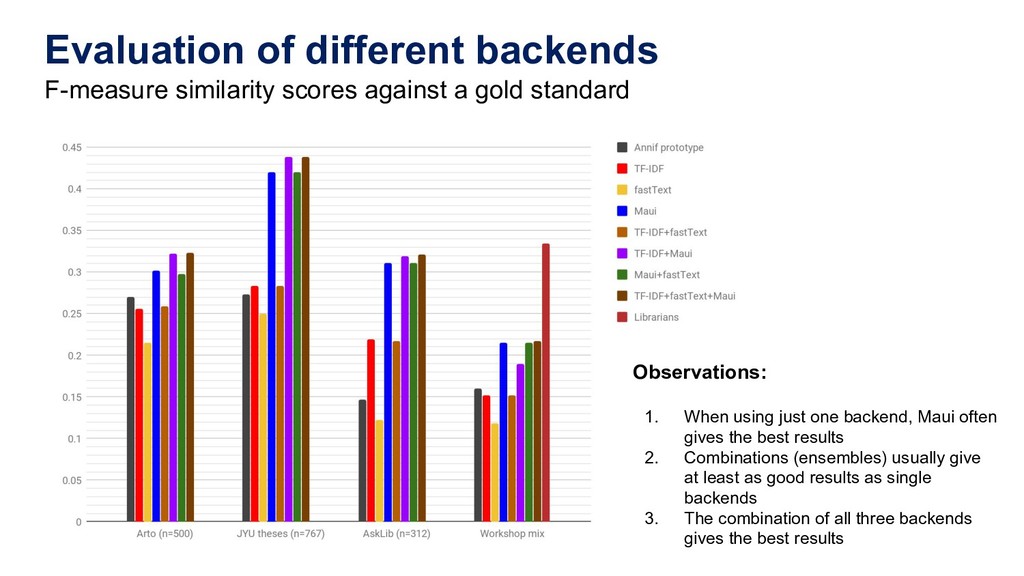

42. Evaluation of different backends F-measure similarity scores against a gold standard Observations: 1. When using just one backend, Maui often gives the best results 2. Combinations (ensembles) usually give at least as good results as single backends 3. The combination of all three backends gives the best results

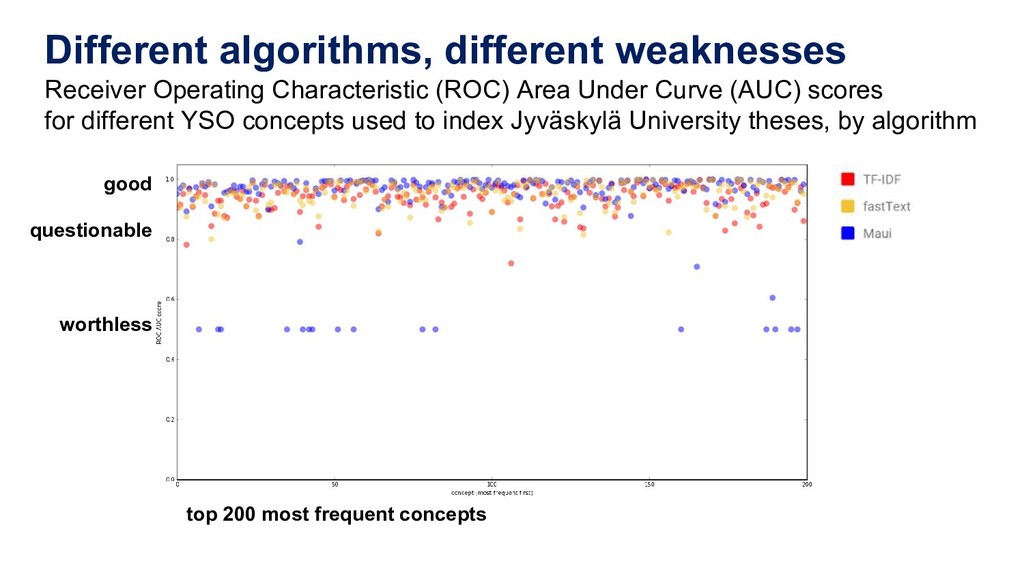

43. Different algorithms, different weaknesses Receiver Operating Characteristic (ROC) Area Under Curve (AUC) scores for different YSO concepts used to index Jyväskylä University theses, by algorithm good questionable worthless top 200 most frequent concepts

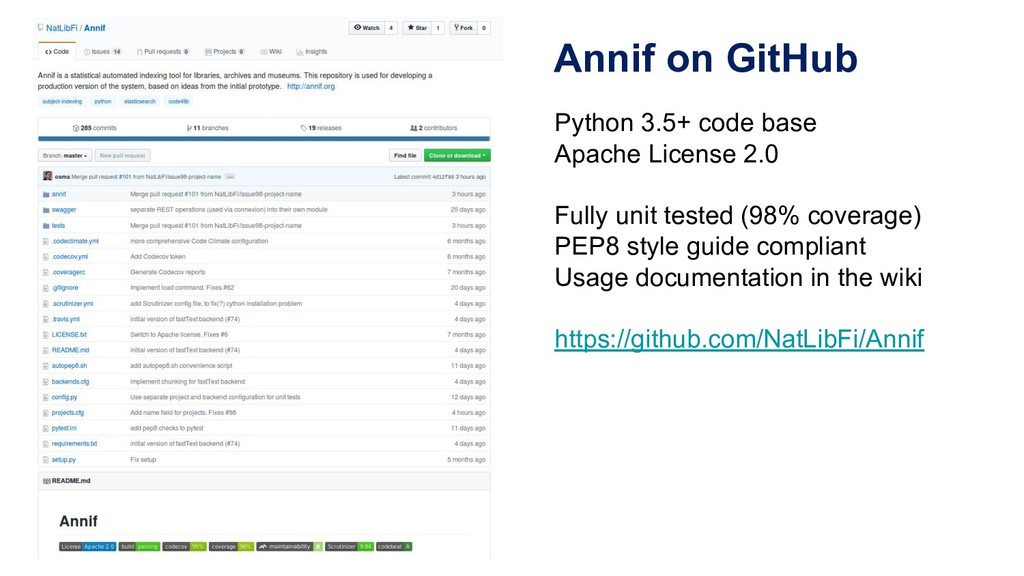

44. Annif on GitHub Python 3.5+ code base Apache License 2.0 Fully unit tested (98% coverage) PEP8 style guide compliant Usage documentation in the wiki https://github.com/NatLibFi/Annif

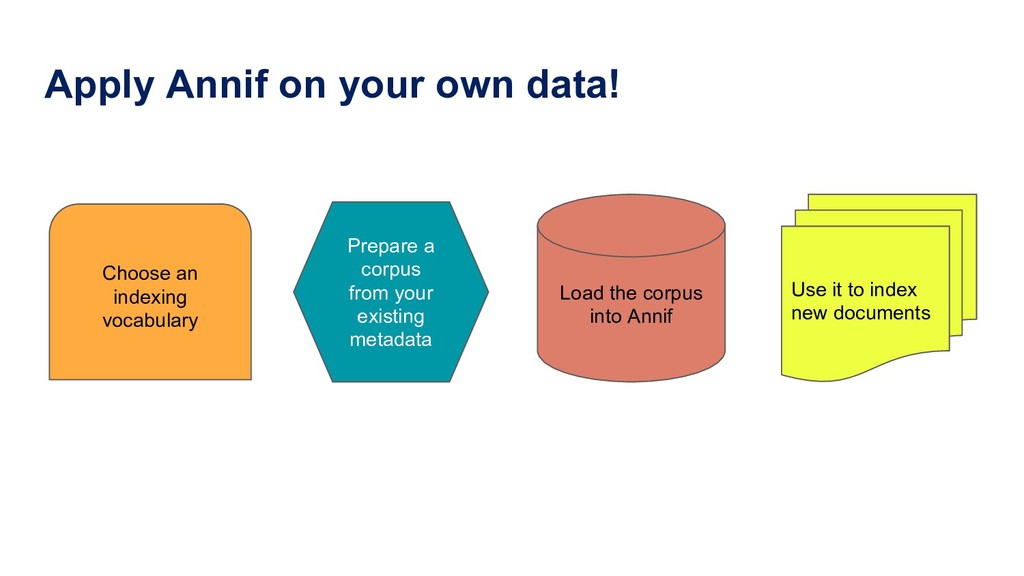

45. Apply Annif on your own data! Choose an indexing vocabulary Load the corpus into Annif Prepare a corpus from your existing metadata Use it to index new documents

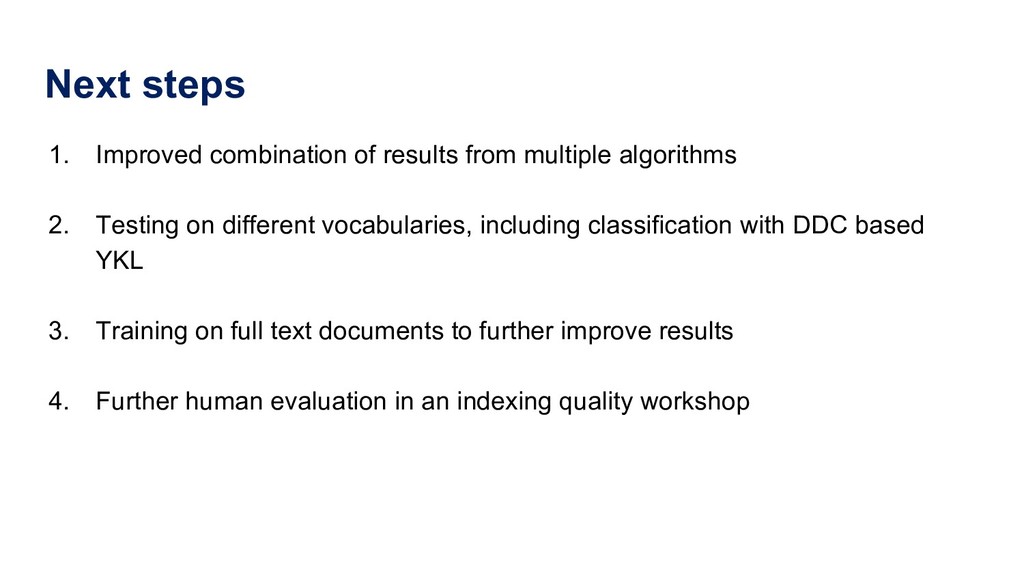

46. Next steps 1. Improved combination of results from multiple algorithms 2. Testing on different vocabularies, including classification with DDC based YKL 3. Training on full text documents to further improve results 4. Further human evaluation in an indexing quality workshop

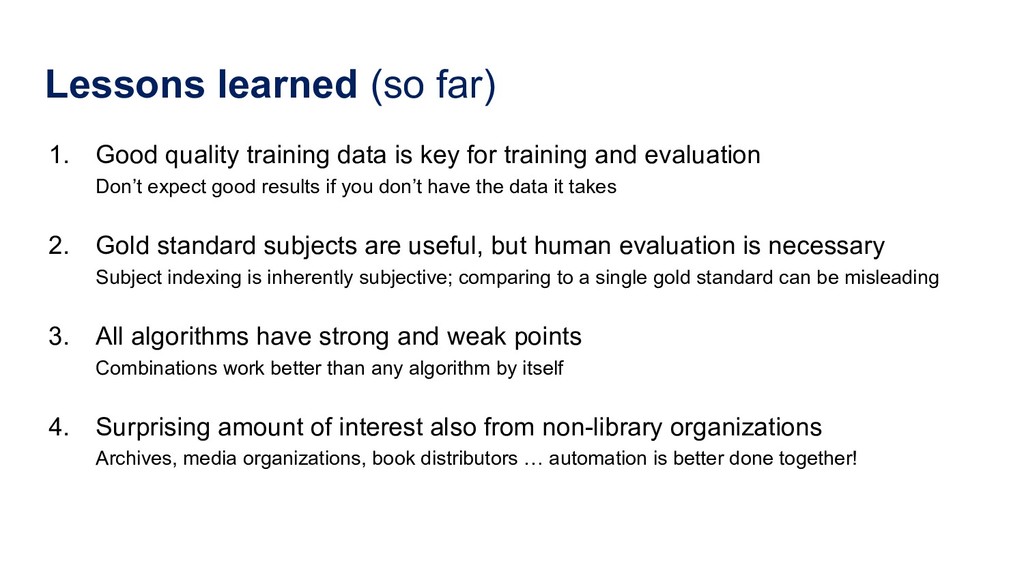

47. Lessons learned (so far) 1. Good quality training data is key for training and evaluation Don’t expect good results if you don’t have the data it takes 2. Gold standard subjects are useful, but human evaluation is necessary Subject indexing is inherently subjective; comparing to a single gold standard can be misleading 3. All algorithms have strong and weak points Combinations work better than any algorithm by itself 4. Surprising amount of interest also from non-library organizations Archives, media organizations, book distributors … automation is better done together!
48. Thank you! Questions? osma.suominen@helsinki.fi - @OsmaSuominen Website: http://annif.org Code: https://github.com/NatLibFi/Annif Test corpora: https://github.com/NatLibFi/Annif-corpora These slides: https://tinyurl.com/annif-liber
