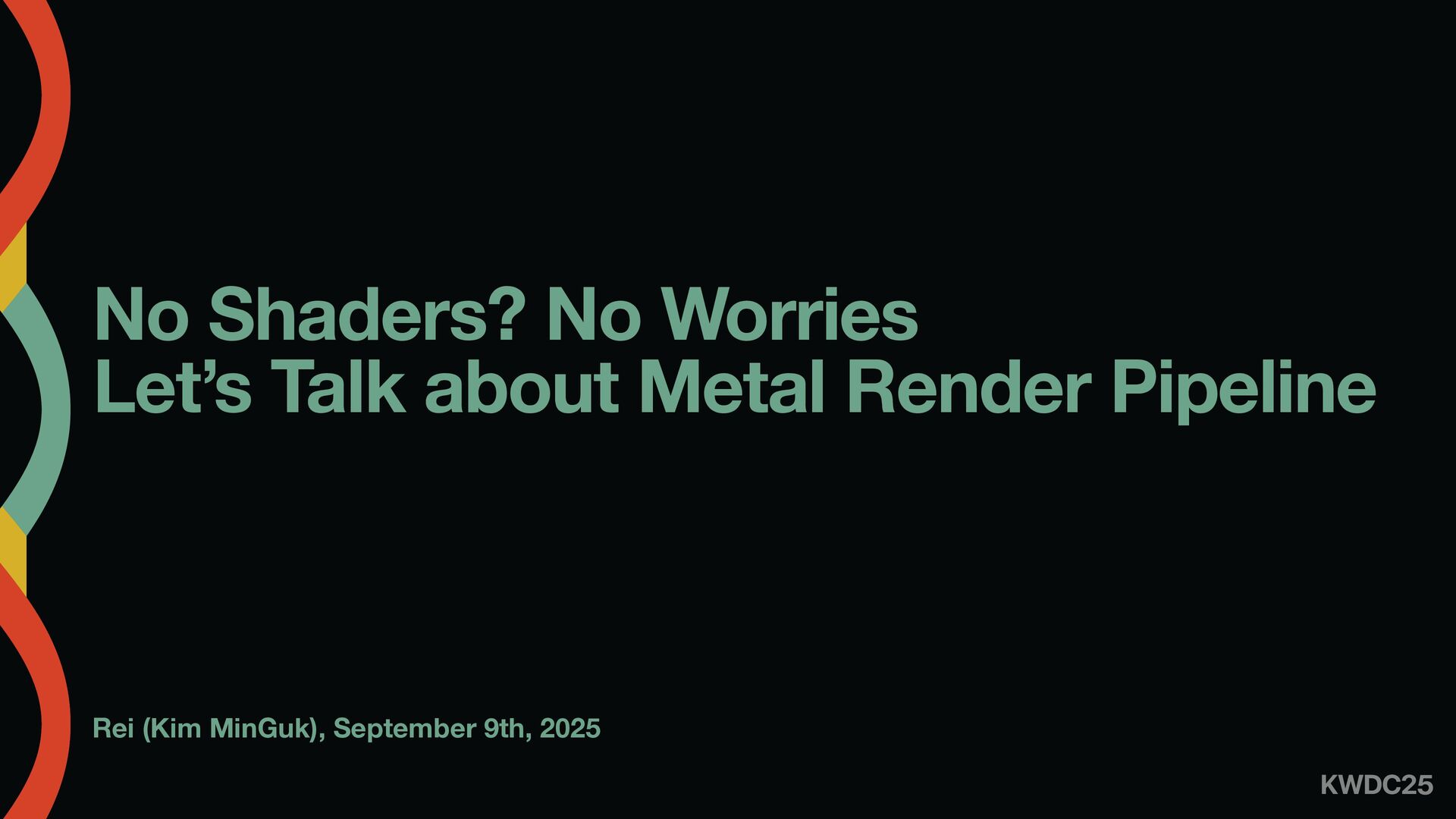

No Shaders? No Worries Let’s Talk about Metal Render Pipeline

KWDC25 Presentation

Transcript

1. Rei (Kim MinGuk), September 9th, 2025 No Shaders? No Worries Let’s Talk about Metal Render Pipeline
2. Rei Kim MinGuk nekodoko315 rei315

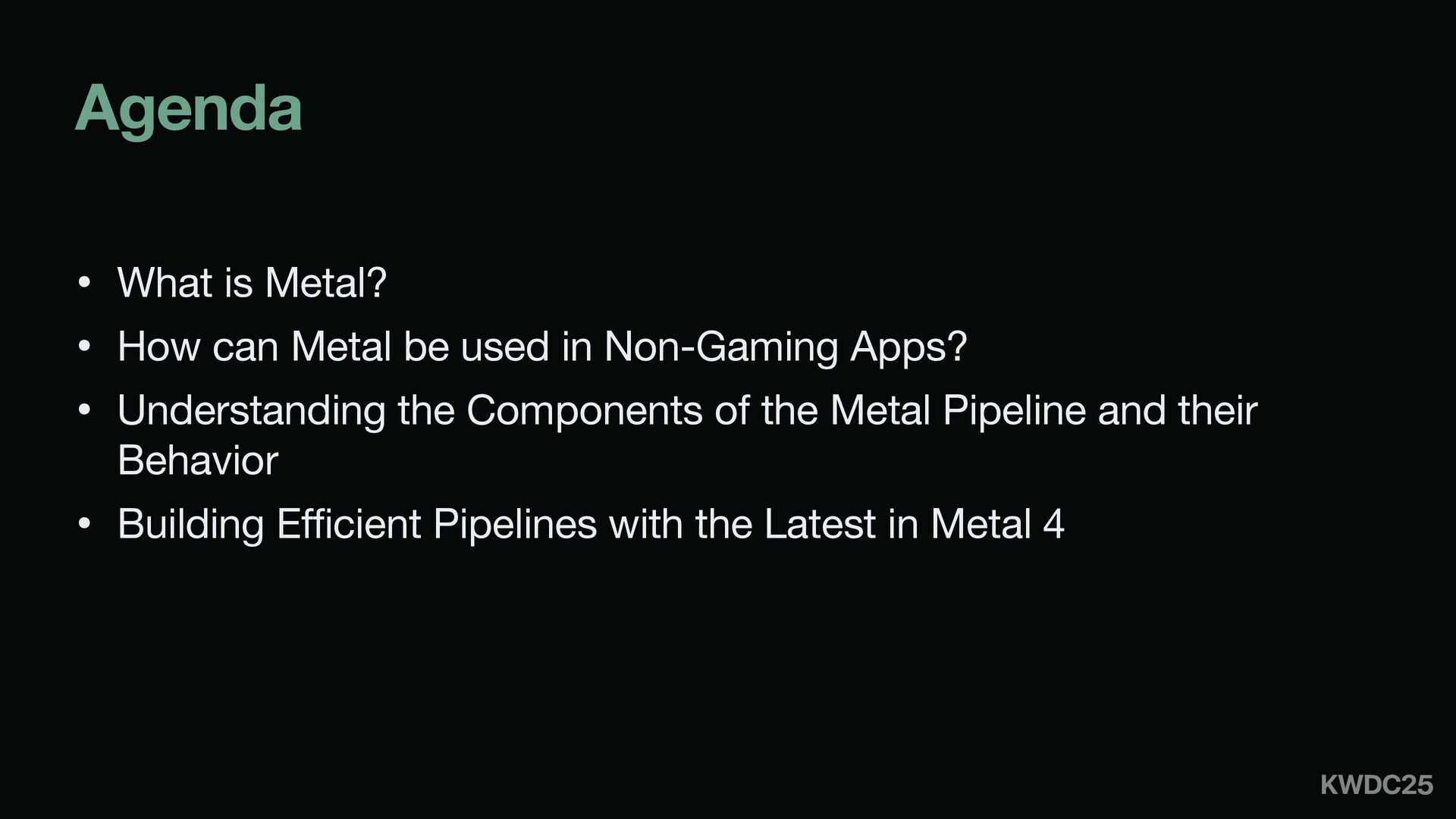

3. Agenda • What is Metal? • How can Metal be used in Non-Gaming Apps? • Understanding the Components of the Metal Pipeline and their Behavior • Building Efficient Pipelines with the Latest in Metal 4
4. What is Metal ?
5. !"QQMF
6. !"QQMF

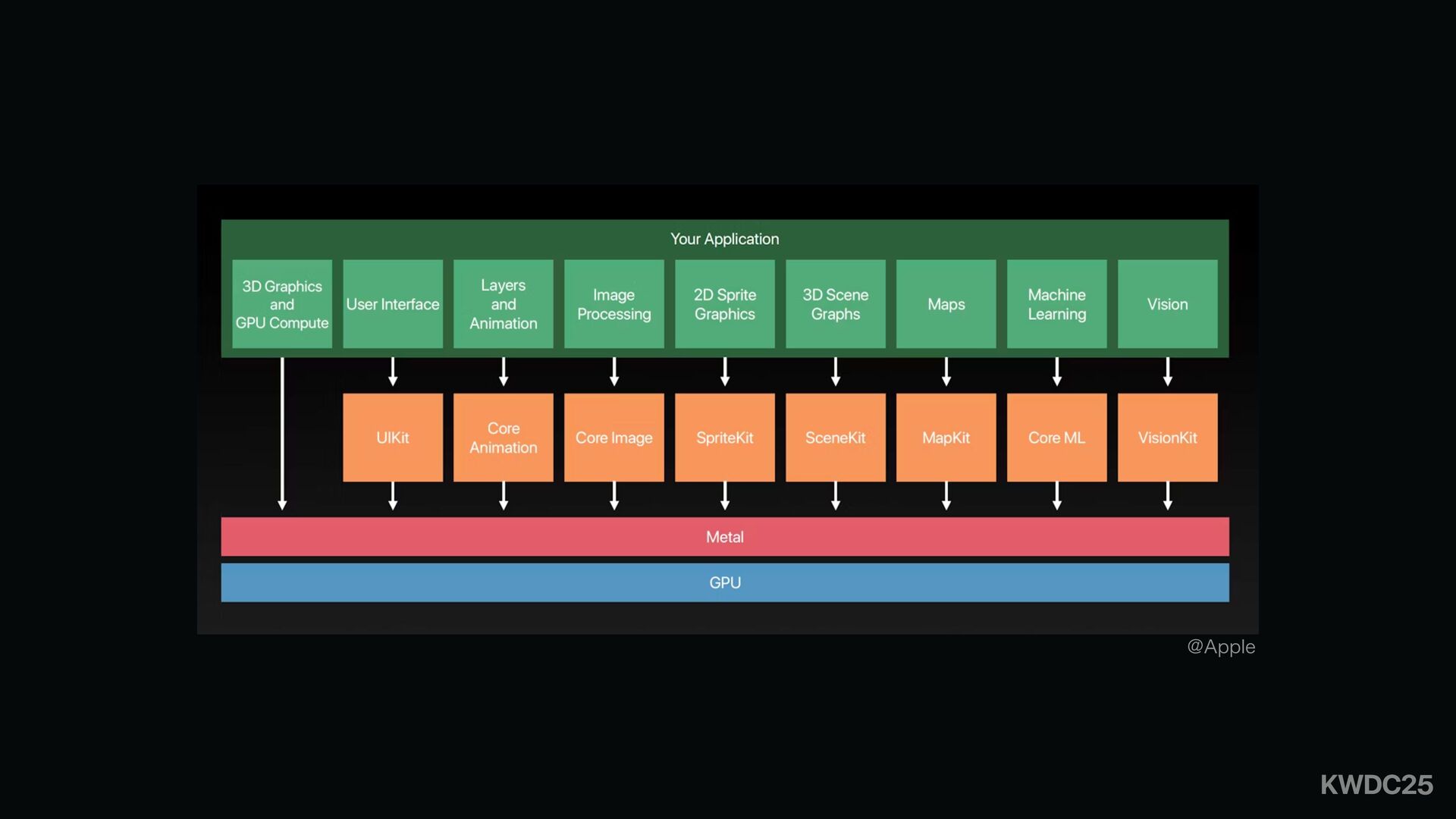

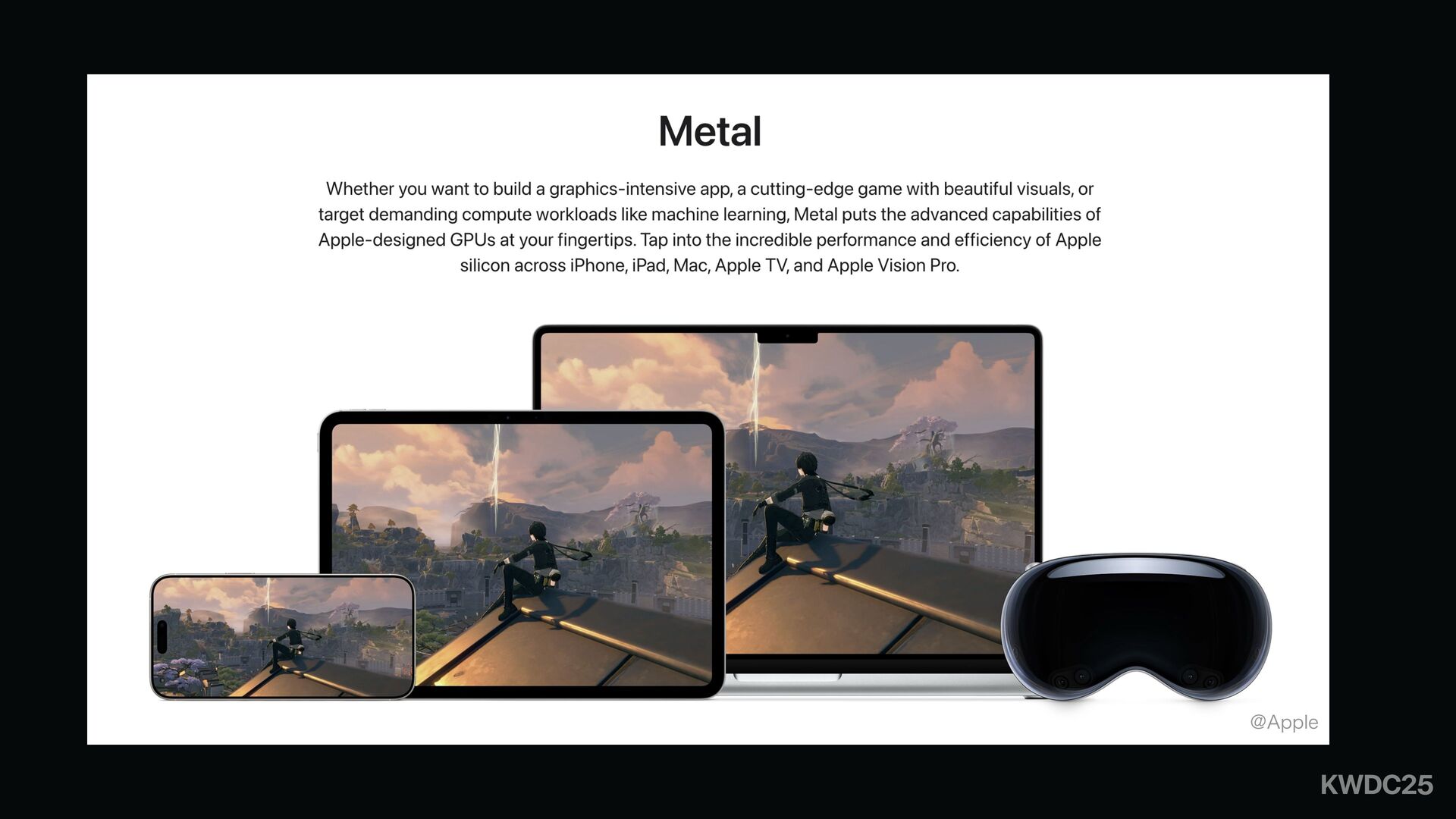

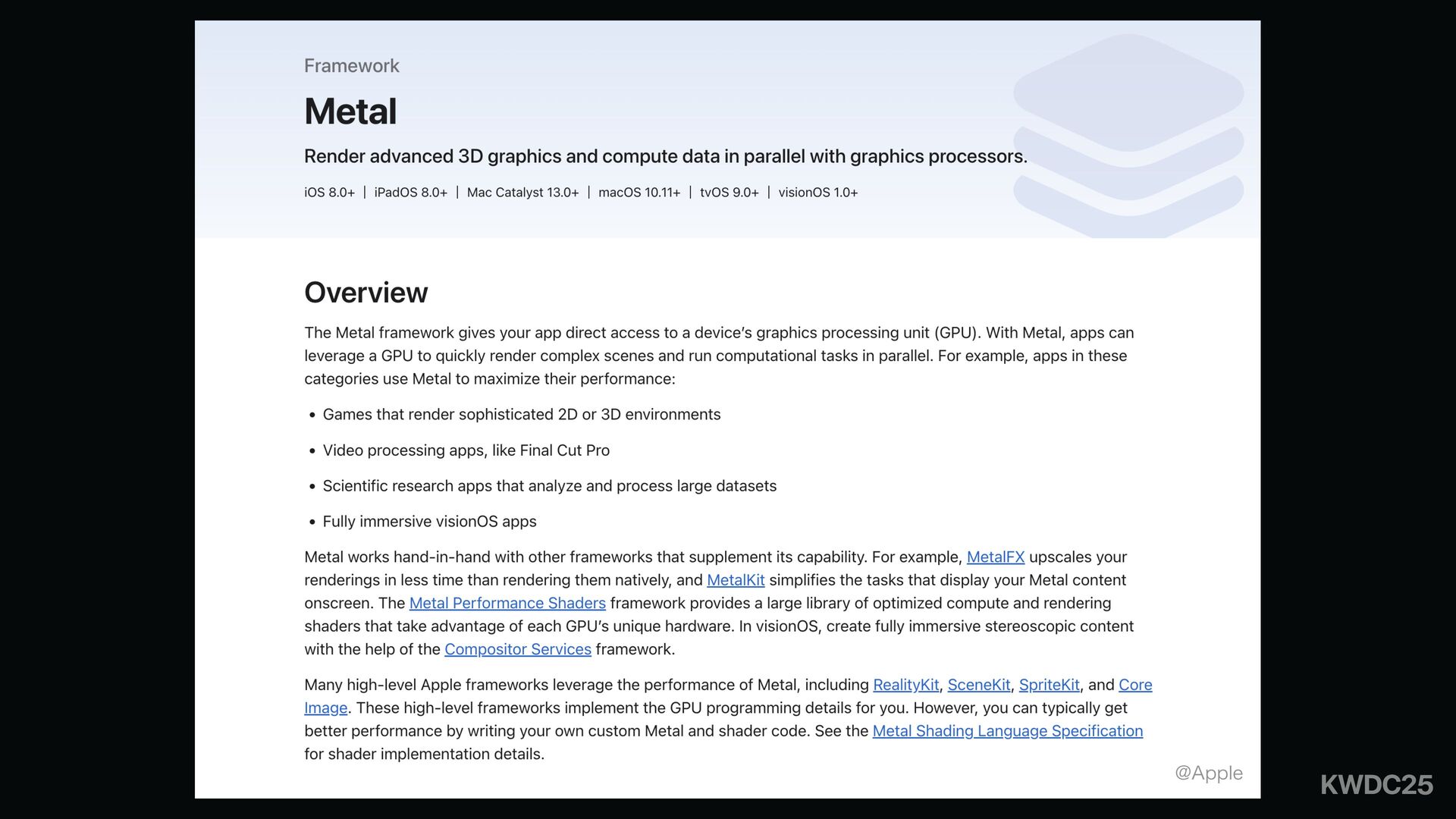

7. What is Metal • Low-Level access to the GPU • Graphics rendering • Parallel computation
8. !"QQMF
9. How can Metal be used in Non-Gaming Apps?
10. Why do we use Metal ?
11. !"QQMF
12. !"QQMF
13. Better Performance
14. Example

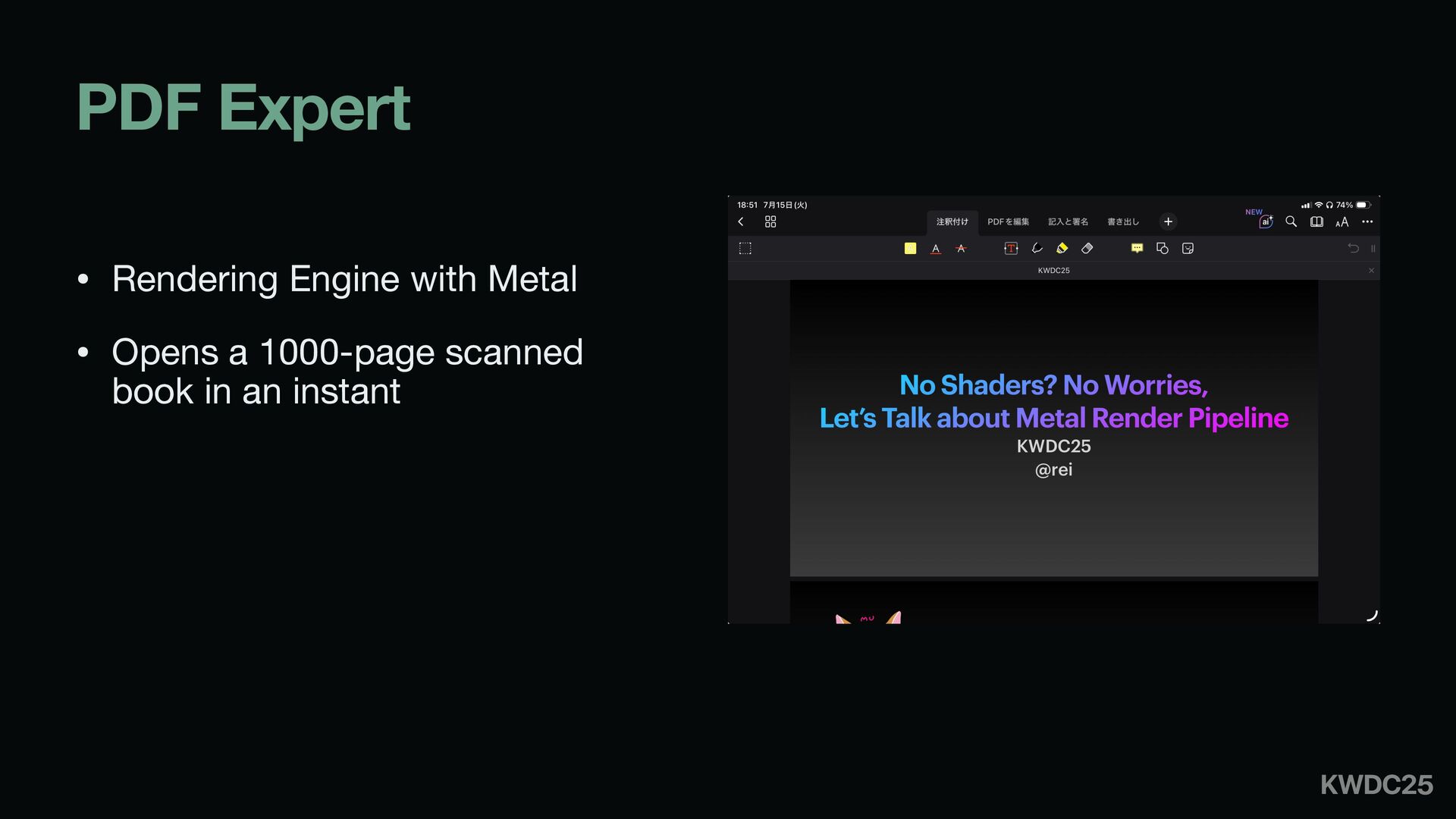

15. • Rendering Engine with Metal • Opens a 1000-page scanned book in an instant PDF Expert

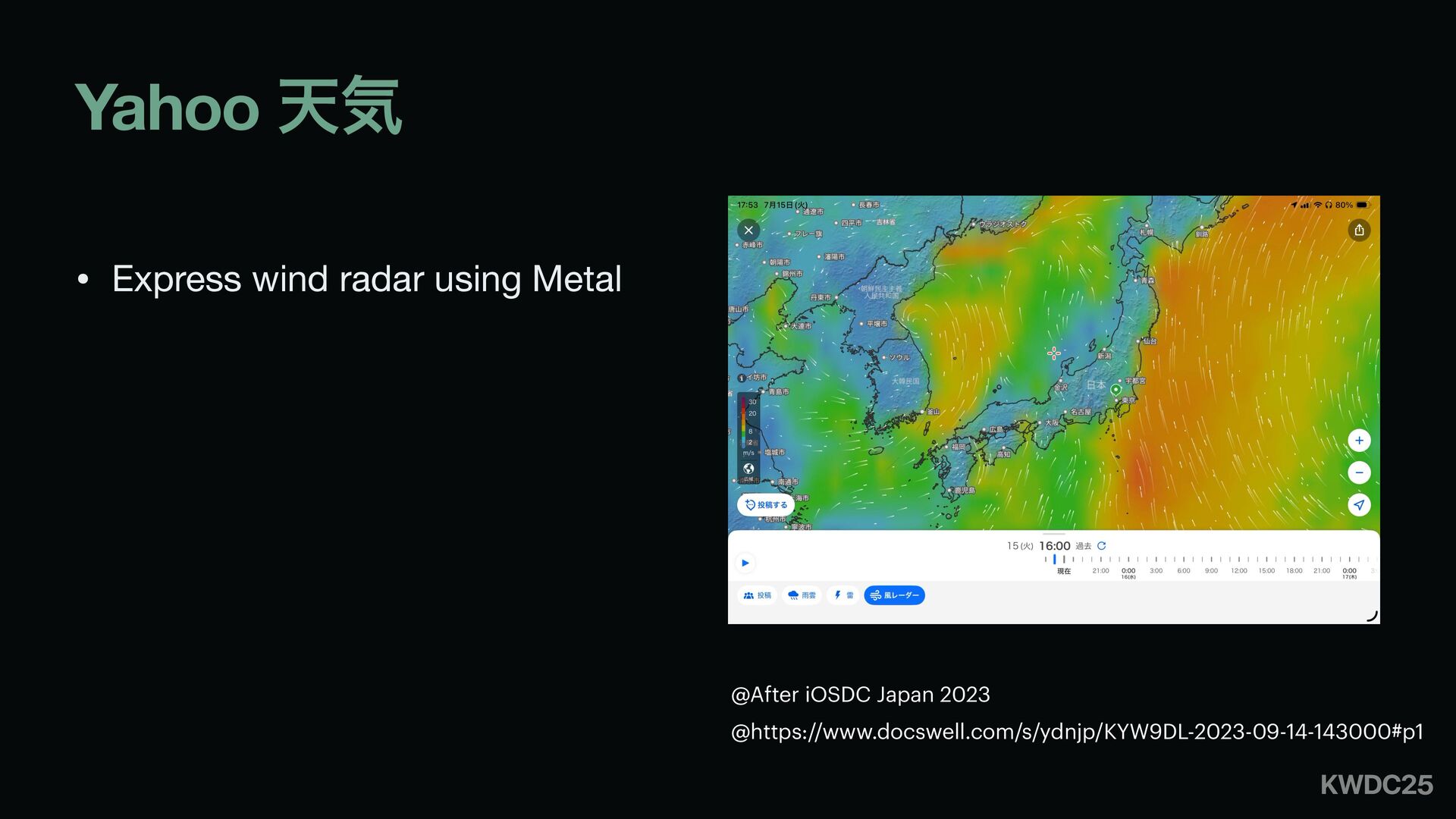

16. • Express wind radar using Metal Yahoo ఱؾ @After iOSDC Japan 2023 @https://www.docswell.com/s/ydnjp/KYW9DL-2023-09-14-143000#p1

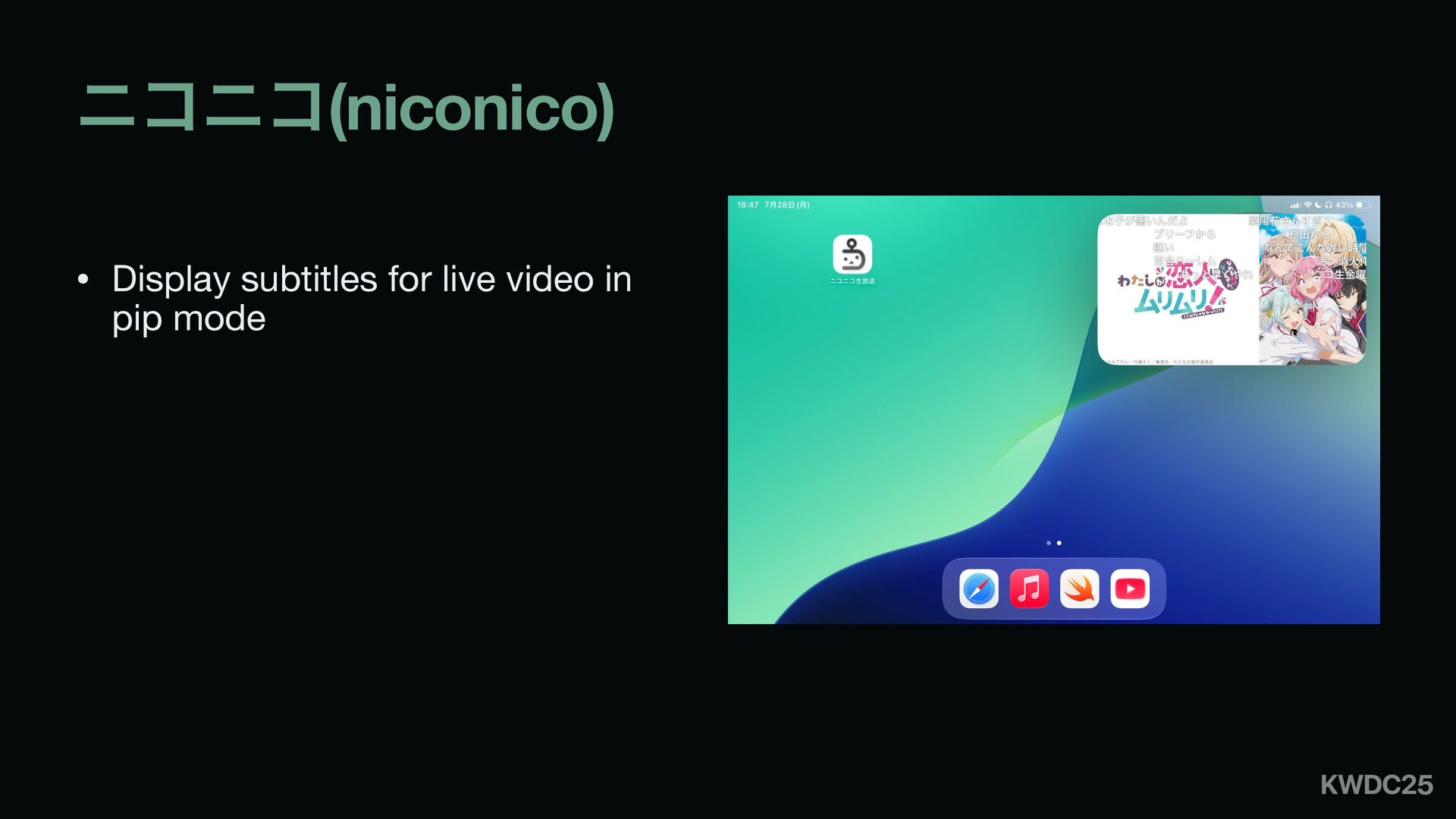

17. • Display subtitles for live video in pip mode χίχί(niconico)

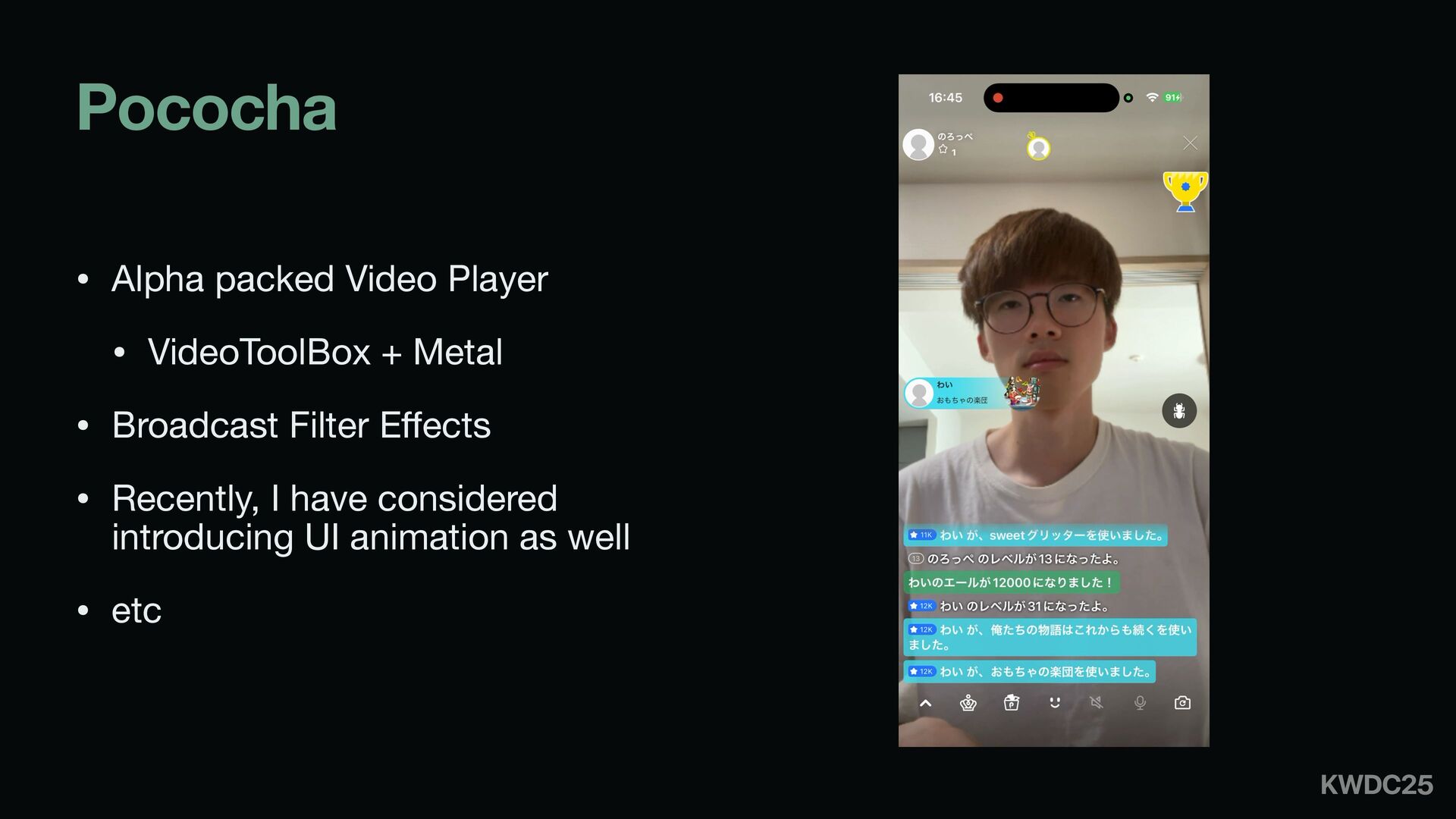

18. • Alpha packed Video Player • VideoToolBox + Metal • Broadcast Filter E ff ects • Recently, I have considered introducing UI animation as well • etc Pococha

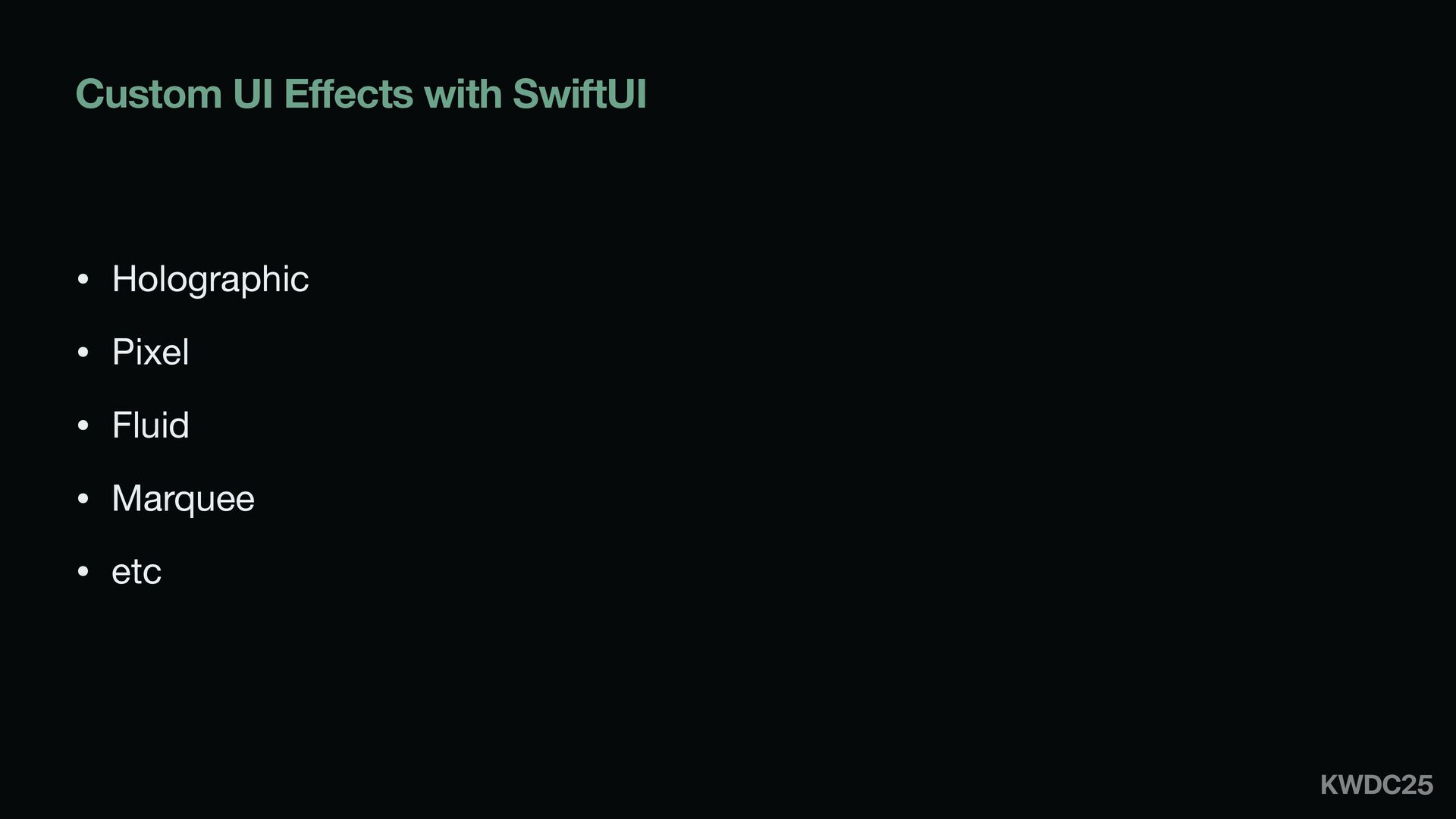

19. • Holographic • Pixel • Fluid • Marquee • etc Custom UI Effects with SwiftUI
20. Understanding the Components of the Metal Pipeline and their Behavior
21. GPU Basic

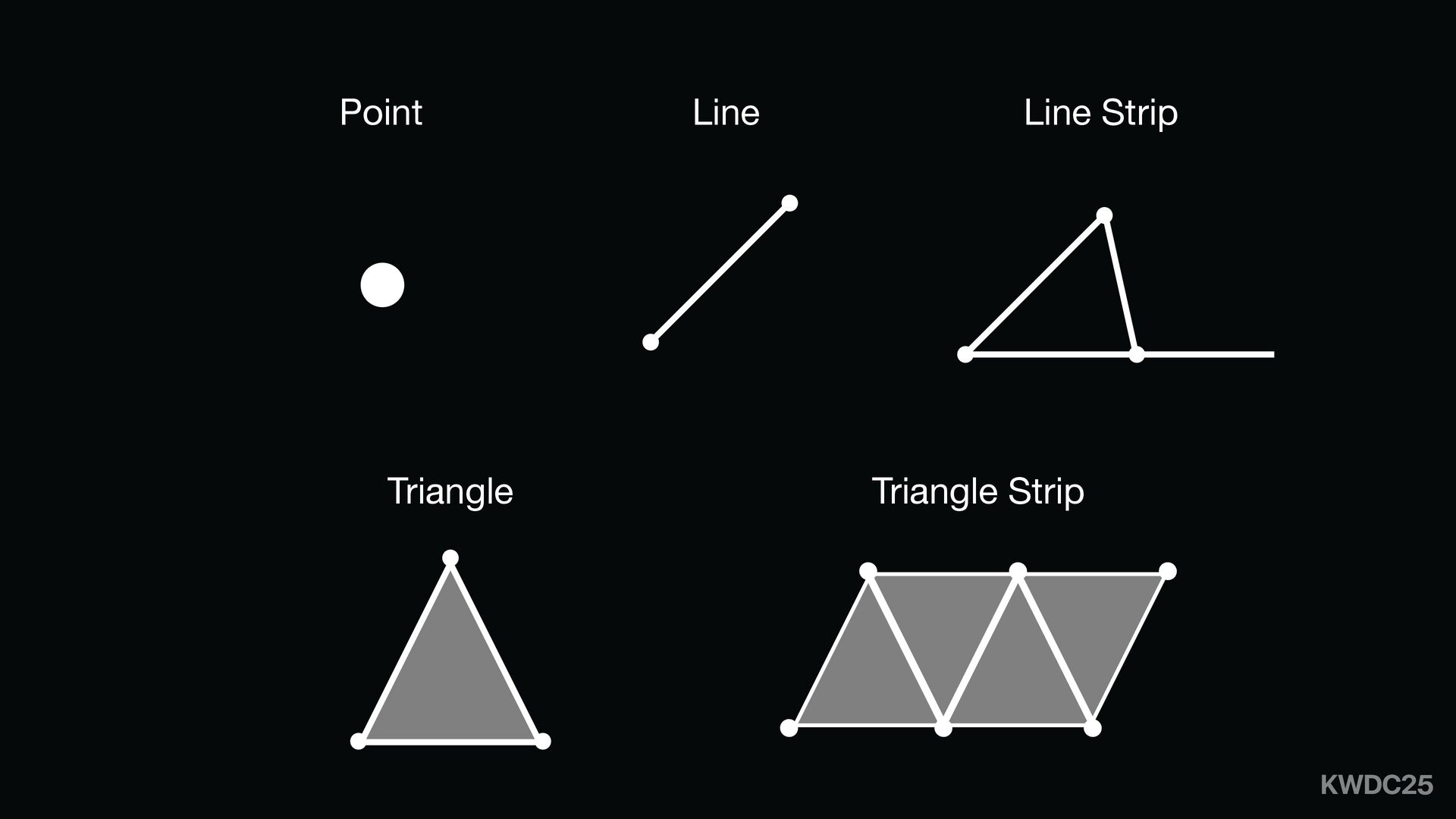

22. Point Line Strip Line Triangle Triangle Strip

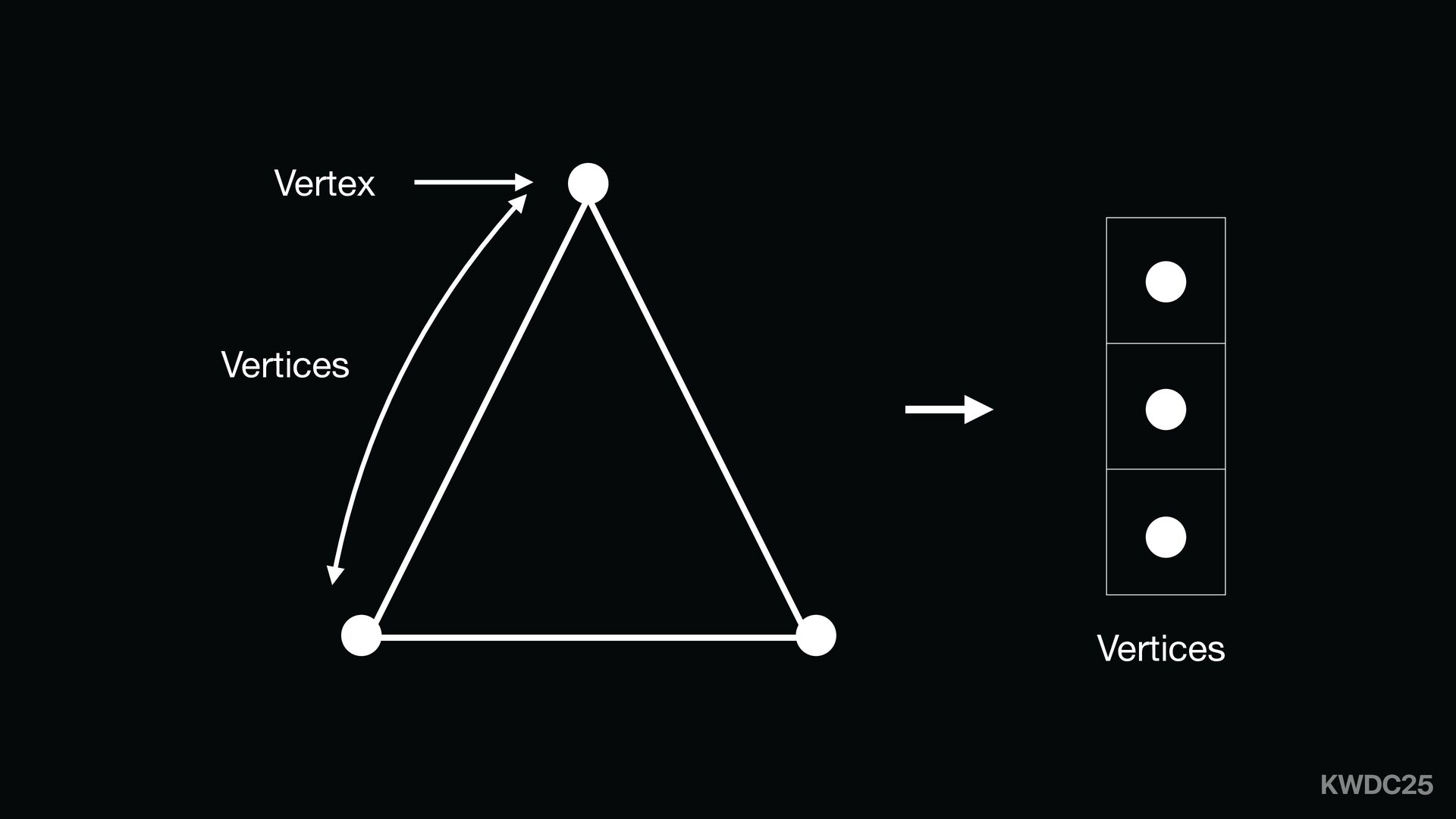

23. Vertex Vertices Vertices

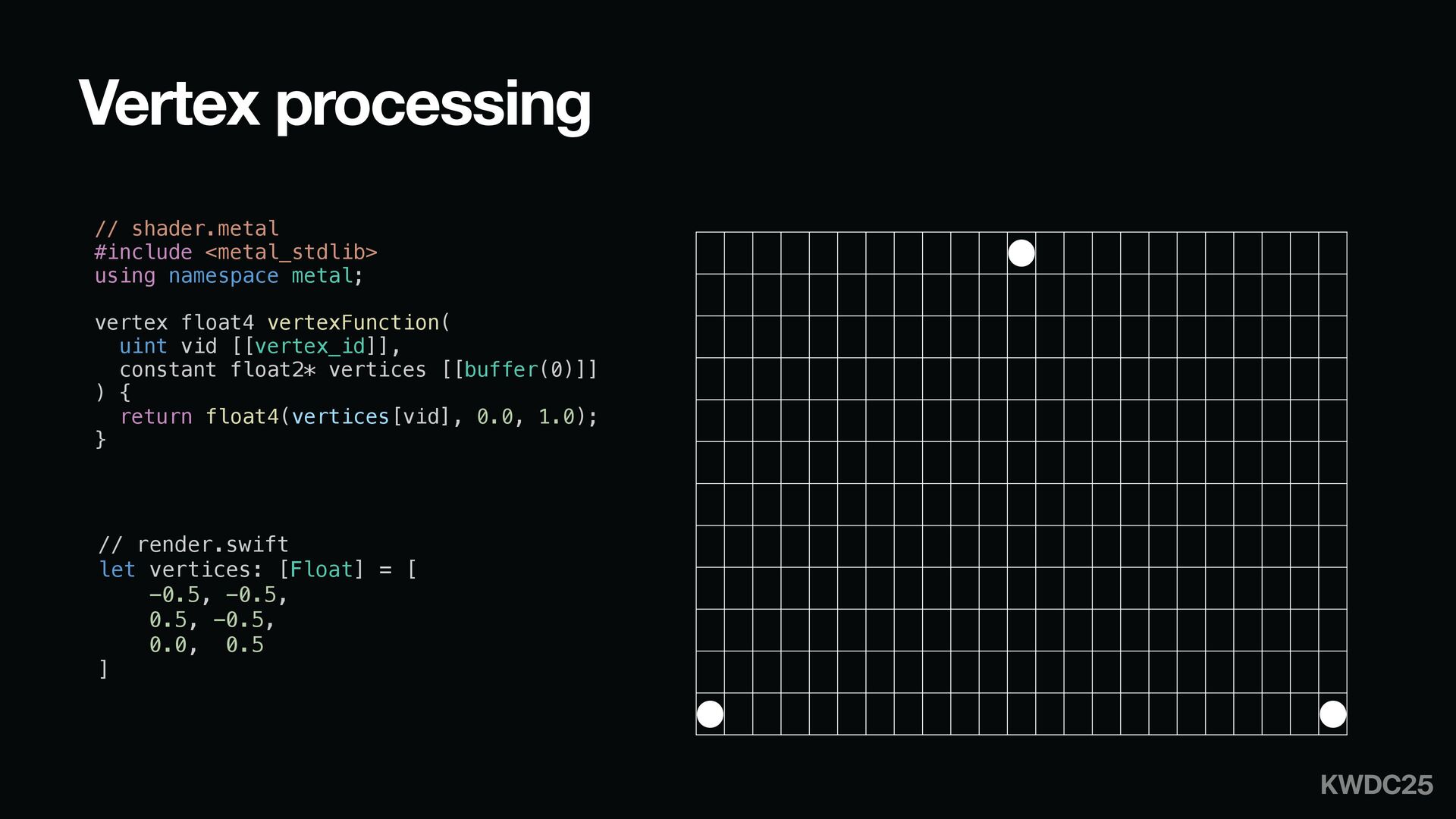

24. Vertex processing // shader.metal #include <metal_stdlib> using namespace metal; vertex float4 vertexFunction( uint vid [[vertex_id]], constant float2* vertices [[buffer(0)]] ) { return float4(vertices[vid], 0.0, 1.0); } // render.swift let vertices: [Float] = [ -0.5, -0.5, 0.5, -0.5, 0.0, 0.5 ]

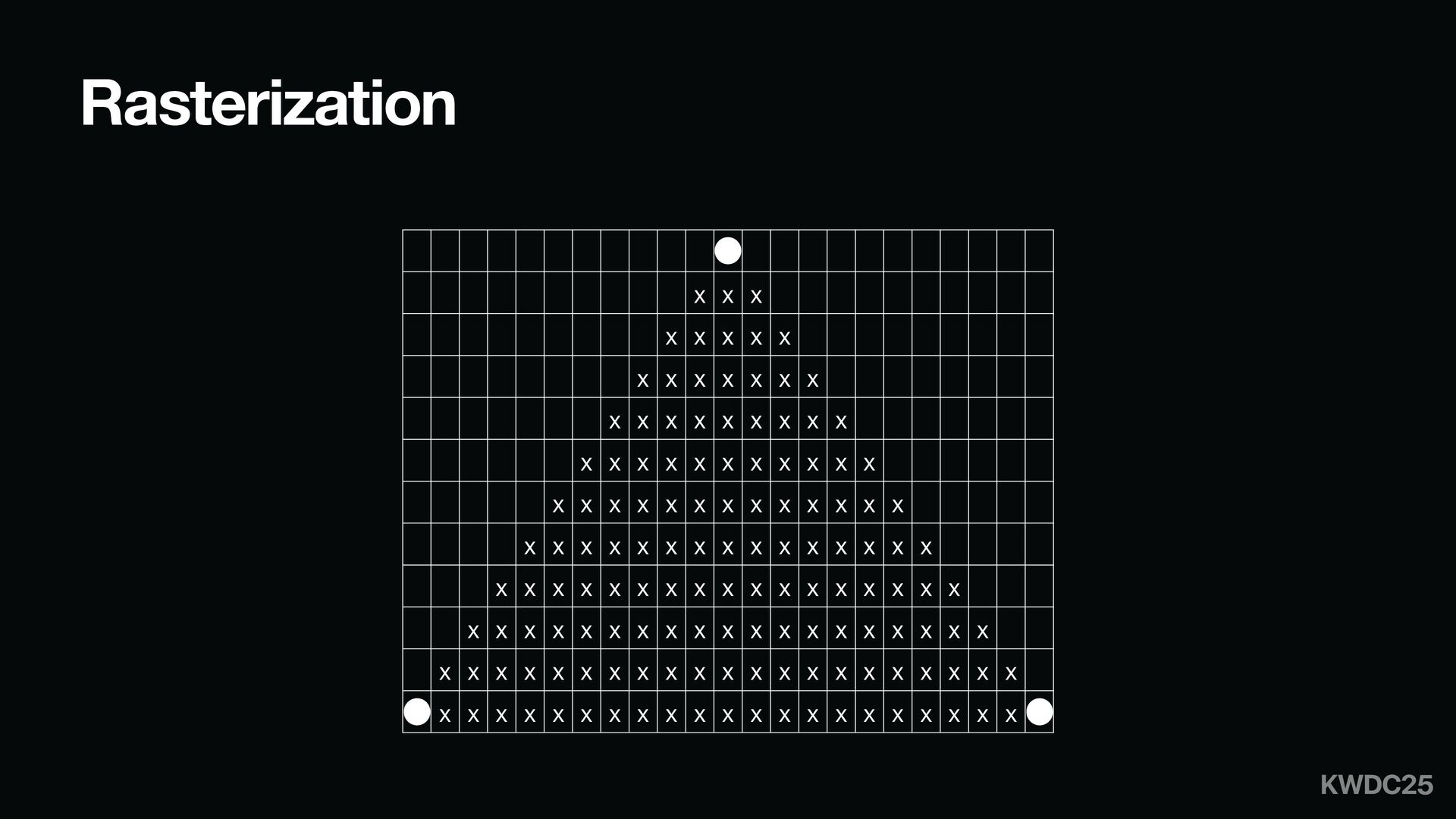

25. Rasterization x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x

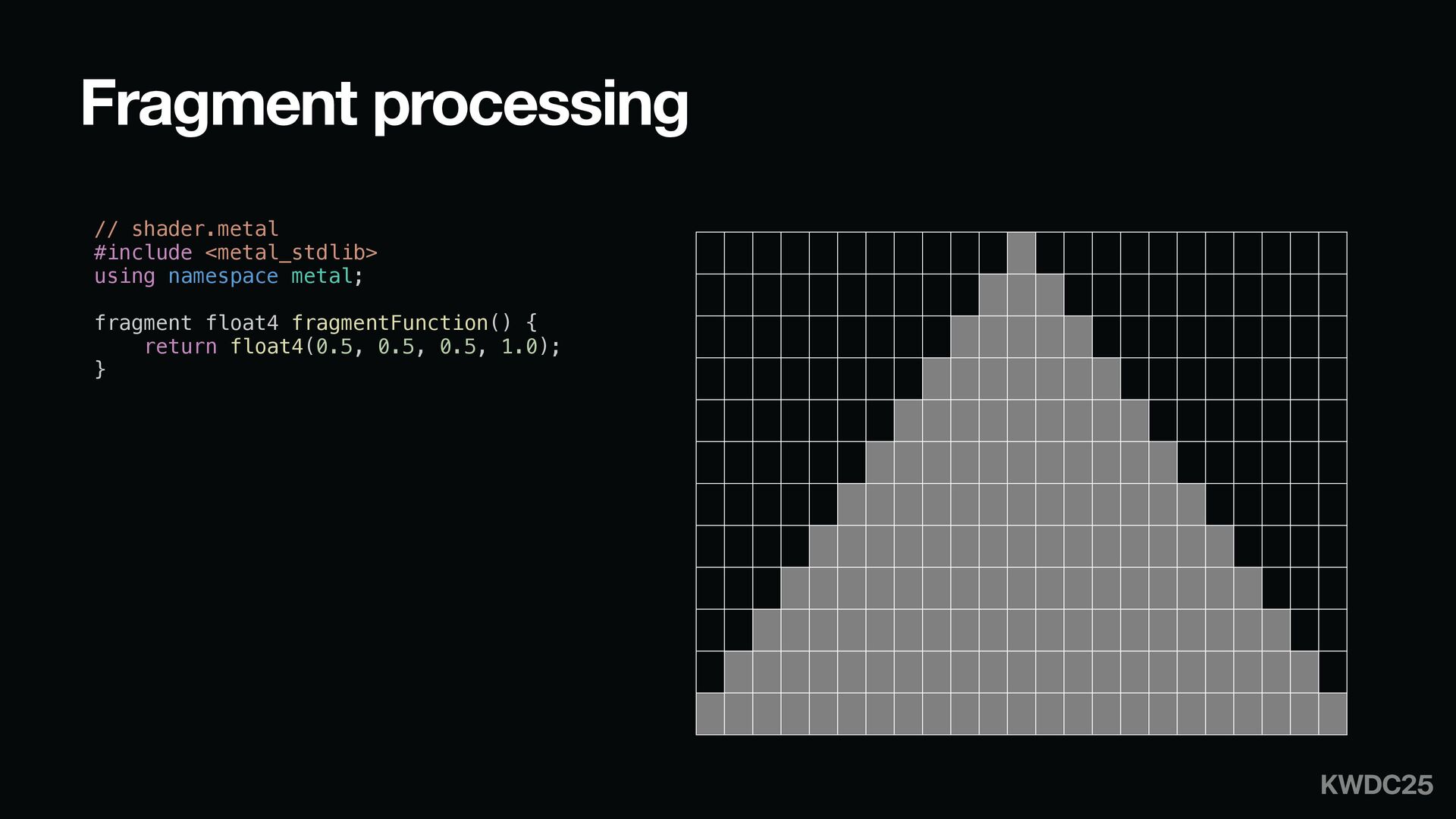

26. Fragment processing // shader.metal #include <metal_stdlib> using namespace metal; fragment float4 fragmentFunction() { return float4(0.5, 0.5, 0.5, 1.0); }

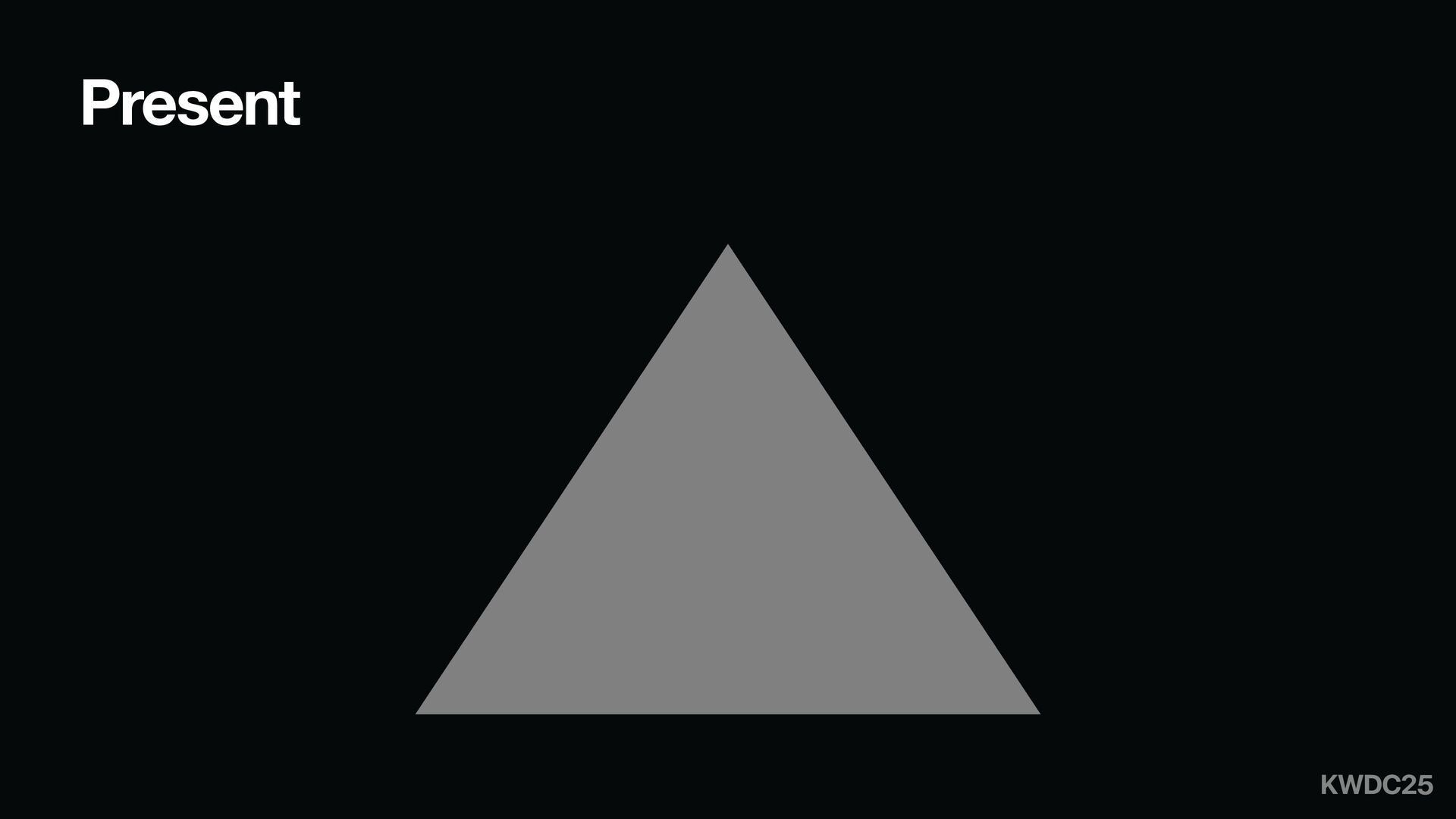

27. Present
28. Metal Components

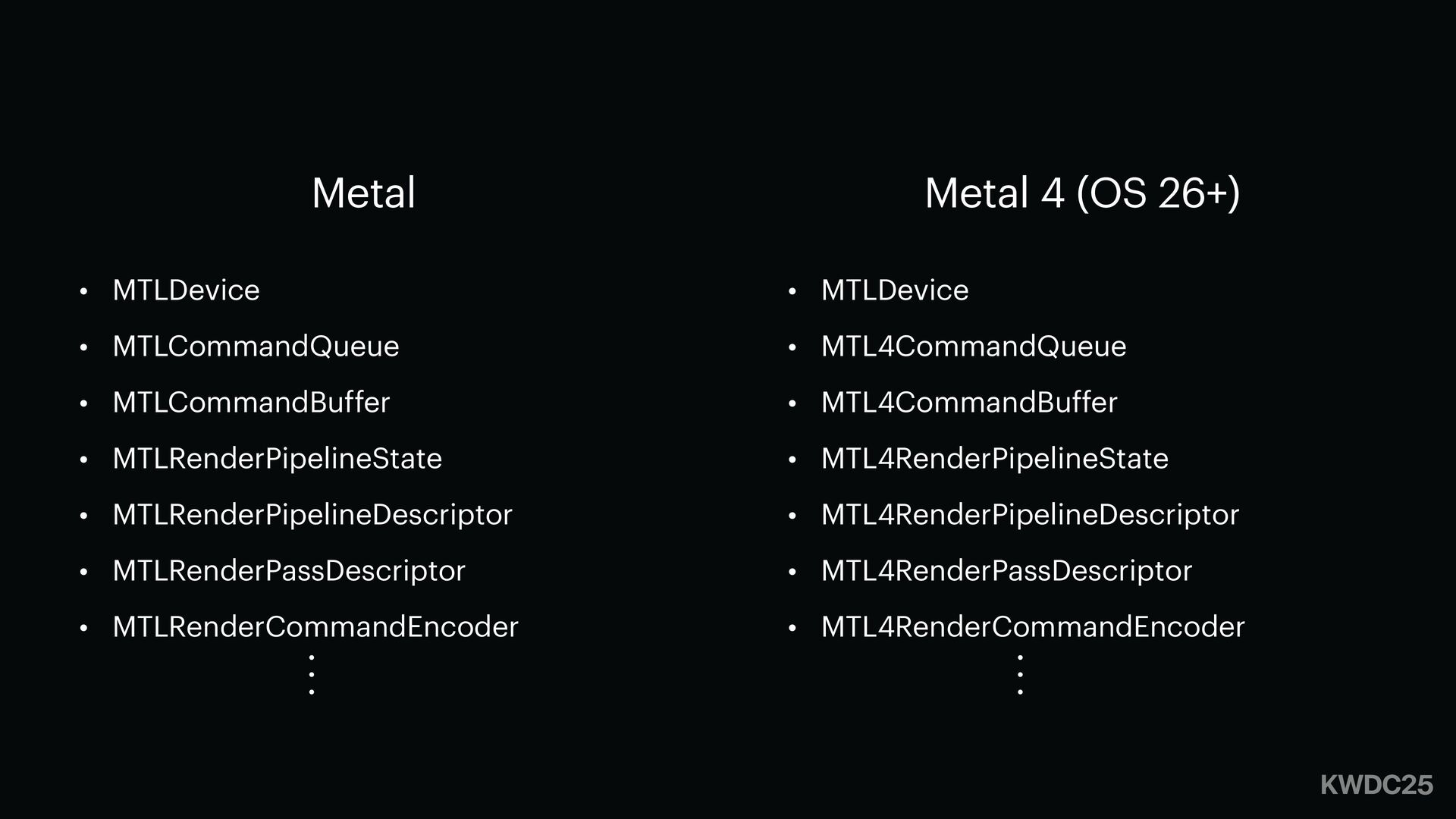

29. • MTLDevice • MTLCommandQueue • MTLCommandBuffer • MTLRenderPipelineState • MTLRenderPipelineDescriptor • MTLRenderPassDescriptor • MTLRenderCommandEncoder ɾ ɾ ɾ • MTLDevice • MTL4CommandQueue • MTL4CommandBuffer • MTL4RenderPipelineState • MTL4RenderPipelineDescriptor • MTL4RenderPassDescriptor • MTL4RenderCommandEncoder ɾ ɾ ɾ Metal Metal 4 (OS 26+)

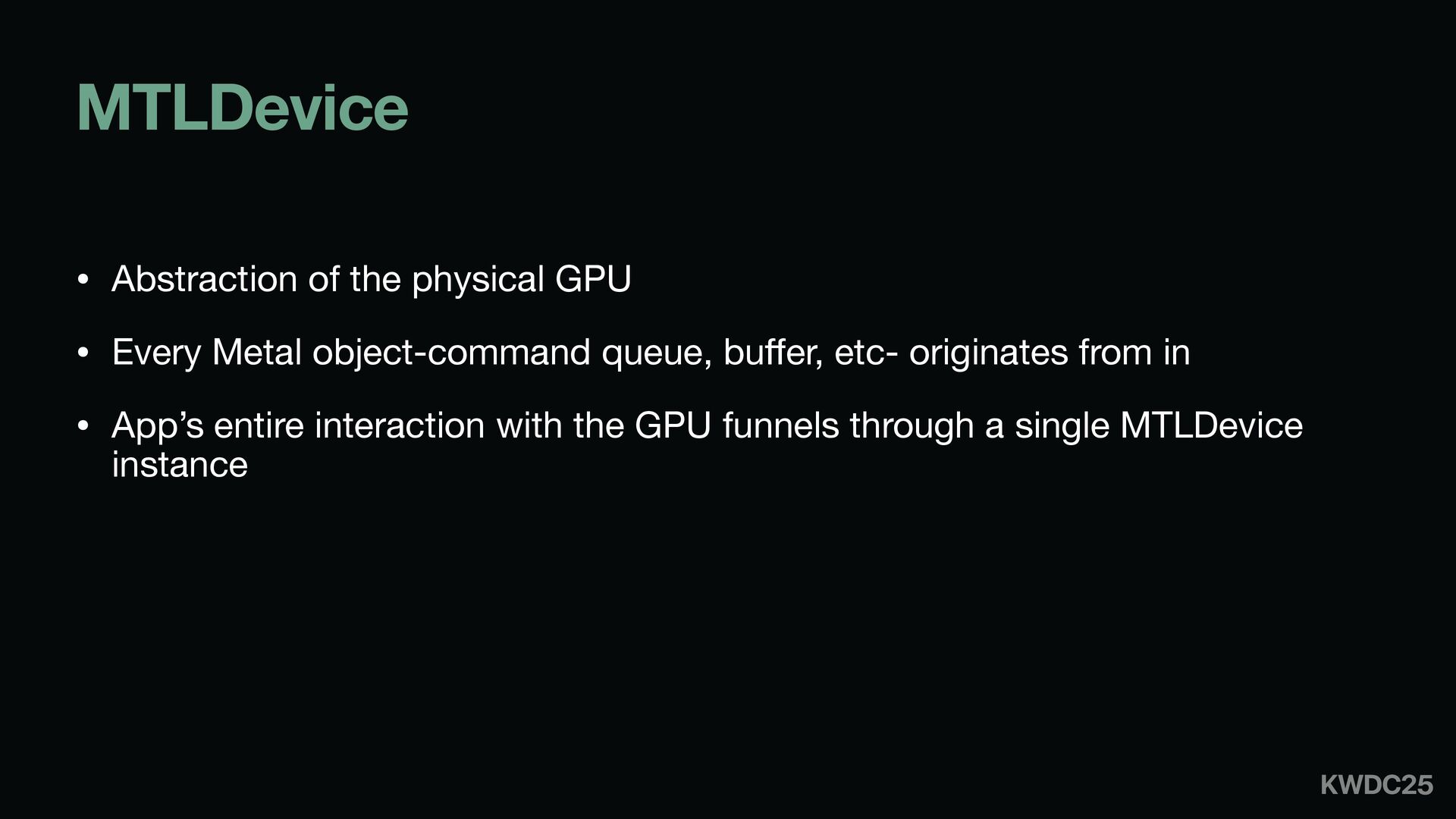

30. MTLDevice • Abstraction of the physical GPU • Every Metal object-command queue, bu ff er, etc- originates from in • App’s entire interaction with the GPU funnels through a single MTLDevice instance

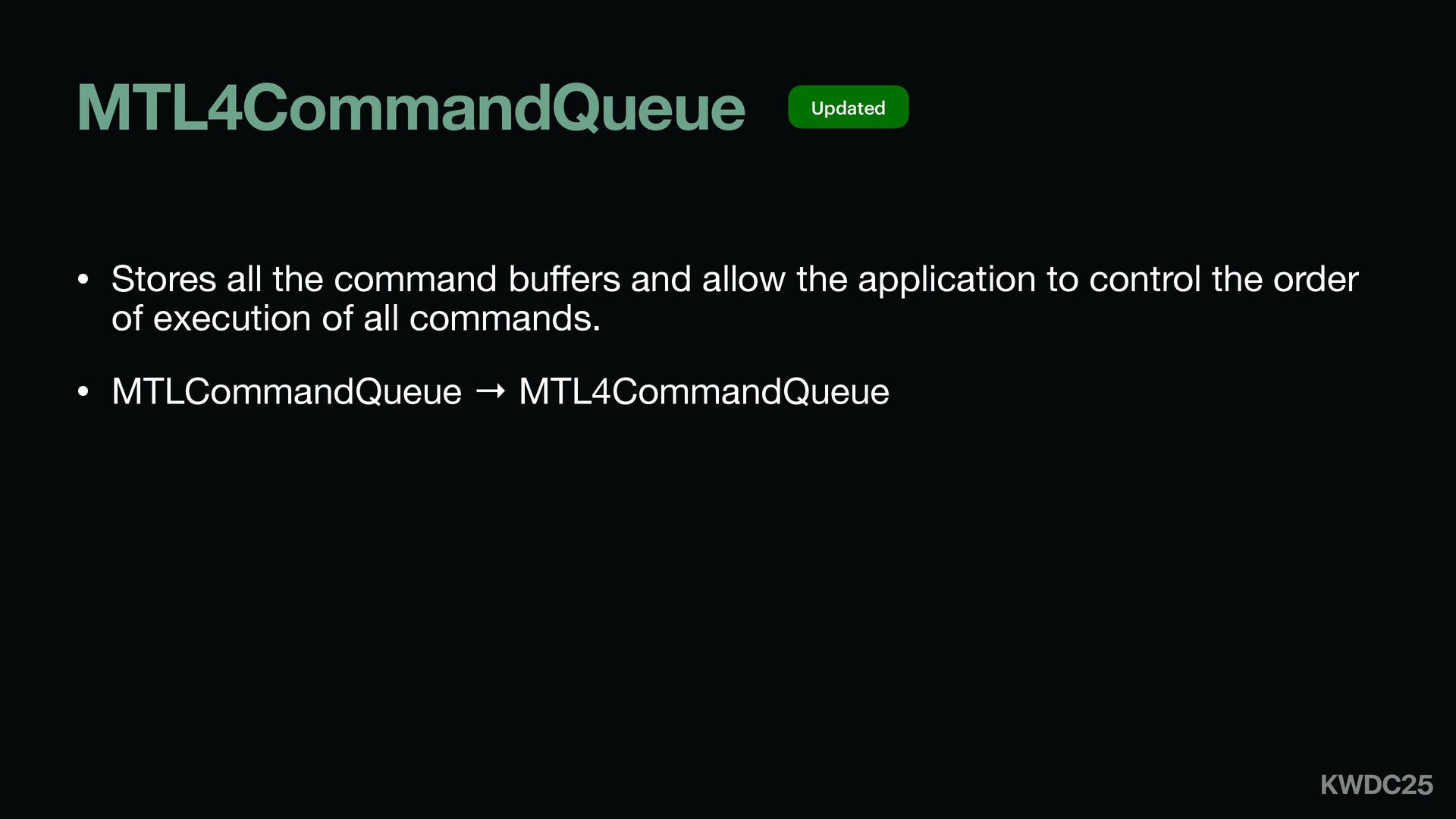

31. MTL4CommandQueue • Stores all the command bu ff ers and allow the application to control the order of execution of all commands. • MTLCommandQueue → MTL4CommandQueue Updated
32. MTL4CommandBuffer • Stores translated hardware commands for use by GPUs • A single command bu ff er can contain many di ff erent kinds of encoded commands • MTLCommandBu ff er → MTL4CommandBu ff er Updated

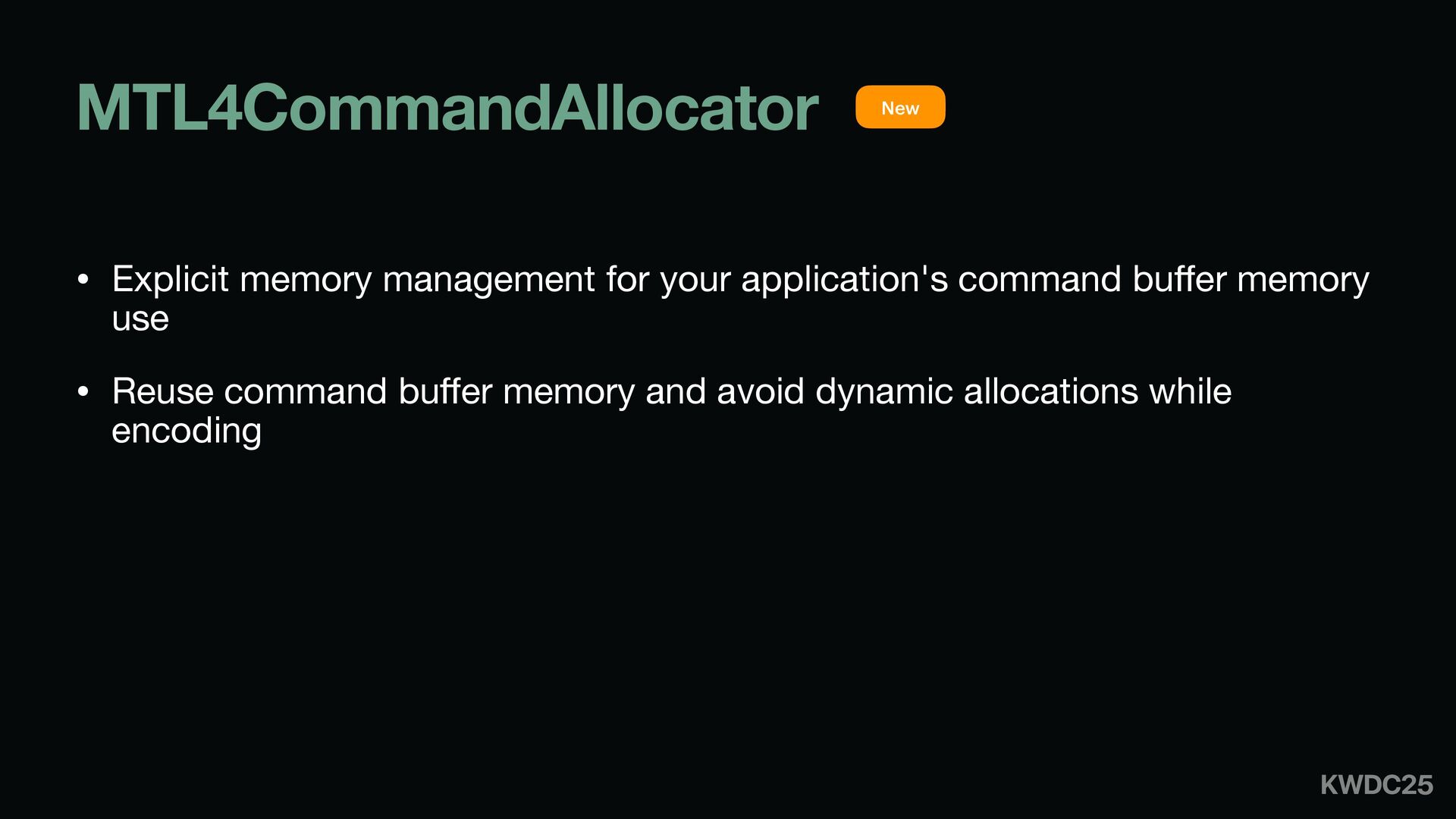

33. MTL4CommandAllocator • Explicit memory management for your application's command bu ff er memory use • Reuse command bu ff er memory and avoid dynamic allocations while encoding New

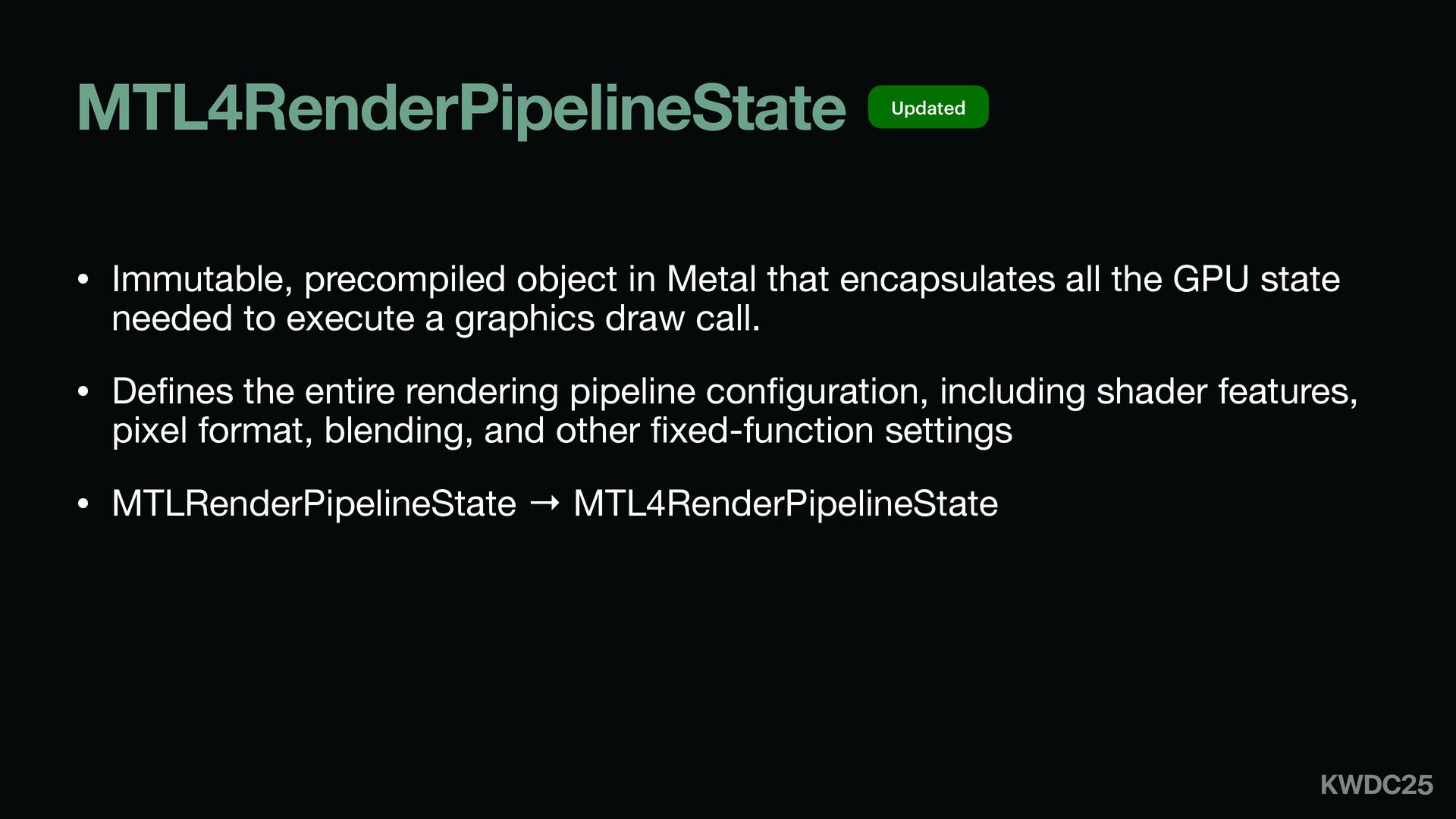

34. MTL4RenderPipelineState • Immutable, precompiled object in Metal that encapsulates all the GPU state needed to execute a graphics draw call. • De fi nes the entire rendering pipeline con fi guration, including shader features, pixel format, blending, and other fi xed-function settings • MTLRenderPipelineState → MTL4RenderPipelineState Updated

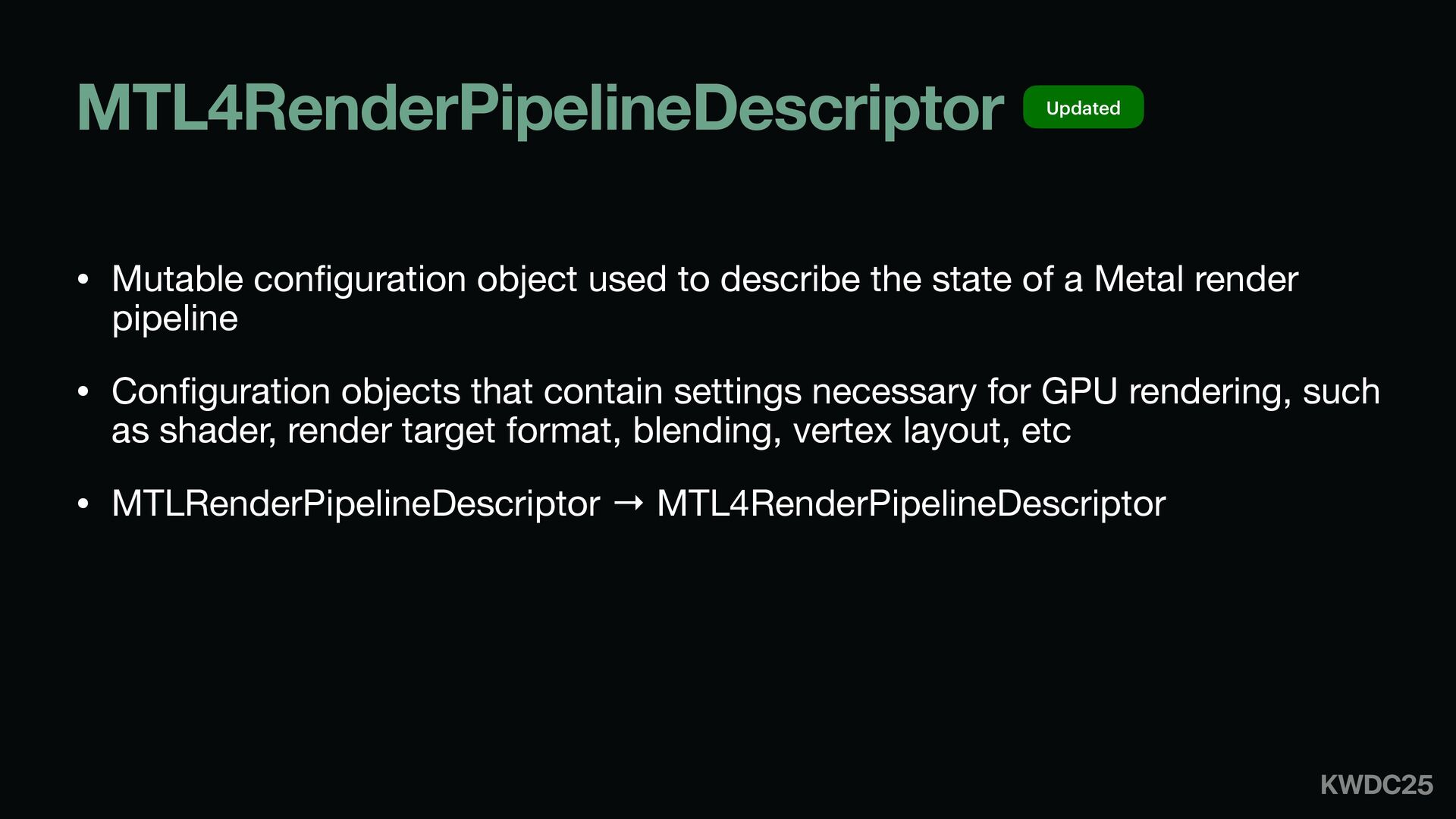

35. MTL4RenderPipelineDescriptor • Mutable con fi guration object used to describe the state of a Metal render pipeline • Con fi guration objects that contain settings necessary for GPU rendering, such as shader, render target format, blending, vertex layout, etc • MTLRenderPipelineDescriptor → MTL4RenderPipelineDescriptor Updated

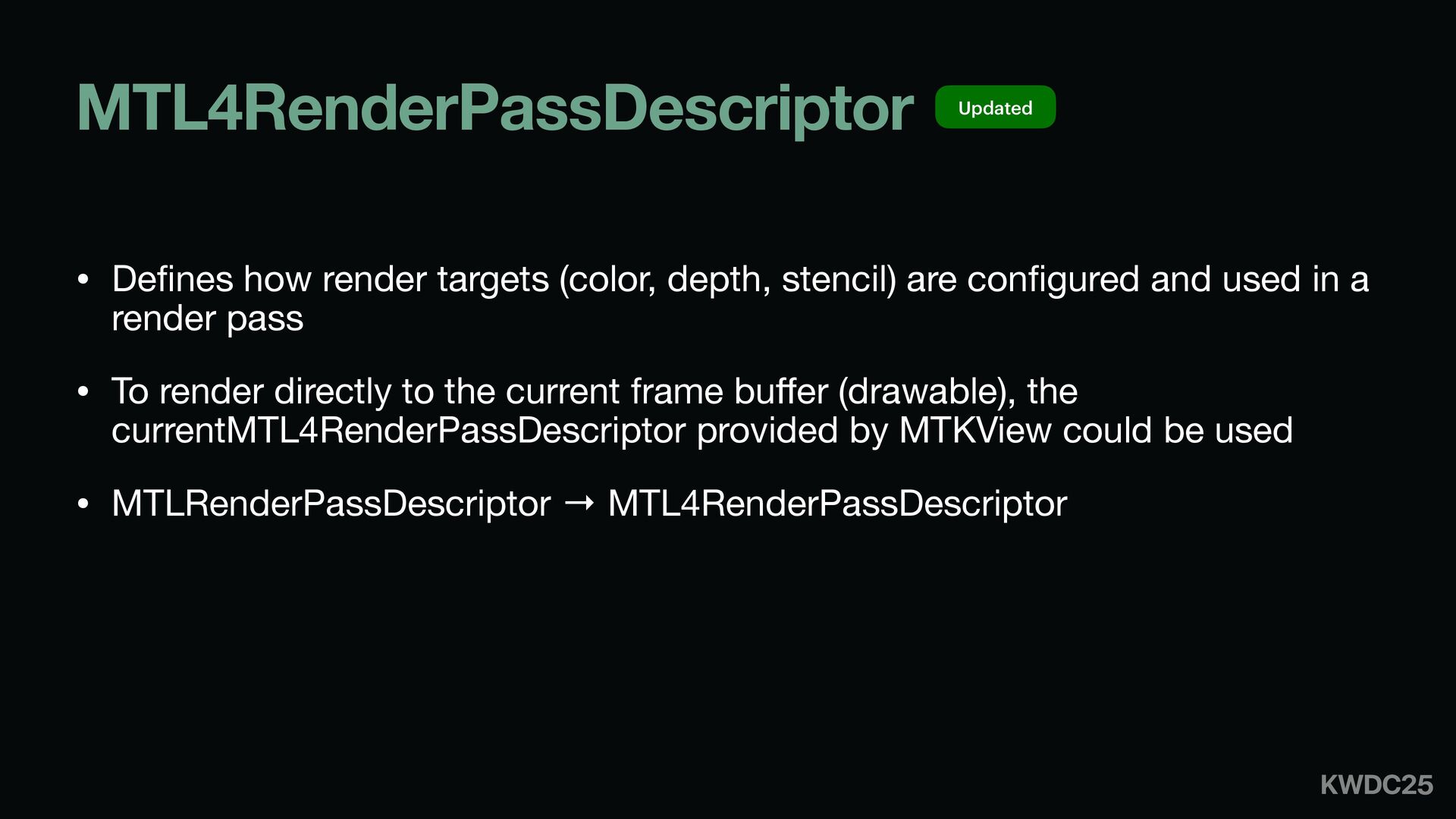

36. MTL4RenderPassDescriptor • De fi nes how render targets (color, depth, stencil) are con fi gured and used in a render pass • To render directly to the current frame bu ff er (drawable), the currentMTL4RenderPassDescriptor provided by MTKView could be used • MTLRenderPassDescriptor → MTL4RenderPassDescriptor Updated

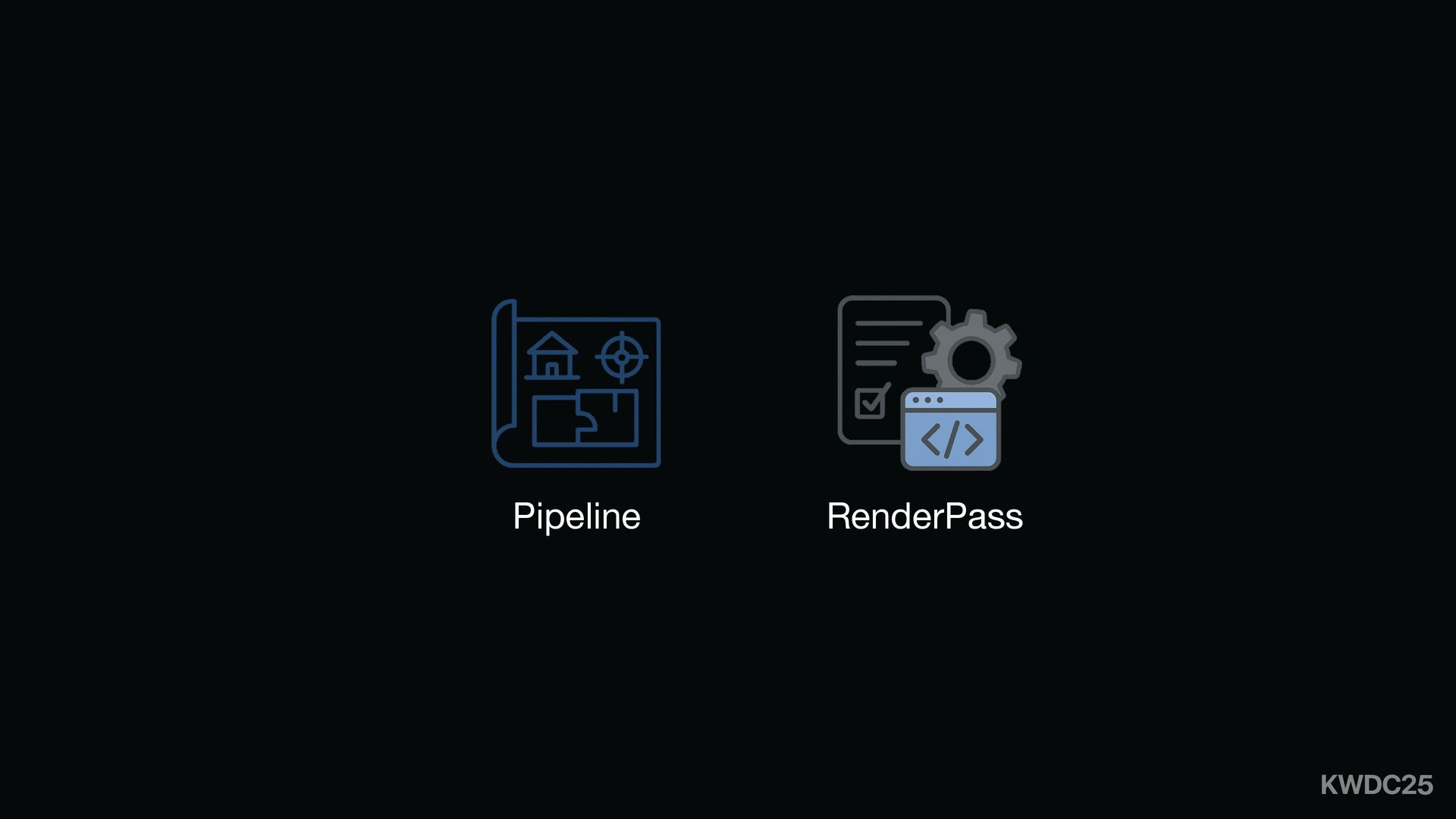

37. Pipeline RenderPass

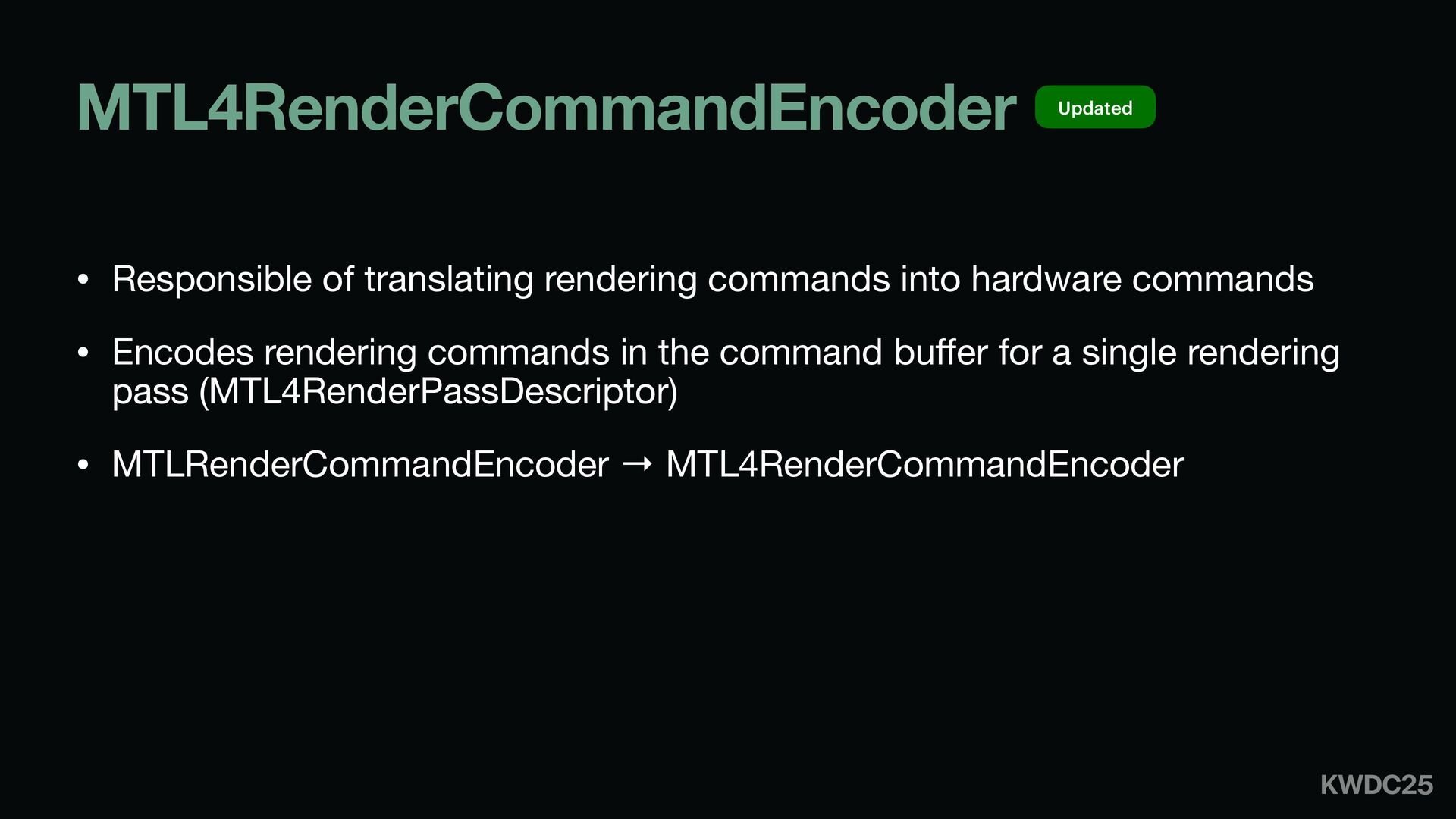

38. MTL4RenderCommandEncoder • Responsible of translating rendering commands into hardware commands • Encodes rendering commands in the command bu ff er for a single rendering pass (MTL4RenderPassDescriptor) • MTLRenderCommandEncoder → MTL4RenderCommandEncoder Updated

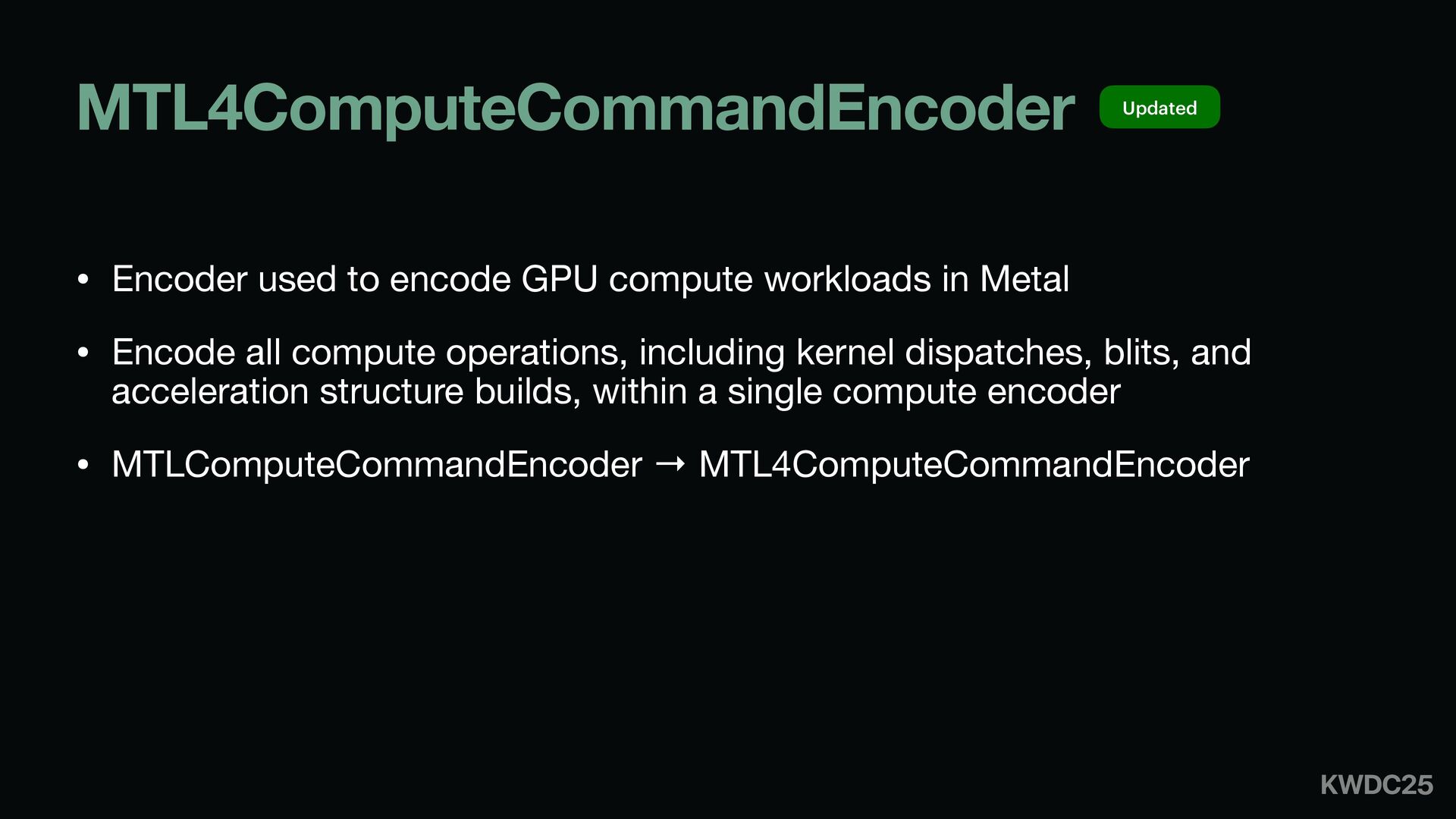

39. MTL4ComputeCommandEncoder • Encoder used to encode GPU compute workloads in Metal • Encode all compute operations, including kernel dispatches, blits, and acceleration structure builds, within a single compute encoder • MTLComputeCommandEncoder → MTL4ComputeCommandEncoder Updated

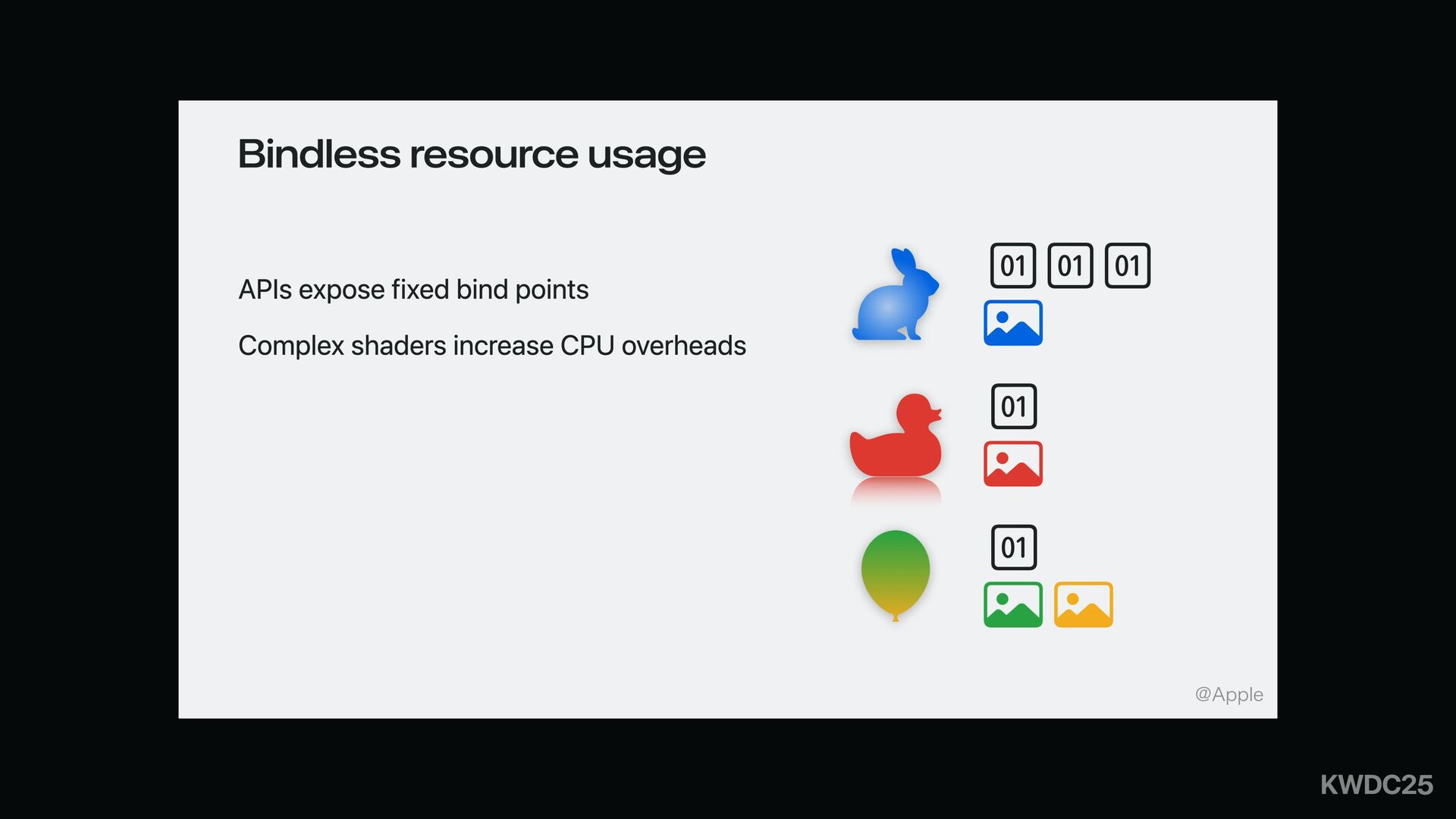

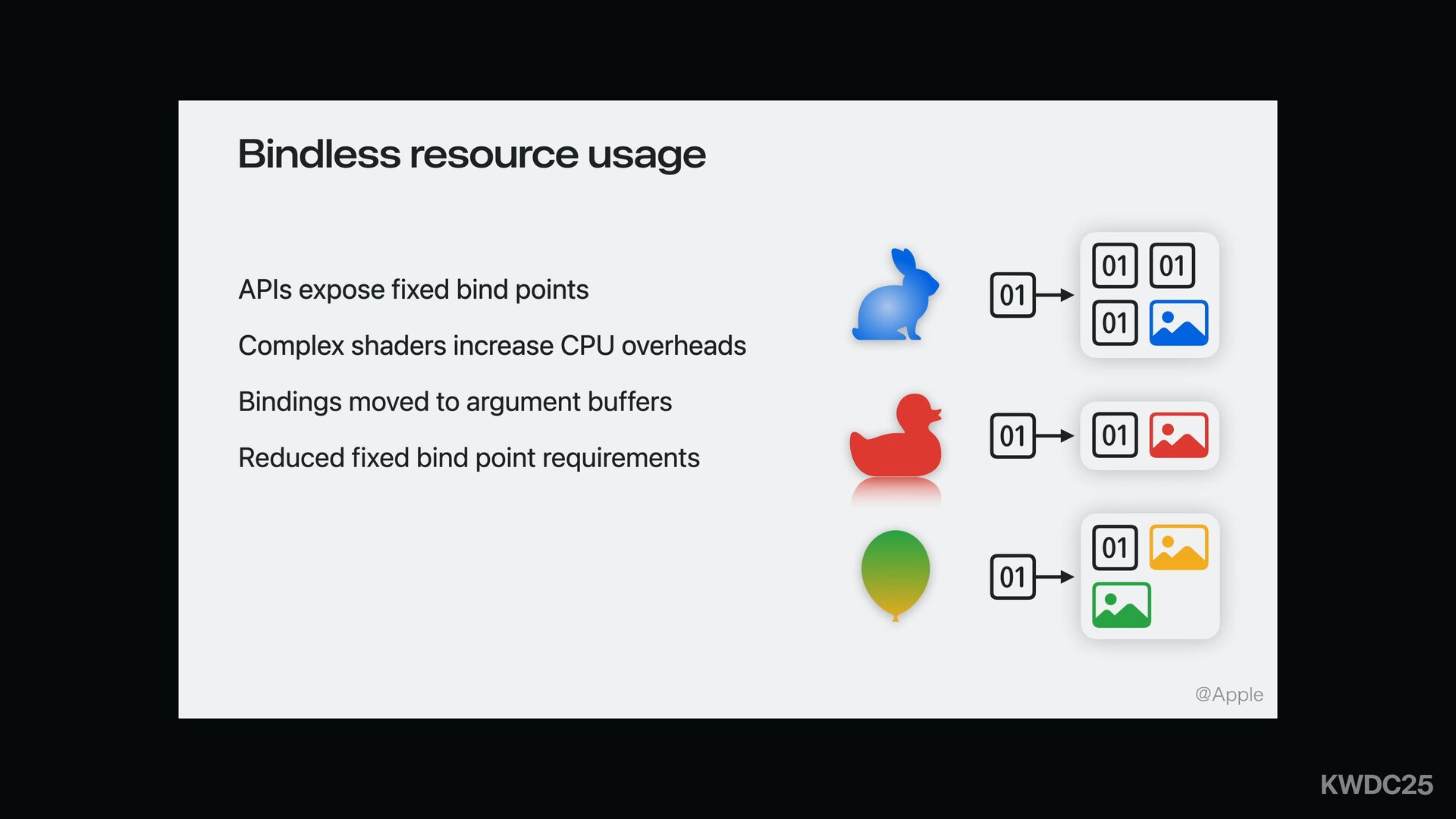

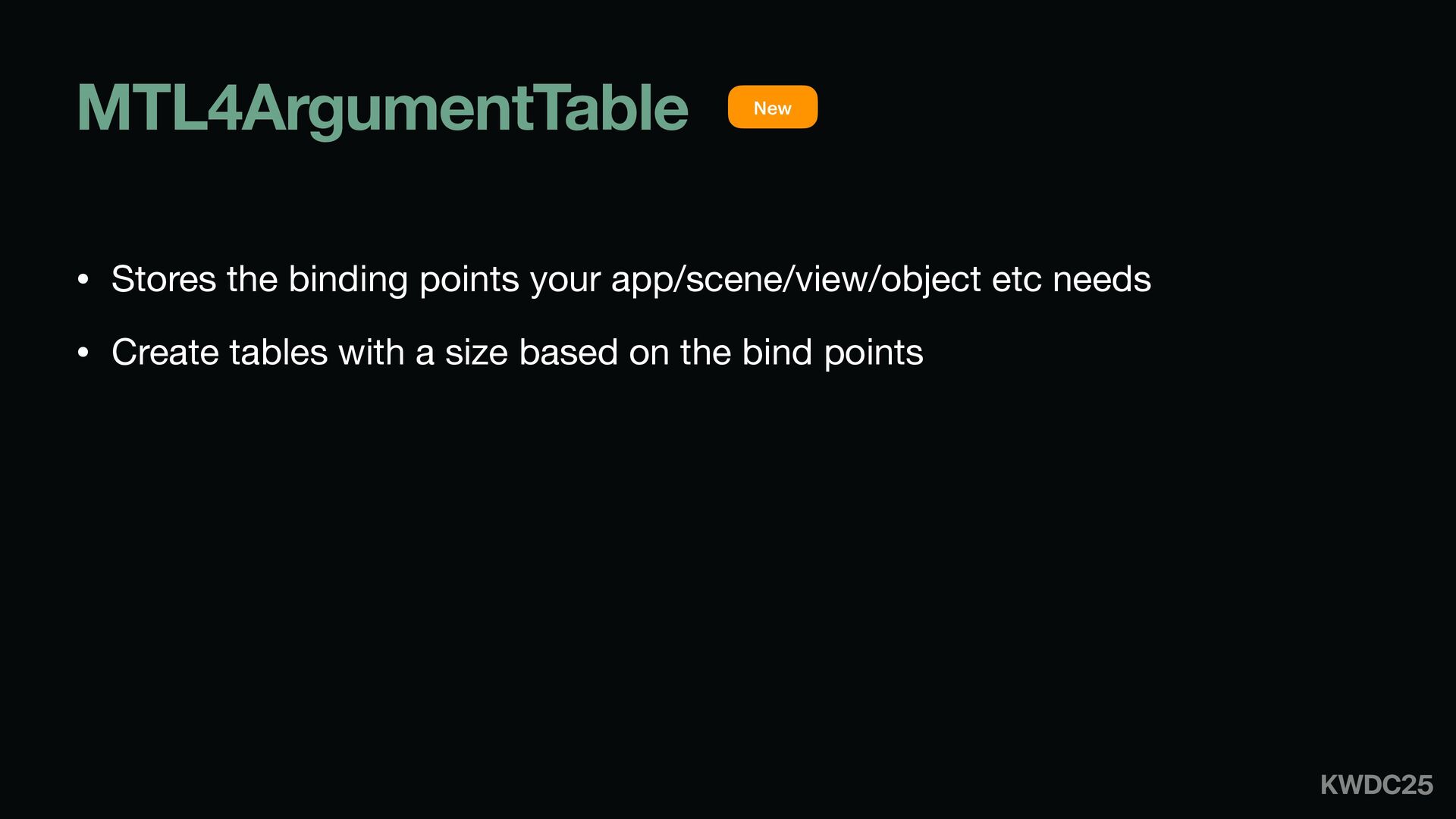

40. MTL4ArgumentTable • Stores the binding points your app/scene/view/object etc needs • Create tables with a size based on the bind points New

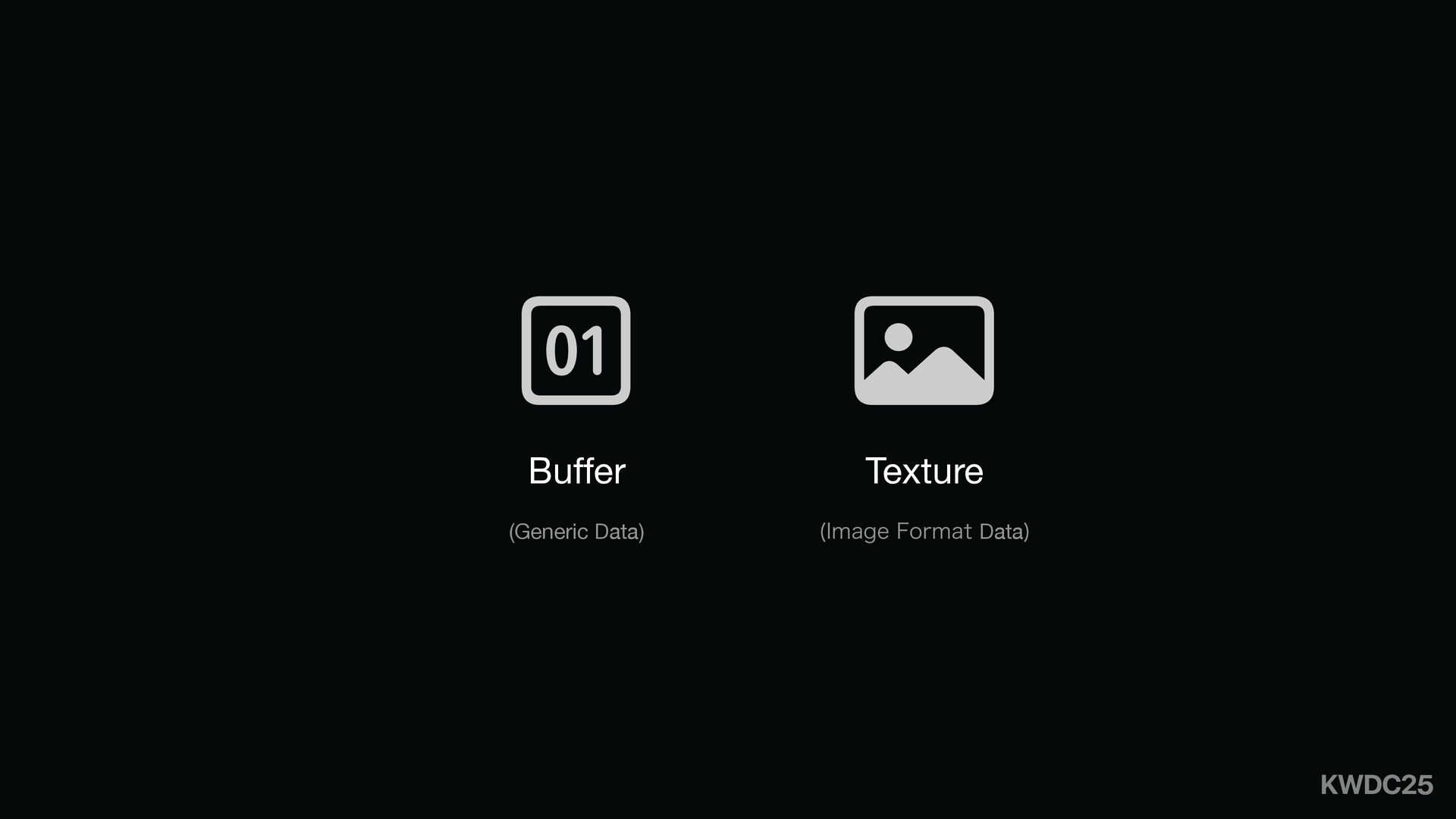

41. 􀔪 Buffer (Generic Data) 􀏅 Texture *NBHF
    'PSNBU
    Data
42. !"QQMF
43. !"QQMF

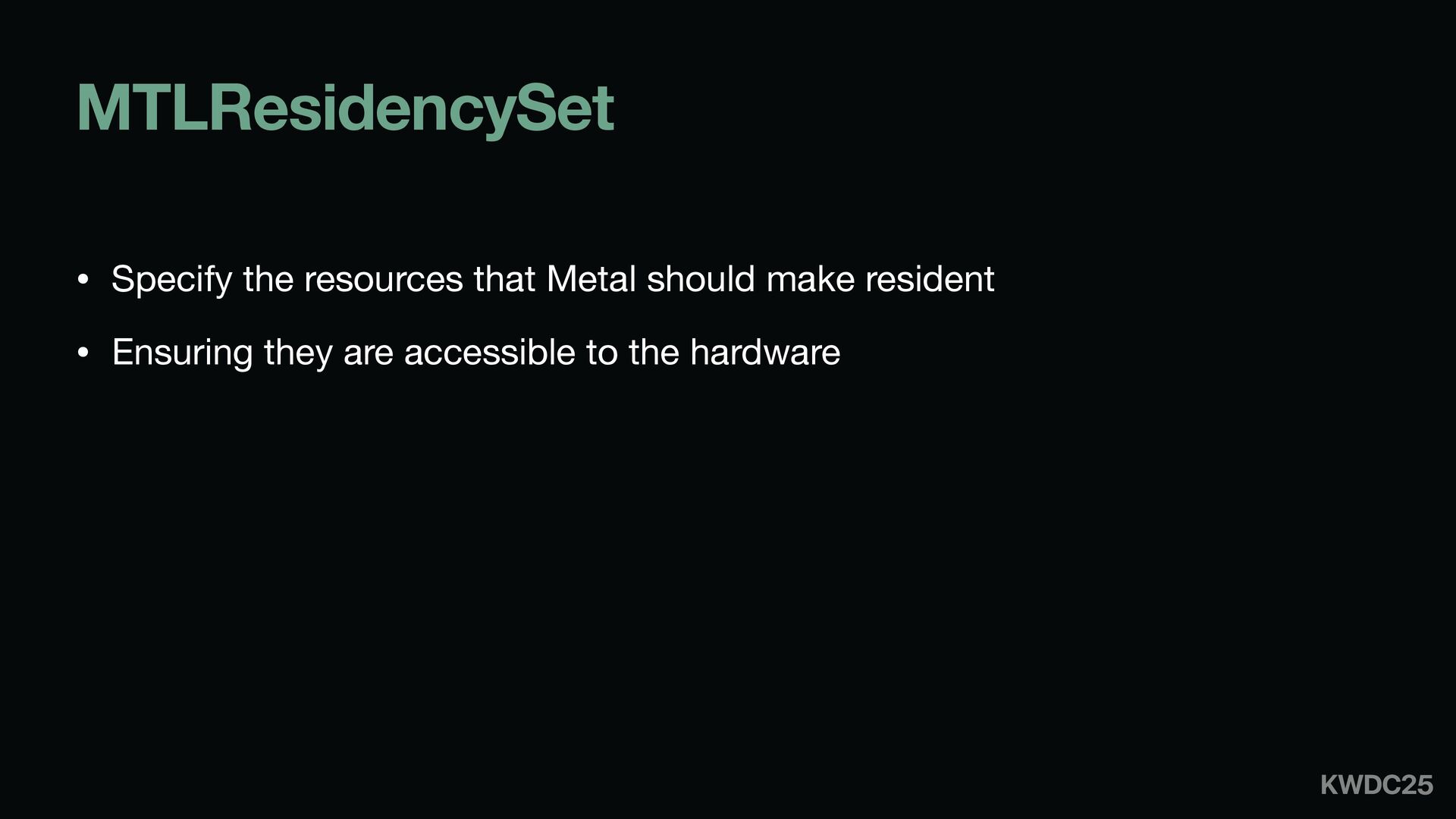

44. MTLResidencySet • Specify the resources that Metal should make resident • Ensuring they are accessible to the hardware

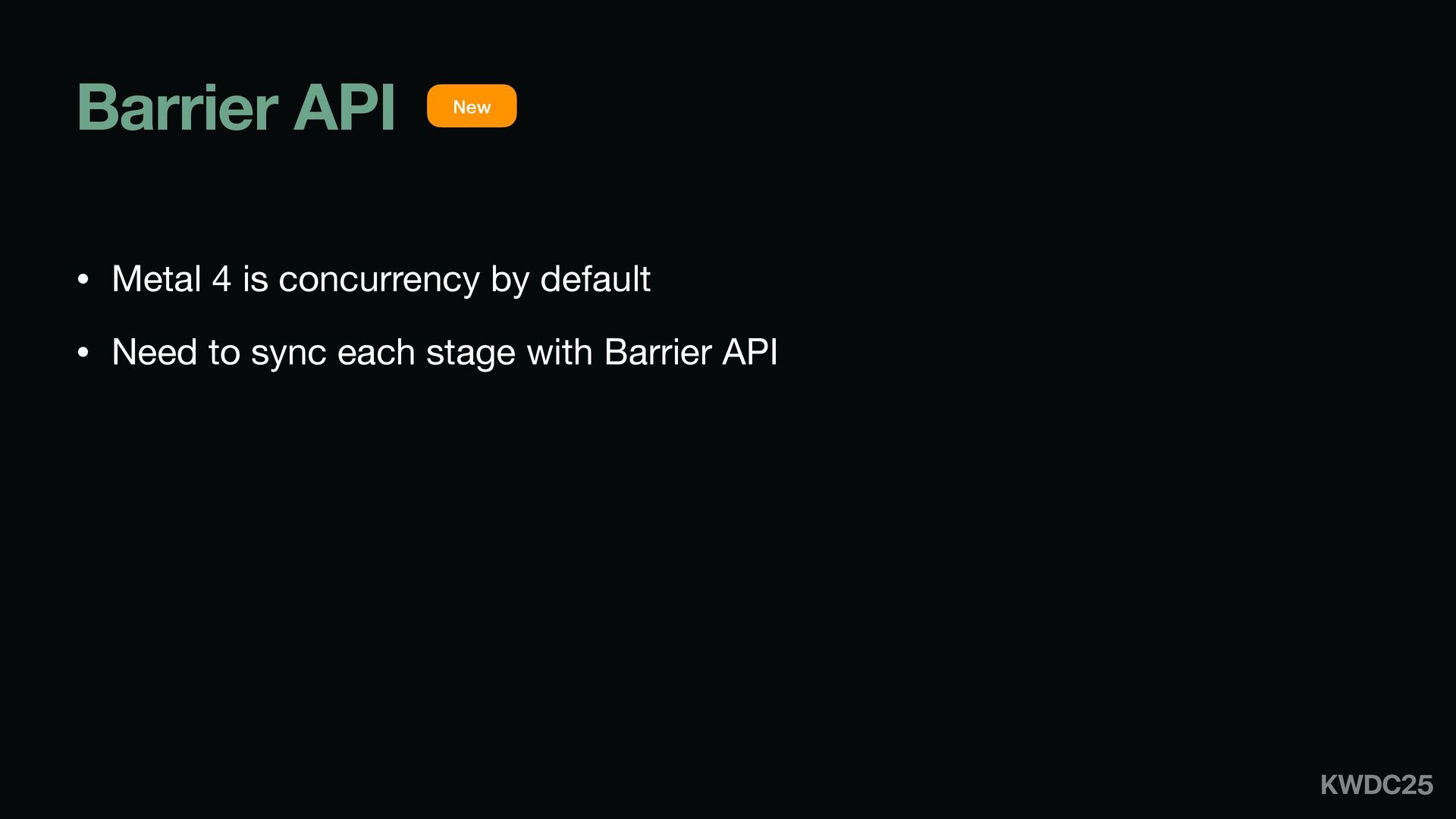

45. Barrier API • Metal 4 is concurrency by default • Need to sync each stage with Barrier API New
46. Compute Render

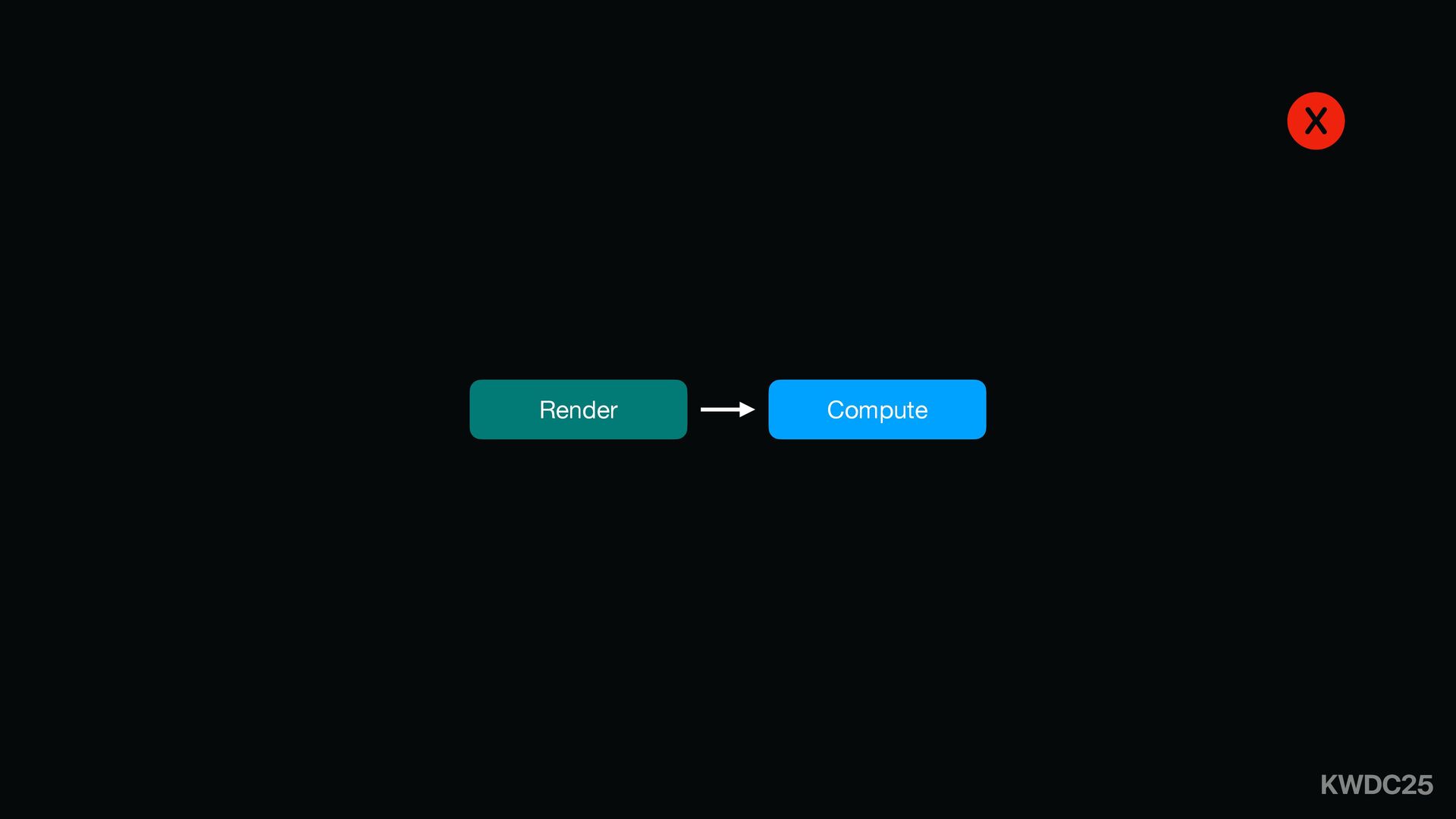

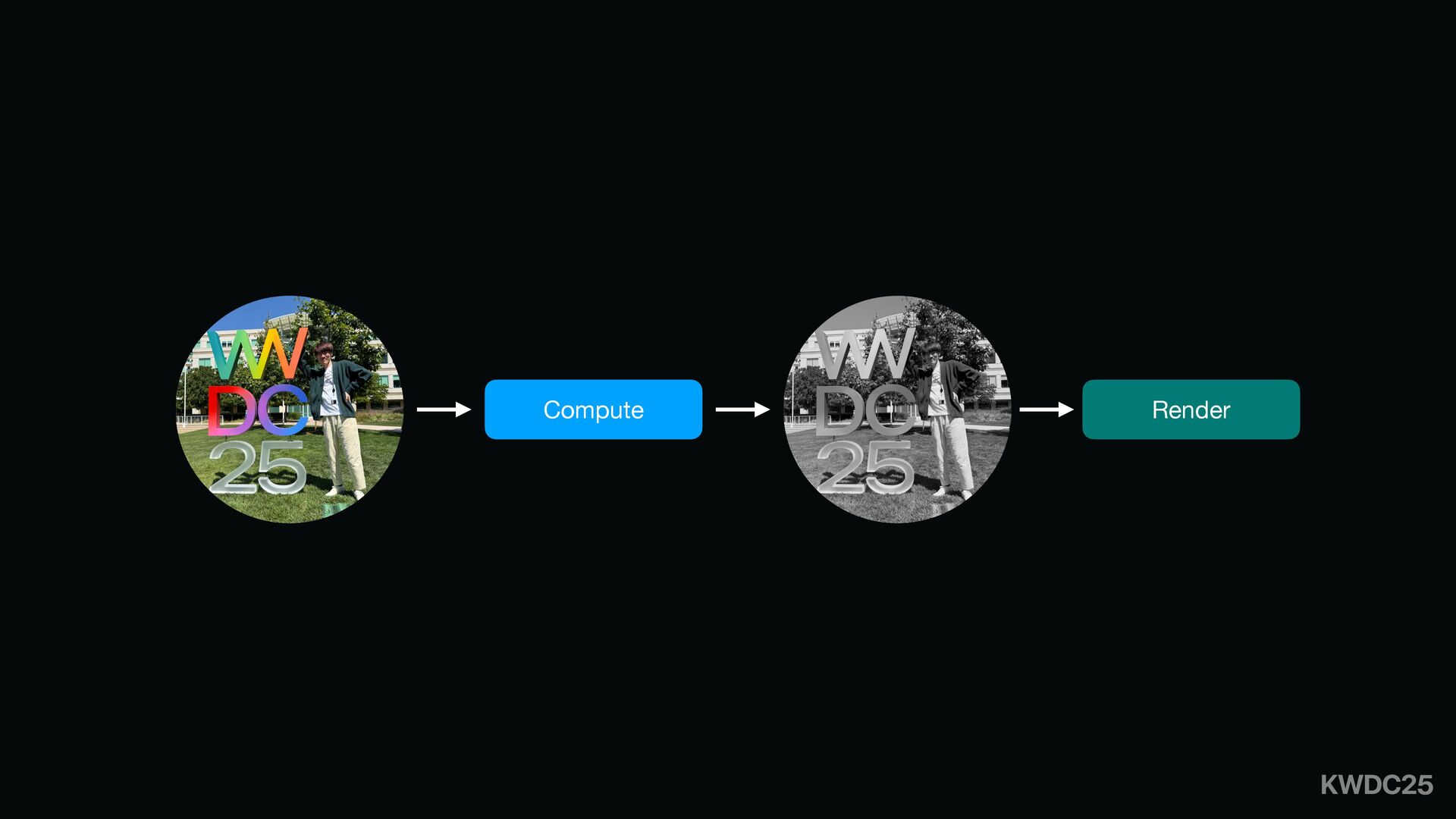

47. Compute Render 􀀳
48. Compute Render

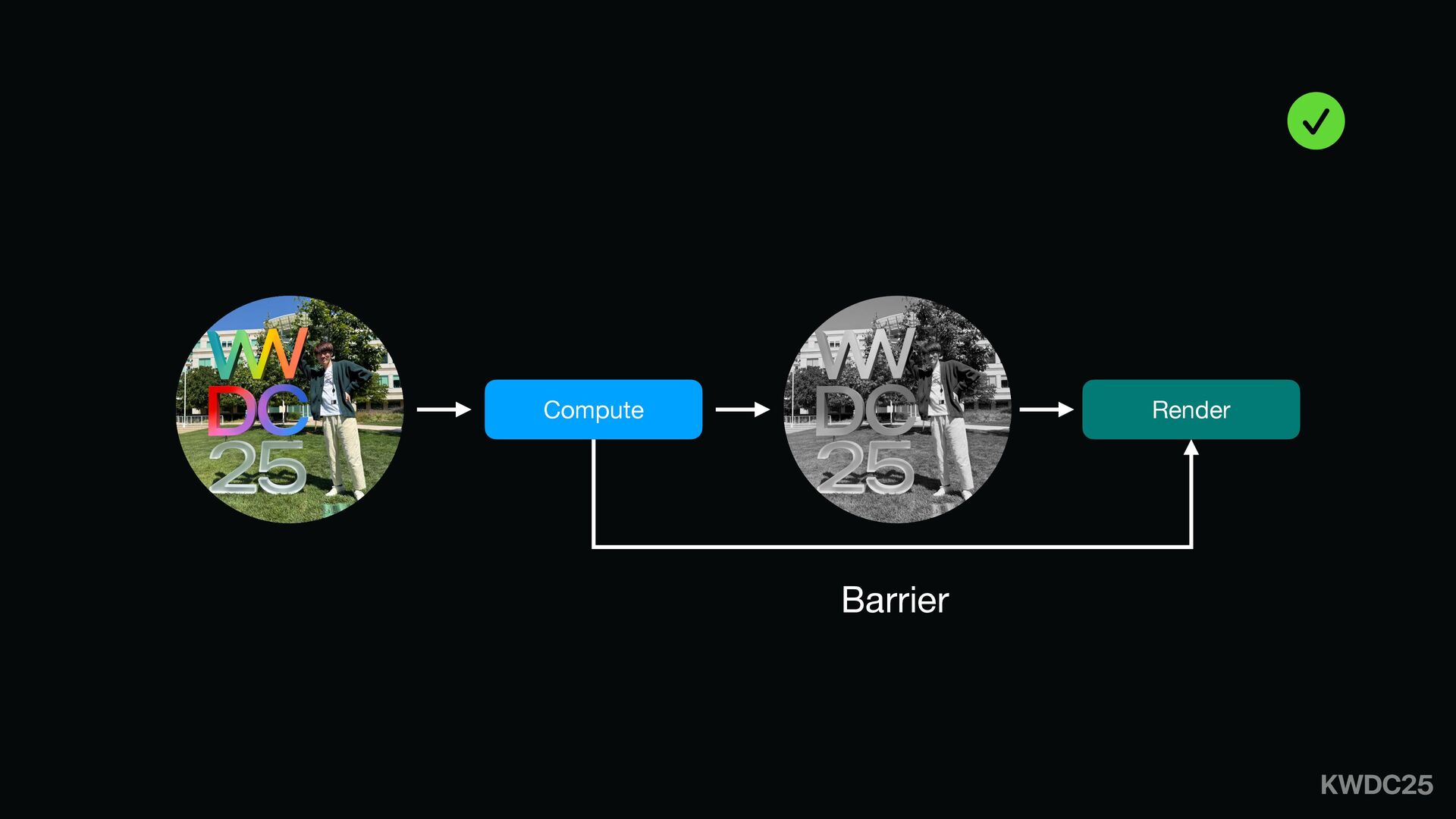

49. 􀁣 Barrier Compute Render
50. Metal Render Pipeline Behavior

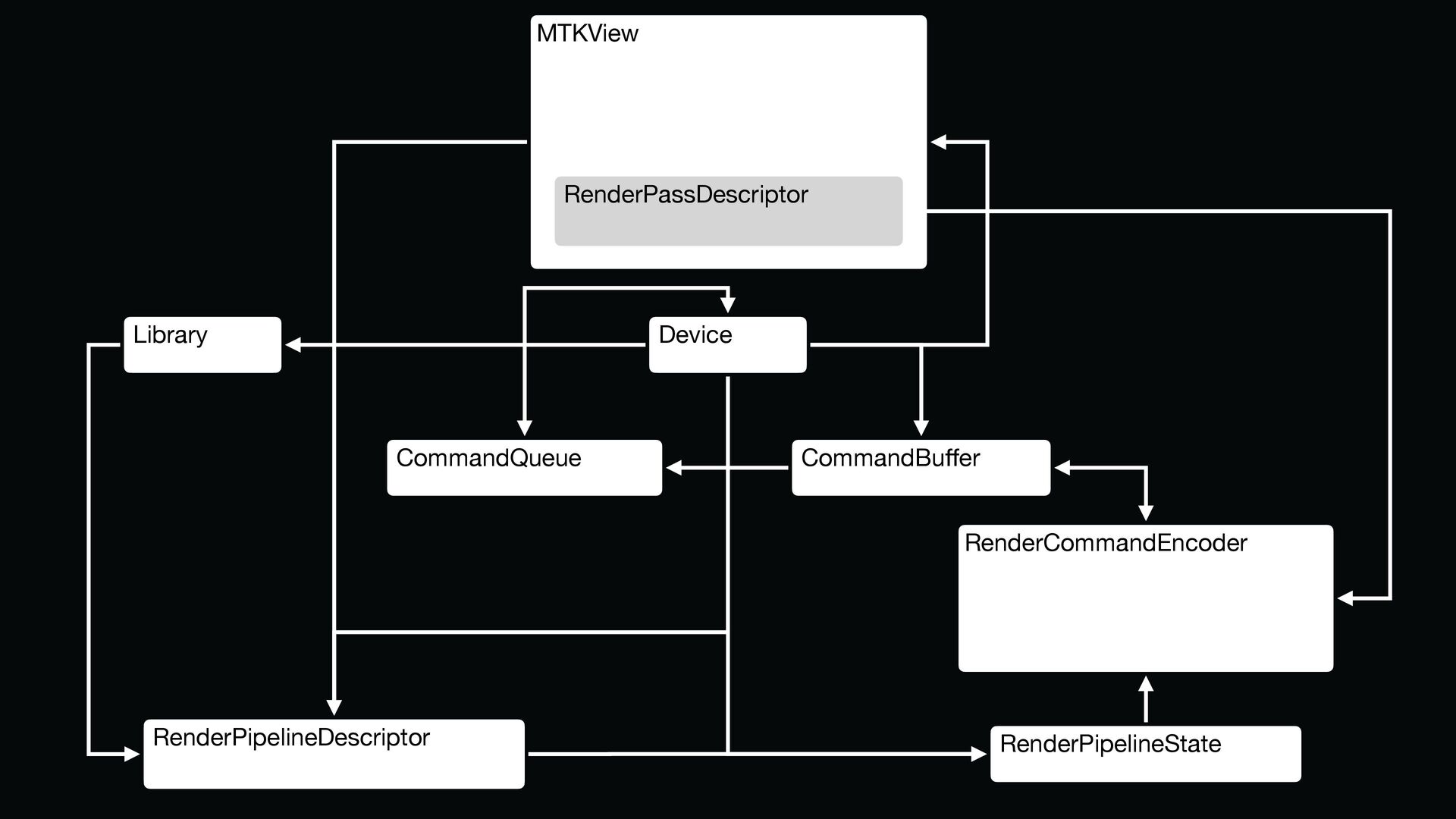

52. MTKView CommandBu ff er CommandQueue Device RenderPipelineState RenderPipelineDescriptor RenderPassDescriptor RenderCommandEncoder Library

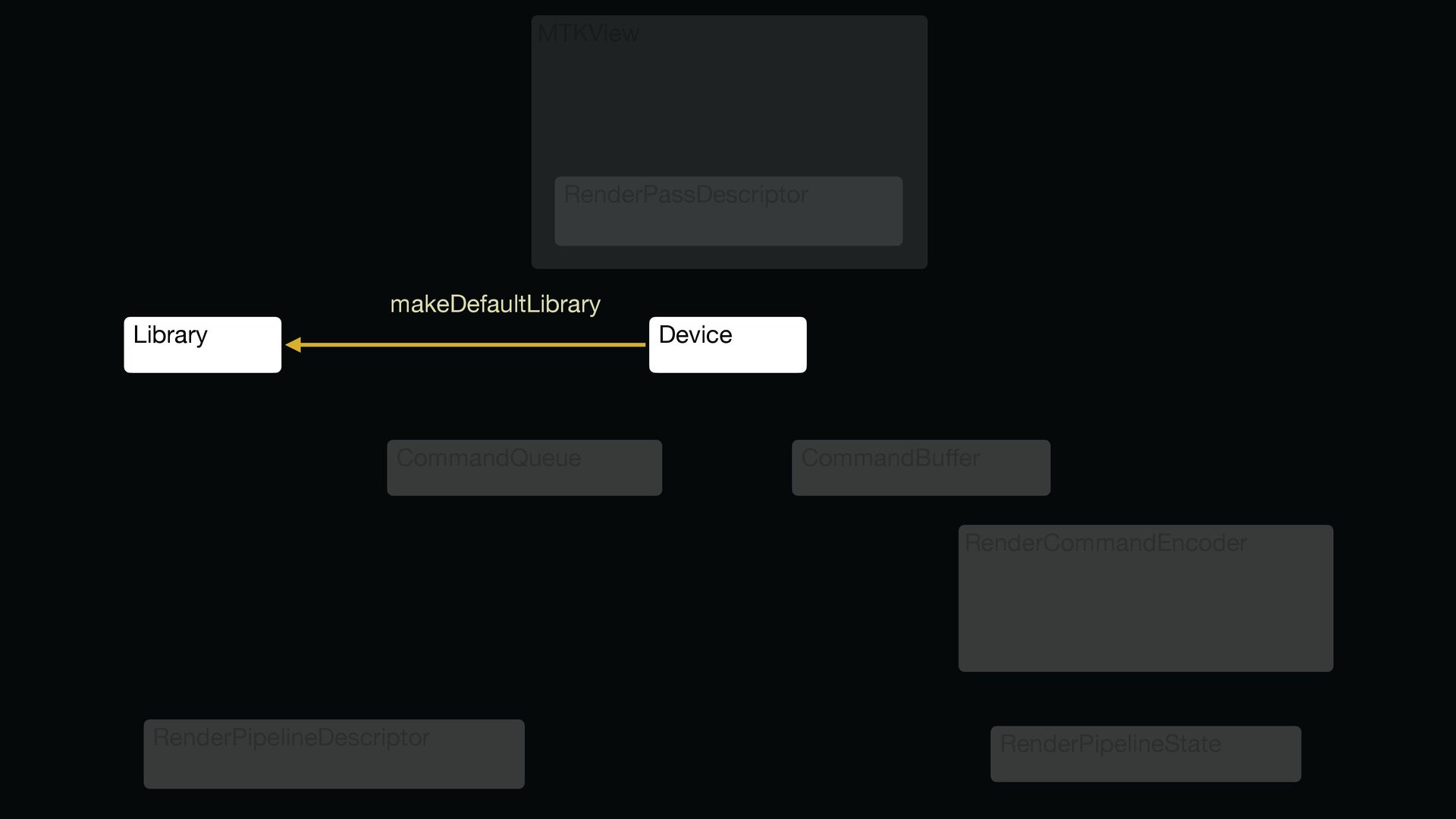

53. MTKView Device RenderPassDescriptor Library CommandBu ff er RenderCommandEncoder CommandQueue RenderPipelineState RenderPipelineDescriptor makeDefaultLibrary

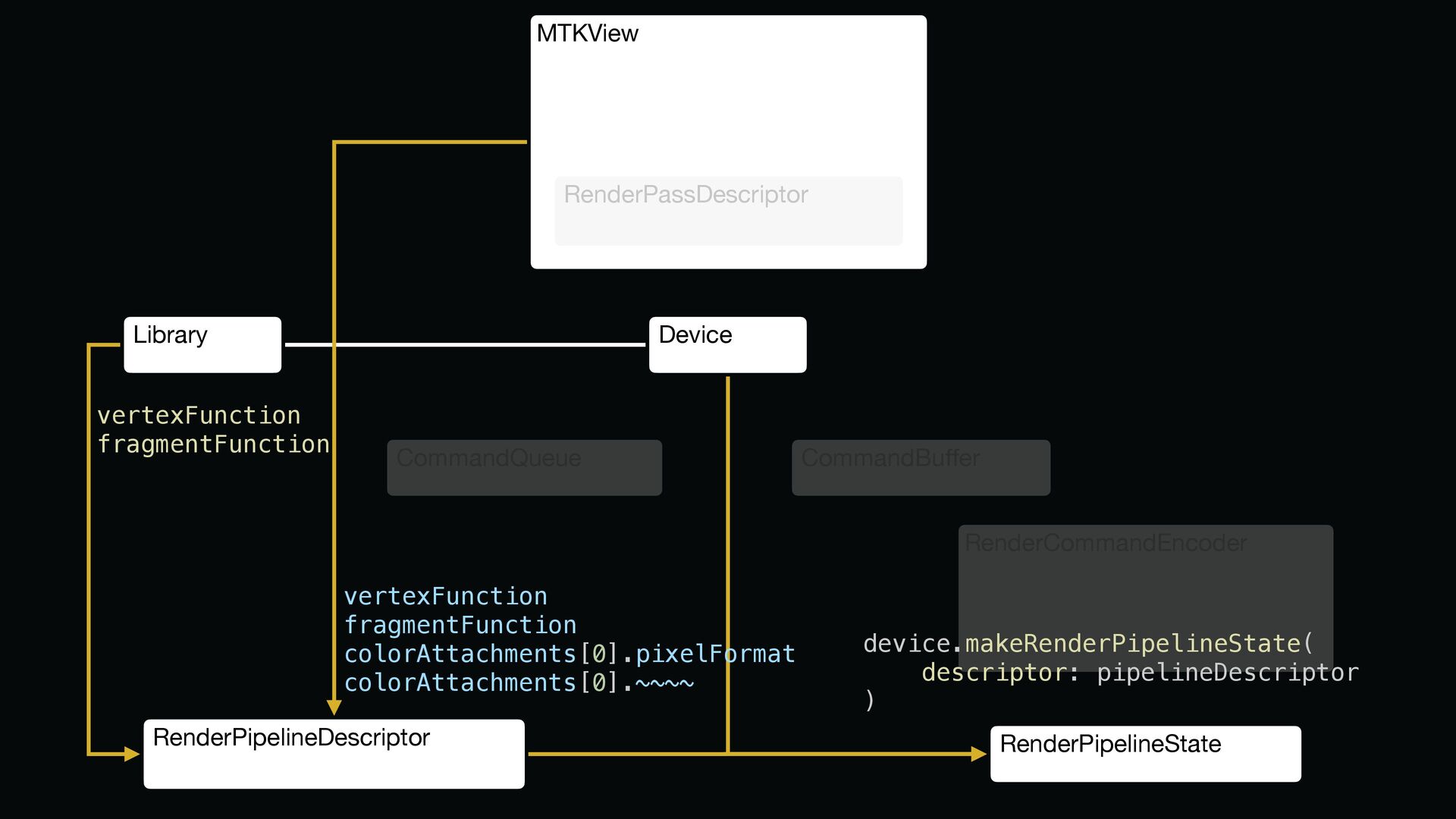

54. MTKView CommandBu ff er CommandQueue Device RenderPipelineState RenderPipelineDescriptor RenderPassDescriptor RenderCommandEncoder Library device.makeRenderPipelineState( descriptor: pipelineDescriptor ) vertexFunction fragmentFunction colorAttachments[0].pixelFormat colorAttachments[0].~~~~ vertexFunction fragmentFunction

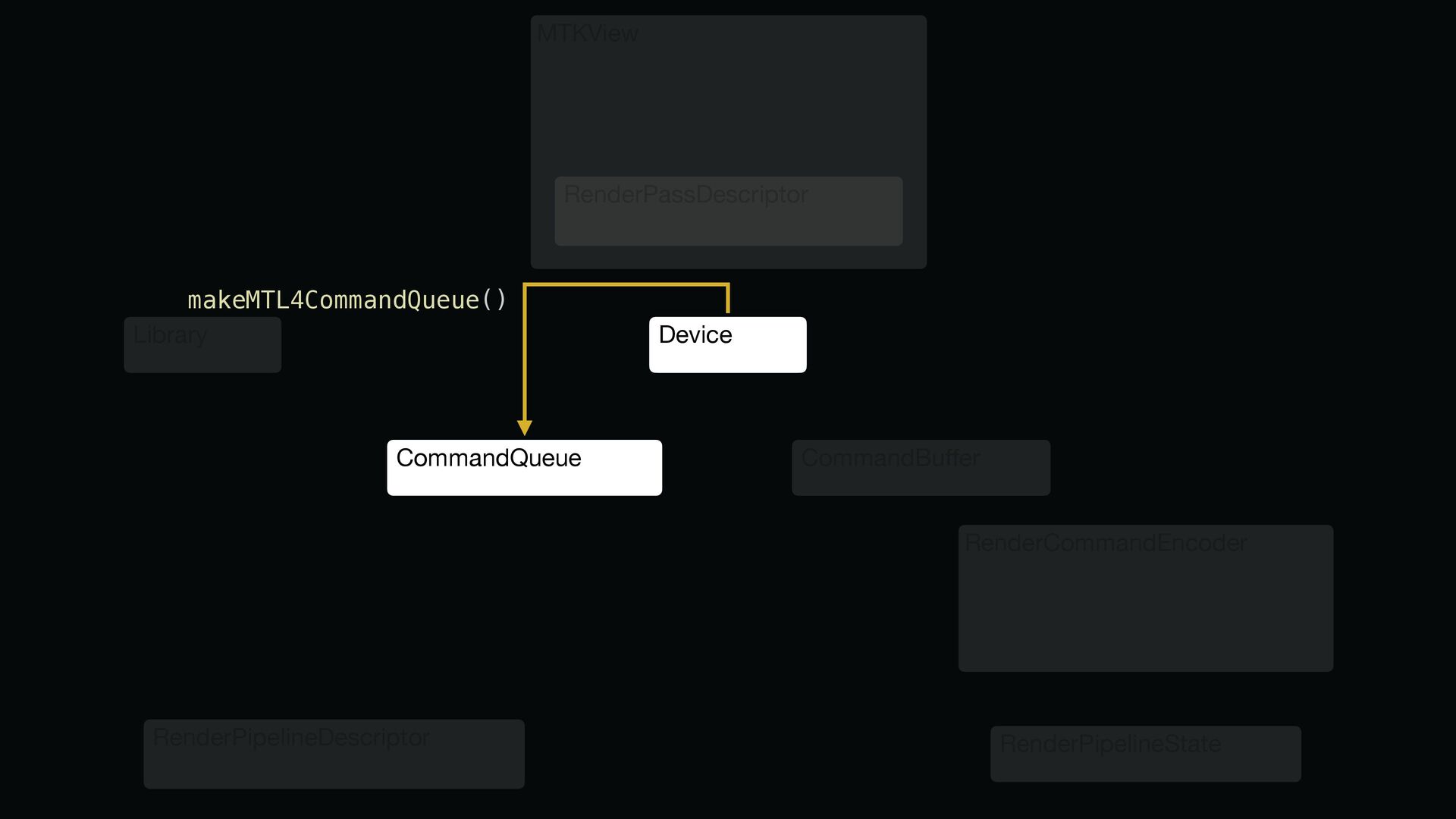

55. MTKView CommandBu ff er CommandQueue Device RenderPipelineState RenderPipelineDescriptor RenderPassDescriptor RenderCommandEncoder Library makeMTL4CommandQueue()

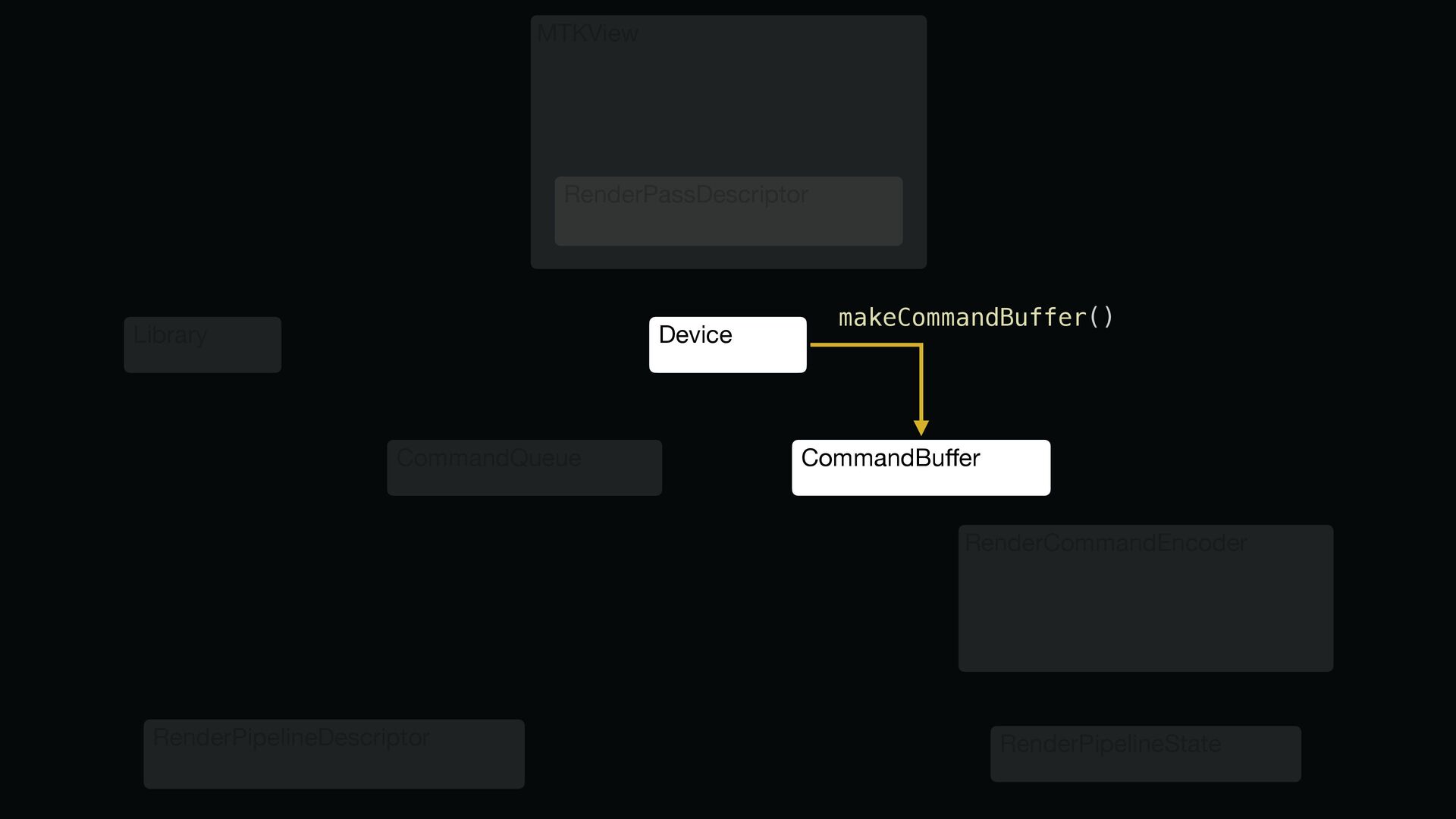

56. MTKView CommandBu ff er CommandQueue Device RenderPipelineState RenderPipelineDescriptor RenderPassDescriptor RenderCommandEncoder Library makeCommandBuffer()

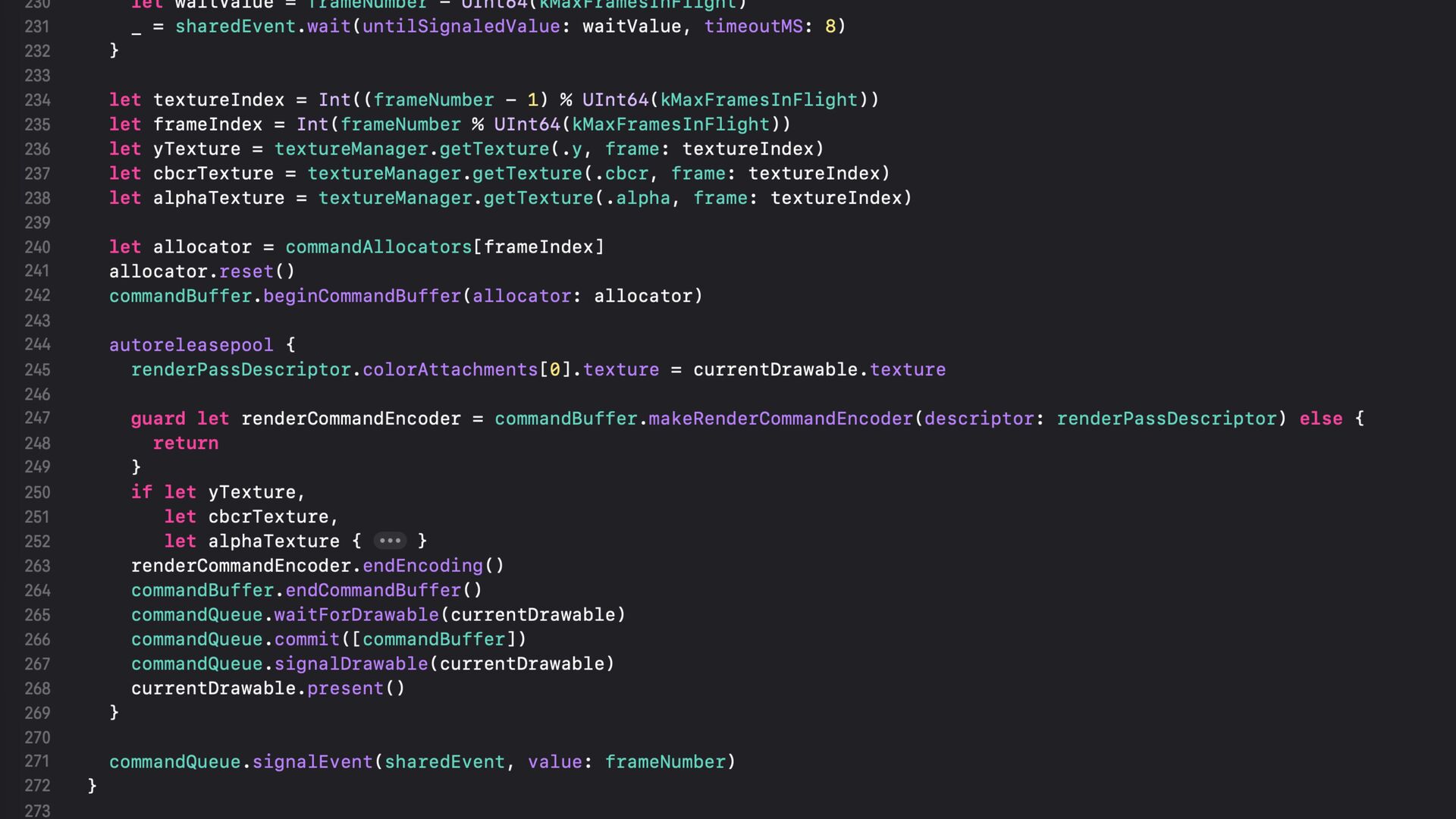

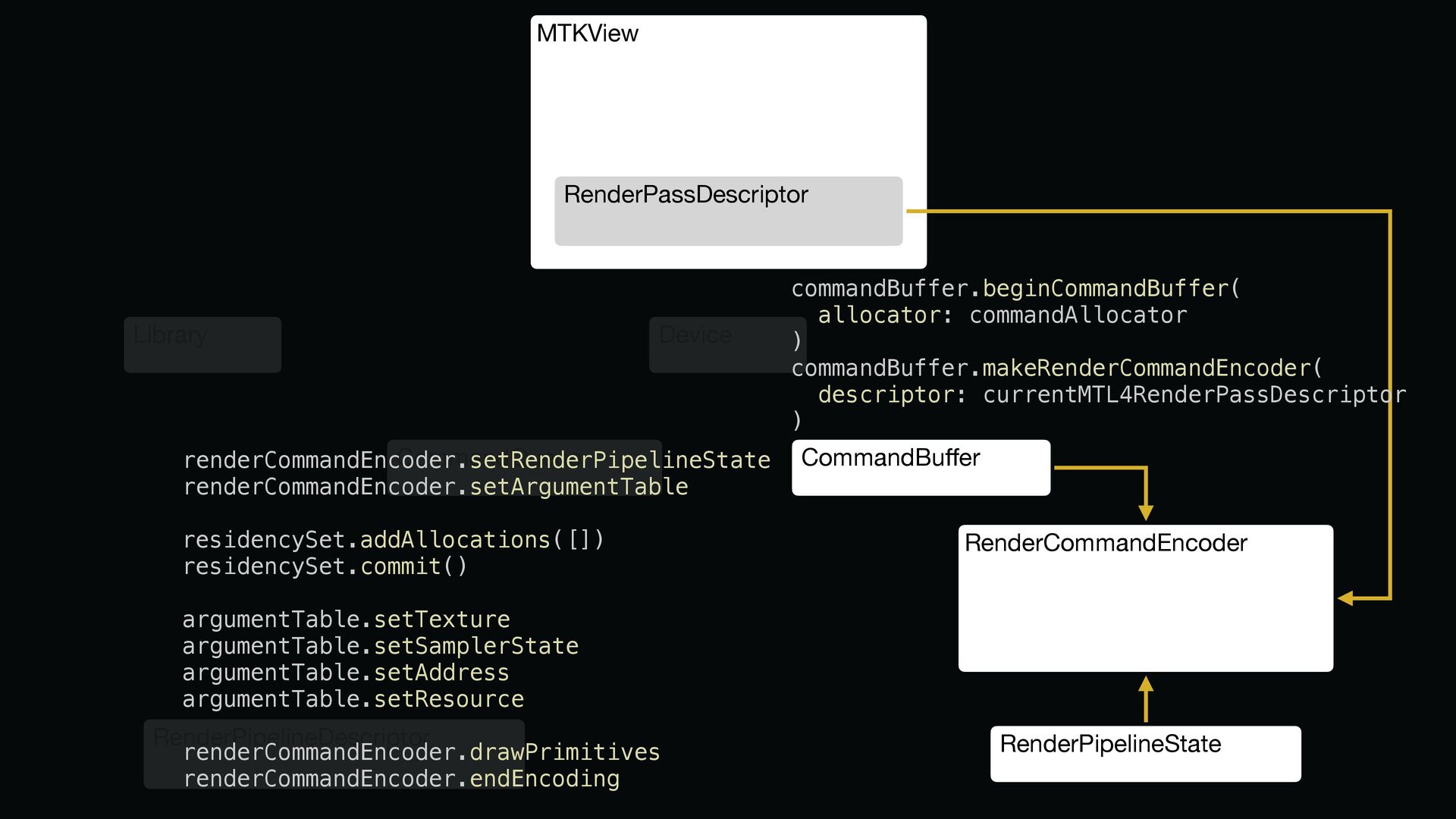

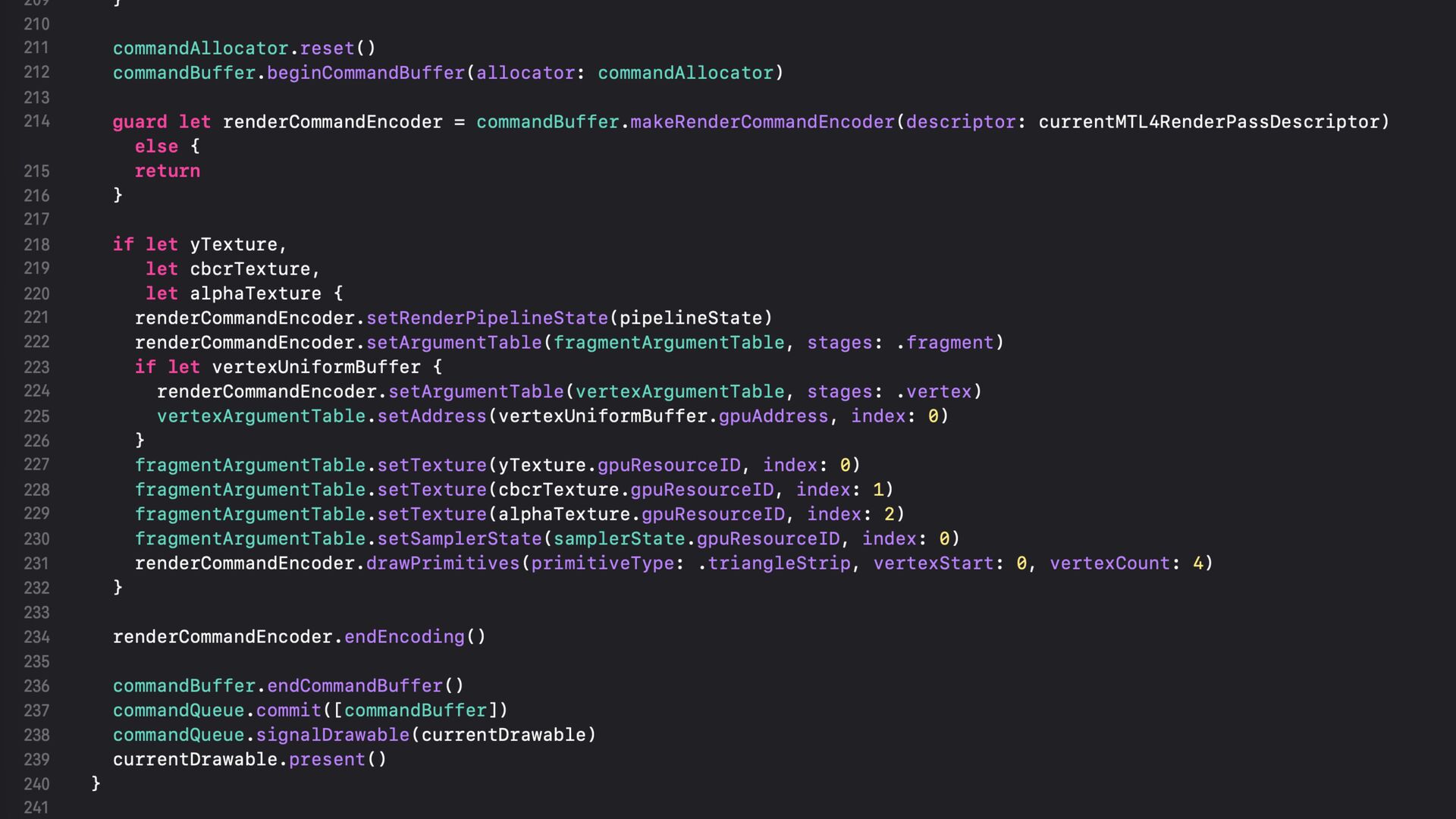

57. MTKView CommandBu ff er CommandQueue Device RenderPipelineState RenderPipelineDescriptor RenderPassDescriptor RenderCommandEncoder Library commandBuffer.beginCommandBuffer( allocator: commandAllocator ) commandBuffer.makeRenderCommandEncoder( descriptor: currentMTL4RenderPassDescriptor ) renderCommandEncoder.setRenderPipelineState renderCommandEncoder.setArgumentTable residencySet.addAllocations([]) residencySet.commit() argumentTable.setTexture argumentTable.setSamplerState argumentTable.setAddress argumentTable.setResource renderCommandEncoder.drawPrimitives renderCommandEncoder.endEncoding

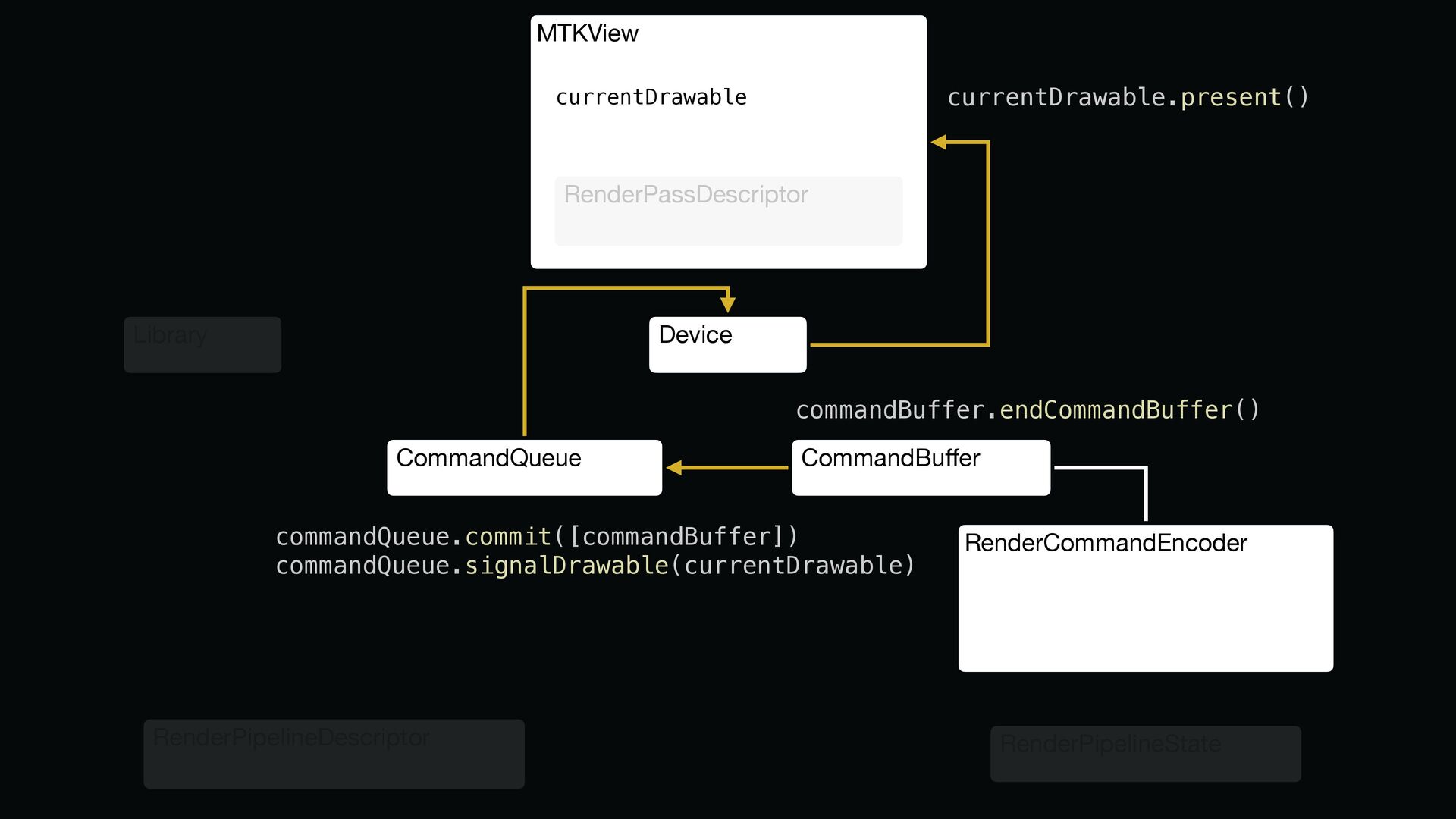

58. MTKView CommandBu ff er CommandQueue Device RenderPipelineState RenderPipelineDescriptor RenderPassDescriptor RenderCommandEncoder Library commandBuffer.endCommandBuffer() commandQueue.commit([commandBuffer]) commandQueue.signalDrawable(currentDrawable) currentDrawable.present() currentDrawable
59. MTKView CommandBu ff er CommandQueue Device RenderPipelineState RenderPipelineDescriptor RenderPassDescriptor RenderCommandEncoder Library
60. Building Efficient Pipelines with the Latest in Metal 4

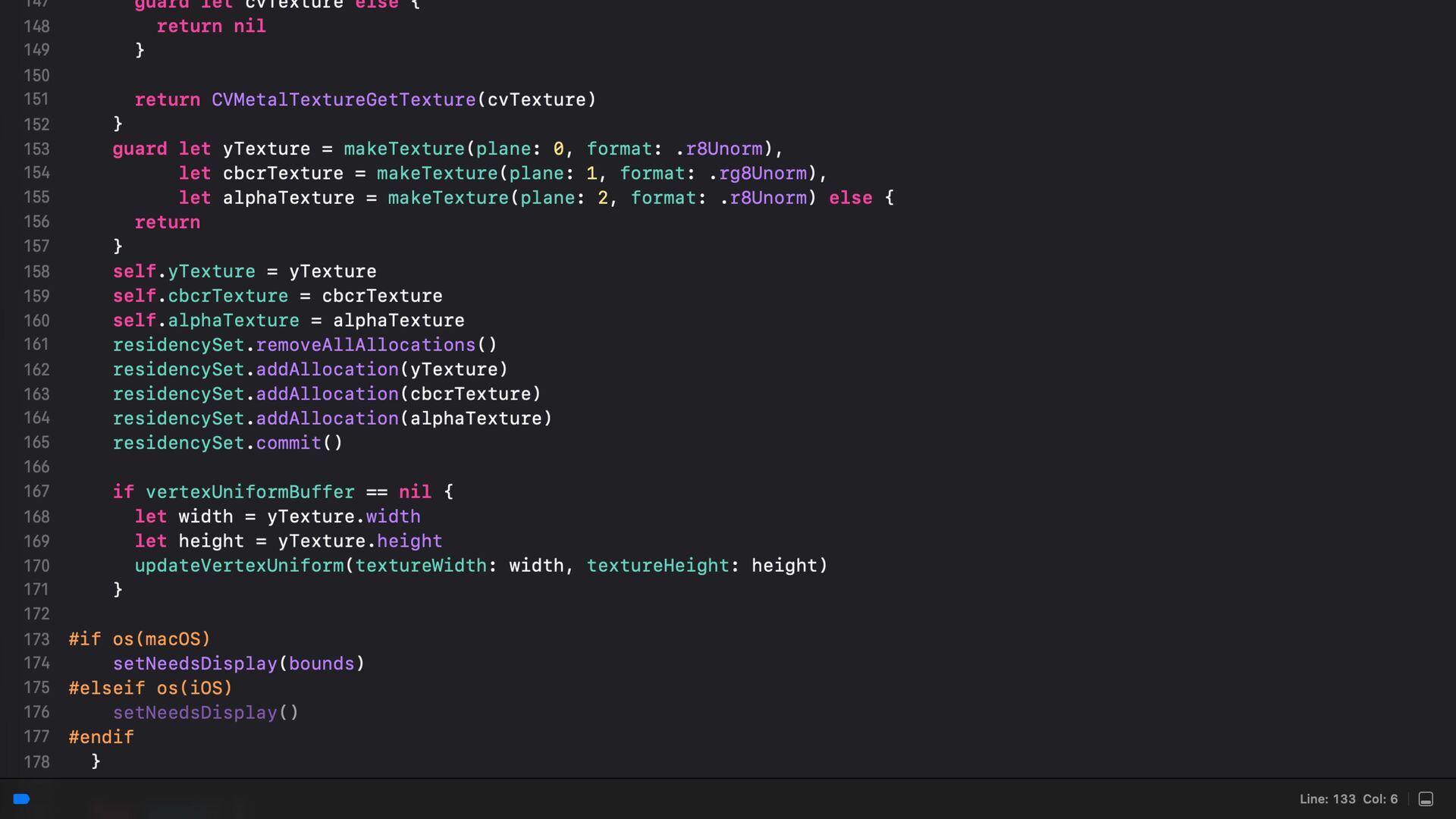

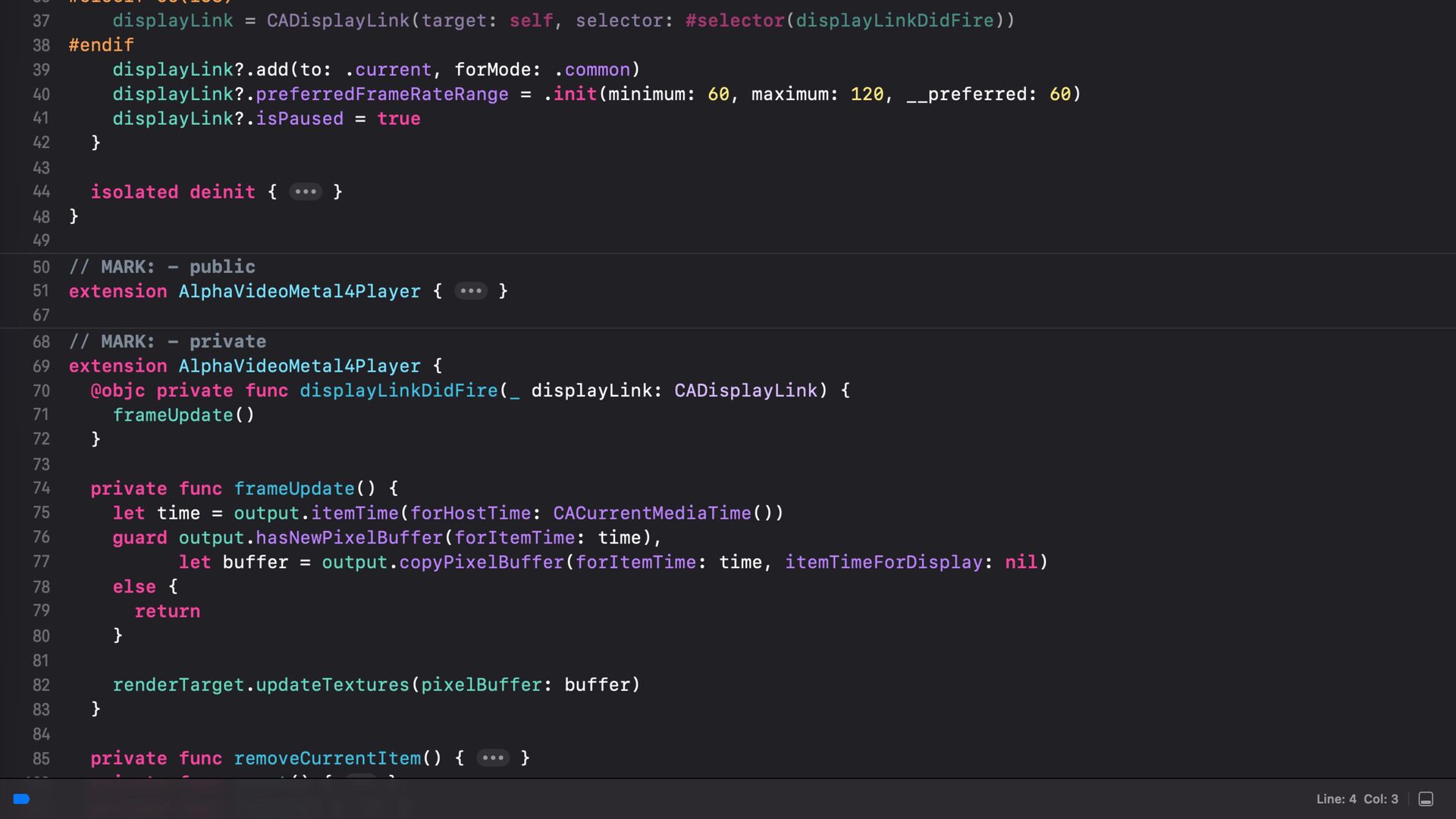

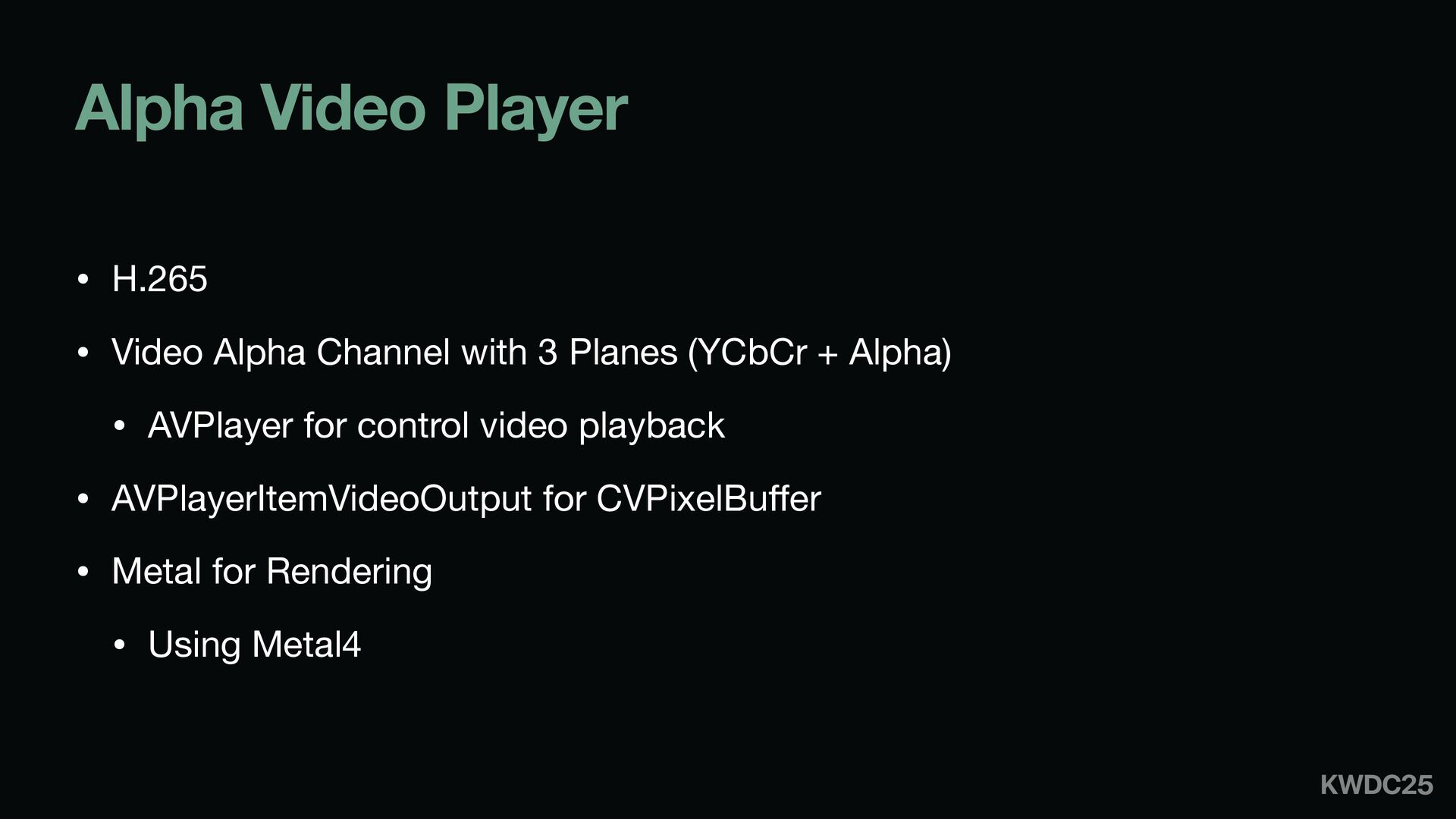

61. Alpha Video Player • H.265 • Video Alpha Channel with 3 Planes (YCbCr + Alpha) • AVPlayer for control video playback • AVPlayerItemVideoOutput for CVPixelBu ff er • Metal for Rendering • Using Metal4

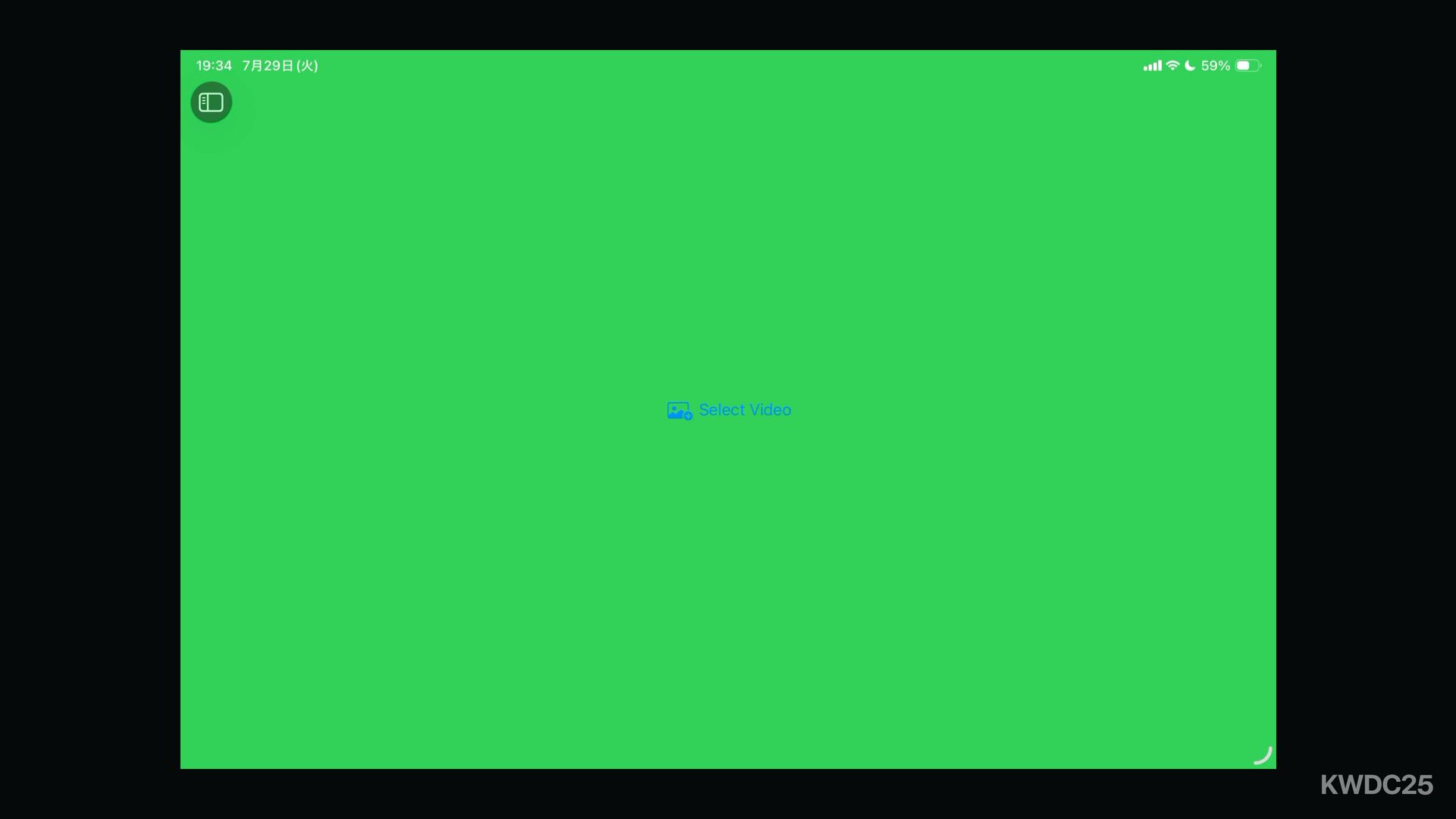

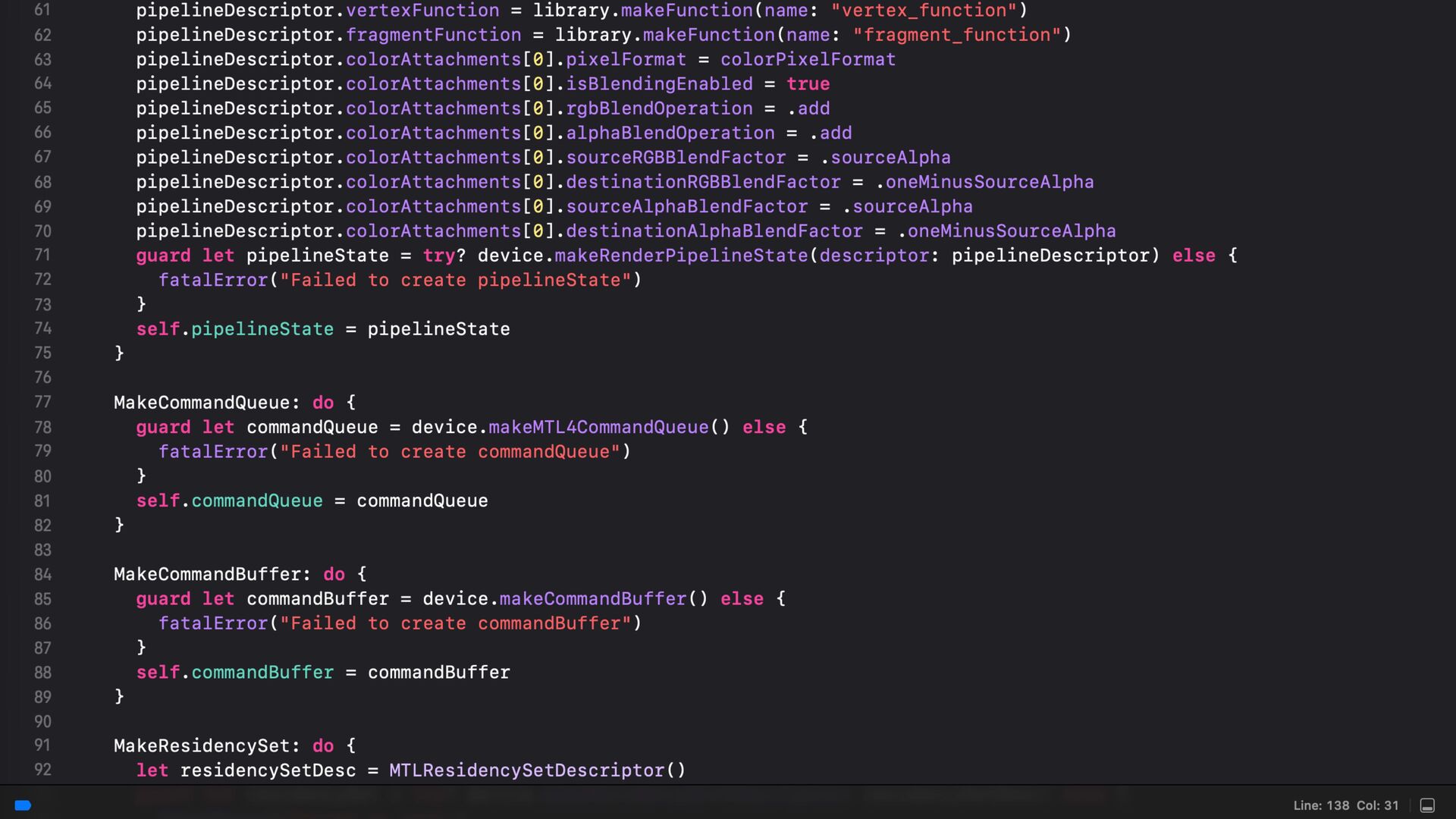

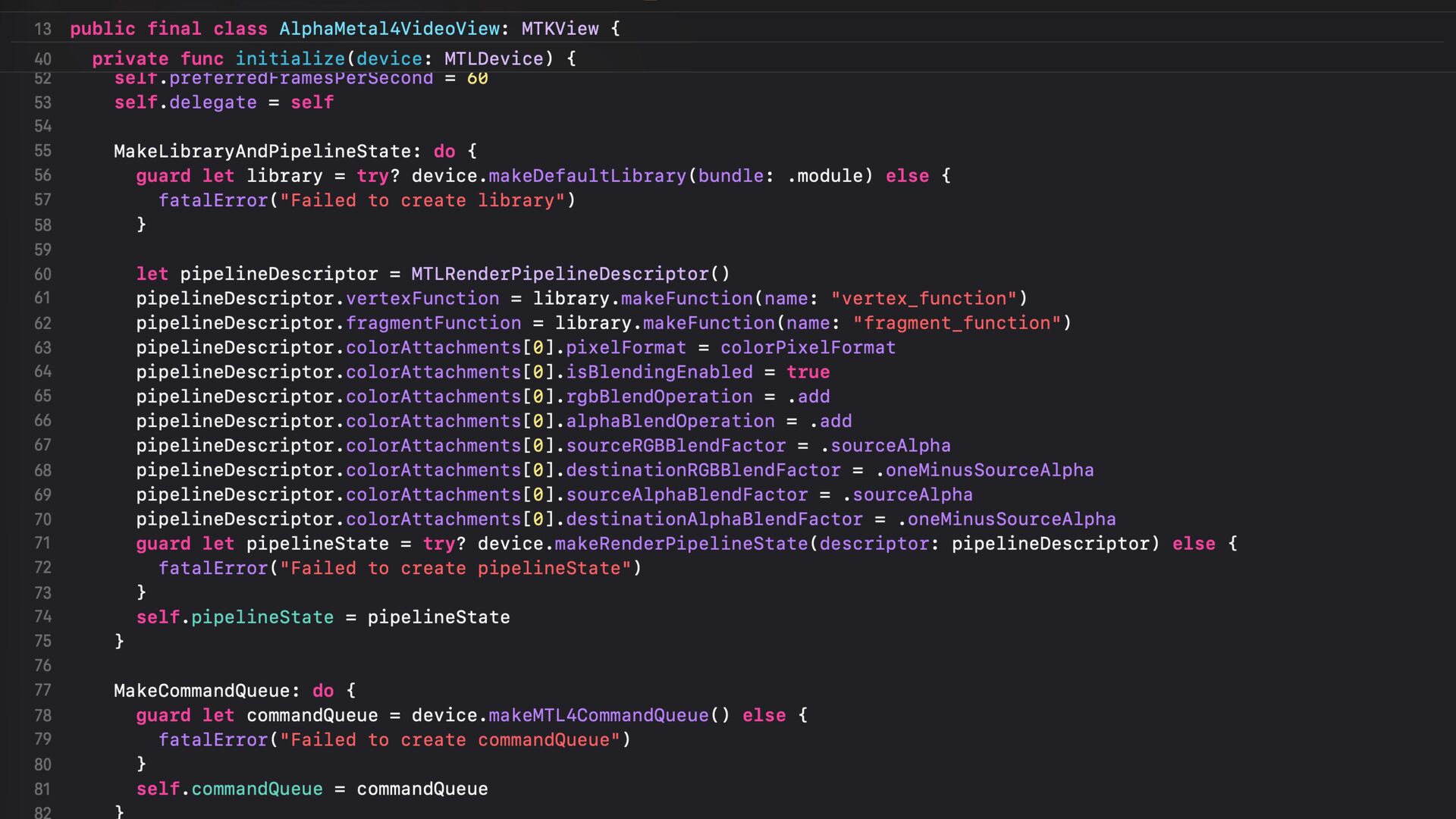

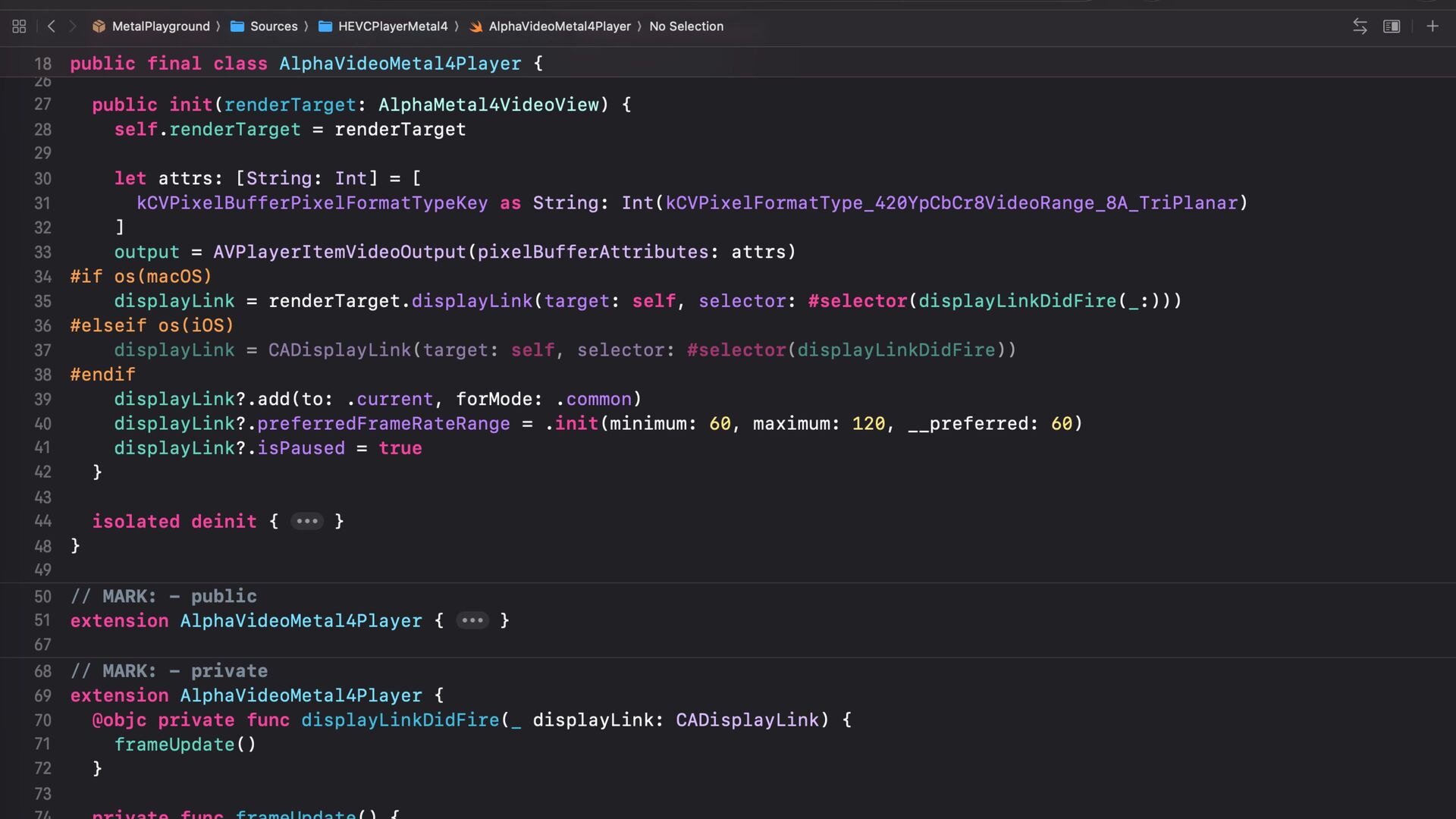

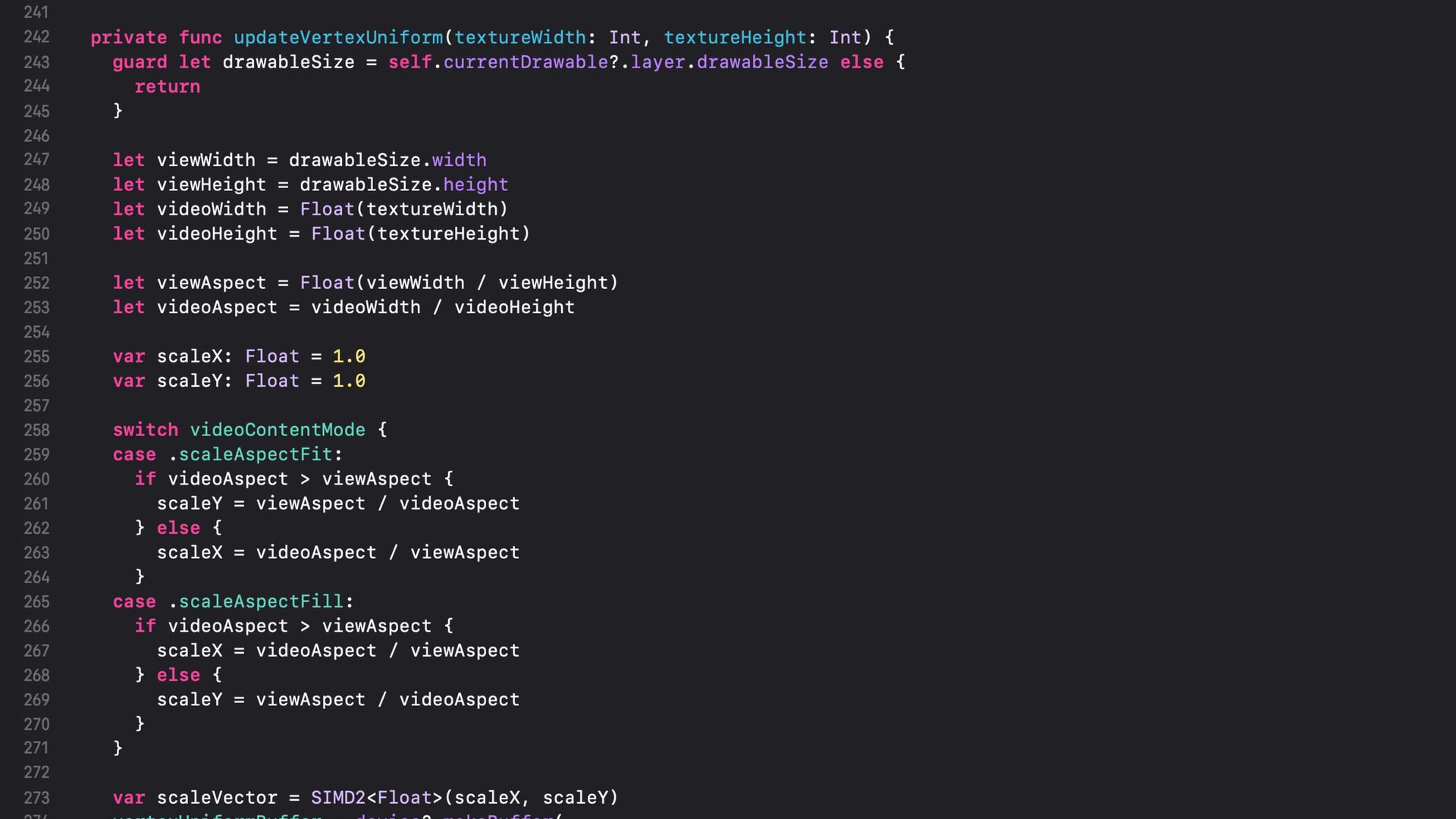

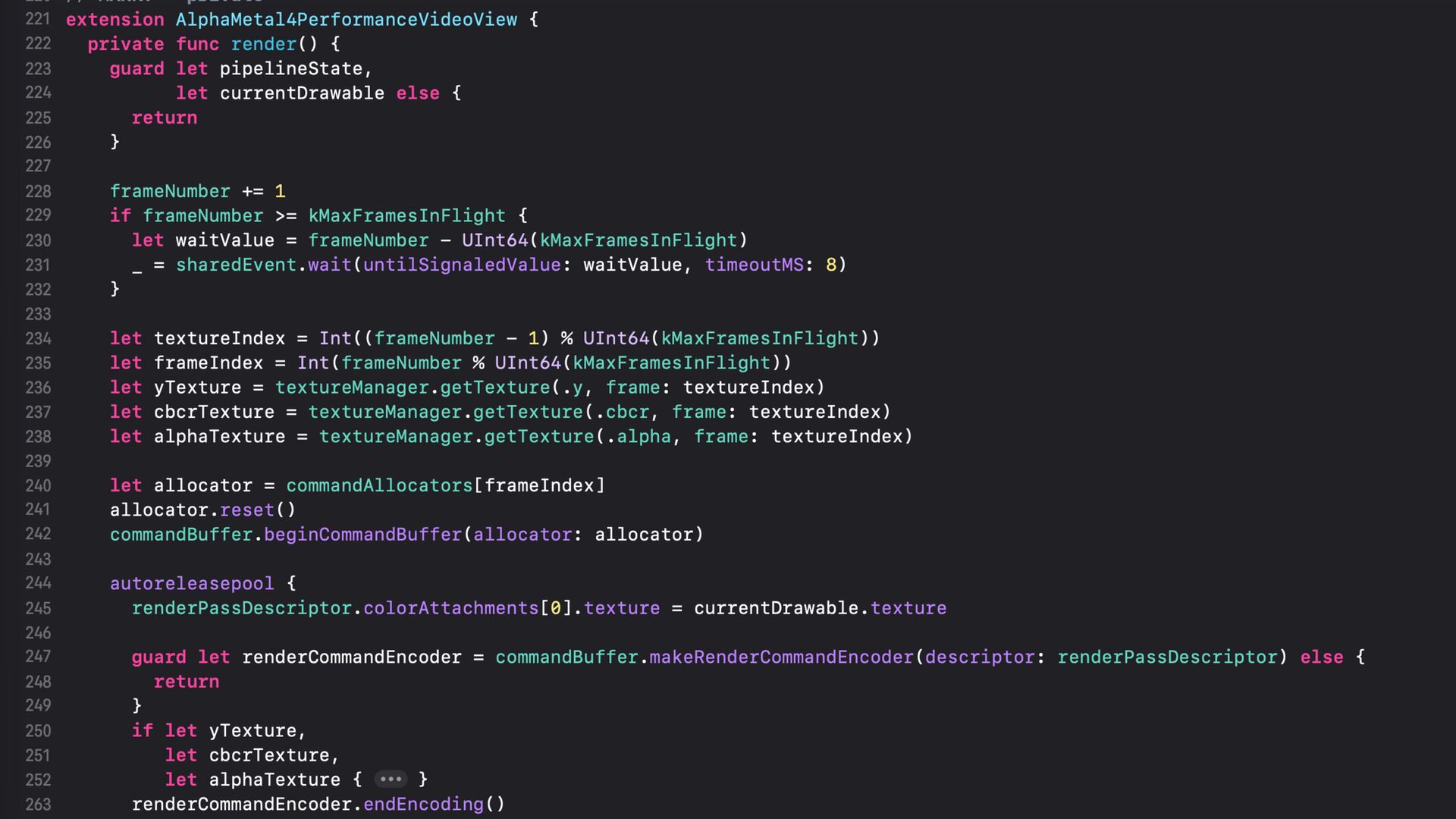

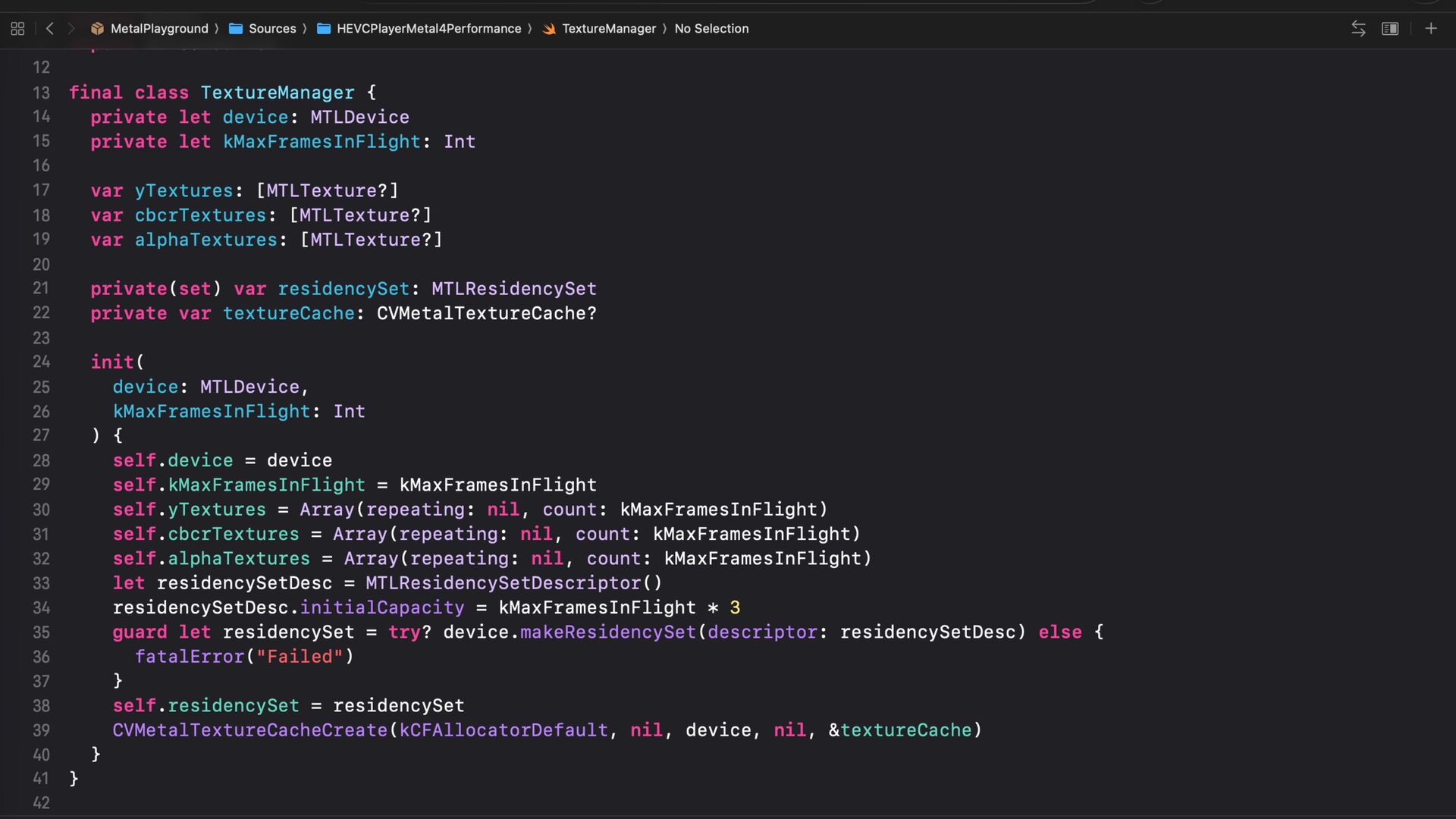

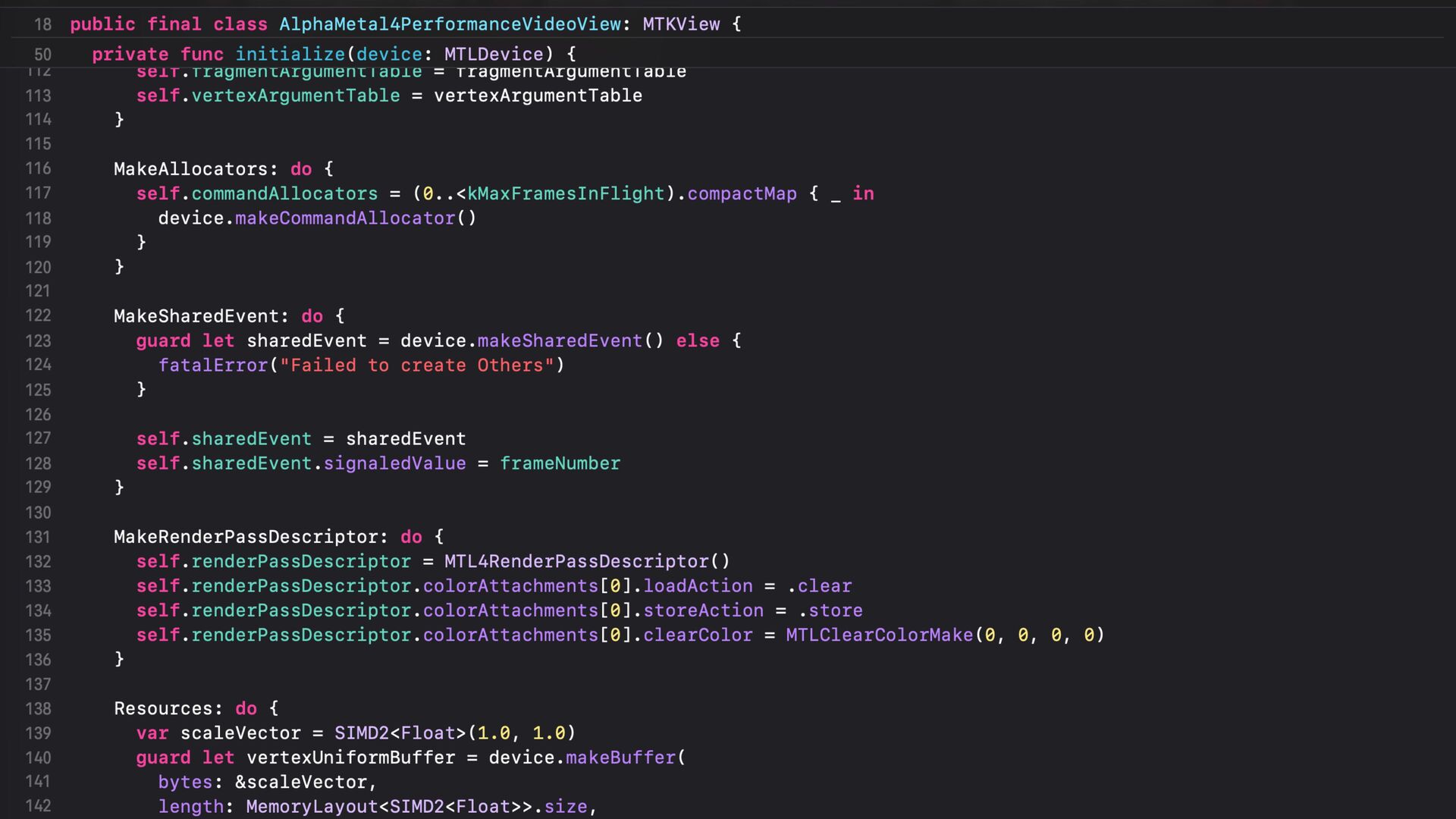

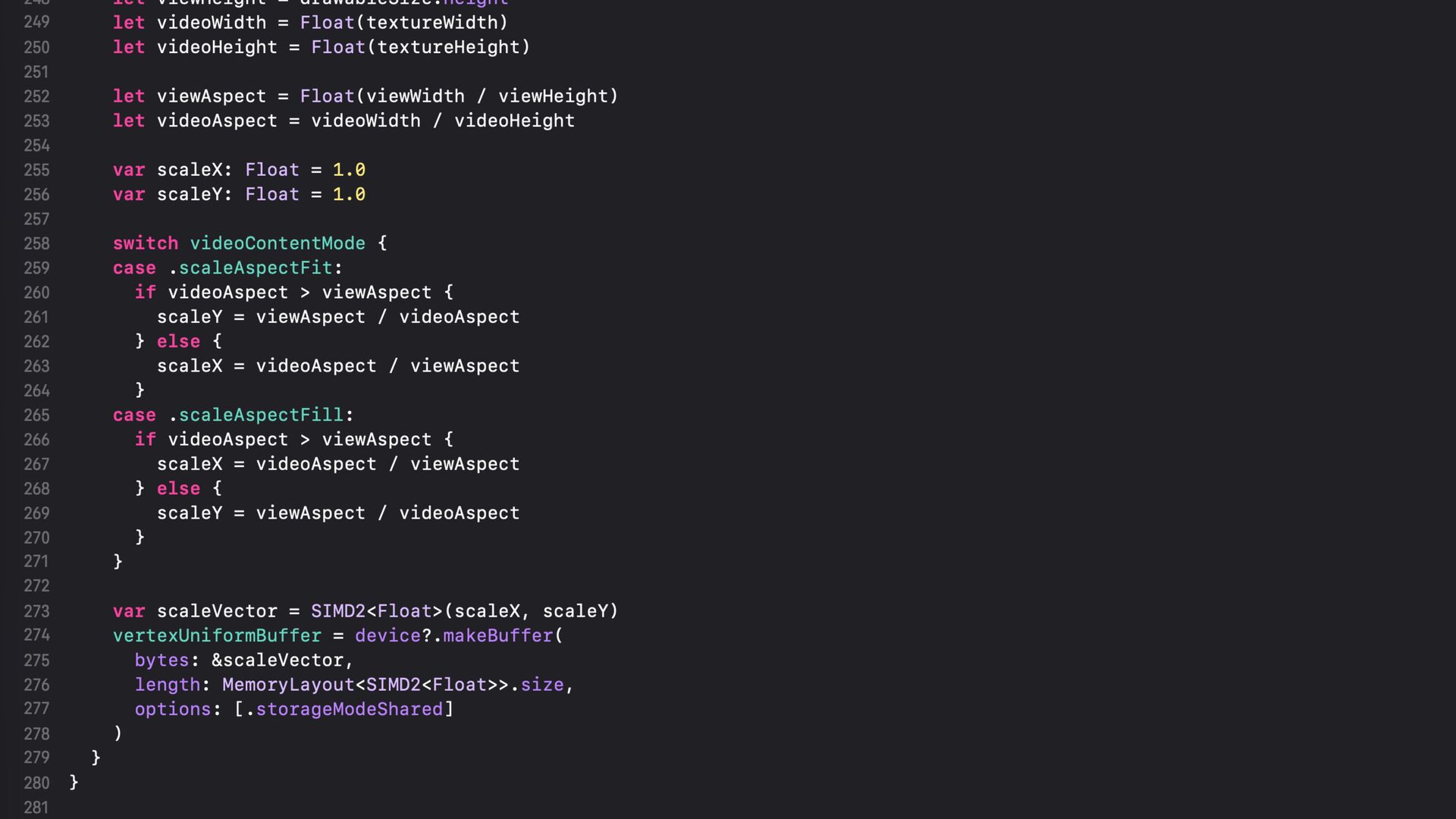

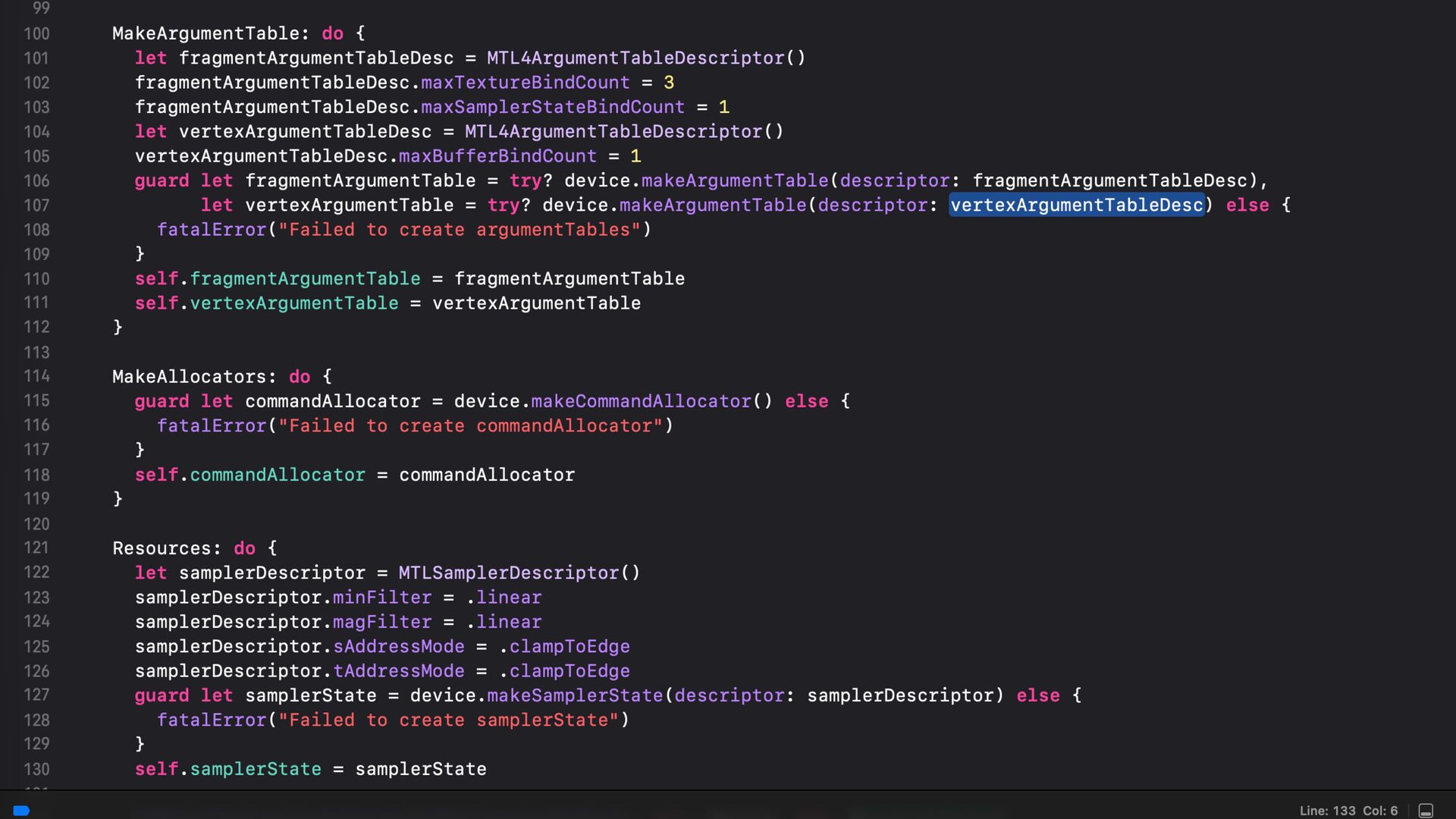

62. Metal4 Implementation

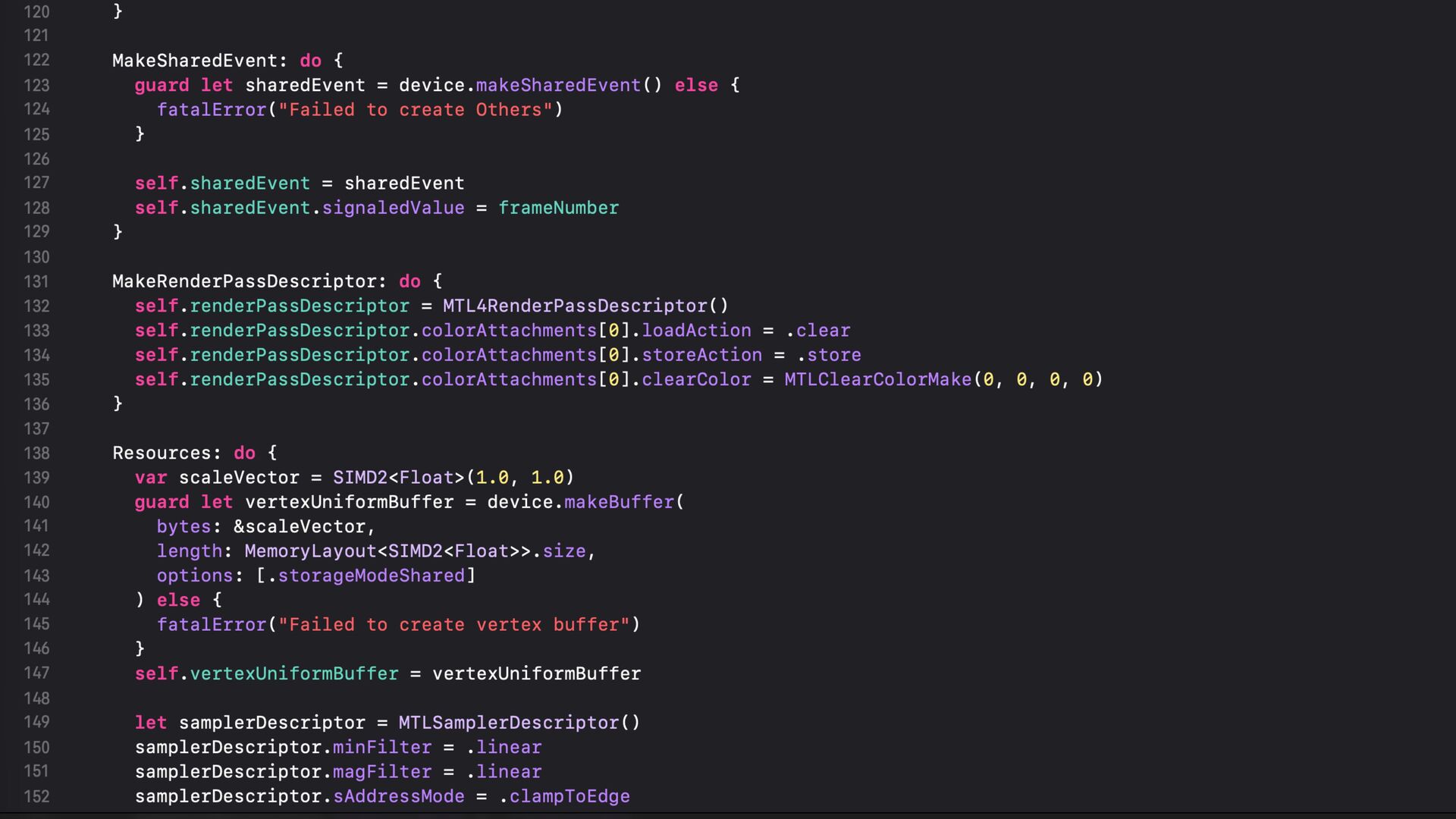

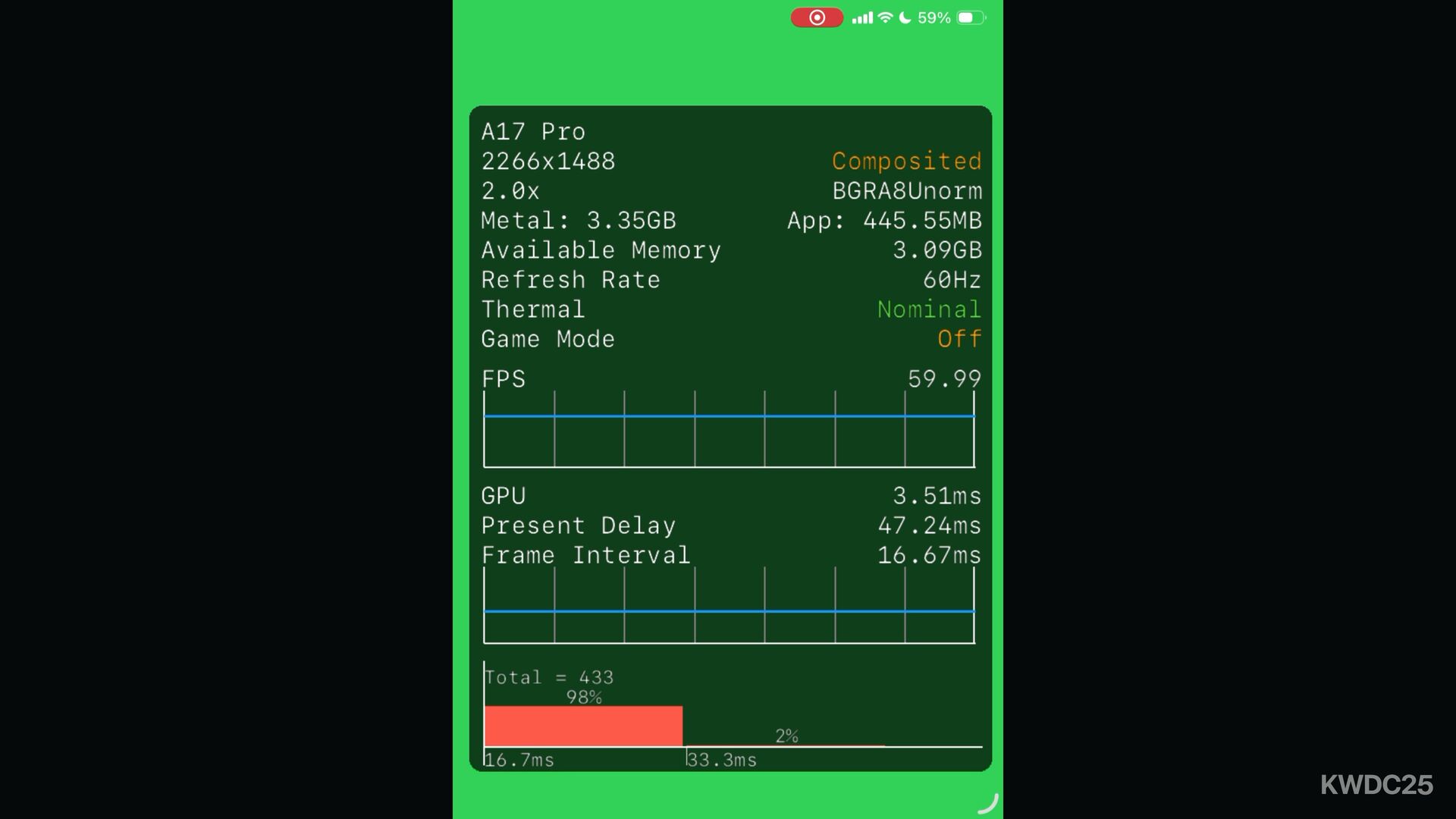

79. Performance Optimization

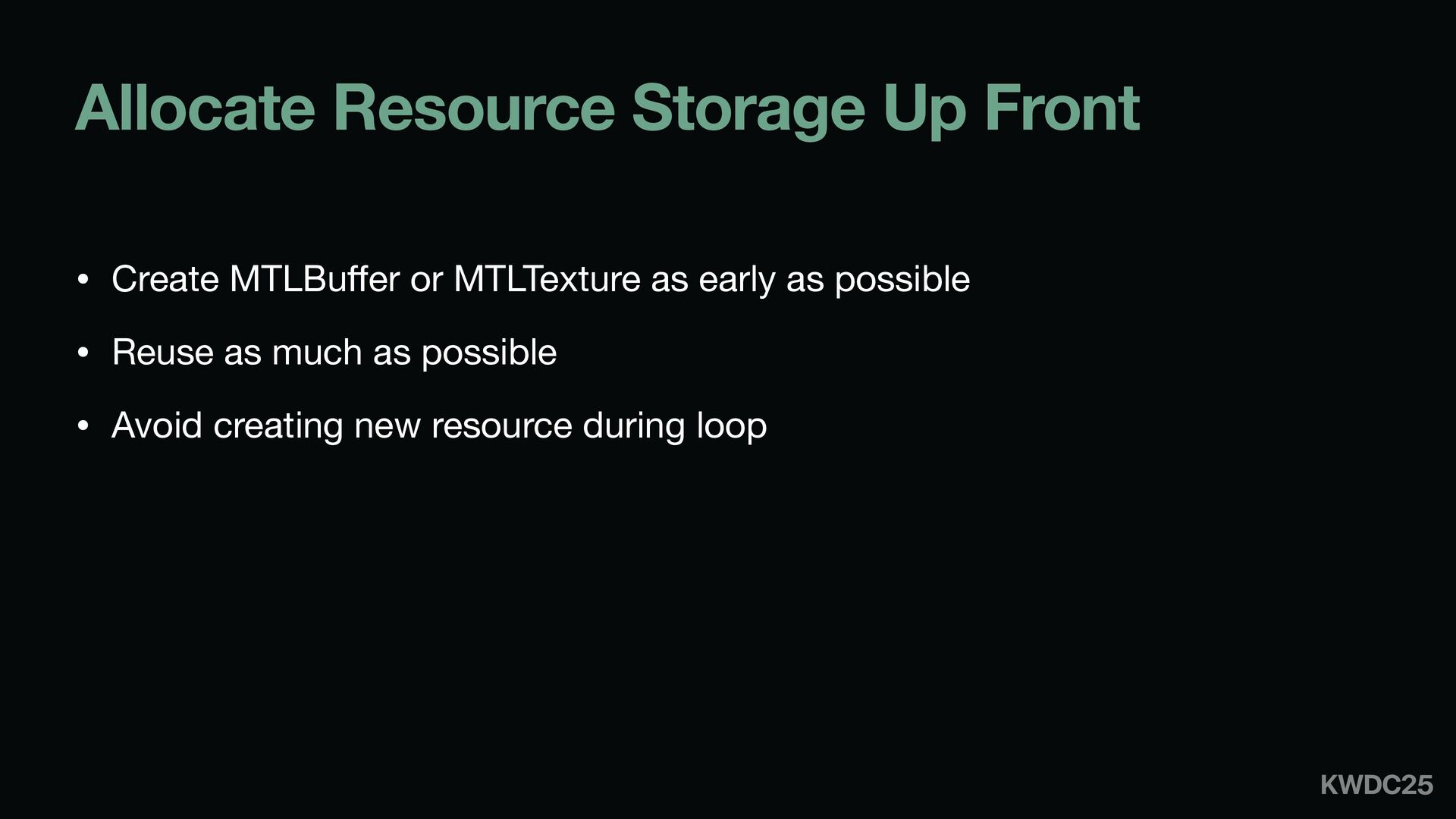

80. Allocate Resource Storage Up Front • Create MTLBu ff er or MTLTexture as early as possible • Reuse as much as possible • Avoid creating new resource during loop

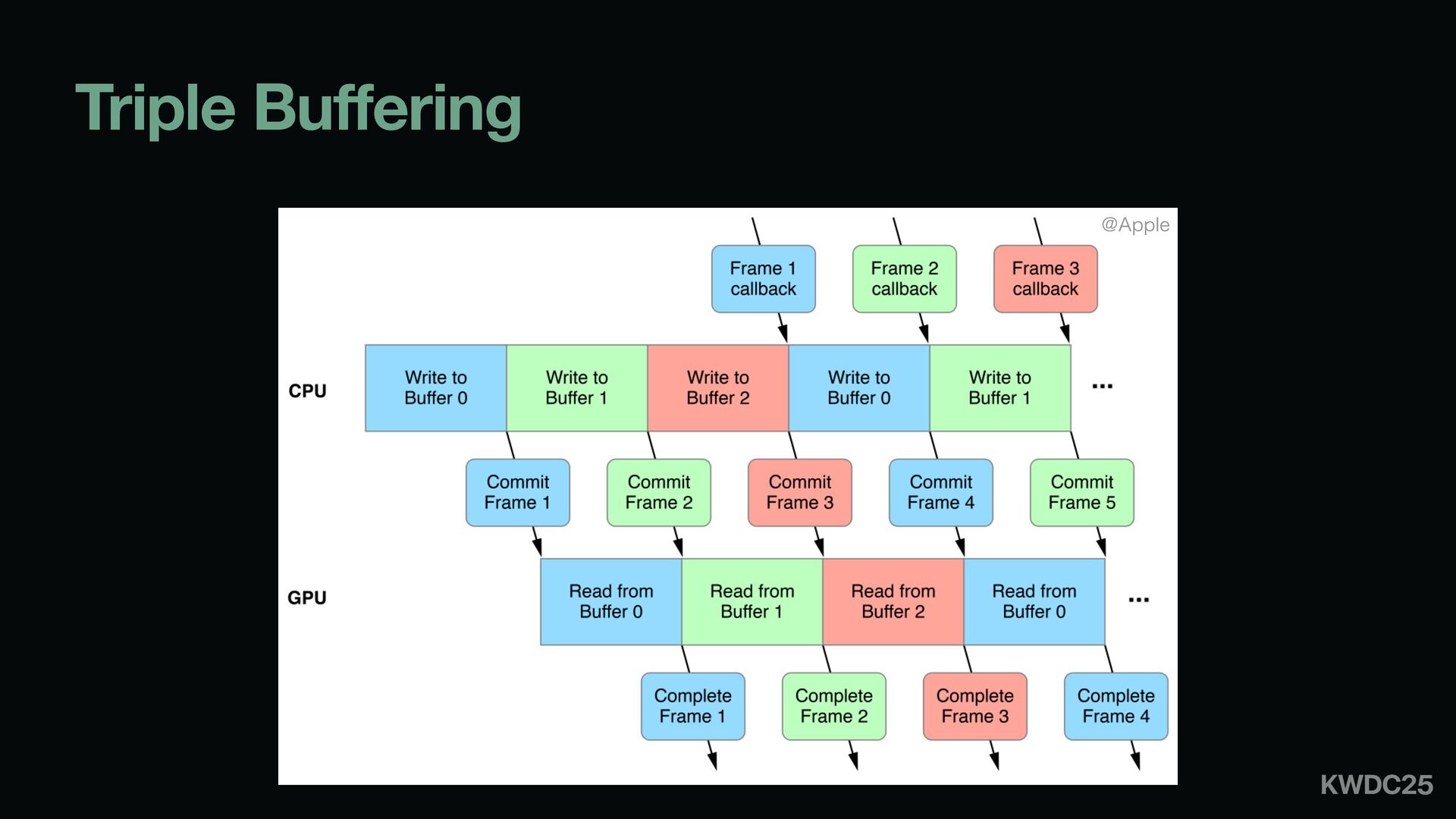

81. Triple Buffering !"QQMF

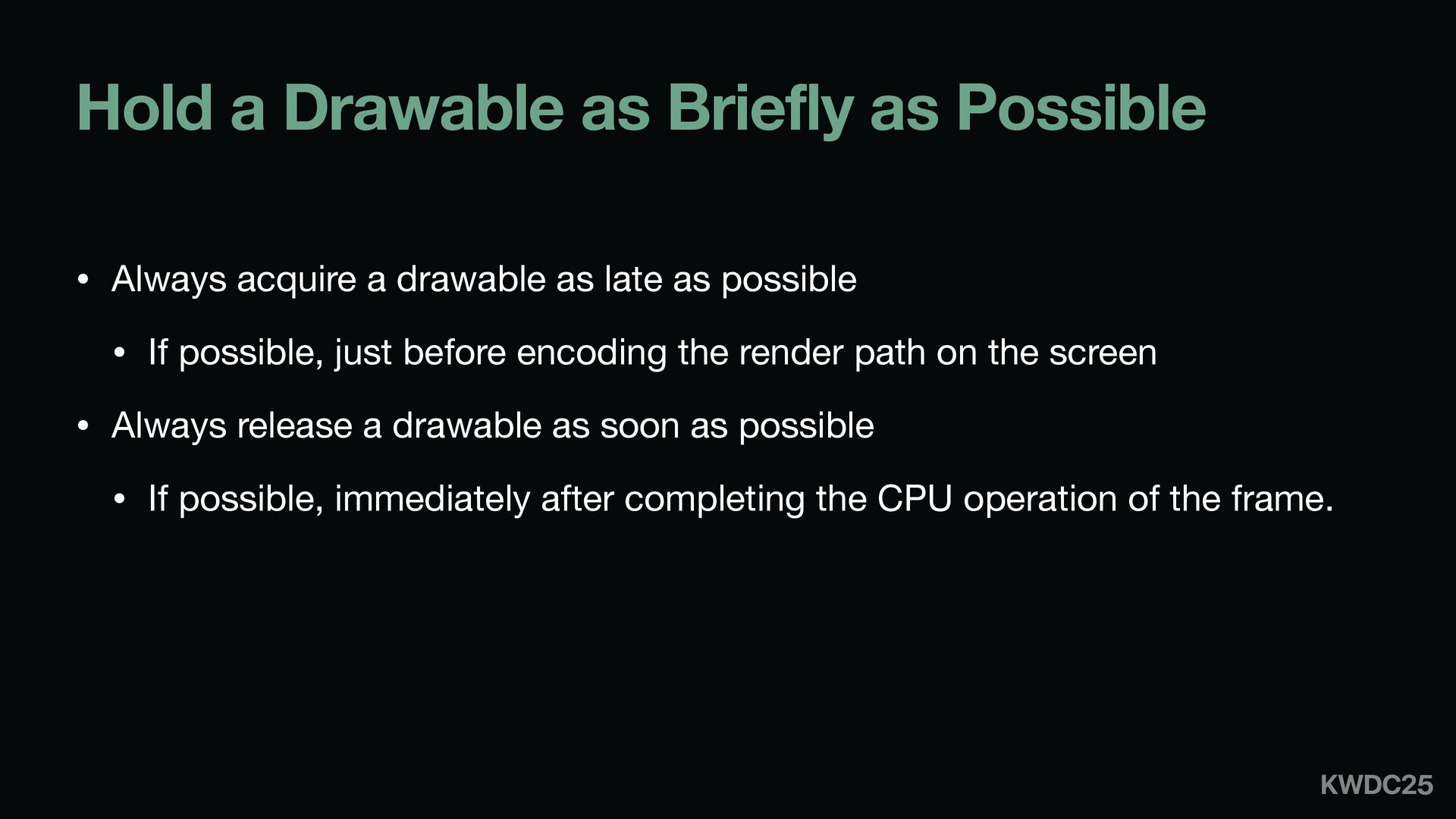

82. Hold a Drawable as Briefly as Possible • Always acquire a drawable as late as possible • If possible, just before encoding the render path on the screen • Always release a drawable as soon as possible • If possible, immediately after completing the CPU operation of the frame.

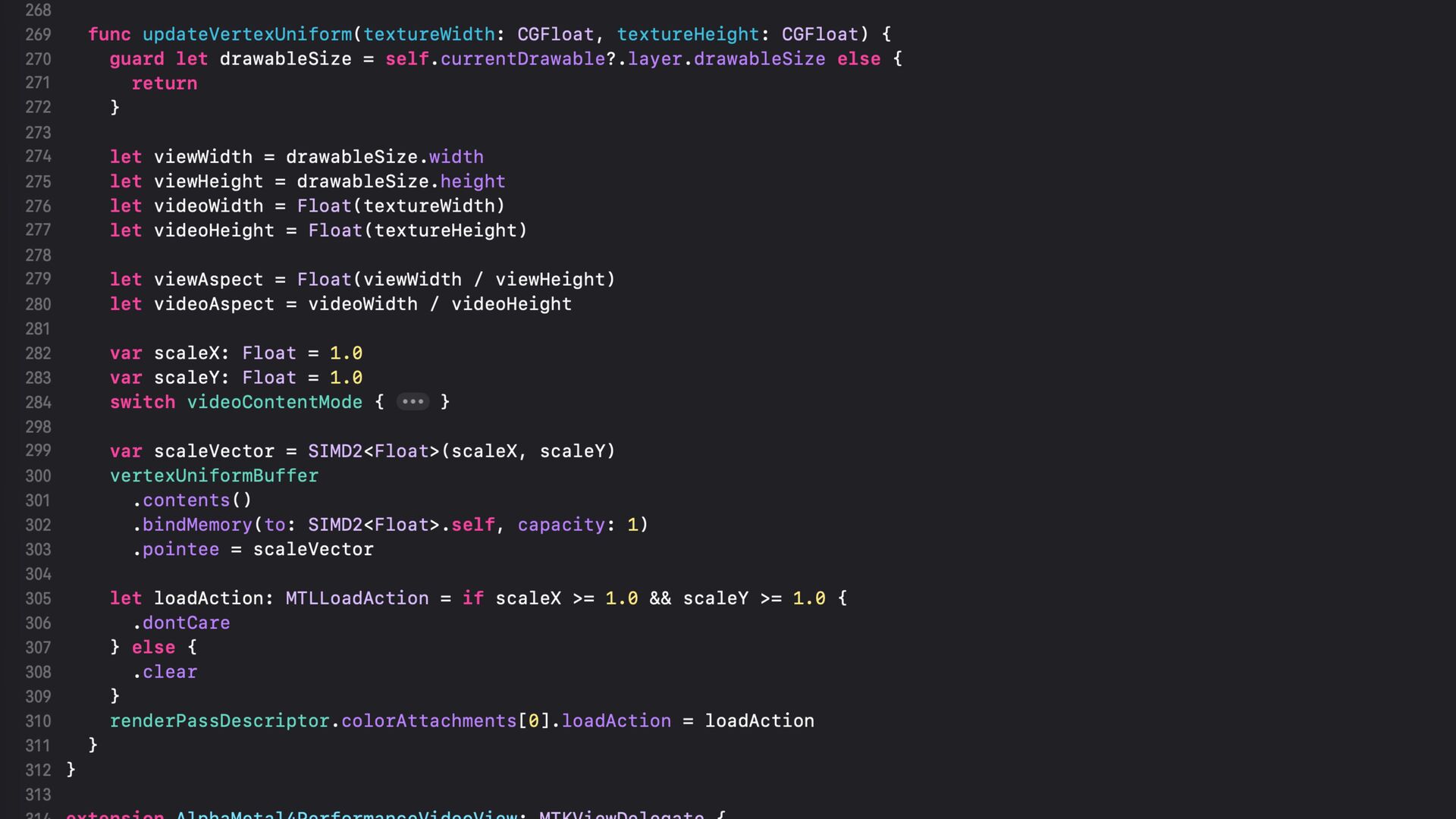

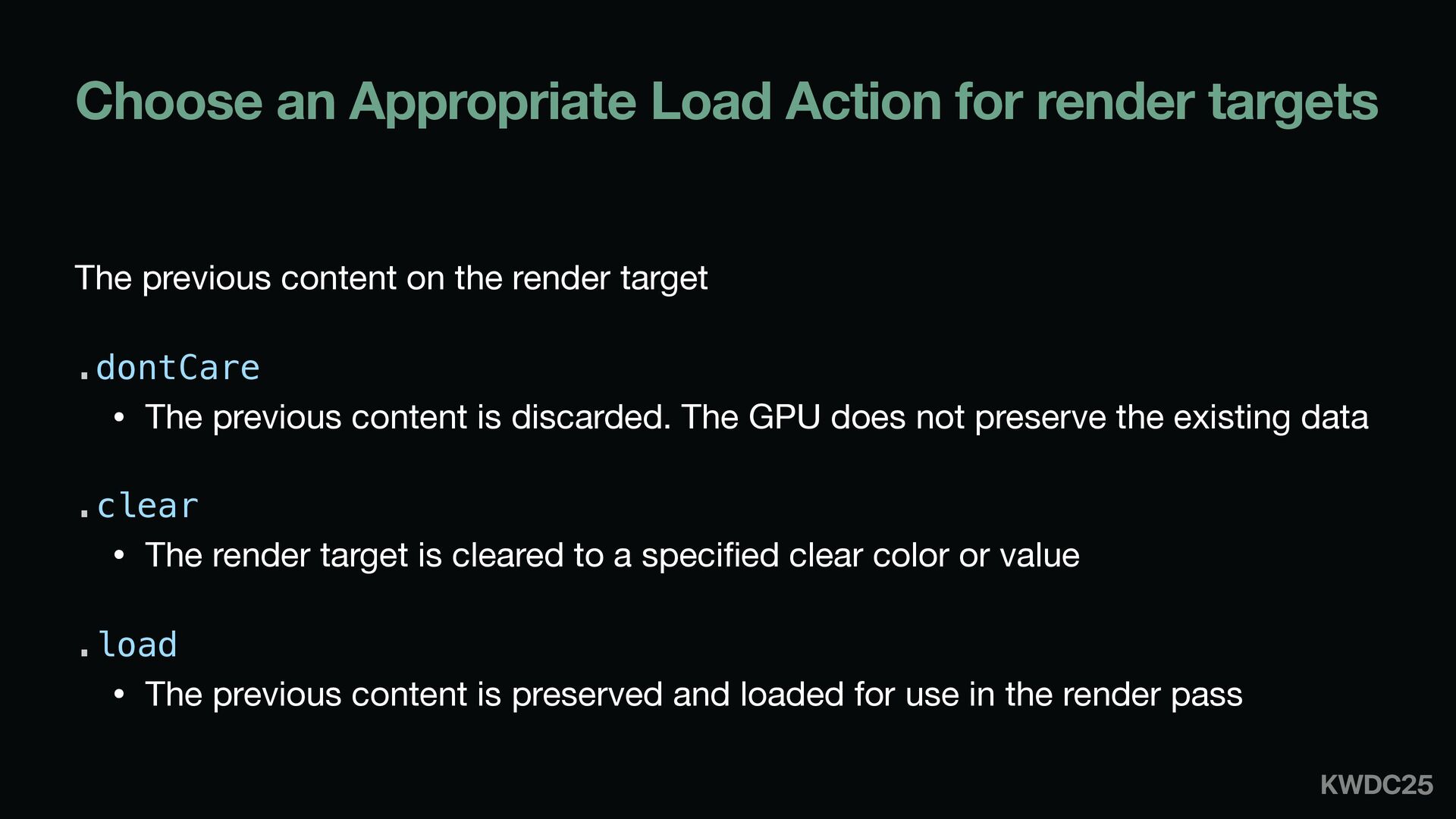

83. Choose an Appropriate Load Action for render targets The previous content on the render target .dontCare • The previous content is discarded. The GPU does not preserve the existing data .clear • The render target is cleared to a speci fi ed clear color or value .load • The previous content is preserved and loaded for use in the render pass

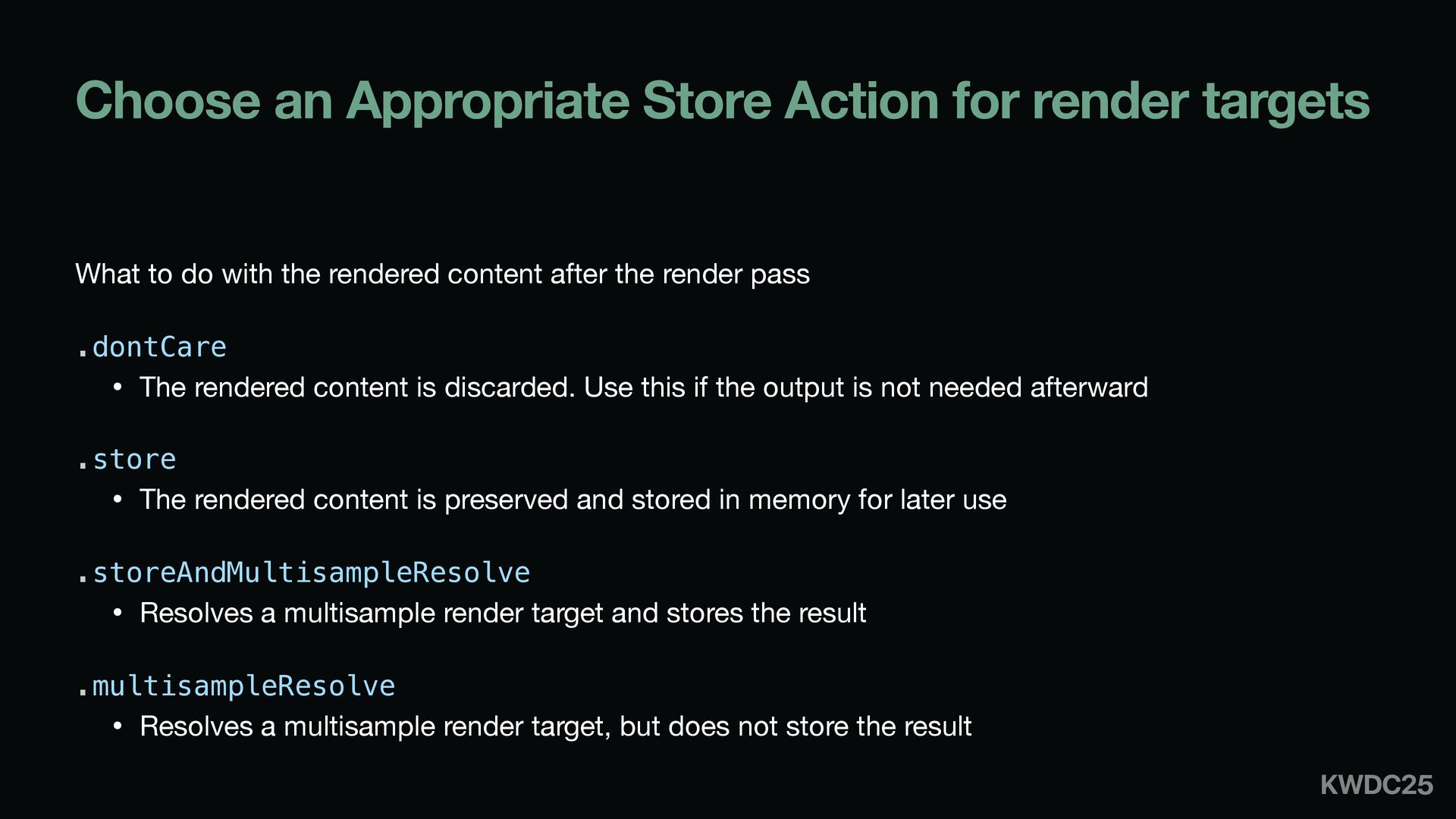

84. Choose an Appropriate Store Action for render targets What to do with the rendered content after the render pass .dontCare • The rendered content is discarded. Use this if the output is not needed afterward .store • The rendered content is preserved and stored in memory for later use .storeAndMultisampleResolve • Resolves a multisample render target and stores the result .multisampleResolve • Resolves a multisample render target, but does not store the result

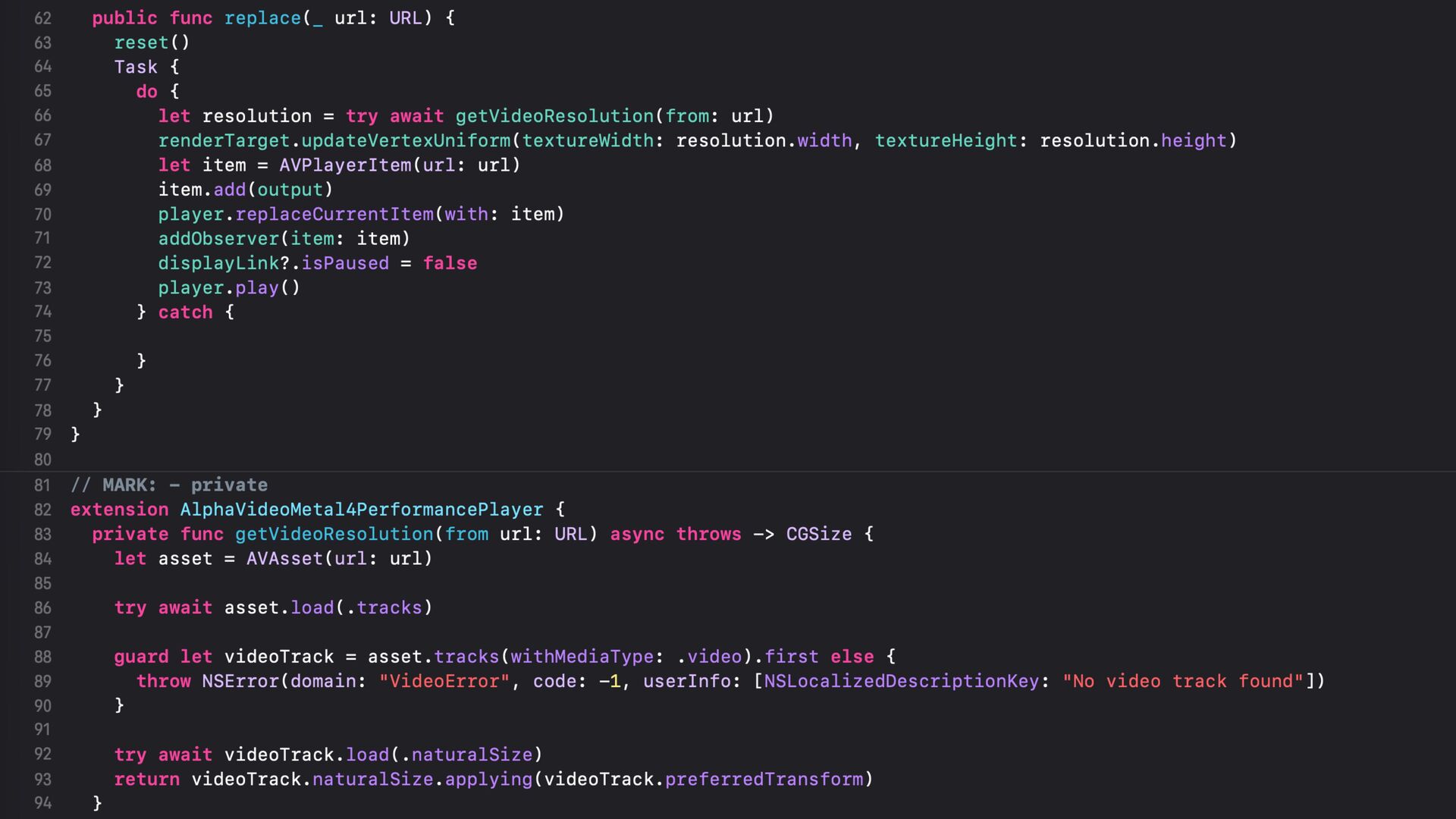

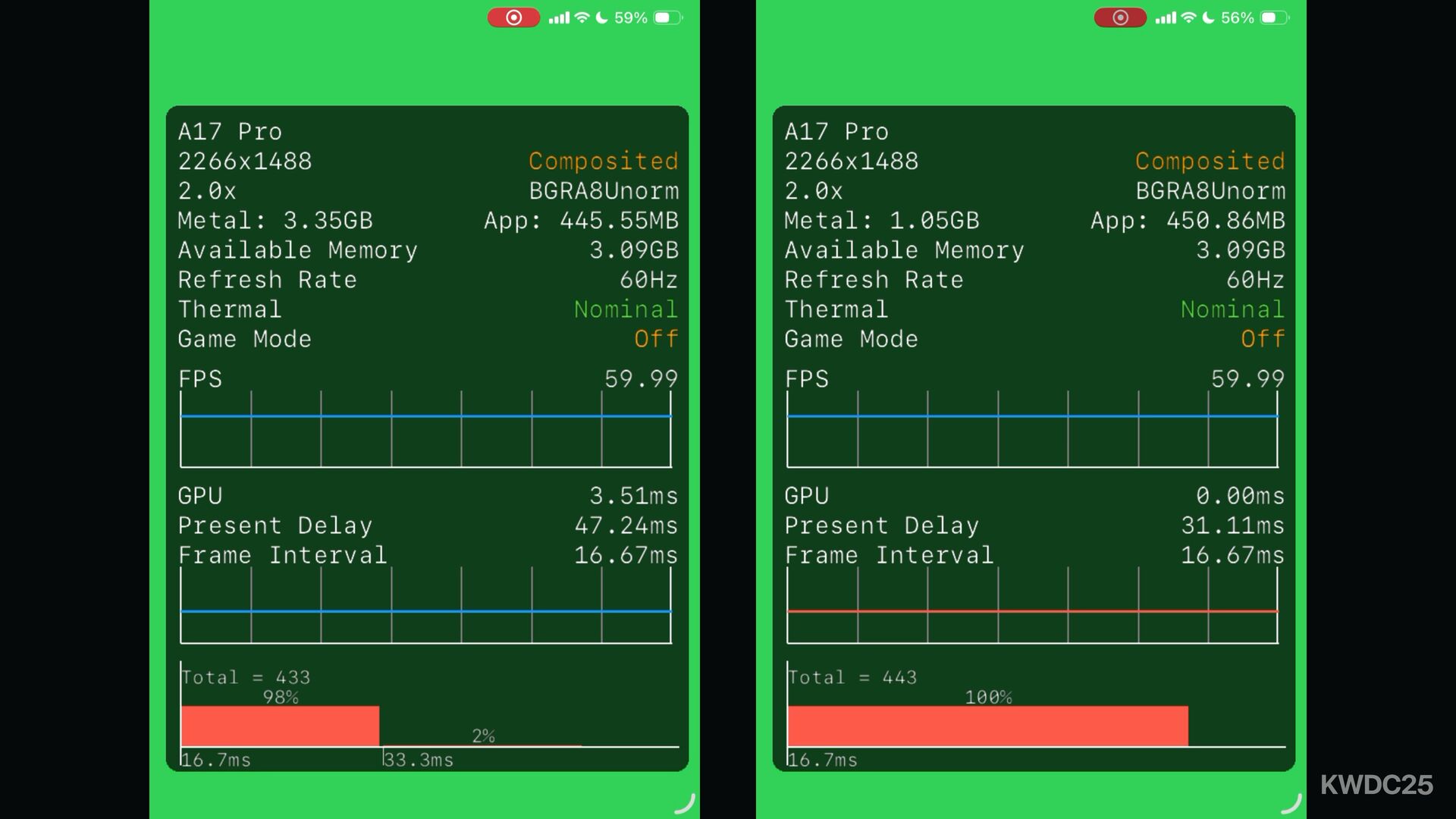

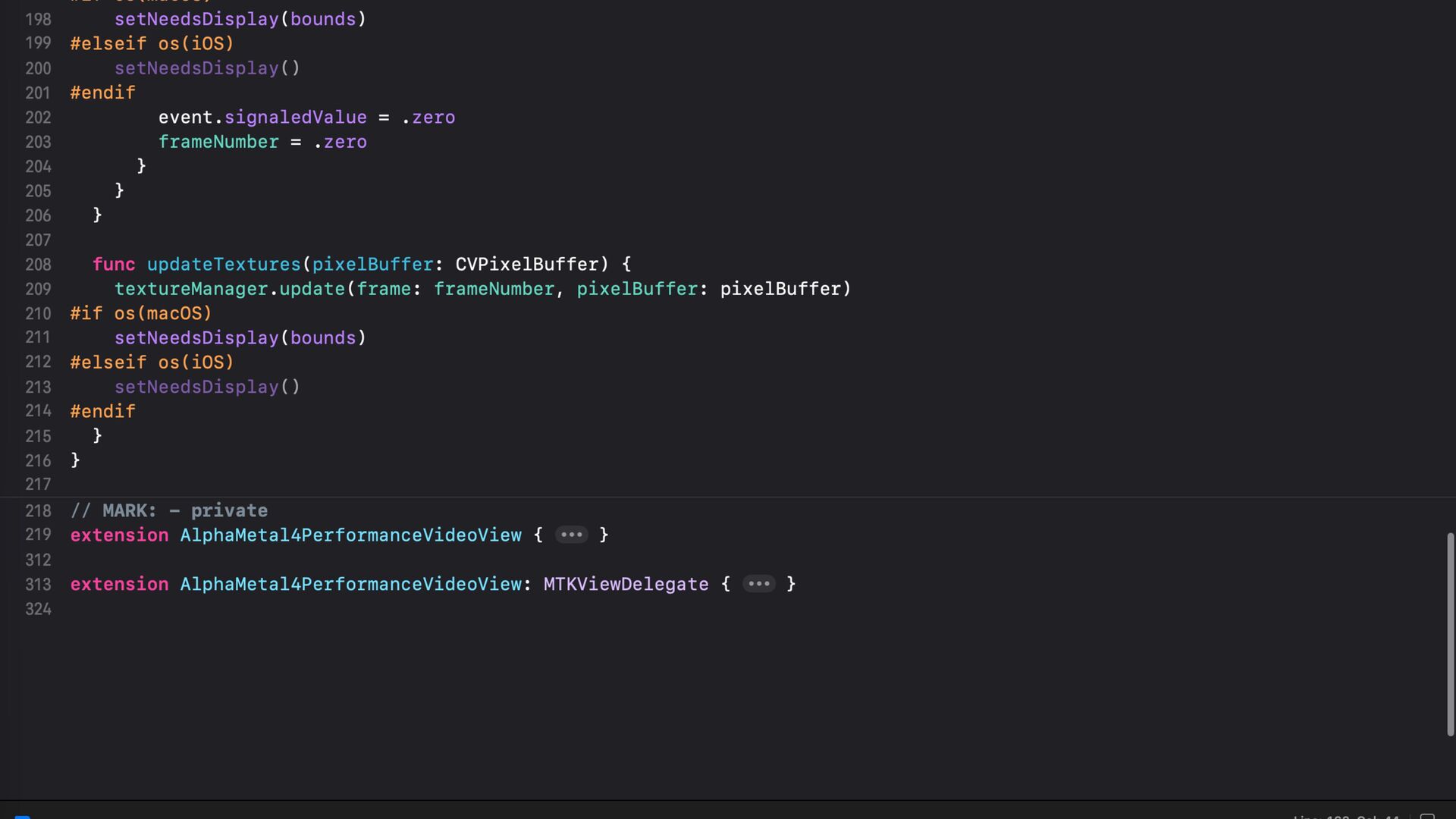

95. Other Optimizations

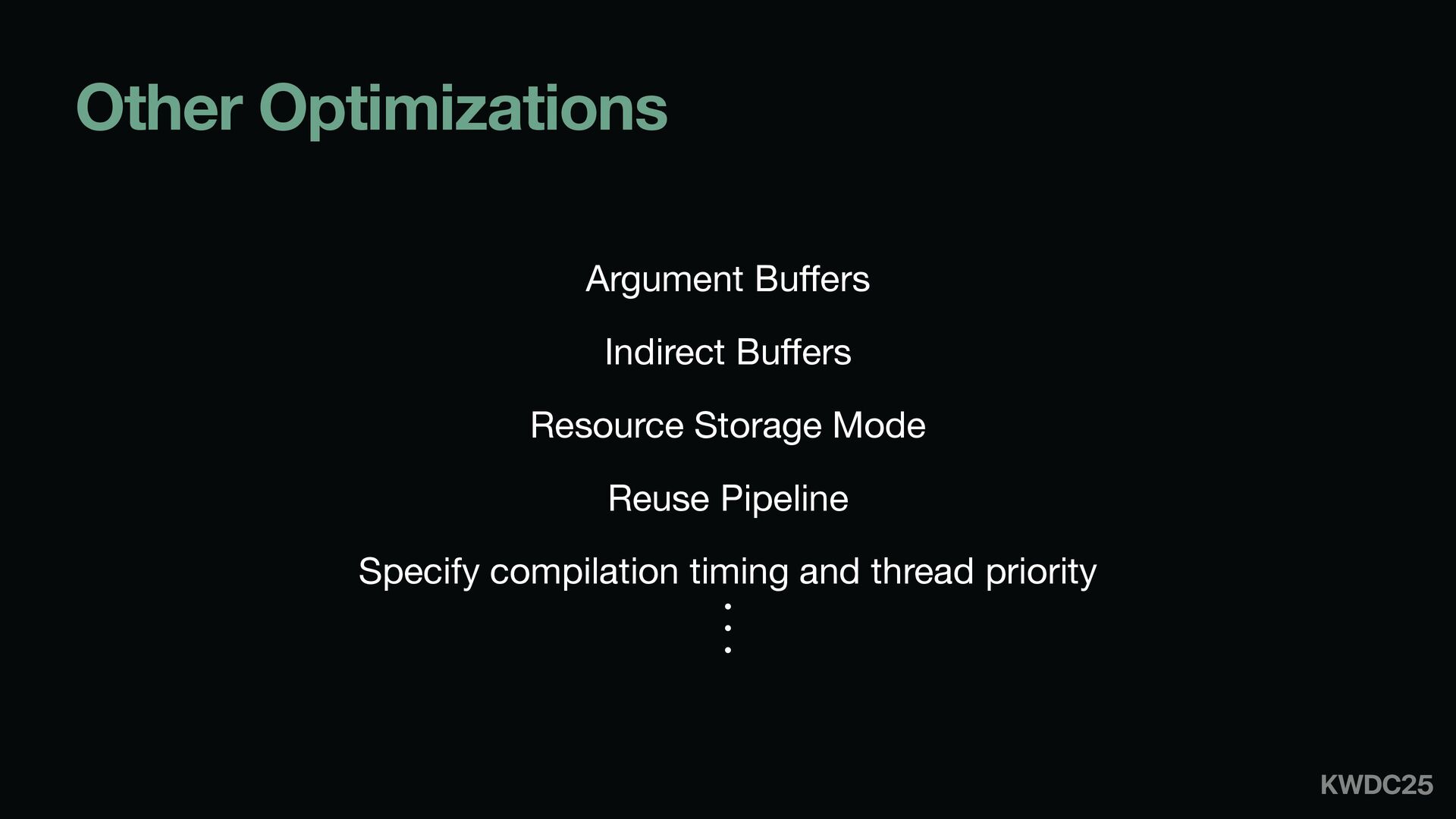

96. Other Optimizations Argument Bu ff ers Indirect Bu ff ers Resource Storage Mode Reuse Pipeline Specify compilation timing and thread priority ɾ ɾ ɾ
97. Apple Metal Best Practices Guide Metal Sample Code Library
