TriumX: RESIDENTIAL OFF-GRID/ON-GRID (INDEPENDENT), AC 380V 3-6KW
VERTICAL-AXIS WIND TURBINE, INERTIAL ENERGY STORAGE FLYWHEEL / +SOLAR PANELS, FOLDABLES / COLLAPSIBLE, CONNECTED / SMART
MOBILE / PORTABLE / MODULAR

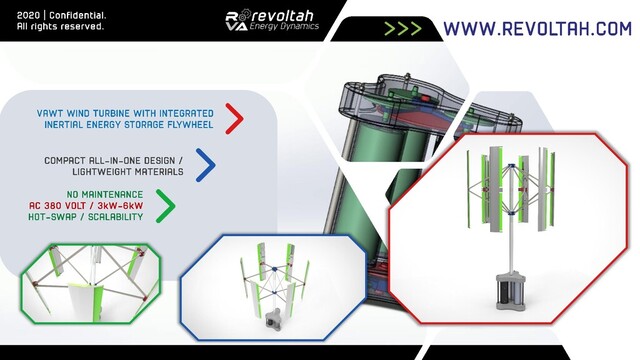

SHORT DESCRIPTION: AC 380V 3-6KW VERTICAL-AXIS WIND TURBINE WITH INERTIAL ENERGY STORAGE FLYWHEEL THAT KEEPS GENERATING ELECTRICITY EVEN WHEN THERE IS NO WIND

REVOLTAH

January 12, 2020
Tweet

More Decks by REVOLTAH

Other Decks in Technology

Transcript

  1. TriumX • RESIDENTIAL OFF-GRID/ON- GRID (INDEPENDENT) • AC 380V 3-6KW

    • VERTICAL-AXIS WIND TURBINE • INERTIAL ENERGY STORAGE FLYWHEEL / +SOLAR PANELS • FOLDABLES / COLLAPSIBLE • CONNECTED / SMART • MOBILE / PORTABLE / MODULAR
  2. … • • • • • • 20K $ 50K

    - 100K $ 1M – 3M $ 8M $ 250K - 500K $
  3. … REVOLTAH Energy Dynamics is developing REVOLTAH TriumX - a

    compact all-in-one energy generation and storage system that includes three- phase AC power generator (REVOLTAH Singularity) coupled by robotized mechatronic variable transmission (REVOLTAH FluxiVT) with integrated Inertial Energy Storage Device (REVOLTAH Epsilon xIESD). TriumX is powered by REVOLTAH Horizon6 - innovative 6-blade flexible autonomous pitch positioning (flaps- based) and height leveling Vertical- Axis Wind Turbine connected to weather storm emergency information networks that will decelerate and collapse the blades during high winds to avoid overload.
  4. … REVOLTAH TriumX is a complex energy generating and storing

    system that includes three-phase AC power generator (REVOLTAH Singularity) coupled by robotized mechatronic variable transmission (REVOLTAH FluxiVT) with integrated Inertial Energy Storage Device (REVOLTAH Epsilon xIESD) HOW IT WORKS
  5. 1. ENERGY TRANSFORMATION CYCLE: Rotation energy from wind turbine, water

    wheel or another applicable source is transferred to FluxiVT transmission where low input RPM transforms into high RPM output. 2. DISTRIBUTION CYCLE: FluxiVT starts spinning Singularity generator through one hand and 2 Epsilon xIESD flywheels via other 2 hands. 3. ENERGY PRODUCTION CYCLE: Singularity generator receives high RPM from FluxiVT and magnetic rotors start producing 0,4 kV 3- phase AC electric current up to 3 kW power. 4. ENERGY ACCUMULATION CYCLE: Designed as a modern Advanced Flywheel Energy Storage System – Epsilon xIESD stores rotation energy received from FluxiVT by accelerating to high RPMs the flywheel rotor that floats on magnetic levitation inside a vacuum sealed compartment. At the later stage this energy can be extracted and directed to Singularity generating cell. 5. ENERGY EXTRACTION AND BY-PASS CYCLE: When external rotation energy source goes below threshold FluxiVT Control Unit redirects the flow of energy from “Main” to “By-Pass” route and starts extracting rotation energy from two Epsilon xIESDs to Singularity generating cell. Power generation based on Epsilon source continues until complete deceleration of Epsilon xIESD rotors or till the moment external rotation energy source is restored. In this case all cycles are restarted. …
