Maps are more than just diagrams of the route from A to B – to draw one is to bring together the whole view of our surrounding world so that we can gain a better understanding of it. Even a single, simple example has the ability to delight, unsettle and reveal truths. In politically-charged environments an objective visual map can reinforce, influence or challenge held perceptions and beliefs, making them a vital tool in designing pliable, people-focused content systems that are fit for purpose. Their proactive and reactive qualities force ourselves and others to see things as they really are; to contemplate the relationship between them and how they vary together.

Presented at UX Scotland 2014 in Edinburgh on 19th June 2014.

Transcript

1. MAPPING THE WAY FORWARD Richard Ingram @richardjingram UX Scotland, 19th June 2014 #uxscot

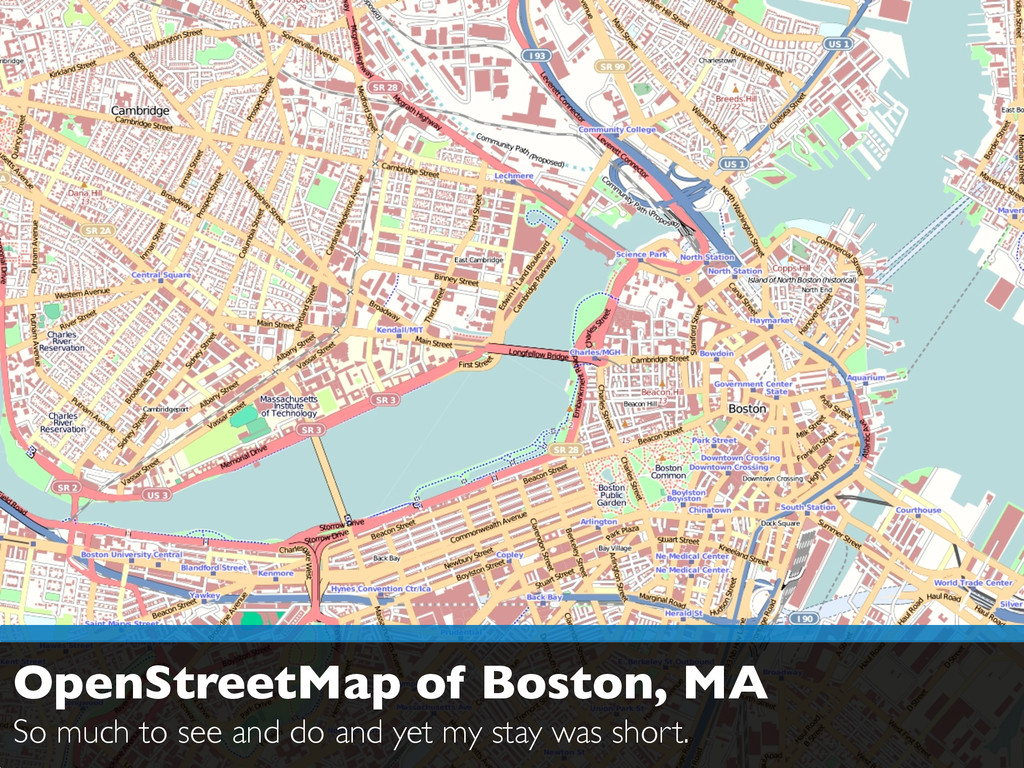

2. OpenStreetMap of Boston, MA So much to see and do and yet my stay was short.

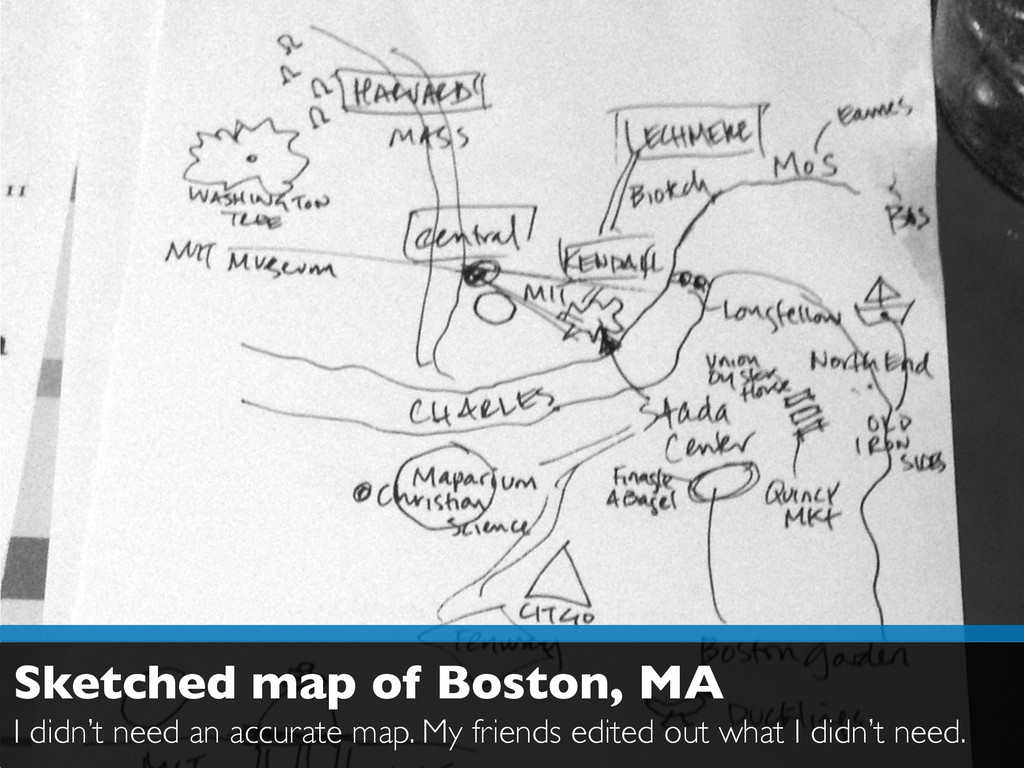

3. Sketched map of Boston, MA I didn’t need an accurate map. My friends edited out what I didn’t need.

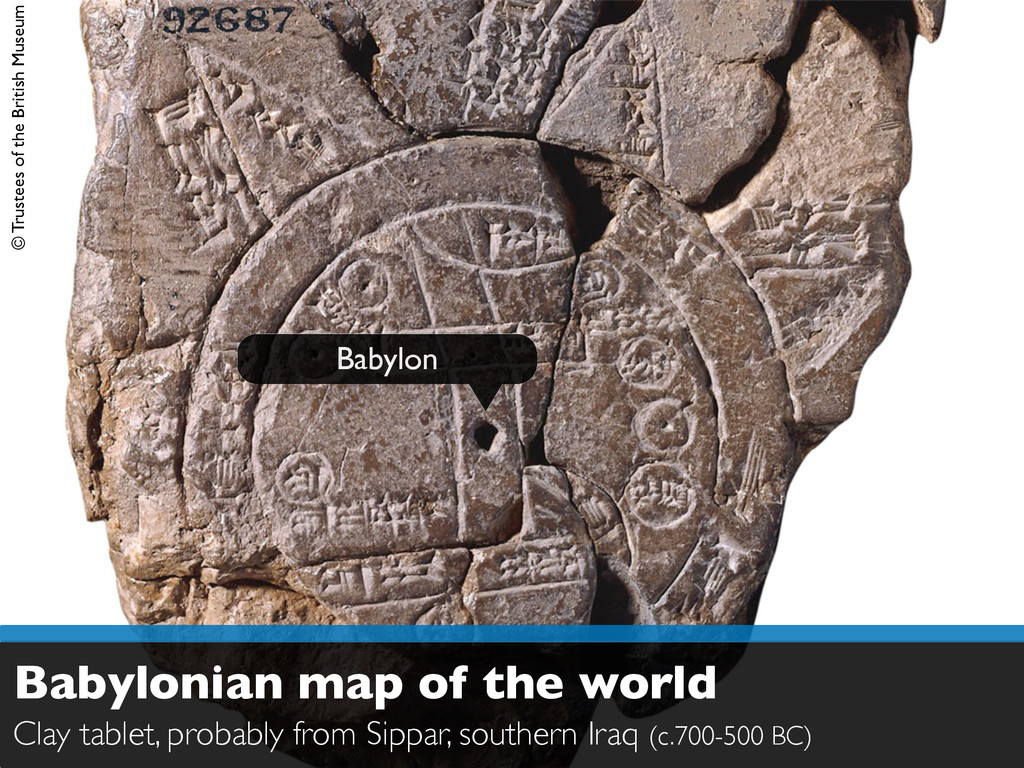

4. © Trustees of the British Museum Babylonian map of the world Clay tablet, probably from Sippar, southern Iraq (c.700-500 BC) Babylon

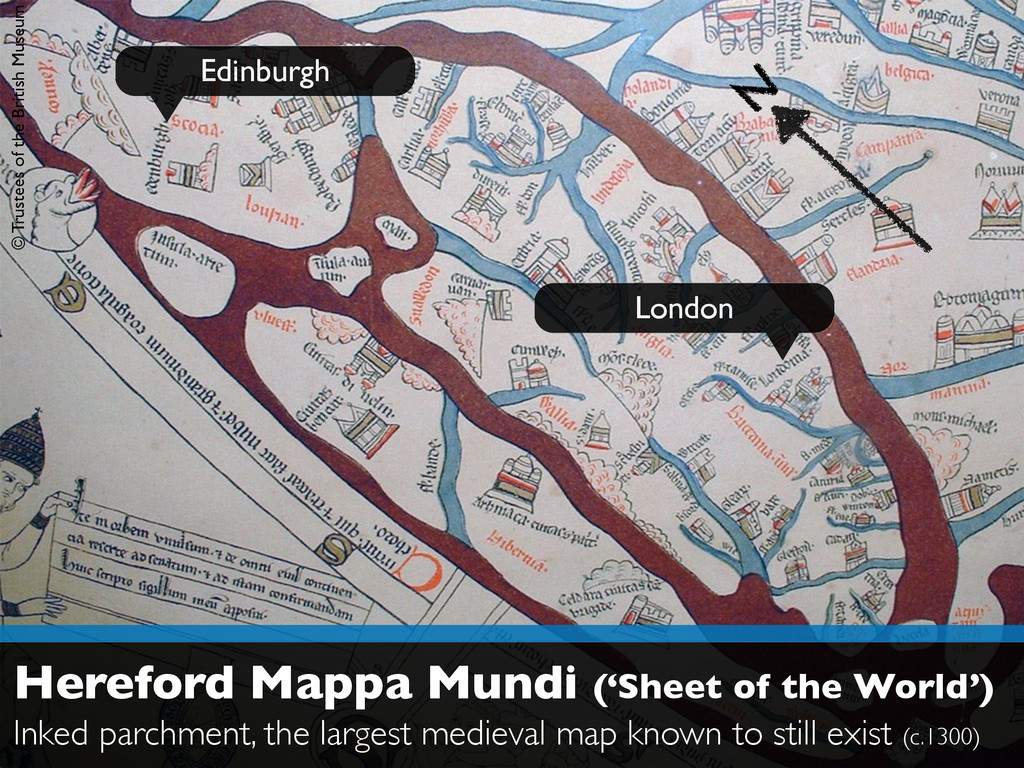

5. © Trustees of the British Museum Hereford Mappa Mundi (‘Sheet of the World’) Inked parchment, the largest medieval map known to still exist (c.1300) London Edinburgh

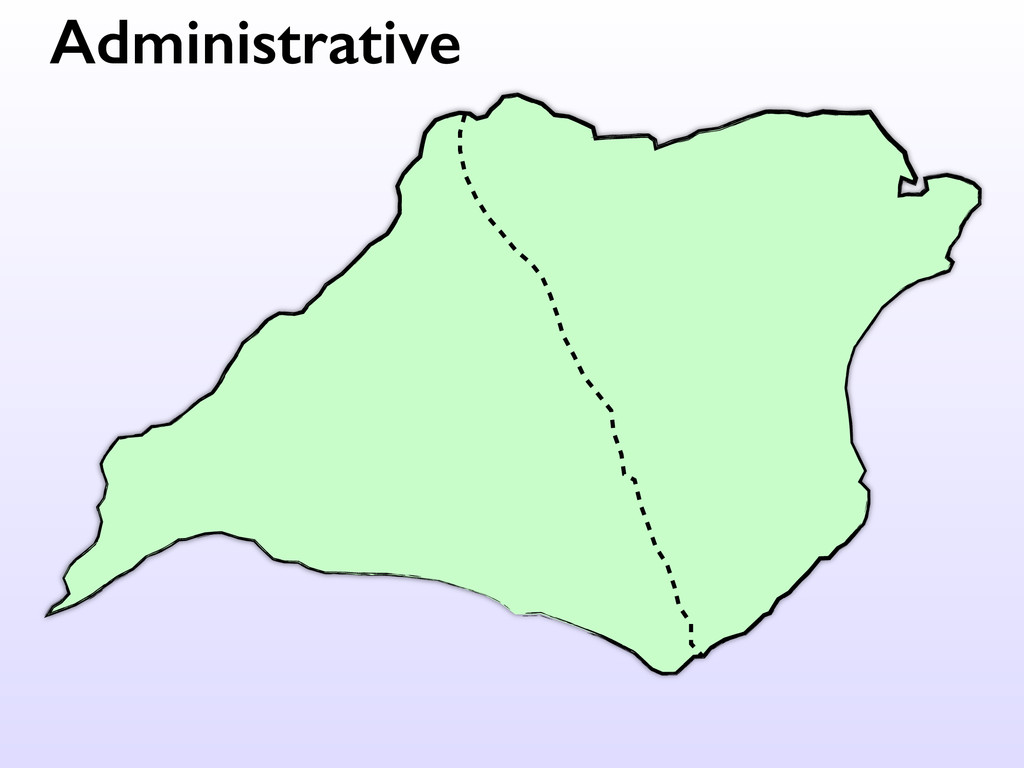

6. Administrative

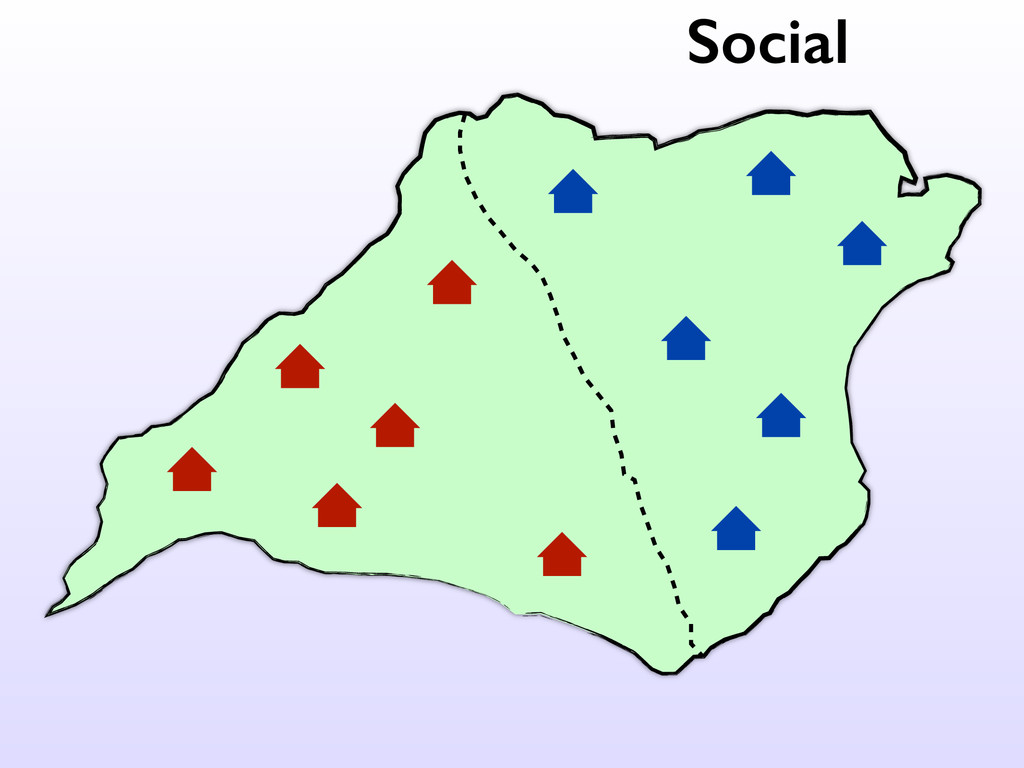

7. Social

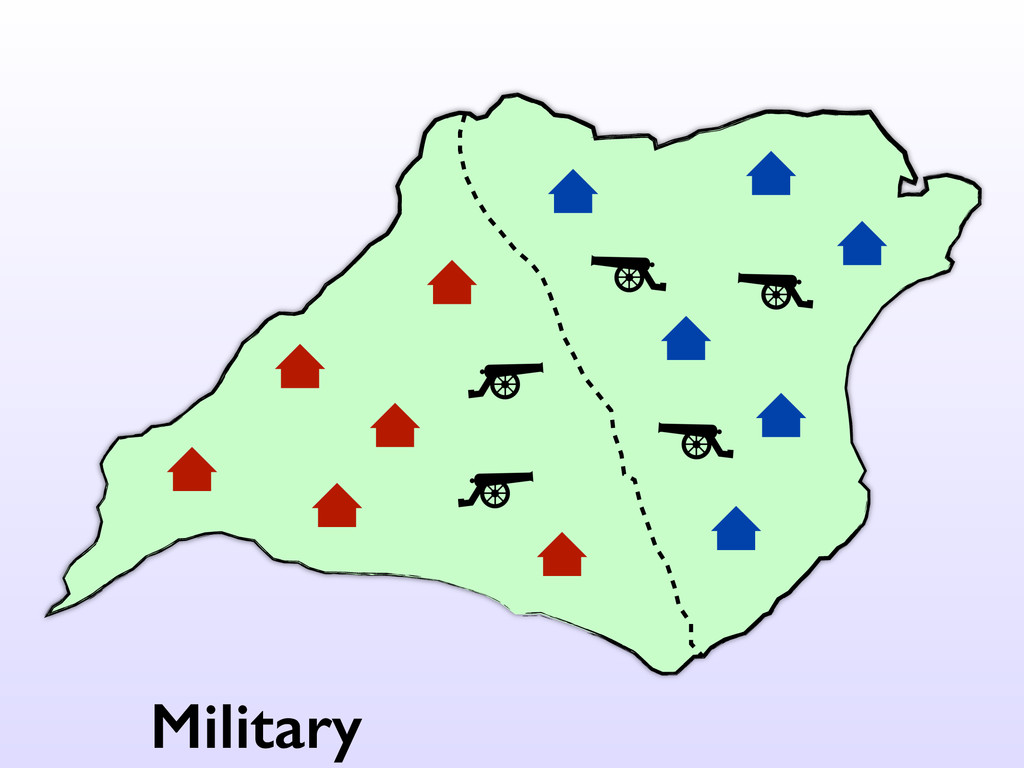

8. Military

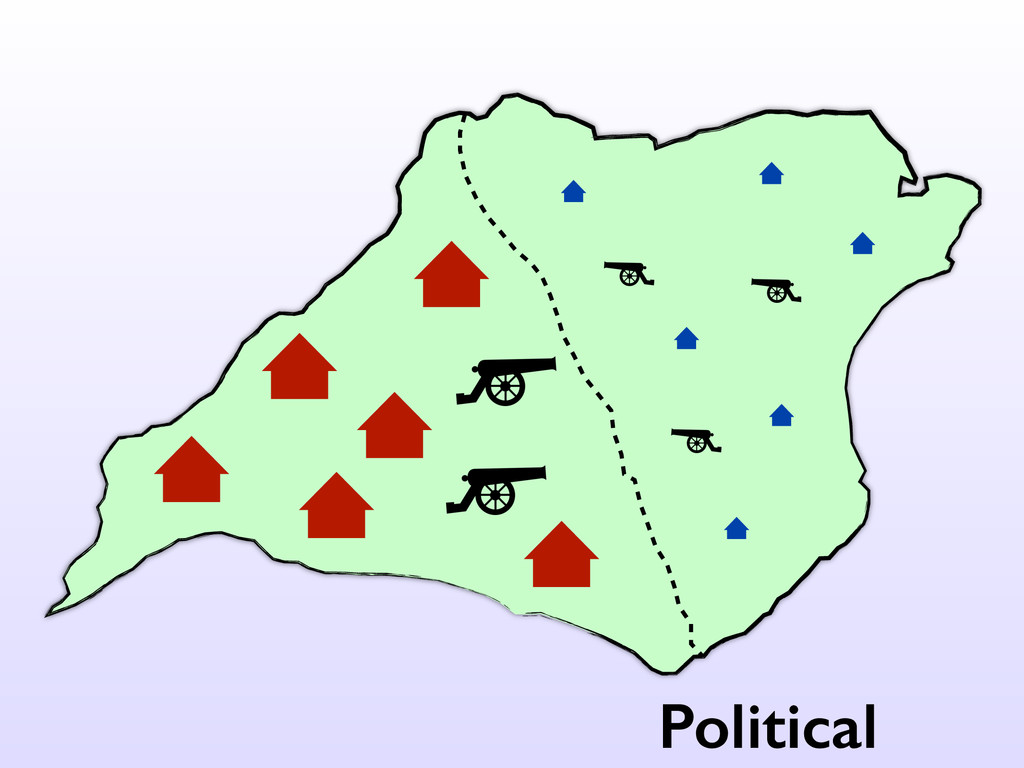

9. Political

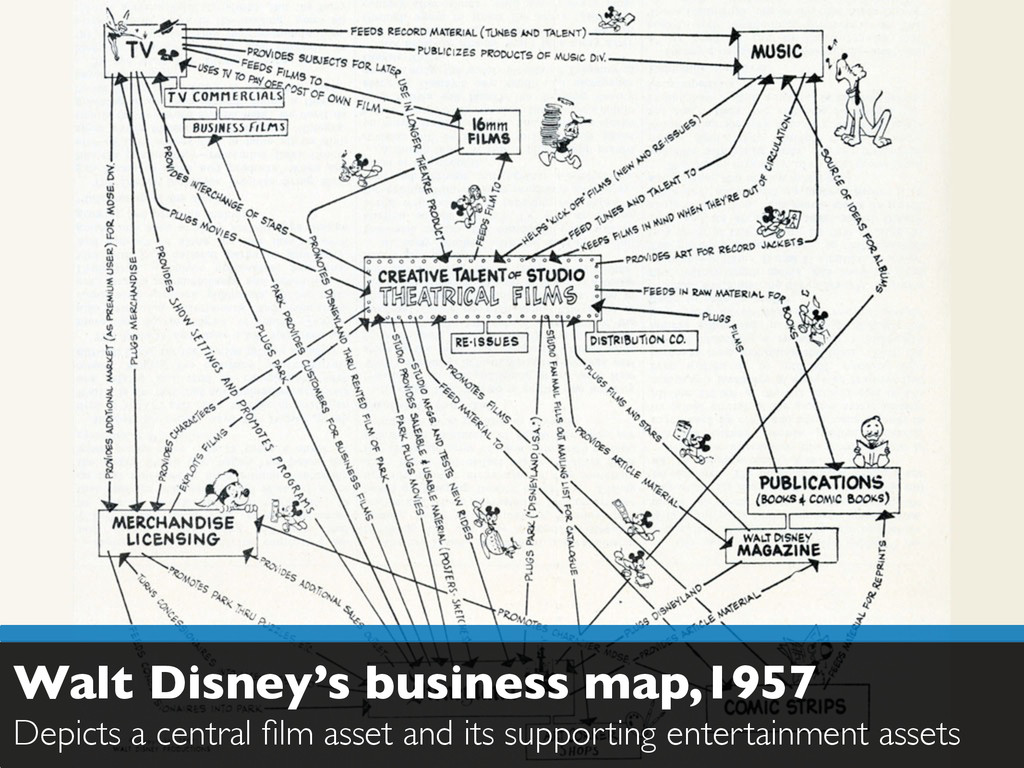

10. Walt Disney’s business map,1957 Depicts a central film asset and its supporting entertainment assets

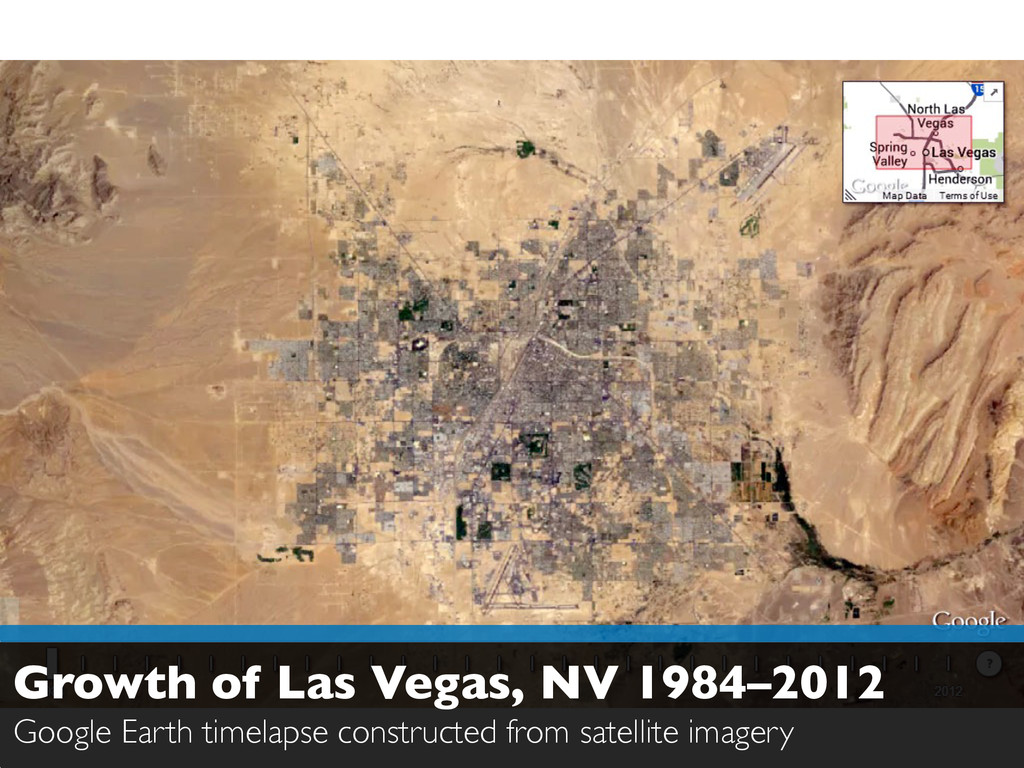

11. Growth of Las Vegas, NV 1984–2012 Google Earth timelapse constructed from satellite imagery

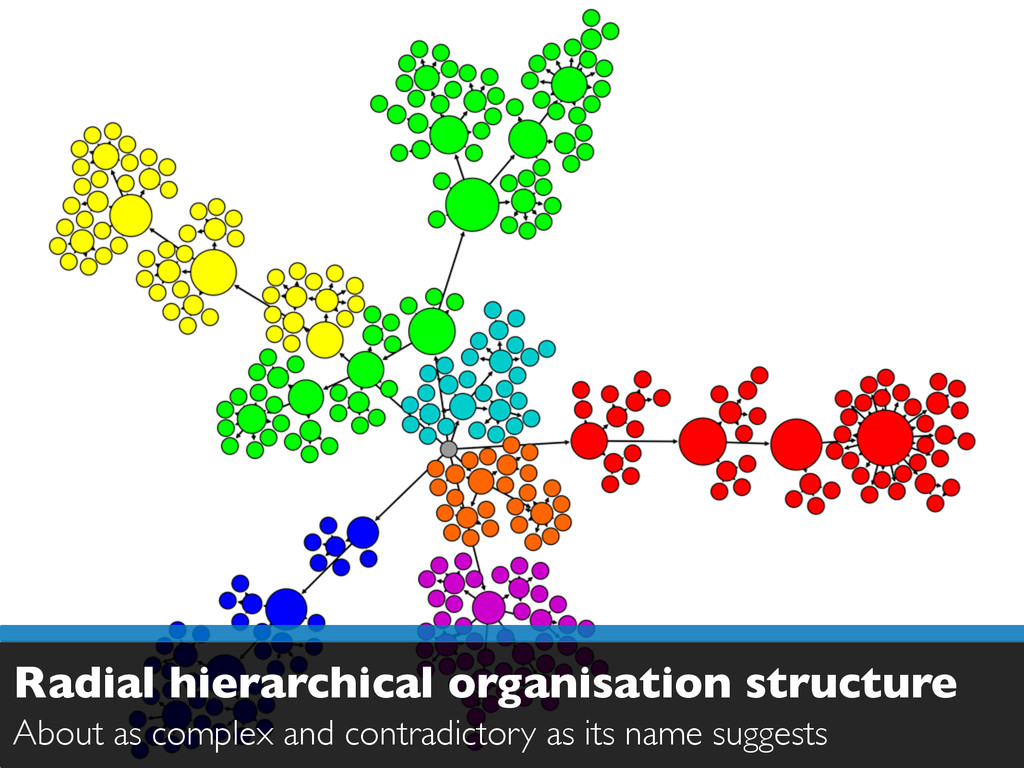

12. Radial hierarchical organisation structure About as complex and contradictory as its name suggests

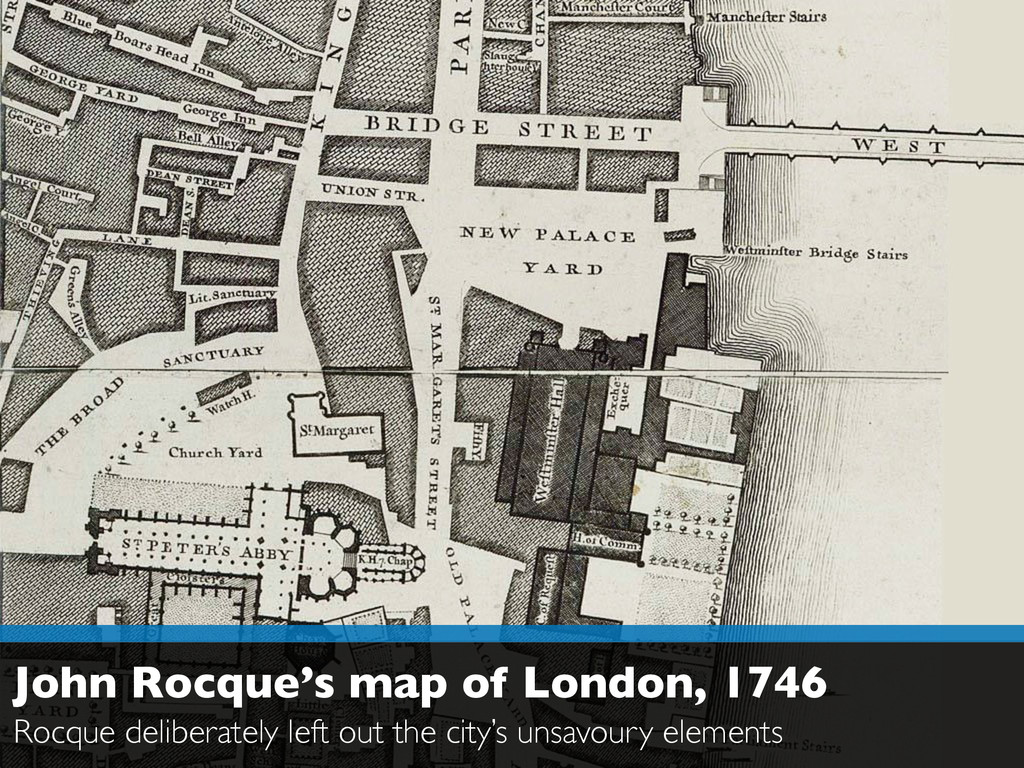

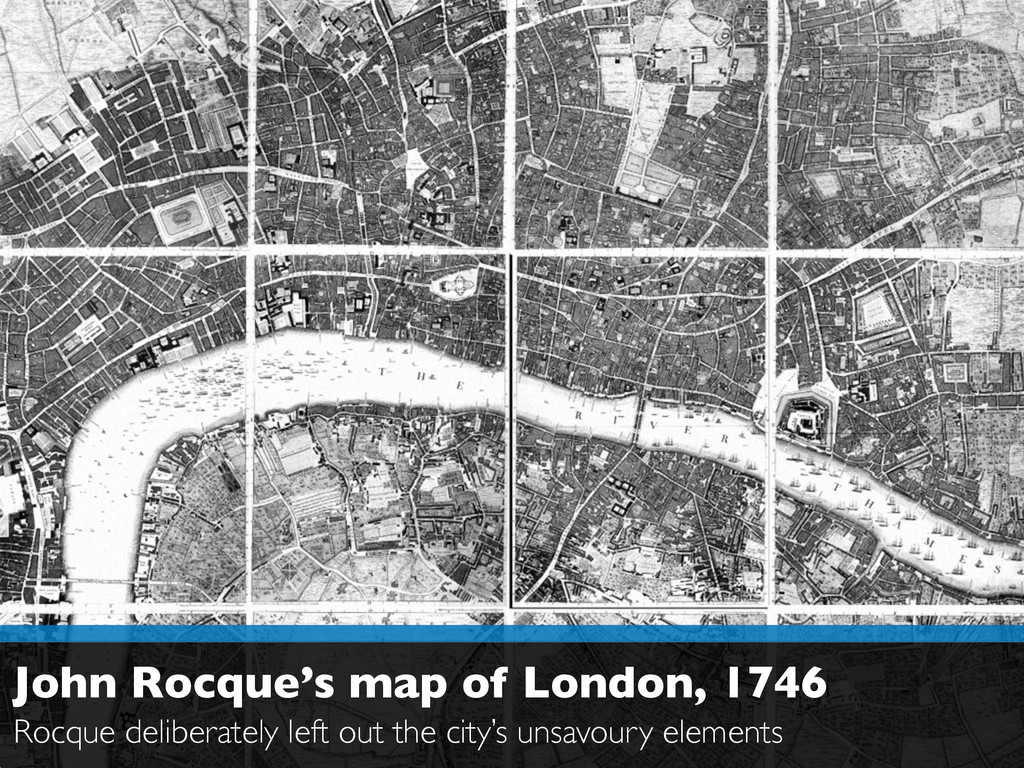

13. John Rocque’s map of London, 1746 Rocque deliberately left out the city’s unsavoury elements

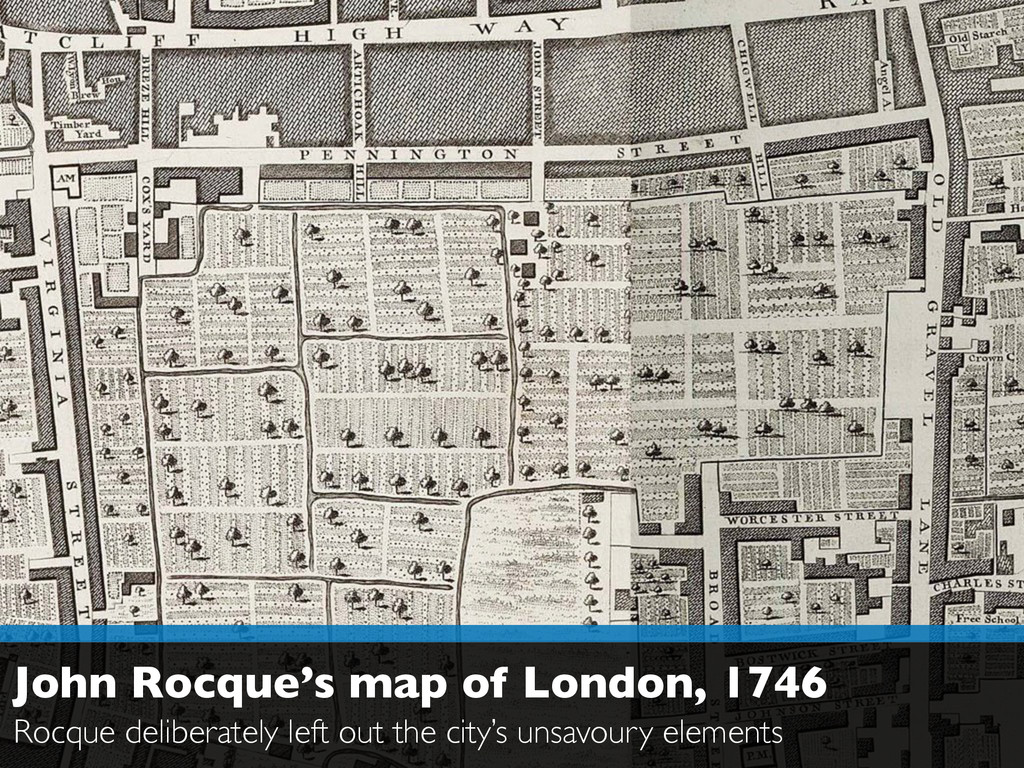

14. John Rocque’s map of London, 1746 Rocque deliberately left out the city’s unsavoury elements
15. John Rocque’s map of London, 1746 Rocque deliberately left out the city’s unsavoury elements

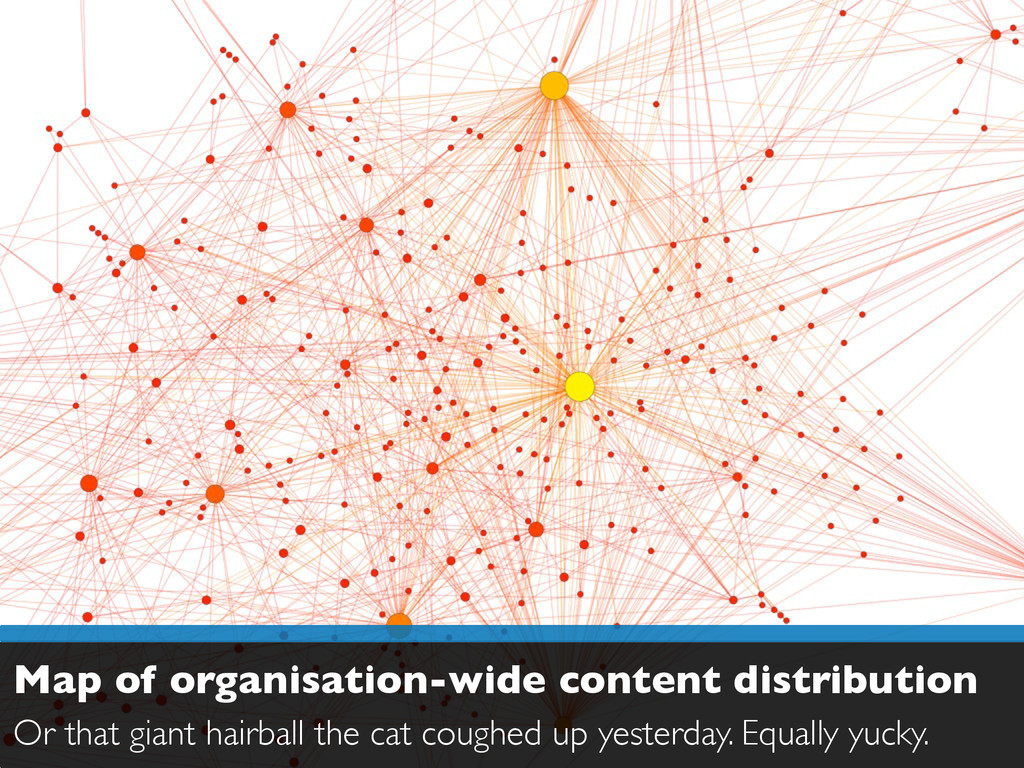

16. Map of organisation-wide content distribution Or that giant hairball the cat coughed up yesterday. Equally yucky.
17. MAPPING OUT A STORY Beyond physical geography

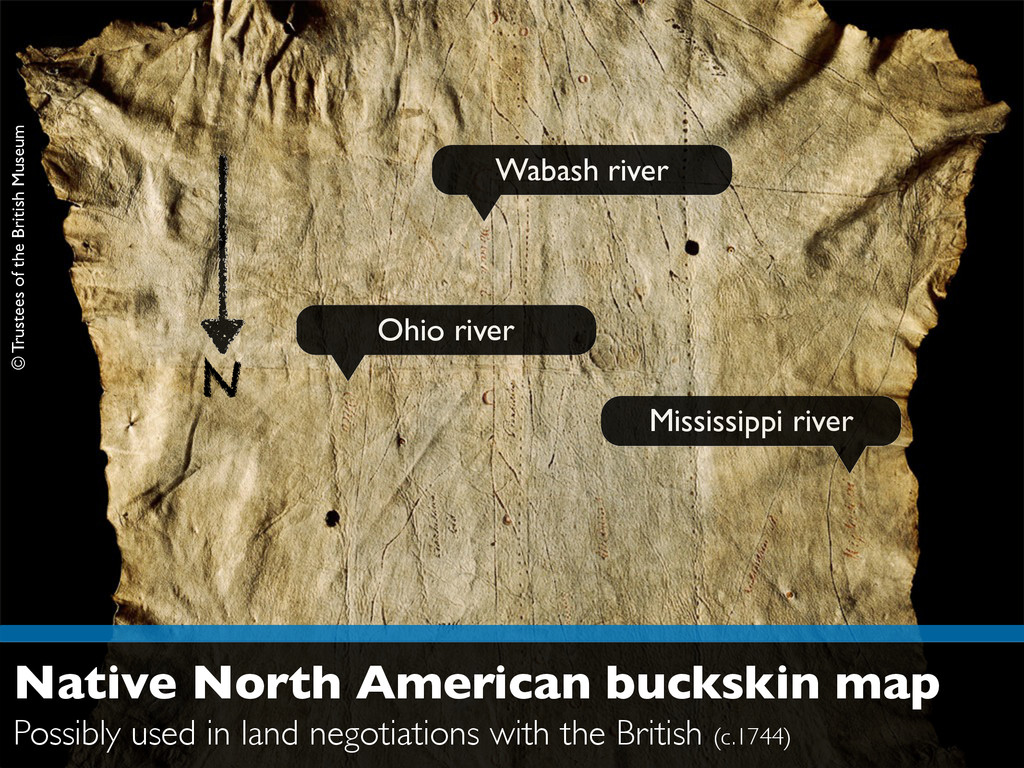

18. Wabash river Ohio river Mississippi river © Trustees of the British Museum Native North American buckskin map Possibly used in land negotiations with the British (c.1744)

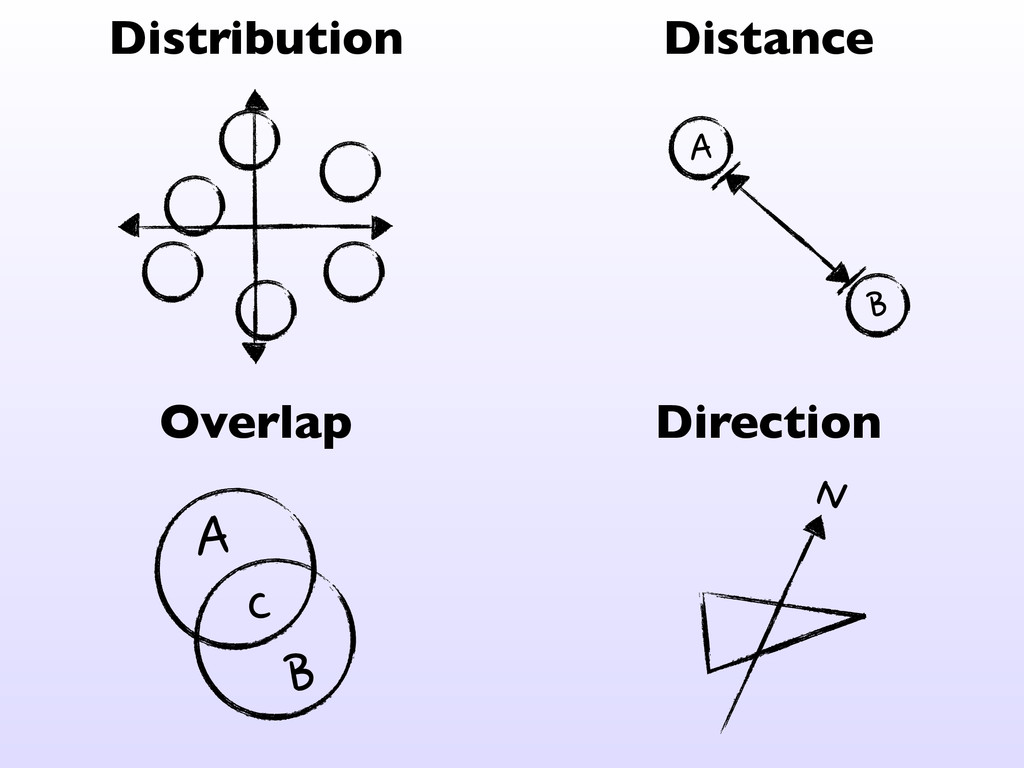

19. Distribution Distance Overlap Direction N A B C A B

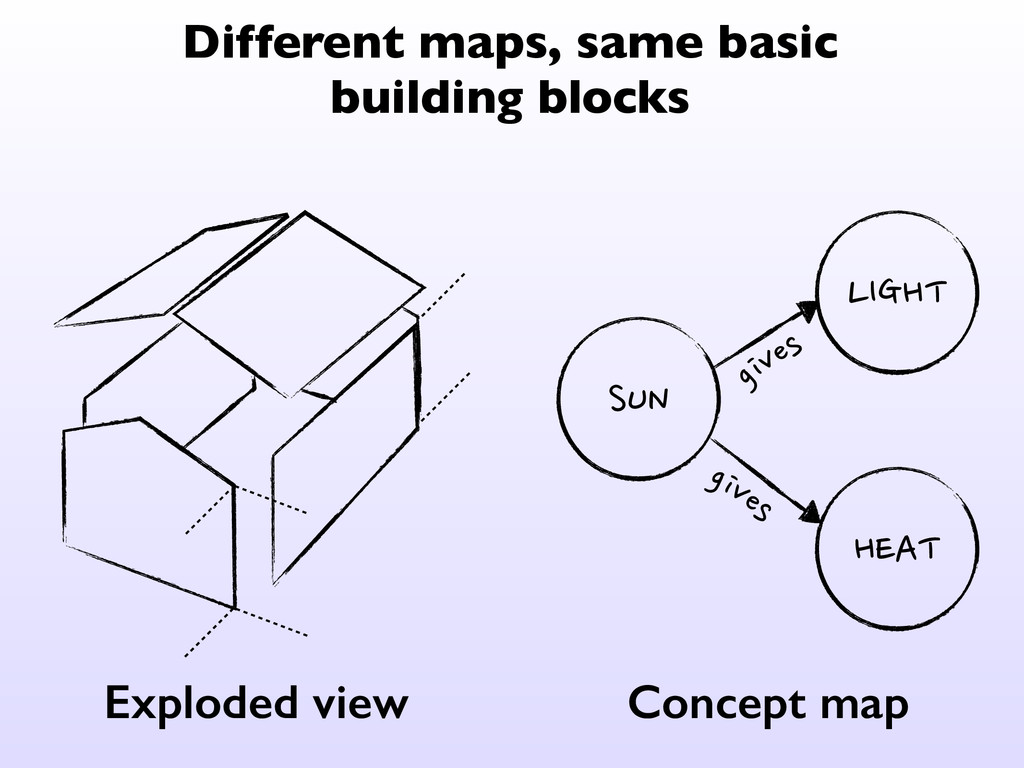

20. LIGHT HEAT SUN gives gives Exploded view Concept map Different maps, same basic building blocks

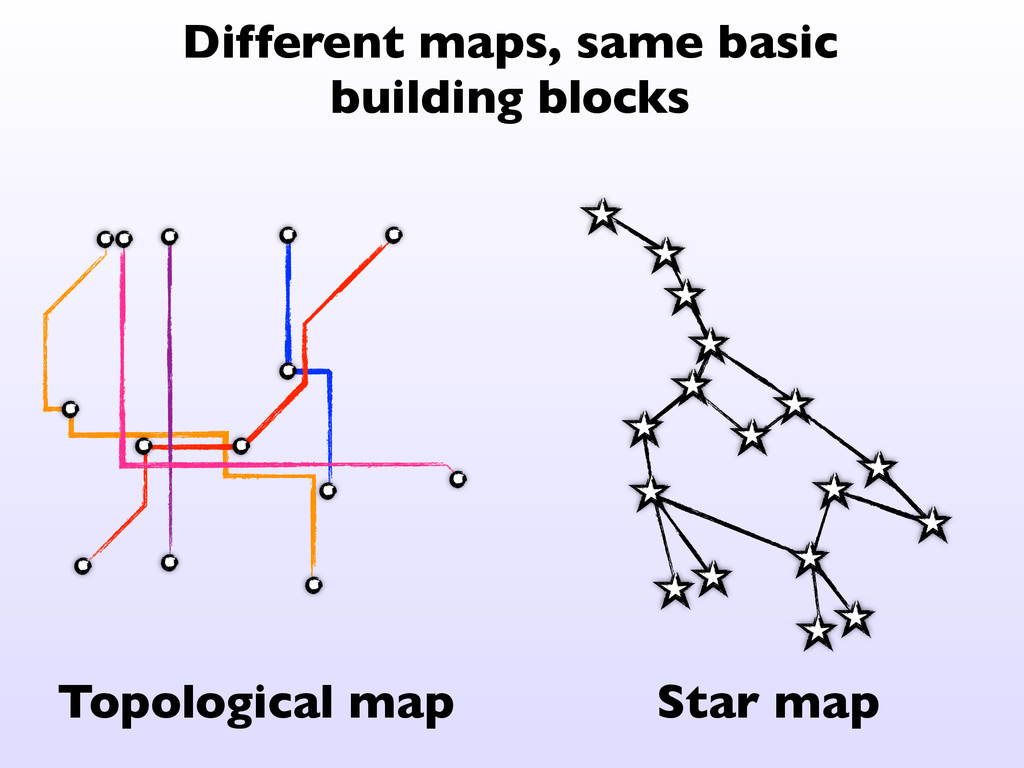

21. Topological map Star map Different maps, same basic building blocks

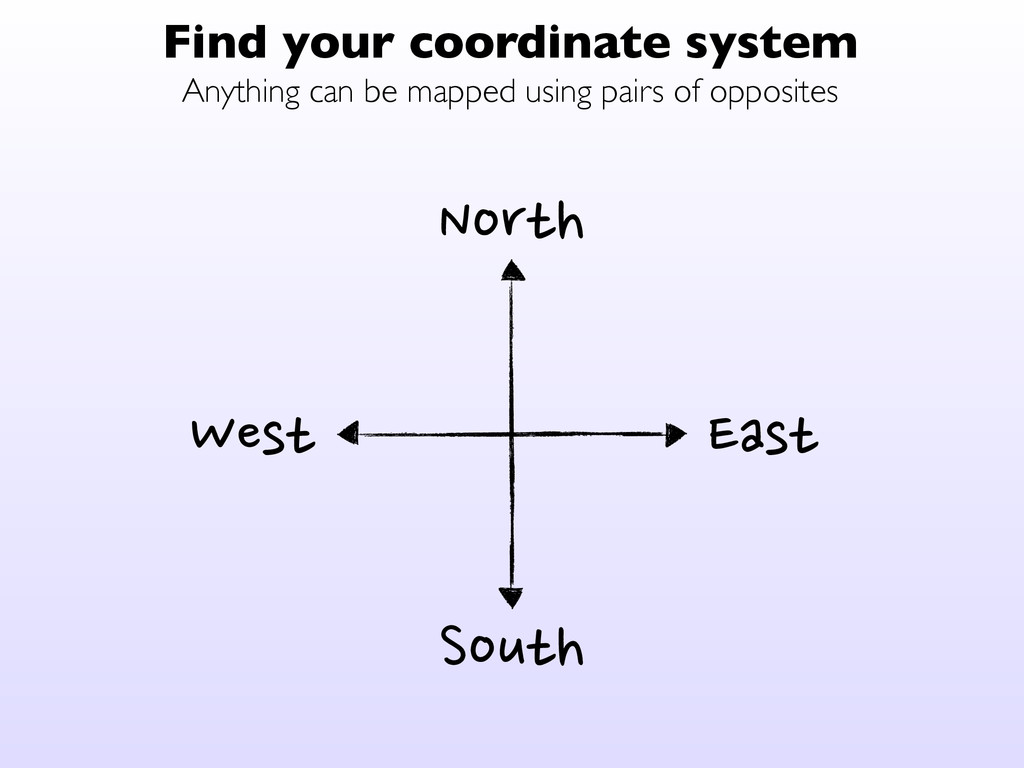

22. North South East West Find your coordinate system Anything can be mapped using pairs of opposites

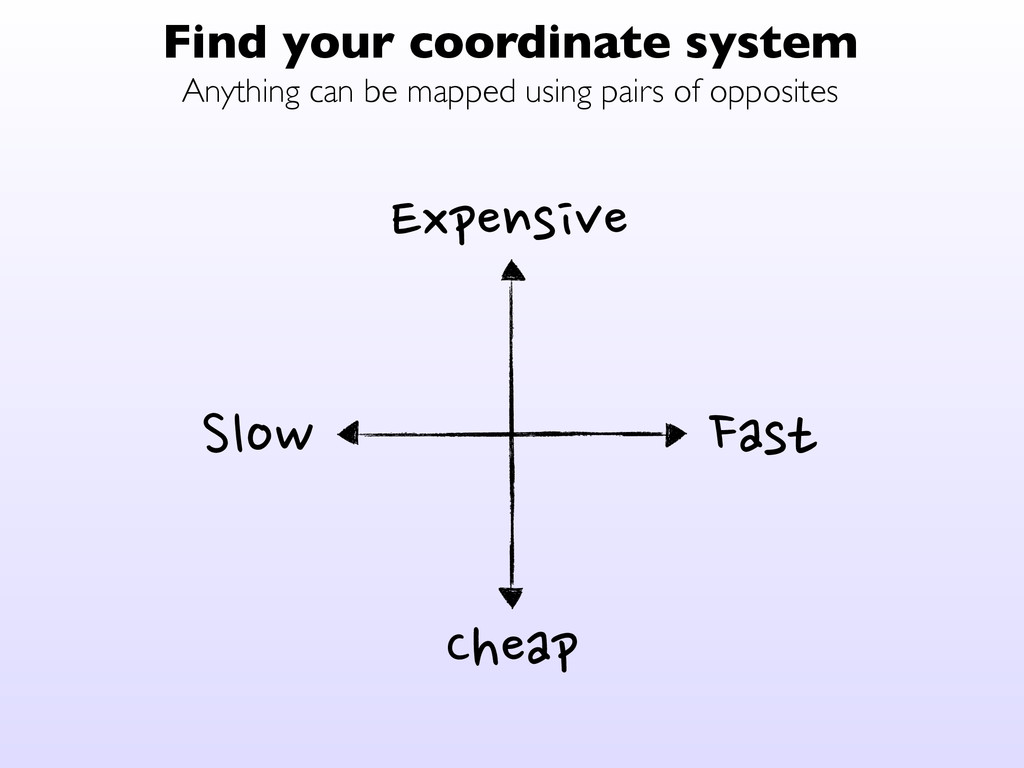

23. Find your coordinate system Anything can be mapped using pairs of opposites Expensive Cheap Slow Fast

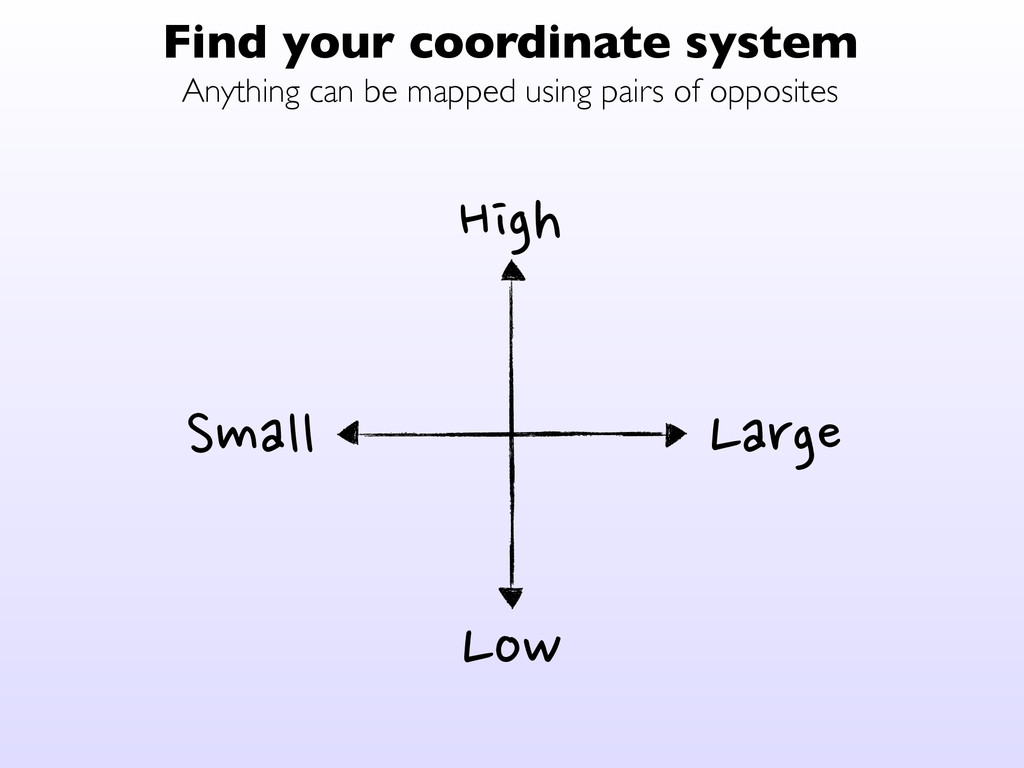

24. Find your coordinate system Anything can be mapped using pairs of opposites High Low Small Large

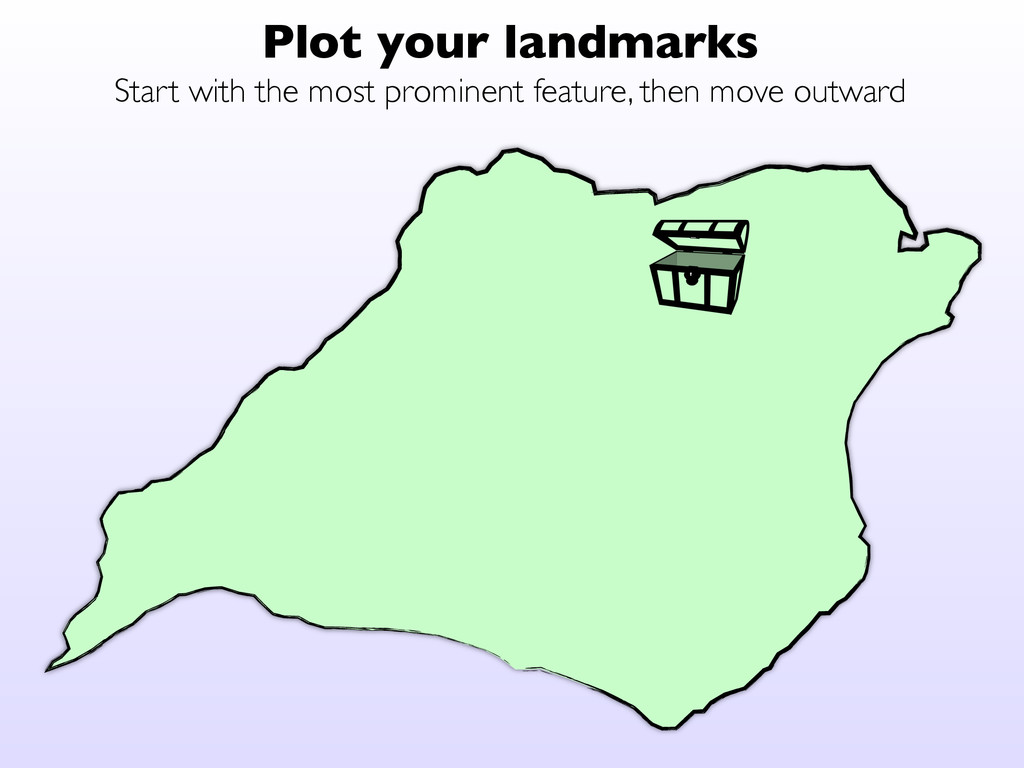

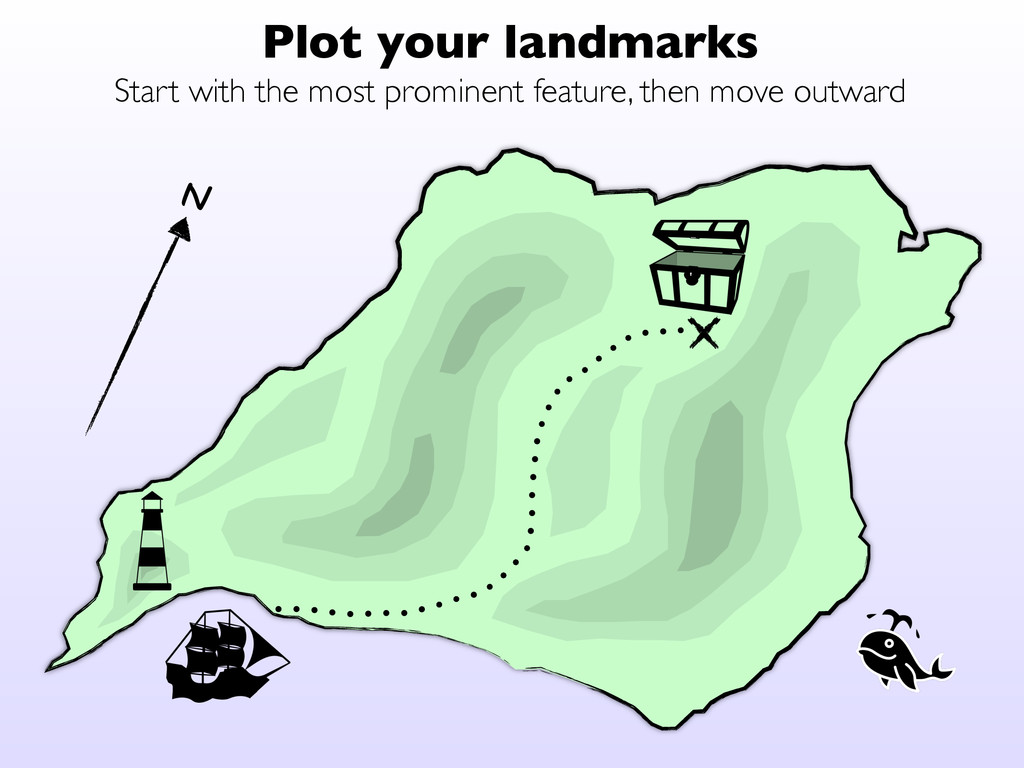

25. Plot your landmarks Start with the most prominent feature, then move outward
26. N Plot your landmarks Start with the most prominent feature, then move outward
27. FINDING OUR WAY The unfamiliar environment

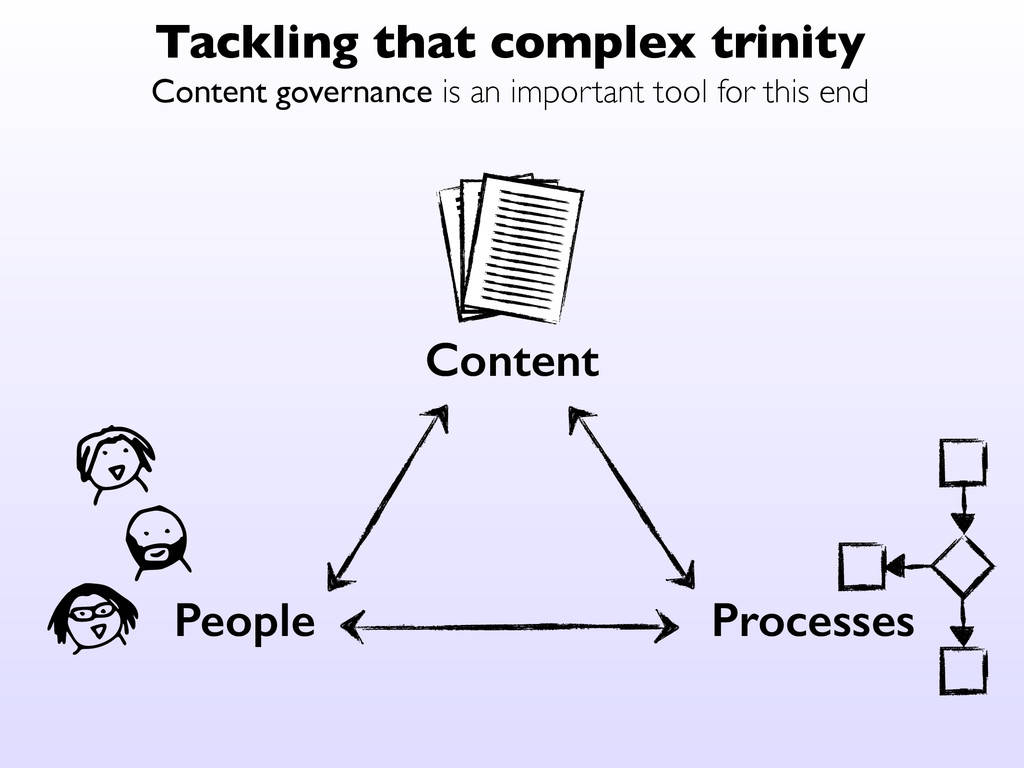

28. Content Processes People Tackling that complex trinity Content governance is an important tool for this end

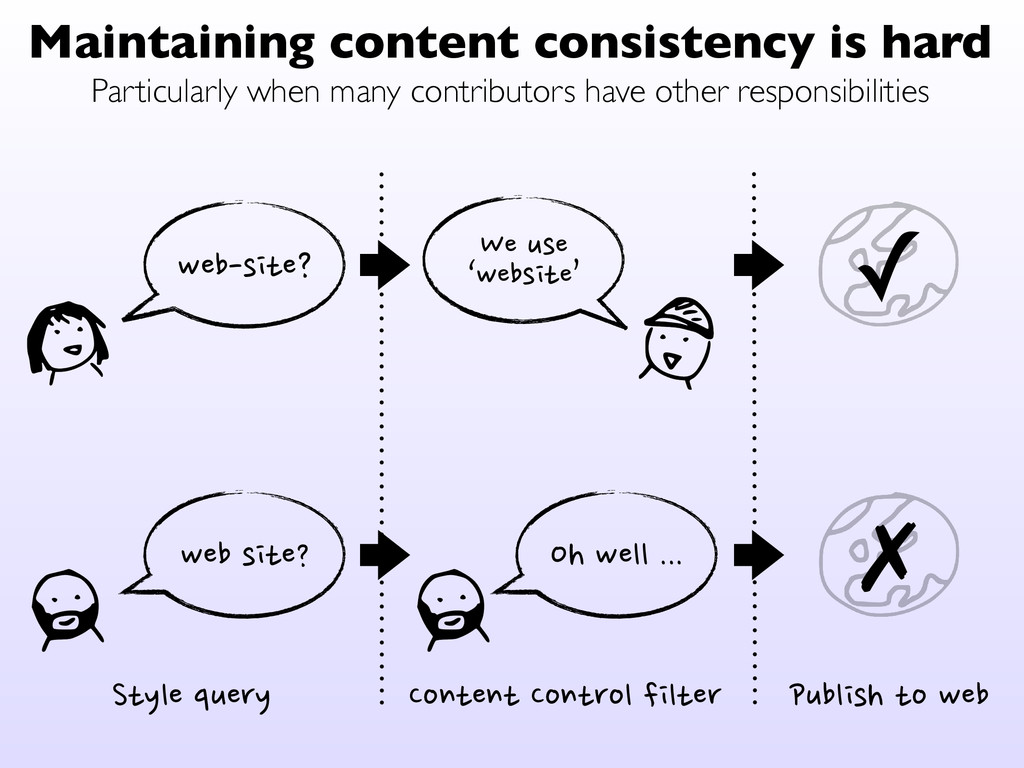

29. web

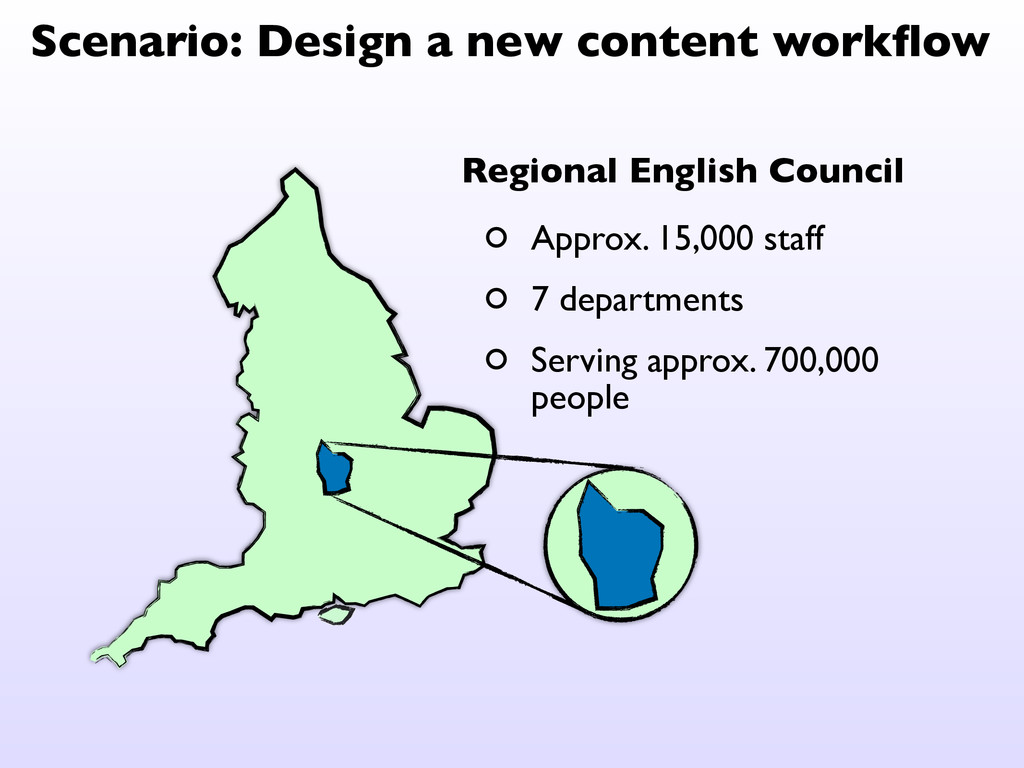

30. Regional English Council Approx. 15,000 staff 7 departments Serving approx. 700,000 people Scenario: Design a new content workflow

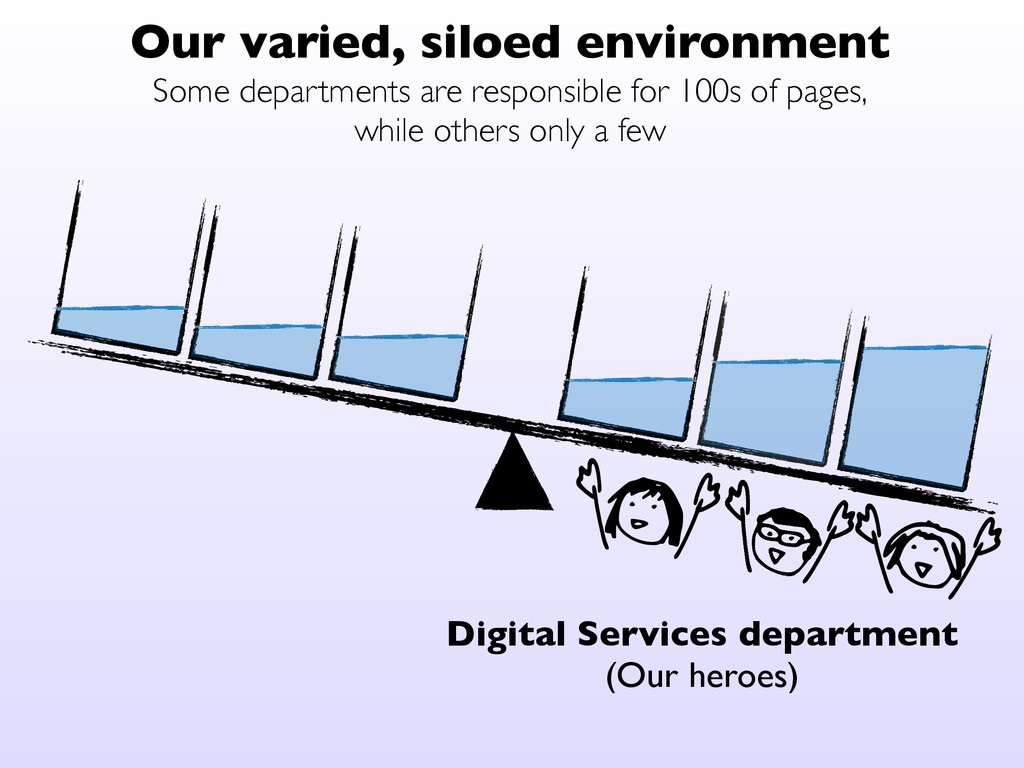

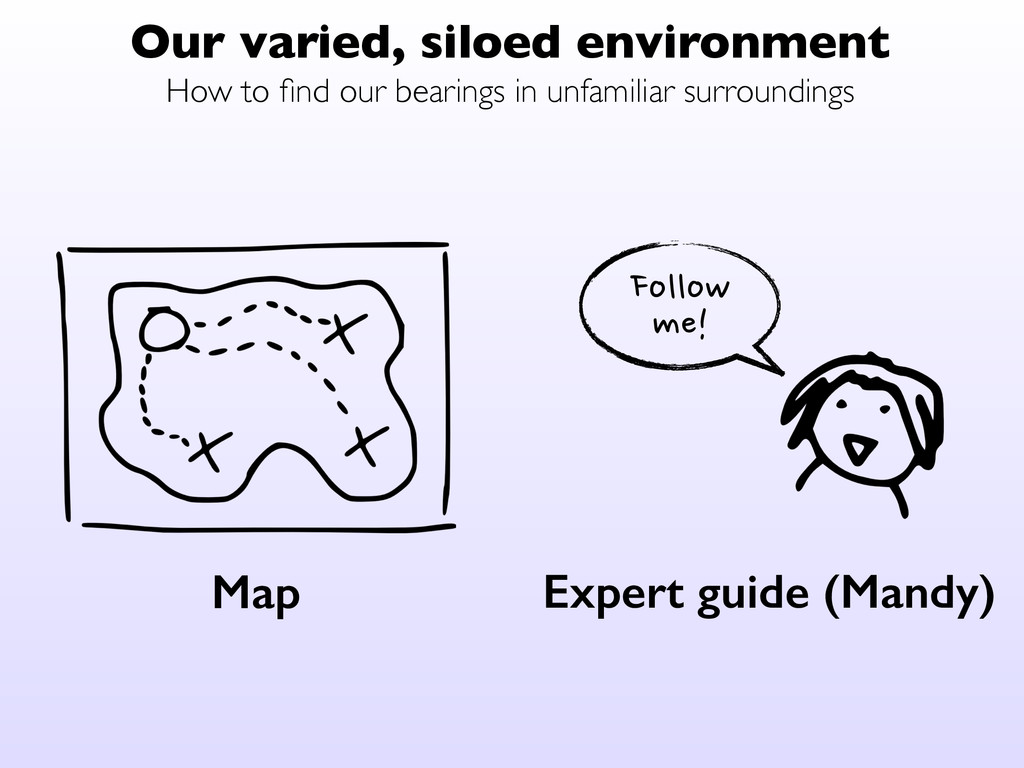

31. Digital Services department (Our heroes) Our varied, siloed environment Some departments are responsible for 100s of pages, while others only a few
32. Follow

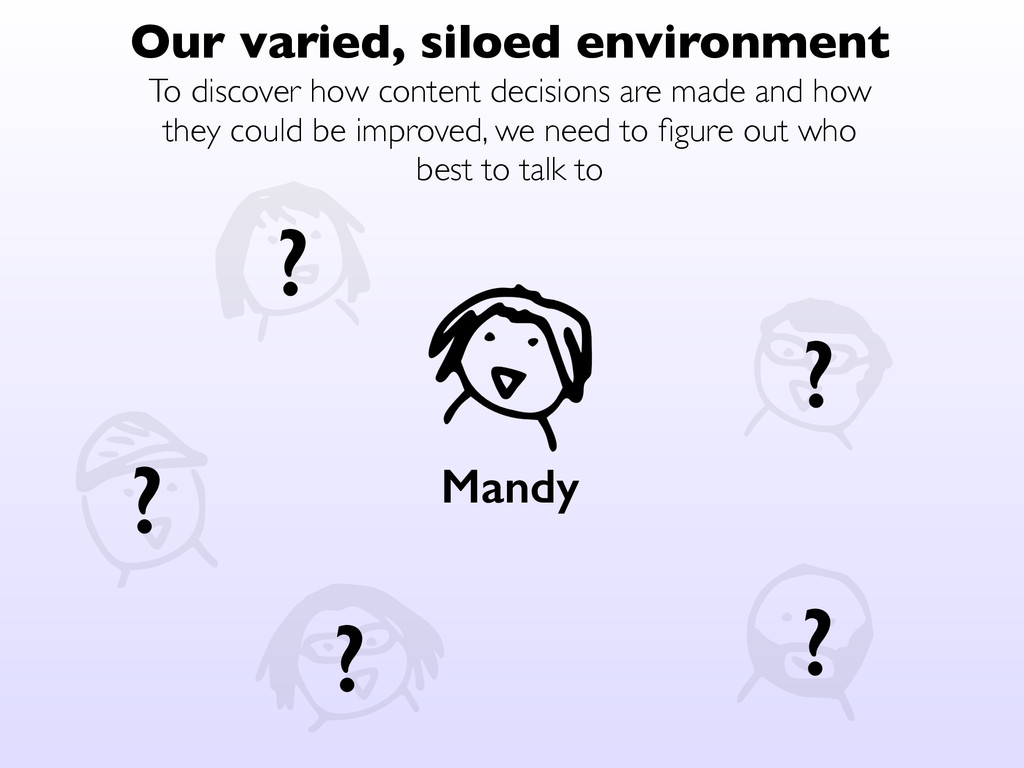

33. Our varied, siloed environment To discover how content decisions are made and how they could be improved, we need to figure out who best to talk to Mandy ? ? ? ? ?

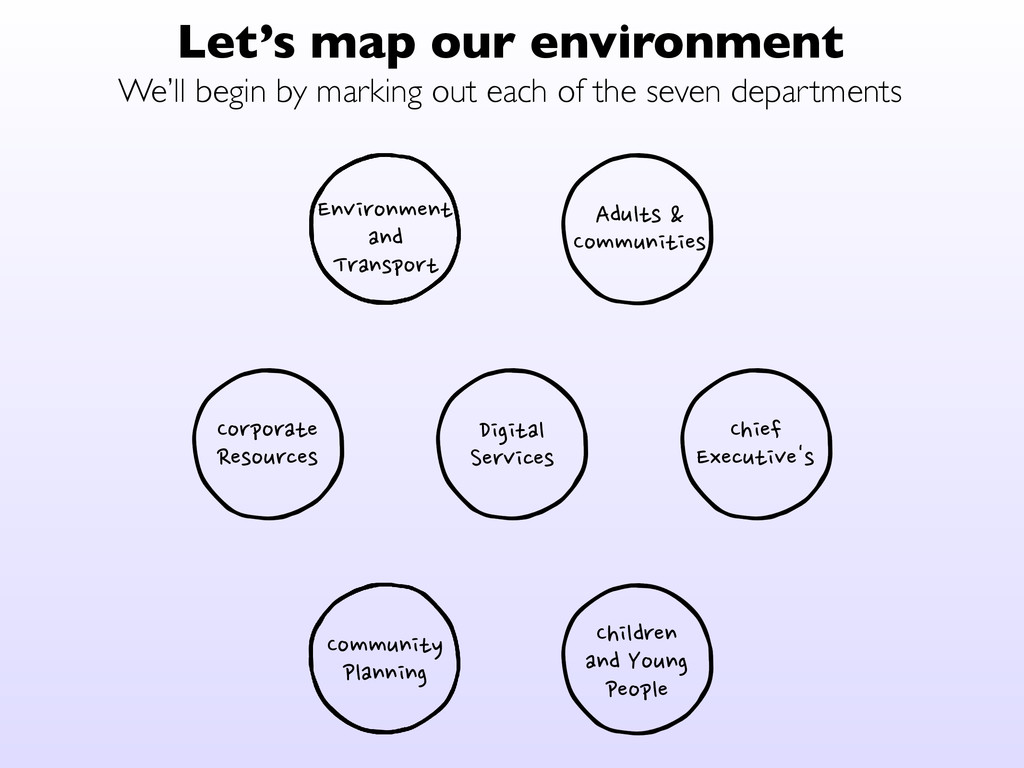

34. Let’s map our environment Digital

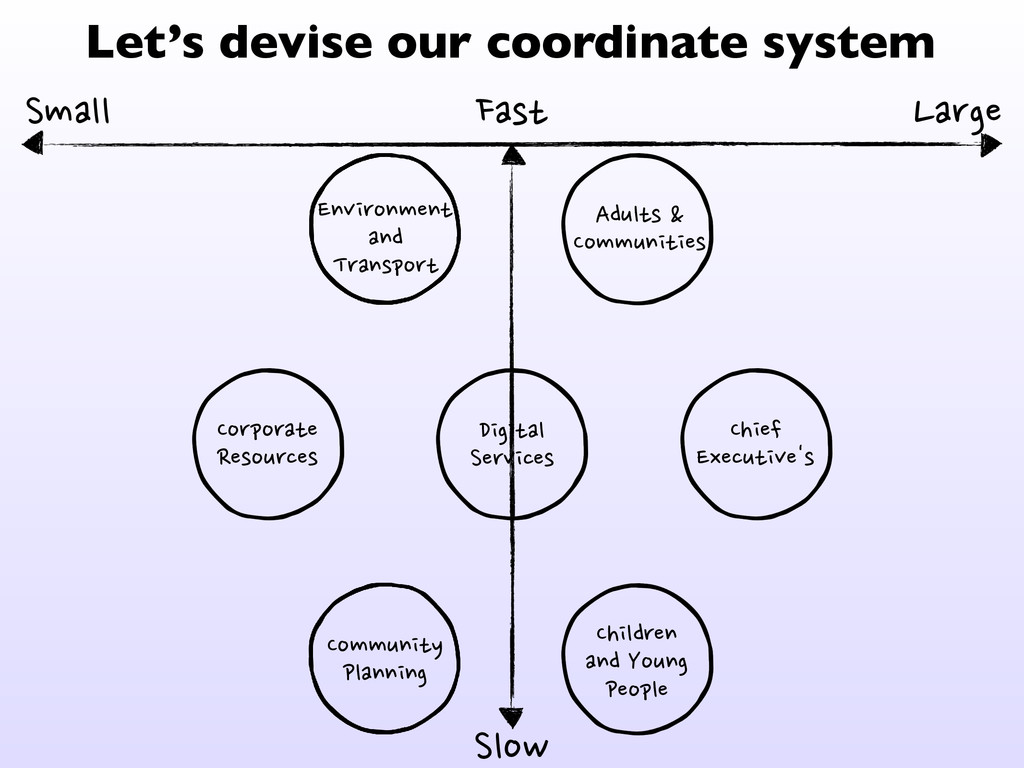

35. Large Small Fast Slow Let’s devise our coordinate system Digital

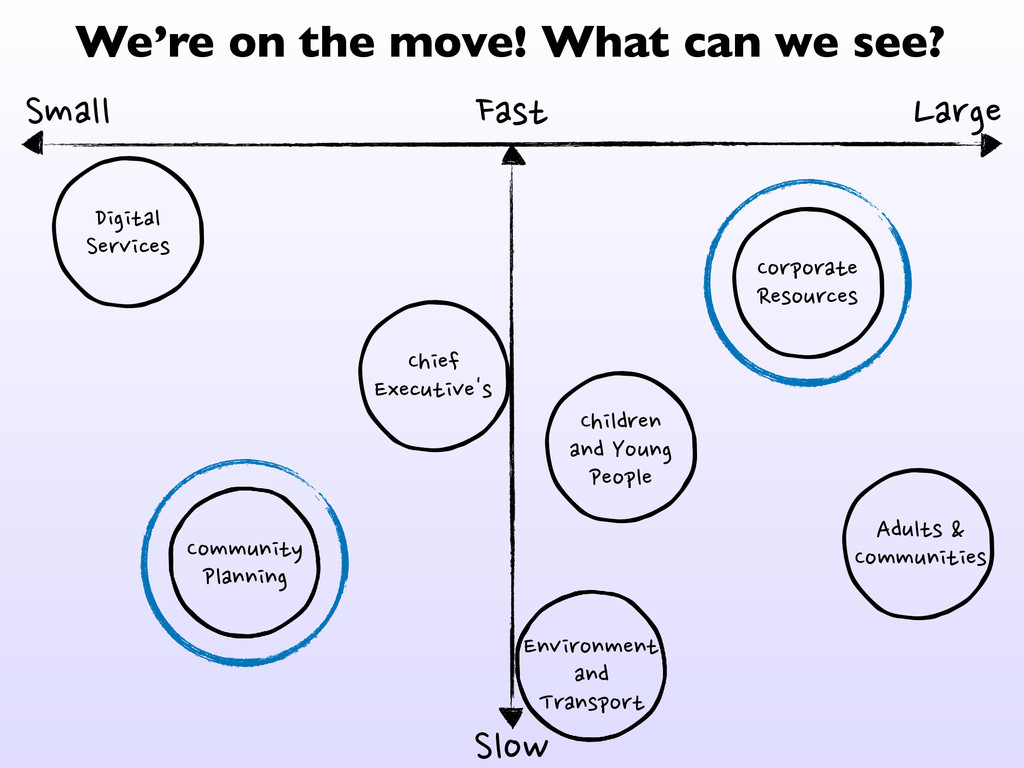

36. Large Small Fast Slow We’re on the move! What can we see? Digital

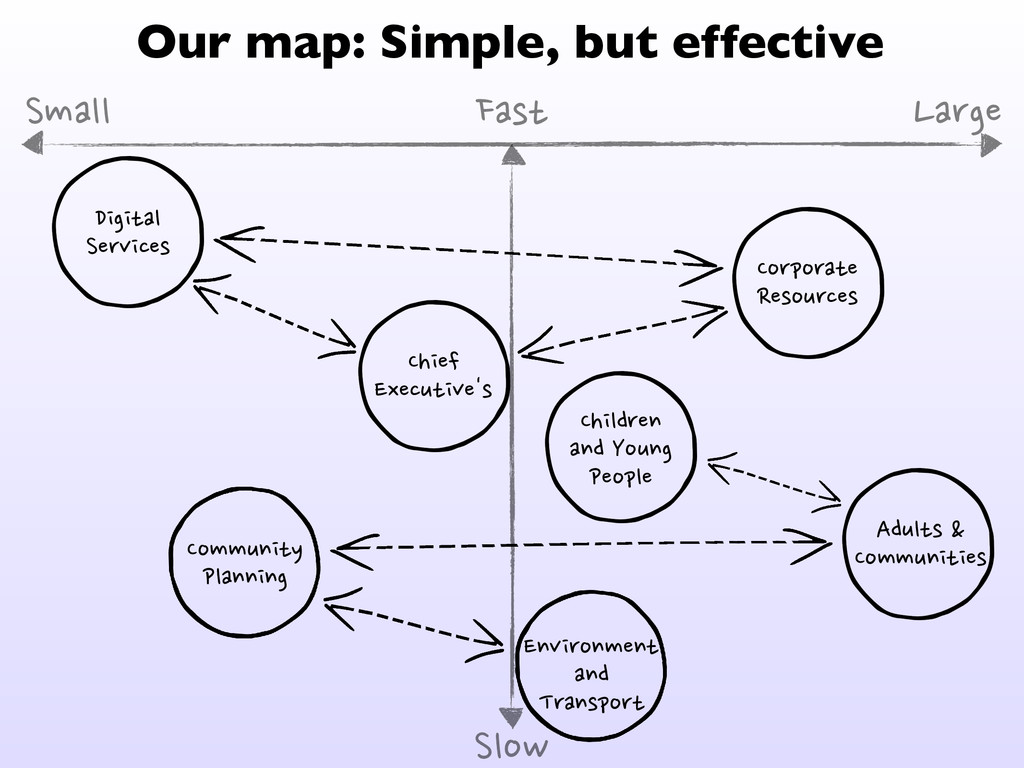

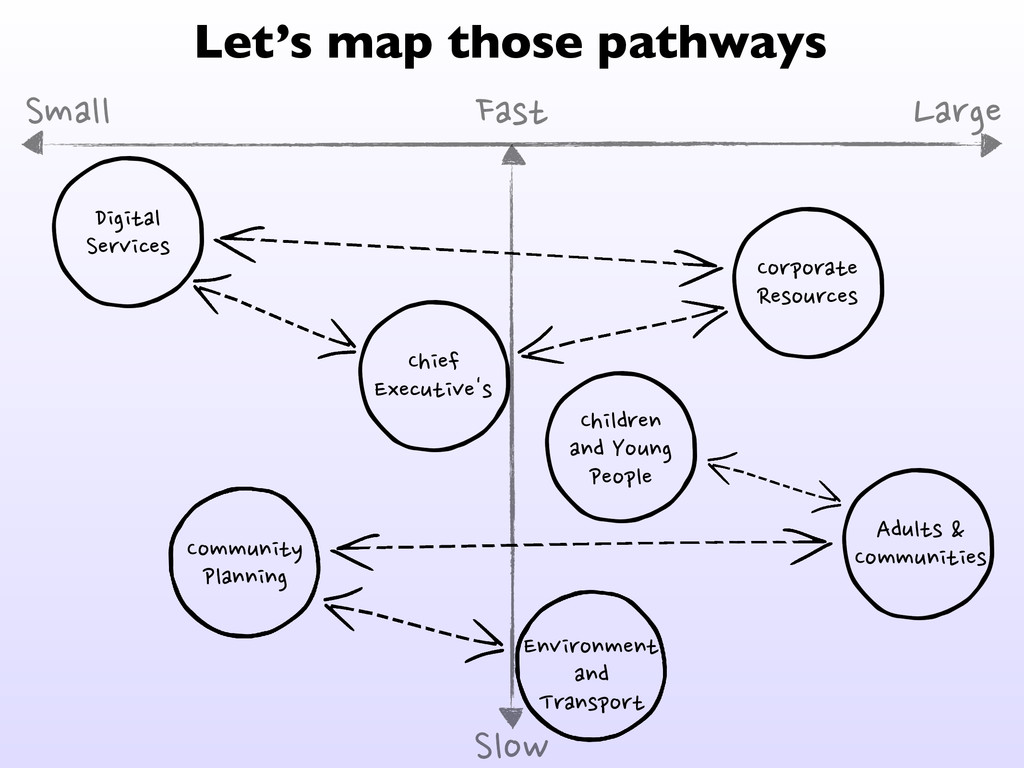

37. Large Small Fast Slow Digital

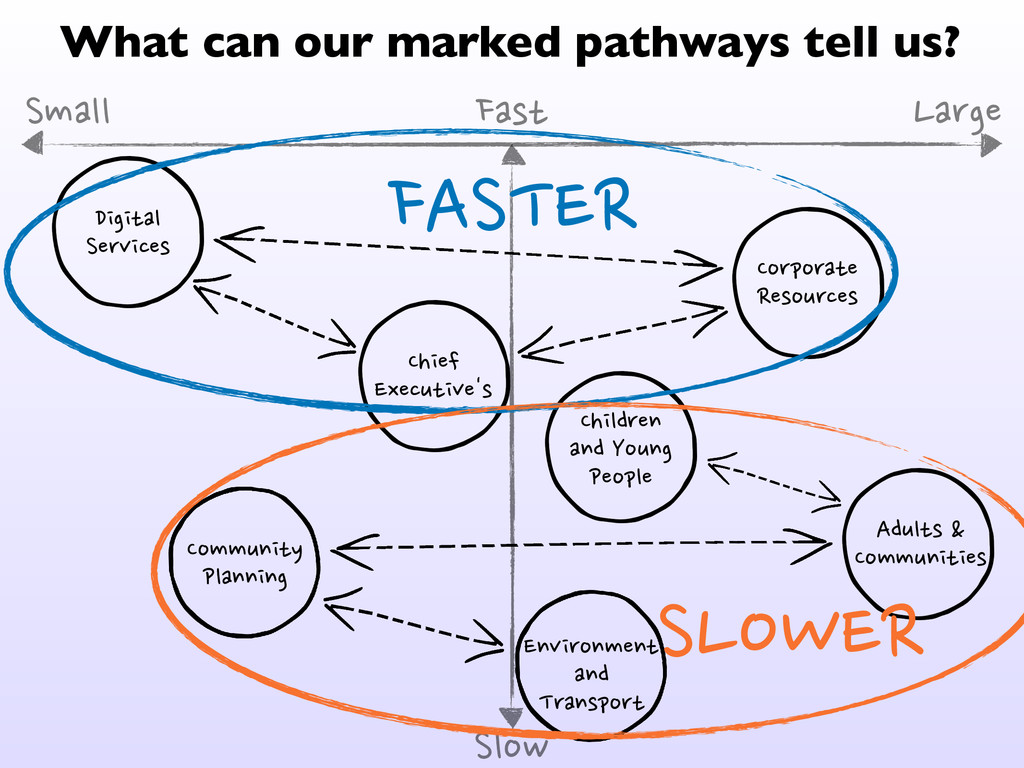

38. Large Small Fast Slow Digital

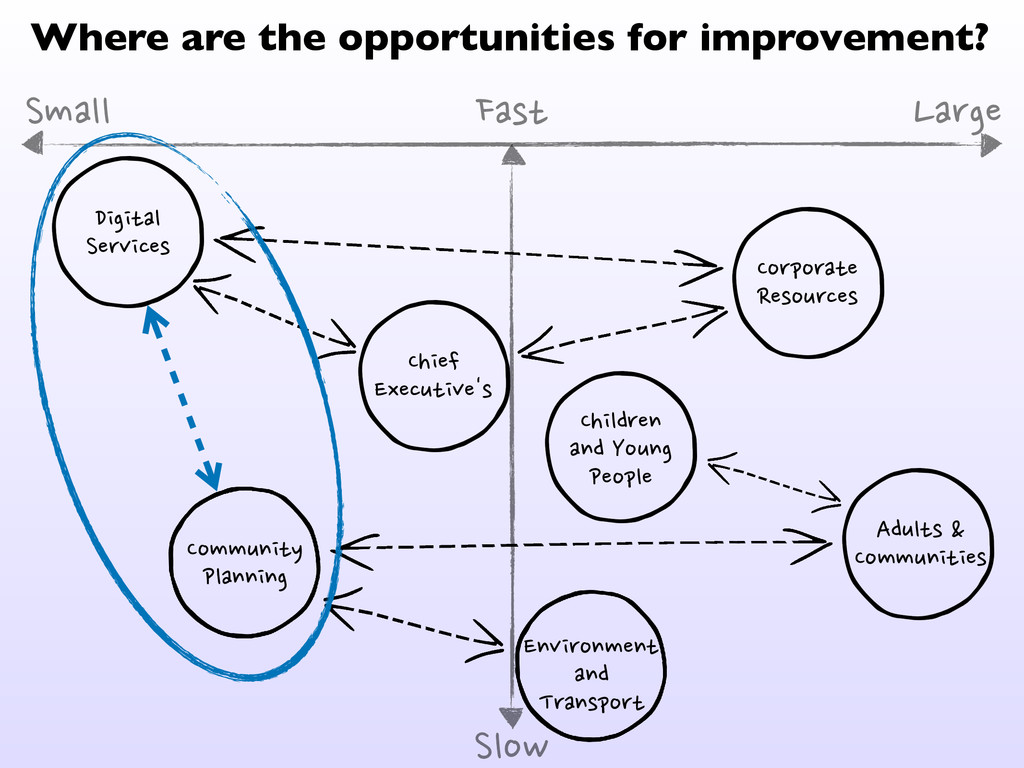

39. Large Small Fast Slow Digital
40. Large Small Fast Slow Digital
41. MAPPING OUT A PROCESS The unfamiliar environment

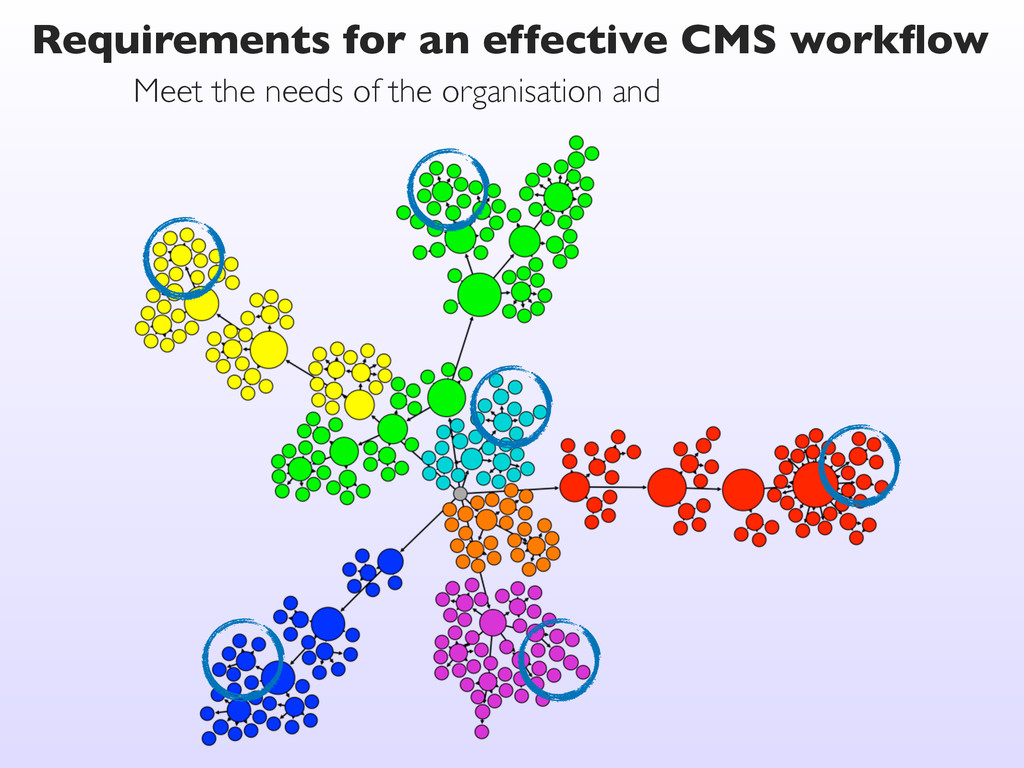

42. Requirements for an effective CMS workflow Meet the needs of the organisation and

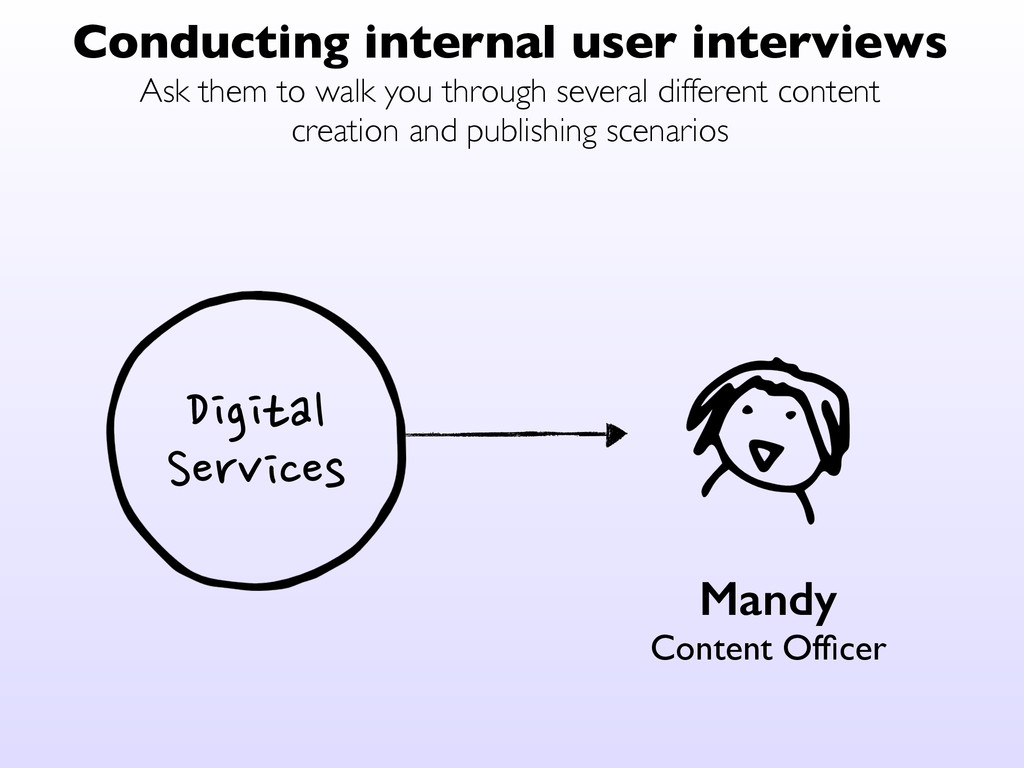

43. Conducting internal user interviews Ask them to walk you through several different content creation and publishing scenarios Digital

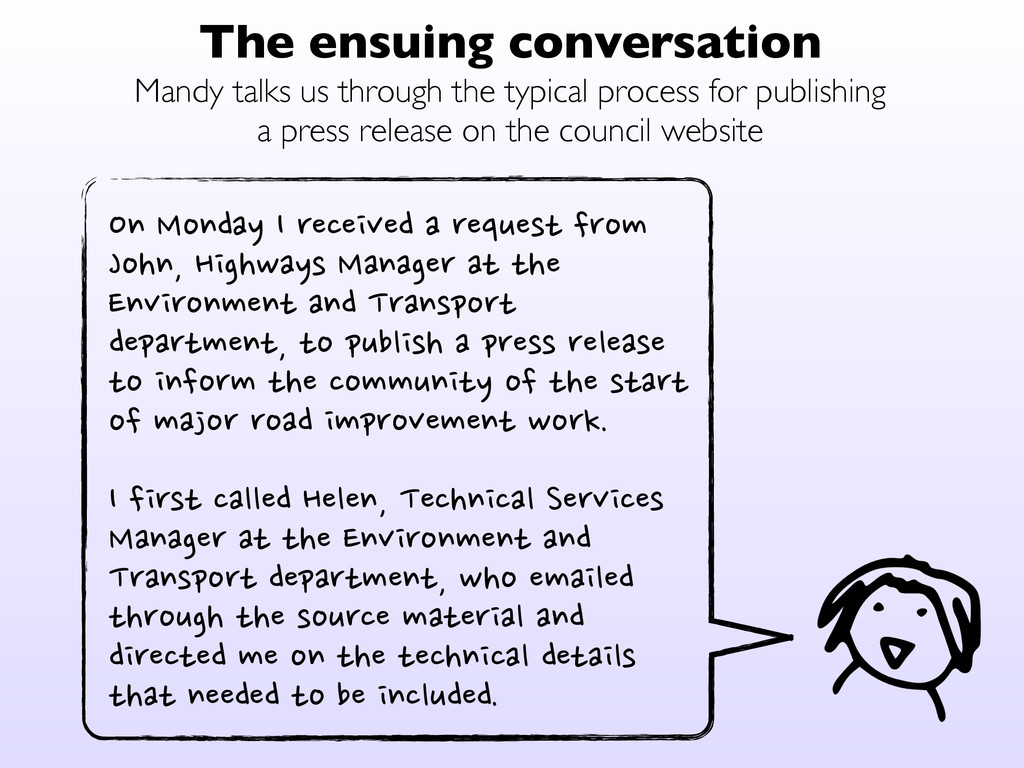

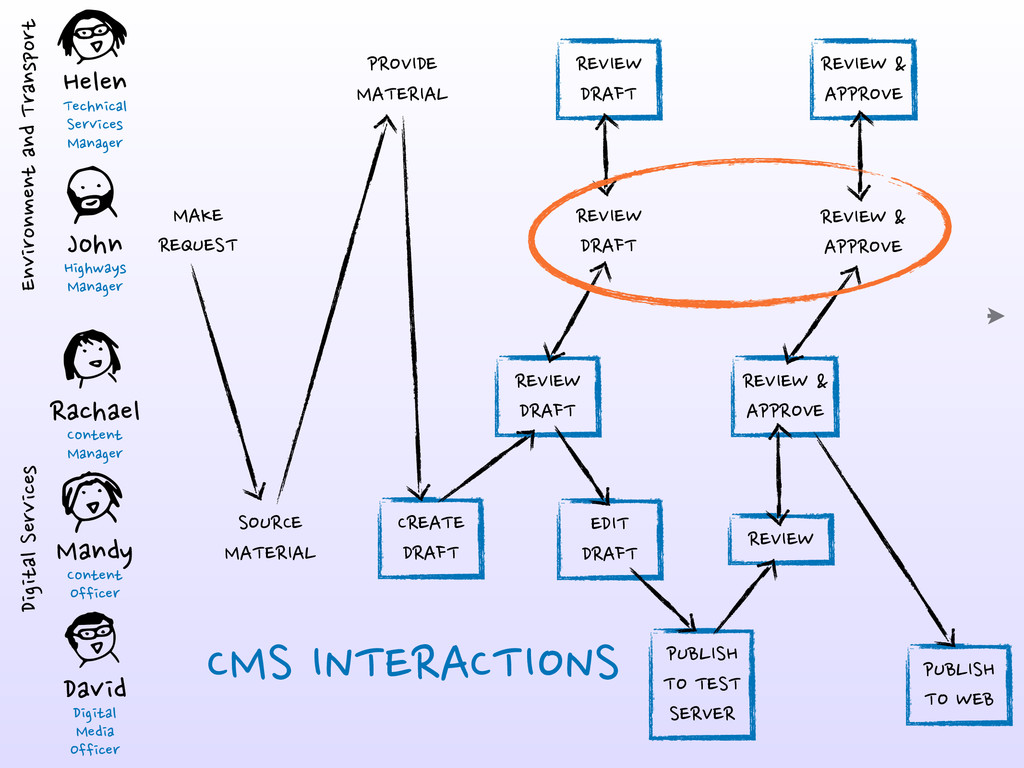

44. The ensuing conversation Mandy talks us through the typical process for publishing a press release on the council website On

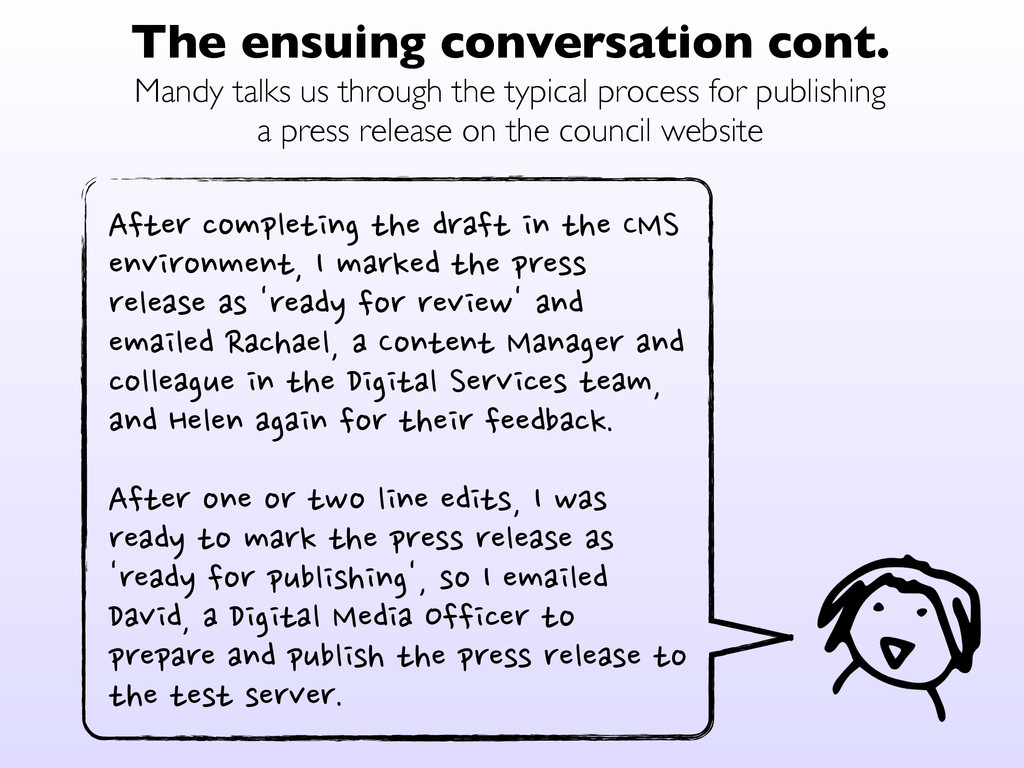

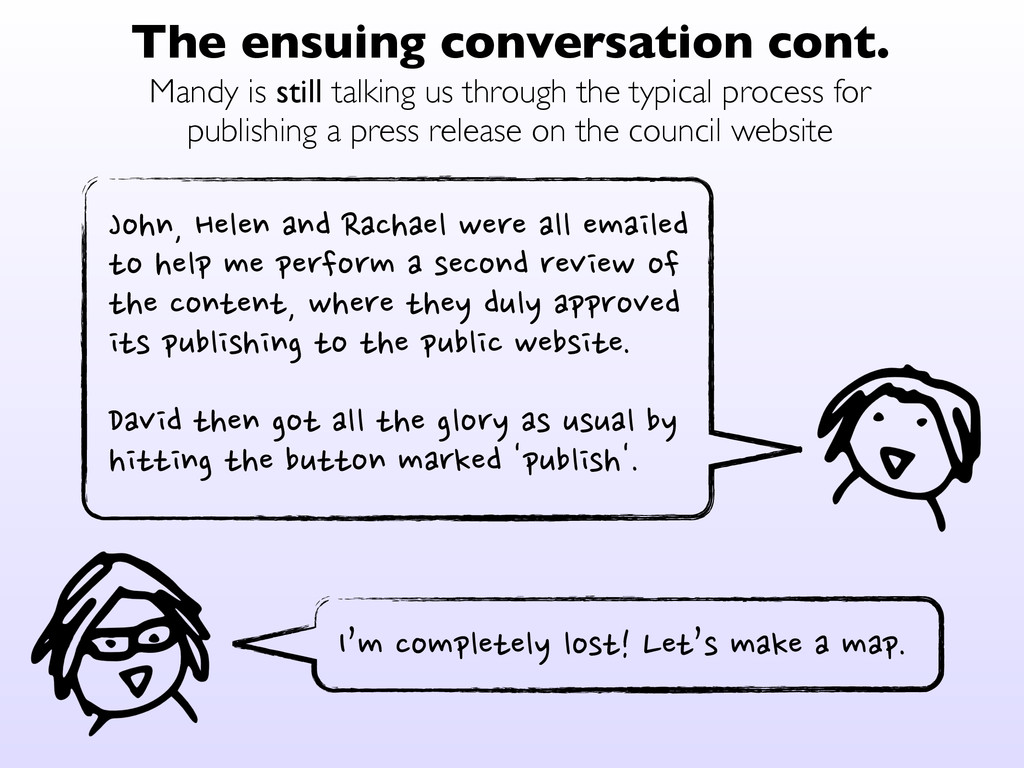

45. The ensuing conversation cont. Mandy talks us through the typical process for publishing a press release on the council website After
46. The ensuing conversation cont. Mandy is still talking us through the typical process for publishing a press release on the council website John,

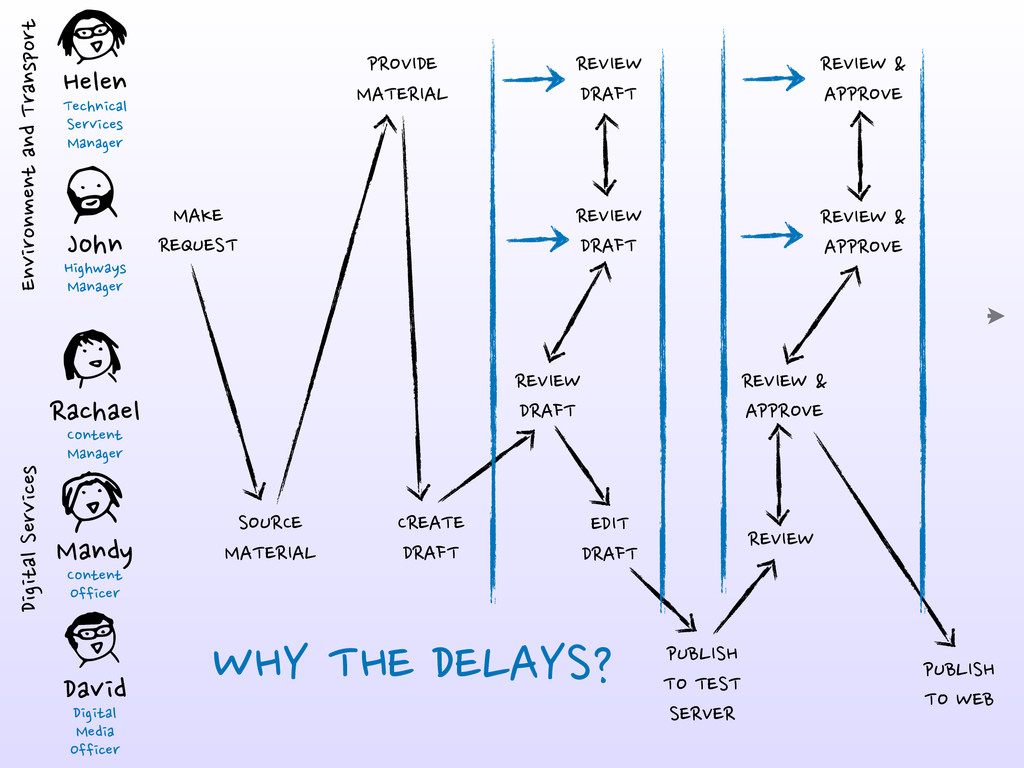

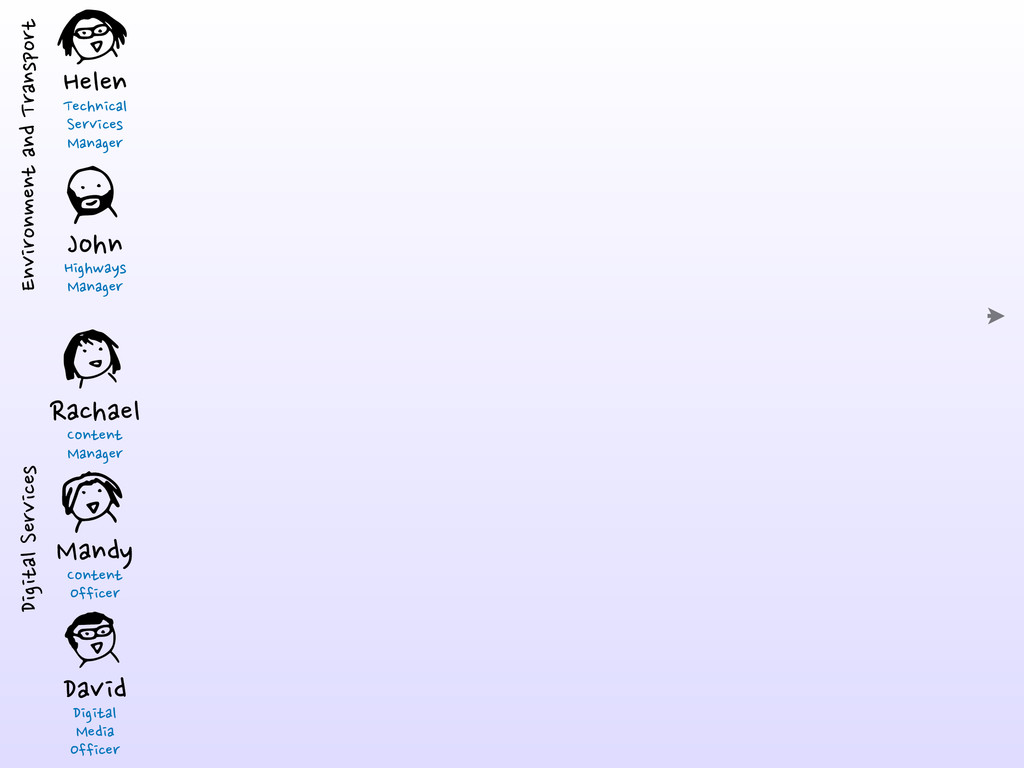

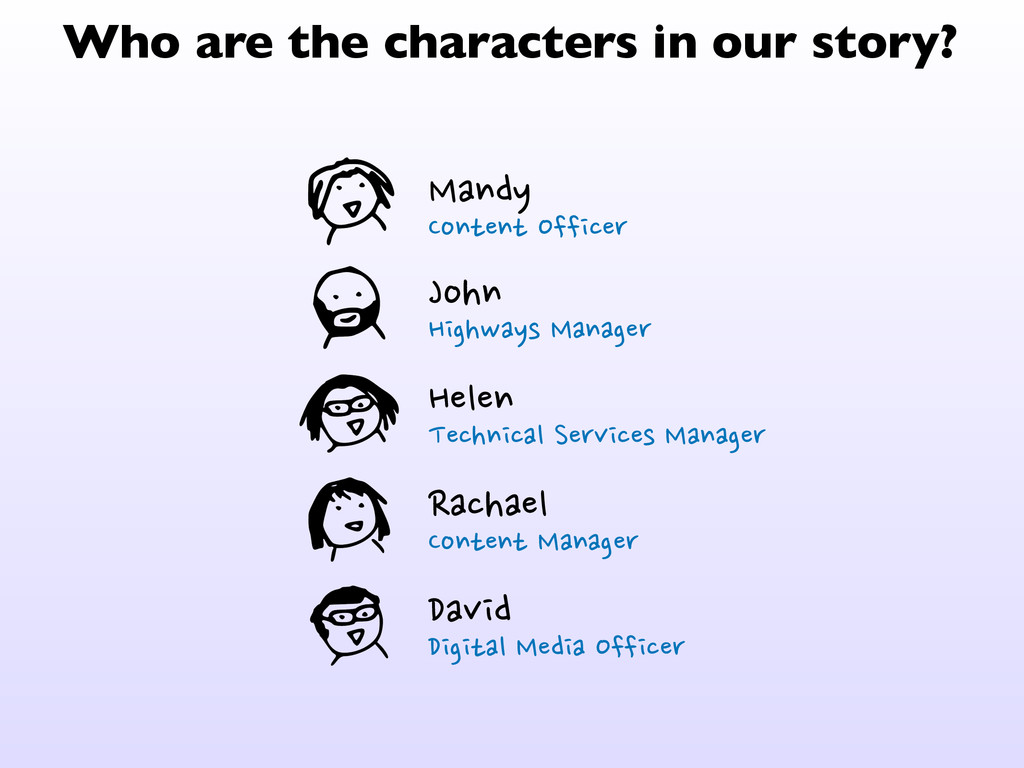

47. Who are the characters in our story? Mandy

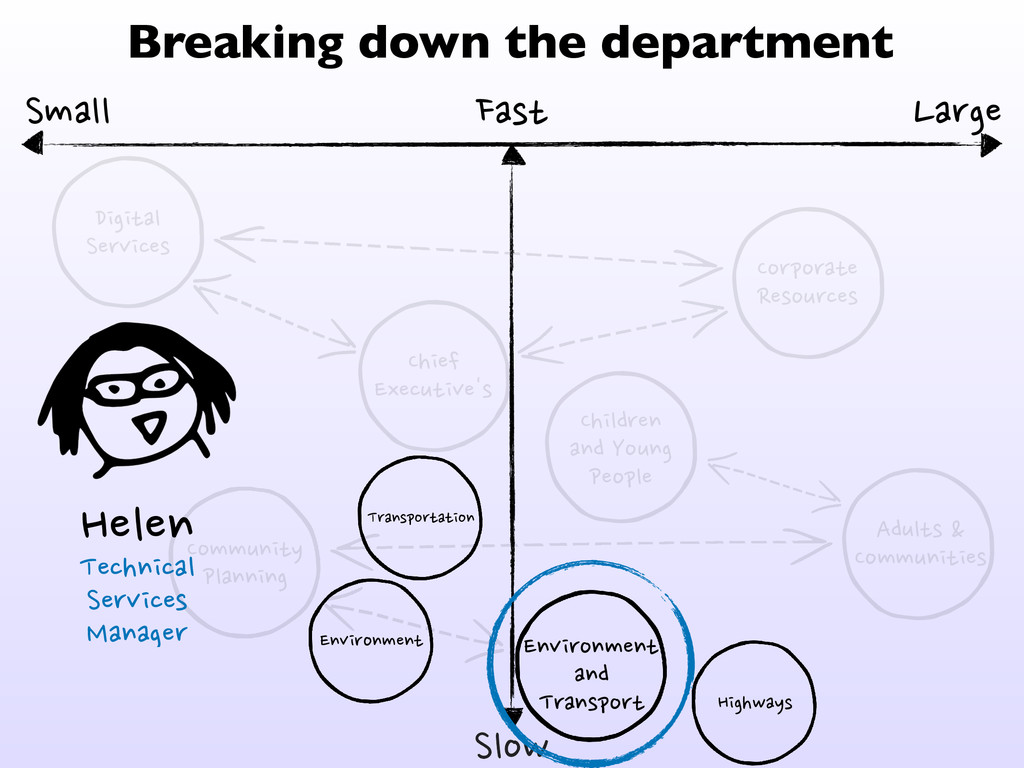

48. Mandy
49. Mandy

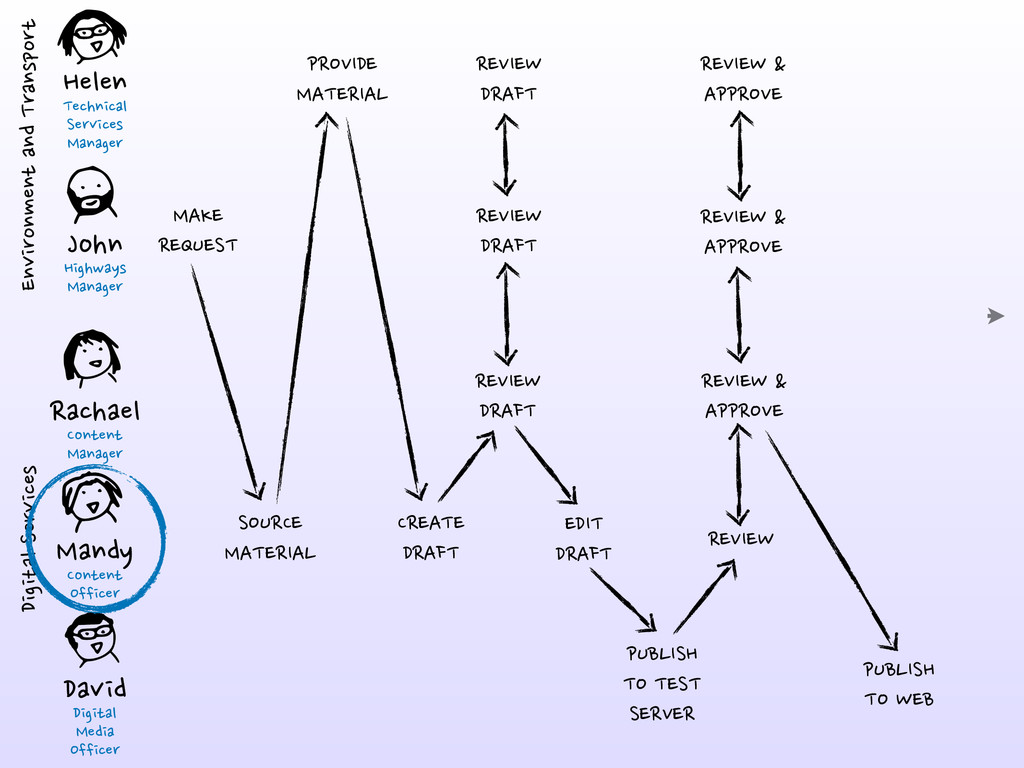

50. Mandy

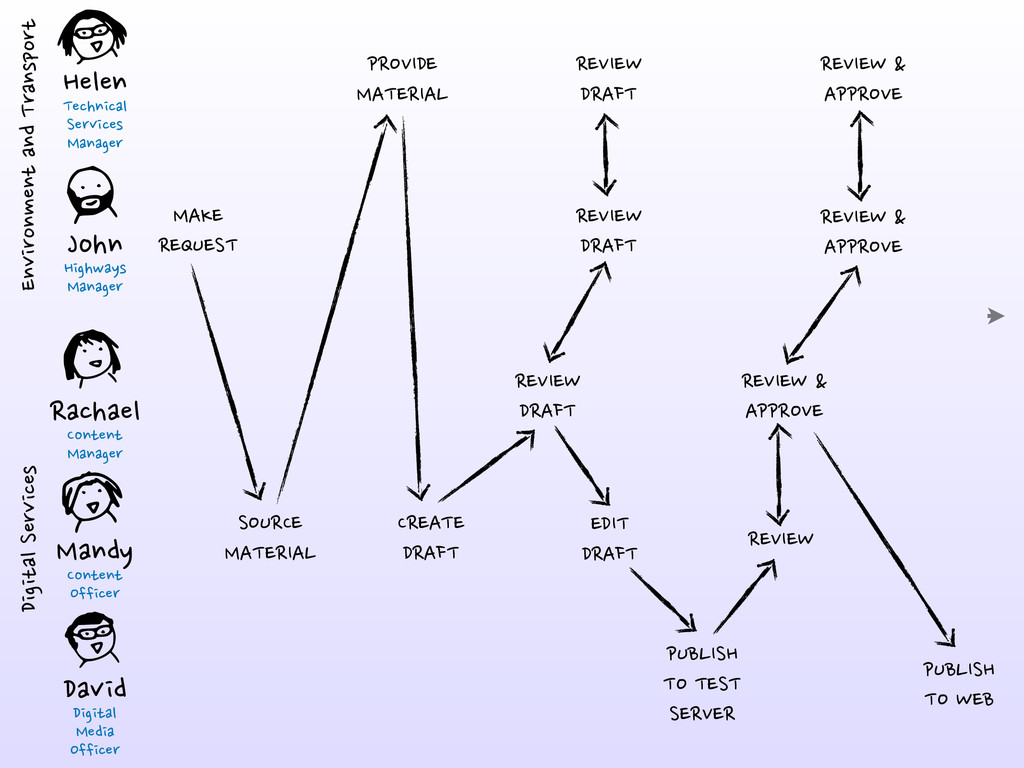

51. Mandy
52. Mandy
53. Mandy

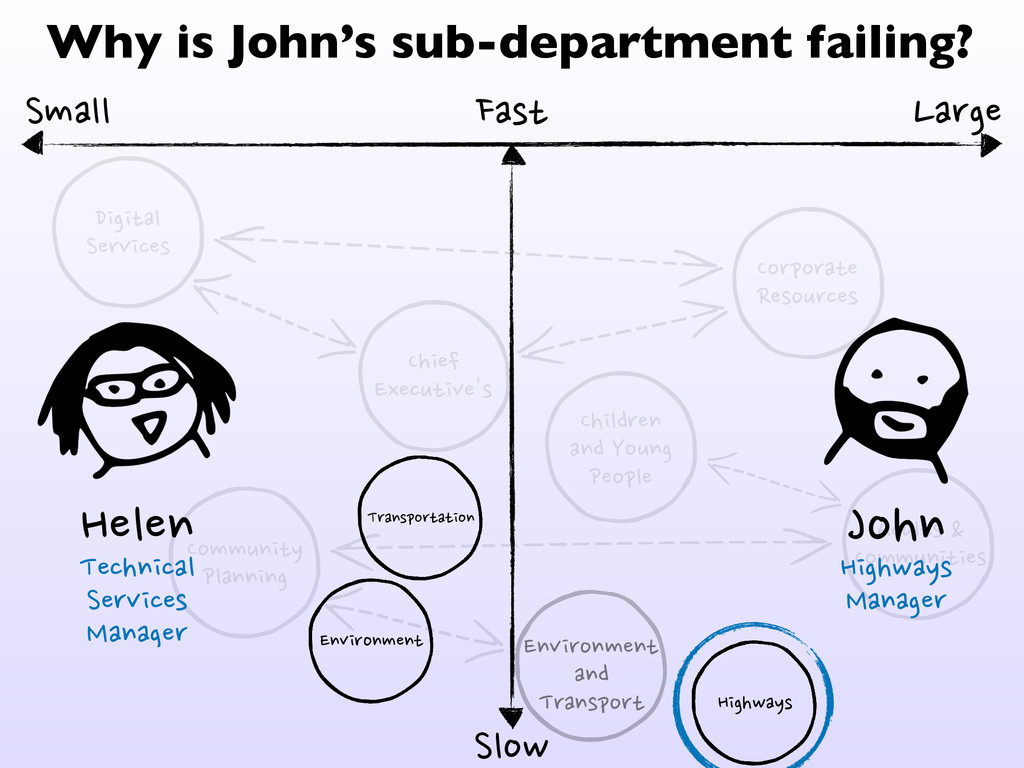

54. Large Small Fast Slow Digital
55. Large Small Fast Slow Digital

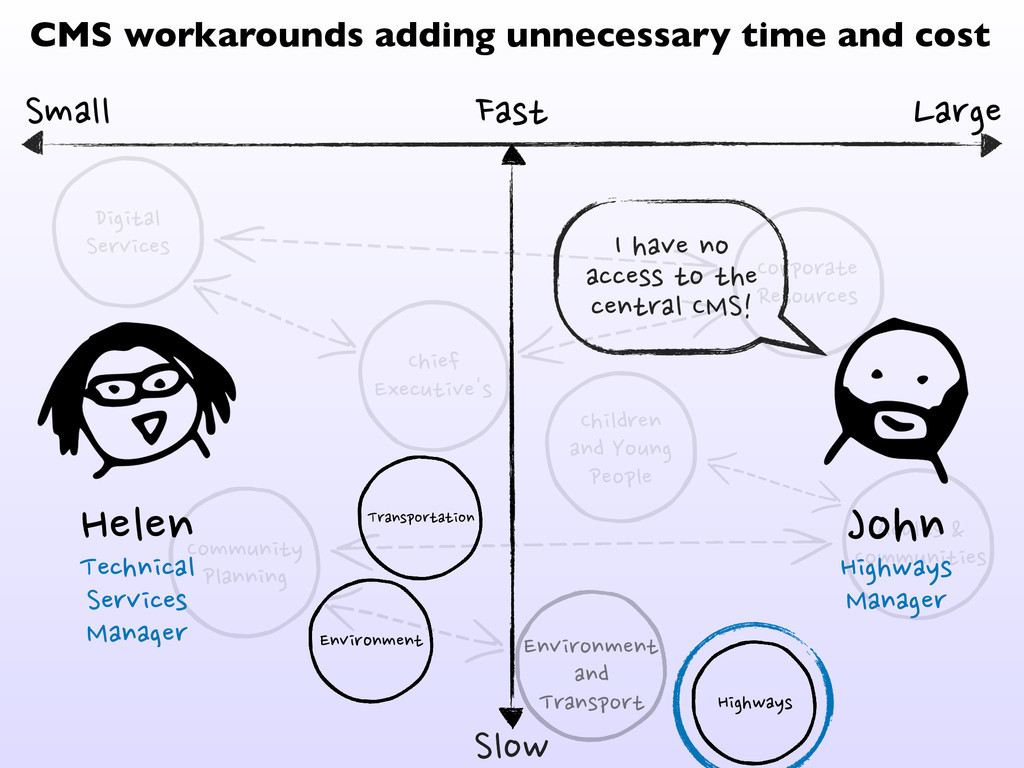

56. Large Small Fast Slow Digital

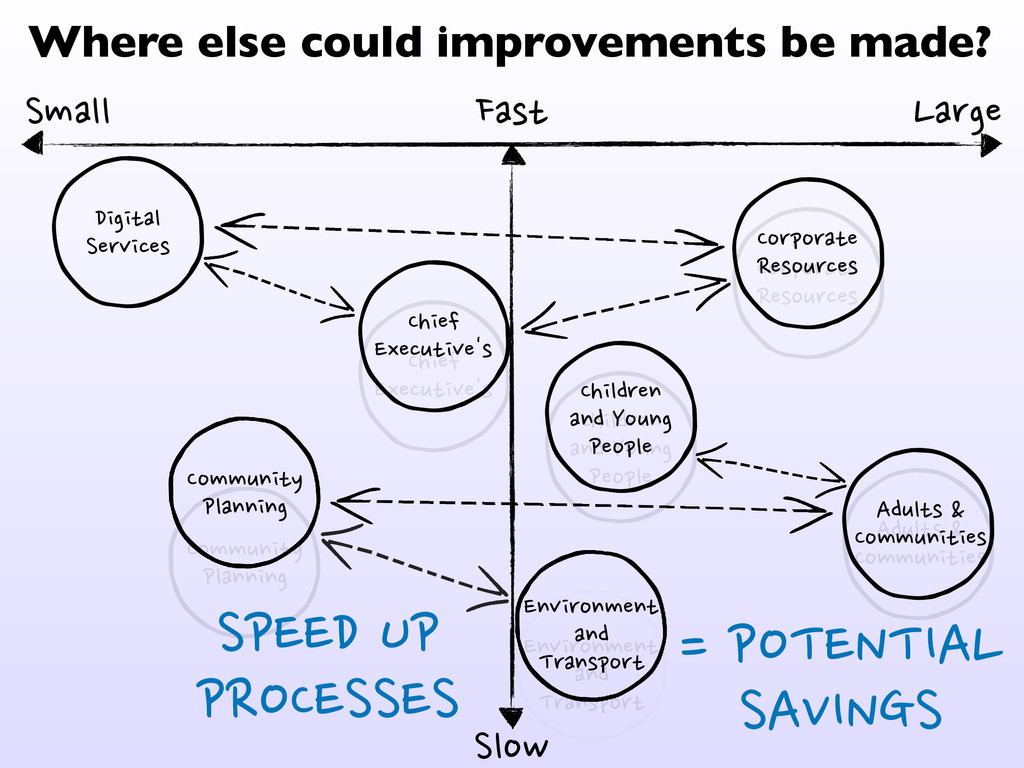

57. Large Small Fast Slow Digital
58. MAPPING THE WAY FORWARD The power of drawing

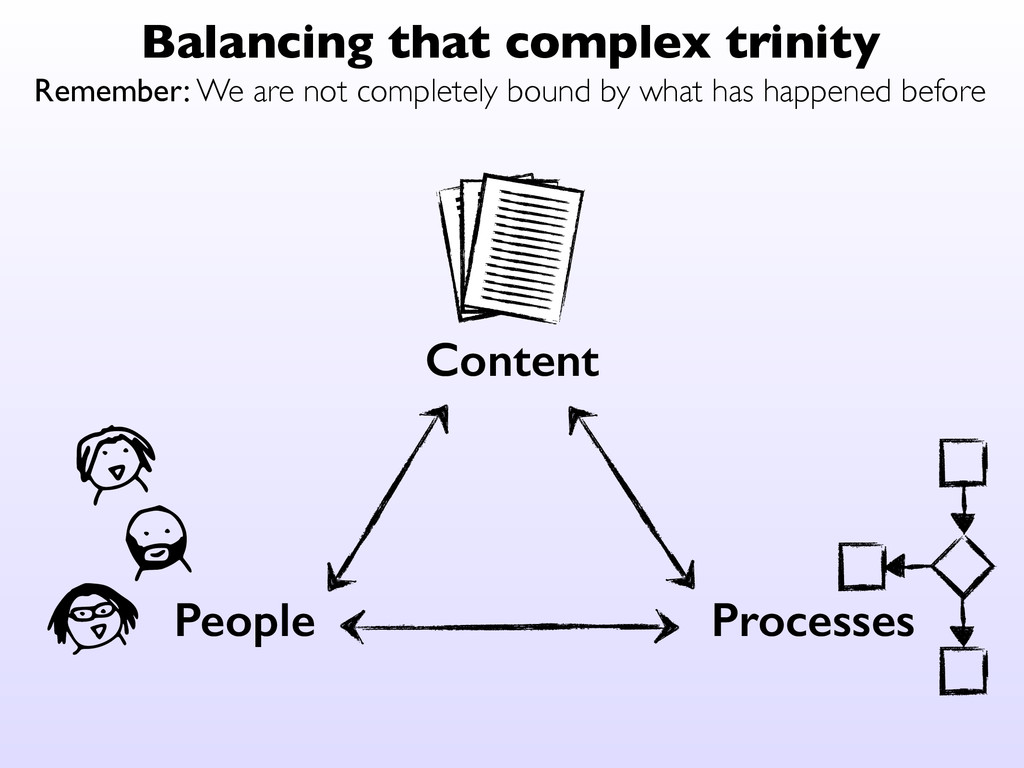

59. Remember: We are not completely bound by what has happened before Content Processes People Balancing that complex trinity

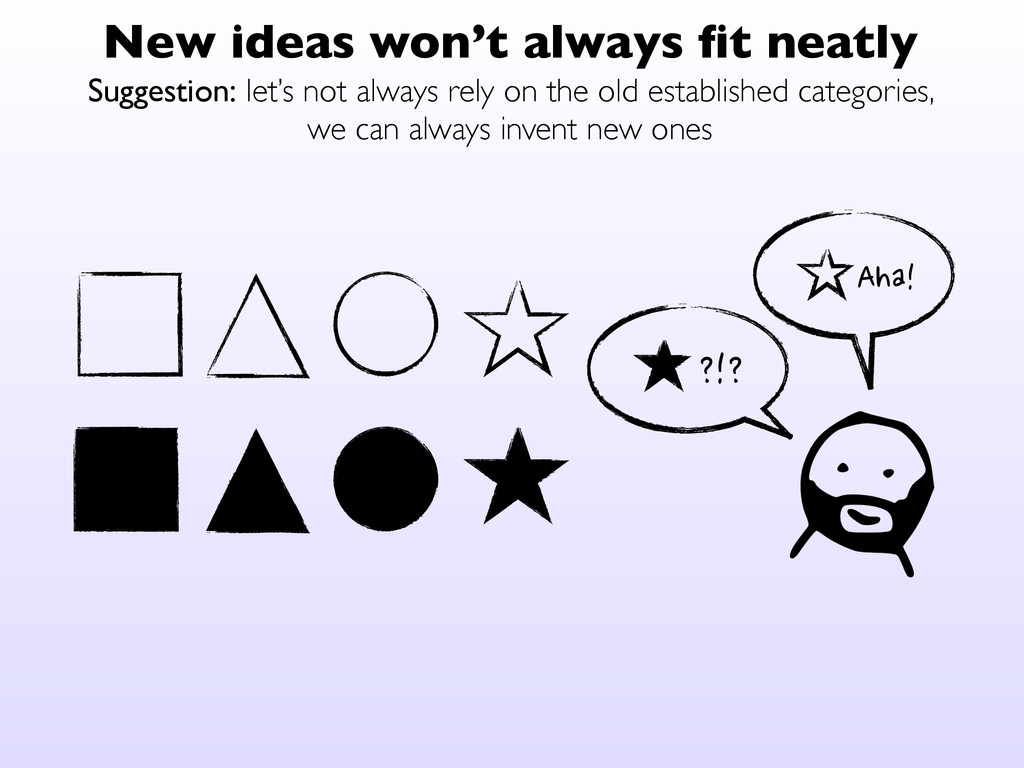

60. Suggestion: let’s not always rely on the old established categories, we can always invent new ones New ideas won’t always fit neatly

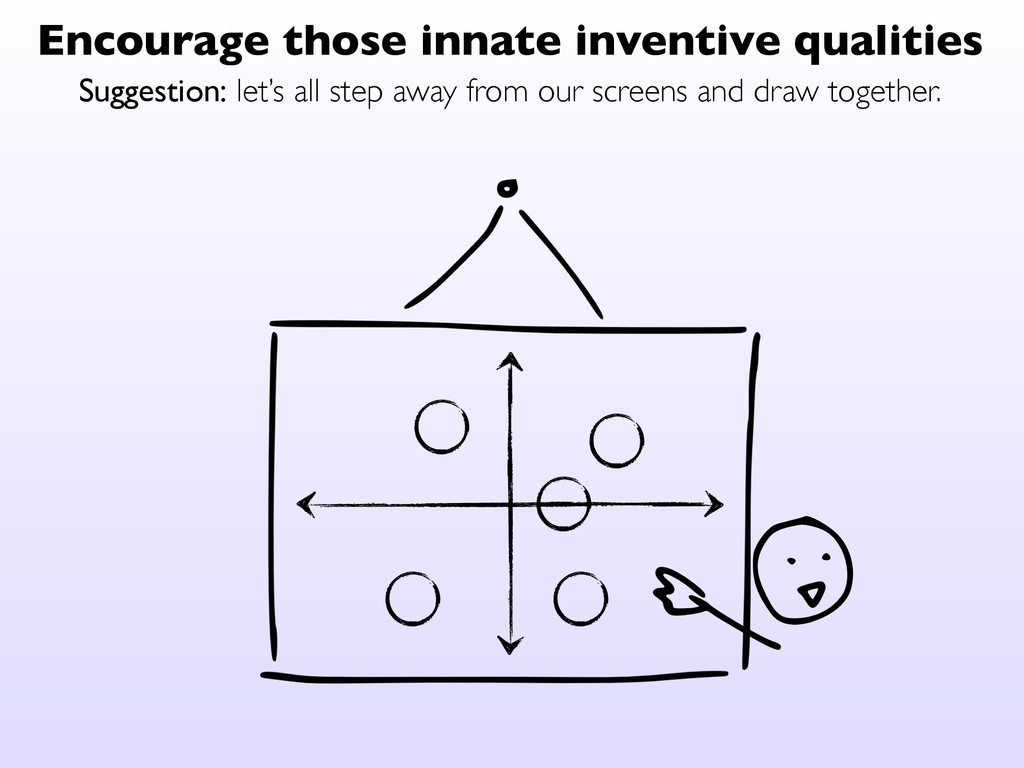

61. Suggestion: let’s all step away from our screens and draw together. Encourage those innate inventive qualities

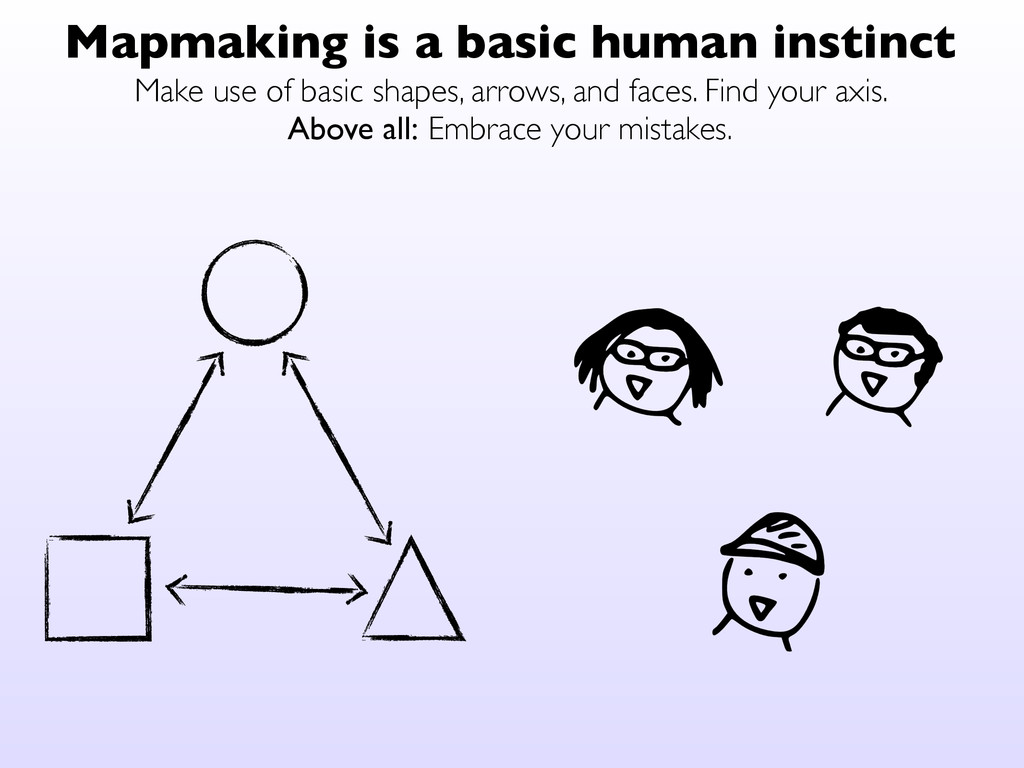

62. Make use of basic shapes, arrows, and faces. Find your axis. Above all: Embrace your mistakes. Mapmaking is a basic human instinct
63. THANK YOU, EDINBURGH! UX Scotland, 19th June 2014 #uxscot Richard Ingram @richardjingram

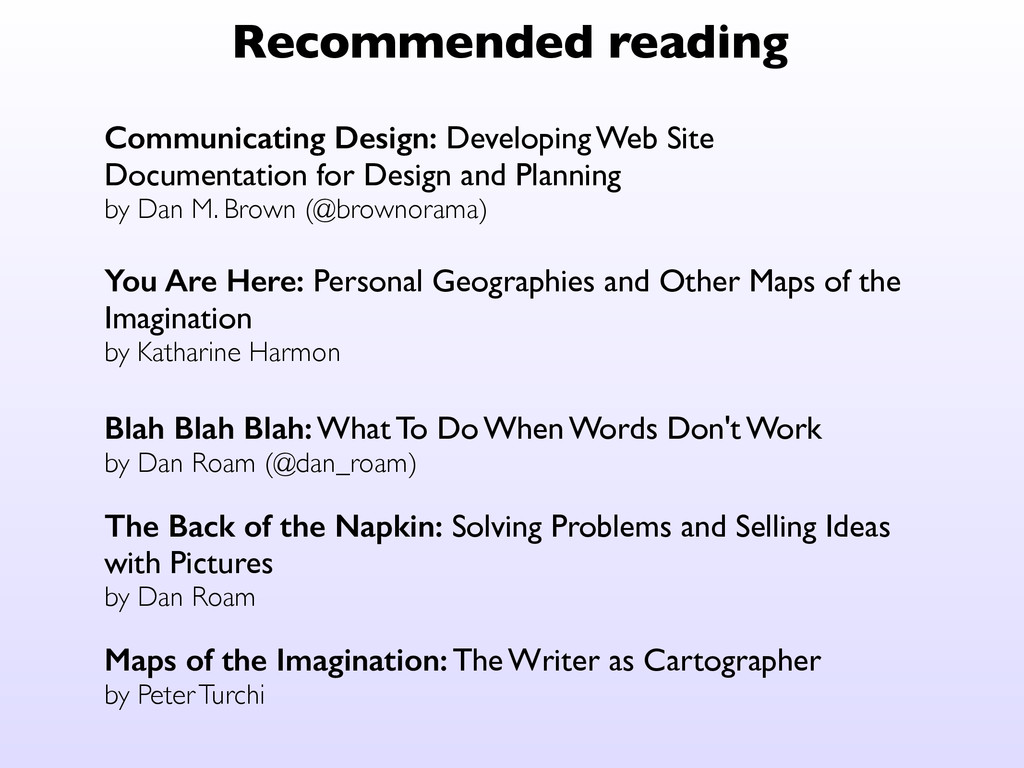

64. Communicating Design: Developing Web Site Documentation for Design and Planning by Dan M. Brown (@brownorama) ! You Are Here: Personal Geographies and Other Maps of the Imagination by Katharine Harmon ! Blah Blah Blah: What To Do When Words Don't Work by Dan Roam (@dan_roam) ! The Back of the Napkin: Solving Problems and Selling Ideas with Pictures by Dan Roam ! Maps of the Imagination: The Writer as Cartographer by Peter Turchi Recommended reading
