1. UI Testing in Xcode 7 @roland9 roland@kitmanlabs.com Xcake Dublin, 13th October 2015
2. UI Testing • Find UI elements • Interact with the app the same way as user does • Validate changes through assertions
3. Why would I do it?

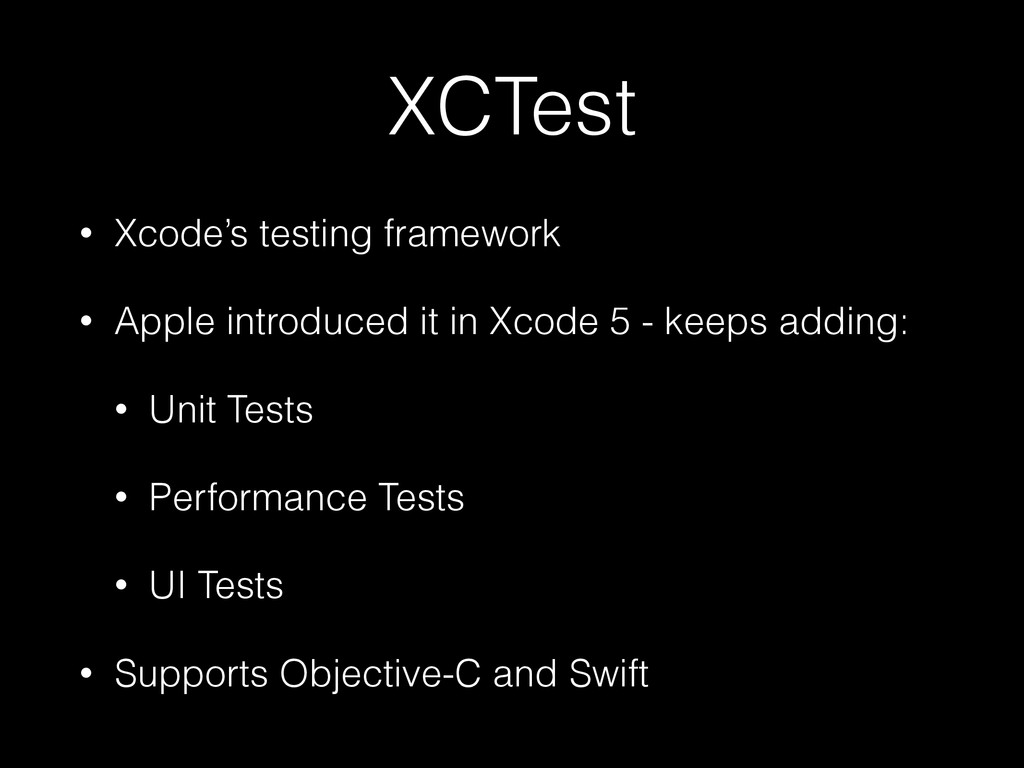

4. XCTest • Xcode’s testing framework • Apple introduced it in Xcode 5 - keeps adding: • Unit Tests • Performance Tests • UI Tests • Supports Objective-C and Swift

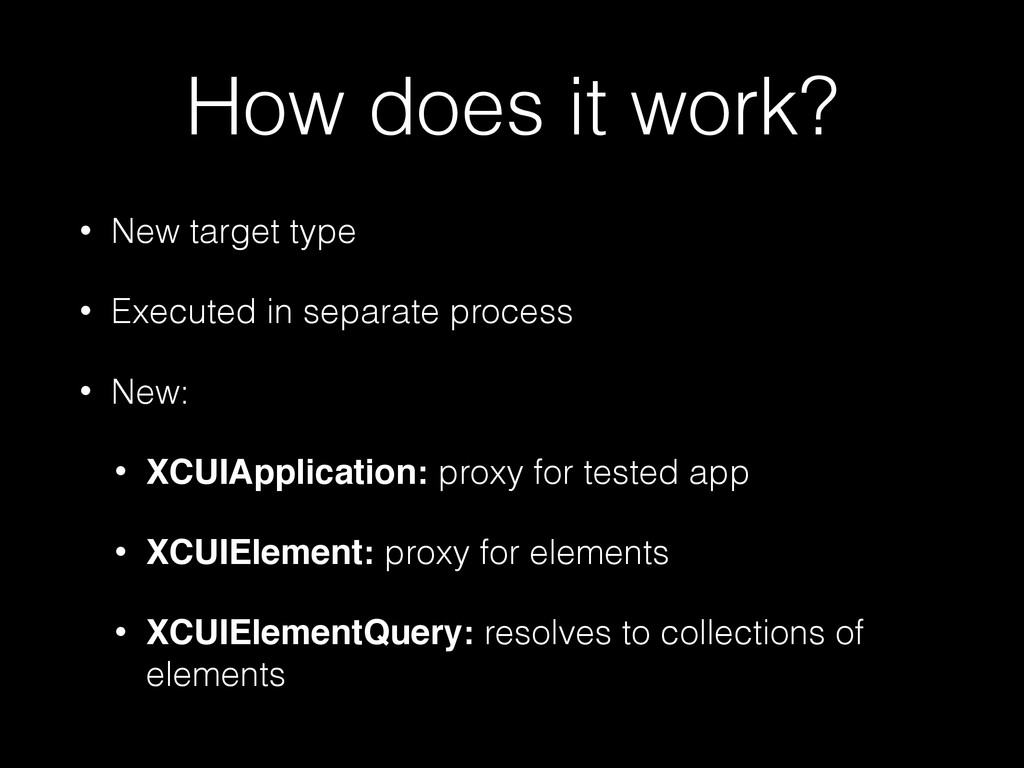

5. How does it work? • New target type • Executed in separate process • New: • XCUIApplication: proxy for tested app • XCUIElement: proxy for elements • XCUIElementQuery: resolves to collections of elements

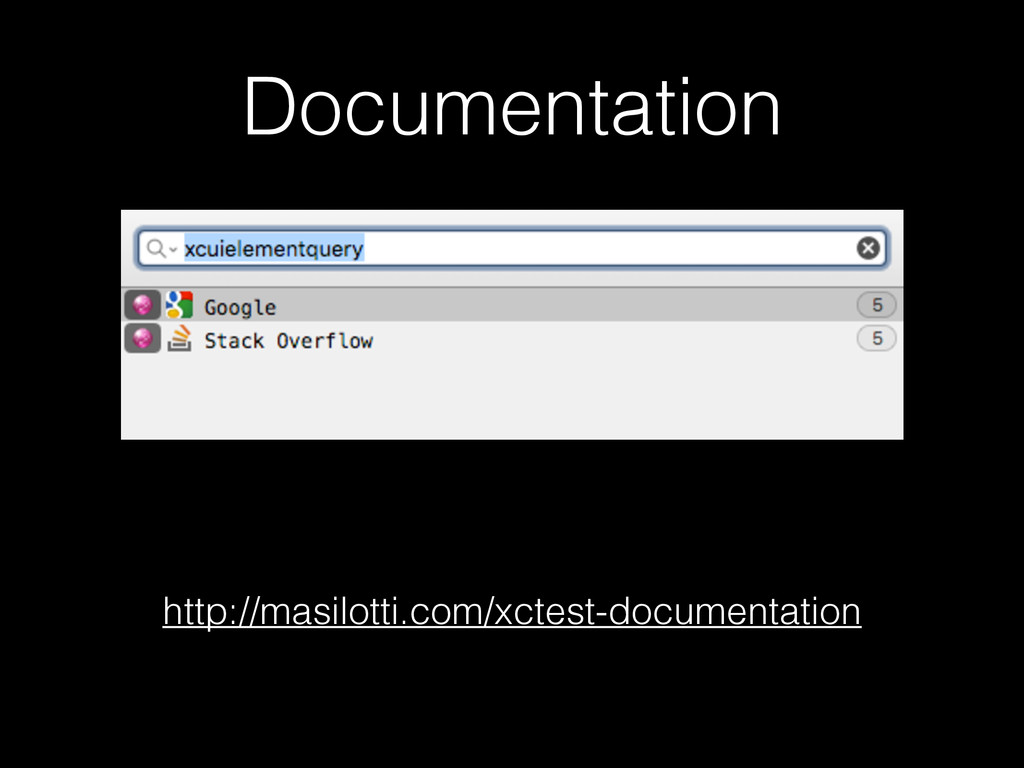

6. Documentation http://masilotti.com/xctest-documentation

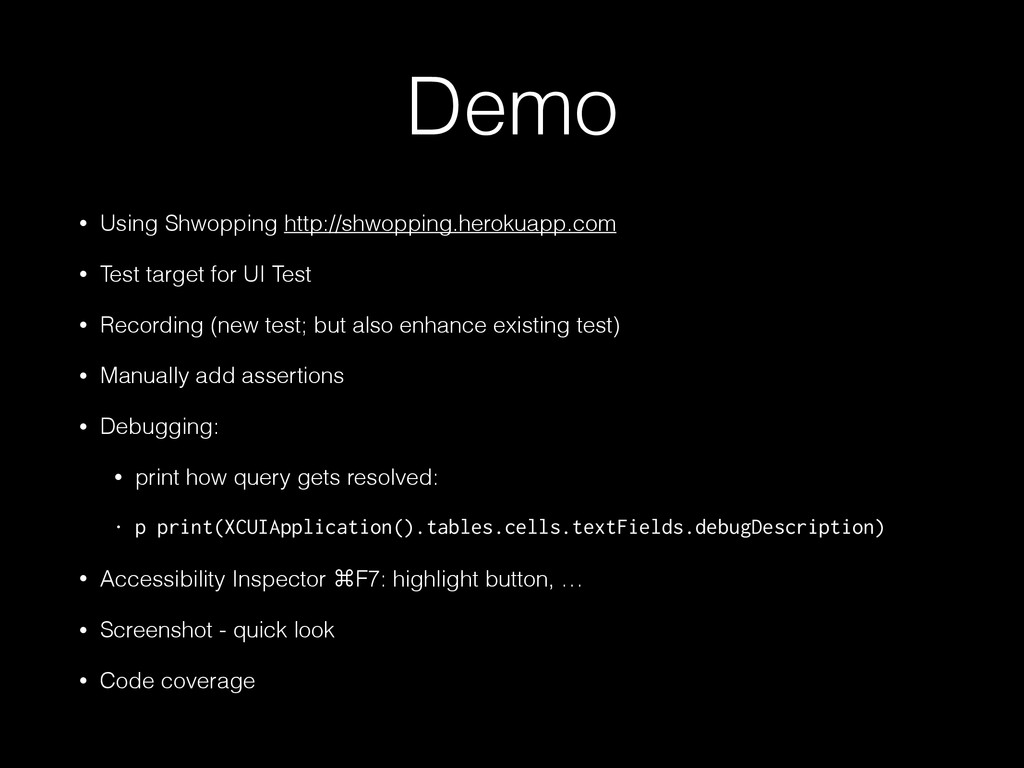

8. Demo • Using Shwopping http://shwopping.herokuapp.com • Test target for UI Test • Recording (new test; but also enhance existing test) • Manually add assertions • Debugging: • print how query gets resolved: • p print(XCUIApplication().tables.cells.textFields.debugDescription) • Accessibility Inspector ⌘F7: highlight button, … • Screenshot - quick look • Code coverage

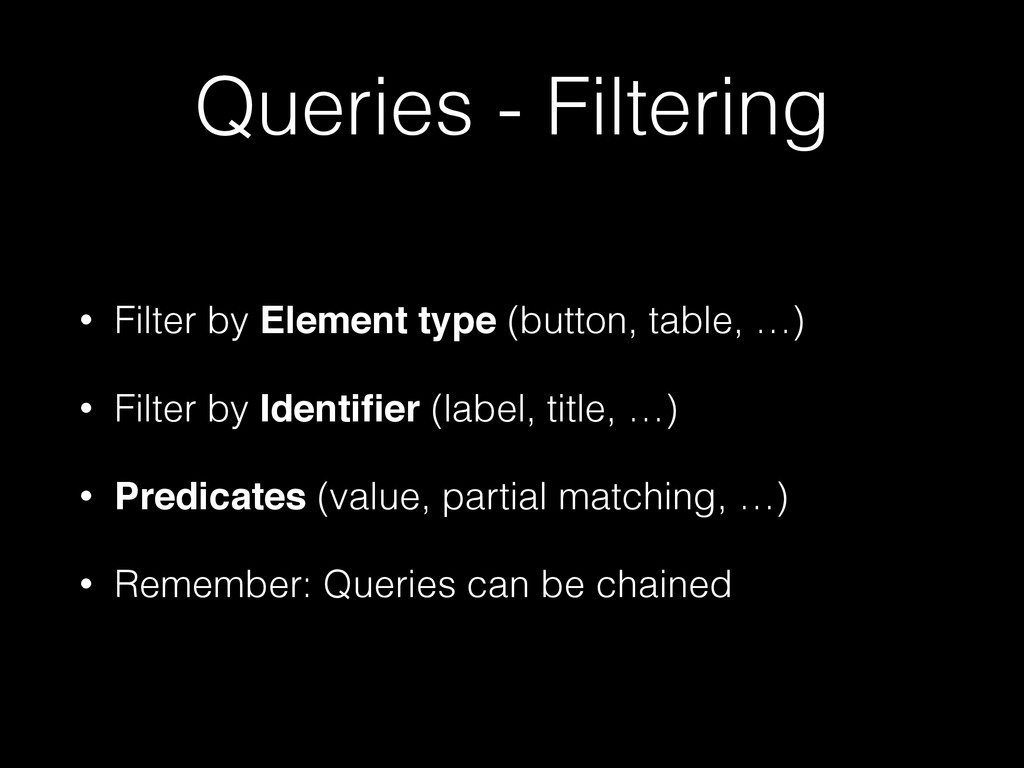

9. Queries - Filtering • Filter by Element type (button, table, …) • Filter by Identifier (label, title, …) • Predicates (value, partial matching, …) • Remember: Queries can be chained

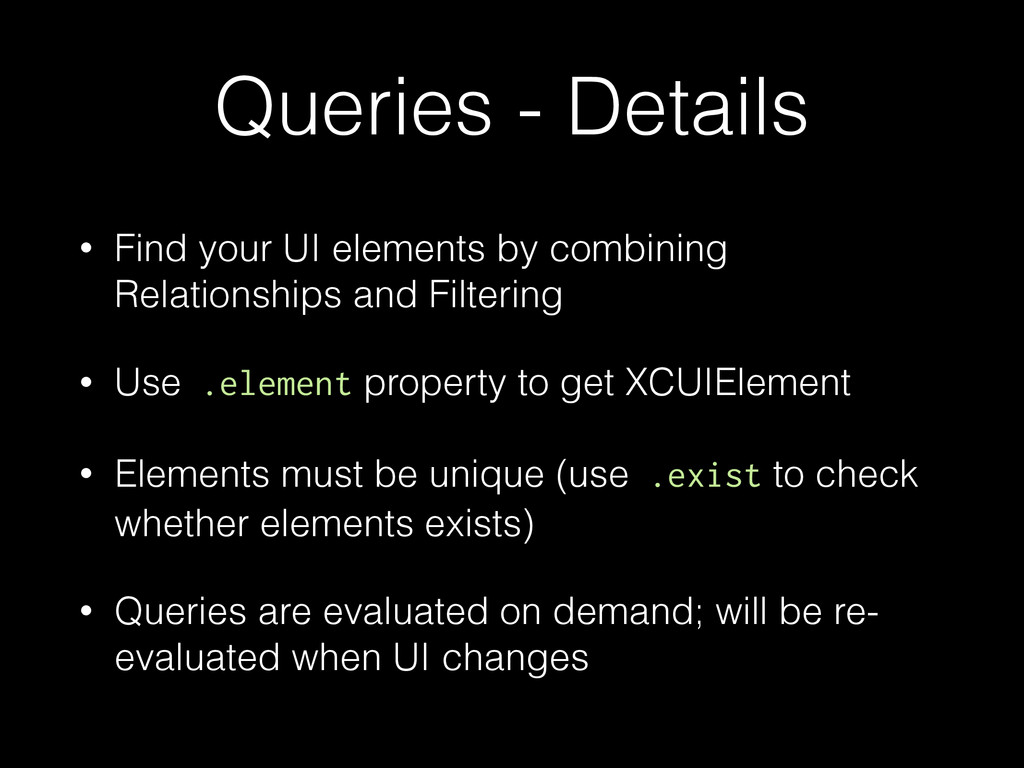

10. Queries - Details • Find your UI elements by combining Relationships and Filtering • Use .element property to get XCUIElement • Elements must be unique (use .exist to check whether elements exists) • Queries are evaluated on demand; will be re- evaluated when UI changes

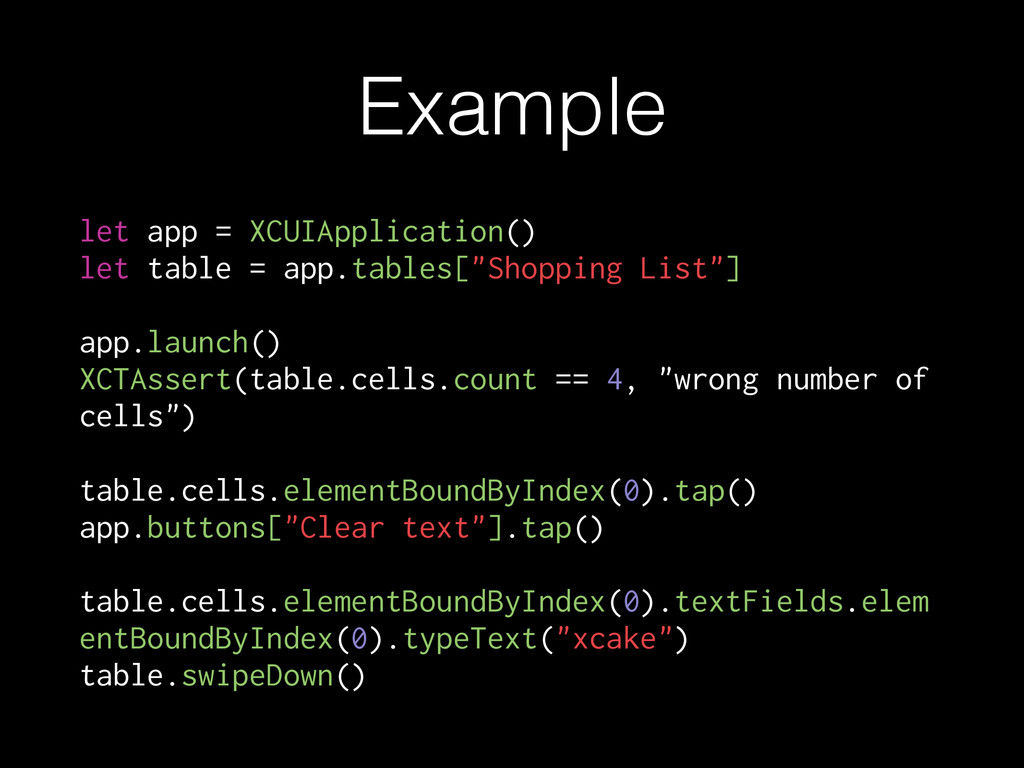

11. Example let app = XCUIApplication() let table = app.tables["Shopping List"] app.launch() XCTAssert(table.cells.count == 4, "wrong number of cells") table.cells.elementBoundByIndex(0).tap() app.buttons["Clear text"].tap() table.cells.elementBoundByIndex(0).textFields.elem entBoundByIndex(0).typeText("xcake") table.swipeDown()
12. Wait for Element

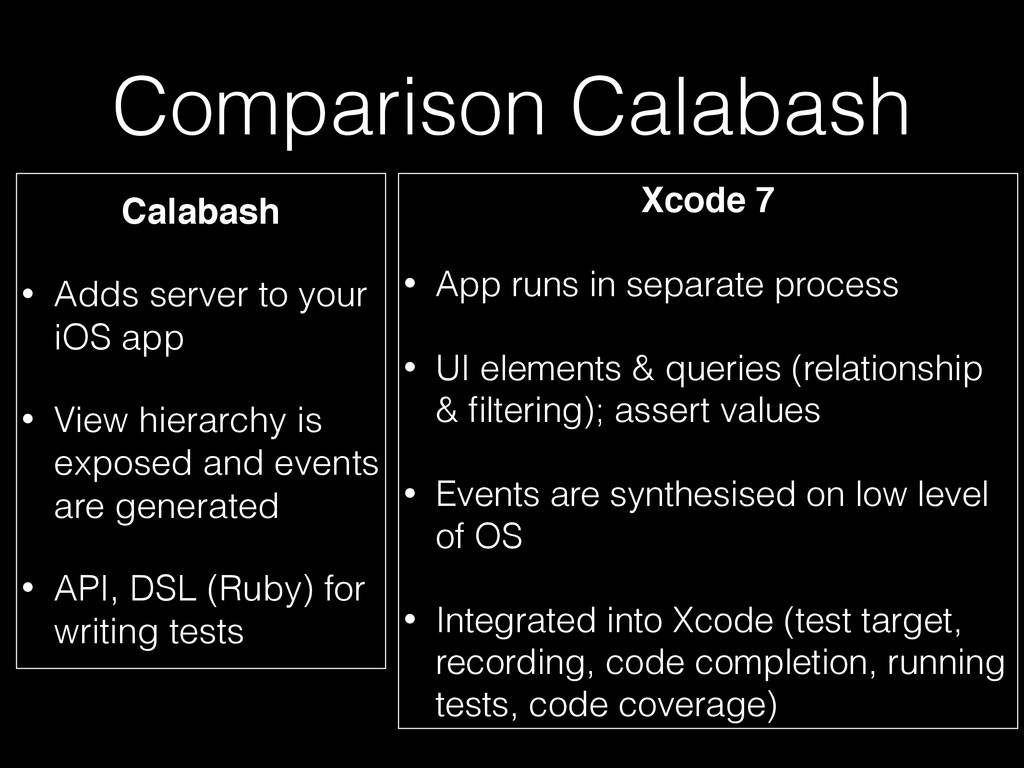

13. Comparison Calabash Calabash • Adds server to your iOS app • View hierarchy is exposed and events are generated • API, DSL (Ruby) for writing tests Xcode 7 • App runs in separate process • UI elements & queries (relationship & filtering); assert values • Events are synthesised on low level of OS • Integrated into Xcode (test target, recording, code completion, running tests, code coverage)

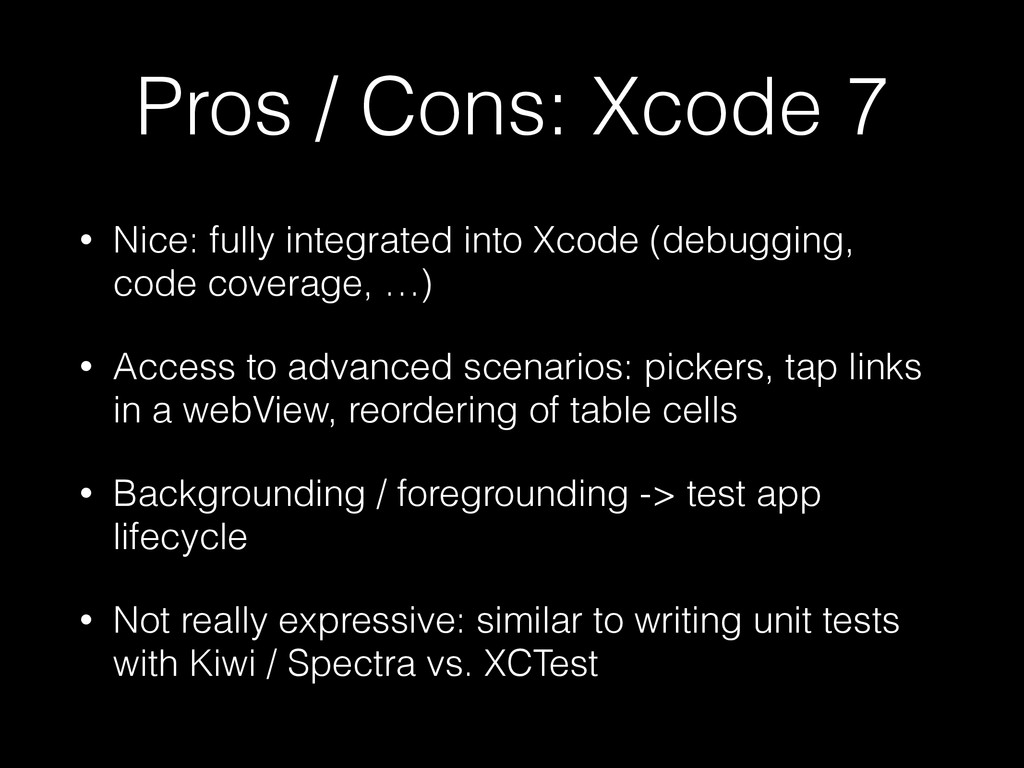

14. Pros / Cons: Xcode 7 • Nice: fully integrated into Xcode (debugging, code coverage, …) • Access to advanced scenarios: pickers, tap links in a webView, reordering of table cells • Backgrounding / foregrounding -> test app lifecycle • Not really expressive: similar to writing unit tests with Kiwi / Spectra vs. XCTest

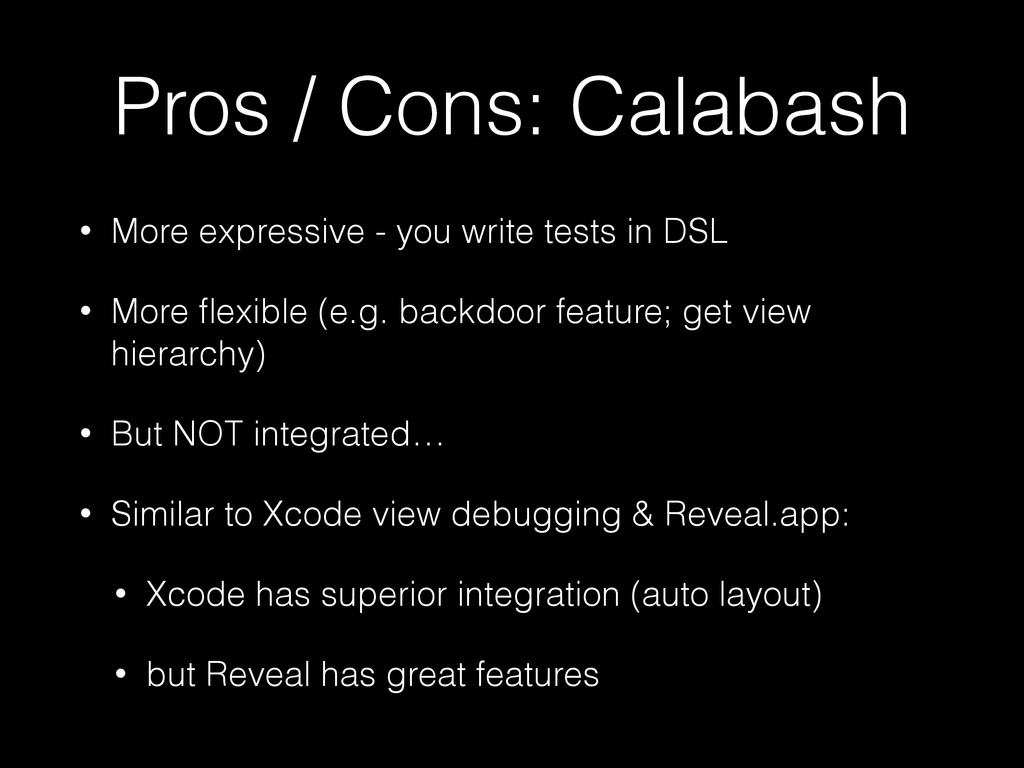

15. Pros / Cons: Calabash • More expressive - you write tests in DSL • More flexible (e.g. backdoor feature; get view hierarchy) • But NOT integrated… • Similar to Xcode view debugging & Reveal.app: • Xcode has superior integration (auto layout) • but Reveal has great features
16. References • WWDC https://developer.apple.com/videos/play/wwdc2015-406 • Xcake Calabash http://www.slideshare.net/roland99/ios-and- android-acceptance-testing-with-calabash-xcake-dublin • Automate https://krausefx.com/blog/run-xcode-7-ui-tests-from- the-command-line • Documentation http://masilotti.com/xctest-documentation • Tips & Tricks http://masilotti.com/ui-testing-cheat-sheet • App I used for demo: http://shwopping.herokuapp.com
17. Summary • Recording is huge, but not perfect -> use it to learn how to write tests • Queries are evaluated on demand -> keep it DRY • Relationships & filtering -> chain • Integration into Xcode: code coverage, performance testing, screenshots
19. UI Testing in Xcode 7 @roland9 roland@kitmanlabs.com Xcake Dublin, 13th October 2015
