Taming client-server communication

In the early days of the web, a browser could only interact with a server on page load. The XMLHttpRequest enabled the web 2.0 revolution popularizing RESTful web services in the process. Now, with HTML5, we have WebSockets. WebSockets enable a plethora of messaging based communication patterns. This talk will dive into two cujoJS libraries that specialize in client-server communication: rest.js (https://github.com/cujojs/rest) for consuming RESTful HTTP services and msgs.js (https://github.com/cujojs/msgs) for message oriented programing between clients and servers utilizing WebSockets. We’ll talk about what access patterns each of these mediums enable and how to extend these libraries to fit your specific needs.

Transcript

1. Taming client-server communication Scott Andrews
2. About me • engineer @ SpringSource / Pivotal • contributor to cujoJS • drifter • application 㲗 framework • open source 㲗 commercial • client 㲗 server • front-end 㲗 back-end
3. A brief word from my sponsor • leader in Enterprise Java • now part of Pivotal • Spring • Cloud Foundry • Redis • RabbitMQ & SockJS • Groovy & Grails • Pivotal Labs

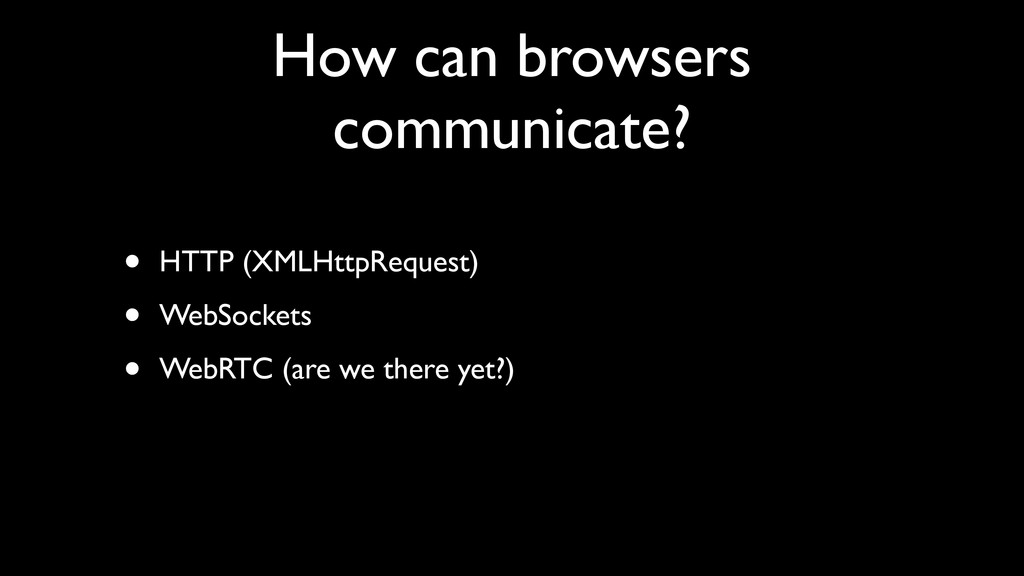

4. How can browsers communicate? • HTTP (XMLHttpRequest) • WebSockets • WebRTC (are we there yet?)

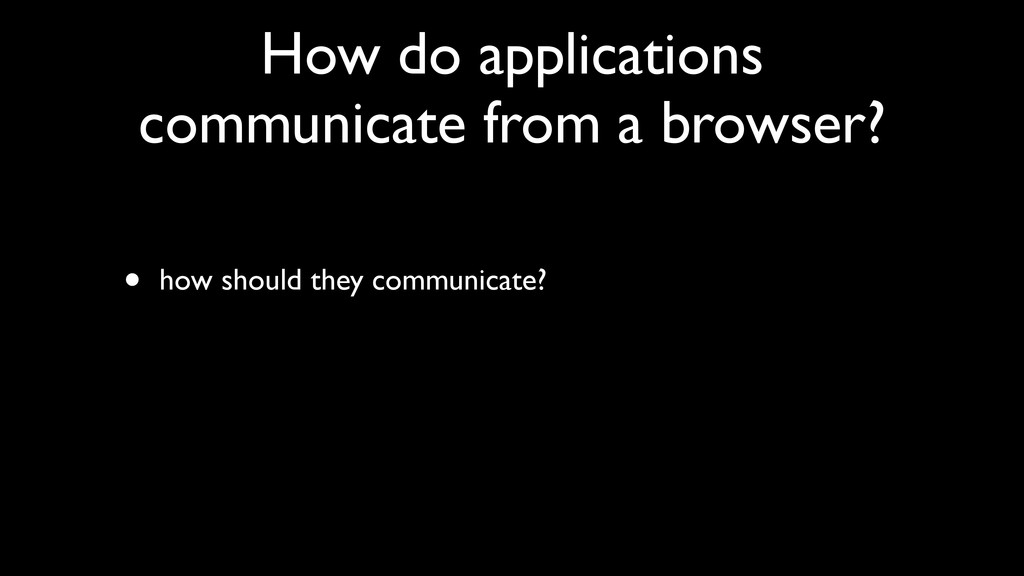

5. How do applications communicate from a browser? • how should they communicate?

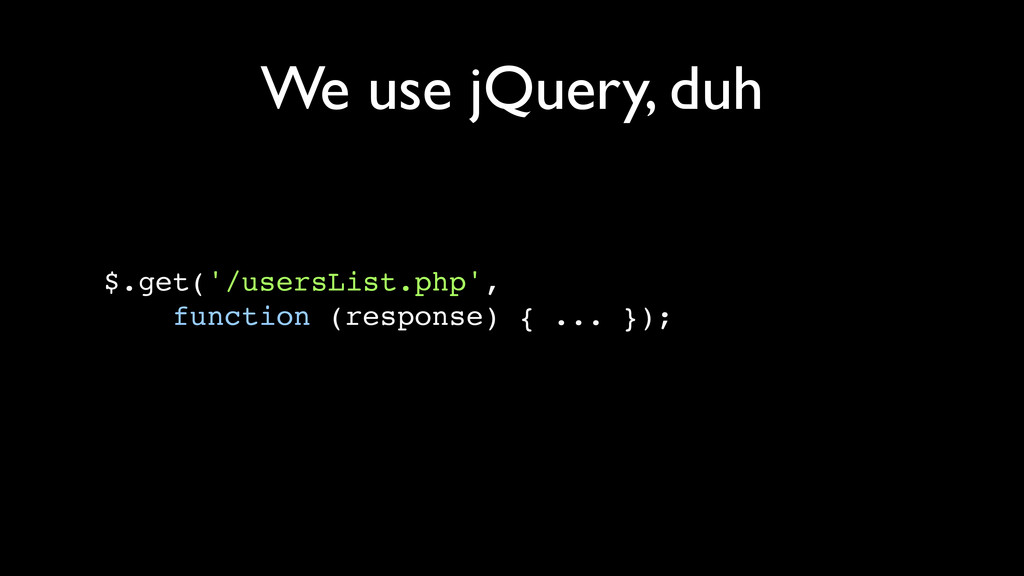

6. We use jQuery, duh $.get('/usersList.php', function (response) { ... });
7. We use jQuery, duh $.get('/usersList.php').then( function (response) { ... } ); ...not to start a holy war, but I like promises
8. What's wrong here? $.ajax({ url: '/usersList.php', data: { page: 1, count: 50 } }).then( function (response) { ... }, function (error) { ... } ); ...lot of little nits, but it's not too bad
9. What's wrong here? $.ajax({ url: '/usersList.php', data: { page: 3, count: 50 } }).then( function (response) { ... }, function (error) { ... } ); $.ajax({ url: '/usersList.php', data: { page: 5, count: 50 } }).then( function (response) { ... }, function (error) { ... } ); $.ajax({ url: '/usersList.php', data: { page: 4, count: 50 } }).then( function (response) { ... }, function (error) { ... } ); $.ajax({ url: '/usersList.php', data: { page: 1, count: 50 } }).then( function (response) { ... }, function (error) { ... } ); $.ajax({ url: '/usersList.php', data: { page: 2, count: 50 } }).then( function (response) { ... }, function (error) { ... } );
10. Abstract the common bits function loadUsers(pageNum) { return $.ajax({ url: '/usersList.php', data: { page: pageNum, count: 50 } }); } loadUsers(1).then( function (response) { ... }, function (error) { ... } );
11. Poor abstractions • abstracts HTTP rather than embracing it • it's not just jQuery • every 'Ajax' lib suffers from this issue • should abstract interacting with resources rather than mechanics of making requests
12. rest.js • very thin wrapper around a raw request/response • XHR, Node, JSONP, IE XDomainRequest • AMD and CommonJS/Node • MIT licensed, part of cujoJS

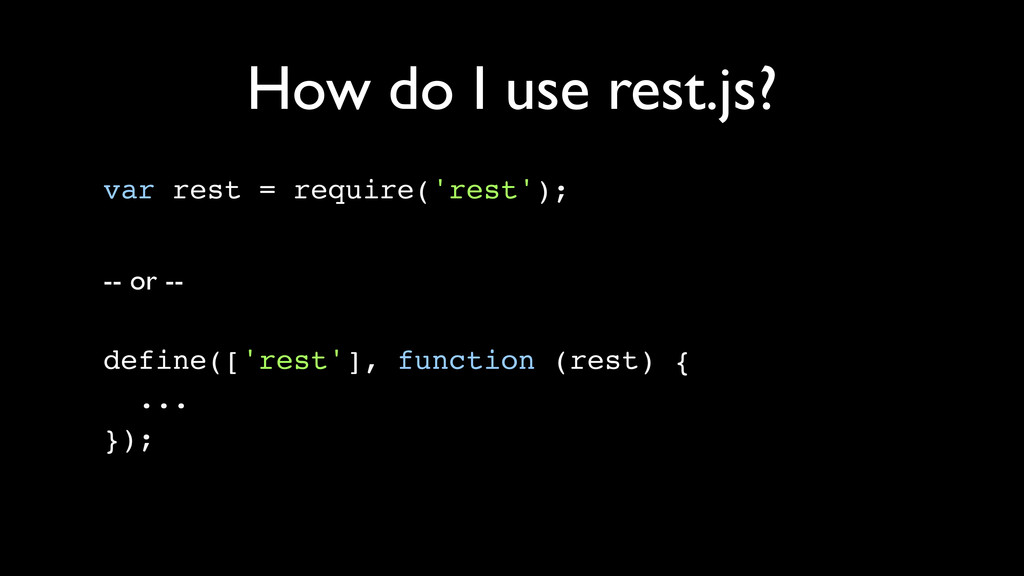

13. How do I use rest.js? var rest = require('rest'); -- or -- define(['rest'], function (rest) { ... });
14. How do I use rest.js? rest('/usersList.php').then( function (response) { ... } ); ...wait a minute

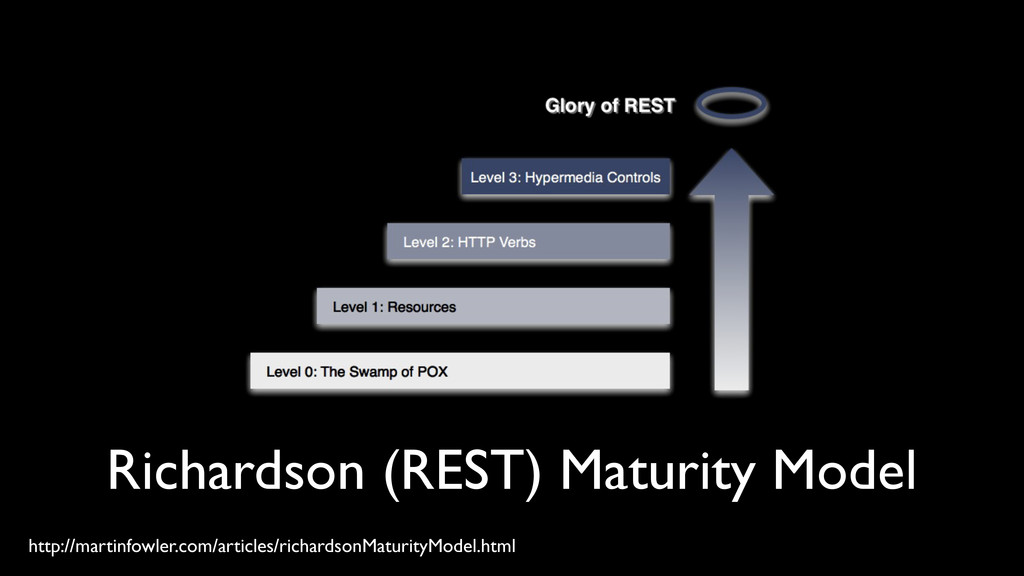

15. Richardson (REST) Maturity Model http://martinfowler.com/articles/richardsonMaturityModel.html
16. rest.js • abstraction to work with resources, rather than just an abstraction to make requests • full access to all aspects of the request and response, including response headers • advanced behavior applied with interceptors • configure behavior once, share

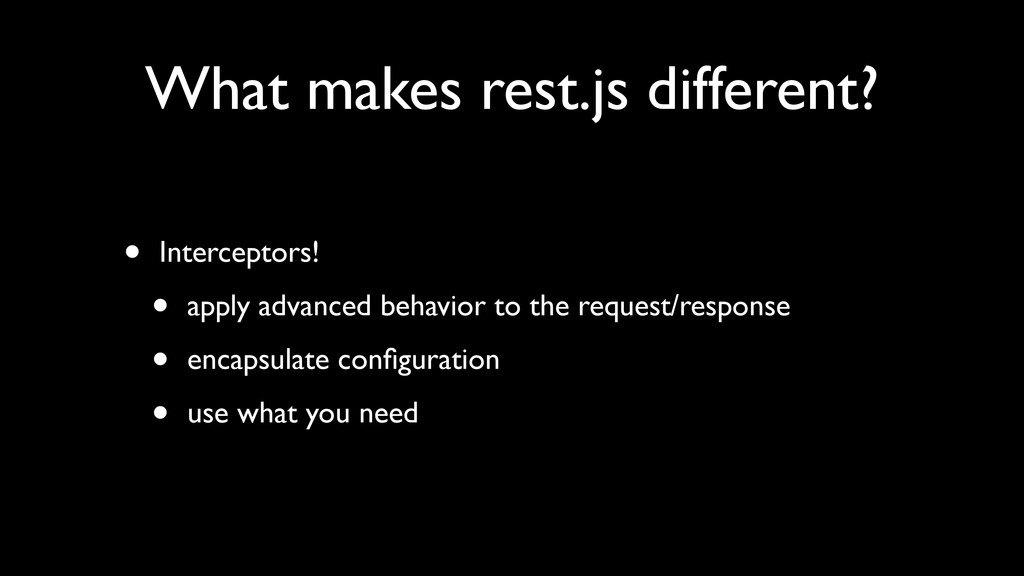

17. What makes rest.js different? • Interceptors! • apply advanced behavior to the request/response • encapsulate configuration • use what you need

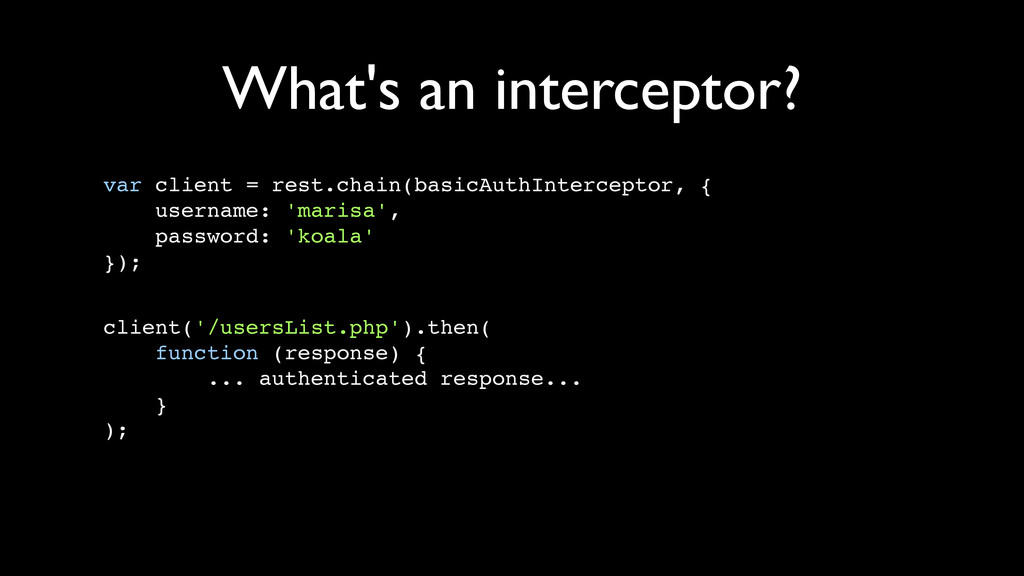

18. What's an interceptor? var client = rest.chain(basicAuthInterceptor, { username: 'marisa', password: 'koala' }); client('/usersList.php').then( function (response) { ... authenticated response... } );
19. What can interceptors do? • almost anything • hook into the request/response lifecycle • augment or replace a request/response • provide an alternate client • detect and/or recover from errors • abort the request
20. What can't interceptors do? • alter a configured client
21. Provided interceptors • Common: Default Request, Entity, Path Prefix, Location • RESTful: Content negotiation, Hypermedia APIs • Authentication: Basic, OAuth • Error Detection and Recover: Error Code, Retry, Timeout • Fallbacks: JSONP, XDomainRequest (IE), ActiveX XHR (IE)

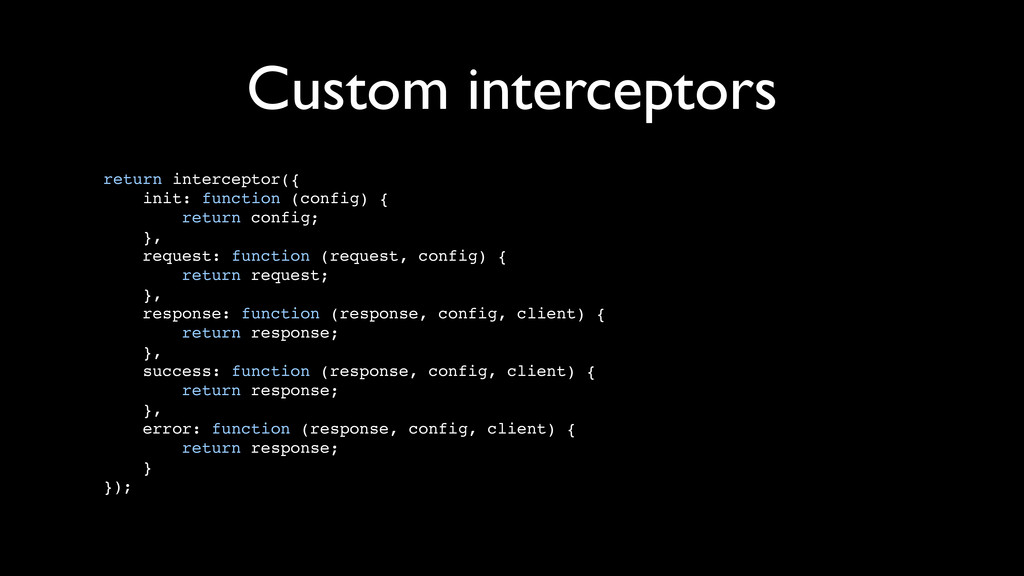

22. Custom interceptors return interceptor({ init: function (config) { return config; }, request: function (request, config) { return request; }, response: function (response, config, client) { return response; }, success: function (response, config, client) { return response; }, error: function (response, config, client) { return response; } });
23. A real interceptor: basic auth return interceptor({ request: function handleRequest(request, config) { var headers, username, password; headers = request.headers || (request.headers = {}); username = request.username || config.username; password = request.password || config.password || ''; if (username) { headers.Authorization = 'Basic ' + base64.encode(username + ':' + password); } return request; } });

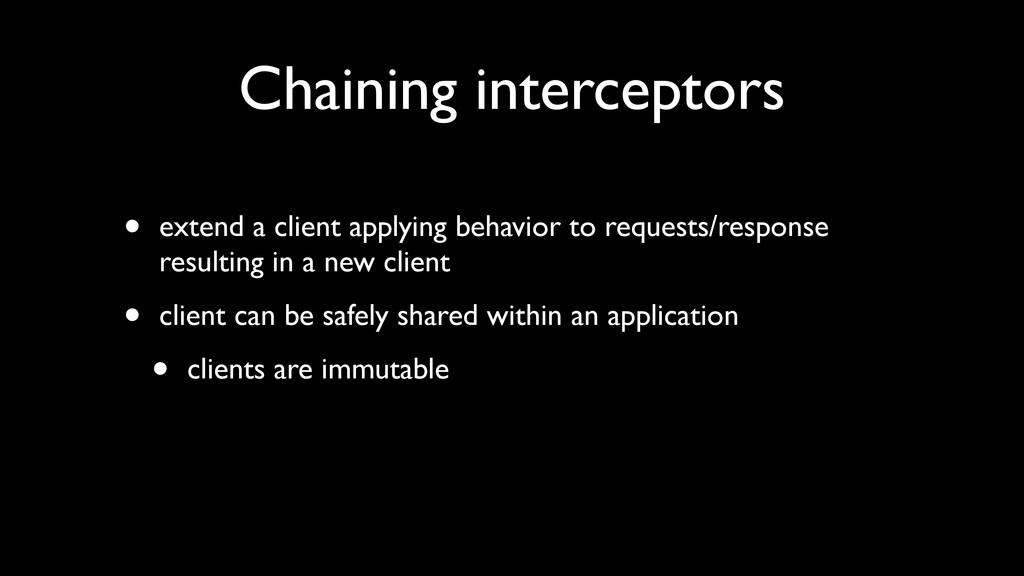

24. Chaining interceptors • extend a client applying behavior to requests/response resulting in a new client • client can be safely shared within an application • clients are immutable
25. Chaining interceptors var client = rest.chain(basicAuthInterceptor, { username: 'marisa', password: 'koala' }) .chain(errorCodeInterceptor, { code: 500 }) .chain(mimeInterceptor, { mime: 'application/json' }) .chain(hateoasInterceptor);

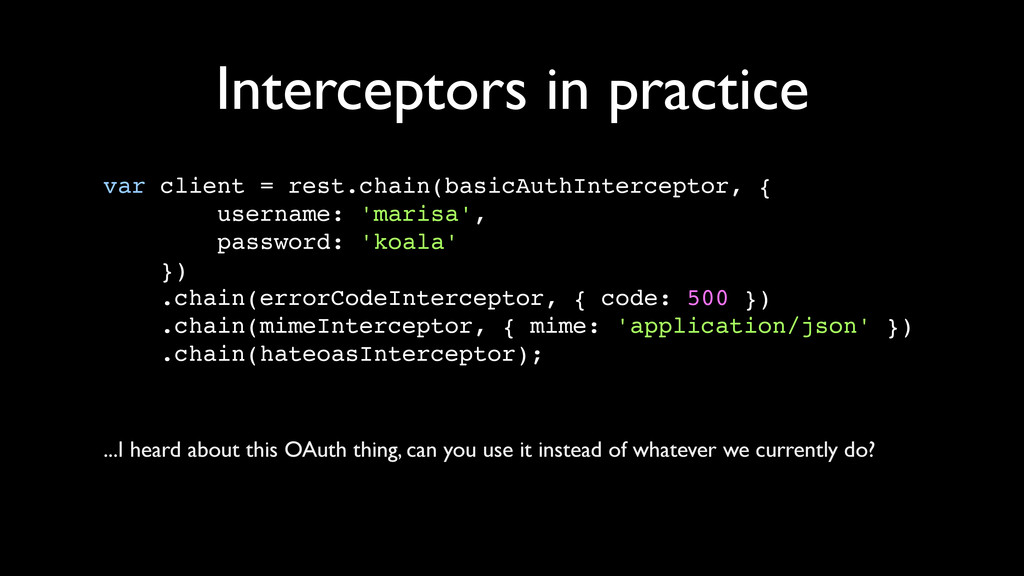

26. Interceptors in practice var client = rest.chain(basicAuthInterceptor, { username: 'marisa', password: 'koala' }) .chain(errorCodeInterceptor, { code: 500 }) .chain(mimeInterceptor, { mime: 'application/json' }) .chain(hateoasInterceptor); ...I heard about this OAuth thing, can you use it instead of whatever we currently do?
27. Interceptors in practice var client = rest.chain(oAuthInterceptor, { clientId: 'myapp', scope: 'read,write', authorizationUrl: 'http://example.com/oauth', redirectUrl: 'http://myapp.com/oauth' }) .chain(errorCodeInterceptor, { code: 500 }) .chain(mimeInterceptor, { mime: 'application/json' }) .chain(hateoasInterceptor); • replaced basic auth with OAuth • request is authenticated under the hood • other interceptors, consumers don't care
28. What about events? • no problem • let’s use WebSockets • bidirectional communication • server → client • client → server
29. The problem with WebSocket libraries • abstracts sending and receiving of messages • little support for interacting with messages

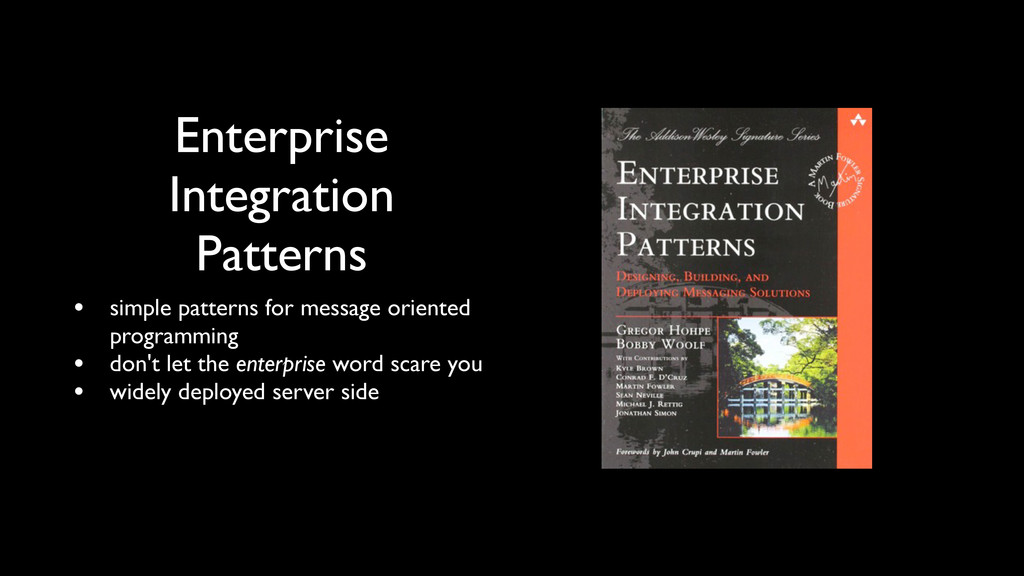

30. Enterprise Integration Patterns • simple patterns for message oriented programming • don't let the enterprise word scare you • widely deployed server side
31. msgs.js • Enterprise Integration Patterns in action • provides core messaging patterns • adapters to other messaging APIs • supports browsers (AMD) and Node.js • MIT licensed, part of cujoJS
32. Hello World var bus = require('msgs').bus(); bus.channel('lowercase'); bus.channel('uppercase'); bus.transform( function (message) { return message.toUpperCase(); }, { input: 'lowercase', output: 'uppercase' } ); bus.outboundAdapter( function (str) { console.log(str); }, { input: 'uppercase' } ); bus.send('lowercase', 'hello world'); // 'HELLO WORLD'
33. • transformer • filter • router • splitter • aggregator • inboundAdapter • outboundAdapter • inboundGateway • outboundGateway Messaging primitives • bus • channel • pubsubChannel • exchangeChannel • queueChannel • subscribe • unsubscribe • tap • untap
34. var bus = require('msgs').bus(), webSocketServer = ...; bus.pubsubChannel('fromClient'); bus.pubsubChannel('toClient'); webSocketServer.on('connection', function (connection) { bus.nodeStreamGateway(connection, { output: 'fromClient', input: 'toClient' }); }); bus.forward('fromClient', 'toClient'); Broadcast server
35. Scalable broadcast server var bus = require('msgs').bus(), redis = require('redis'), webSocketServer = ...; bus.pubsubChannel('fromClient'); bus.pubsubChannel('toClient'); webSocketServer.on('connection', function (connection) { bus.nodeStreamGateway(connection, { output: 'fromClient', input: 'toClient' }); }); bus.redisGateway(redis.createClient, 'circles', { output: 'toClient', input: 'fromClient' });
36. Let's not forget about the client var bus = require('msgs').bus(), SockJS = require('sockjs'); bus.channel('toServer'); bus.channel('fromServer'); bus.webSocketGateway( new SockJS('/msgs'), { output: 'fromServer', input: 'toServer' } ); ... Full source: https://github.com/know-cujojs/circles See it running: http://cujojs-circles.cloudfoundry.com/
37. Thanks Scott Andrews @scothis sandrews@gopivotal.com cujoJS http://cujojs.com/ rest.js https://github.com/cujojs/rest msgs.js https://github.com/cujojs/msgs
