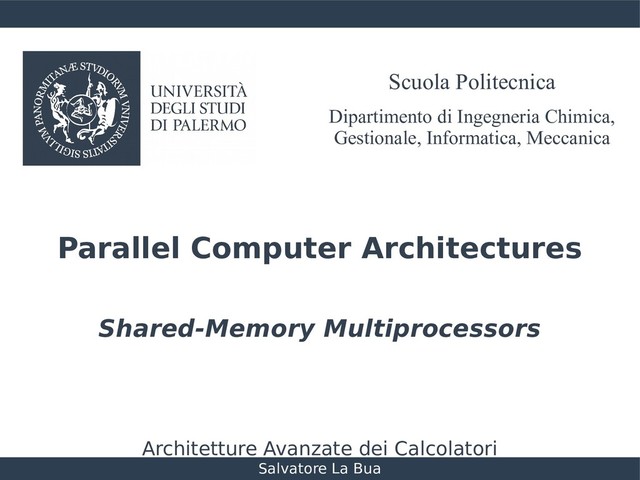

1. Scuola Politecnica Dipartimento di Ingegneria Chimica, Gestionale, Informatica, Meccanica Parallel Computer Architectures Shared-Memory Multiprocessors Architetture Avanzate dei Calcolatori Salvatore La Bua
2. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 2 Shared Memory Multiprocessors Multiprocessors Multicomputers
3. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 3 Taxonomy of Parallel Computers • SISD – Single Instruction, Single Data • Von Neumann architecture • SIMD – Single Instruction, Multiple Data • Vector and Array processor architectures • MISD – Multiple Instruction, Single Data • MIMD – Multiple Instruction, Multiple Data • Multiprocessor architectures: UMA, NUMA, COMA • Multicomputer architectures: MPP, COW
4. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 4 Memory Semantics: Consistency models • Strict consistency – Any read to a location x always returns the value of the most recent write to x • Sequential consistency – For multiple read and write requests, some interleaving is chosen – All CPUs see the same order • Processor consistency – Writes by any CPU are seen by all in the order they were issued – For every memory word, all CPUs see writes to it in the same order • Weak consistency – Does not guarantee that writes from a single CPU are seen in order • Release consistency – An improvement to the weak consistency model
5. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 5 UMA Symmetric Multiprocessor Architectures • Uniform Memory Access • Snooping Caches • Coherence protocols – Write-through – Write-allocate – Write-back
6. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 6 MESI Cache Coherence Protocol • MESI: Modified-Exclusive-Shared-Invalid – A write-back protocol • Four statuses each cache entry can be in: – Invalid • The cache entry does not contain valid data – Shared • Multiple caches may hold the line • Memory is up to date – Exclusive • No other cache holds the line • Memory is up to date – Modified • The entry is valid • Memory is invalid • No copies exist
7. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 7 UMA Multiprocessors Using Crossbar Switches Using Multistage Switching Networks
8. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 8 NUMA Multiprocessors • Non-Uniform Memory Access – Single address space visible to all CPUs – Access to remote memory done using LOAD and STORE instructions – Access to remote memory is slower than access to local memory • NC-NUMA – Non Cache coherent NUMA • CC-NUMA – Cache Coherent NUMA
9. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 9 Sun Fire E25K NUMA Multiprocessor • An example of a shared-memory NUMA multiprocessor
10. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori 10 COMA Multiprocessors • Cache Only Memory Access – Use each CPU’s main memory as a cache – Physical address space split into cache lines • Problems: – How are cache lines located? • Main memory or actual cache – When a line is purged, what happens if it is the last copy? • Last copy cannot be thrown out
