How to write a GraphQL server

What is GraphQL, how to write a GraphQL server, code examples, how to solve the N+1 problem, authentication and authorization.

Presentation: https://youtu.be/Tpf9kVE2AY8

Talk presented at Leiden Developers Meetup, 26 June 2017 and Xebia Knowledge Exchange, 27 June 2017

Transcript

1. How to write a GraphQL server Stefano Masini @stefanomasini 27 June 2017

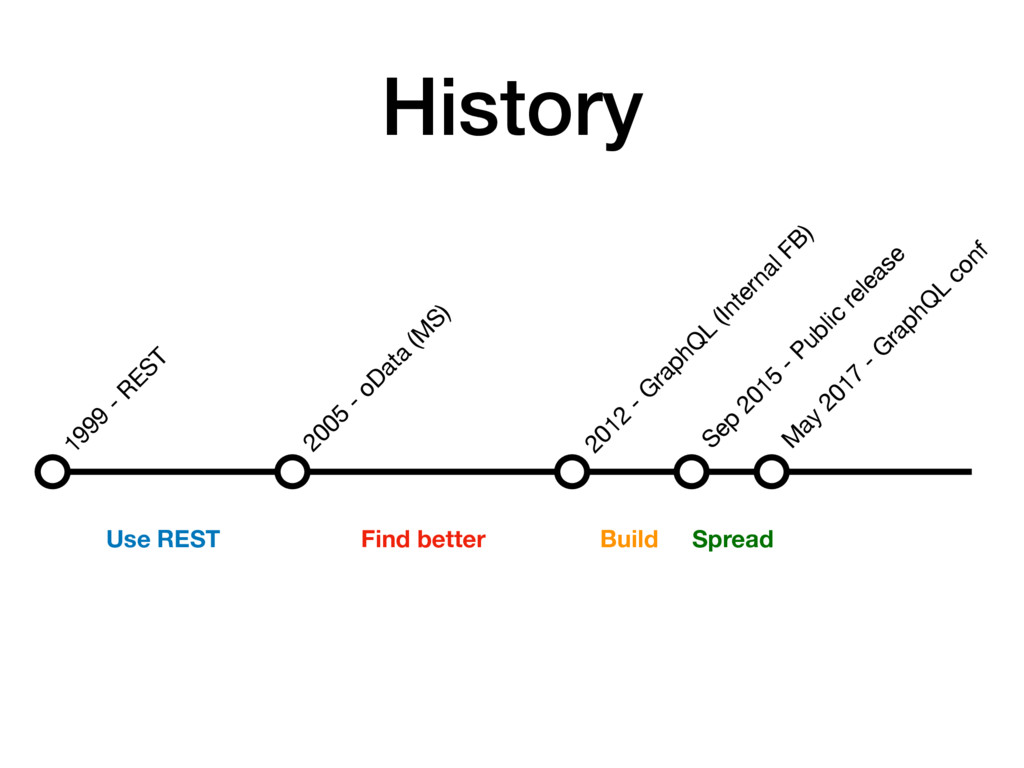

2. History 1999 - REST 2005 - oData (M S) 2012 - G raphQ L (Internal FB) Sep 2015 - Public release M ay 2017 - G raphQ L conf Use REST Find better Build Spread
3. Who is using GraphQL

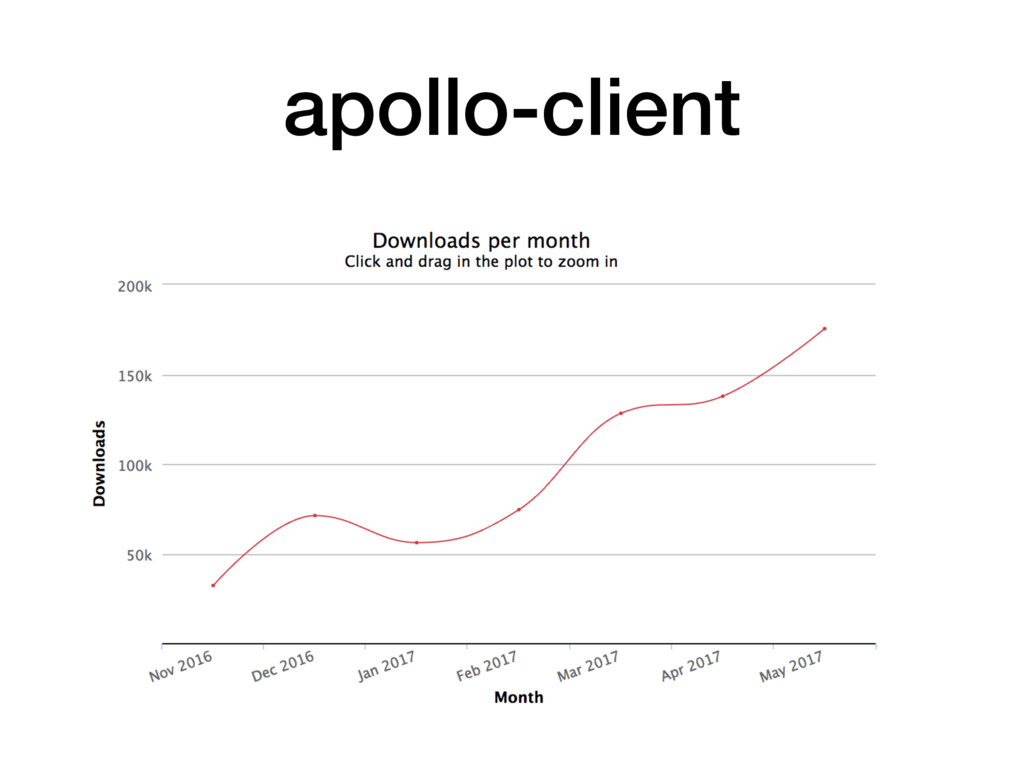

4. apollo-client

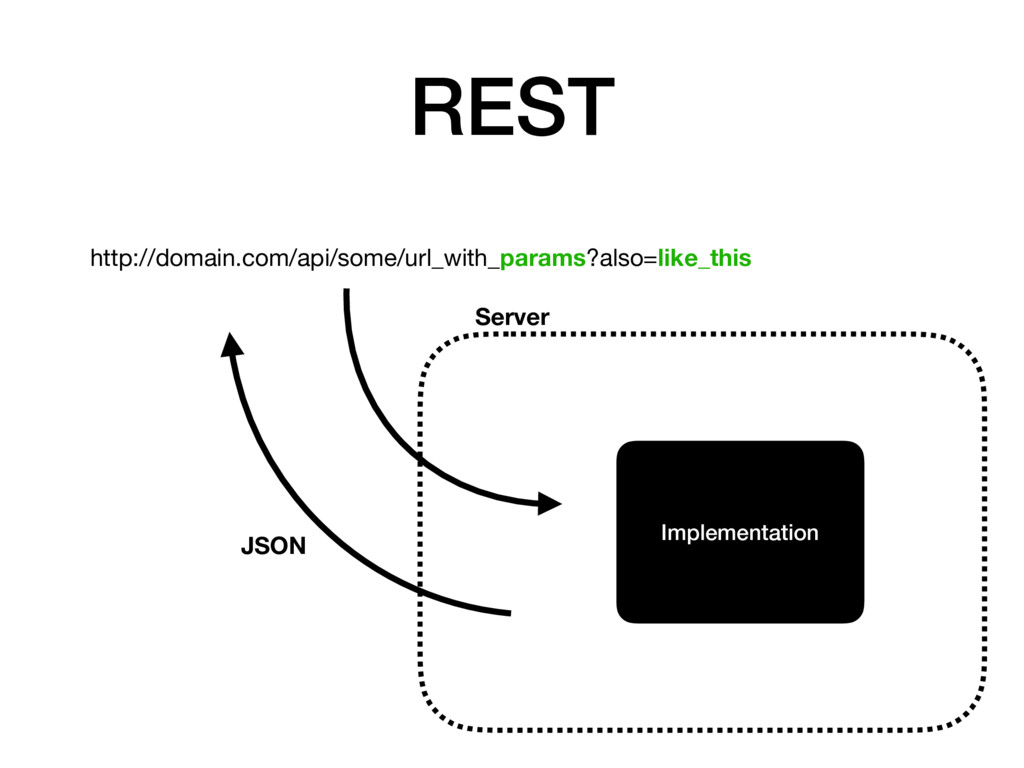

5. REST http://domain.com/api/some/url_with_params?also=like_this Implementation Server JSON

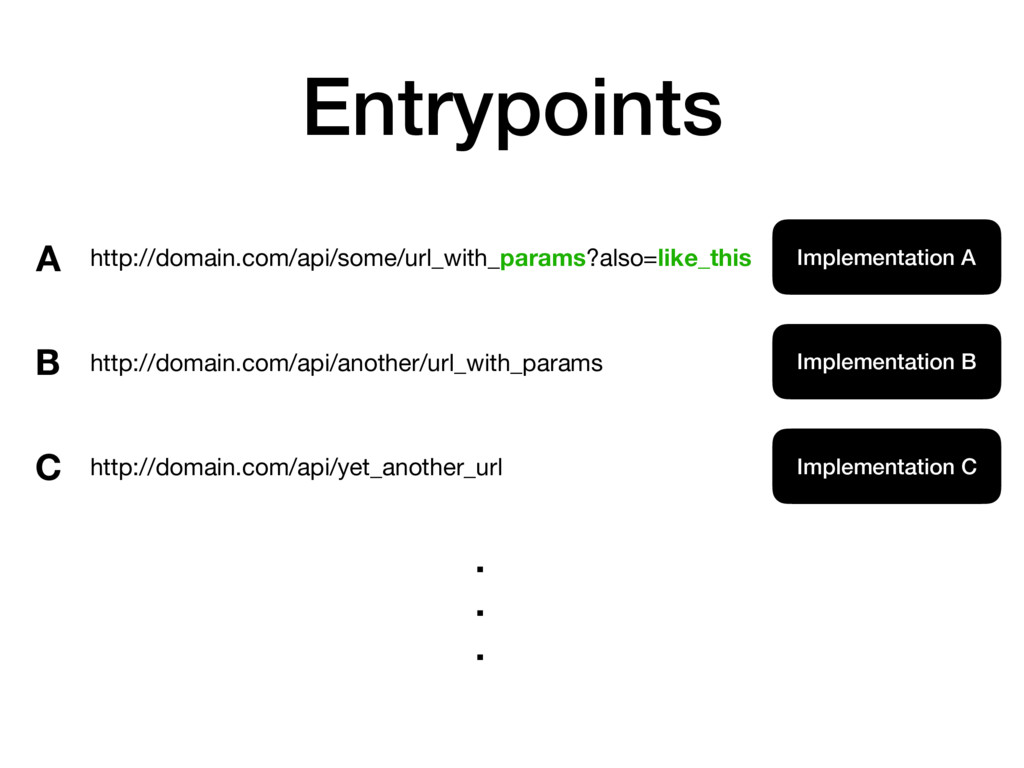

6. Entrypoints . . . Implementation A A http://domain.com/api/some/url_with_params?also=like_this Implementation B B http://domain.com/api/another/url_with_params Implementation C C http://domain.com/api/yet_another_url

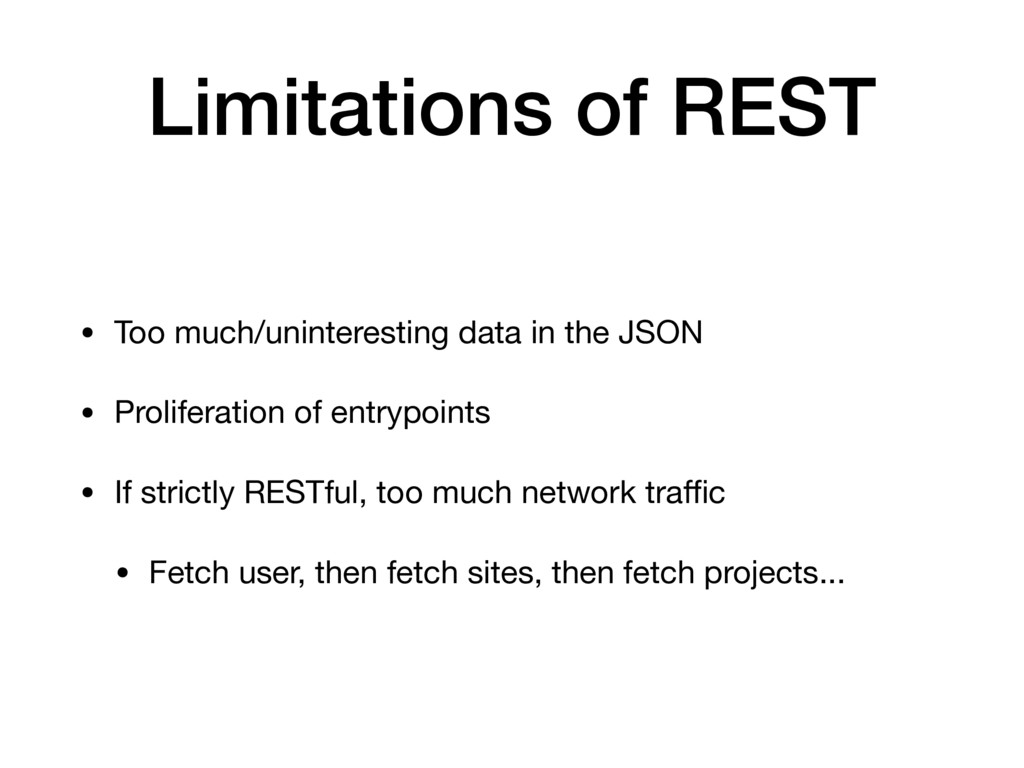

7. Limitations of REST • Too much/uninteresting data in the JSON • Proliferation of entrypoints • If strictly RESTful, too much network traffic • Fetch user, then fetch sites, then fetch projects...

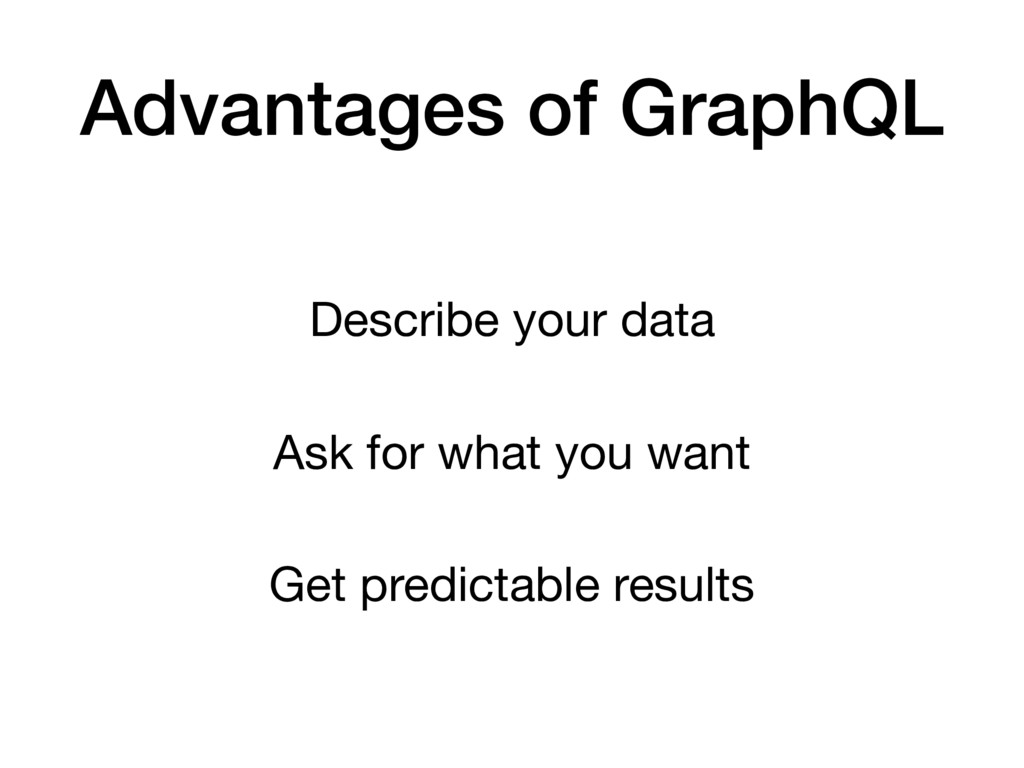

8. Advantages of GraphQL Describe your data Ask for what you want Get predictable results

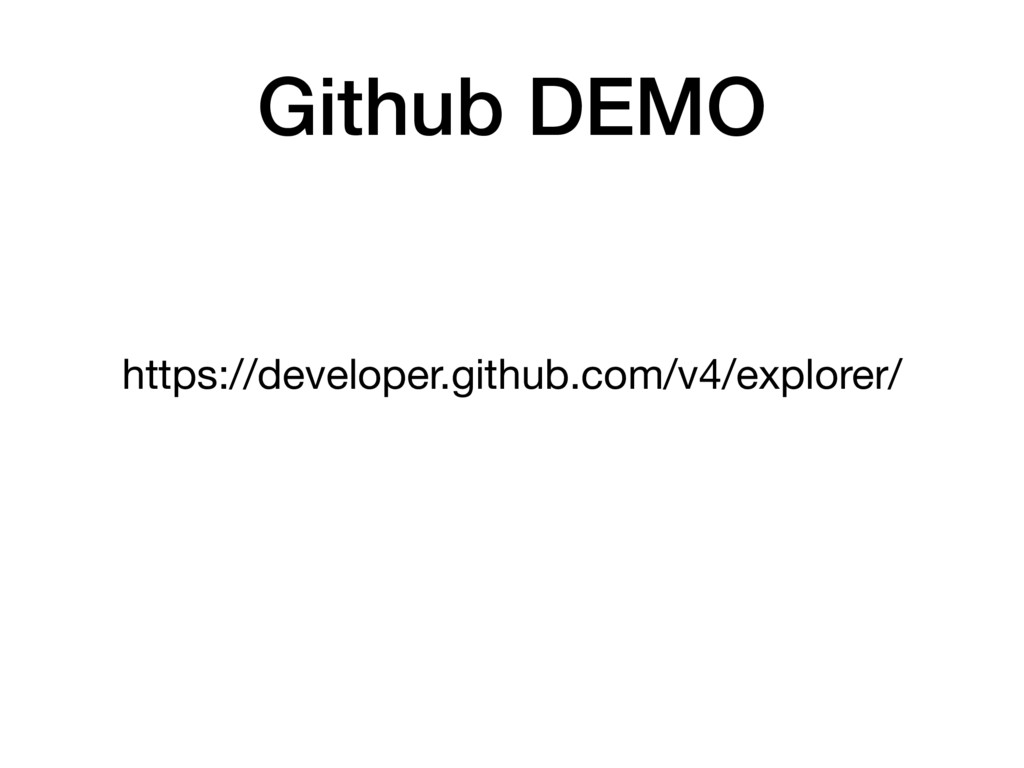

9. Github DEMO https://developer.github.com/v4/explorer/

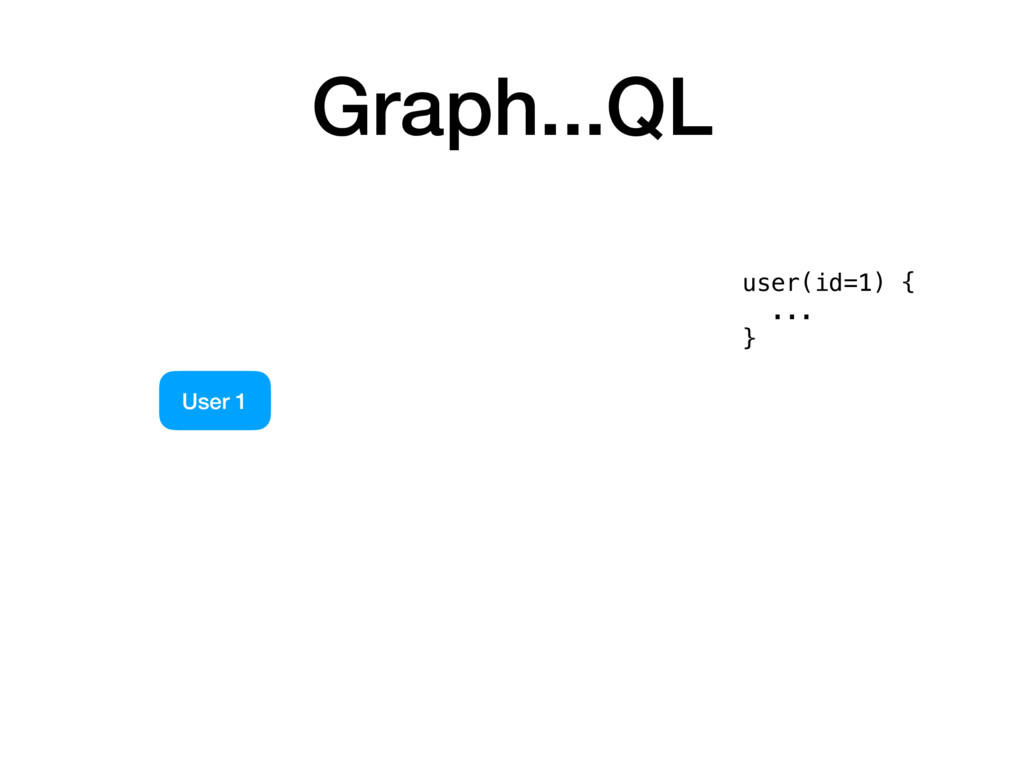

10. Graph...QL User 1 user(id=1) { ... }

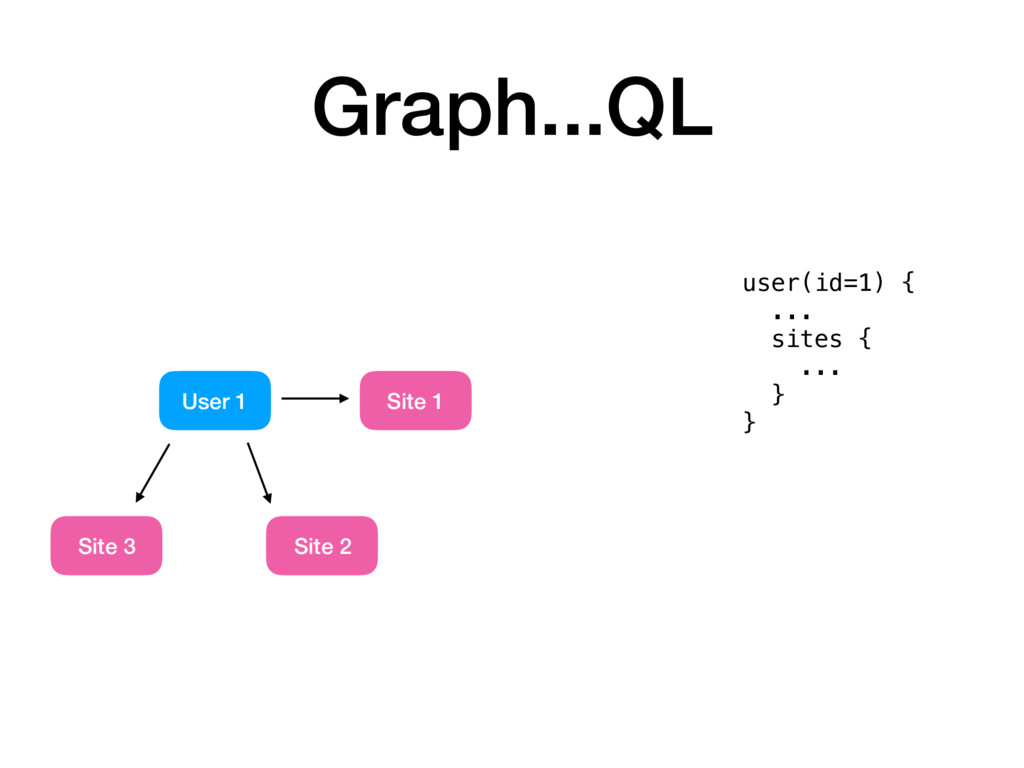

11. Graph...QL User 1 Site 1 Site 2 Site 3 user(id=1) { ... sites { ... } }

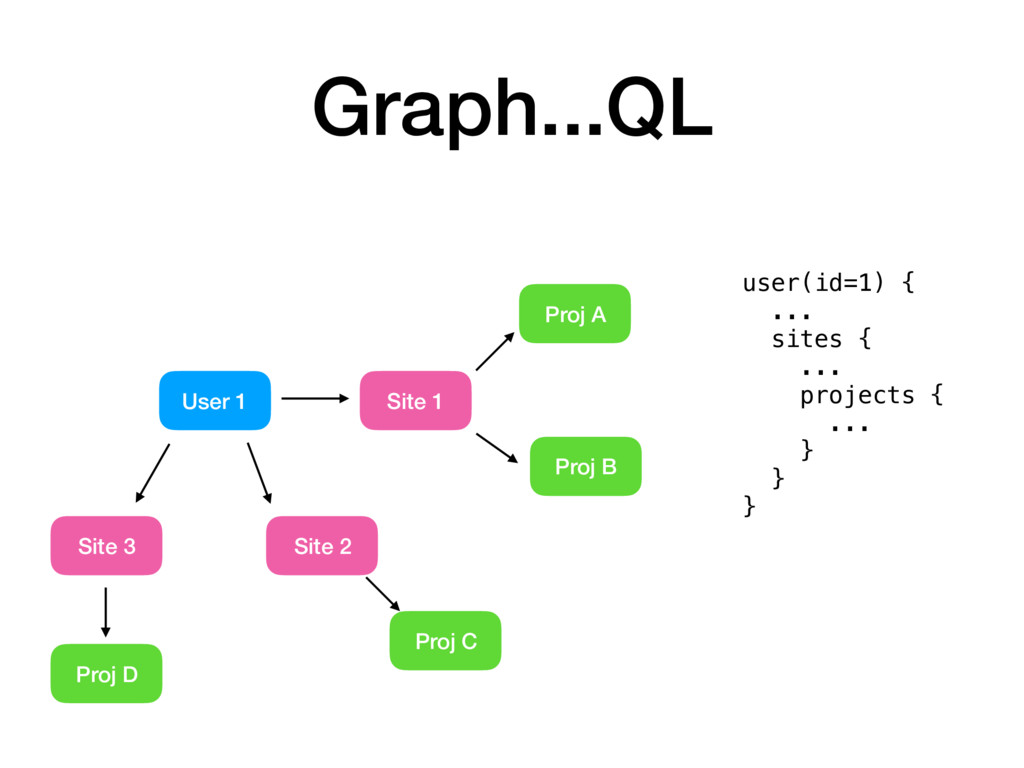

12. Graph...QL User 1 Site 1 Site 2 Site 3 Proj A Proj B Proj C Proj D user(id=1) { ... sites { ... projects { ... } } }

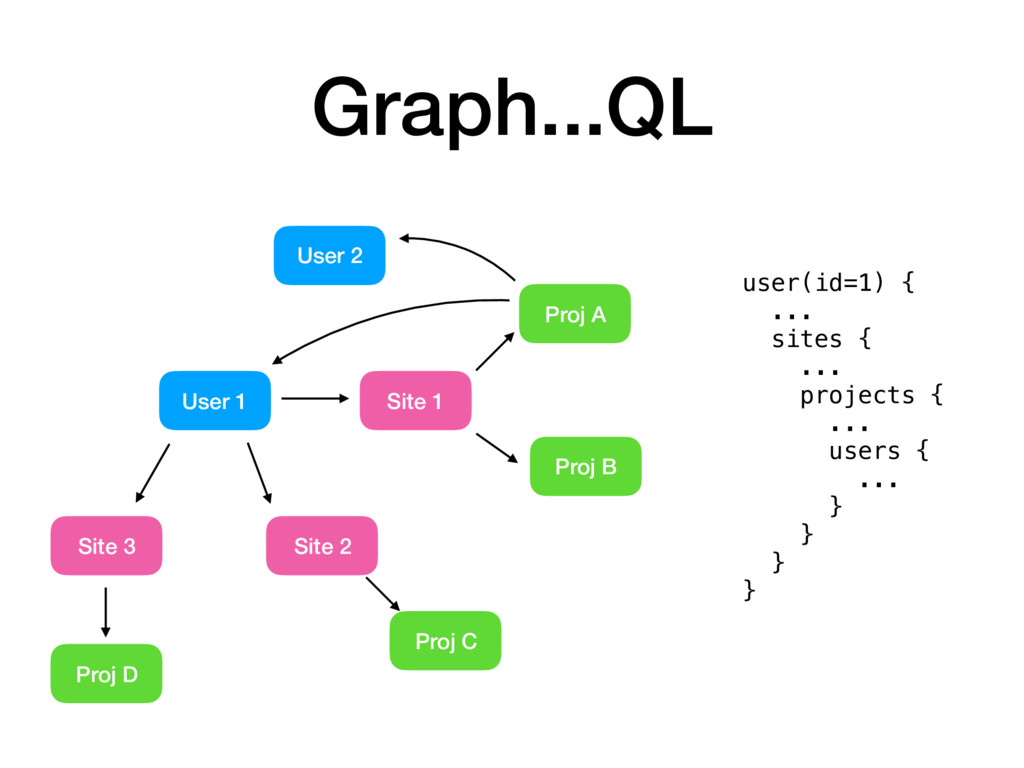

13. Graph...QL User 1 Site 1 Site 2 Site 3 Proj A Proj B Proj C Proj D User 2 user(id=1) { ... sites { ... projects { ... users { ... } } } }

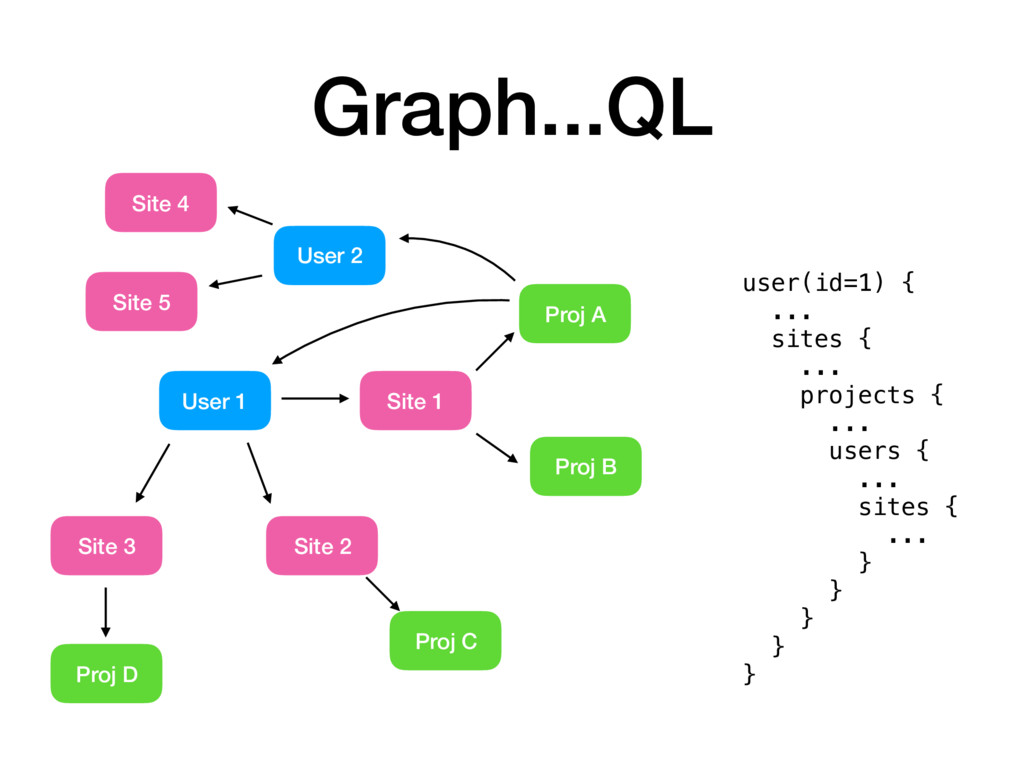

14. Graph...QL User 1 Site 1 Site 2 Site 3 Proj A Proj B Proj C Proj D User 2 user(id=1) { ... sites { ... projects { ... users { ... sites { ... } } } } } Site 4 Site 5

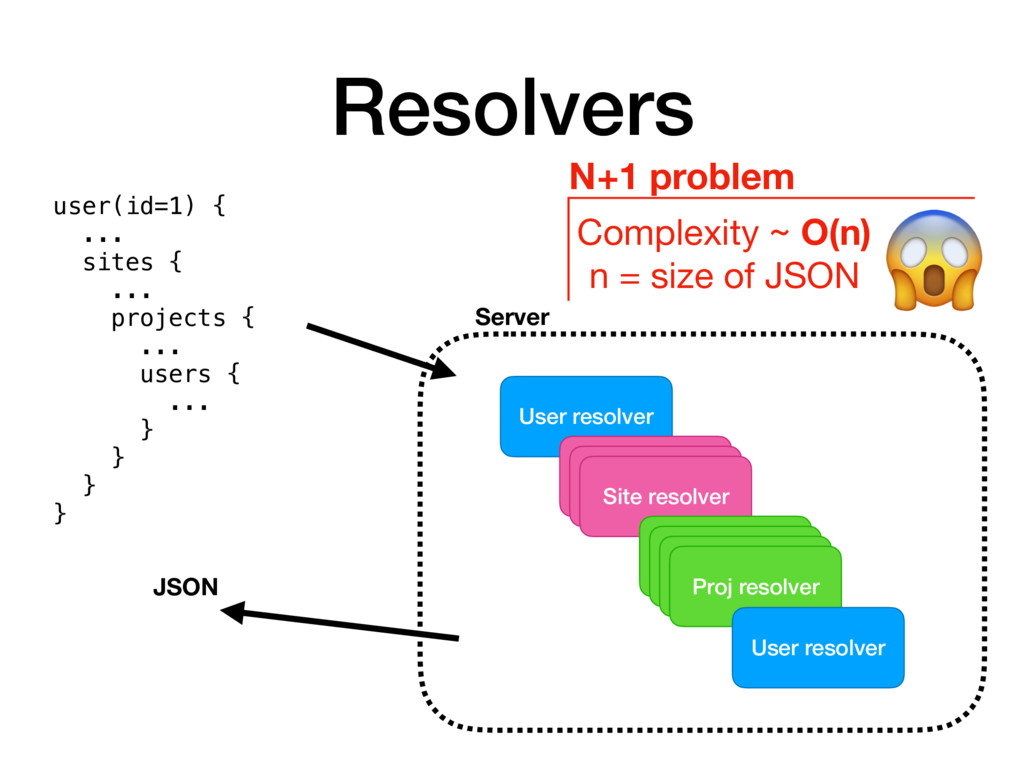

15. Resolvers User resolver Server JSON user(id=1) { ... sites { ... projects { ... users { ... } } } } Site resolver Site resolver Site resolver Proj resolver Proj resolver Proj resolver Proj resolver User resolver Complexity ~ O(n) n = size of JSON N+1 problem

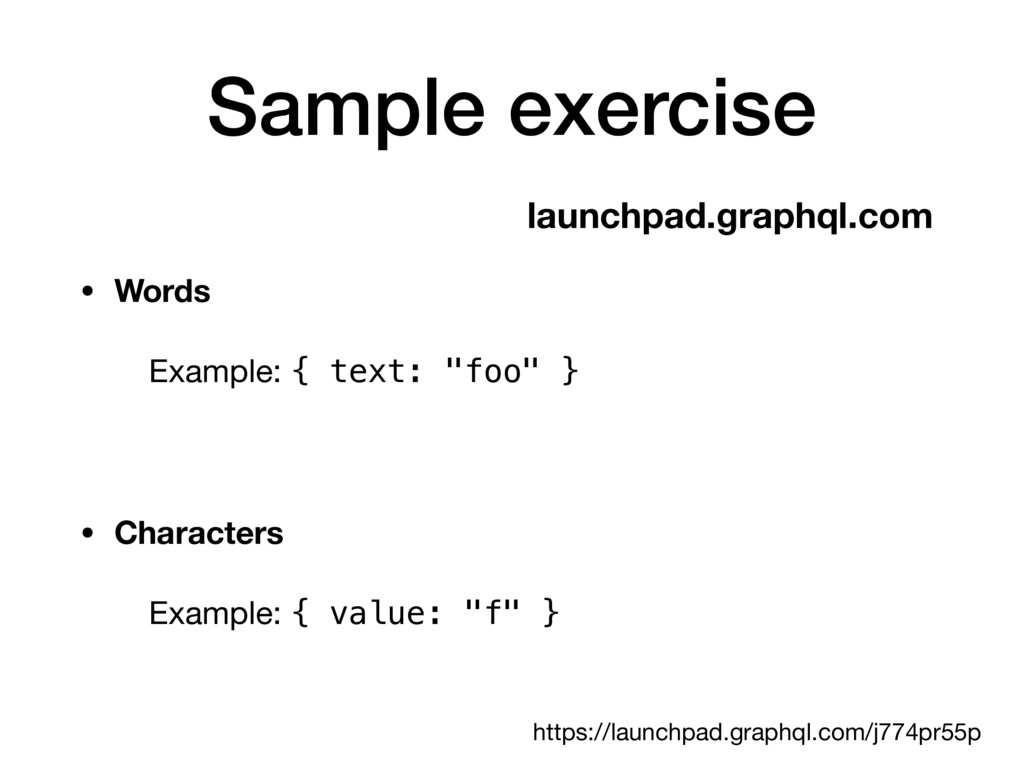

16. Sample exercise • Words Example: { text: "foo" } • Characters Example: { value: "f" } https://launchpad.graphql.com/j774pr55p launchpad.graphql.com

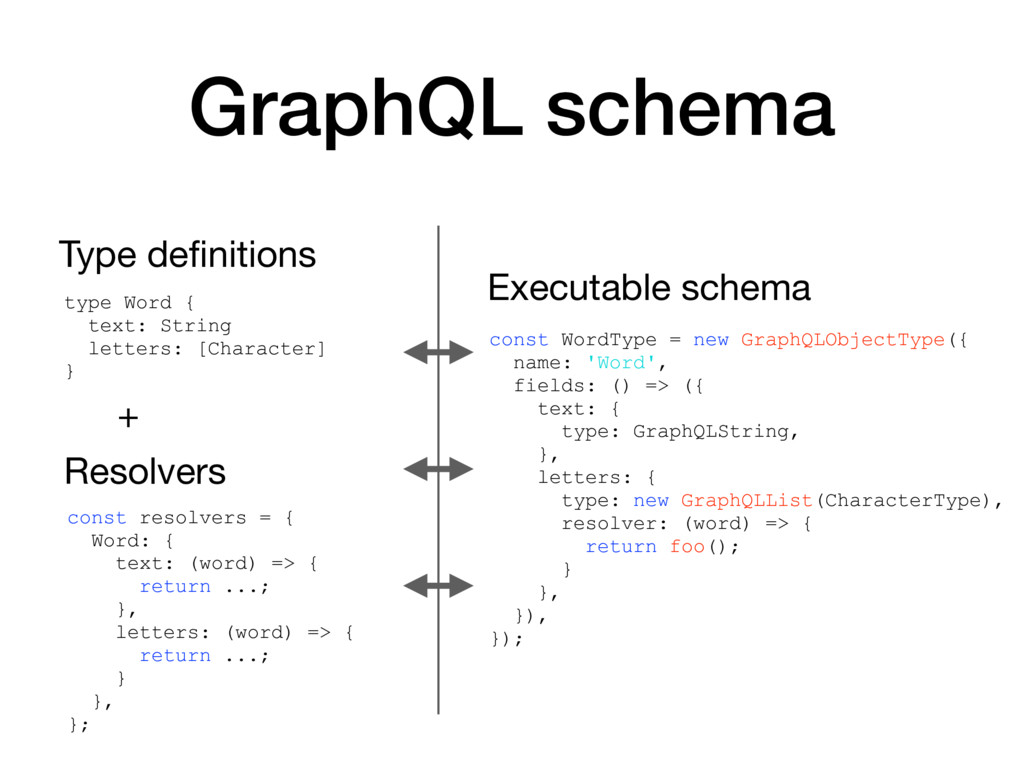

17. GraphQL schema type Word { text: String letters: [Character] } Type definitions Resolvers const resolvers = { Word: { text: (word) => { return ...; }, letters: (word) => { return ...; } }, }; const WordType = new GraphQLObjectType({ name: 'Word', fields: () => ({ text: { type: GraphQLString, }, letters: { type: new GraphQLList(CharacterType), resolver: (word) => { return foo(); } }, }), }); + Executable schema

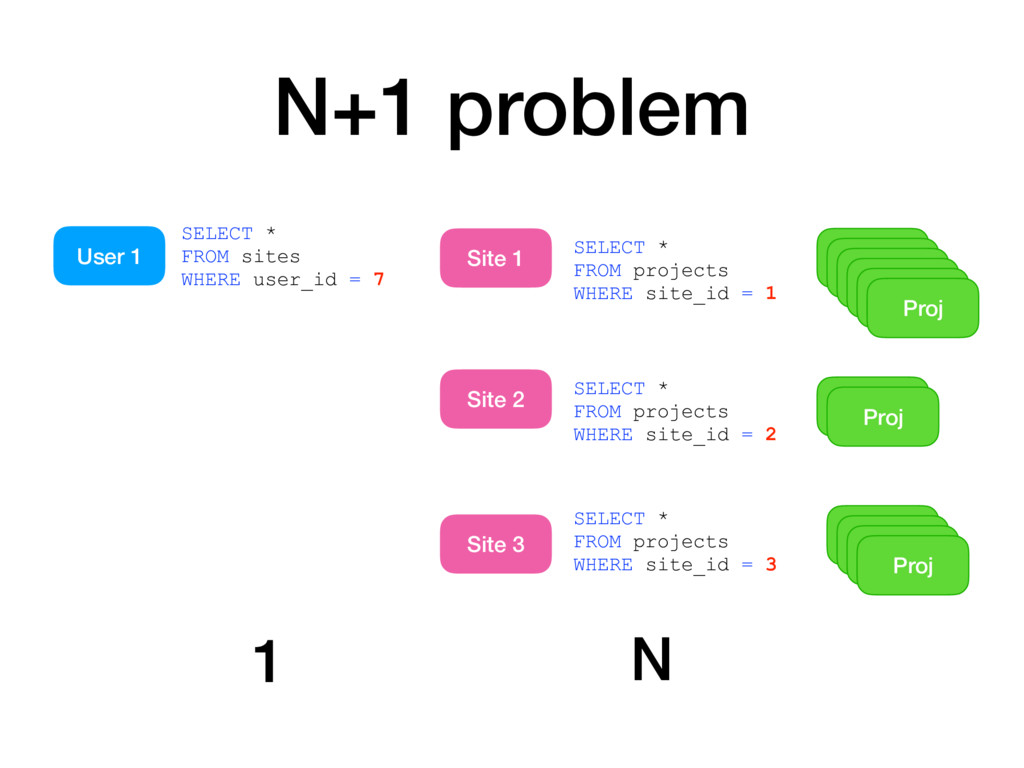

18. N+1 problem User 1 Site 1 Site 2 Site 3 SELECT * FROM sites WHERE user_id = 7 SELECT * FROM projects WHERE site_id = 1 SELECT * FROM projects WHERE site_id = 2 SELECT * FROM projects WHERE site_id = 3 Proj Proj Proj Proj Proj Proj Proj Proj Proj Proj Proj Proj 1 N

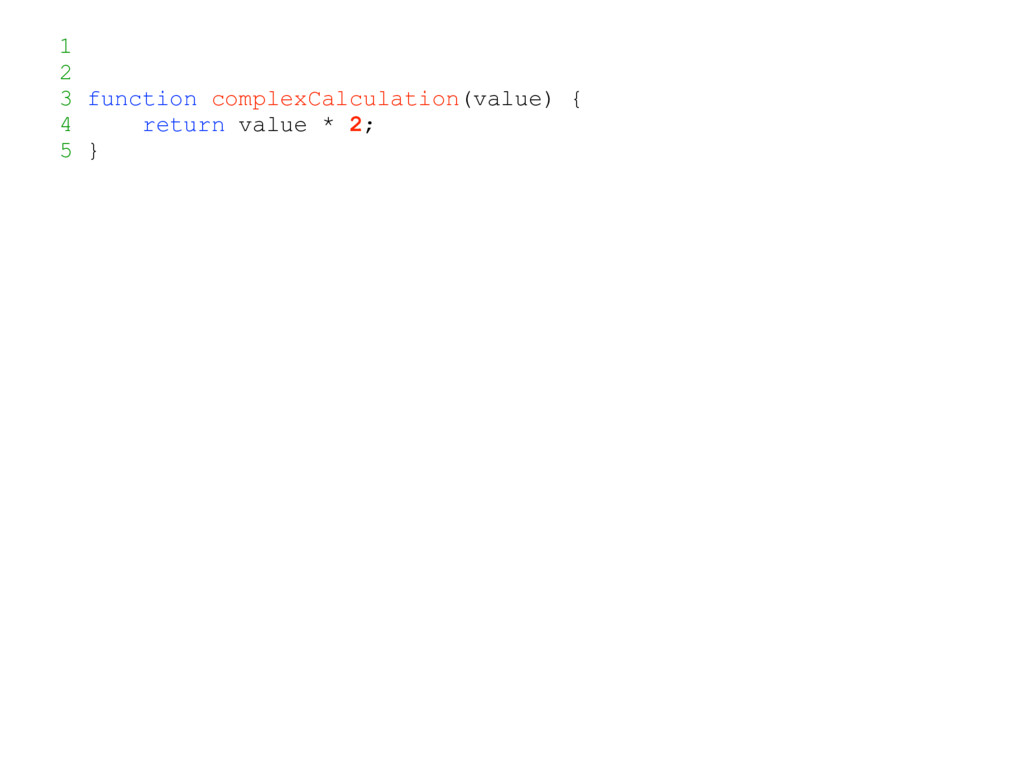

19. 1 2 3 function complexCalculation(value) { 4 return value * 2; 5 }

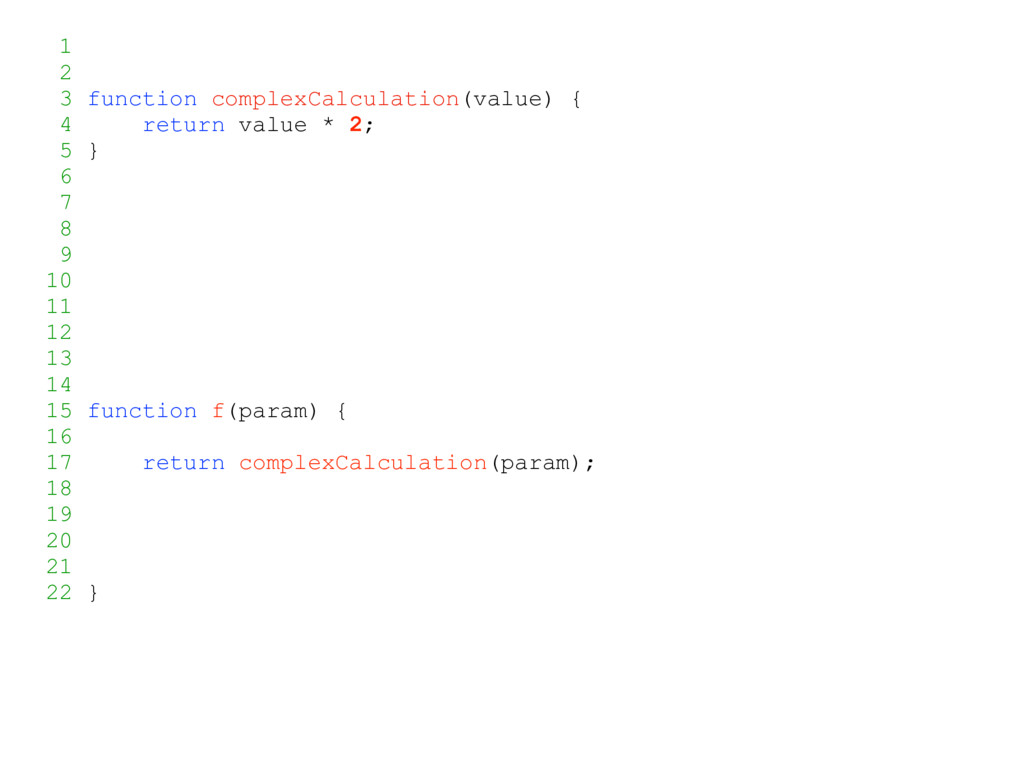

20. 1 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 8 9 10 11 12 13 14 15 function f(param) { 16 17 return complexCalculation(param); 18 19 20 21 22 }

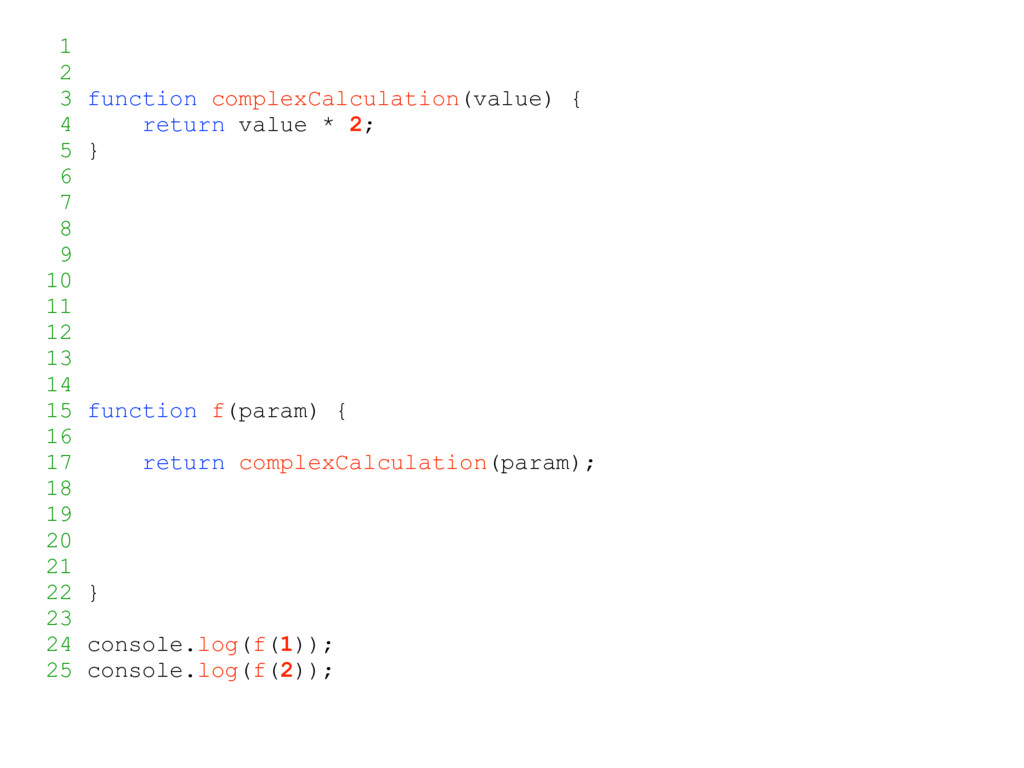

21. 1 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 8 9 10 11 12 13 14 15 function f(param) { 16 17 return complexCalculation(param); 18 19 20 21 22 } 23 24 console.log(f(1)); 25 console.log(f(2));

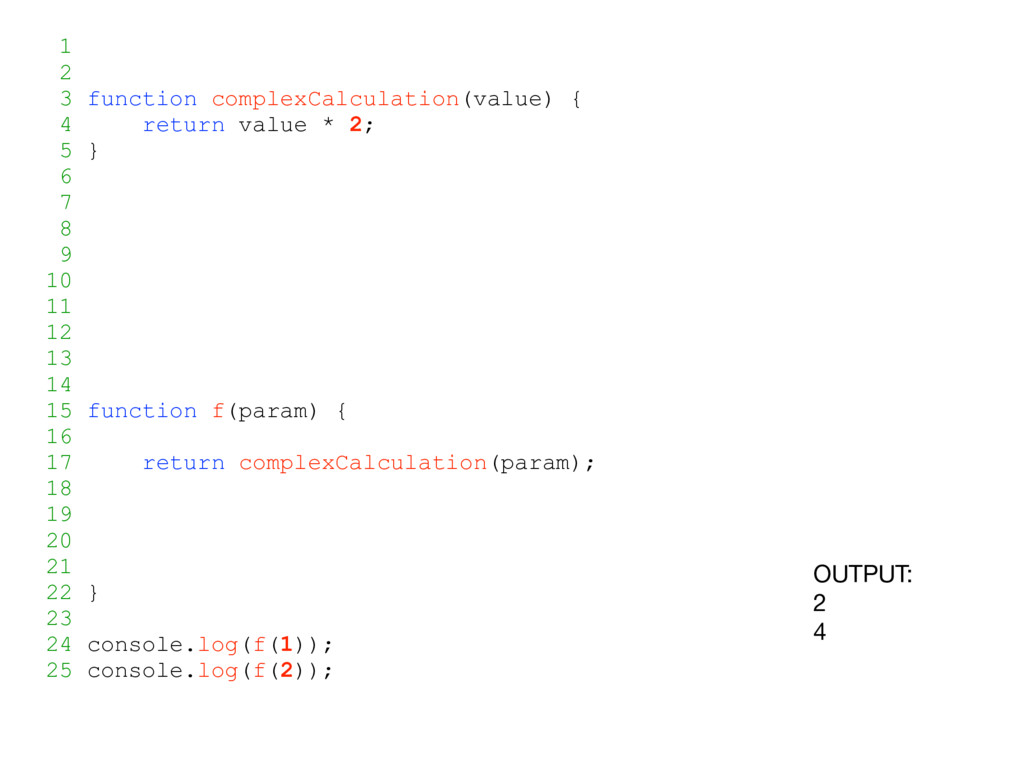

22. 1 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 8 9 10 11 12 13 14 15 function f(param) { 16 17 return complexCalculation(param); 18 19 20 21 22 } 23 24 console.log(f(1)); 25 console.log(f(2)); OUTPUT: 2 4

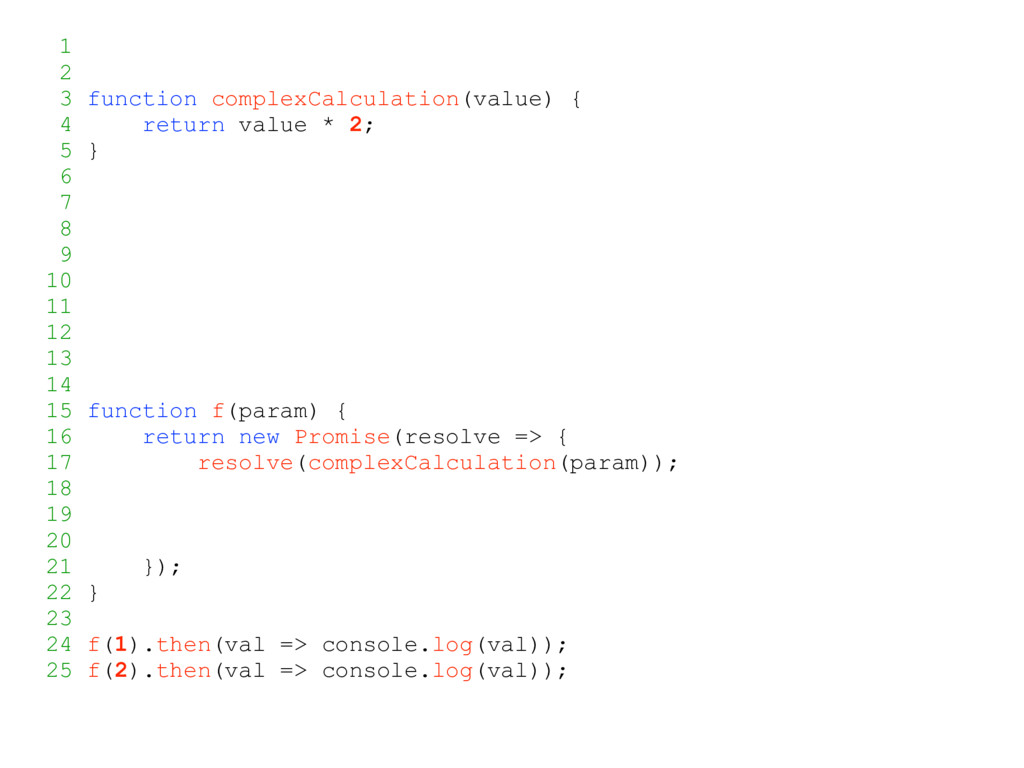

23. 1 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 8 9 10 11 12 13 14 15 function f(param) { 16 return new Promise(resolve => { 17 resolve(complexCalculation(param)); 18 19 20 21 }); 22 } 23 24 f(1).then(val => console.log(val)); 25 f(2).then(val => console.log(val));

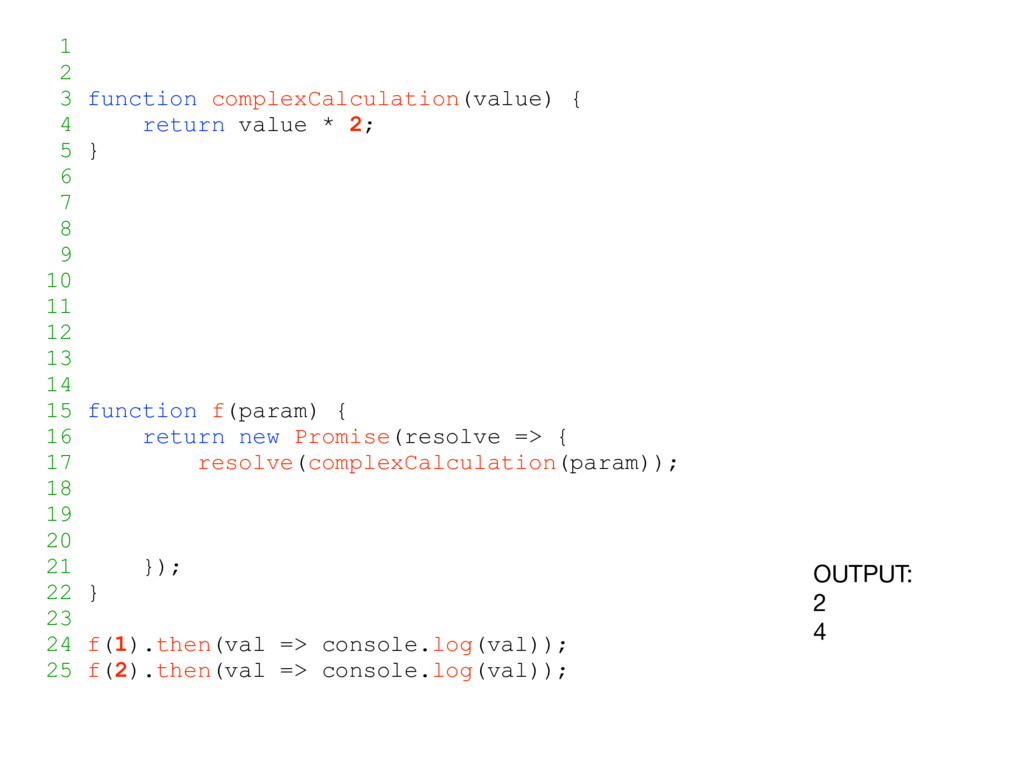

24. 1 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 8 9 10 11 12 13 14 15 function f(param) { 16 return new Promise(resolve => { 17 resolve(complexCalculation(param)); 18 19 20 21 }); 22 } 23 24 f(1).then(val => console.log(val)); 25 f(2).then(val => console.log(val)); OUTPUT: 2 4

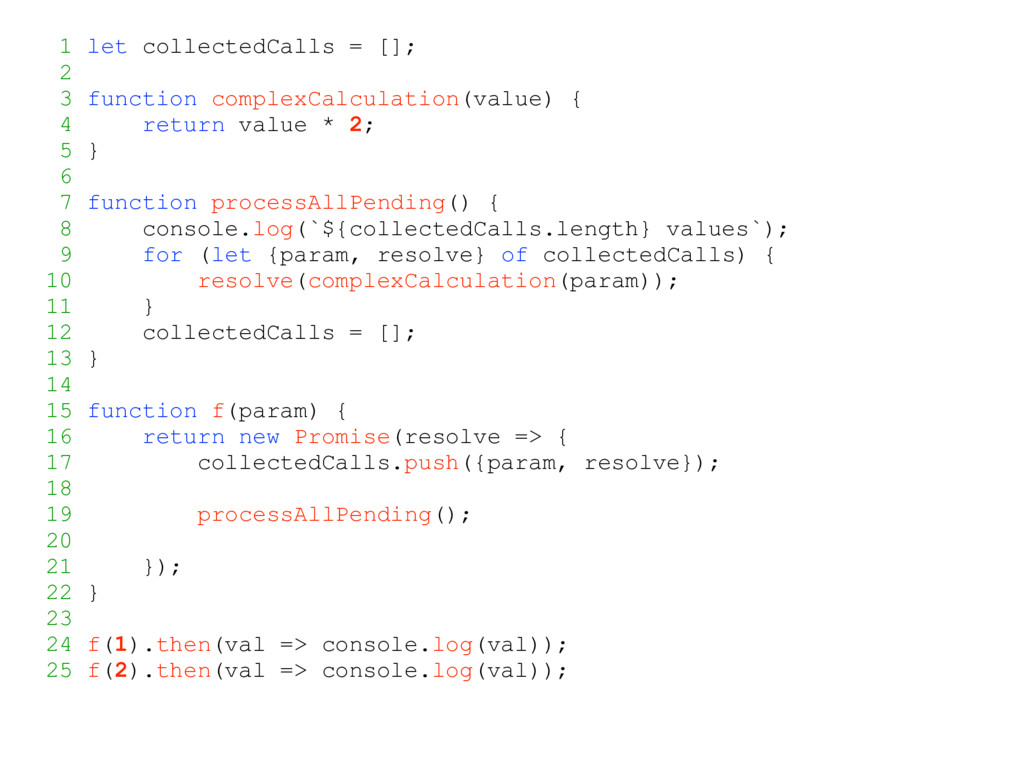

25. 1 let collectedCalls = []; 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 function processAllPending() { 8 console.log(`${collectedCalls.length} values`); 9 for (let {param, resolve} of collectedCalls) { 10 resolve(complexCalculation(param)); 11 } 12 collectedCalls = []; 13 } 14 15 function f(param) { 16 return new Promise(resolve => { 17 collectedCalls.push({param, resolve}); 18 19 processAllPending(); 20 21 }); 22 } 23 24 f(1).then(val => console.log(val)); 25 f(2).then(val => console.log(val));

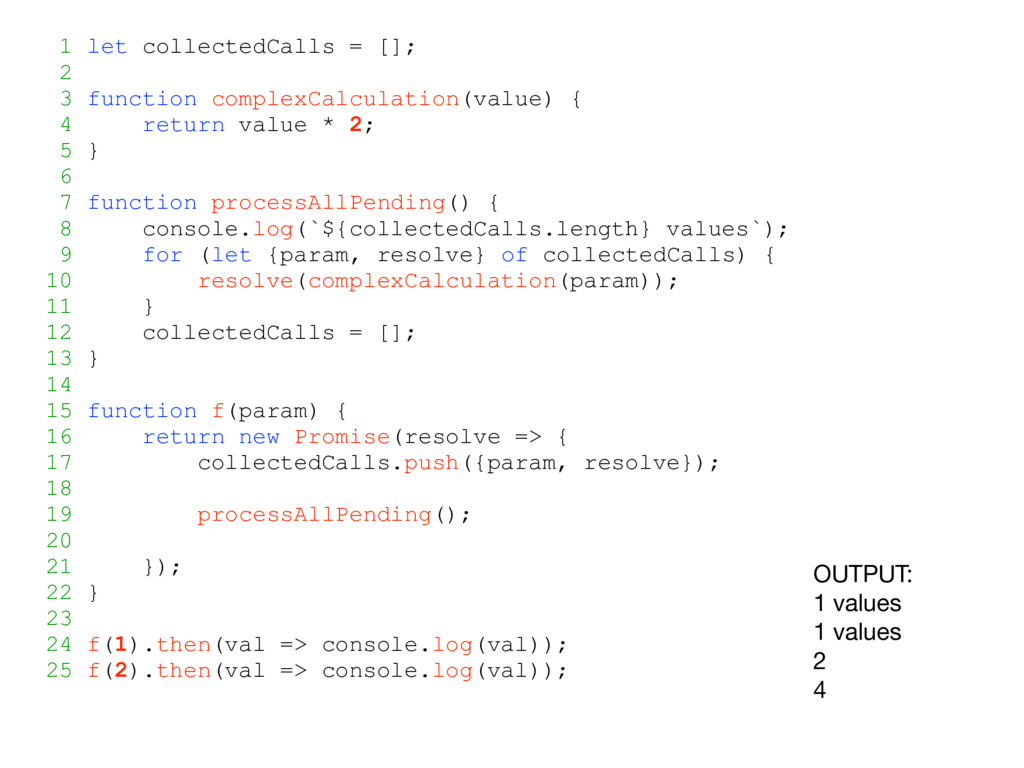

26. 1 let collectedCalls = []; 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 function processAllPending() { 8 console.log(`${collectedCalls.length} values`); 9 for (let {param, resolve} of collectedCalls) { 10 resolve(complexCalculation(param)); 11 } 12 collectedCalls = []; 13 } 14 15 function f(param) { 16 return new Promise(resolve => { 17 collectedCalls.push({param, resolve}); 18 19 processAllPending(); 20 21 }); 22 } 23 24 f(1).then(val => console.log(val)); 25 f(2).then(val => console.log(val)); OUTPUT: 1 values 1 values 2 4

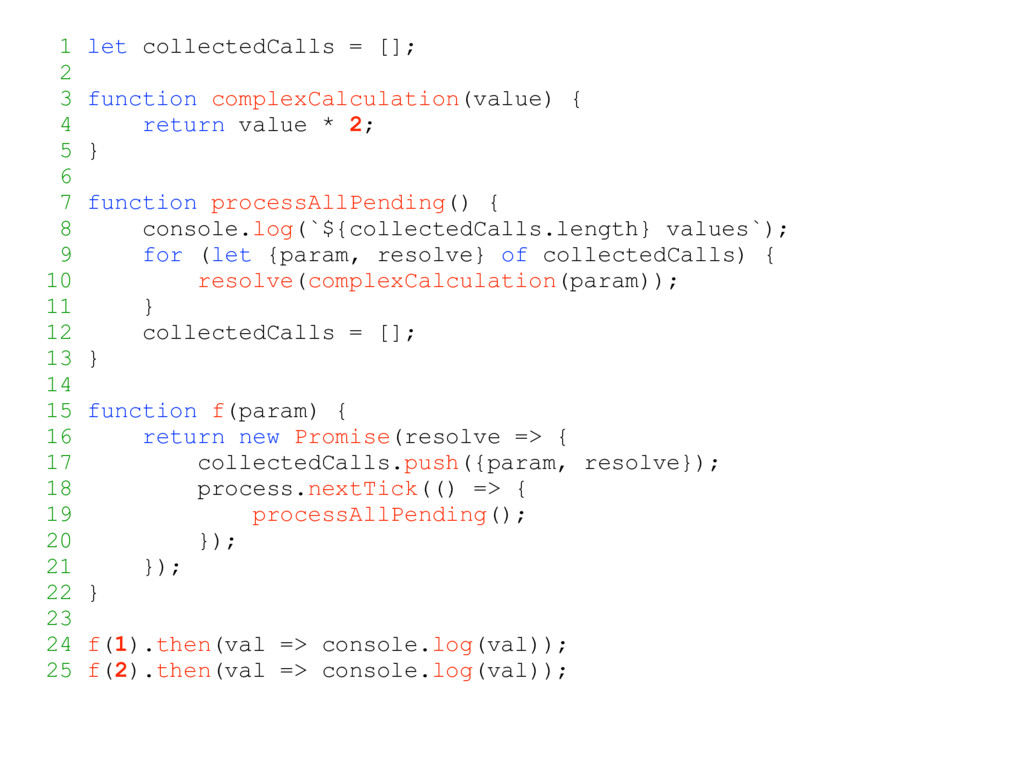

27. 1 let collectedCalls = []; 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 function processAllPending() { 8 console.log(`${collectedCalls.length} values`); 9 for (let {param, resolve} of collectedCalls) { 10 resolve(complexCalculation(param)); 11 } 12 collectedCalls = []; 13 } 14 15 function f(param) { 16 return new Promise(resolve => { 17 collectedCalls.push({param, resolve}); 18 process.nextTick(() => { 19 processAllPending(); 20 }); 21 }); 22 } 23 24 f(1).then(val => console.log(val)); 25 f(2).then(val => console.log(val));

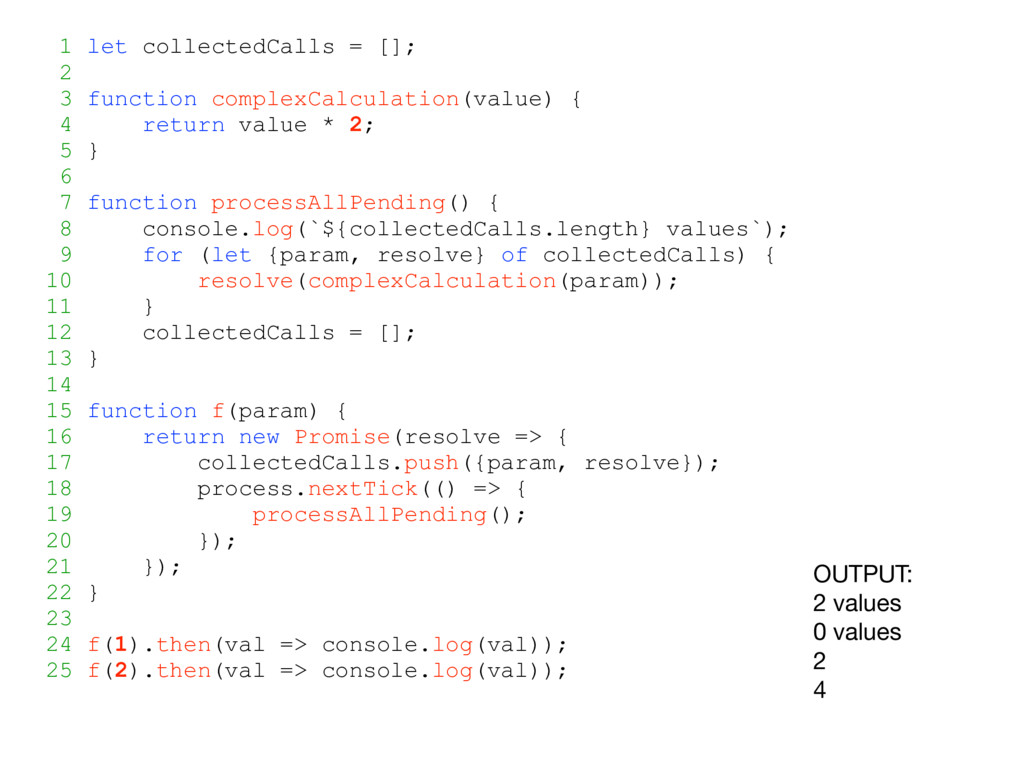

28. 1 let collectedCalls = []; 2 3 function complexCalculation(value) { 4 return value * 2; 5 } 6 7 function processAllPending() { 8 console.log(`${collectedCalls.length} values`); 9 for (let {param, resolve} of collectedCalls) { 10 resolve(complexCalculation(param)); 11 } 12 collectedCalls = []; 13 } 14 15 function f(param) { 16 return new Promise(resolve => { 17 collectedCalls.push({param, resolve}); 18 process.nextTick(() => { 19 processAllPending(); 20 }); 21 }); 22 } 23 24 f(1).then(val => console.log(val)); 25 f(2).then(val => console.log(val)); OUTPUT: 2 values 0 values 2 4

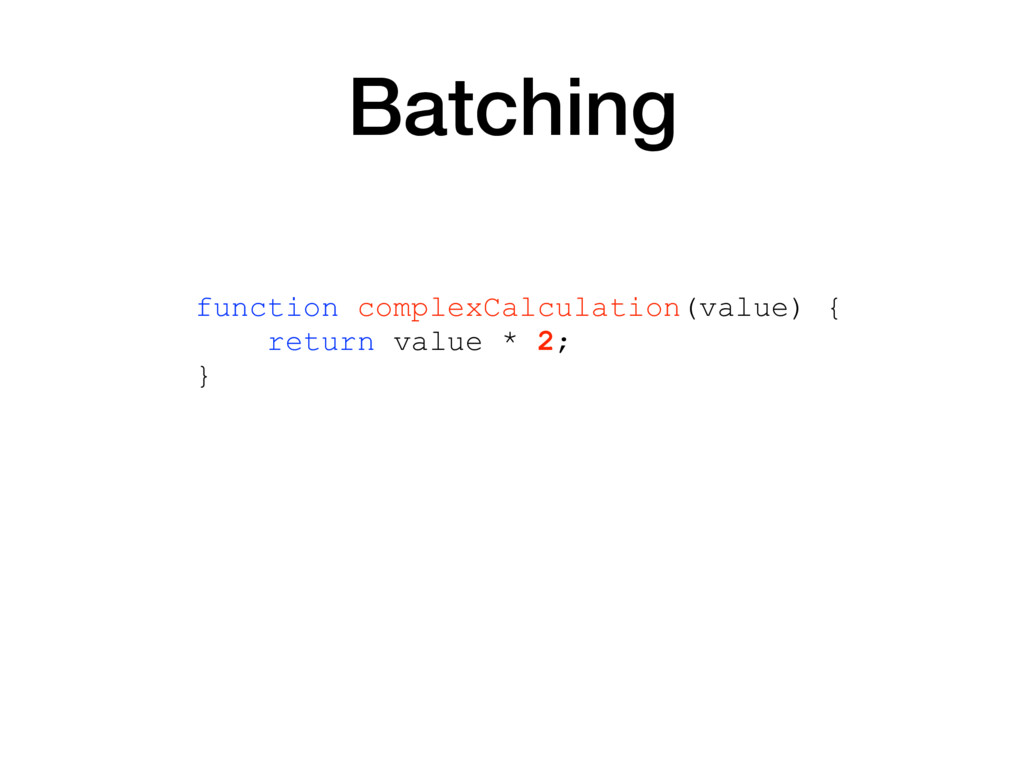

29. Batching function complexCalculation(value) { return value * 2; }

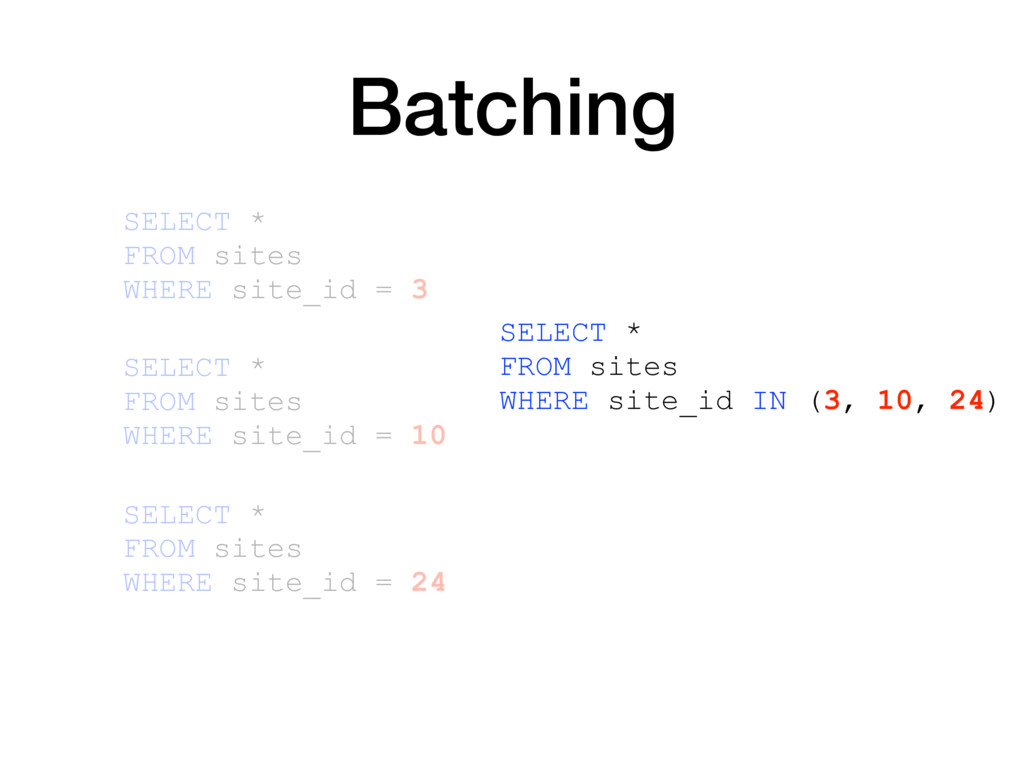

30. Batching SELECT * FROM sites WHERE site_id = 3 SELECT * FROM sites WHERE site_id = 10 SELECT * FROM sites WHERE site_id = 24 SELECT * FROM sites WHERE site_id IN (3, 10, 24)

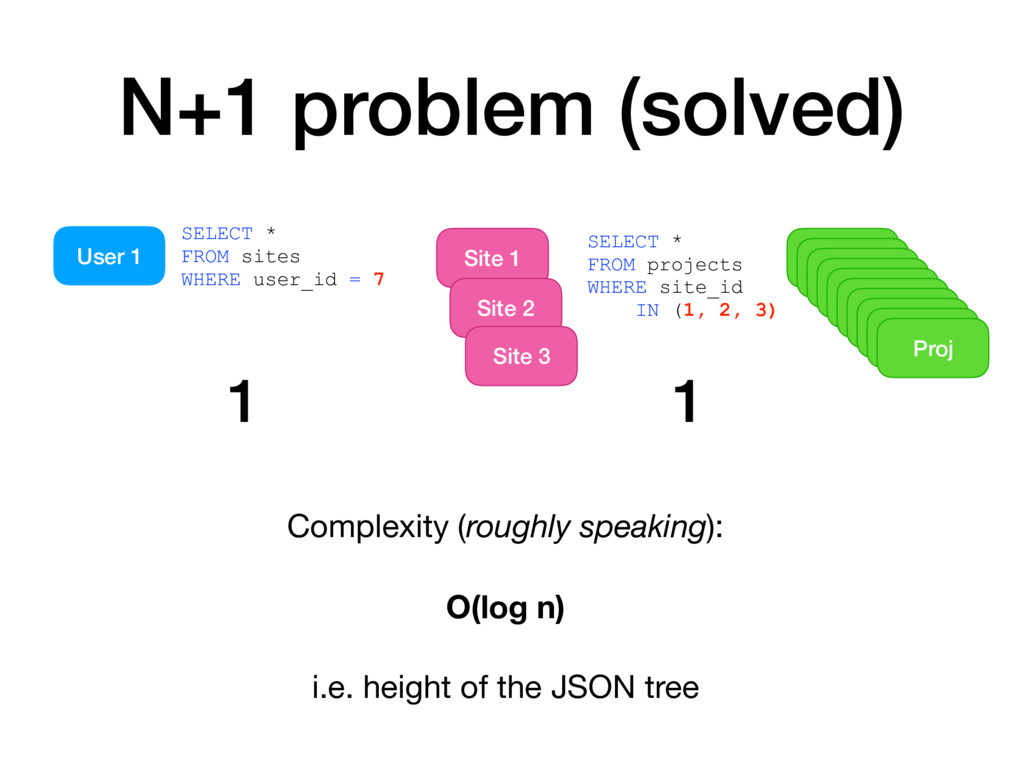

31. N+1 problem (solved) User 1 SELECT * FROM sites WHERE user_id = 7 SELECT * FROM projects WHERE site_id IN (1, 2, 3) 1 1 Complexity (roughly speaking): O(log n) i.e. height of the JSON tree Site 1 Site 2 Site 3 Proj Proj Proj Proj Proj Proj Proj Proj Proj Proj

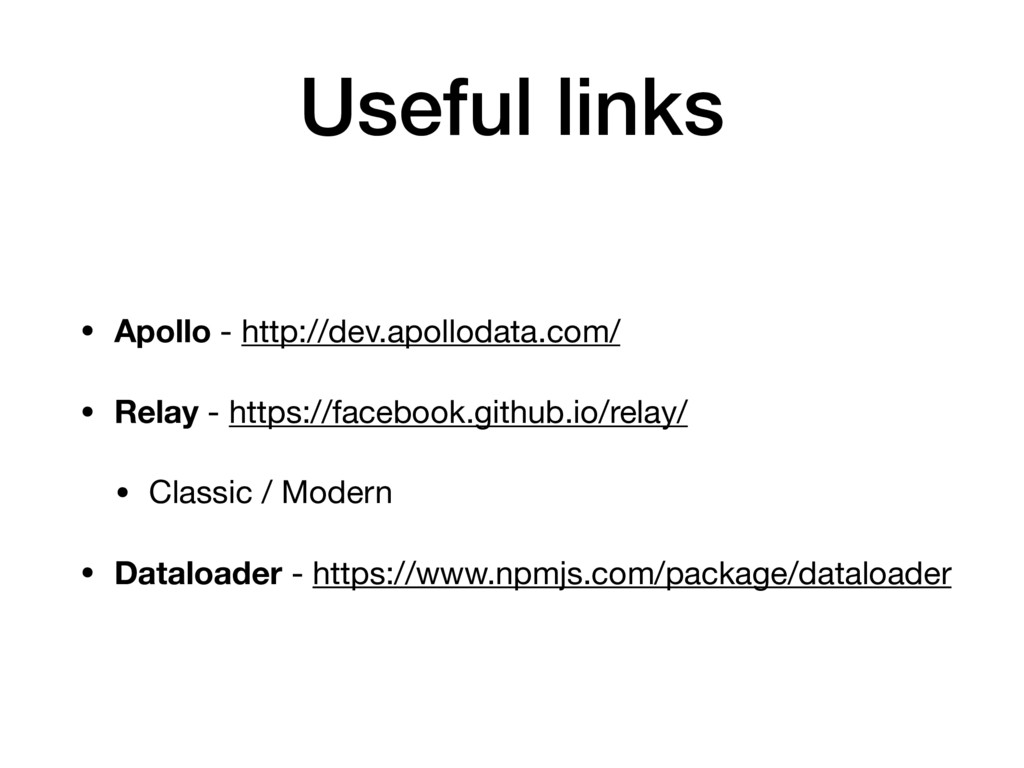

32. Useful links • Apollo - http://dev.apollodata.com/ • Relay - https://facebook.github.io/relay/ • Classic / Modern • Dataloader - https://www.npmjs.com/package/dataloader

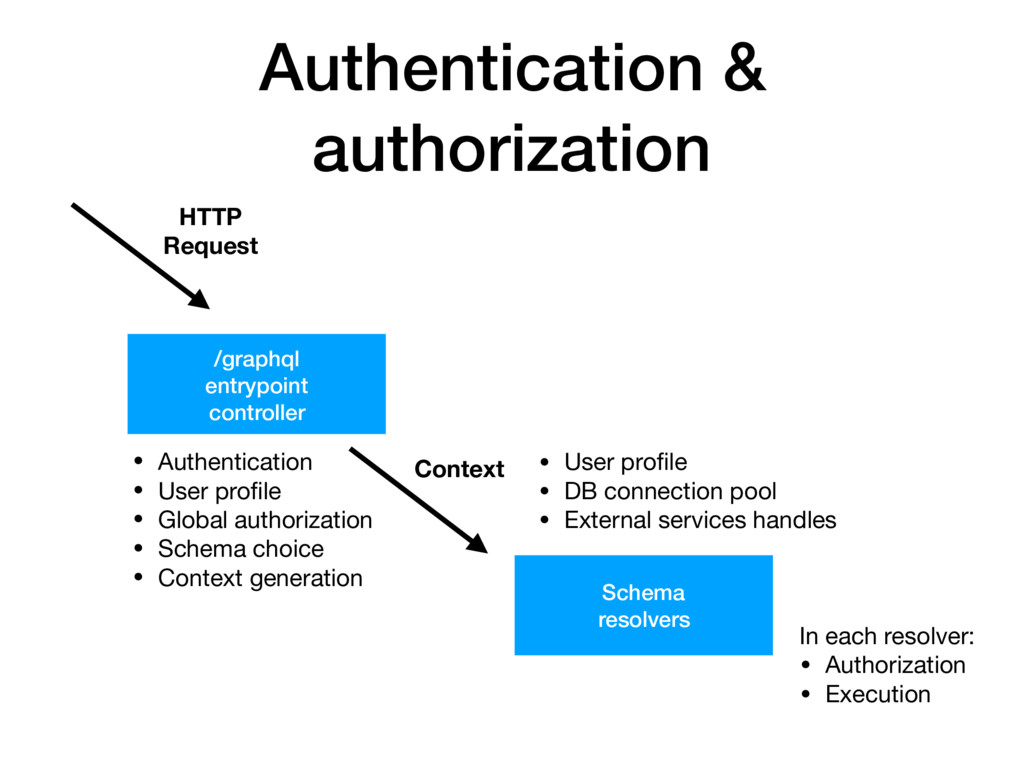

33. Authentication & authorization HTTP Request /graphql entrypoint controller Schema resolvers • Authentication • User profile • Global authorization • Schema choice • Context generation • User profile • DB connection pool • External services handles In each resolver: • Authorization • Execution Context

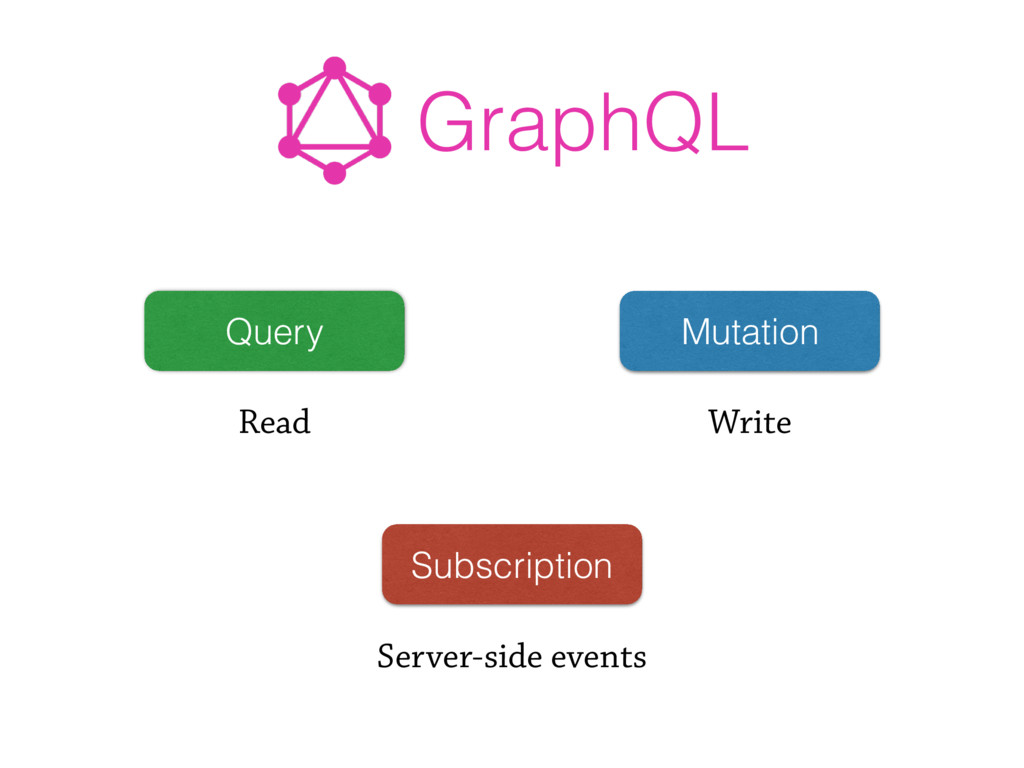

34. GraphQL Query Read Mutation Write Subscription Server-side events
35. Thanks! Stefano Masini @stefanomasini
