Steps Down the OpenAPI Path

OpenStack has been on a journey towards implementing formal OpenAPI v3.1 API specifications for all services for a number of releases now. We have many goals - better understanding our APIs, improving our documentation, easing client and library development, etc. - and we are finally delivering on many of these. Come learn about the milestones we’ve reached to date, and the benefits we’re already seeing from these efforts, and our plans for the next . We’ll talk about the complexities of implementing common functionality across services with vastly different APIs and stacks, the cool/horrifying things we’ve (re)discovered about our APIs, and the oxidation of our clients. We’ll also demonstrate some of the fruits of our labours and discuss how you, as a user, deployer, or contributor, can get involved in the effort.

Transcript

1. Steps down the OpenAPI Path An up-to-date history of OpenAPI in OpenStack OpenInfra Summit Europe ‘25 @stephenfin (Stephen Finucane) @gtema (Artem Goncharov)
2. Stephen Finucane (@stephenfin) Principal Software Engineer Red Hat
3. Artem Goncharov (@gtema) System Architect - IAM SysEleven GmbH
4. Background
6. OpenStackSDK (Python) ↗ Gophercloud (Go) ↗ openstack_sdk (Rust) ↗ OpenStack4j (Java) ↗ php-opencloud/openstack (PHP) ↗ …

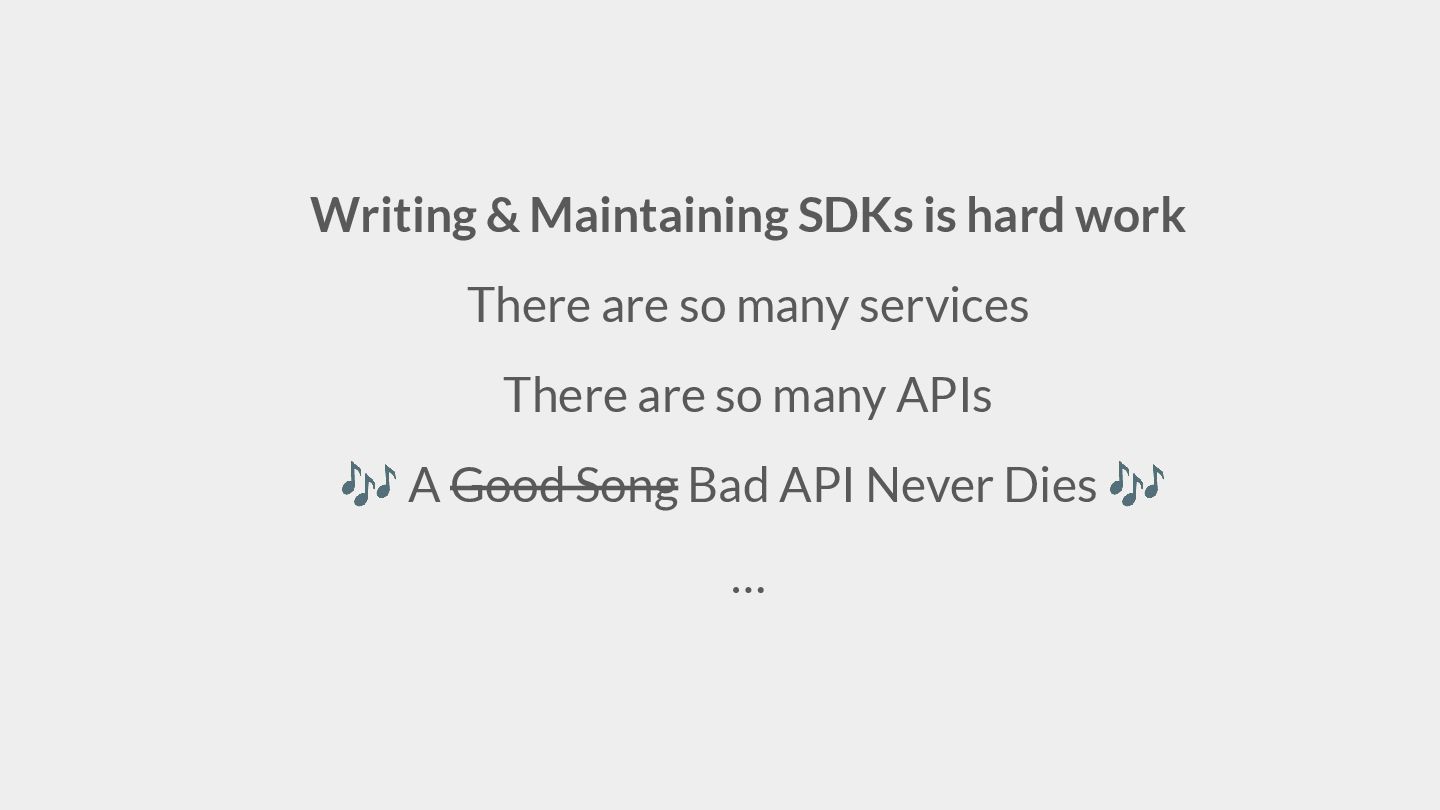

7. Writing & Maintaining SDKs is hard work There are so many services There are so many APIs 🎶 A Good Song Bad API Never Dies 🎶 …

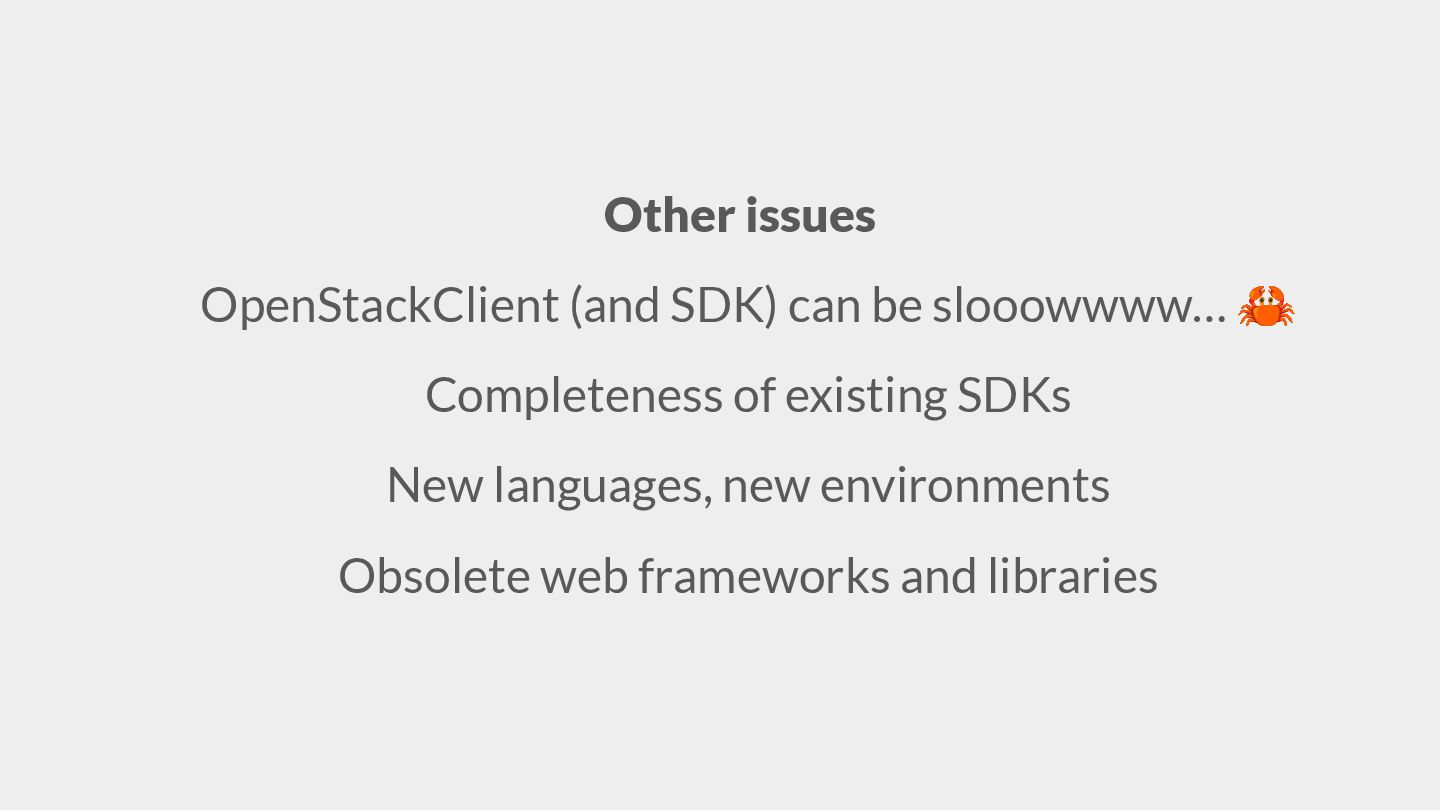

8. Other issues OpenStackClient (and SDK) can be slooowwww… 🦀 Completeness of existing SDKs New languages, new environments Obsolete web frameworks and libraries

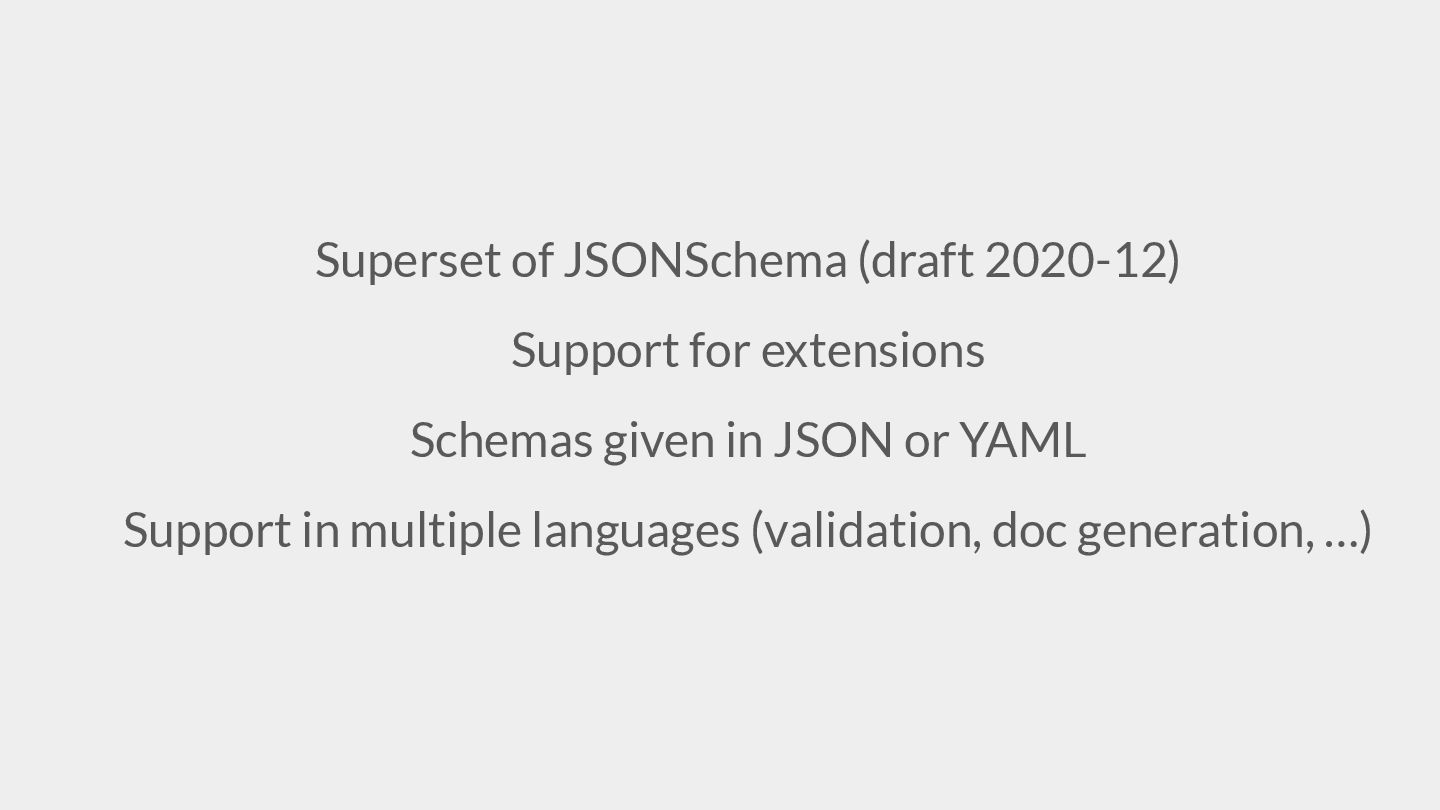

10. Superset of JSONSchema (draft 2020-12) Support for extensions Schemas given in JSON or YAML Support in multiple languages (validation, doc generation, …)

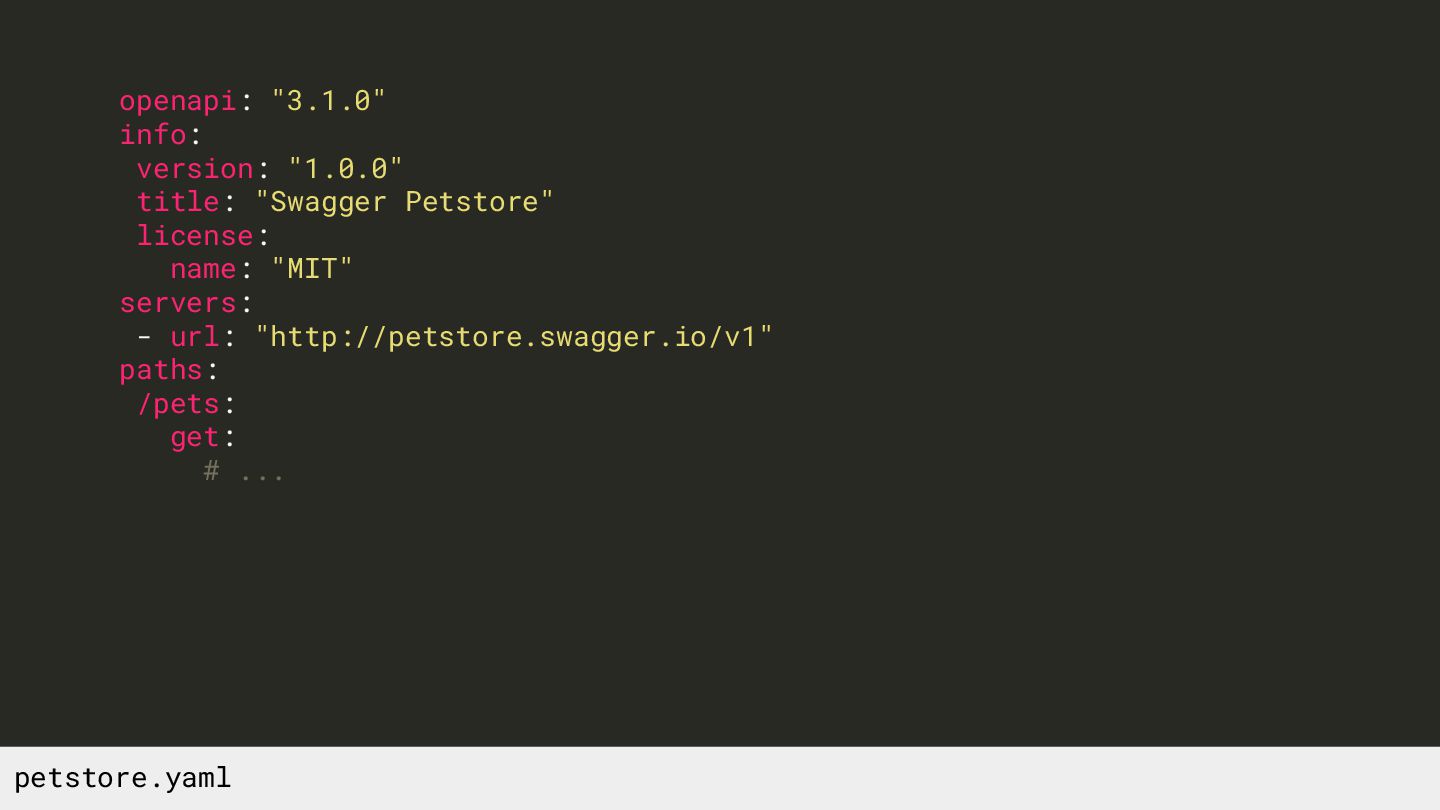

11. openapi: "3.1.0" info: version: "1.0.0" title: "Swagger Petstore" license: name: "MIT" servers: - url: "http://petstore.swagger.io/v1" paths: /pets: get: # ... petstore.yaml

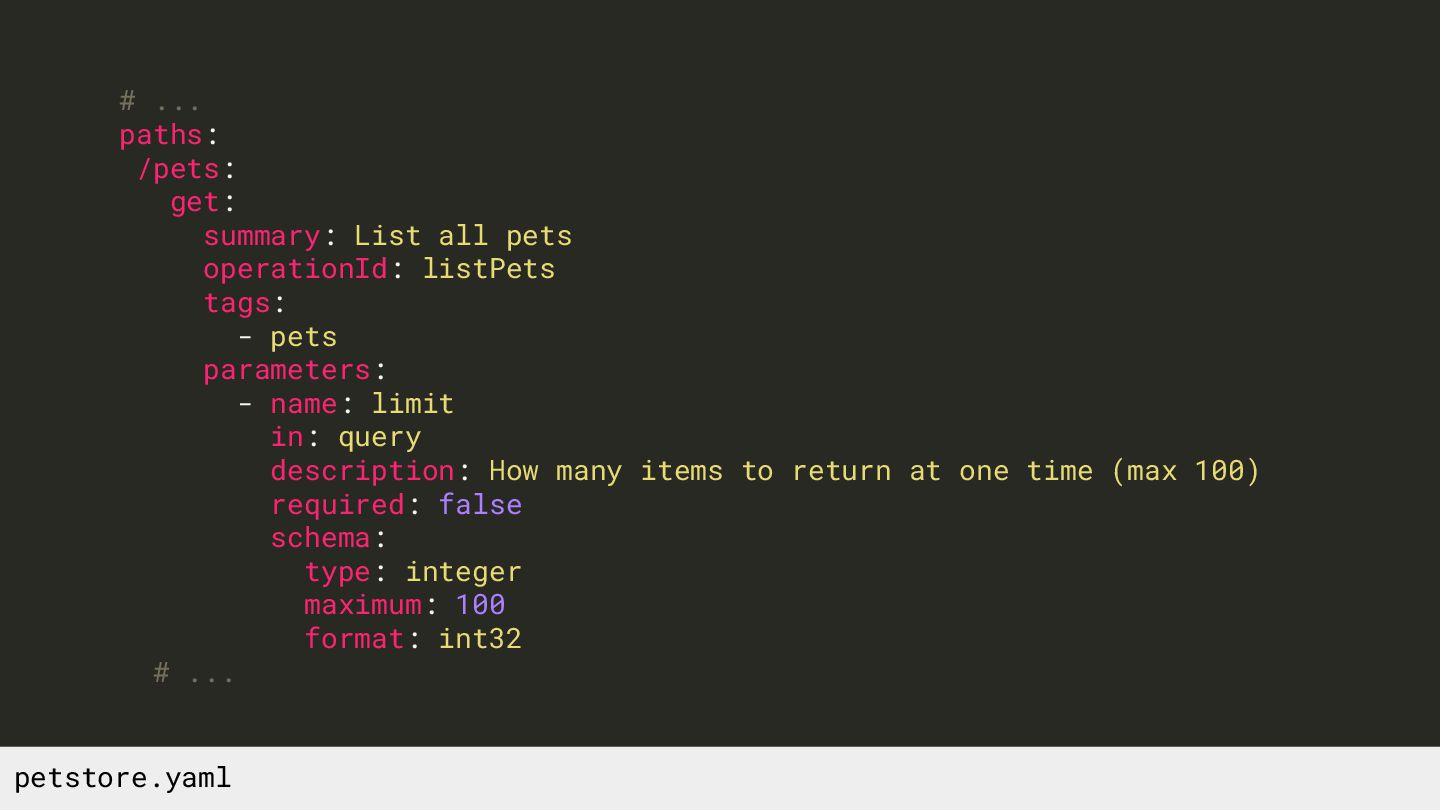

12. # ... paths: /pets: get: summary: List all pets operationId: listPets tags: - pets parameters: - name: limit in: query description: How many items to return at one time (max 100) required: false schema: type: integer maximum: 100 format: int32 # ... petstore.yaml

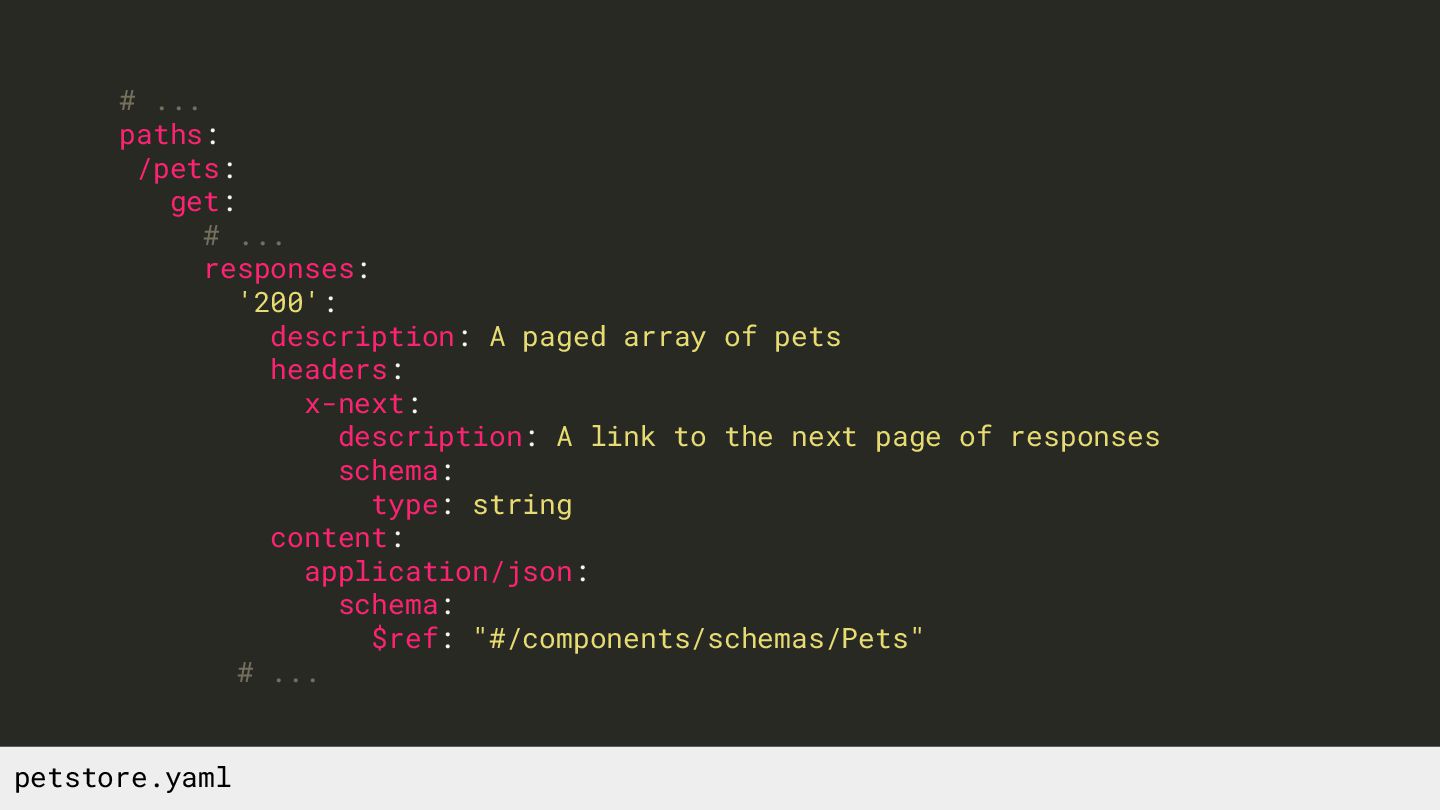

13. # ... paths: /pets: get: # ... responses: '200': description: A paged array of pets headers: x-next: description: A link to the next page of responses schema: type: string content: application/json: schema: $ref: "#/components/schemas/Pets" # ... petstore.yaml
14. FAQs

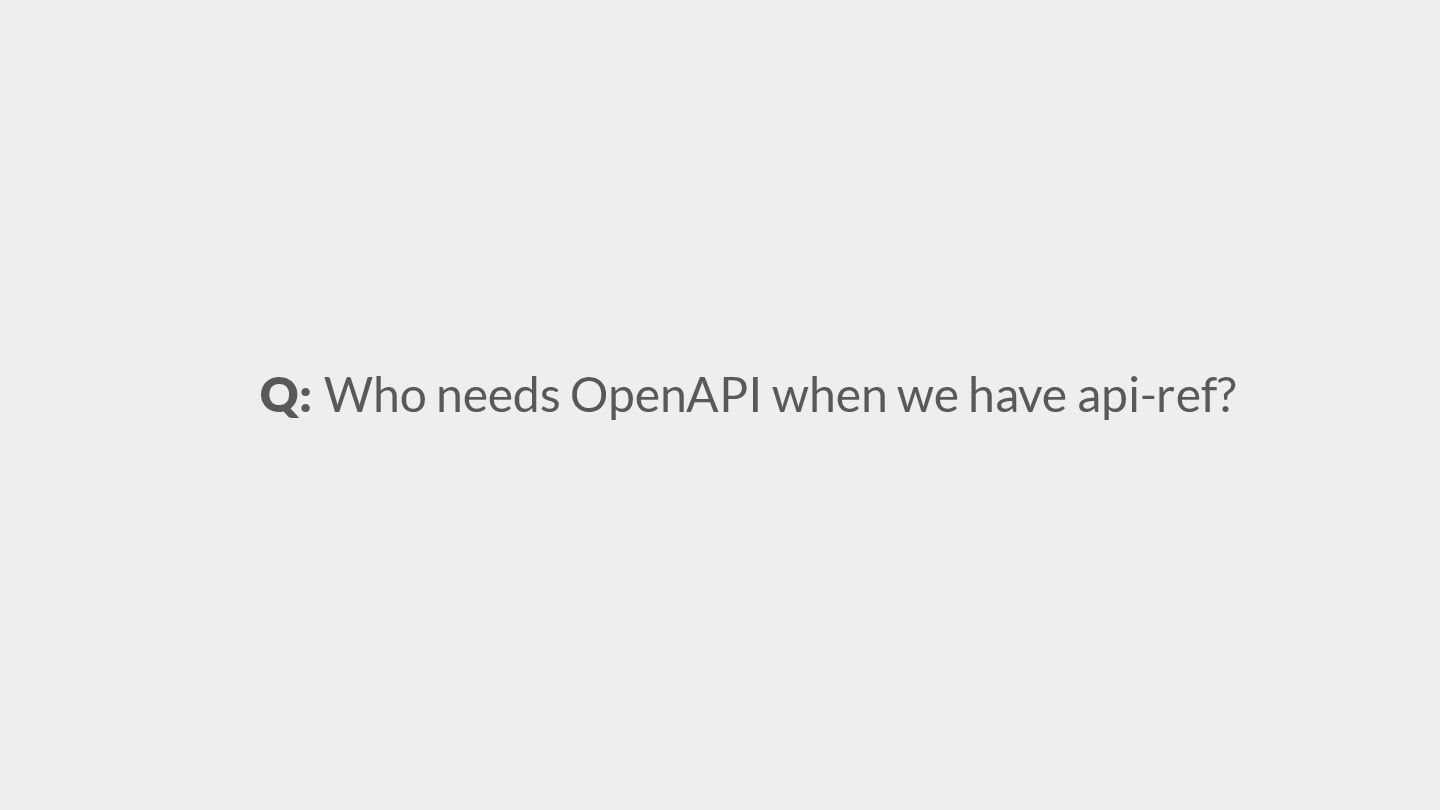

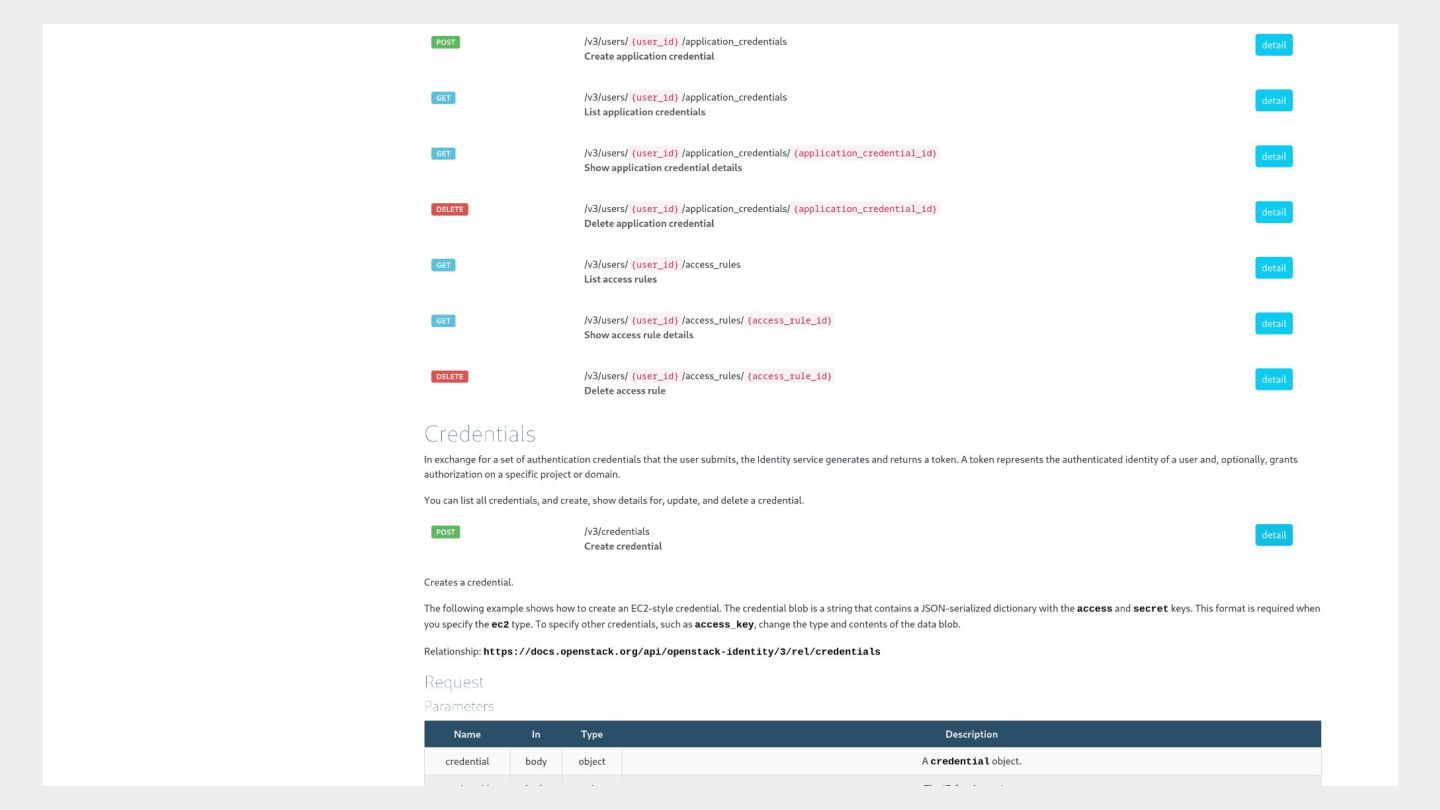

15. Q: Who needs OpenAPI when we have api-ref?

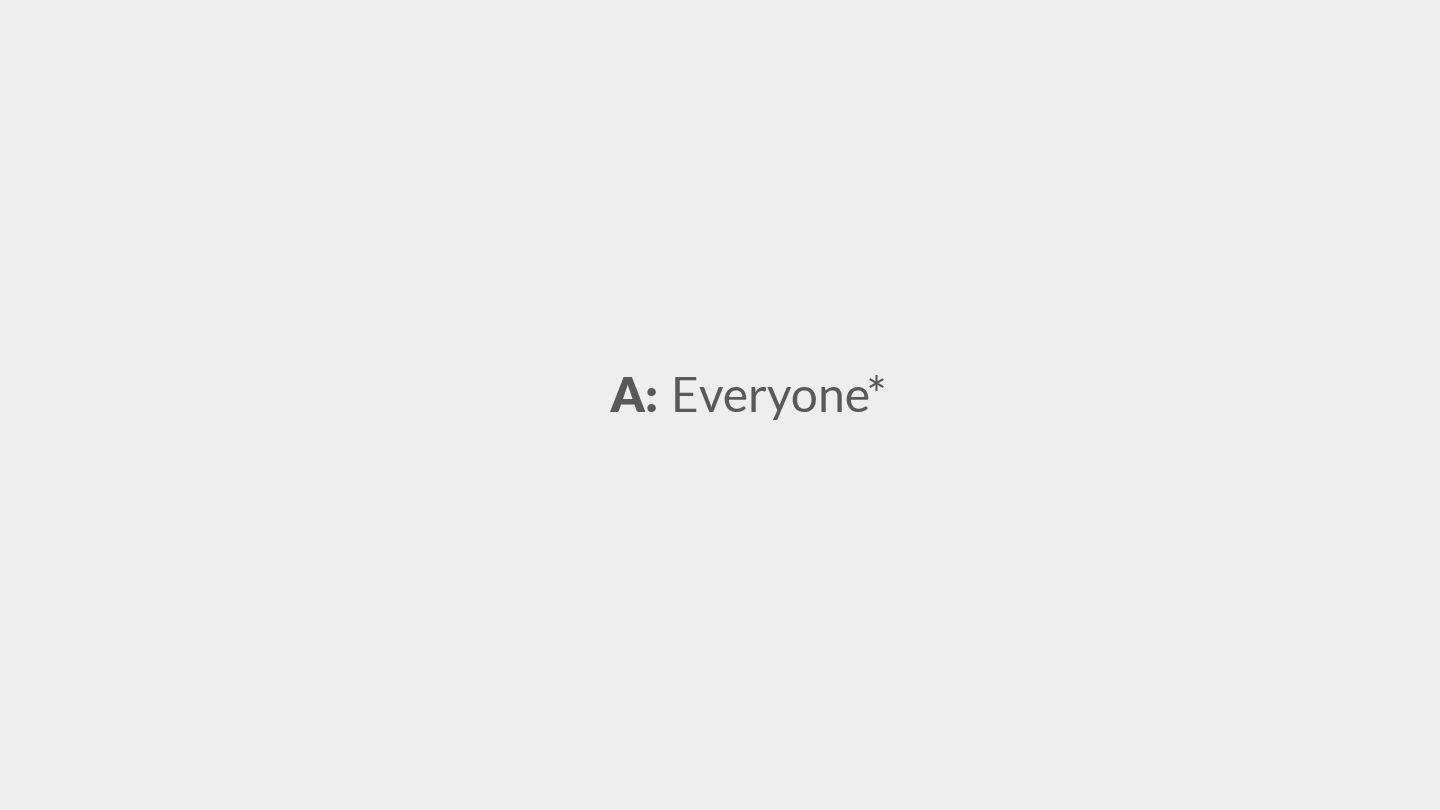

17. A: Everyone*

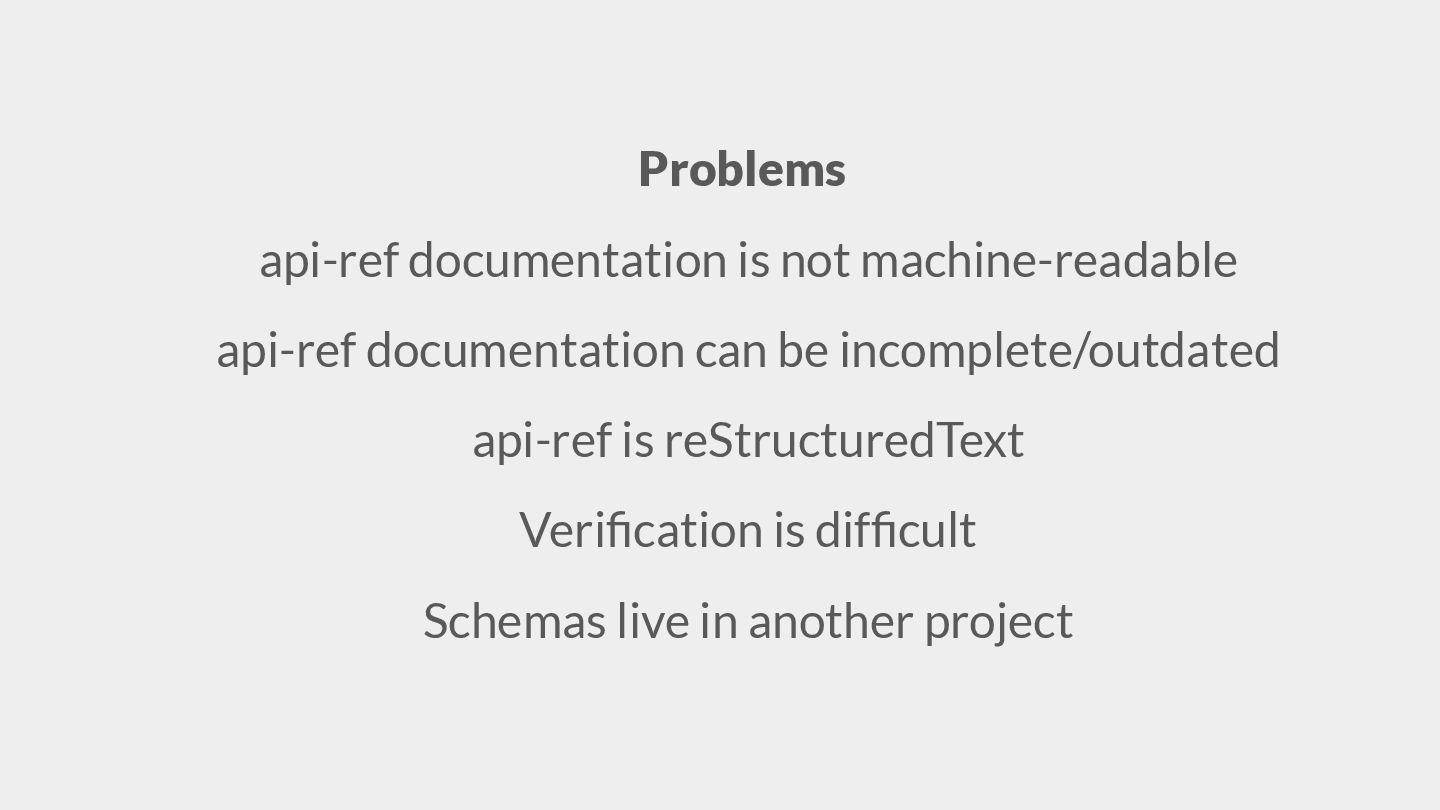

18. Problems api-ref documentation is not machine-readable api-ref documentation can be incomplete/outdated api-ref is reStructuredText Verification is difficult Schemas live in another project
19. Q: Haven’t we tried this before?

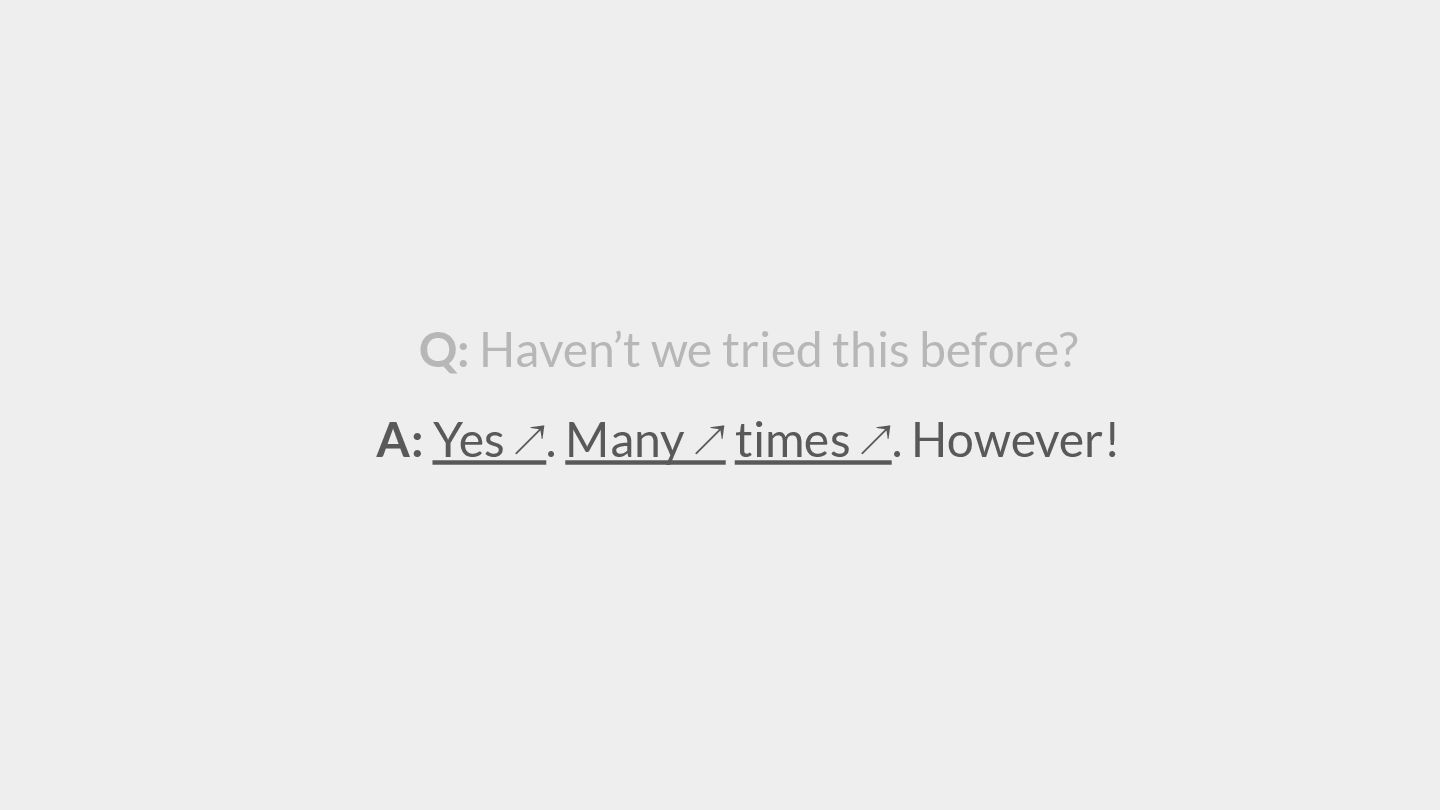

20. Q: Haven’t we tried this before? A: Yes ↗. Many ↗ times ↗. However!
21. Superset of JSONSchema (draft 2020-12) Support for extensions Schemas given in JSON or YAML Support in multiple languages (validation, doc generation, …)
22. Q: Why OpenAPI over RAML, API Blueprint etc.?
23. Superset of JSONSchema (draft 2020-12) Support for extensions Schemas given in JSON or YAML Support in multiple languages (validation, doc generation, …)
24. Superset of JSONSchema (draft 2020-12) Support for extensions 🌟🌟 Tooling support 🌟🌟 Schemas given in JSON or YAML Support in multiple languages (validation, doc generation, …)
25. How We Do It
26. Some OpenAPI background… Schema-derived apps vs. app-derived schemas
27. Some OpenAPI background… Schema-derived apps vs. app-derived schemas Extensibility
28. Some OpenStack background… Extensive use of Paste, WebOb, Routes
29. Some OpenStack background… Extensive use of Paste, WebOb, Routes …but not exclusive use

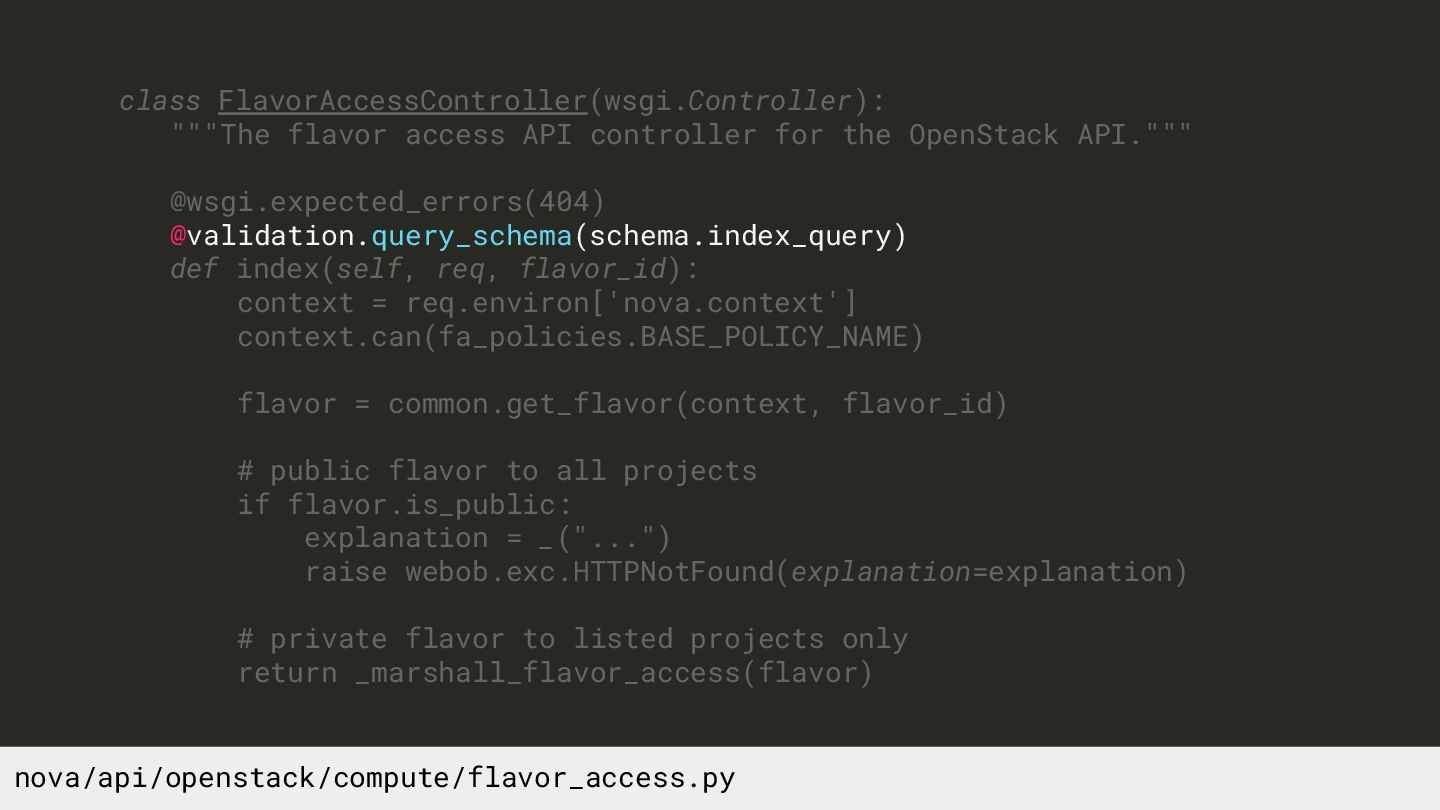

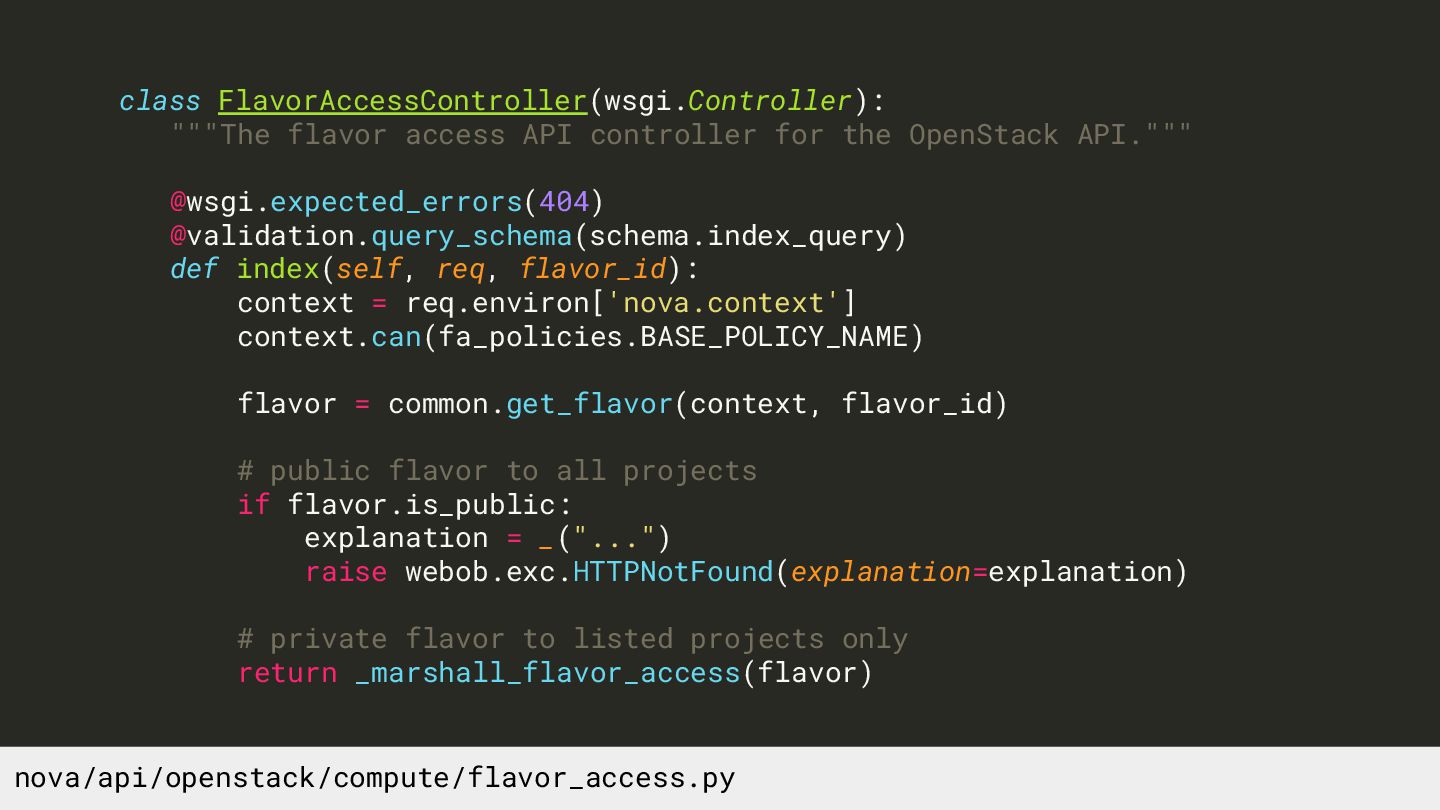

30. class FlavorAccessController(wsgi.Controller): """The flavor access API controller for the OpenStack API.""" @wsgi.expected_errors(404) @validation.query_schema(schema.index_query) def index(self, req, flavor_id): context = req.environ['nova.context'] context.can(fa_policies.BASE_POLICY_NAME) flavor = common.get_flavor(context, flavor_id) # public flavor to all projects if flavor.is_public: explanation = _("...") raise webob.exc.HTTPNotFound(explanation=explanation) # private flavor to listed projects only return _marshall_flavor_access(flavor) nova/api/openstack/compute/flavor_access.py
31. class FlavorAccessController(wsgi.Controller): """The flavor access API controller for the OpenStack API.""" @wsgi.expected_errors(404) @validation.query_schema(schema.index_query) def index(self, req, flavor_id): context = req.environ['nova.context'] context.can(fa_policies.BASE_POLICY_NAME) flavor = common.get_flavor(context, flavor_id) # public flavor to all projects if flavor.is_public: explanation = _("...") raise webob.exc.HTTPNotFound(explanation=explanation) # private flavor to listed projects only return _marshall_flavor_access(flavor) nova/api/openstack/compute/flavor_access.py

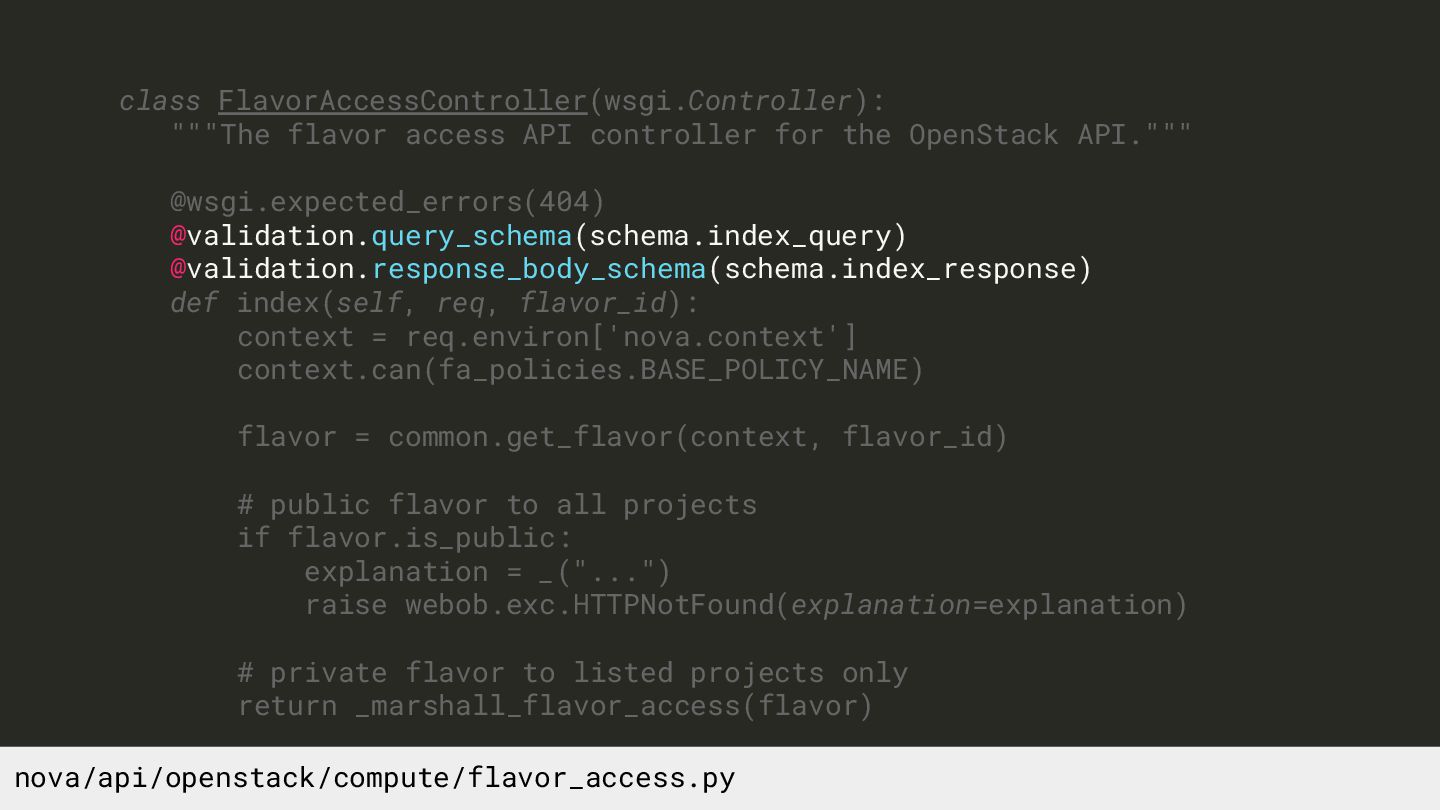

32. class FlavorAccessController(wsgi.Controller): """The flavor access API controller for the OpenStack API.""" @wsgi.expected_errors(404) @validation.query_schema(schema.index_query) @validation.response_body_schema(schema.index_response) def index(self, req, flavor_id): context = req.environ['nova.context'] context.can(fa_policies.BASE_POLICY_NAME) flavor = common.get_flavor(context, flavor_id) # public flavor to all projects if flavor.is_public: explanation = _("...") raise webob.exc.HTTPNotFound(explanation=explanation) # private flavor to listed projects only return _marshall_flavor_access(flavor) nova/api/openstack/compute/flavor_access.py

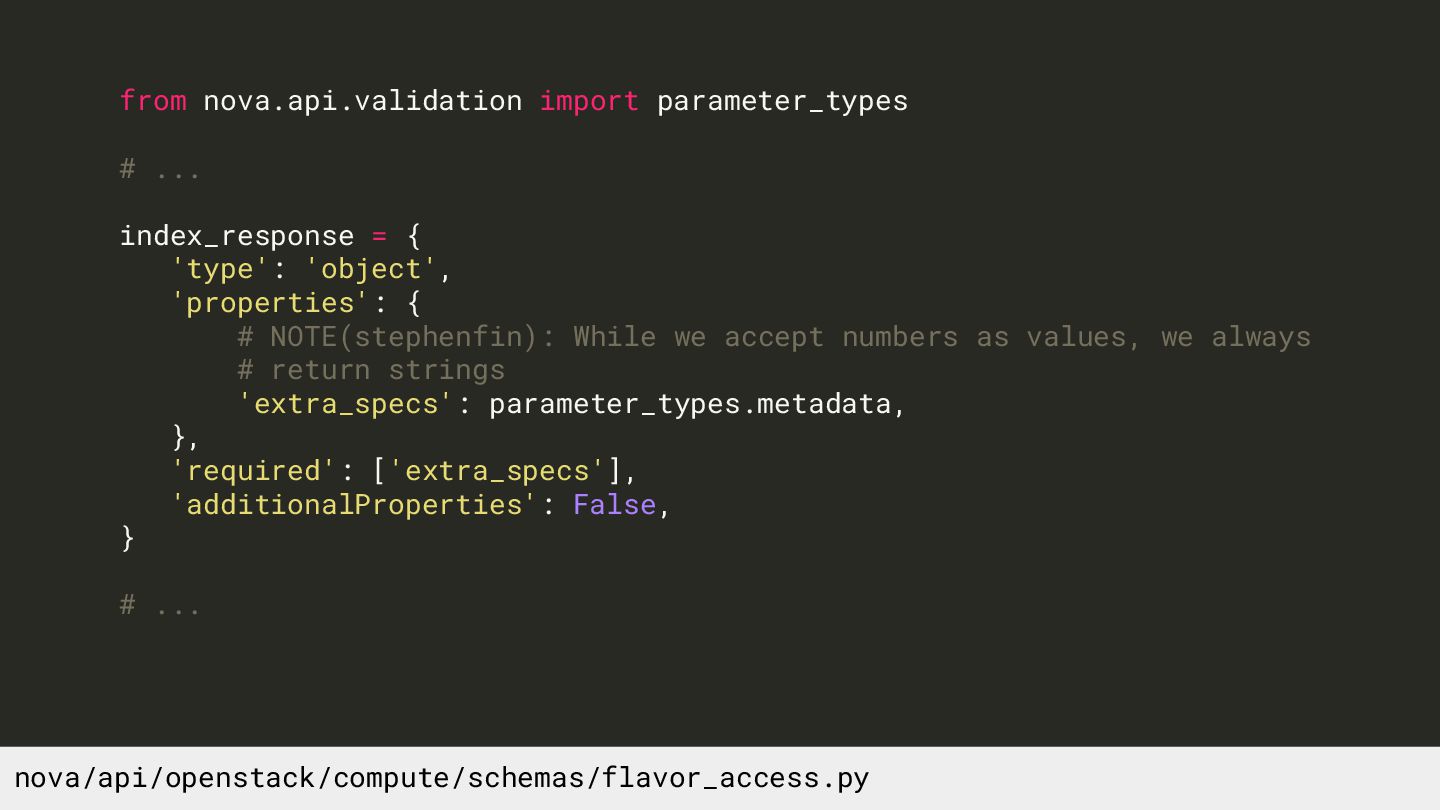

33. from nova.api.validation import parameter_types # ... index_response = { 'type': 'object', 'properties': { # NOTE(stephenfin): While we accept numbers as values, we always # return strings 'extra_specs': parameter_types.metadata, }, 'required': ['extra_specs'], 'additionalProperties': False, } # ... nova/api/openstack/compute/schemas/flavor_access.py

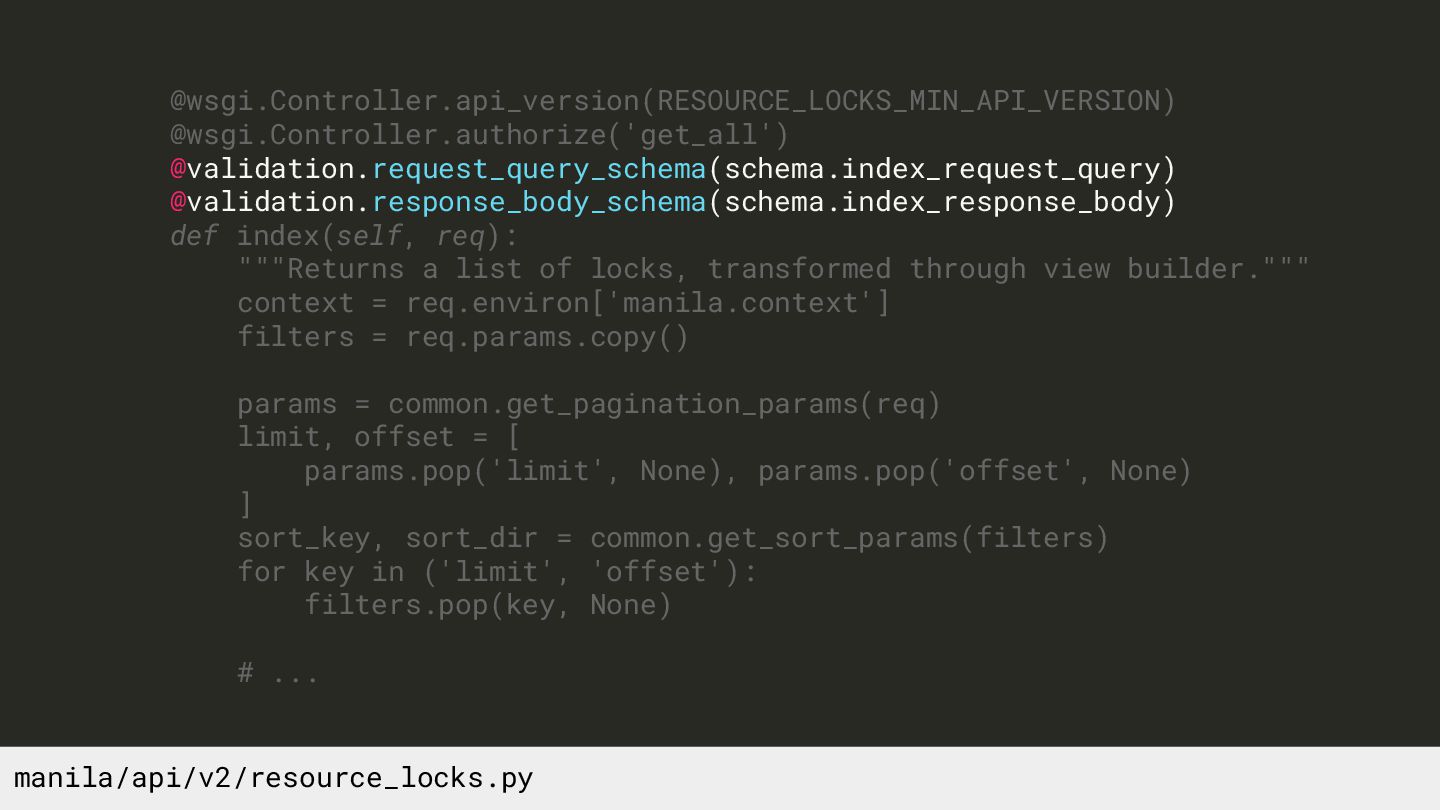

34. @wsgi.Controller.api_version(RESOURCE_LOCKS_MIN_API_VERSION) @wsgi.Controller.authorize('get_all') @validation.request_query_schema(schema.index_request_query) @validation.response_body_schema(schema.index_response_body) def index(self, req): """Returns a list of locks, transformed through view builder.""" context = req.environ['manila.context'] filters = req.params.copy() params = common.get_pagination_params(req) limit, offset = [ params.pop('limit', None), params.pop('offset', None) ] sort_key, sort_dir = common.get_sort_params(filters) for key in ('limit', 'offset'): filters.pop(key, None) # ... manila/api/v2/resource_locks.py
35. @wsgi.Controller.api_version(RESOURCE_LOCKS_MIN_API_VERSION) @wsgi.Controller.authorize('get_all') @validation.request_query_schema(schema.index_request_query) @validation.response_body_schema(schema.index_response_body) def index(self, req): """Returns a list of locks, transformed through view builder.""" context = req.environ['manila.context'] filters = req.params.copy() params = common.get_pagination_params(req) limit, offset = [ params.pop('limit', None), params.pop('offset', None) ] sort_key, sort_dir = common.get_sort_params(filters) for key in ('limit', 'offset'): filters.pop(key, None) # ... manila/api/v2/resource_locks.py

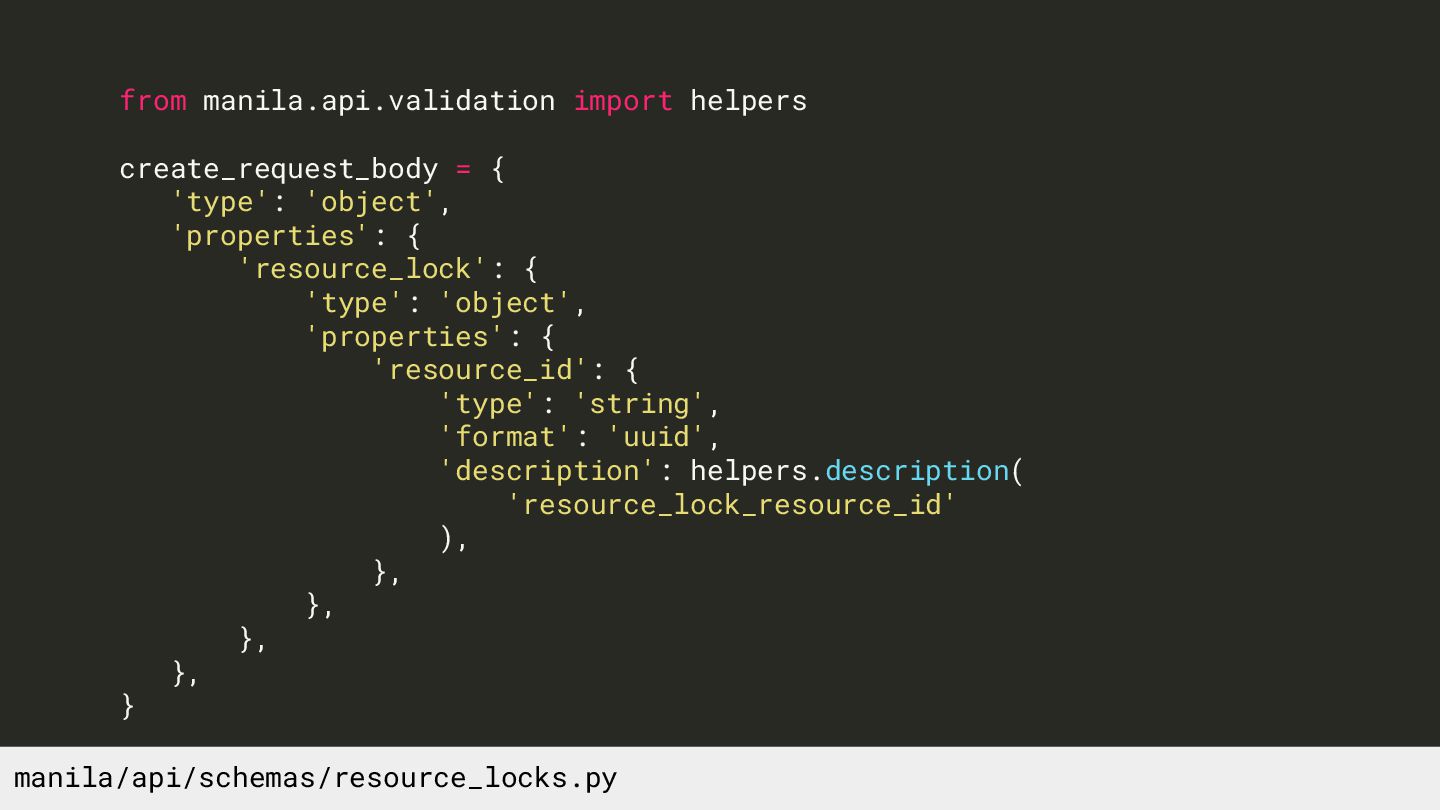

36. from manila.api.validation import helpers create_request_body = { 'type': 'object', 'properties': { 'resource_lock': { 'type': 'object', 'properties': { 'resource_id': { 'type': 'string', 'format': 'uuid', 'description': helpers.description( 'resource_lock_resource_id' ), }, }, }, }, } manila/api/schemas/resource_locks.py

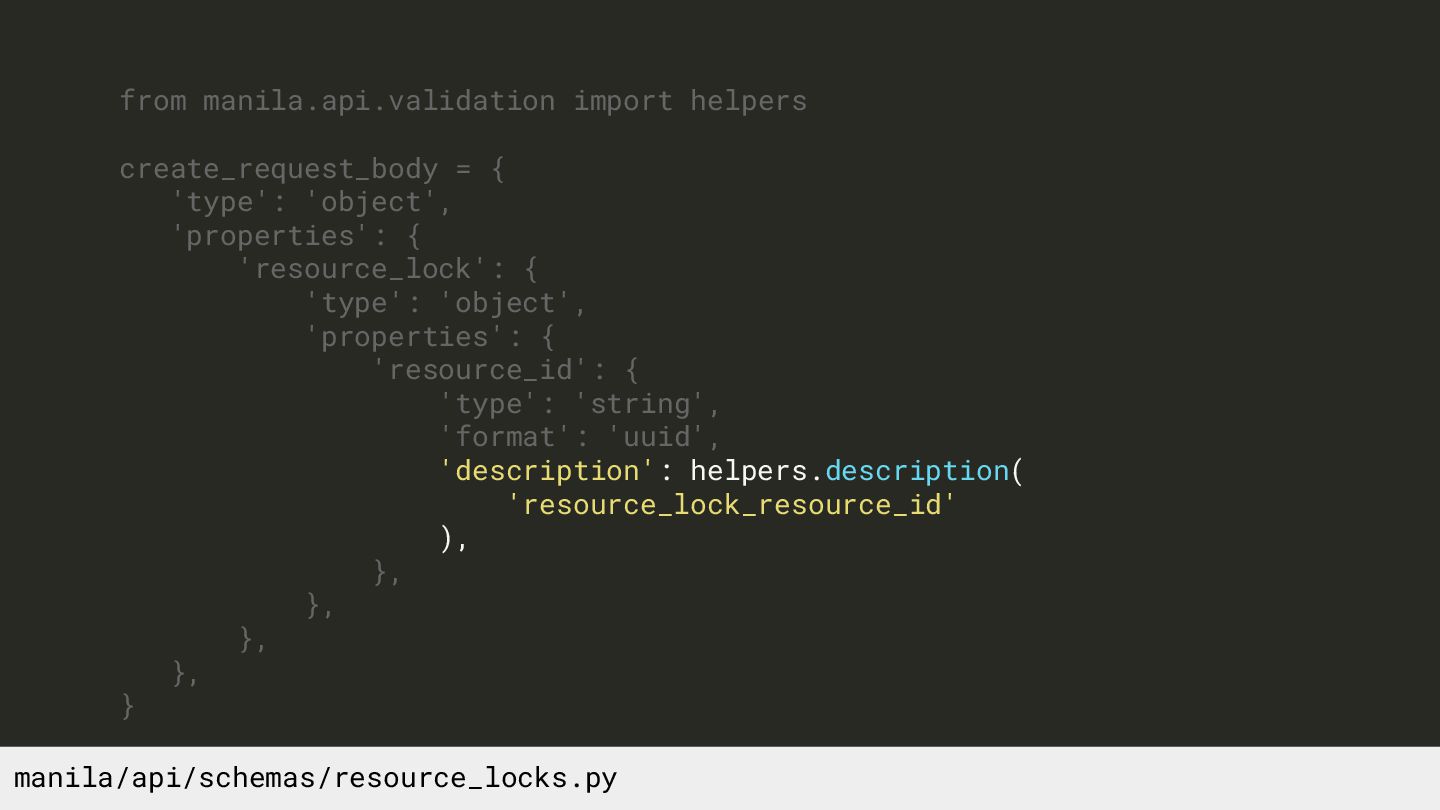

37. from manila.api.validation import helpers create_request_body = { 'type': 'object', 'properties': { 'resource_lock': { 'type': 'object', 'properties': { 'resource_id': { 'type': 'string', 'format': 'uuid', 'description': helpers.description( 'resource_lock_resource_id' ), }, }, }, }, } manila/api/schemas/resource_locks.py

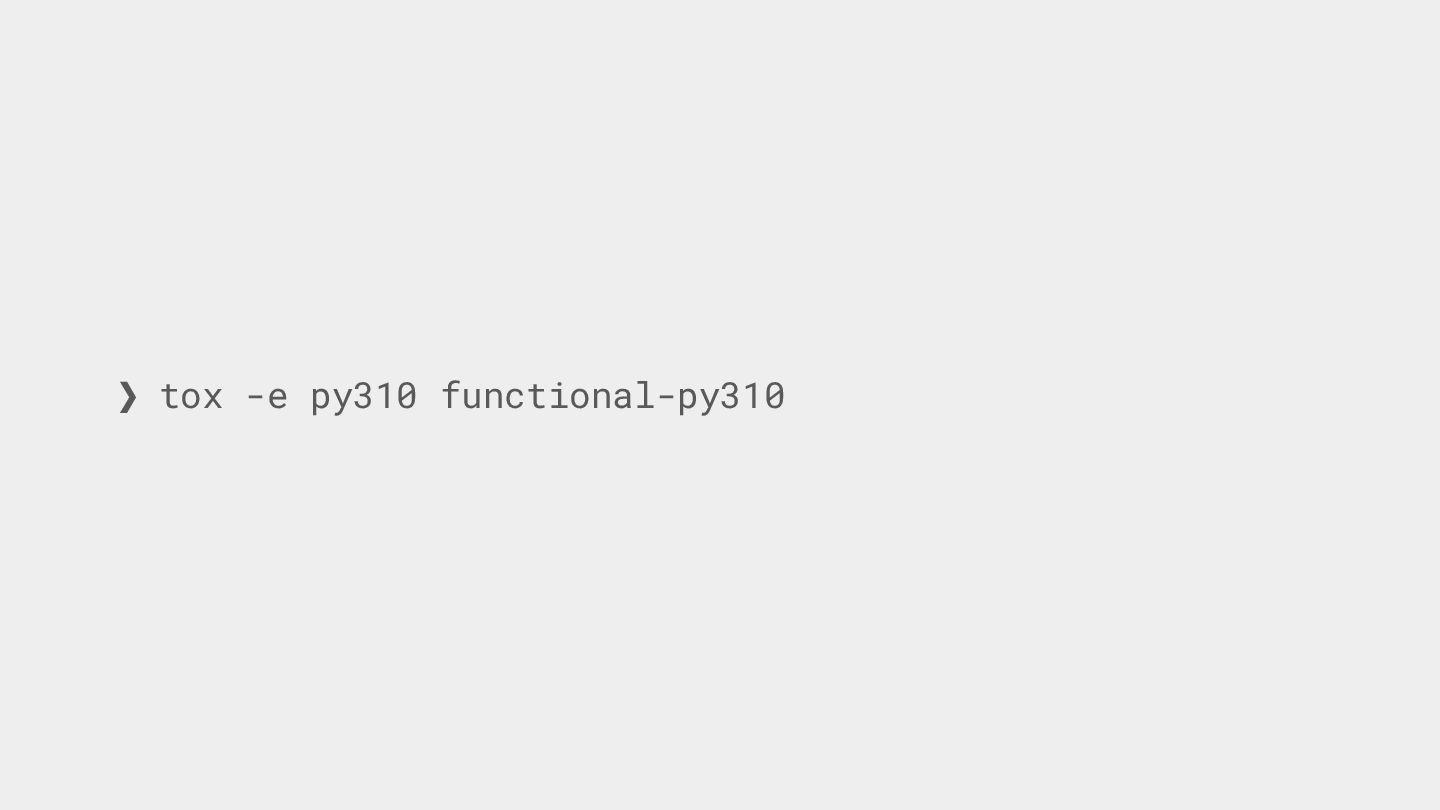

38. ❯ tox -e py310 functional-py310
40. What Then?

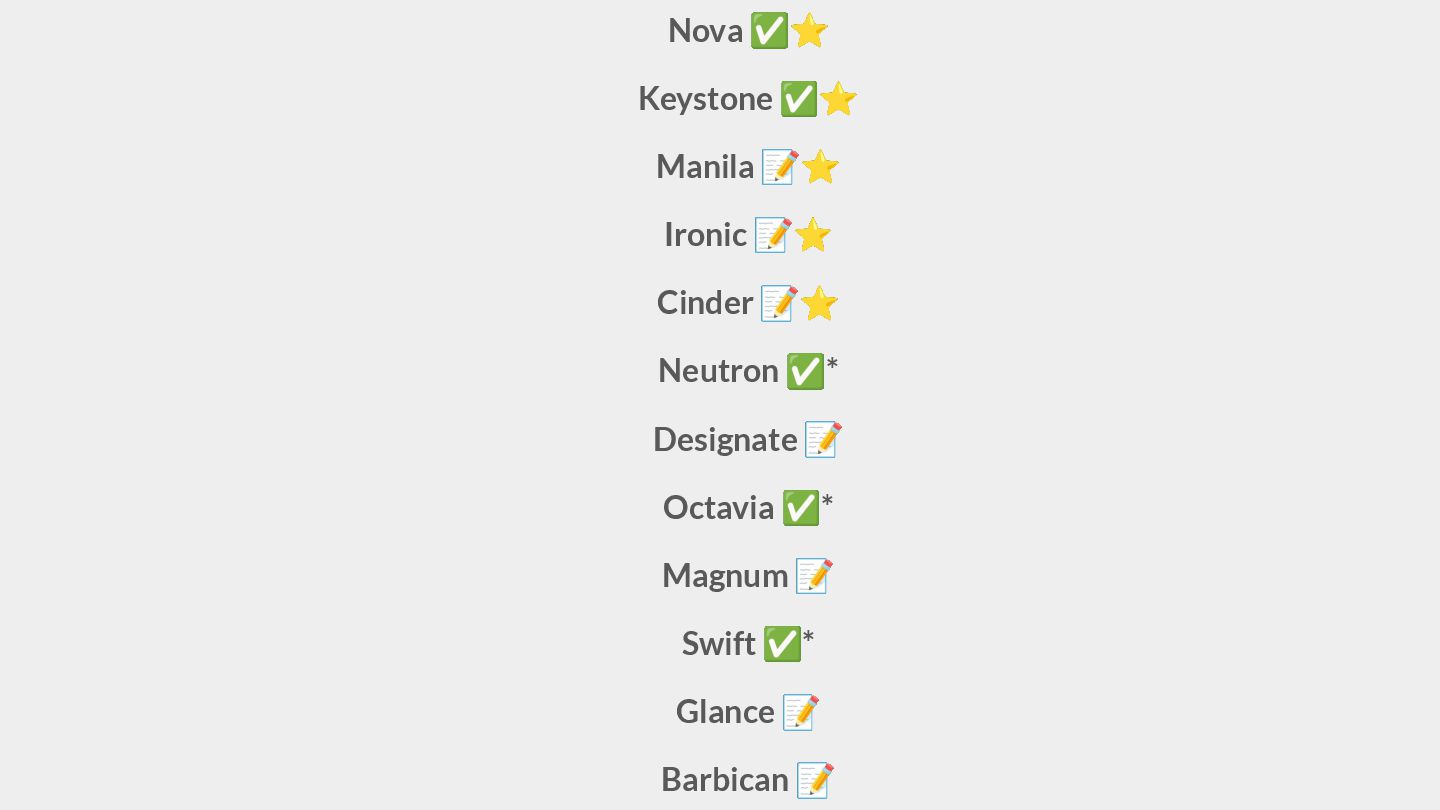

41. Nova ✅⭐ Keystone ✅⭐ Manila 📝⭐ Ironic 📝⭐ Cinder 📝⭐ Neutron ✅* Designate 📝 Octavia ✅* Magnum 📝 Swift ✅* Glance 📝 Barbican 📝
43. What does it do?

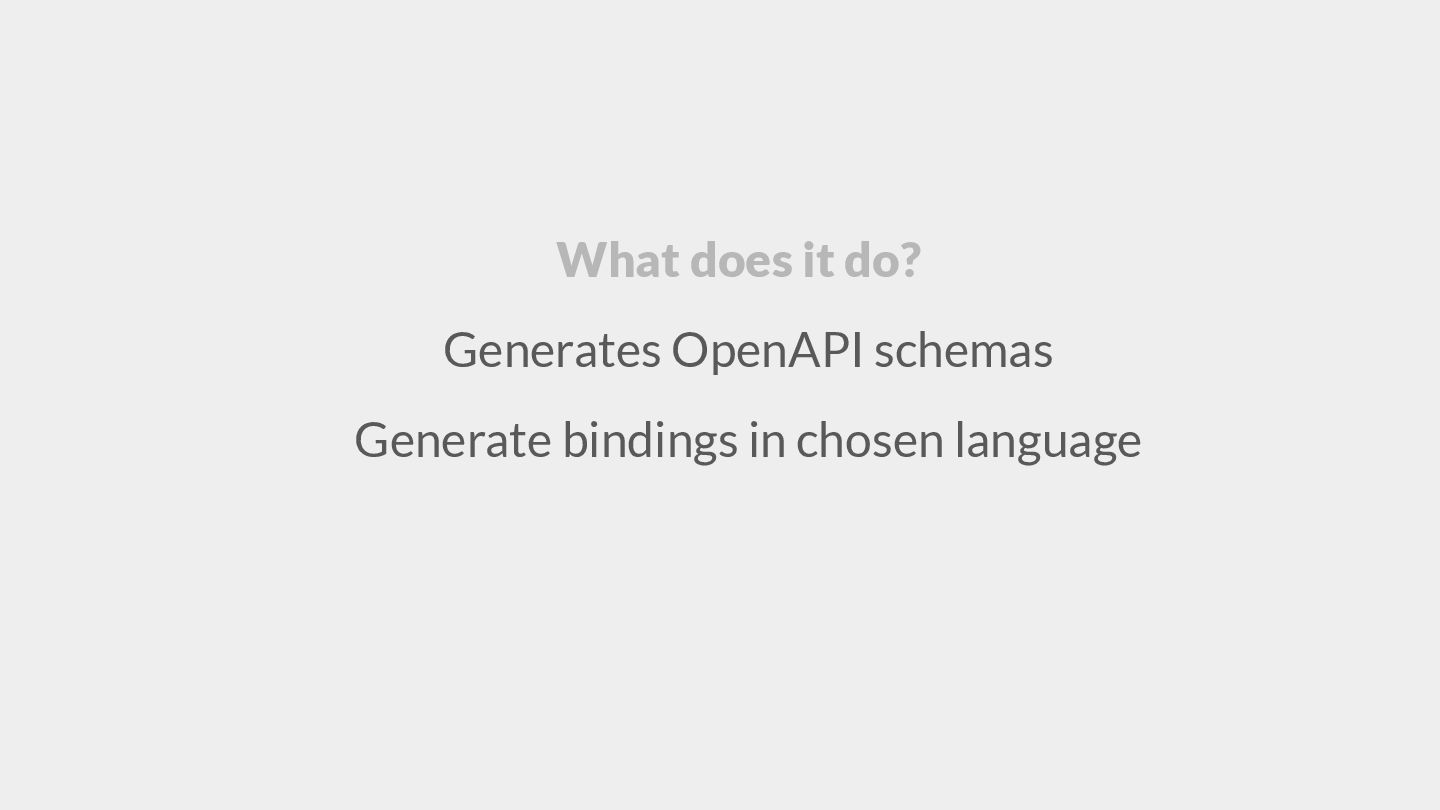

44. What does it do? Generates OpenAPI schemas Generate bindings in chosen language

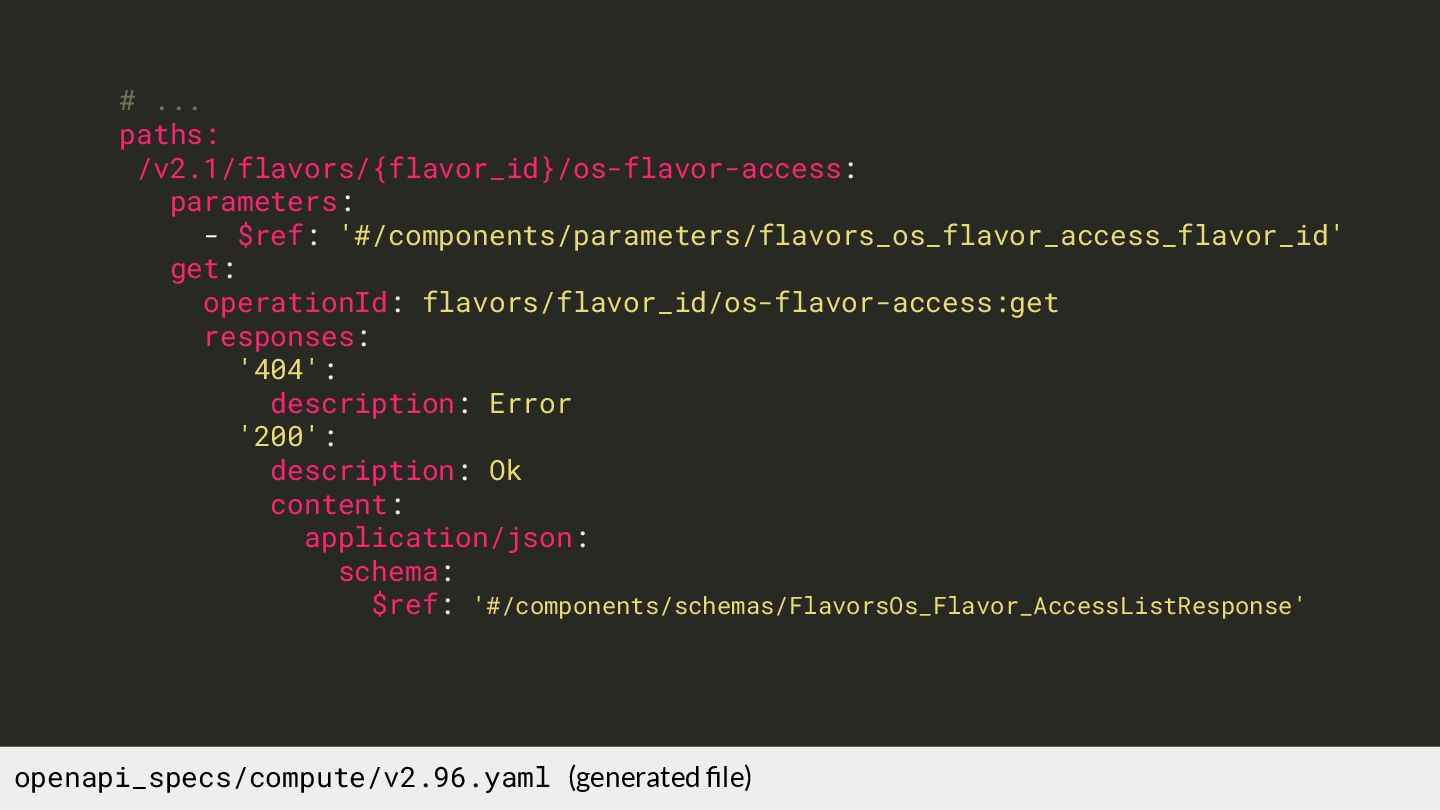

45. # ... paths: /v2.1/flavors/{flavor_id}/os-flavor-access: parameters: - $ref: '#/components/parameters/flavors_os_flavor_access_flavor_id' get: operationId: flavors/flavor_id/os-flavor-access:get responses: '404': description: Error '200': description: Ok content: application/json: schema: $ref: '#/components/schemas/FlavorsOs_Flavor_AccessListResponse' openapi_specs/compute/v2.96.yaml (generated file)

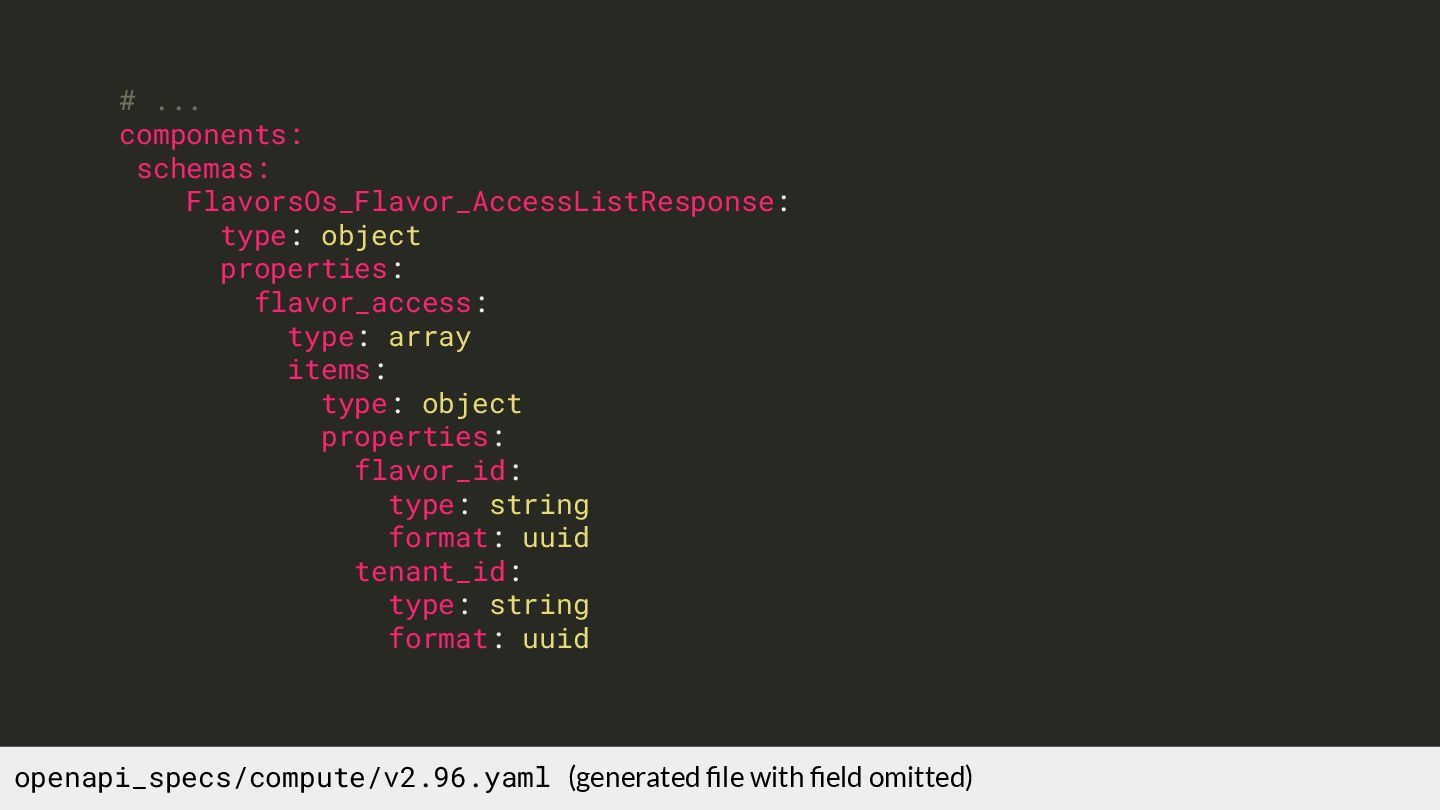

46. # ... components: schemas: FlavorsOs_Flavor_AccessListResponse: type: object properties: flavor_access: type: array items: type: object properties: flavor_id: type: string format: uuid tenant_id: type: string format: uuid openapi_specs/compute/v2.96.yaml (generated file with field omitted)

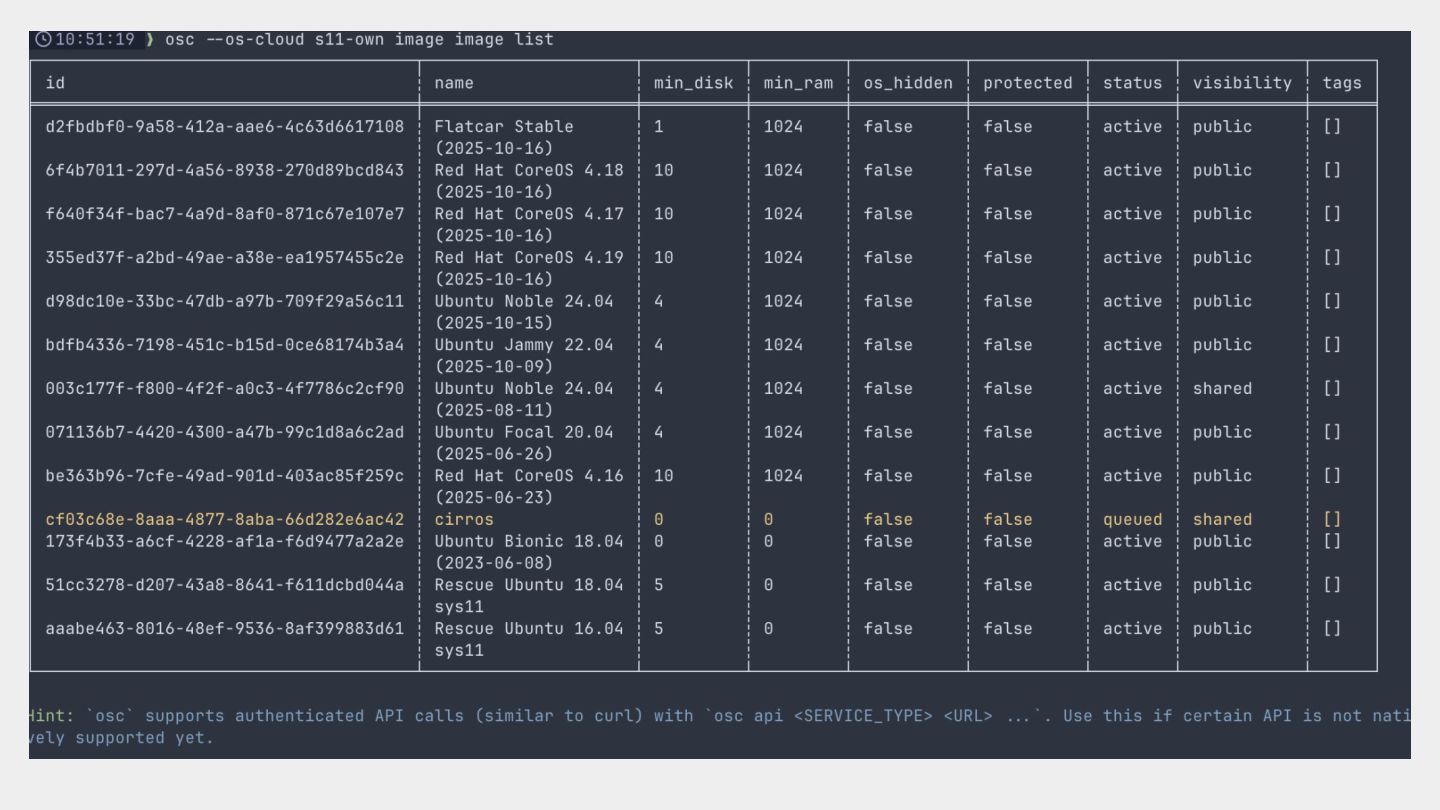

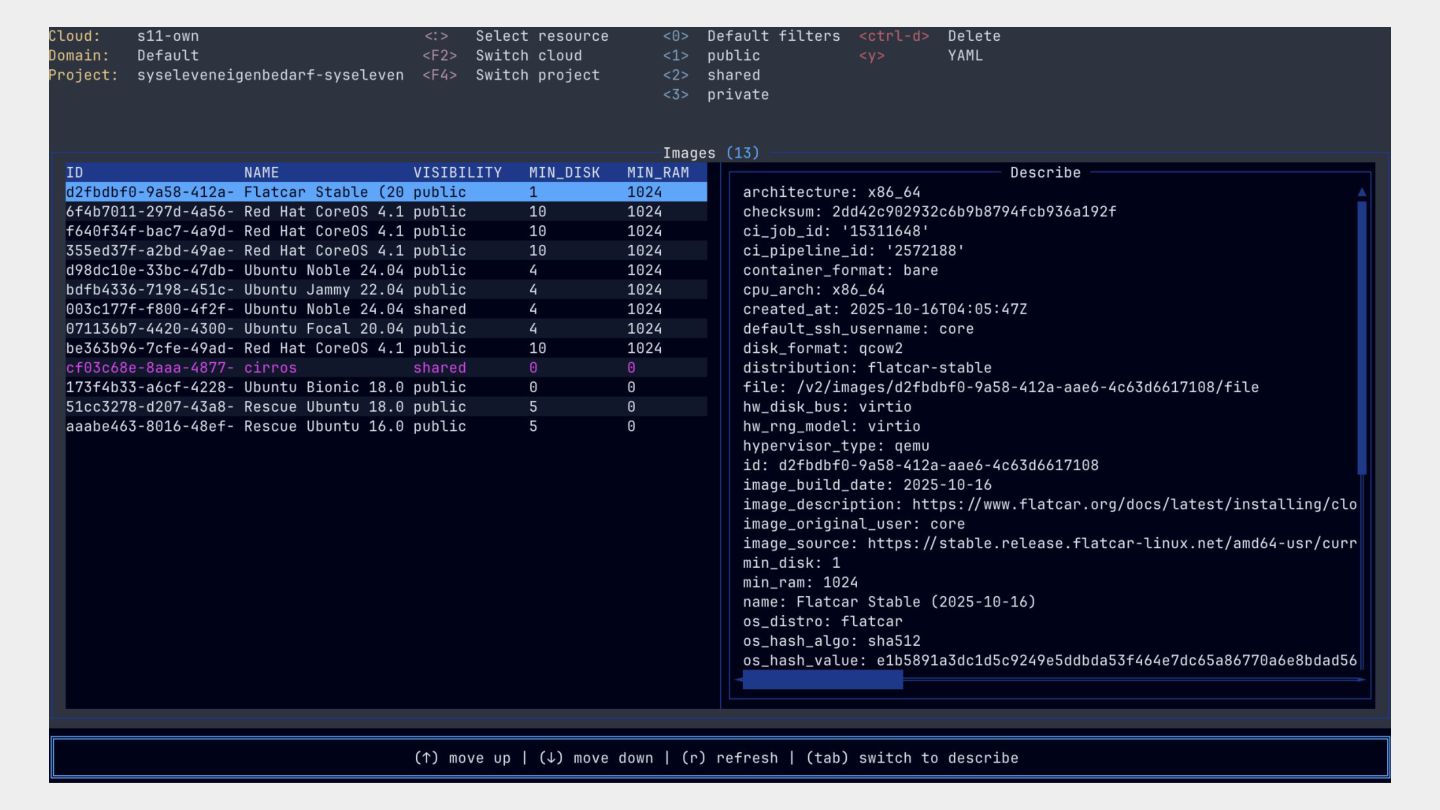

47. What does it do? Generates OpenAPI schemas Generate bindings in chosen language Generates CLI and TUI (and SDK)
51. How does it do it?
52. How does it do it? Long live the metadata

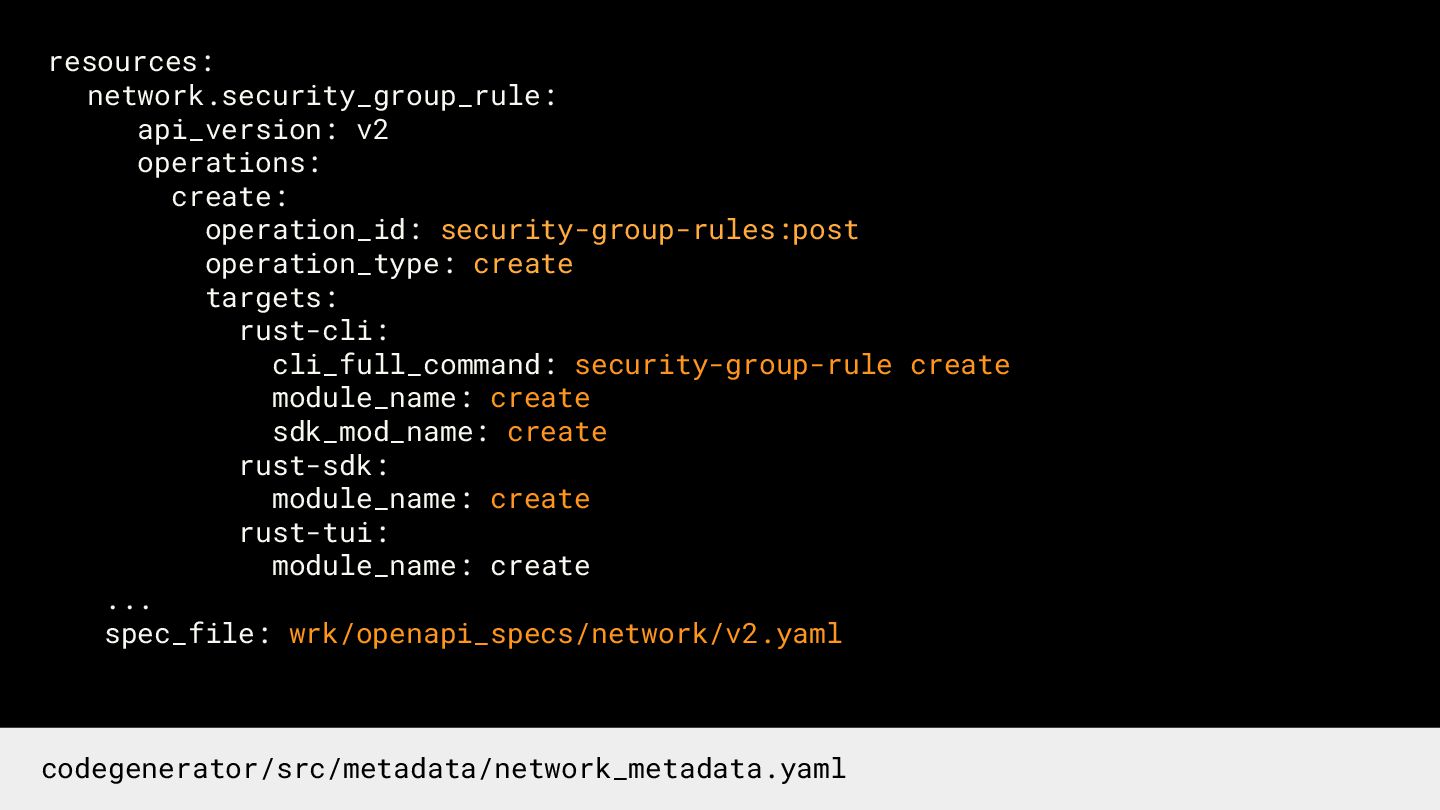

53. resources: network.security_group_rule: api_version: v2 operations: create: operation_id: security-group-rules:post operation_type: create targets: rust-cli: cli_full_command: security-group-rule create module_name: create sdk_mod_name: create rust-sdk: module_name: create rust-tui: module_name: create ... spec_file: wrk/openapi_specs/network/v2.yaml codegenerator/src/metadata/network_metadata.yaml

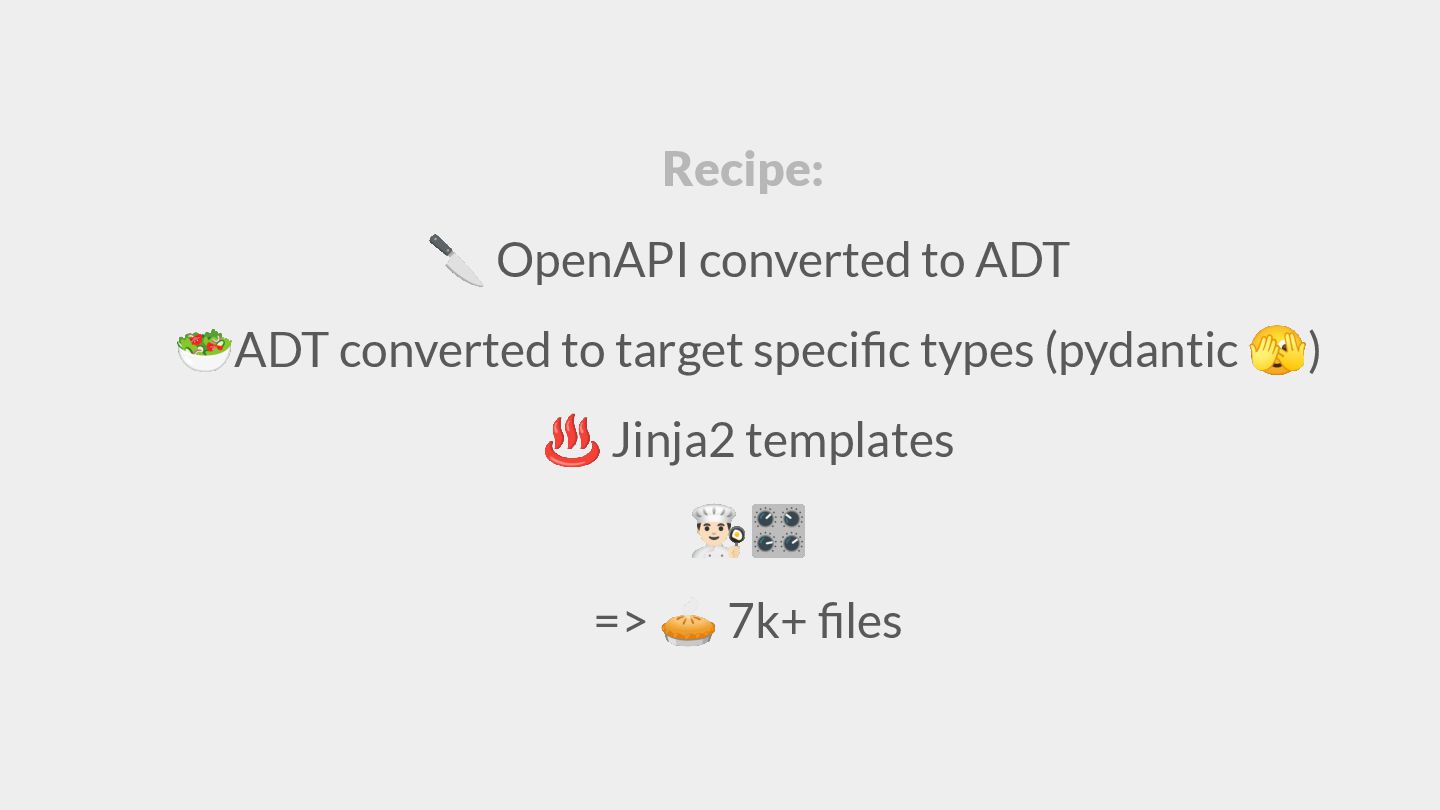

54. Recipe: 🔪 OpenAPI converted to ADT 🥗ADT converted to target specific types (pydantic 🫣) ♨ Jinja2 templates 󰞫🎛 => 🥧 7k+ files

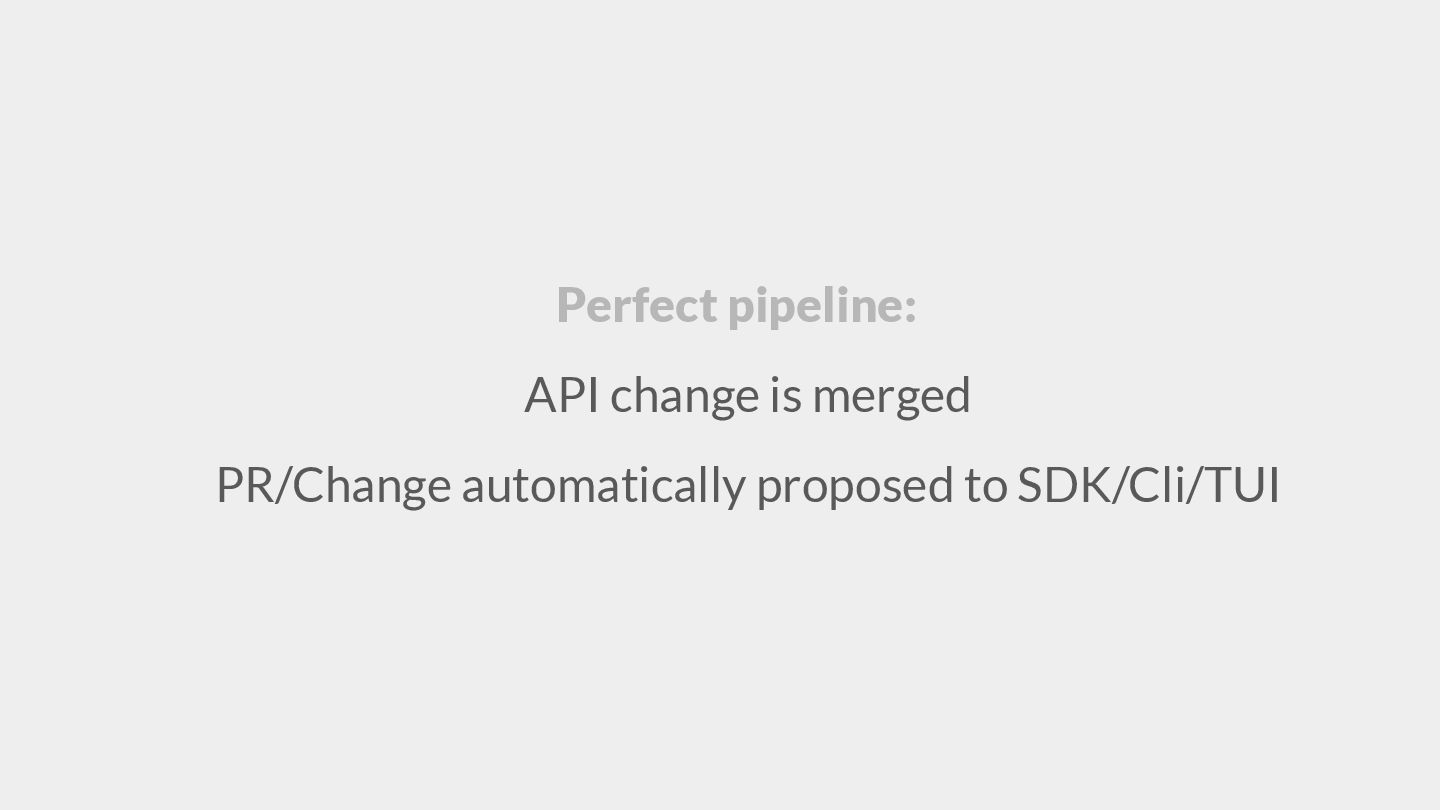

55. Perfect pipeline: API change is merged PR/Change automatically proposed to SDK/Cli/TUI
56. Next Steps

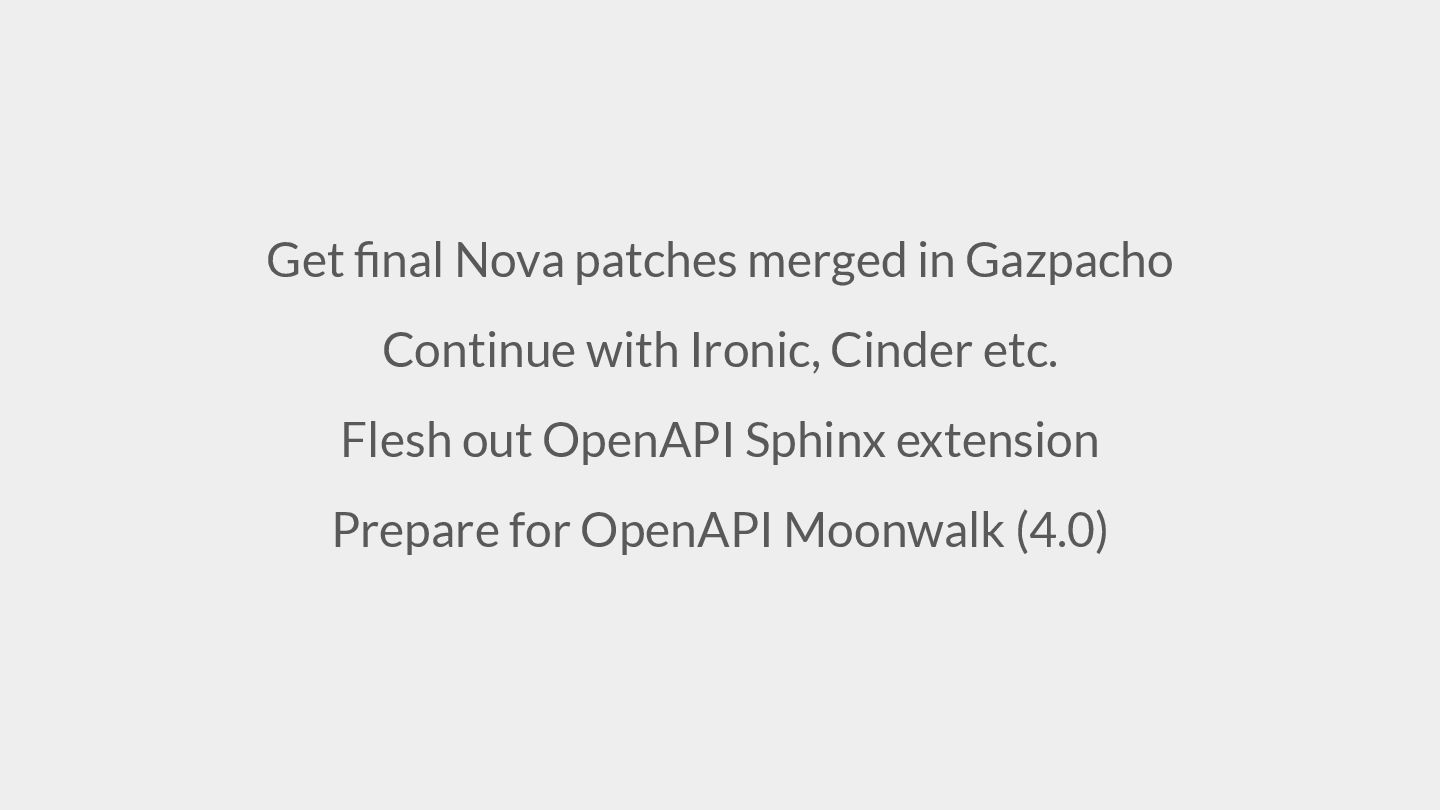

57. Get final Nova patches merged in Gazpacho Continue with Ironic, Cinder etc. Flesh out OpenAPI Sphinx extension Prepare for OpenAPI Moonwalk (4.0)

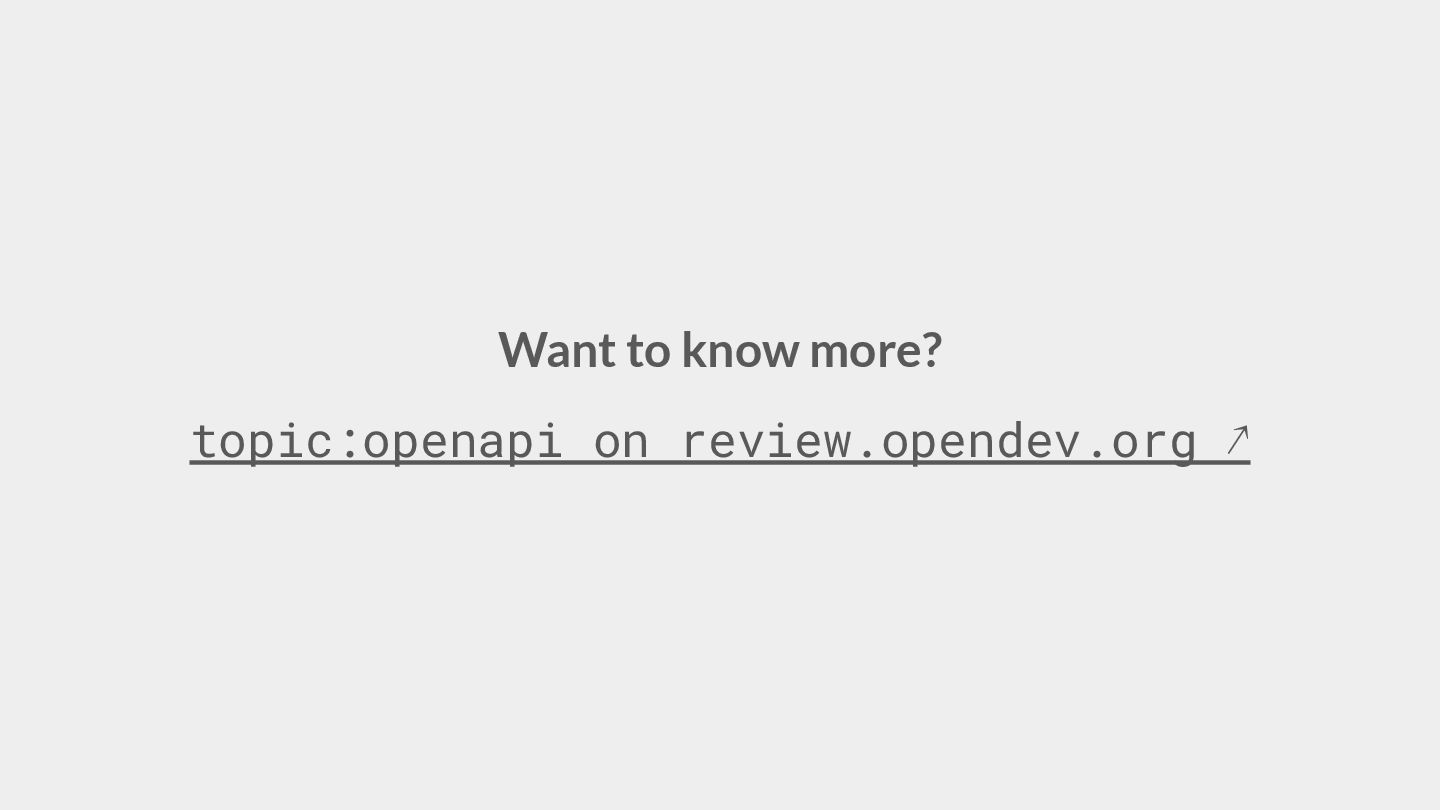

58. Want to know more? topic:openapi on review.opendev.org ↗
59. Want to get involved? #openstack-sdk on OFTC IRC ↗ openstack-discuss@lists.openstack.org ↗ Catch us in person 🙋 (We don’t bite)
60. Steps down the OpenAPI Path An up-to-date history of OpenAPI in OpenStack OpenInfra Summit Europe ‘25 @stephenfin (Stephen Finucane) @gtema (Artem Goncharov)
61. Credits Cover photo by Aleksandra Boguslawska on Unsplash Source code from Nova and Manila projects (Apache 2.0)
