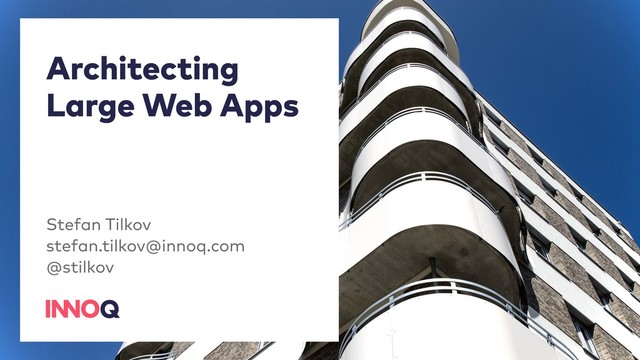

  1. Architecting
    Large Web Apps
    Stefan Tilkov

    [email protected]
    @stilkov

    View full-size slide

  2. What is “large“?

    View full-size slide

  3. Scaling Dimensions
    Logic
    Load
    written in

    a day
    depends on

    German tax law
    a dozen

    users
    half

    of the

    planet
    Netflix
    Twitter
    Insurance

    Policy Management
    Facebook
    Amazon
    Random CMS

    View full-size slide

  4. Pick the best car:

    View full-size slide

  5. Architecture & Organization
    Modularization
    Frontend Strategies

    View full-size slide

  6. Architecture &
    Organization

    View full-size slide

  7. Conway’s Law: Organization → Architecture
    “Organizations which design systems
    are constrained to produce systems
    which are copies of the communication
    structures of these organizations.”

    – M.E. Conway

    View full-size slide

  8. Antipatterns

    View full-size slide

  9. Antipattern: Conference-driven Architecture

    View full-size slide

  10. Antipattern: Decoupling Illusion
    Stakeholder
    Stakeholder
    Stakeholder
    Platform Person

    View full-size slide

  11. Antipattern: Half-hearted Modularization
    Dev Ops

    View full-size slide

  12. Antipattern: Solution Centrism
    Stakeholder
    Stakeholder
    Stakeholder
    Solution

    View full-size slide

  13. Antipattern: Uncreative Chaos

    View full-size slide

  14. Antipattern: Authoritarian Regime

    View full-size slide

  15. Pattern: Autonomous Cells
    Stakeholder
    Stakeholder
    Stakeholder
    Biz
    Dev
    Ops
    Biz
    Dev
    Ops
    Biz
    Dev
    Ops

    View full-size slide

  16. Pattern: Autonomous Cells
    Stakeholder
    Stakeholder
    Stakeholder
    Biz
    Dev
    Ops
    Biz
    Dev
    Ops
    Biz
    Dev
    Ops

    View full-size slide

  17. Pattern: Evolutionary Architecture

    View full-size slide

  18. Pattern: Regulated Market

    View full-size slide

  19. Pattern: Marketing-based Governance

    View full-size slide

  20. Sizing Patterns

    View full-size slide

  21. Example: Product Detail Page
    • Core product data
    • Prose description
    • Images
    • Reviews
    • Related content Orchestration
    →μSOA

    View full-size slide

  22. Pattern: μSOA (Microservice-SOA)
    • Small, self-hosted
    • Communicating
    synchronously
    • Cascaded/streaming
    • Containerized
    Description: As seen on:
    • Netflix
    • Twitter
    • Gilt

    View full-size slide

  23. Pattern: μSOA (Microservice-SOA)
    • Close collaboration – common goal
    • Need for resilience/stability patterns for invocations
    • High cost of coordination (versioning, compatibility, …)
    • High infrastructure demand
    • Often combined with parallel/streaming approach
    • Well suited to environments with extreme scalability
    requirements
    Consequences:

    View full-size slide

  24. Example: Logistics Application
    • Order management
    • Shipping
    • Route planning
    • Invoicing
    Frontend
    →DDDD
    Event Bus/Infrastructure

    View full-size slide

  25. Pattern: DDDD (Distributed Domain-driven Design)
    • Small, self-hosted
    • Bounded contexts
    • Redundant data/CQRS
    • Business events
    • Containerized
    Description: As seen on:
    • (undisclosed)

    View full-size slide

  26. Pattern: DDDD (Distributed Domain-driven Design)
    • Loose coupling between context
    • Acknowledges separate evolution of contexts
    • Asynchronicity increases stability
    • Well-suited for to support parallel development
    Consequences:

    View full-size slide

  27. That UI thing? Easy!

    View full-size slide

  28. Example: E-Commerce Site
    • Register & maintain
    account
    • Browse catalog
    • See product details
    • Checkout
    • Track status
    →SCS

    View full-size slide

  29. Pattern: SCS (Self-contained Systems)
    • Self-contained,
    autonomous
    • Including UI + DB
    • Possibly composed of
    smaller microservices
    Description: As seen on:
    • Amazon
    • Groupon
    • Otto.de
    • https://scs-architecture.org

    View full-size slide

  30. Pattern: SCS (Self-contained Systems)
    • Larger, independent systems,

    including data + UI (if present)
    • Able to autonomously serve requests
    • Light-weight integration, ideally via front-end
    • No extra infrastructure needed
    • Well suited if goal is decoupling of development teams
    Consequences:

    View full-size slide

  31. The final sizing pattern …

    View full-size slide

  32. Benefits of Monoliths
    • Highly cohesive, tightly integrated, single unit of deployment
    • Standard application with internal modularity
    • No artificially introduced distribution
    • Single unit of development and evolution
    • Easy to refactor
    • Homogeneous technical choices
    • Ideally suited for single small team

    View full-size slide

  33. We love monoliths –

    so let’s build a lot of them!

    View full-size slide

  34. Frontend Architecture

    View full-size slide

  35. “Really remote” vs. “almost local”
    μS μS
    μS
    μS μS
    μS
    Inside DC;

    Latency: μs
    Frontend Typically Internet;

    Latency: ms

    View full-size slide

  36. “Backend for Frontend”
    μS μS
    μS
    μS μS
    μS
    BFF
    Frontend
    http://samnewman.io/patterns/architectural/bff/

    View full-size slide

  37. Multiple BFFs for different clients
    μS μS
    μS
    μS μS
    μS
    BFF
    Frontend
    BFF
    Frontend
    BFF
    Frontend
    Imagine more
    arrows here

    View full-size slide

  38. Multiple channels – facing every user
    Browse product Pick recommendation Buy Check status Comment

    View full-size slide

  39. Users expect a seamless
    experience across
    channels

    – everything accessible,
    everywhere.

    View full-size slide

  40. Build services that actually do something
    Process Flow
    Presentation
    Domain Logic
    Data
    JDBC in
    disguise
    Useful
    and
    specific
    Re-
    usable
    and low-
    level

    View full-size slide

  41. Assumption:
    Services matter most
    (a.k.a. “SOAs Original Sin”)
    UIs matter
    more.

    View full-size slide

  42. μS
    μS
    μS μS
    μS
    Frontend
    μS
    Frontend + services in a
    backend architect’s mind
    μS
    μS
    μS μS
    μS
    Frontend
    μS
    Frontend + services in
    the real world

    View full-size slide

  43. Redundancy with Multiple BFFs
    μS
    μS
    μS μS
    μS
    μS
    Frontend A Frontend B Frontend C

    View full-size slide

  44. Ideal world UI componentization
    μS
    μS
    μS μS
    μS
    μS
    FE
    μS μS
    FE
    Not all μS
    need a UI
    “Vertical”

    Responsibilit

    View full-size slide

  45. SCS: Self-contained Systems
    http:/
    /scs-architecture.org

    View full-size slide

  46. Backend Platform
    More than one platform
    μS
    μS
    μS μS
    μS
    μS
    Frontend Platform
    FE
    μS μS
    FE

    View full-size slide

  47. Rendered on
    Client
    Rendered on
    Server
    Desktop
    Mobile Set top
    Web App Native App
    Frontend, we’ve got frontends
    Frontend
    Hybrid

    View full-size slide

  48. Web UI Integration: Links
    System 1 System 2

    View full-size slide

  49. Web UI Integration: Redirection
    System 1 System 2

    View full-size slide

  50. Web UI Integration: Transclusion
    System 1 System 2

    View full-size slide

  51. Web UI Integration: Web Components
    System 1 Component

    View full-size slide

  52. How to get away with “just” the Web
    • Mobile first
    • Responsive design
    • Progressive enhancement
    • Shared assets
    • Pull vs. push
    • Sacrifice (some) efficiency
    Small frontends, loosely coupled

    View full-size slide

  53. Rendered on
    Client
    Rendered on
    Server
    Desktop
    Mobile Set top
    Web App Native App
    What about other approaches?
    Frontend
    Hybrid

    ✔ ✔
    ?

    View full-size slide

  54. Native frontends resemble server monoliths
    Goals:
    • As few assumptions as possible
    • No implementation dependencies
    • Small interface surface
    • Based on standards
    • Parallel development
    • Independent deployment
    • Autonomous operations
    Constraint:
    • Only internal modularization
    Solution (sort of):
    • Organizational
    structure
    • Platform interfaces
    • Release trains
    • Discipline

    View full-size slide

  55. Rendered on
    Client
    Rendered on
    Server
    Desktop
    Mobile Set top
    Web App Native App
    What about other “modern” web apps?
    Frontend
    Hybrid

    ✔ ✔
    (✔)
    ?

    View full-size slide

  56. Assumption:
    JS-centric web apps can

    be as good as native apps
    They shouldn’t be as bad!

    View full-size slide

  57. “Web service”1)
    • Use HTTP as transport
    • Ignore verbs
    • Ignores URIs
    • Expose single “endpoint”
    • Fails to embrace the
    Web
    1) in the SOAP/WSDL sense
    “Web app”2)
    > Uses browser as runtime
    > Ignores forward, back,
    refresh
    > Does not support linking
    > Exposes monolithic “app”
    > Fails to embrace the
    browser
    2) built as a careless SPA

    View full-size slide

  58. HTML & Hypermedia
    • In REST, servers expose a hypermedia format
    • Option 1: Just use HTML
    • Option 2: Just invent your own JSON-based, incomplete
    clone
    • Clients need to be RESTful, too
    • Option 1: Use the browser
    • Option 2: Invent your own, JS-based, buggy, incomplete
    implementation

    View full-size slide

  59. $('.multiselect', context).each(function() {

    $(this).multiselect({

    selectedList: 2,

    checkAllText: "Alle",

    uncheckAllText: "Keinen"

    }).multiselectfilter({label:"",

    width:"200px"});

    });

    Project

    name="project" size="5" multiple>

    DISCOVER

    IMPROVE

    MAGENTA

    ROCA

    ROCKET



    View full-size slide

  60. Why choose a monolith if you don’t have to?
    Any sufficiently complicated JavaScript client
    application contains an ad hoc, informally-
    specified, bug-ridden, slow implementation of
    half a browser.
    (Me, with apologies to Phillip Greenspun)

    View full-size slide

  61. ROCA: Resource-oriented Client
    Architecture
    http:/
    /roca-style.org

    View full-size slide

  62. If you’re a fan of single page apps,

    at least build more than one
    • Don’t reinvent browser integration features
    • Accept some inefficiency
    • Trade-off for framework independence
    • Avoid modularity à la Java EE, OSGi etc.

    View full-size slide

  63. Maintaining Consistency

    View full-size slide

  64. Challenges & Cross-cutting Concerns
    Single sign-on
    End-to-end testing
    Visual consistency
    Re-use
    Skill transfer

    View full-size slide

  65. Visual Components
    • Design System
    • Style guide
    • Pattern library
    http://styleguides.io

    View full-size slide

  66. Style Guide Challenges
    • Possible centralization & resulting bottlenecks
    • (Semi-)manual workflow
    • Copy/paste & resulting redundancy & overhead

    View full-size slide

  67. Recommendations

    View full-size slide

  68. 1.
    Know where your problems are

    View full-size slide

  69. 2.
    Beware of the monolith …

    View full-size slide

  70. 3.
    … unless it makes sense

    View full-size slide

  71. 4.
    Create evolvable structures

    View full-size slide

  72. 5.
    Embrace the Web

    View full-size slide

  73. Christian Albrecht
    [email protected]
    Phone: +49 171 5514847
    innoQ Deutschland GmbH
    Krischerstr. 100
    40789 Monheim am Rhein
    Germany
    Phone: +49 2173 3366-0
    innoQ Schweiz GmbH
    Gewerbestr. 11
    CH-6330 Cham
    Switzerland
    Phone: +41 41 743 0116
    www.innoq.com
    Ohlauer Straße 43
    10999 Berlin
    Germany
    Phone: +49 2173 3366-0
    Ludwigstr. 180E
    63067 Offenbach
    Germany
    Phone: +49 2173 3366-0
    Kreuzstraße 16

    80331 München
    Germany
    Phone: +49 2173 3366-0
    @stilkov
    That’s all I have.

    Thanks for listening!
    Questions?
    Stefan Tilkov
    @stilkov

    [email protected]
    Phone: +49 170 471 2625

    View full-size slide

  74. www.innoq.com
    OFFICES
    Monheim
    Berlin
    Offenbach
    Munich
    Hamburg
    Zurich
    FACTS
    ~150 employees
    Privately owned
    Vendor-independent
    SERVICES
    Strategy & technology consulting
    Digital business models
    Software architecture & development
    Digital platforms & infrastructures
    Knowledge transfer, coaching & trainings
    CLIENTS
    Finance
    Telecommunications
    Logistics
    E-commerce
    Fortune 500
    SMBs
    Startups

    View full-size slide
