CI/CD for mobile done right

The talk given on Mobile Optimized 2017 Conference, describing our way of moving away from a build system based on Jenkins with dedicated build slaves, to tightly coupled Gitlab with Docker containers and VMWare Virtual Machines as it's runners.

Transcript

1. CI/CD for mobile done right Tomasz Grynfelder @tgrynfelder

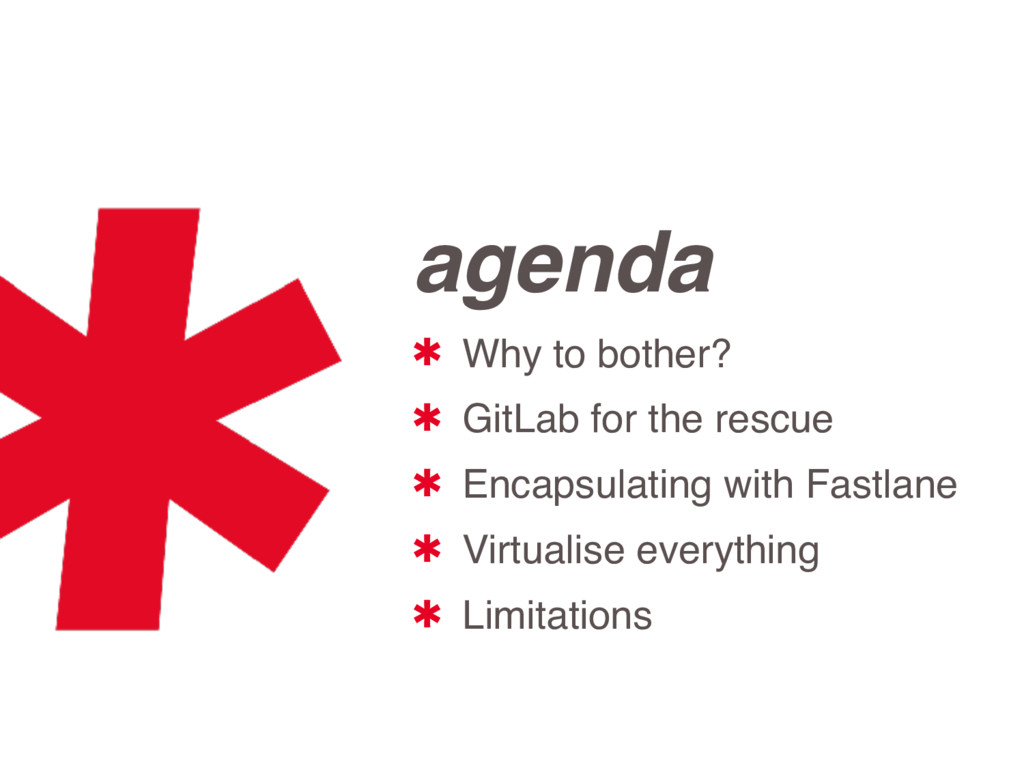

2. agenda ✱ Why to bother? ✱ GitLab for the rescue ✱ Encapsulating with Fastlane ✱ Virtualise everything ✱ Limitations
3. Why to bother?

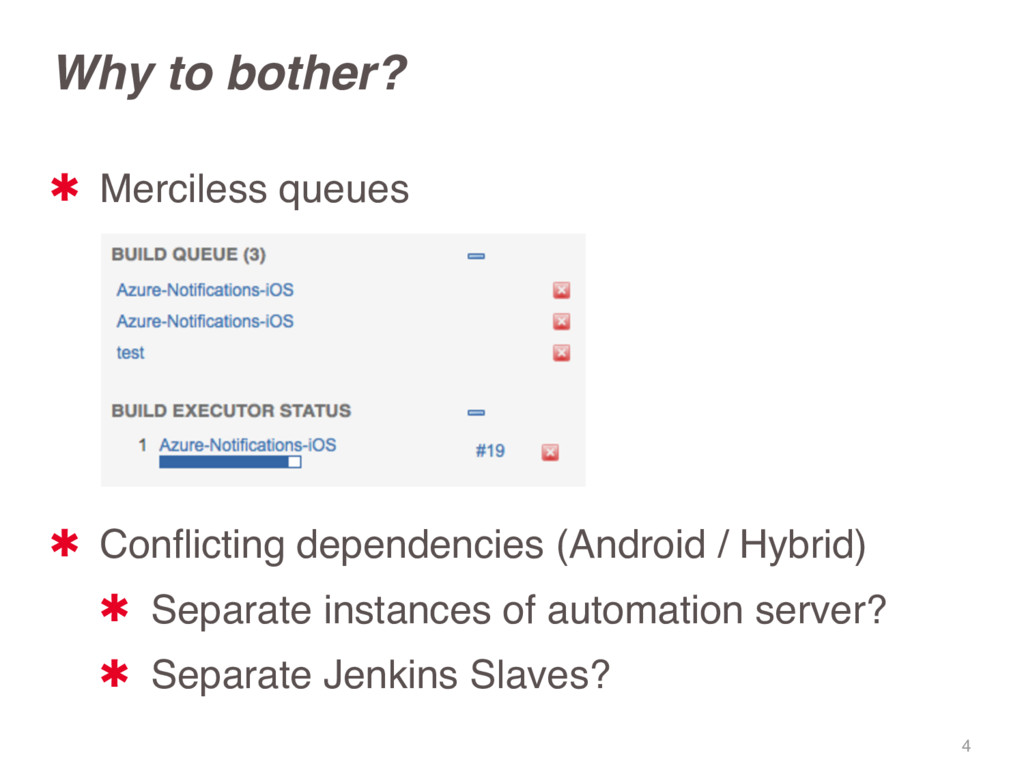

4. ✱ Merciless queues





 ✱ Conflicting dependencies (Android / Hybrid) ✱ Separate instances of automation server? ✱ Separate Jenkins Slaves? Why to bother? 4

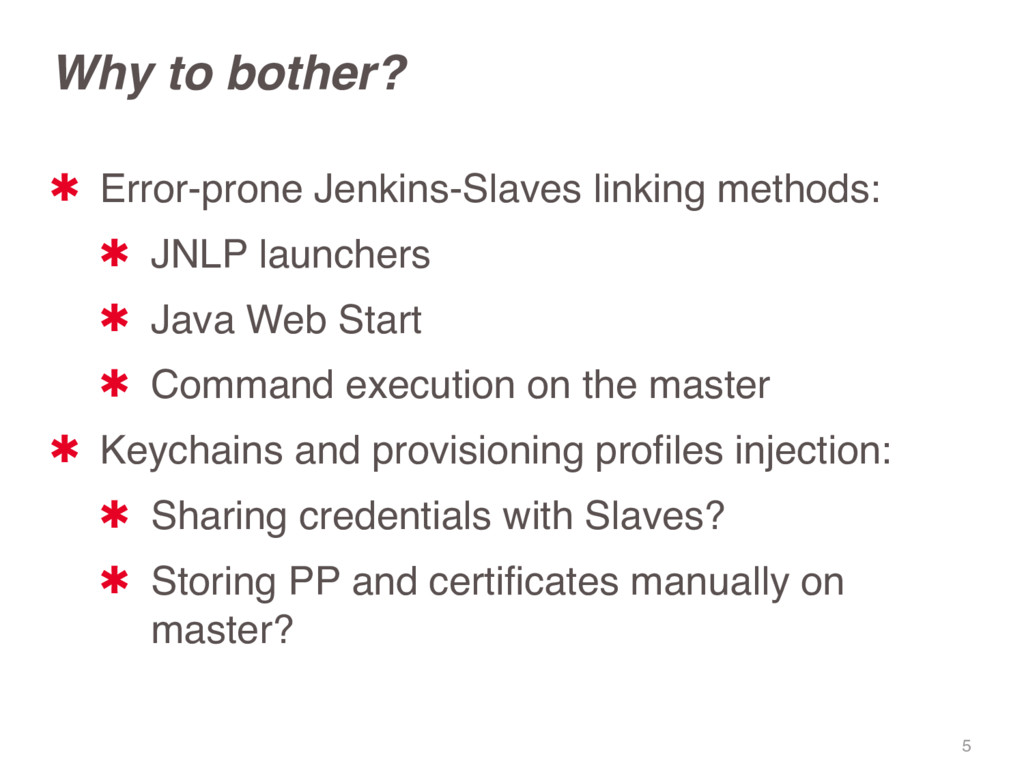

5. ✱ Error-prone Jenkins-Slaves linking methods: ✱ JNLP launchers ✱ Java Web Start ✱ Command execution on the master ✱ Keychains and provisioning profiles injection: ✱ Sharing credentials with Slaves? ✱ Storing PP and certificates manually on master? Why to bother? 5

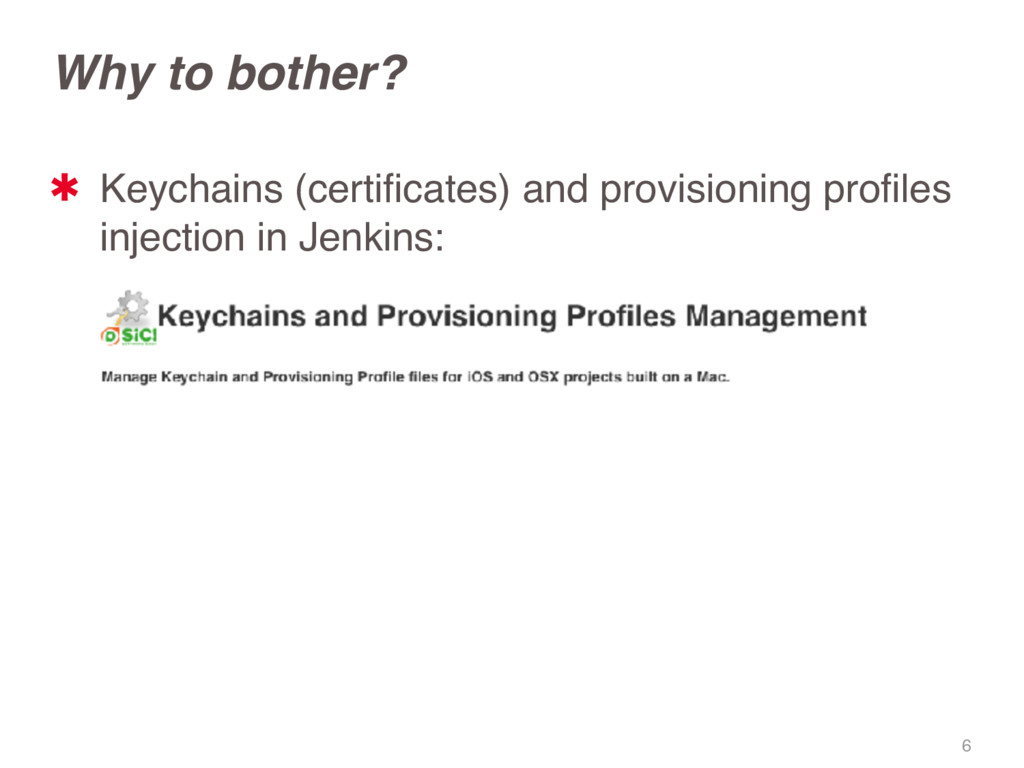

6. ✱ Keychains (certificates) and provisioning profiles injection in Jenkins:
 Why to bother? 6
7. ✱ Keychains (certificates) and provisioning profiles injection in Jenkins:
 Why to bother? 7
8. ✱ Signing issues with Xcode (valid PP and certs):
 [12:27:12]: Unlocking keychain at path:
 /workspace/test/jenkins-enterprise.keychain
 [12:27:12]: Set code signing identity: "iPhone Distribution: MyDistribution".
 (…)
 ❌ error: Task failed with exit 1 signal 0 { ** ARCHIVE FAILED ** The following build commands failed: CopySwiftLibs derivedData/Build/Intermediates/ ArchiveIntermediates/test/ InstallationBuildProductsLocation/Applications/test.app (1 failure) [12:35:18]: Exit status: 65 Why to bother? 8

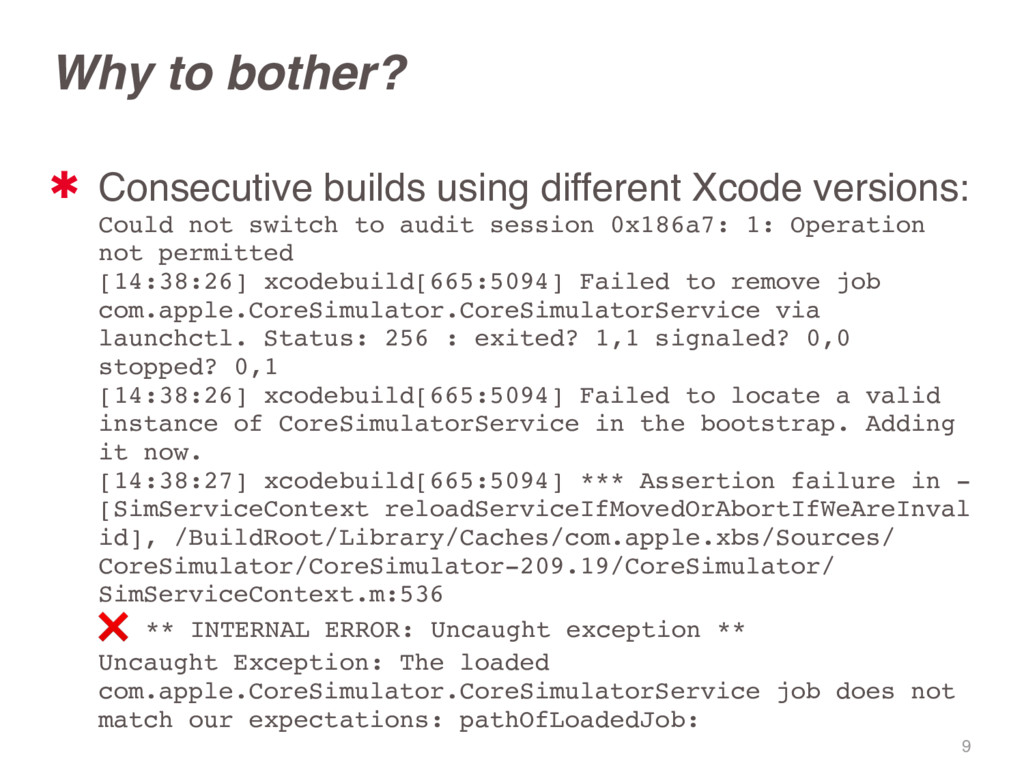

9. ✱ Consecutive builds using different Xcode versions:
 Could not switch to audit session 0x186a7: 1: Operation not permitted
 [14:38:26] xcodebuild[665:5094] Failed to remove job com.apple.CoreSimulator.CoreSimulatorService via launchctl. Status: 256 : exited? 1,1 signaled? 0,0 stopped? 0,1
 [14:38:26] xcodebuild[665:5094] Failed to locate a valid instance of CoreSimulatorService in the bootstrap. Adding it now.
 [14:38:27] xcodebuild[665:5094] *** Assertion failure in - [SimServiceContext reloadServiceIfMovedOrAbortIfWeAreInval id], /BuildRoot/Library/Caches/com.apple.xbs/Sources/ CoreSimulator/CoreSimulator-209.19/CoreSimulator/ SimServiceContext.m:536
 ❌ ** INTERNAL ERROR: Uncaught exception **
 Uncaught Exception: The loaded com.apple.CoreSimulator.CoreSimulatorService job does not match our expectations: pathOfLoadedJob: Why to bother? 9

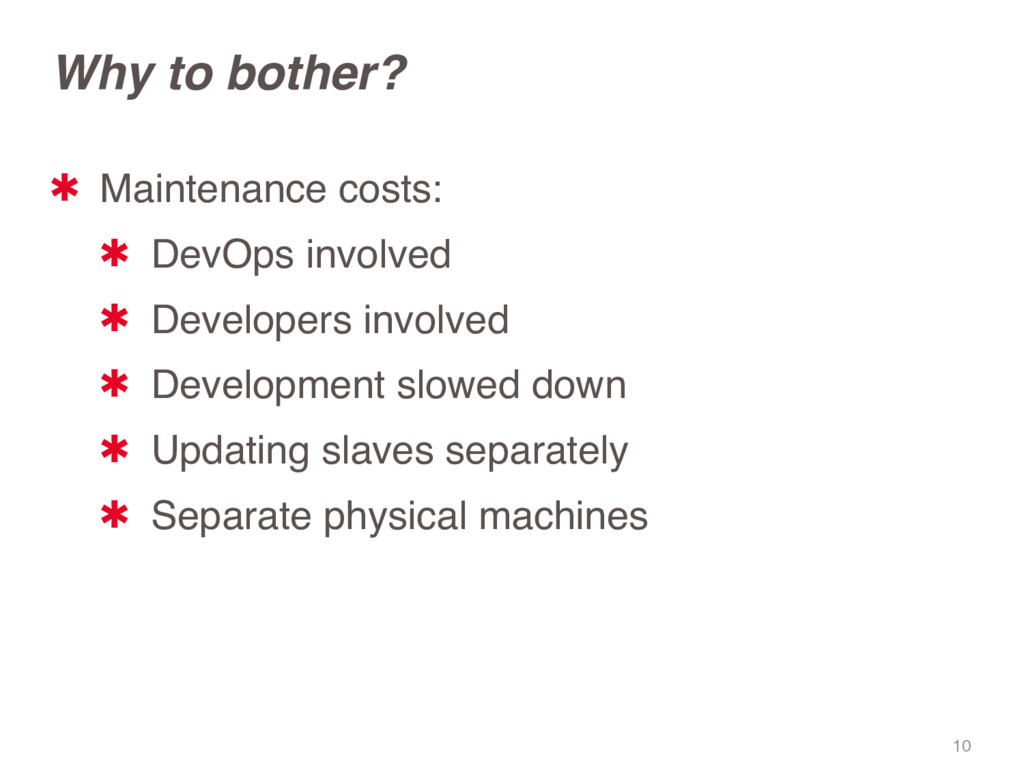

10. ✱ Maintenance costs: ✱ DevOps involved ✱ Developers involved ✱ Development slowed down ✱ Updating slaves separately ✱ Separate physical machines Why to bother? 10

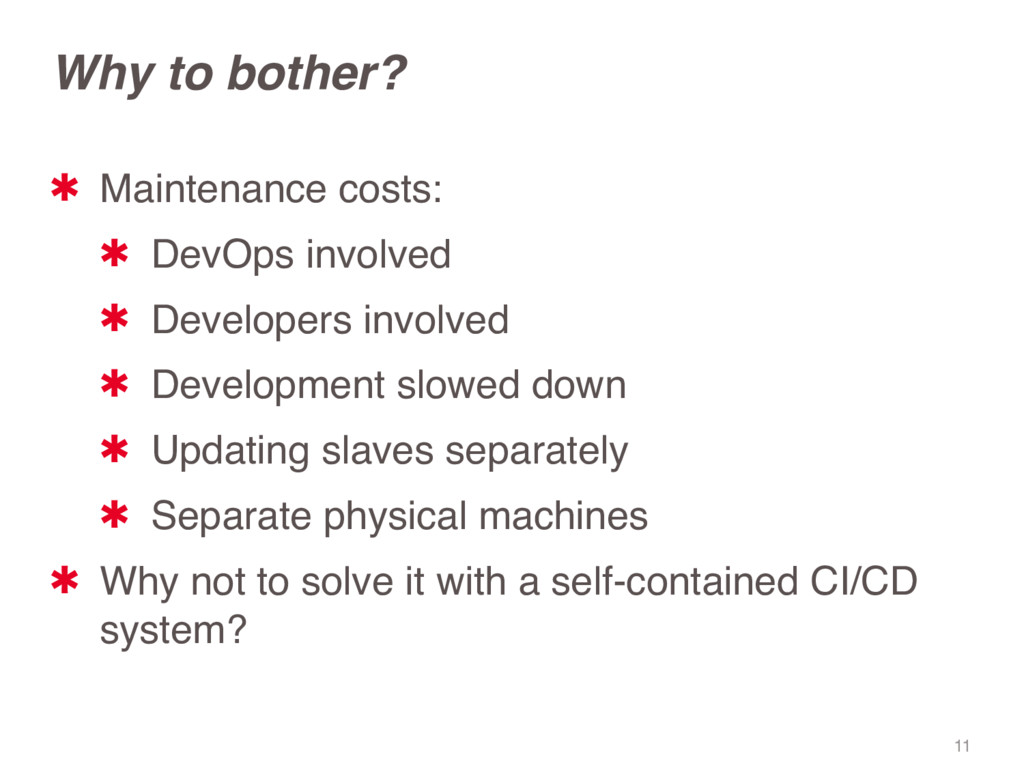

11. ✱ Maintenance costs: ✱ DevOps involved ✱ Developers involved ✱ Development slowed down ✱ Updating slaves separately ✱ Separate physical machines ✱ Why not to solve it with a self-contained CI/CD system? Why to bother? 11
12. GitLab
 for the rescue

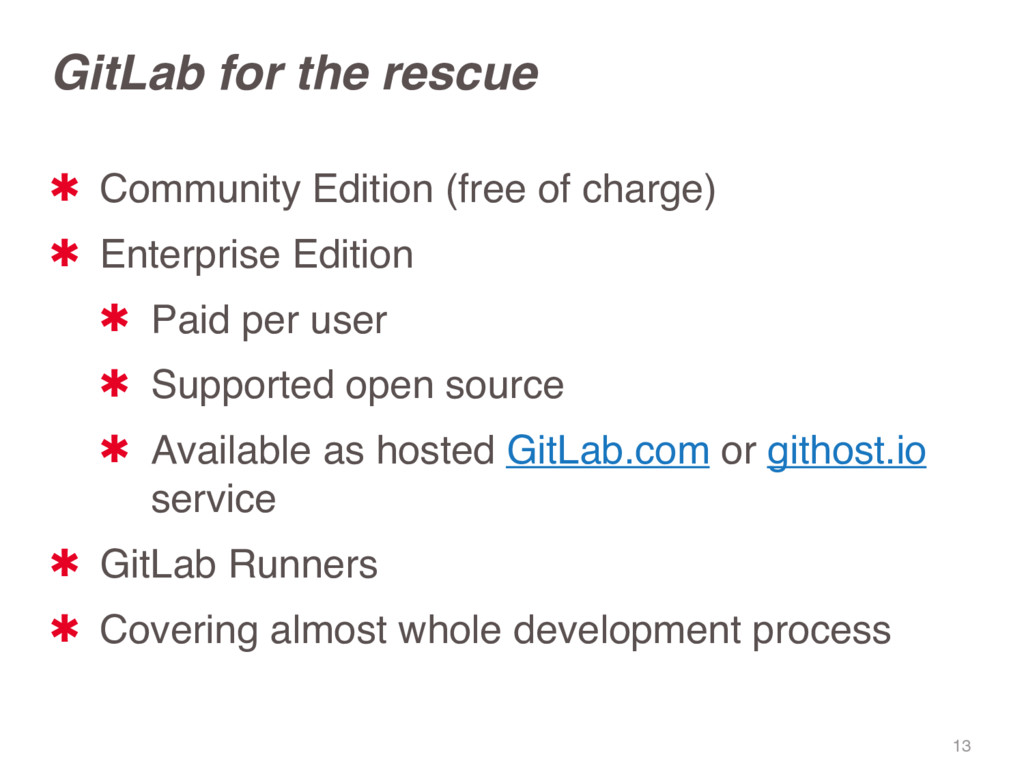

13. ✱ Community Edition (free of charge) ✱ Enterprise Edition ✱ Paid per user ✱ Supported open source ✱ Available as hosted GitLab.com or githost.io service ✱ GitLab Runners ✱ Covering almost whole development process GitLab for the rescue 13

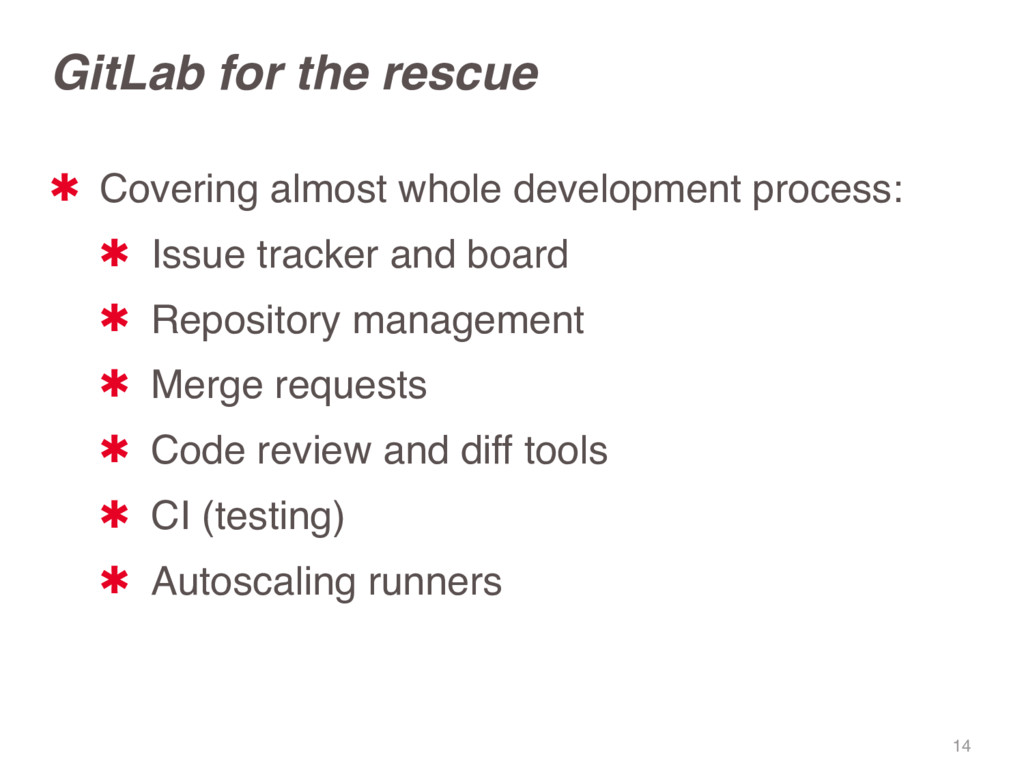

14. ✱ Covering almost whole development process: ✱ Issue tracker and board ✱ Repository management ✱ Merge requests ✱ Code review and diff tools ✱ CI (testing) ✱ Autoscaling runners GitLab for the rescue 14

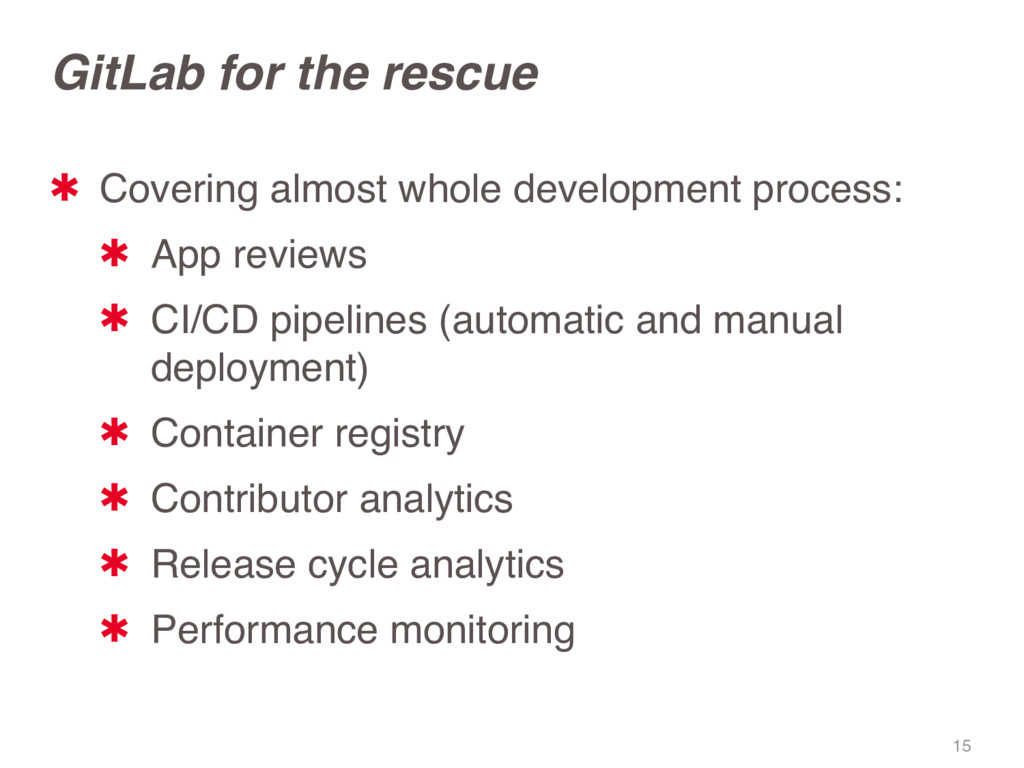

15. ✱ Covering almost whole development process: ✱ App reviews ✱ CI/CD pipelines (automatic and manual deployment) ✱ Container registry ✱ Contributor analytics ✱ Release cycle analytics ✱ Performance monitoring GitLab for the rescue 15

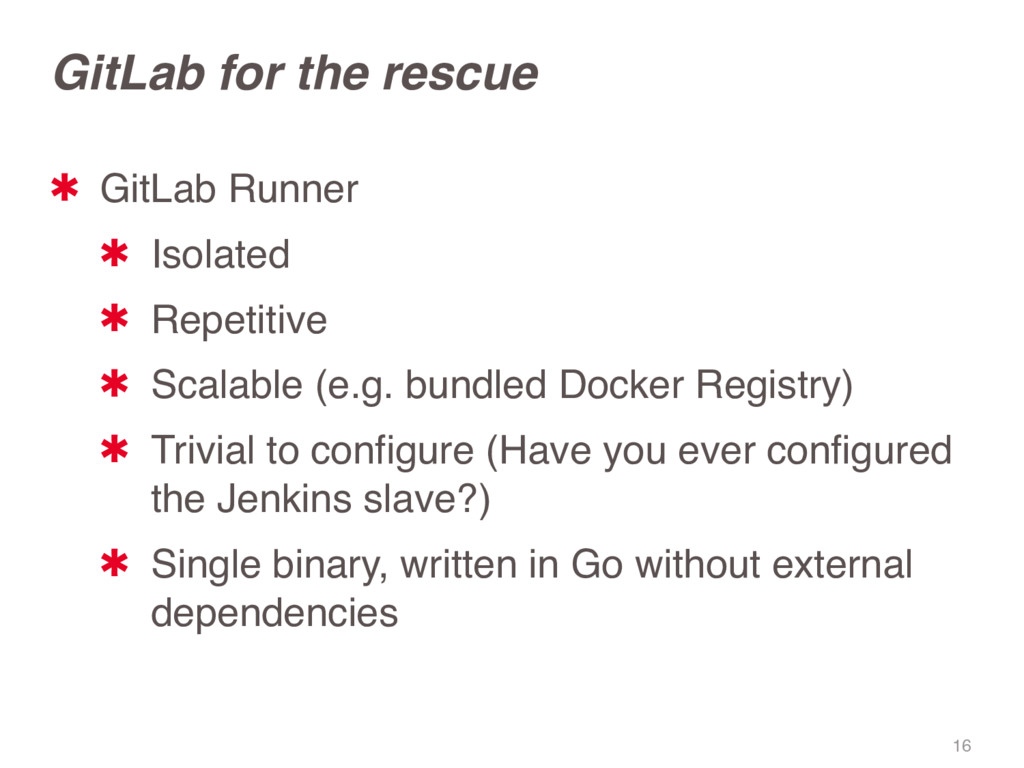

16. ✱ GitLab Runner ✱ Isolated ✱ Repetitive ✱ Scalable (e.g. bundled Docker Registry) ✱ Trivial to configure (Have you ever configured the Jenkins slave?) ✱ Single binary, written in Go without external dependencies GitLab for the rescue 16

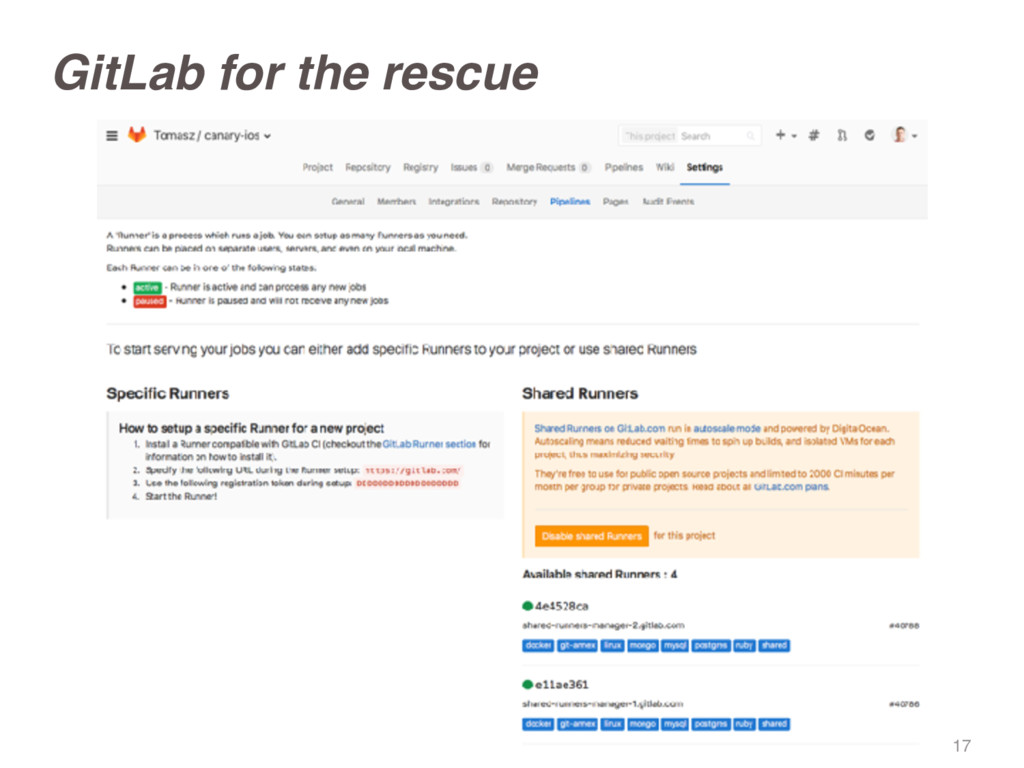

17. GitLab for the rescue 17

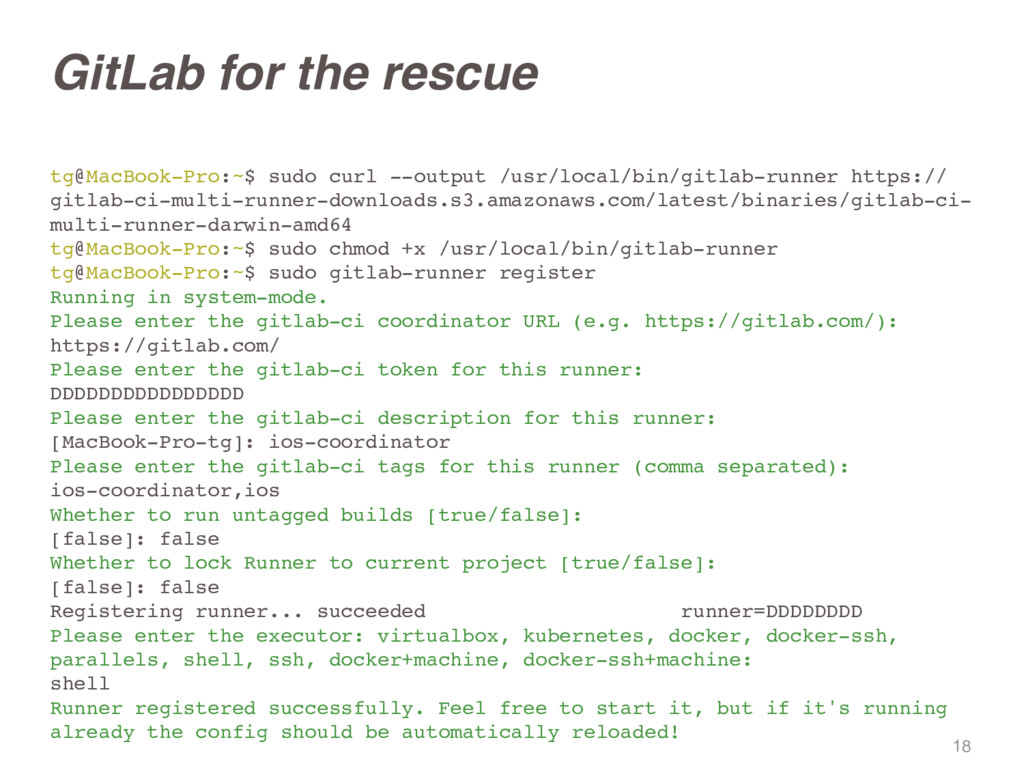

18. tg@MacBook-Pro:~$ sudo curl --output /usr/local/bin/gitlab-runner https:// gitlab-ci-multi-runner-downloads.s3.amazonaws.com/latest/binaries/gitlab-ci- multi-runner-darwin-amd64 tg@MacBook-Pro:~$ sudo chmod +x /usr/local/bin/gitlab-runner tg@MacBook-Pro:~$ sudo gitlab-runner register Running in system-mode. Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com/): https://gitlab.com/ Please enter the gitlab-ci token for this runner: DDDDDDDDDDDDDDDD Please enter the gitlab-ci description for this runner: [MacBook-Pro-tg]: ios-coordinator Please enter the gitlab-ci tags for this runner (comma separated): ios-coordinator,ios Whether to run untagged builds [true/false]: [false]: false Whether to lock Runner to current project [true/false]: [false]: false Registering runner... succeeded runner=DDDDDDDD Please enter the executor: virtualbox, kubernetes, docker, docker-ssh, parallels, shell, ssh, docker+machine, docker-ssh+machine: shell Runner registered successfully. Feel free to start it, but if it's running already the config should be automatically reloaded! GitLab for the rescue 18

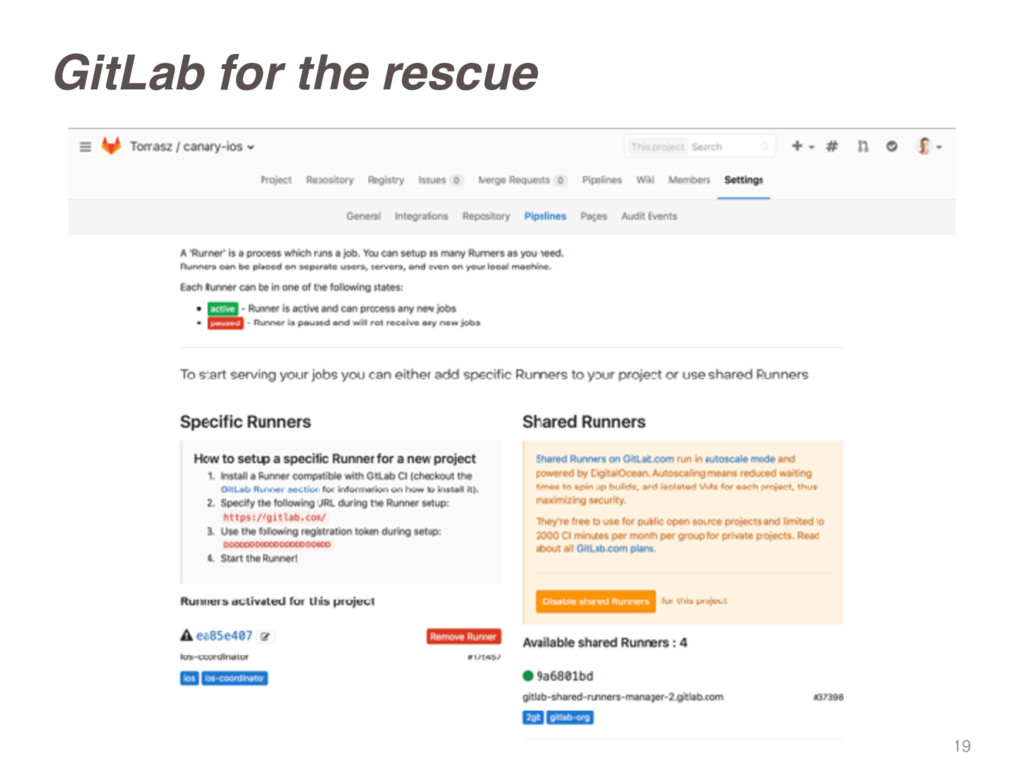

19. GitLab for the rescue 19

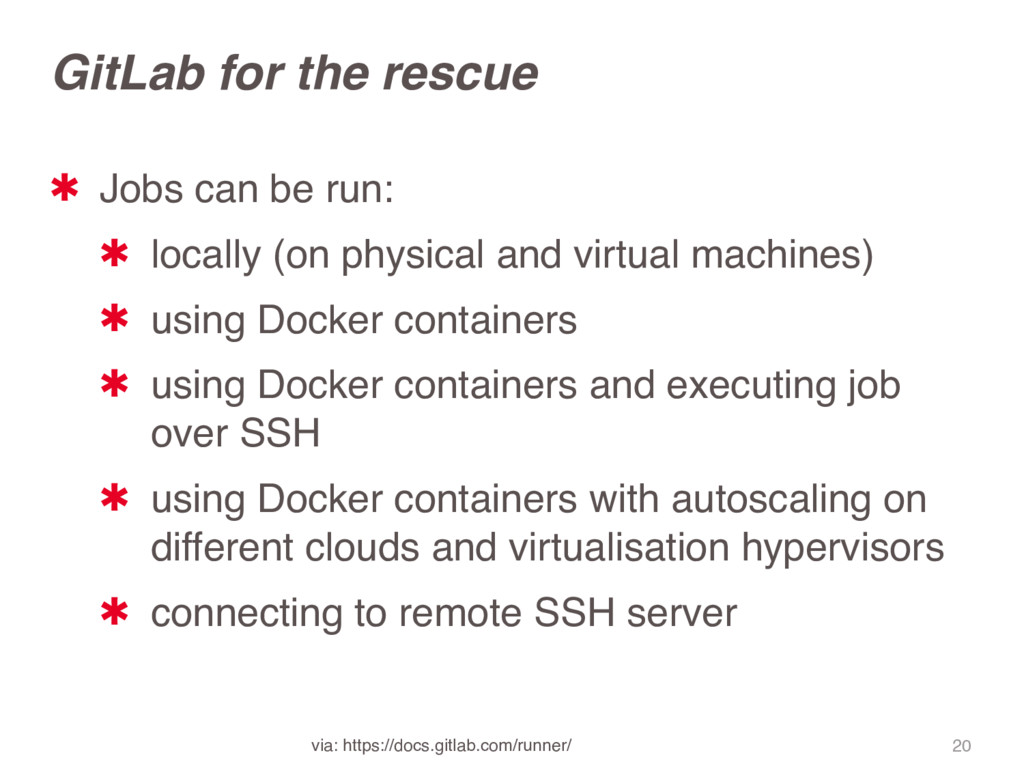

20. ✱ Jobs can be run: ✱ locally (on physical and virtual machines) ✱ using Docker containers ✱ using Docker containers and executing job over SSH ✱ using Docker containers with autoscaling on different clouds and virtualisation hypervisors ✱ connecting to remote SSH server GitLab for the rescue 20 via: https://docs.gitlab.com/runner/
21. Encapsulating with Fastlane

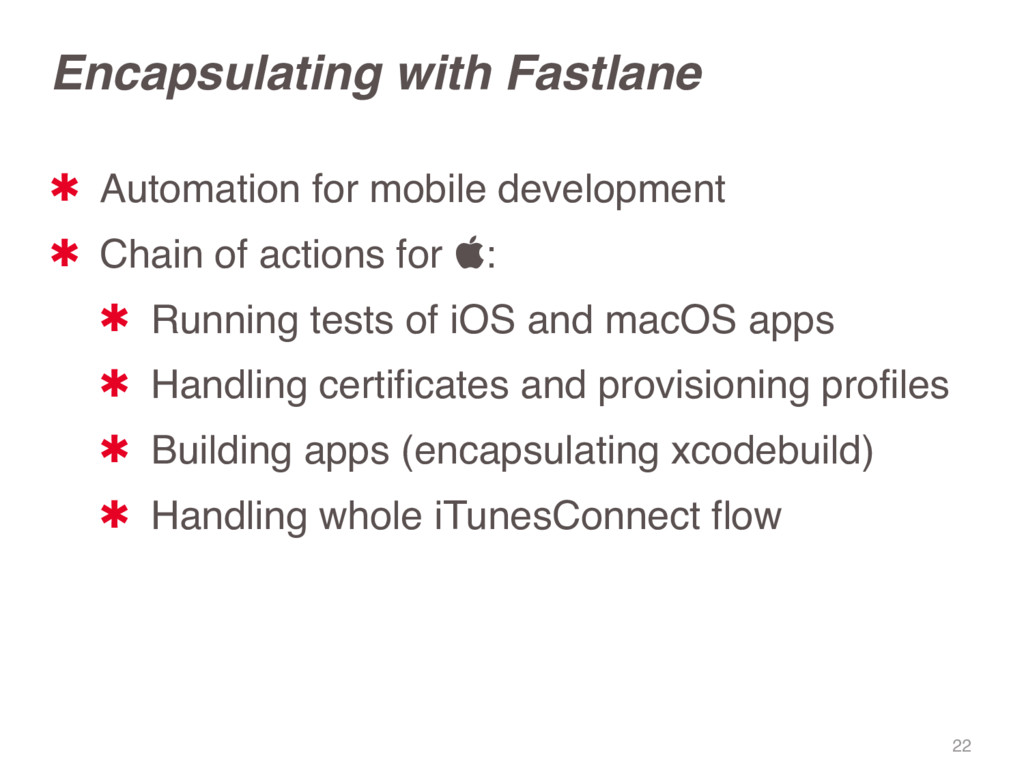

22. ✱ Automation for mobile development ✱ Chain of actions for : ✱ Running tests of iOS and macOS apps ✱ Handling certificates and provisioning profiles ✱ Building apps (encapsulating xcodebuild) ✱ Handling whole iTunesConnect flow Encapsulating with Fastlane 22

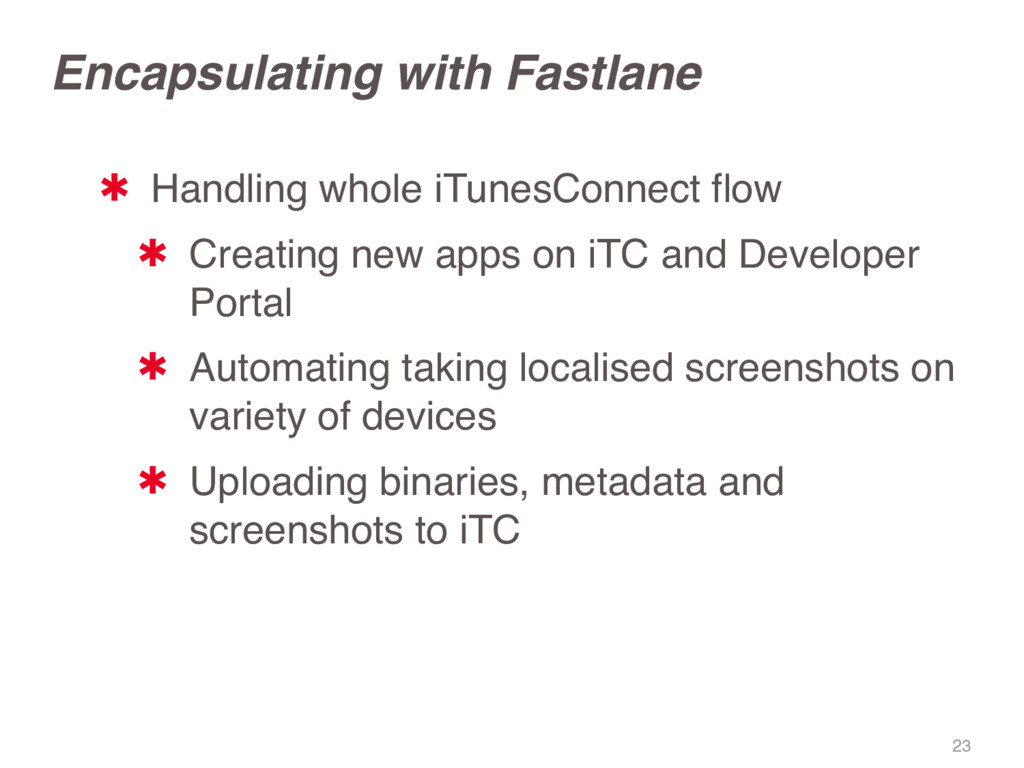

23. ✱ Handling whole iTunesConnect flow ✱ Creating new apps on iTC and Developer Portal ✱ Automating taking localised screenshots on variety of devices ✱ Uploading binaries, metadata and screenshots to iTC Encapsulating with Fastlane 23

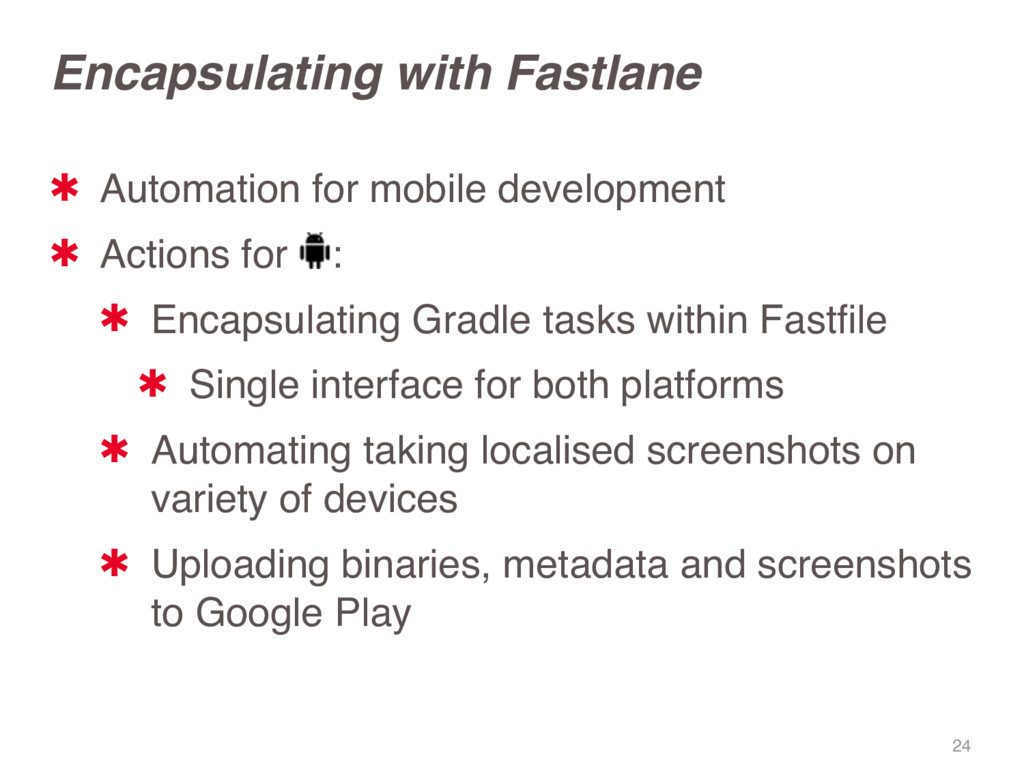

24. ✱ Automation for mobile development ✱ Actions for : ✱ Encapsulating Gradle tasks within Fastfile ✱ Single interface for both platforms ✱ Automating taking localised screenshots on variety of devices ✱ Uploading binaries, metadata and screenshots to Google Play Encapsulating with Fastlane 24

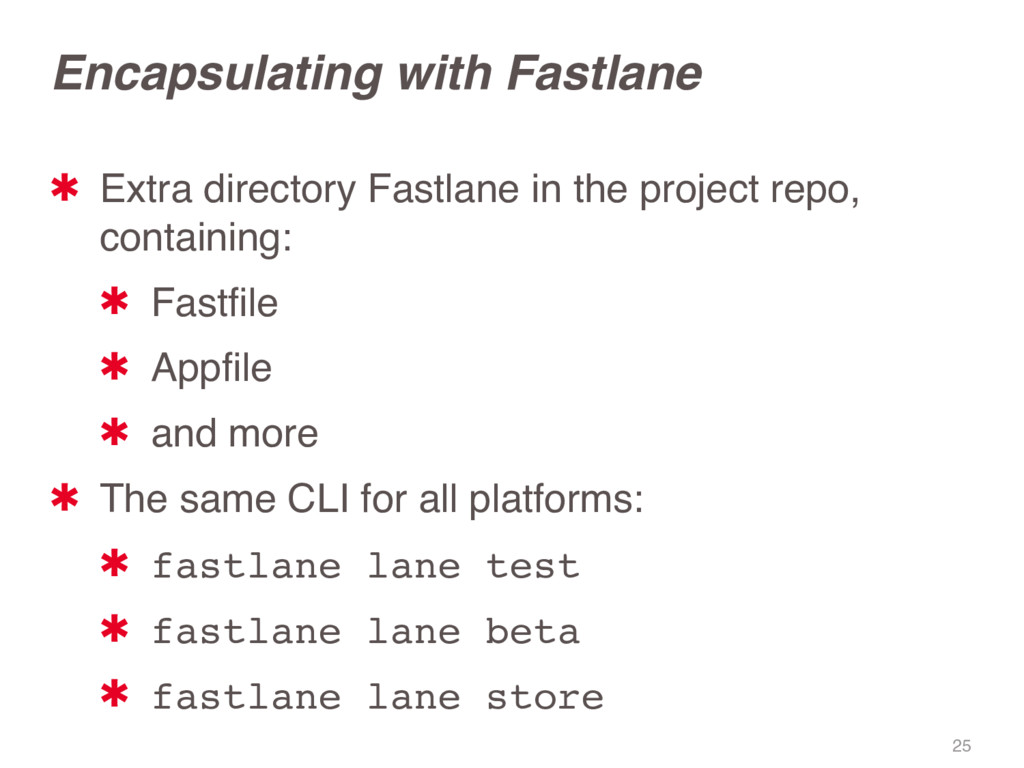

25. ✱ Extra directory Fastlane in the project repo, containing: ✱ Fastfile ✱ Appfile ✱ and more ✱ The same CLI for all platforms: ✱ fastlane lane test ✱ fastlane lane beta ✱ fastlane lane store Encapsulating with Fastlane 25

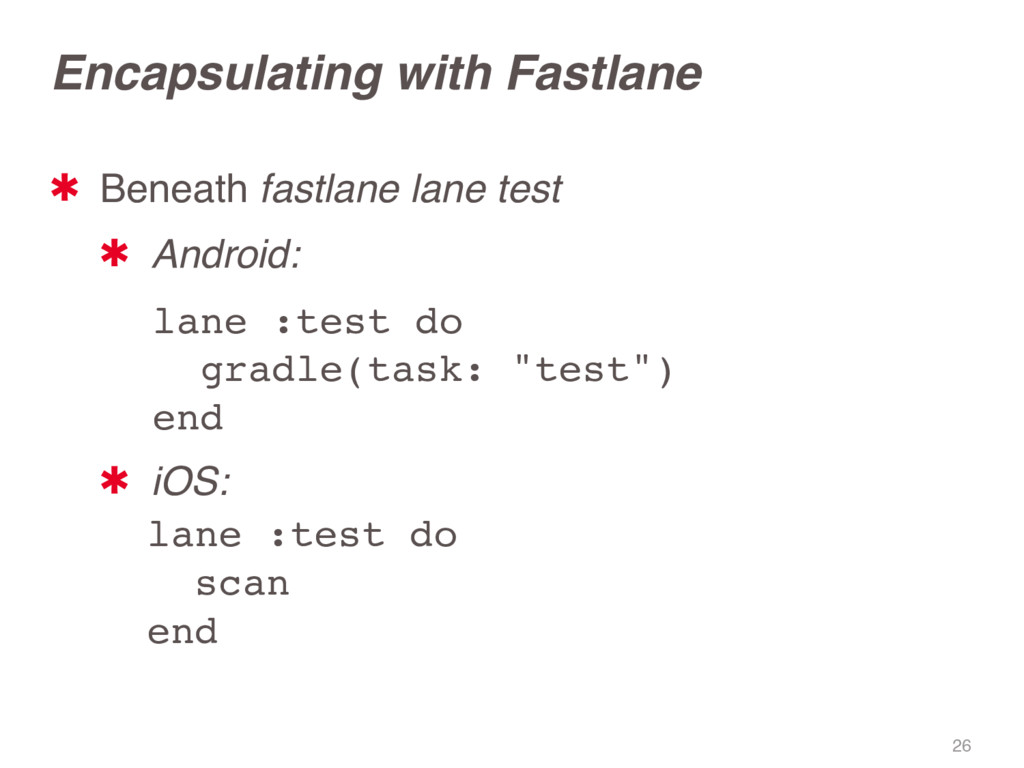

26. Encapsulating with Fastlane 26 lane :test do
 scan
 end ✱ Beneath fastlane lane test ✱ Android: lane :test do
 gradle(task: "test")
 end ✱ iOS:
27. Virtualise everything

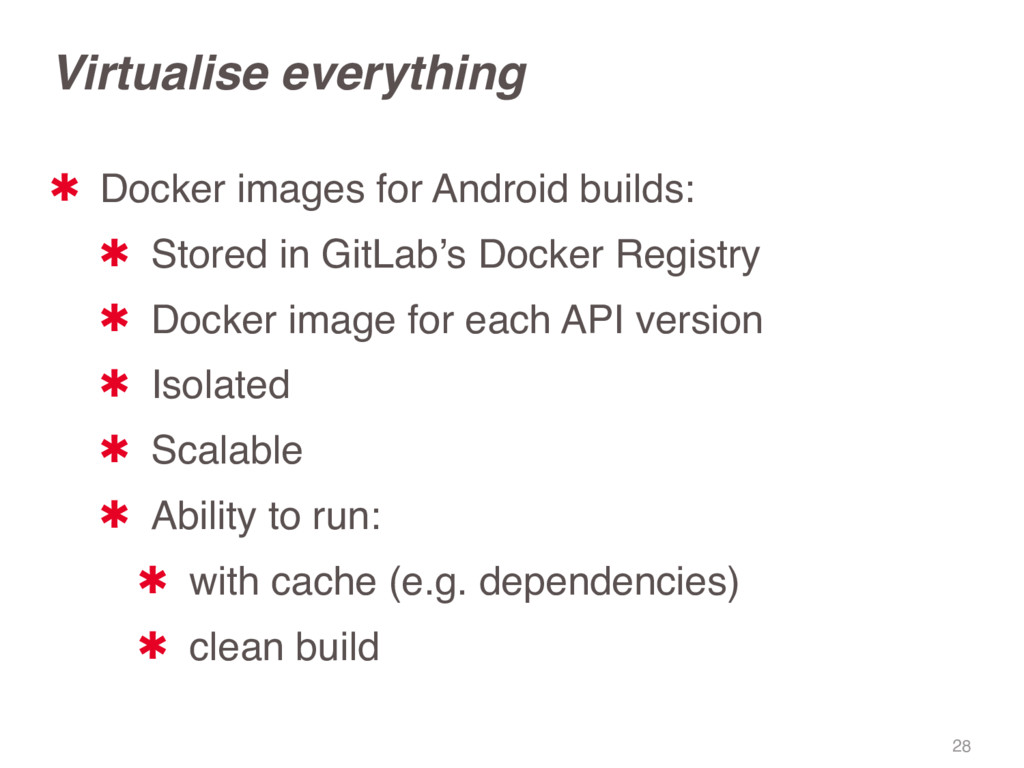

28. ✱ Docker images for Android builds: ✱ Stored in GitLab’s Docker Registry ✱ Docker image for each API version ✱ Isolated ✱ Scalable ✱ Ability to run: ✱ with cache (e.g. dependencies) ✱ clean build Virtualise everything 28

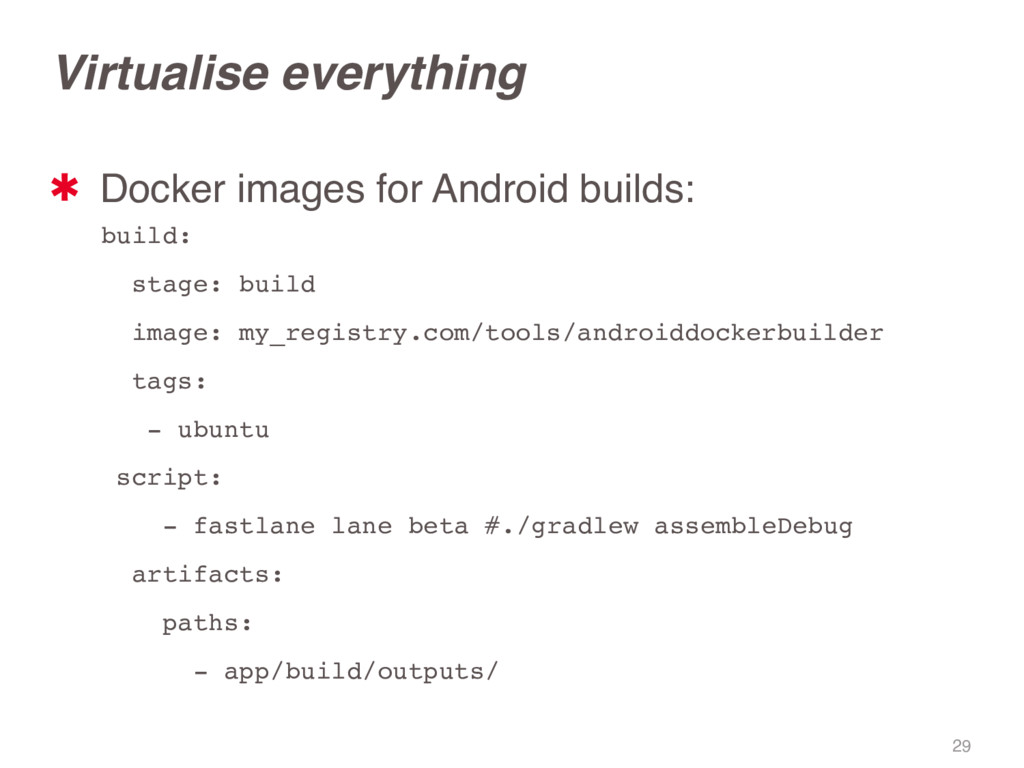

29. ✱ Docker images for Android builds: Virtualise everything 29 build: stage: build image: my_registry.com/tools/androiddockerbuilder tags: - ubuntu script: - fastlane lane beta #./gradlew assembleDebug artifacts: paths: - app/build/outputs/

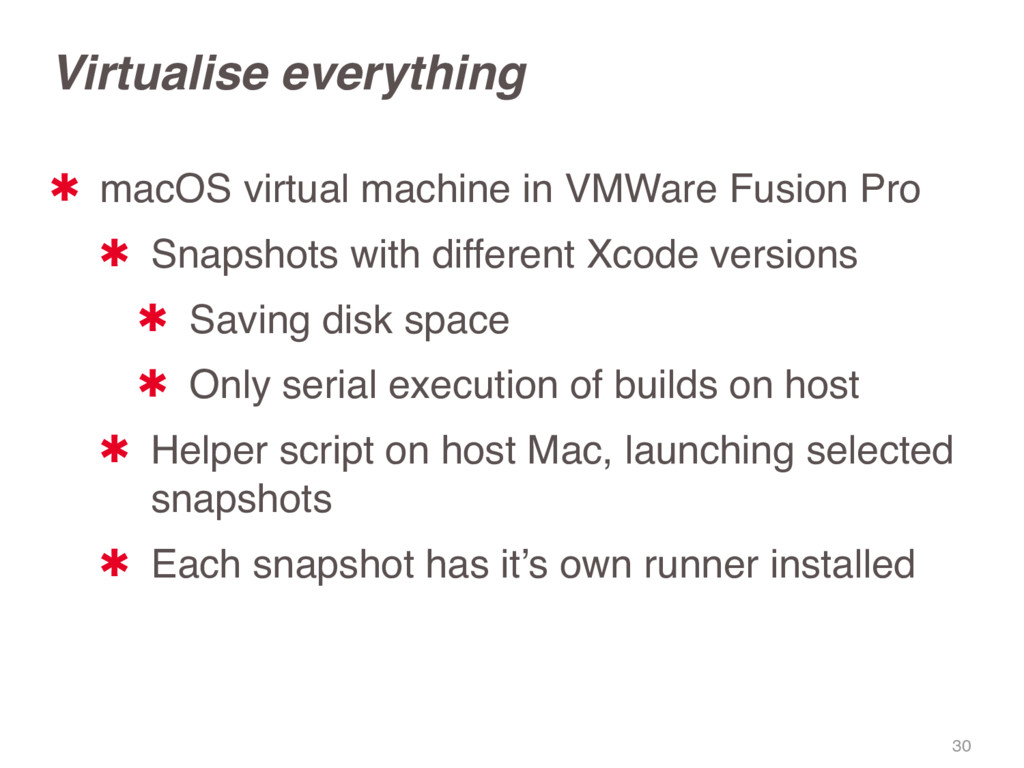

30. ✱ macOS virtual machine in VMWare Fusion Pro ✱ Snapshots with different Xcode versions ✱ Saving disk space ✱ Only serial execution of builds on host ✱ Helper script on host Mac, launching selected snapshots ✱ Each snapshot has it’s own runner installed Virtualise everything 30

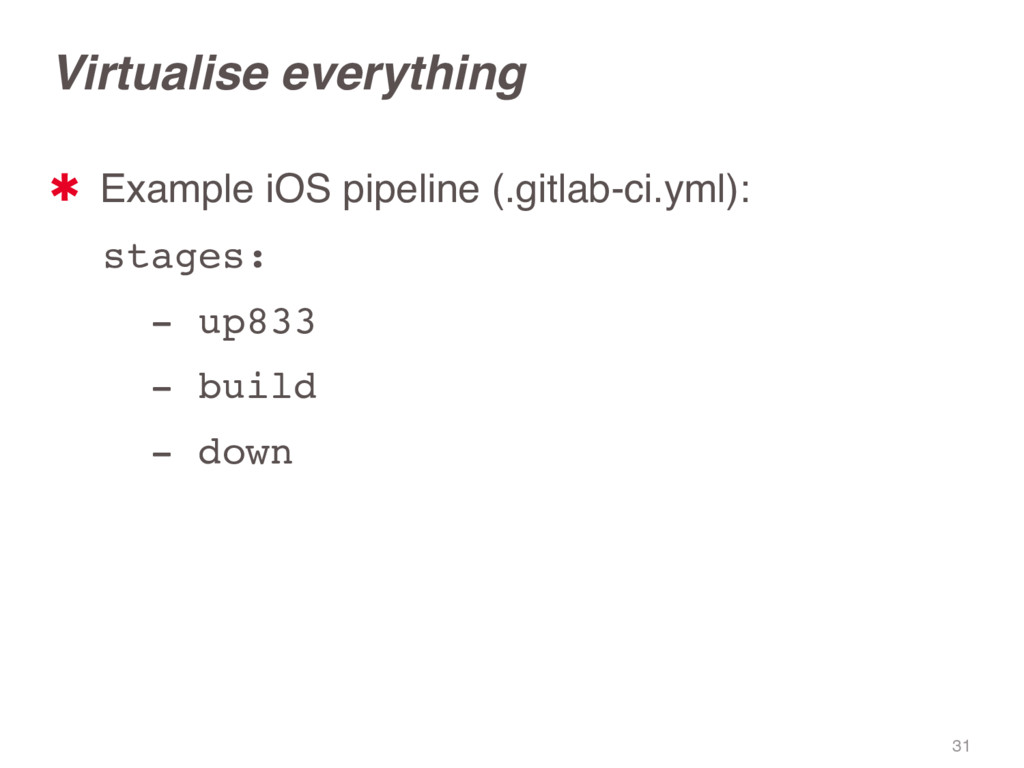

31. ✱ Example iOS pipeline (.gitlab-ci.yml): Virtualise everything 31 stages: - up833 - build - down

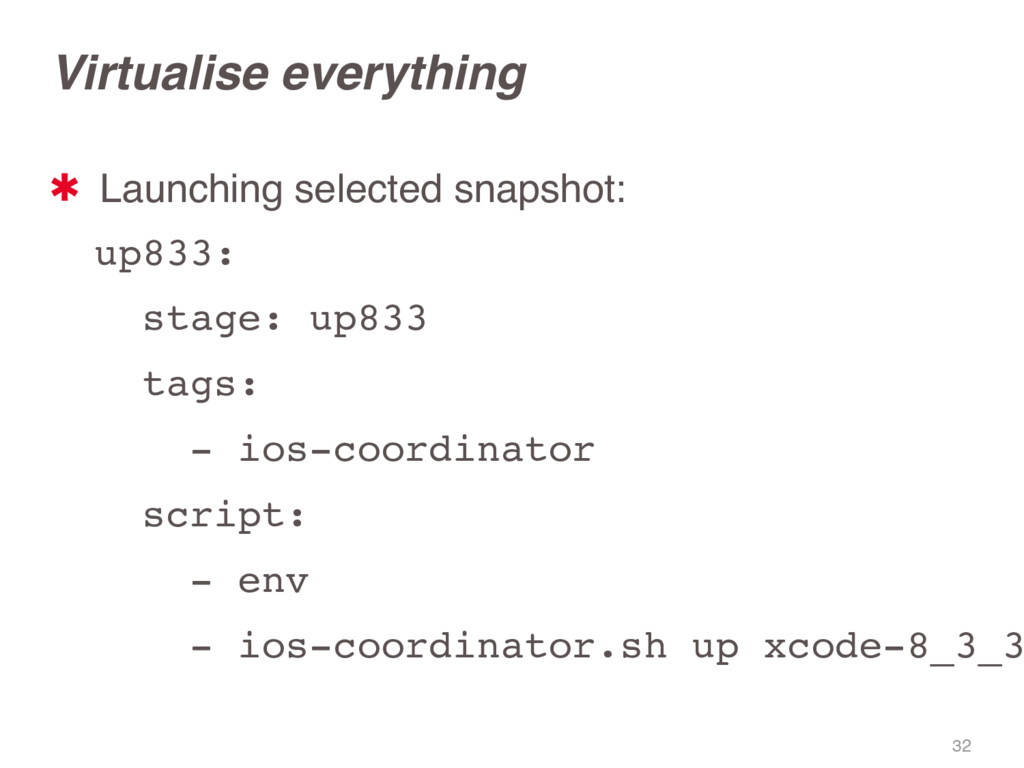

32. ✱ Launching selected snapshot: Virtualise everything 32 up833: stage: up833 tags: - ios-coordinator script: - env - ios-coordinator.sh up xcode-8_3_3

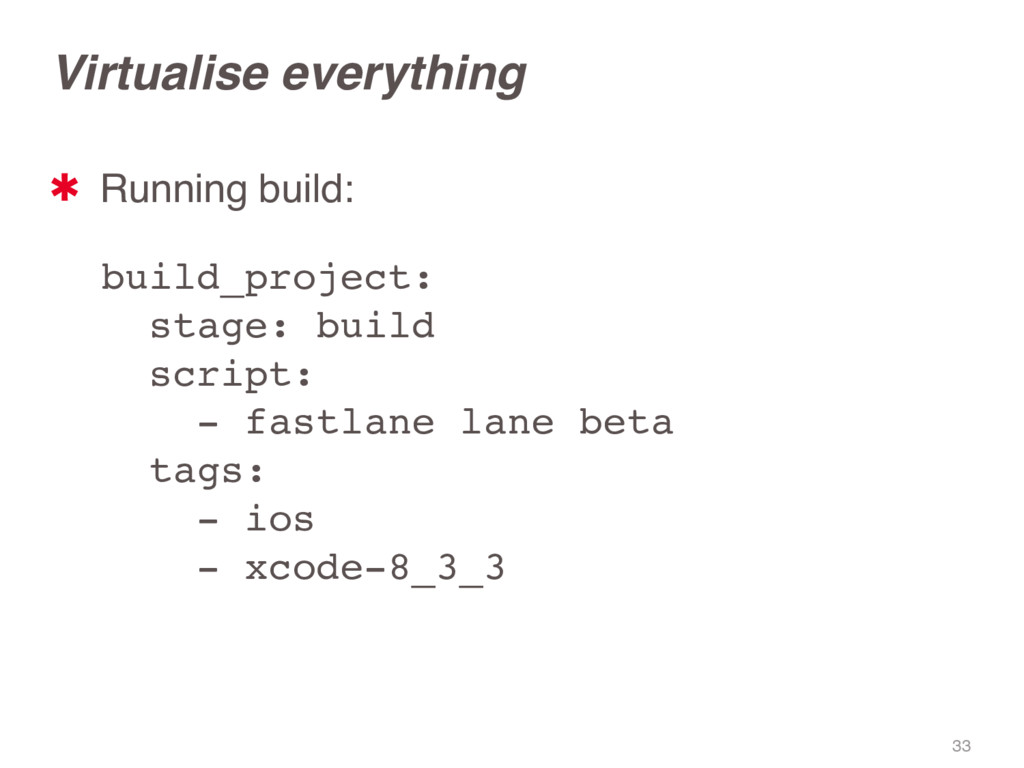

33. ✱ Running build: Virtualise everything 33 build_project:
 stage: build
 script:
 - fastlane lane beta
 tags:
 - ios
 - xcode-8_3_3

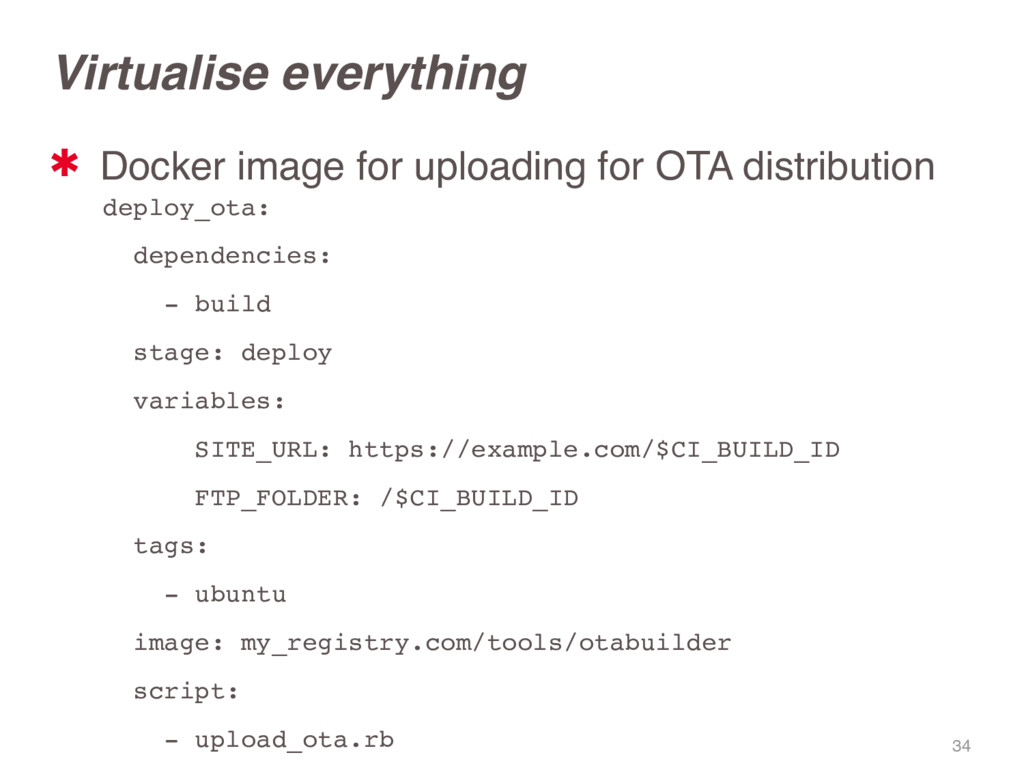

34. ✱ Docker image for uploading for OTA distribution Virtualise everything 34 deploy_ota: dependencies: - build stage: deploy variables: SITE_URL: https://example.com/$CI_BUILD_ID FTP_FOLDER: /$CI_BUILD_ID tags: - ubuntu image: my_registry.com/tools/otabuilder script: - upload_ota.rb
35. Limitations

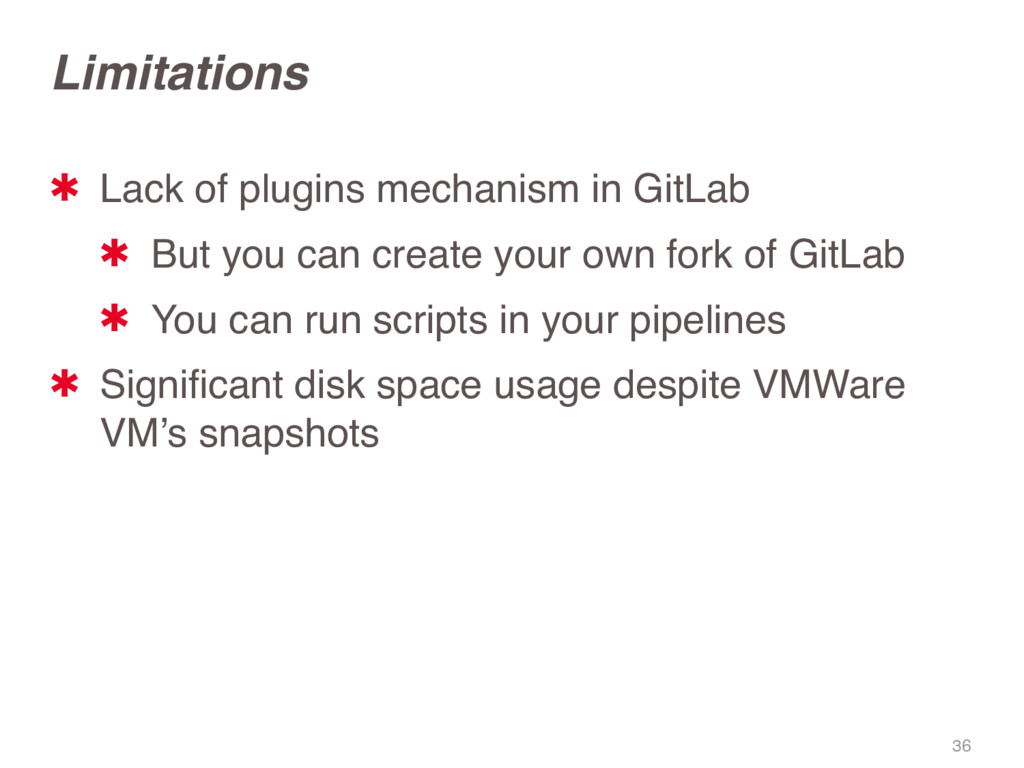

36. ✱ Lack of plugins mechanism in GitLab ✱ But you can create your own fork of GitLab ✱ You can run scripts in your pipelines ✱ Significant disk space usage despite VMWare VM’s snapshots Limitations 36
37. Q&A

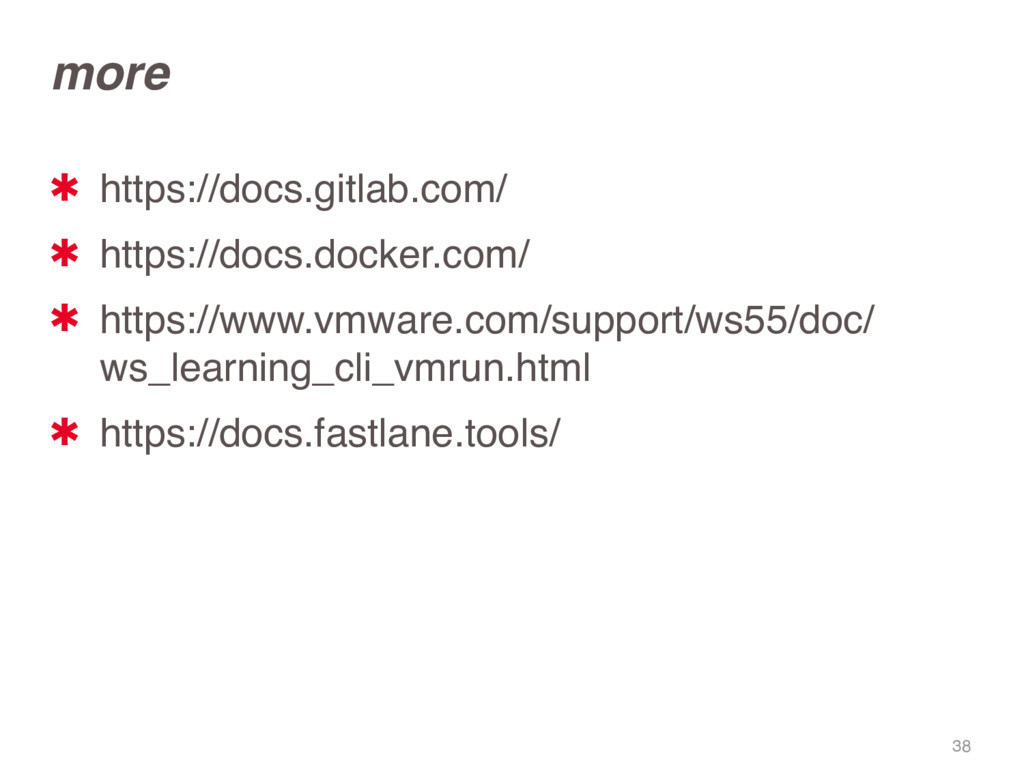

38. ✱ https://docs.gitlab.com/ ✱ https://docs.docker.com/ ✱ https://www.vmware.com/support/ws55/doc/ ws_learning_cli_vmrun.html ✱ https://docs.fastlane.tools/ more 38
39. thanks! follow me: @tgrynfelder
