Reverse Engineering in iOS

Reverse Engineering in iOS talk at Mobile Optimized 2014.

Transcript

1. Reverse Engineering in iOS Tomasz Grynfelder, Polidea @tgrynfelder
2. The goal

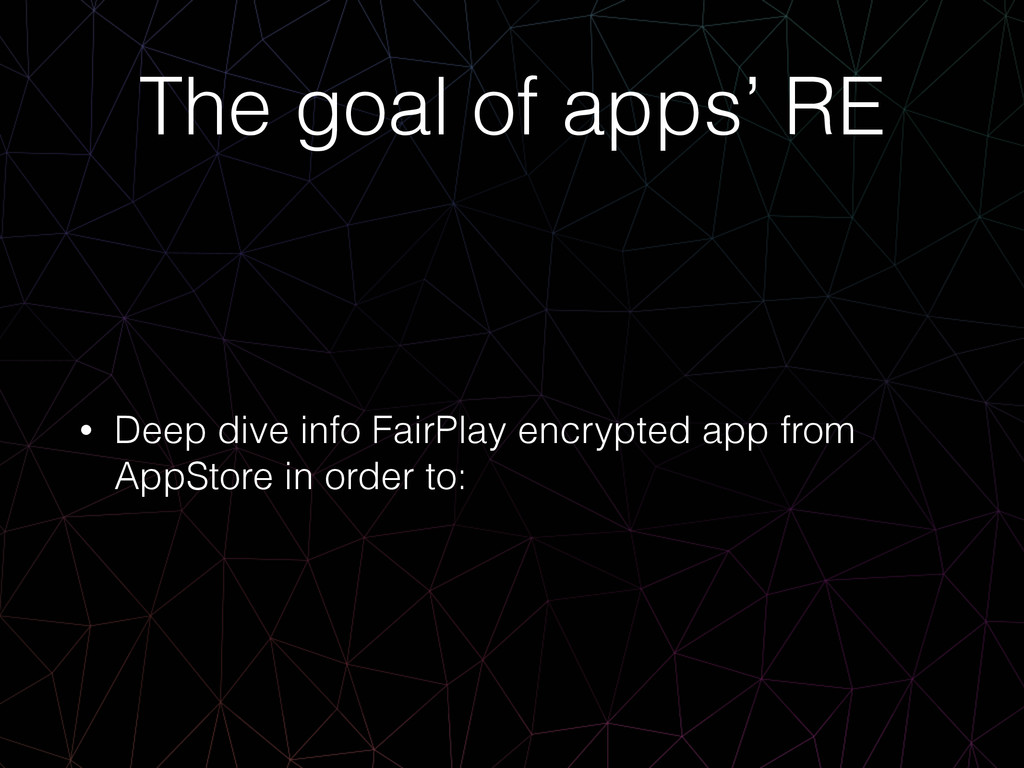

3. The goal of apps’ RE • Deep dive info FairPlay encrypted app from AppStore in order to:

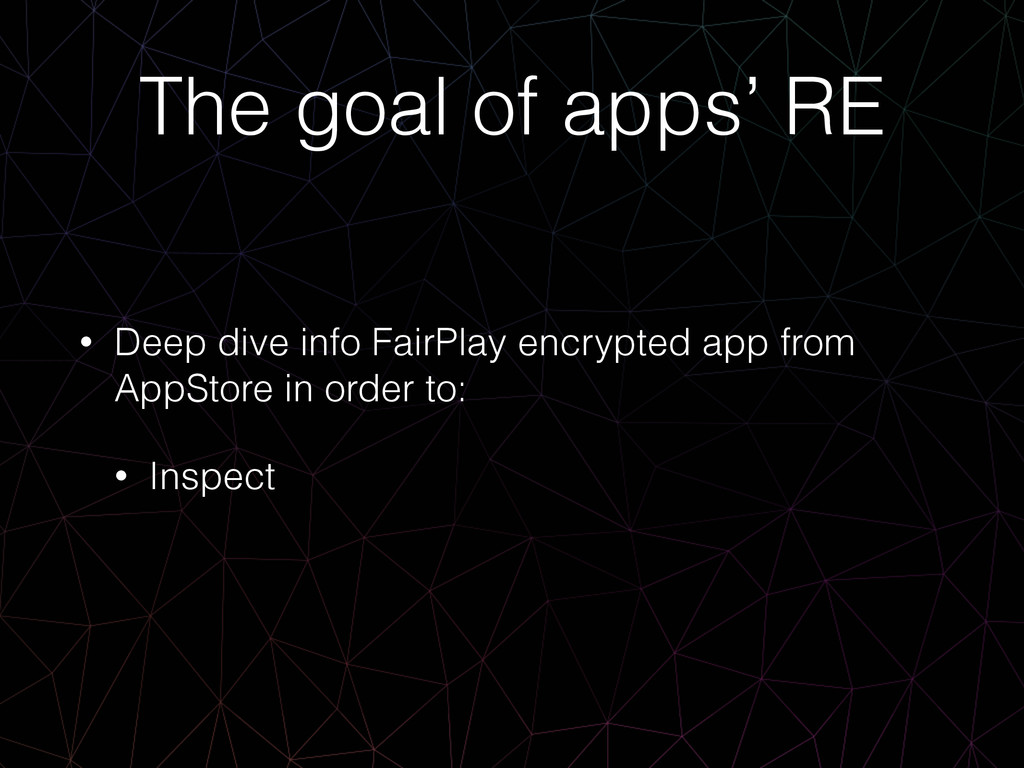

4. The goal of apps’ RE • Deep dive info FairPlay encrypted app from AppStore in order to: • Inspect
5. The goal of apps’ RE • Deep dive info FairPlay encrypted app from AppStore in order to: • Inspect • Modify

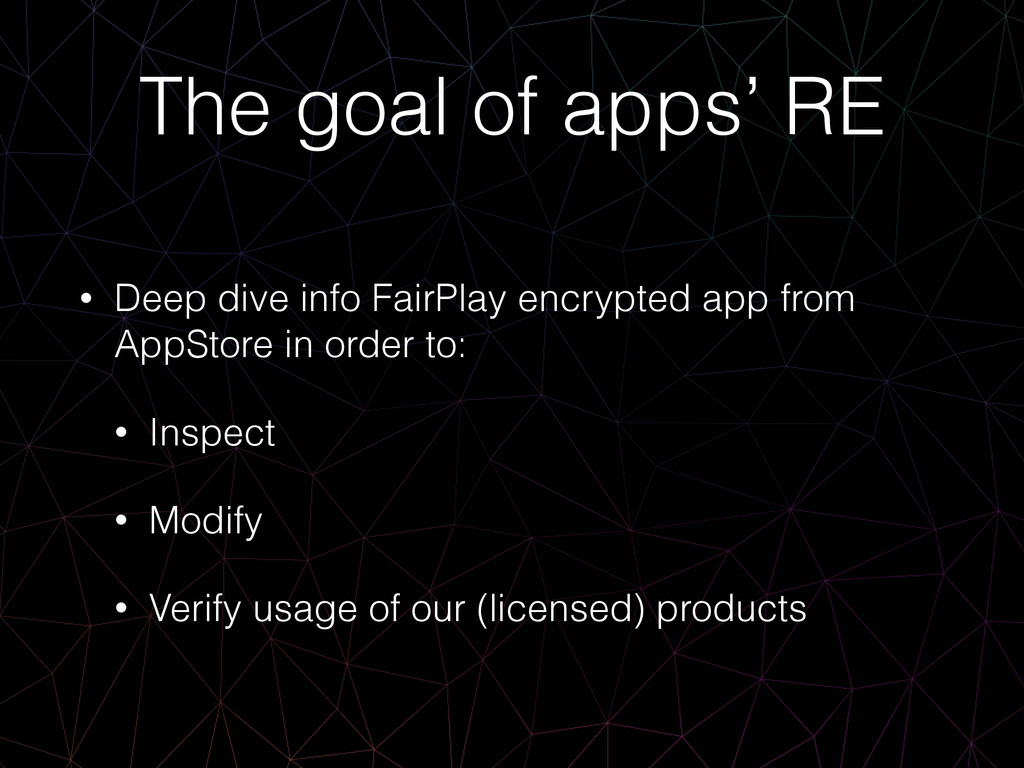

6. The goal of apps’ RE • Deep dive info FairPlay encrypted app from AppStore in order to: • Inspect • Modify • Verify usage of our (licensed) products

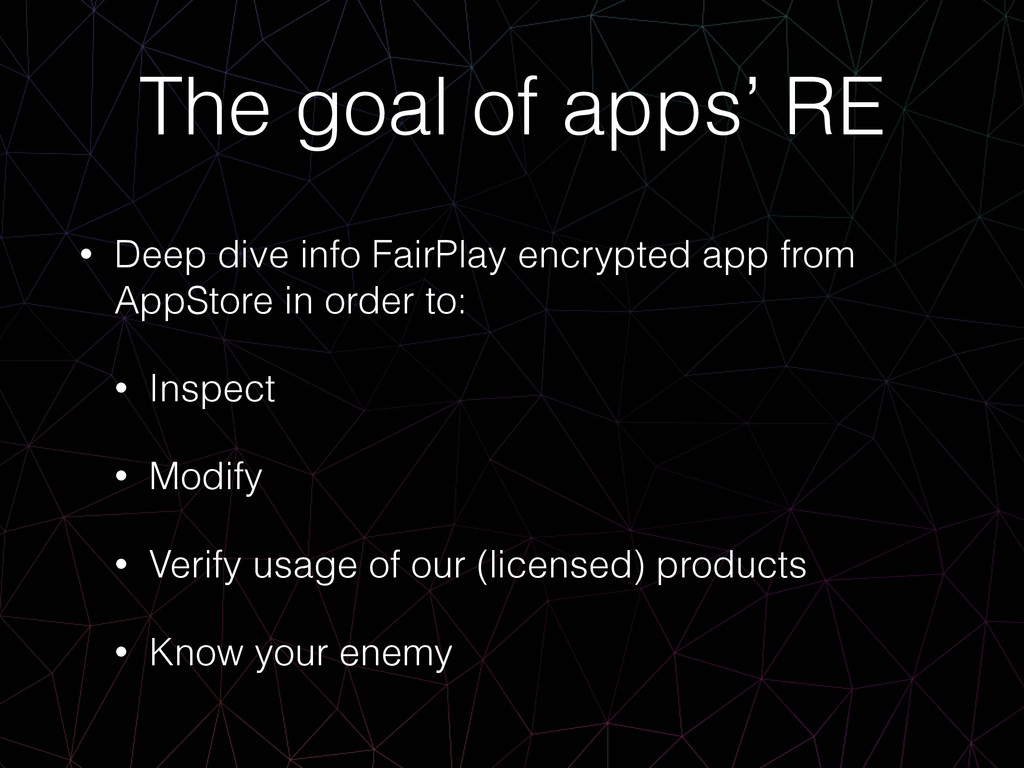

7. The goal of apps’ RE • Deep dive info FairPlay encrypted app from AppStore in order to: • Inspect • Modify • Verify usage of our (licensed) products • Know your enemy
8. Requirements
9. Requirements • Jailbroken iOS device • Desktop tools • Device tools

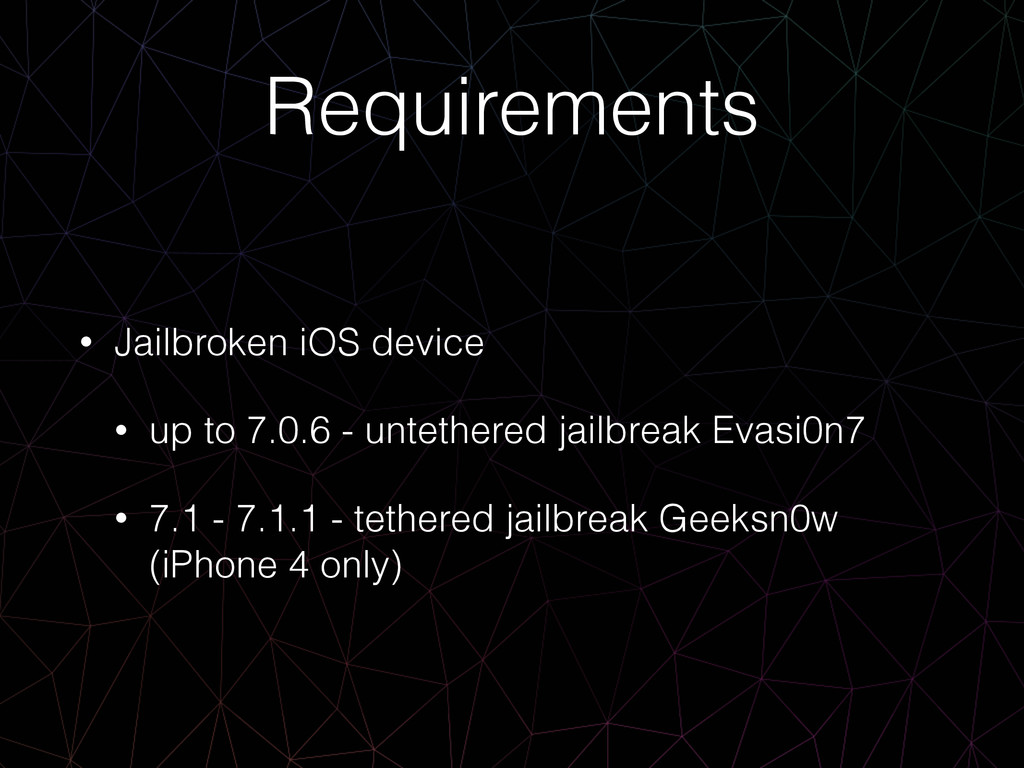

10. Requirements • Jailbroken iOS device • up to 7.0.6 - untethered jailbreak Evasi0n7 • 7.1 - 7.1.1 - tethered jailbreak Geeksn0w (iPhone 4 only)

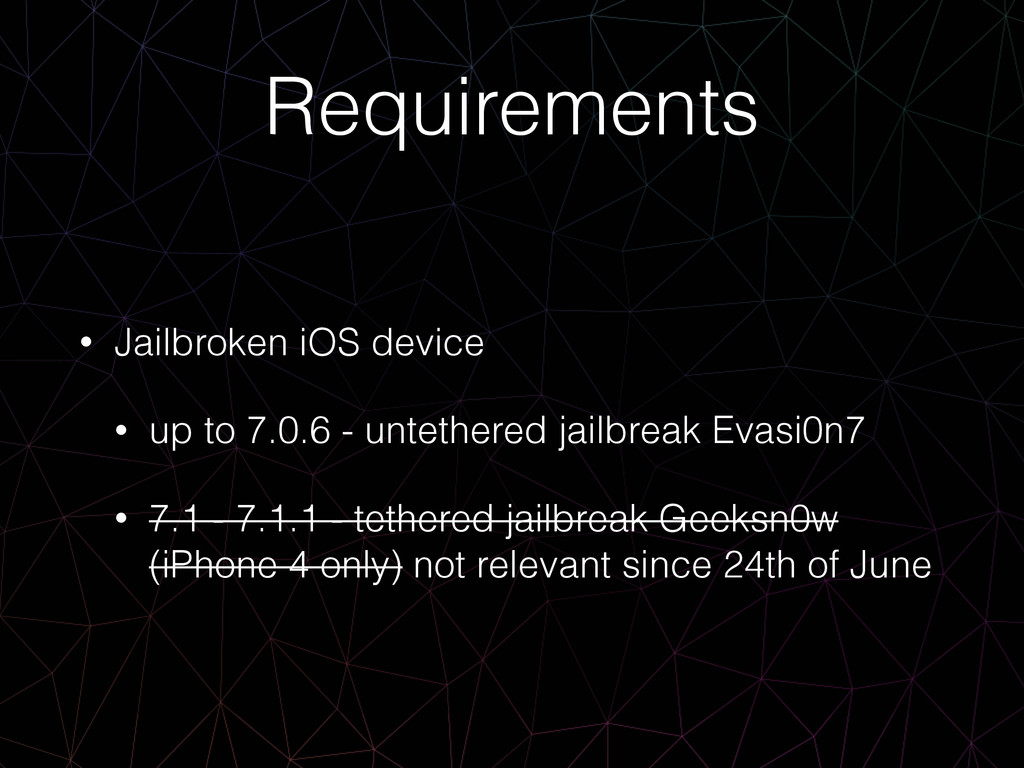

11. Requirements • Jailbroken iOS device • up to 7.0.6 - untethered jailbreak Evasi0n7 • 7.1 - 7.1.1 - tethered jailbreak Geeksn0w (iPhone 4 only) not relevant since 24th of June

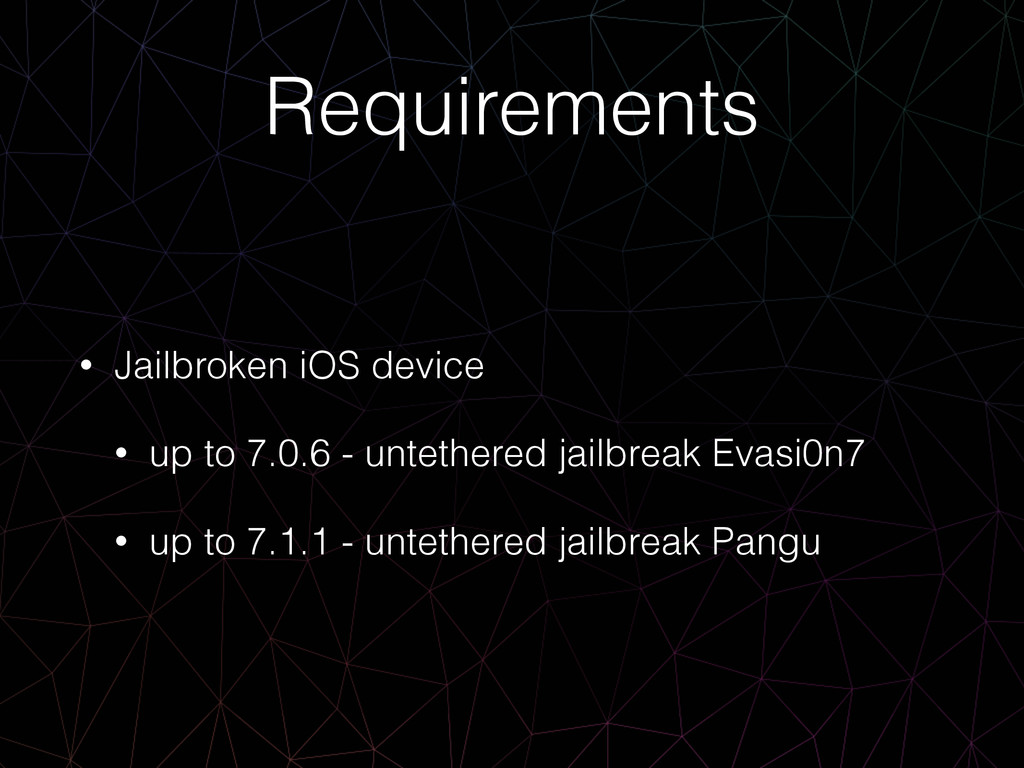

12. Requirements • Jailbroken iOS device • up to 7.0.6 - untethered jailbreak Evasi0n7 • up to 7.1.1 - untethered jailbreak Pangu

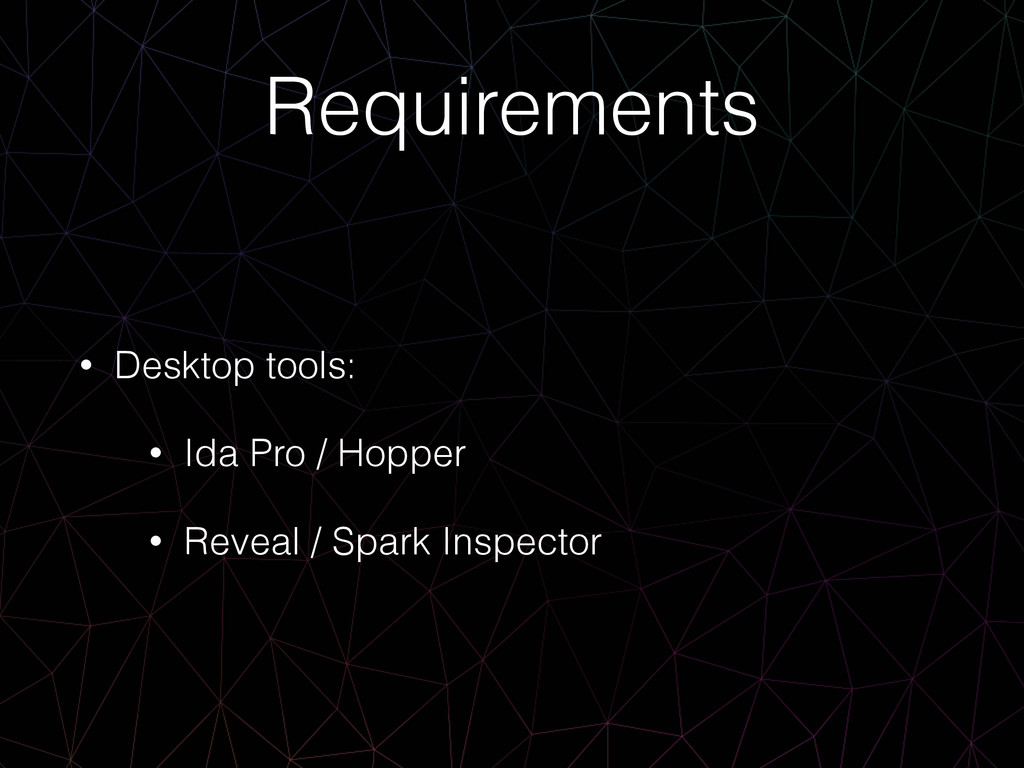

13. Requirements • Desktop tools: • Ida Pro / Hopper • Reveal / Spark Inspector
14. Requirements • Device Tools • otool • gdb • class-dump-z • cycript

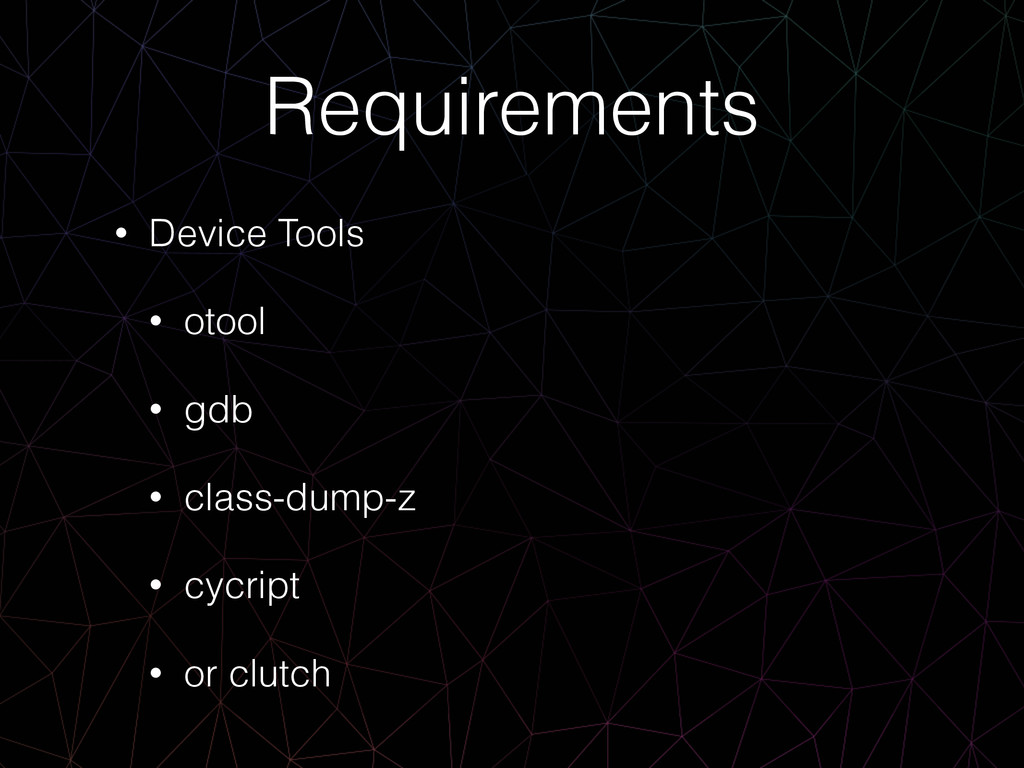

15. Requirements • Device Tools • otool • gdb • class-dump-z • cycript • or clutch
16. App reverse engineering
17. Initial analysis
18. Initial analysis iPhone:/ root# cd /var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/ AppName.app/ iPhone:/var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/AppName.app root# otool -h AppName
19. Initial analysis iPhone:/ root# cd /var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/ AppName.app/ iPhone:/var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/AppName.app root# otool -h AppName AppName: Mach header magic cputype cpusubtype caps filetype ncmds sizeofcmds flags 0xfeedface 12 9 0x00 2 47 5016 0x00218085

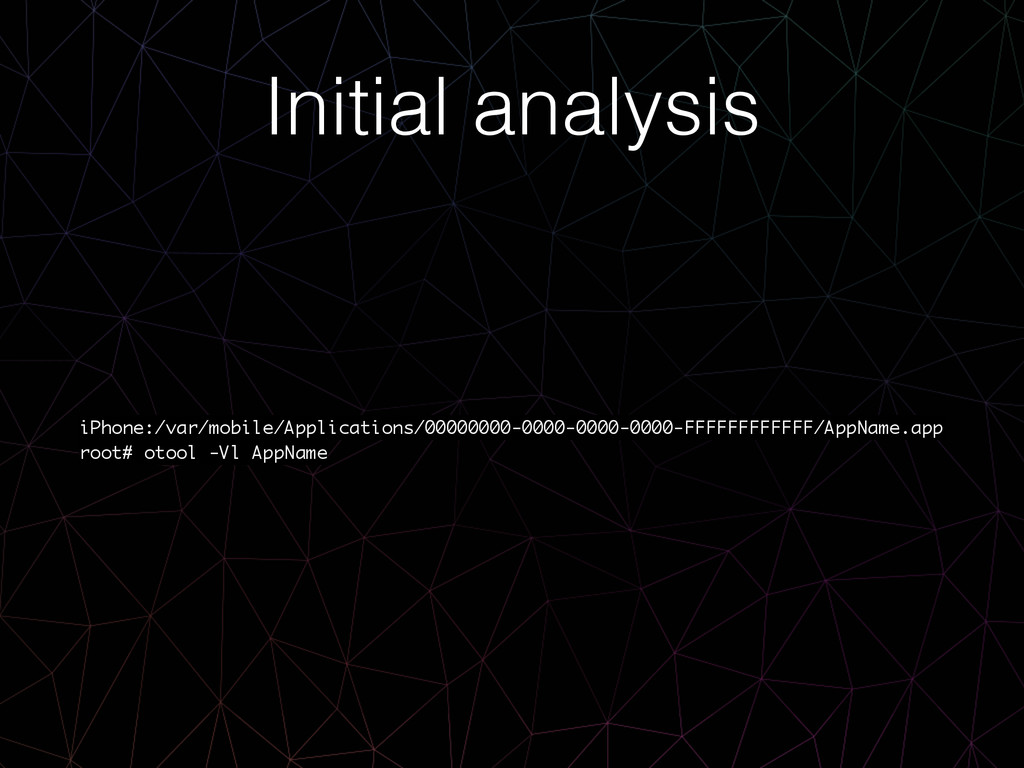

20. Initial analysis iPhone:/var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/AppName.app root# otool -Vl AppName

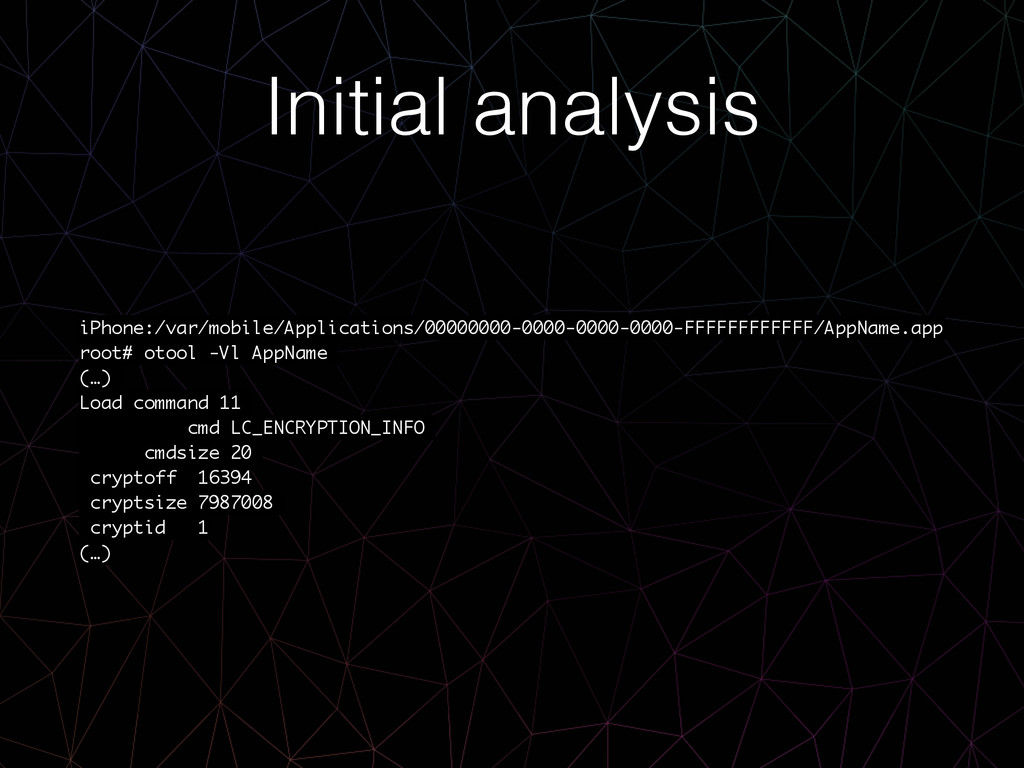

21. Initial analysis iPhone:/var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/AppName.app root# otool -Vl AppName (…) Load command 11 cmd LC_ENCRYPTION_INFO cmdsize 20 cryptoff 16394 cryptsize 7987008 cryptid 1 (…)

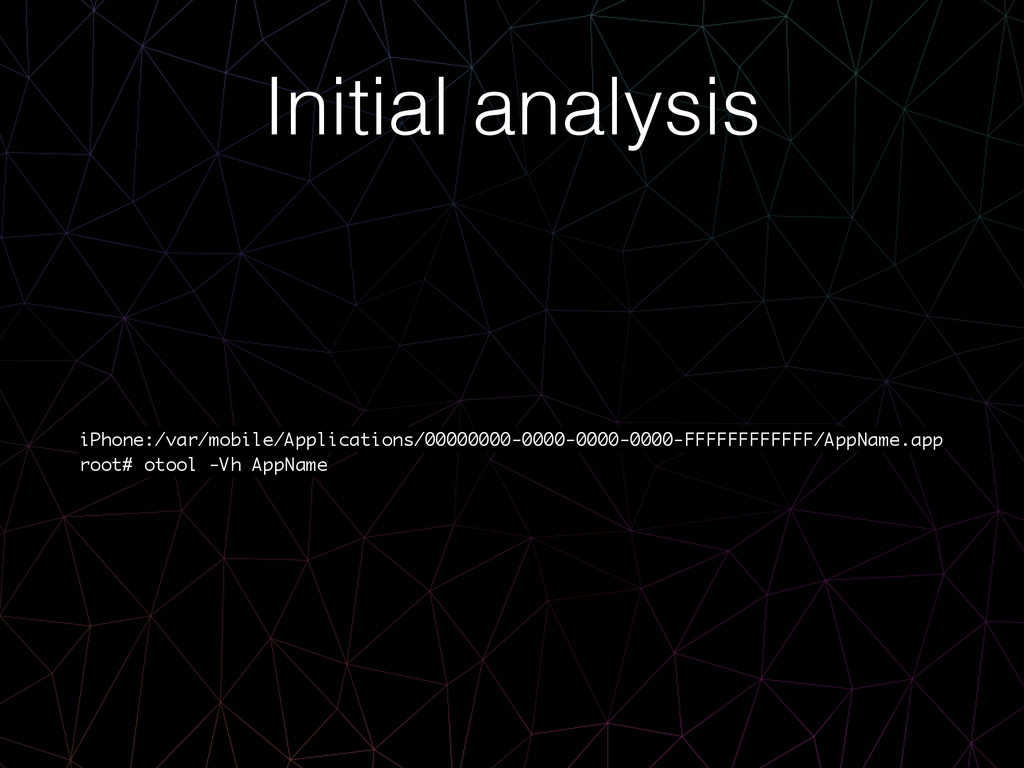

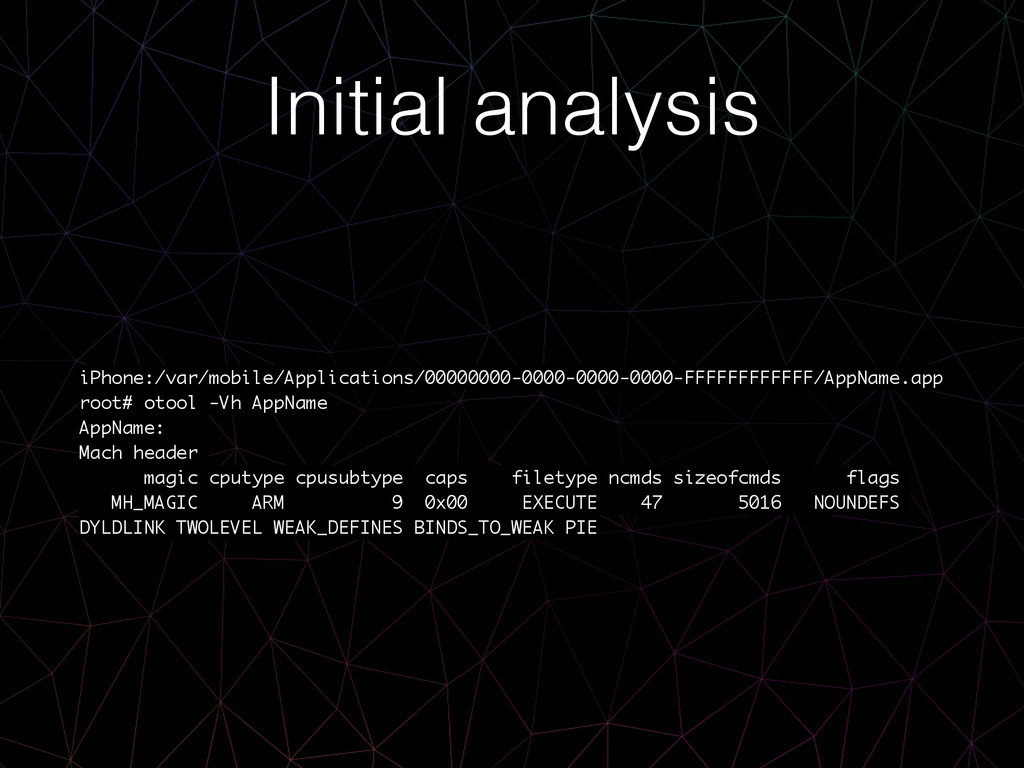

22. Initial analysis iPhone:/var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/AppName.app root# otool -Vh AppName
23. Initial analysis iPhone:/var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/AppName.app root# otool -Vh AppName AppName: Mach header magic cputype cpusubtype caps filetype ncmds sizeofcmds flags MH_MAGIC ARM 9 0x00 EXECUTE 47 5016 NOUNDEFS DYLDLINK TWOLEVEL WEAK_DEFINES BINDS_TO_WEAK PIE

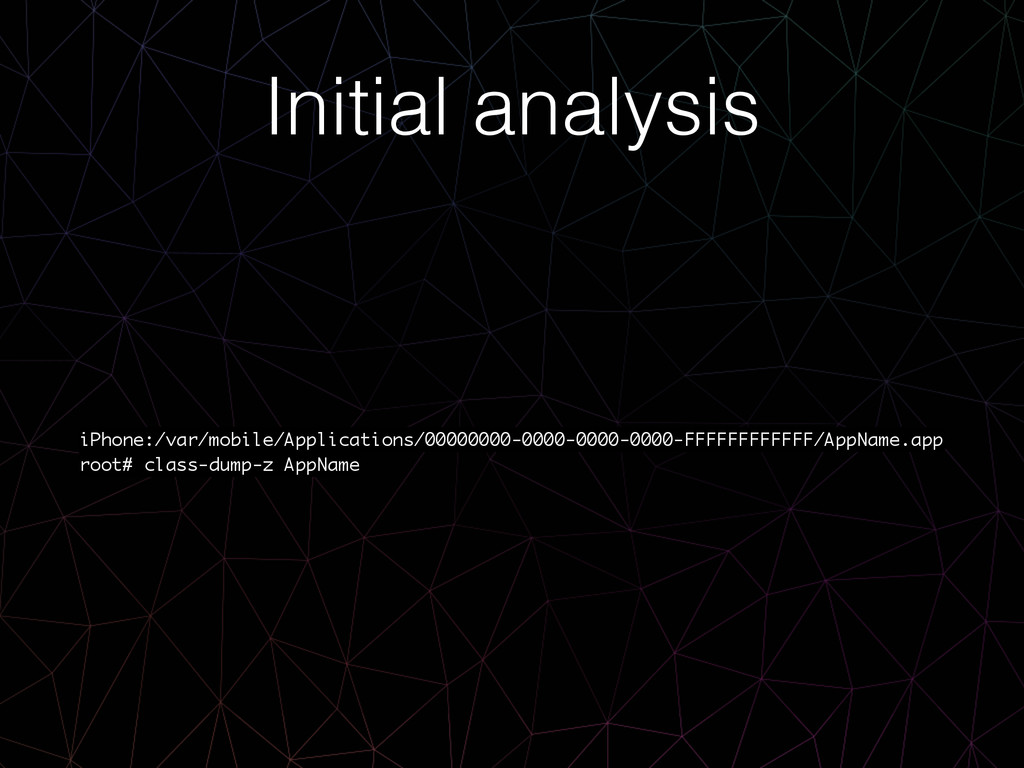

24. Initial analysis iPhone:/var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/AppName.app root# class-dump-z AppName

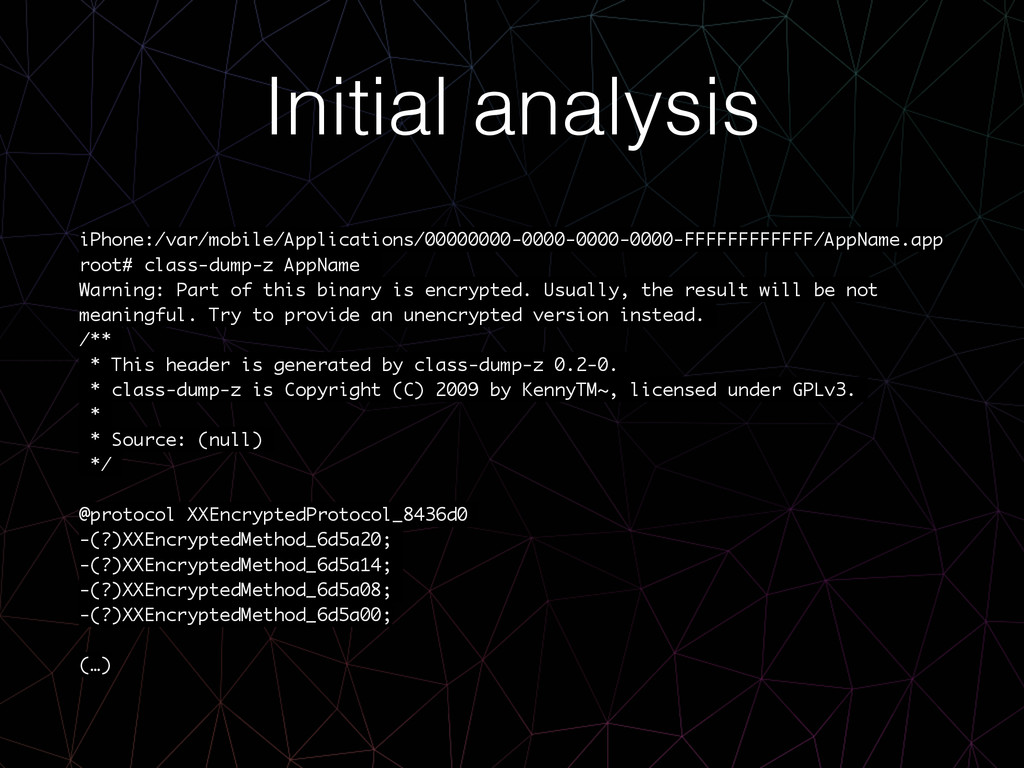

25. Initial analysis iPhone:/var/mobile/Applications/00000000-0000-0000-0000-FFFFFFFFFFFF/AppName.app root# class-dump-z AppName Warning: Part of this binary is encrypted. Usually, the result will be not meaningful. Try to provide an unencrypted version instead. /** * This header is generated by class-dump-z 0.2-0. * class-dump-z is Copyright (C) 2009 by KennyTM~, licensed under GPLv3. * * Source: (null) */ ! @protocol XXEncryptedProtocol_8436d0 -(?)XXEncryptedMethod_6d5a20; -(?)XXEncryptedMethod_6d5a14; -(?)XXEncryptedMethod_6d5a08; -(?)XXEncryptedMethod_6d5a00; ! (…)
26. Decrypting
27. Decrypting • Find out starting address and data size in binary • Find out starting address of the application in memory • Override binary part with decrypted part of the application dumped using gdb/lldb • Change LC_ENCRYPTION_INFO cryptid to 0
28. Decrypting automation

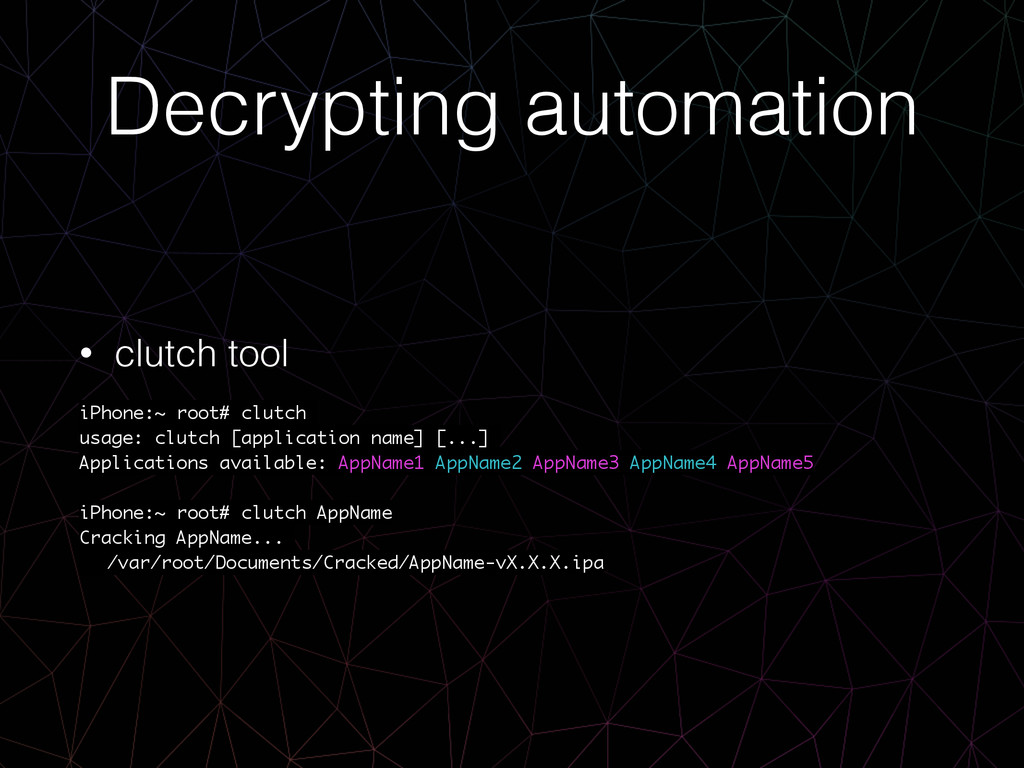

29. Decrypting automation • clutch tool iPhone:~ root# clutch usage: clutch [application name] [...] Applications available: AppName1 AppName2 AppName3 AppName4 AppName5 ! iPhone:~ root# clutch AppName Cracking AppName... /var/root/Documents/Cracked/AppName-vX.X.X.ipa

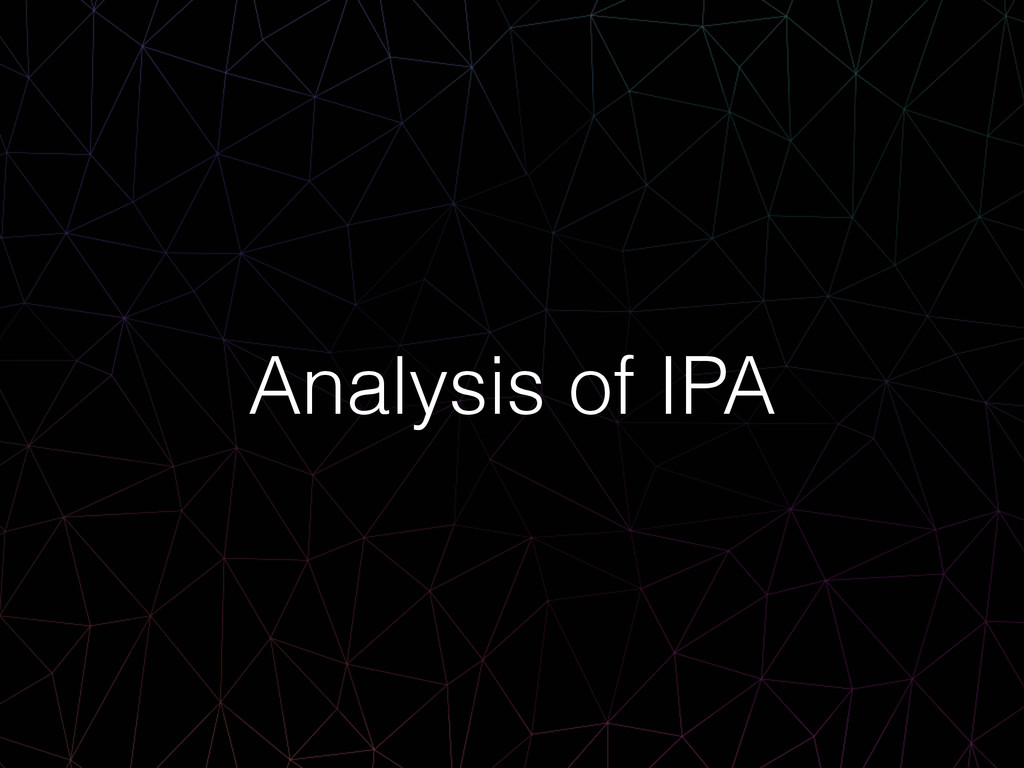

30. Analysis of IPA

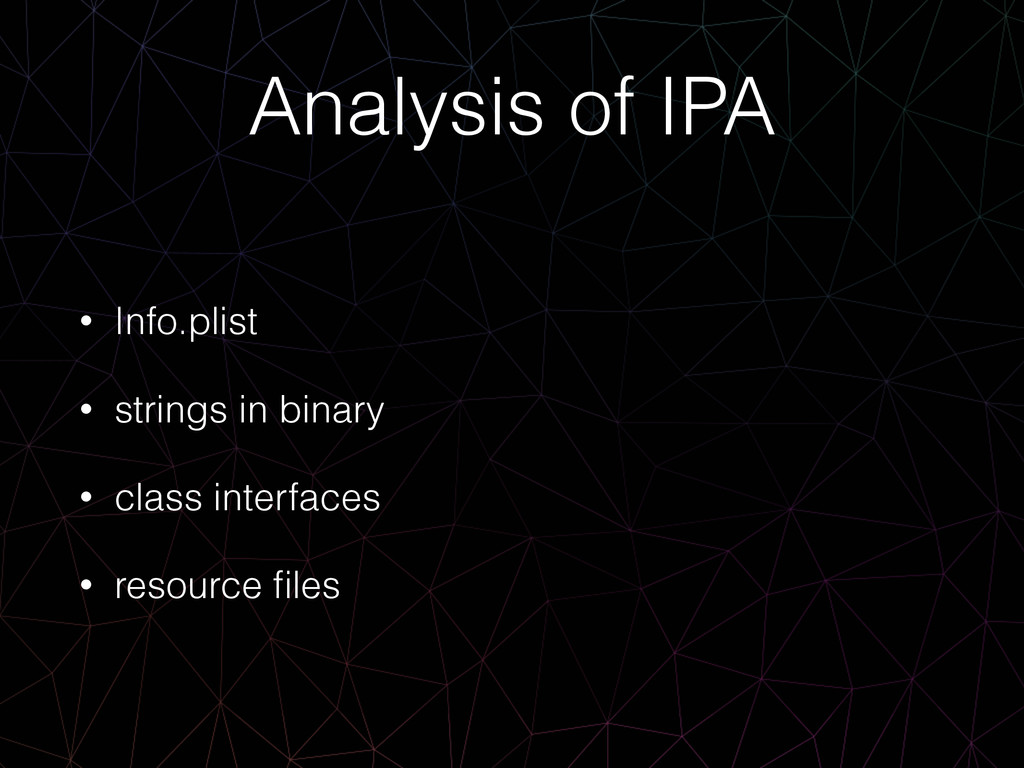

31. Analysis of IPA • Info.plist • strings in binary • class interfaces • resource files

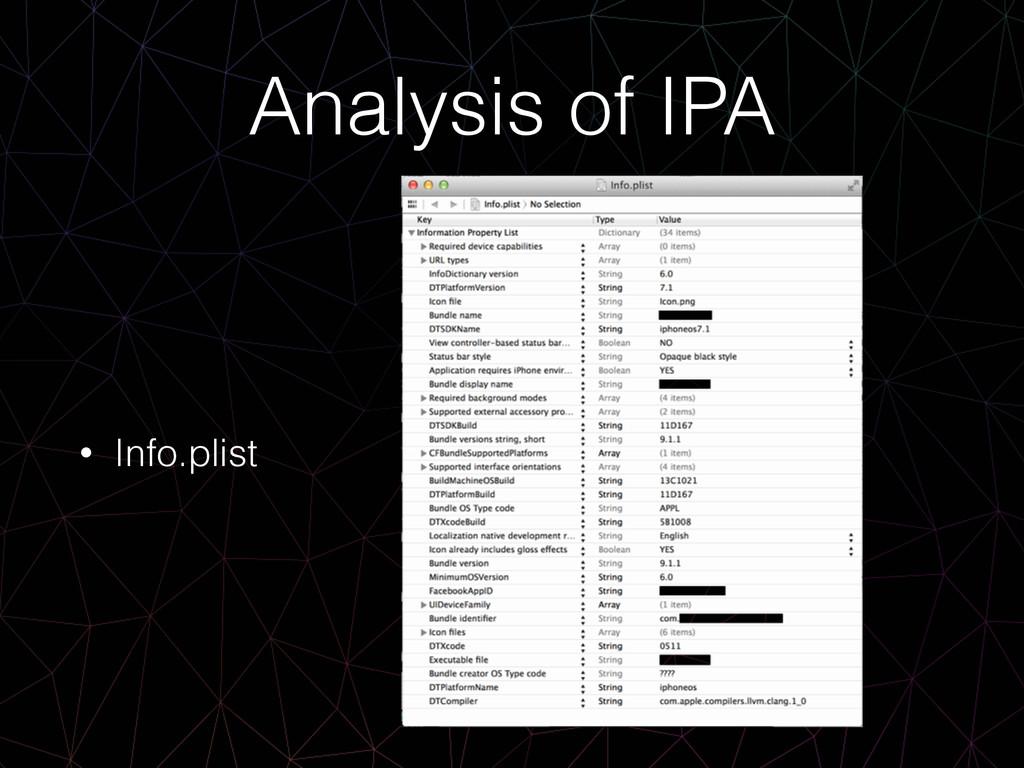

32. Analysis of IPA • Info.plist

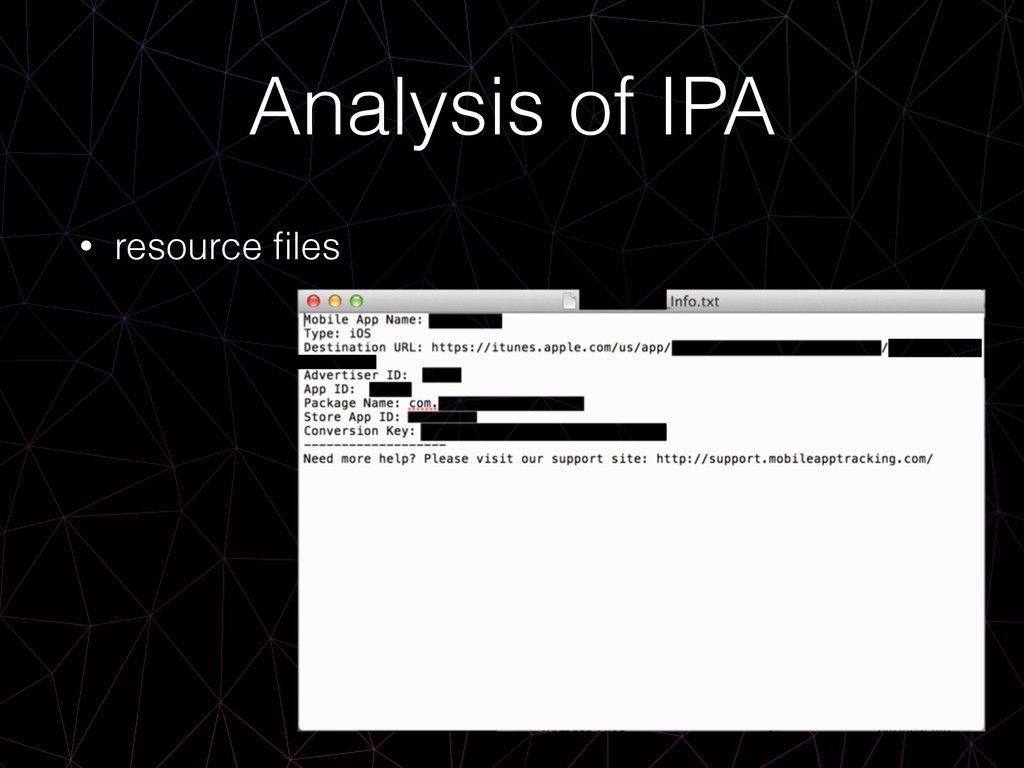

33. Analysis of IPA • resource files

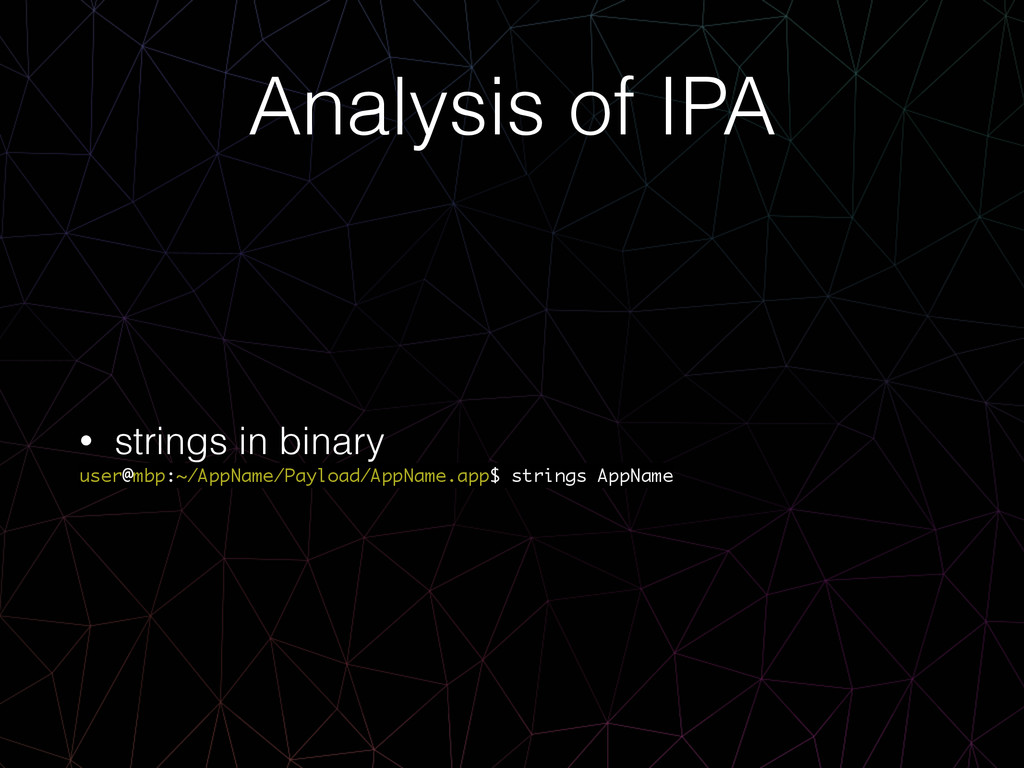

34. Analysis of IPA • strings in binary user@mbp:~/AppName/Payload/AppName.app$ strings AppName

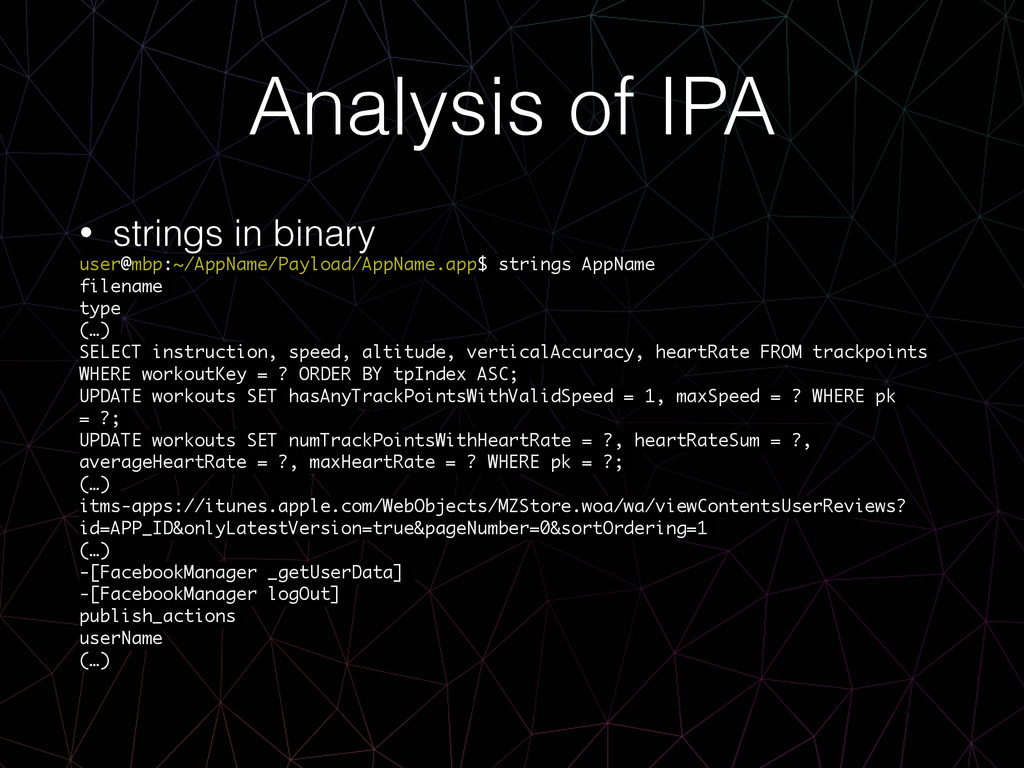

35. Analysis of IPA • strings in binary user@mbp:~/AppName/Payload/AppName.app$ strings AppName filename type (…) SELECT instruction, speed, altitude, verticalAccuracy, heartRate FROM trackpoints WHERE workoutKey = ? ORDER BY tpIndex ASC; UPDATE workouts SET hasAnyTrackPointsWithValidSpeed = 1, maxSpeed = ? WHERE pk = ?; UPDATE workouts SET numTrackPointsWithHeartRate = ?, heartRateSum = ?, averageHeartRate = ?, maxHeartRate = ? WHERE pk = ?; (…) itms-apps://itunes.apple.com/WebObjects/MZStore.woa/wa/viewContentsUserReviews? id=APP_ID&onlyLatestVersion=true&pageNumber=0&sortOrdering=1 (…) -[FacebookManager _getUserData] -[FacebookManager logOut] publish_actions userName (…)
36. Analysis of IPA • class interfaces user@mbp:~/AppName/Payload/AppName.app$ class-dump-z AppName

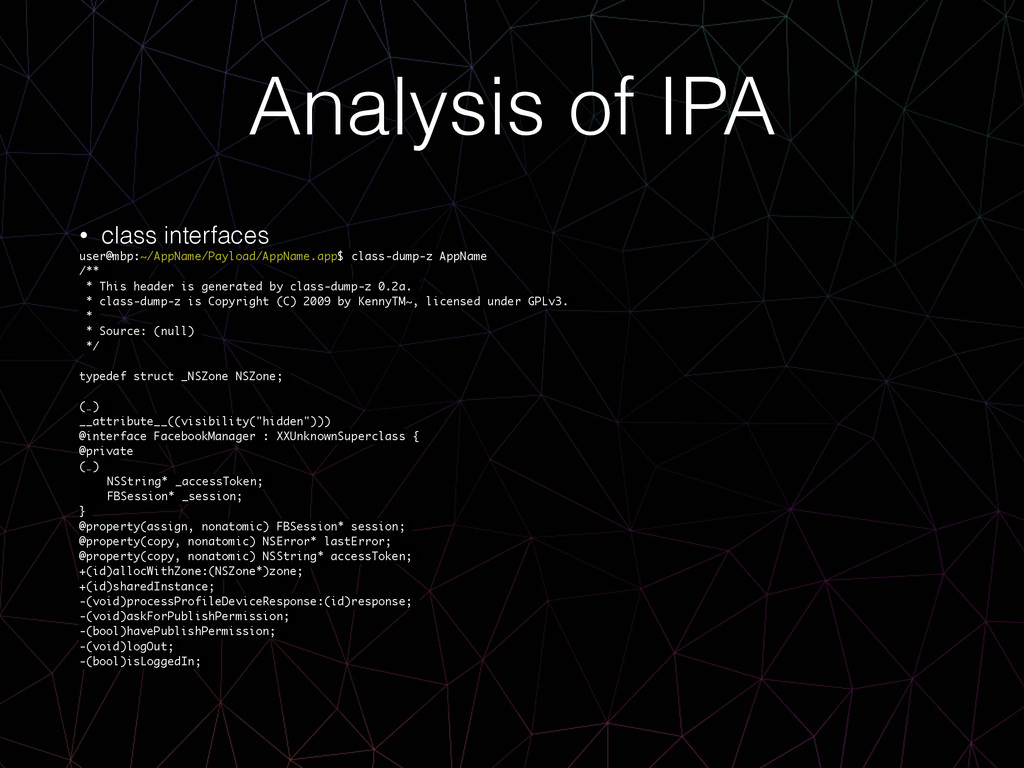

37. Analysis of IPA • class interfaces user@mbp:~/AppName/Payload/AppName.app$ class-dump-z AppName /** * This header is generated by class-dump-z 0.2a. * class-dump-z is Copyright (C) 2009 by KennyTM~, licensed under GPLv3. * * Source: (null) */ ! typedef struct _NSZone NSZone; ! (…) __attribute__((visibility("hidden"))) @interface FacebookManager : XXUnknownSuperclass { @private (…) NSString* _accessToken; FBSession* _session; } @property(assign, nonatomic) FBSession* session; @property(copy, nonatomic) NSError* lastError; @property(copy, nonatomic) NSString* accessToken; +(id)allocWithZone:(NSZone*)zone; +(id)sharedInstance; -(void)processProfileDeviceResponse:(id)response; -(void)askForPublishPermission; -(bool)havePublishPermission; -(void)logOut; -(bool)isLoggedIn;
38. Runtime Analysis

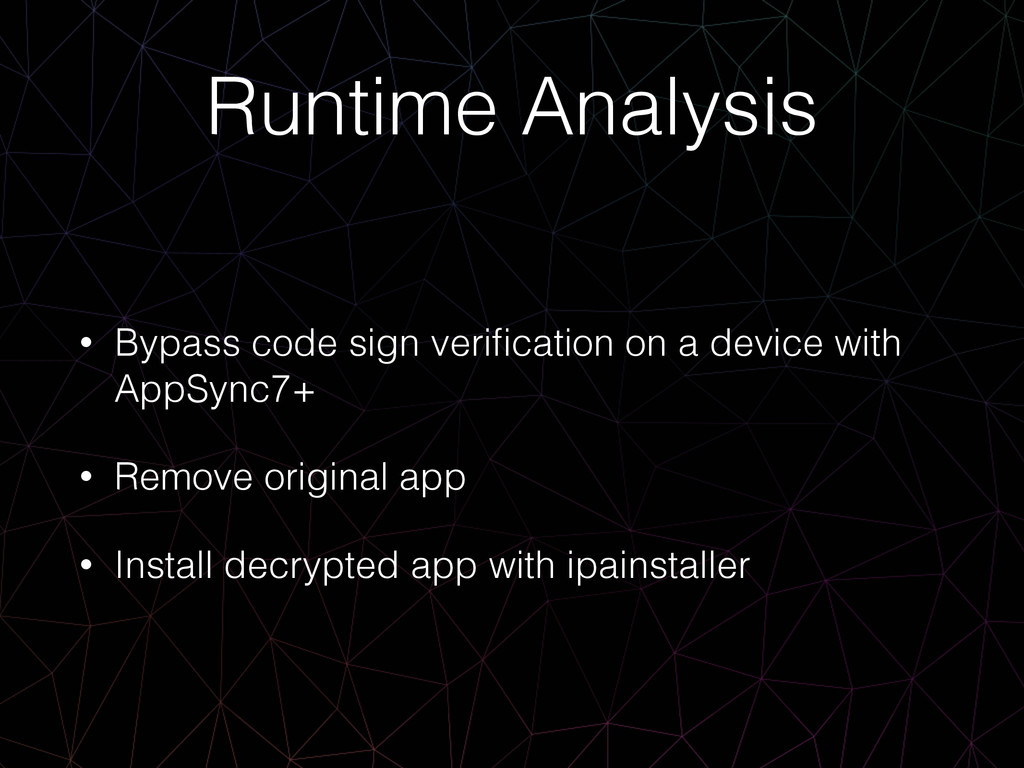

39. Runtime Analysis • Bypass code sign verification on a device with AppSync7+ • Remove original app • Install decrypted app with ipainstaller

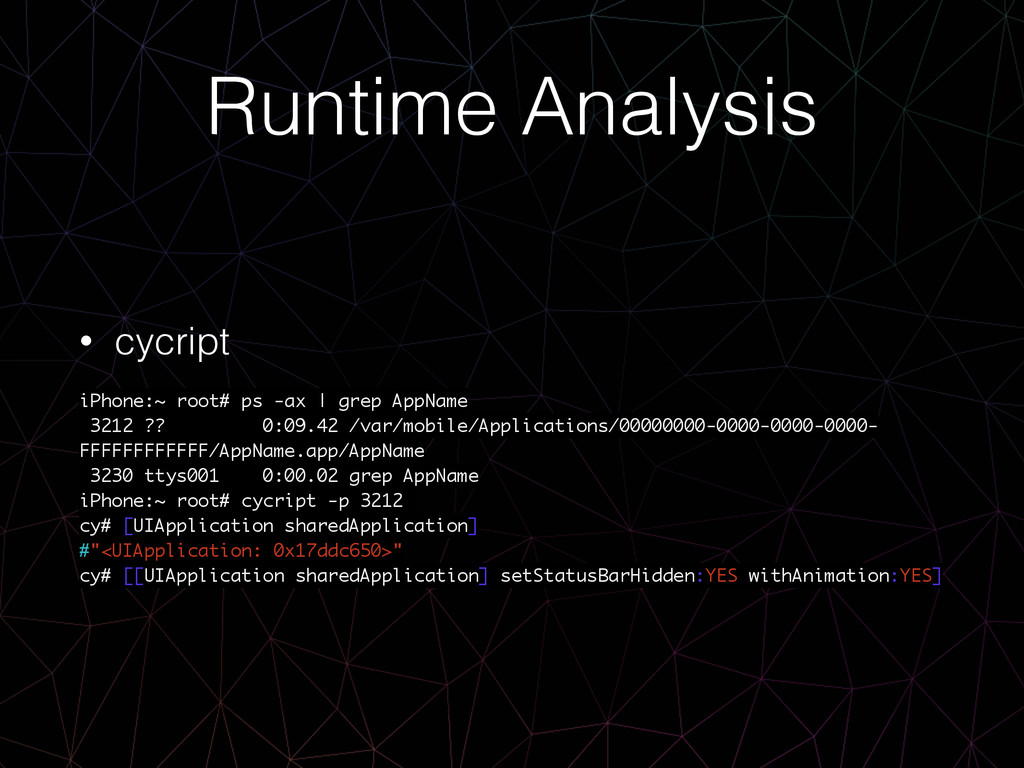

40. Runtime Analysis • cycript ! iPhone:~ root# ps -ax | grep AppName 3212 ?? 0:09.42 /var/mobile/Applications/00000000-0000-0000-0000- FFFFFFFFFFFF/AppName.app/AppName 3230 ttys001 0:00.02 grep AppName iPhone:~ root# cycript -p 3212 cy# [UIApplication sharedApplication] #"<UIApplication: 0x17ddc650>" cy# [[UIApplication sharedApplication] setStatusBarHidden:YES withAnimation:YES]

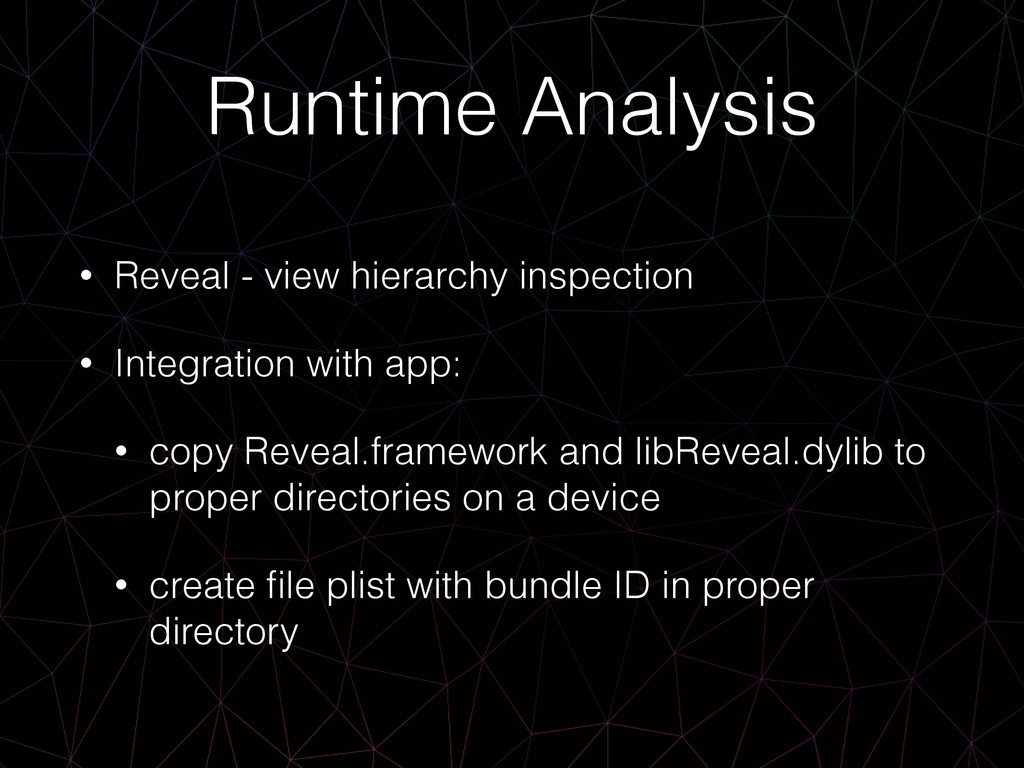

41. Runtime Analysis • Reveal - view hierarchy inspection • Integration with app: • copy Reveal.framework and libReveal.dylib to proper directories on a device • create file plist with bundle ID in proper directory
42. Hands-on
43. One more thing…
45. Thank you! @tgrynfelder
