Bringing Traffic Into Your Kubernetes Cluster

A look at various models for receiving traffic from outside of your cluster

Transcript

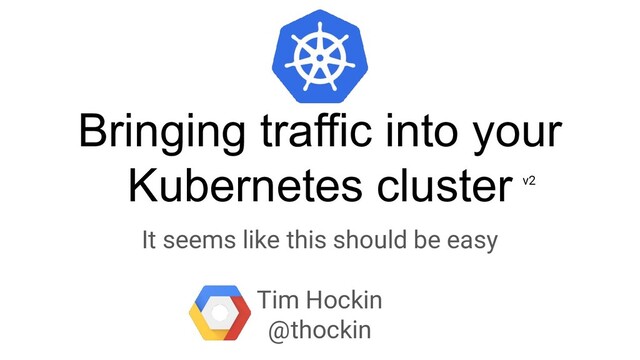

1. Bringing traffic into your
   Kubernetes cluster
   It seems like this should be easy
   Tim Hockin
   @thockin
   v2


   View Slide

2. Start with a “normal” cluster


   View Slide

3. Cluster: 10.0.0.0/16


   View Slide

4. Cluster: 10.0.0.0/16
   Node1:
   IP: 10.240.0.1
   Node2:
   IP: 10.240.0.2


   View Slide

5. Cluster: 10.0.0.0/16
   Node1:
   IP: 10.240.0.1
   Pod range: 10.0.1.0/24
   Node2:
   IP: 10.240.0.2
   Pod range: 10.0.2.0/24


   View Slide

6. Cluster: 10.0.0.0/16
   Node1:
   IP: 10.240.0.1
   Pod range: 10.0.1.0/24
   Node2:
   IP: 10.240.0.2
   Pod range: 10.0.2.0/24
   Pod-a:
   10.0.1.1
   Pod-b:
   10.0.1.2
   Pod-c:
   10.0.2.1
   Pod-d:
   10.0.2.2


   View Slide

7. Kubernetes demands that
   pods can reach each other


   View Slide

8. Cluster: 10.0.0.0/16
   Node1:
   IP: 10.240.0.1
   Pod range: 10.0.1.0/24
   Node2:
   IP: 10.240.0.2
   Pod range: 10.0.2.0/24
   Pod-a:
   10.0.1.1
   Pod-b:
   10.0.1.2
   Pod-c:
   10.0.2.1
   Pod-d:
   10.0.2.2


   View Slide

9. Kubernetes says very little
   about how traffic gets INTO
   the cluster


   View Slide

10. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4 ?


    View Slide

11. That client might be from the
    internet or from elsewhere on
    your internal network


    View Slide

12. Kubernetes offers 4 main
    APIs to bring traffic into your
    cluster


    View Slide

13. 1) Pod IP


    View Slide

14. 2) Service NodePort


    View Slide

15. 3) Service LoadBalancer


    View Slide

16. 4) Ingress


    View Slide

17. Let’s look at these a bit more


    View Slide

18. 1) Pod IP


    View Slide

19. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: client
    Dst: pod:pod-port


    View Slide

20. Requires a fully integrated
    network (flat IP space)


    View Slide

21. Doesn’t work well for internet
    traffic


    View Slide

22. Requires smart clients and
    service discovery (pod IPs
    change when pods move)


    View Slide

23. Included for completeness,
    but not what most people are
    here to read about


    View Slide

24. 2) Service NodePort


    View Slide

25. A port on each node will
    forward traffic to your service
    We know which service by
    which port


    View Slide

26. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: client
    Dst: node1:node-port
    :30093
    :30076


    View Slide

27. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    :30093
    :30076
    Src: node1
    Dst: pod:pod-port


    View Slide

28. Hold up, why did the source
    IP change?


    View Slide

29. By default, a NodePort can
    forward to any pod, so this is
    possible:


    View Slide

30. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    :30093
    :30076
    Src: node1
    Dst: pod:pod-port


    View Slide

31. In that case, the traffic
    MUST return through node1,
    so we have to SNAT


    View Slide

32. Pro:
    - No external infrastructure needed
    Con:
    - Can’t use arbitrary ports
    - Clients have to pick a node (nodes can be
    added and removed over time)
    - SNAT loses client IP
    - Two hops


    View Slide

33. Option:
    externalTrafficPolicy = Local


    View Slide

34. If you set this on your service,
    nodes will only choose “local”
    pods


    View Slide

35. Eliminates the need for SNAT


    View Slide

36. Client must choose nodes
    which actually have pods, or
    else:


    View Slide

37. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    :30093
    :30076
    Src: node1
    Dst: ???
    Failure
    ?


    View Slide

38. Also risk imbalance if clients
    assume equal weight on
    nodes:


    View Slide

39. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    pod
    Client:
    1.2.3.4
    pod pod pod
    pod pod pod
    50%
    50%


    View Slide

40. Pro:
    - No external infrastructure needed
    - Client IP is available
    Con:
    - Can’t use arbitrary ports
    - Clients have to pick a node with pods
    - Two hops (but less impactful)


    View Slide

41. 3) Service LoadBalancer


    View Slide

42. Someone (e.g. cloud provider)
    allocates a load-balancer for
    your service


    View Slide

43. This is an API with very loose
    requirements


    View Slide

44. There are a few ways this has
    been implemented
    (non-exhaustive)


    View Slide

45. 3a) VIP-like, 2-hops
    (e.g. GCP NetworkLB)


    View Slide

46. The node knows which
    service by which destination
    IP (VIP)


    View Slide

47. How VIPs are propagated
    and managed is a broad
    topic, and not considered
    here


    View Slide

48. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: client
    Dst: VIP:service-port
    VIP


    View Slide

49. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: client
    Dst: VIP:service-port
    VIP


    View Slide

50. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: node1
    Dst: pod:pod-port
    VIP


    View Slide

51. Why did the source IP
    change, again?


    View Slide

52. Like a NodePort, a VIP can
    forward to any pod, so this is
    possible:


    View Slide

53. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: node1
    Dst: pod:pod-port
    VIP


    View Slide

54. Again, the traffic MUST
    return through node1, so we
    have to SNAT


    View Slide

55. Pro:
    - Stable VIP
    - Can use any port you want
    Con:
    - Requires programmable infrastructure
    - SNAT loses client IP
    - Two hops


    View Slide

56. Option:
    externalTrafficPolicy = Local


    View Slide

57. If you set this on your service,
    nodes will only choose “local”
    pods


    View Slide

58. Eliminates the need for SNAT


    View Slide

59. LBs must choose nodes
    which actually have pods


    View Slide

60. Pro:
    - Stable VIP
    - Can use any port you want
    - Client IP is available
    Con:
    - Requires programmable infrastructure
    - Two hops (but less impactful)


    View Slide

61. 3b) VIP-like, 1-hop
    (no known examples)


    View Slide

62. As far as I know, nobody has
    implemented this


    View Slide

63. 3c) Proxy-like, 2-hops
    (e.g. AWS ElasticLB)


    View Slide

64. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: client
    Dst: proxy:service-port
    Proxy
    :30093
    :30076


    View Slide

65. Proxy
    Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: proxy
    Dst: node1:node-port
    :30093
    :30076


    View Slide

66. Proxy
    Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    :30093
    :30076
    Src: node1
    Dst: pod:pod-port


    View Slide

67. Again with the SNAT?


    View Slide

68. Yes, this is basically the same
    as NodePort, but with nicer
    front door


    View Slide

69. Note that the node which
    receives the traffic has no
    idea what the original client IP
    was


    View Slide

70. Pro:
    - Stable IP
    - Can use any port you want
    - Proxy can prevent some classes of attacks
    - Proxy can add value (e.g. TLS)
    Con:
    - Requires programmable infrastructure
    - Two hops
    - Loss of client IP (has to move in-band)


    View Slide

71. Option:
    externalTrafficPolicy = Local


    View Slide

72. If you set this on your service,
    nodes will only choose “local”
    pods


    View Slide

73. Eliminates the need for SNAT


    View Slide

74. LBs must choose nodes
    which actually have pods


    View Slide

75. Pro:
    - Stable IP
    - Can use any port you want
    - Proxy can prevent some classes of attacks
    - Proxy can add value (e.g. TLS)
    Con:
    - Requires programmable infrastructure
    - Two hops
    - Loss of client IP (has to move in-band)


    View Slide

76. 3d) Proxy-like, 1-hop
    (e.g. GCP HTTP LB)


    View Slide

77. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: client
    Dst: proxy:service-port
    Proxy


    View Slide

78. Proxy
    Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: proxy
    Dst: pod:pod-port


    View Slide

79. No need for the node to do
    anything


    View Slide

80. LB needs to know the pod IPs
    and be kept in sync


    View Slide

81. Pro:
    - Stable IP
    - Can use any port you want
    - Proxy can prevent some classes of attacks
    - Proxy can add value (e.g. TLS)
    - One hop
    Con:
    - Requires programmable infrastructure
    - Loss of client IP (has to move in-band)


    View Slide

82. 4) Ingress (HTTP only)


    View Slide

83. Someone (e.g. cloud provider)
    allocates an HTTP
    load-balancer for your service


    View Slide

84. This is an API with very loose
    requirements


    View Slide

85. There are a couple ways this
    has been implemented
    (non-exhaustive)


    View Slide

86. 4a) External, 2-hops
    (e.g. GCP without VPC Native)


    View Slide

87. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: client
    Dst: proxy:service-port
    Proxy
    :30093
    :30076


    View Slide

88. Proxy
    Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: proxy
    Dst: node1:node-port
    :30093
    :30076


    View Slide

89. Proxy
    Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    :30093
    :30076
    Src: node1
    Dst: pod:pod-port


    View Slide

90. Similar to 3c wrt SNAT


    View Slide

91. Proxy
    Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    :30093
    :30076
    Src: node1
    Dst: pod:pod-port


    View Slide

92. HTTP Proxy can save client IP
    in X-Forwarded-For header


    View Slide

93. Pro:
    - Proxy can prevent some classes of attacks
    - Proxy can add value (e.g. TLS)
    - Can offer HTTP semantics (e.g. URL maps)
    Con:
    - Requires programmable infrastructure
    - Two hops


    View Slide

94. Option:
    externalTrafficPolicy = Local


    View Slide

95. As before: LBs must choose
    nodes which actually have
    pods


    View Slide

96. 4b) External, 1-hop
    (e.g. GCP with VPC Native)


    View Slide

97. Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: client
    Dst: proxy:service-port
    Proxy


    View Slide

98. Proxy can choose any pod,
    regardless of node


    View Slide

99. Proxy
    Cluster: 10.0.0.0/16
    Node1:
    IP: 10.240.0.1
    Pod range: 10.0.1.0/24
    Node2:
    IP: 10.240.0.2
    Pod range: 10.0.2.0/24
    Pod-a:
    10.0.1.1
    Pod-b:
    10.0.1.2
    Pod-c:
    10.0.2.1
    Pod-d:
    10.0.2.2
    Client:
    1.2.3.4
    Src: proxy
    Dst: pod:pod-port


    View Slide

100. Proxy
     Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     Src: proxy
     Dst: pod:pod-port


     View Slide

101. HTTP Proxy can save client IP
     in X-Forwarded-For header


     View Slide

102. Pro:
     - Proxy can prevent some classes of attacks
     - Proxy can add value (e.g. TLS)
     - Can offer HTTP semantics (e.g. URL maps)
     - One hop
     Con:
     - Requires programmable infrastructure


     View Slide

103. 4c) Internal, shared
     (e.g. nginx)


     View Slide

104. Use a service LoadBalancer
     (see 3a-d) to bring traffic into
     pods which are HTTP proxies
     Those in-cluster proxies route
     to the final pods


     View Slide

105. 4c.1) VIP-like


     View Slide

106. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     VIP


     View Slide

107. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     VIP


     View Slide

108. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     VIP


     View Slide

109. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     VIP


     View Slide

110. Pro:
     - Cost effective (1 VIP)
     - Proxy can add value (e.g. TLS)
     - Flexible
     Con:
     - You manage and scale the in-cluster proxies
     - Conflicts can arise between Ingress resources
     (e.g. use same hostname)
     - Multiple hops


     View Slide

111. 4c.2) Proxy-like, 2-hops


     View Slide

112. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     Proxy


     View Slide

113. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     Proxy


     View Slide

114. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     Proxy


     View Slide

115. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     Proxy


     View Slide

116. Pro:
     - Cost effective (1 proxy IP)
     - Proxy can prevent some classes of attacks
     - Proxies can add value (e.g. TLS)
     - Flexible
     - External proxy can be less dynamic (just nodes)
     Con:
     - You manage and scale the in-cluster proxies
     - Conflicts can arise between Ingress resources
     (e.g. use same hostname)
     - Multiple hops


     View Slide

117. 4c.3) Proxy-like, 1-hop


     View Slide

118. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     Proxy


     View Slide

119. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     Proxy


     View Slide

120. Cluster: 10.0.0.0/16
     Node1:
     IP: 10.240.0.1
     Pod range: 10.0.1.0/24
     Node2:
     IP: 10.240.0.2
     Pod range: 10.0.2.0/24
     Ingress
     Pod-a:
     10.0.1.1
     Pod-b:
     10.0.1.2
     Ingress
     Pod-c:
     10.0.2.1
     Pod-d:
     10.0.2.2
     Client:
     1.2.3.4
     Proxy


     View Slide

121. Pro:
     - Cost effective (1 proxy IP)
     - Proxy can prevent some classes of attacks
     - Proxies can add value (e.g. TLS)
     - Flexible
     Con:
     - You manage and scale the in-cluster proxies
     - Conflicts can arise between Ingress resources
     (e.g. use same hostname)
     - Multiple hops


     View Slide

122. 4d) Internal, dedicated
     (e.g. no known examples)


     View Slide

123. The idea is that you would
     spin up the equivalent of 4c
     for each Ingress instance or
     maybe per-namespace


     View Slide

124. As far as I know, nobody has
     implemented this


     View Slide
