Hotwire Native (and Hotwire 101) for Laravel Devs

Hotwire Native Tony Messias Hotwire Native fo L ve D
s

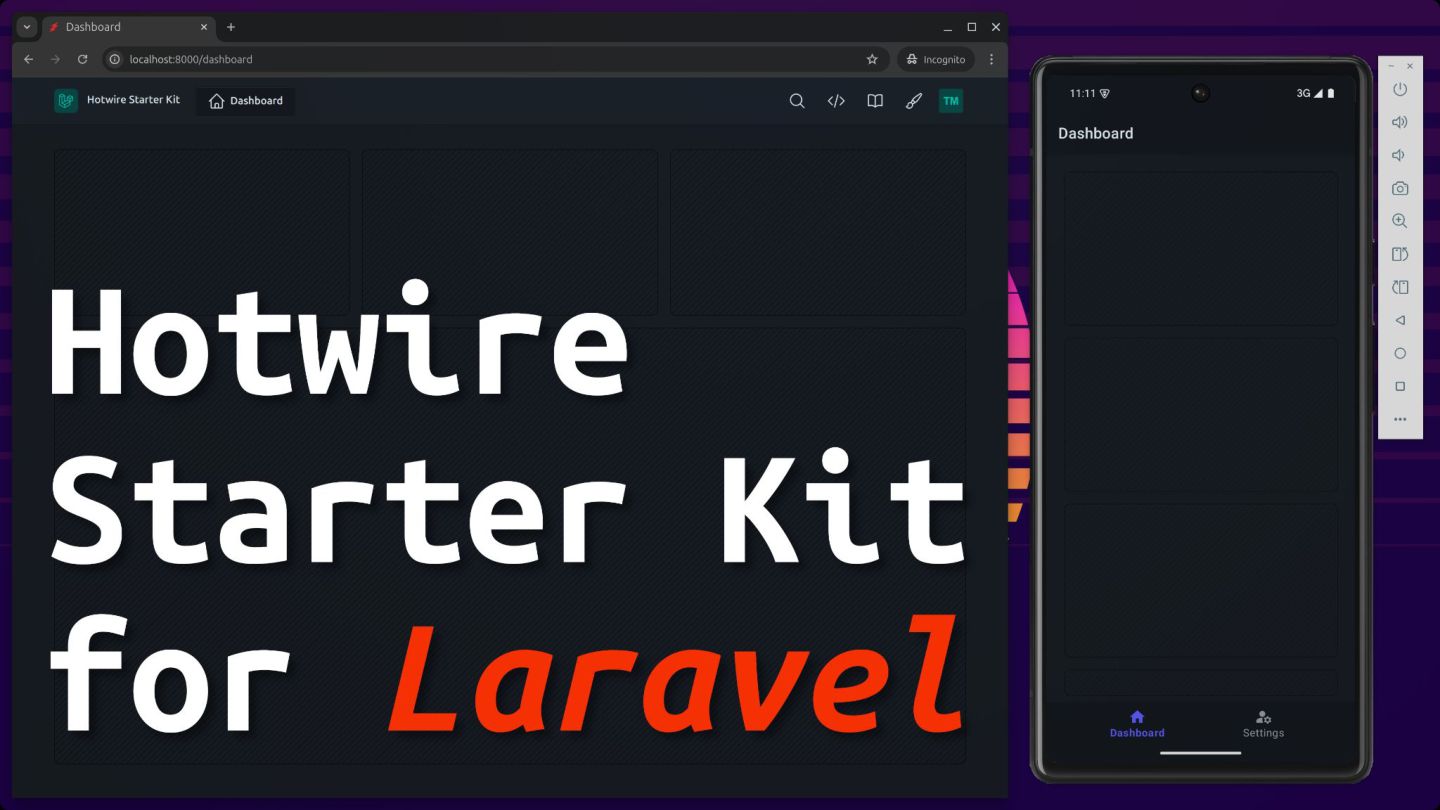

Agenda ➔ What's new in Turbo 8 ➔ Hotwire Starter
Kit for Laravel ➔ Intro to Hotwire Native ◆ Getting Started ◆ Navigation ◆ Web Forms ◆ Our First Bridge Component ◆ Native Screens

but ﬁrst…

Hotwire in 5 mins-is

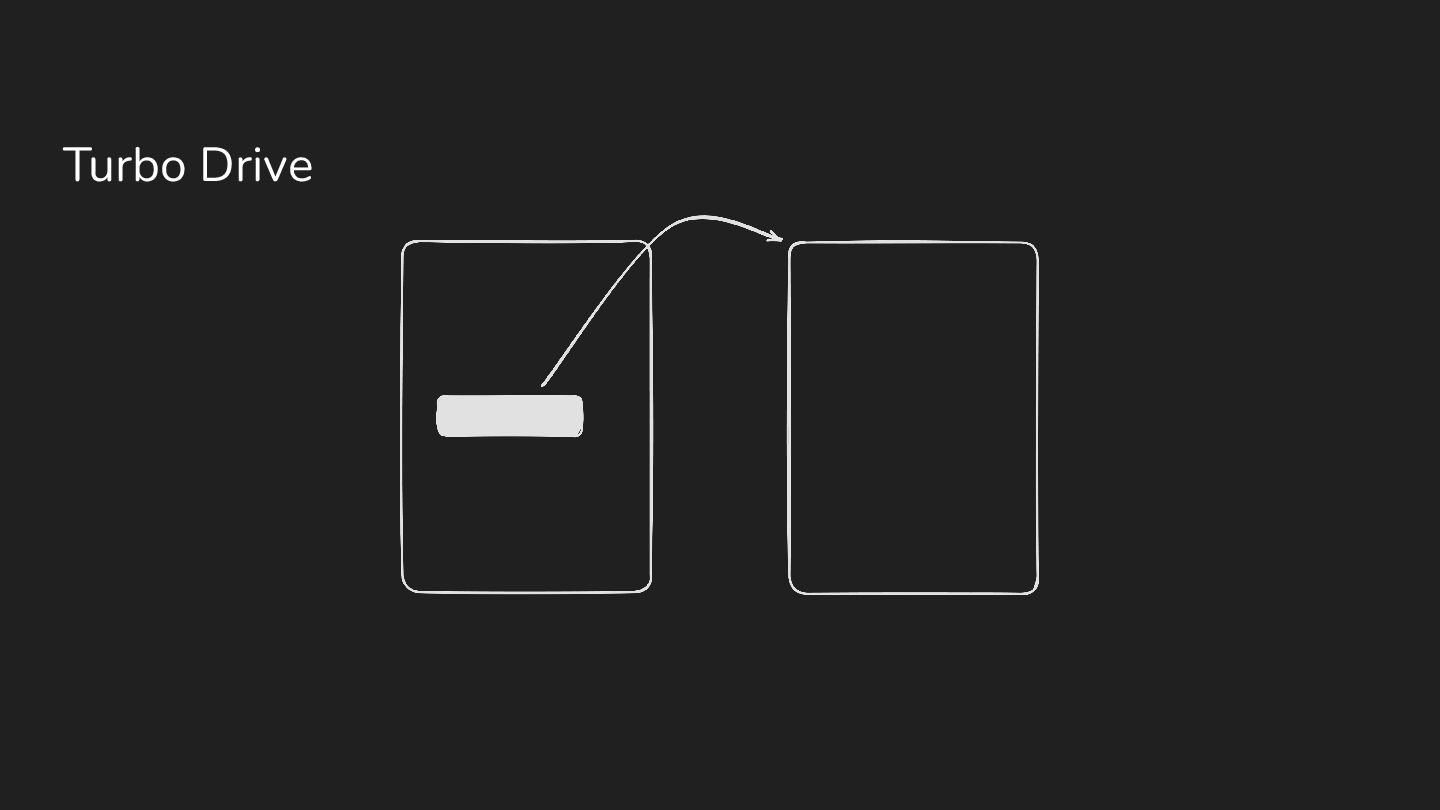

Turbo Drive

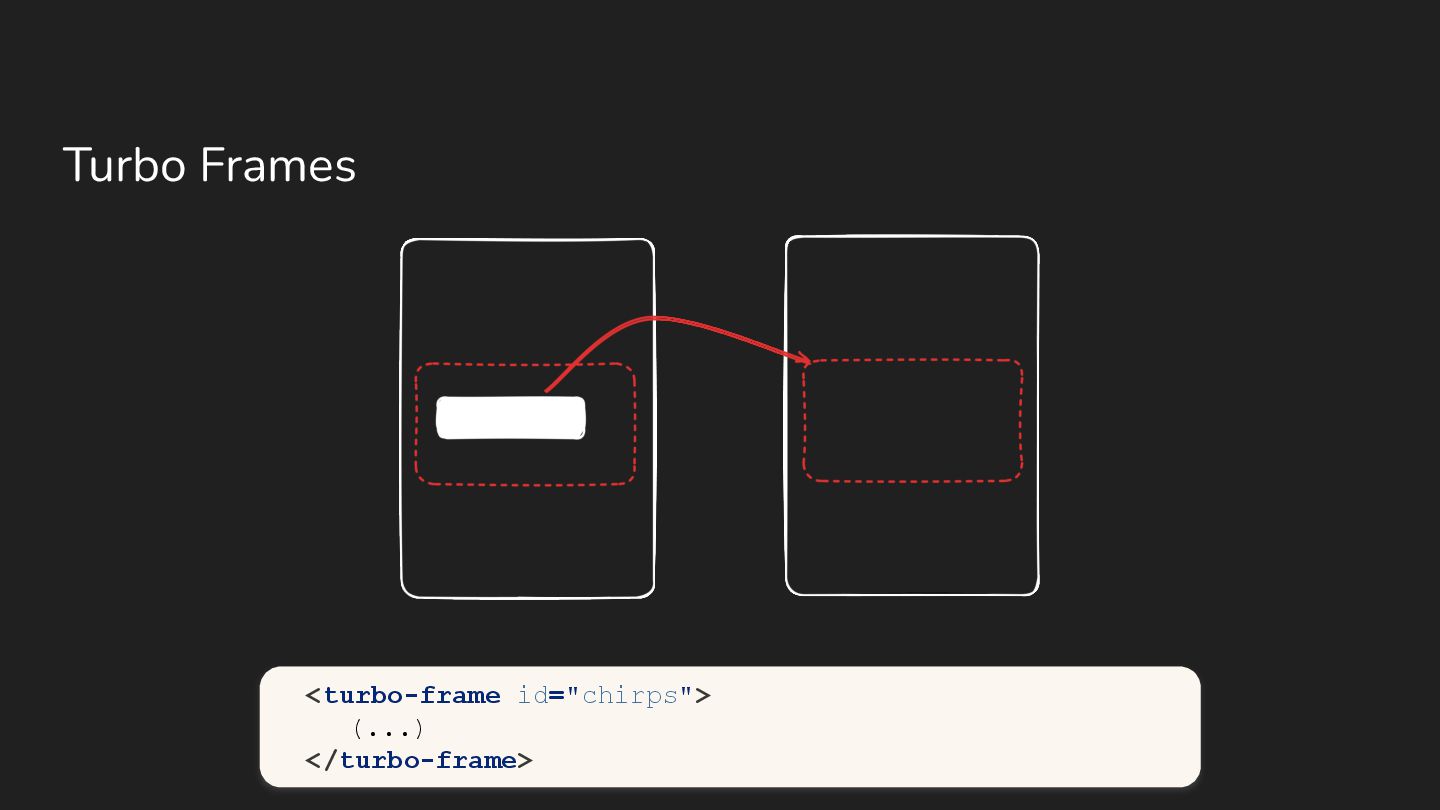

Turbo Frames <turbo-frame id="chirps"> (...) </turbo-frame>

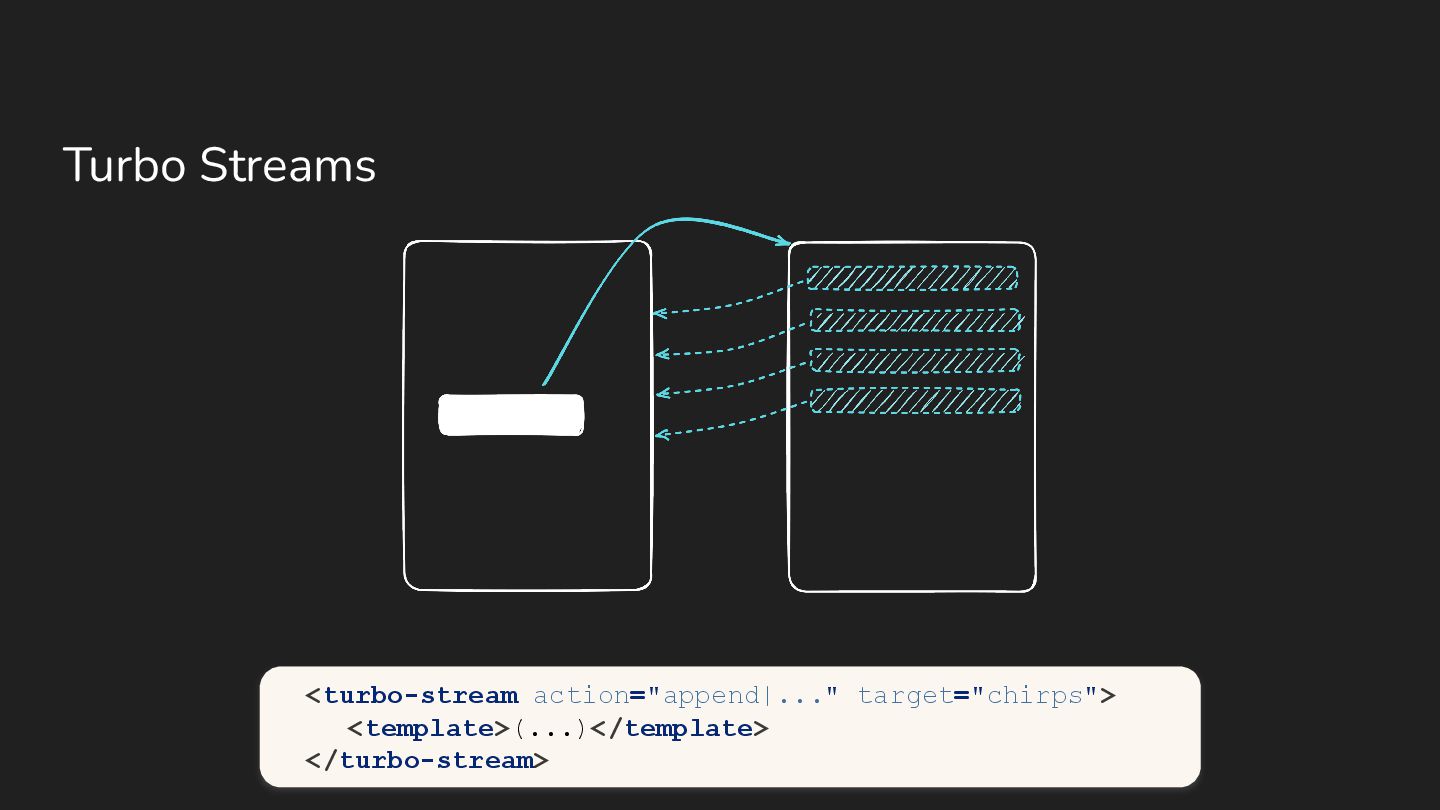

Turbo Streams <turbo-stream action="append|..." target="chirps"> <template>(...)</template> </turbo-stream>

What's new in Turbo 8

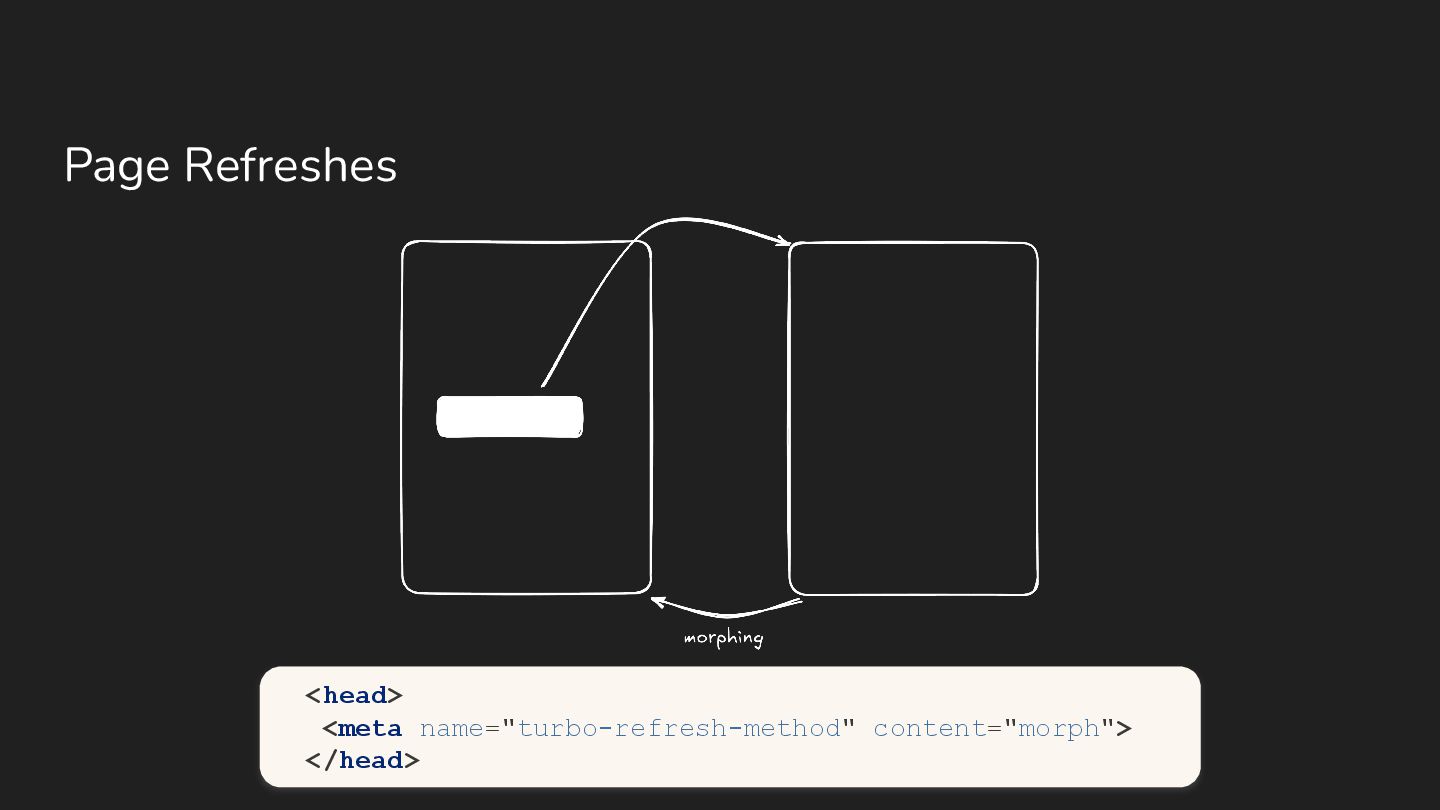

Page Refreshes <head> <meta name="turbo-refresh-method" content="morph"> </head>

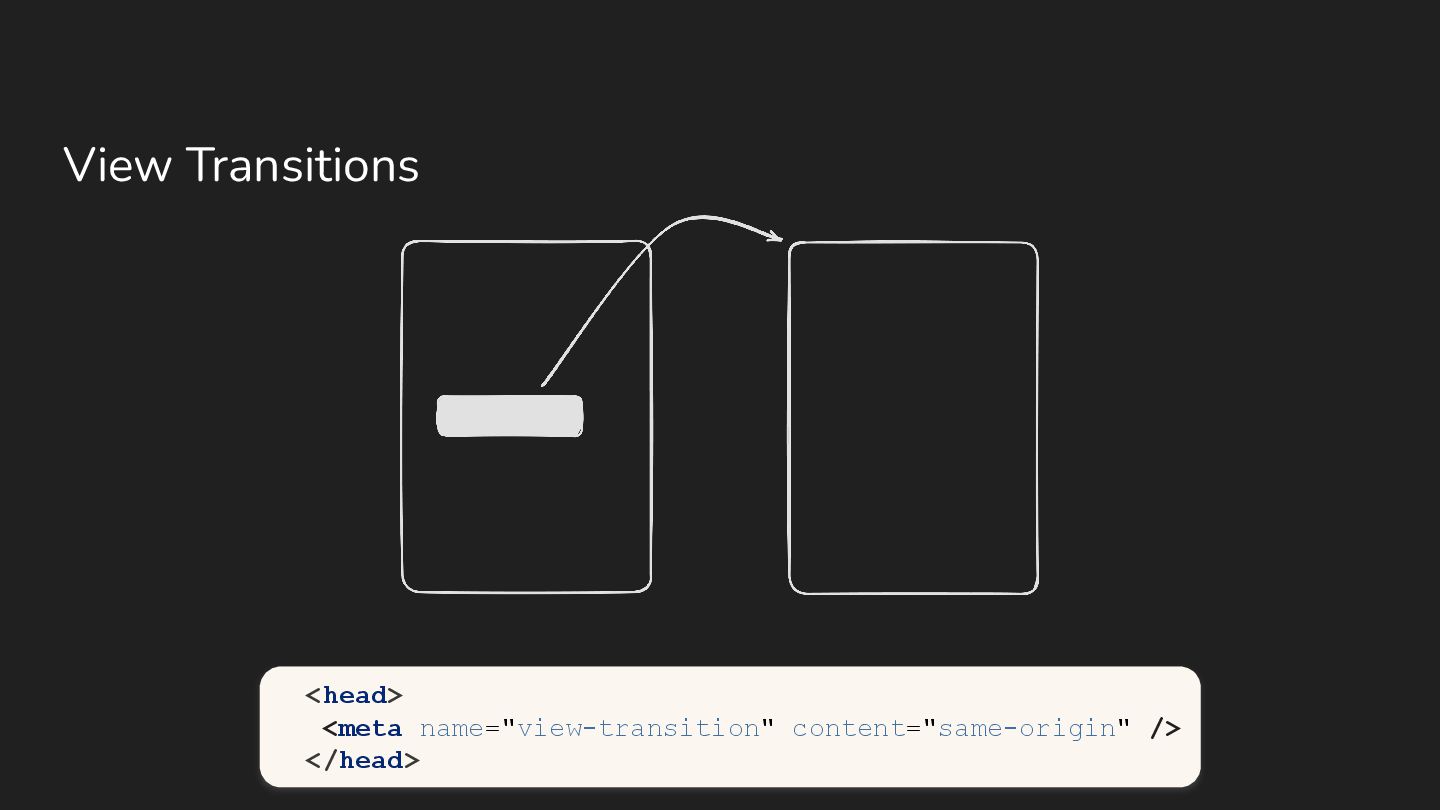

View Transitions <head> <meta name="view-transition" content="same-origin" /> </head>

Prefetching Links on Hover <head> <meta name="turbo-prefetch" content="false"> </head>

Stimulus

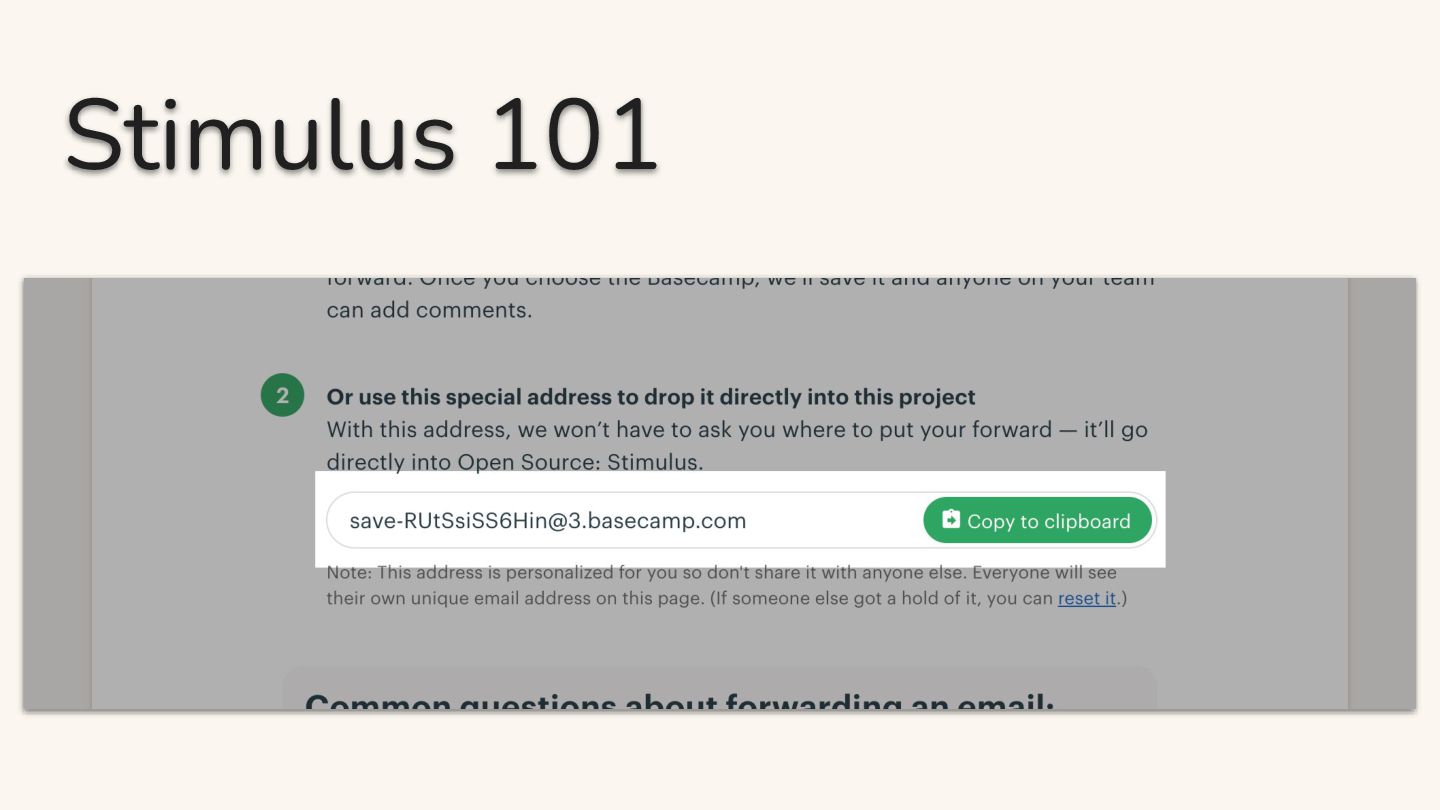

Stimulus 101

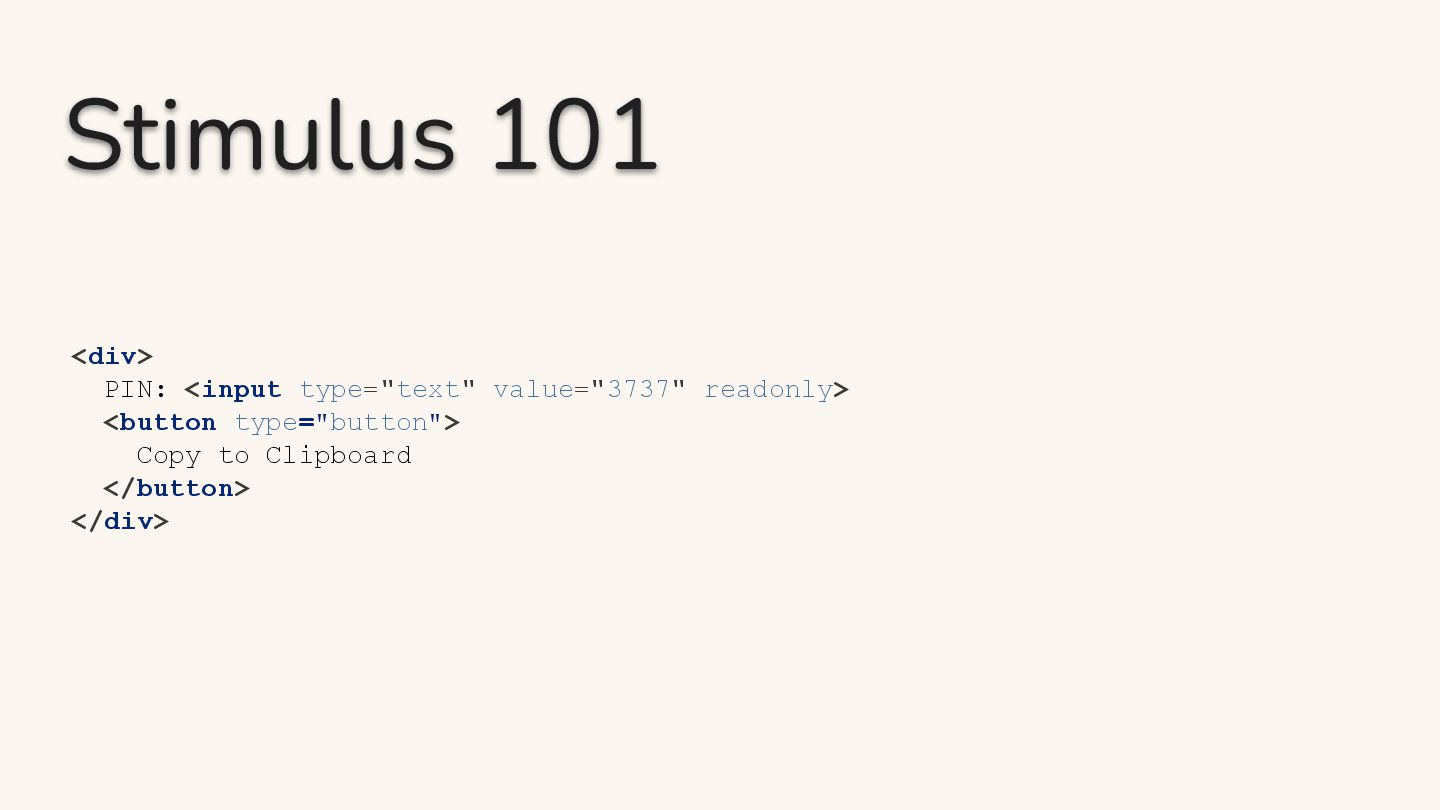

Stimulus 101 <div> PIN: <input type="text" value="3737" readonly> <button type="button">
Copy to Clipboard </button> </div>

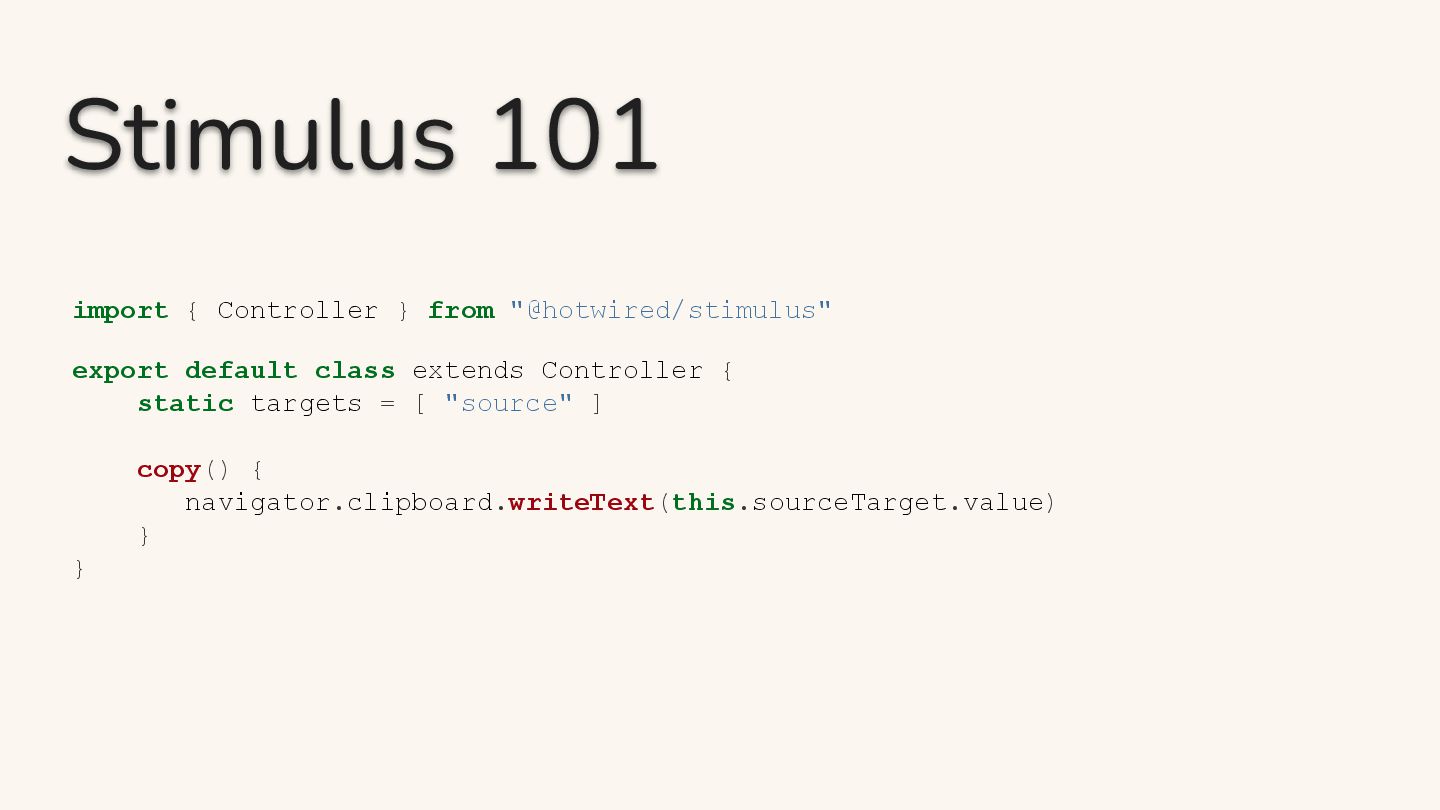

Stimulus 101 import { Controller } from "@hotwired/stimulus" export default
class extends Controller { static targets = [ "source" ] copy() { navigator.clipboard.writeText(this.sourceTarget.value) } }

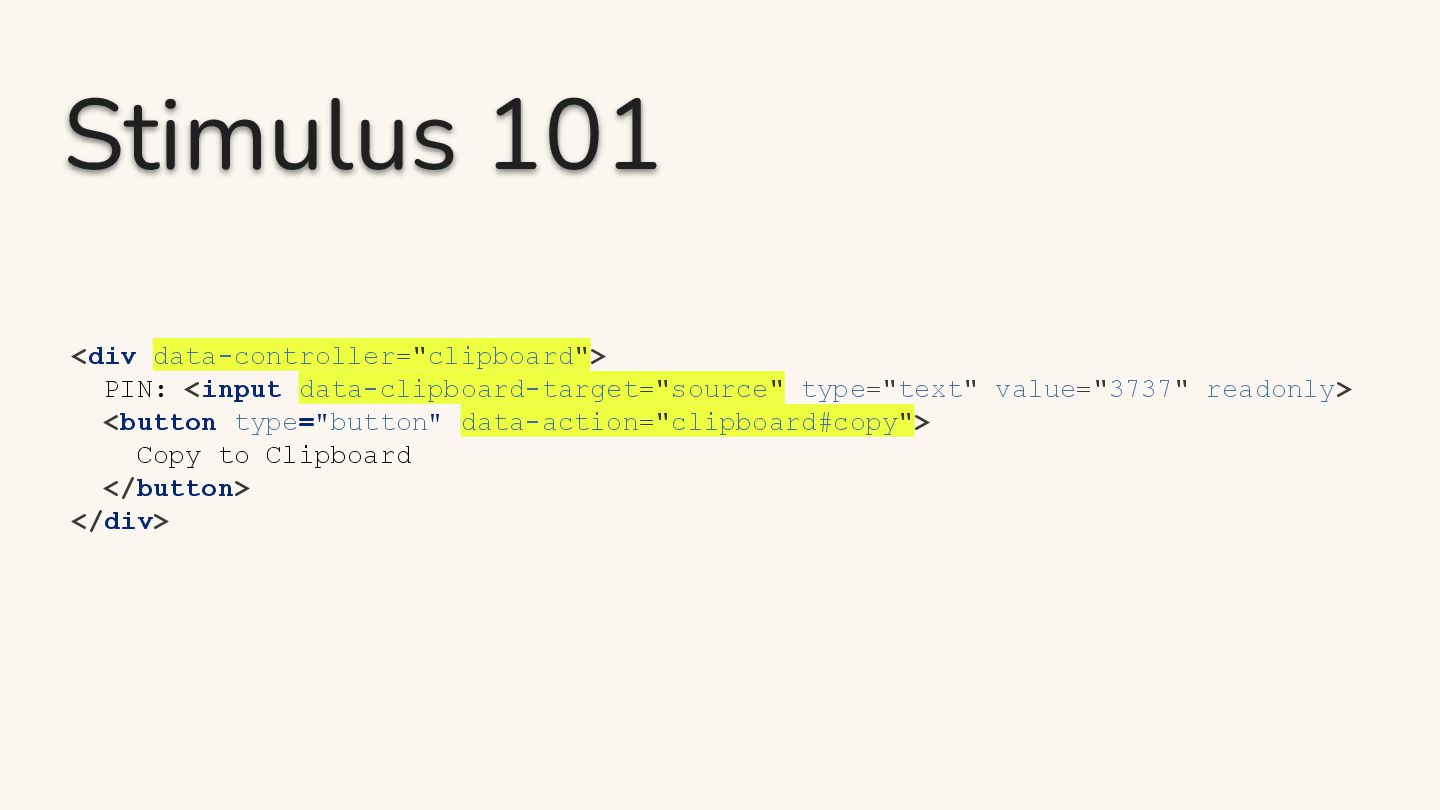

Stimulus 101 <div> PIN: <input type="text" value="3737" readonly> <button type="button">
Copy to Clipboard </button> </div> <div data-controller="clipboard"> PIN: <input data-clipboard-target="source" type="text" value="3737" readonly> <button type="button" data-action="clipboard#copy"> Copy to Clipboard </button> </div>

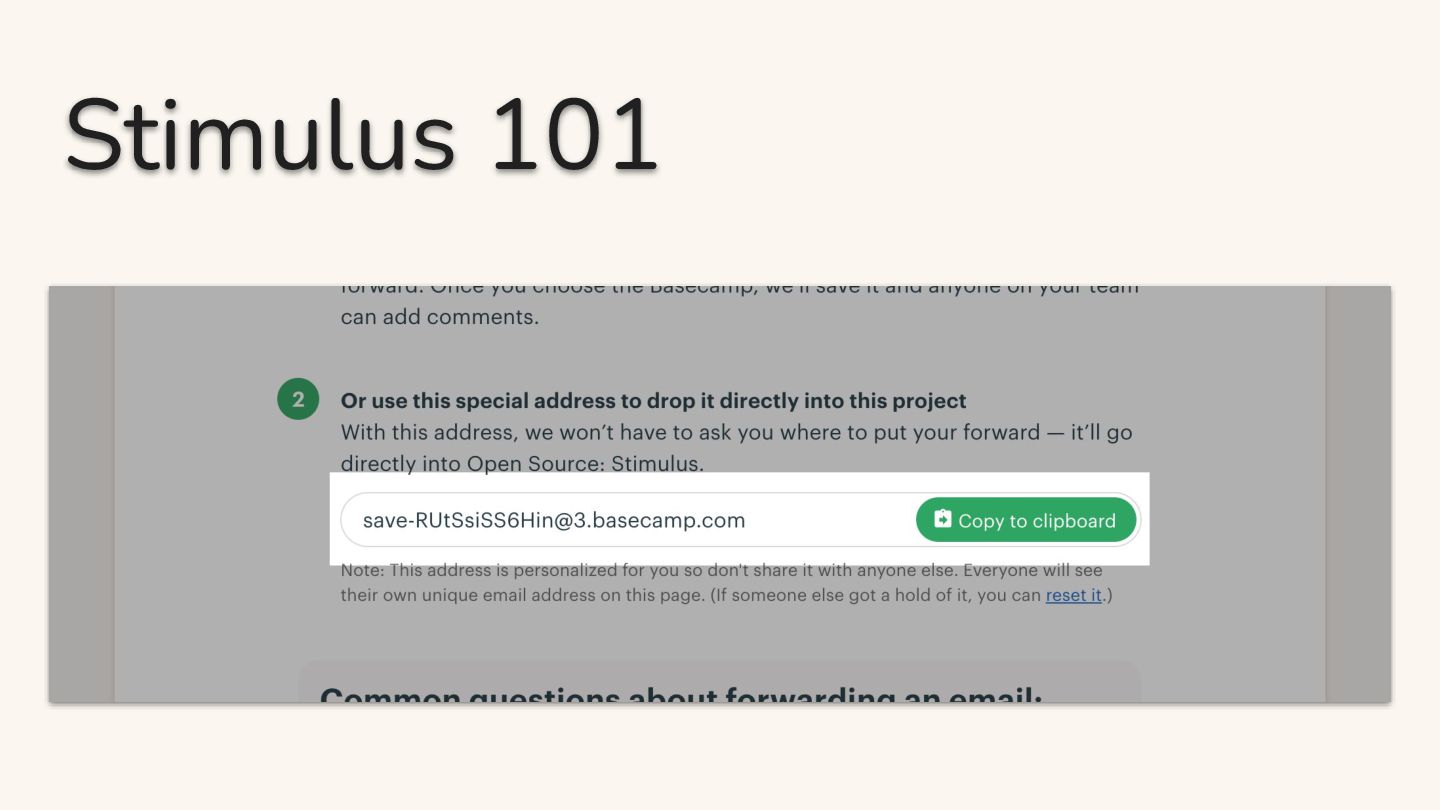

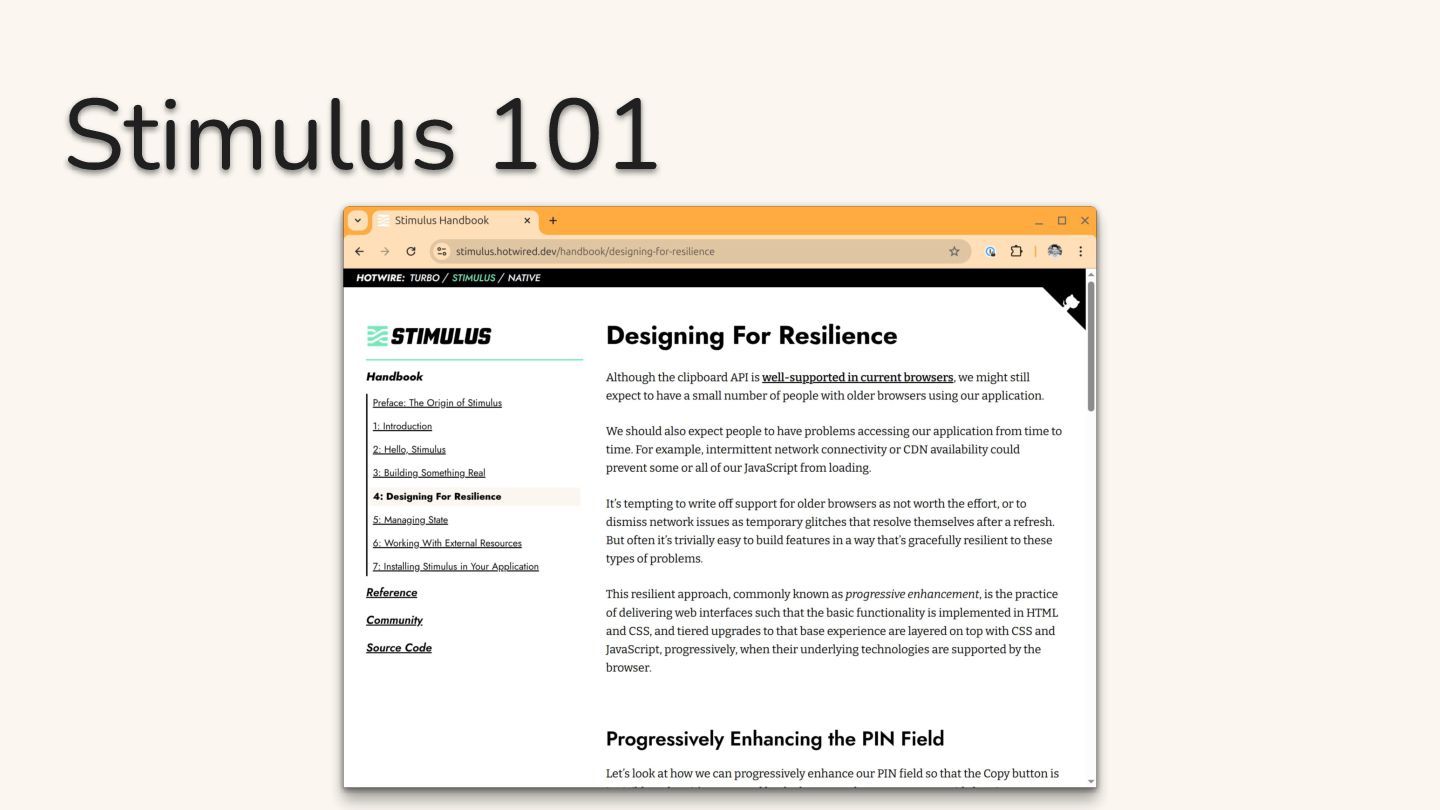

Stimulus 101

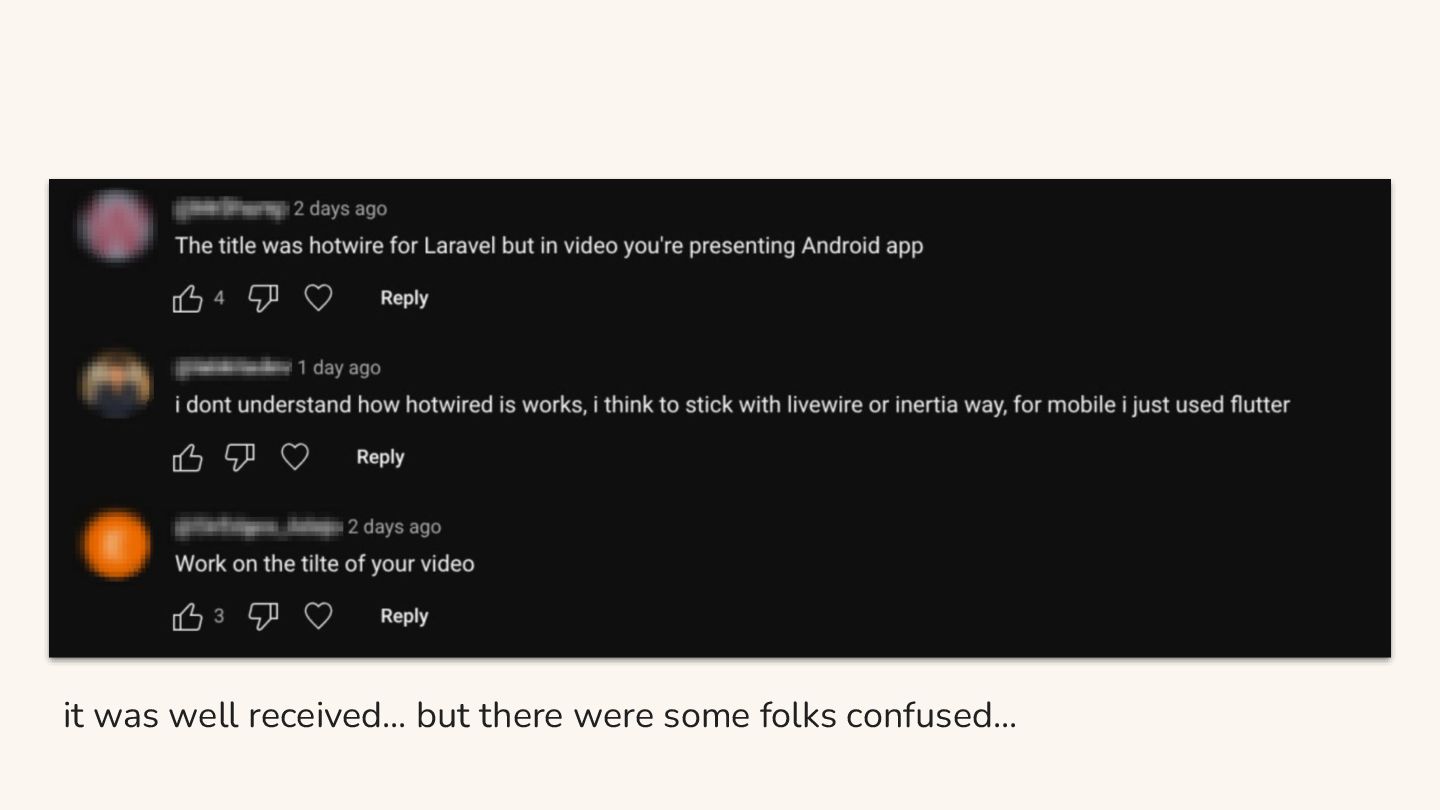

it was well received… but there were some folks confused…

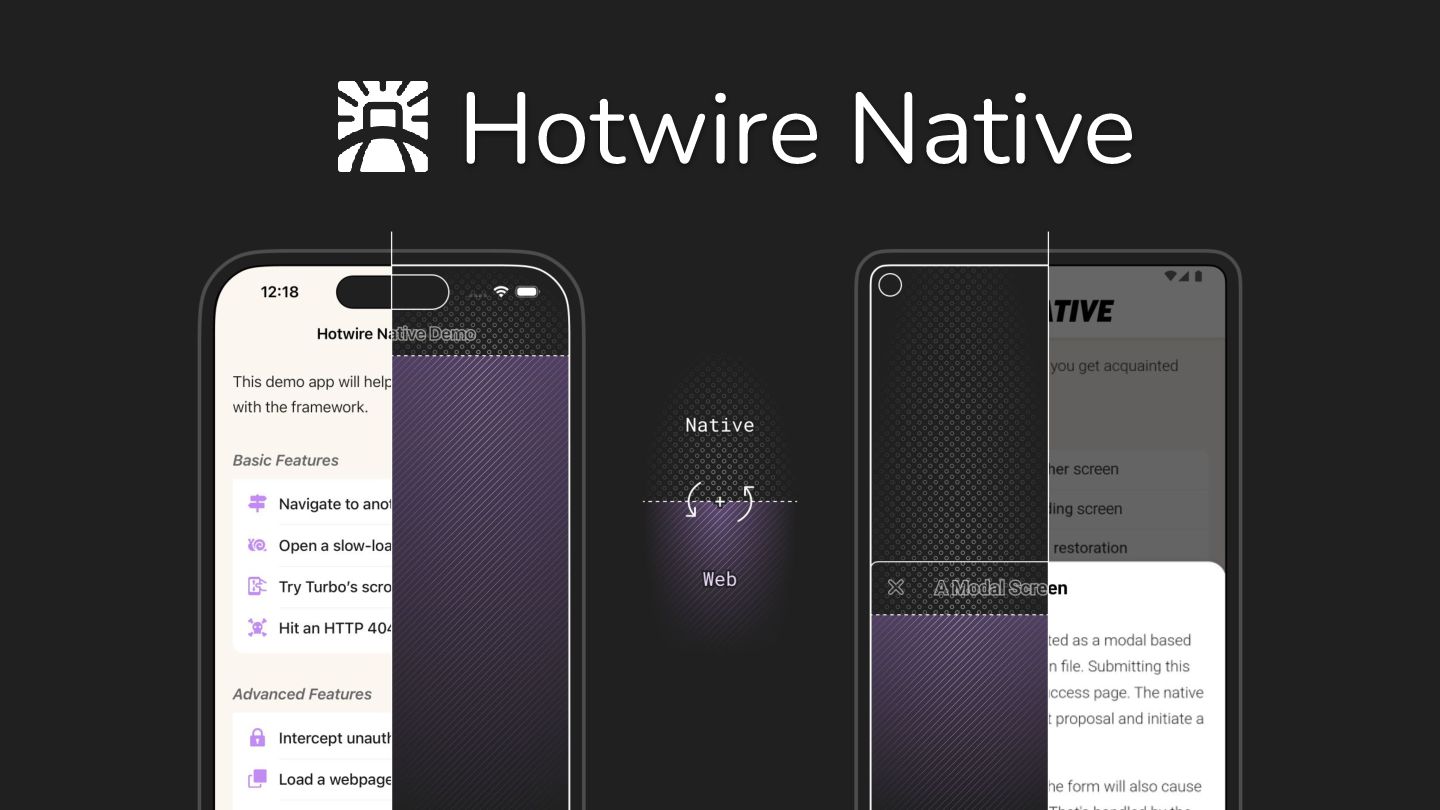

Hotwire Native

Getting Started 1. Create Project 2. Add Dependency 3. Set
Permissions 4. Replace Activity

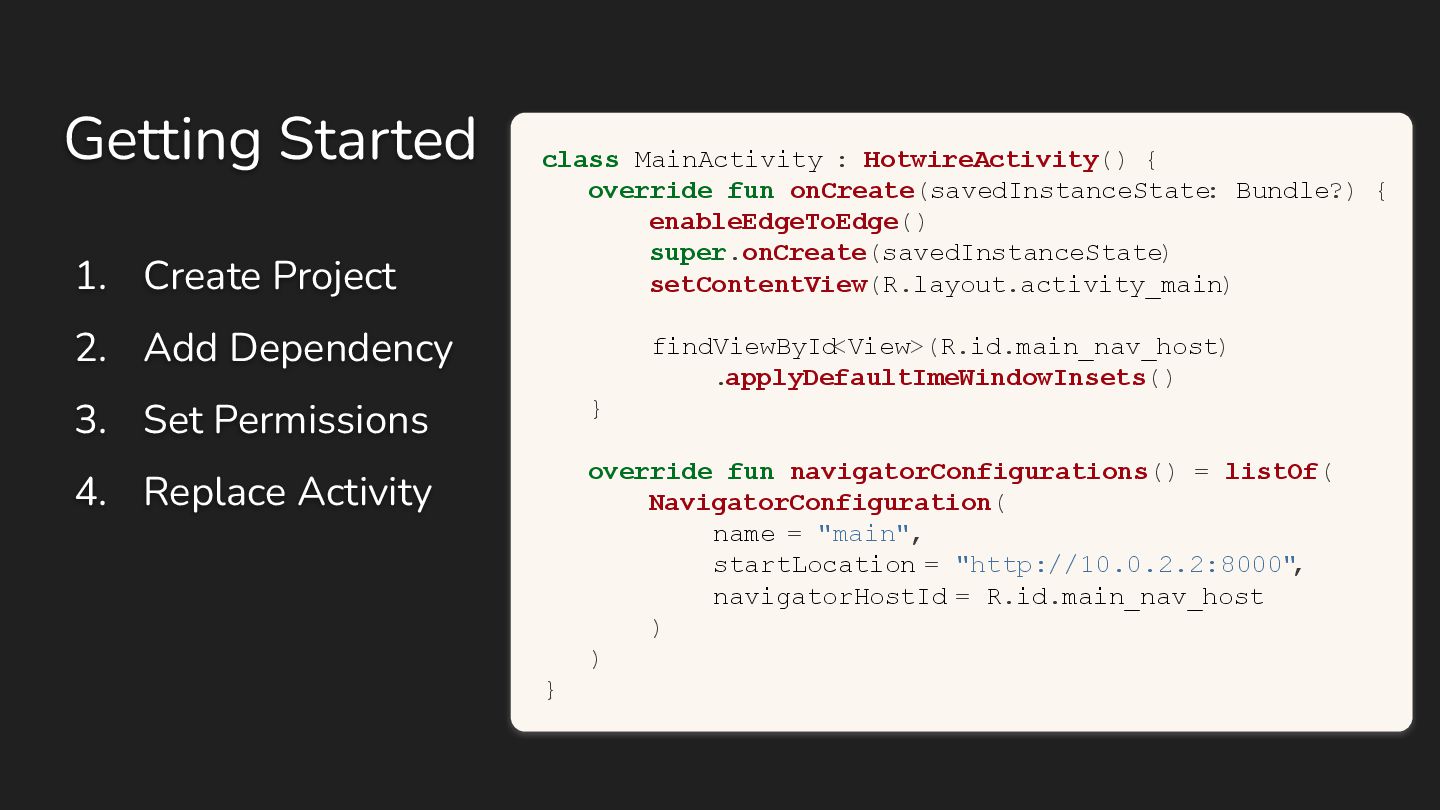

Getting Started 1. Create Project 2. Add Dependency 3. Set
Permissions 4. Replace Activity class MainActivity : HotwireActivity() { override fun onCreate(savedInstanceState : Bundle?) { enableEdgeToEdge() super.onCreate(savedInstanceState ) setContentView(R.layout.activity_main) findViewById <View>(R.id.main_nav_host) .applyDefaultImeWindowInsets() } override fun navigatorConfigurations() = listOf( NavigatorConfiguration( name = "main", startLocation = "http://10.0.2.2:8000" , navigatorHostId = R.id.main_nav_host ) ) }

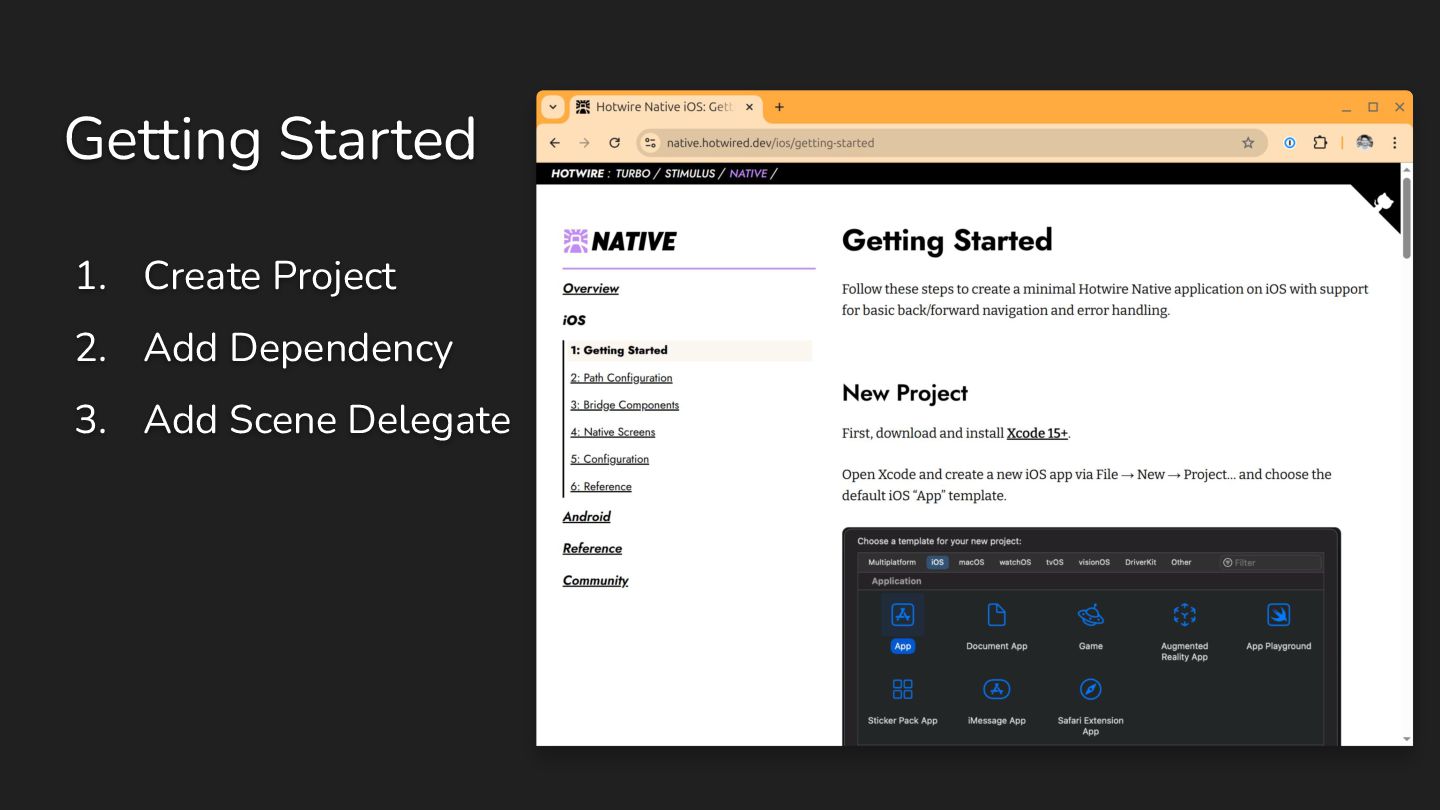

Getting Started 1. Create Project 2. Add Dependency 3. Add
Scene Delegate

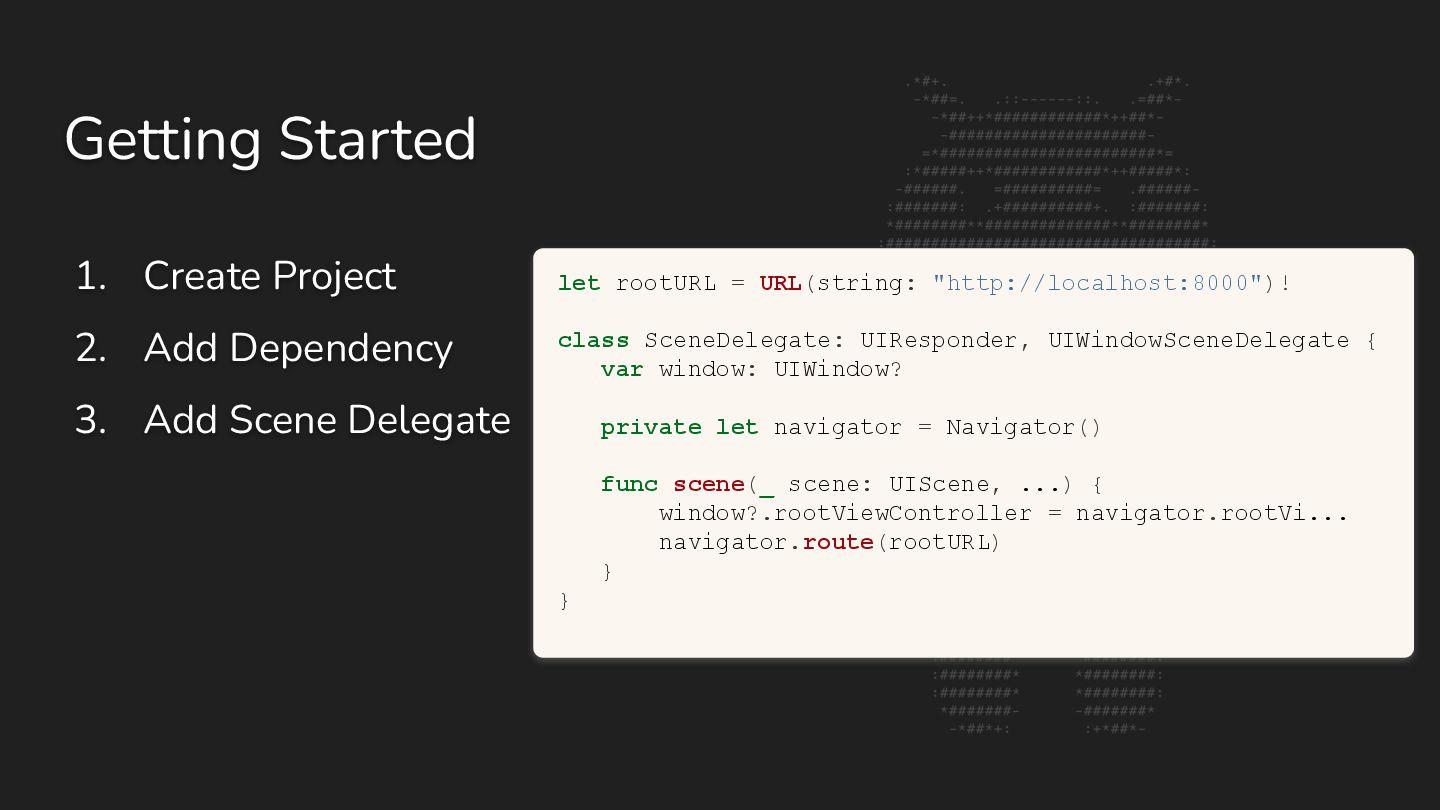

Getting Started 1. Create Project 2. Add Dependency 3. Add
Scene Delegate let rootURL = URL(string: "http://localhost:8000")! class SceneDelegate: UIResponder, UIWindowSceneDelegate { var window: UIWindow? private let navigator = Navigator() func scene(_ scene: UIScene, ...) { window?.rootViewController = navigator.rootVi... navigator.route(rootURL) } }

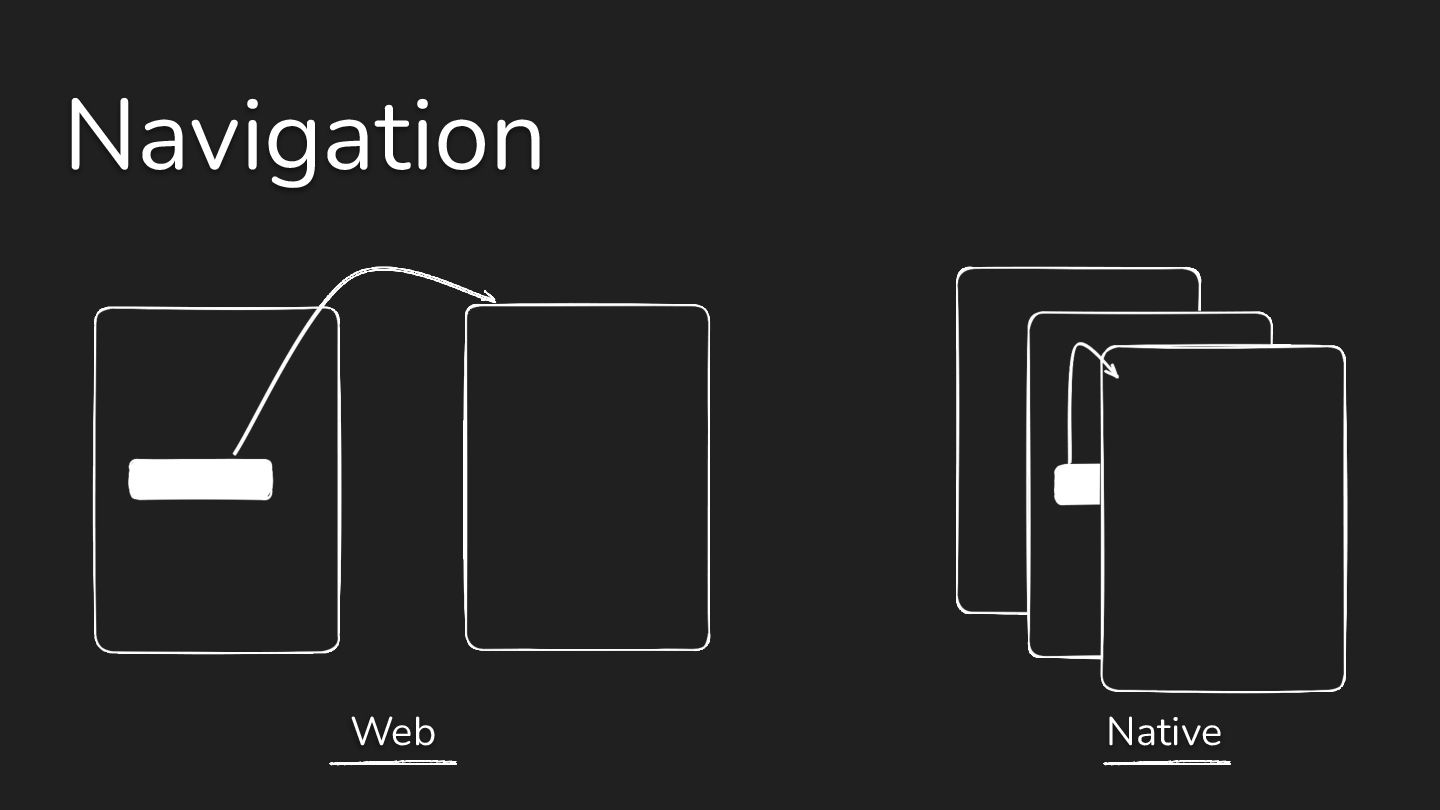

Navigation Web Native

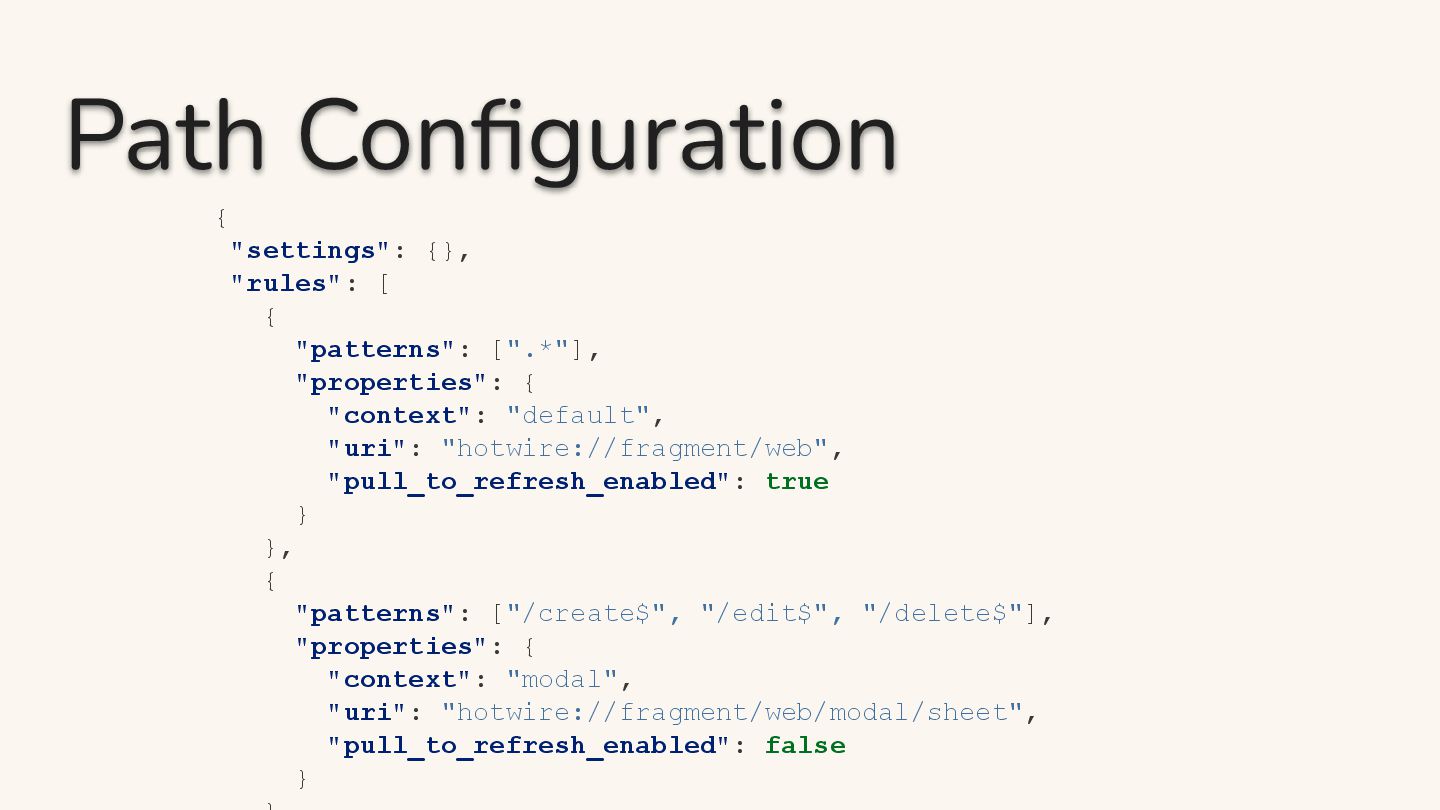

Path Conﬁguration { "settings": {}, "rules": [ { "patterns": [".*"],
"properties": { "context": "default", "uri": "hotwire://fragment/web", "pull_to_refresh_enabled": true } }, { "patterns": ["/create$", "/edit$", "/delete$"], "properties": { "context": "modal", "uri": "hotwire://fragment/web/modal/sheet", "pull_to_refresh_enabled": false }

Native Integrations ✨

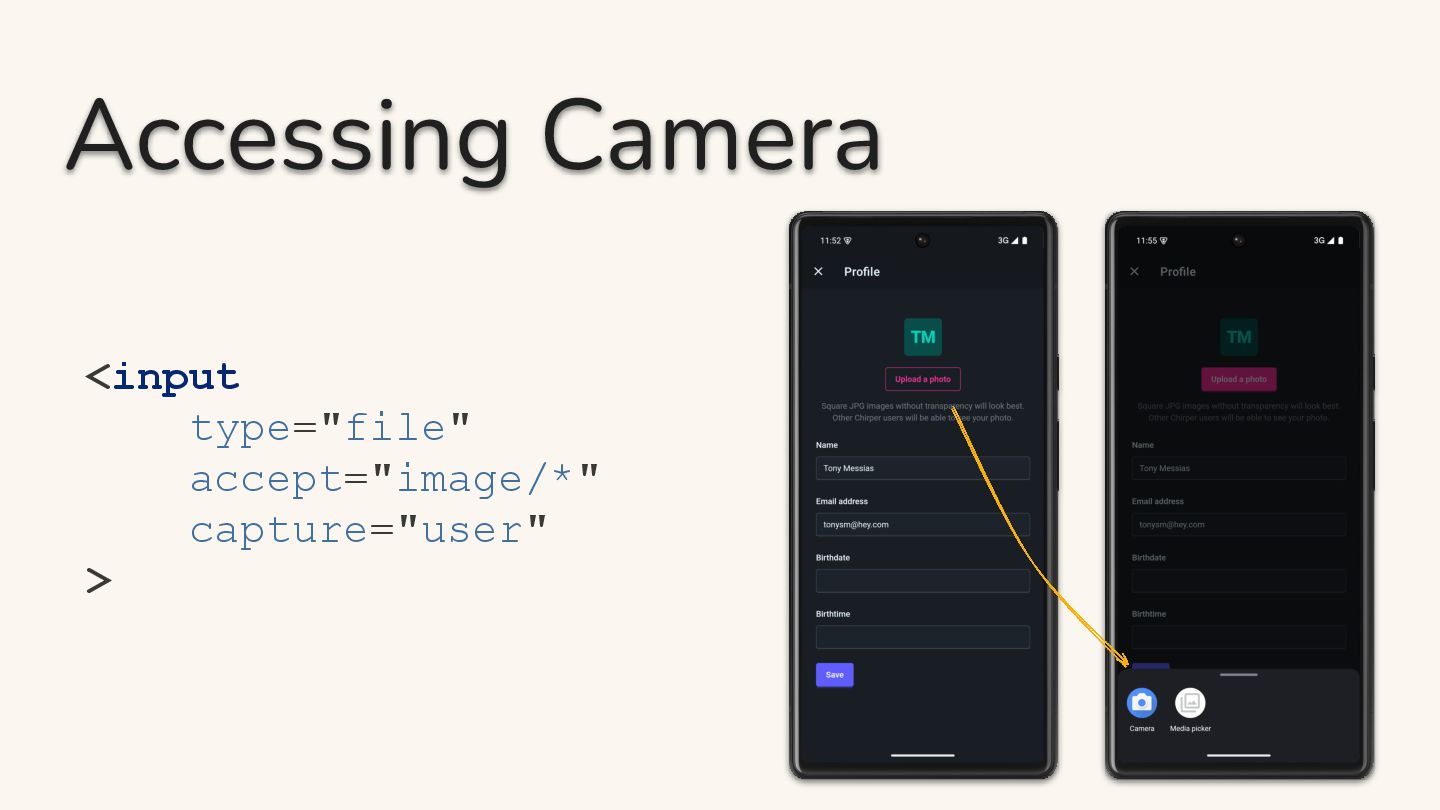

Accessing Camera <input type="file" accept="image/*" capture="user" >

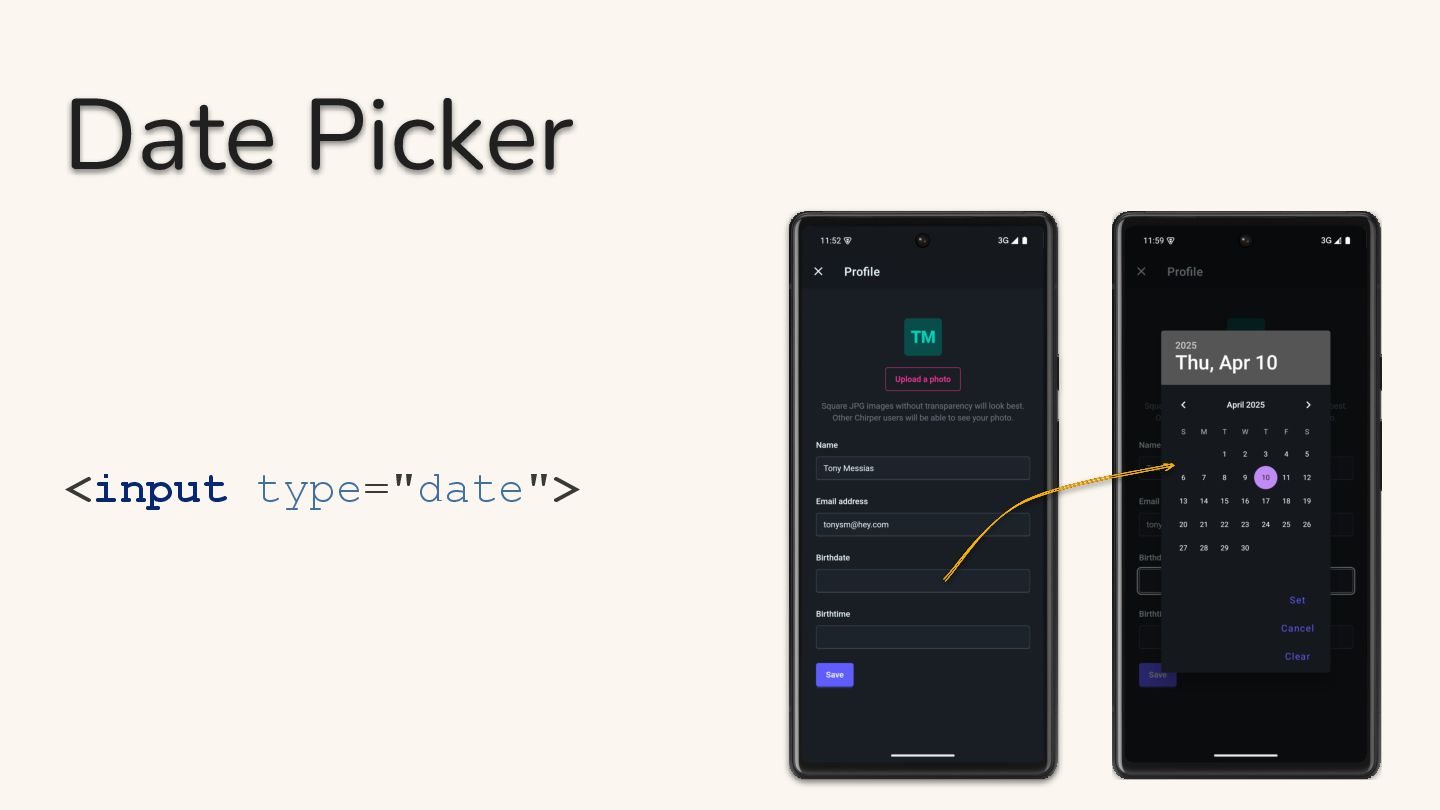

Date Picker <input type="date">

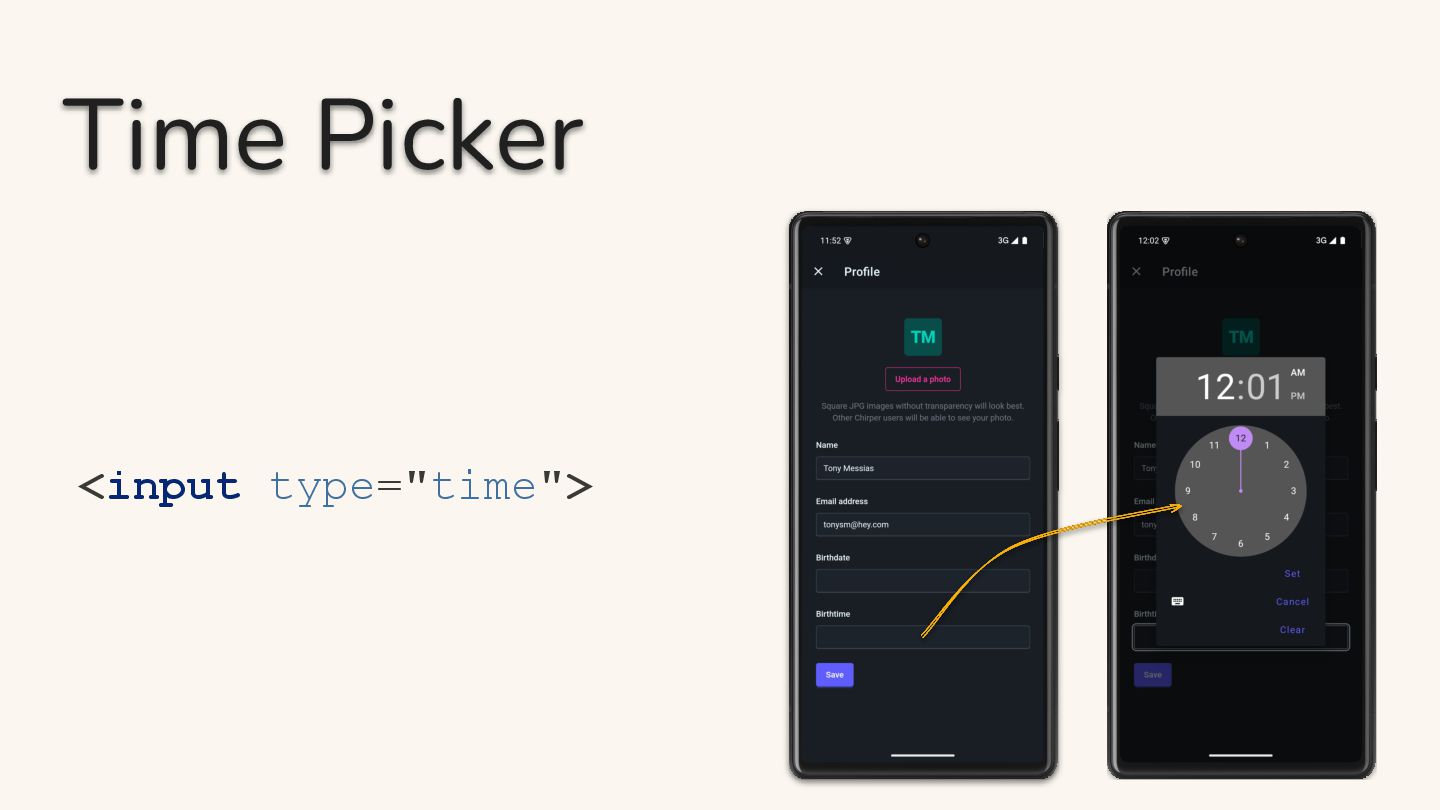

Time Picker <input type="time">

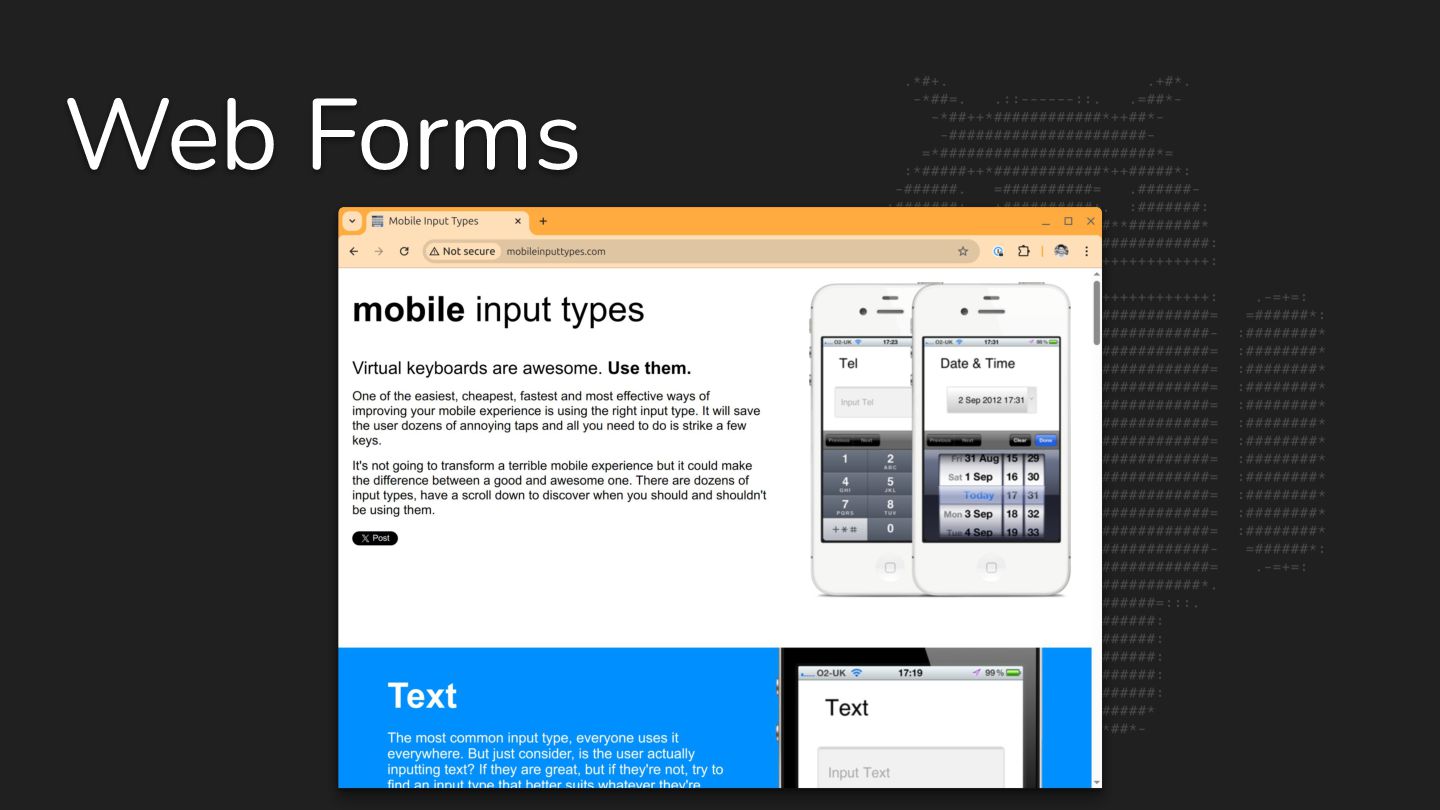

Web Forms

Bridge Components ✨

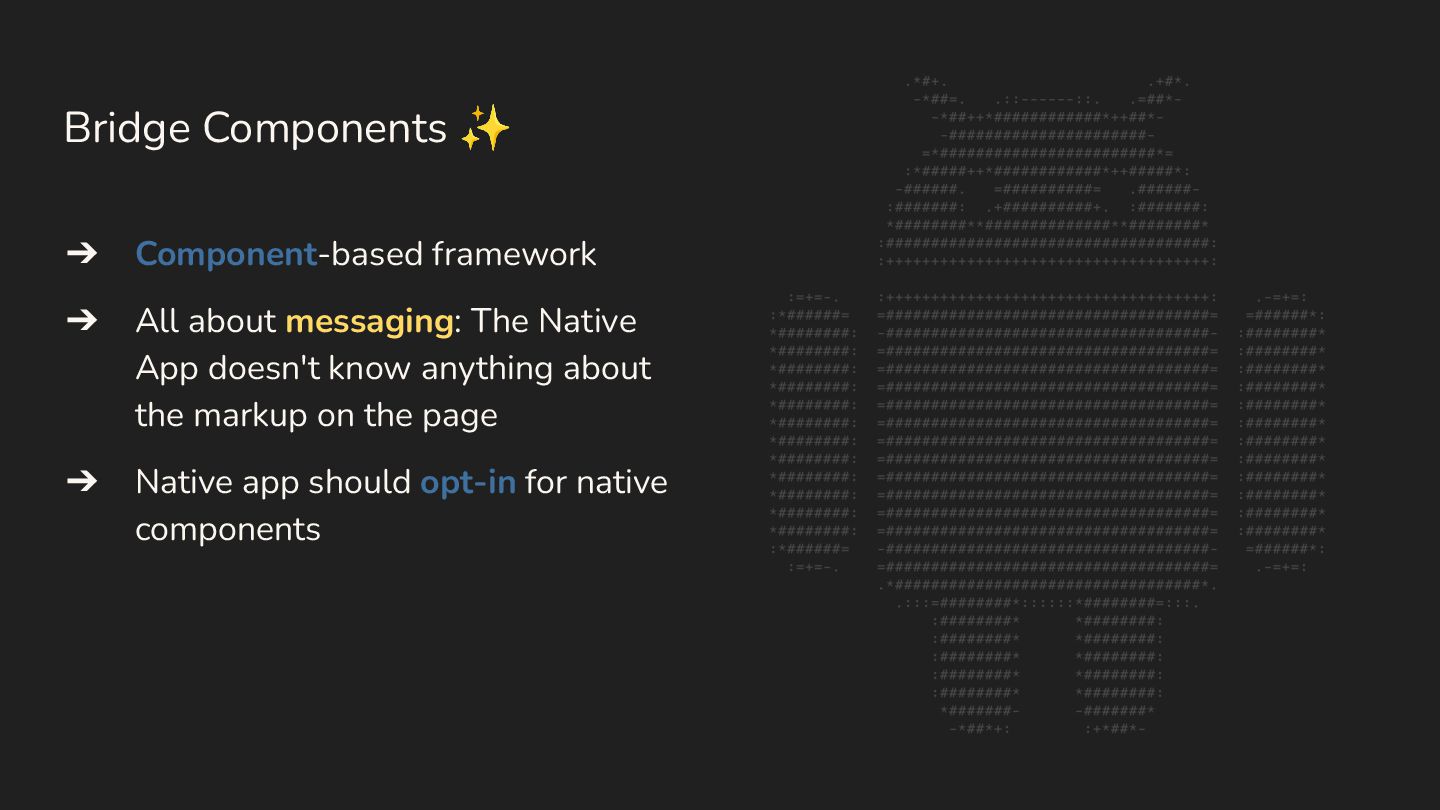

Bridge Components ✨ ➔ Component-based framework ➔ All about messaging:
The Native App doesn't know anything about the markup on the page ➔ Native app should opt-in for native components

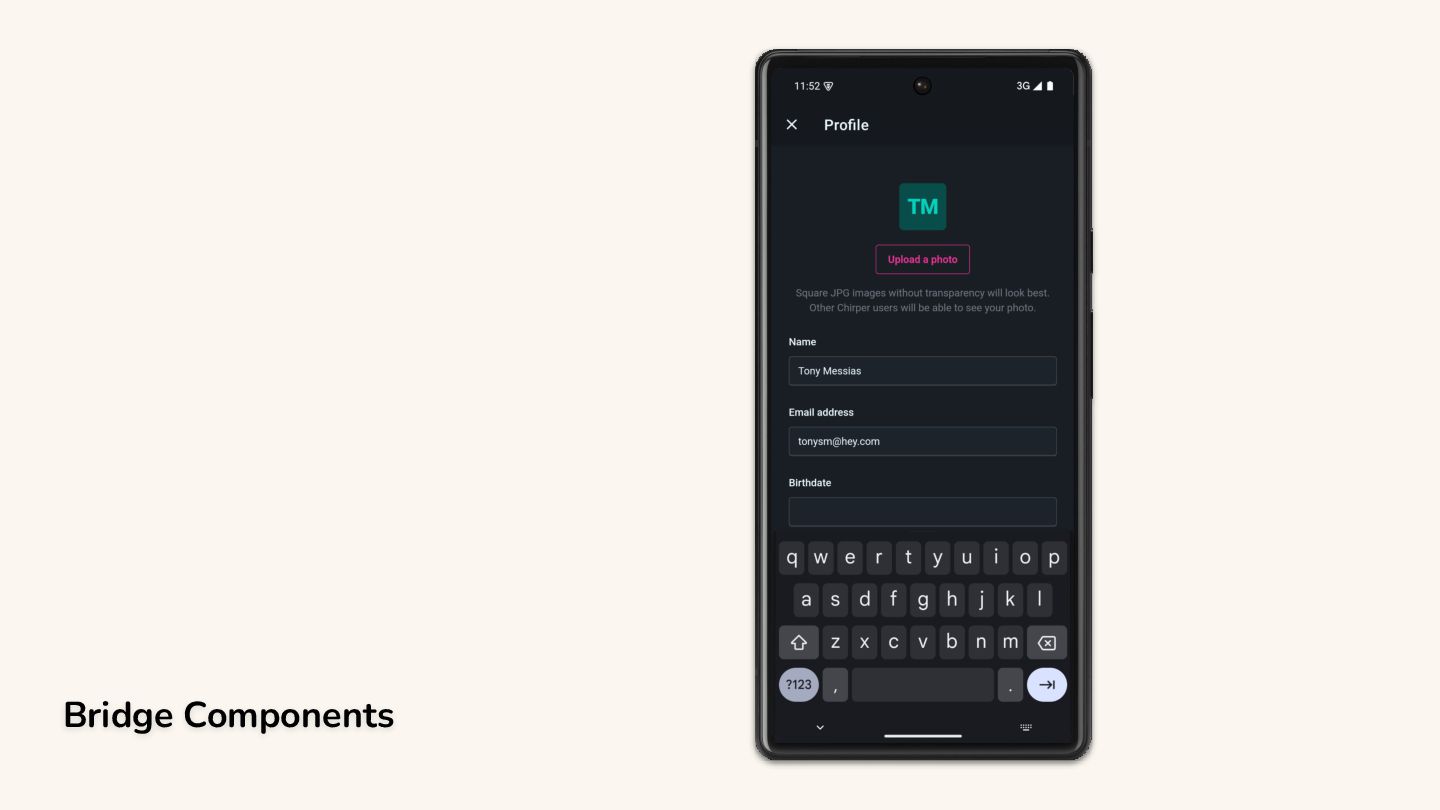

Bridge Components

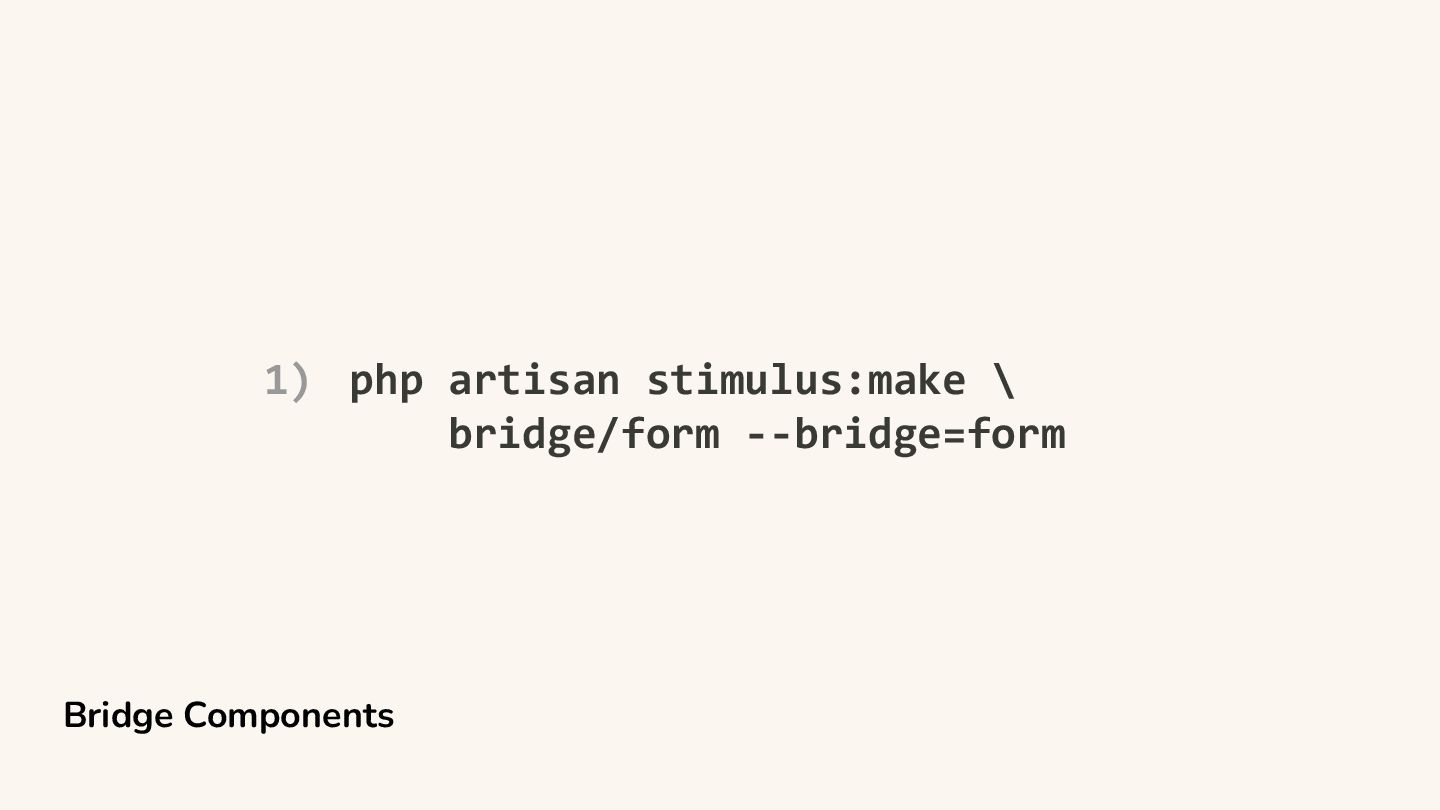

1) php artisan stimulus:make \ bridge/form --bridge=form Bridge Components

2) import { BridgeComponent, BridgeElement } from "@hotwired/hotwire-native-bridge" export default
class extends BridgeComponent { static component = "form" static targets = ["submit"] connect() { super.connect() const element = new BridgeElement(this.submitTarget) const title = element.bridgeAttribute("title") this.send("connect", { title }, () => { this.submitTarget.click() }) } } Bridge Components

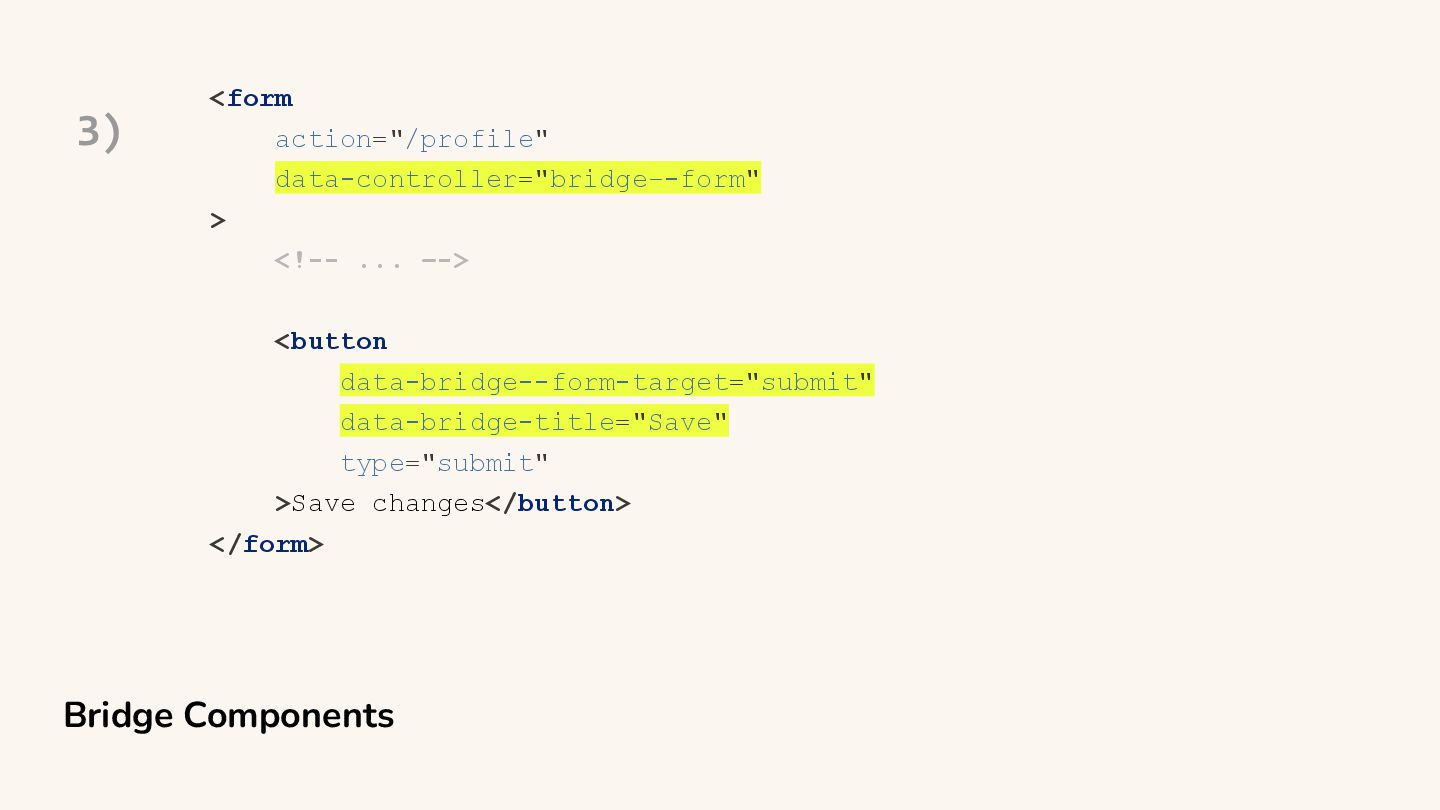

3) <form action="/profile" > <!-- ... –-> <button type="submit" >Save
changes</button> </form> Bridge Components <form action="/profile" data-controller="bridge–-form" > <!-- ... –-> <button data-bridge--form-target="submit" data-bridge-title="Save" type="submit" >Save changes</button> </form>

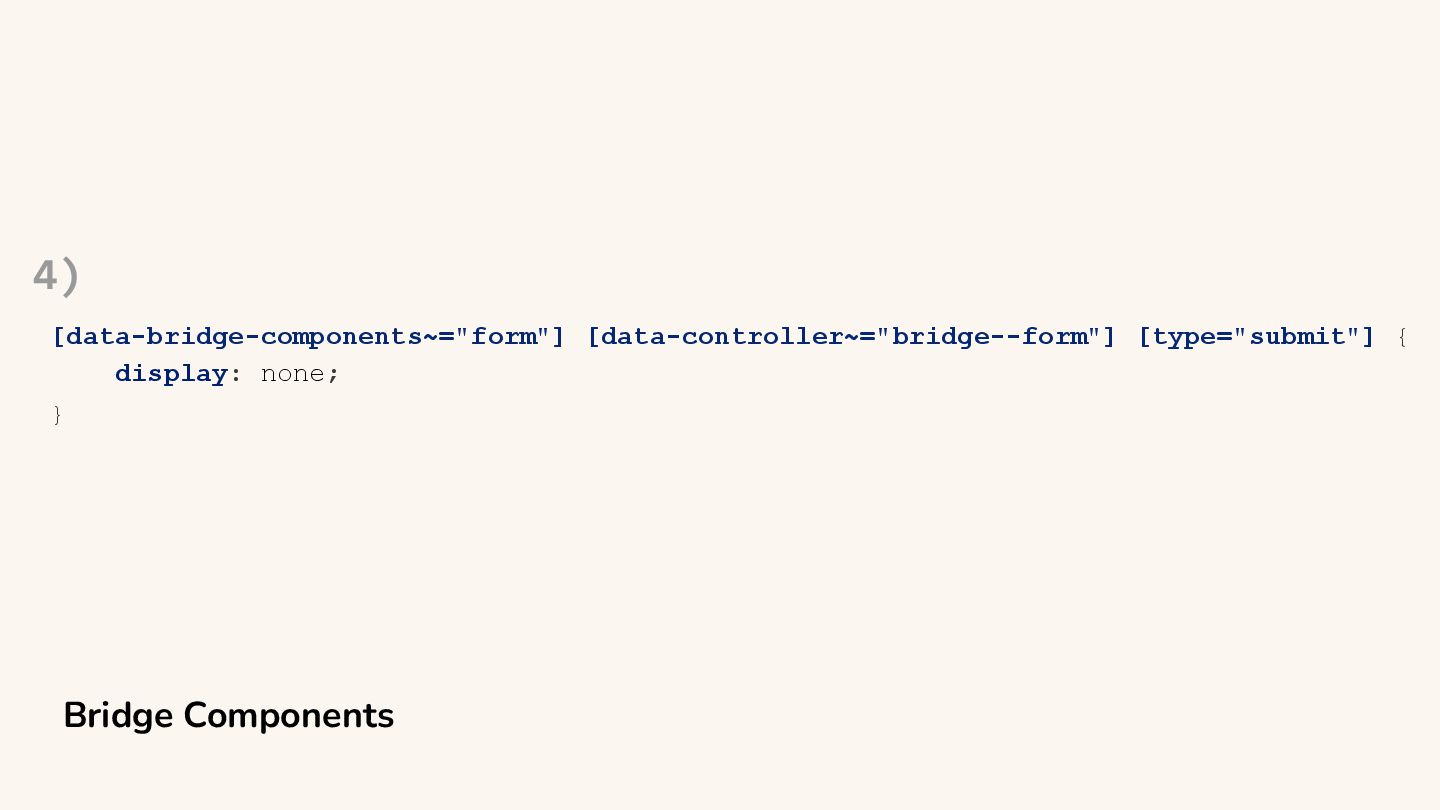

4) [data-bridge-components~="form"] [data-controller~="bridge--form"] [type="submit"] { display: none; } Bridge Components

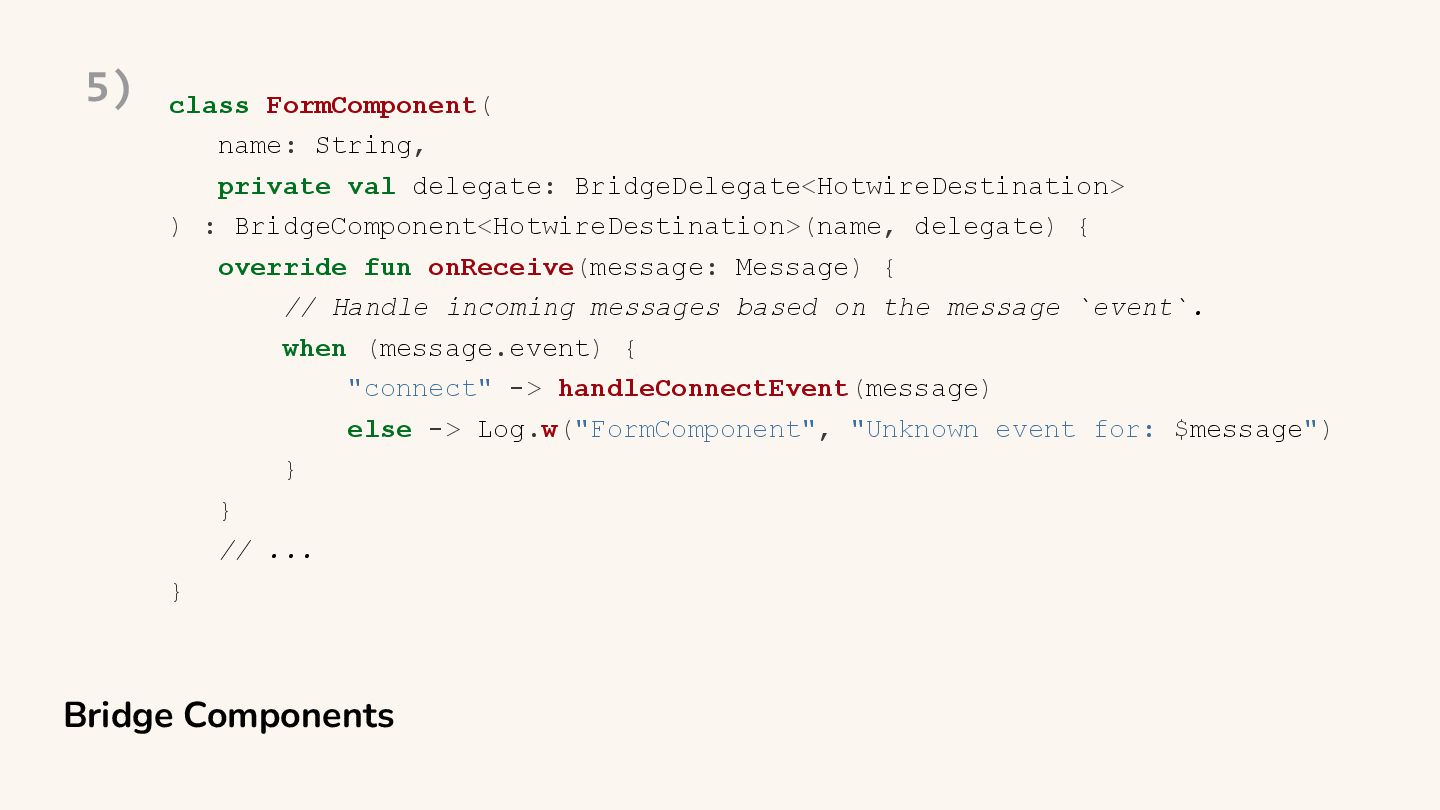

5) class FormComponent( name: String, private val delegate: BridgeDelegate<HotwireDestination> )
: BridgeComponent<HotwireDestination>(name, delegate) { override fun onReceive(message: Message) { // Handle incoming messages based on the message `event`. when (message.event) { "connect" -> handleConnectEvent(message) else -> Log.w("FormComponent", "Unknown event for: $message") } } // ... } Bridge Components

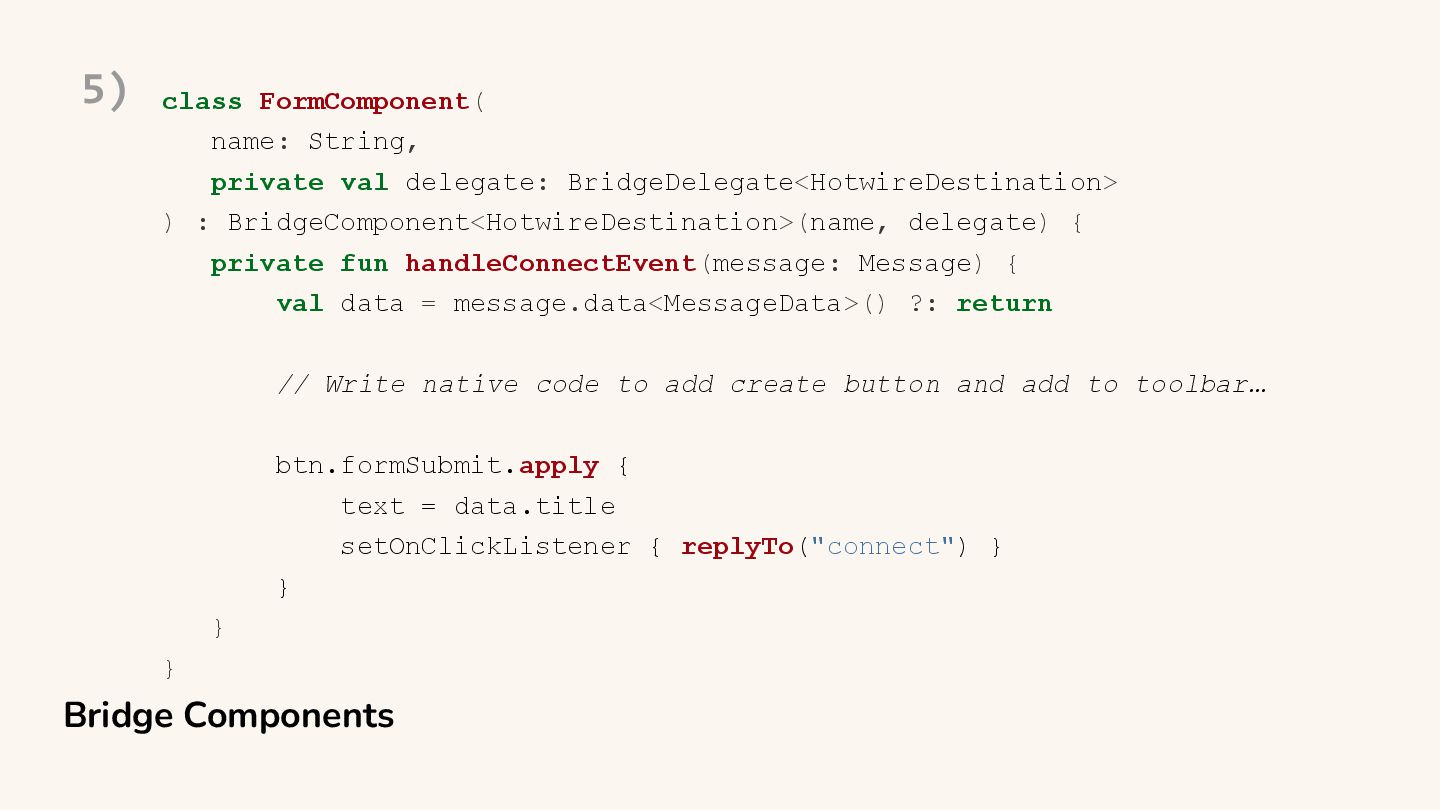

5) class FormComponent( name: String, private val delegate: BridgeDelegate<HotwireDestination> )
: BridgeComponent<HotwireDestination>(name, delegate) { private fun handleConnectEvent(message: Message) { val data = message.data<MessageData>() ?: return // Write native code to add create button and add to toolbar… btn.formSubmit.apply { text = data.title setOnClickListener { replyTo("connect") } } } } Bridge Components

6) Hotwire.registerBridgeComponents( BridgeComponentFactory("form", ::FormComponent), ); Bridge Components

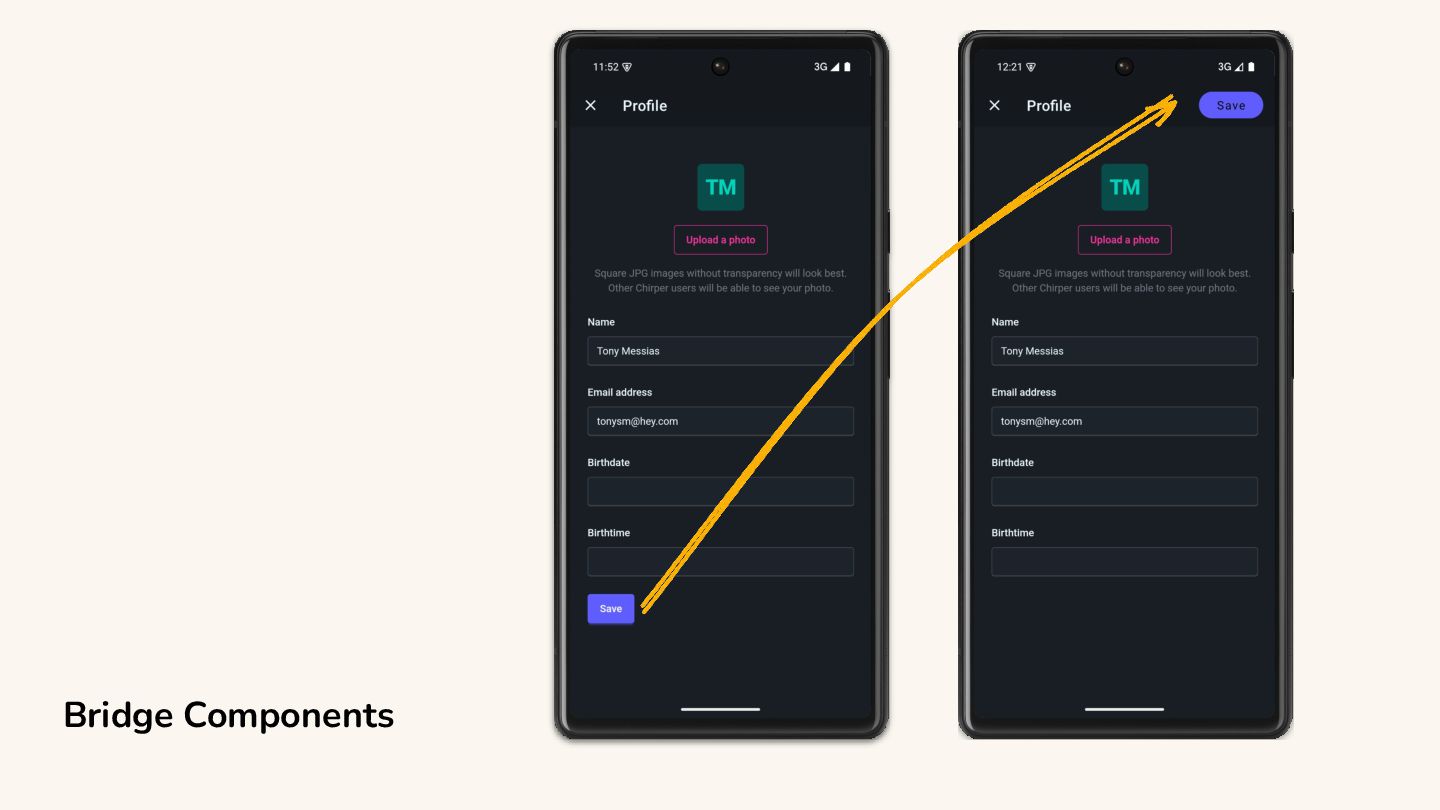

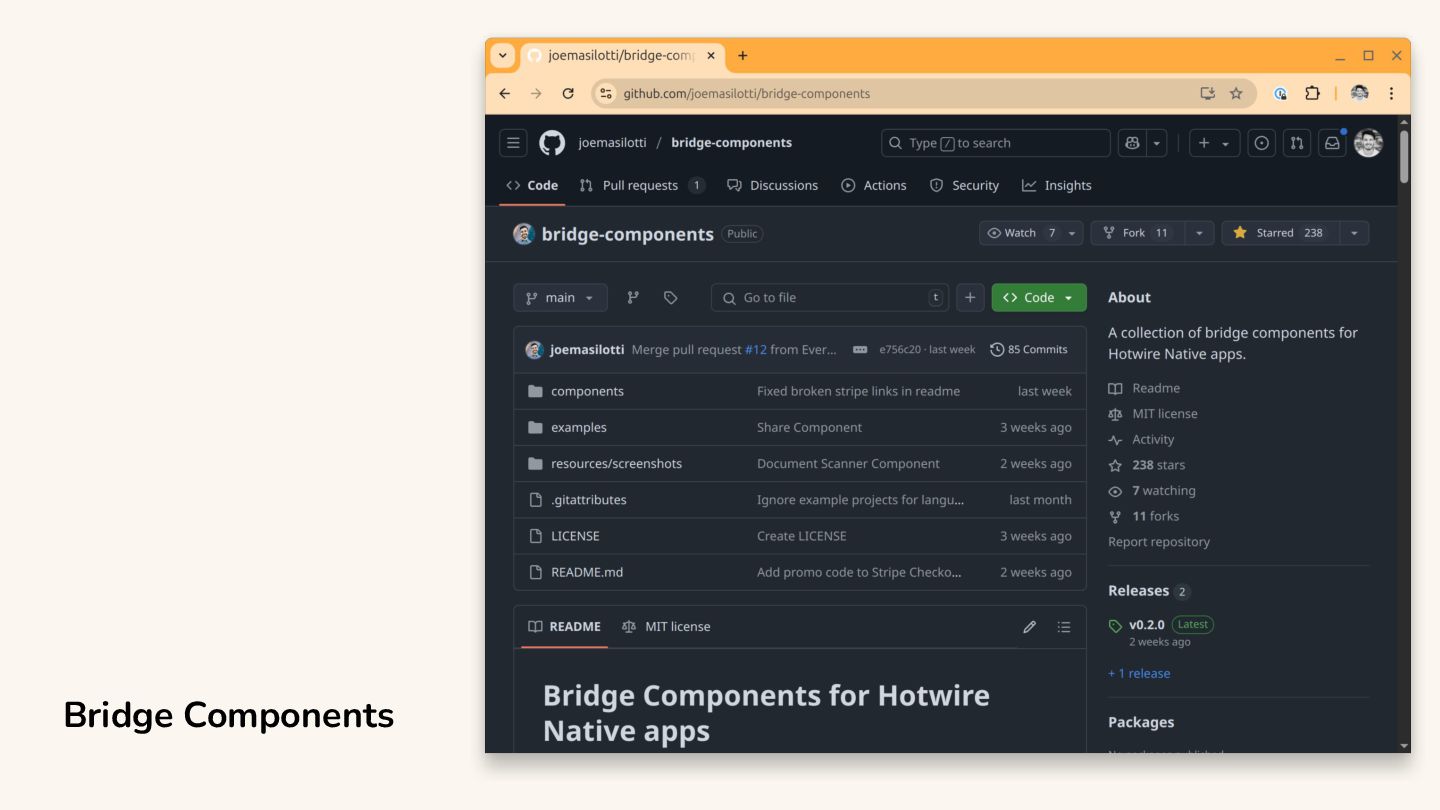

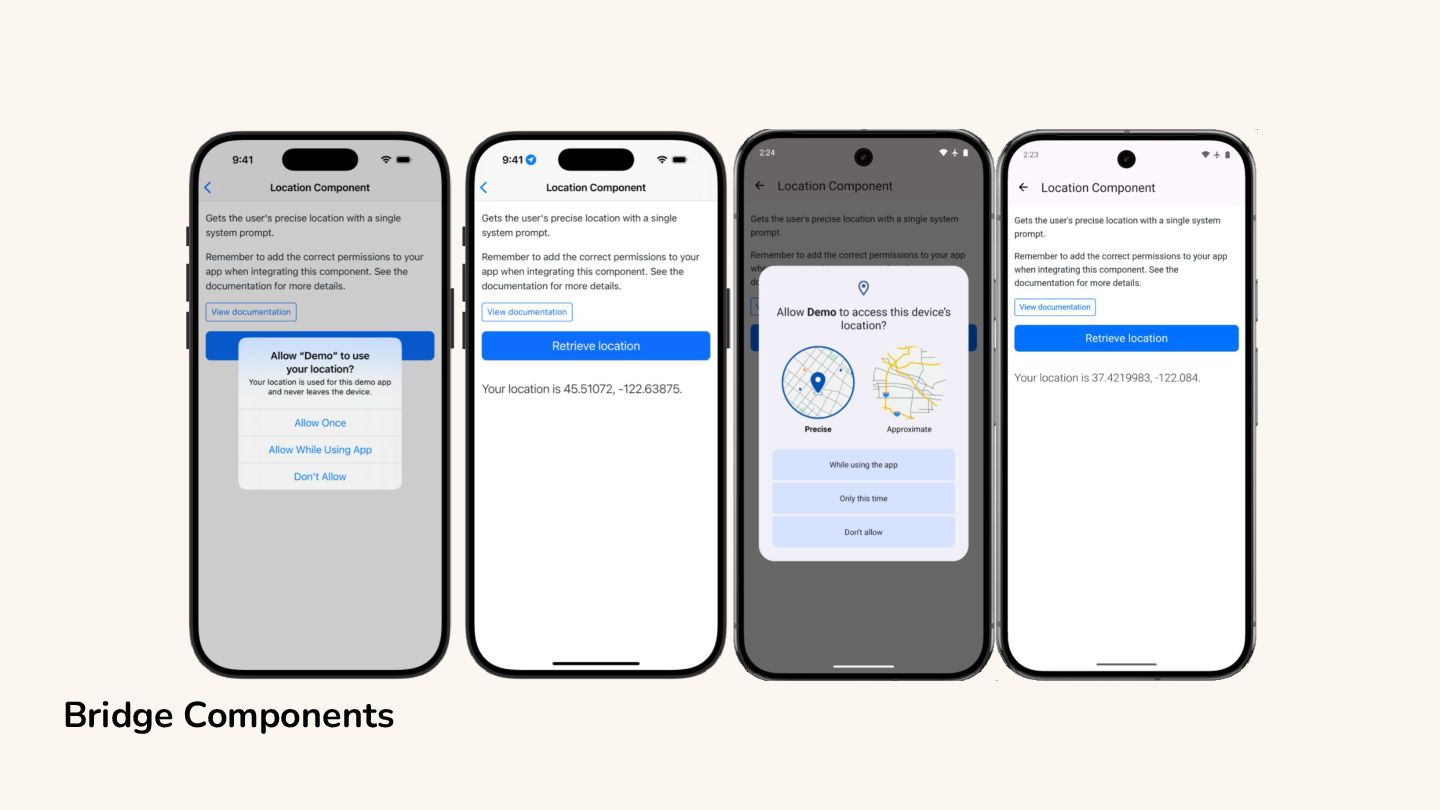

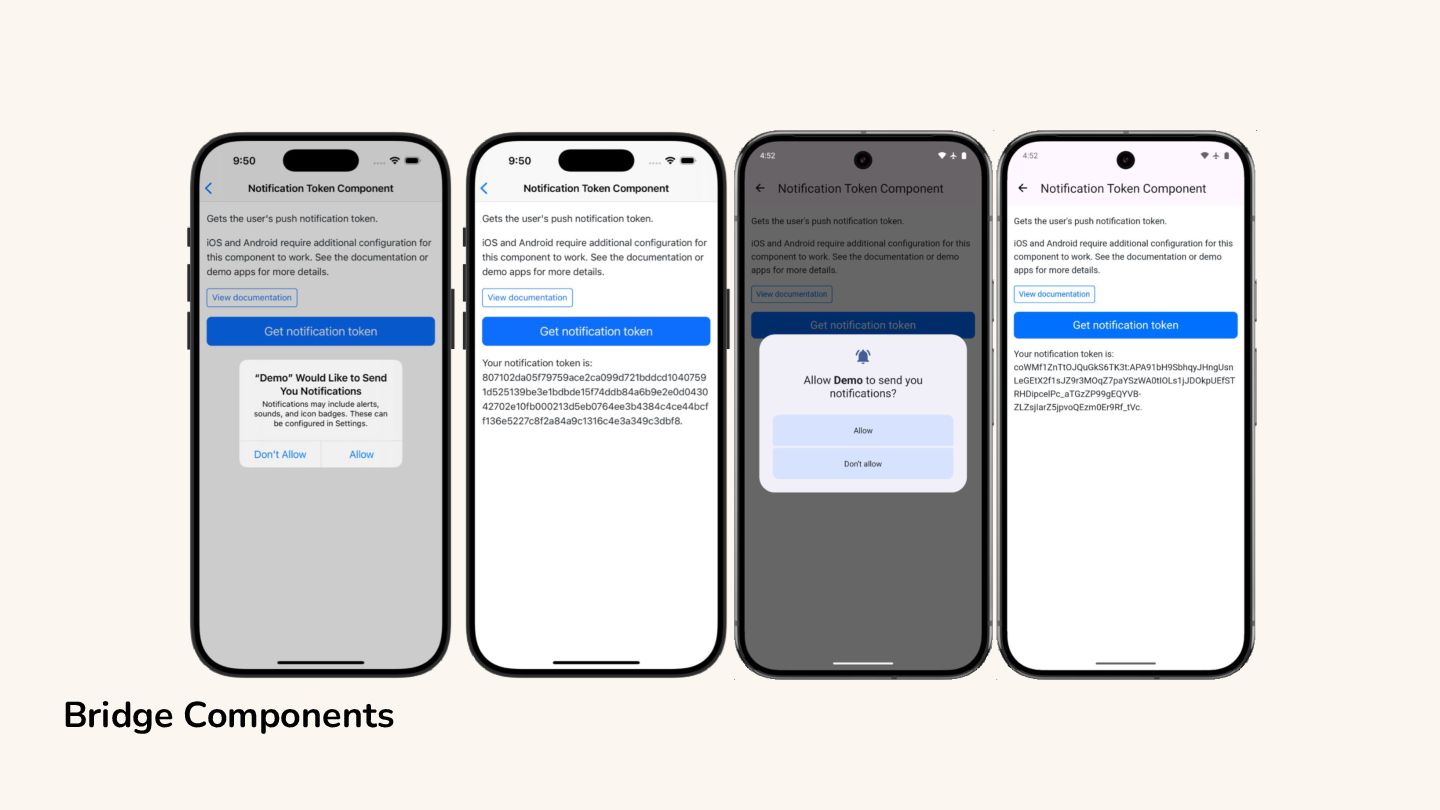

Bridge Components

Native Screens ✨

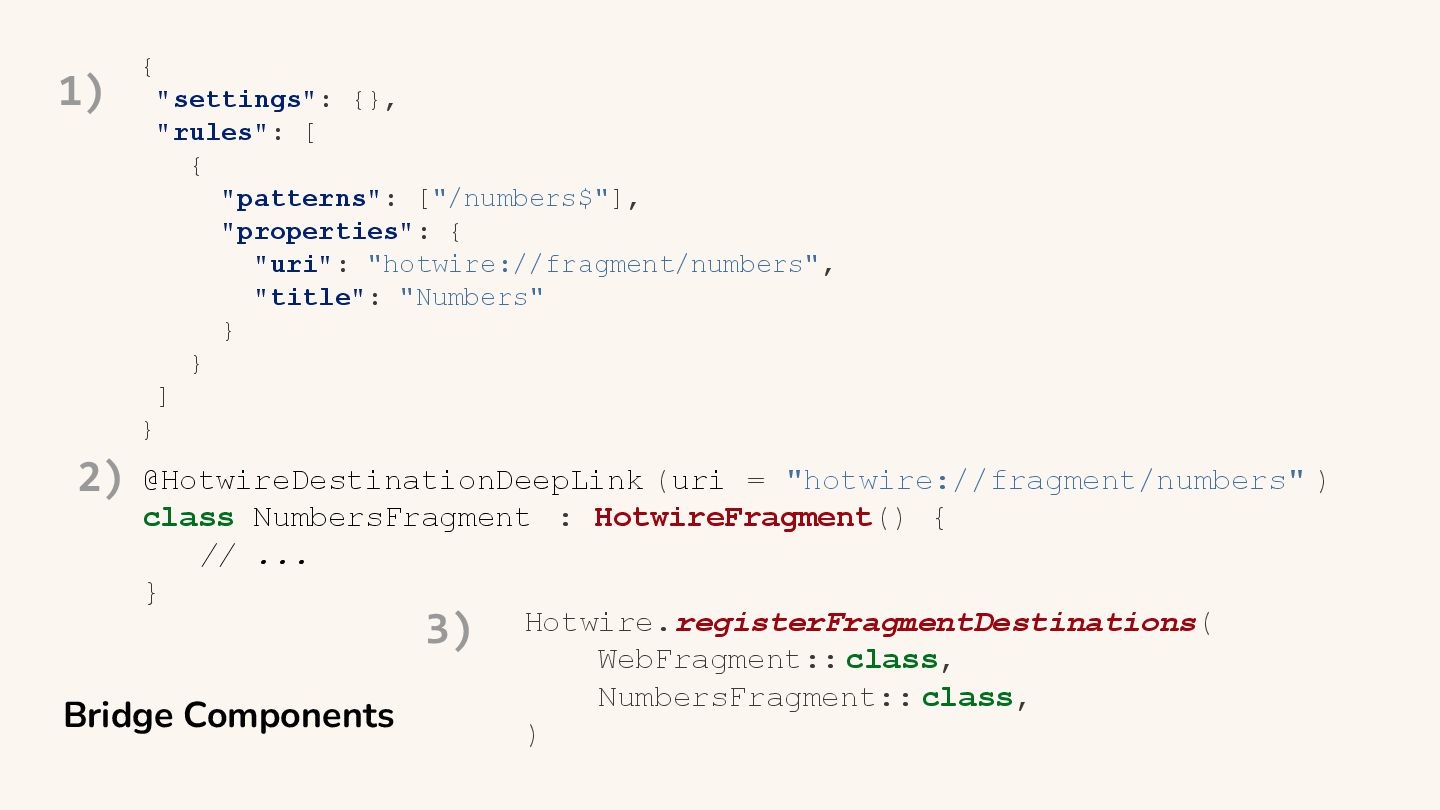

{ "settings": {}, "rules": [ { "patterns": ["/numbers$"], "properties": {
"uri": "hotwire://fragment/numbers", "title": "Numbers" } } ] } @HotwireDestinationDeepLink (uri = "hotwire://fragment/numbers" ) class NumbersFragment : HotwireFragment() { // ... } 1) 2) Bridge Components 3) Hotwire.registerFragmentDestinations( WebFragment:: class, NumbersFragment:: class, )

Demo ➔ Navigation ➔ Web Forms ➔ Lifting Form Submits
➔ Native Toast Messages ➔ Native Screens

Advantages ➔ Small teams ➔ Very little native code needed
(at least initially) ➔ Low maintenance ➔ Web controls how/when native components or screens are accessed

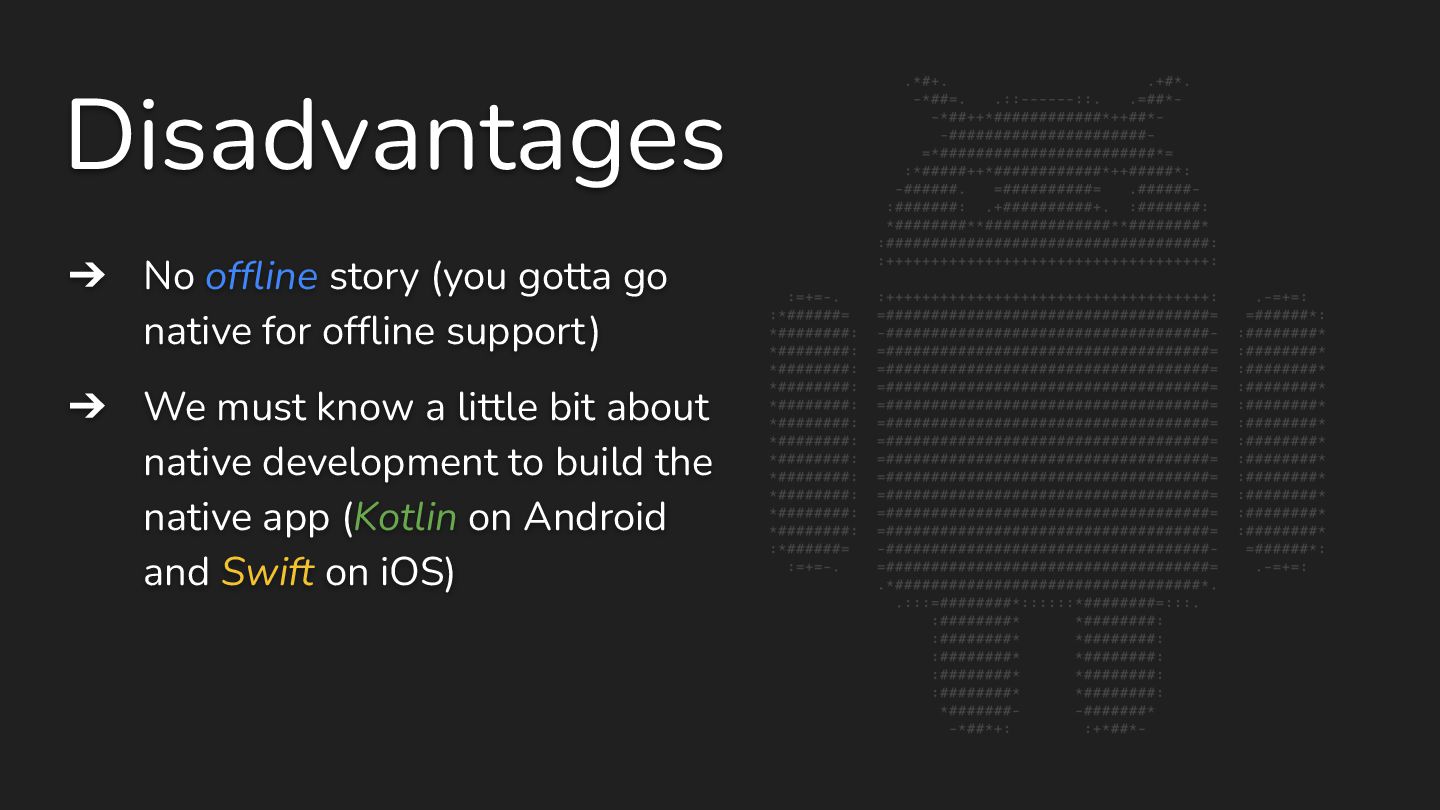

Disadvantages ➔ No ofﬂine story (you gotta go native for
ofﬂine support) ➔ We must know a little bit about native development to build the native app (Kotlin on Android and Swift on iOS)

Links ➔ The Hotwire Starter Kit: https://github.com/hotwired-laravel/hotwire-starter-kit ➔ The Hotwire
Native Android Example for the Hotwire Starter Kit: https://github.com/hotwired-laravel/hotwire-starter-kit-android-example ➔ Joe Masilotti's Bridge Components library: https://github.com/joemasilotti/bridge-components ➔ The Hotwire Native Demo Web App: https://github.com/hotwired/hotwire-native-demo ➔ The Hotwire Native Demo Android App: https://github.com/hotwired/hotwire-native-android/tree/main/demo ➔ The Hotwire Native Demo iOS App: https://github.com/hotwired/hotwire-native-ios/tree/main/Demo ➔ Jay Ohms introduction to Strada (now Bridge Components, still applies): https://youtu.be/LKBMXqc43Q8?si=ohA7n7-jJtpJJwxV ➔ Joe Masilotti's introduction to Turbo Native (still applies): https://youtu.be/hAq05KSra2g?si=sOA3etvFImrpk3sP ➔ Sam Stephenson's "Turbolinks 5: I can't believe it's not native" talk: https://youtu.be/SWEts0rlezA?si=TU8AfgXQPoS-51mq
