Websockets as the glue to interactivity

When you hear the term websockets, a chat application comes to mind almost immediately. But websockets and websocket libraries go far beyond the simple application of a chat system. We'll quickly go through some websocket basics before diving deep into advanced applications, from real-time control of hardware to clustered payment handling. You'll never look at websockets the same way !

Transcript

1. Wim Godden Cu.be Solutions @wimgtr Websockets as the glue to interactivity

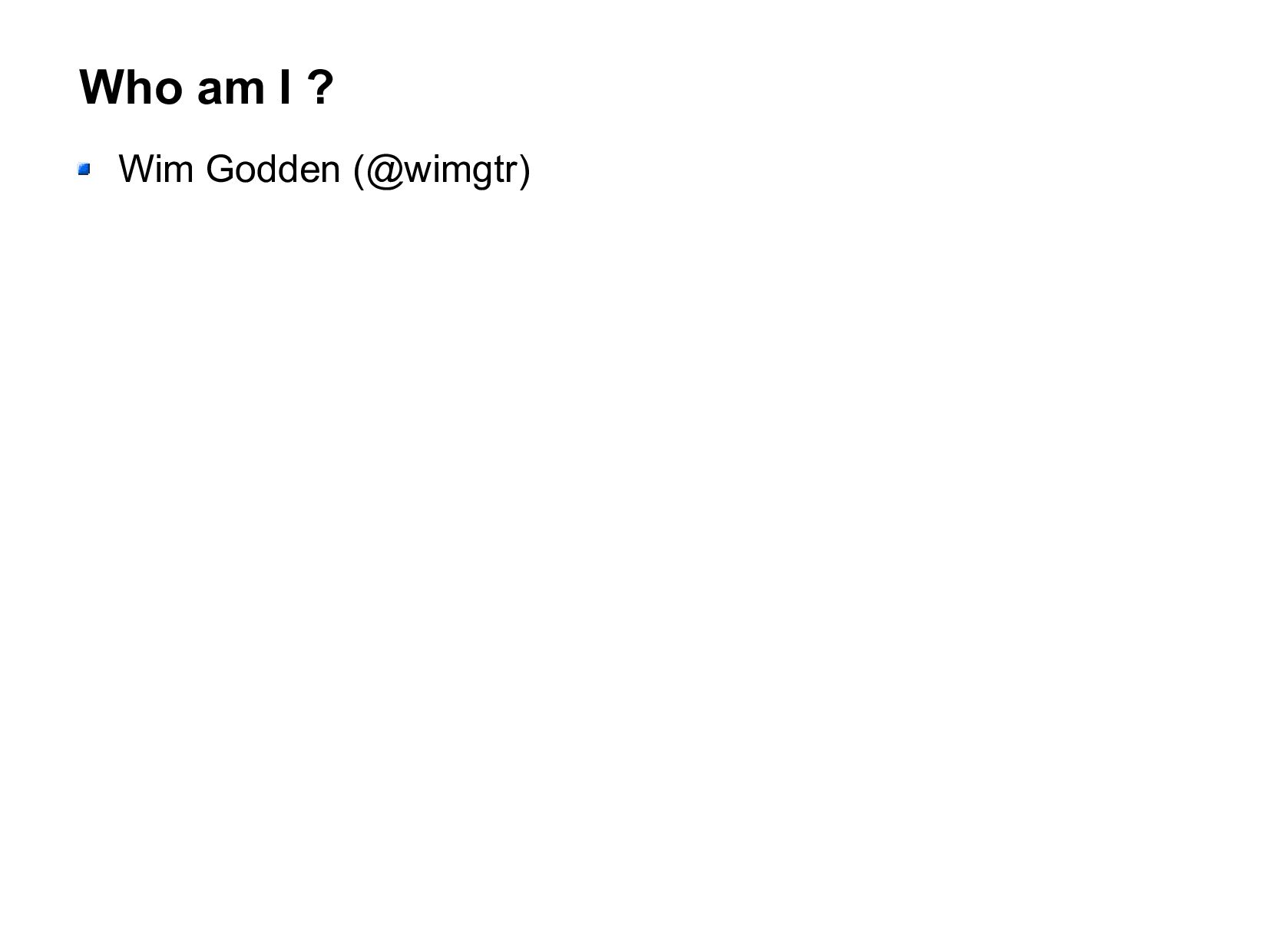

2. Who am I ? Wim Godden (@wimgtr)
3. Where I'm from
4. Where I'm from
5. Where I'm from
6. Where I'm from
7. My town
8. Who am I ? Wim Godden (@wimgtr) Founder of Cu.be Solutions (http://cu.be) Open Source developer since 1997 Creator of PHPCompatibility Speaker at PHP and Open Source conferences
9. Who are you ? Developers ? System engineers ? Experience with websockets ?

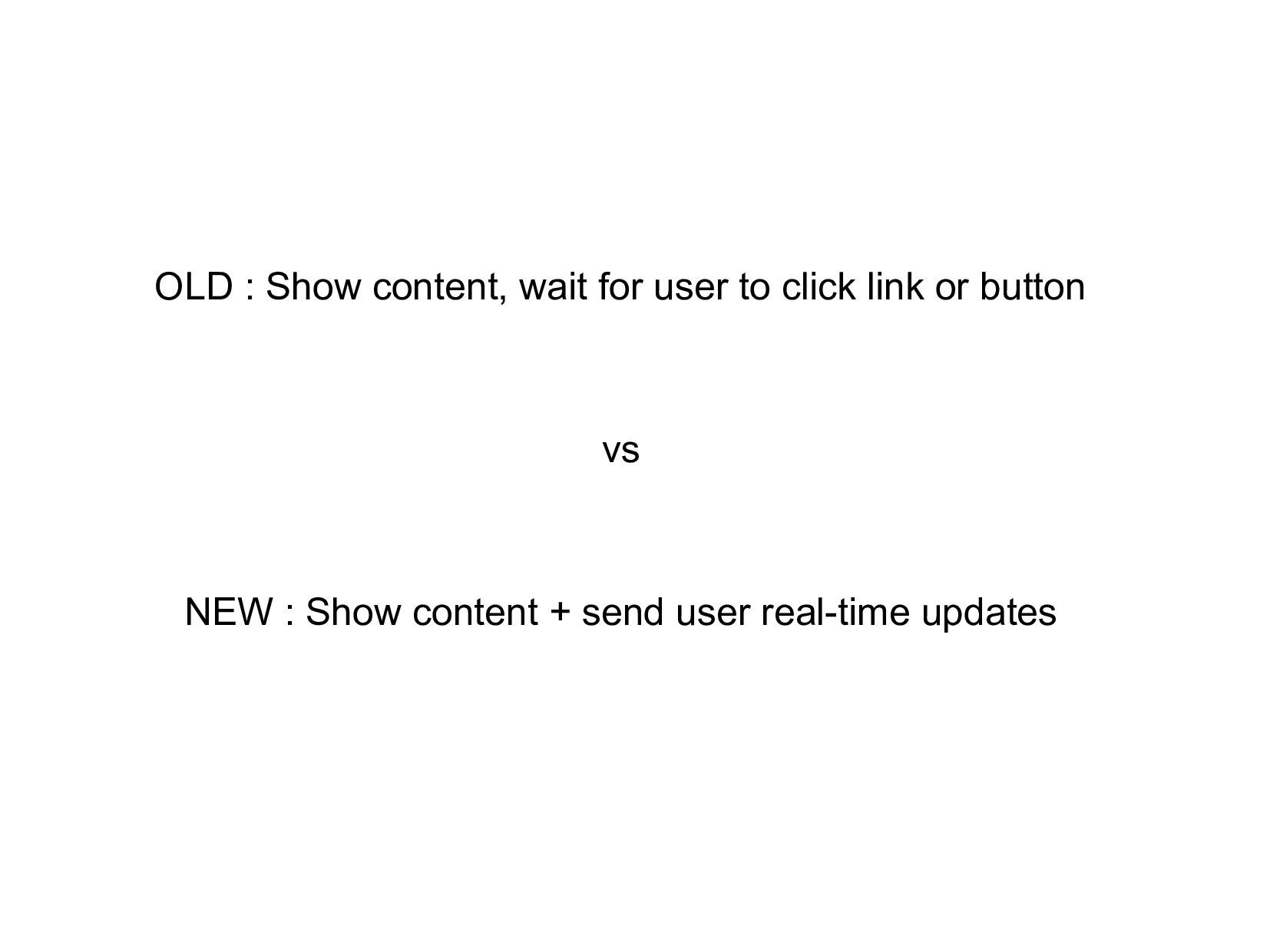

10. OLD : Show content, wait for user to click link or button vs NEW : Show content + send user real-time updates

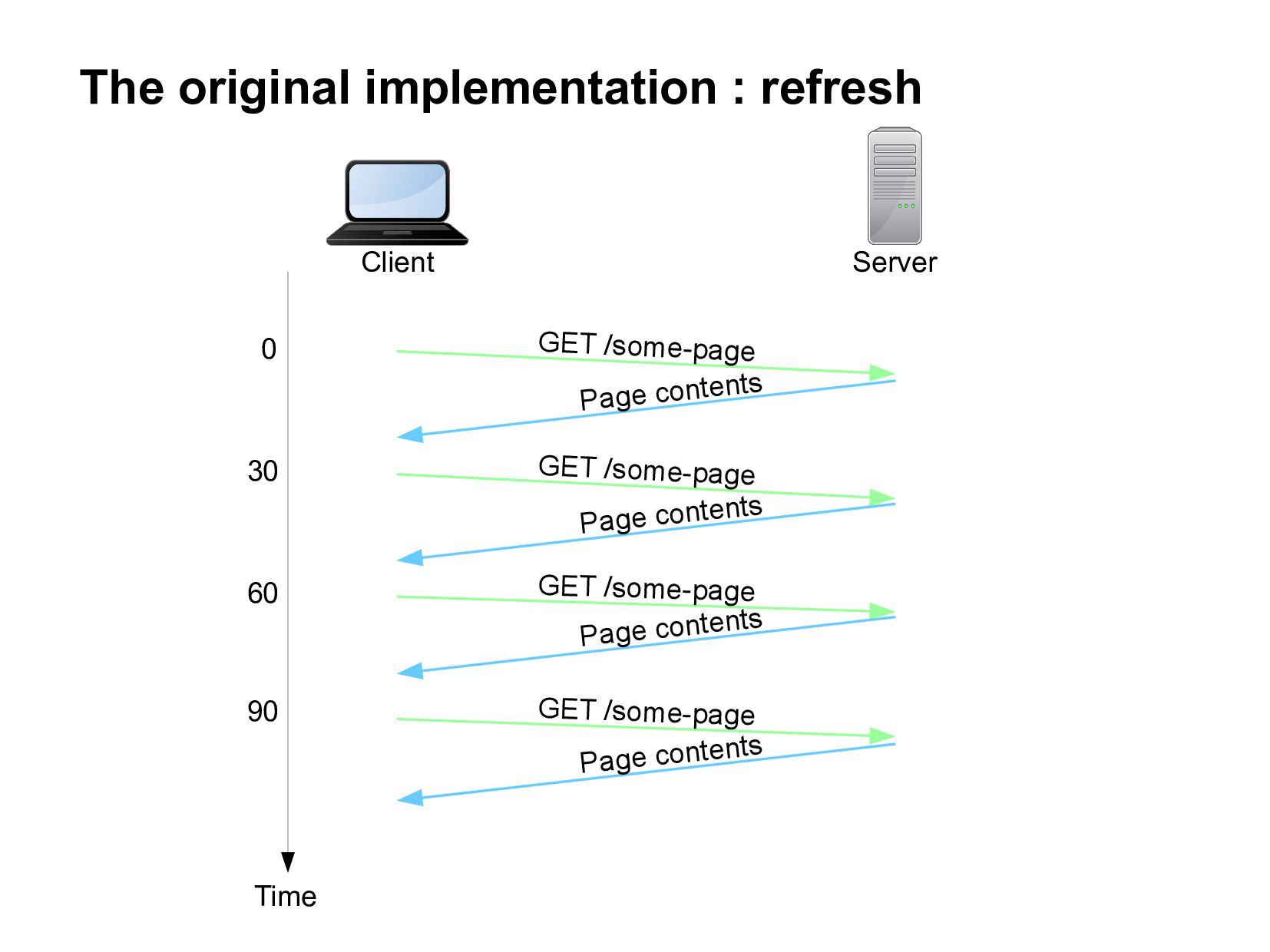

11. The original implementation : refresh Client Server GET /some-page Page contents GET /some-page GET /some-page GET /some-page 60 30 0 90 Time Page contents Page contents Page contents

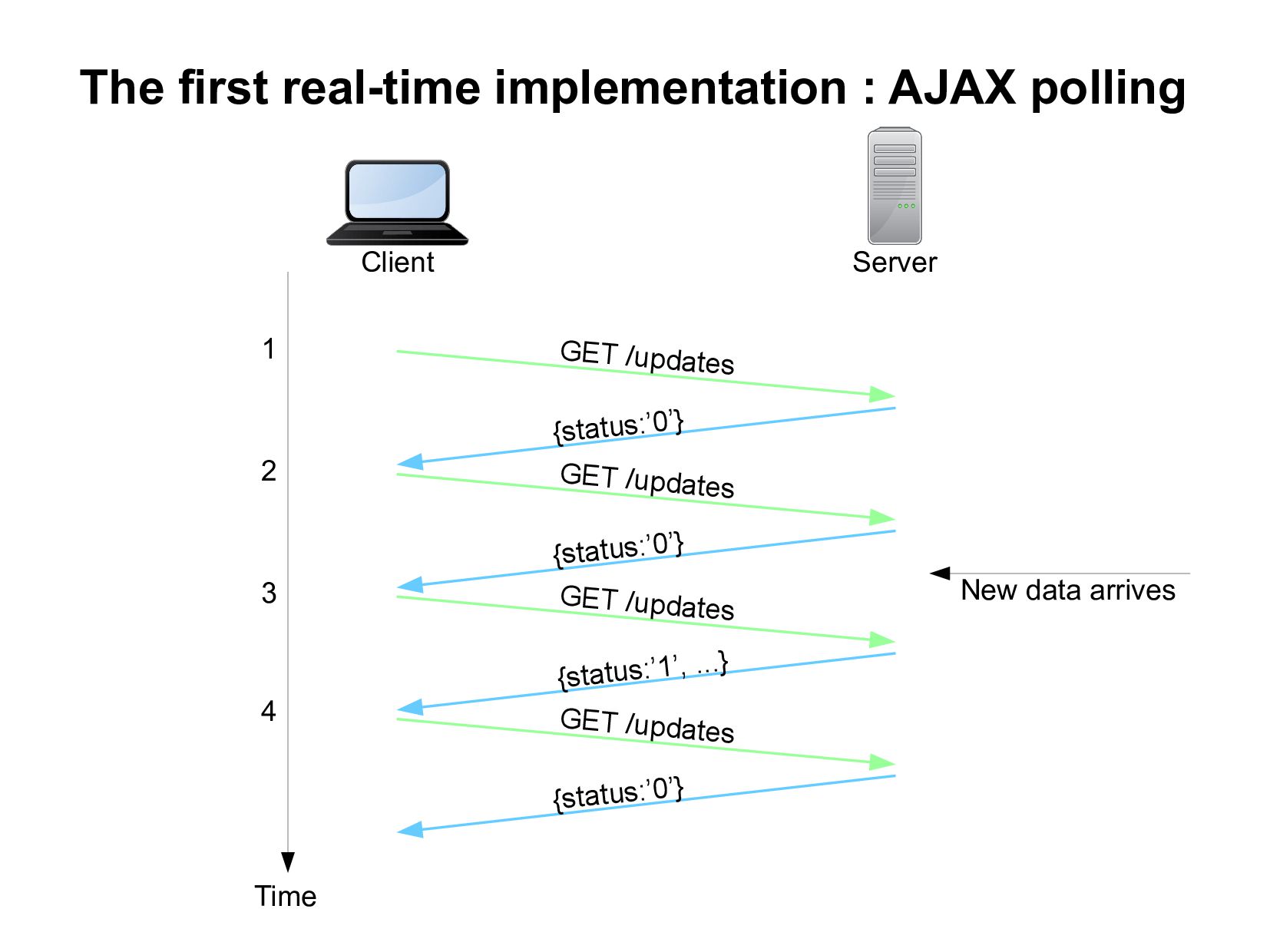

12. The first real-time implementation : AJAX polling Client Server GET /updates {status:’0’} GET /updates GET /updates {status:’1’, ...} GET /updates 3 2 1 4 Time {status:’0’} {status:’0’} New data arrives

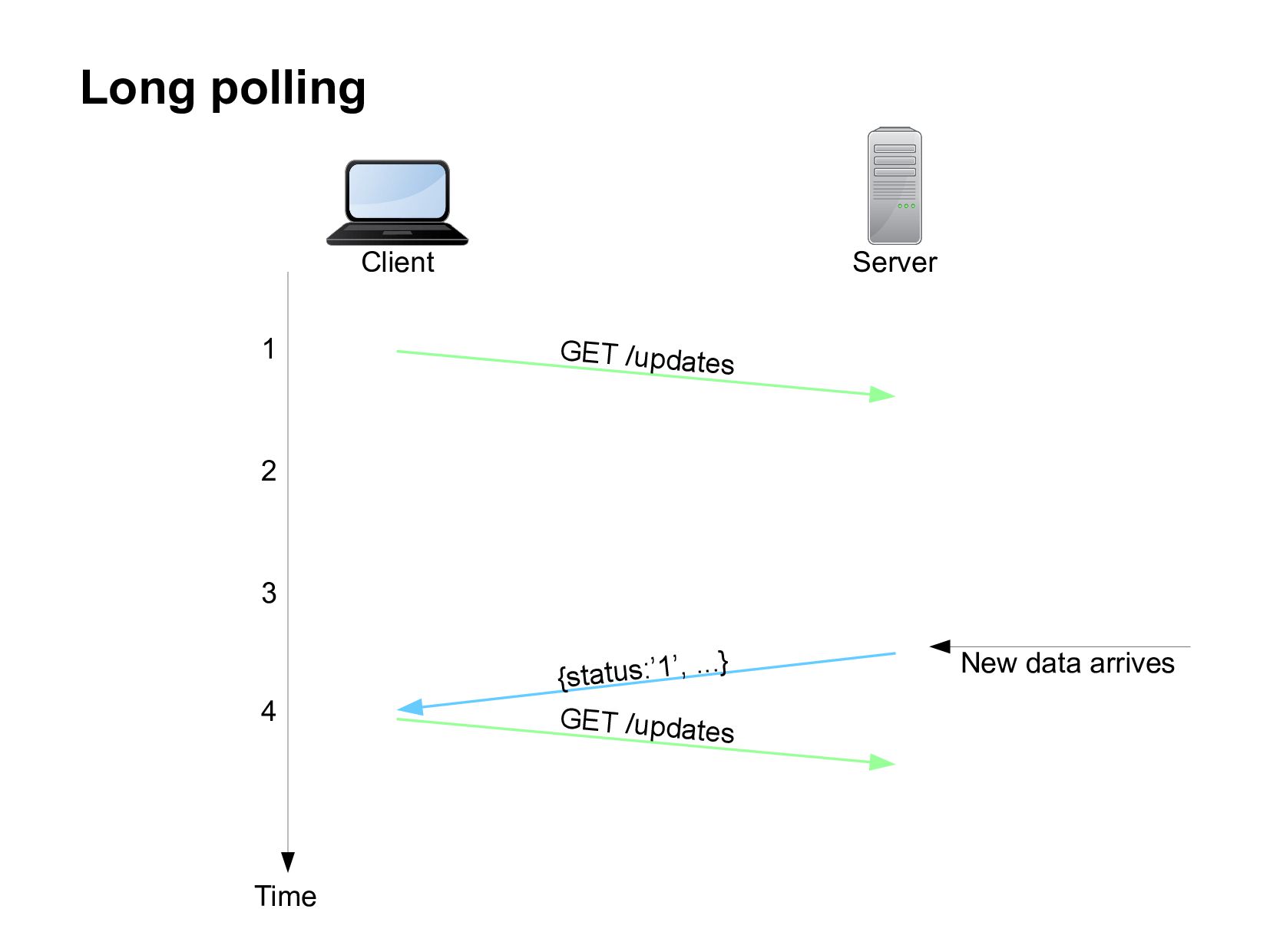

13. Long polling Client Server GET /updates GET /updates 3 2 1 4 Time {status:’1’, ...} New data arrives

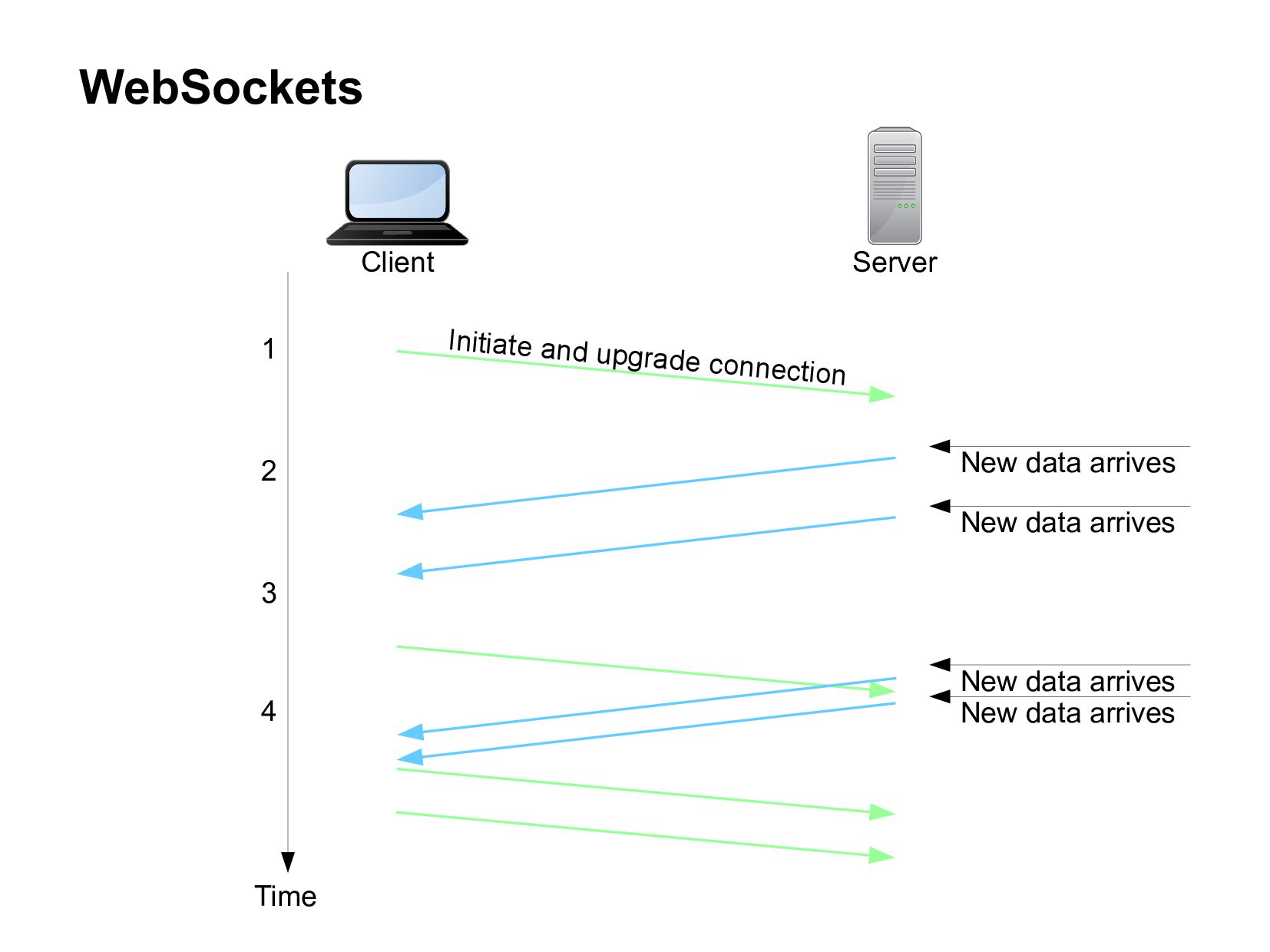

14. WebSockets Client Server Initiate and upgrade connection 3 2 1 4 Time New data arrives New data arrives New data arrives New data arrives

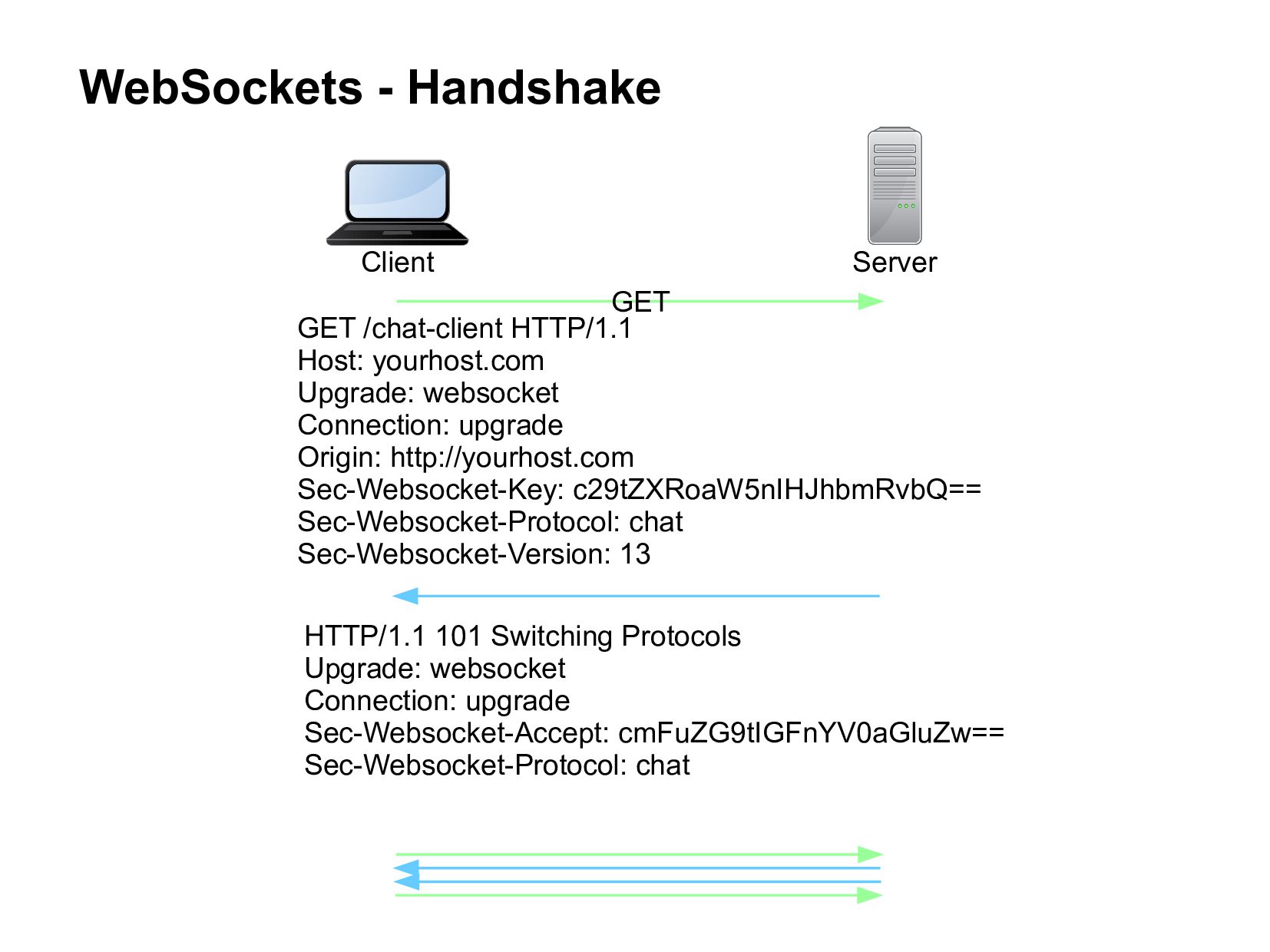

15. WebSockets - Handshake Client Server GET GET /chat-client HTTP/1.1 Host: yourhost.com Upgrade: websocket Connection: upgrade Origin: http://yourhost.com Sec-Websocket-Key: c29tZXRoaW5nIHJhbmRvbQ== Sec-Websocket-Protocol: chat Sec-Websocket-Version: 13 HTTP/1.1 101 Switching Protocols Upgrade: websocket Connection: upgrade Sec-Websocket-Accept: cmFuZG9tIGFnYV0aGluZw== Sec-Websocket-Protocol: chat

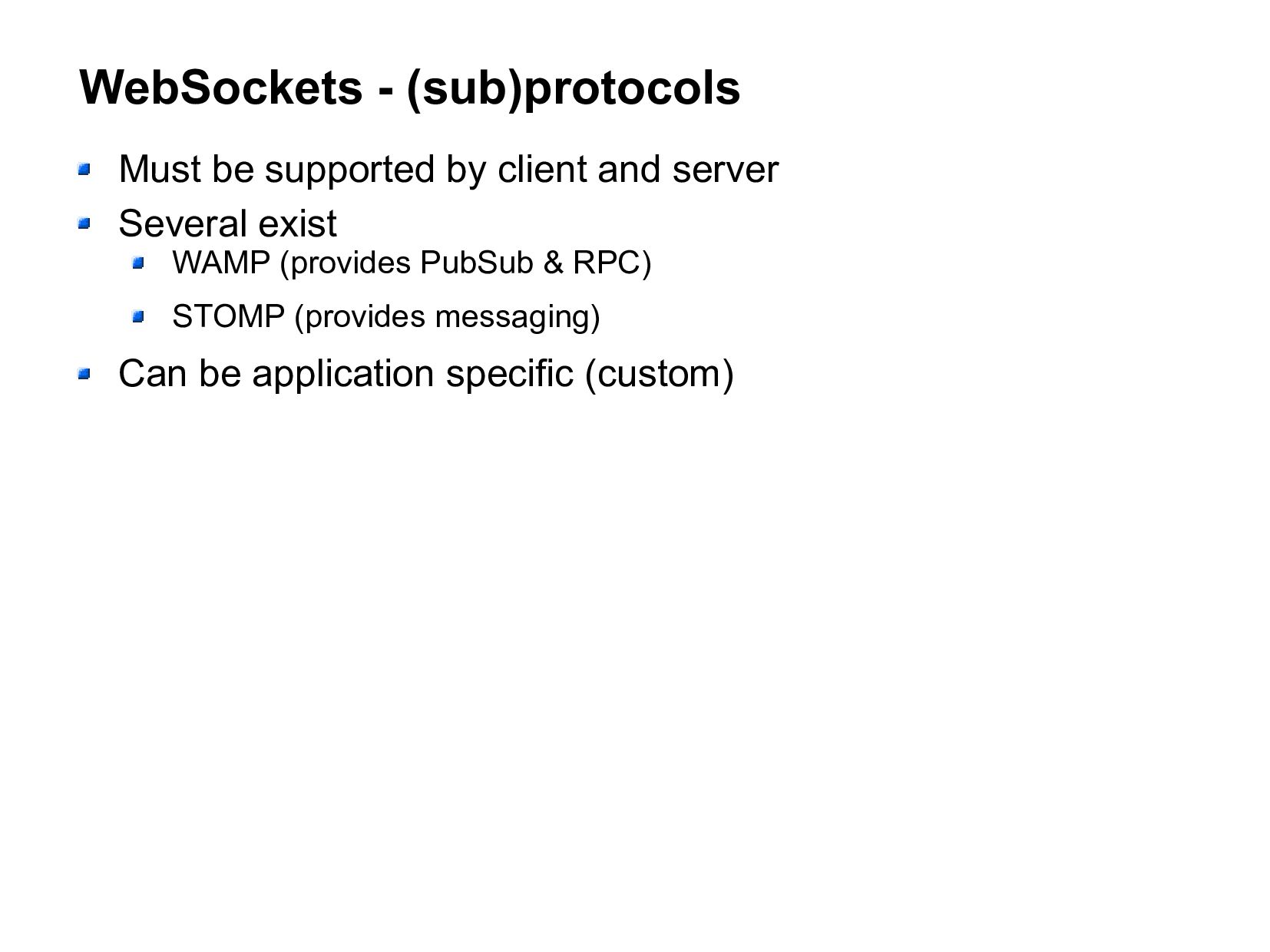

16. WebSockets - (sub)protocols Must be supported by client and server Several exist WAMP (provides PubSub & RPC) STOMP (provides messaging) Can be application specific (custom)

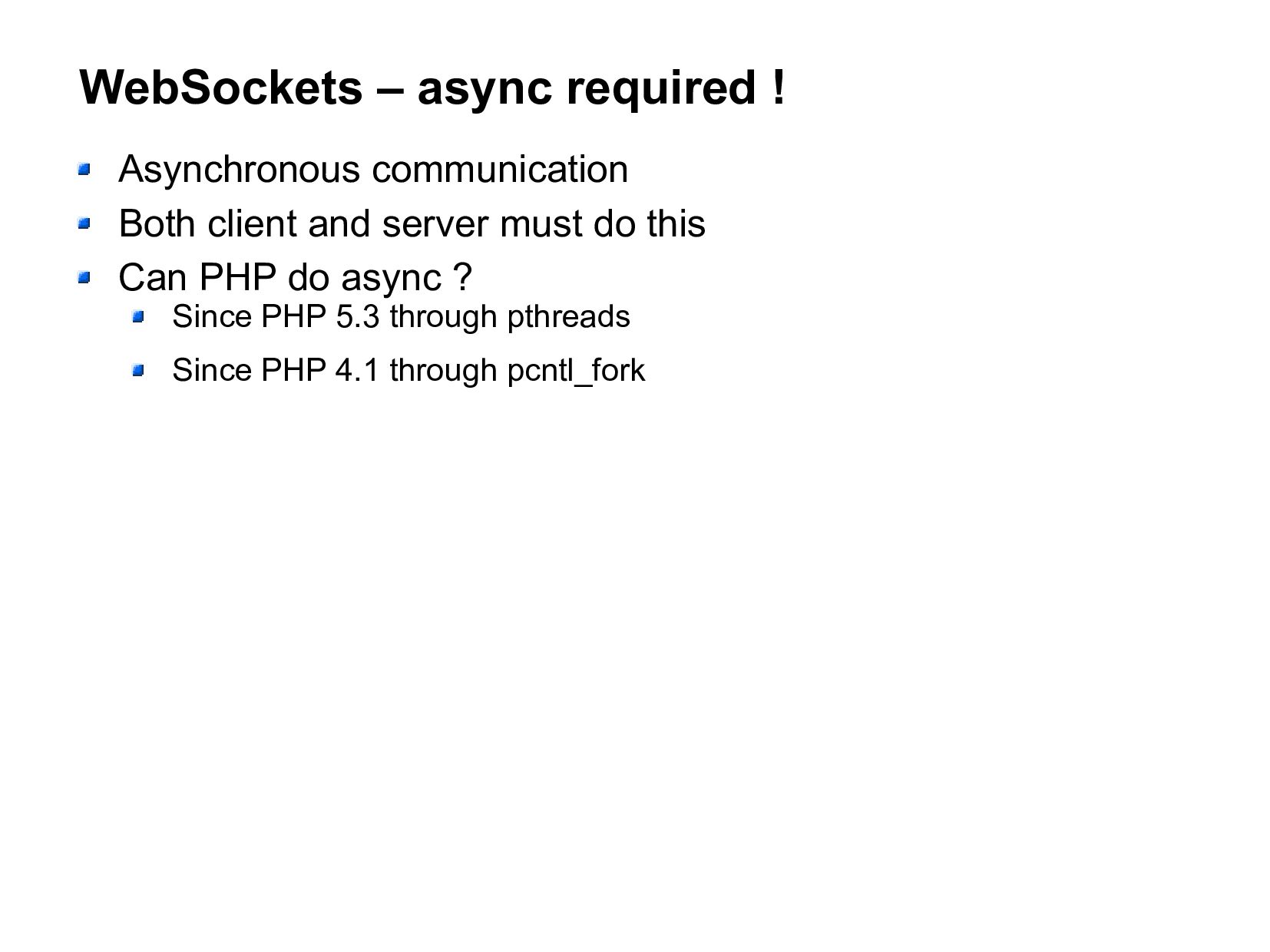

17. WebSockets – async required ! Asynchronous communication Both client and server must do this Can PHP do async ? Since PHP 5.3 through pthreads Since PHP 4.1 through pcntl_fork

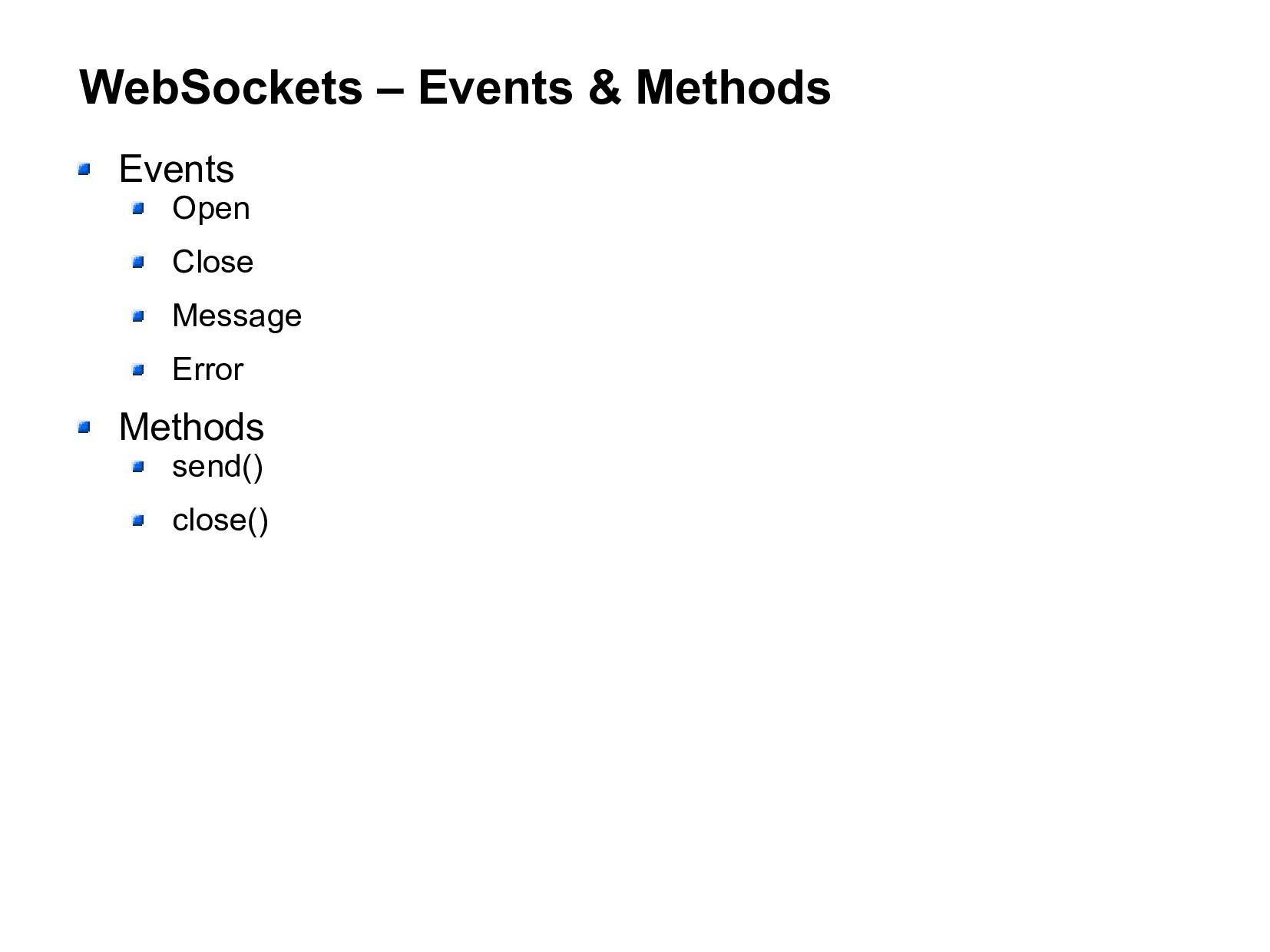

18. WebSockets – Events & Methods Events Open Close Message Error Methods send() close()

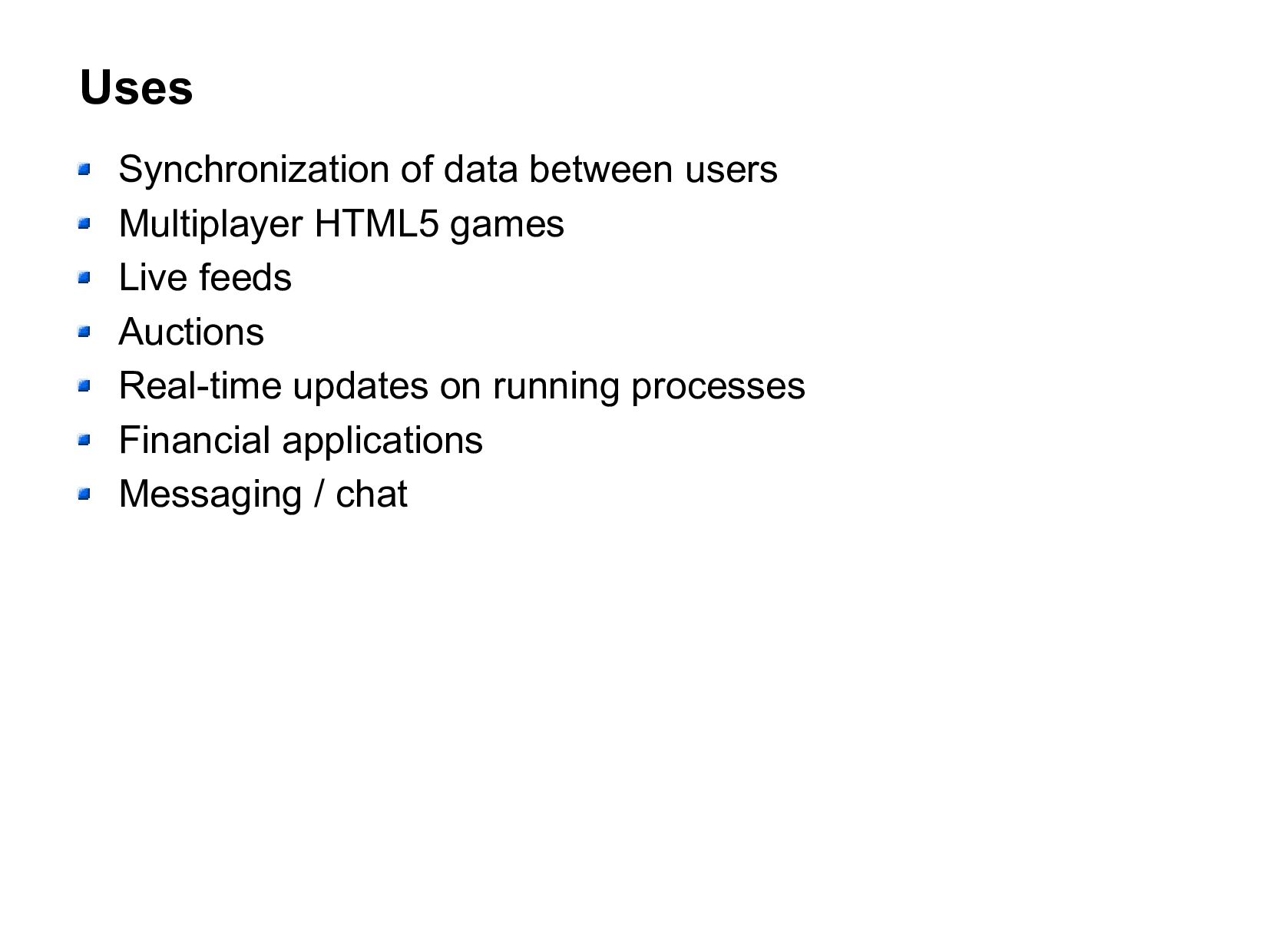

19. Uses Synchronization of data between users Multiplayer HTML5 games Live feeds Auctions Real-time updates on running processes Financial applications Messaging / chat

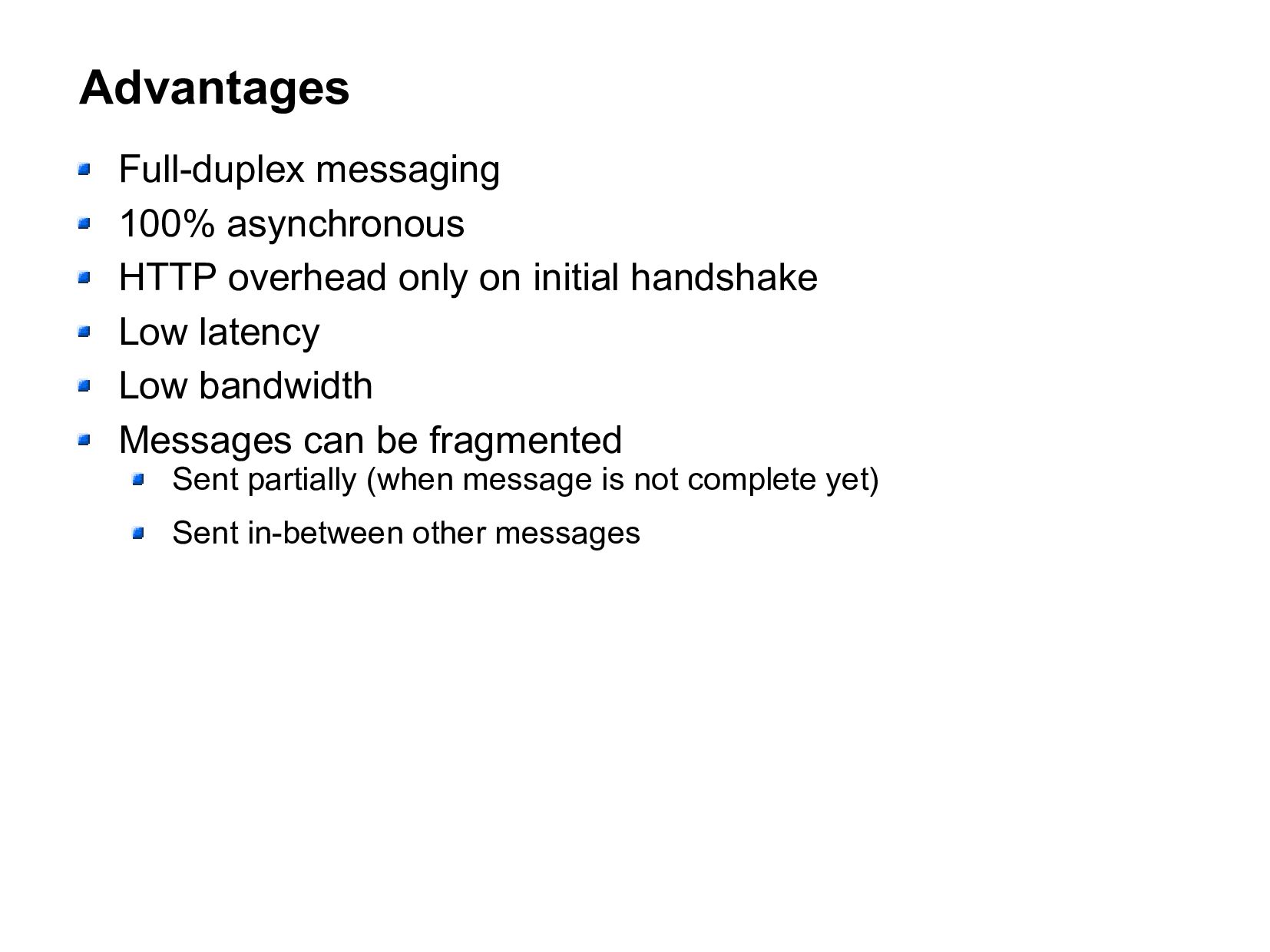

20. Advantages Full-duplex messaging 100% asynchronous HTTP overhead only on initial handshake Low latency Low bandwidth Messages can be fragmented Sent partially (when message is not complete yet) Sent in-between other messages

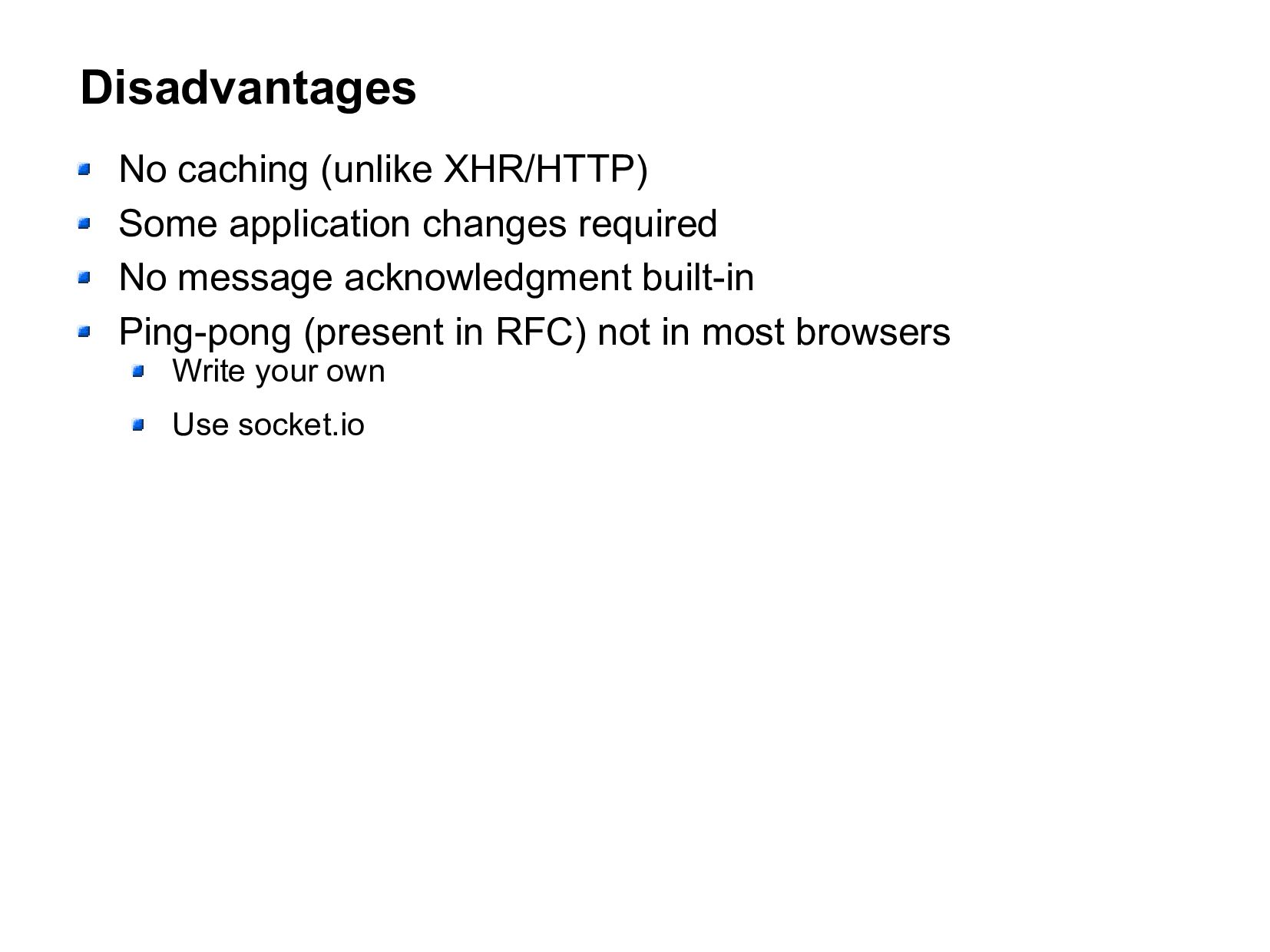

21. Disadvantages No caching (unlike XHR/HTTP) Some application changes required No message acknowledgment built-in Ping-pong (present in RFC) not in most browsers Write your own Use socket.io

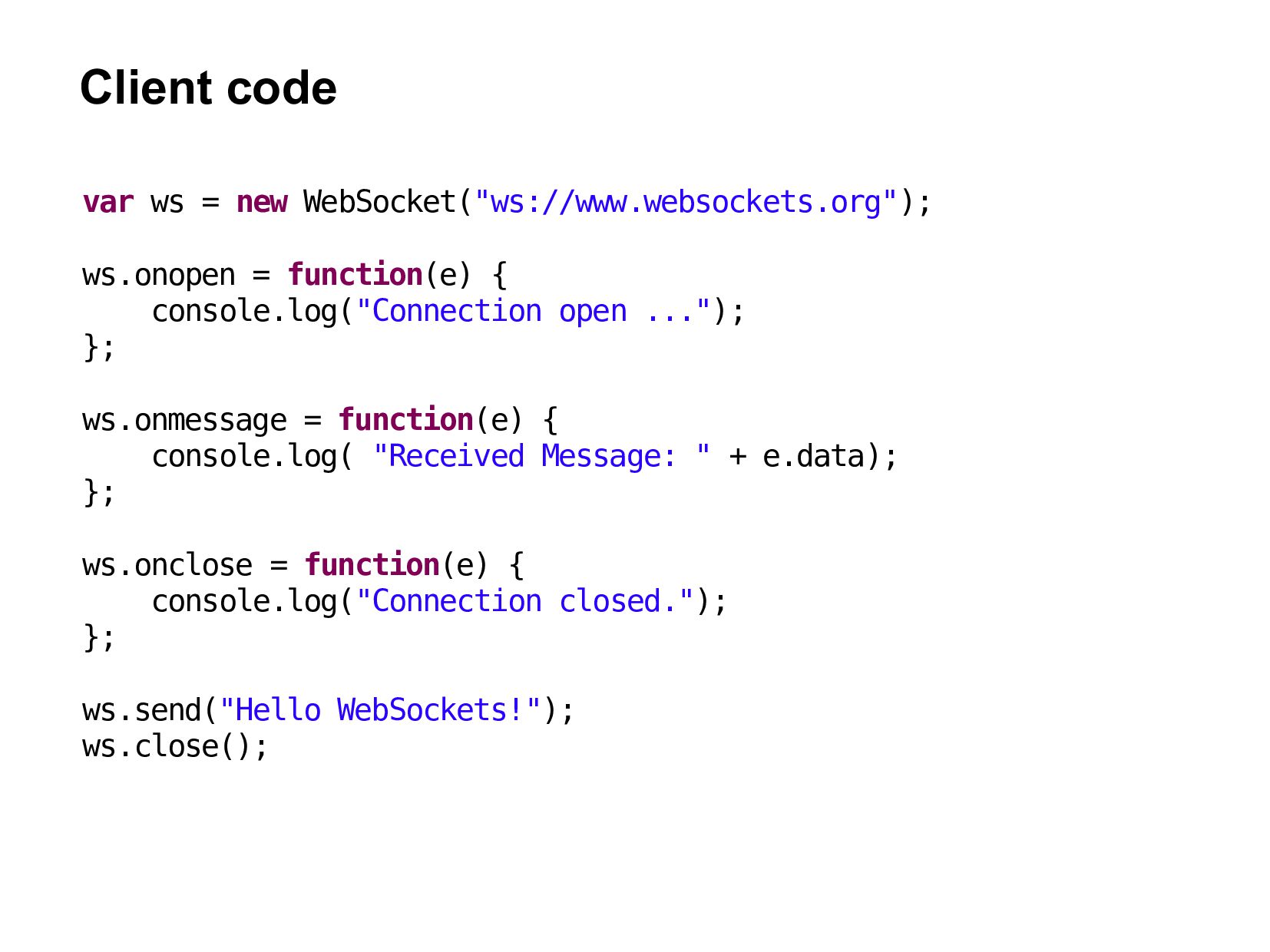

22. Client code var ws = new WebSocket("ws://www.websockets.org"); ws.onopen = function(e) { console.log("Connection open ..."); }; ws.onmessage = function(e) { console.log( "Received Message: " + e.data); }; ws.onclose = function(e) { console.log("Connection closed."); }; ws.send("Hello WebSockets!"); ws.close();

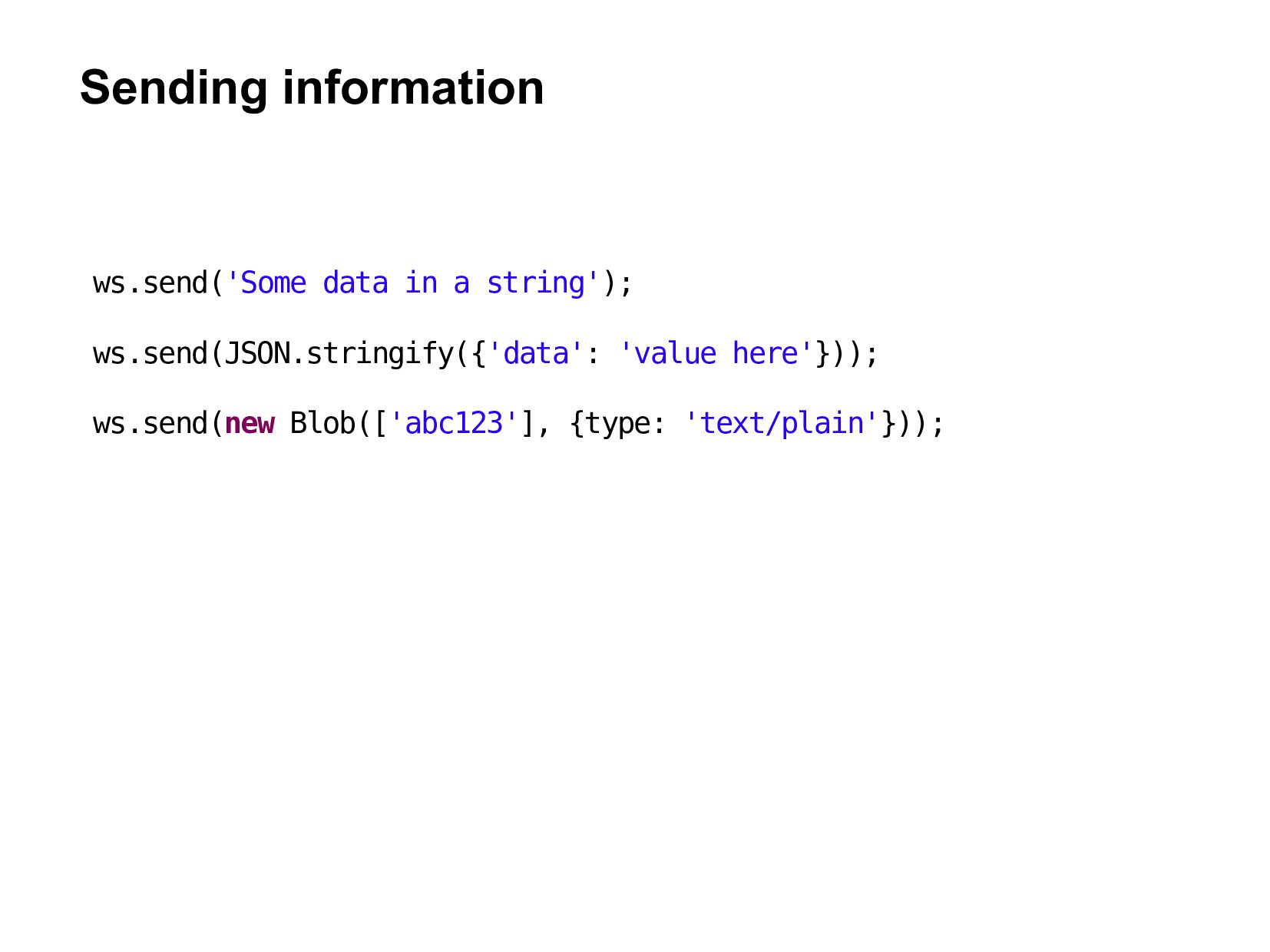

23. Sending information ws.send('Some data in a string'); ws.send(JSON.stringify({'data': 'value here'})); ws.send(new Blob(['abc123'], {type: 'text/plain'}));

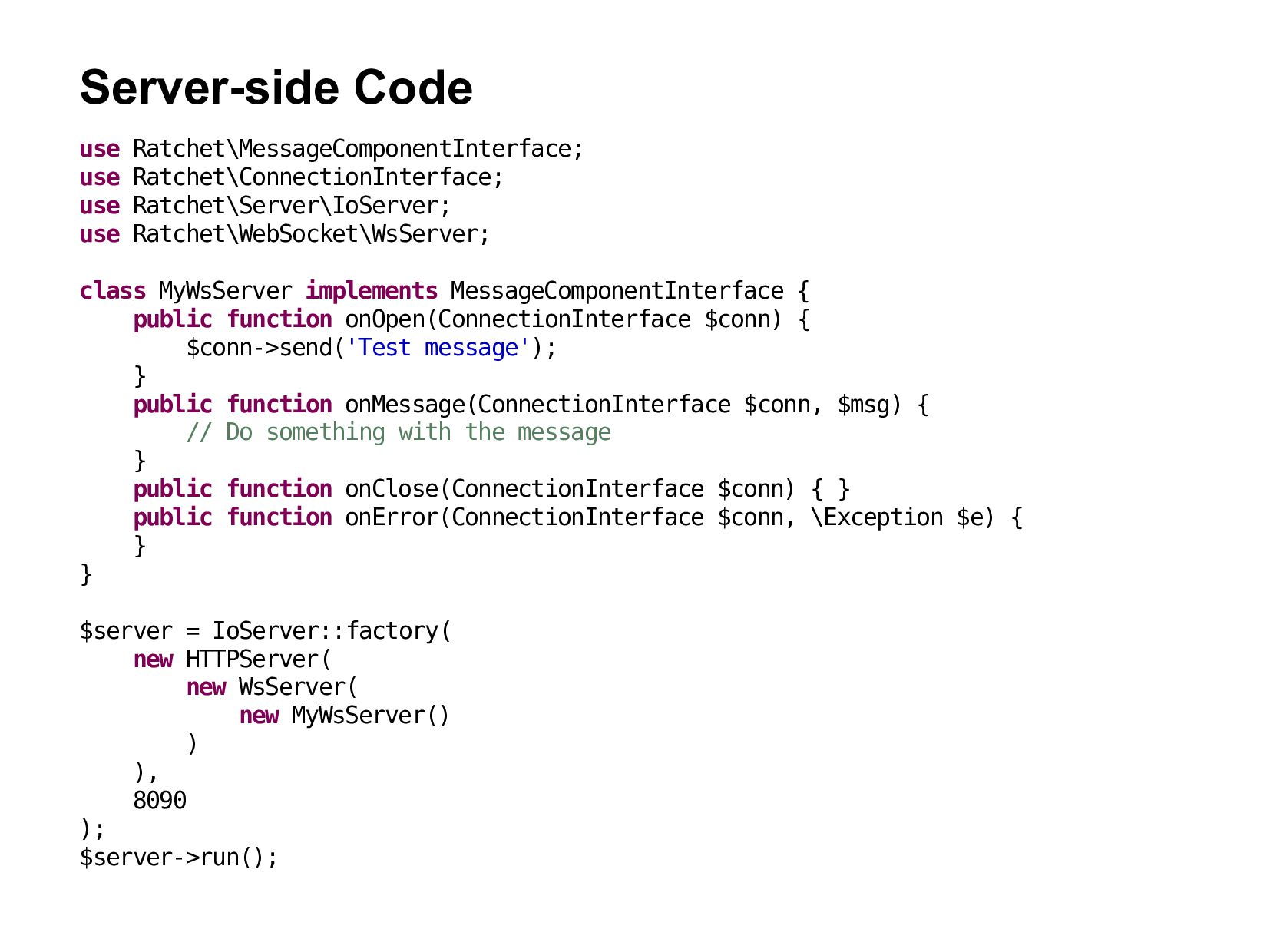

24. Server-side Code use Ratchet\MessageComponentInterface; use Ratchet\ConnectionInterface; use Ratchet\Server\IoServer; use Ratchet\WebSocket\WsServer; class MyWsServer implements MessageComponentInterface { public function onOpen(ConnectionInterface $conn) { $conn->send('Test message'); } public function onMessage(ConnectionInterface $conn, $msg) { // Do something with the message } public function onClose(ConnectionInterface $conn) { } public function onError(ConnectionInterface $conn, \Exception $e) { } } $server = IoServer::factory( new HTTPServer( new WsServer( new MyWsServer() ) ), 8090 ); $server->run();

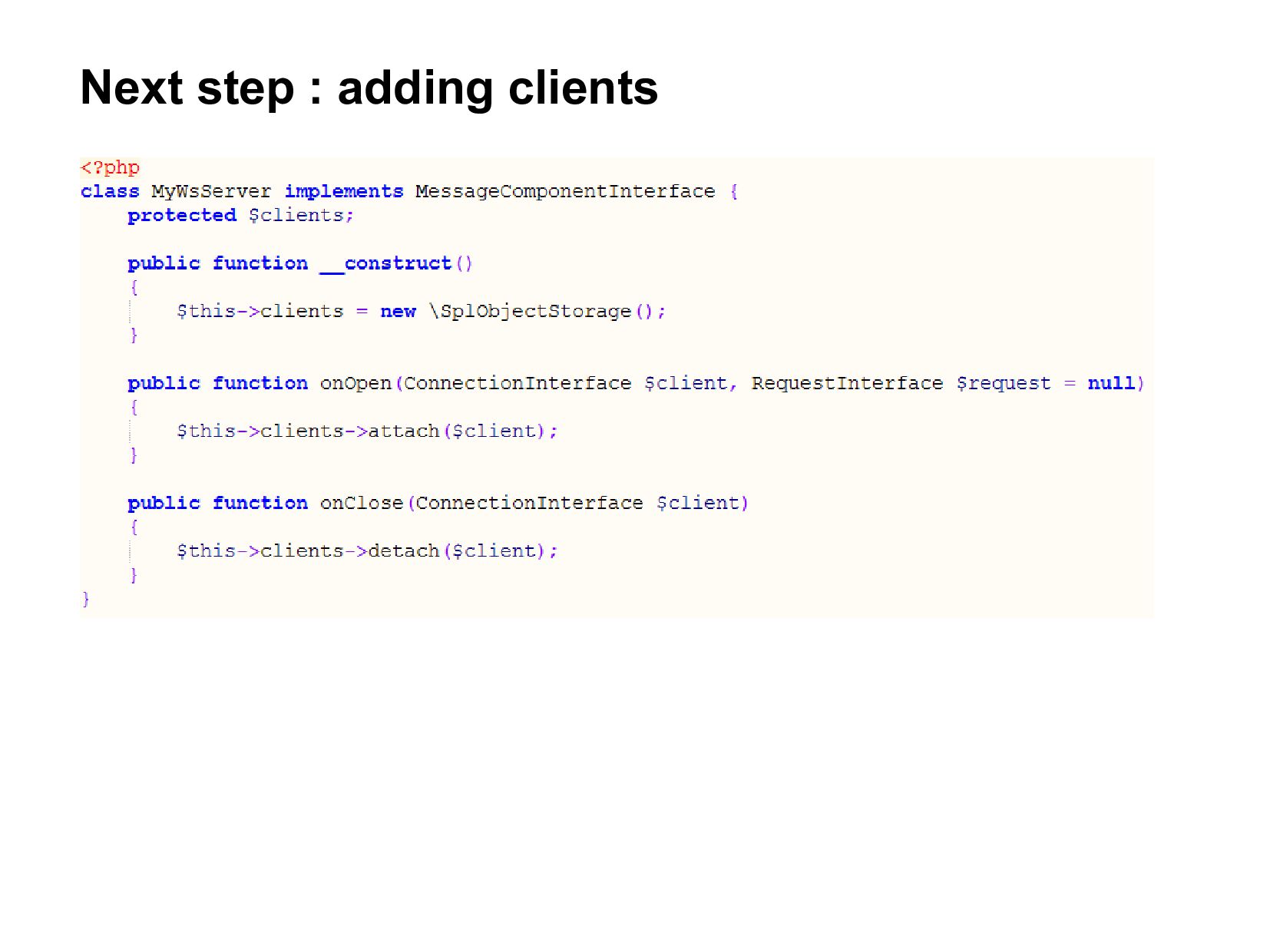

25. Next step : adding clients

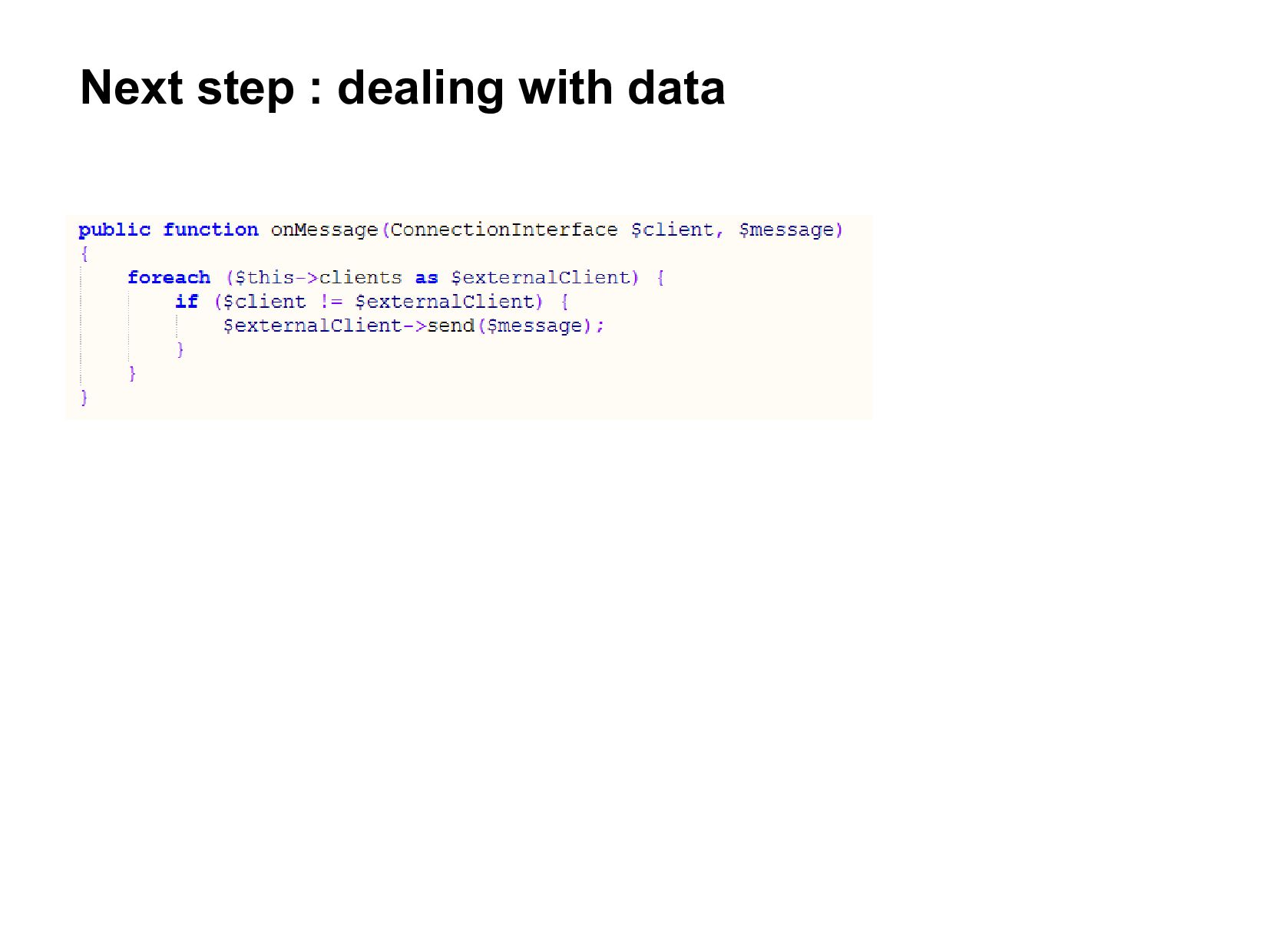

26. Next step : dealing with data

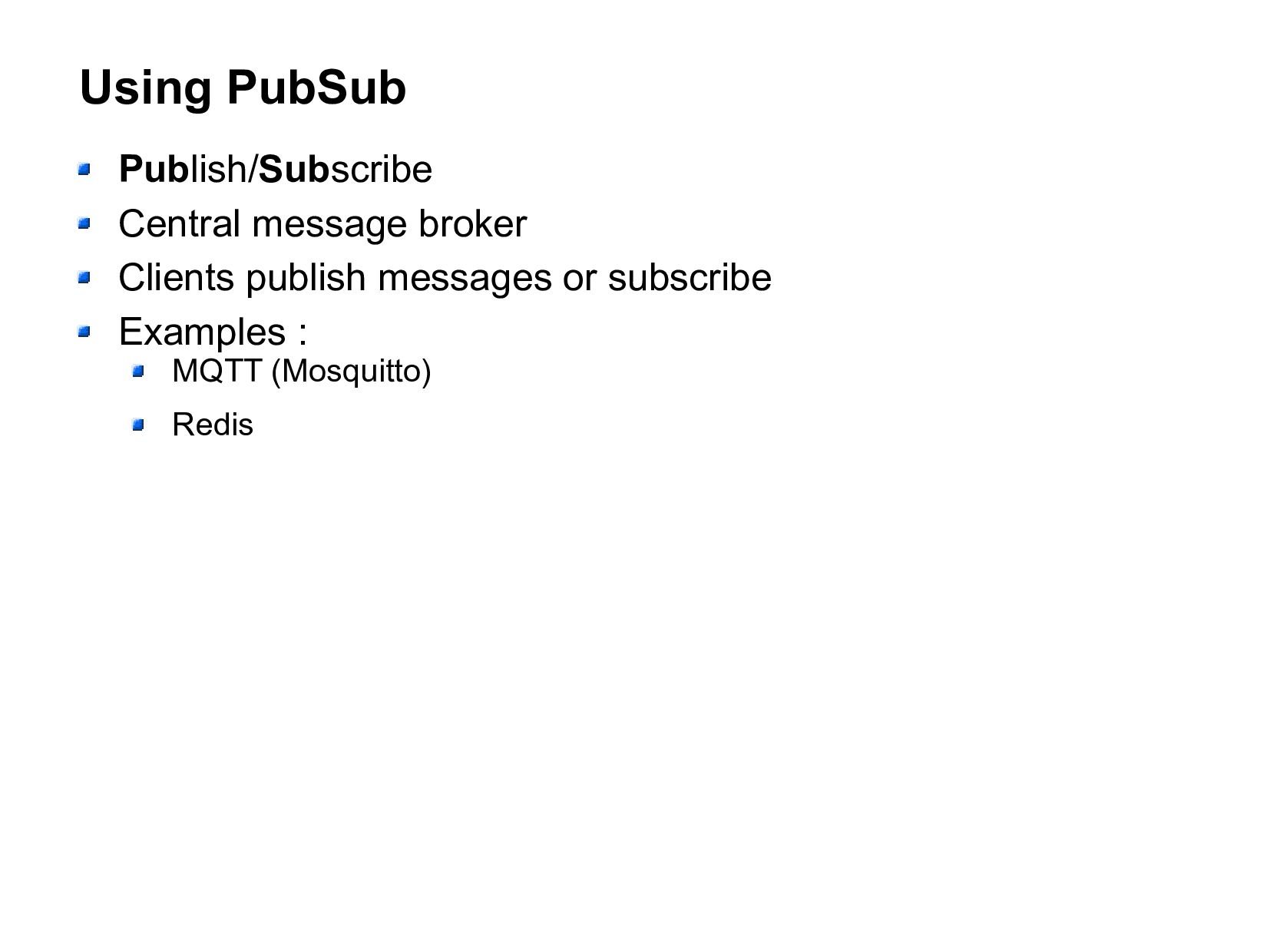

27. Using PubSub Publish/Subscribe Central message broker Clients publish messages or subscribe Examples : MQTT (Mosquitto) Redis

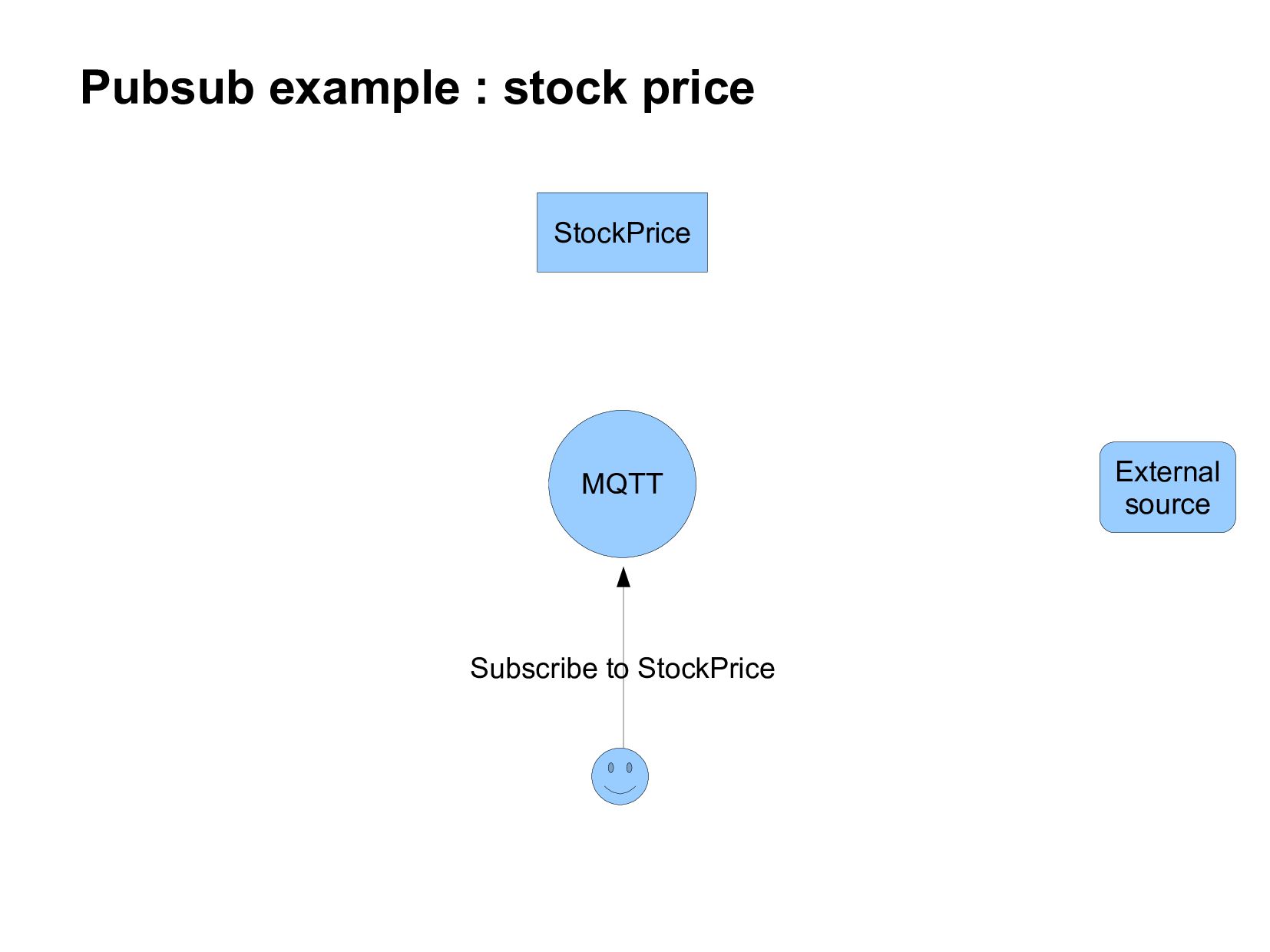

28. Pubsub example : stock price MQTT StockPrice External source Subscribe to StockPrice

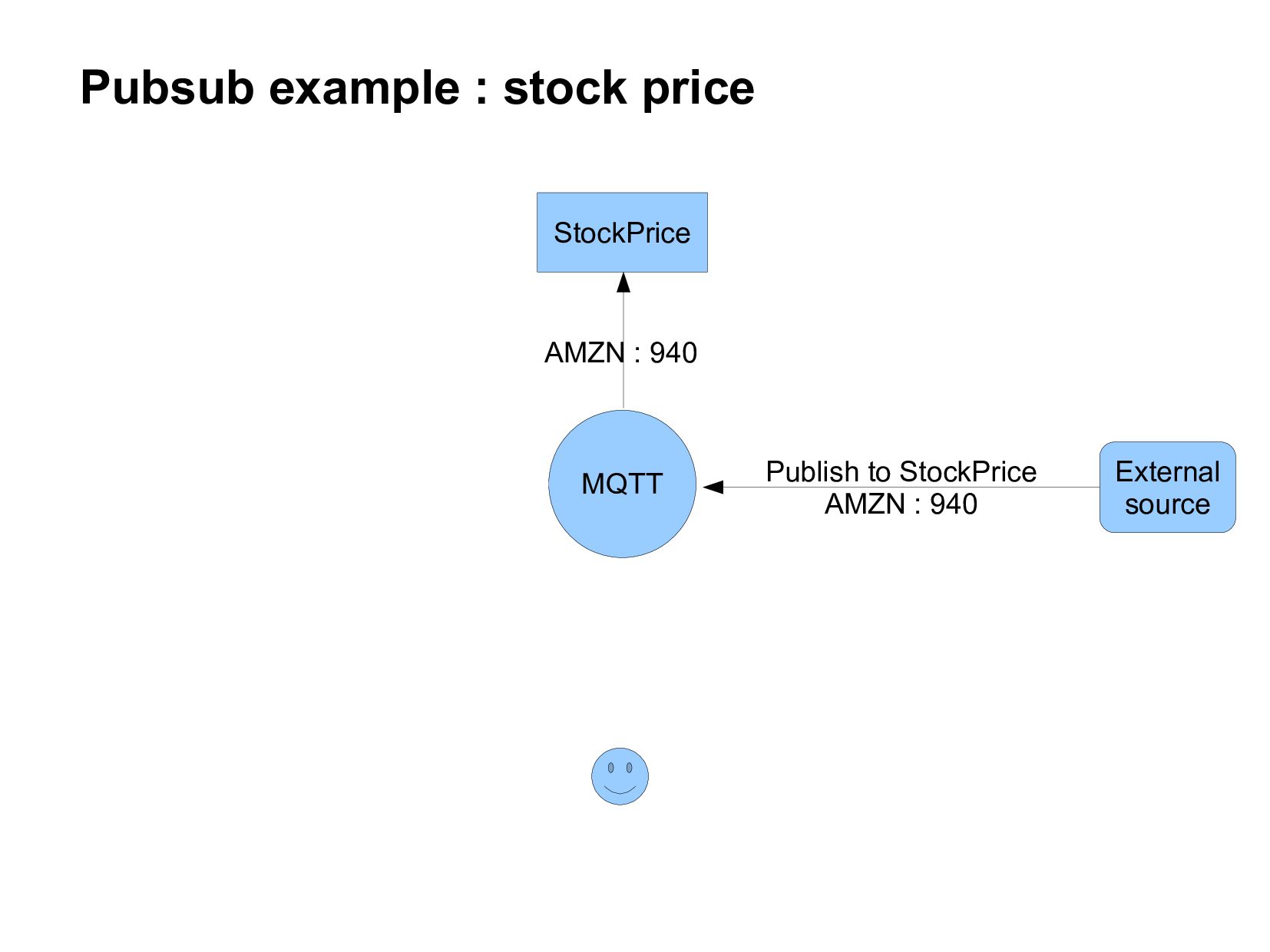

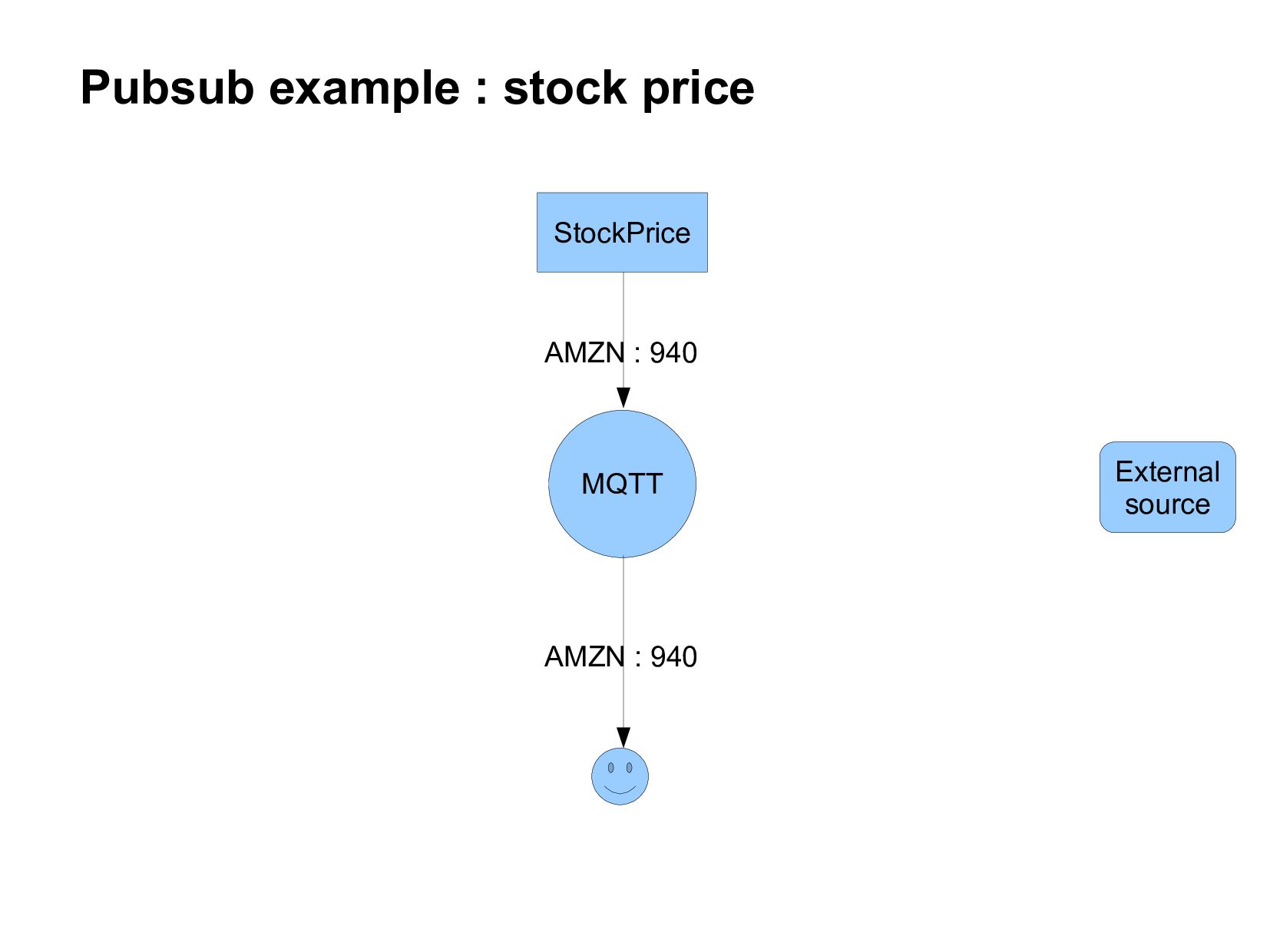

29. Pubsub example : stock price MQTT StockPrice External source Publish to StockPrice AMZN : 940 AMZN : 940
30. Pubsub example : stock price MQTT StockPrice External source AMZN : 940 AMZN : 940

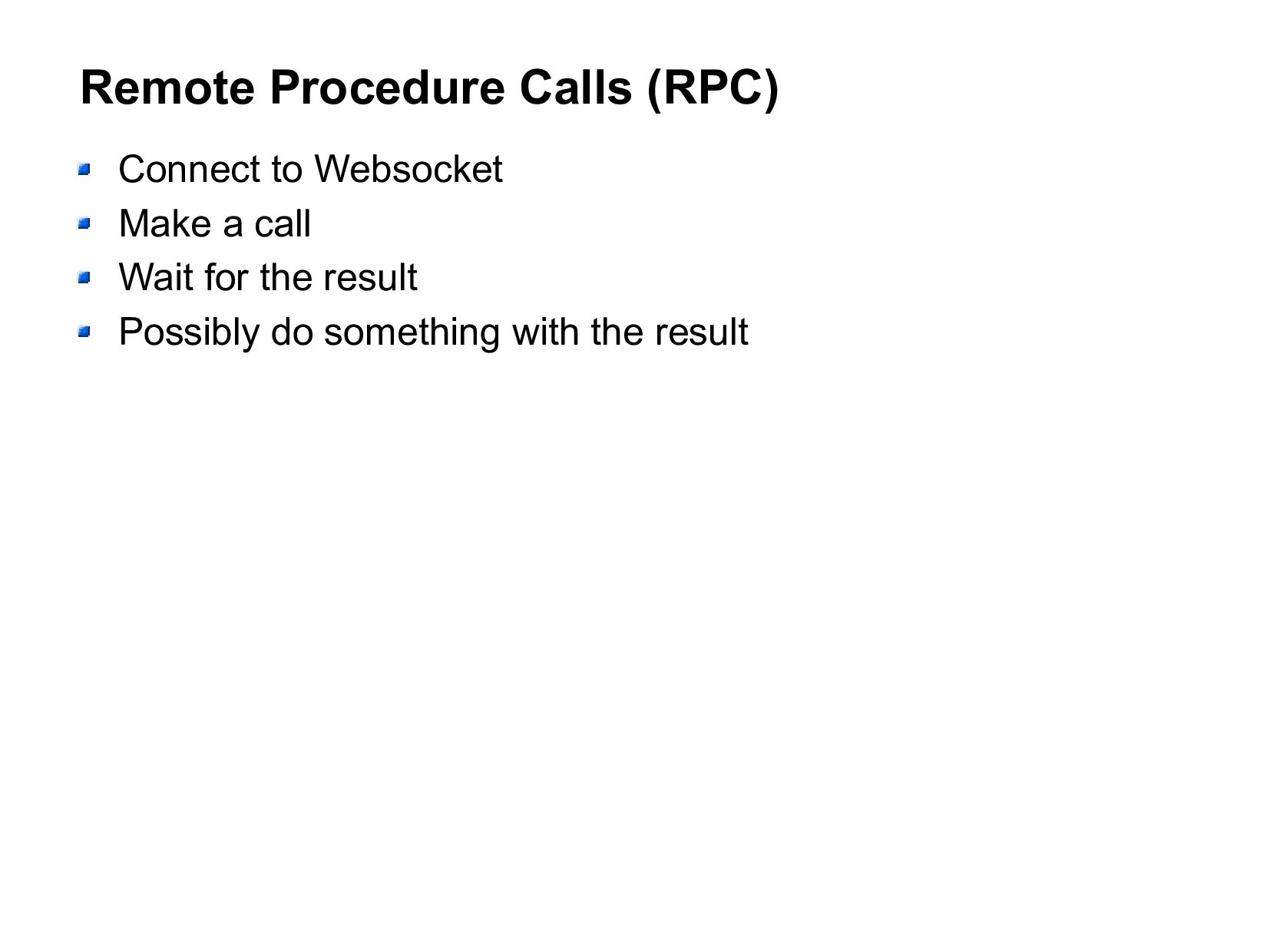

31. Remote Procedure Calls (RPC) Connect to Websocket Make a call Wait for the result Possibly do something with the result
32. RPC – registering and calling

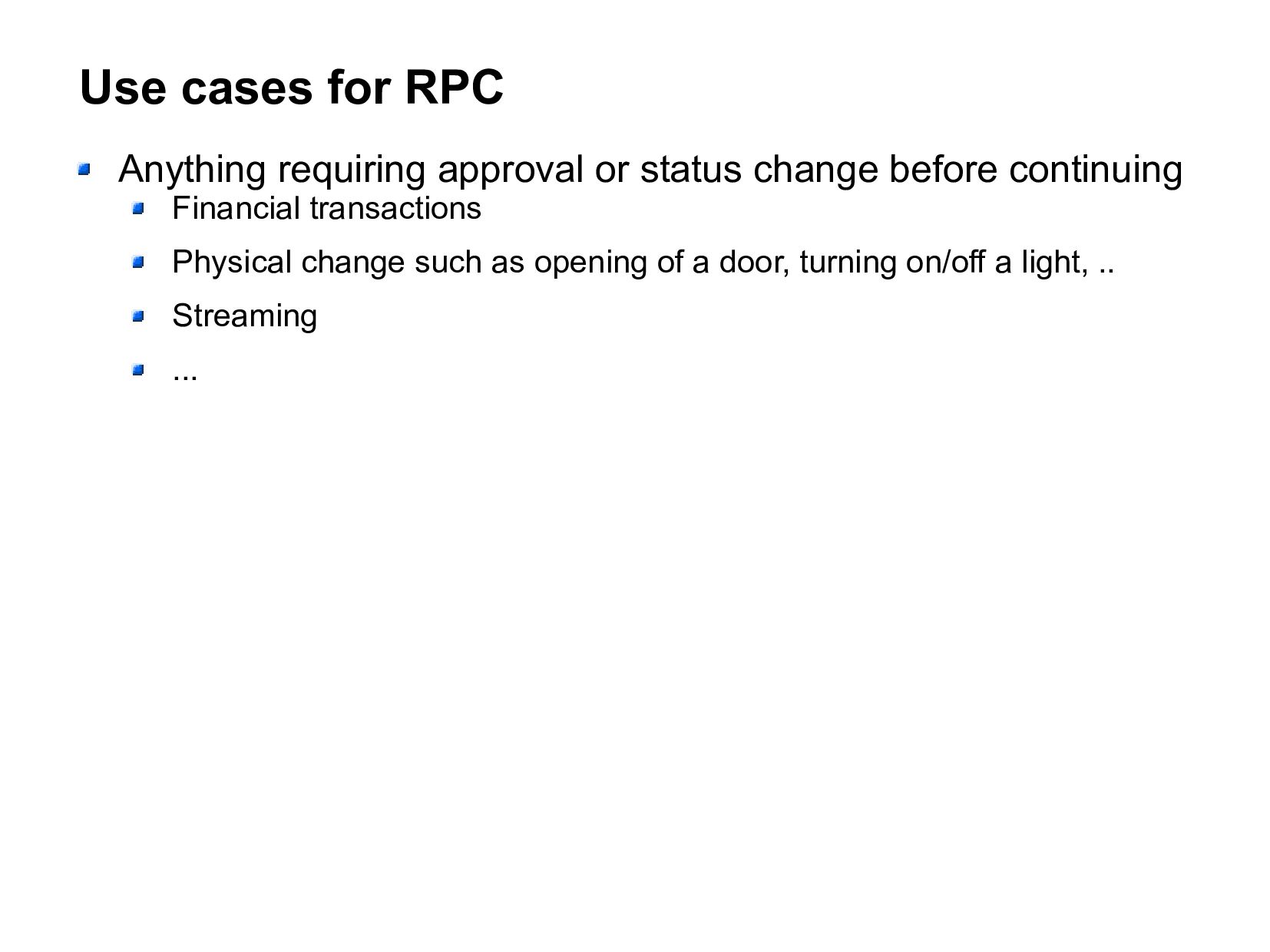

33. Use cases for RPC Anything requiring approval or status change before continuing Financial transactions Physical change such as opening of a door, turning on/off a light, .. Streaming ...

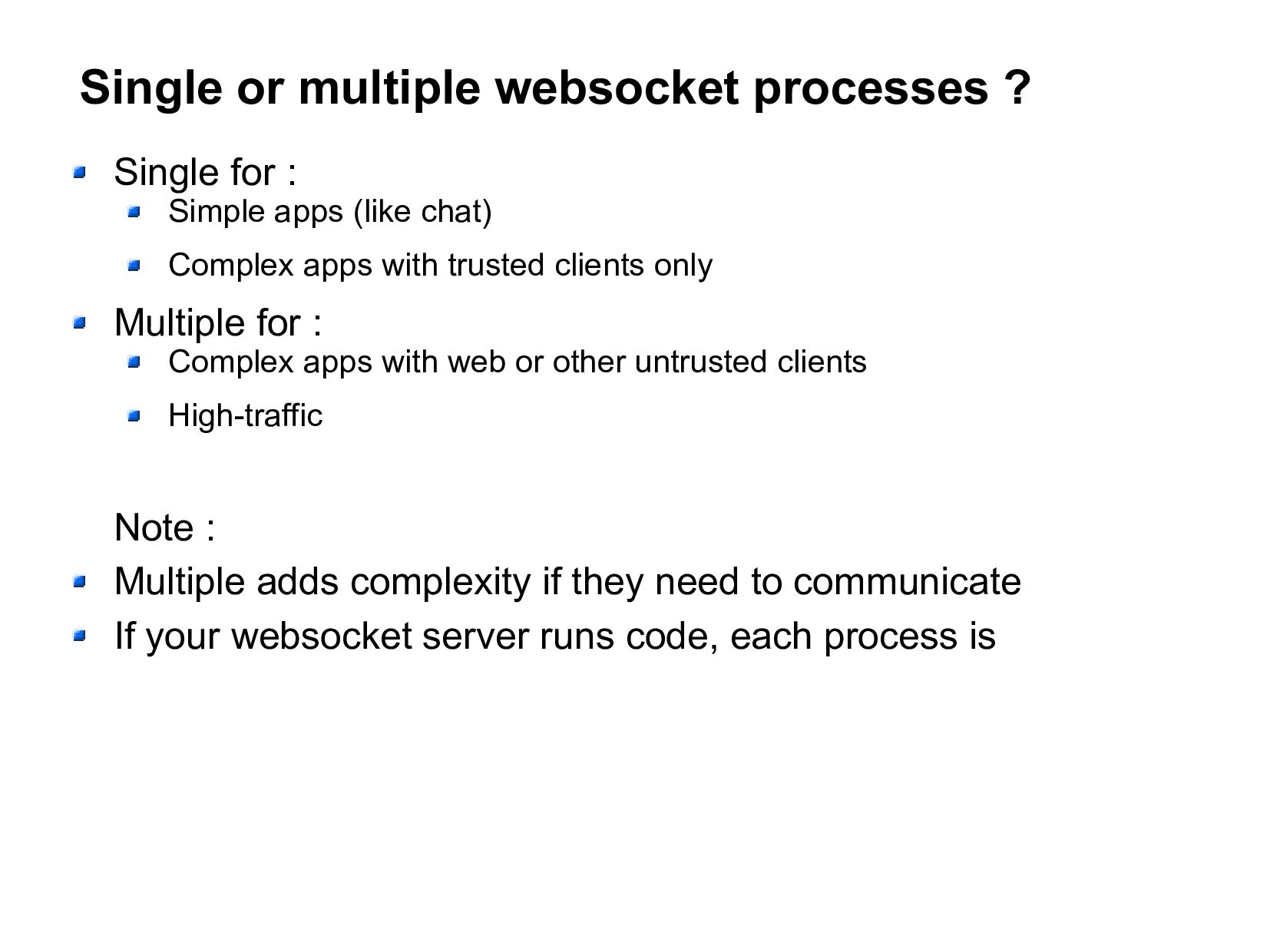

34. Single or multiple websocket processes ? Single for : Simple apps (like chat) Complex apps with trusted clients only Multiple for : Complex apps with web or other untrusted clients High-traffic Note : Multiple adds complexity if they need to communicate If your websocket server runs code, each process is

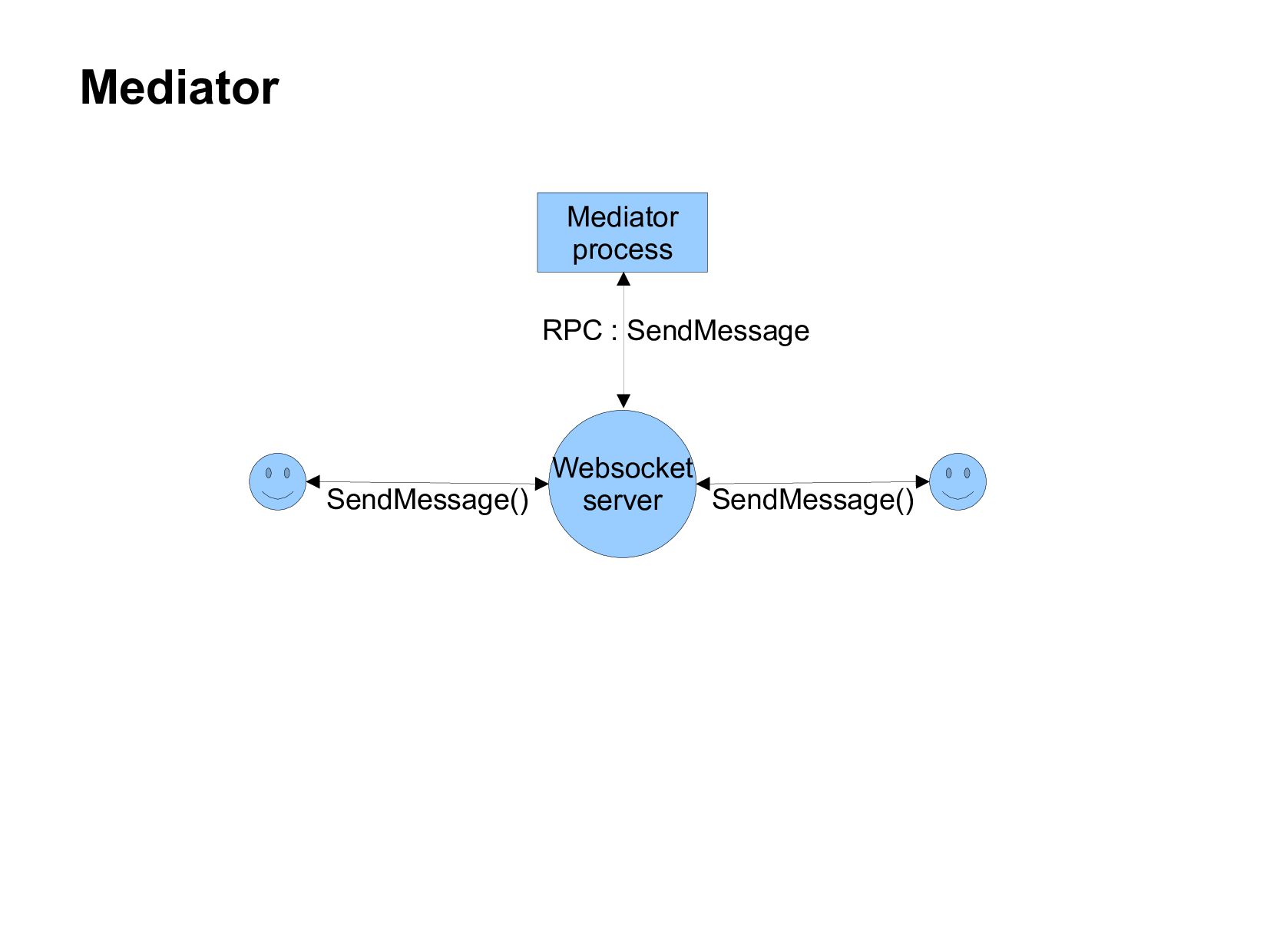

35. Mediator Websocket server Mediator process SendMessage() SendMessage() RPC : SendMessage

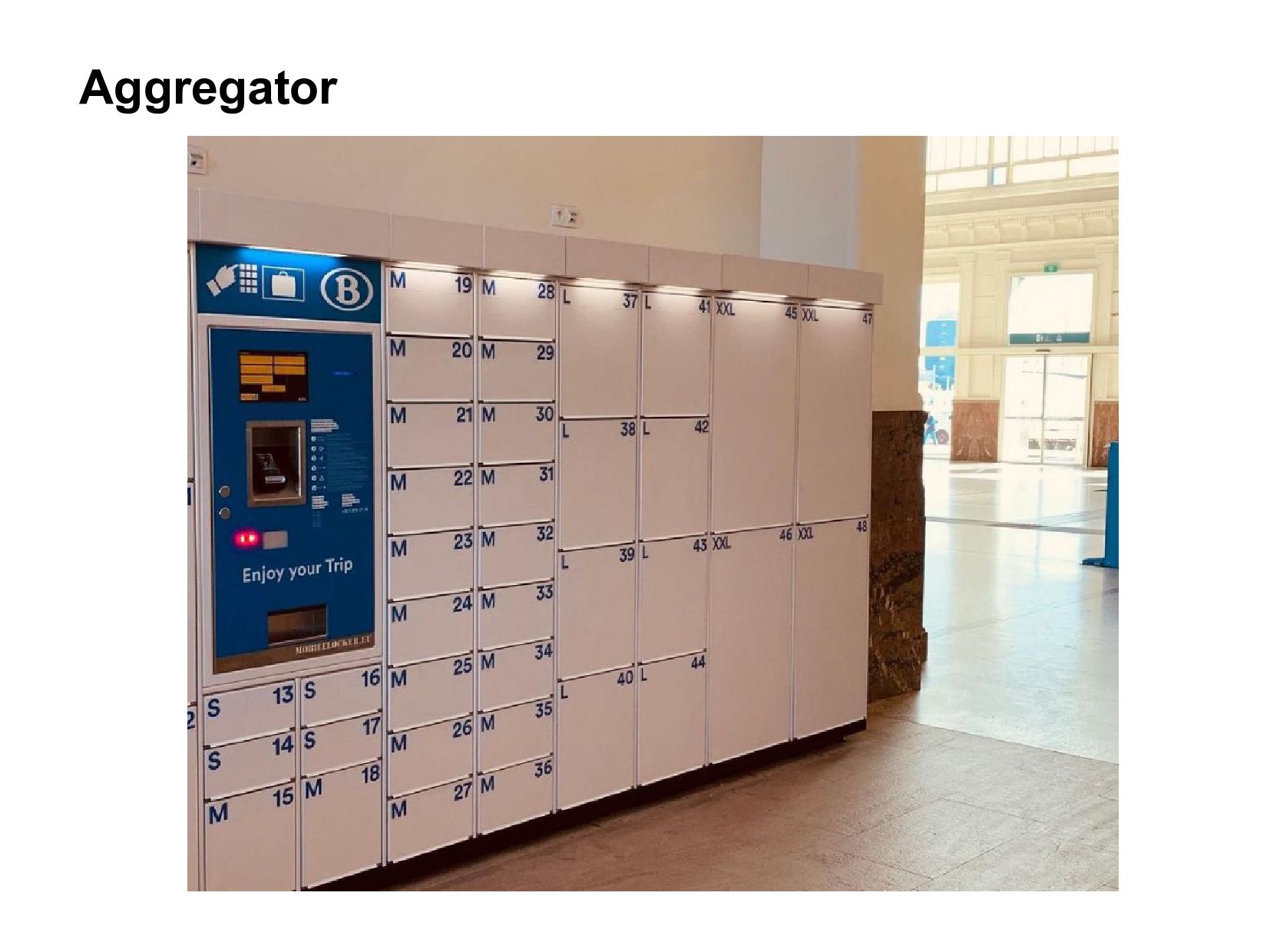

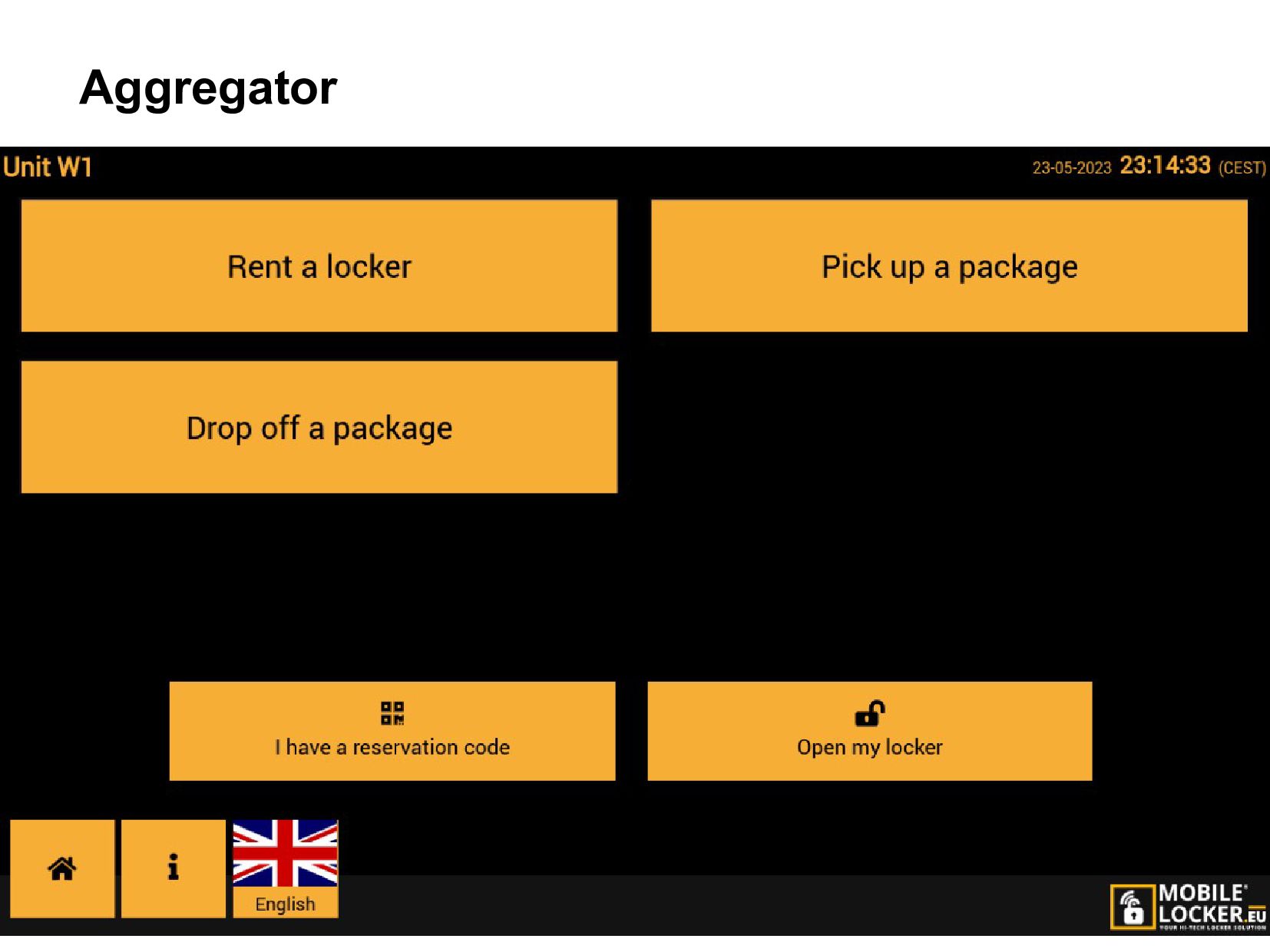

36. Aggregator
37. Aggregator
38. Aggregator Websocket server Device B process UI Device A process Network Serial

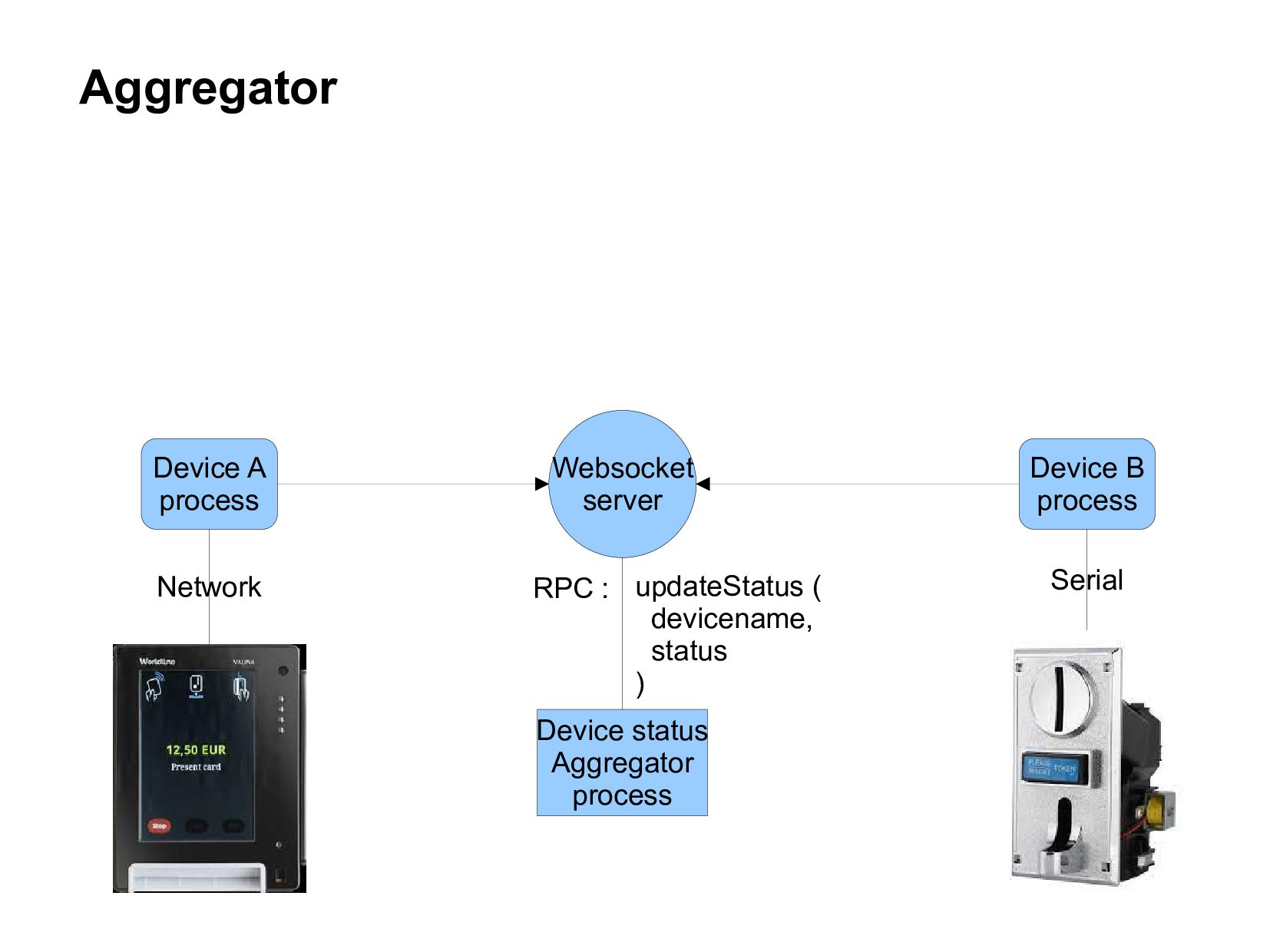

39. Aggregator Device status Aggregator process Websocket server Device B process Device A process Network Serial updateStatus ( devicename, status ) RPC :

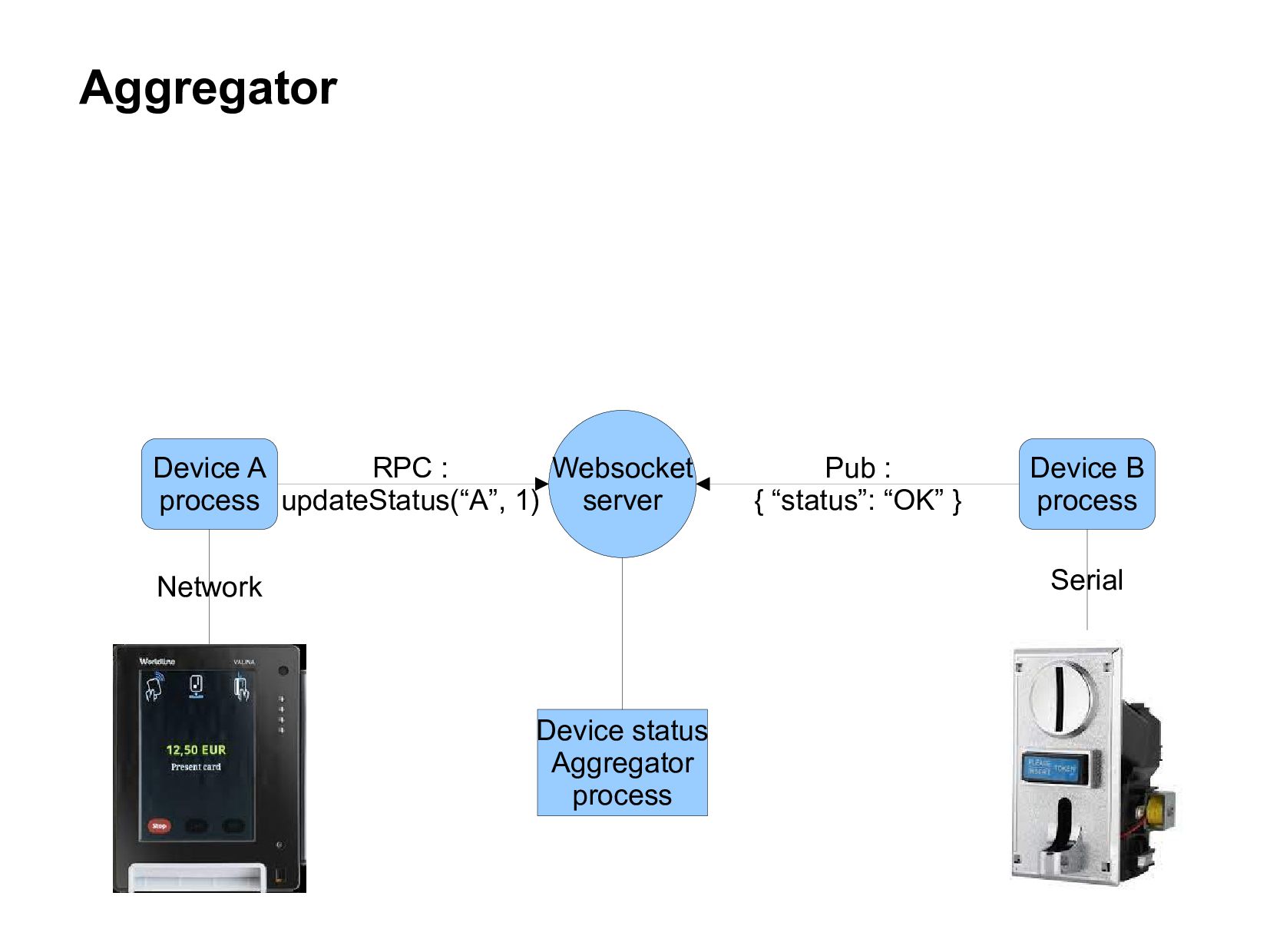

40. Aggregator Websocket server RPC : updateStatus(“A”, 1) Pub : { “status”: “OK” } Device B process Device A process Network Serial Device status Aggregator process

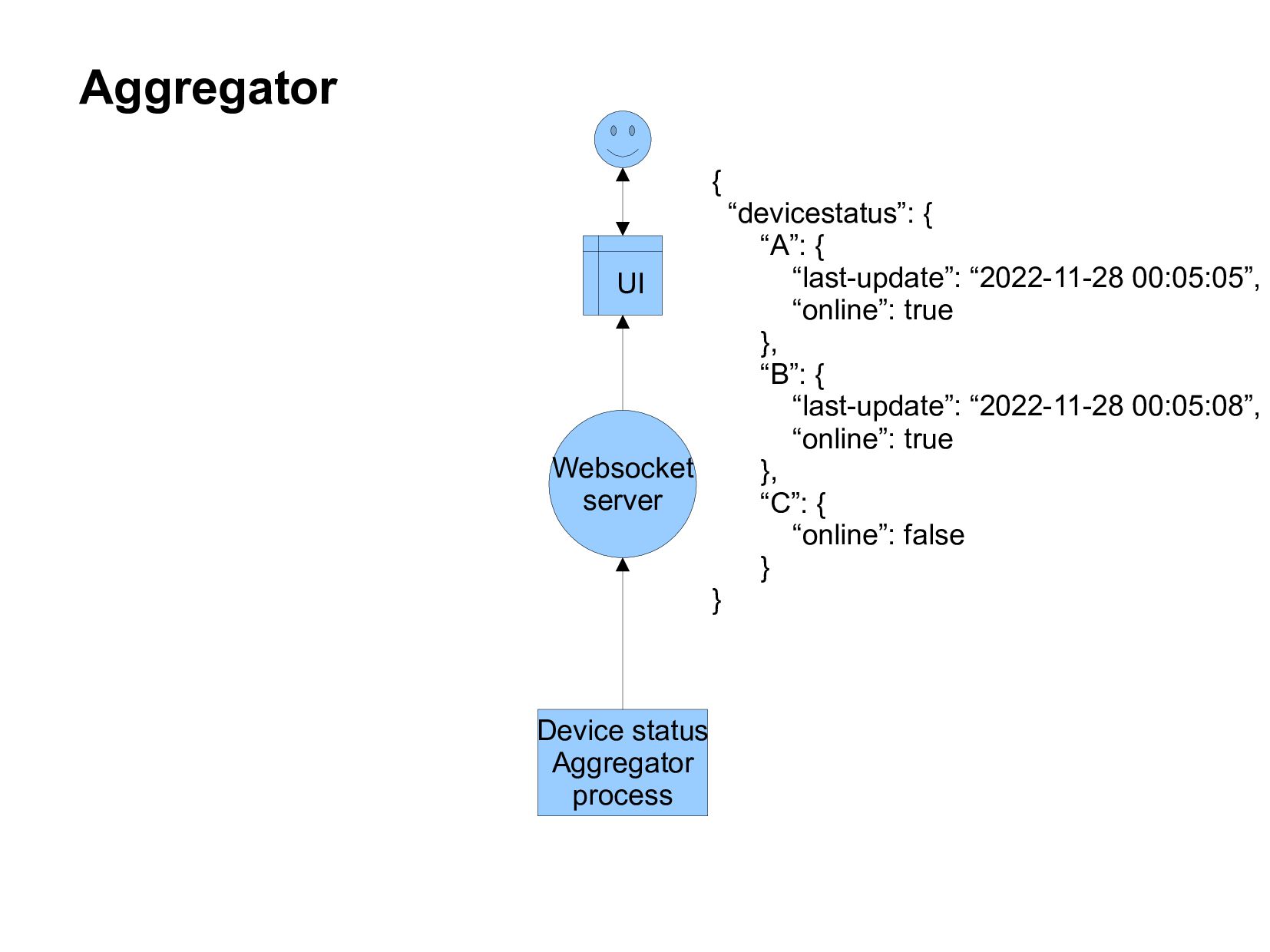

41. Aggregator { “devicestatus”: { “A”: { “last-update”: “2022-11-28 00:05:05”, “online”: true }, “B”: { “last-update”: “2022-11-28 00:05:08”, “online”: true }, “C”: { “online”: false } } UI Websocket server Device status Aggregator process

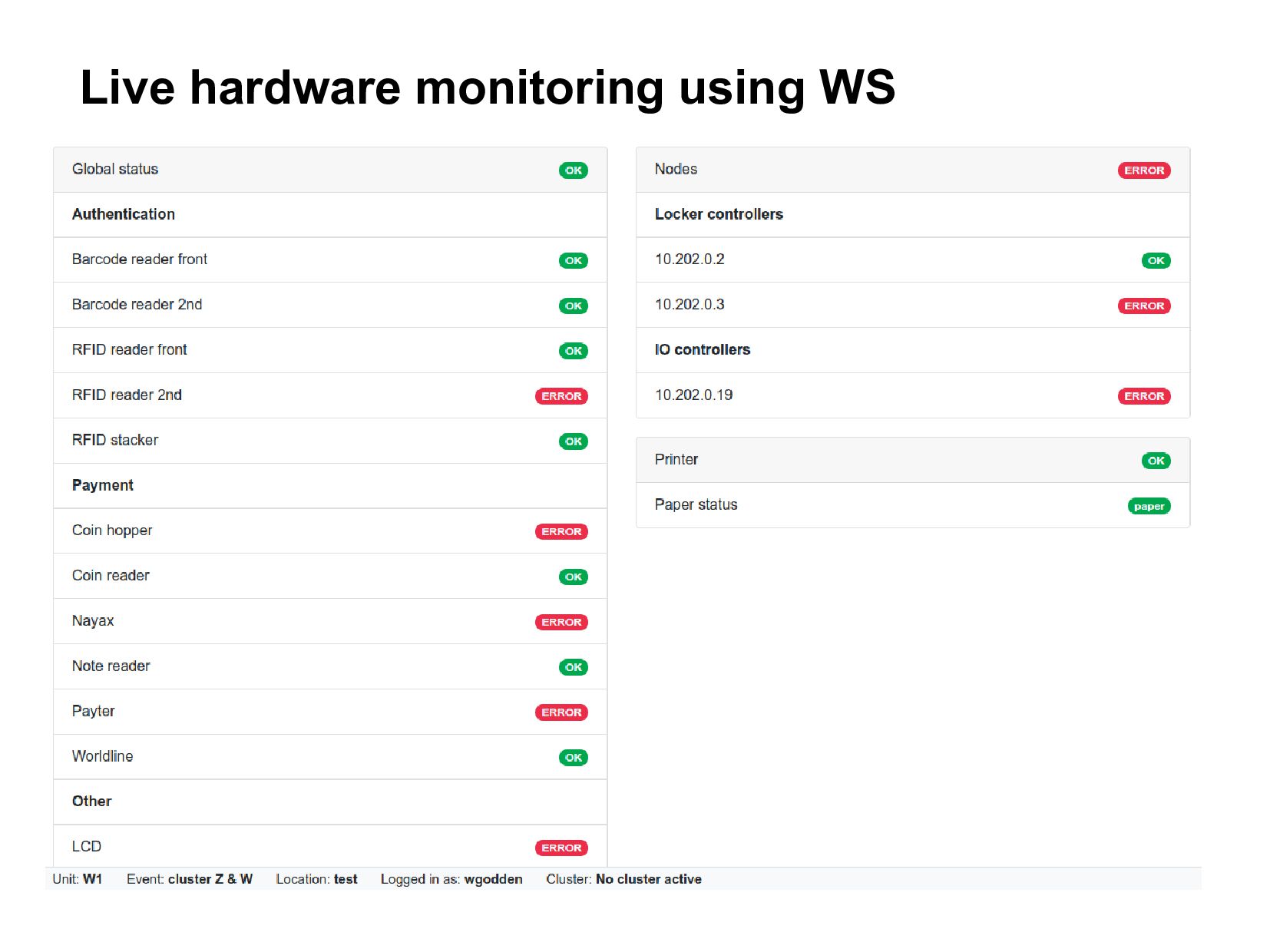

42. Live hardware monitoring using WS

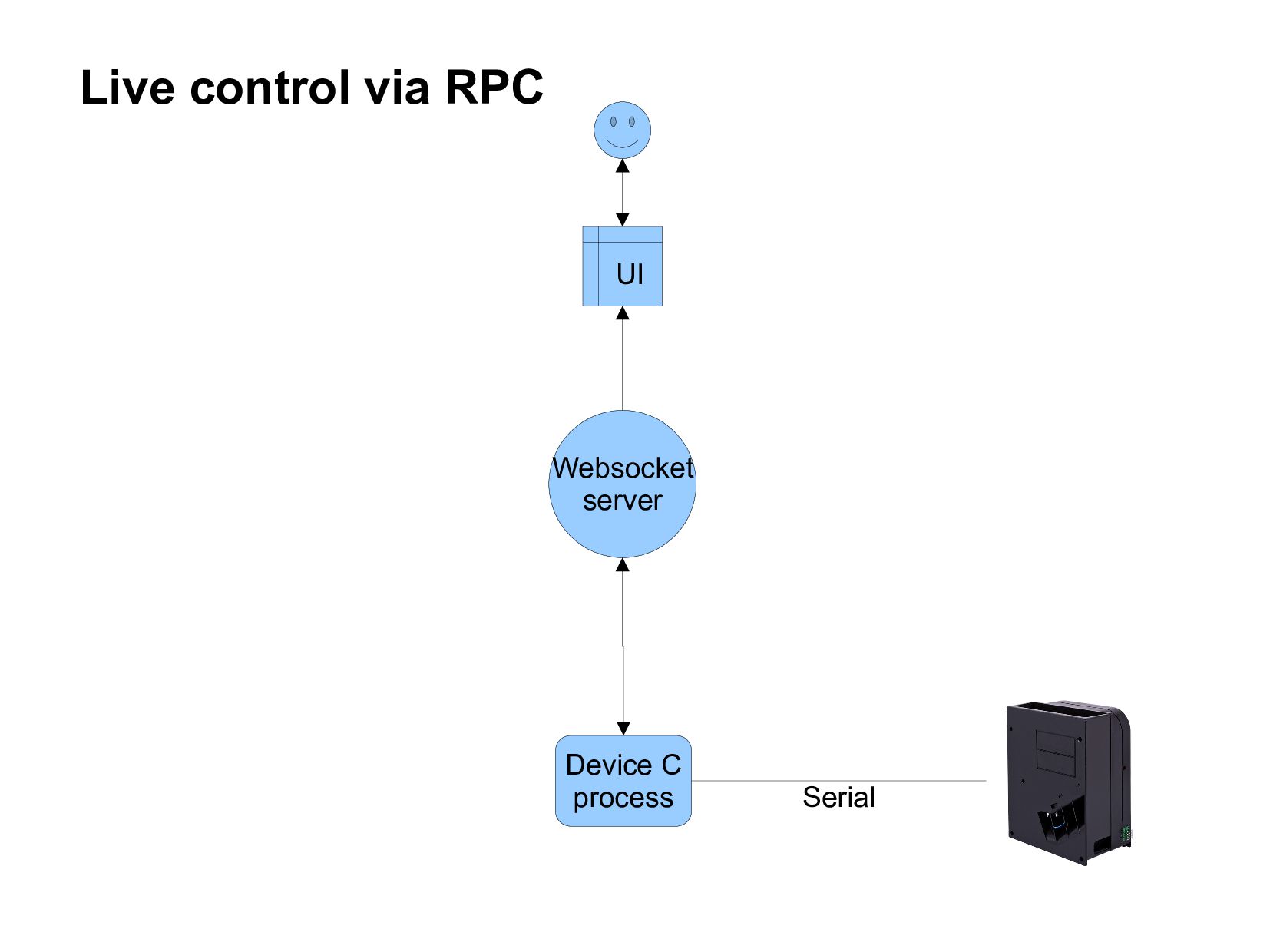

43. Live control via RPC Websocket server UI Device C process Serial

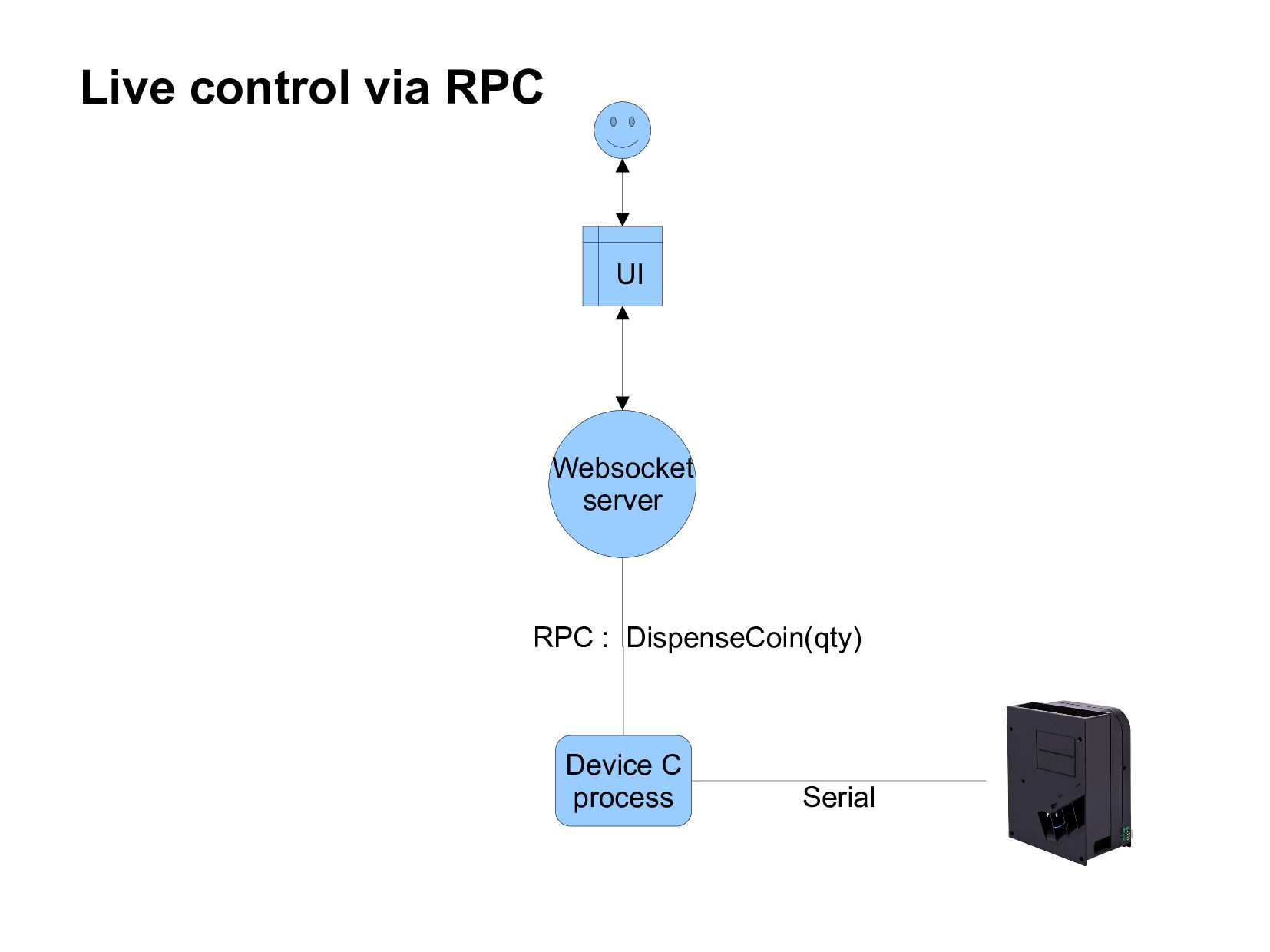

45. Live control via RPC Websocket server UI RPC : DispenseCoin(qty) Device C process Serial

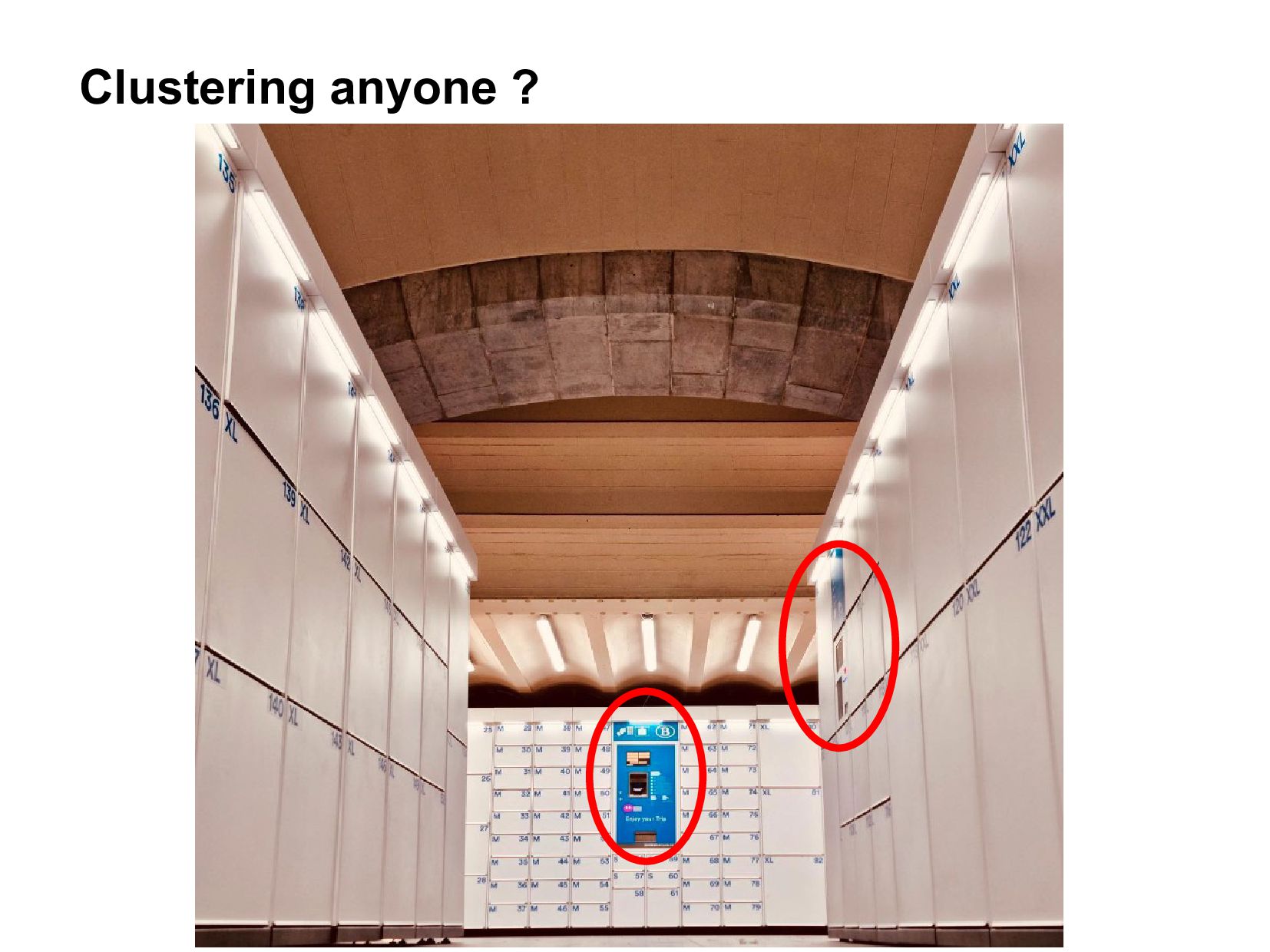

46. Clustering anyone ?

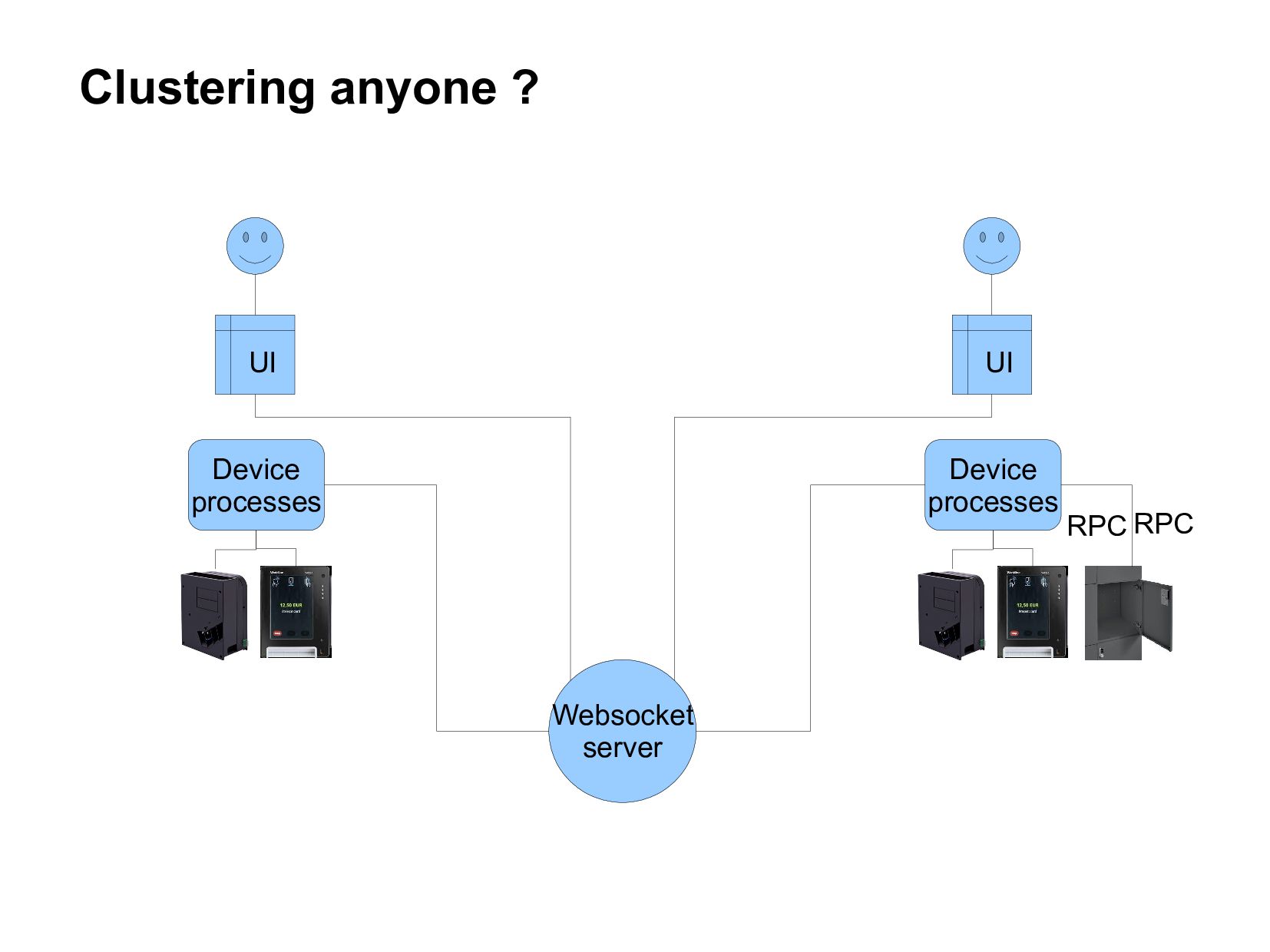

47. Clustering anyone ? Websocket server Device processes UI Device processes UI RPC RPC

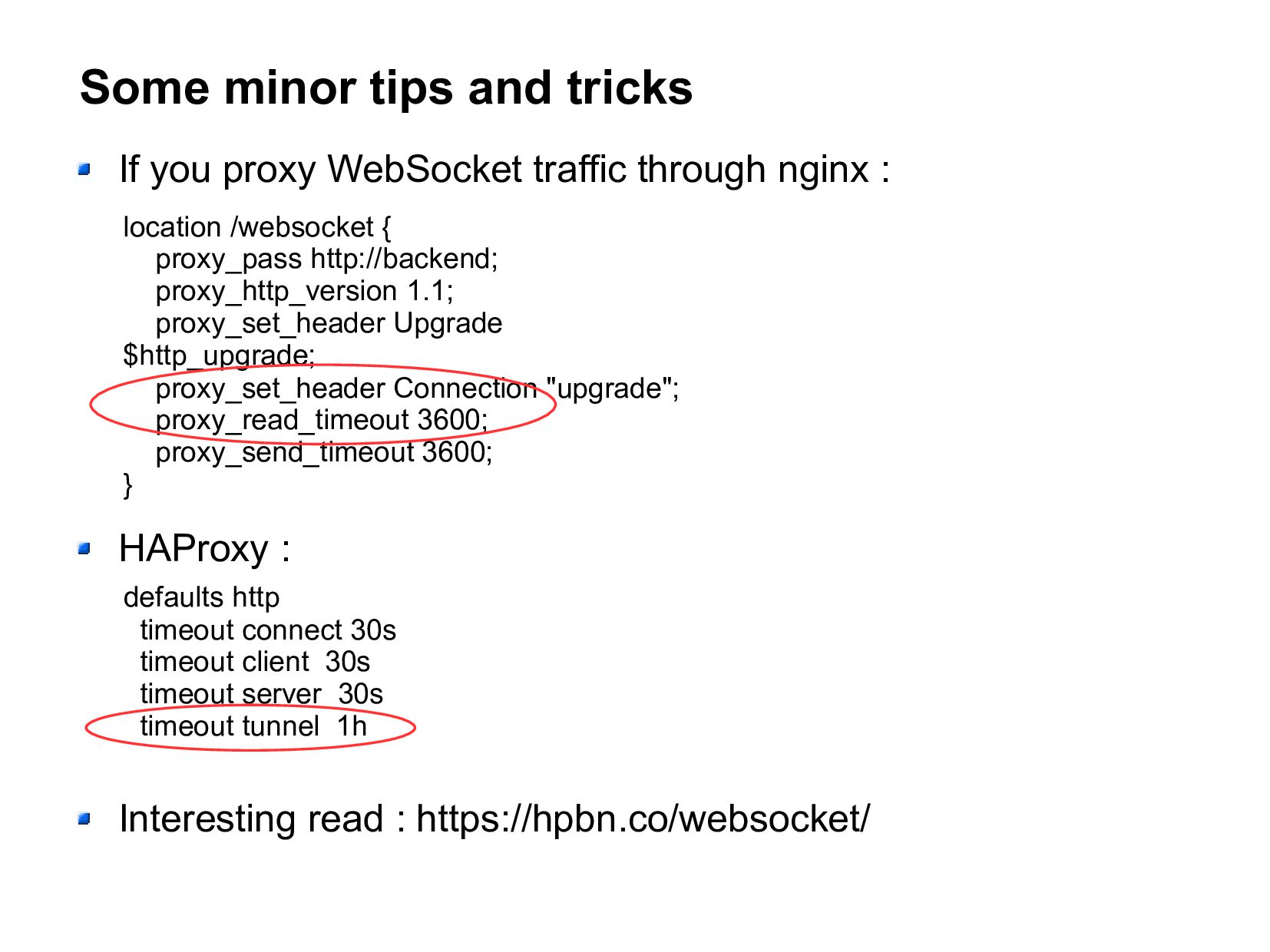

48. Some minor tips and tricks If you proxy WebSocket traffic through nginx : HAProxy : Interesting read : https://hpbn.co/websocket/ location /websocket { proxy_pass http://backend; proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "upgrade"; proxy_read_timeout 3600; proxy_send_timeout 3600; } defaults http timeout connect 30s timeout client 30s timeout server 30s timeout tunnel 1h

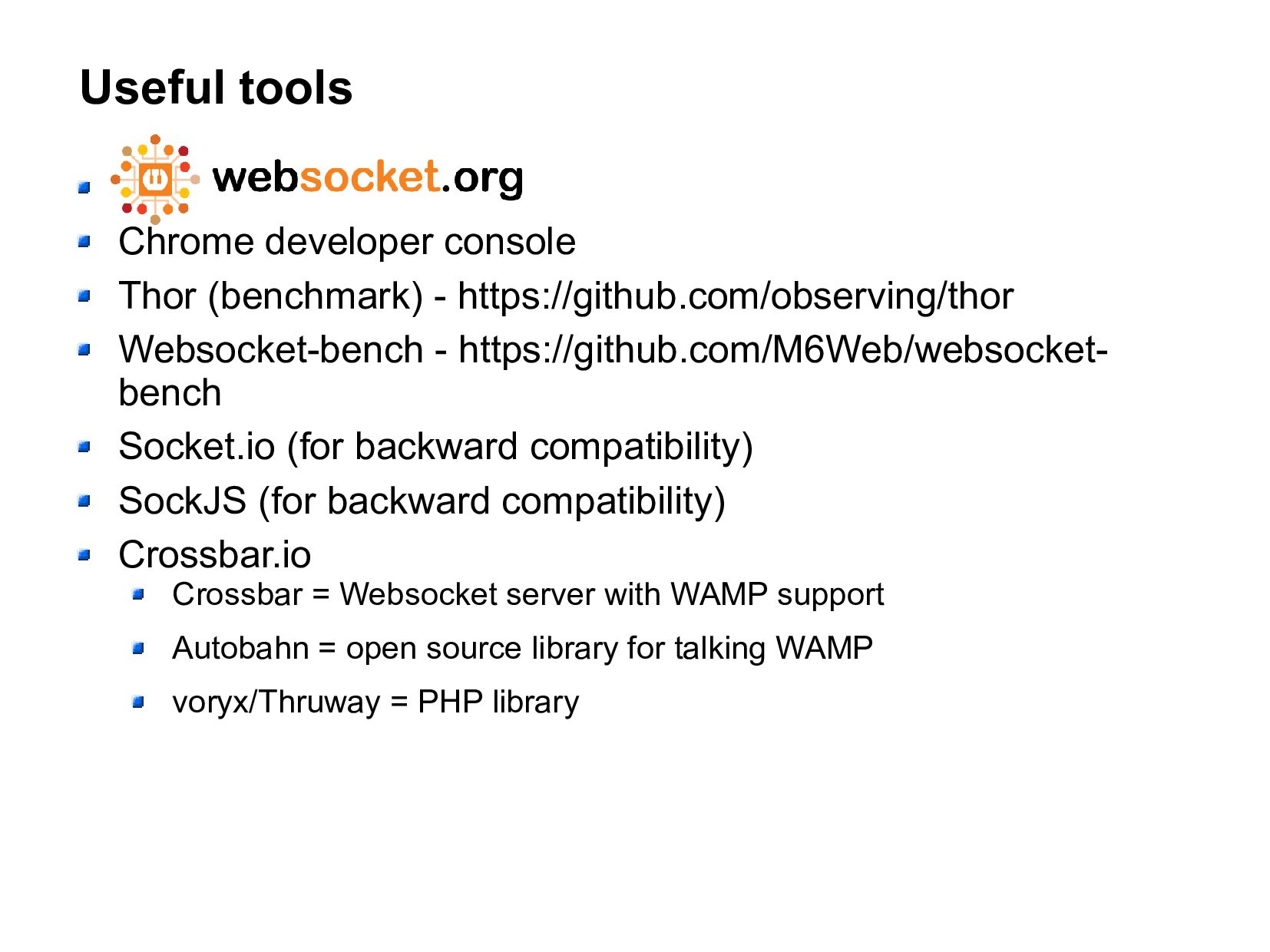

49. Useful tools Chrome developer console Thor (benchmark) - https://github.com/observing/thor Websocket-bench - https://github.com/M6Web/websocket- bench Socket.io (for backward compatibility) SockJS (for backward compatibility) Crossbar.io Crossbar = Websocket server with WAMP support Autobahn = open source library for talking WAMP voryx/Thruway = PHP library
50. Questions ?
51. Questions ?
52. Contact Twitter @wimgtr Slides http://www.slideshare.net/wimg E-mail wim@cu.be Thanks !
